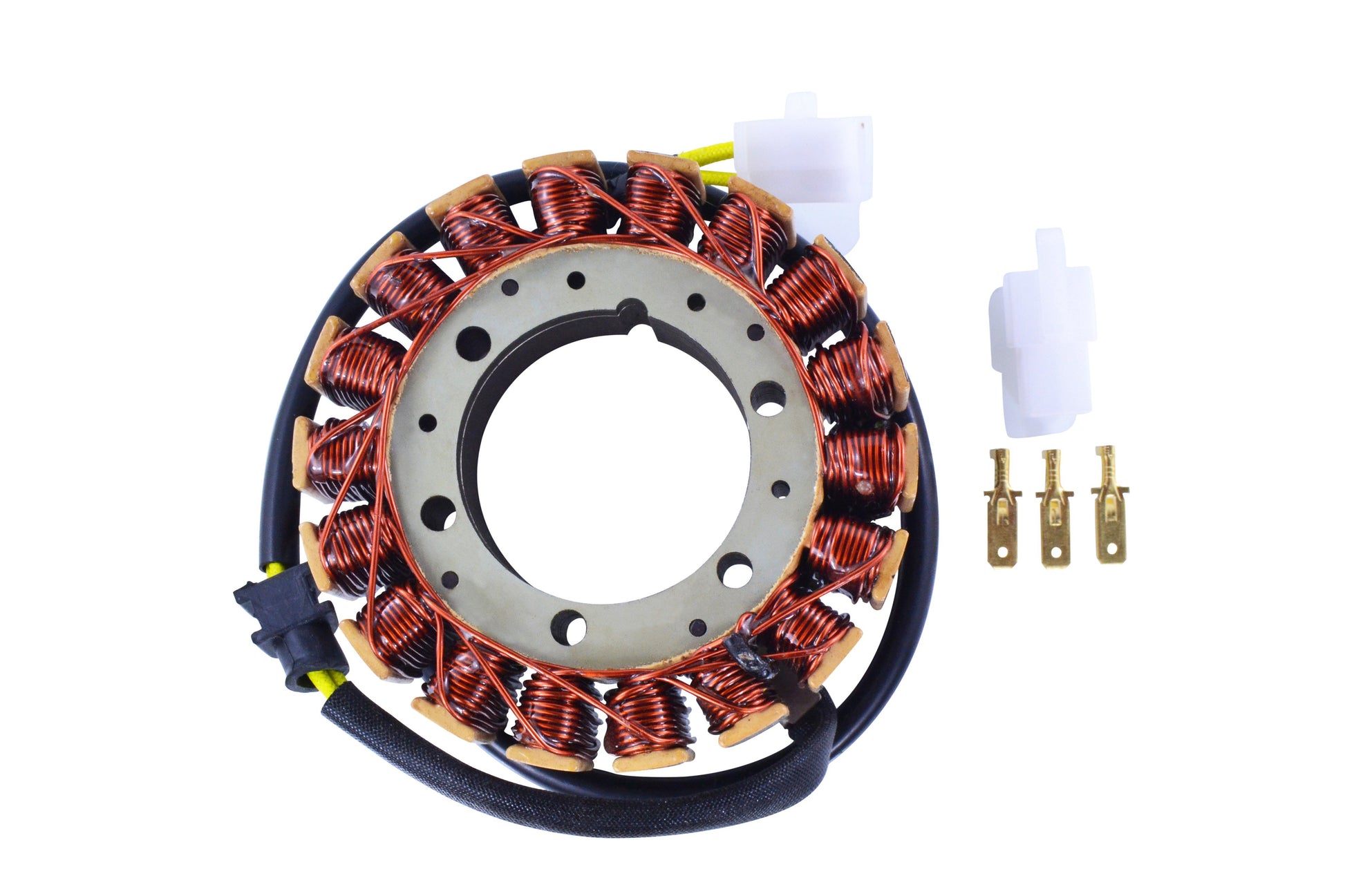

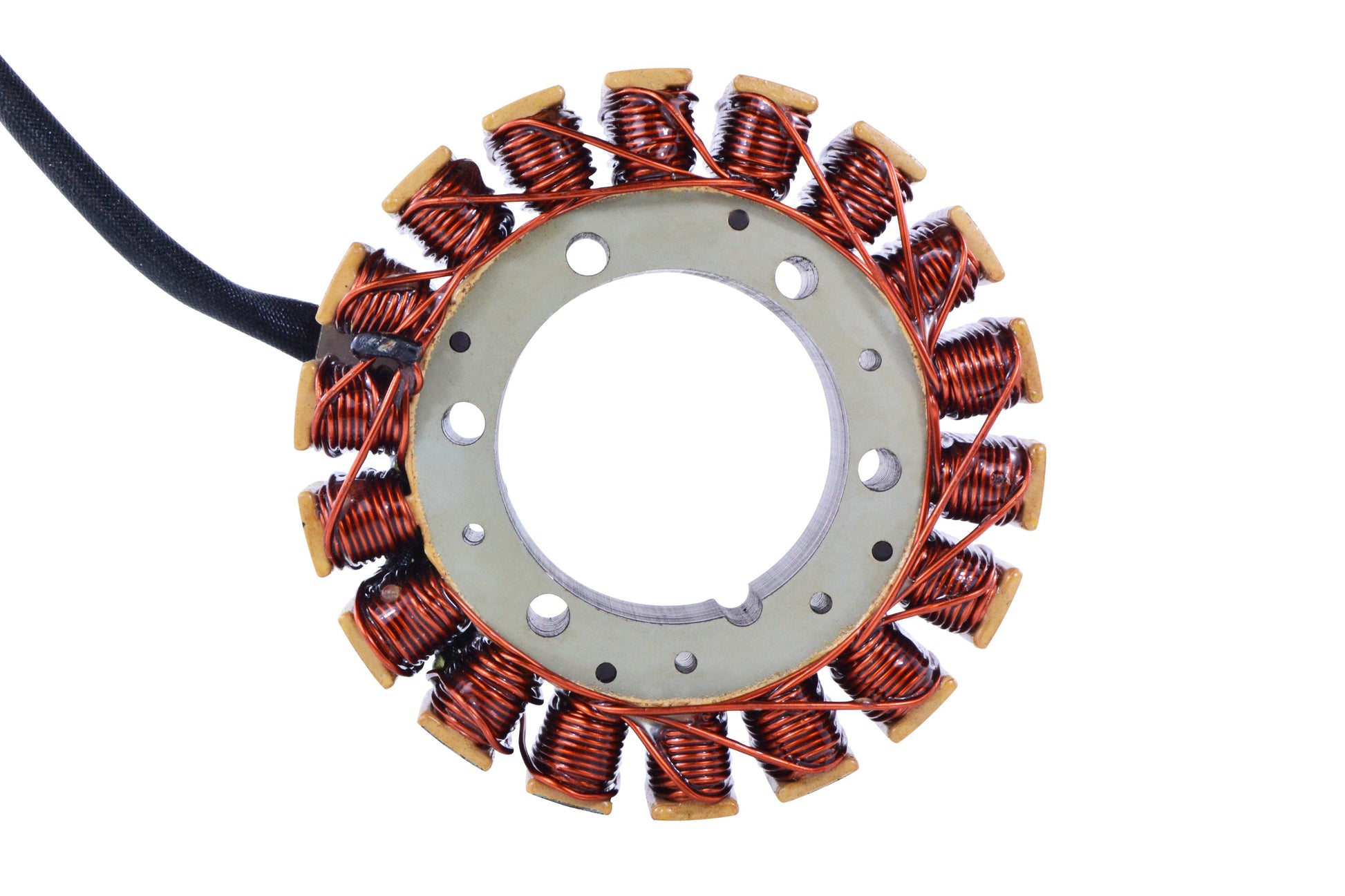

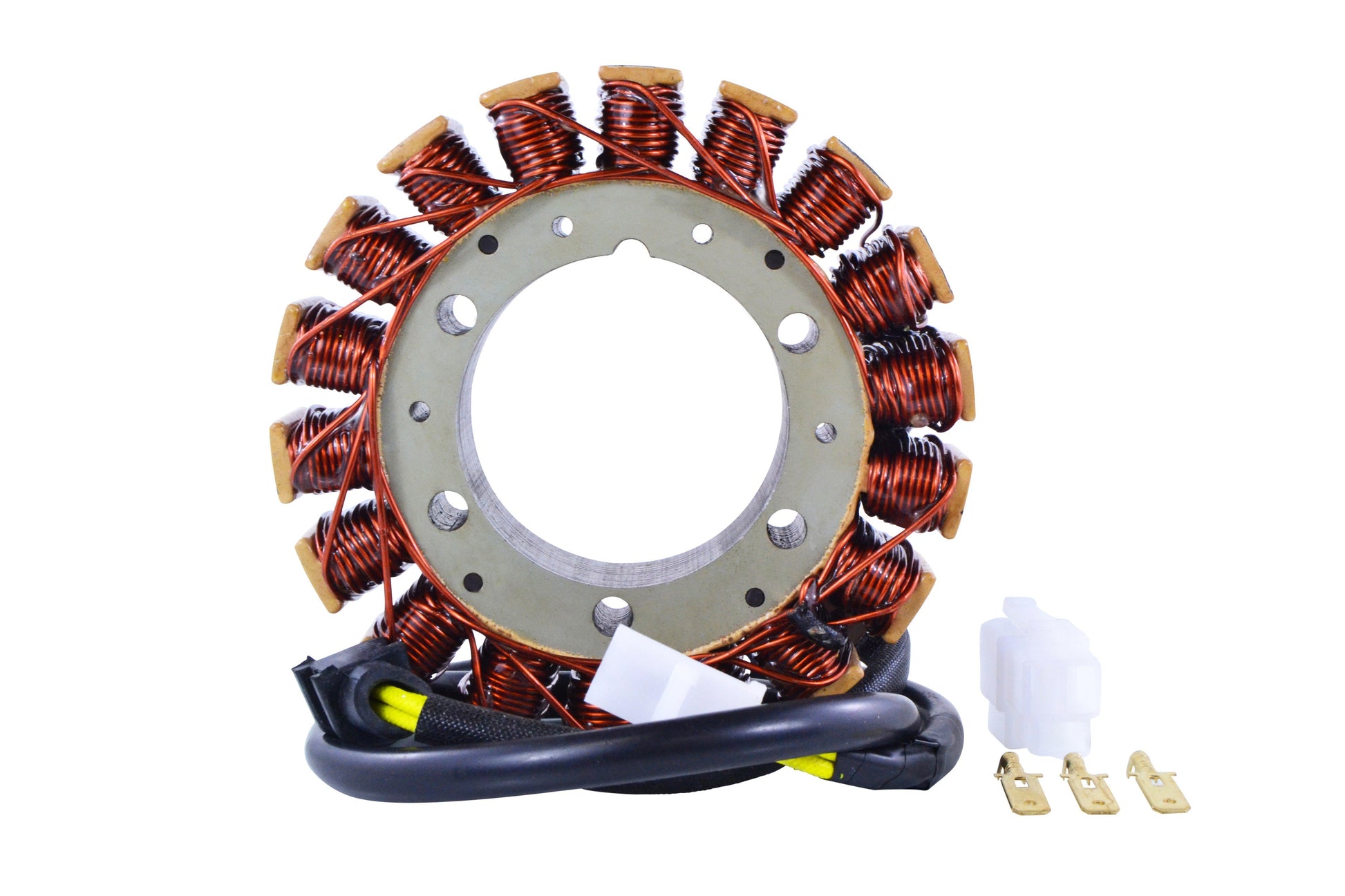

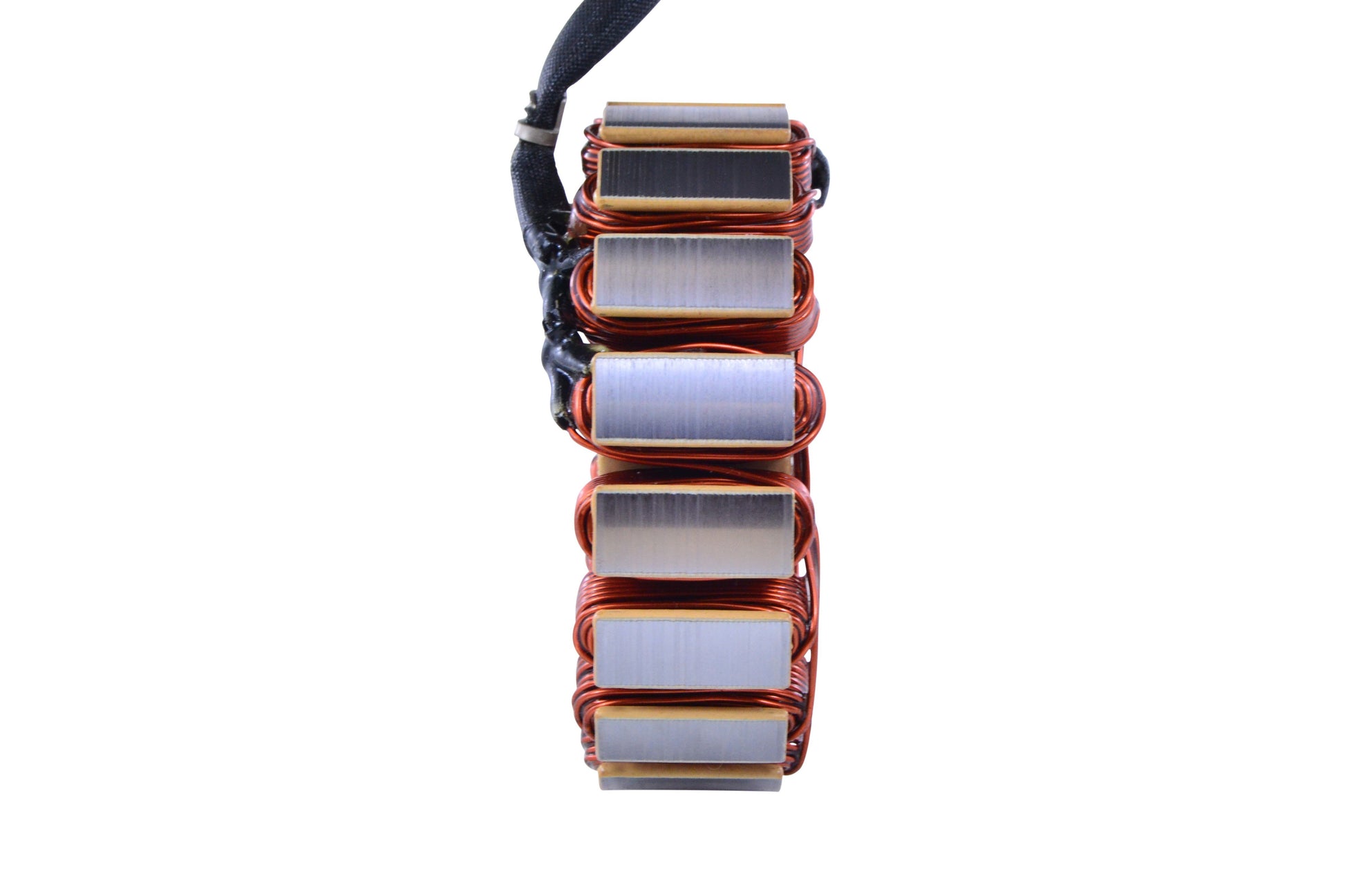

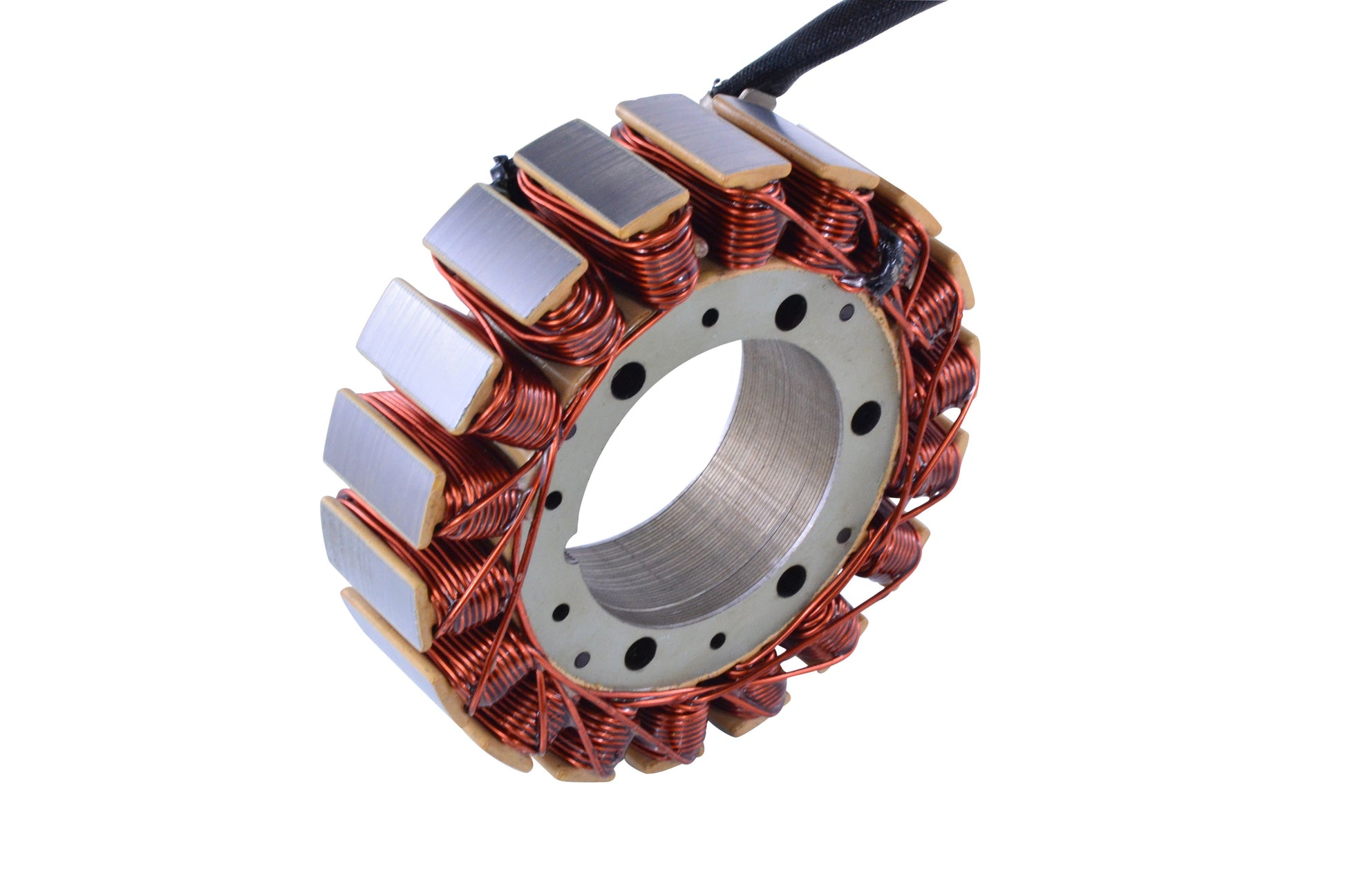

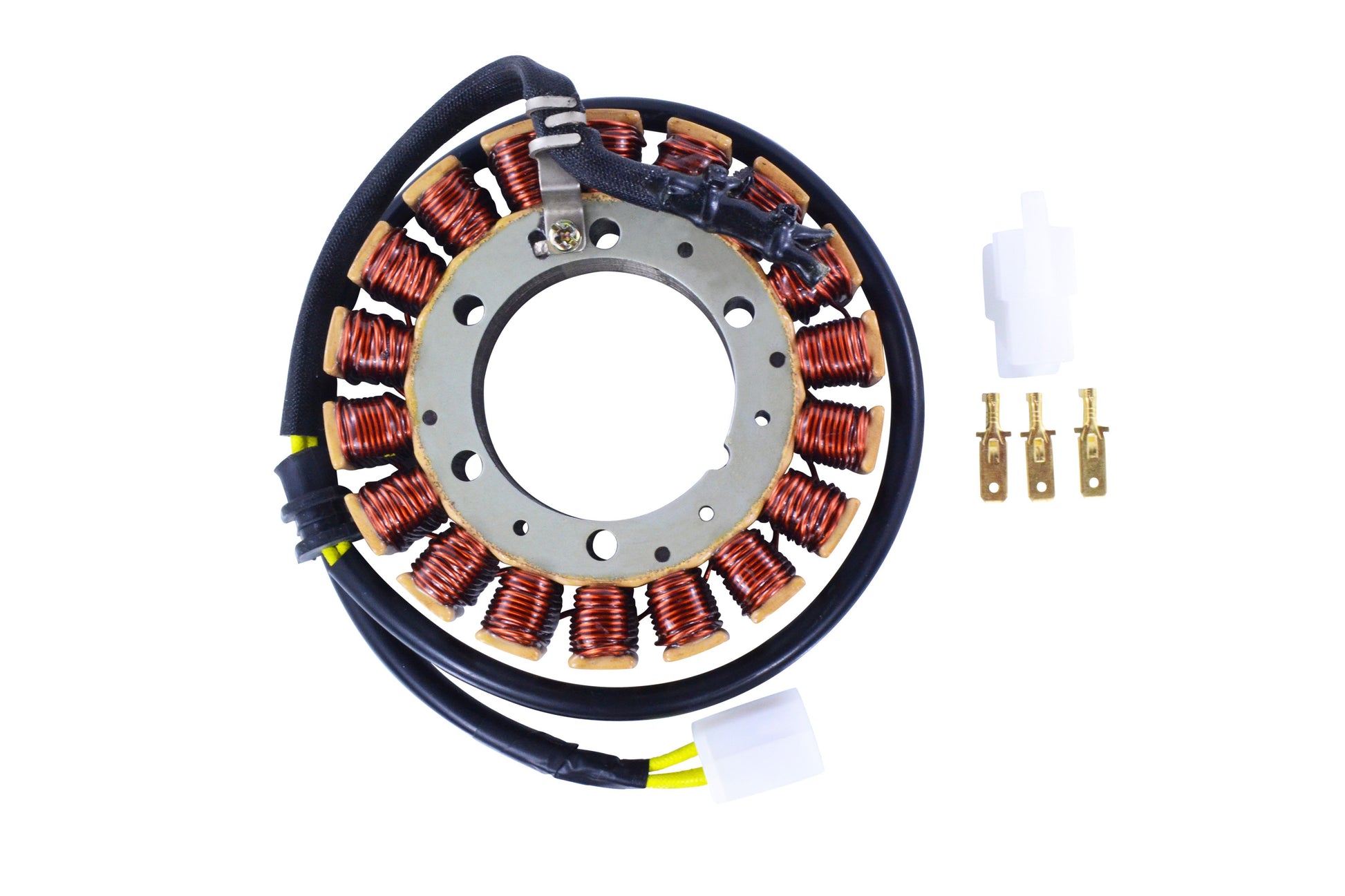

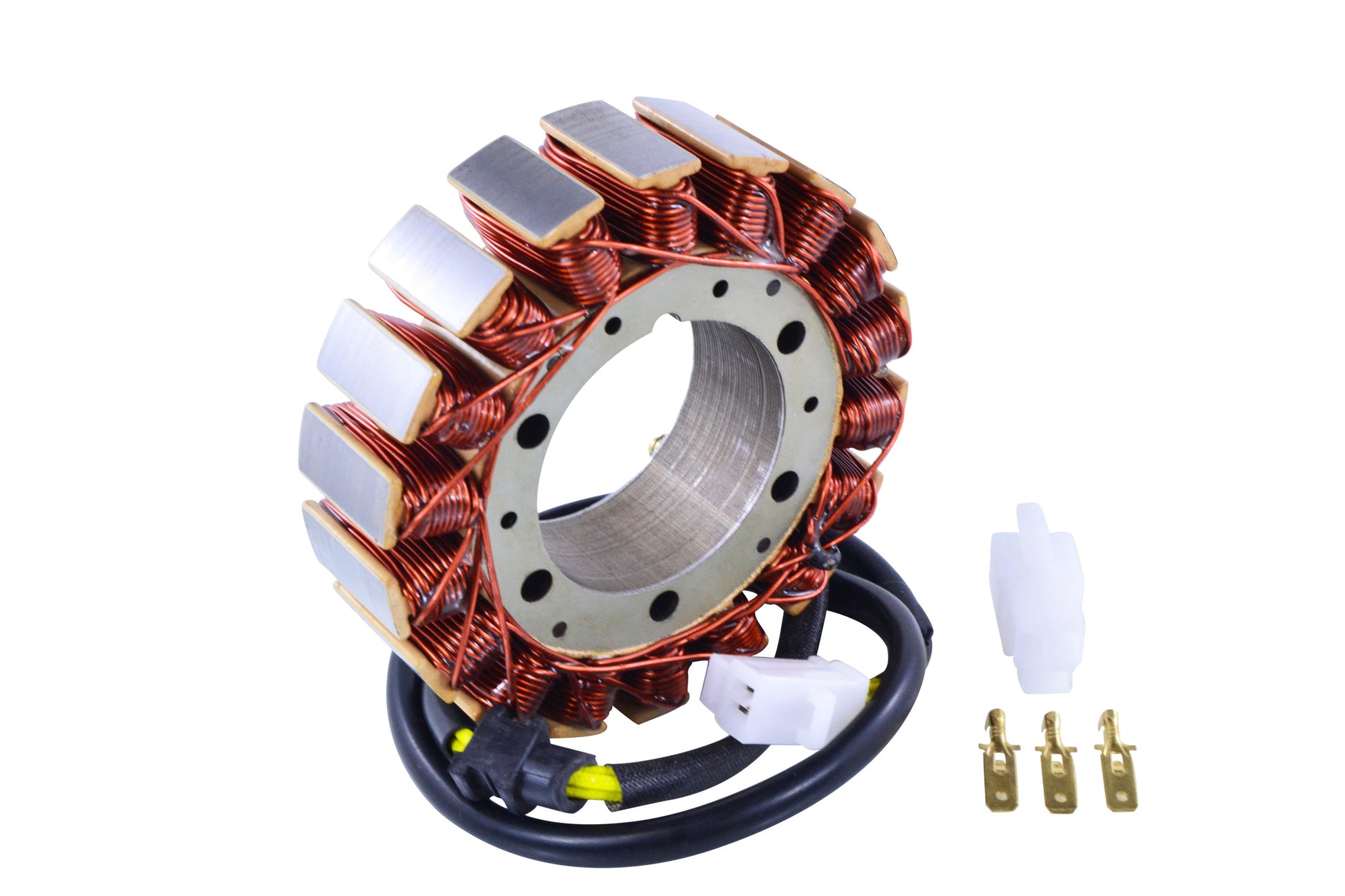

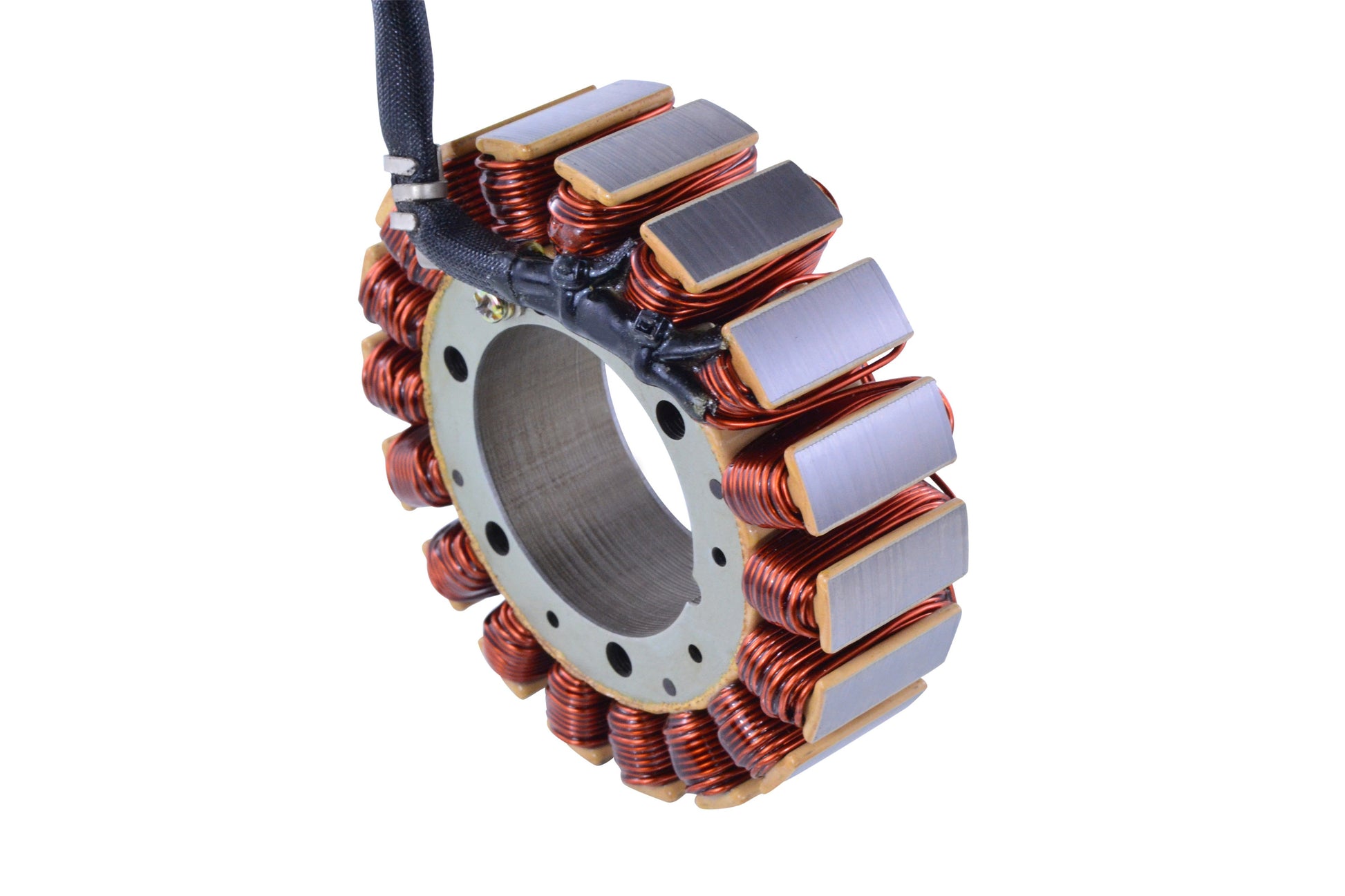

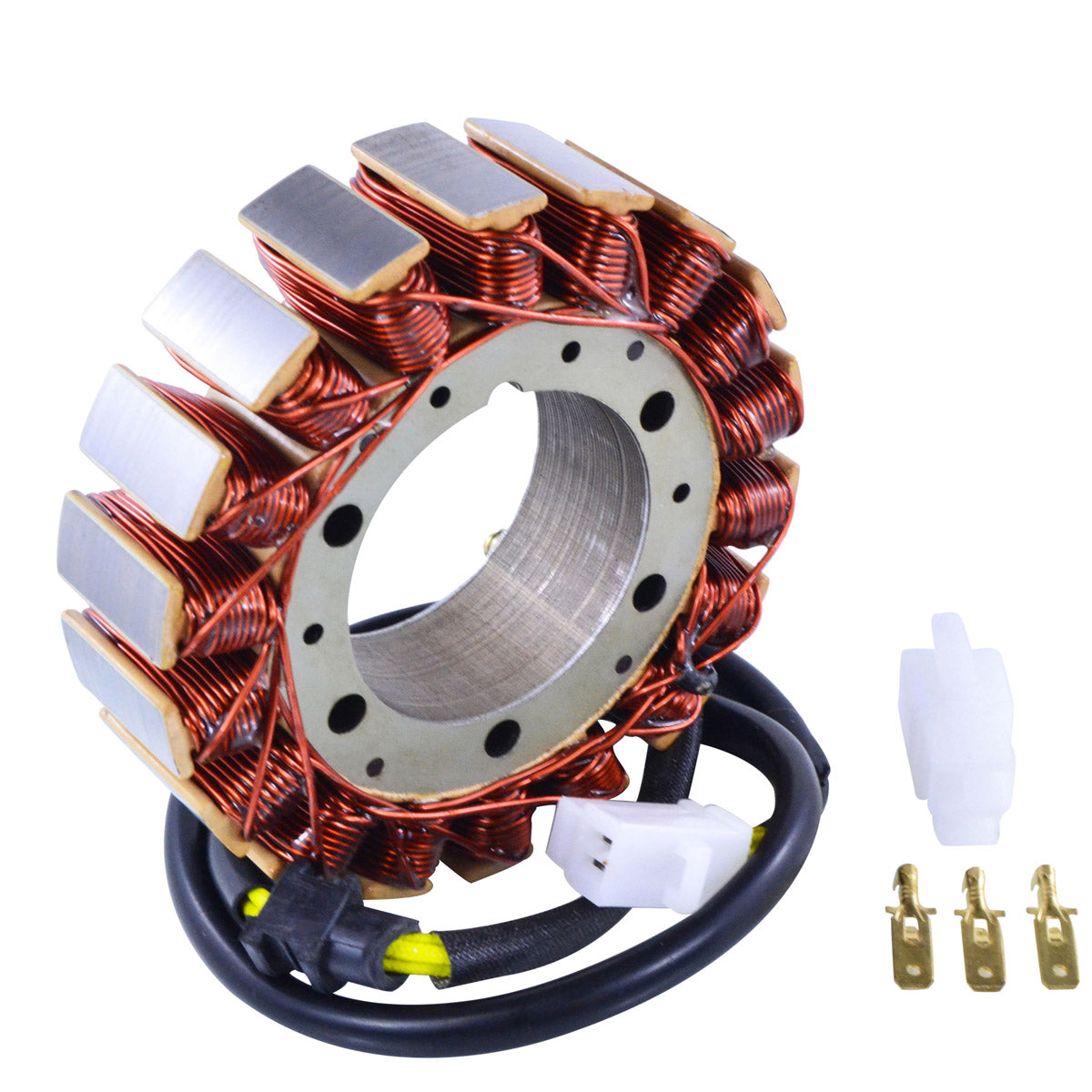

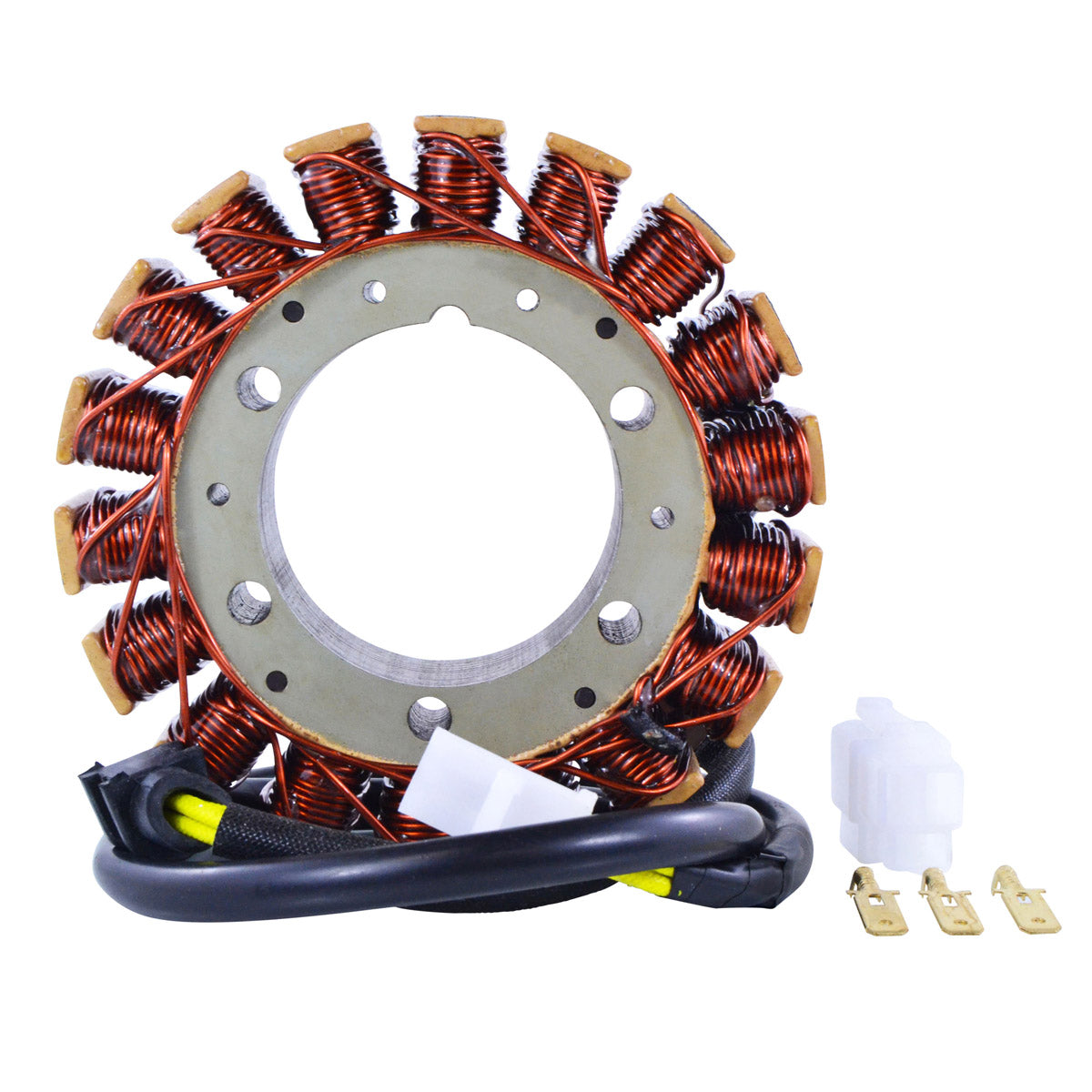

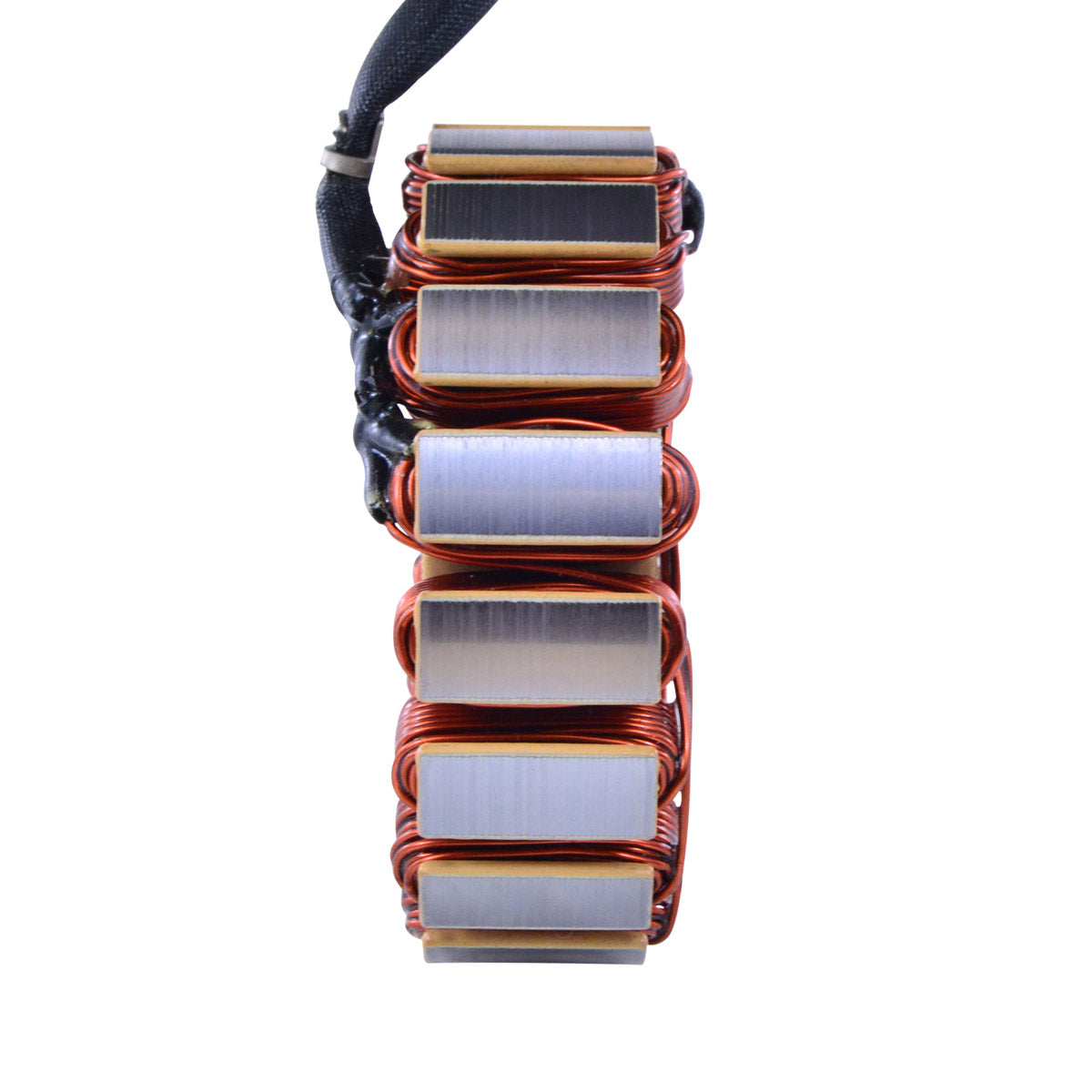

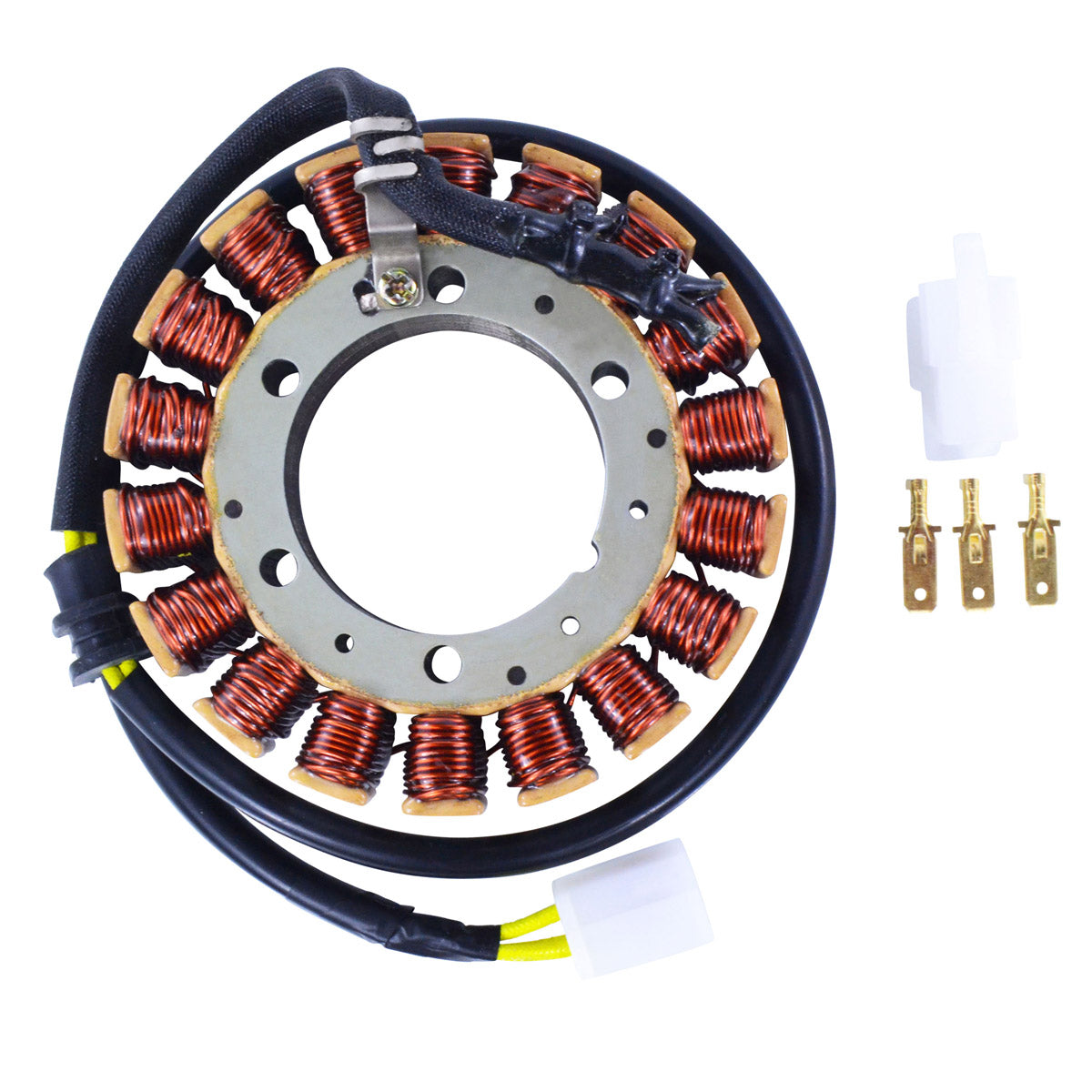

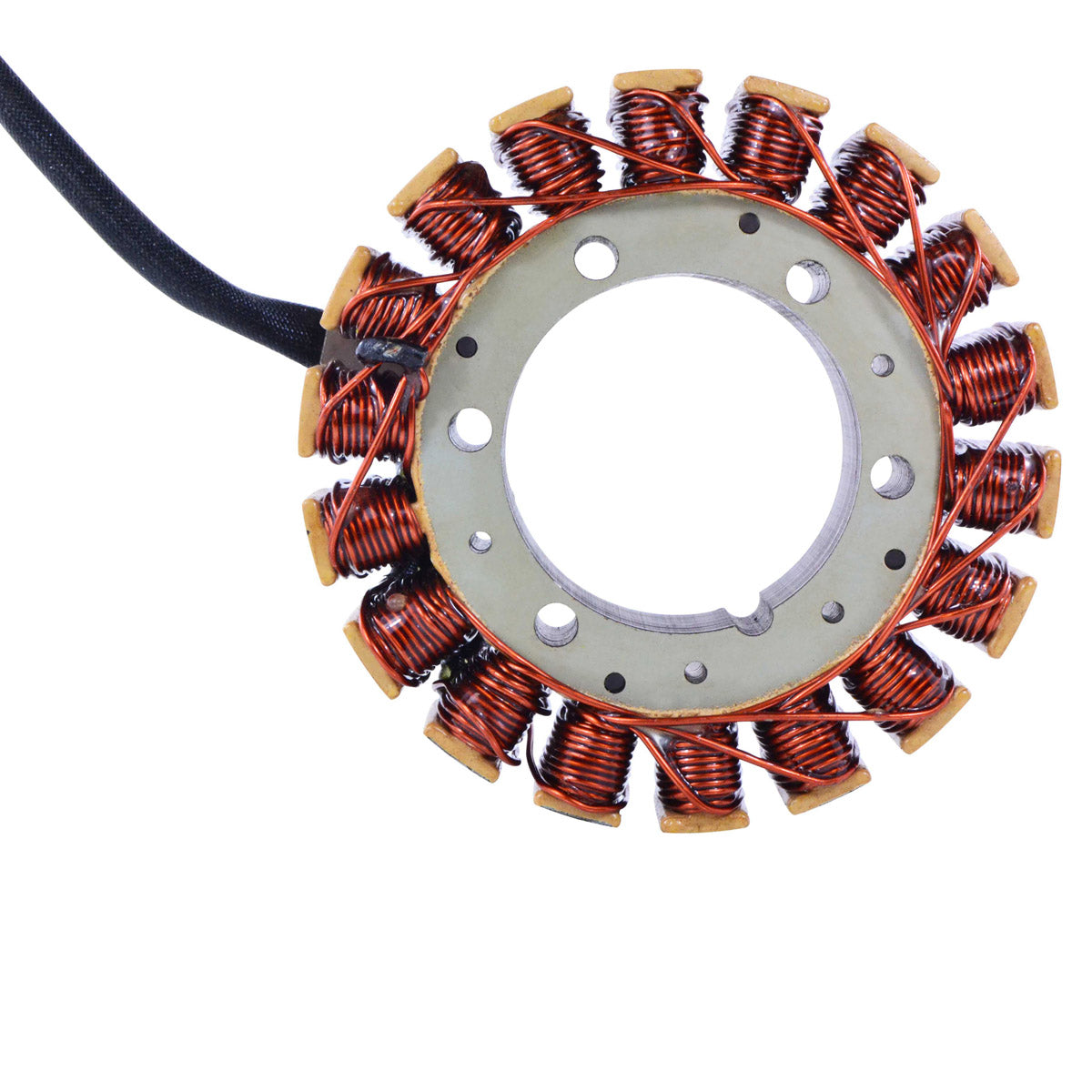

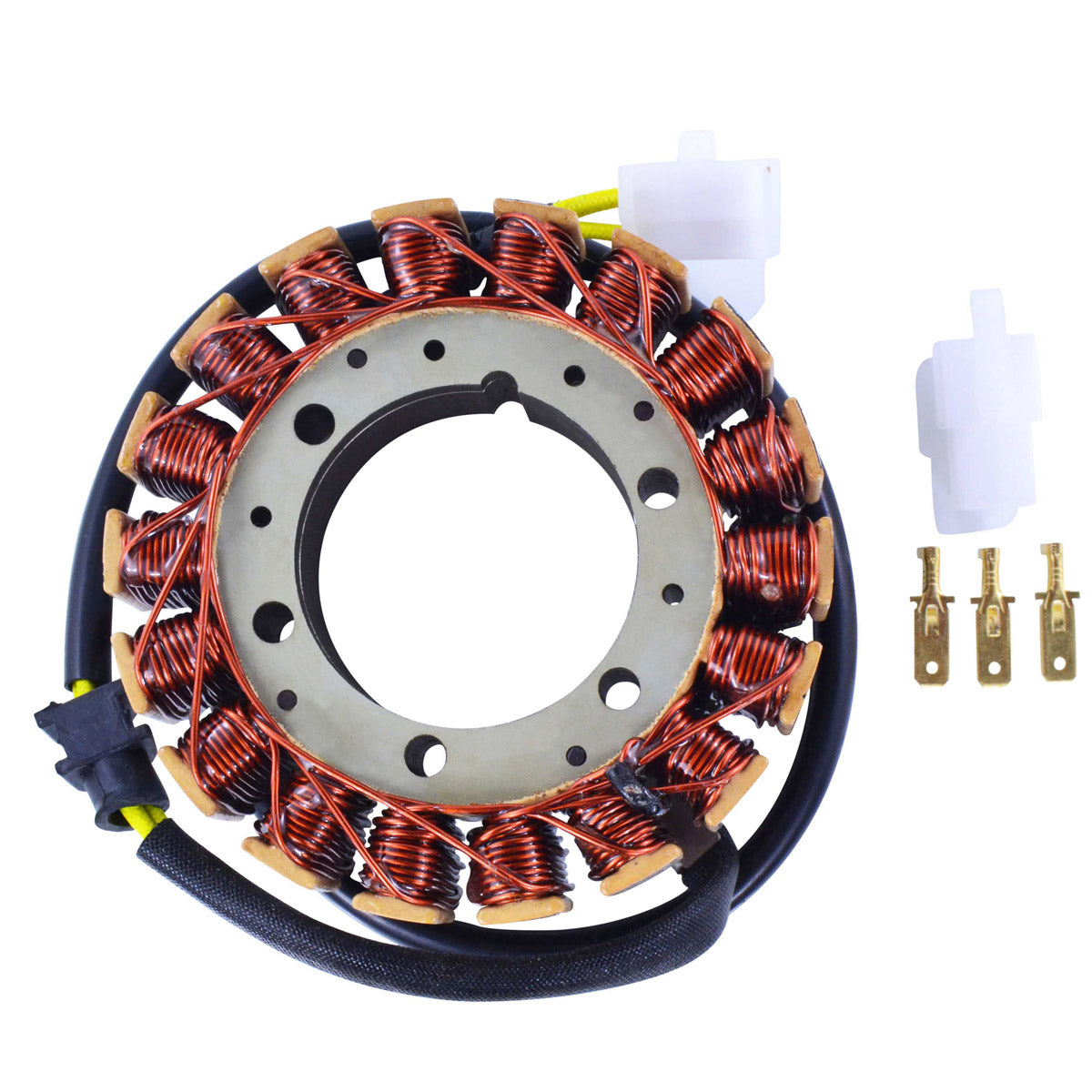

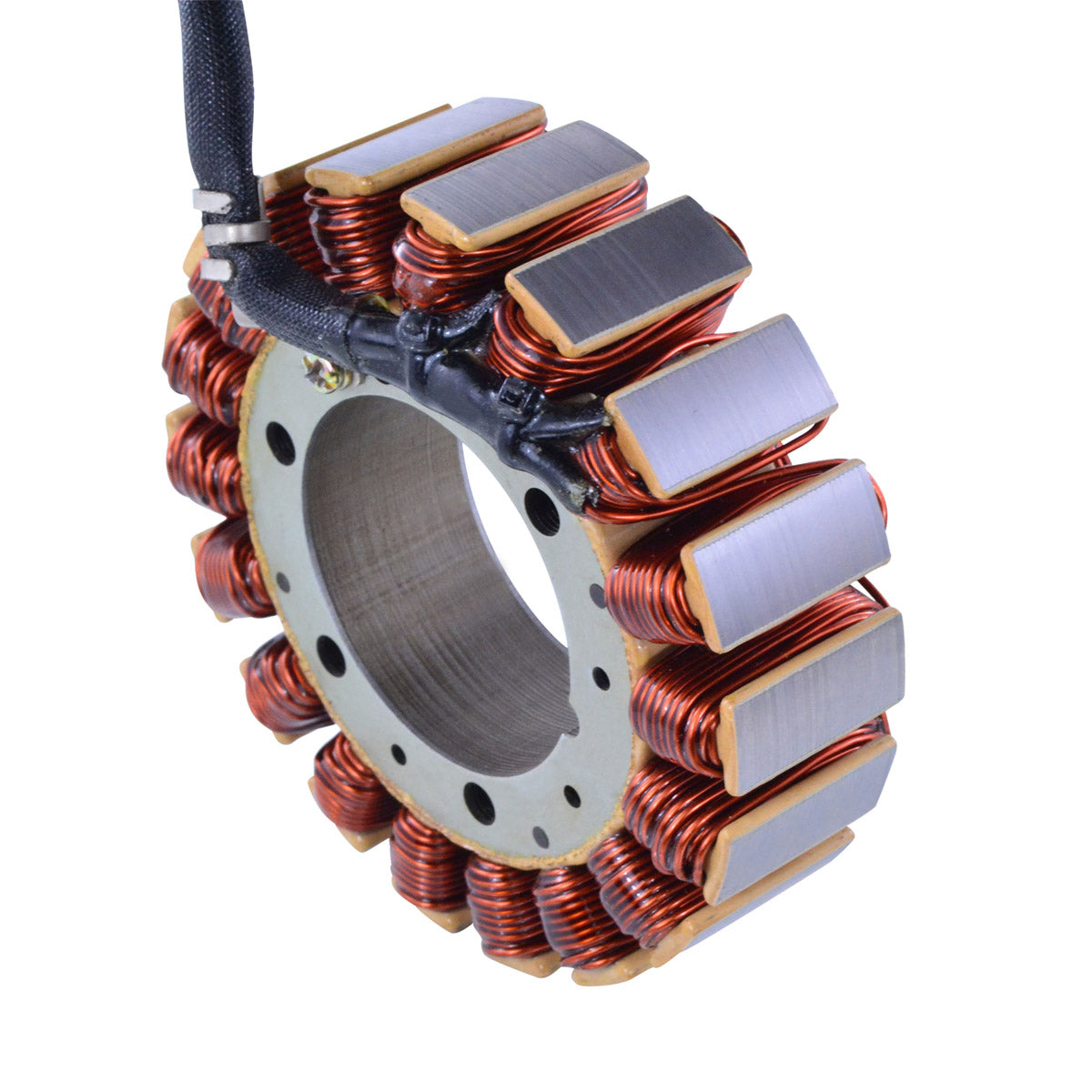

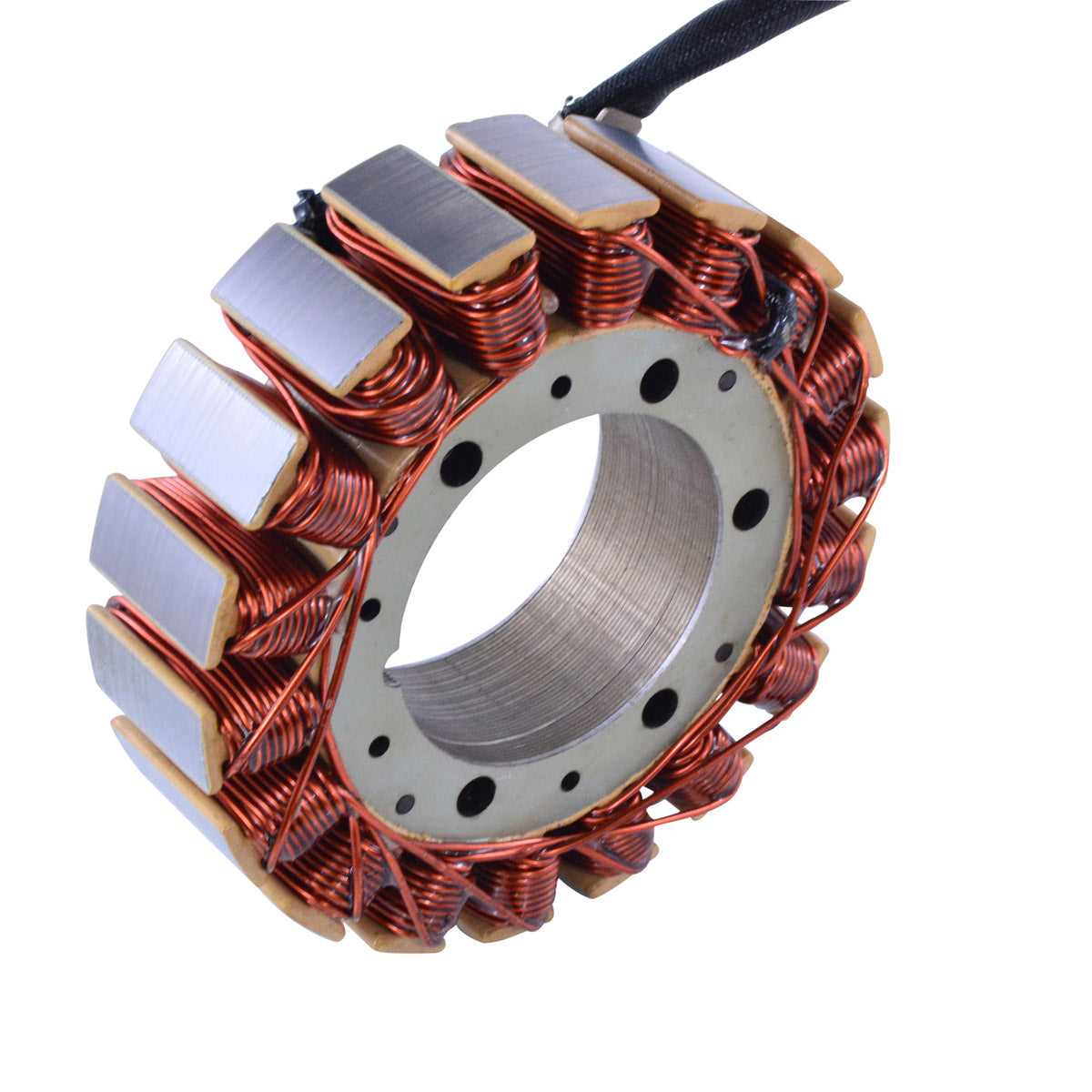

A brand new aftermarket generator stator supplied as a direct replacement for the original unit on the Honda VT 1100 Shadow family, including the Spirit, Sabre, Aero and ACE. The stator is the fixed three-phase winding in the alternator that generates the AC current the regulator/rectifier converts into the DC supply for the battery, ignition, lighting and instruments. When a phase shorts or burns out the charging voltage drops away and the bike runs on the battery until it is flat.
This unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on highest grade lamination materials. It is a plug-and-play, direct fit to the original mounting points and loom plug, so no cutting, splicing or modification is required. Connector and rubber grommet are included, along with the opposite connector for the main harness side, as those are often melted, corroded or defective. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

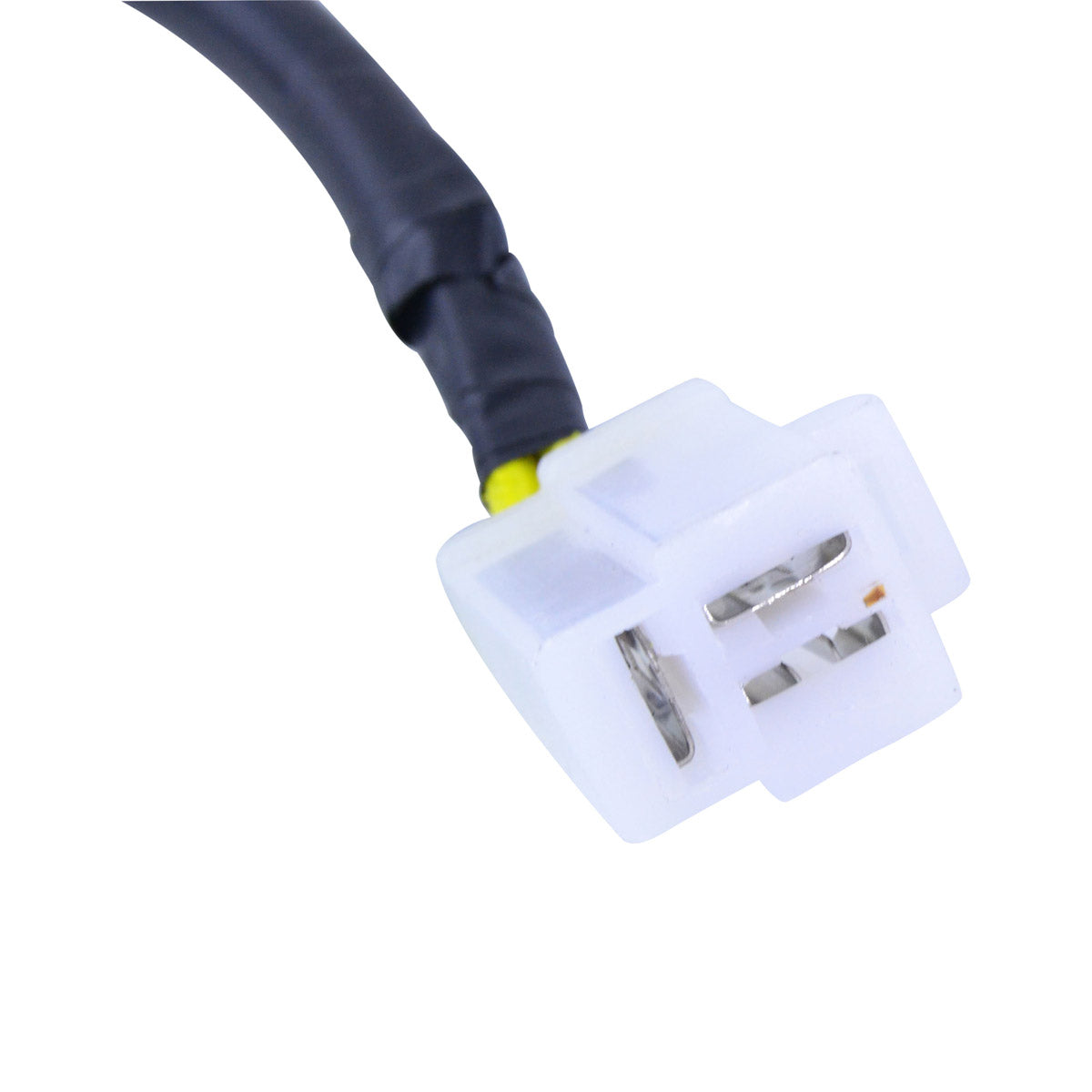

- Connector included

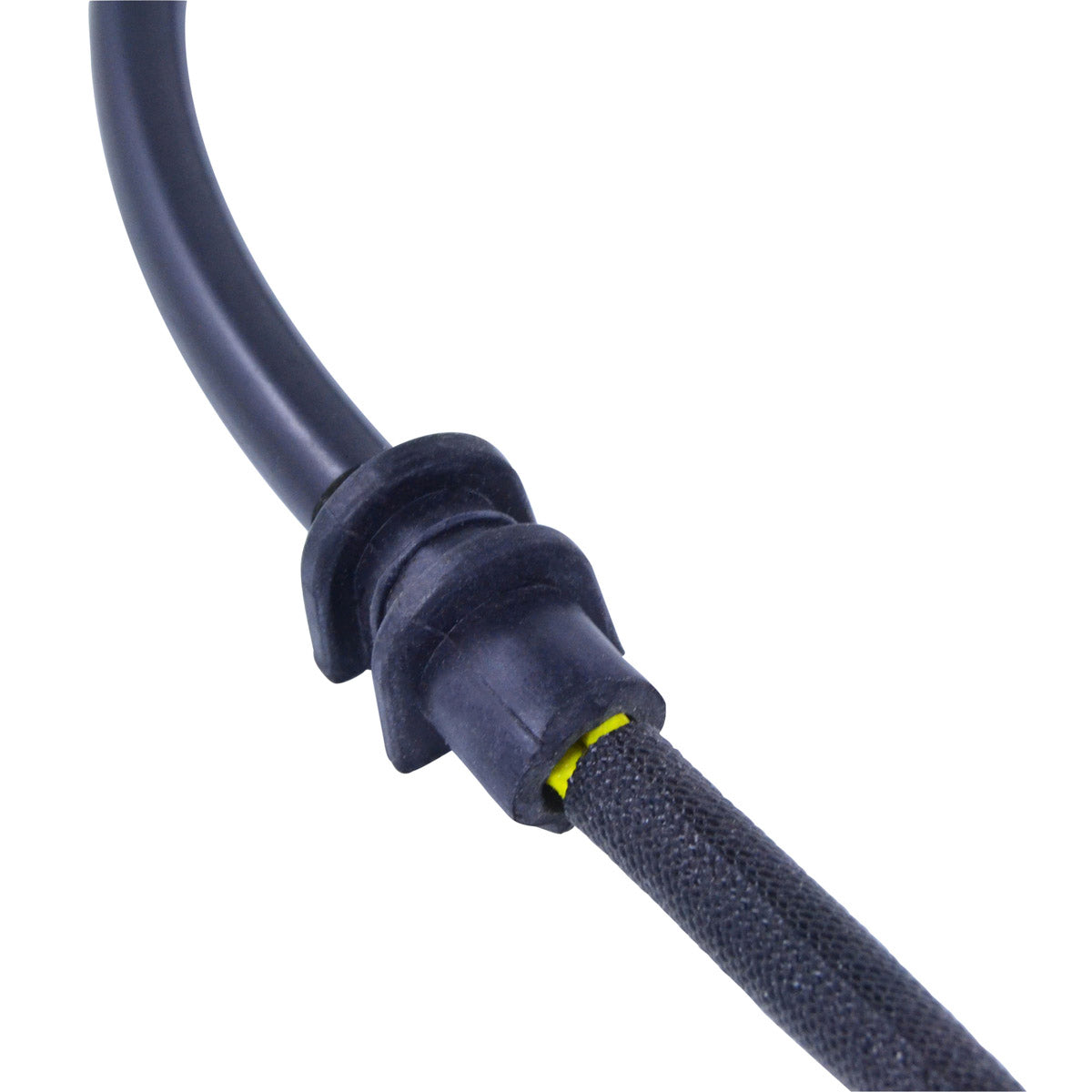

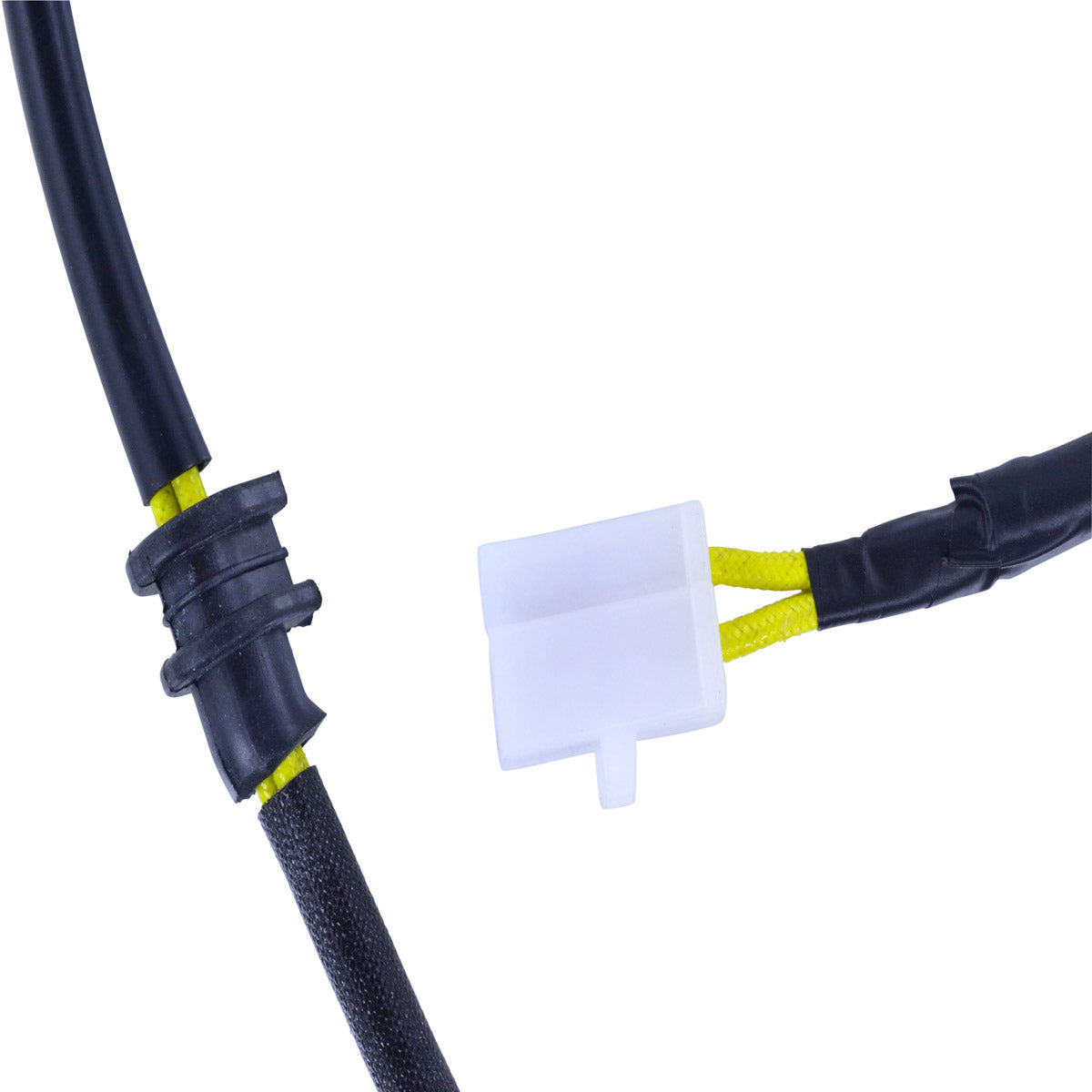

- Rubber grommet included

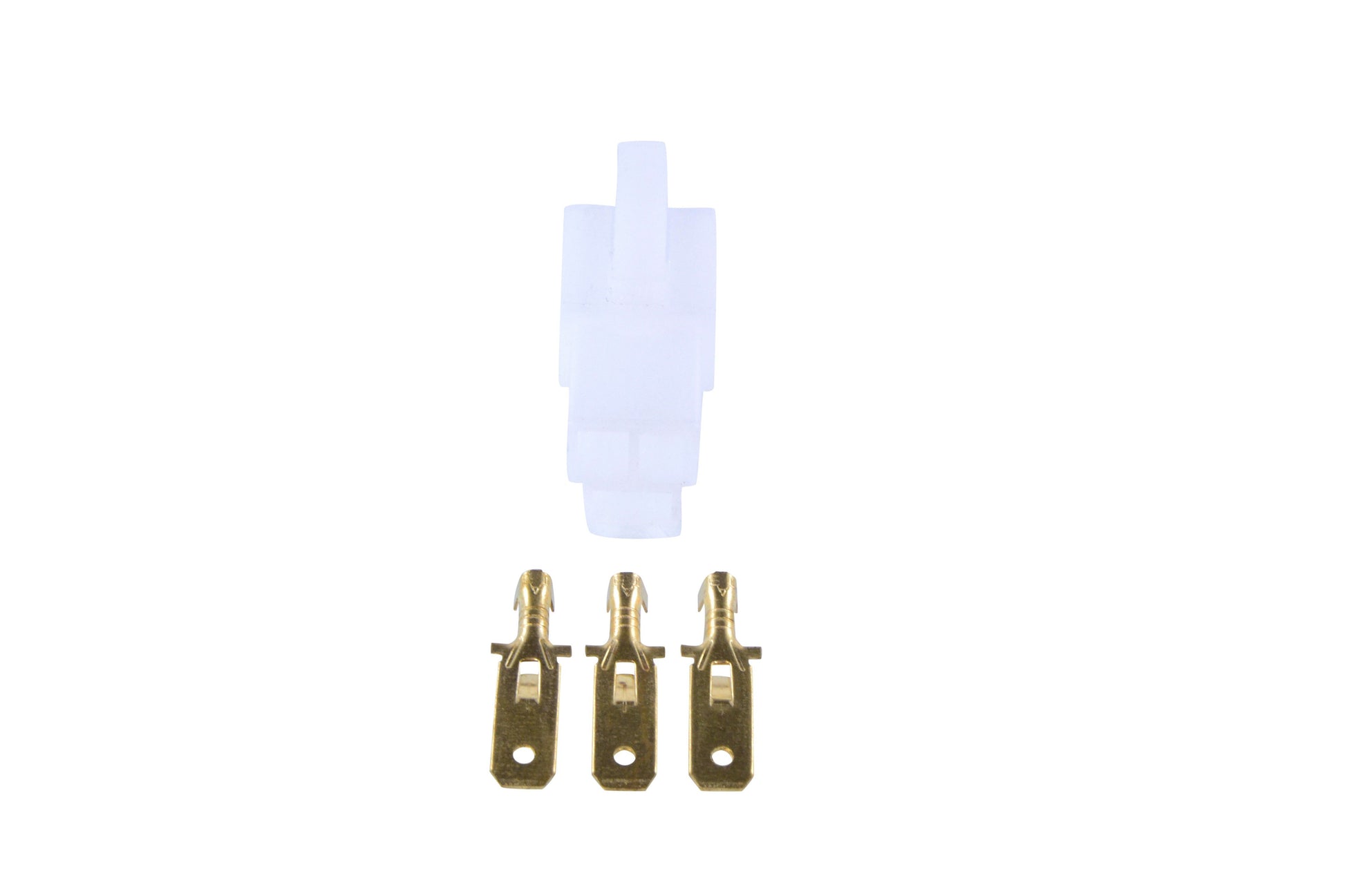

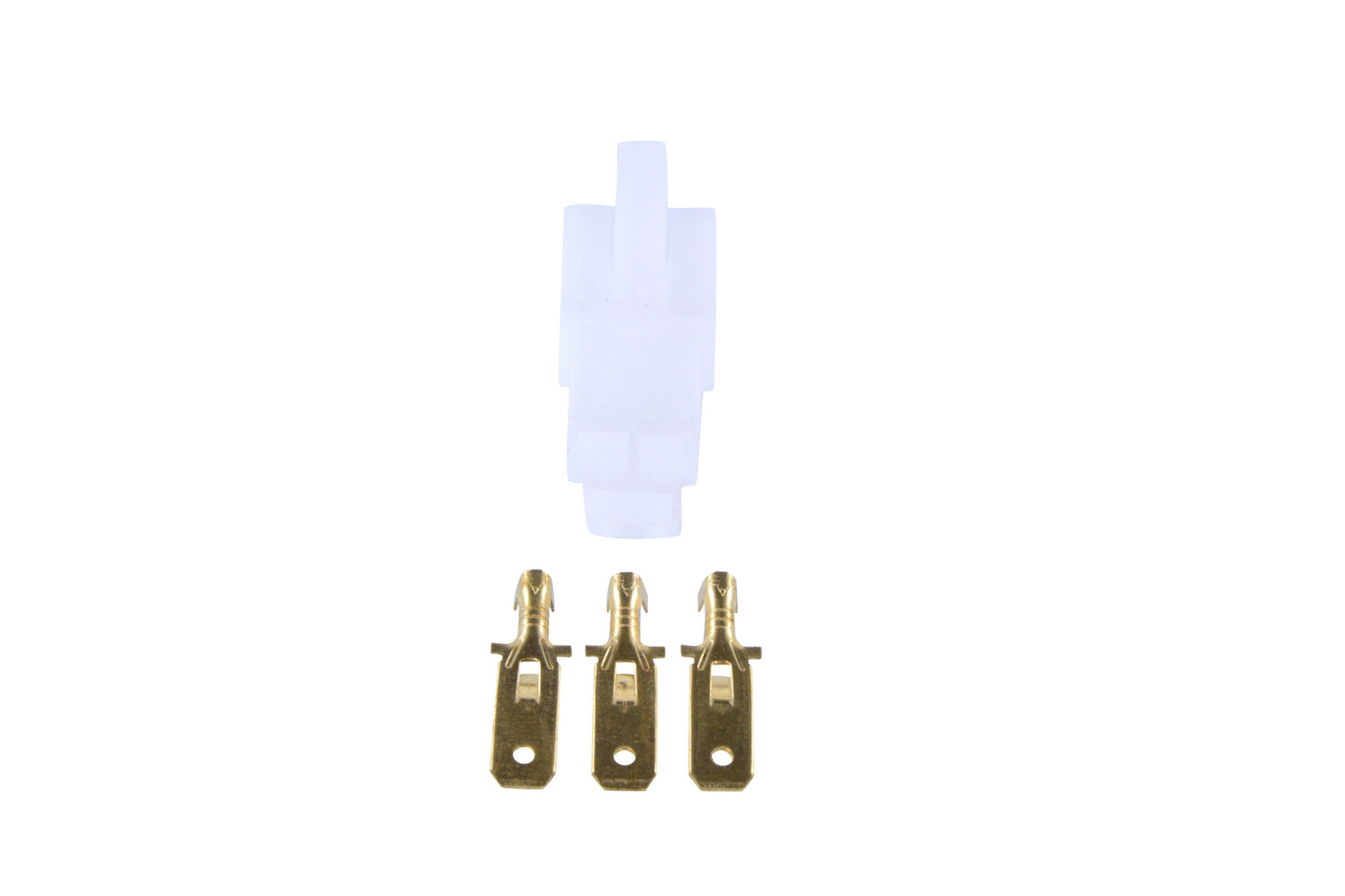

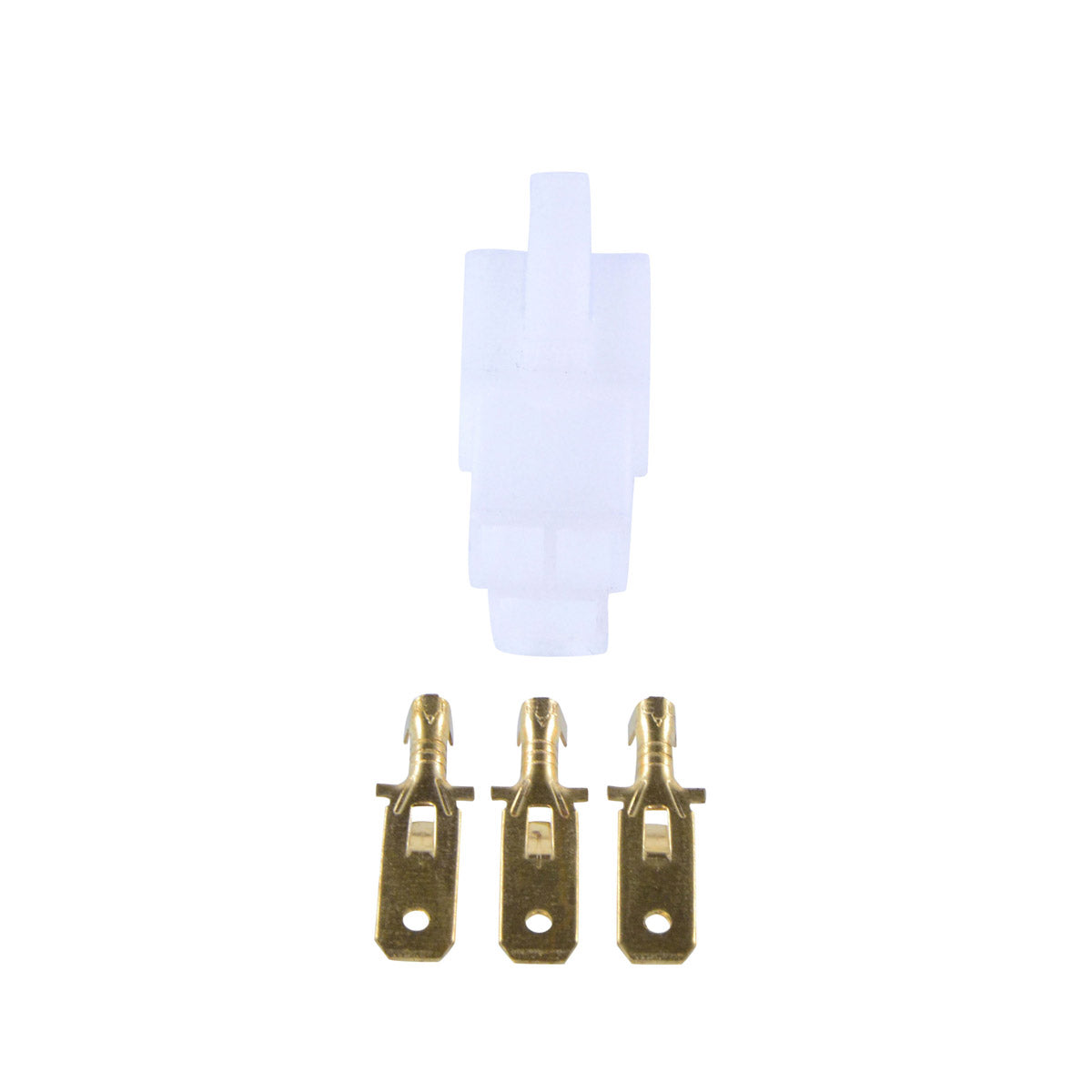

- Opposite connector (main harness side) included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-103820 |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
29 mm |
| Wire length, stator to grommet |
120 mm |
| Wire length, grommet to plug |
500 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, between each yellow |
0.4 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda VT 1100 Shadow |
1987-2007 |
| Honda VT 1100 Spirit |
1987-2007 |
| Honda VT 1100 Sabre |
1987-2007 |
| Honda VT 1100 Aero |
1987-2007 |
| Honda VT 1100 ACE |
1987-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MCK-000 |
Honda |
| 31120-MAH-005 |
Honda |
| 31120-MAA-005 |
Honda |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit and installs plug-and-play on the standard mountings using the original 3-pin loom plug. No cutting, splicing or modification of the harness is required.
What is included?
The stator with its connector and rubber grommet, plus the opposite connector for the main harness side, so both halves of a joint that is often melted or corroded can be renewed at the same time.
How do I know my old stator has failed?
Disconnect the plug and measure between each pair of yellow wires. A healthy unit reads about 0.4 ohms, within plus or minus 20 per cent, with no continuity from any yellow wire to earth. A battery that will not stay charged, dim lights at idle and charging voltage that does not rise with revs are the usual signs of failure.
Which original part numbers does this replace?
It cross references to Honda 31120-MCK-000, 31120-MAH-005 and 31120-MAA-005. Check the number on your original stator against that list before ordering.
