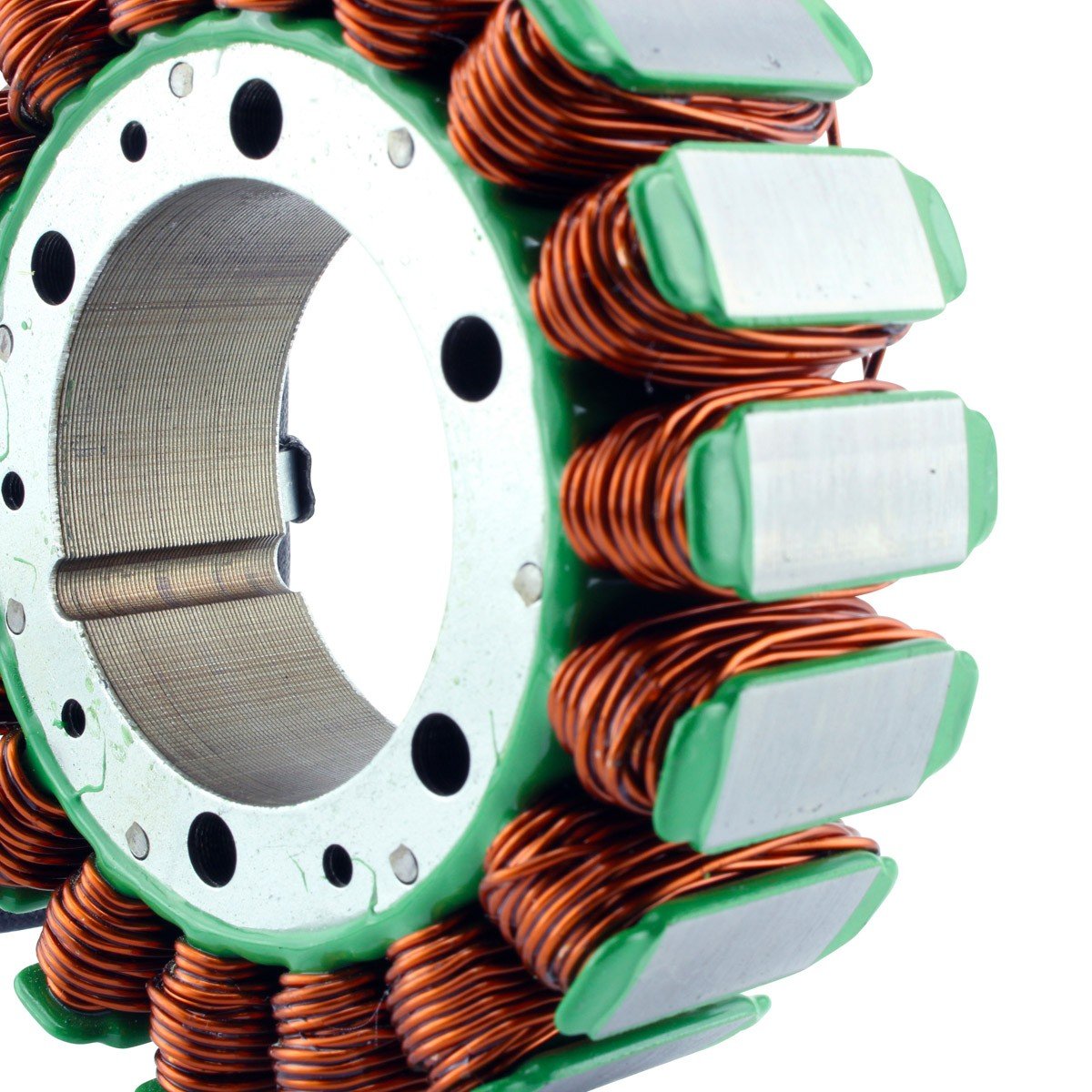

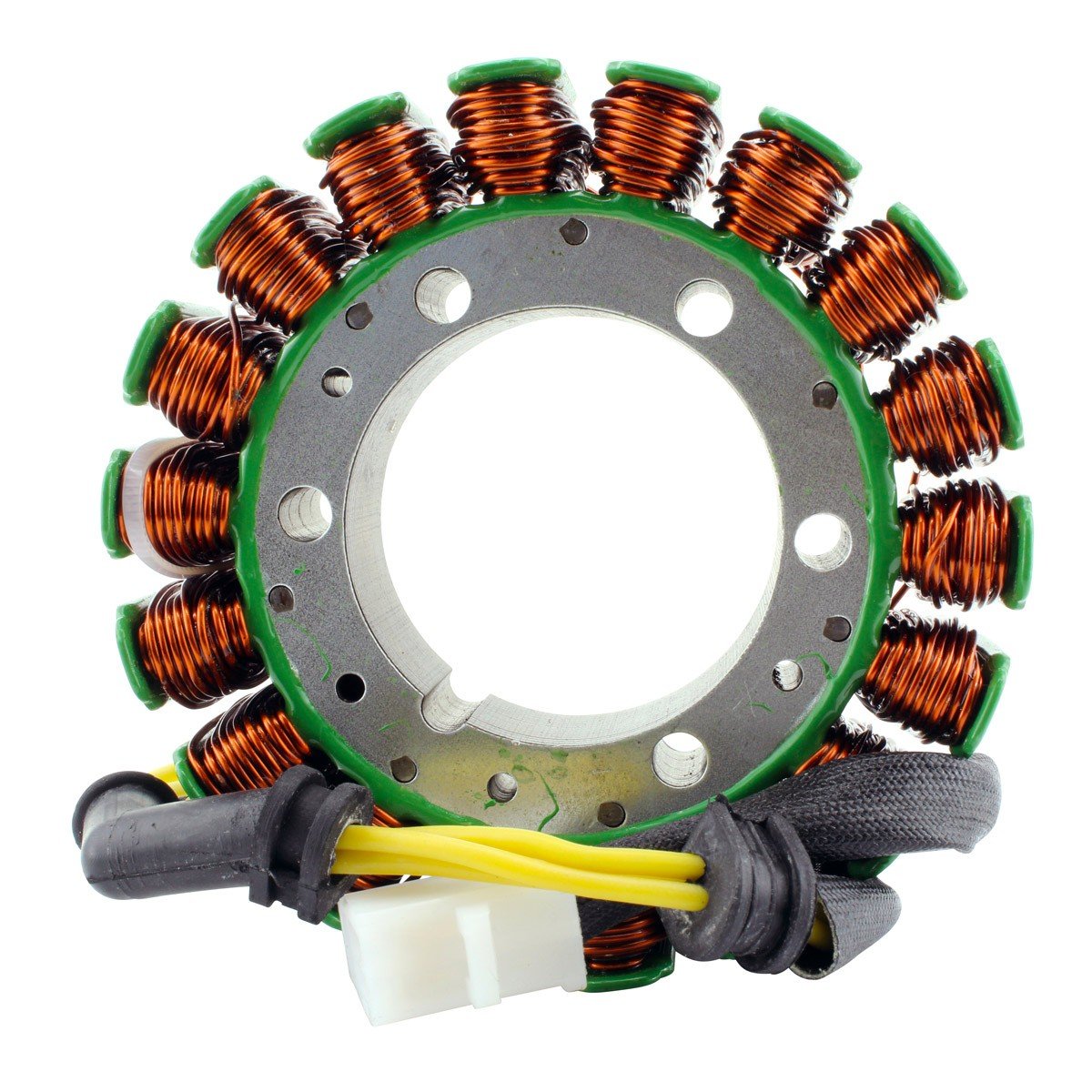

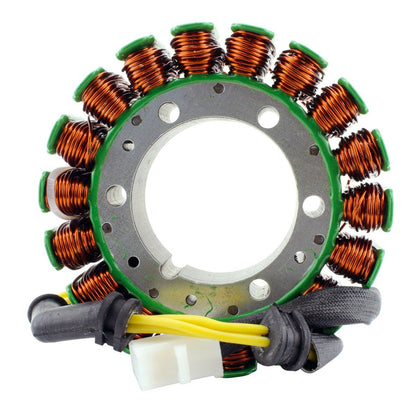

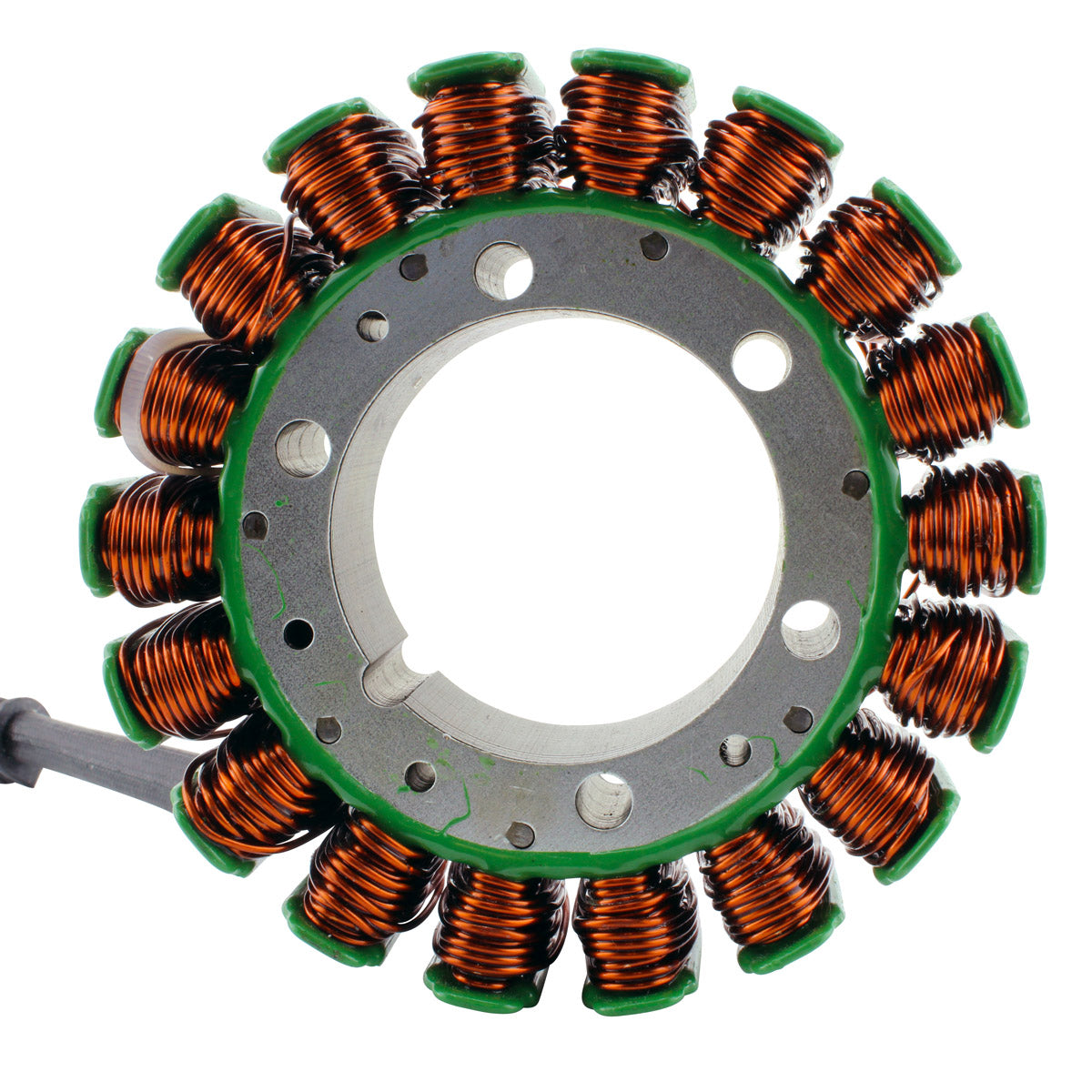

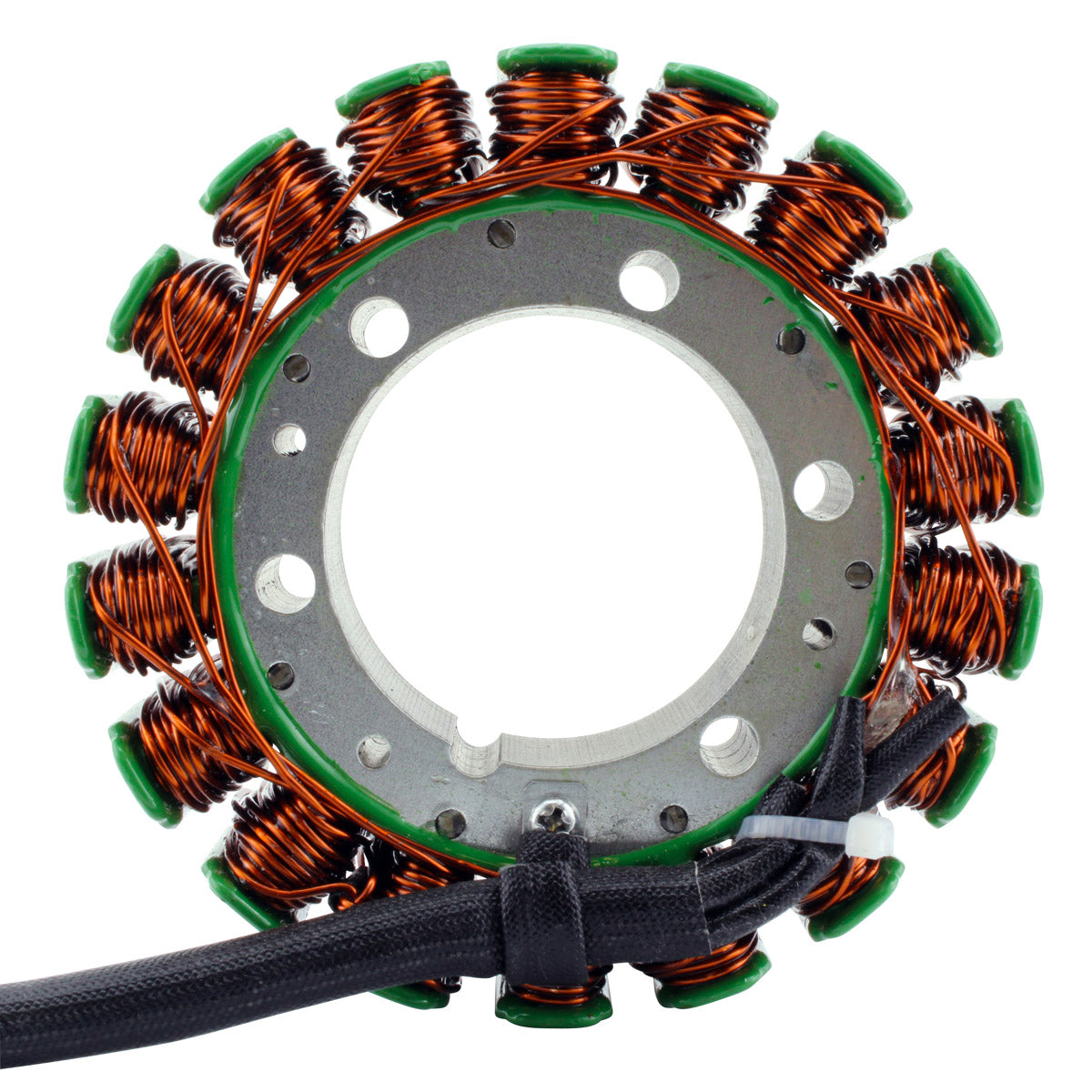

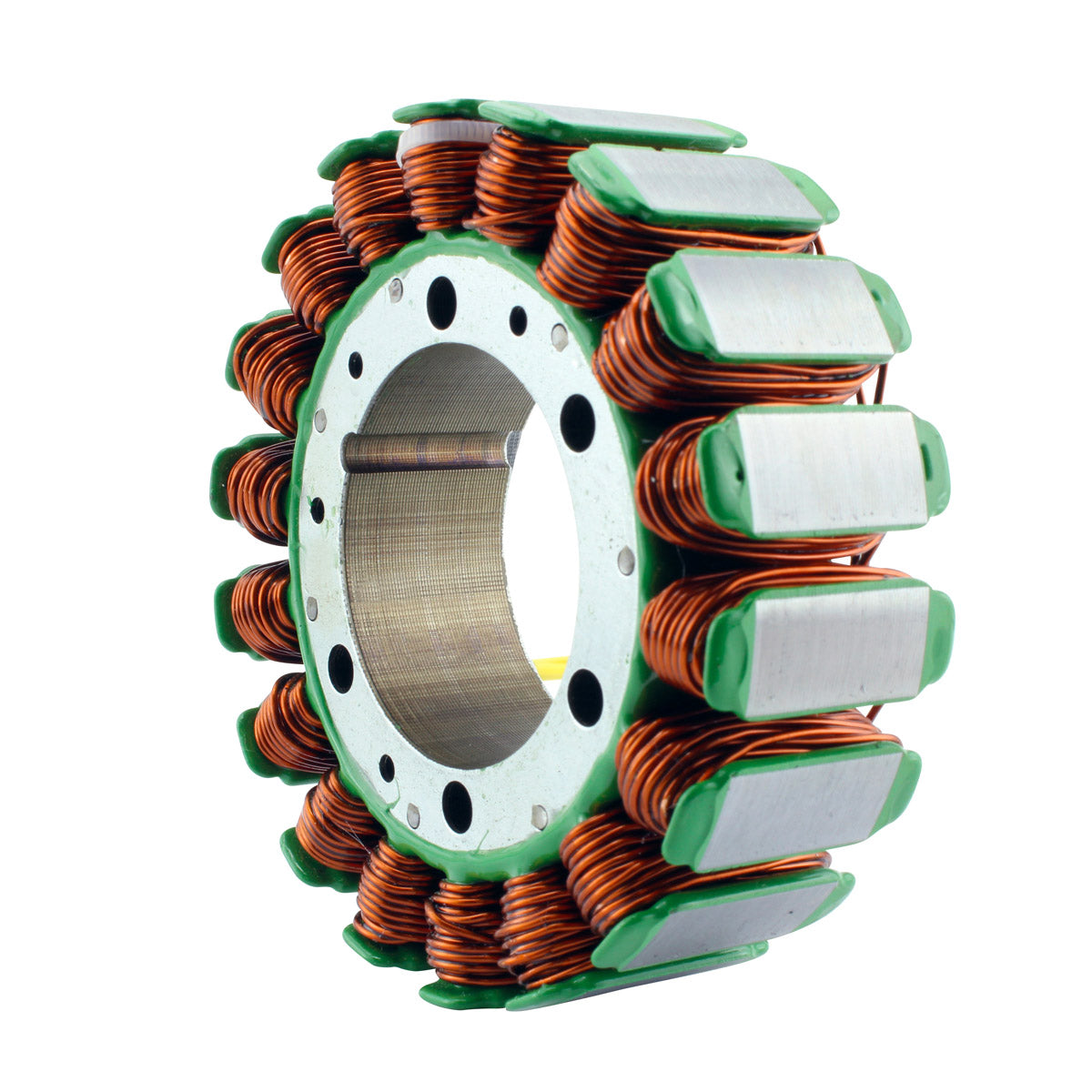

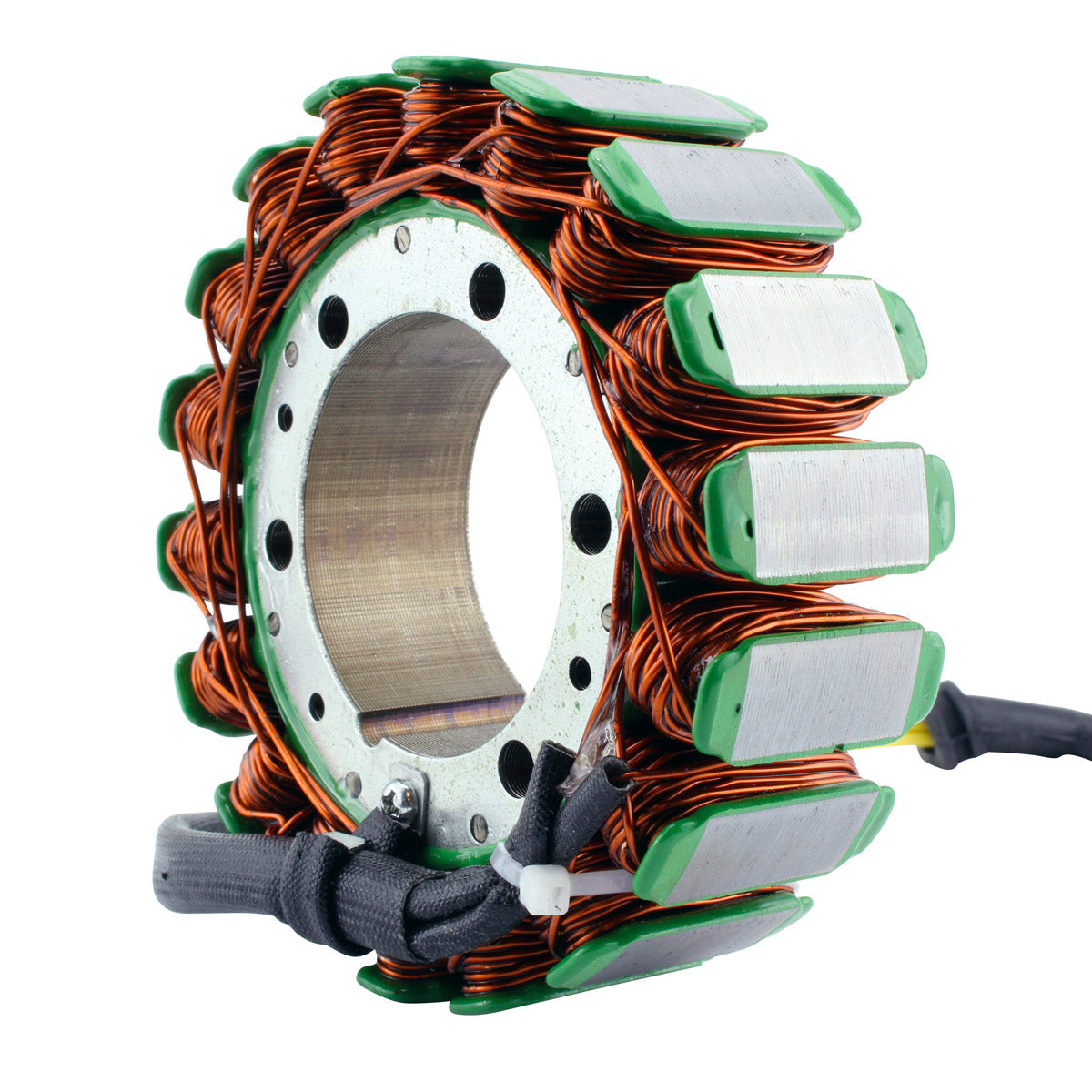

A brand new aftermarket stator, supplied as a direct replacement for the original charging coil assembly on the Honda VT 700 and VT 800 Shadow. It is plug-and-play and a direct fit, built on the highest grade of lamination materials and wound with the highest grade of copper, which is rated to withstand 200 degrees Celsius. Every product we ship is tested before it leaves us.
The connectors and the rubber grommet are included, and we also supply the opposite connector from the main harness side. On a Shadow of this age that half of the plug is very often melted, corroded or defective, and it is a major cause of repeat electrical issues, so fitting a fresh connector on both sides at the same time is the way to make the repair last. All of the item pictures are accurate; if you are in any doubt, compare the part shown against your original unit before ordering.
Key Features
- Brand new aftermarket stator, not a rewound core
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 18 poles, 3 wires, single plug

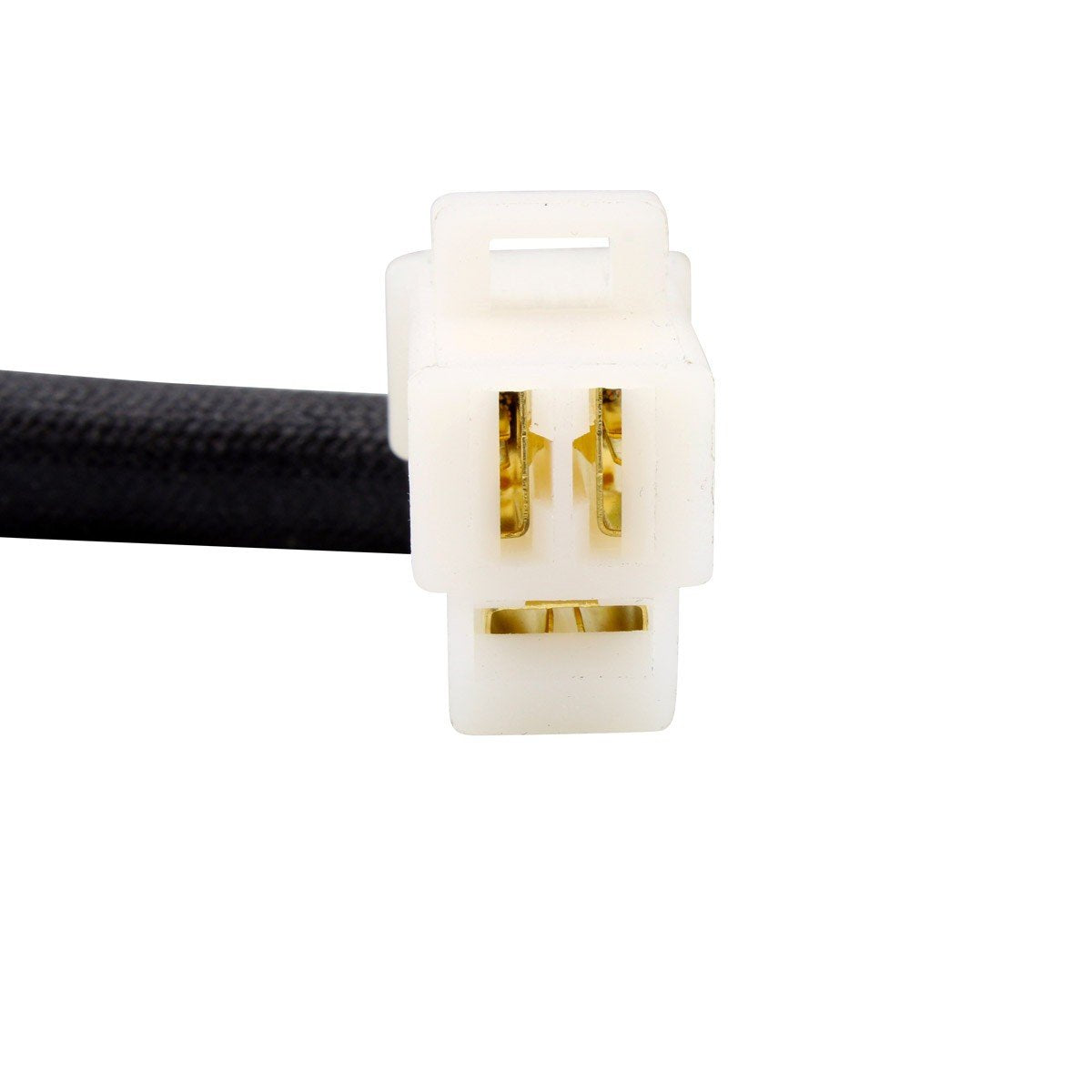

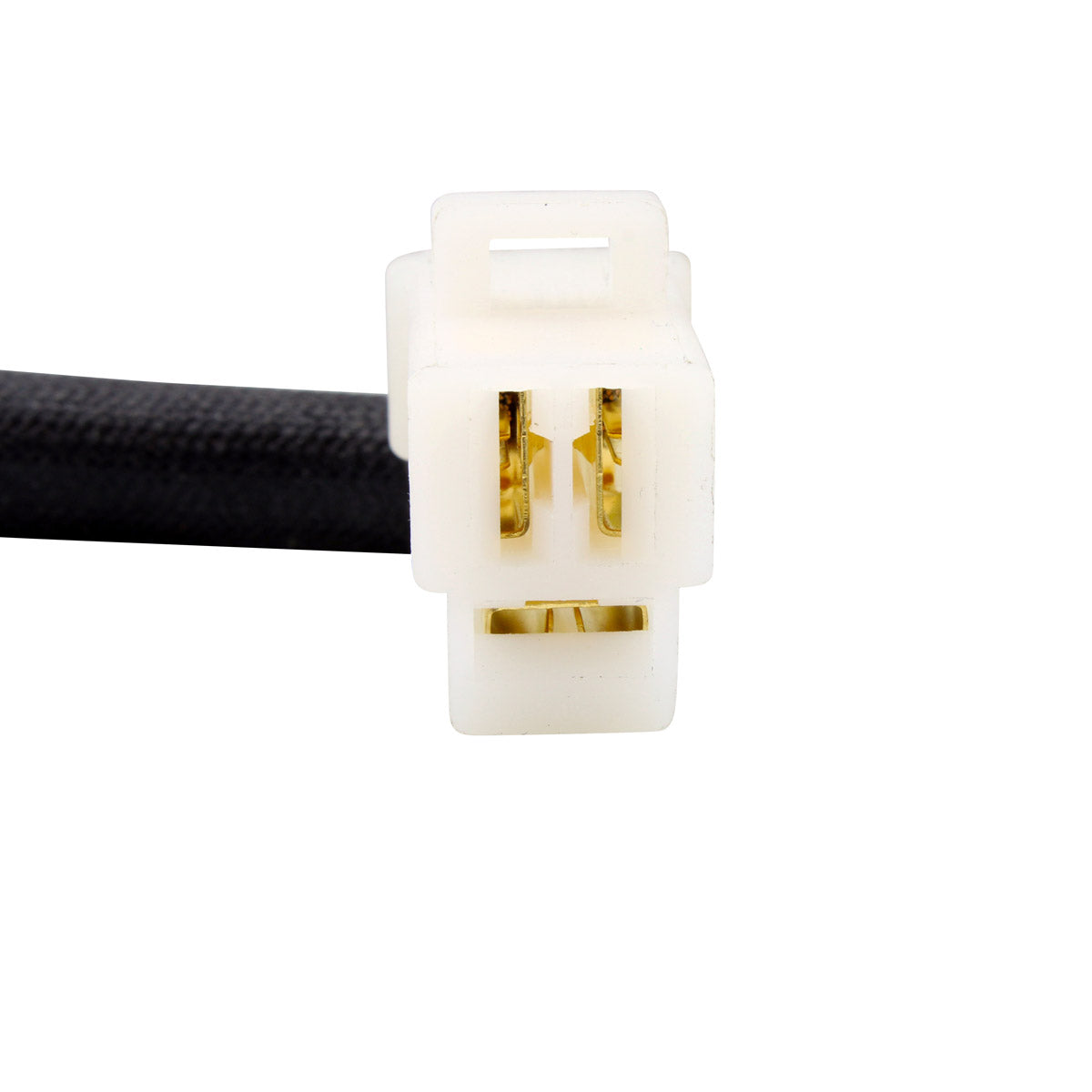

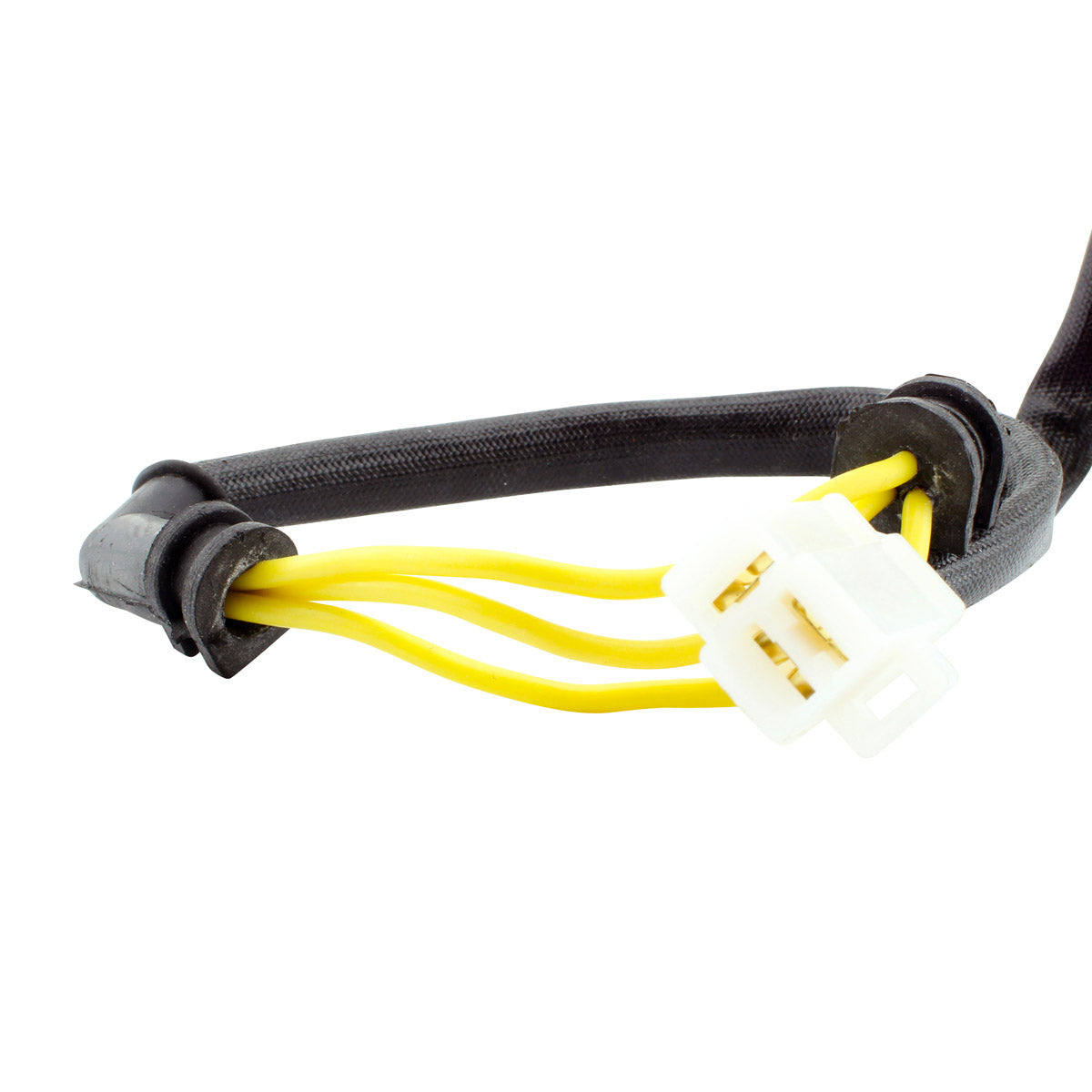

- Connectors included

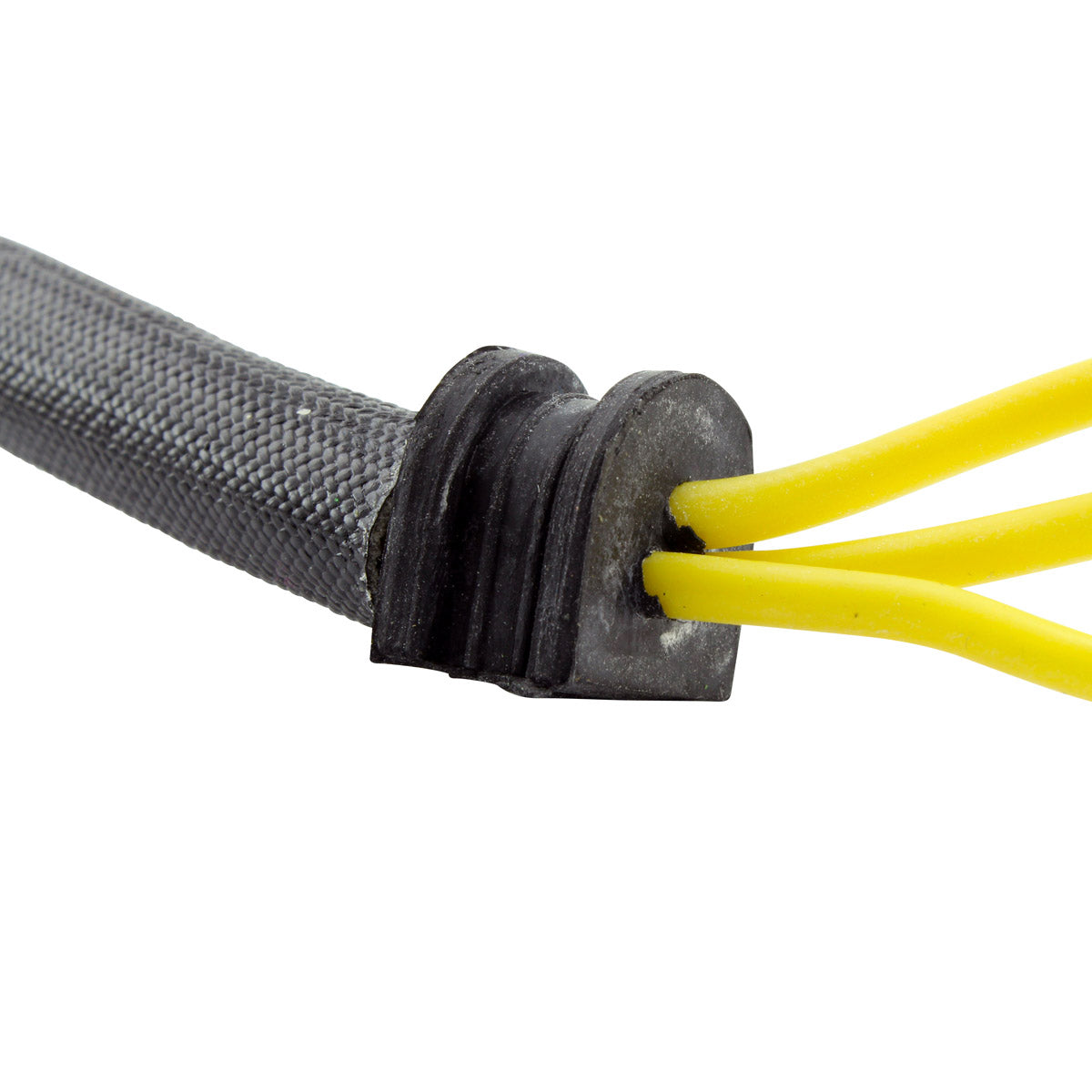

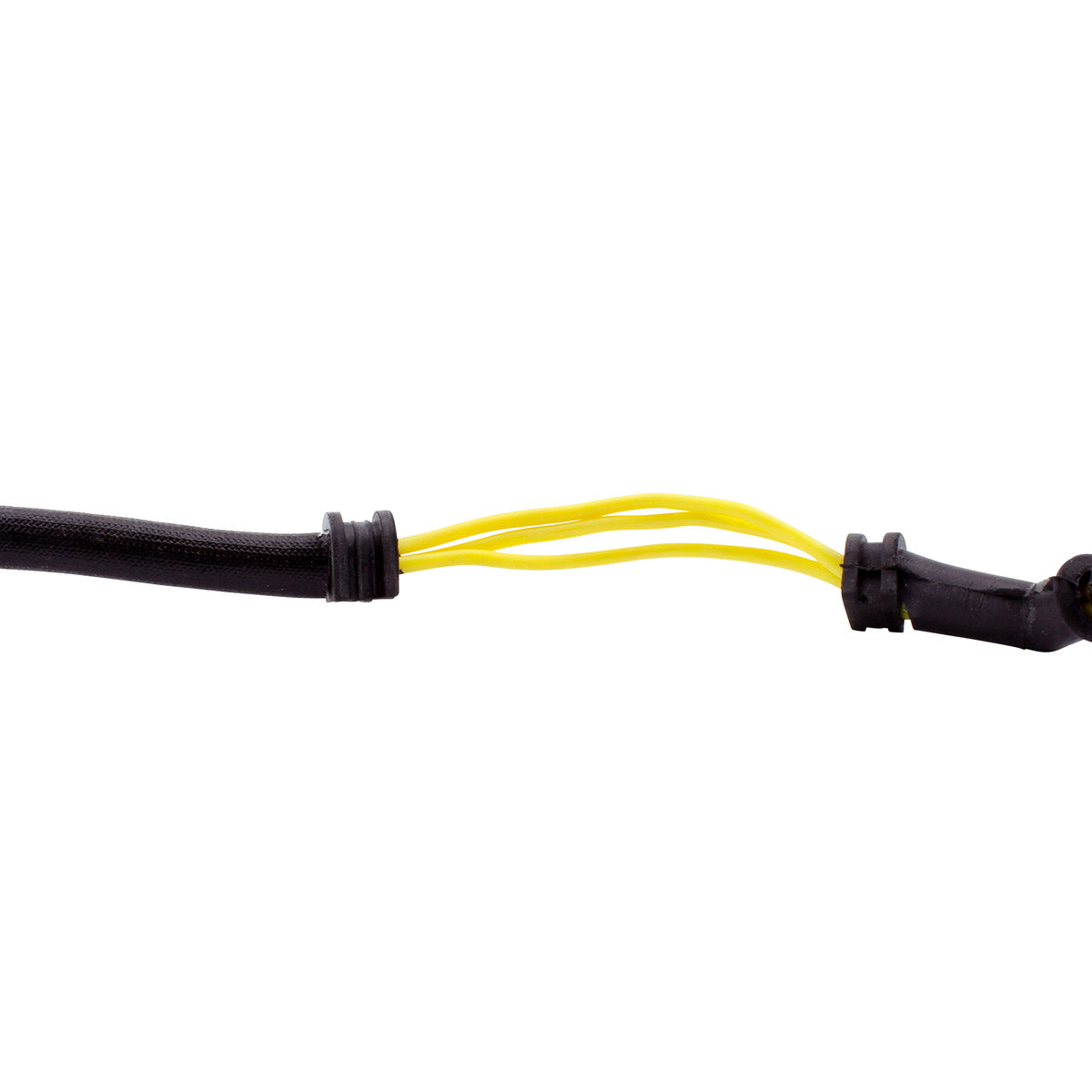

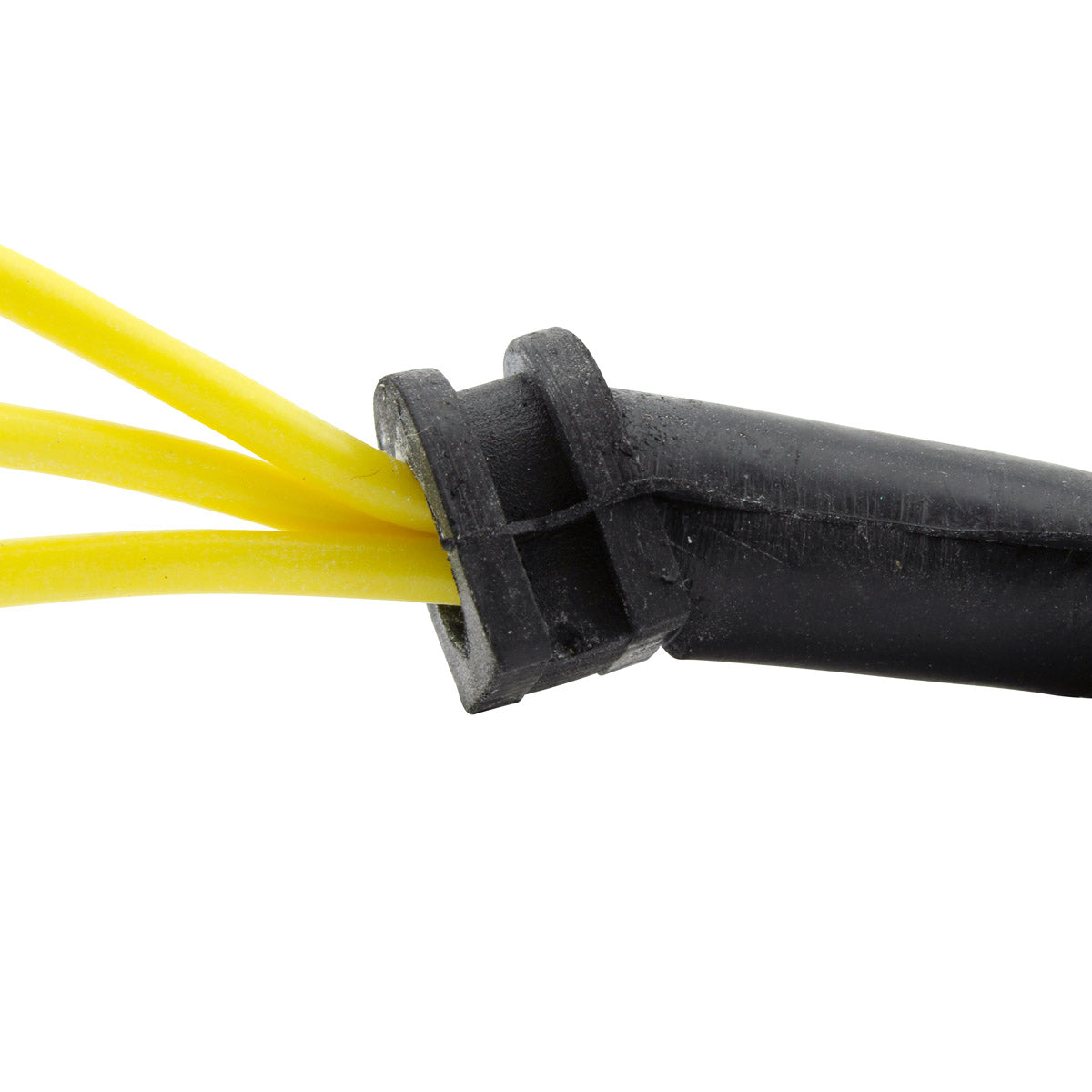

- Rubber grommet included
- Opposite connector for the main harness side also included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |

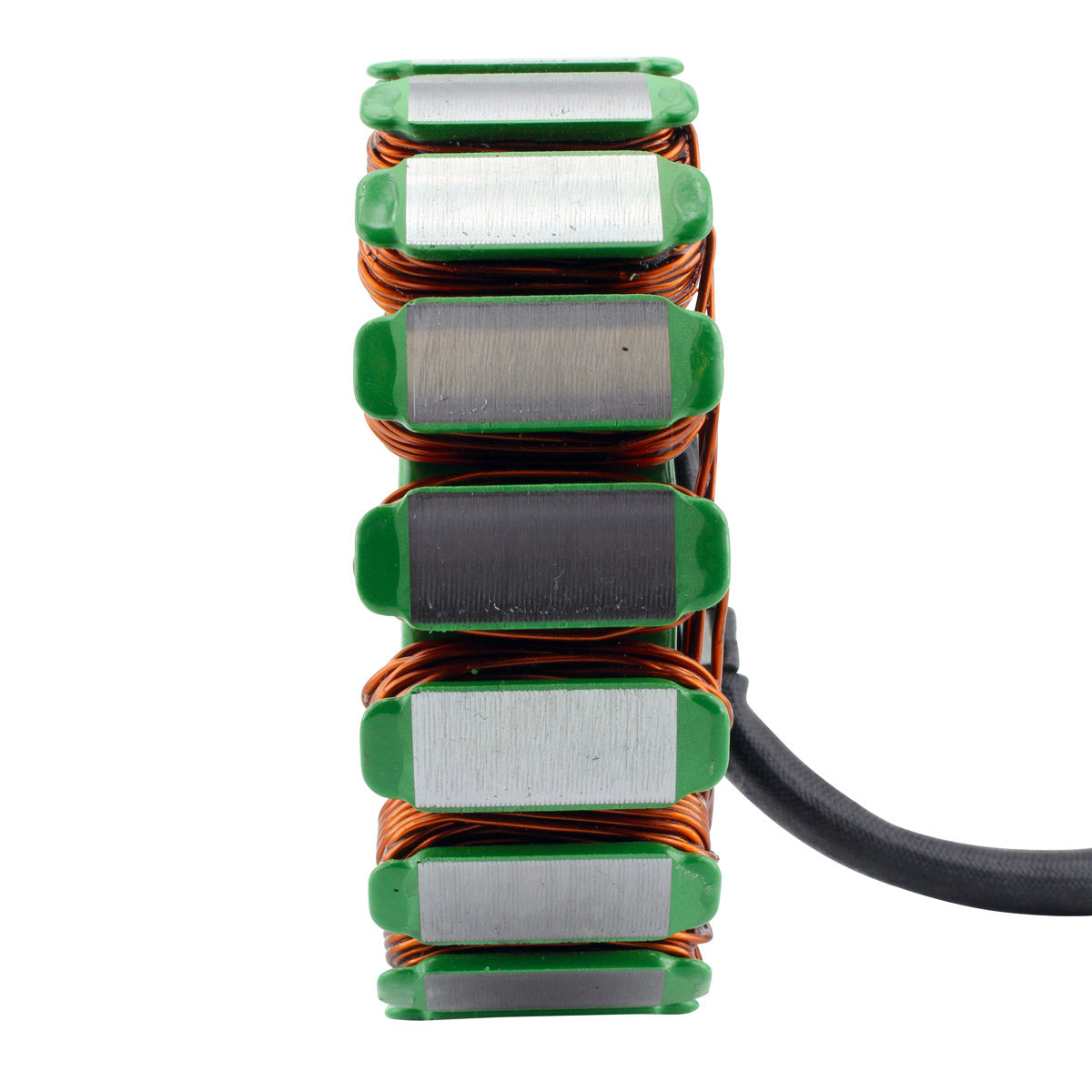

| Thickness |
26 mm |
| Wire length, stator to grommet |
105 mm |
| Wire length, grommet to plug |
290 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
18 |
| Alternator resistance, between each yellow |
0.9 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda VT 700 Shadow |
1986-1987 |
| Honda VT 800 Shadow |
1988 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MK7-005 |
Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit on the VT 700 Shadow of 1986 and 1987 and the VT 800 Shadow of 1988. It mounts in the standard position and uses the standard three-pin connector, so no modification to the loom is required.
What is included?
The stator, the connectors, the rubber grommet and the opposite connector for the main harness side, so both halves of the plug can be renewed together.
How can I check that the old stator has failed?
A battery that goes flat on a run, headlamp brightness that follows engine speed, and a machine that will not restart once switched off are the classic signs. With the engine off and the plug disconnected, measure between each pair of yellow wires: the reading should be 0.9 ohms +/- 20%. An open circuit, a shorted phase, or any continuity between a yellow wire and the stator body means the winding has broken down.
Does the same stator cover both the VT 700 and the VT 800?
Yes. Honda used the same charging coil assembly on the VT 700 Shadow for 1986 and 1987 and carried it over to the VT 800 Shadow for 1988, under OEM reference 31120-MK7-005. Checking that number against your original unit is the quickest way to confirm the fit.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
