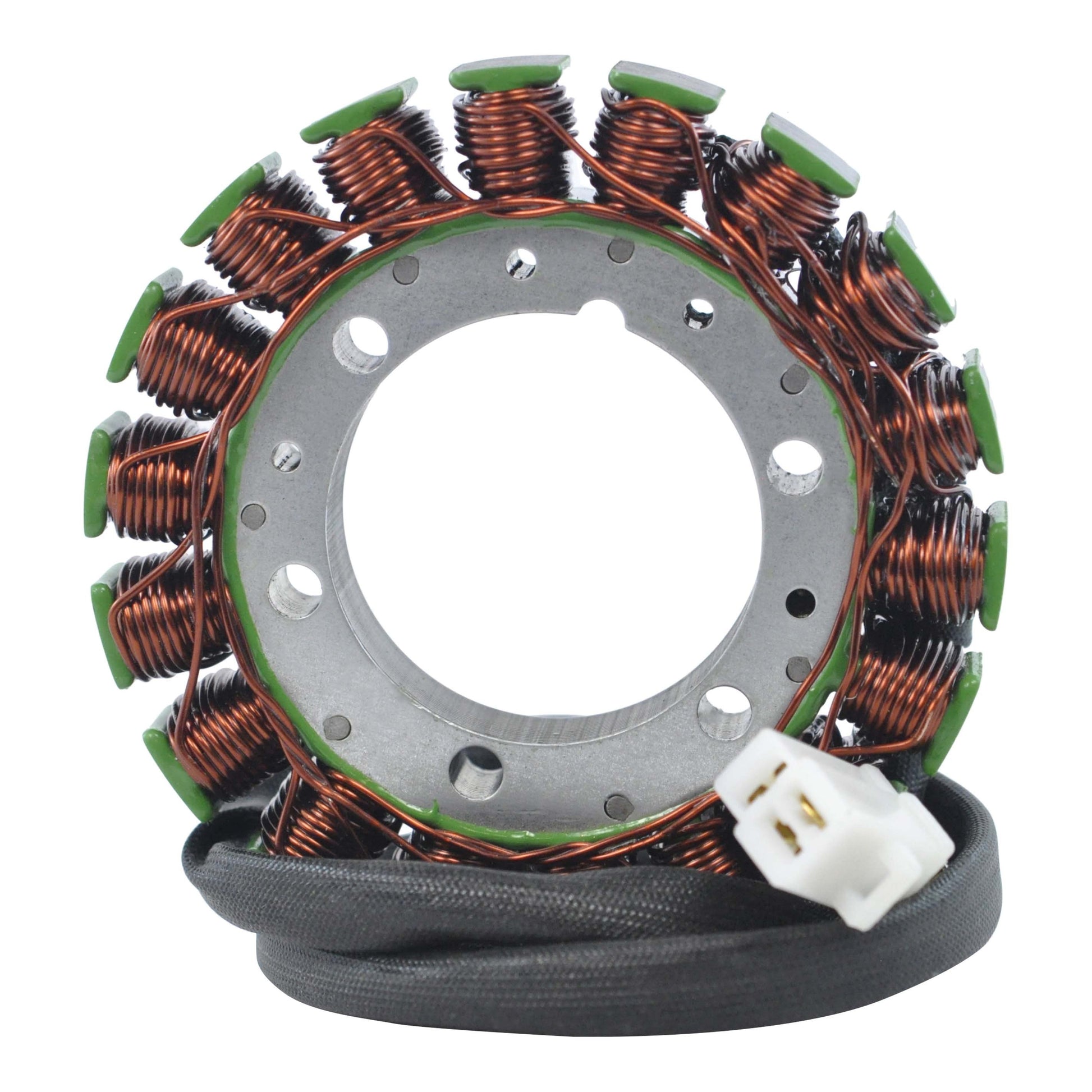

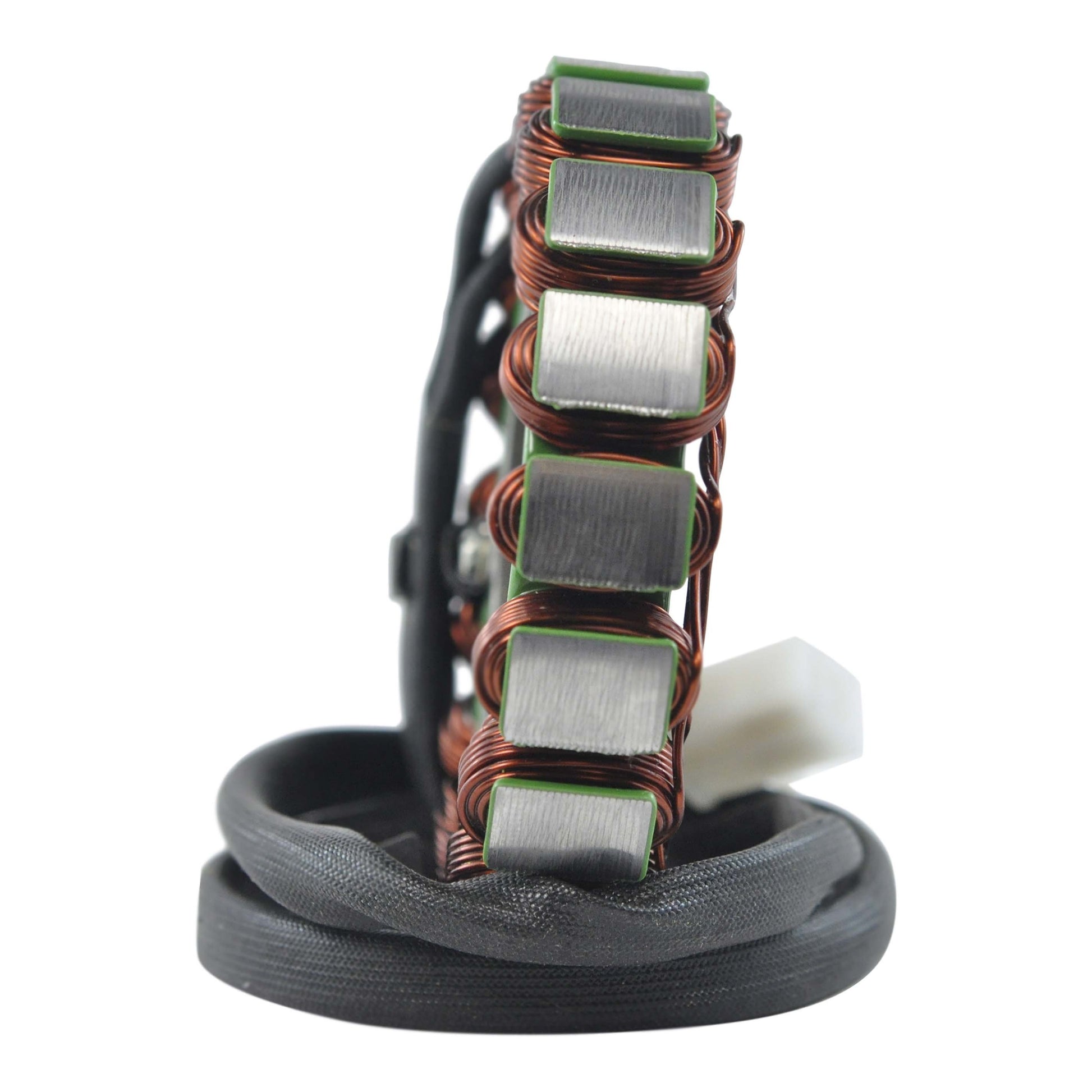

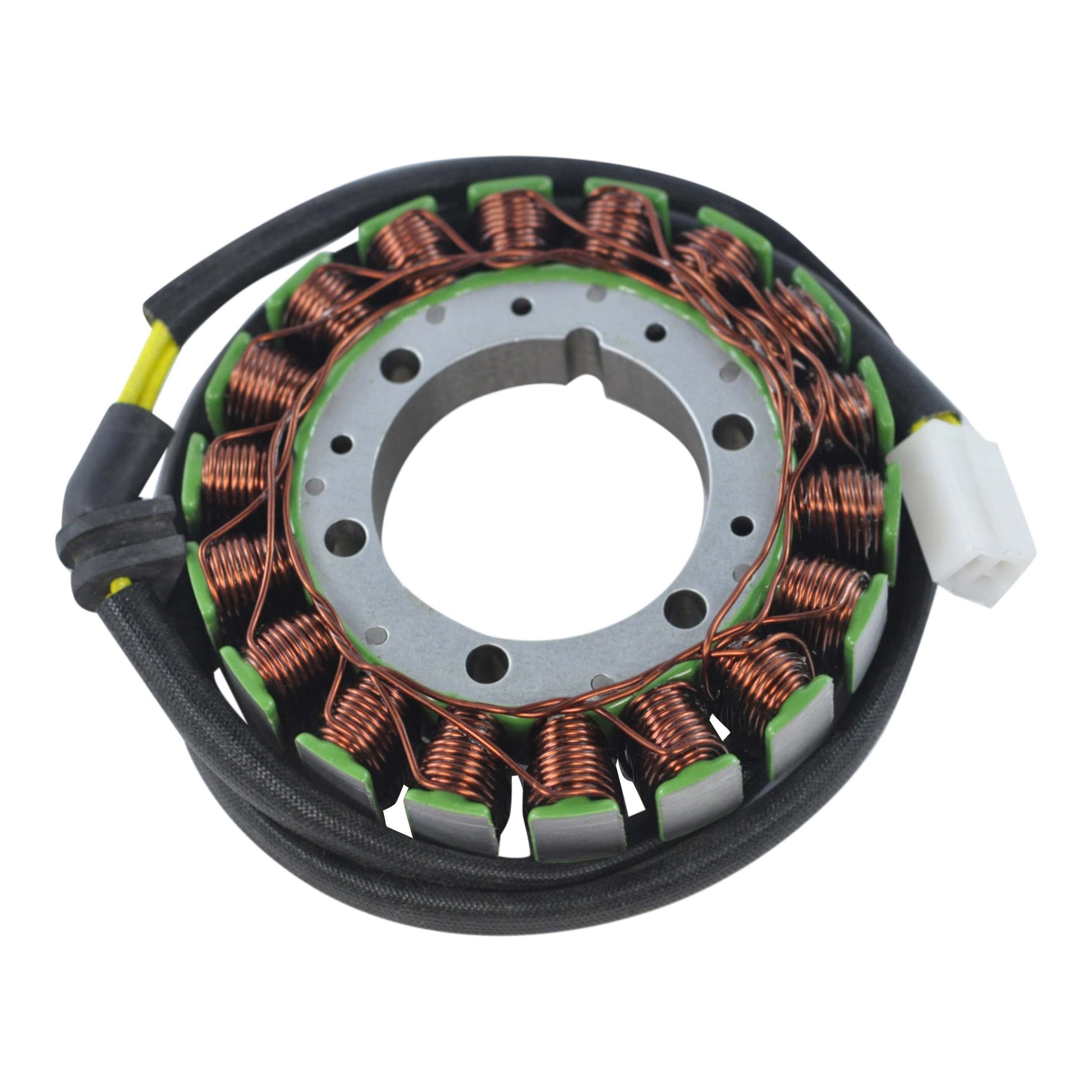

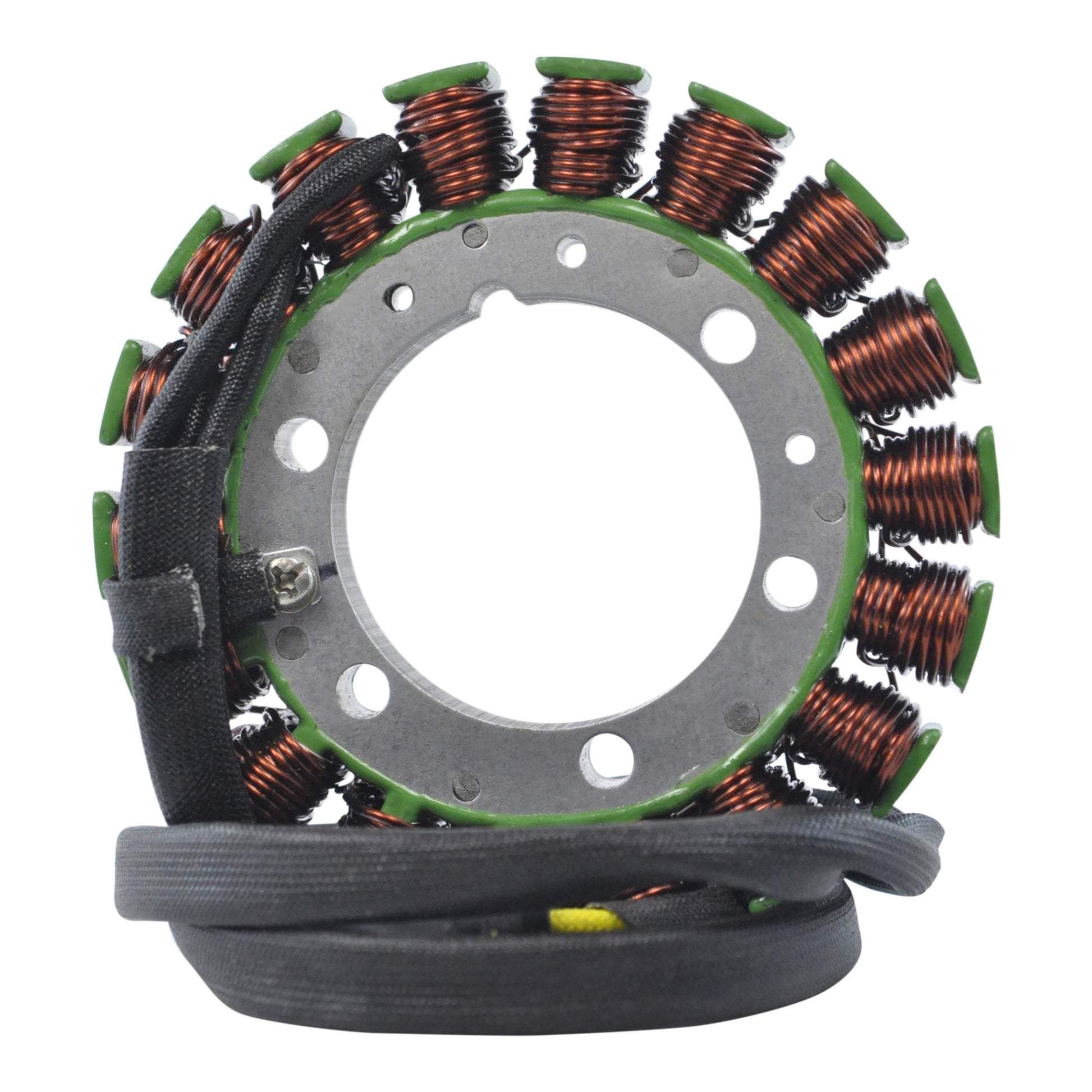

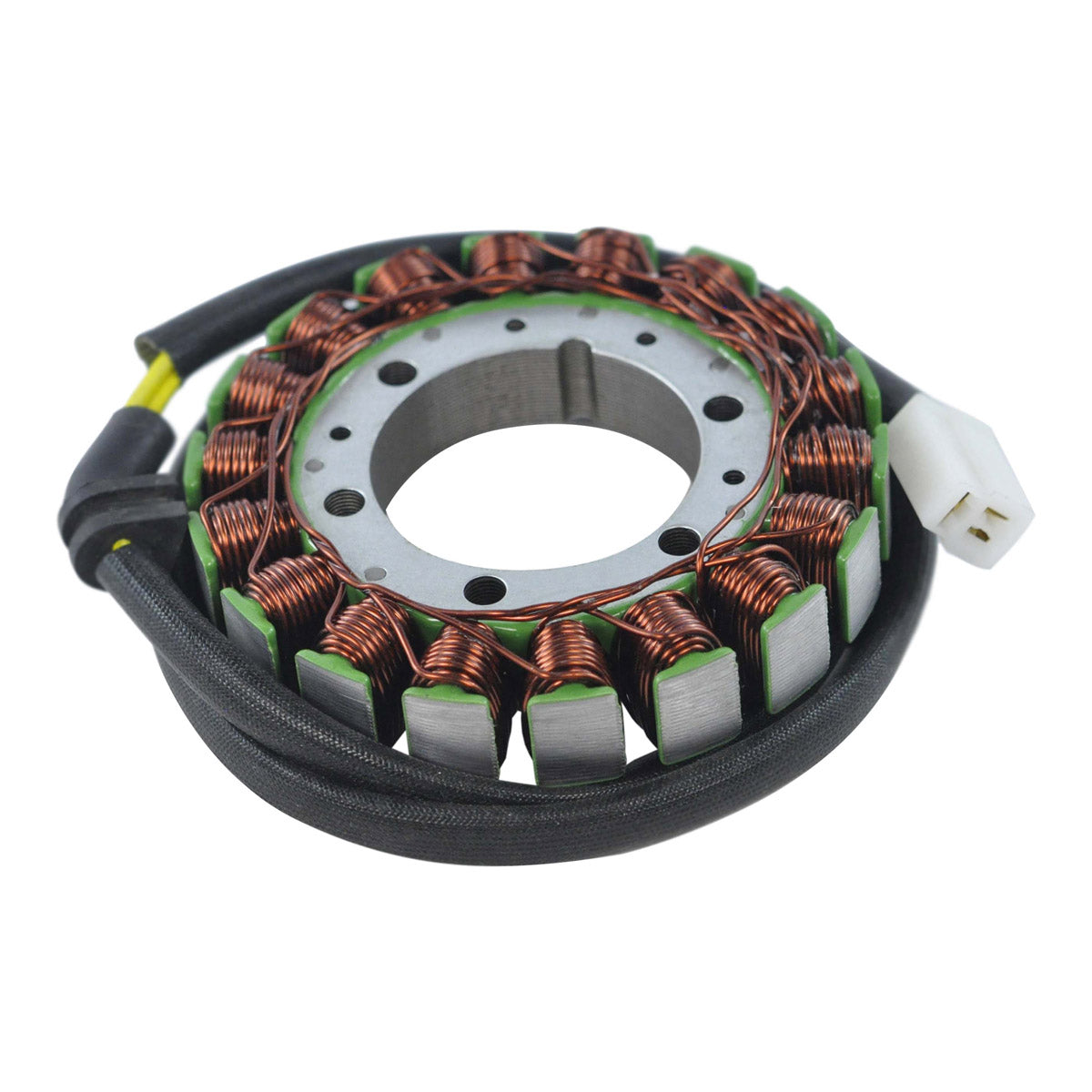

Stator for Honda VT 750 Shadow Aero and Spirit
Honda VT 750 Shadow Aero and Shadow Spirit 2004-2009 - RMSTATOR part RM01591
This is a brand new aftermarket stator, built as a direct replacement for the original charging unit fitted to the Honda VT 750 Shadow Aero and Shadow Spirit from 2004 to 2009. It is a plug-and-play, direct fit part: it mounts in the original position inside the engine case and connects to the existing main harness, so no cutting, splicing or modification of the loom is needed.
The unit is built on the highest grade lamination materials and wound with the highest grade copper, rated to 200 degrees Celsius. A connector, a rubber grommet and the opposite main harness connector are supplied with the stator, and every unit is tested before it is shipped. This is RMSTATOR part number RM01591, replacing Honda 31120-MEG-003.
Key Features
- Brand new aftermarket stator, not a rewind of a used core
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, rated to 200 degrees Celsius
- Connector, rubber grommet and opposite main harness connector included

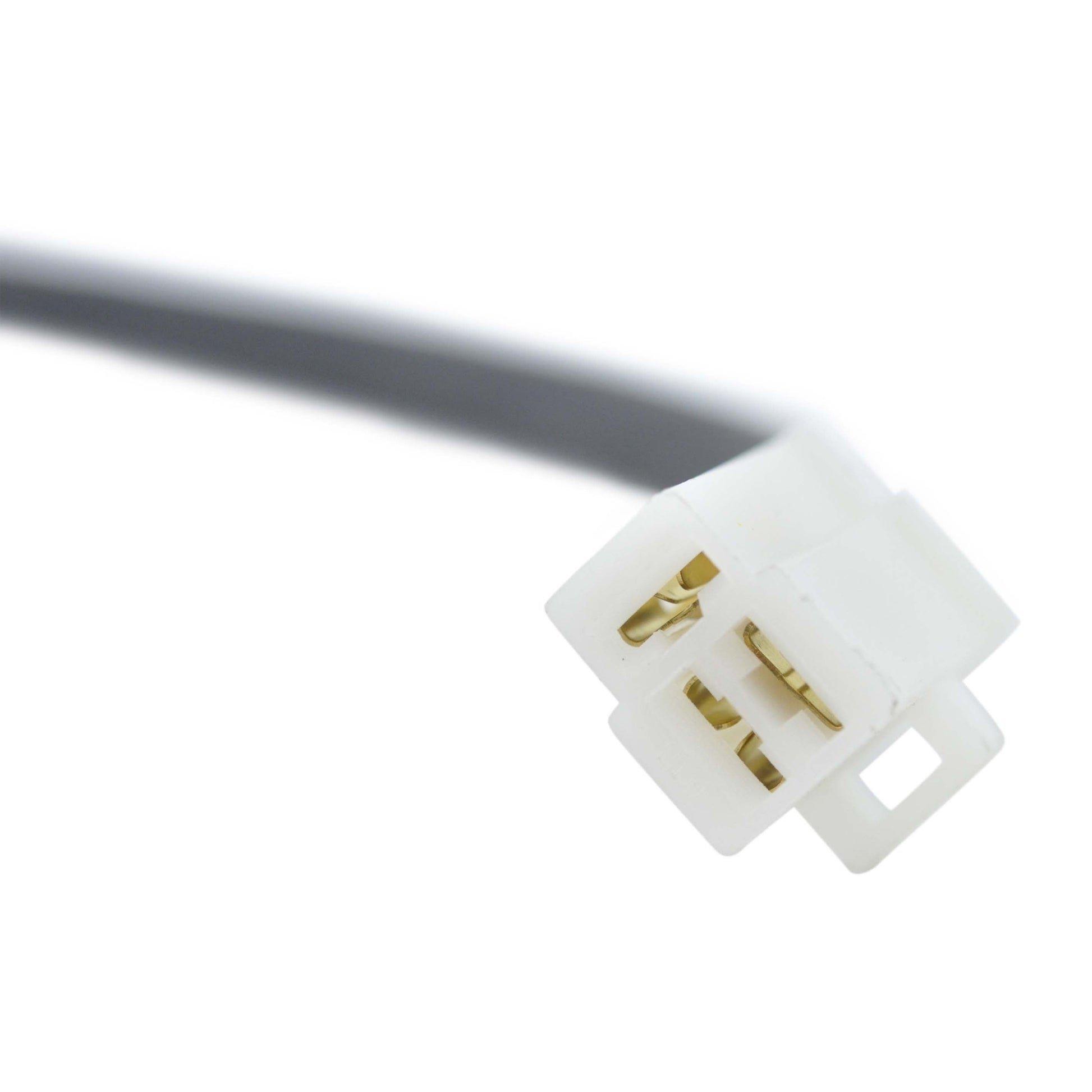

- Three wires, one plug, three pins
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54mm |
| Exterior diameter | 119.5mm |
| Thickness | 18.3mm |
| Wire length, stator to grommet | 120mm |
| Wire length, grommet to plug | 600mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance (yellow to yellow) | 0.3 ohms +/-20% |
| Included in the box | Stator unit, connector, rubber grommet, opposite main harness connector |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda VT 750 Shadow Aero | 2004-2009 |
| Honda VT 750 Shadow Spirit | 2004-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MEG-003 | Honda |
Frequently Asked Questions
Will this fit my Shadow without modification?
Yes. It is a direct fit for the 2004-2009 VT 750 Shadow Aero and Shadow Spirit and comes with the correct connector fitted, so it plugs straight into the existing main harness and mounts in the original position. No cutting or splicing of the loom is required.
What is included in the box?
The stator unit, the connector, the rubber grommet that seals the wires where they pass out of the engine case, and the opposite main harness connector so the joint can be renewed on both sides. Every unit is tested before it ships.
How do I know the old stator is the problem?
The common symptom is a battery that will not stay charged, or that goes flat after a short ride, often with lights that dim at idle. You can check the old unit with a multimeter: resistance between the yellow wires should read about 0.3 ohms, plus or minus 20 per cent, and none of the three wires should show continuity to the stator body or to engine earth. An open circuit, a reading well out of that range, or a short to earth indicates a failed stator.
Is the Shadow Aero stator the same as the Shadow Spirit stator?
For the 2004-2009 model years both use the same unit, Honda part number 31120-MEG-003, which is what this stator replaces. Check the number on your original unit before ordering if you are unsure which version your bike carries.
