Stator for Honda VT 750 Shadow Aero, Spirit, Phantom & RS 2010-2024
Stator for Honda VT 750 Shadow Aero, Spirit, Phantom & RS 2010-2024
SKU:RM01592
Free shipping over £150. Terms apply
Couldn't load pickup availability

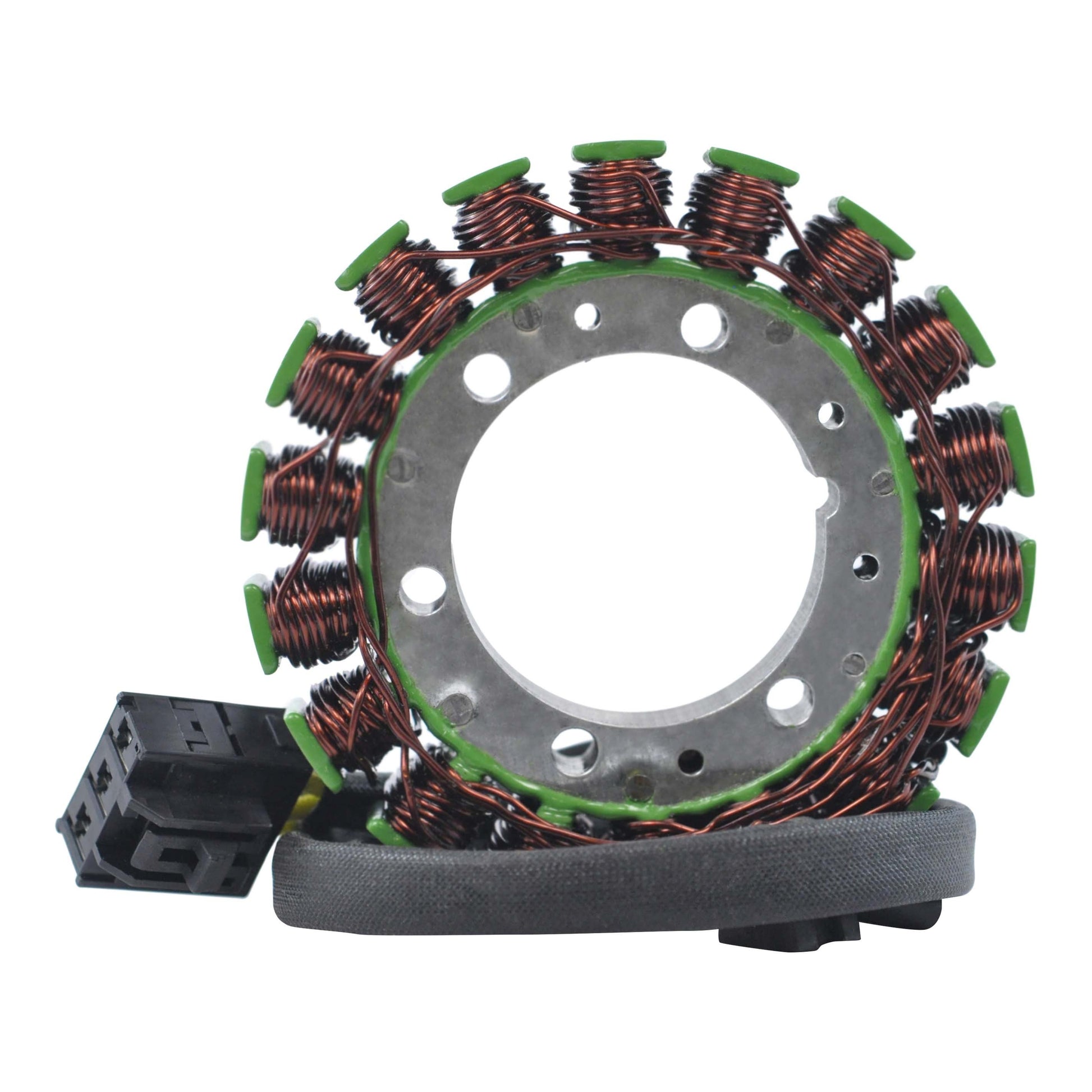

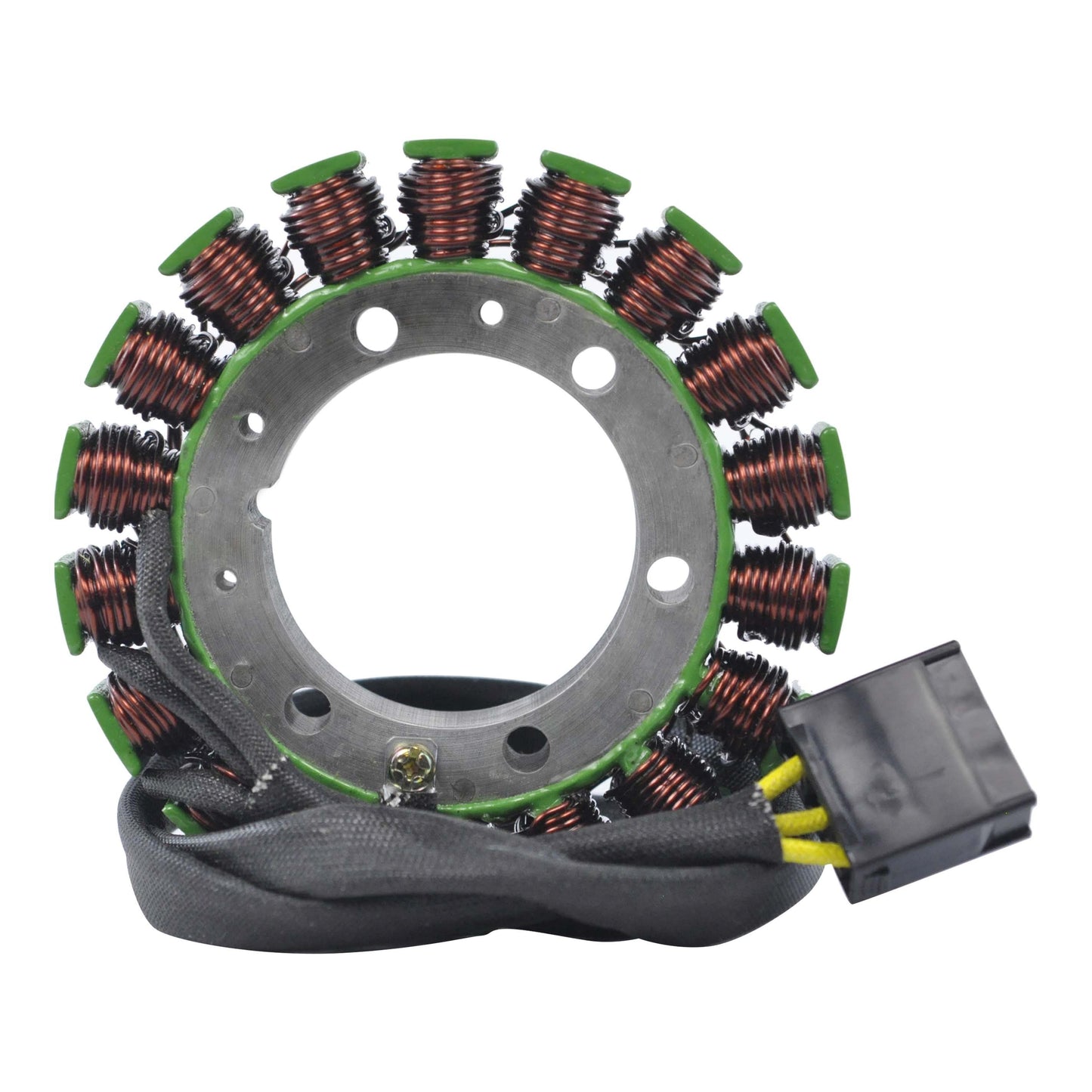

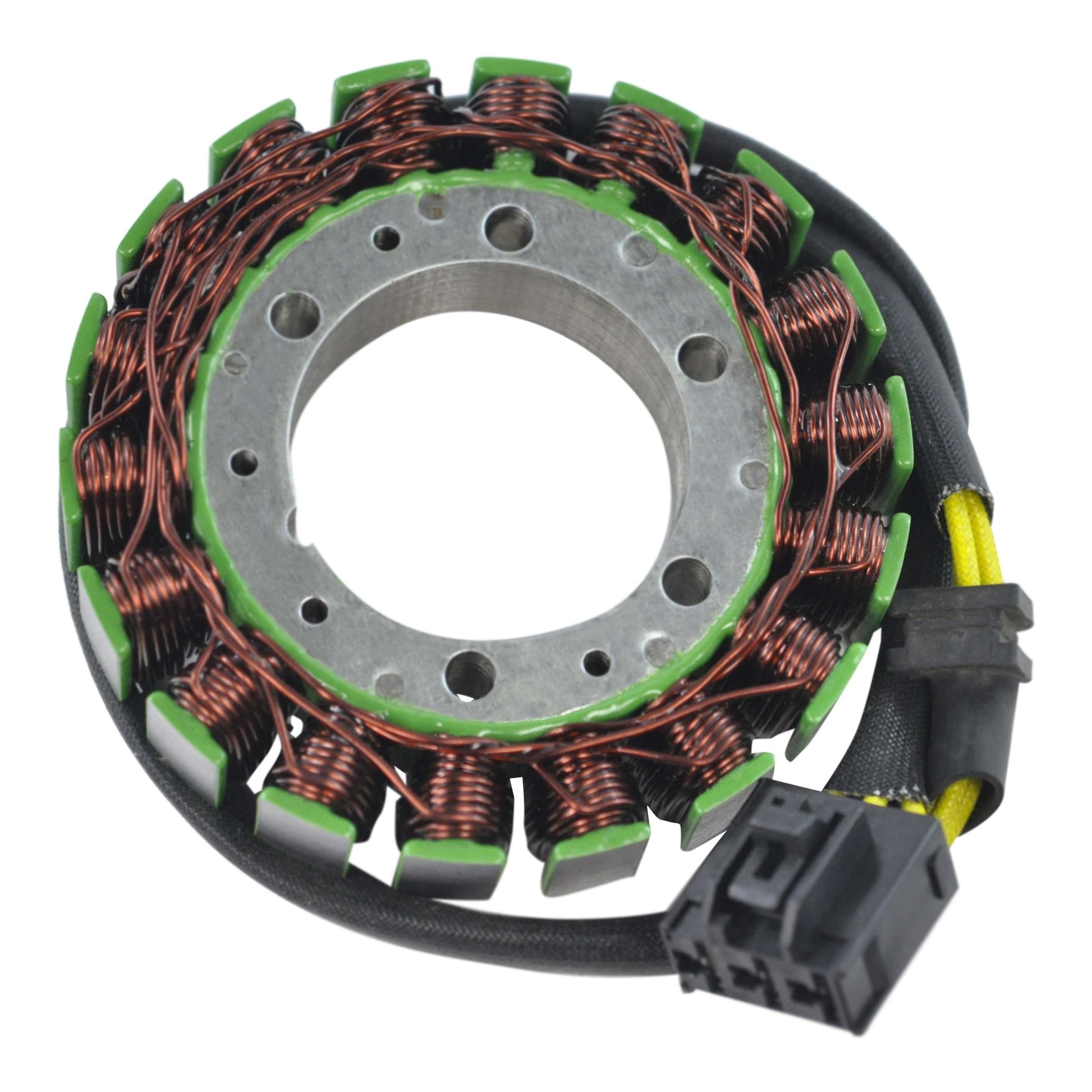

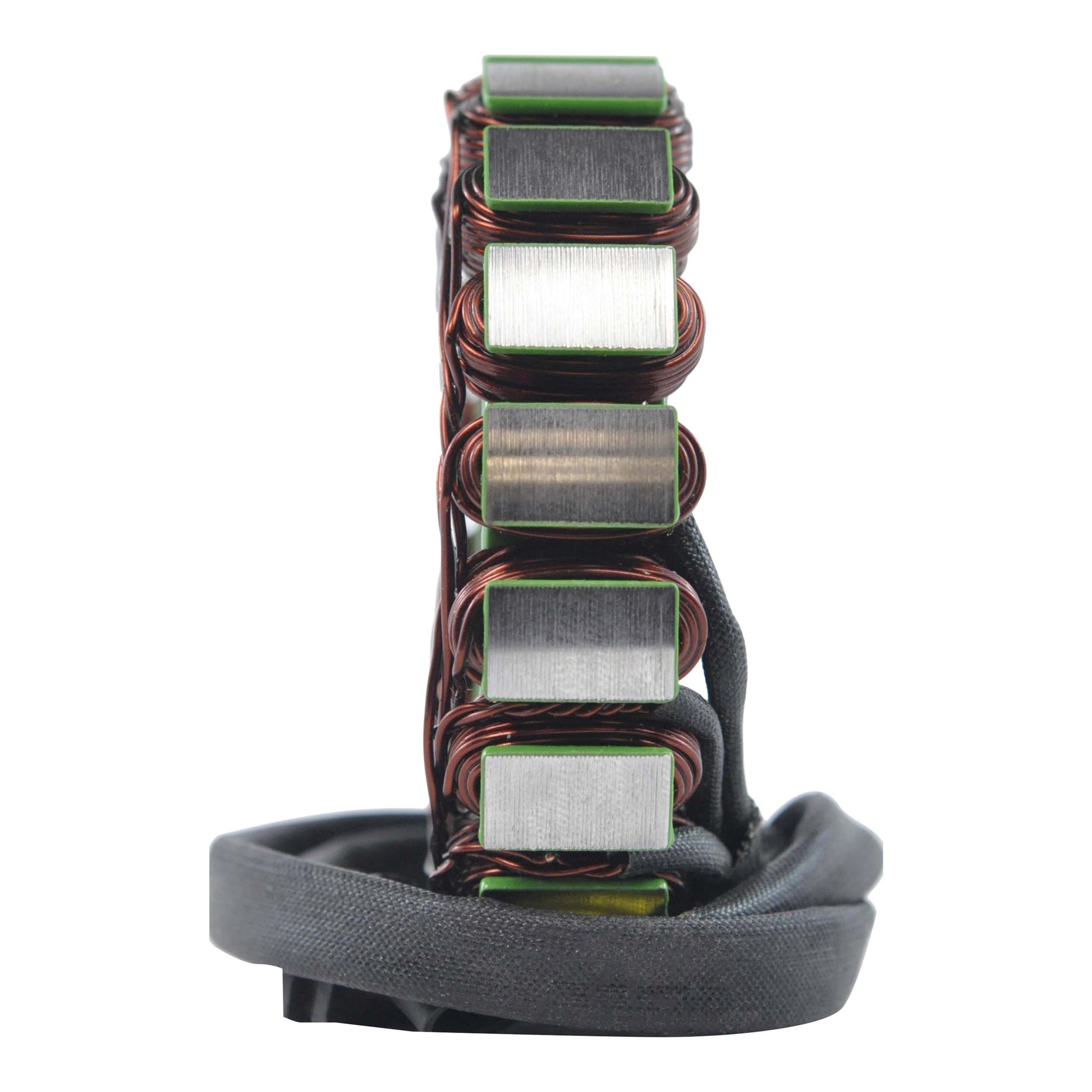

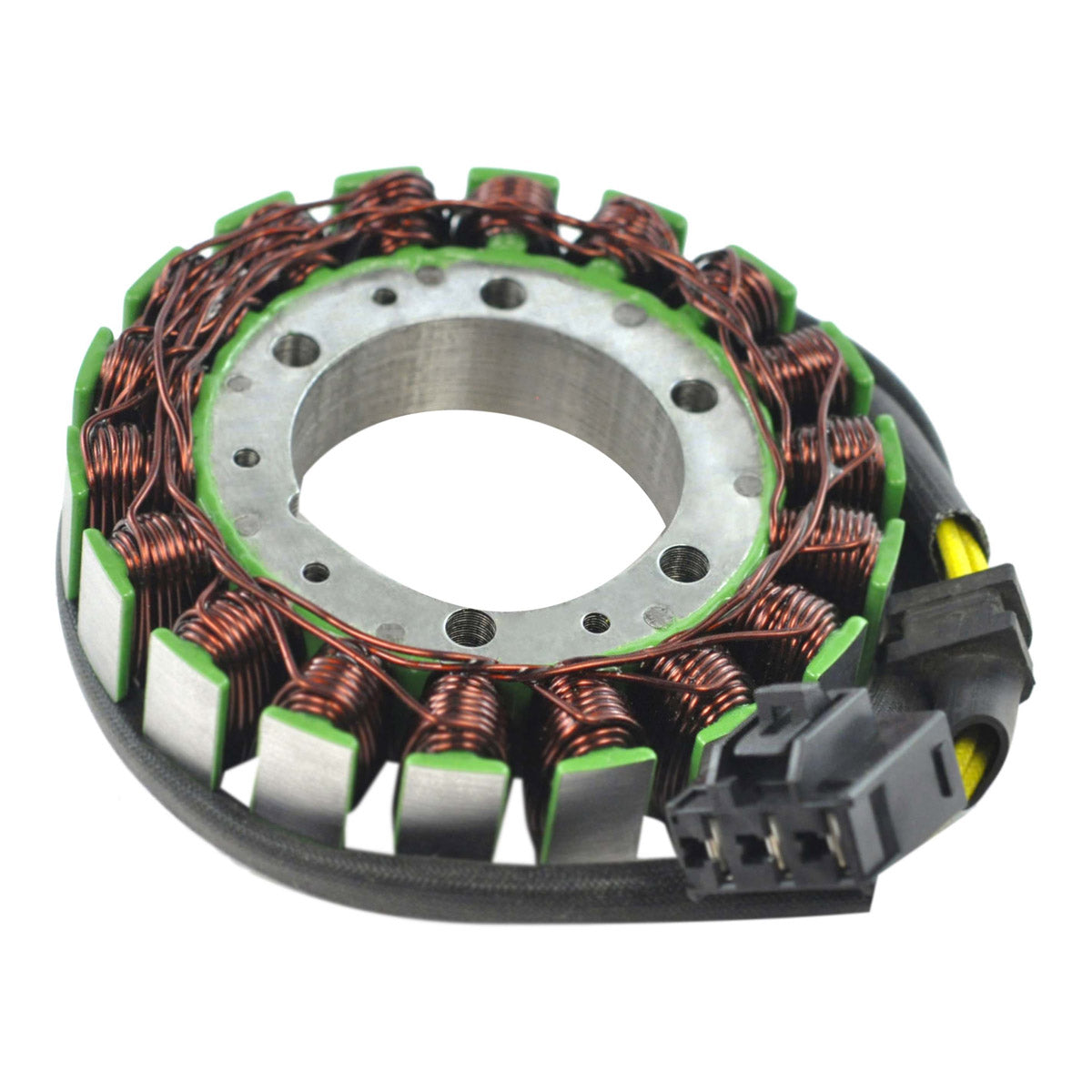

Stator for Honda VT 750 Shadow Aero / Spirit / Phantom / RS
Honda VT750 Shadow, 2010-2024 - replaces OEM 31120-MFE-641
A brand new aftermarket stator built as a direct replacement for the original charging unit fitted to the Honda VT750 Shadow. It is a plug-and-play, direct fit part that goes straight back into the original position with no modification to the engine cases or the wiring loom. The part number is RM01592.
The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. Alongside the connector and rubber grommet on the stator itself, the opposite connector for the main harness side is supplied in the box, because these are often melted, corroded or defective by the time the stator is replaced. All products undergo testing before shipment.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

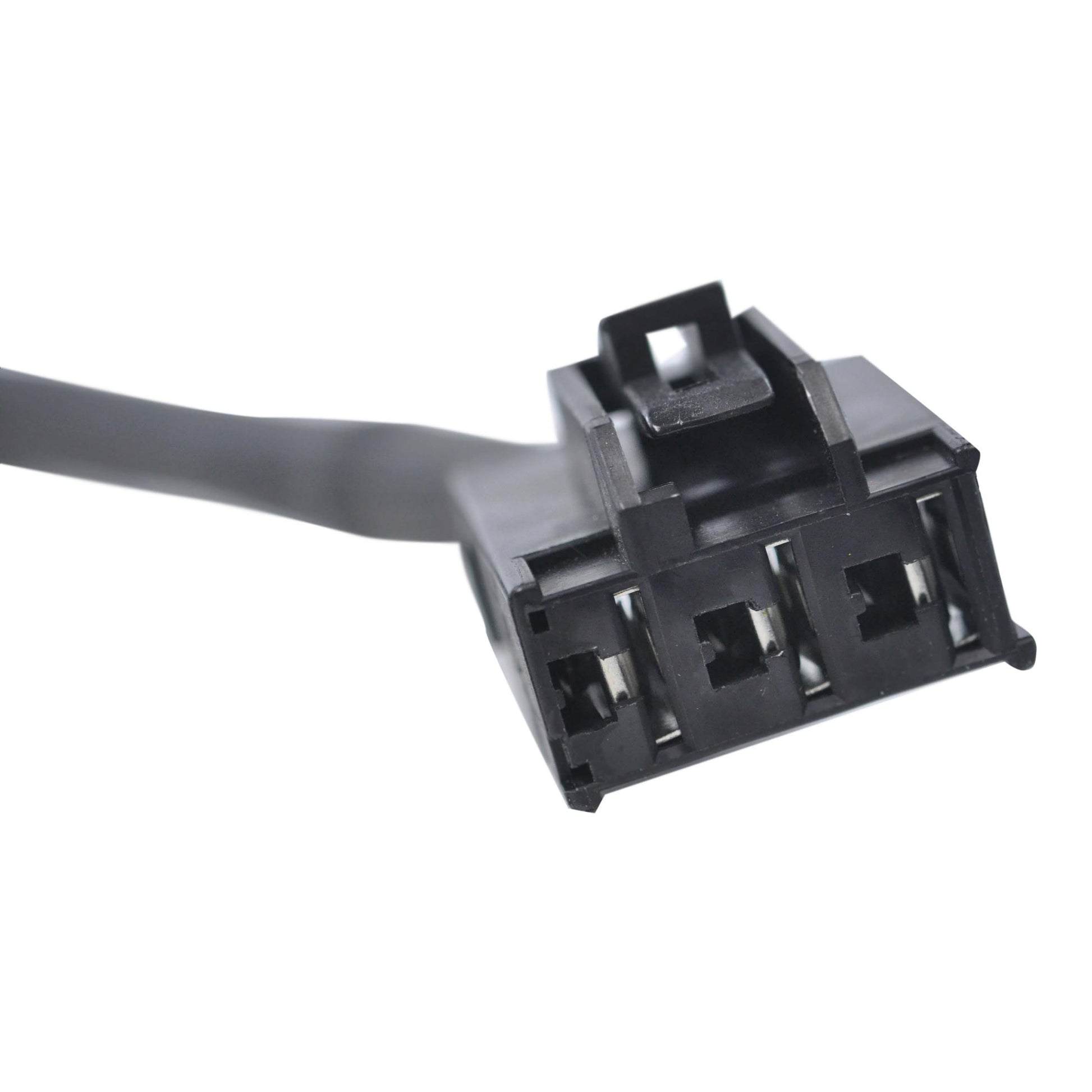

- Opposite connector for the main harness side also included
- All products shipped are tested
- Part number RM01592
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01592 |
| Interior diameter | 58.83 mm |
| Exterior diameter | 114.90 mm |
| Thickness | 19.75 mm |
| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 450 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire to wire resistance, yellow to yellow | 0.3 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda VT750 Shadow Aero | 2010-2024 |
| Honda VT750 Shadow Spirit | 2010-2024 |
| Honda VT750 Shadow Phantom | 2010-2024 |
| Honda VT750 Shadow RS | 2010-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MFE-641 | Honda |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Honda unit on the VT750 Shadow, supplied with the connector and rubber grommet already fitted. No cutting or splicing of the loom is required.
What is included in the box?
The stator assembly with its connector, the rubber grommet, and a spare opposite connector for the main harness side. All products undergo testing before shipment.
Why is a second connector supplied?
The connector on the main harness side is often melted, corroded or defective by the time a stator fails. The matching opposite connector is included so both halves of the joint can be renewed together, rather than plugging a new stator into a damaged plug.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 0.3 ohms +/- 20% yellow to yellow across the windings. A reading that is open circuit, shorted to earth, or well outside that figure points to a failed stator.
