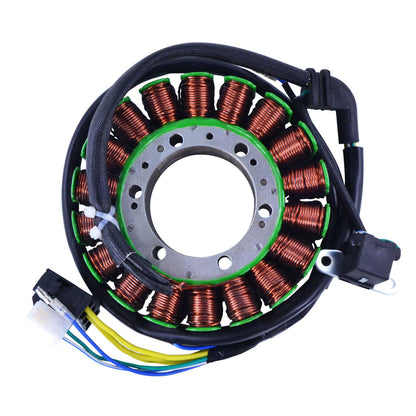

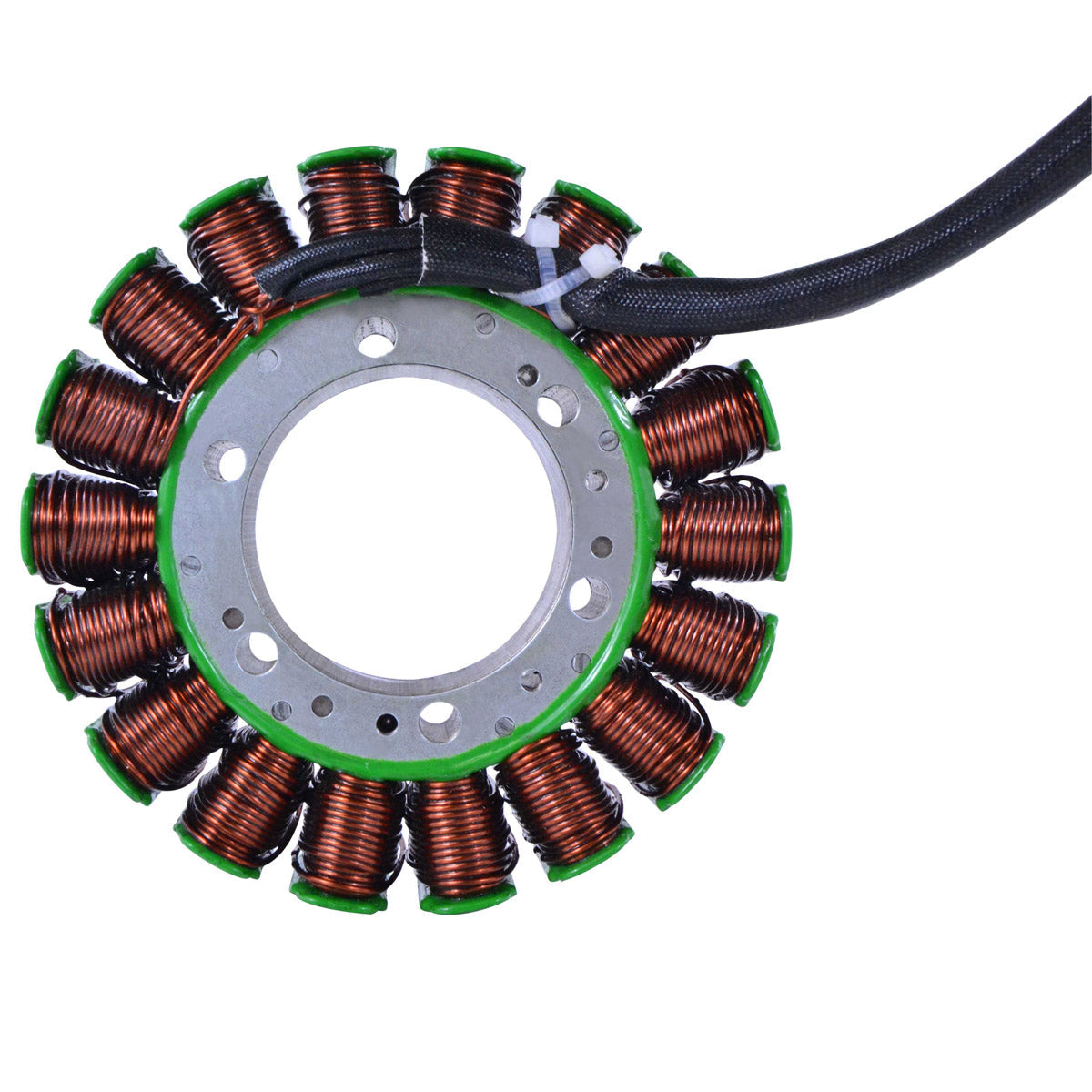

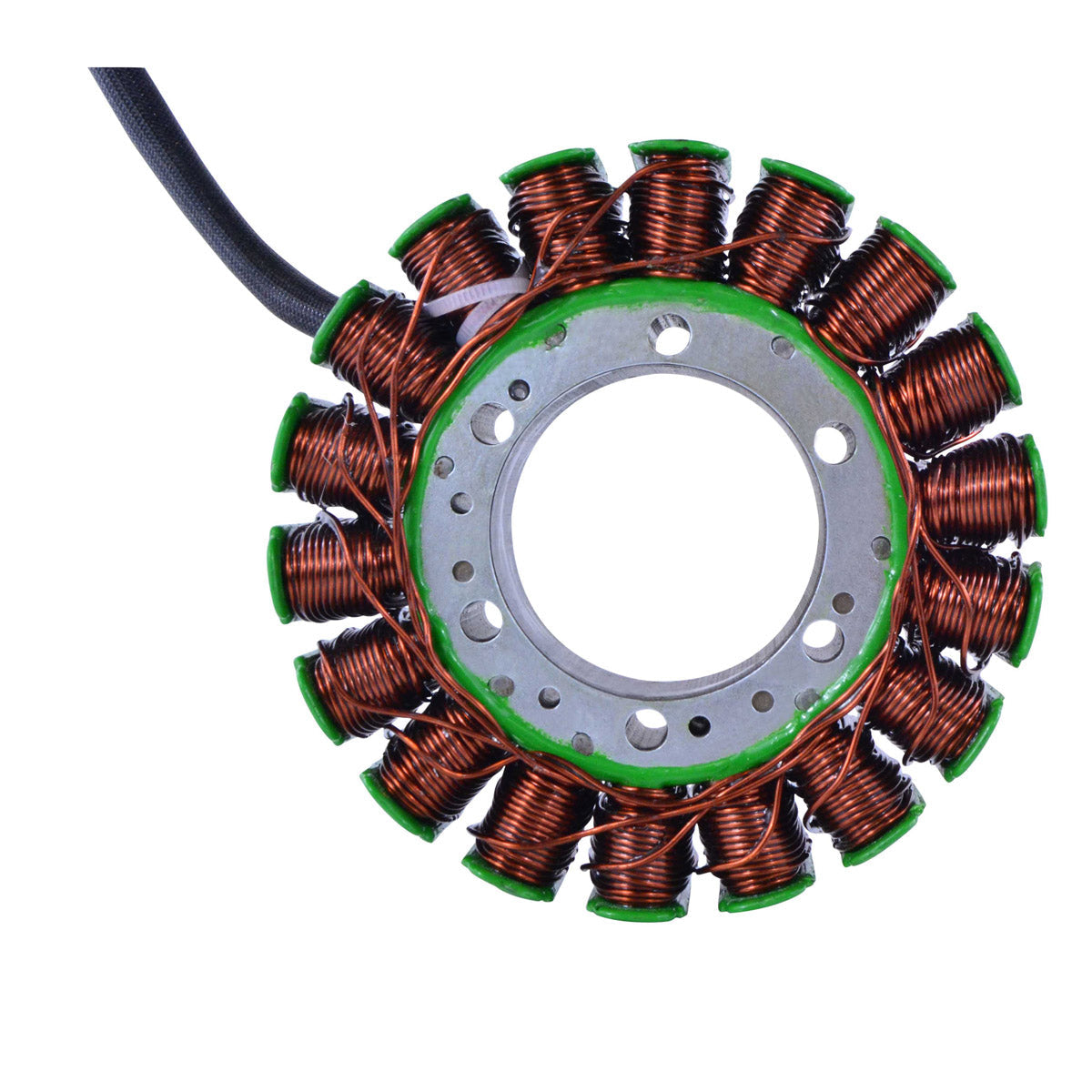

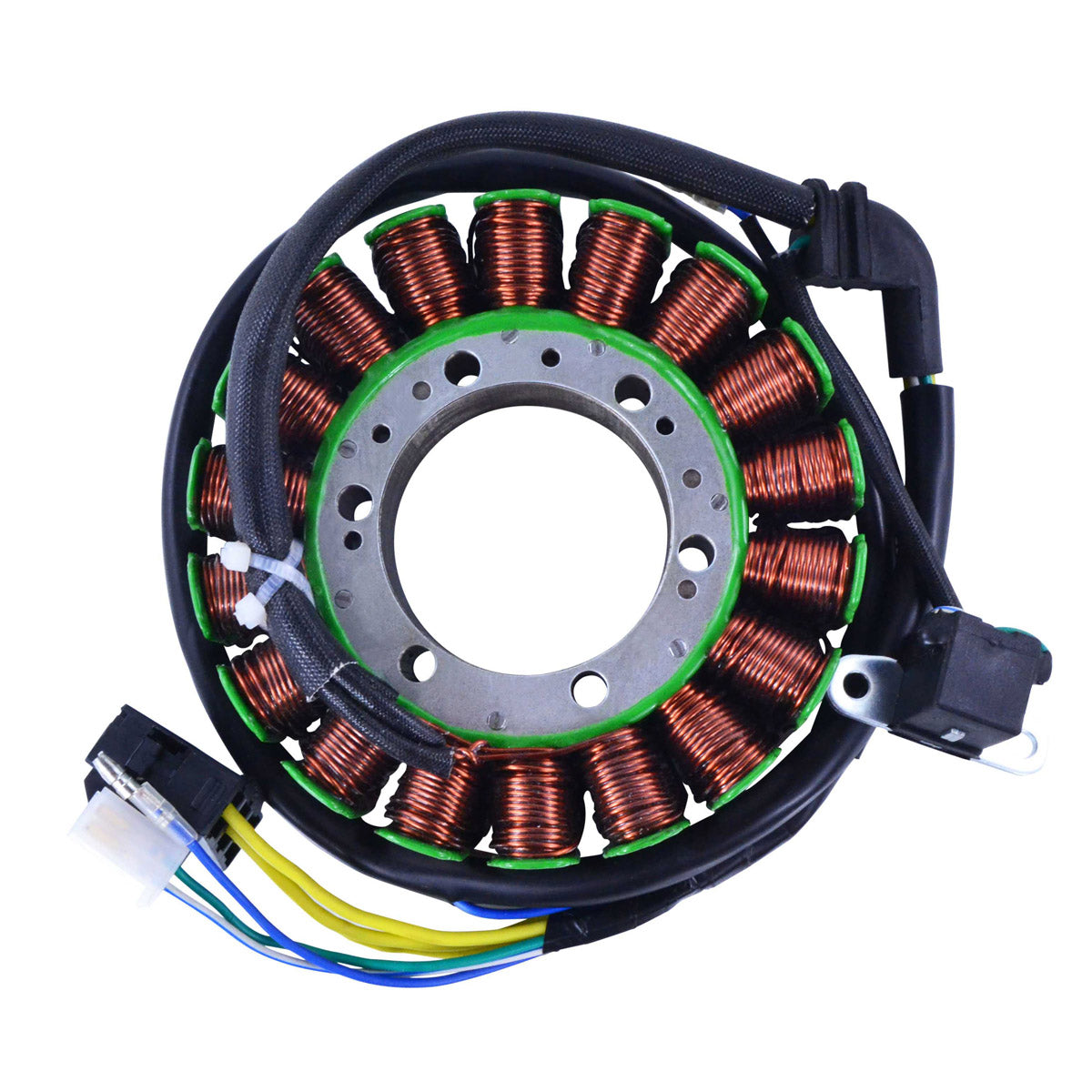

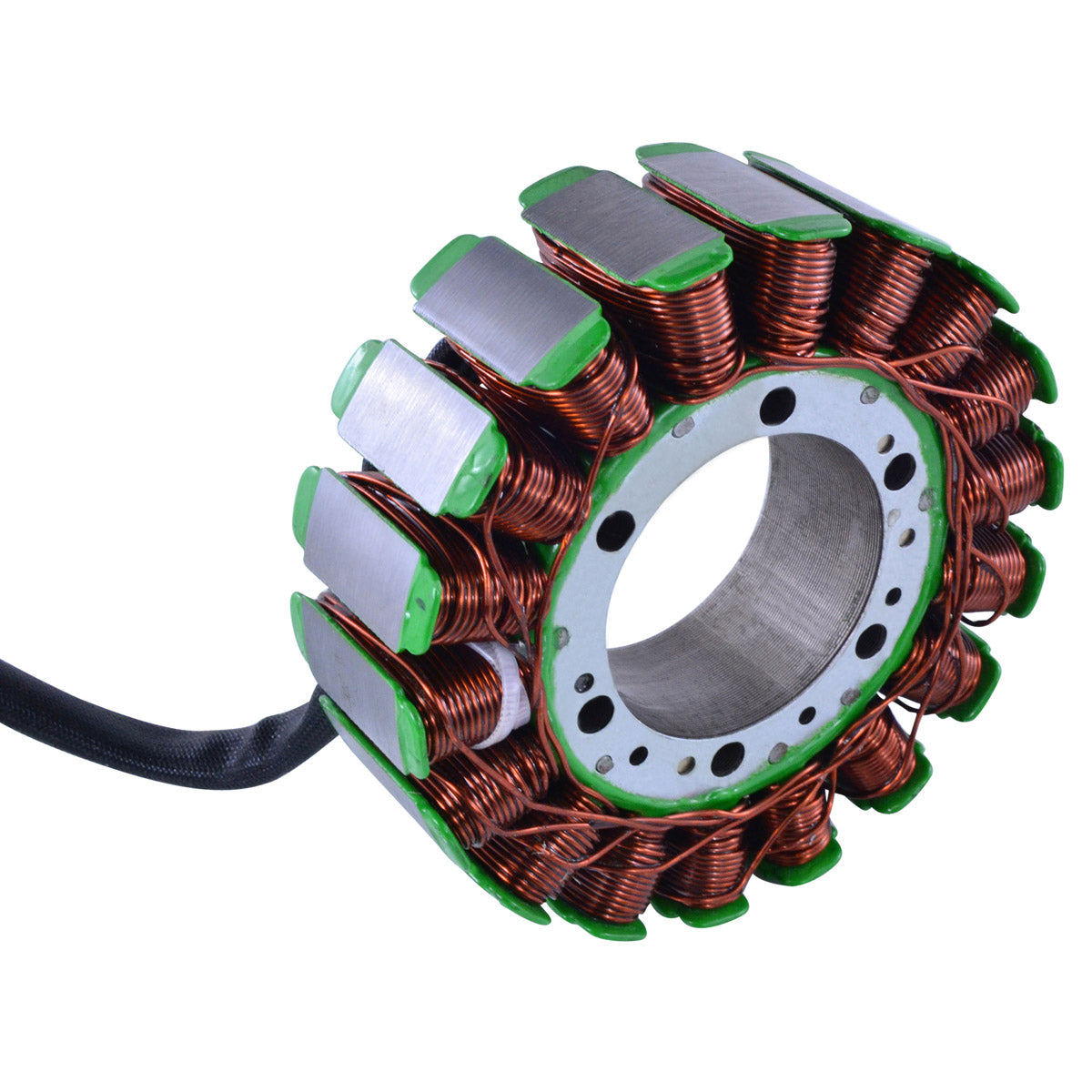

This is a brand new aftermarket stator for the Honda VTX 1300 family, supplied complete with the pickup pulsar coil. The stator generates the three-phase alternating current that the regulator-rectifier converts into the DC that charges the battery and runs the lights, ignition and accessories, while the pickup coil supplies the crank position signal the ignition depends on. A big cruiser like the VTX carries a heavy electrical load, so a stator with even one weak phase shows up quickly as a battery that will not hold charge, dimming lights at idle, or a bike that runs until the battery is flat and then stops.

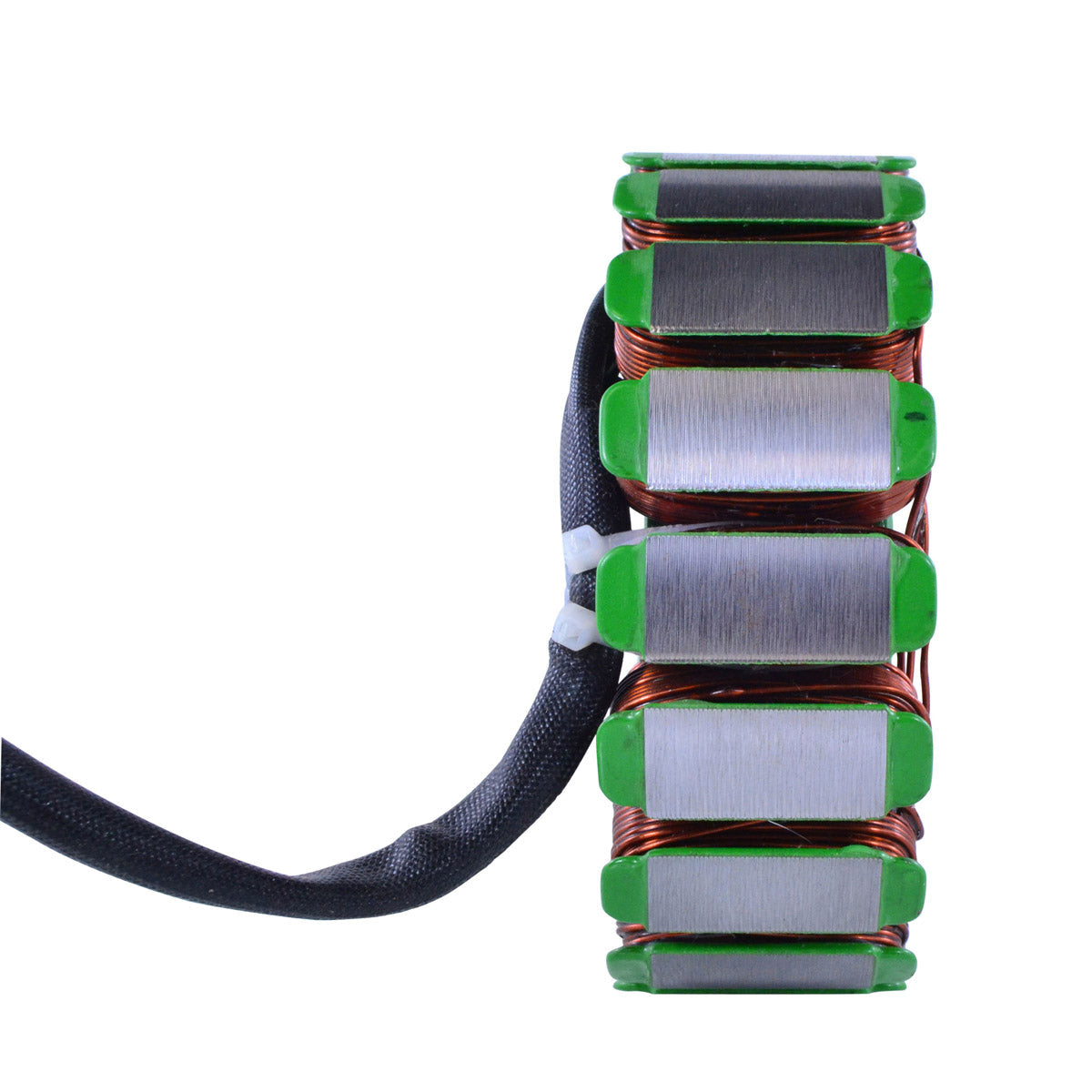

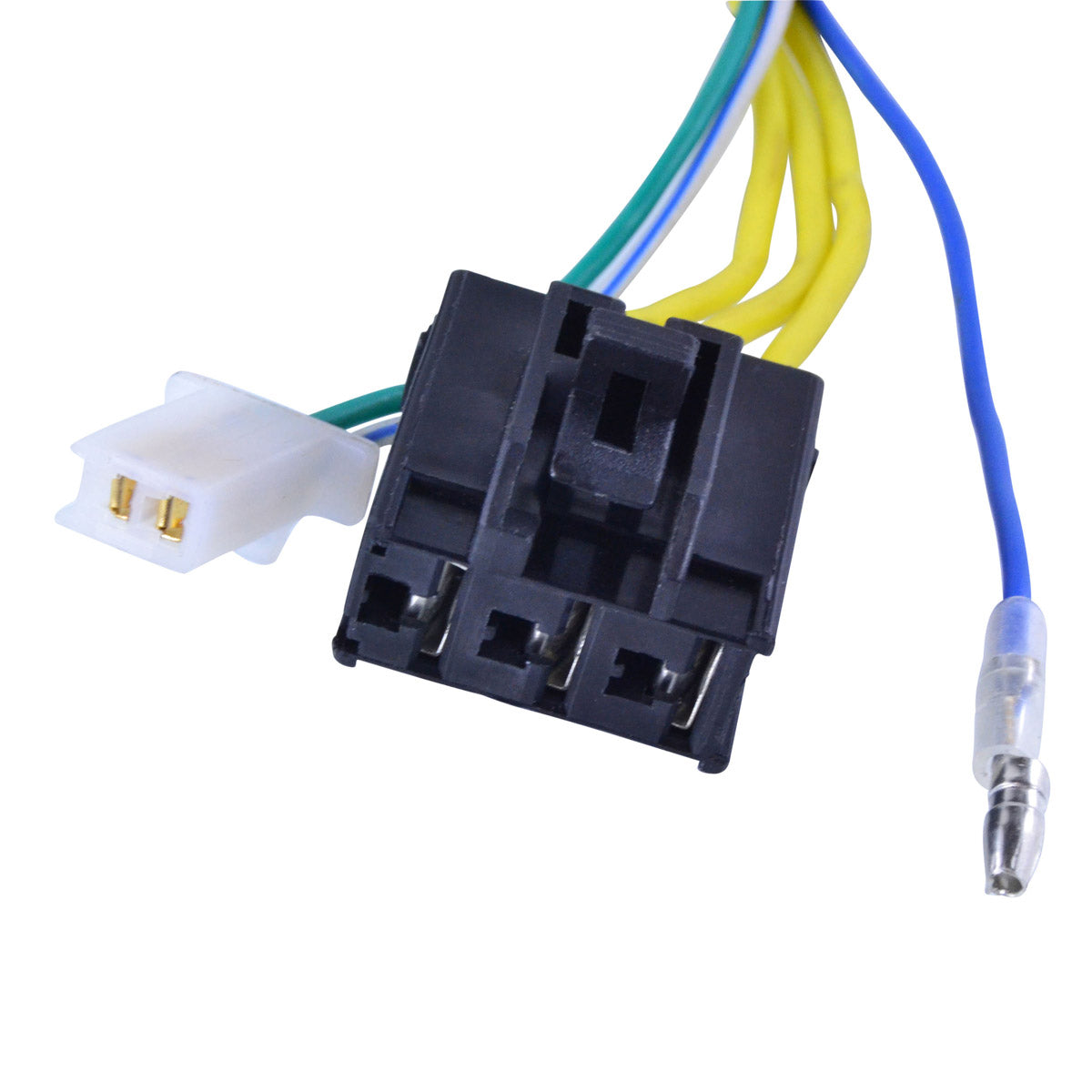

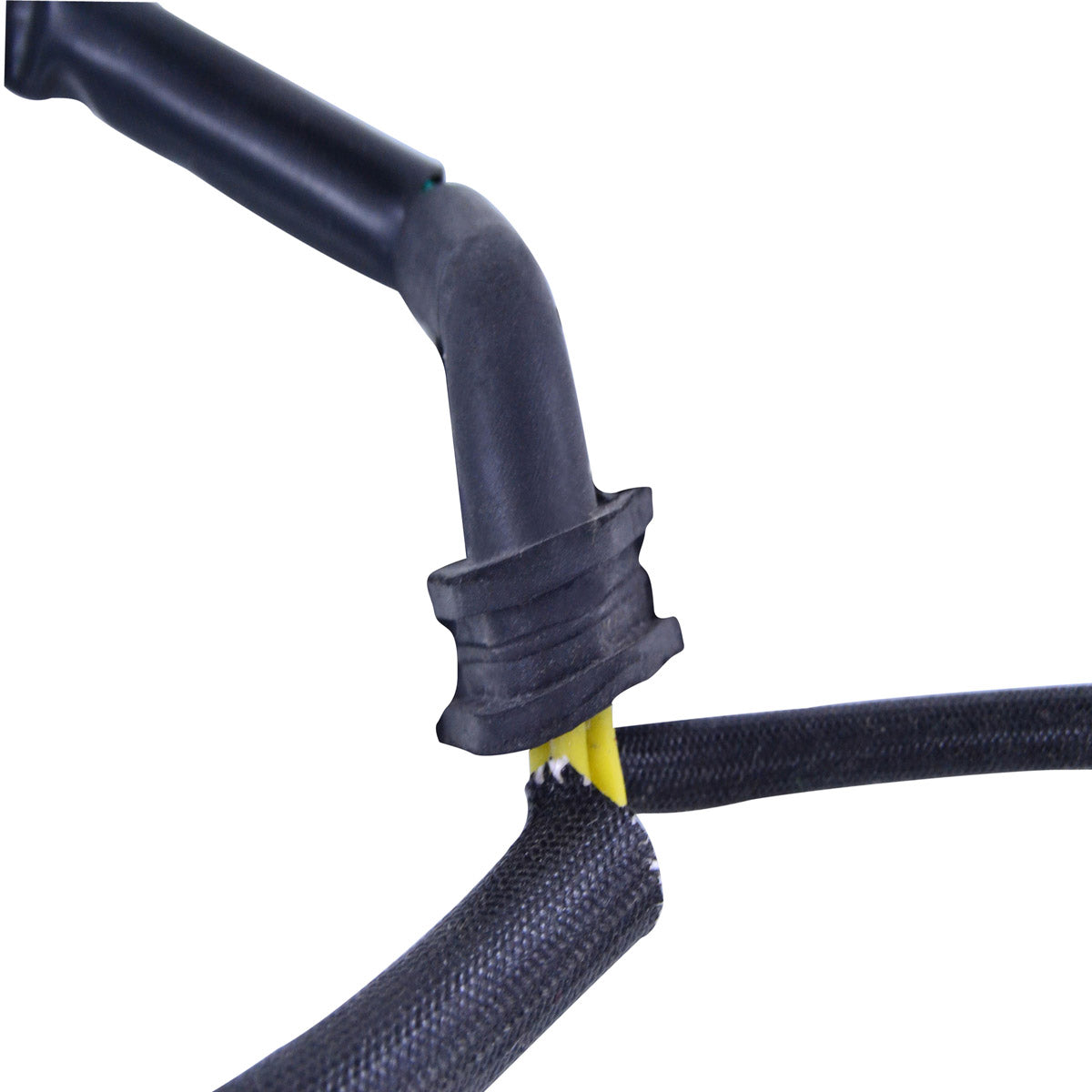

The unit is a plug-and-play, direct fit replacement built to the original dimensions - 126 mm outside diameter, 54 mm bore and a substantial 42 mm stack - with the same seven wires through four plugs, so no cutting, splicing or bracket modification is needed. It uses the highest grade of lamination materials and the highest grade of copper winding, resistant to 200 degrees Celsius. The connector and rubber grommet are included and every unit is tested before shipping. The opposite connector for the main harness side is also supplied, because those plugs are frequently found melted, corroded or defective and are a major cause of repeat electrical issues.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation

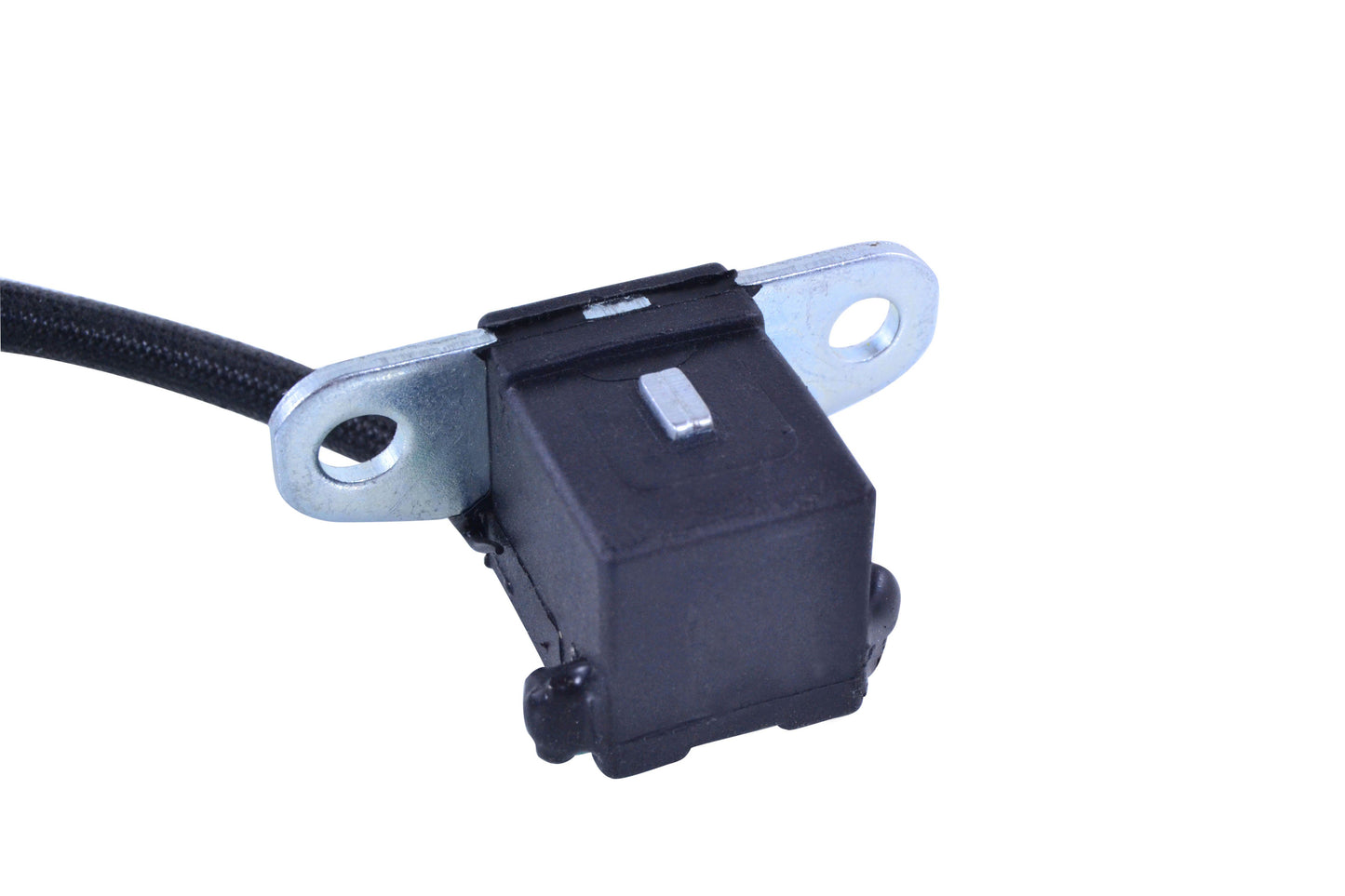

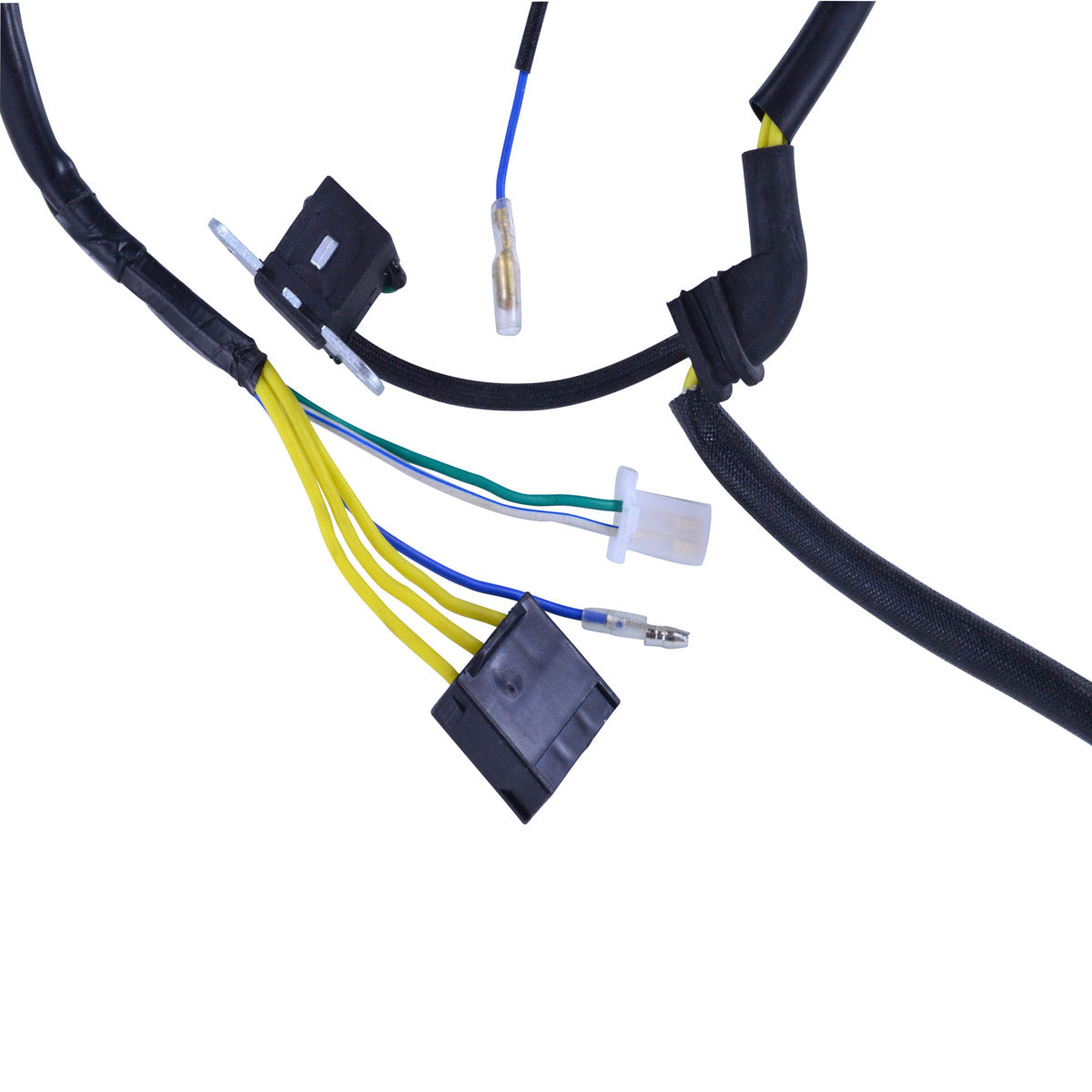

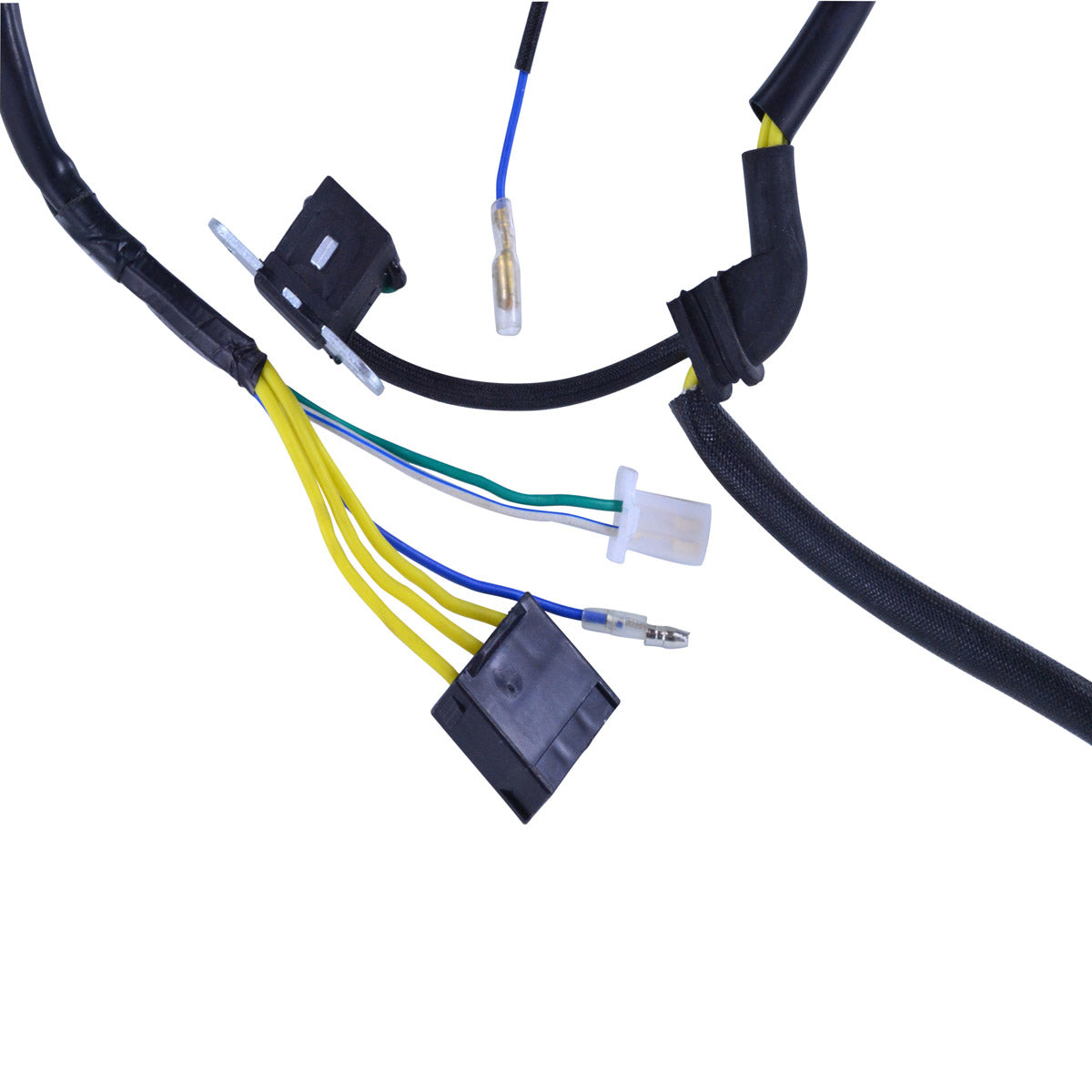

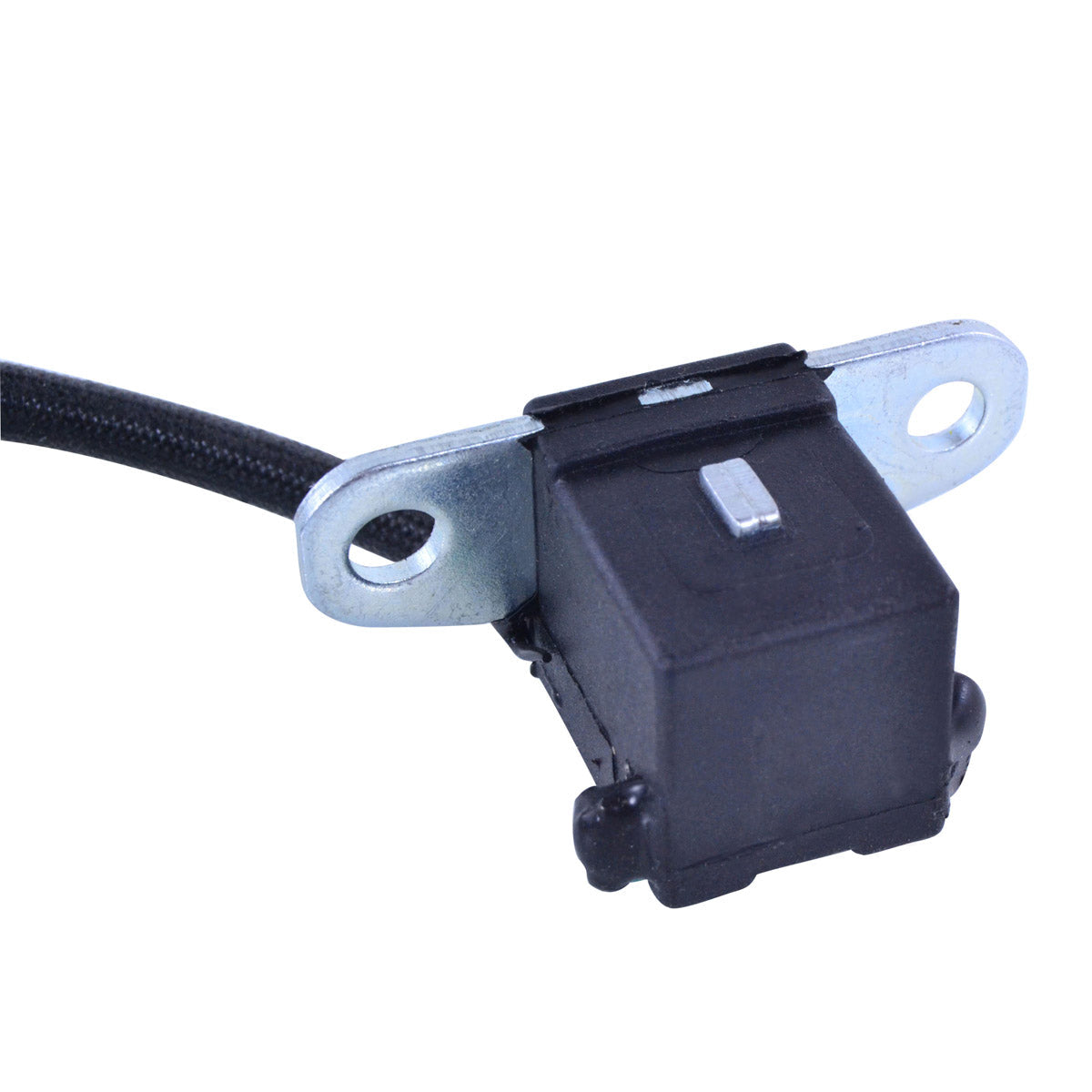

- Pickup pulsar coil included
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector and rubber grommet included

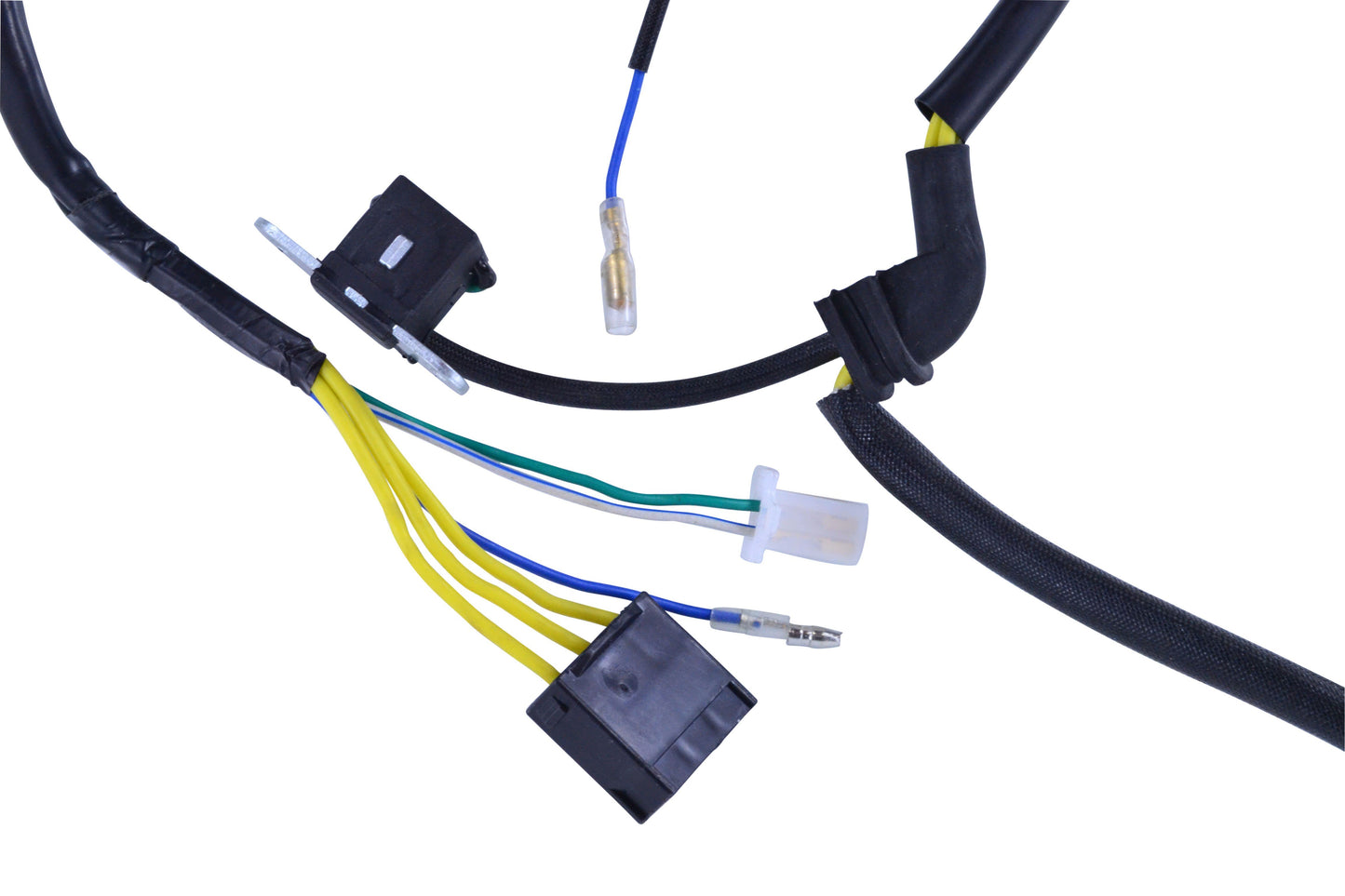

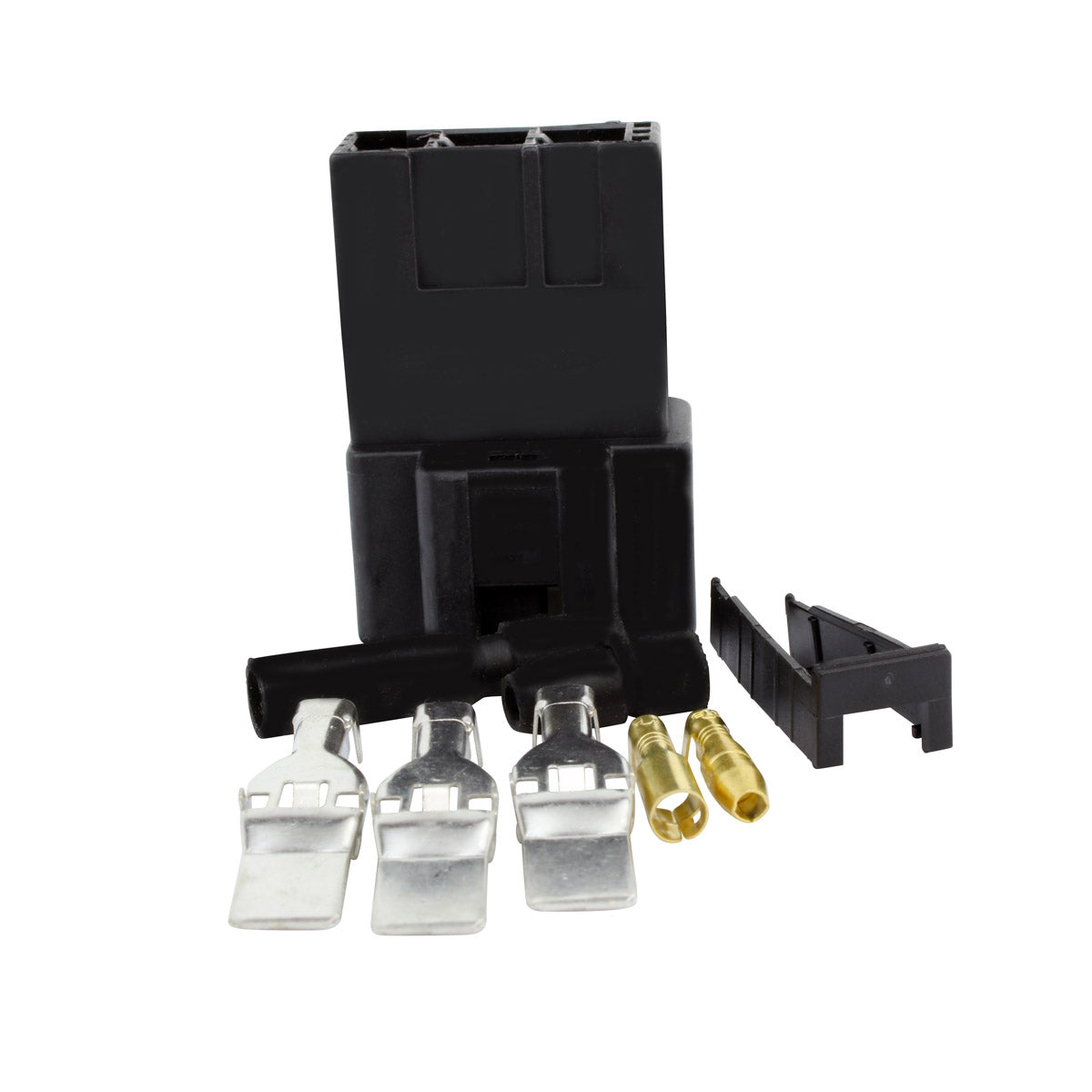

- Opposite connector for the main harness side included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-103215 |
| Interior diameter |
54 mm |
| Exterior diameter |
126 mm |
| Stack thickness |

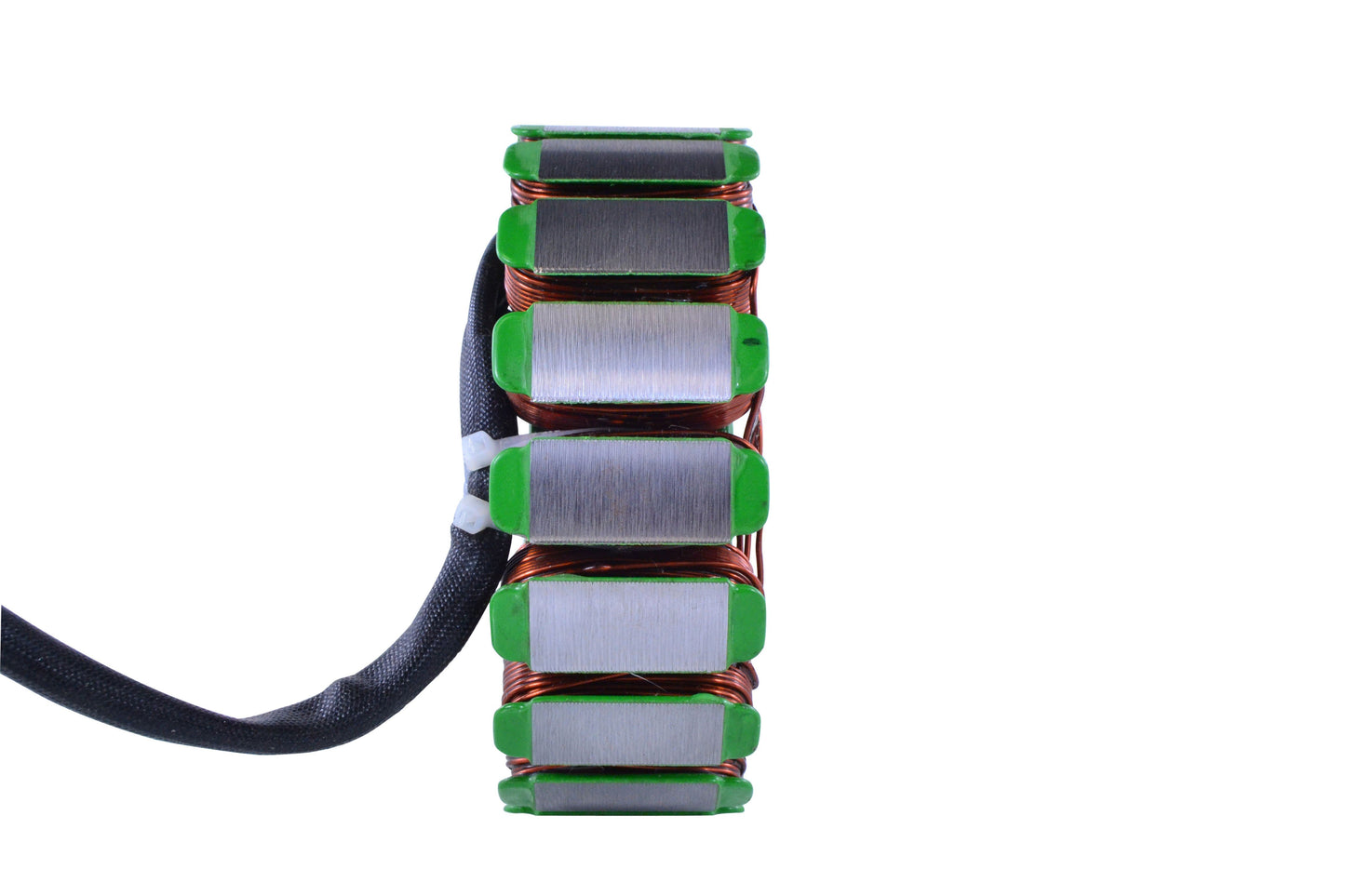

42 mm |
| Wire length, stator to grommet |
175 mm |
| Wire length, grommet to plug |
640 mm |
| Pickup coil wire length to grommet |
80 mm |
| Number of wires |
7 |
| Number of plugs |
4 |
| Number of pins |
7 |
| Alternator 3-phase resistance, yellow to yellow |
0.4 ohms +/- 20% |
| Pickup coil resistance, blue/white to green |
0.36 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda VTX 1300 / VTX1300C / VTX1300R |
2005-2009 |
| Honda VTX1300S |
2005-2007 |
| Honda VTX1300T |
2008-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MEA-741 |
Honda |
Frequently Asked Questions
Do I need to modify anything to fit it?
No. This is a plug-and-play, direct fit replacement. The 126 mm outer diameter, 54 mm bore, 42 mm stack, seven-wire output and four plugs all match the original, so it fits the standard cover and connects to the existing loom with no cutting or splicing.
What is included in the box?

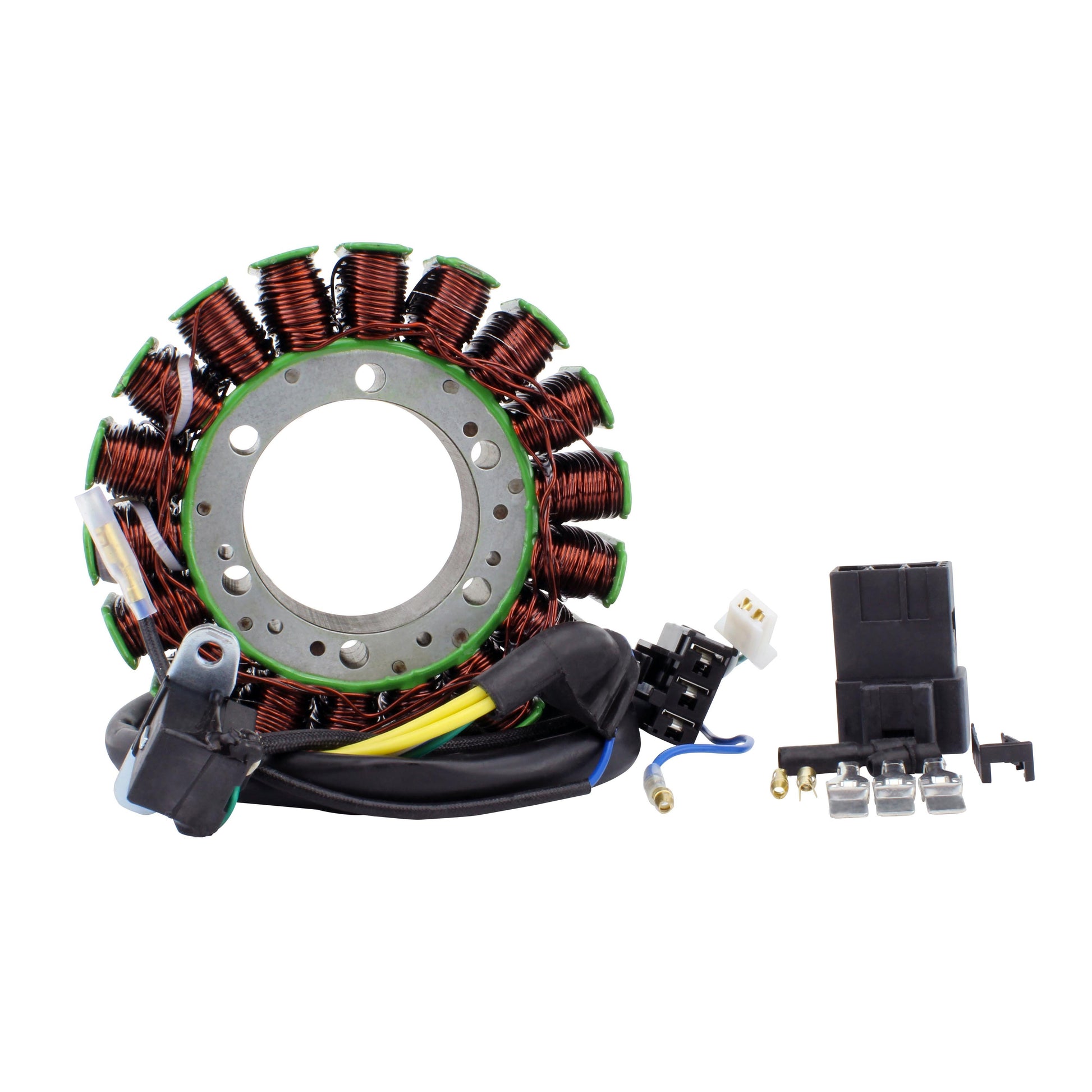

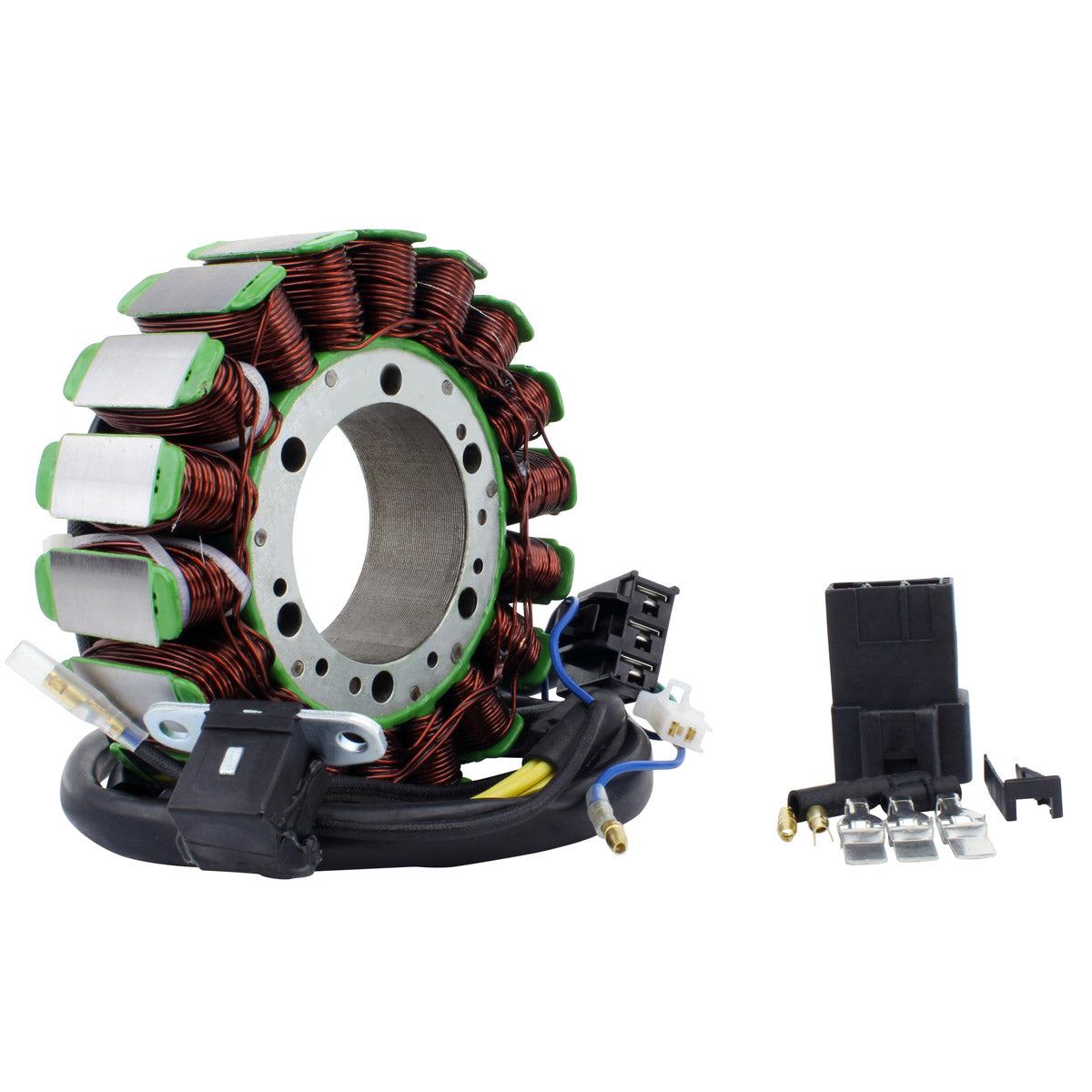

The stator assembly with its connector, the pickup pulsar coil, the rubber grommet, and the opposite connector for the main harness side.
How do I confirm the old stator has failed?
With the plugs disconnected, measure between each pair of yellow wires. All three readings should sit near 0.4 ohms and within about 20 per cent of each other, and none of the yellow wires should show continuity to the engine casing. A single phase reading open, or an unbalanced set of readings, is a failed stator even if the bike still charges weakly.
Which VTX 1300 variants does this cover?
The VTX1300, VTX1300C and VTX1300R from 2005 to 2009, the VTX1300S from 2005 to 2007, and the VTX1300T from 2008 to 2009. If you are unsure, check that the part number on your original unit is 31120-MEA-741 before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
