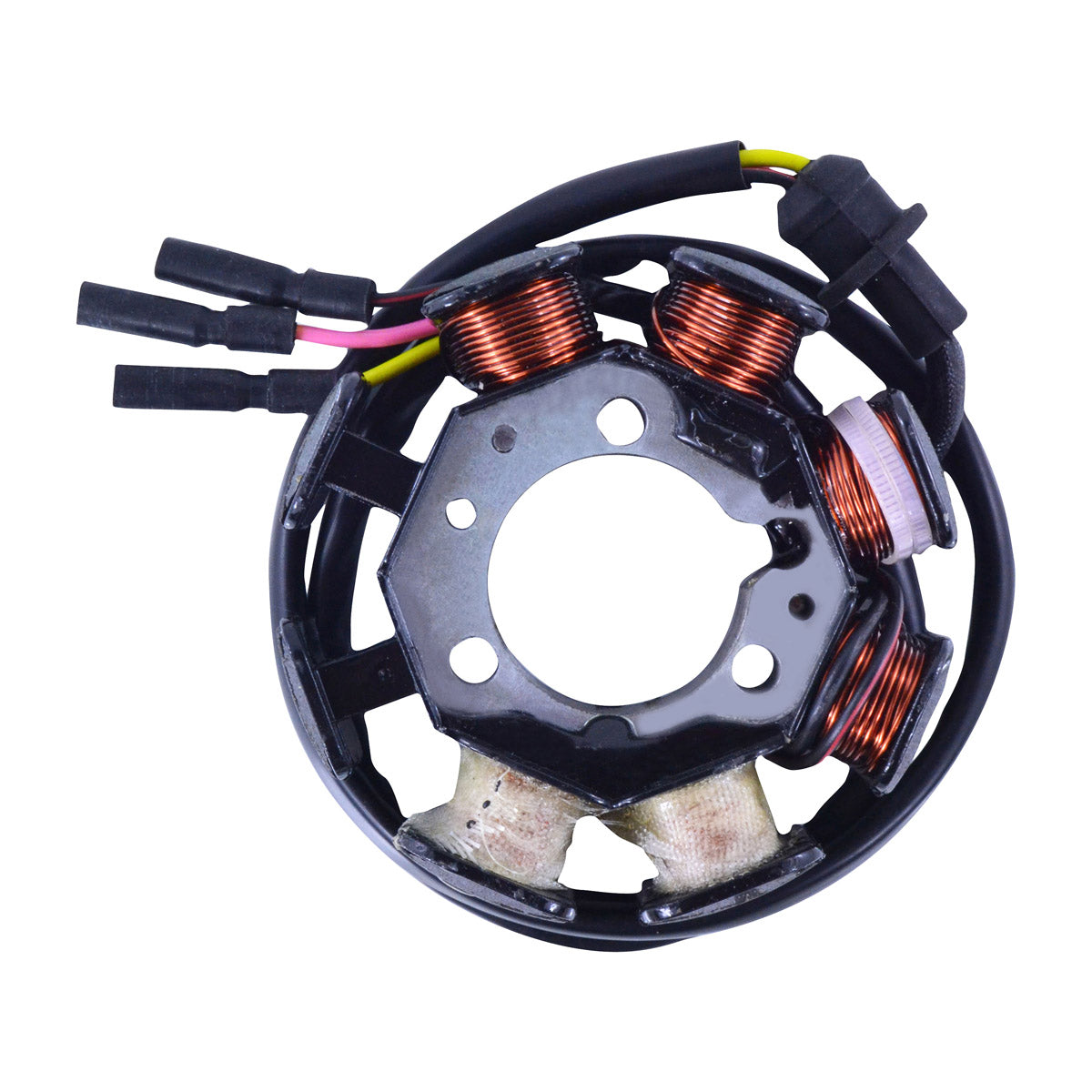

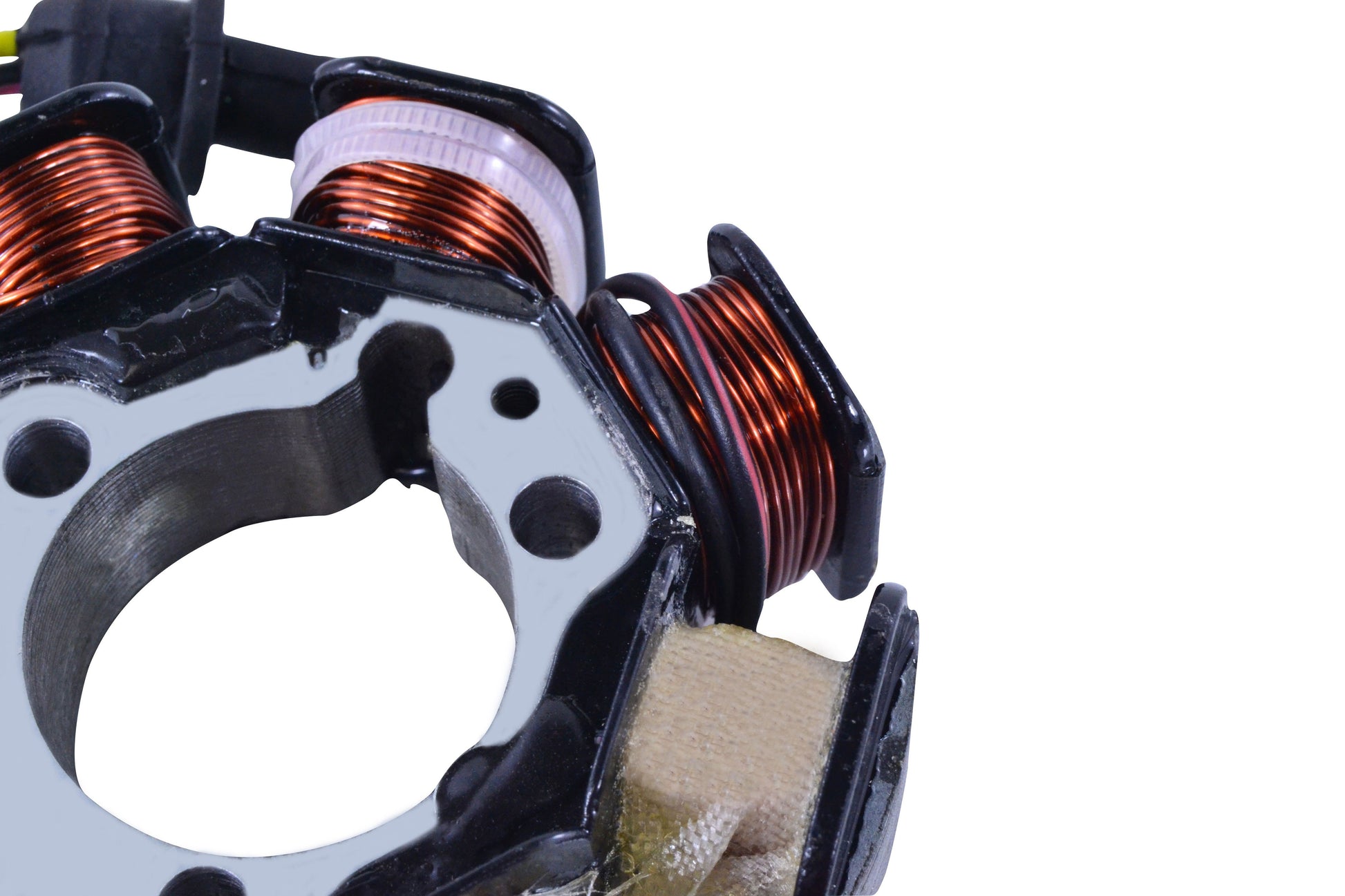

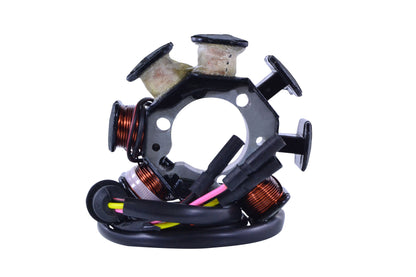

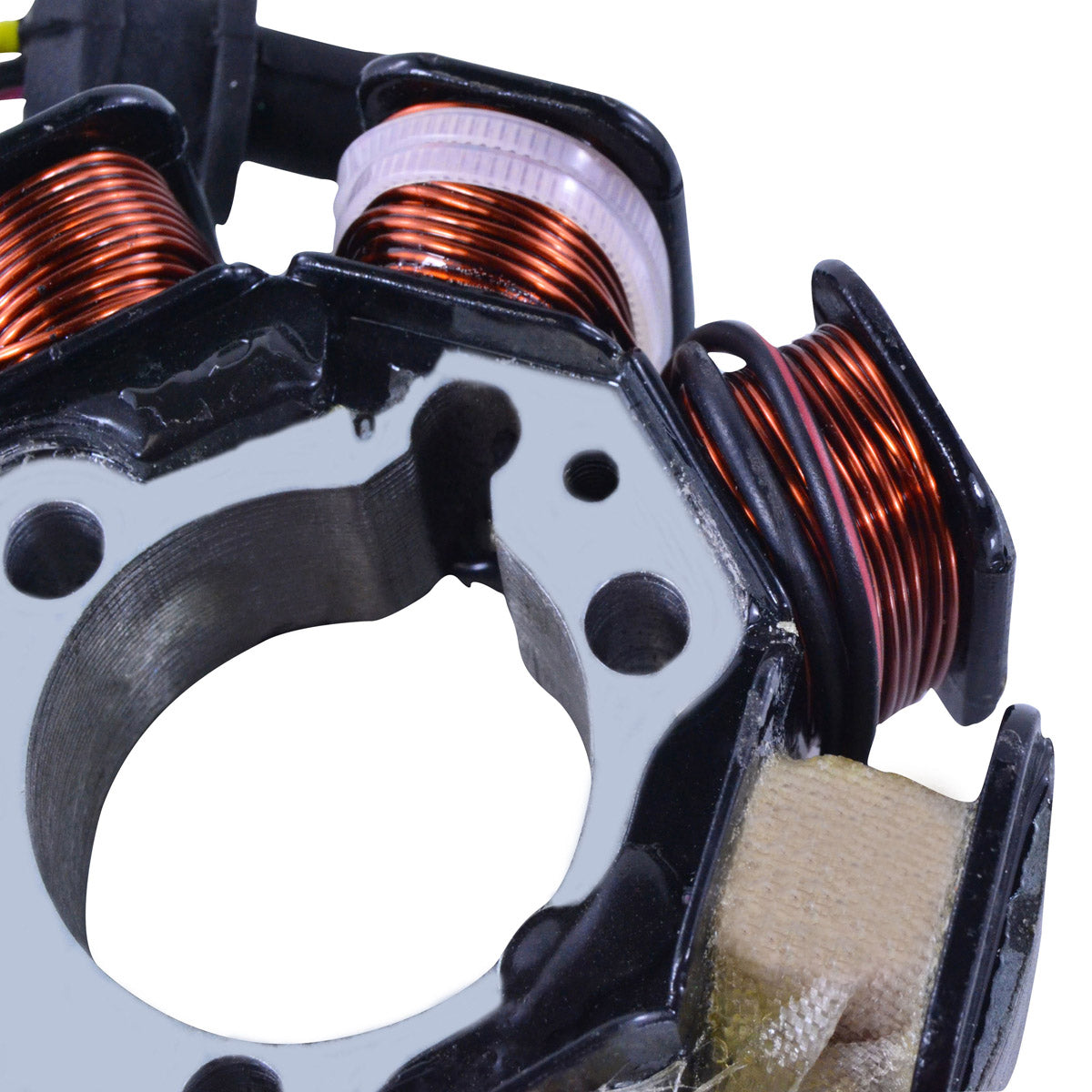

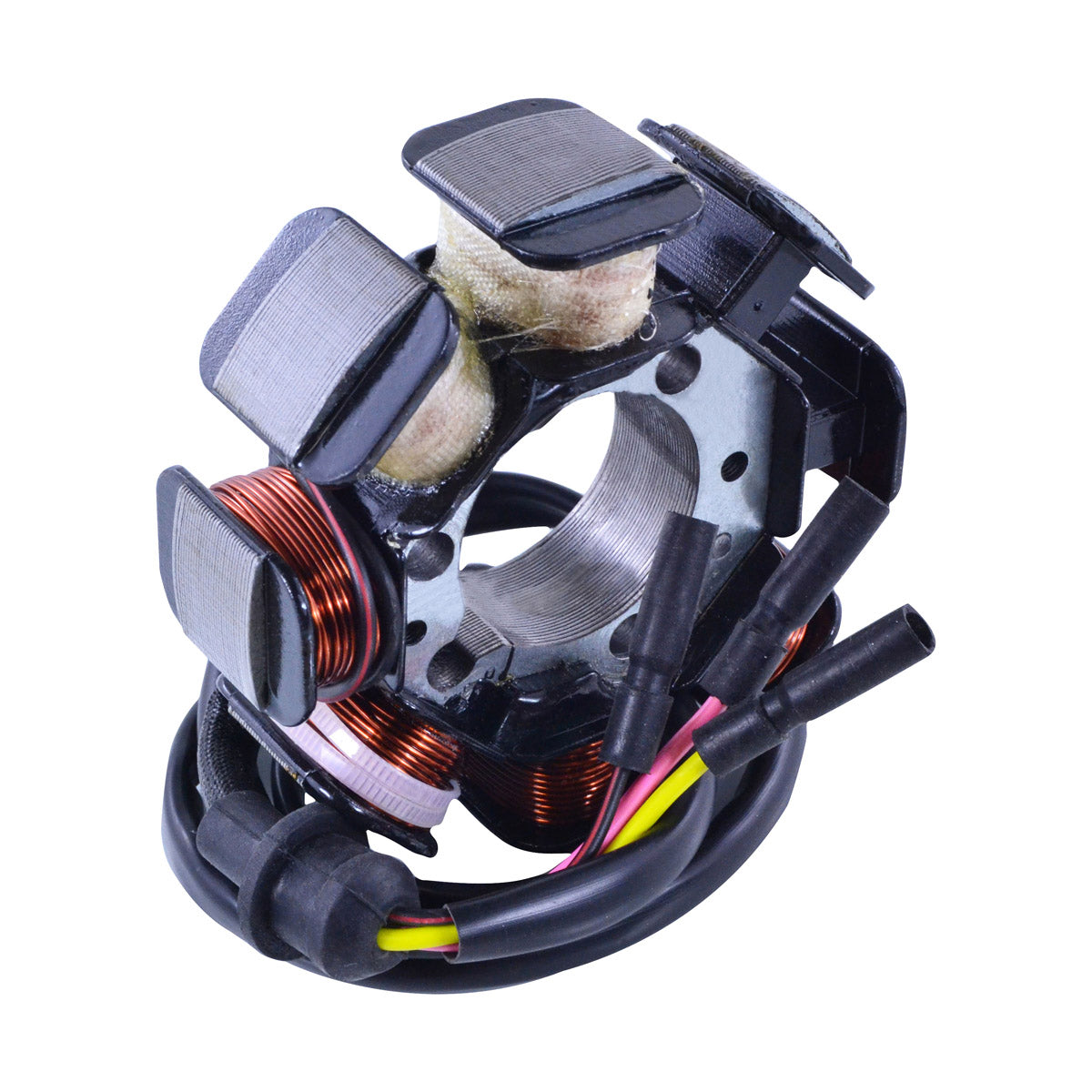

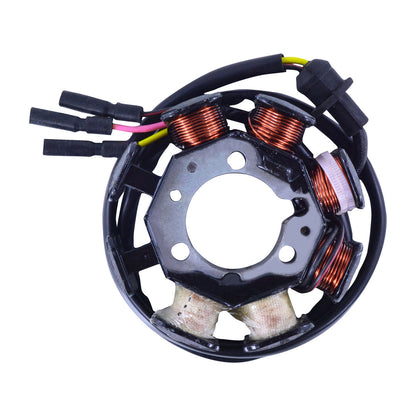

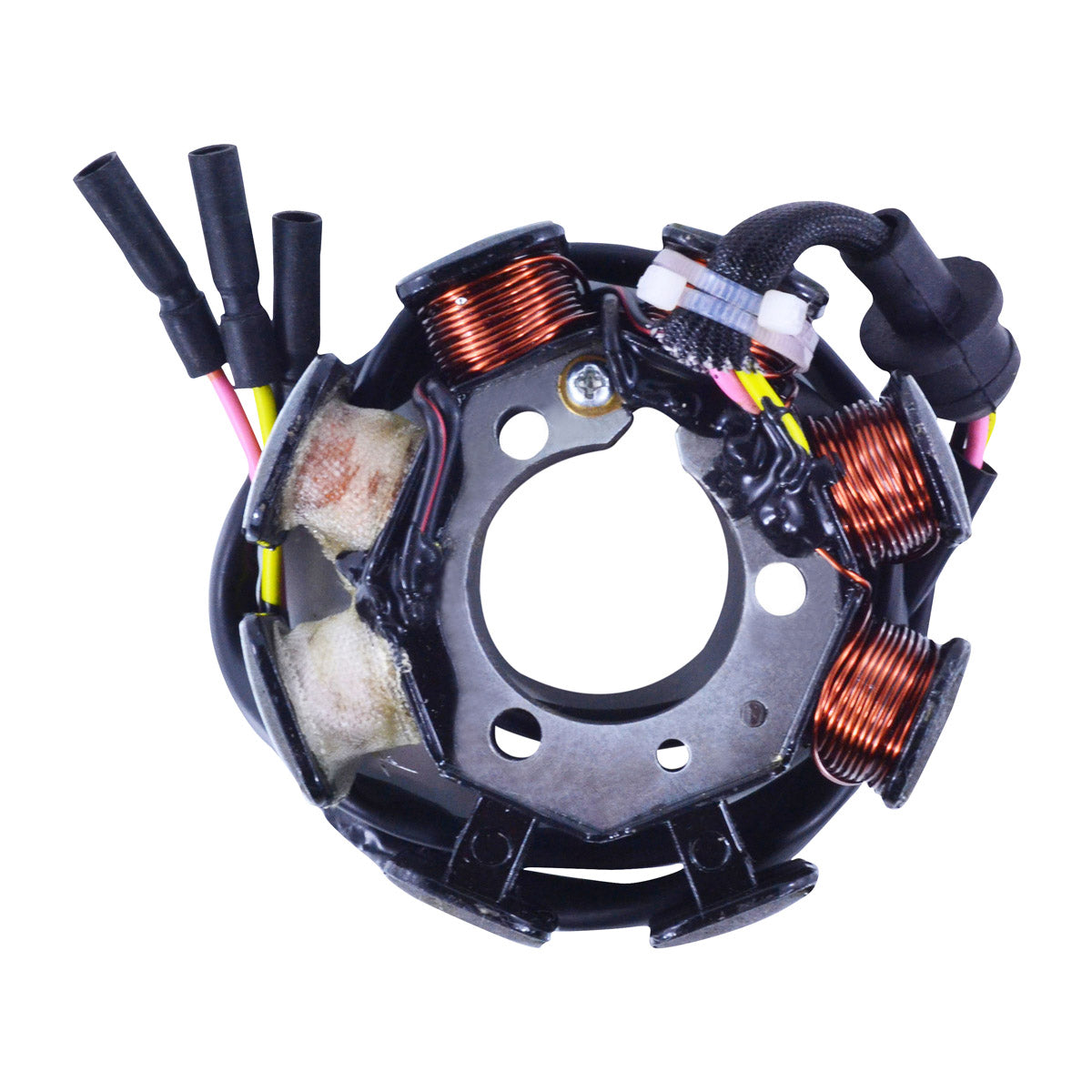

This is a brand new aftermarket stator for the Honda XR 200 R, matched to the Denso type unit fitted to these machines. The stator sits behind the flywheel and carries the windings that supply the ignition and the lighting circuit. As the enamel insulation ages and the plate is repeatedly heat-cycled, those windings short between turns or to the plate itself, and the bike starts to lose spark when hot, run erratically, or refuse to fire at all.

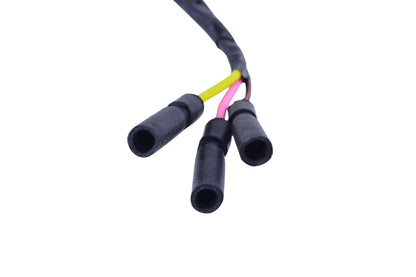

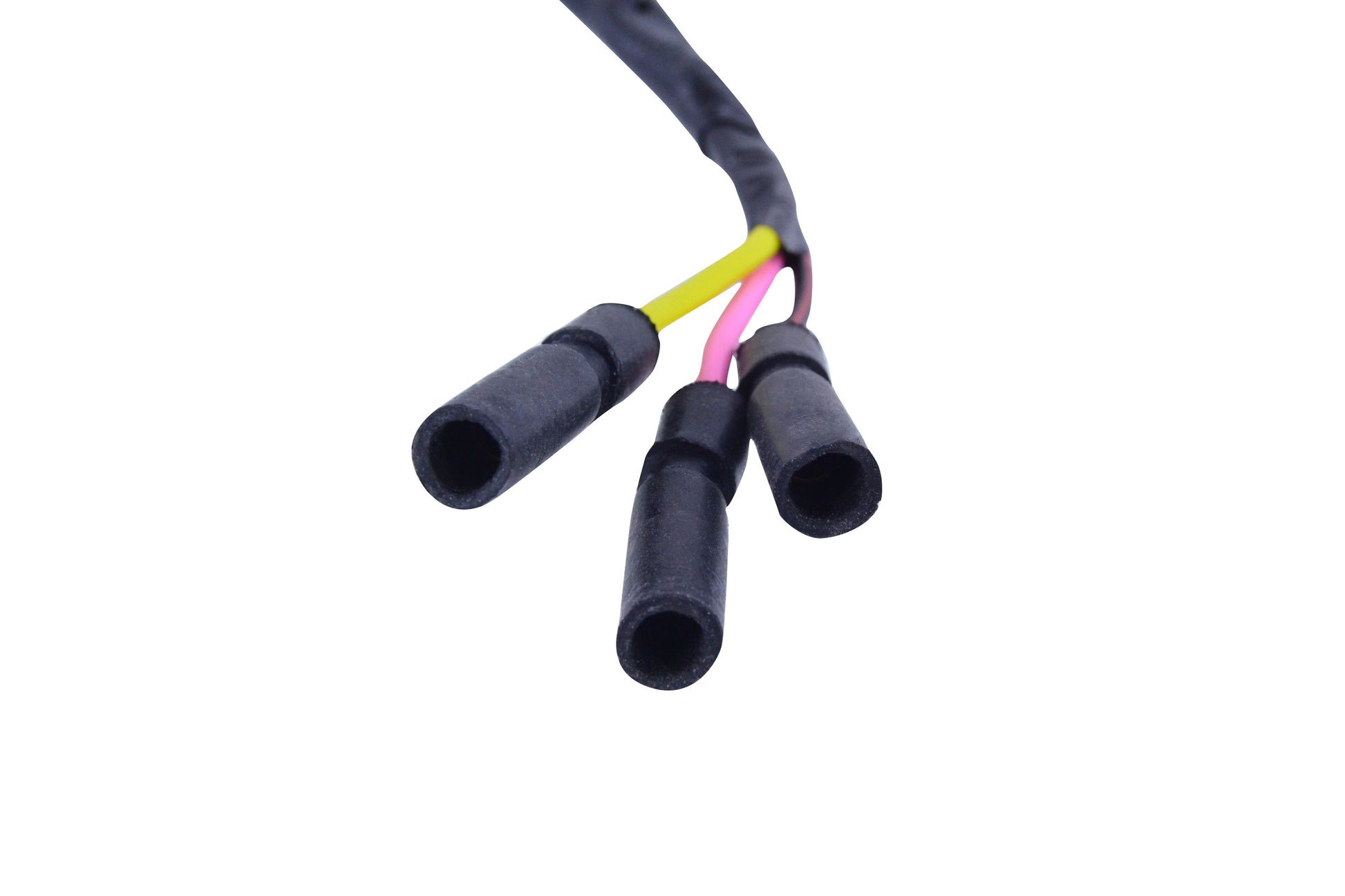

This replacement is plug-and-play and a direct fit for the original. The 96 mm outer diameter, 36 mm bore, 37 mm stack, eight-pole layout and three-wire output through three plugs all follow the factory specification, so nothing has to be cut, spliced or adapted during fitting. It is built on the highest grade of lamination materials with the highest grade of copper winding, resistant to 200 degrees Celsius, and the rubber grommet that seals the wiring where it leaves the crankcase cover is included. All products are tested before they are shipped.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Denso type, matched to the original specification
- Plug-and-play, direct fit, easy installation

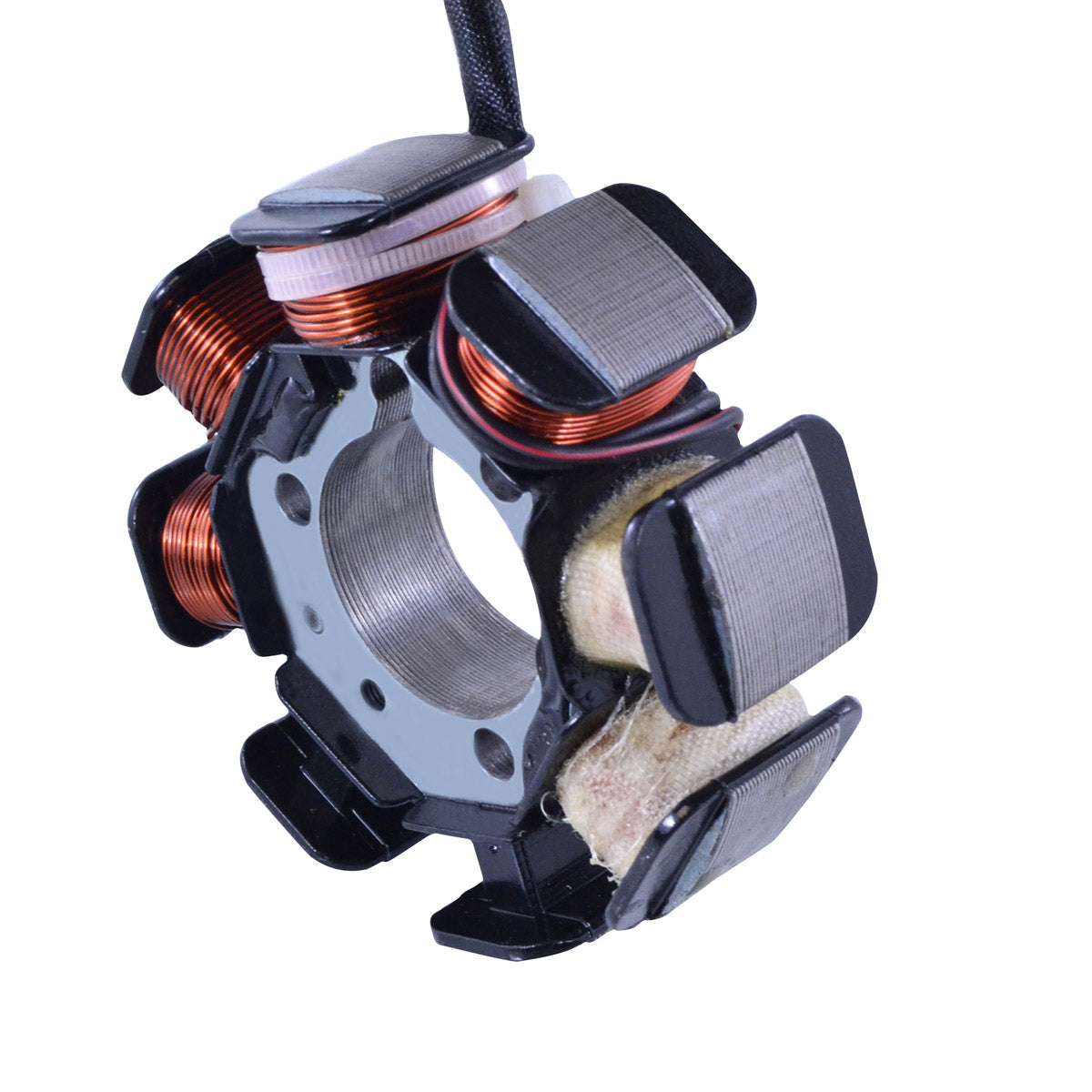

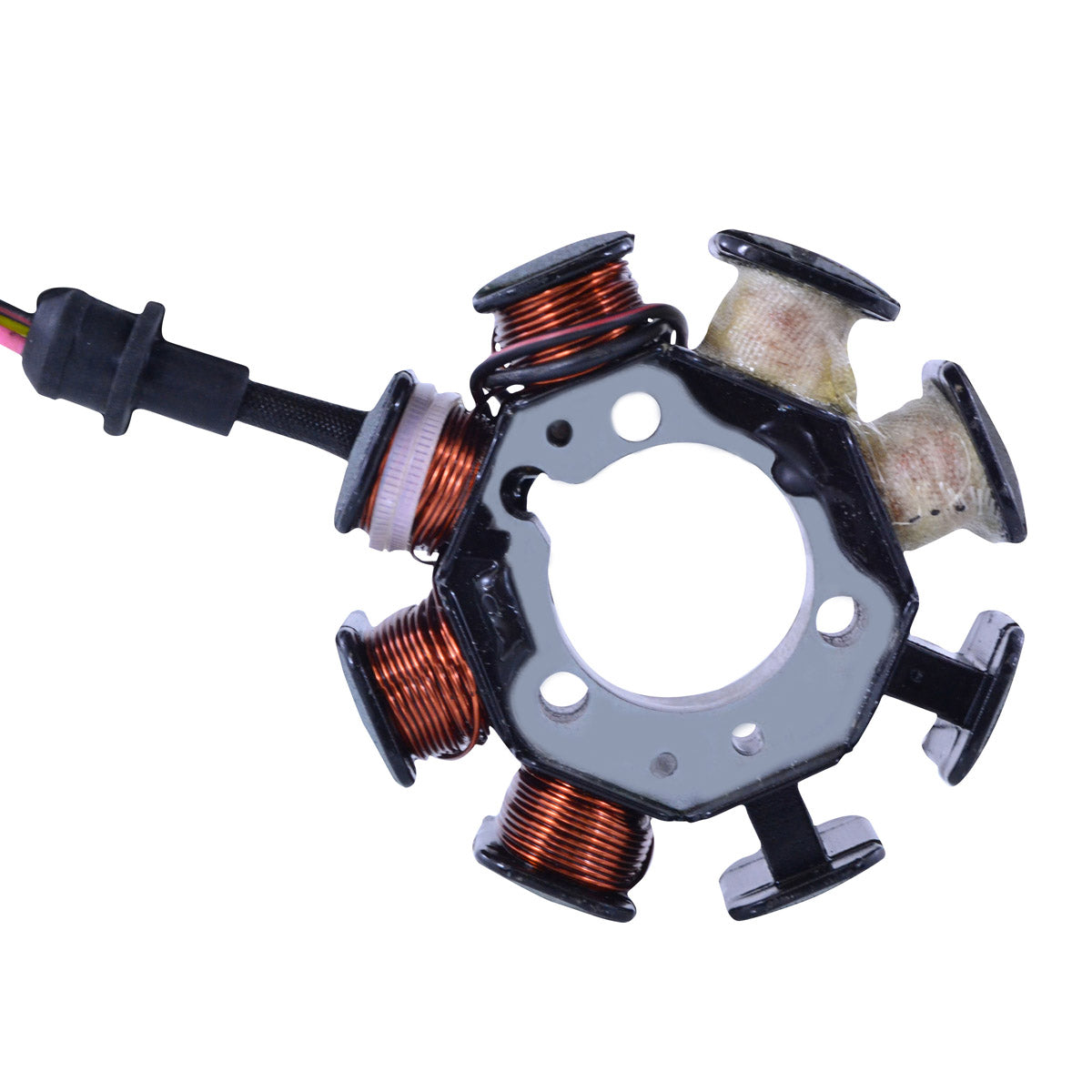

- Eight-pole design

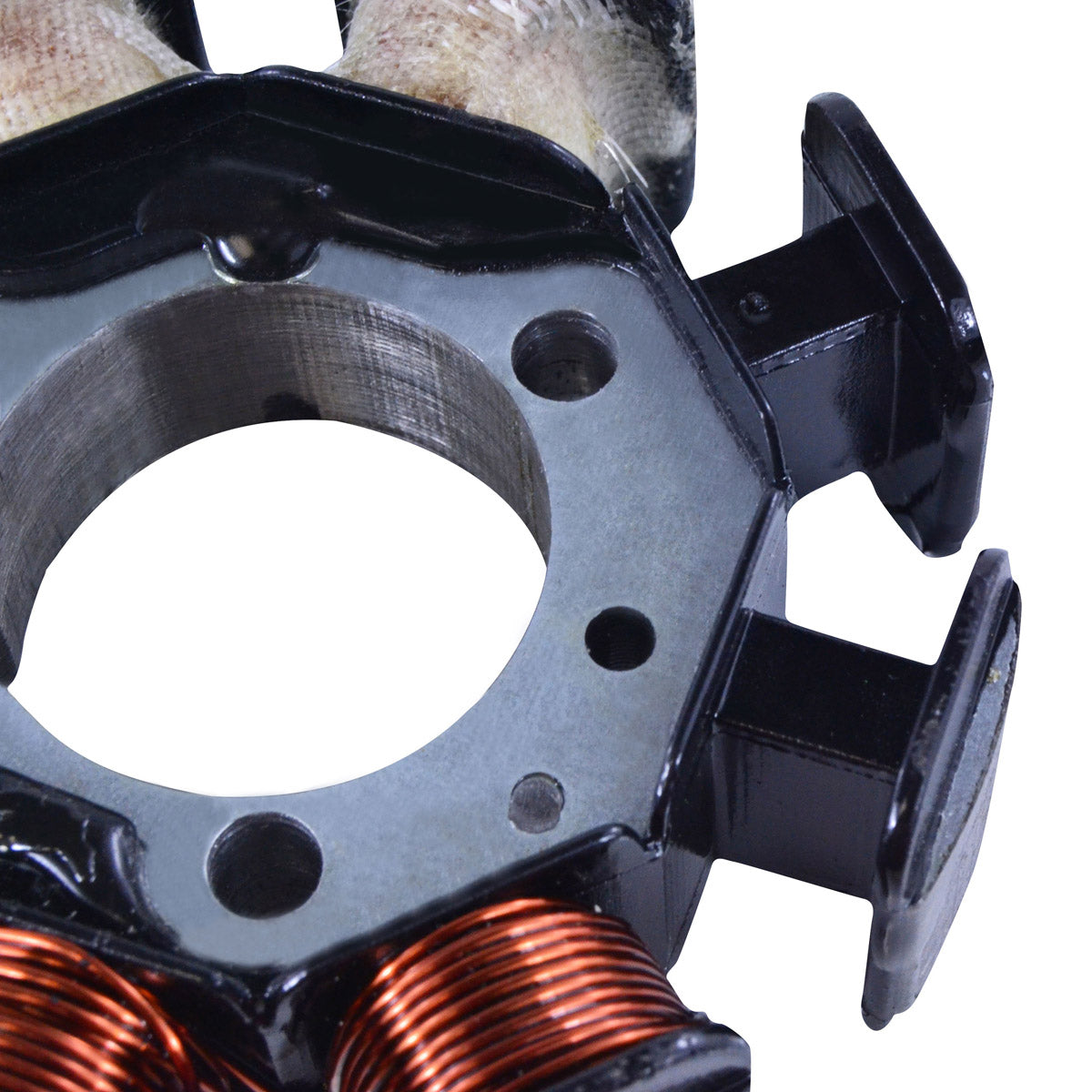

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

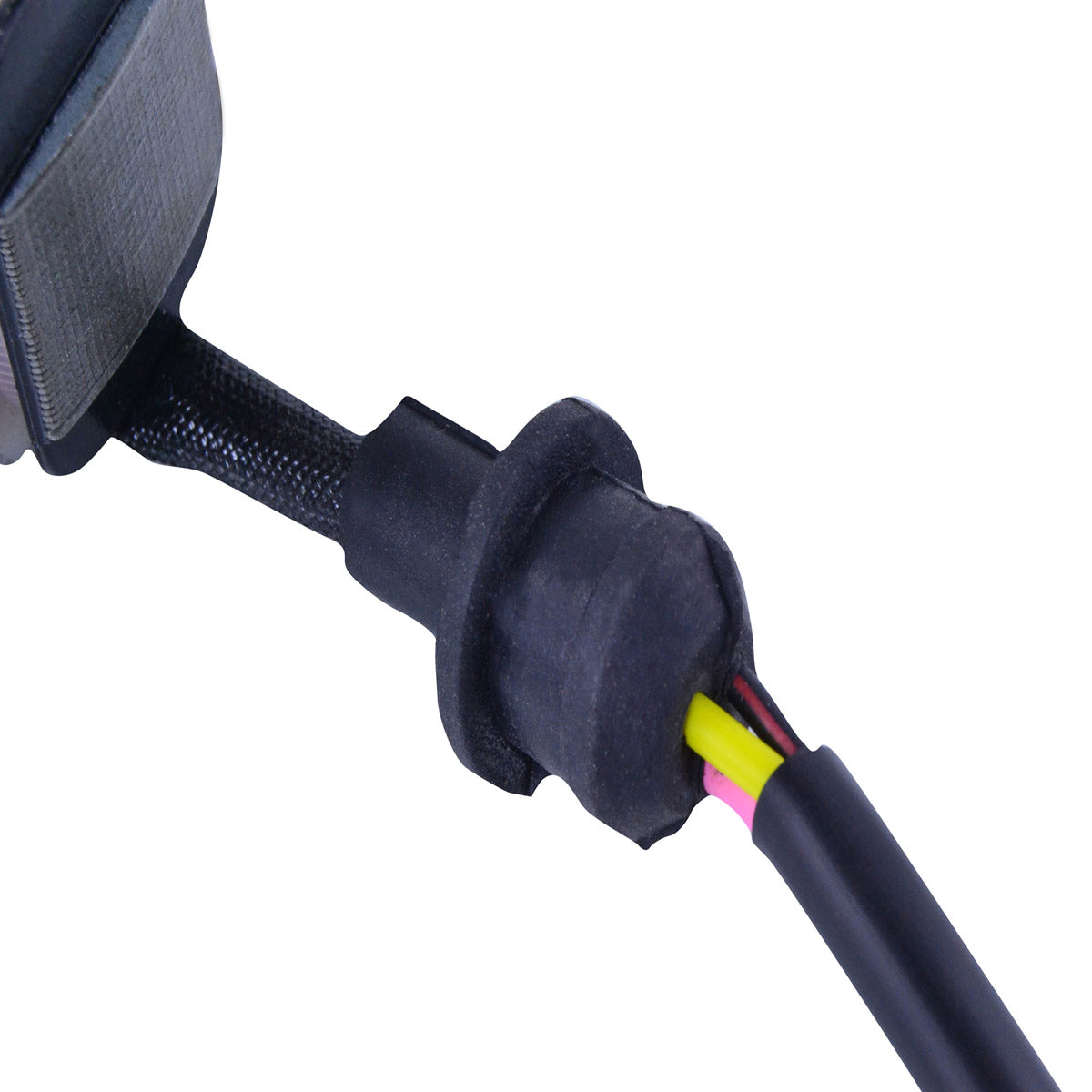

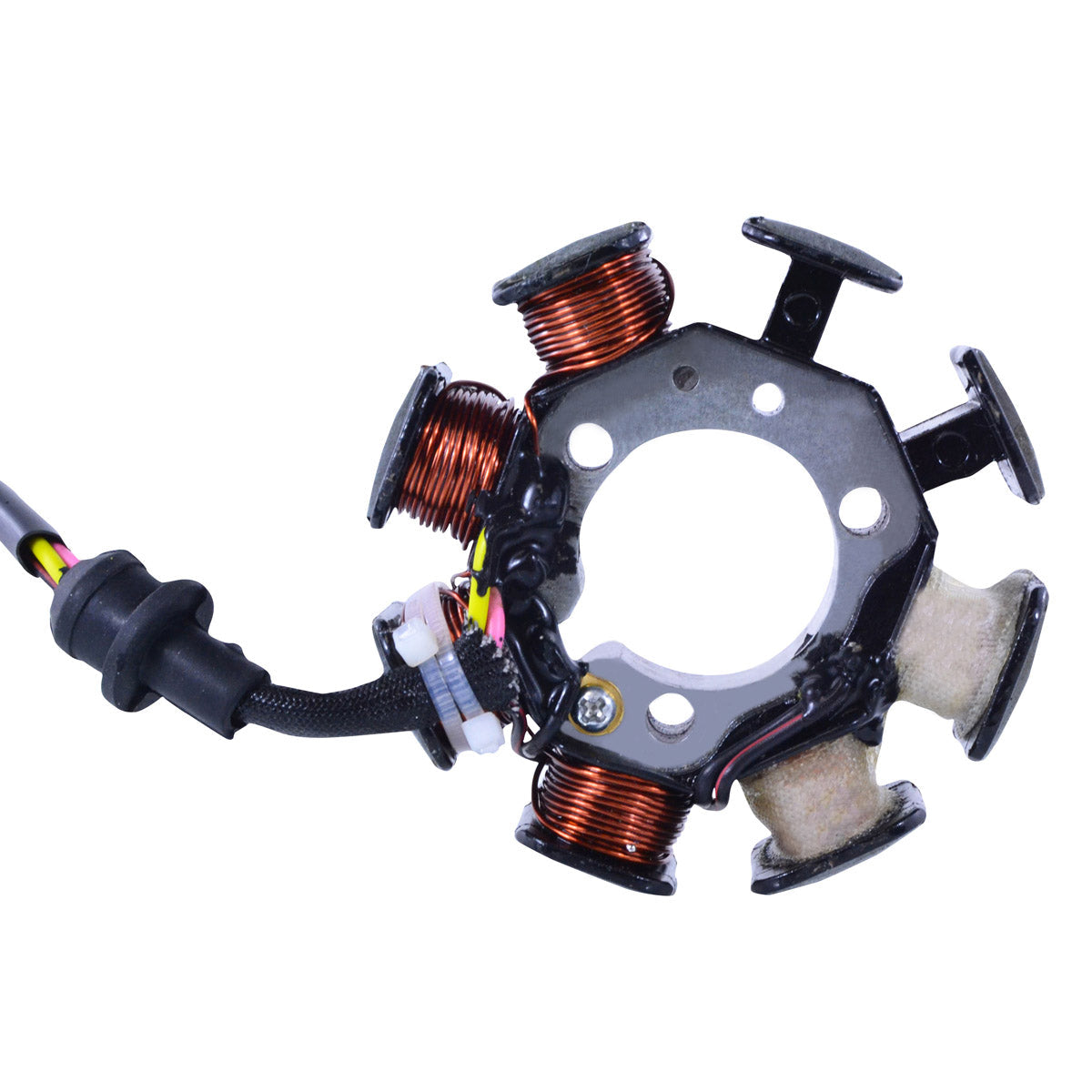

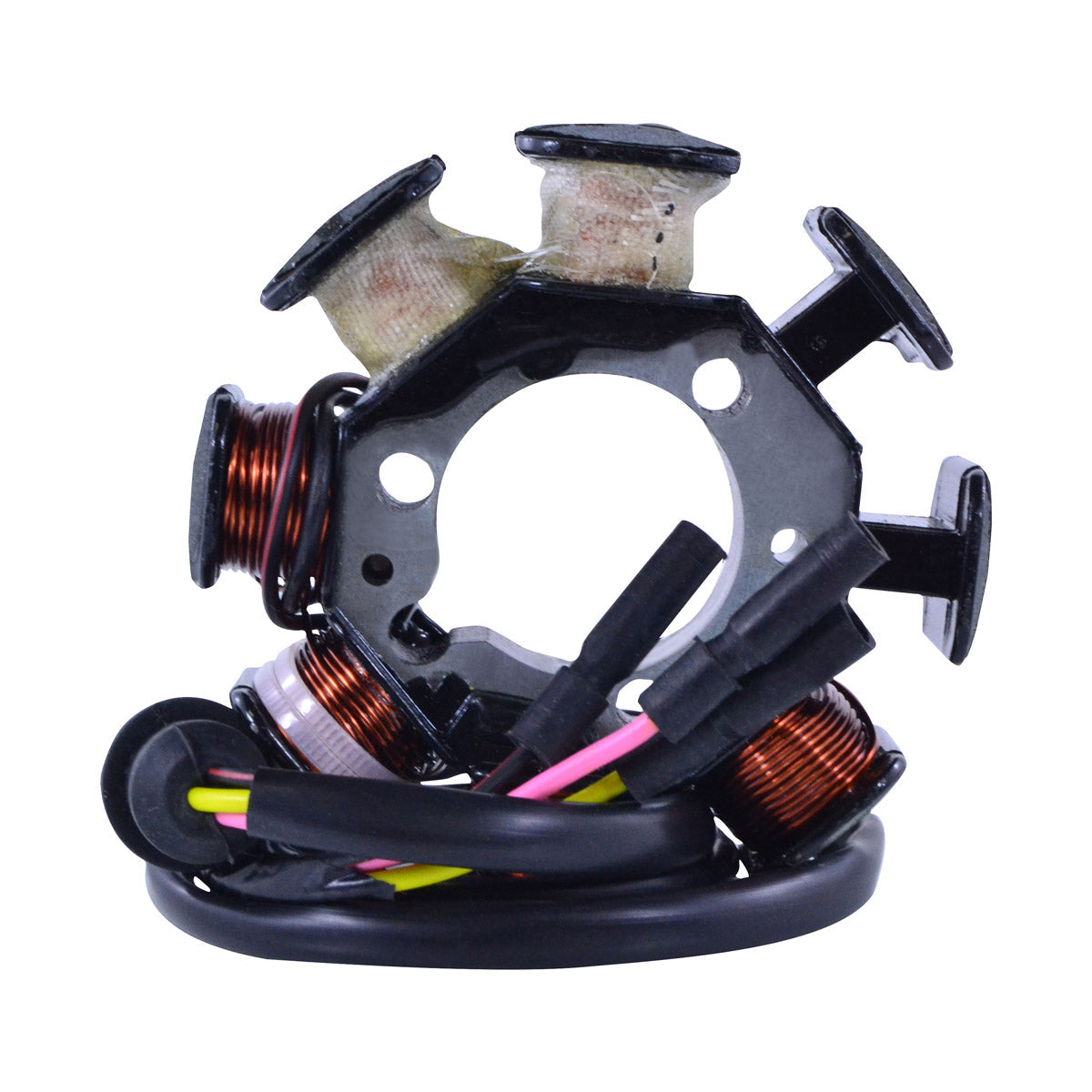

- Rubber grommet included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-104201 |
| Interior diameter |
36 mm |
| Exterior diameter |
96 mm |

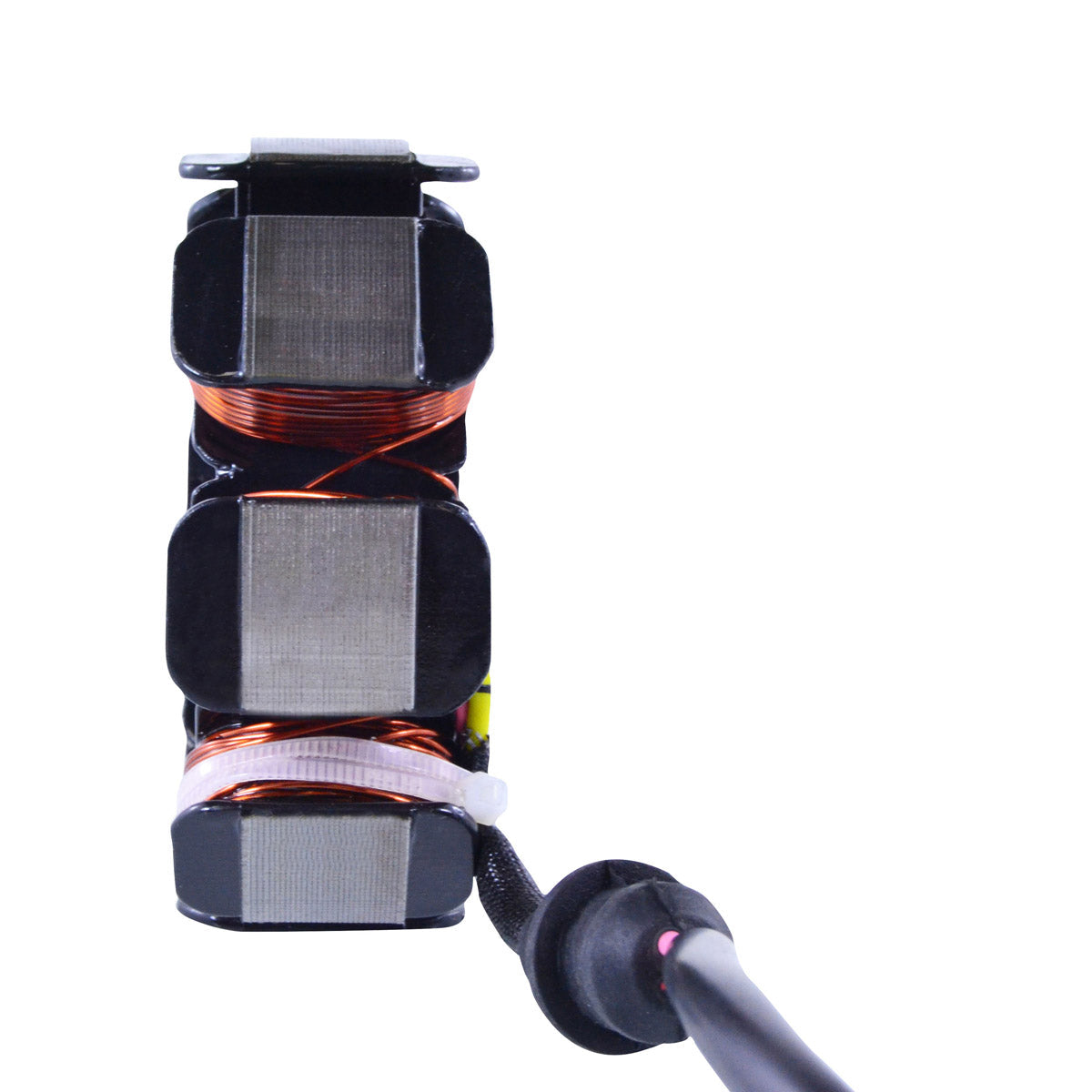

| Stack thickness |
37 mm |
| Number of poles |
8 |
| Wire length, stator to grommet |
30 mm |
| Wire length, grommet to plug |
645 mm |
| Number of wires |
3 |

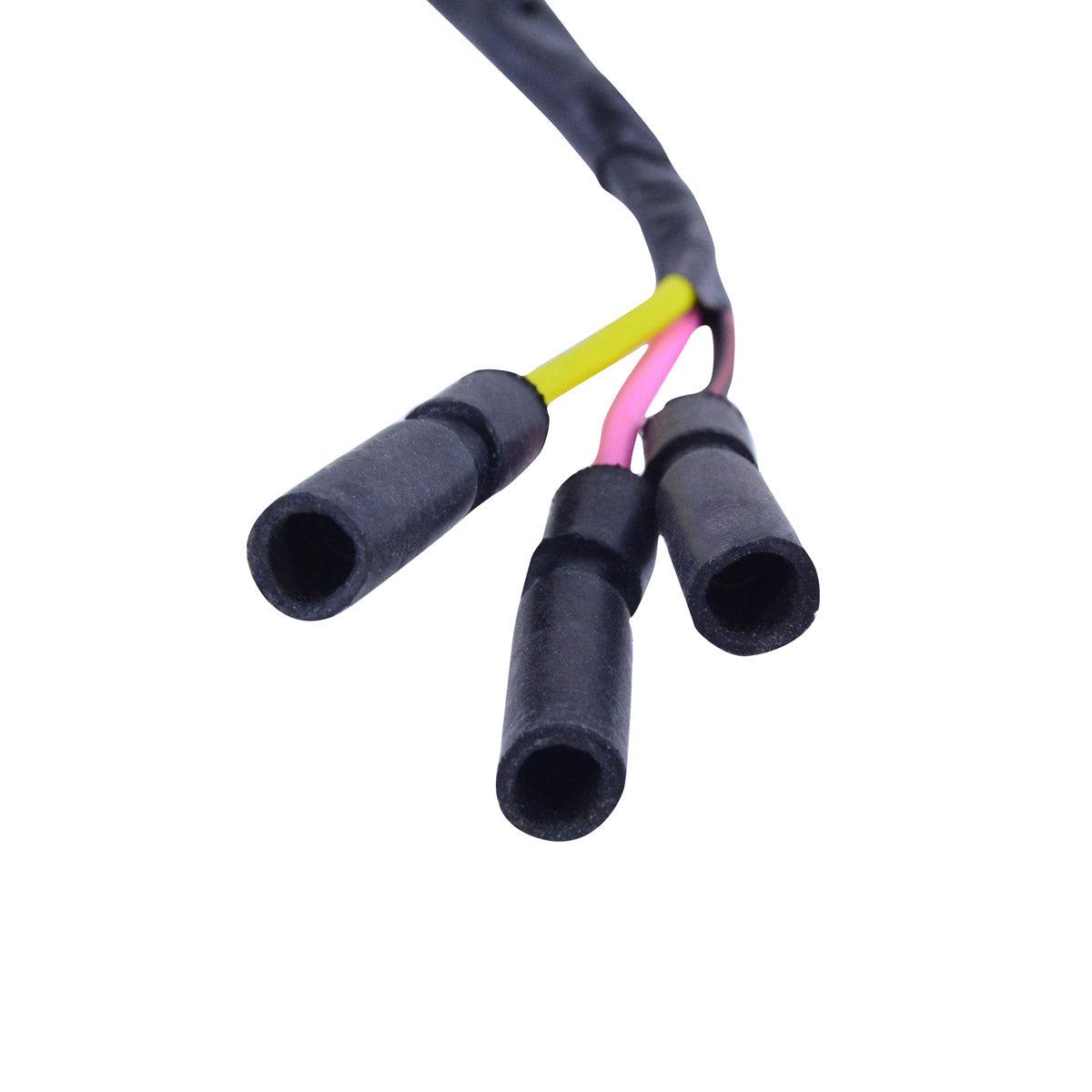

| Number of plugs |
3 |
| Number of pins |
3 |
| Alternator resistance, yellow to pink |
0.4 ohms +/- 20% |
| Alternator to ground |
Open line |
| Source coil resistance, black/red to ground |
350 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda XR 200 R (XR200R) |
1990-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-KT0-830 |
Honda |
| 31120-KT0-831 |
Honda |
Frequently Asked Questions
Will I need to modify anything to fit it?
No. This is a plug-and-play, direct fit replacement. The plate dimensions, the eight-pole layout, the three wires and the three plugs all match the original, so it mounts in the factory position and connects straight to the standard loom.
What is included in the box?
The stator with its wiring already terminated, and the rubber grommet that seals the harness where it passes out of the crankcase cover.
How do I know my old stator has failed?
Disconnect the plugs and measure yellow to pink, which should be about 0.4 ohms, and black/red to ground, which should be about 350 ohms, each within roughly 20 per cent. Any yellow or pink wire should read open line to the engine casing. Continuity to earth, an open circuit, or a reading well outside those figures means the windings have broken down.
Is this the same as the Denso unit on my bike?
Yes. This part is the Denso type stator for the XR 200 R and replaces Honda part numbers 31120-KT0-830 and 31120-KT0-831. Check the number stamped on or listed for your original unit against those references before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
