Stator for Husqvarna SM 610, TE 610, SMS 630 and TE 630
SM 610 and TE 610 2008 · SMS 630 and TE 630 2011 · Part RMS010-105032

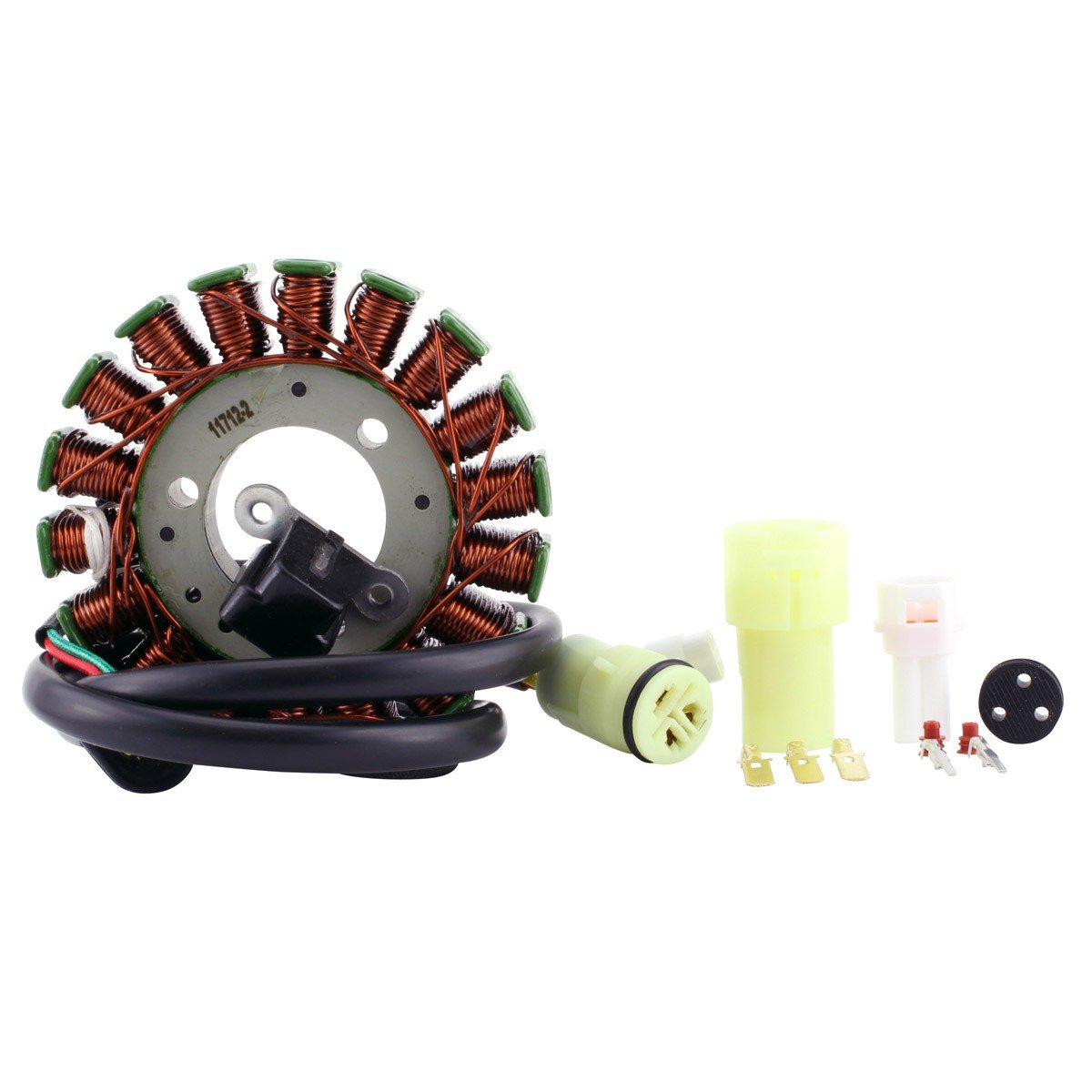

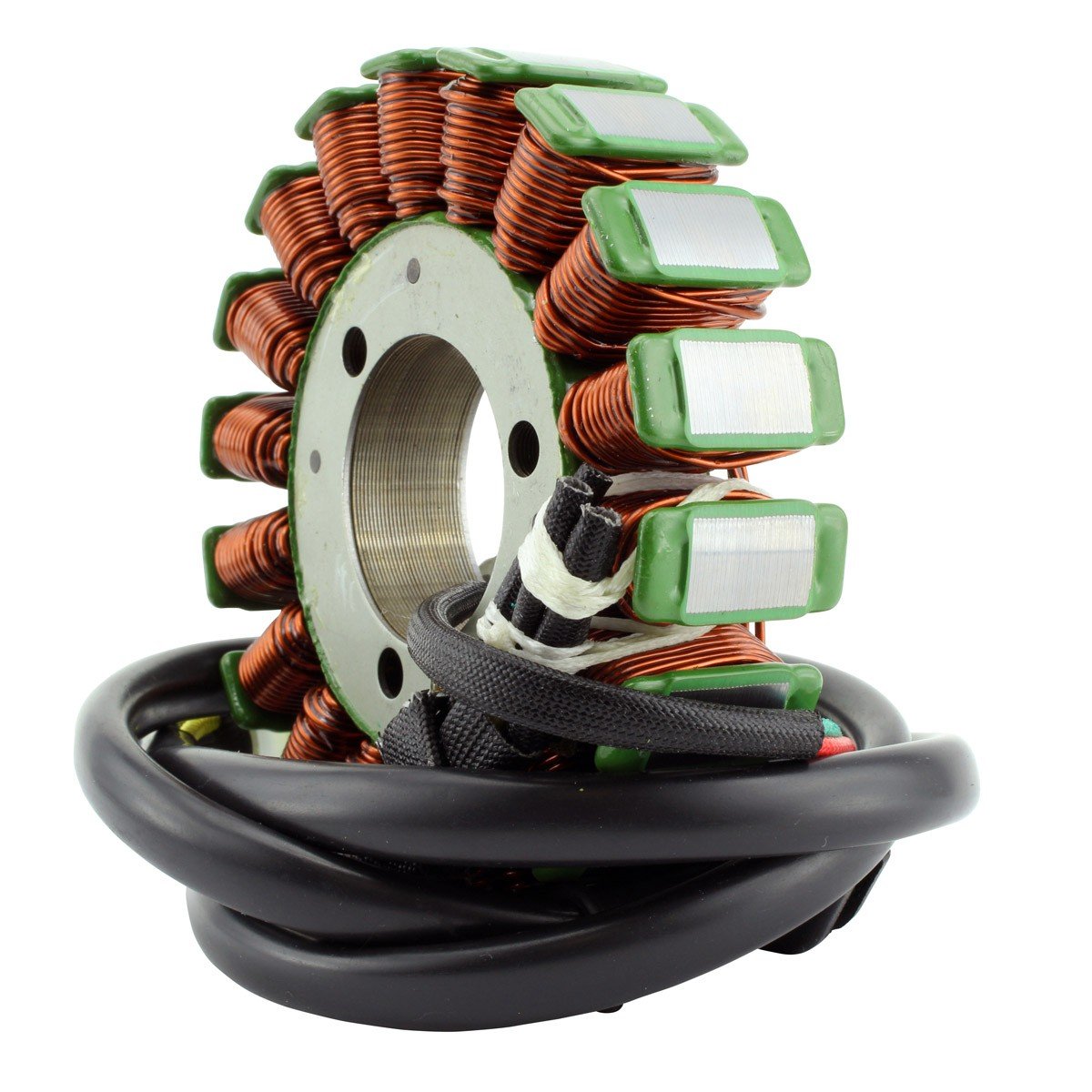

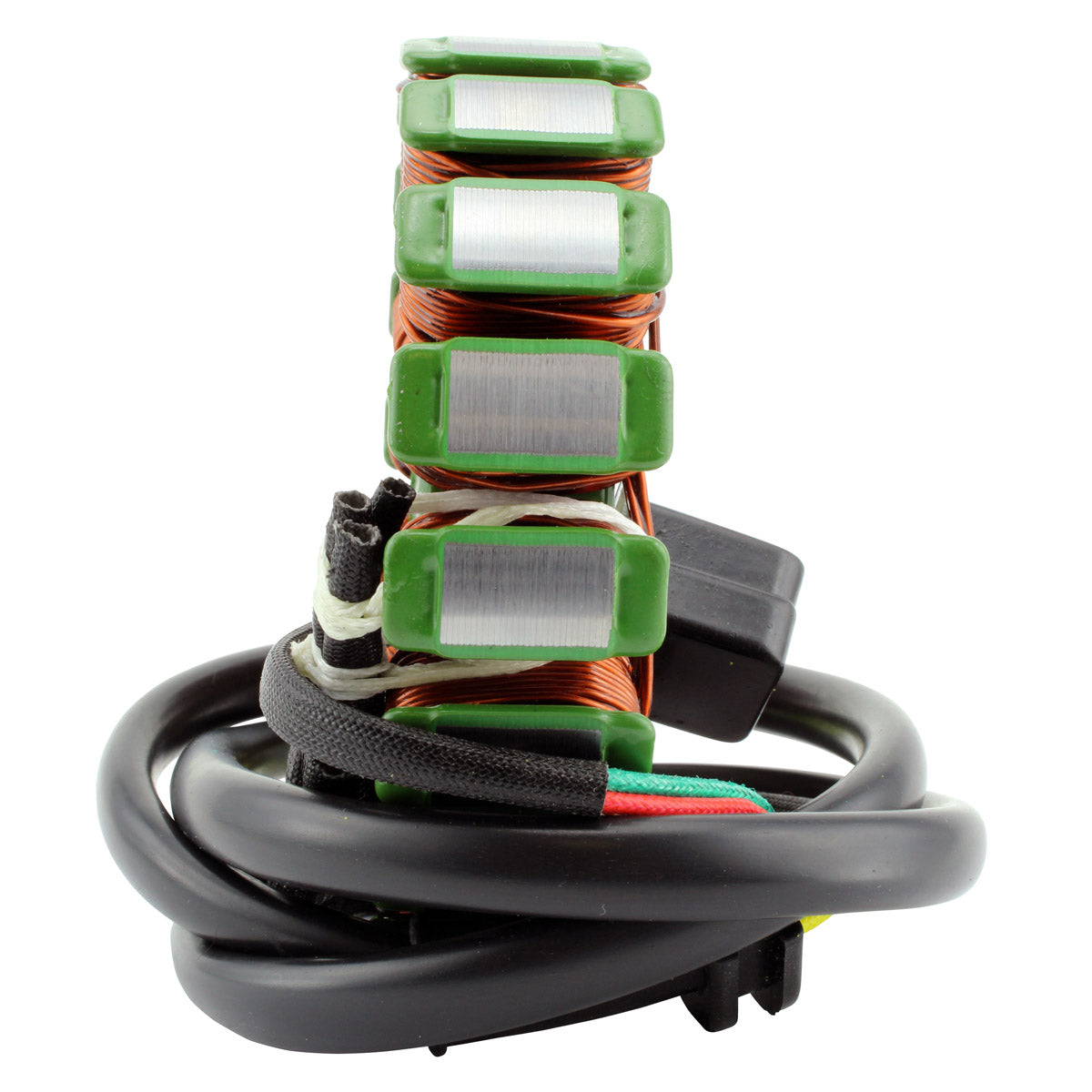

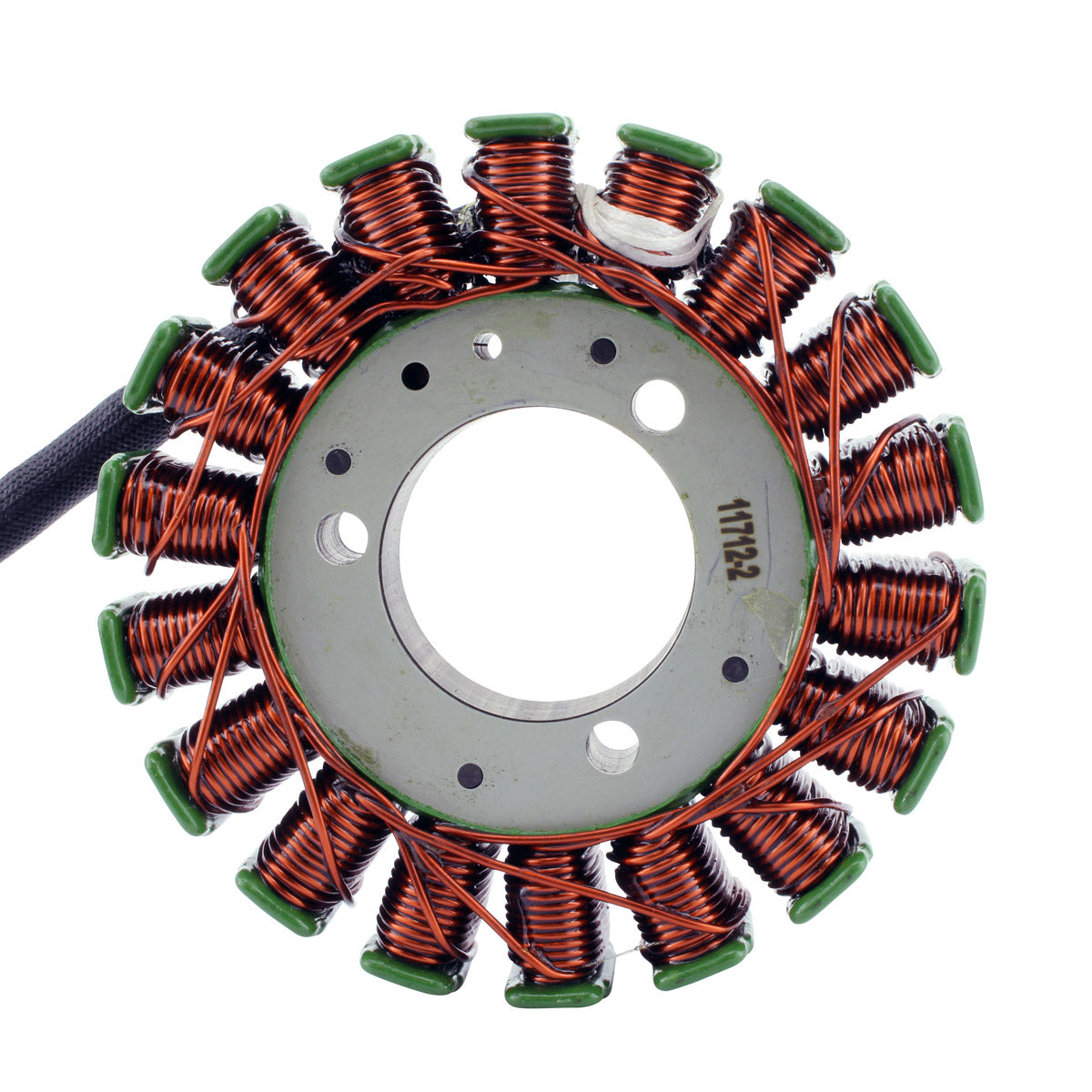

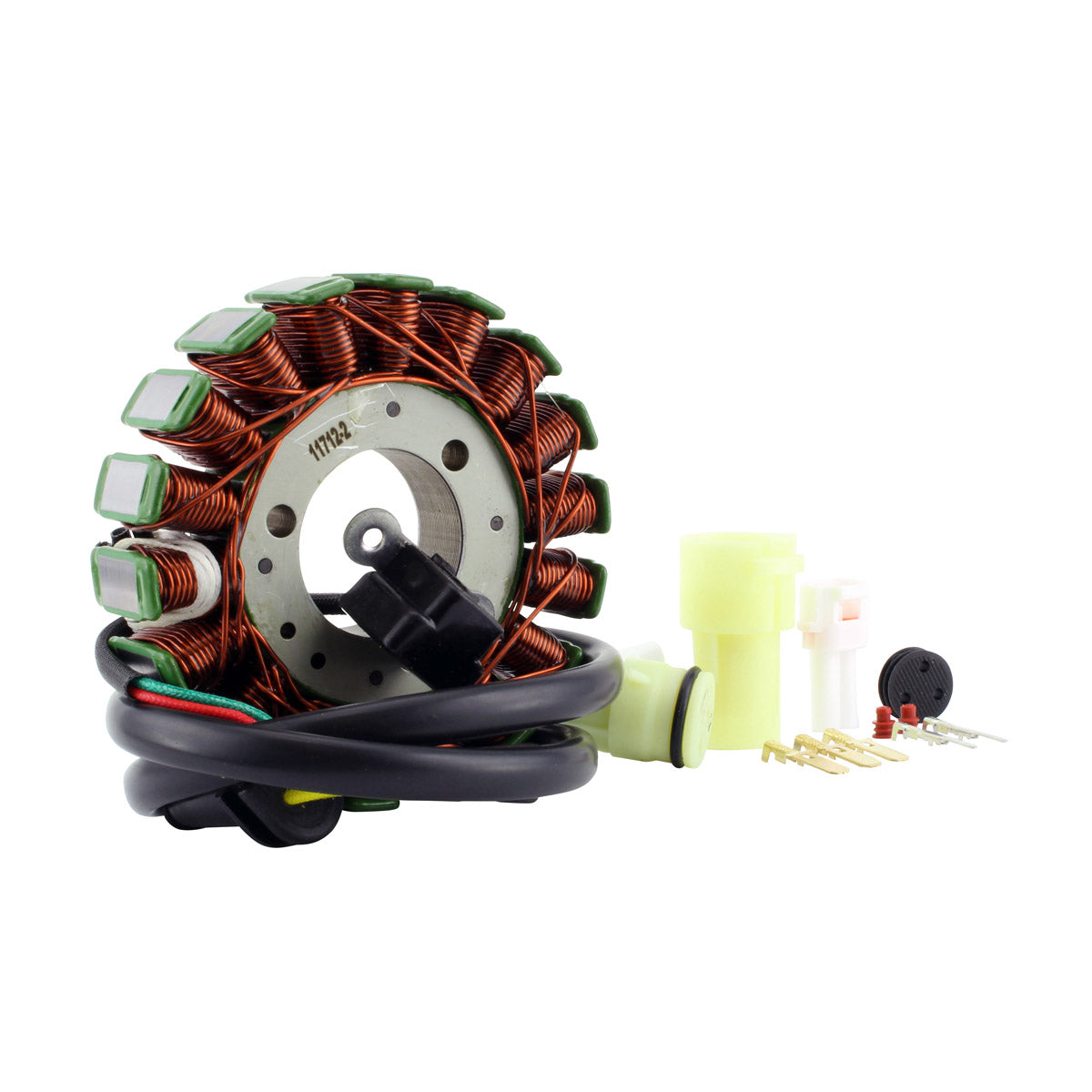

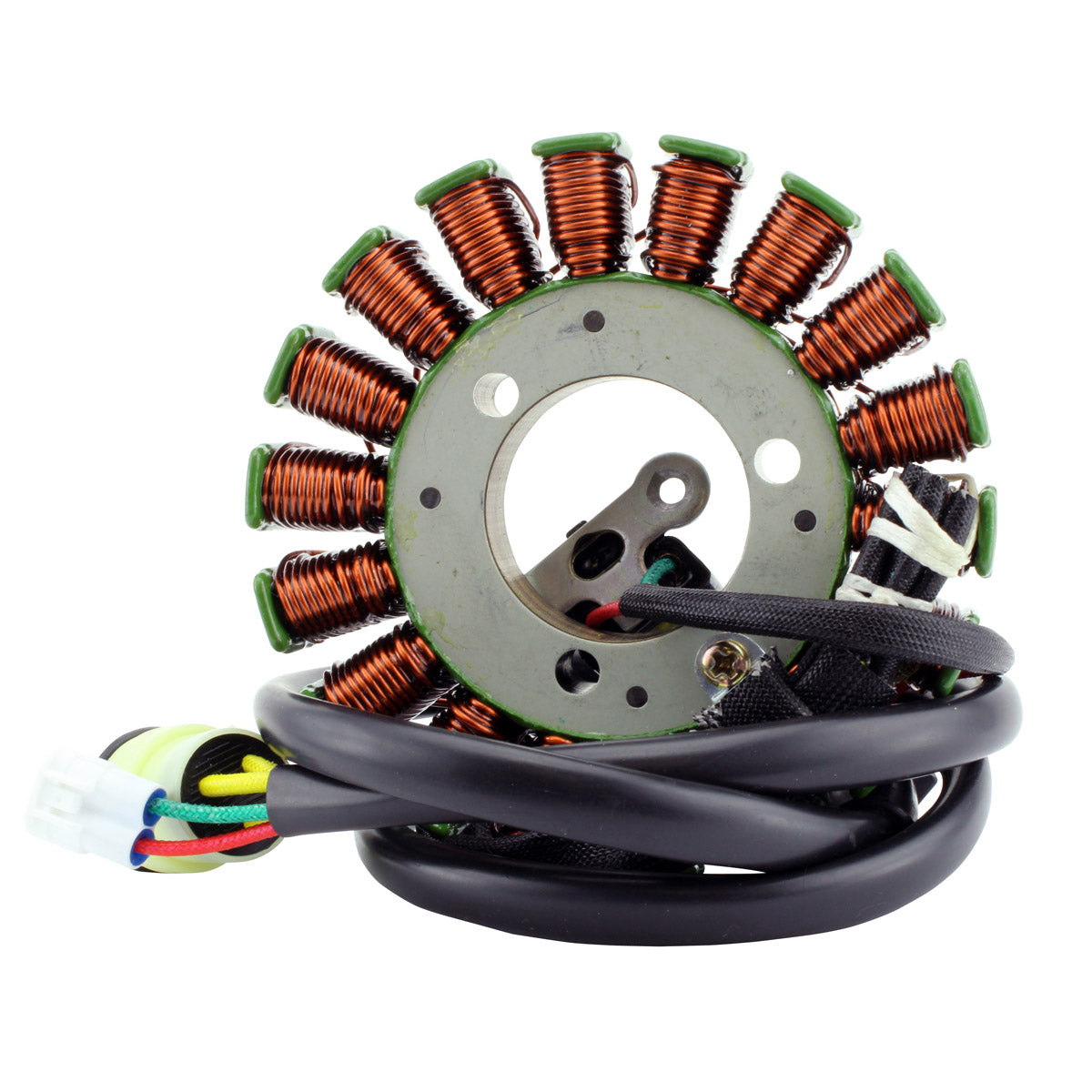

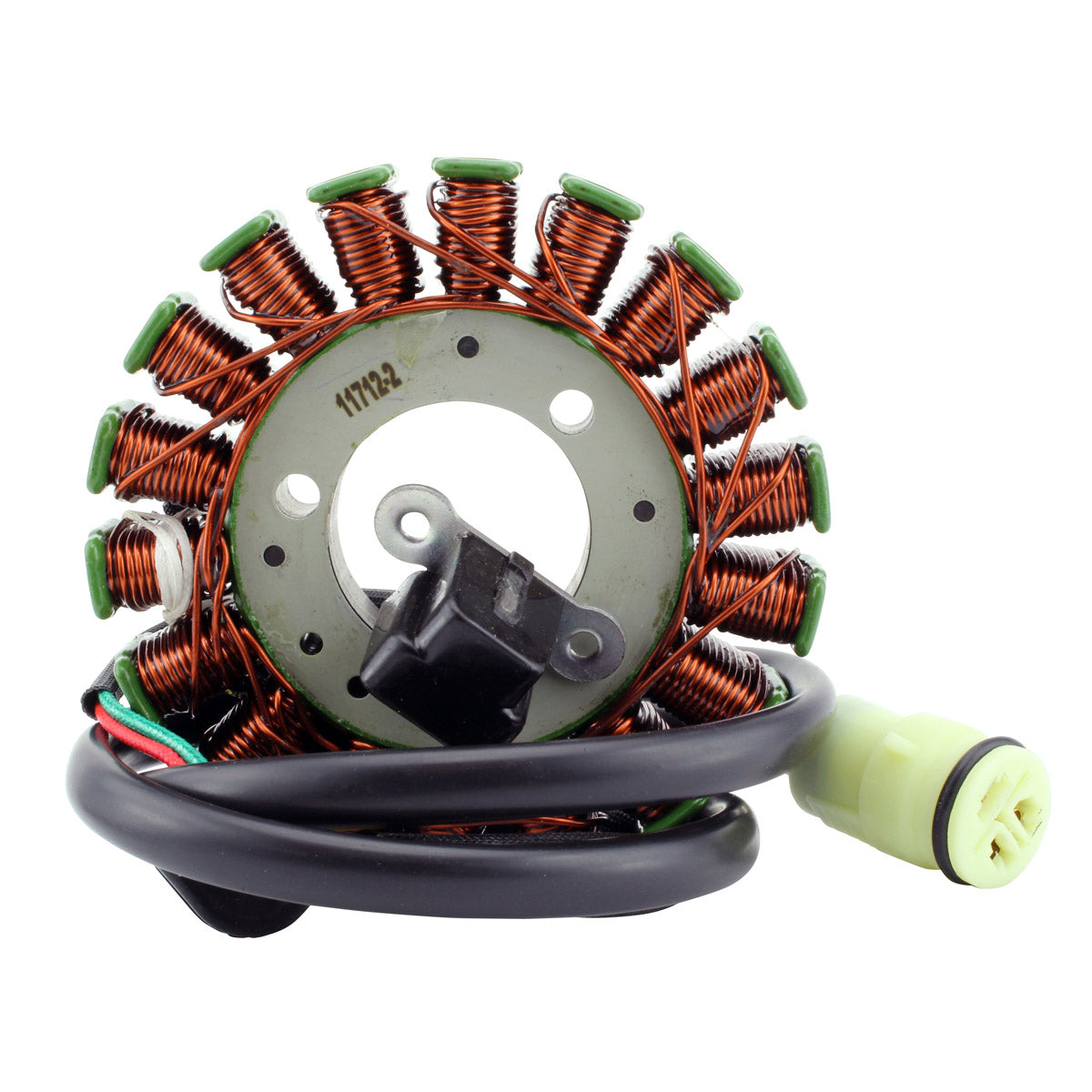

This is a brand new aftermarket stator for the Husqvarna SM 610, TE 610, SMS 630 and TE 630. The stator is the fixed winding assembly that sits behind the flywheel and generates all of the electrical power the bike uses. Every time the engine turns, the magnets in the flywheel sweep past these windings and produce the alternating current that the regulator rectifier converts into the DC that charges the battery and runs the lights, fuel pump, ignition and instruments. When a stator breaks down the whole machine suffers, so it is worth fitting a properly wound replacement rather than the cheapest available part.
This unit is a direct replacement for the original Husqvarna item. It is plug-and-play with no assembly, no re-pinning and no splicing required, and it is built with the highest grade of lamination materials and the highest grade of copper winding, rated to withstand 200 degrees Celsius. The pick-up pulsar coil is included and already fitted, and the connectors and rubber grommet are supplied with the unit along with the opposite connector for the main harness side, which is the part most often melted or corroded on a bike that has been running a failing charging system. Every product shipped is tested before it leaves the warehouse.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials

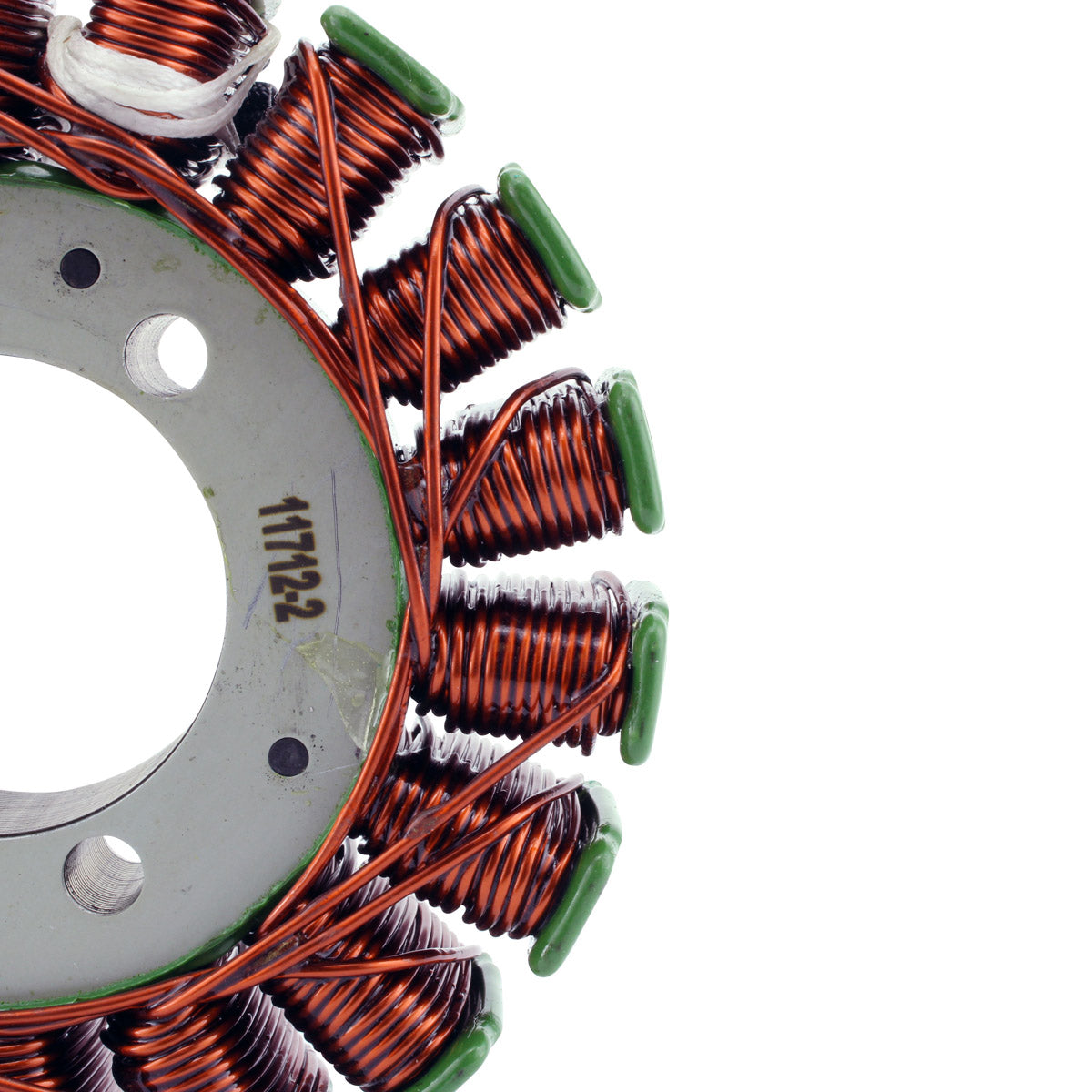

- Highest grade of copper winding, resistant to 200 degrees Celsius

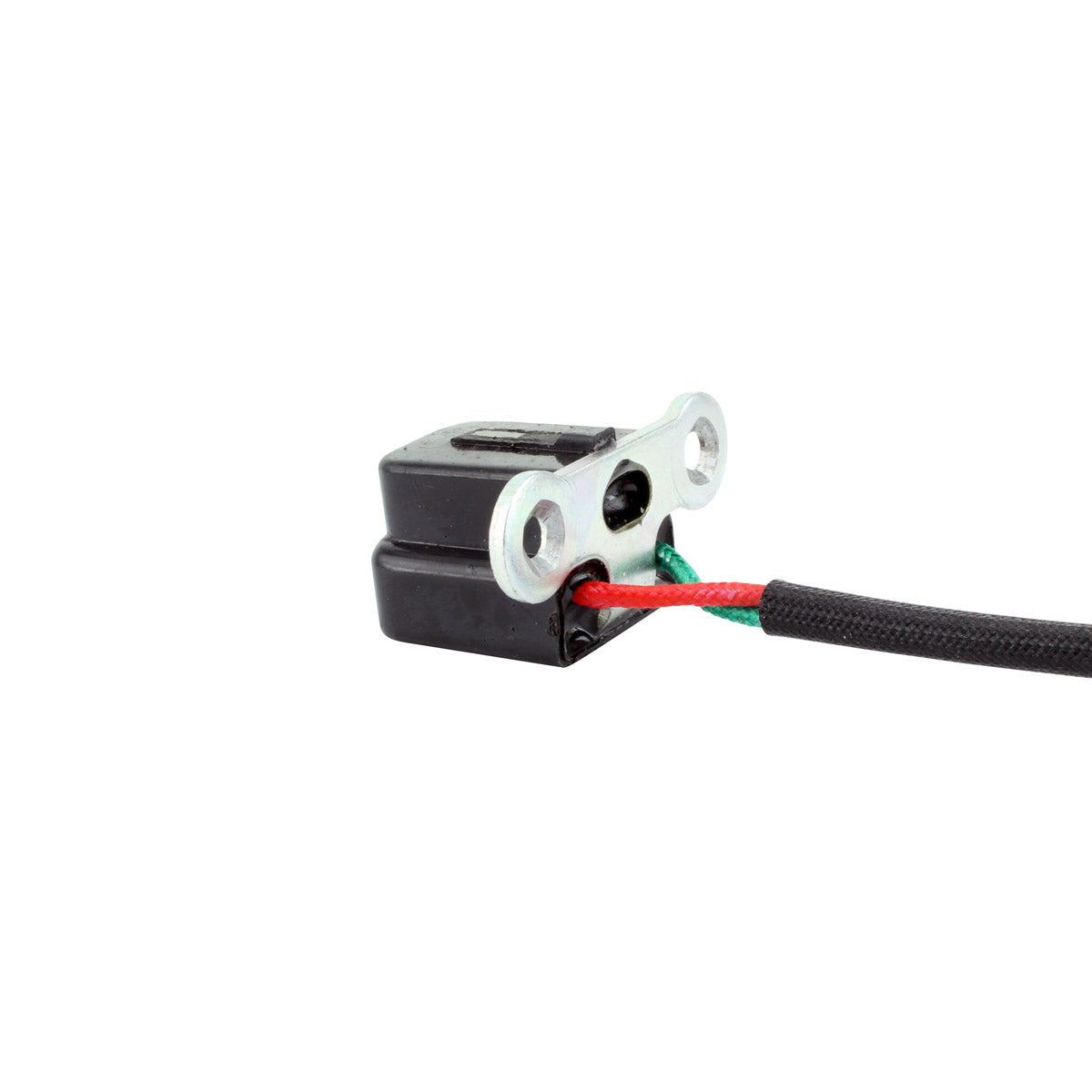

- Pick-up pulsar coil included

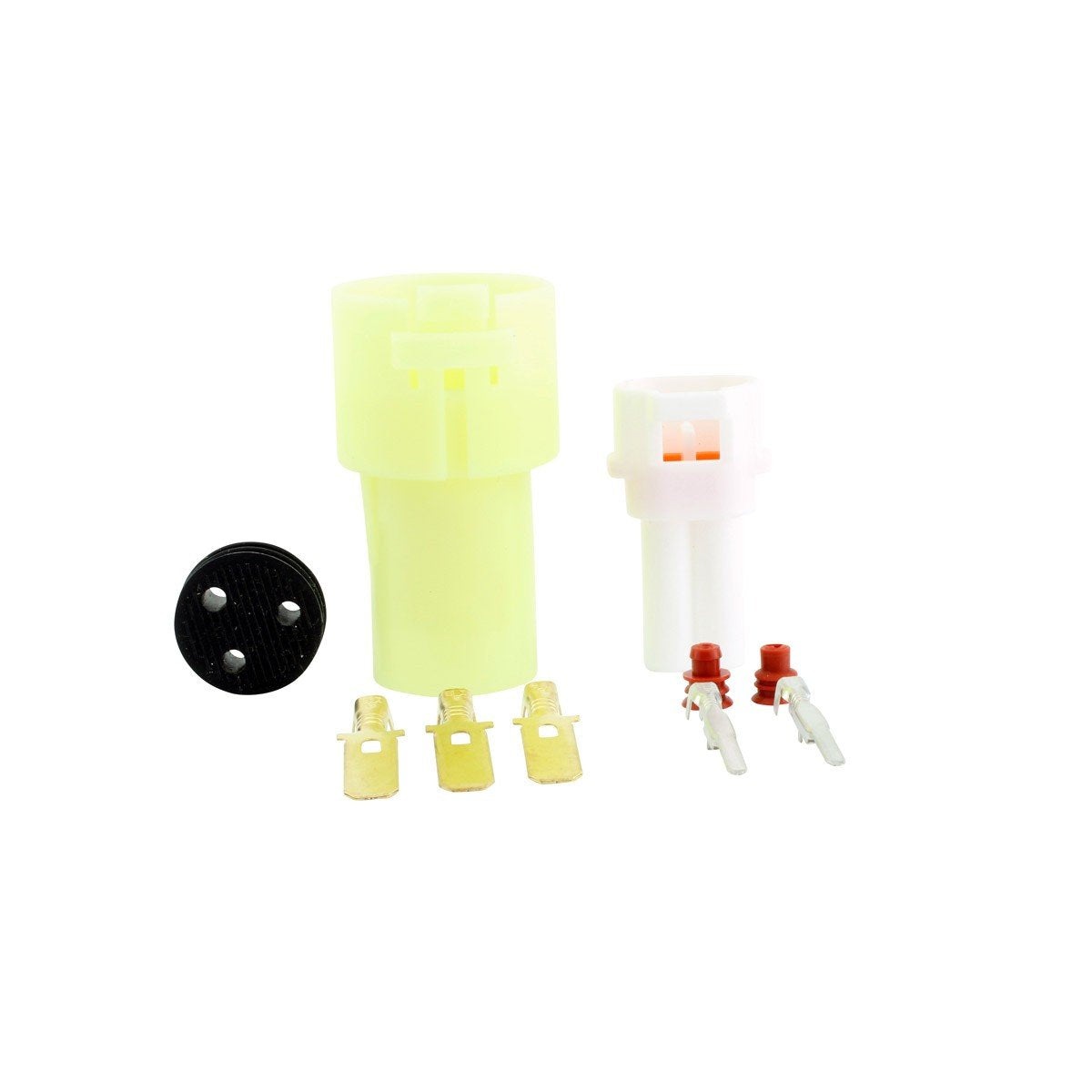

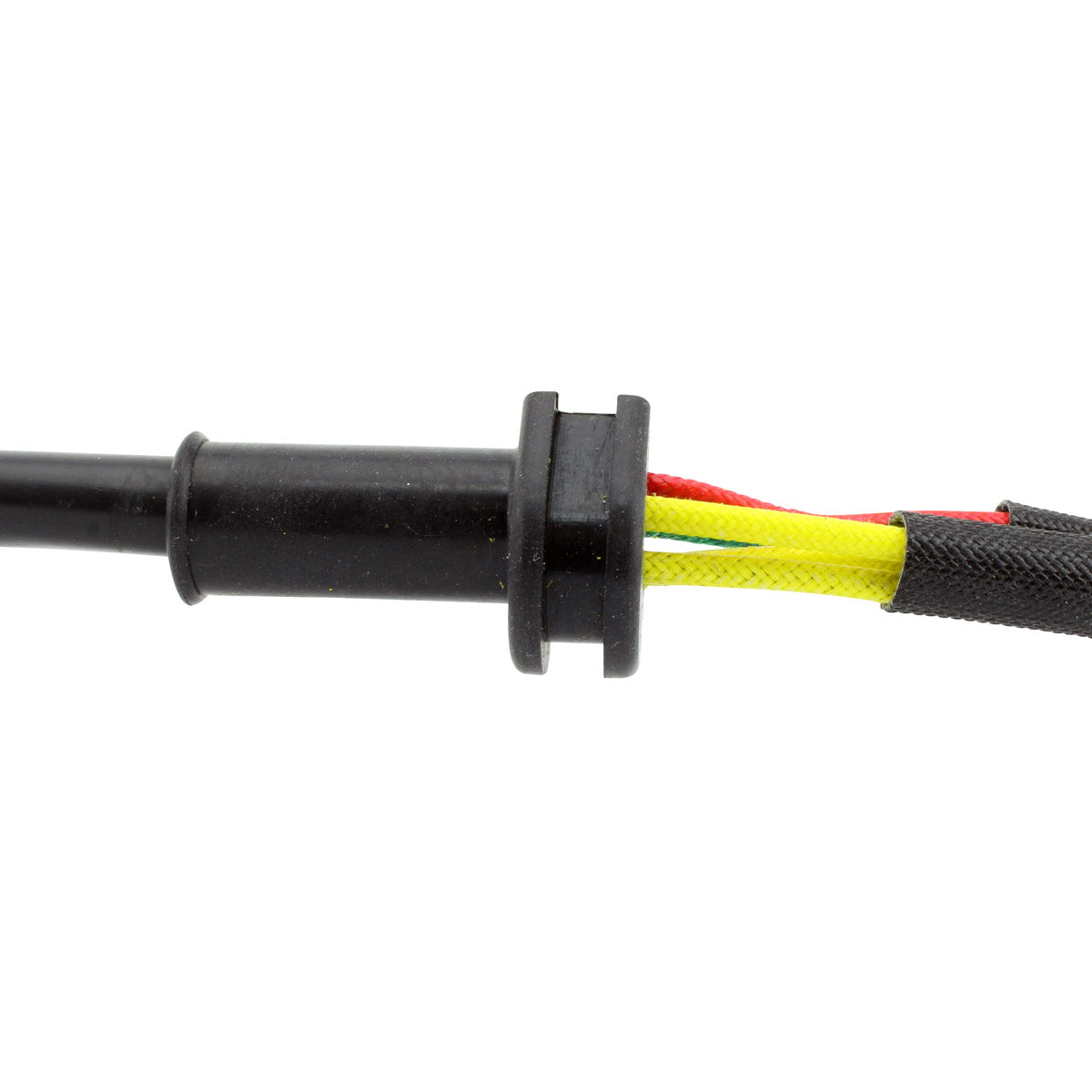

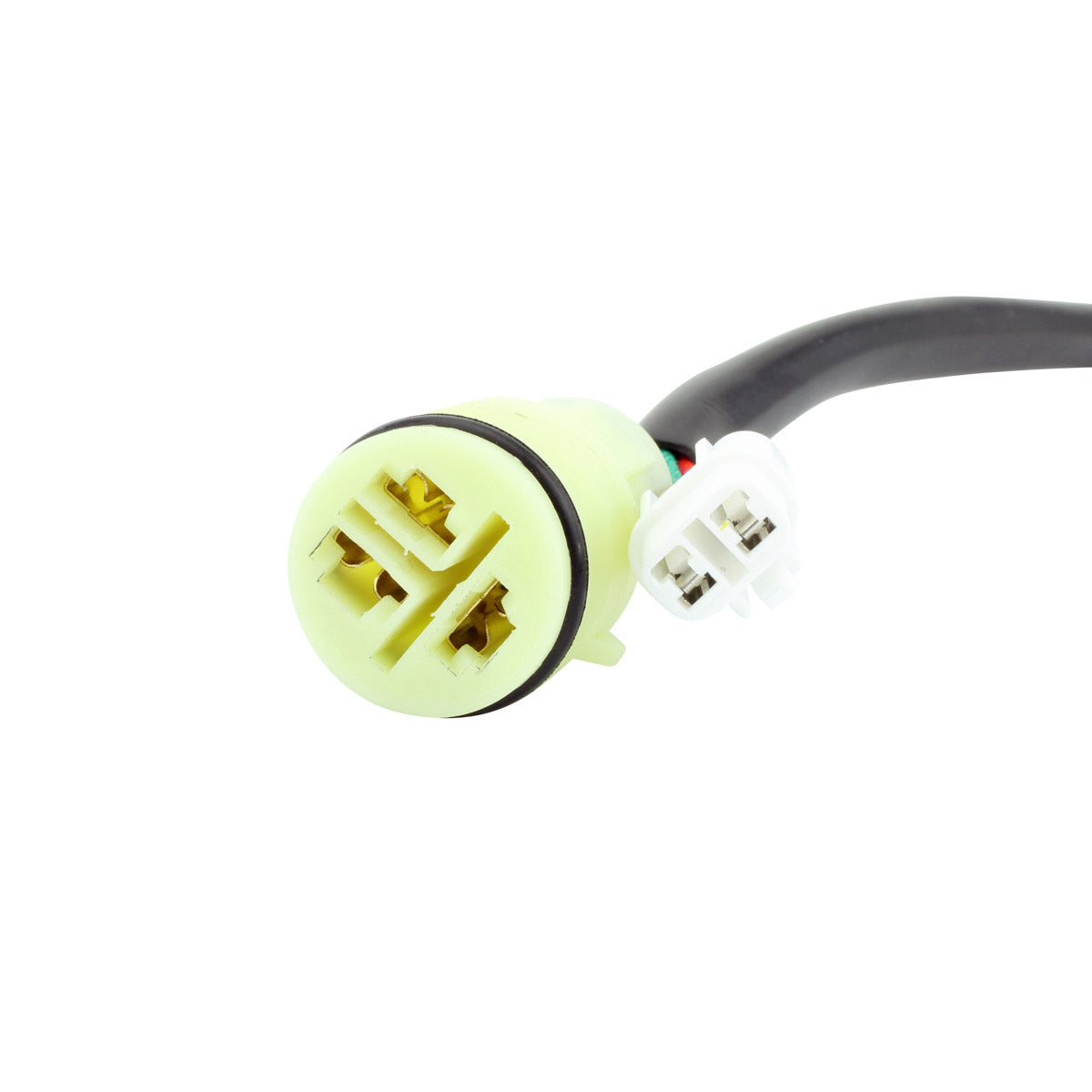

- Connectors and rubber grommet included
- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 38 mm |
| Exterior diameter | 61 mm |
| Thickness | 19 mm |
| Wire length, stator to grommet | 150 mm |
| Wire length, grommet to plug | 640 mm |
| Pick-up coil wire to grommet | 100 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of poles | 18 |
| Alternator resistance, yellow to yellow | 0.4 ohms +/- 20% |
| Source resistance, green to red | 100 ohms +/- 20% |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Husqvarna SM 610 | 2008 |
| Husqvarna TE 610 | 2008 |
| Husqvarna SMS 630 | 2011 |
| Husqvarna TE 630 | 2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8000A6767 | Husqvarna |
| 8000A6778 | Husqvarna |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play direct fit for the Husqvarna models and years listed above, with the correct wire lengths, plugs and pin count to match the original loom. No assembly, cutting or splicing is required. Confirm the OEM number on your original unit against the cross reference table before ordering.
What is included?
The stator with the pick-up pulsar coil already fitted, the connectors, the rubber grommet, and the opposite connector for the main harness side. The stator cover gasket and flywheel are not included.
How do I know the old stator has failed?
A dead or dying stator normally shows up as a battery that will not hold charge, dimming or flickering lights that get worse as the revs rise, hard starting after a short ride, or an intermittent misfire caused by a failing pick-up coil. The definitive test is a resistance check: measure between each yellow wire, which should read about 0.4 ohms, and between the green and red source wires, which should read about 100 ohms. A reading that is open circuit, shorted to the engine cases or a long way outside these figures confirms the stator has failed.
Does the pick-up coil come with it?
Yes. The pick-up pulsar coil is supplied already mounted on the stator plate, so you replace both parts in one operation and do not need to transfer the old coil across.
