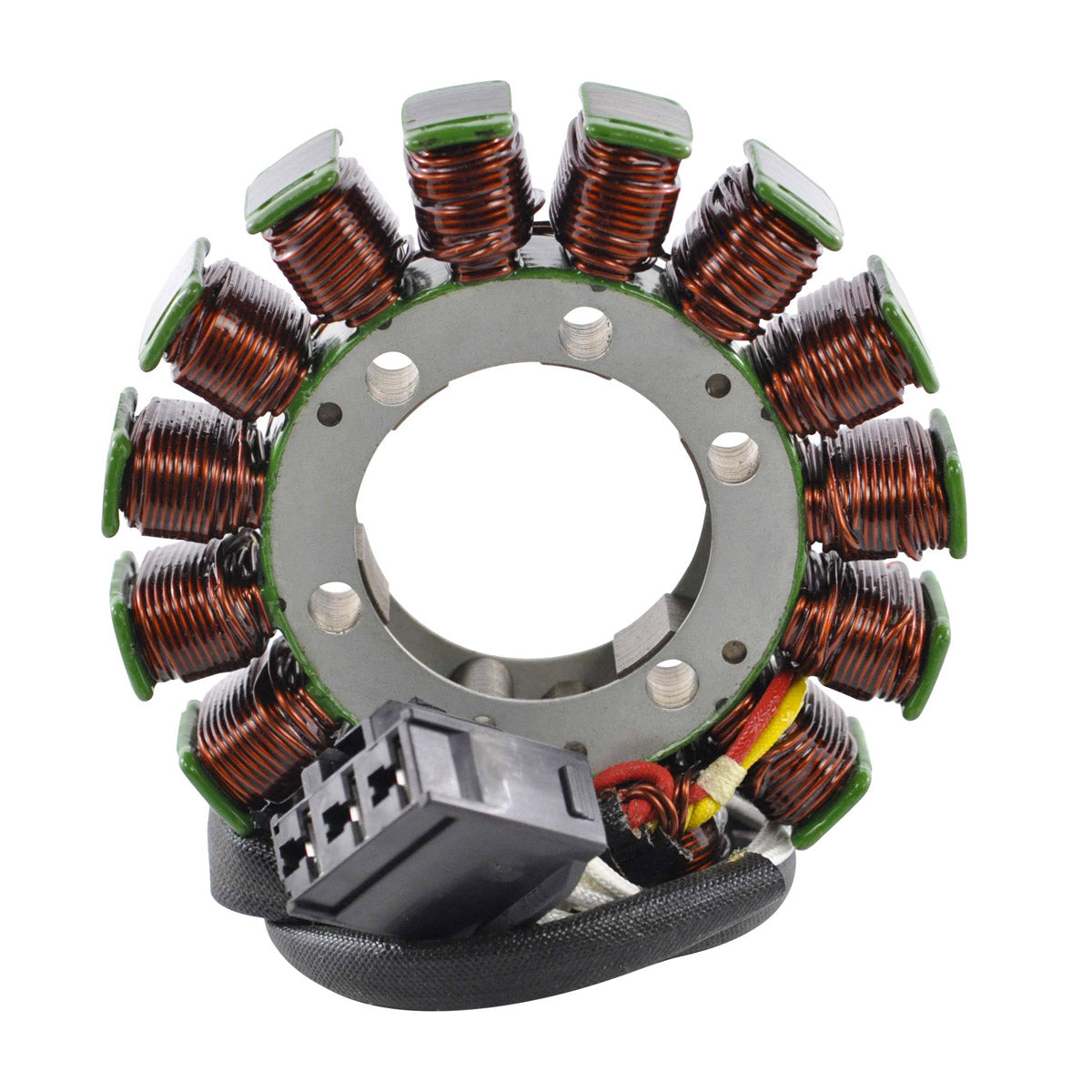

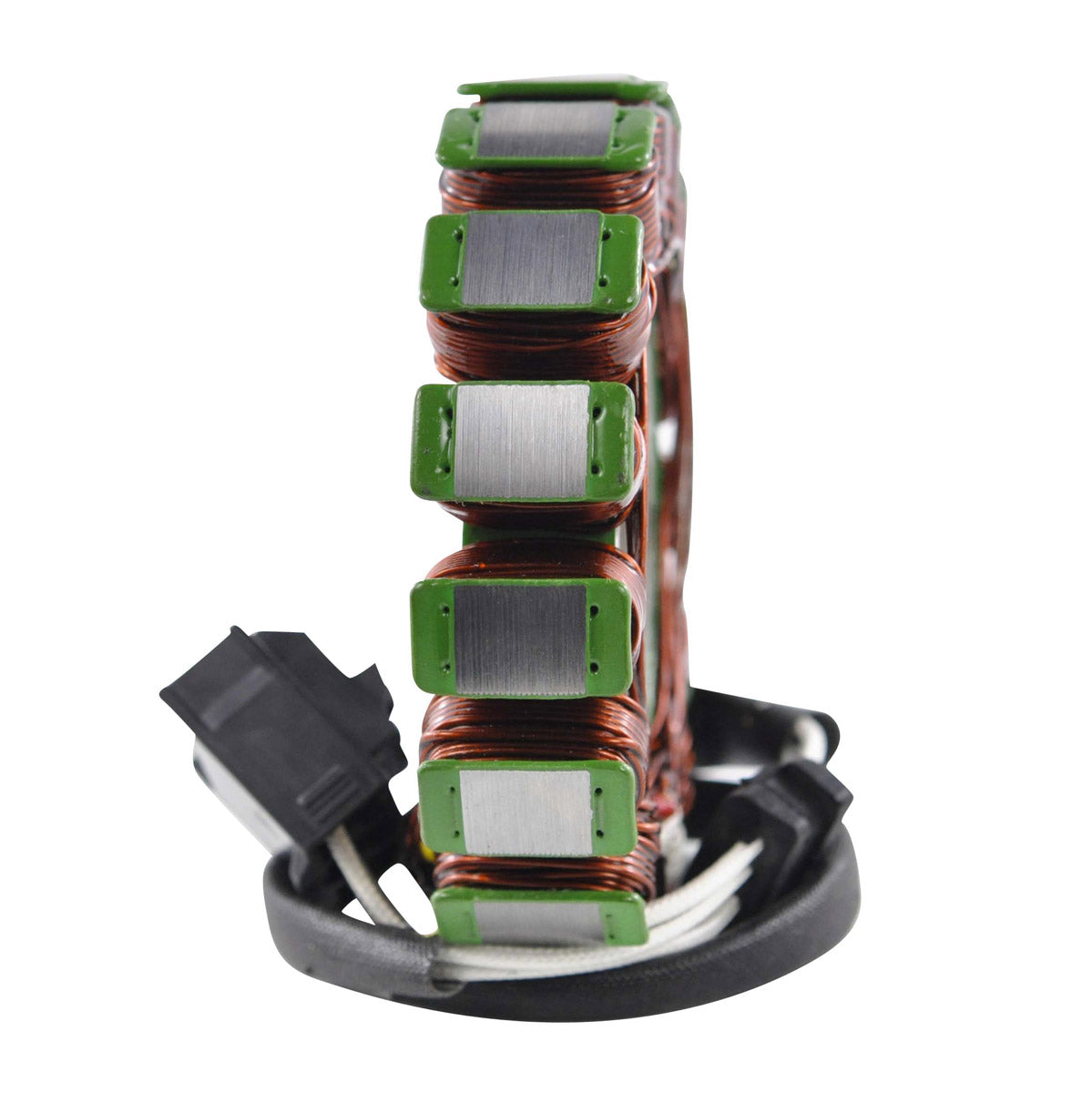

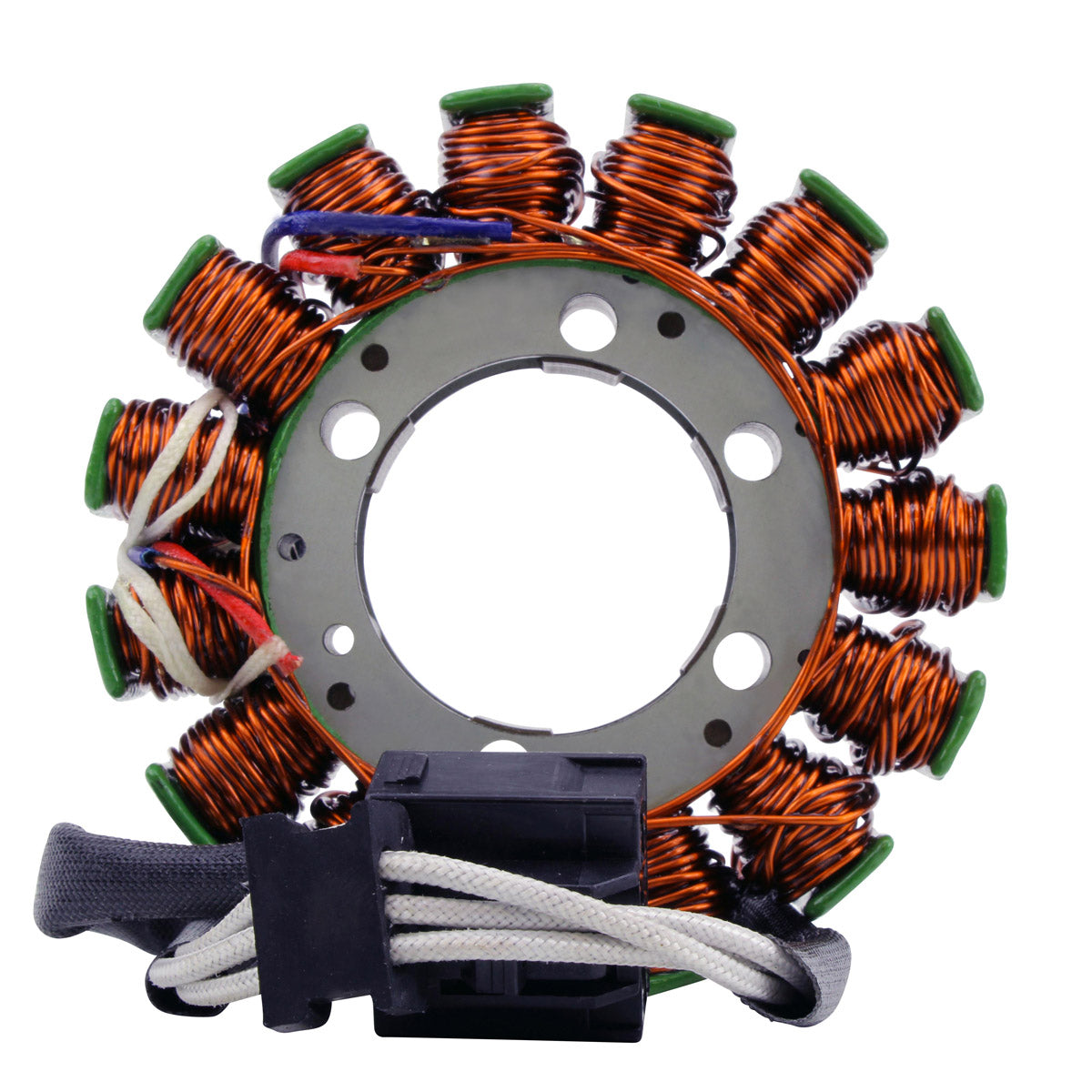

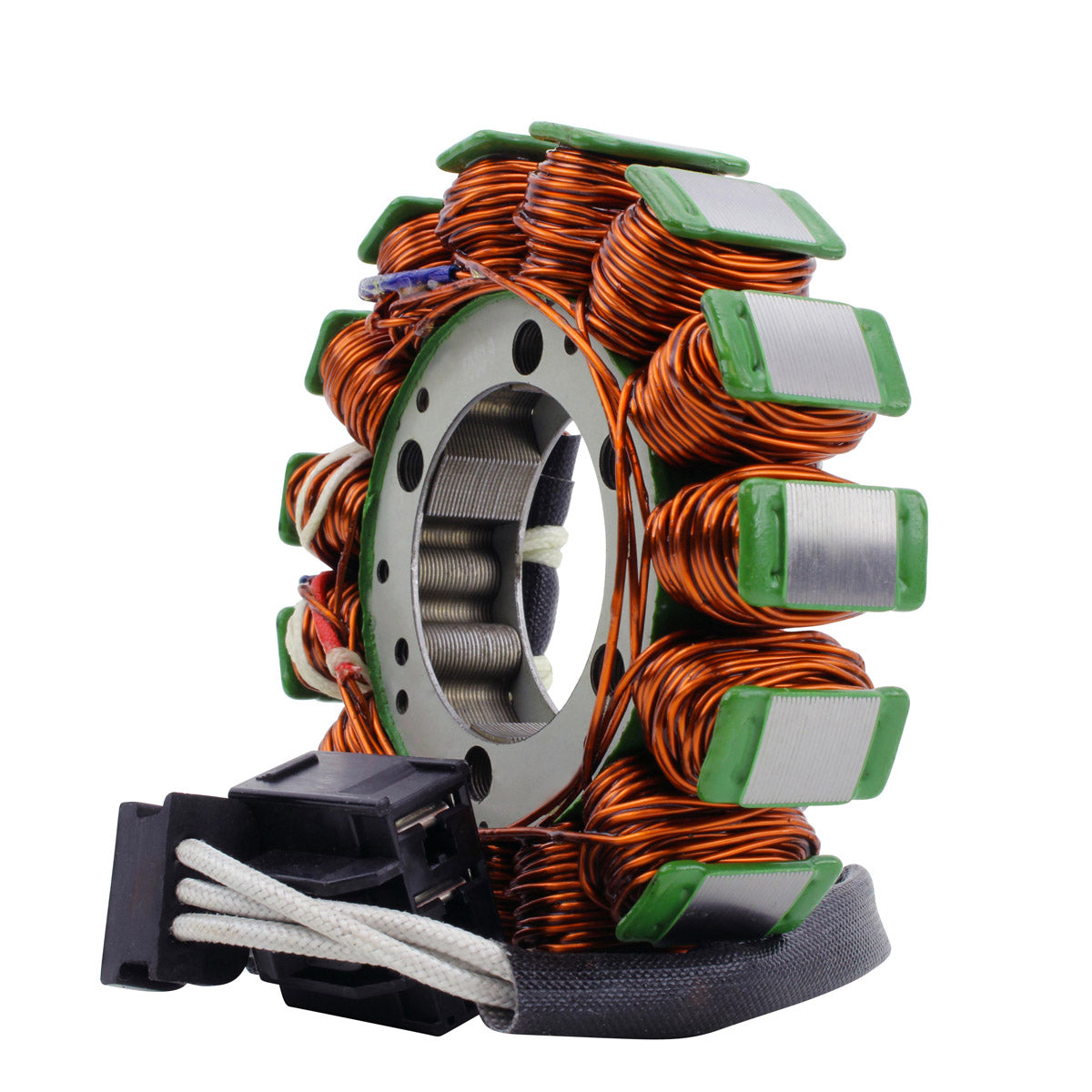

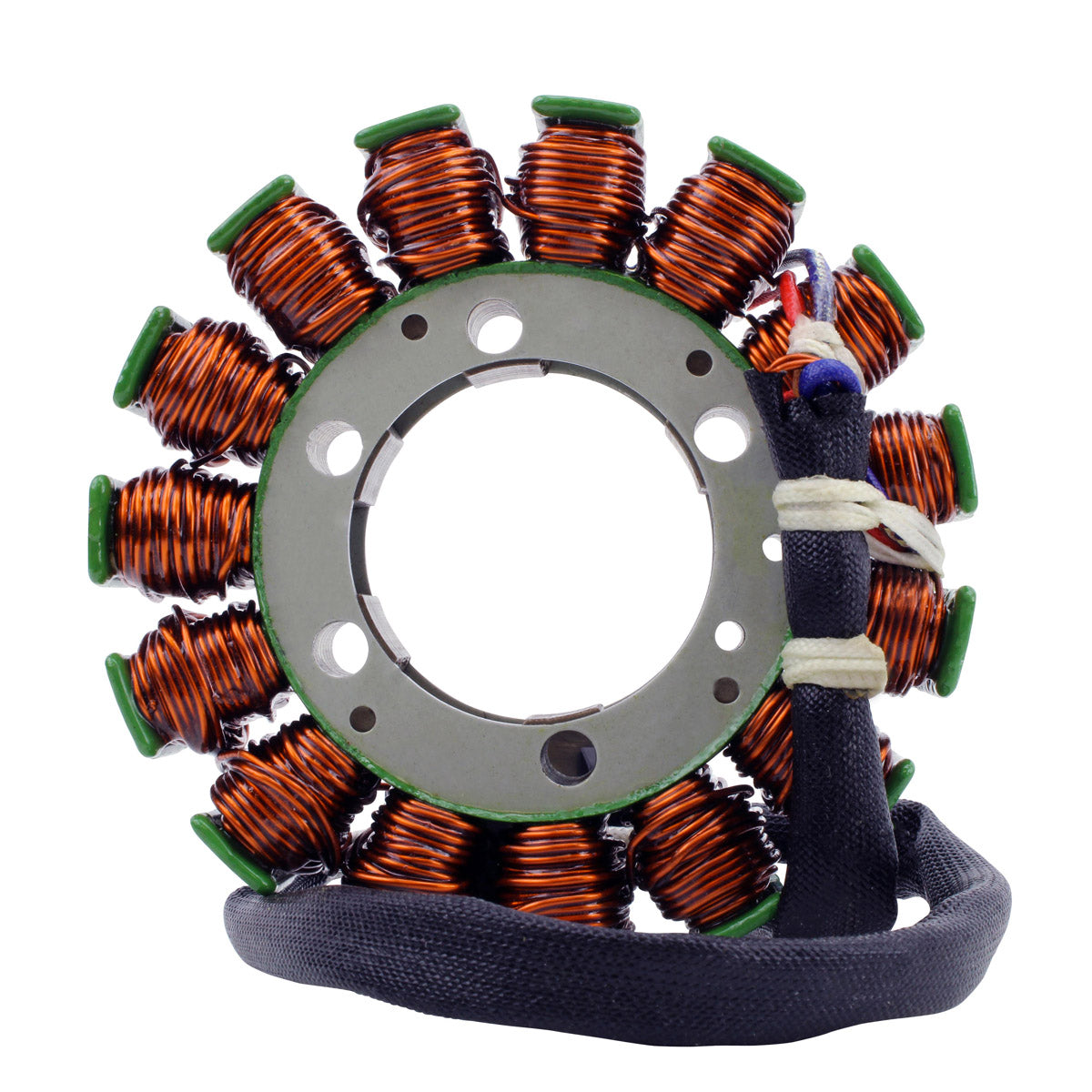

This is a brand new aftermarket generator stator built as a direct replacement for the original unit. It is plug-and-play and a direct fit, so it goes straight into the engine case in place of the part it replaces.

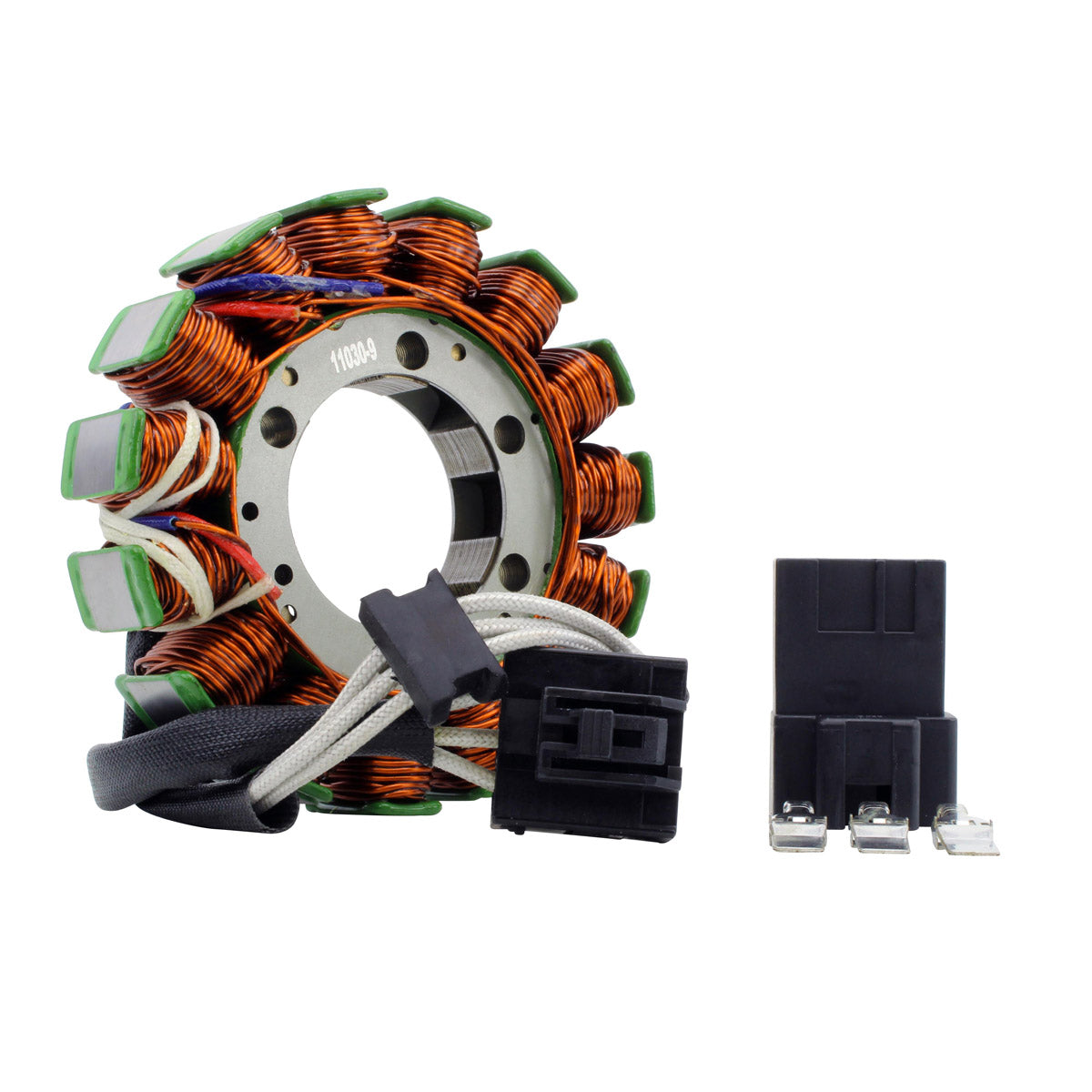

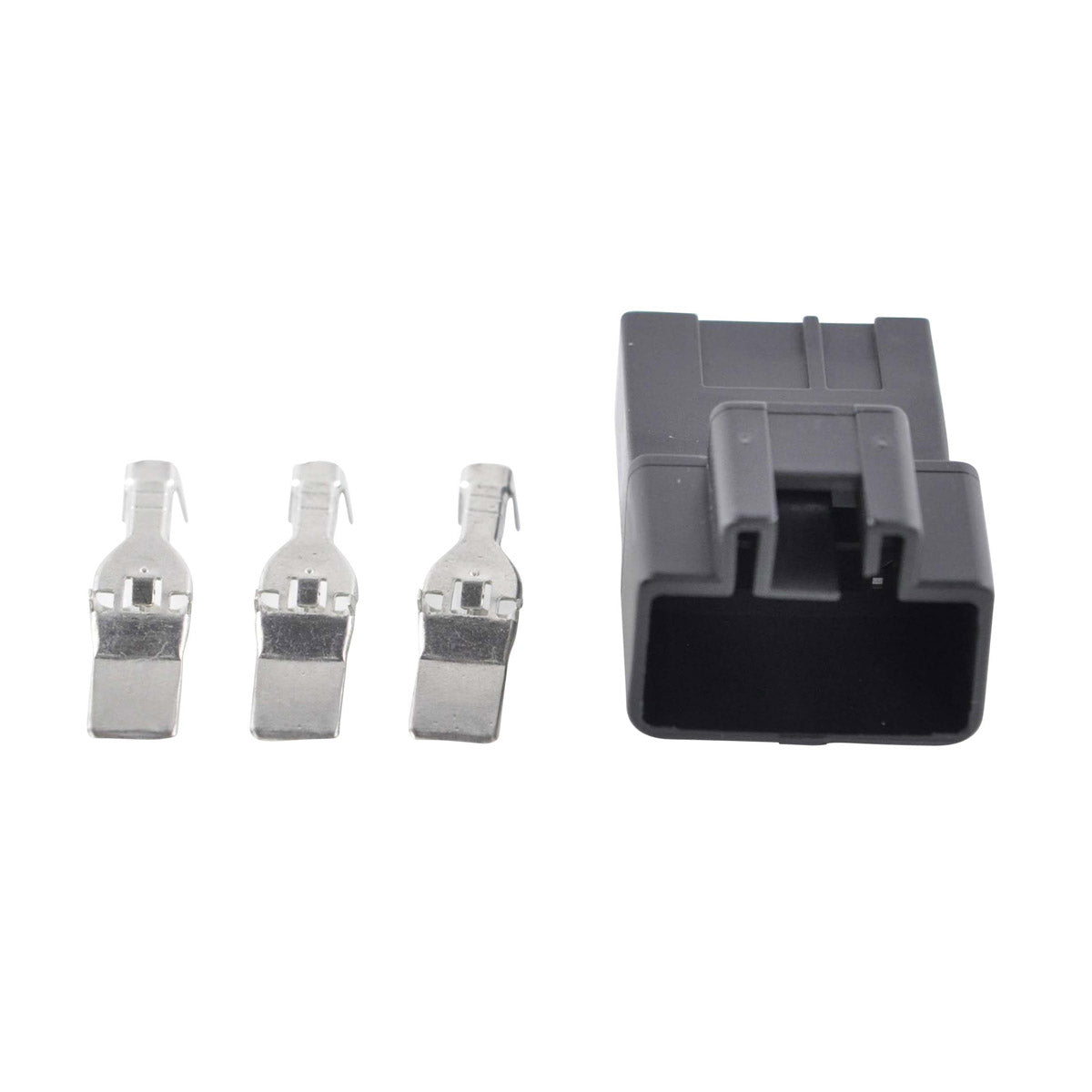

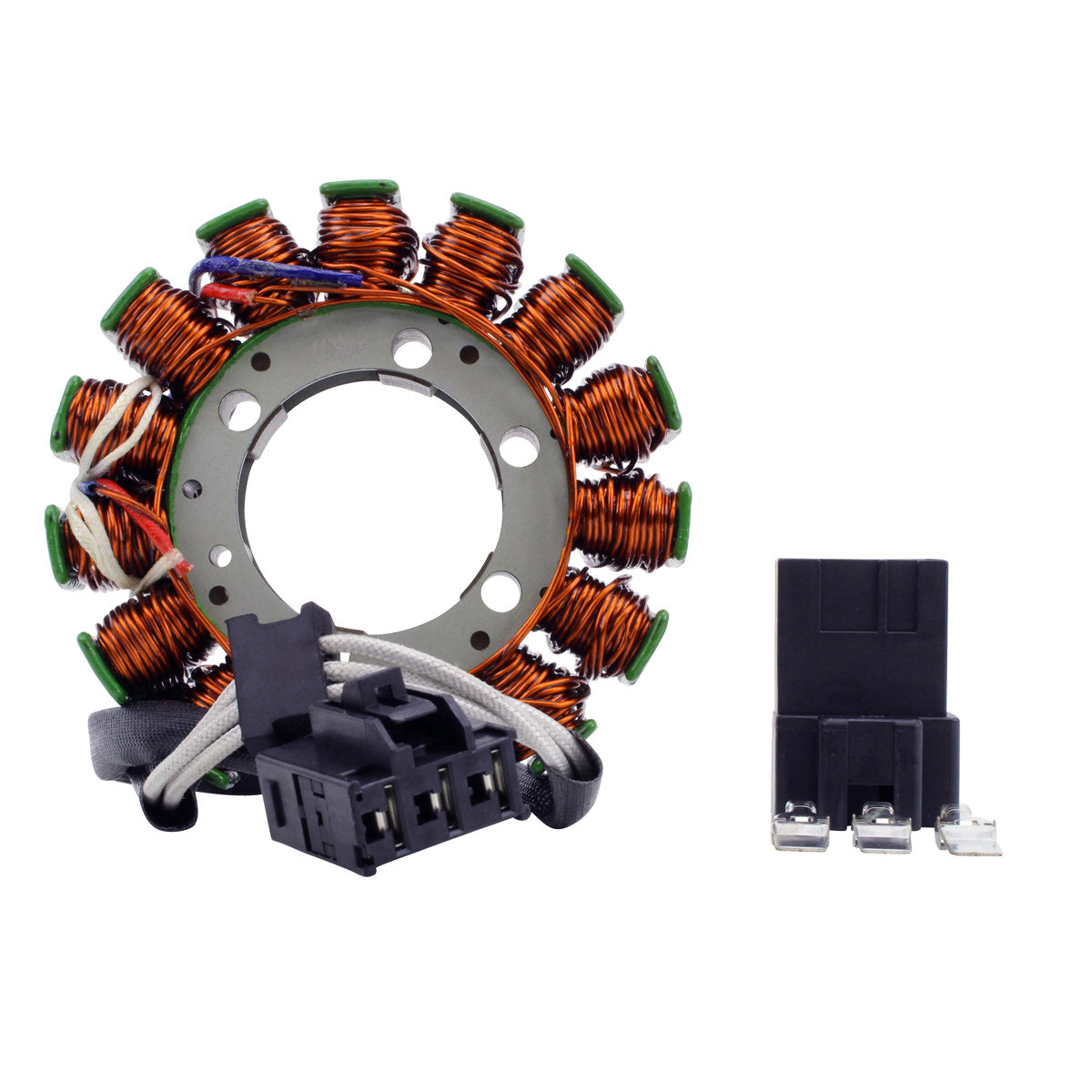

RMSTATOR wind this stator using the highest grade of lamination materials and the highest grade of copper winding, which is resistant to 200 degrees Celsius. The connector and the rubber grommet are both included, and so is the opposite connector for the main harness side - RMSTATOR supply it because these plugs are so often found melted, corroded or defective, and that is a major cause of repeat electrical problems. Every stator is tested before it is shipped.
Key Features
- Direct replacement for the original stator
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

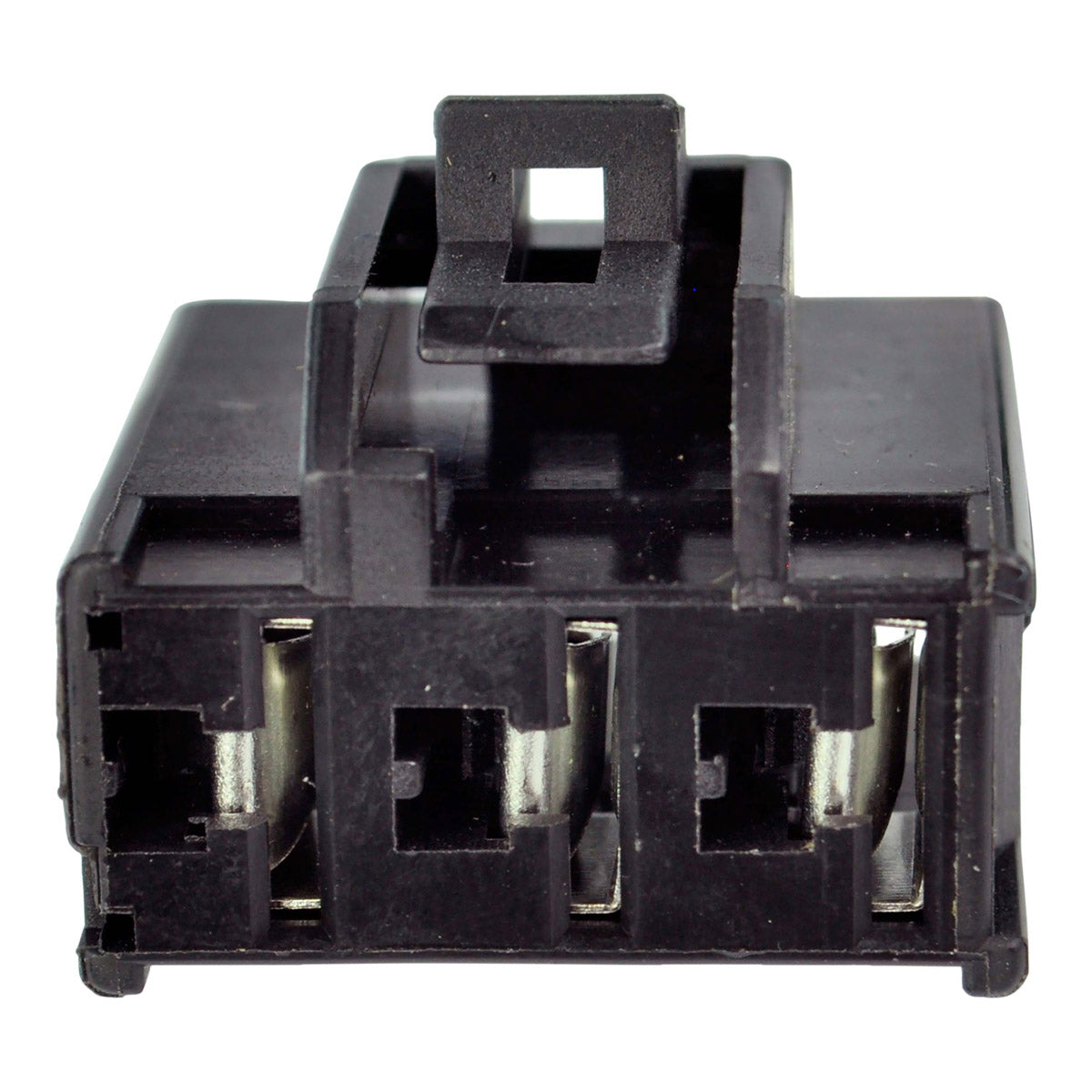

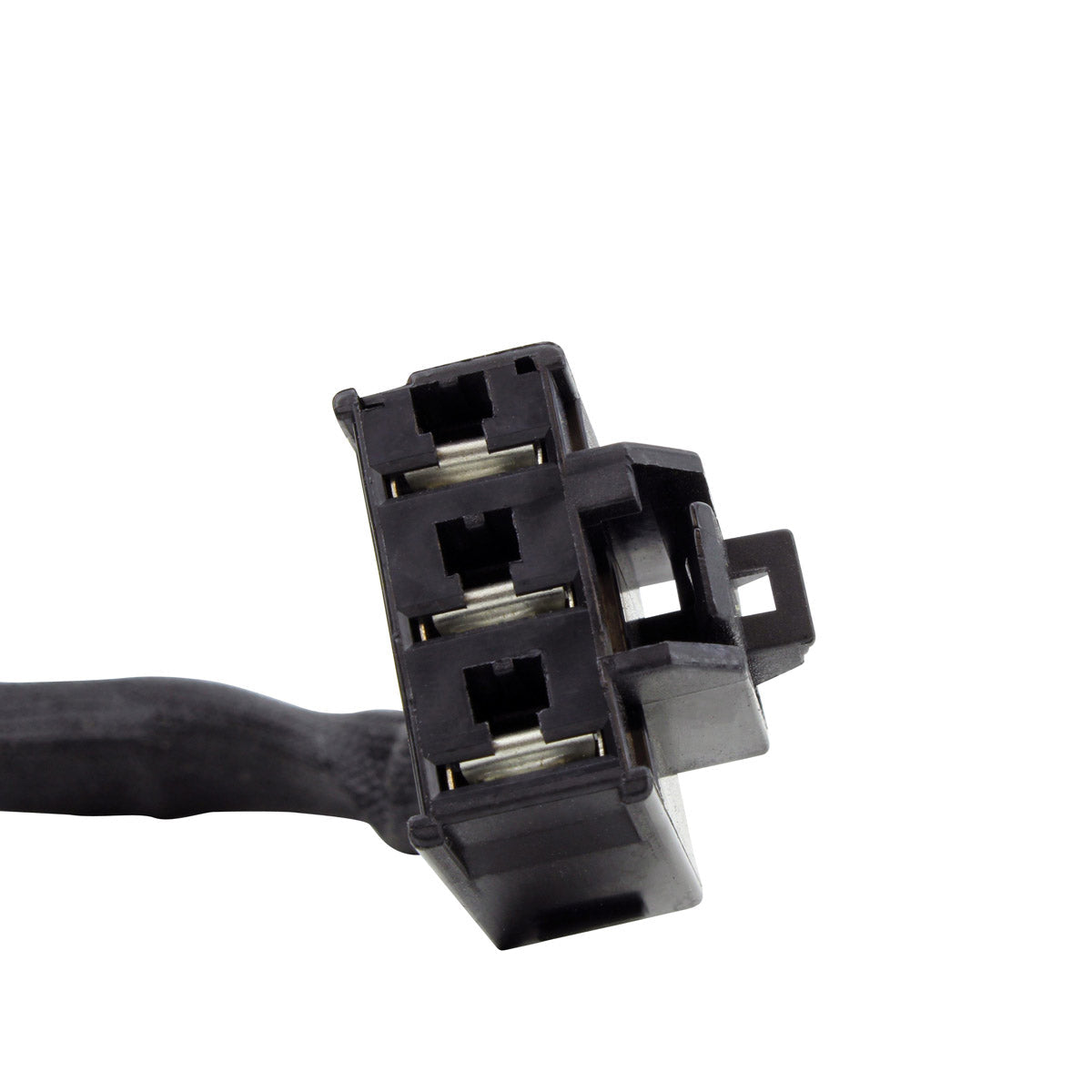

- Connector and rubber grommet included

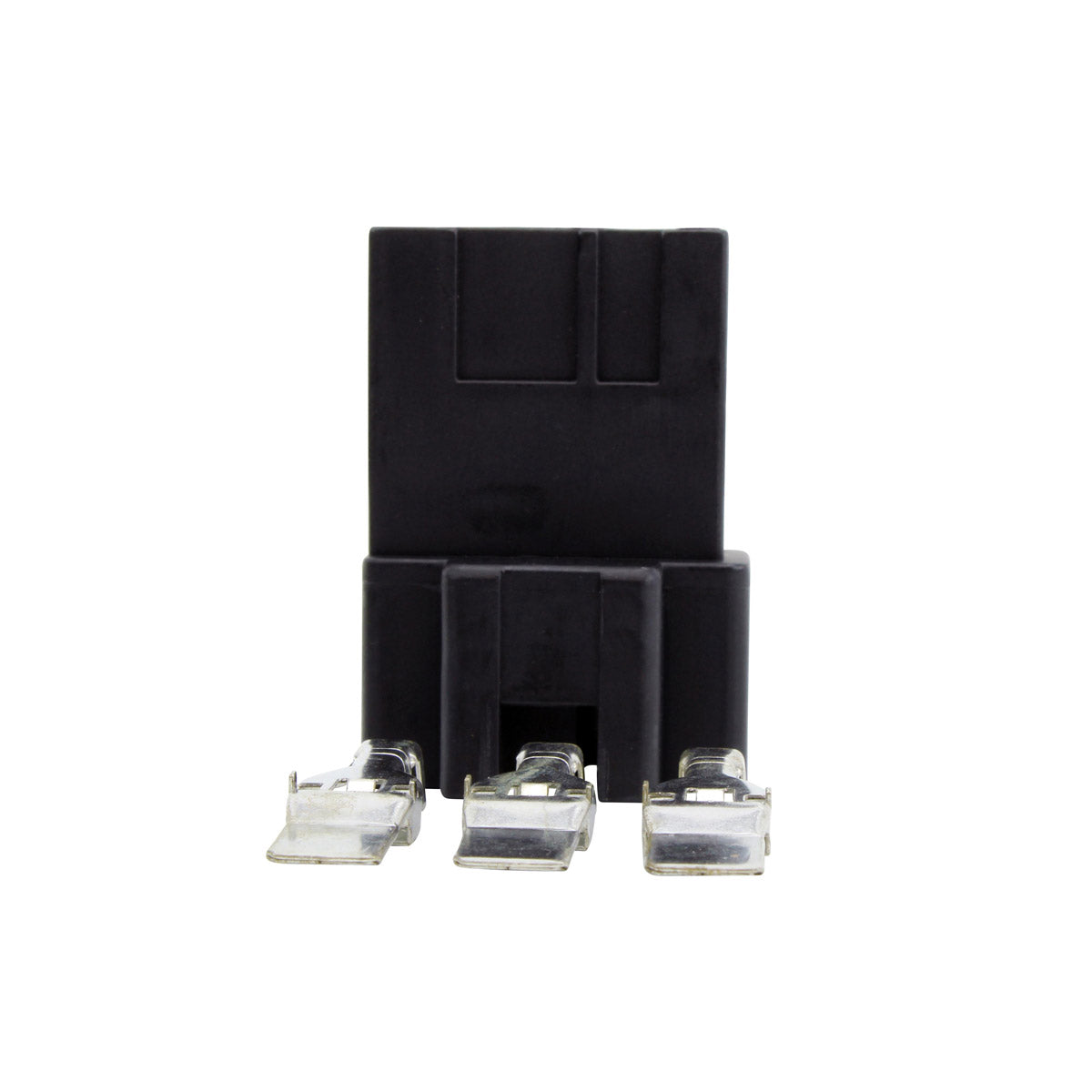

- Opposite connector for the main harness side included
- Every unit is tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
105 mm |
| Thickness |
17 mm |
| Wire length (stator to grommet) |
90 mm |
| Wire length (grommet to plug) |
300 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Wire-to-wire resistance (alternator) |
Between each White = 0.4 ohms +/-20% |
| Temperature rating |
Resistant to 200 C |
Vehicle Fitment Guide
| Make & Model |
Years |
| Aprilia RSV4 1000 |
2009-2012 |
| Aprilia RSV4 R 1000 |
2009-2012 |
| Aprilia Tuono V4 1000 |
2009-2012 |
| Kawasaki Ninja ZX-10R |
2006-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0054 |
Kawasaki |
| 21003-0036 |
Kawasaki |
| 21003-0052 |
Kawasaki |
| 857201 |
OEM cross reference |
Frequently Asked Questions
Will this fit without modifying the wiring?
Yes. It is a direct fit, plug-and-play stator for the models listed, and the connector and rubber grommet are supplied on it. The opposite connector is included too, so a damaged harness-side plug can be renewed at the same time.
What is included?

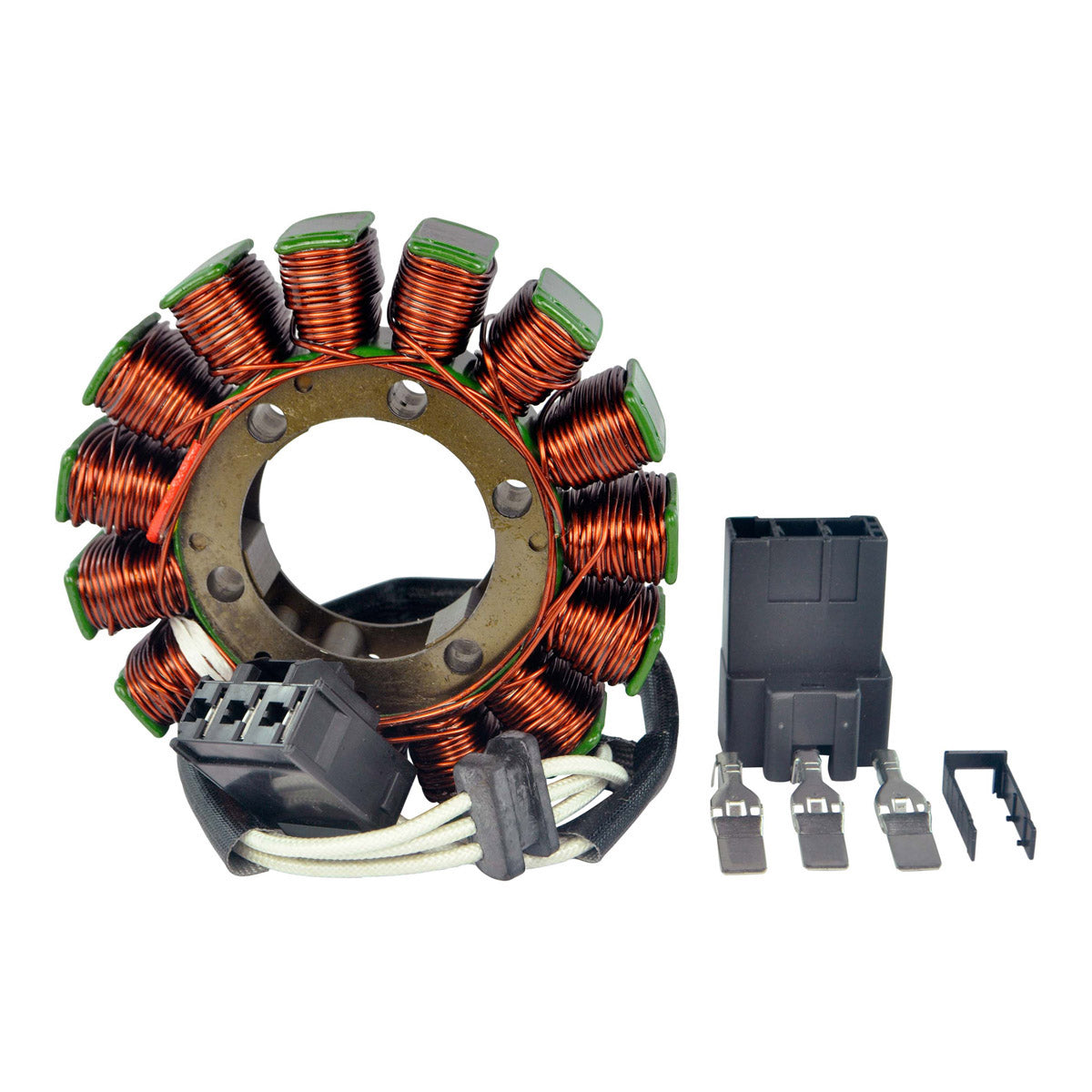

The generator stator (RM01350), the connector, the rubber grommet, and the opposite connector for the main harness side.
How do I know my old stator has failed?
Measure the resistance between each of the three white wires with the stator unplugged. RMSTATOR specify 0.4 ohms +/-20% between each pair on this unit, so an open circuit, a short to the engine case, or a reading well outside that figure points at a failed stator. A battery that will not stay charged with a known-good regulator is the other common symptom.
Why is the copper winding temperature rating important?
A stator sits in hot oil inside the engine case. The winding on this unit is resistant to 200 degrees Celsius, which is what allows it to survive the conditions that break down lower grade windings and cause a short between turns.
