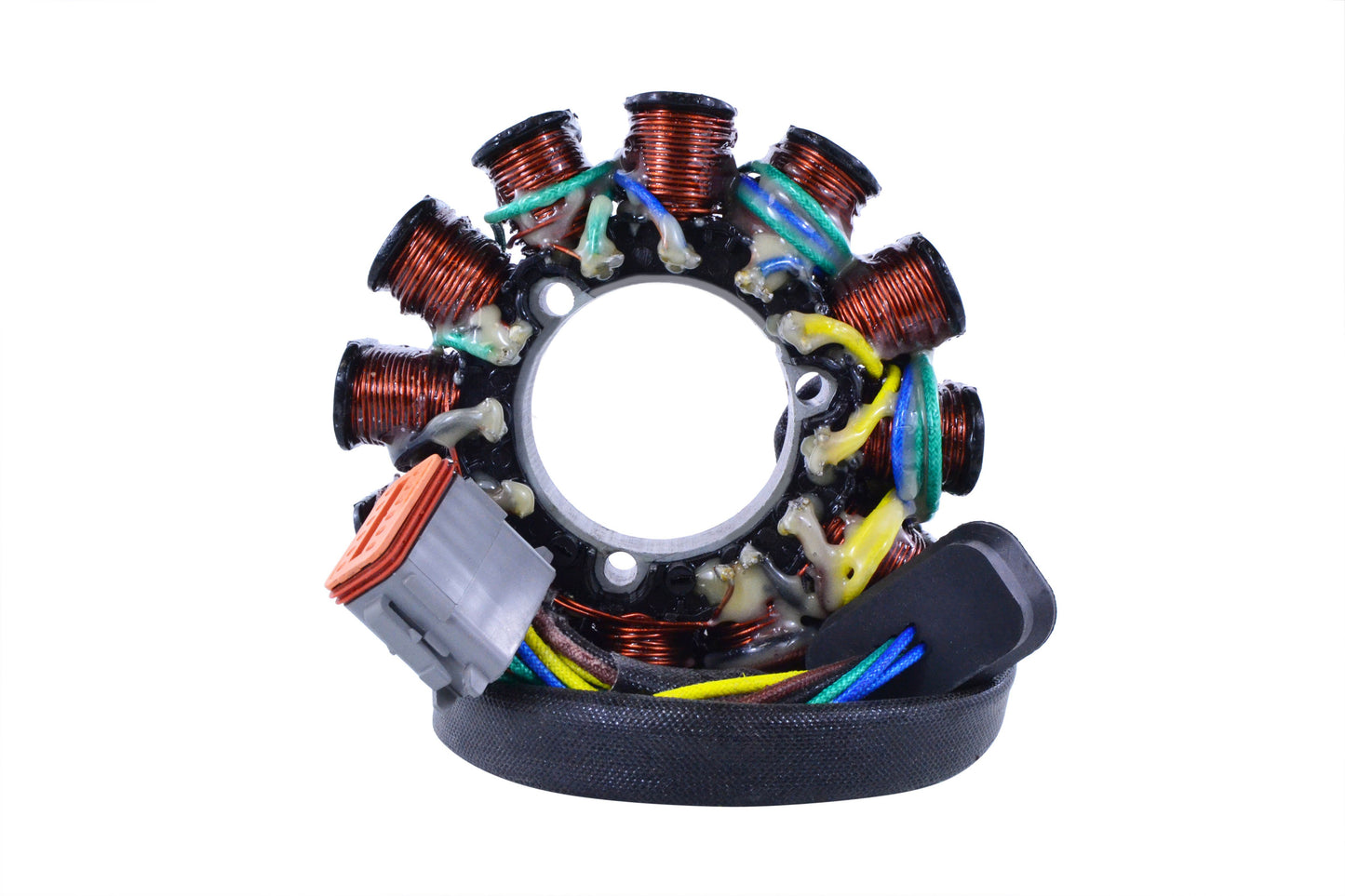

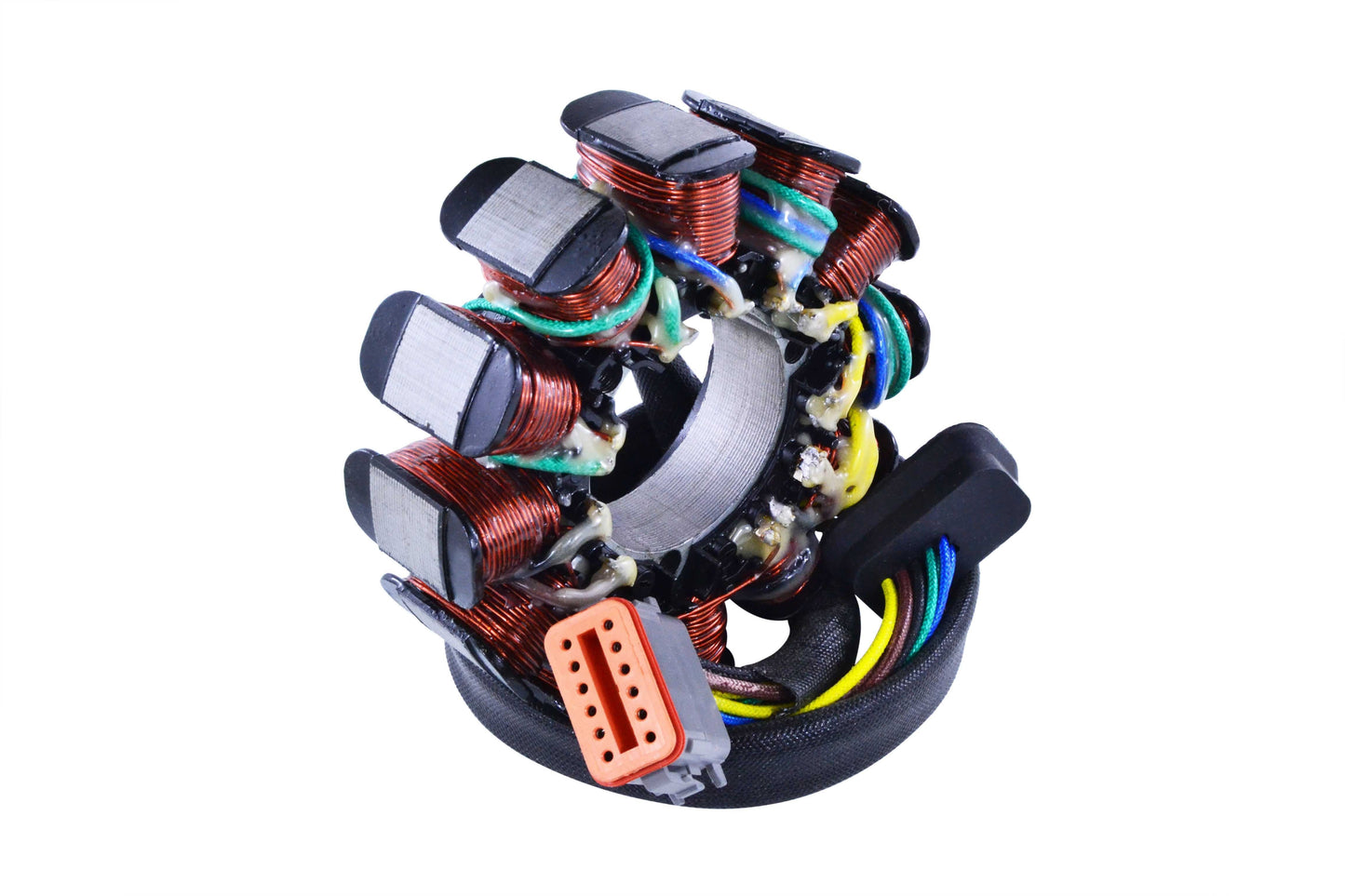

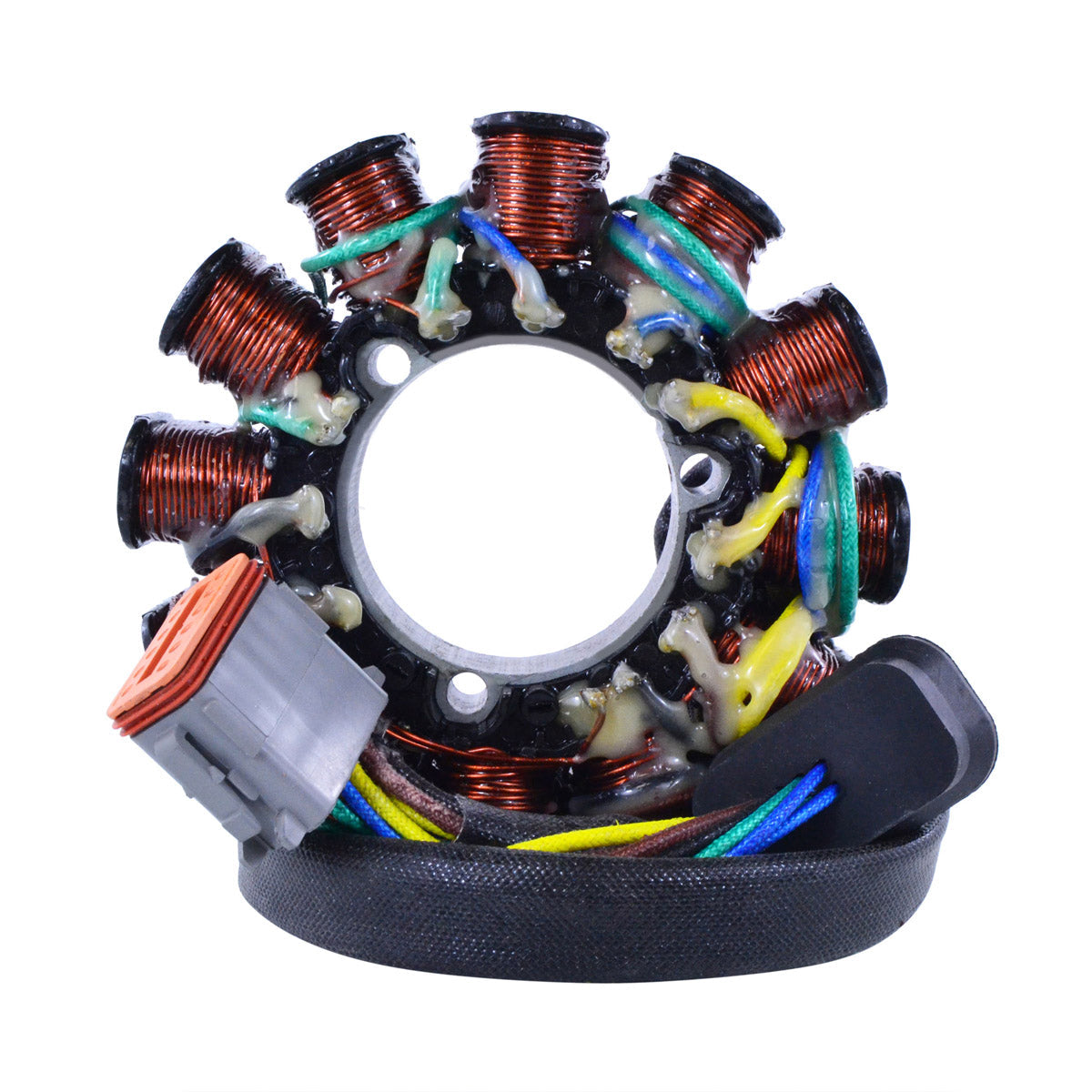

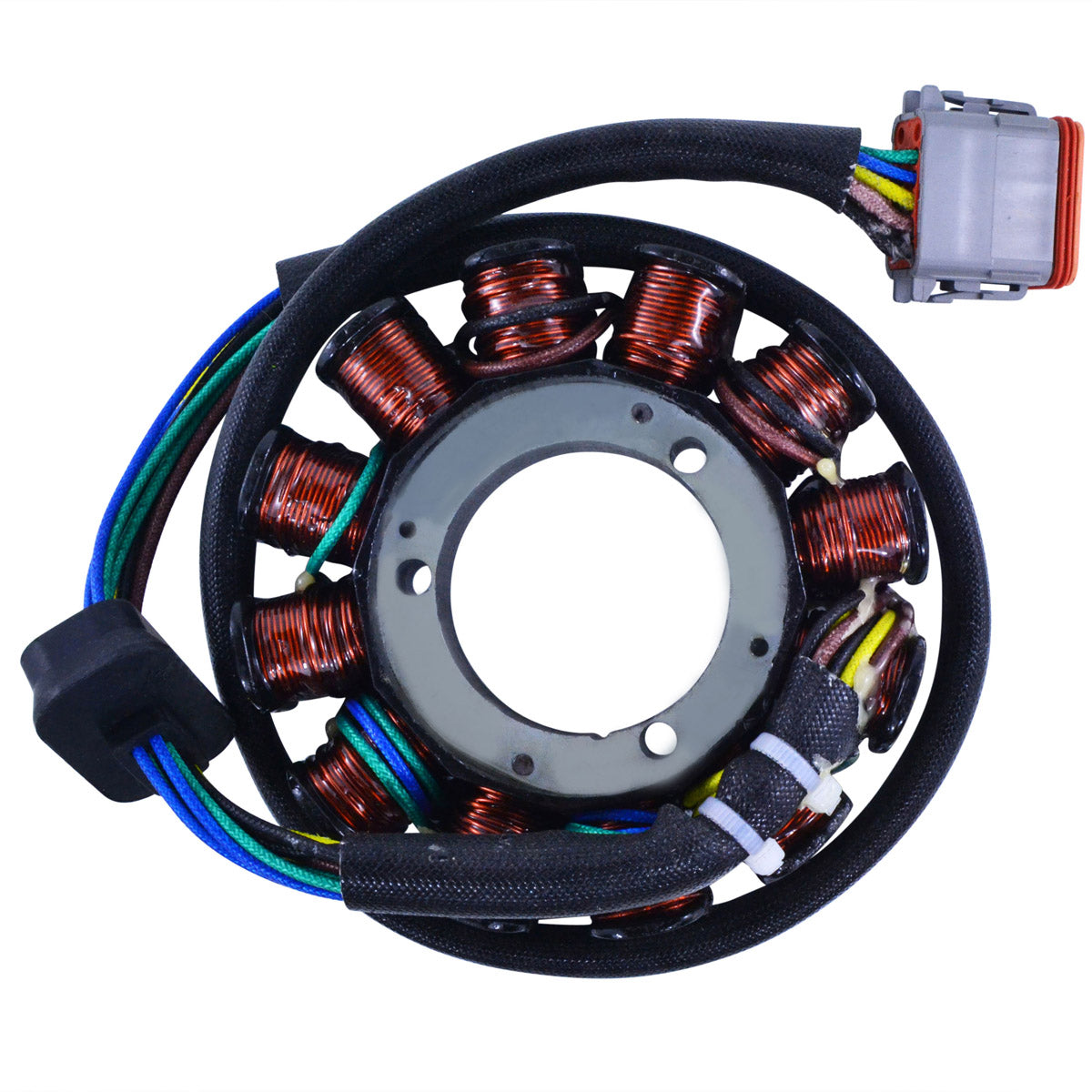

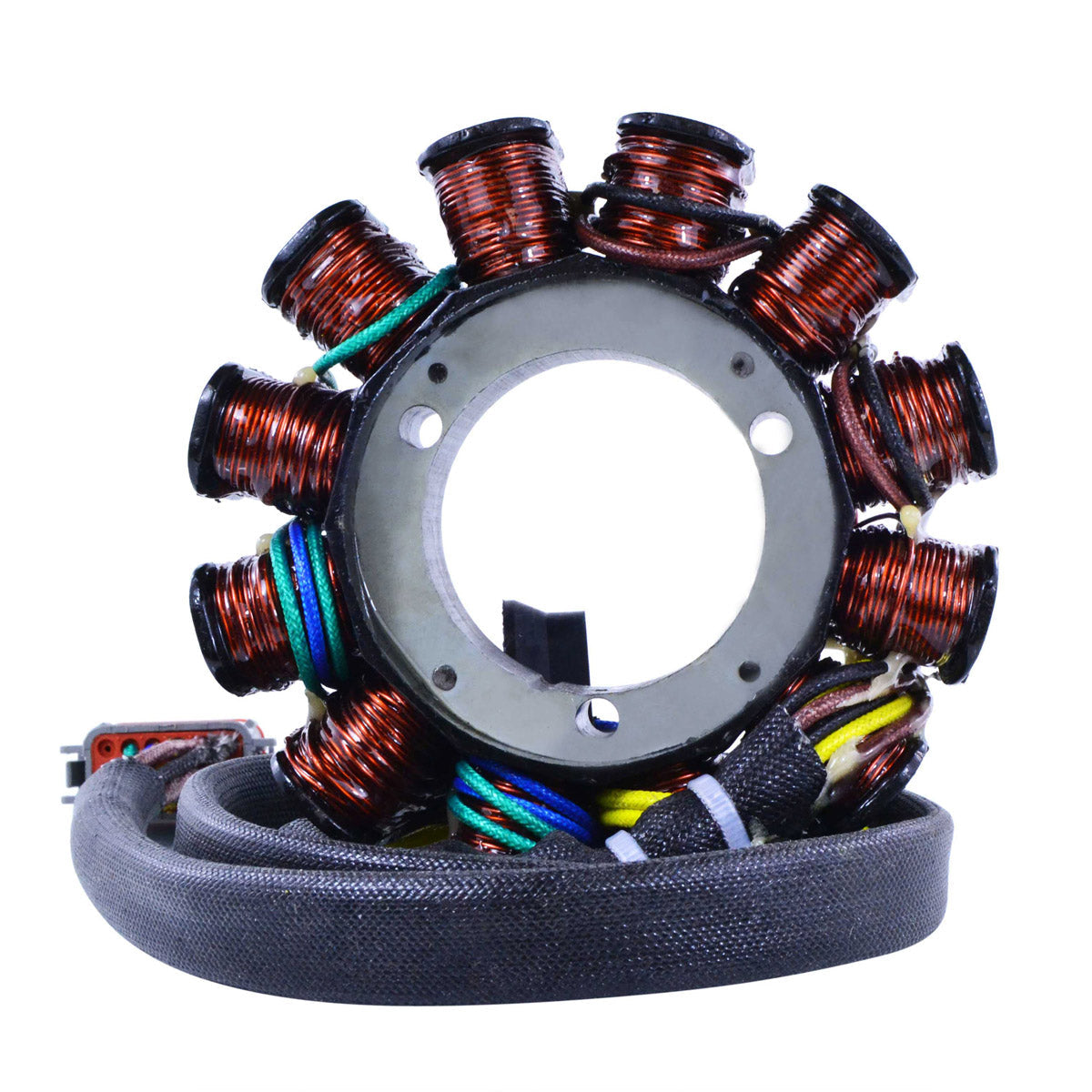

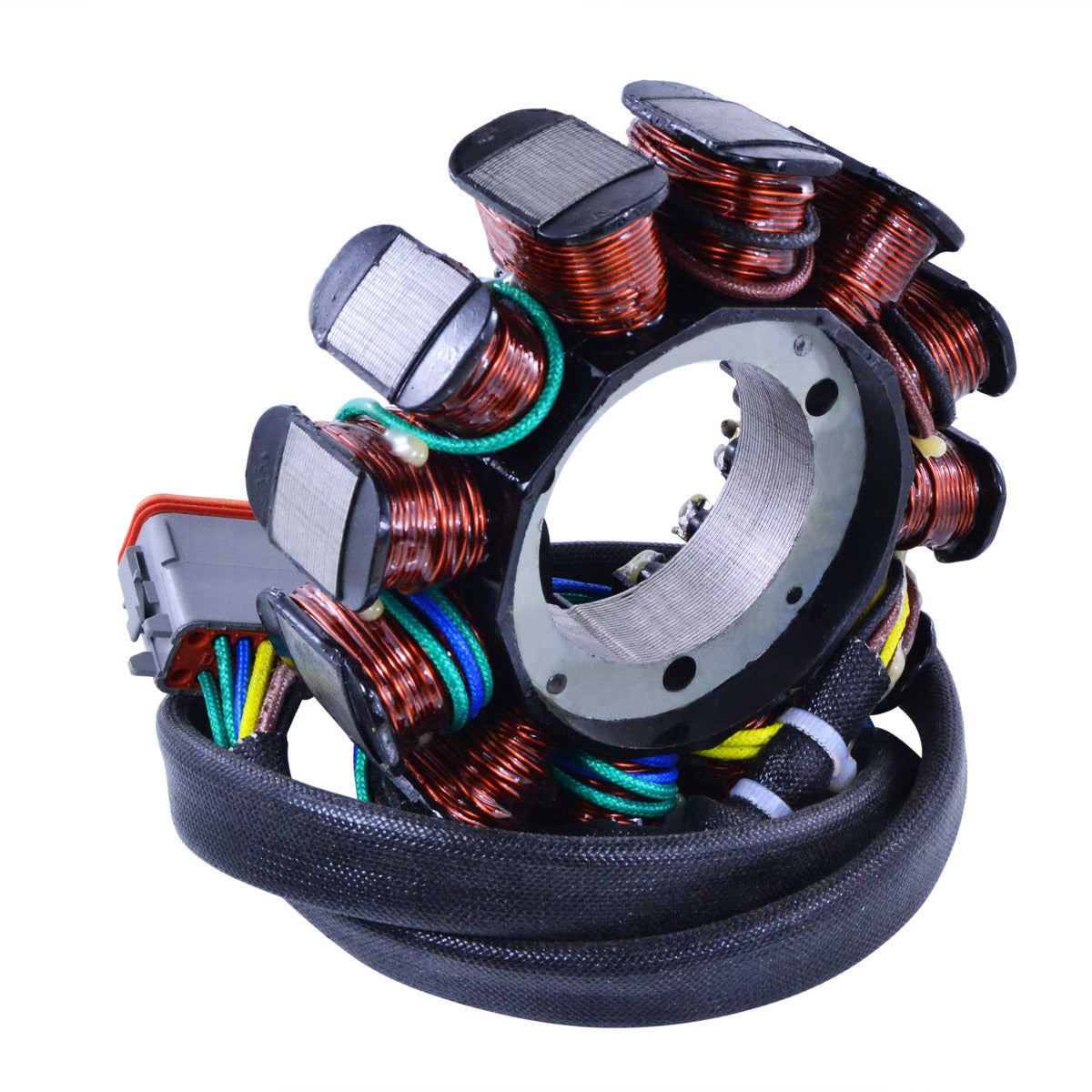

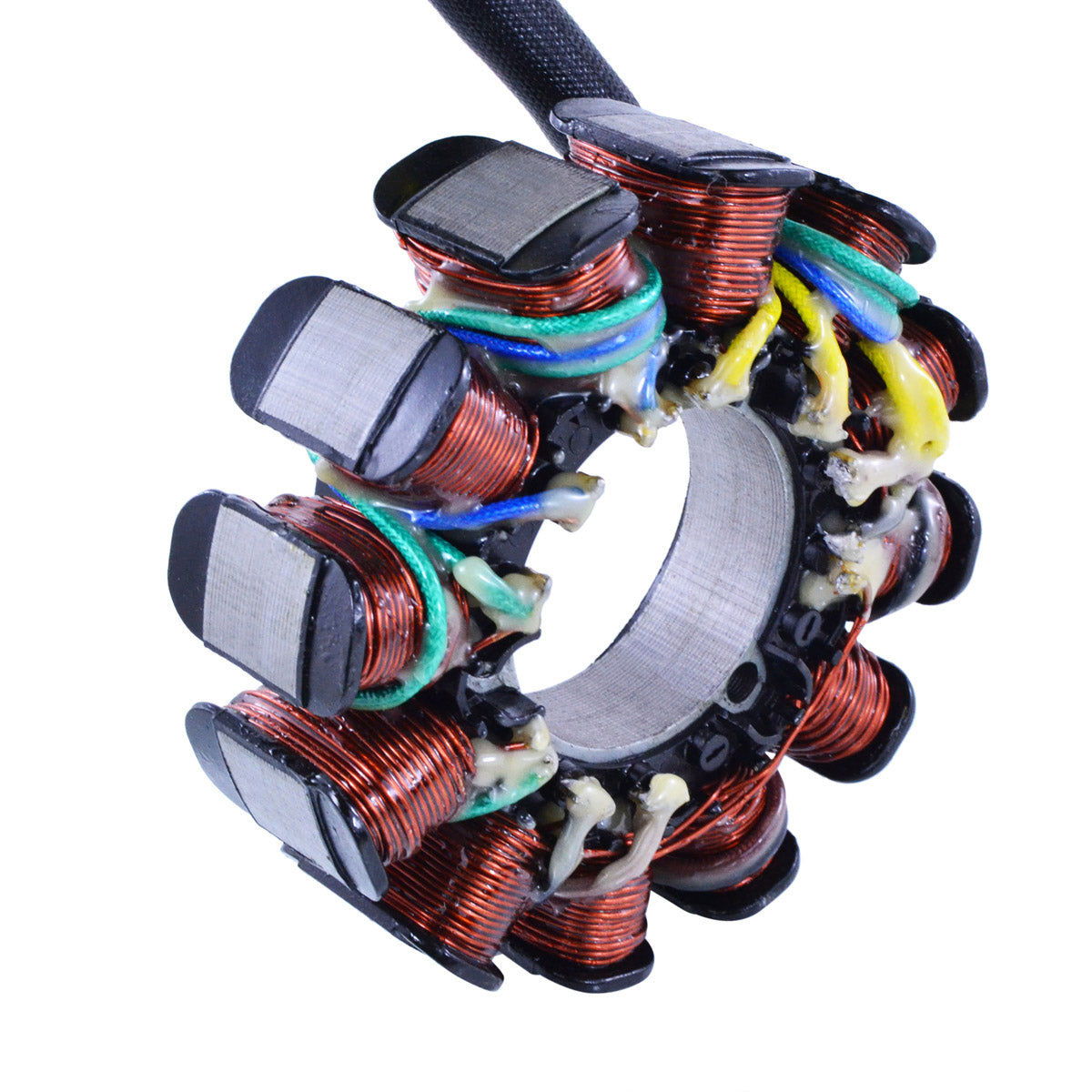

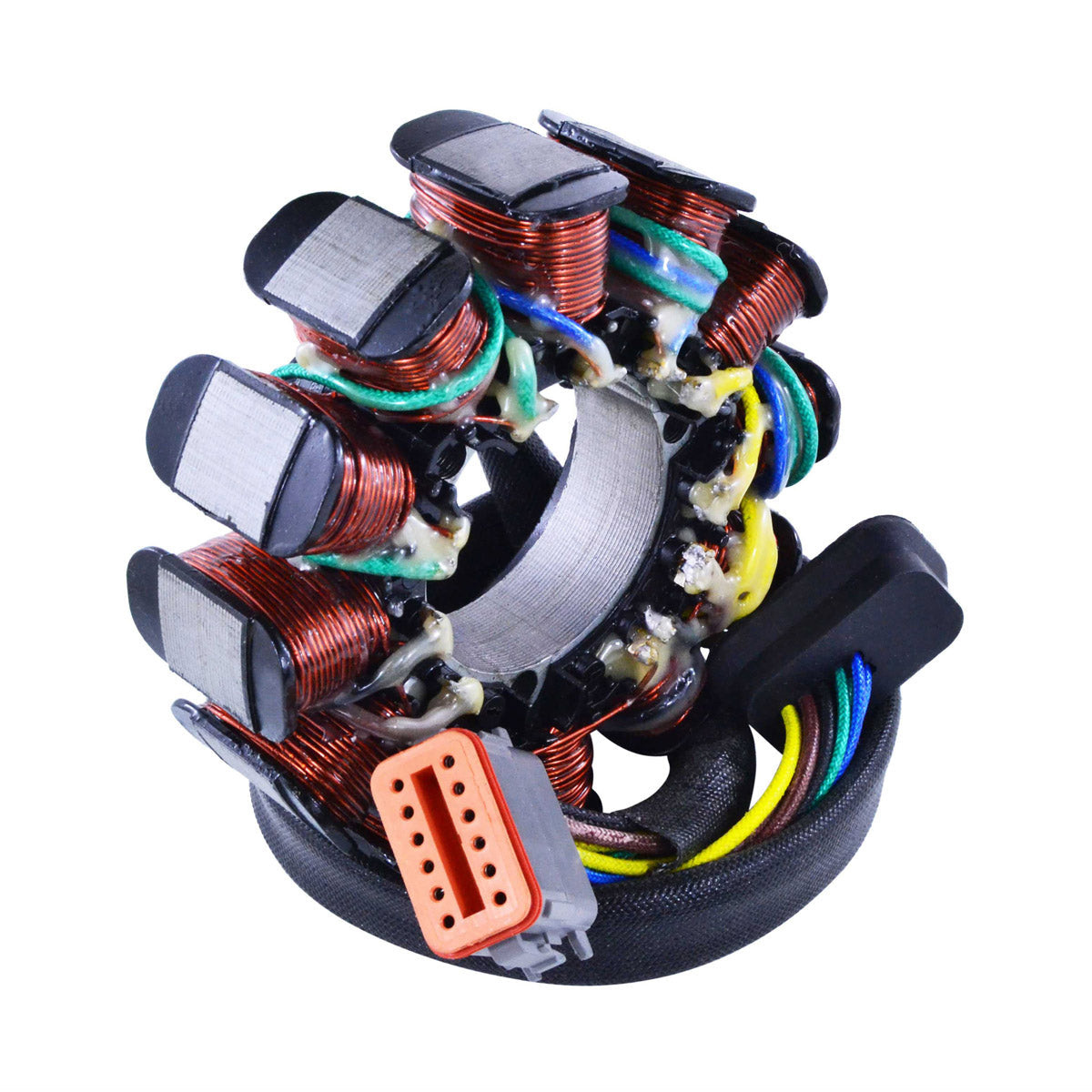

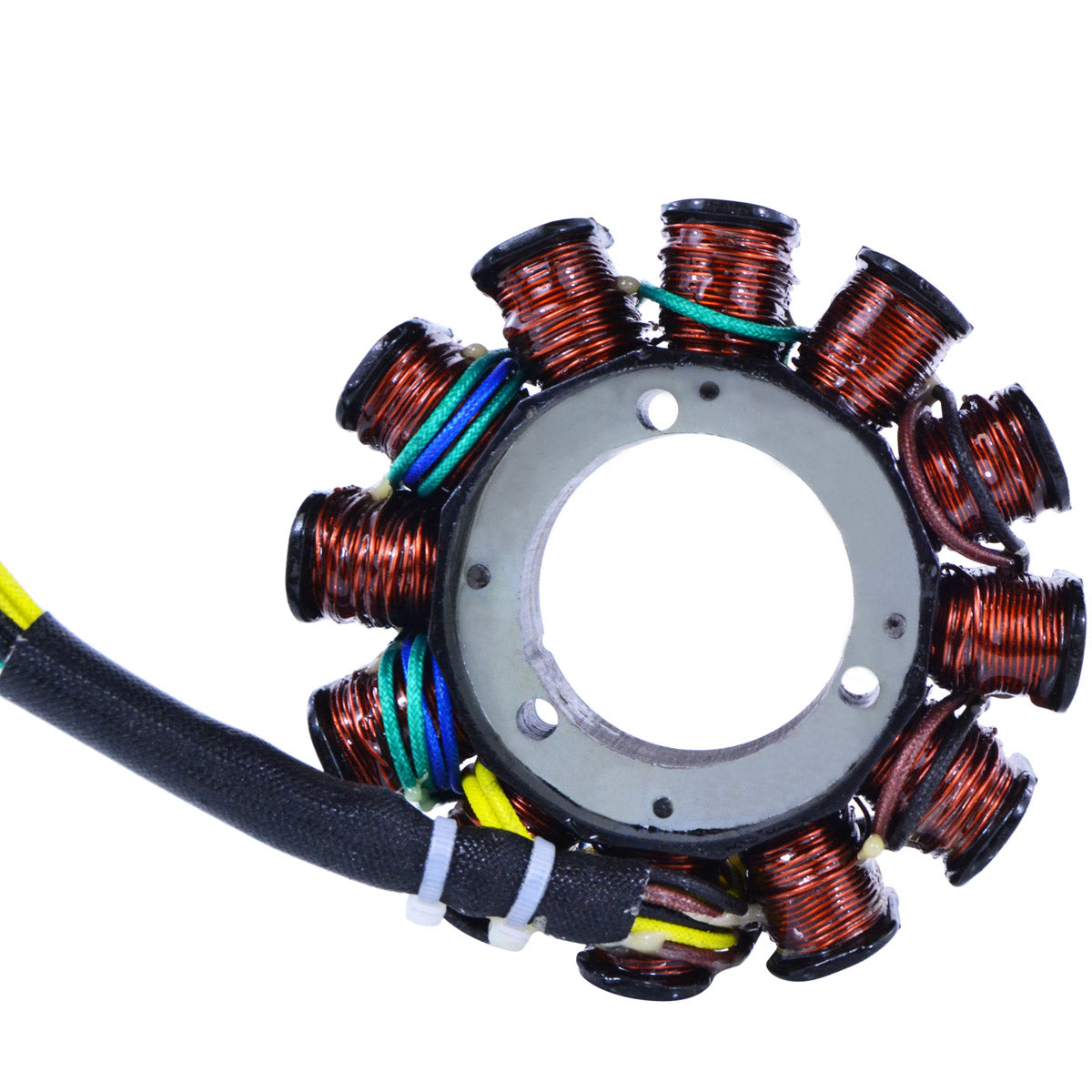

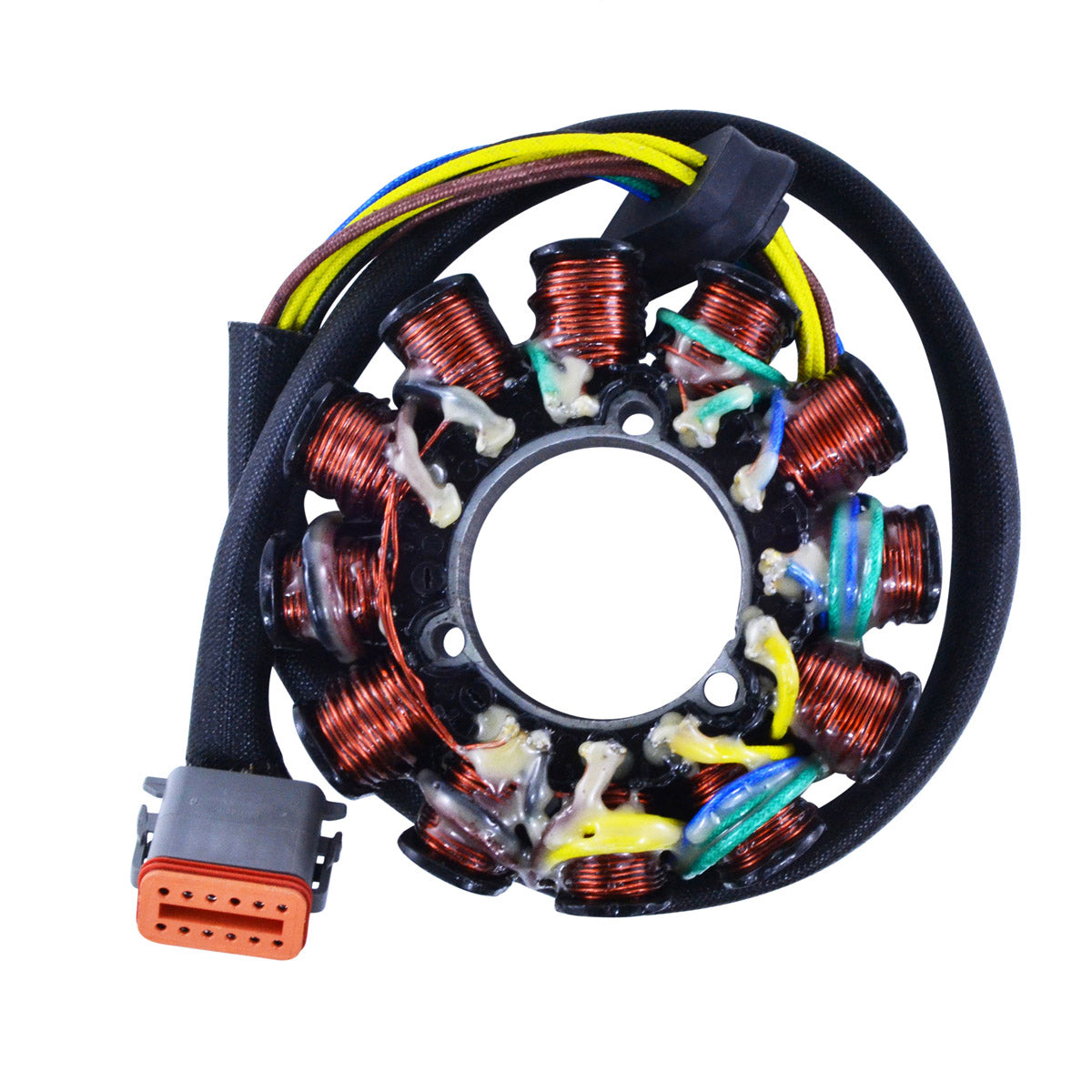

This is a brand new aftermarket generator stator for the Kawasaki Jet Ski 1100 STX D.I. and Ultra 130, built as a direct replacement for the original unit. It is a twelve-pole assembly carrying ten wires through a single plug, reflecting the multiple separate windings these direct-injection and high-output engines rely on for charging and engine management. Personal watercraft stators lead a hard life - constant high revs, a hot engine bay and a damp, salt-laden atmosphere - and when a winding finally breaks down the machine typically cranks slowly, will not hold battery charge, or cuts out on the water.

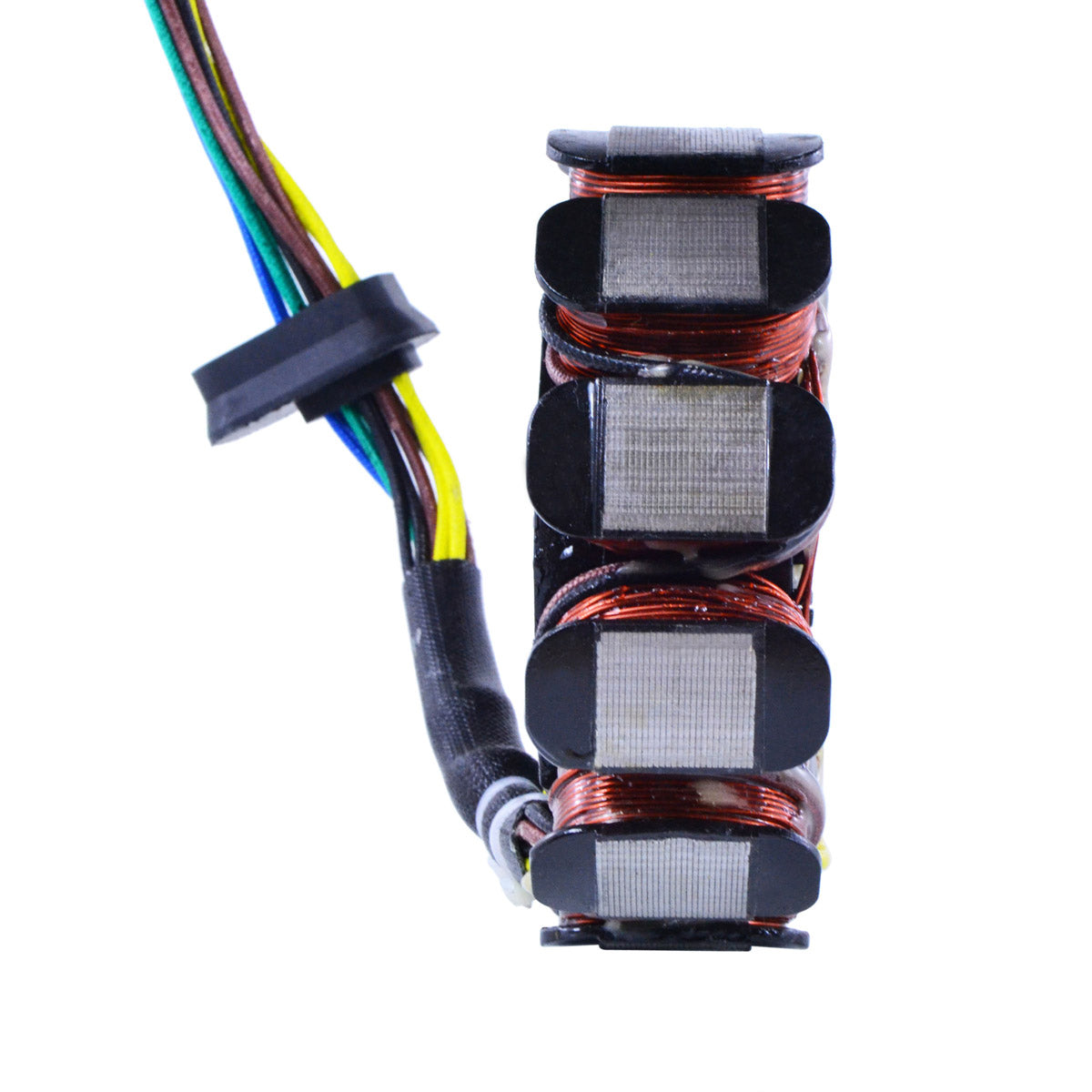

The unit is plug-and-play and a direct fit: 127 mm outer diameter, 54 mm bore and a 21 mm stack, matching the factory part so it mounts in the standard position without cutting, splicing or adapting the loom. It is built on the highest grade of lamination materials with the highest grade of copper winding, resistant to 200 degrees Celsius. The connector and rubber grommet are included, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Twelve-pole design with ten-wire output
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Part number |
RM01539 |
| Interior diameter |
54 mm |
| Exterior diameter |
127 mm |
| Stack thickness |
21 mm |
| Number of poles |
12 |
| Wire length, stator to grommet |
85 mm |
| Wire length, grommet to plug |
700 mm |
| Number of wires |
10 |
| Number of plugs |
1 |
| Number of pins |
10 |
| Resistance, white to white/brown |
0.8 ohms +/- 20% |
| Resistance, black/white to green/white |
0.8 ohms +/- 20% |
| Resistance, blue to yellow |
0.7 ohms +/- 20% |
| Resistance, purple to black |
0.6 ohms +/- 20% |
| Resistance, green to grey |
0.6 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki Jet Ski 1100 STX D.I. |
2000-2003 |
| Kawasaki Jet Ski Ultra 130 |
2001-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-3744 |
Kawasaki |
| 21003-3741 |
Kawasaki |
Frequently Asked Questions
Is any modification required to fit it?
No. This is a plug-and-play, direct fit replacement. The 127 mm outer diameter, 54 mm bore, 21 mm stack, twelve-pole layout and ten-wire single-plug output all match the original, so it mounts in the factory position and connects to the standard harness untouched.
What is included in the box?

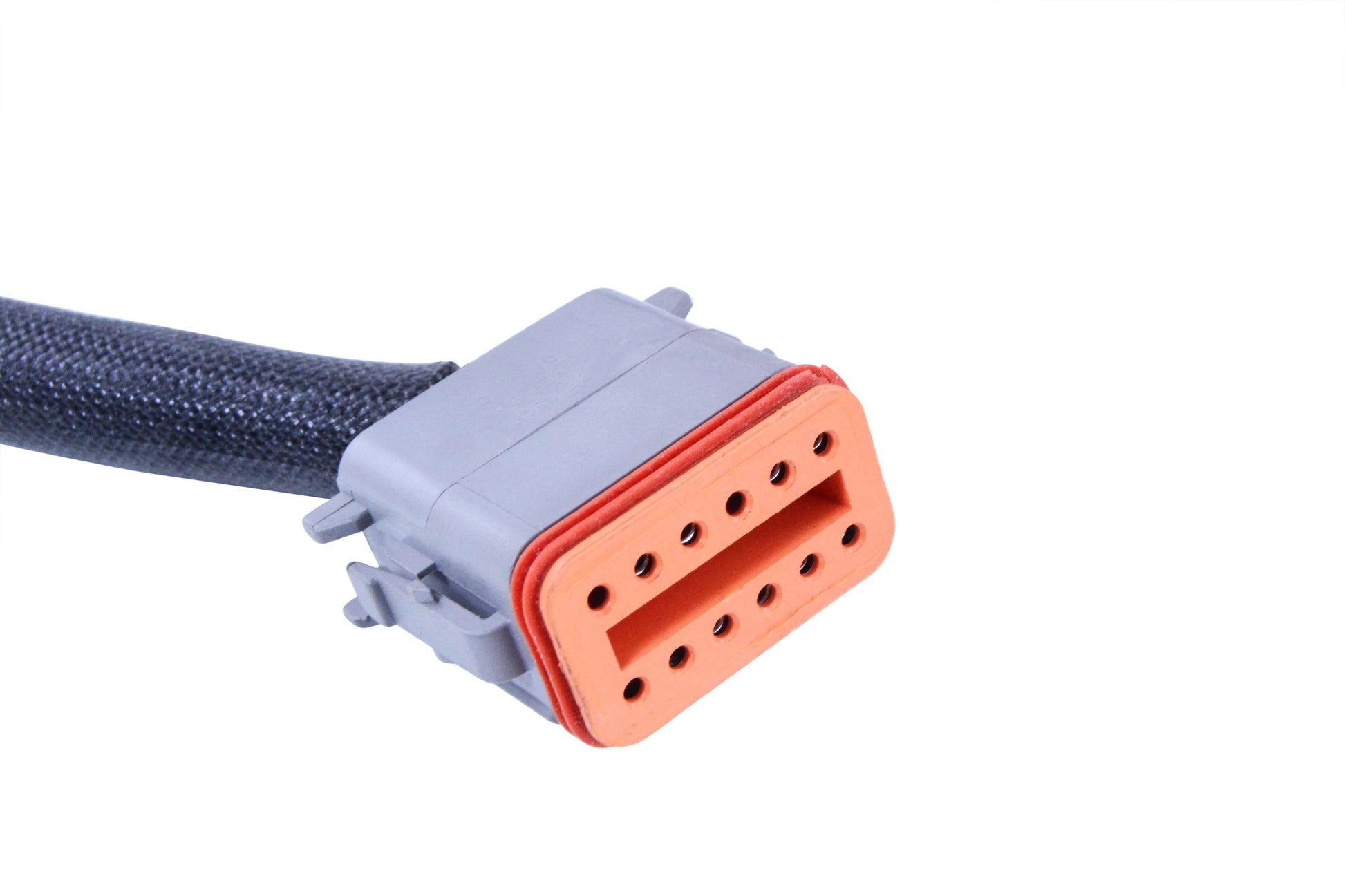

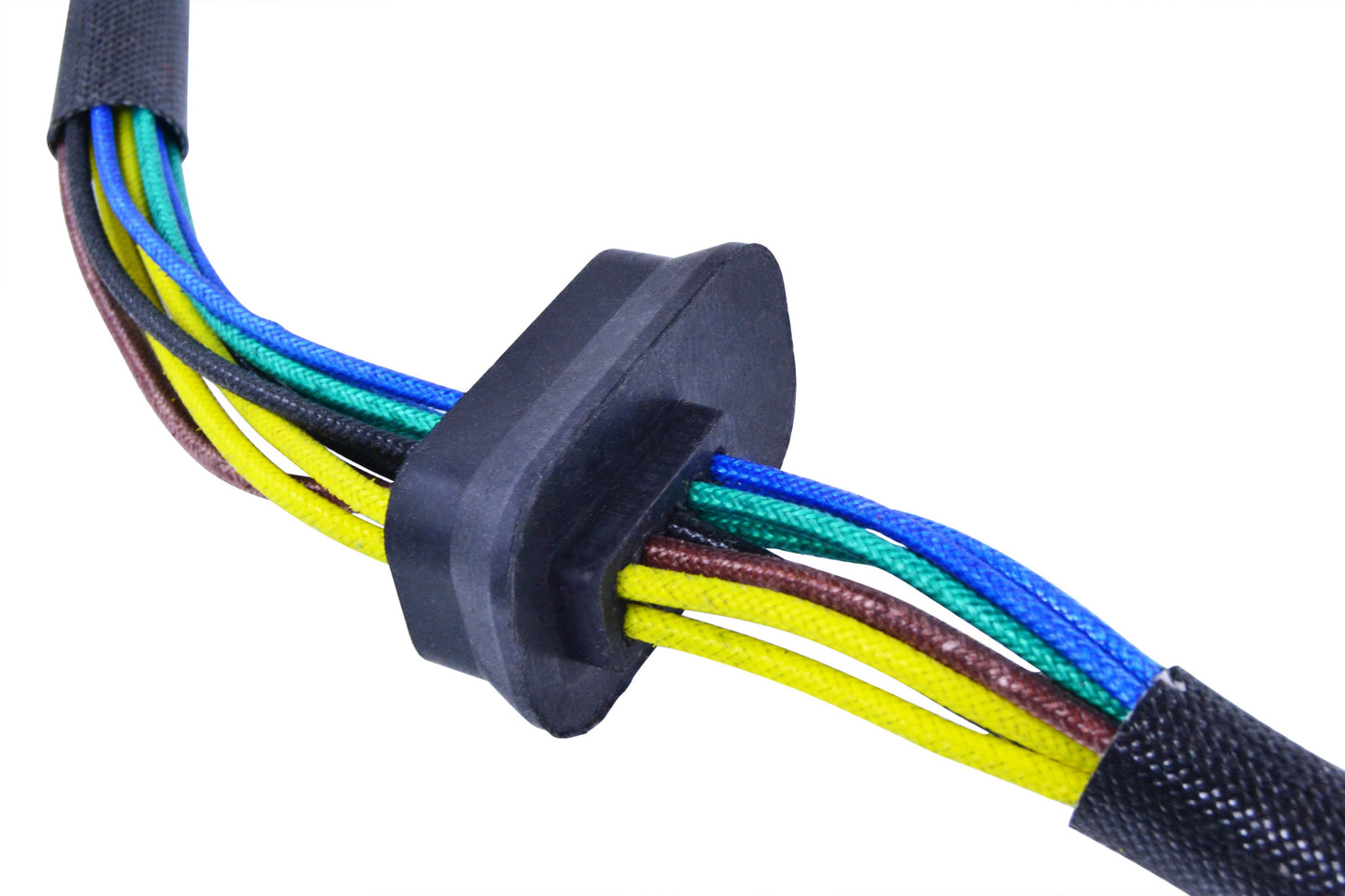

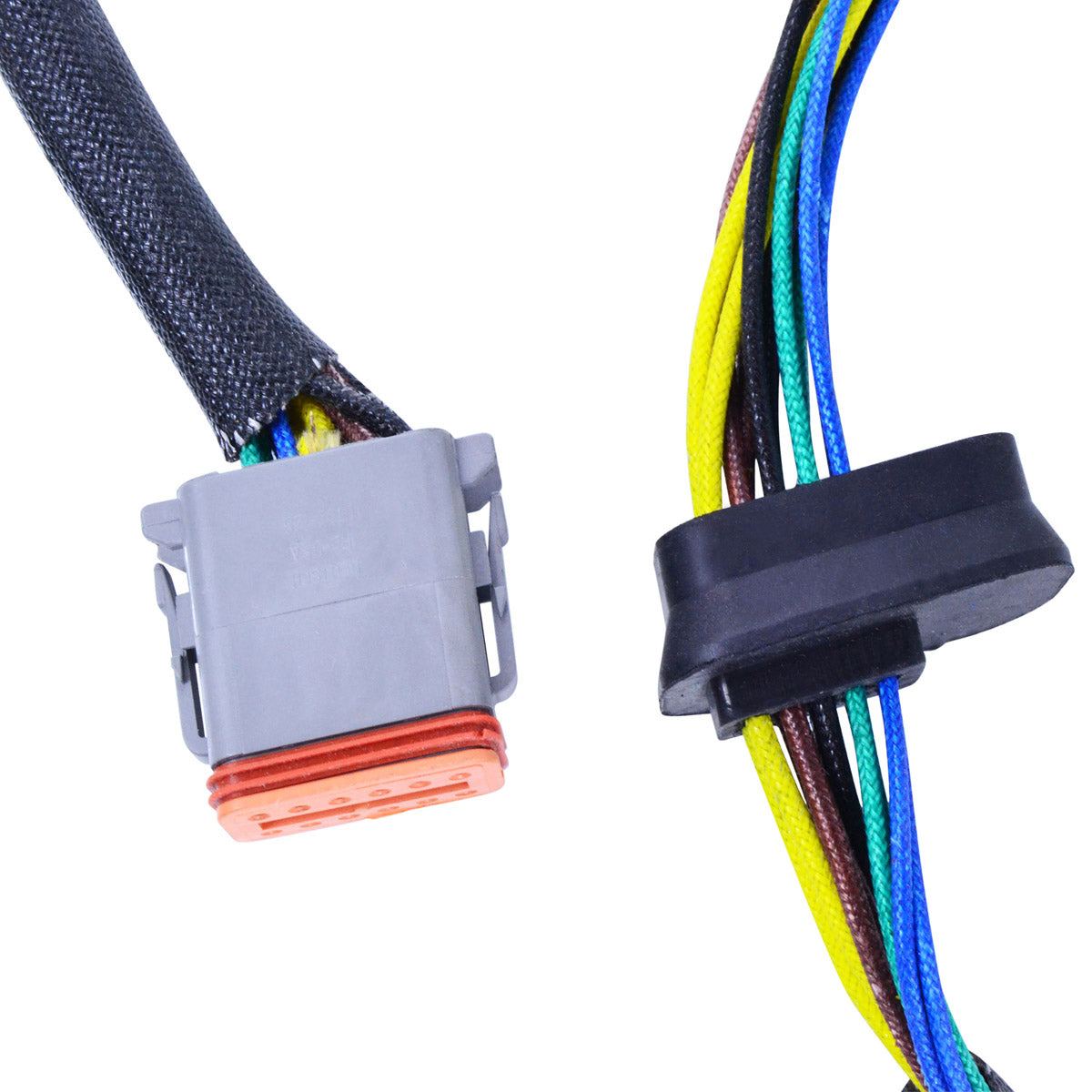

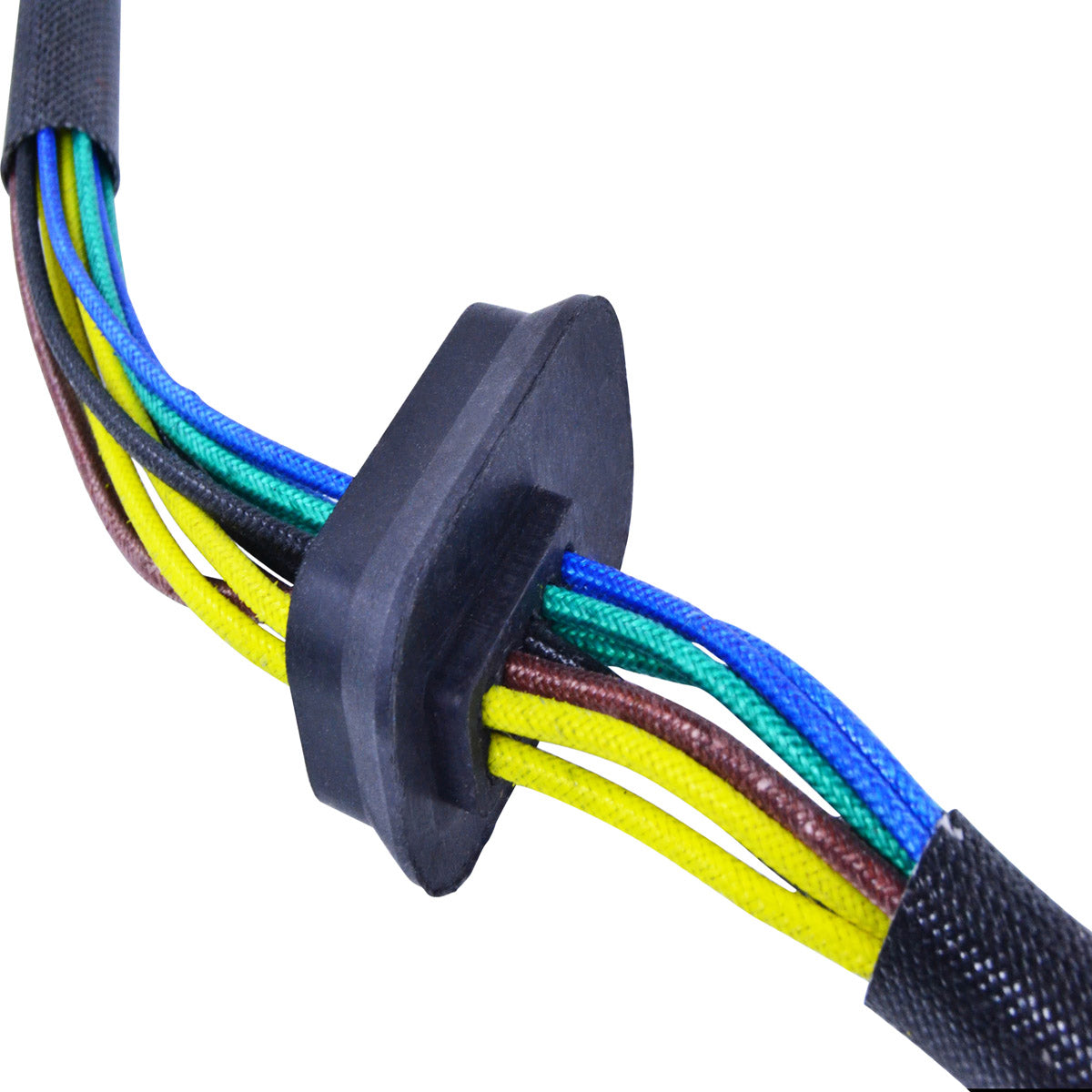

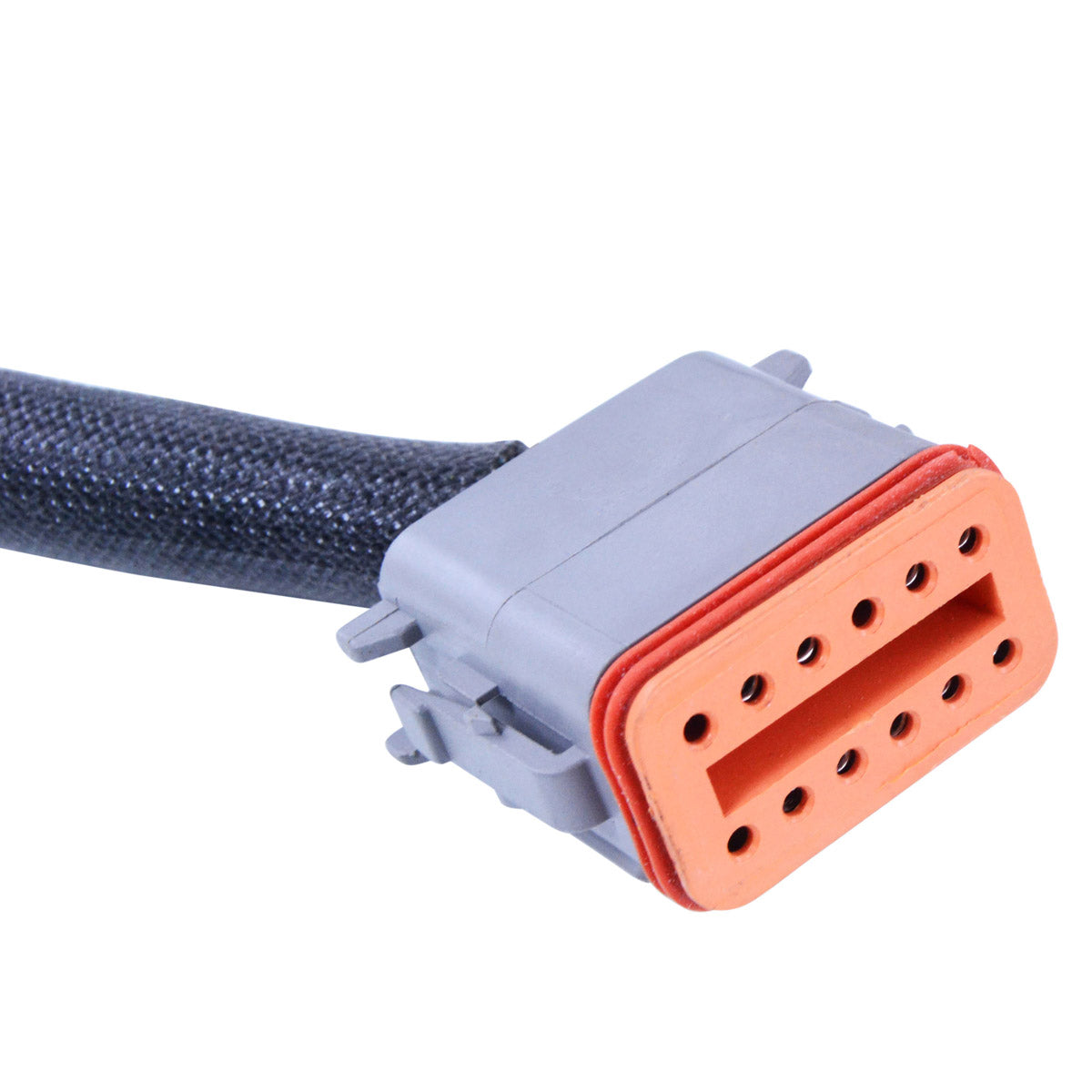

The generator stator with its connector fitted, and the rubber grommet that seals the wiring where it leaves the engine casing.
How do I test the old stator before removing it?
Unplug the connector and work through the five wire pairs listed in the specification table. White to white/brown and black/white to green/white should each read about 0.8 ohms, blue to yellow about 0.7 ohms, and purple to black and green to grey about 0.6 ohms, each within roughly 20 per cent. An open circuit on any pair, or continuity from any wire to the engine casing, confirms a failed winding.
Why does this stator have ten wires when a motorcycle stator has three?
These Kawasaki watercraft engines run several separate windings on one plate rather than a simple three-phase alternator, which is why the assembly carries ten wires on a single ten-pin plug and why each pair has its own resistance figure. All five pairs need to be within tolerance for the machine to charge and run correctly.
