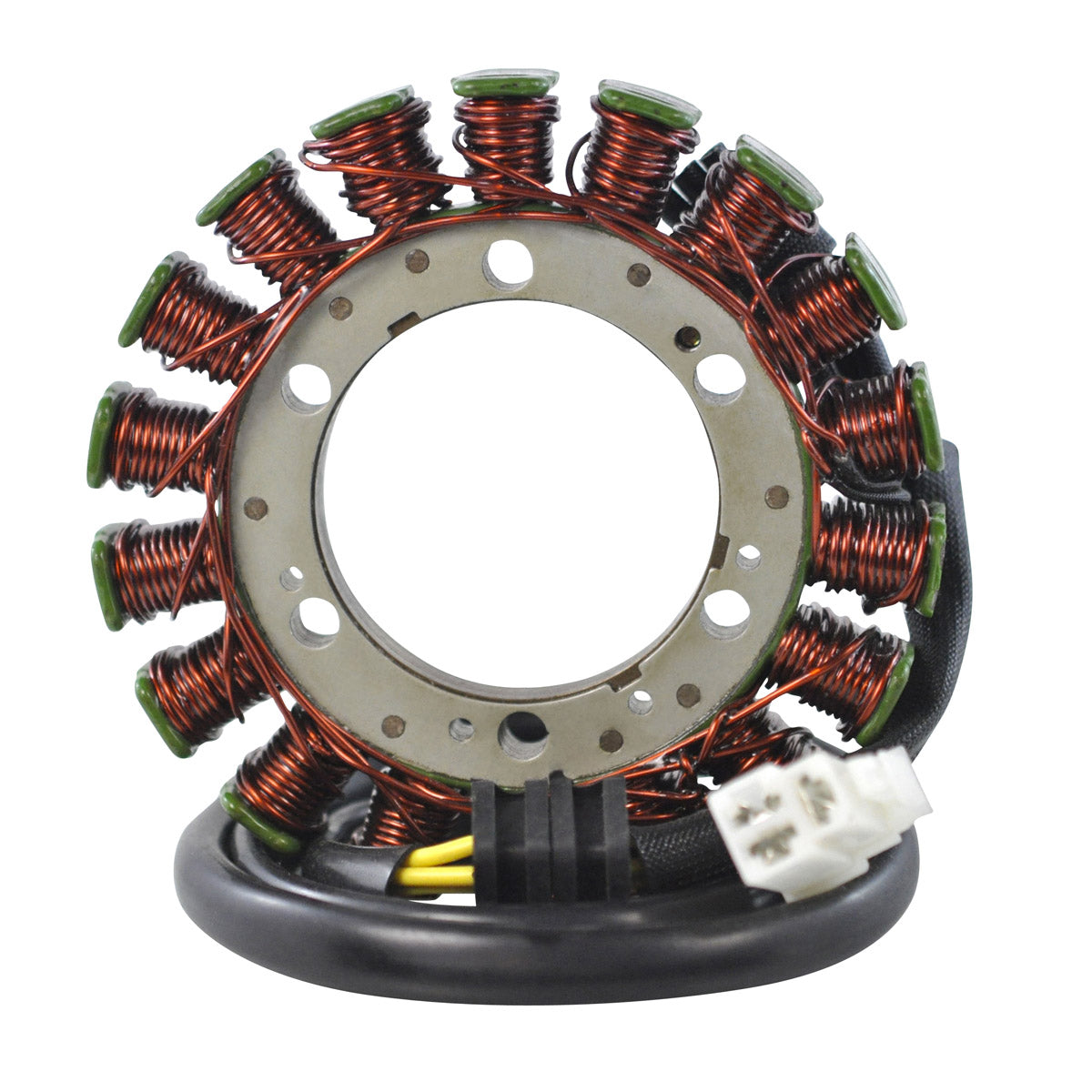

Stator for Kawasaki KLR 650 - OEM 21003-0084 / 21003-0045
Kawasaki KLR 650 2008-2010 - part number RM01522

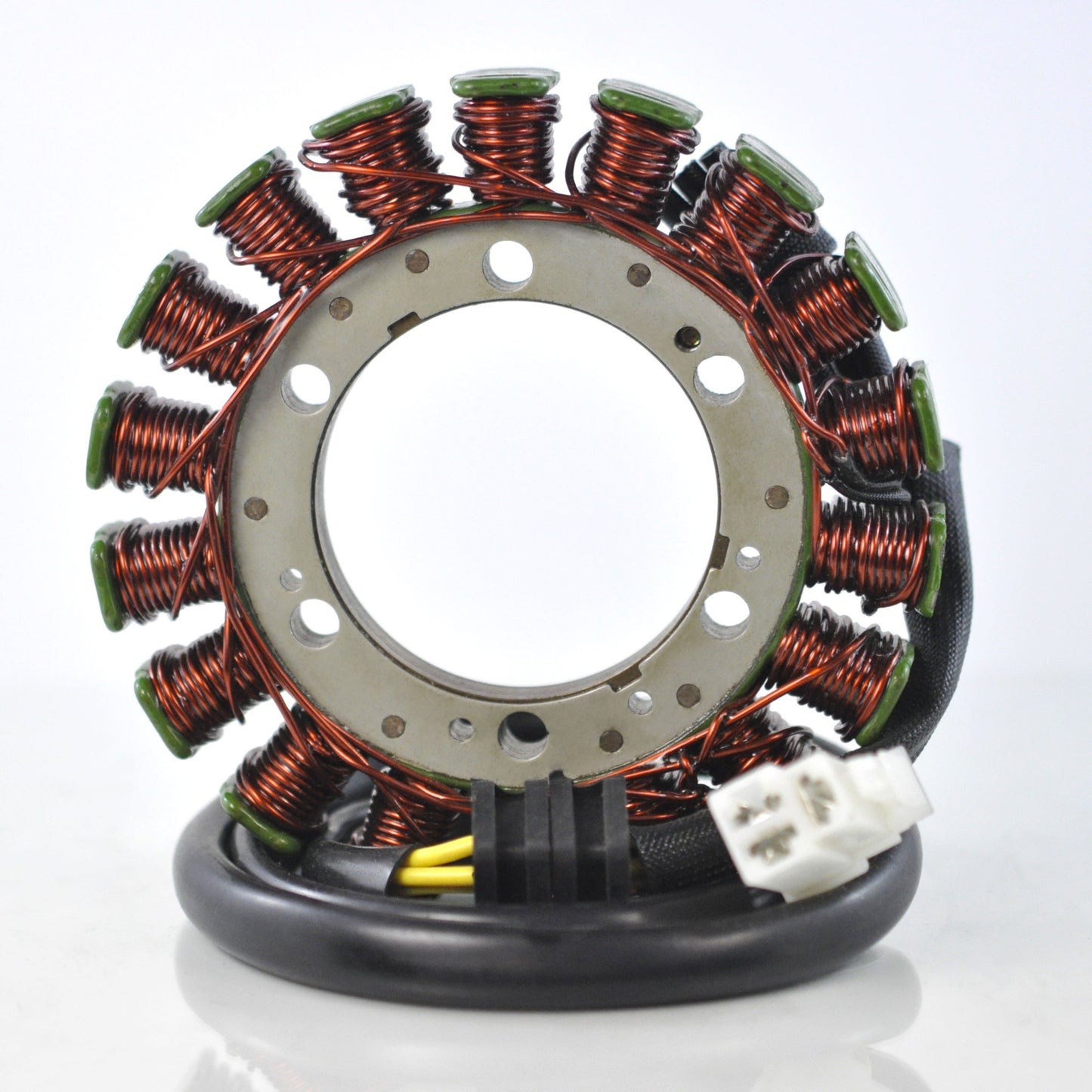

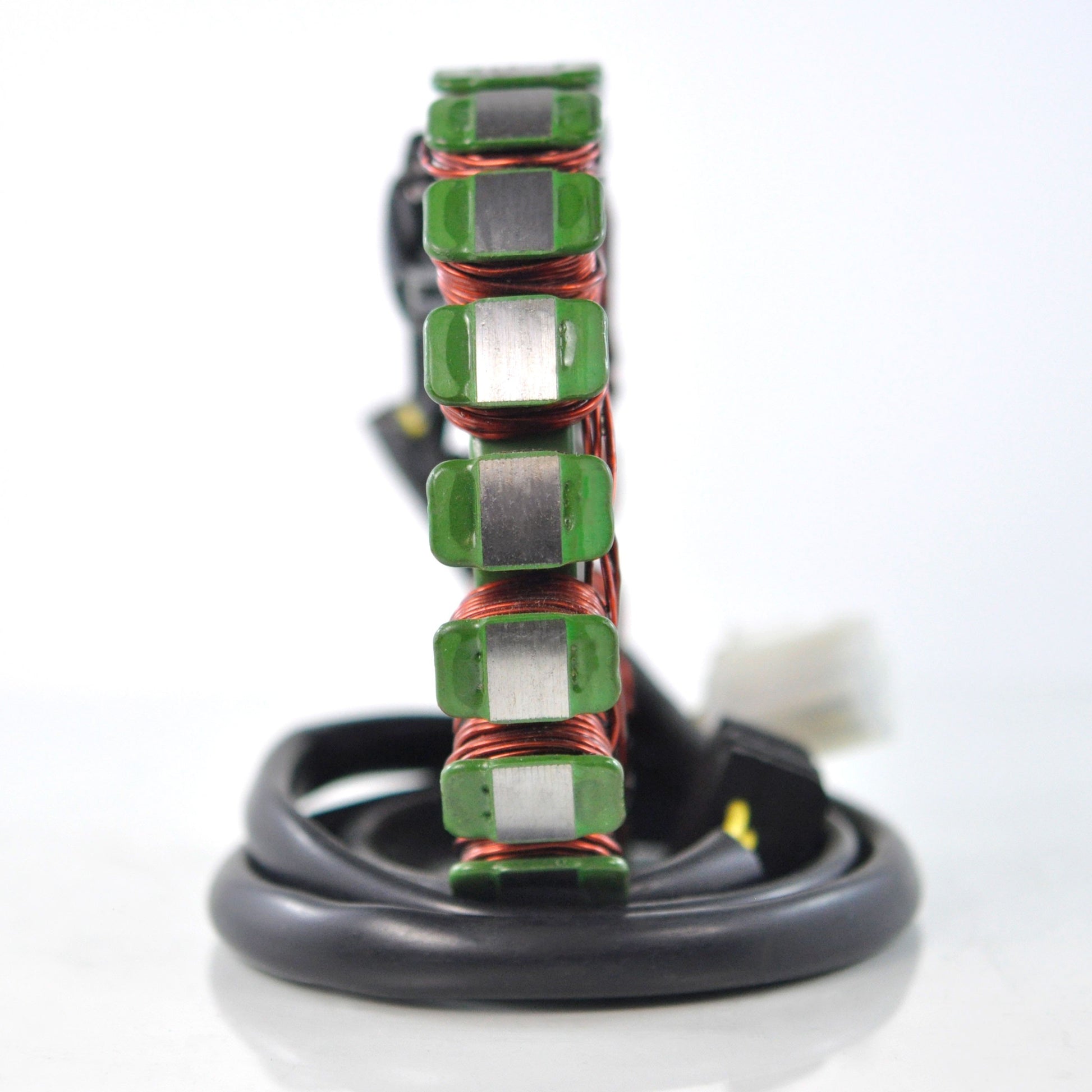

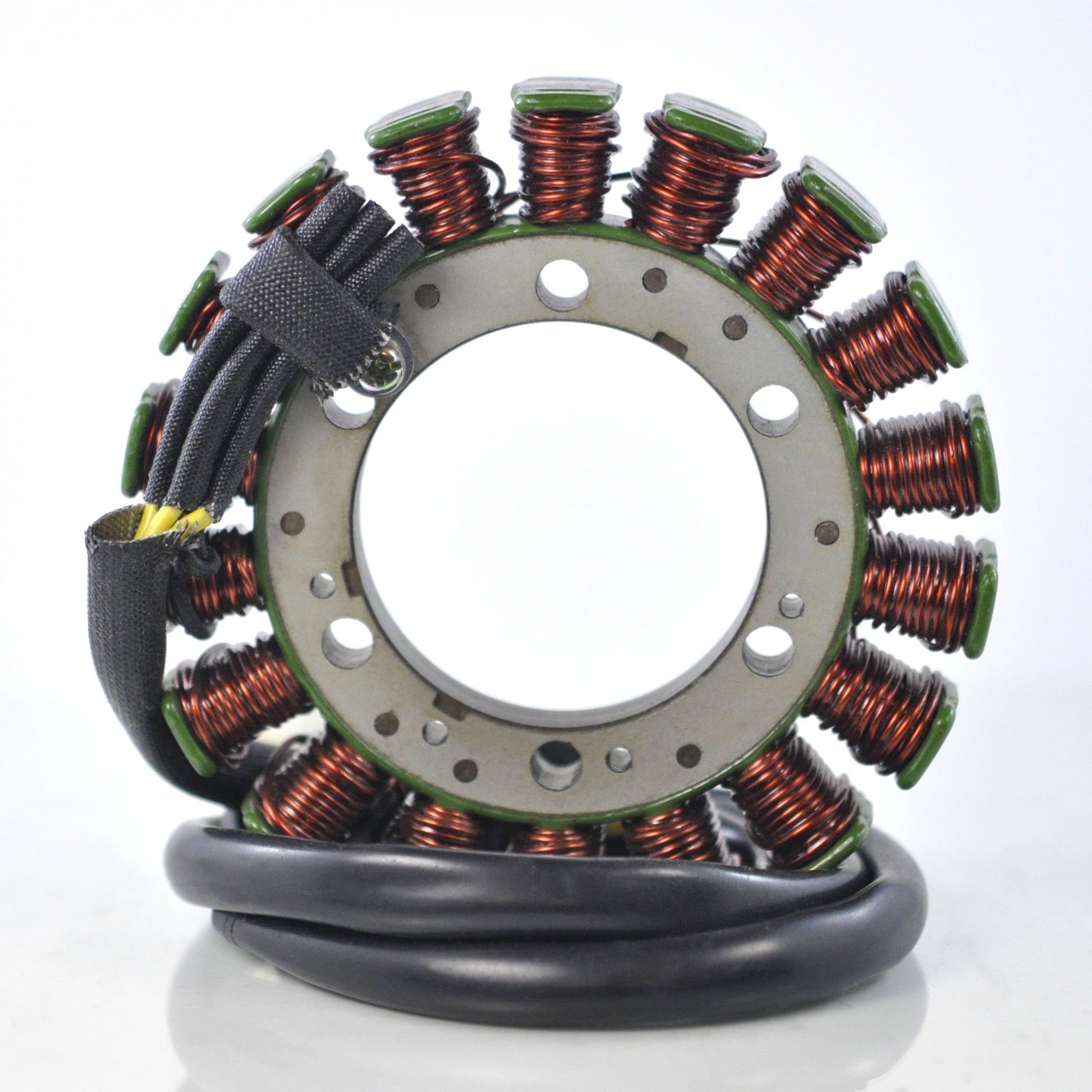

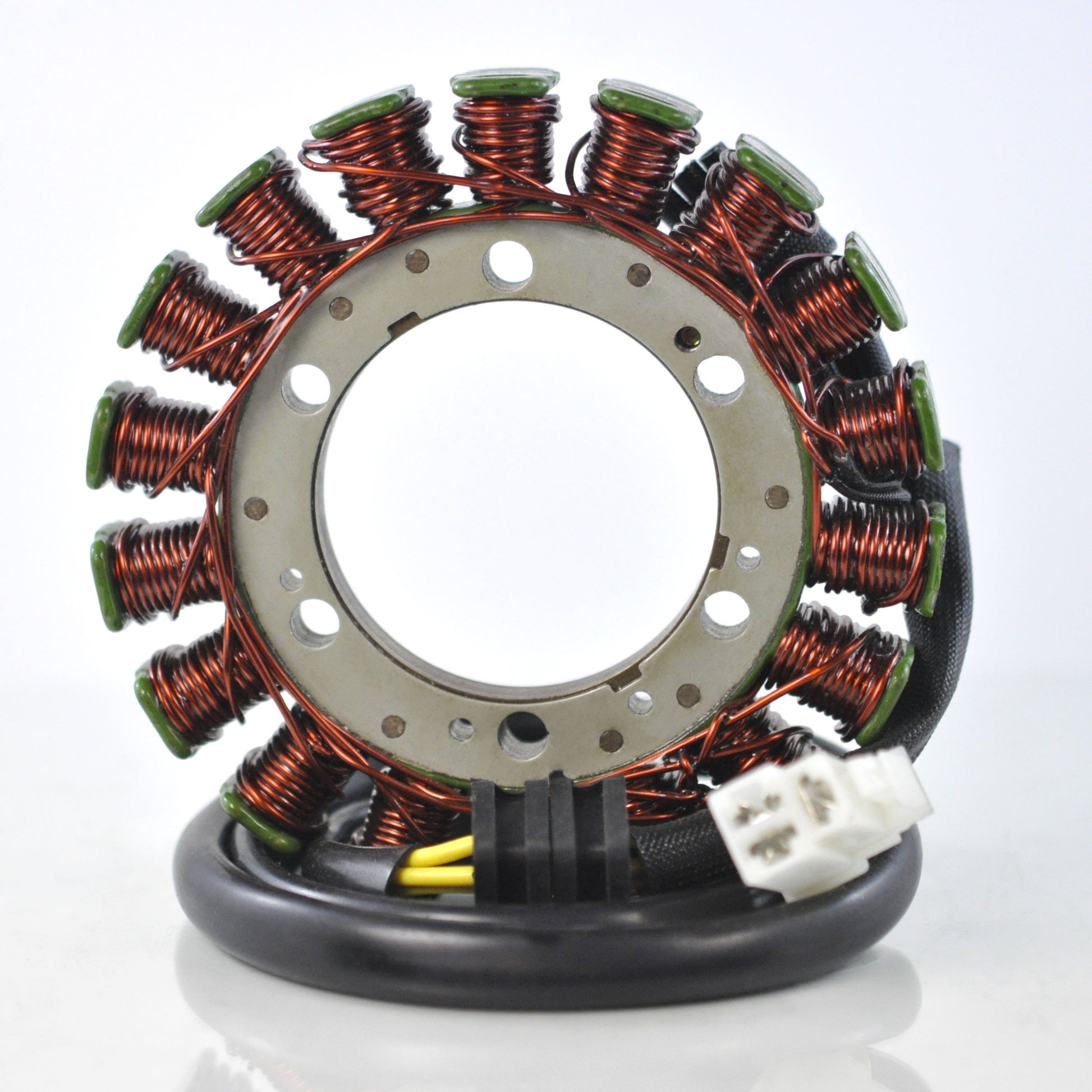

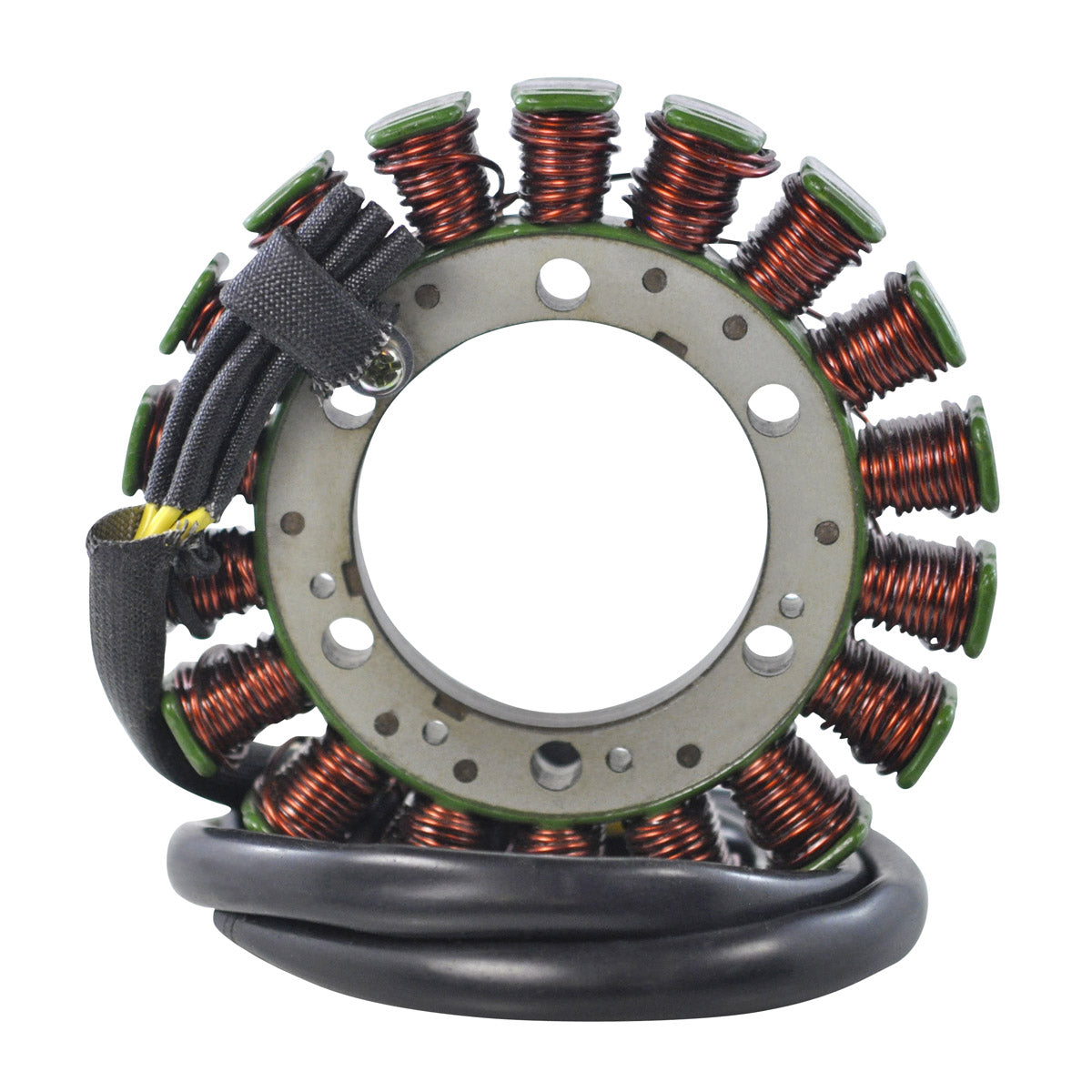

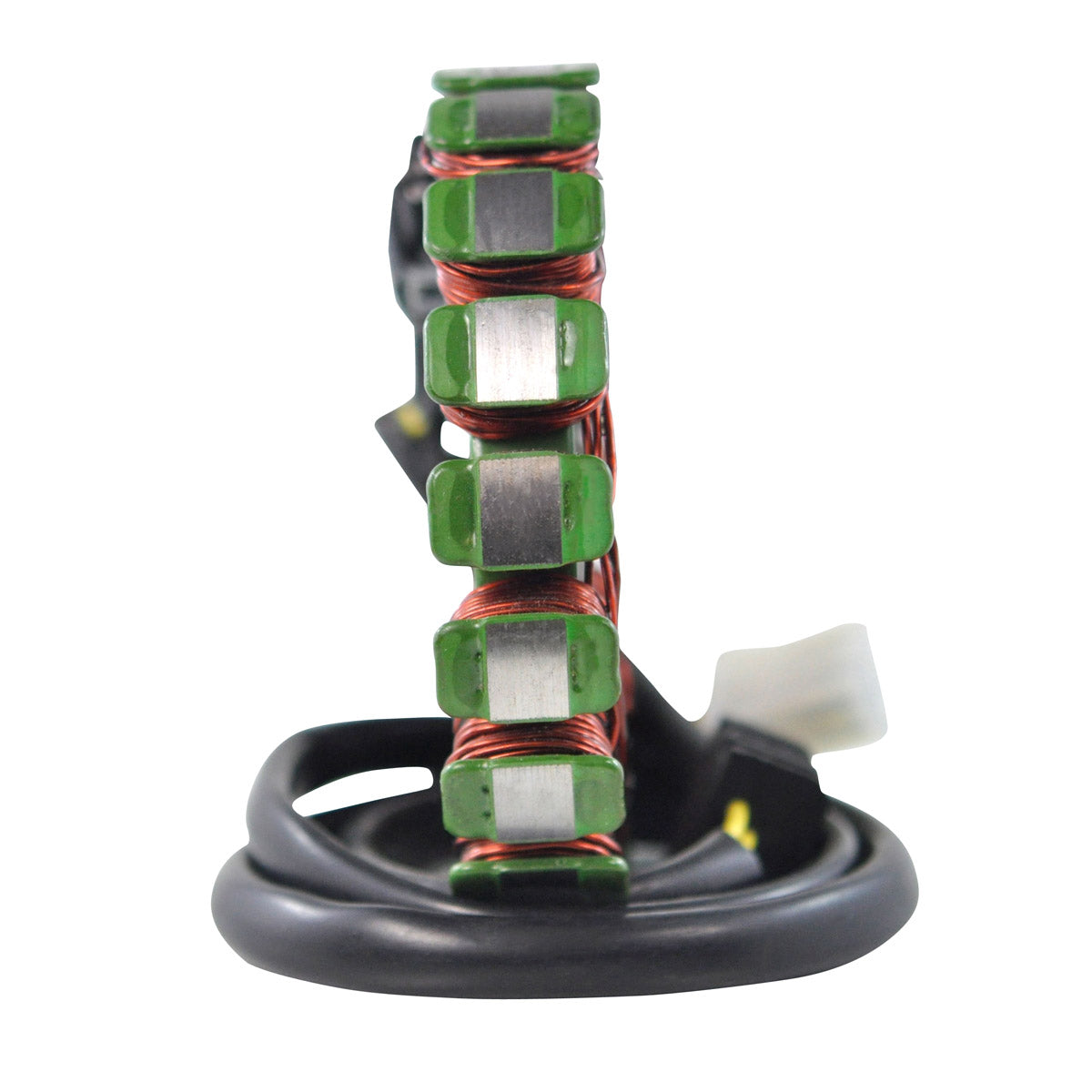

A brand new aftermarket stator for the 2008 to 2010 Kawasaki KLR 650, supplied as a direct replacement for the original charging unit. It is plug-and-play and a direct fit, mounting on the standard fixings inside the generator cover and connecting through the standard three-pin plug, so no rewiring, splicing or modification to the bike is required.
The KLR 650 is a bike that spends its life loaded, often with heated grips, auxiliary lighting and other extras hung off the charging circuit, and a tired stator shows up quickly as a battery that never quite recovers. This replacement is built on highest grade lamination materials and wound with highest grade copper windings rated to resist 200 degrees Celsius, so it copes with the heat of a big air-cooled single. The 700 mm run from the grommet to the plug matches the original routing. Every unit is tested before it is shipped, and the connector and rubber grommet are included.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

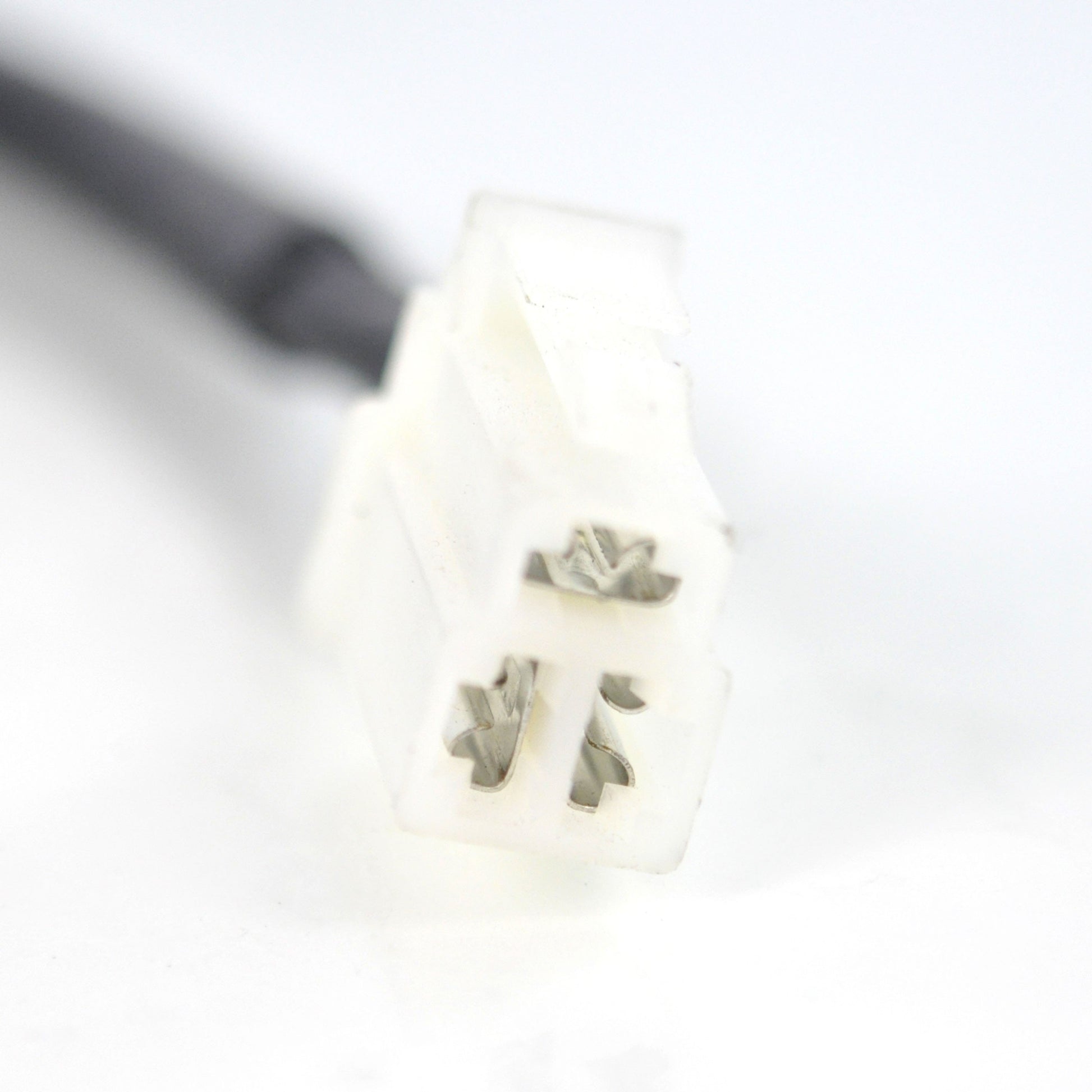

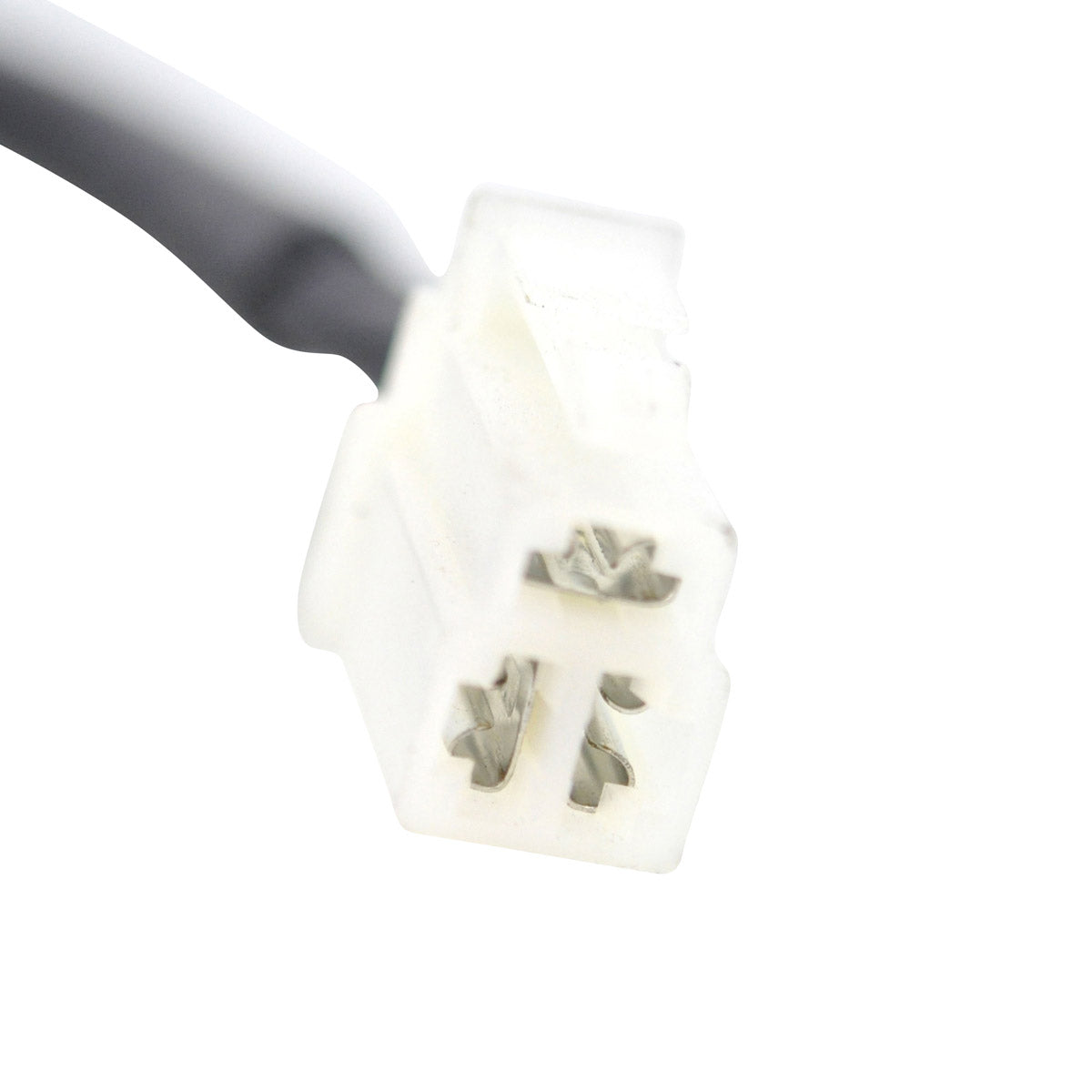

- Connector included
- Rubber grommet included
- Covers both Kawasaki OEM numbers 21003-0084 and 21003-0045
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01522 |
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 12 mm |
| Wire length, stator to grommet | 115 mm |
| Wire length, grommet to plug | 700 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, Yellow between each Yellow | 0.8 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KLR 650 | 2008-2010 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0084 | Kawasaki |
| 21003-0045 | Kawasaki |
Frequently Asked Questions
Does fitting it require any modification?
No. It is a direct replacement for the original unit, plug-and-play on the standard mounting points and the standard connector. Confirm the number on your existing stator is 21003-0084 or 21003-0045 before ordering.
What is included in the box?
The stator, the connector and the rubber grommet. Every unit is tested before it is shipped.
How do I tell whether my stator has failed?
Unplug the three-pin connector and measure between each pair of yellow wires. Each pair should read about 0.8 ohms, plus or minus 20 per cent, and the three readings should be close to each other. Any pair reading open circuit, or continuity between a yellow wire and the stator body, means the winding has gone.
Which Kawasaki OEM numbers does it replace?
Both 21003-0084 and 21003-0045. If your original unit carries either of those numbers, this part is the direct equivalent, so an earlier bike that has already had a superseded stator fitted is still covered.
