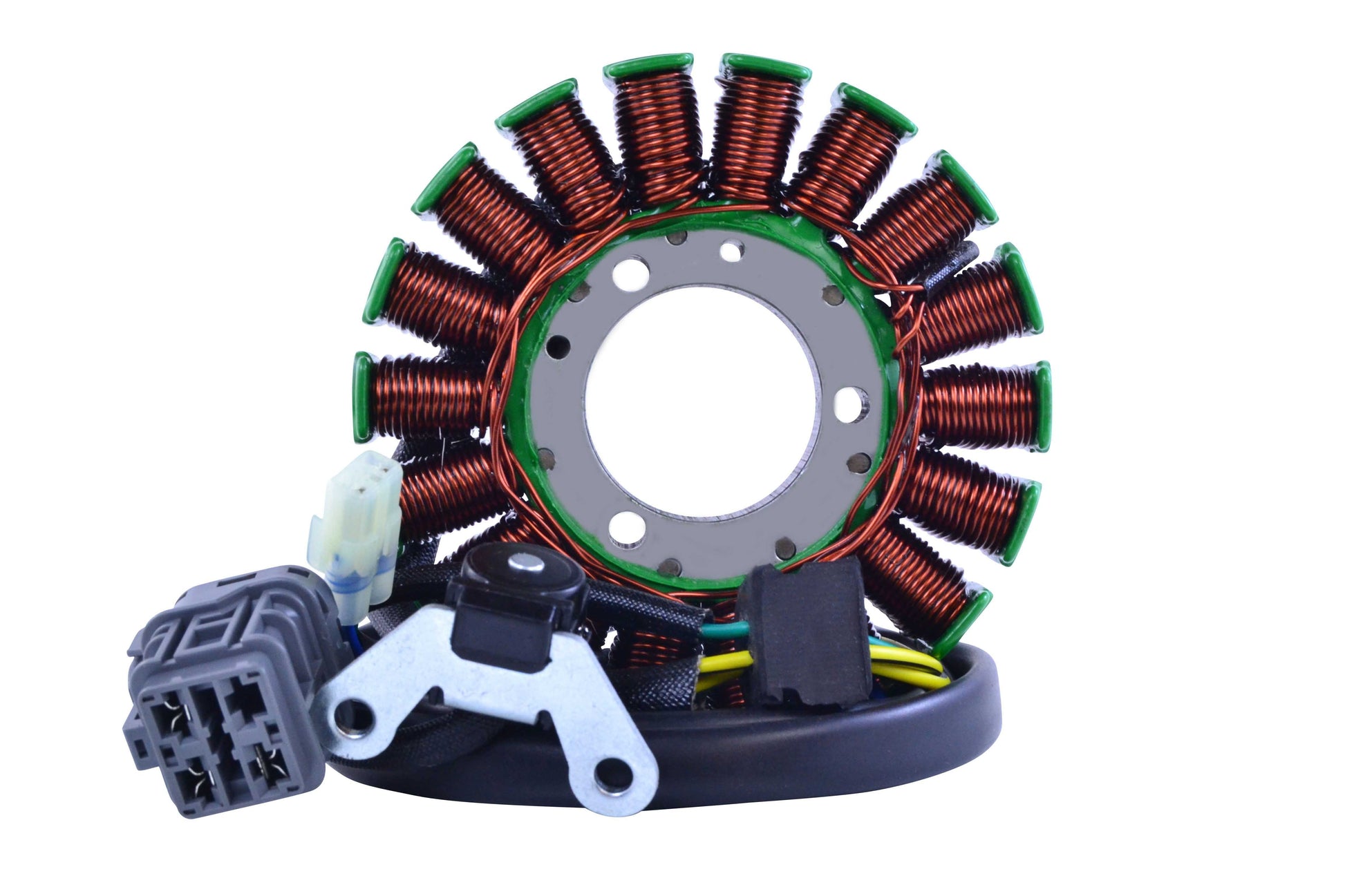

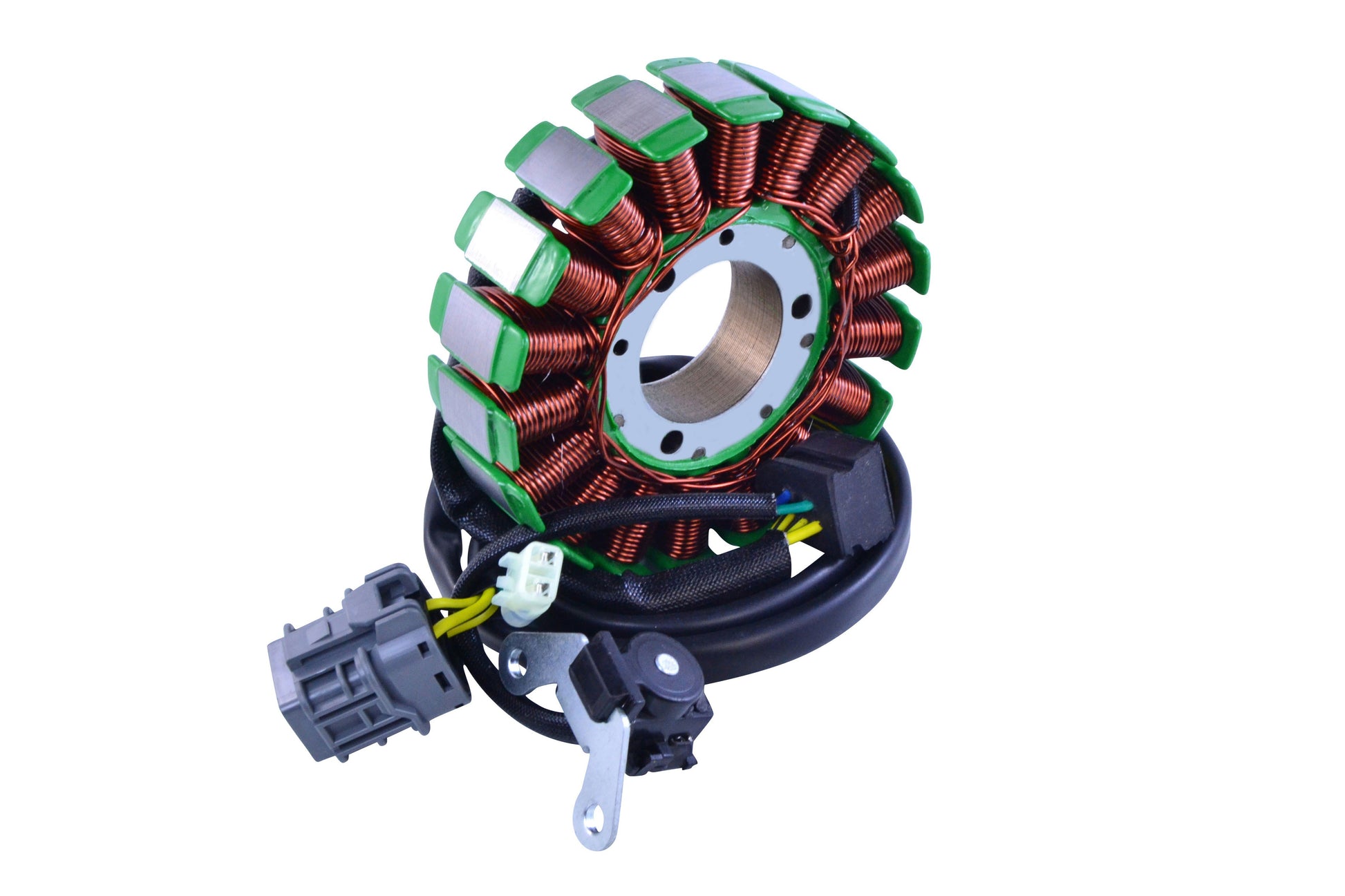

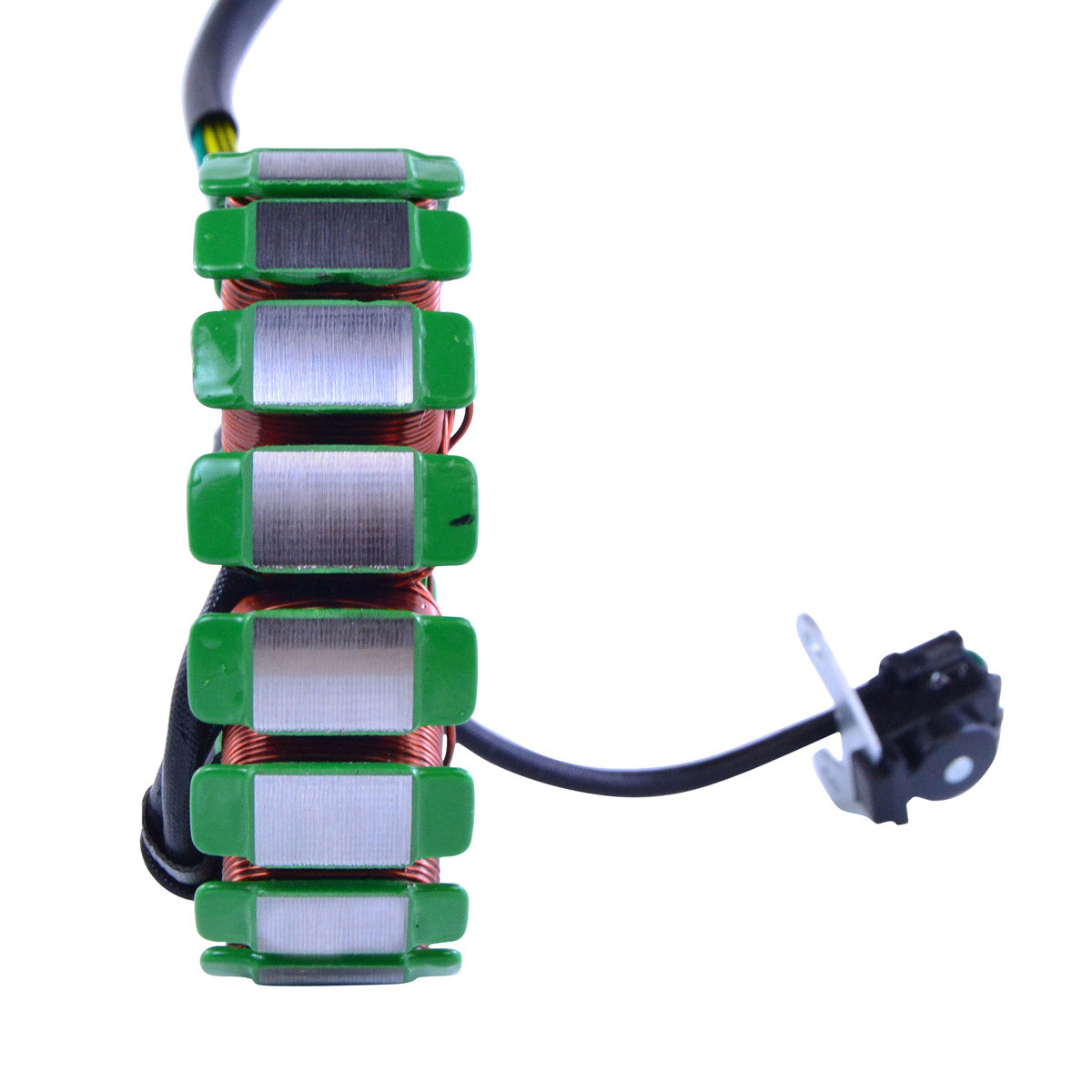

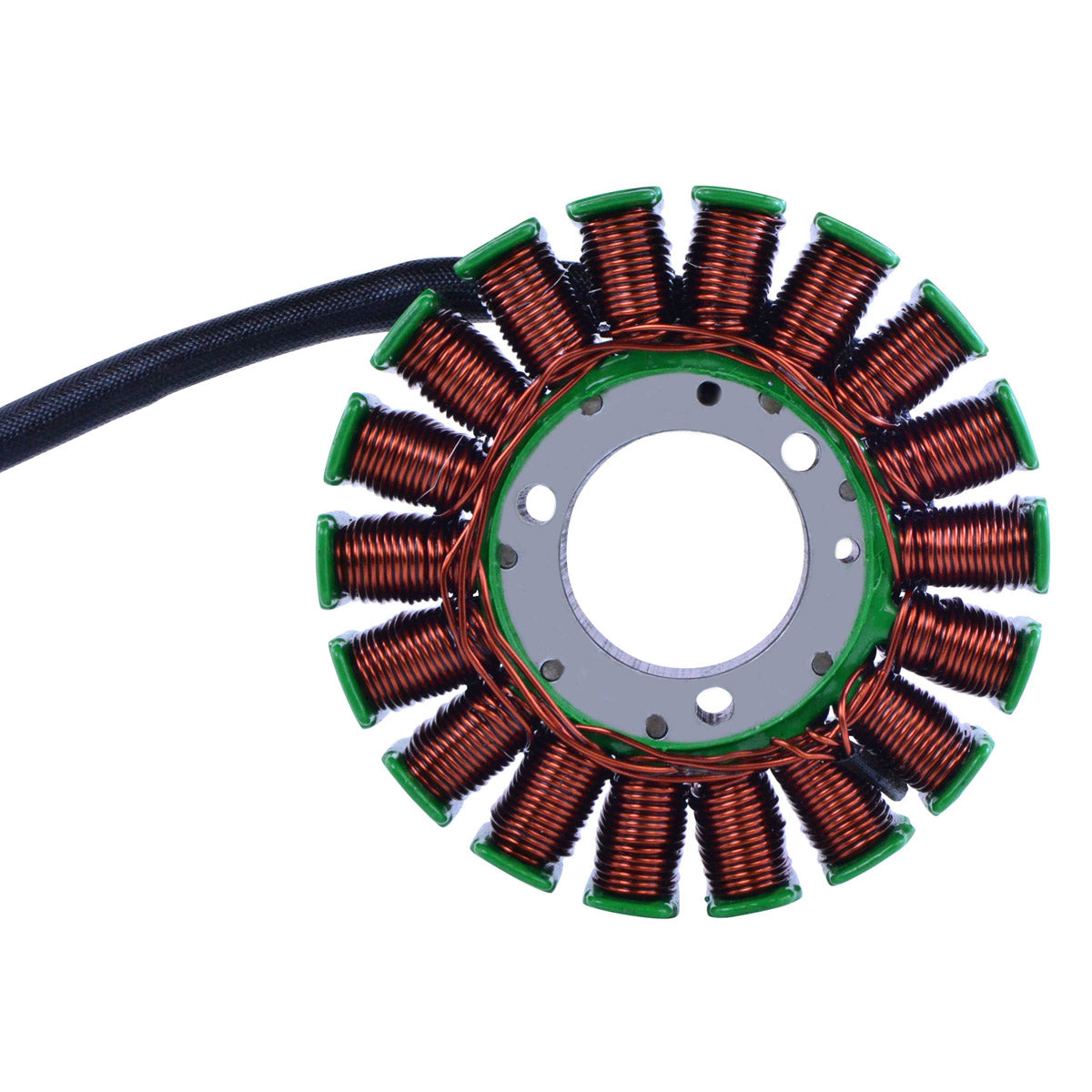

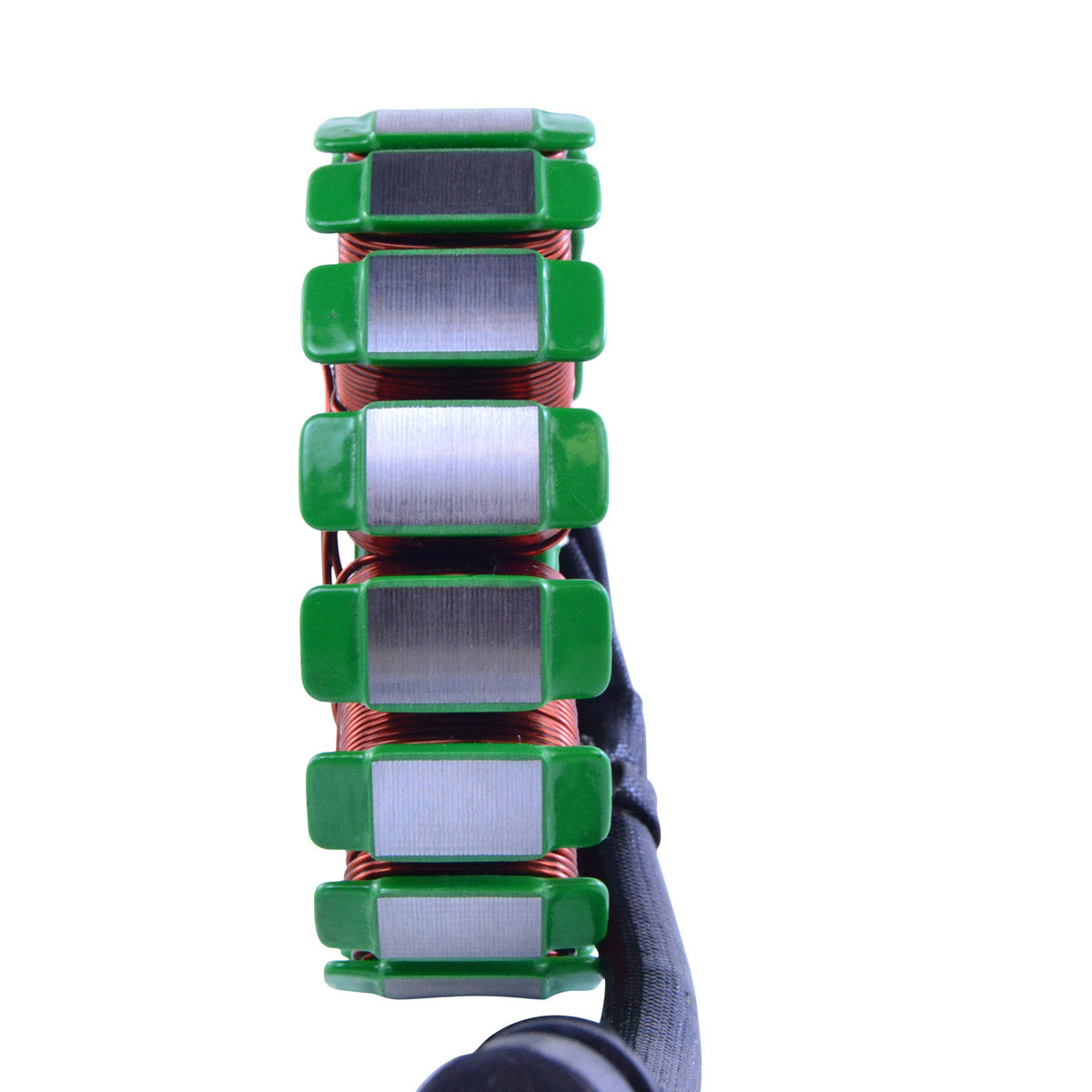

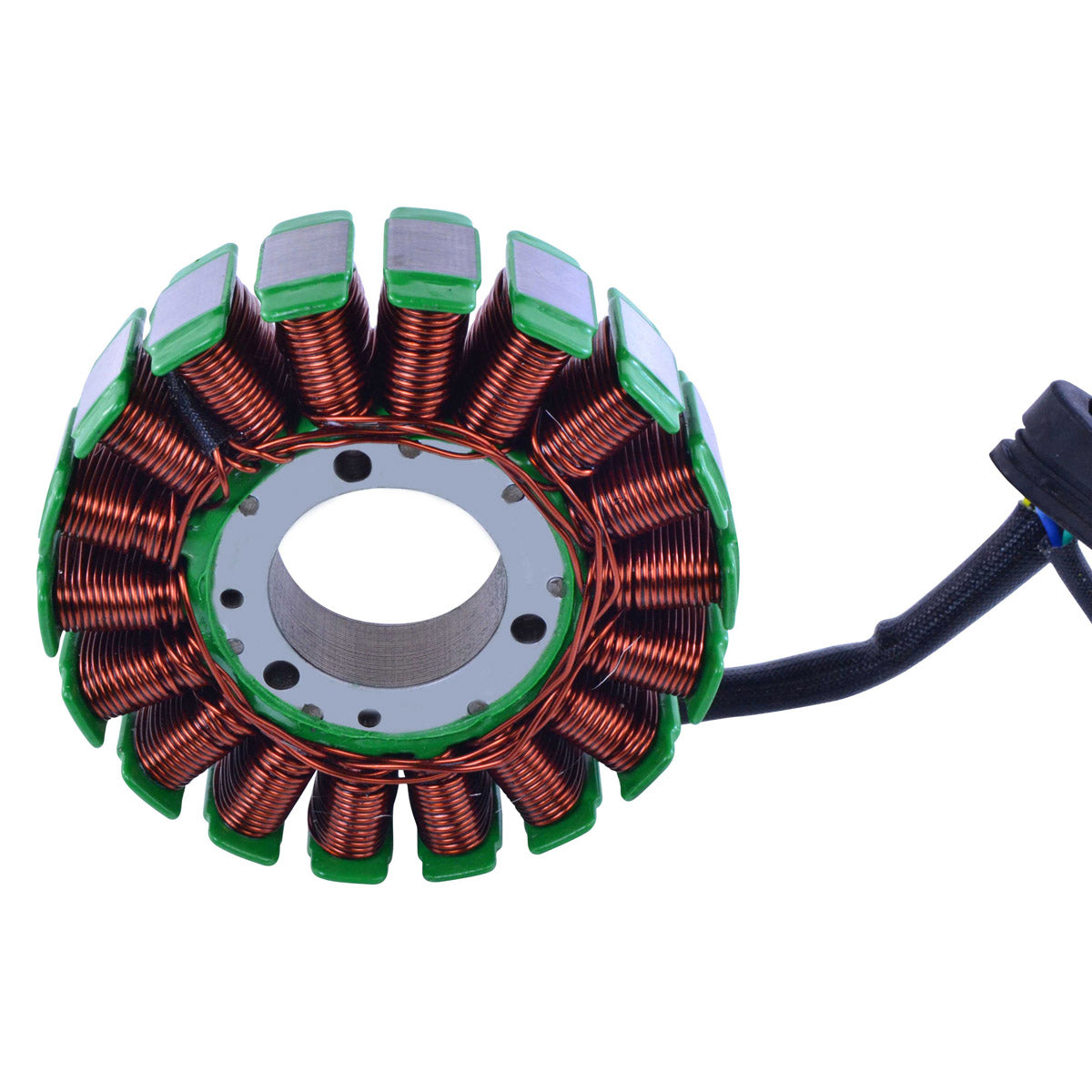

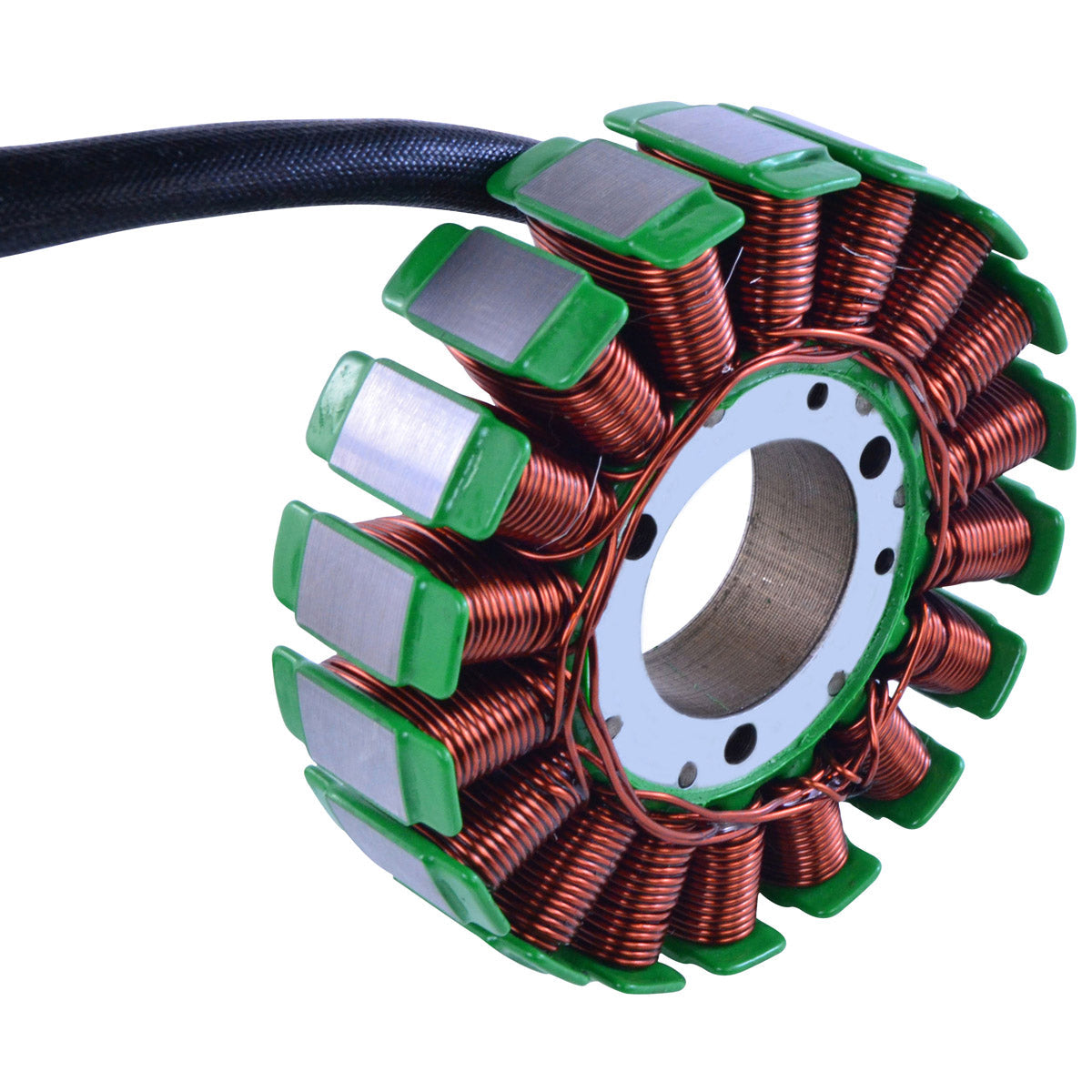

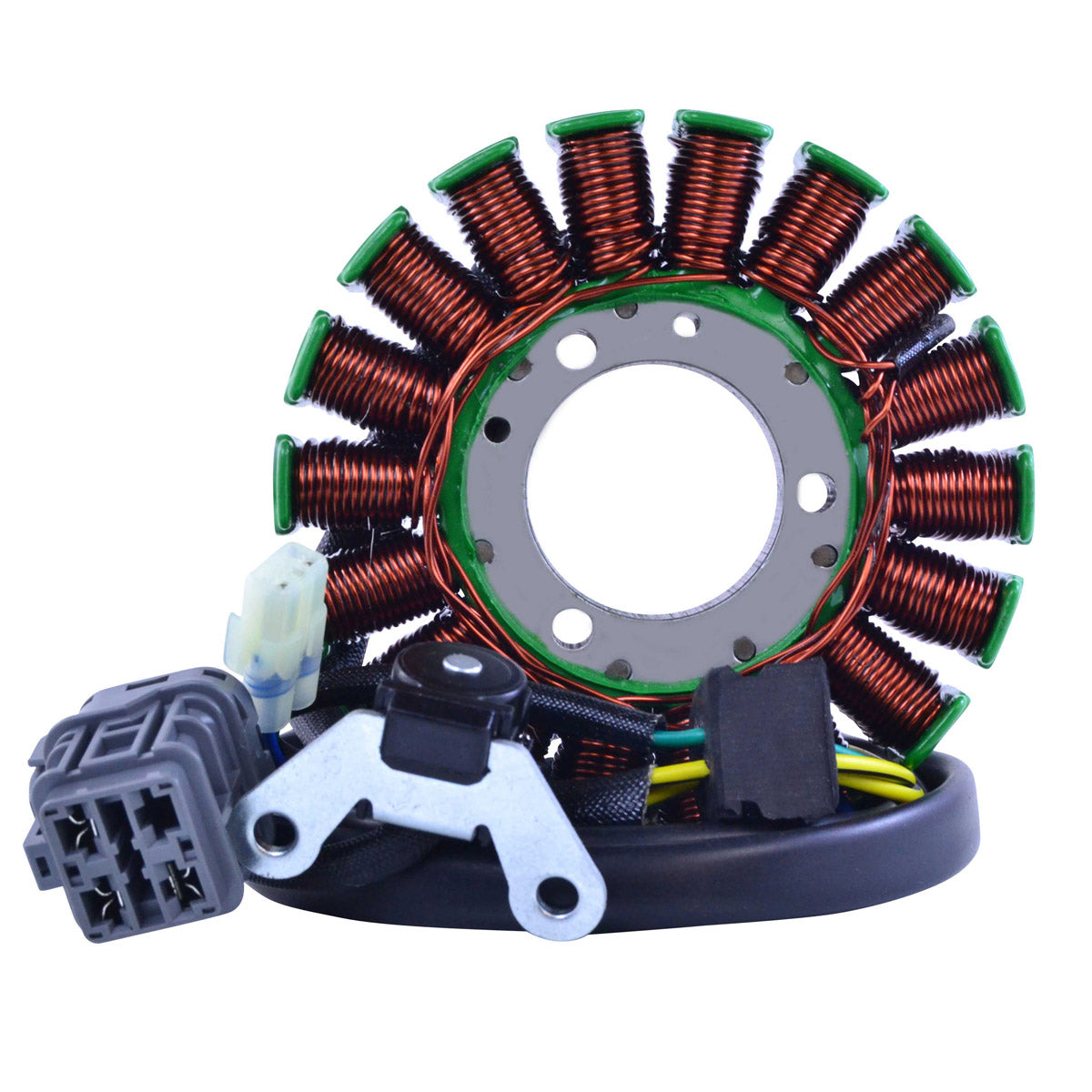

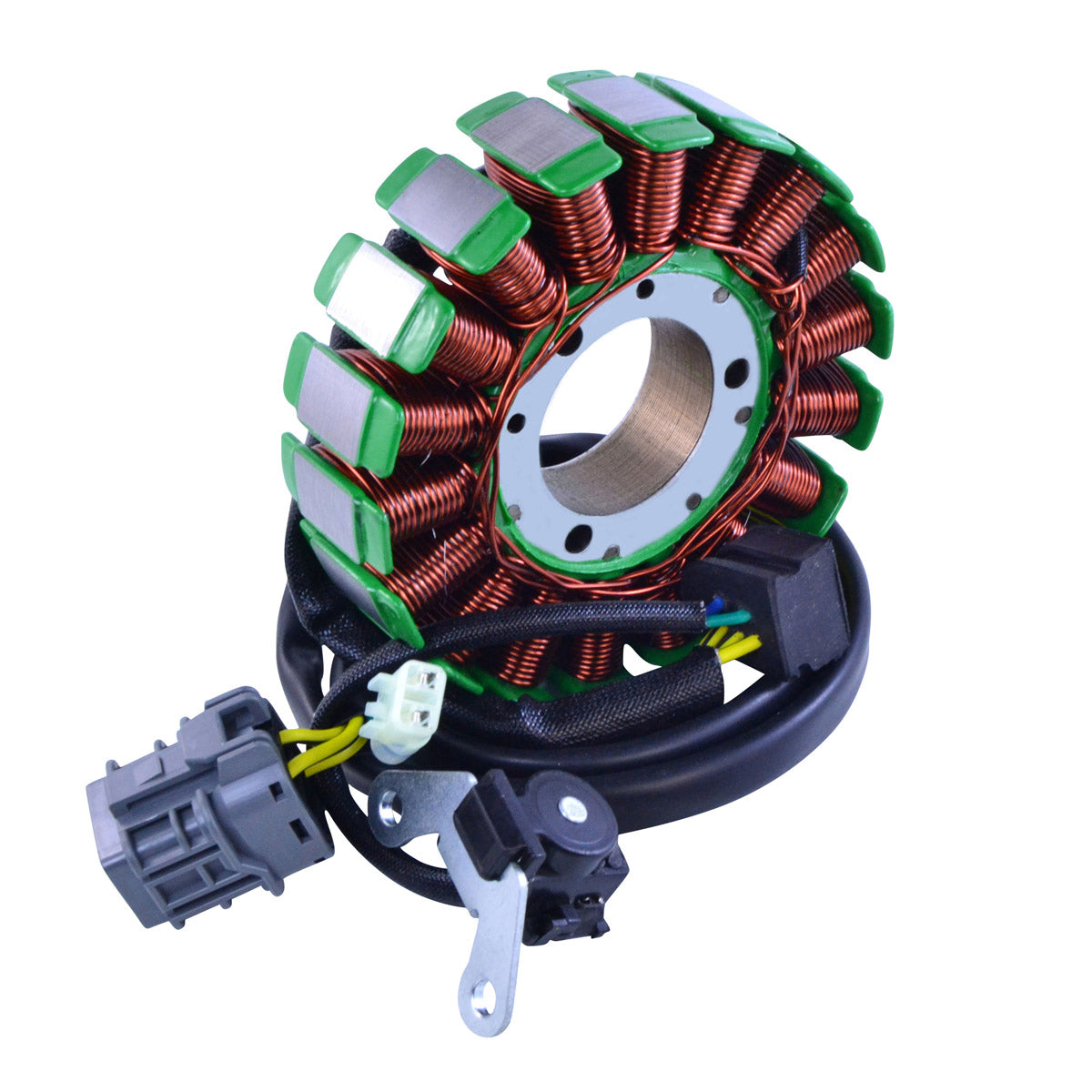

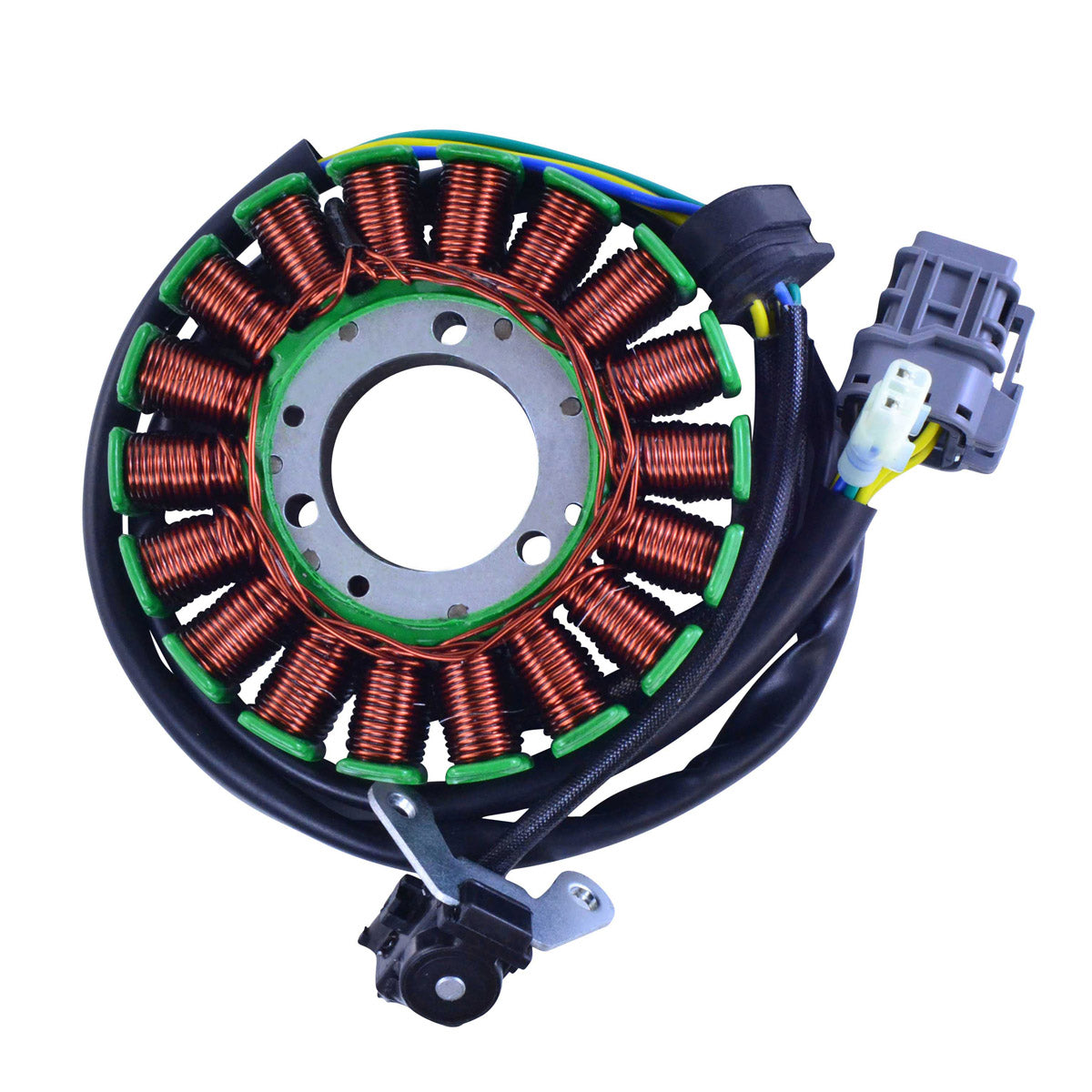

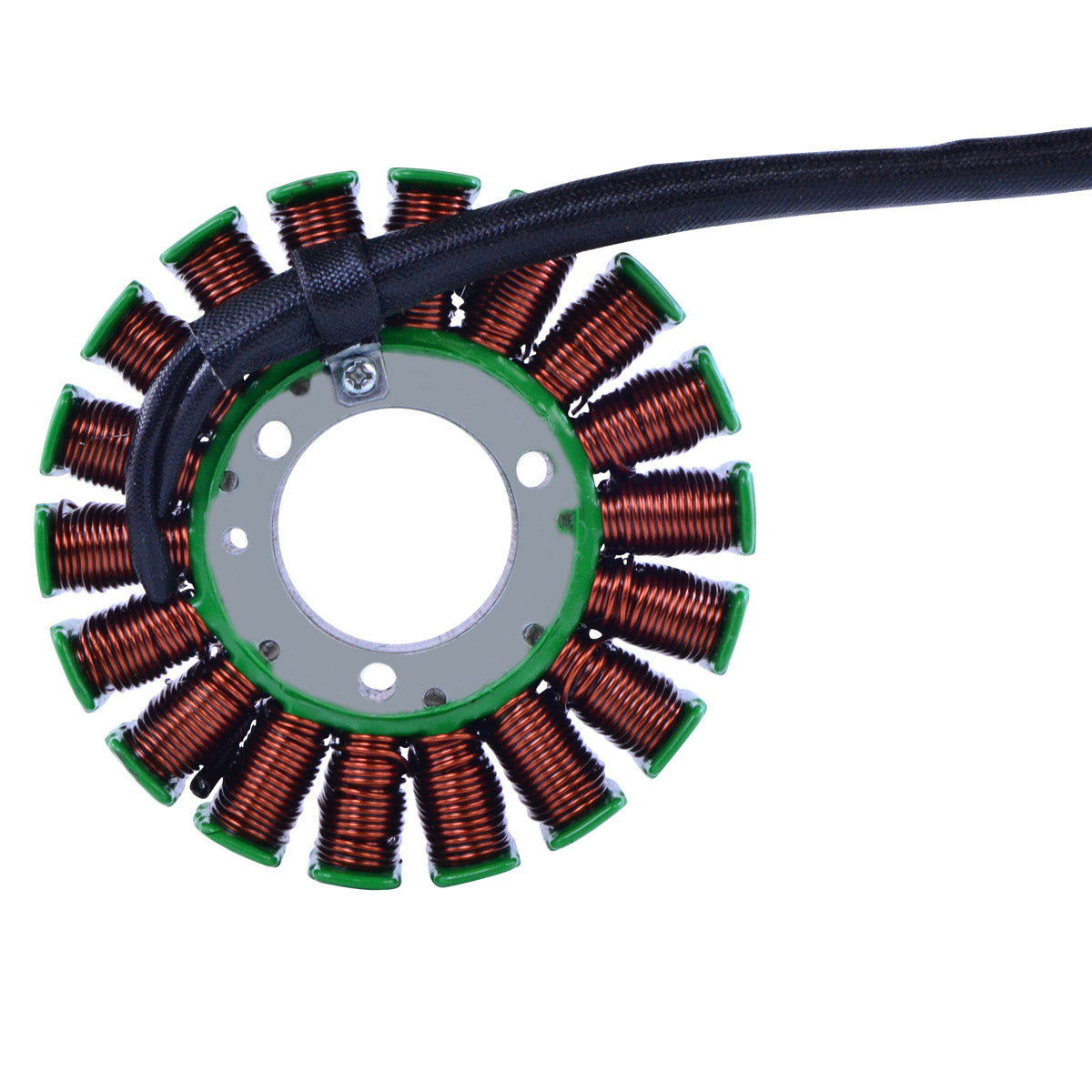

This is a brand new aftermarket stator, supplied complete with its pick up pulsar coil, built as a direct replacement for the original charging unit fitted to the Kawasaki KVF 300 Brute Force from 2012 to 2023. It replaces OEM part number 21003-Y007. The unit is plug-and-play, a direct fit, and easy to install, with no changes needed to the wiring loom.
The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. The pick up pulsar coil, a connector and a rubber grommet are supplied with it. All products shipped are tested before they leave. Our part number for this stator is RMS010-104839.
Key Features
- Brand new aftermarket stator, not a rewound or repaired unit
- Direct replacement for OEM 21003-Y007
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

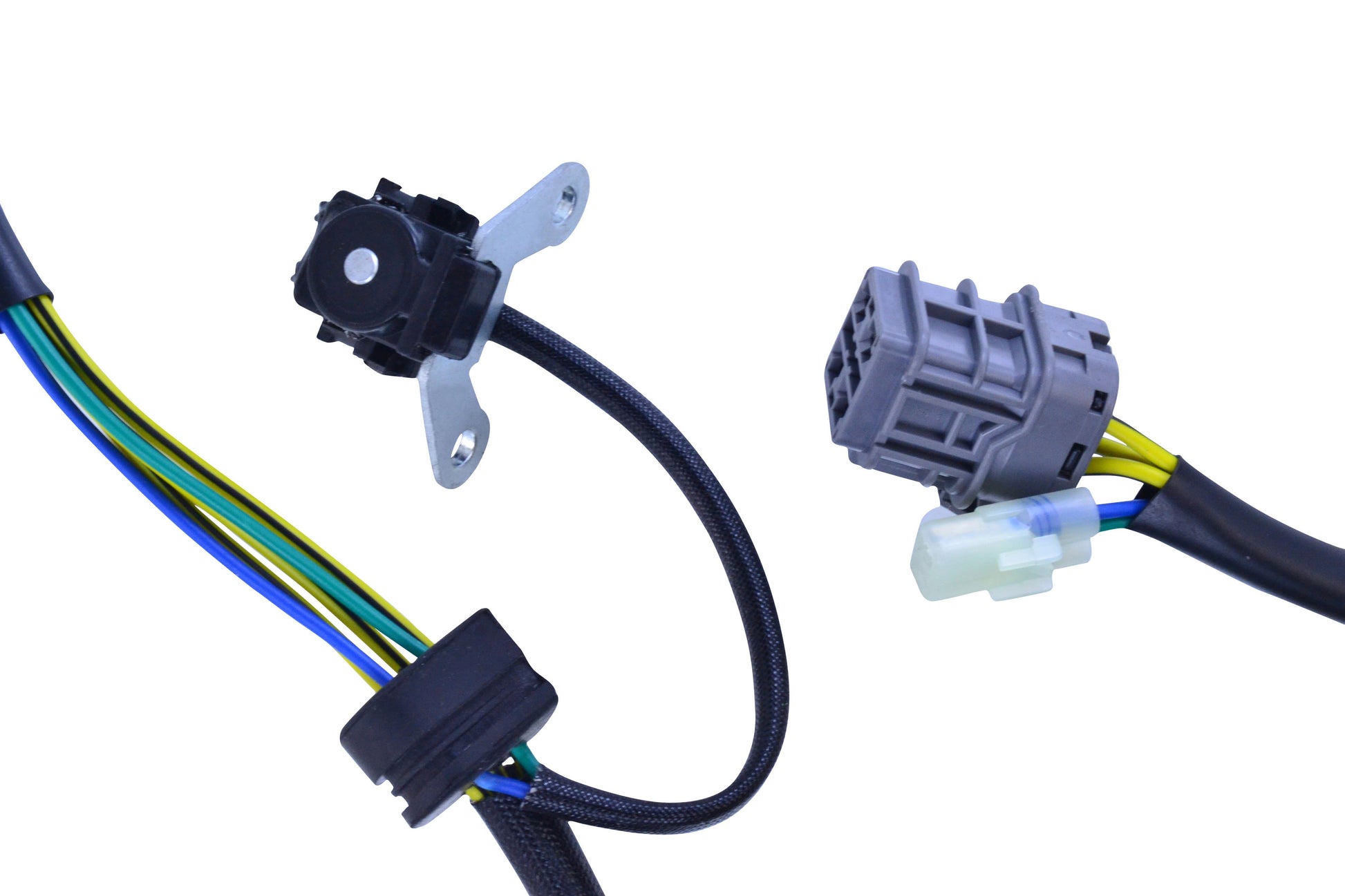

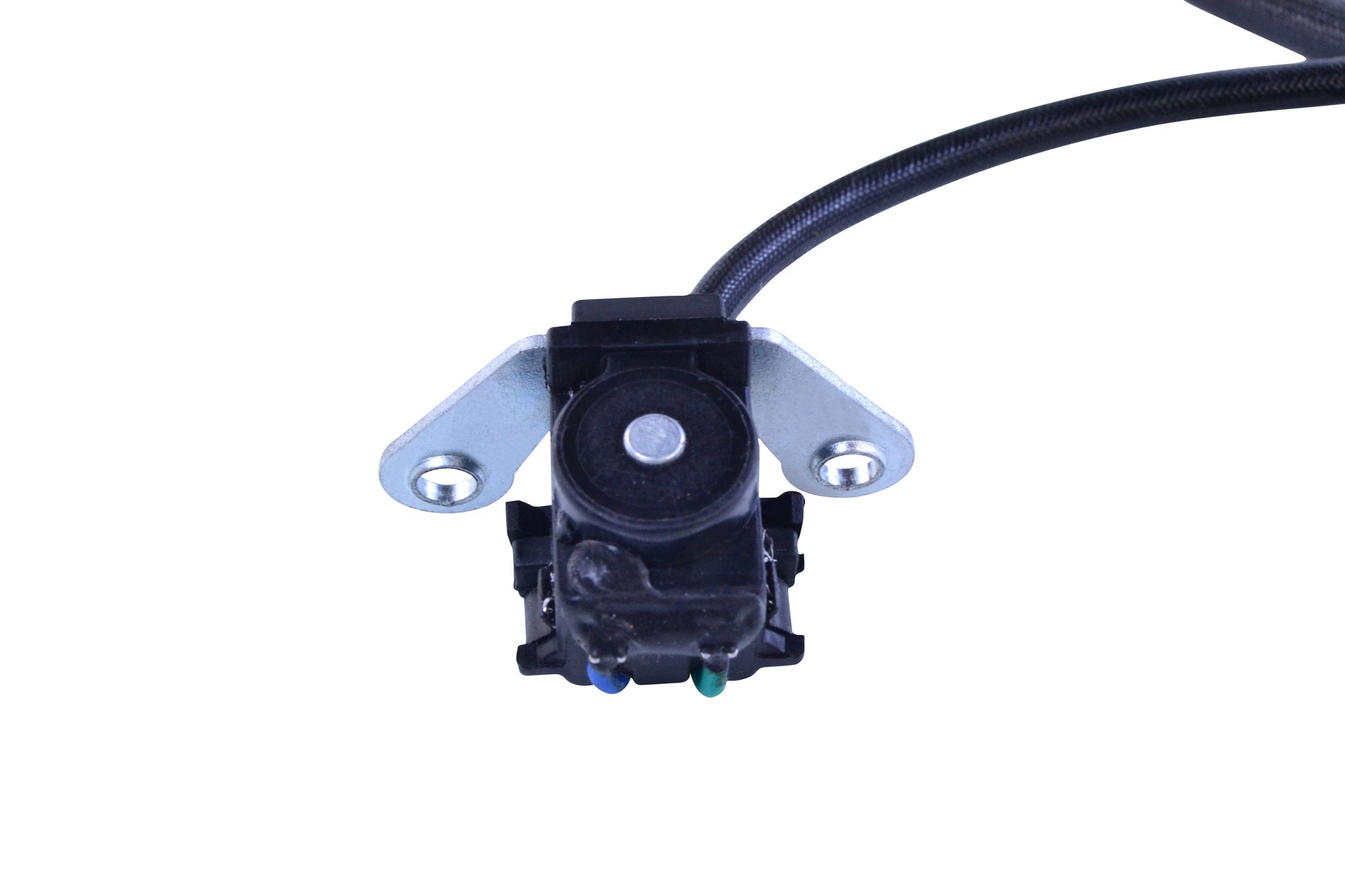

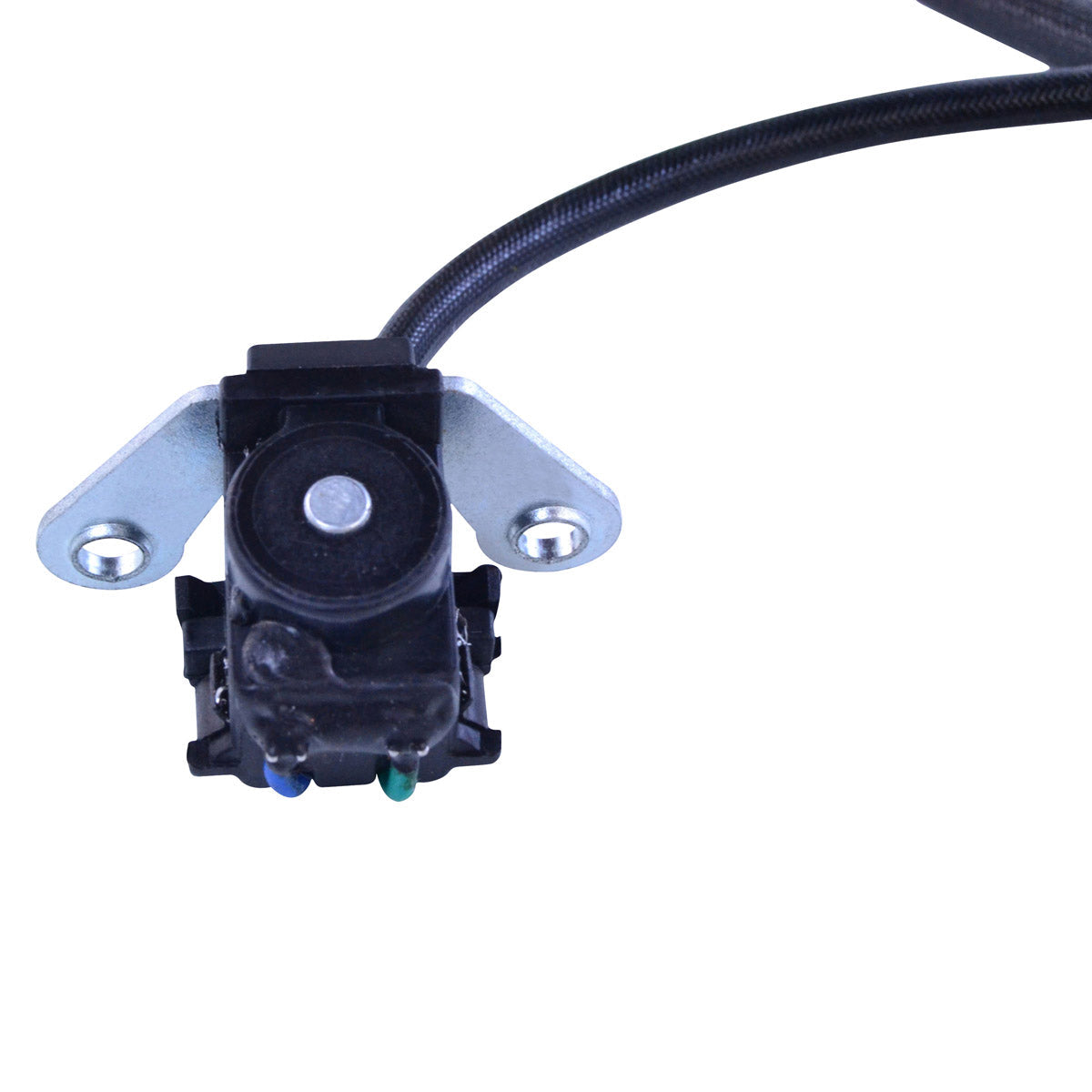

- Pick up pulsar coil included

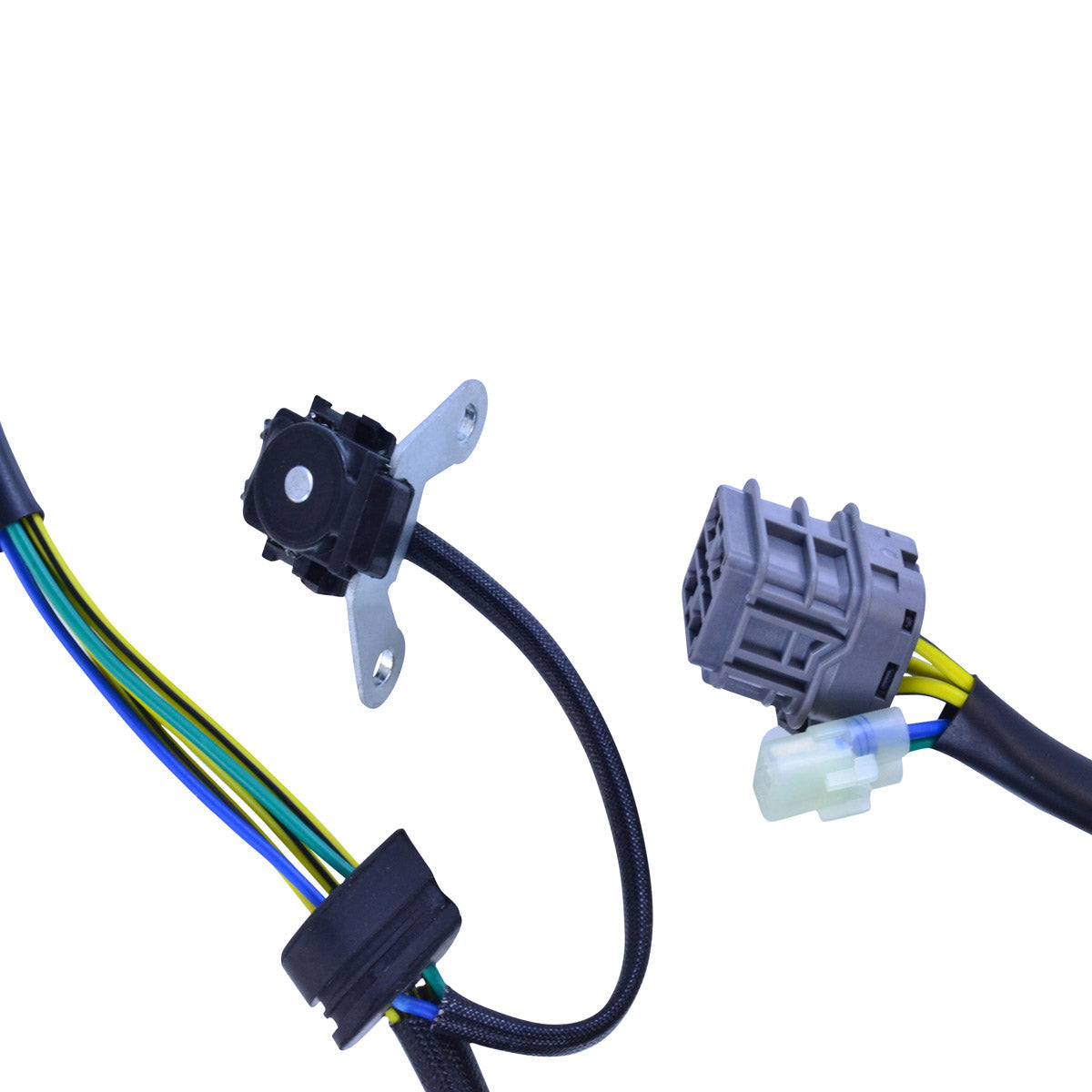

- Connector included

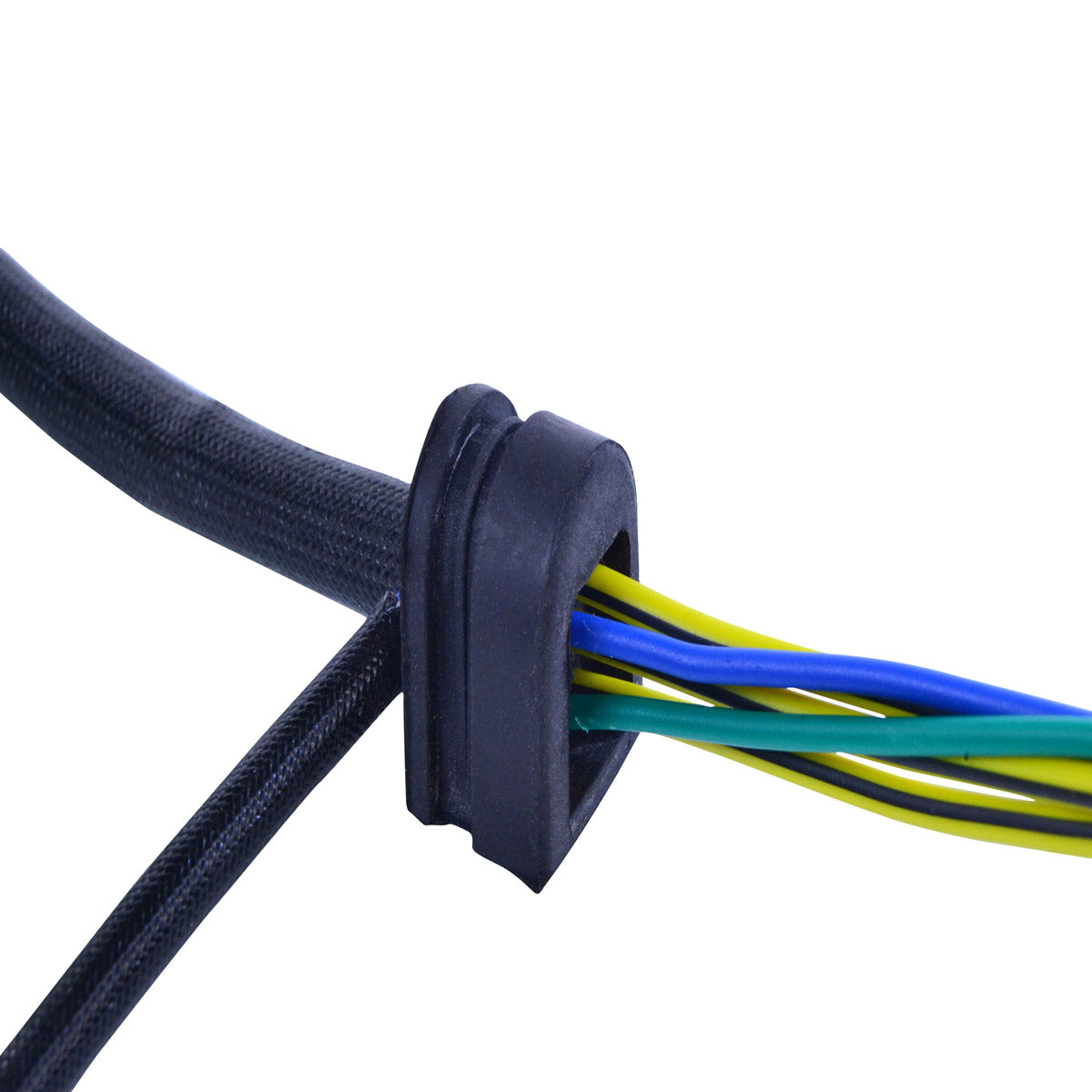

- Rubber grommet included
- 18 poles, five wires, two plugs, five pins
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-104839 |
| Interior diameter |
35 mm |
| Exterior diameter |
104 mm |
| Thickness |
18 mm |
| Length of wires, stator to grommet |
90 mm |
| Length of wires, grommet to plug |
700 mm |
| Length of pick up coil wire to grommet |
110 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, Yellow to Yellow |
0.4 ohms +/- 20% |
| Pick up resistance, Blue between each Green |
150 ohms +/- 20% |
| Alternator to ground |
O.L |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KVF 300 Brute Force |
2012-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-Y007 |
Kawasaki |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play direct fit on the Kawasaki KVF 300 Brute Force from 2012 to 2023 and requires no cutting, splicing or drilling.
What is included?
The stator unit, the pick up pulsar coil, a connector and a rubber grommet.
How can I tell that my old stator has failed?
Unplug the stator and measure with a multimeter. Yellow to Yellow on the alternator side should read 0.4 ohms, plus or minus 20%. Blue between each Green on the pick up should read 150 ohms, plus or minus 20%. From any alternator wire to ground the reading should be O.L, an open circuit. Continuity to ground indicates a shorted winding and the stator should be replaced.
How do I check the part before I order?
Read the number stamped or printed on your original unit and compare it with 21003-Y007. If you cannot find a number, compare the dimensions instead: 35 mm interior diameter, 104 mm exterior diameter and 18 mm thick, with a 700 mm lead from the grommet to the plug.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
