Generator Stator for Kawasaki Brute Force and Teryx
Kawasaki KVF 750 Brute Force, KRF 800 Teryx and KRT 750 800 2012-2024 - Part reference RMS010-104006

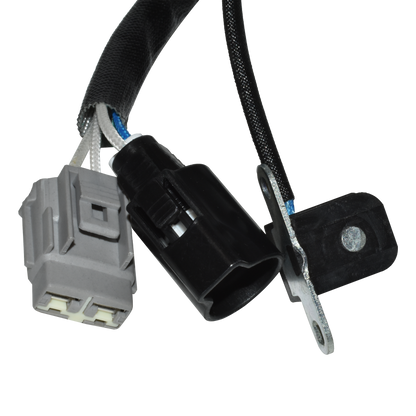

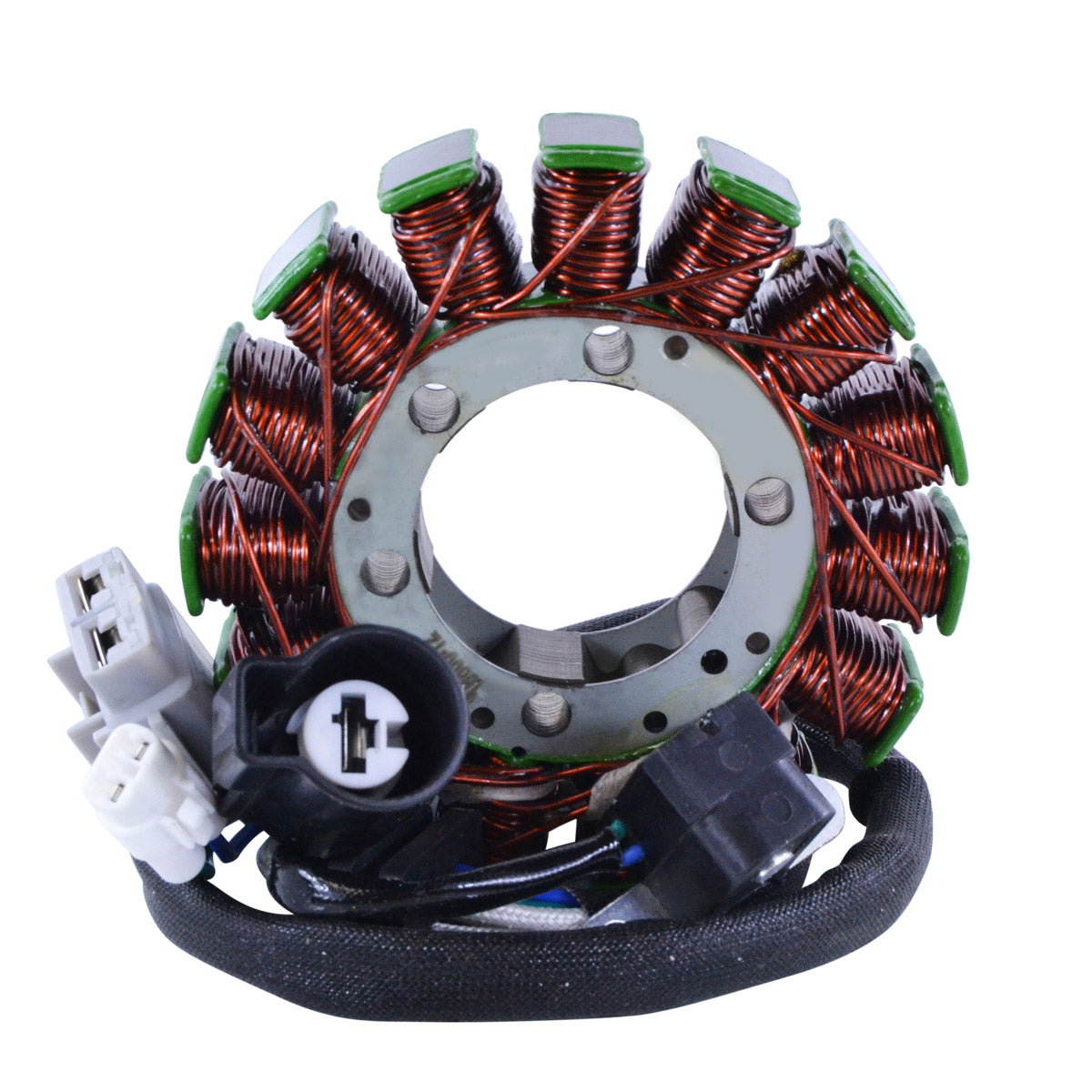

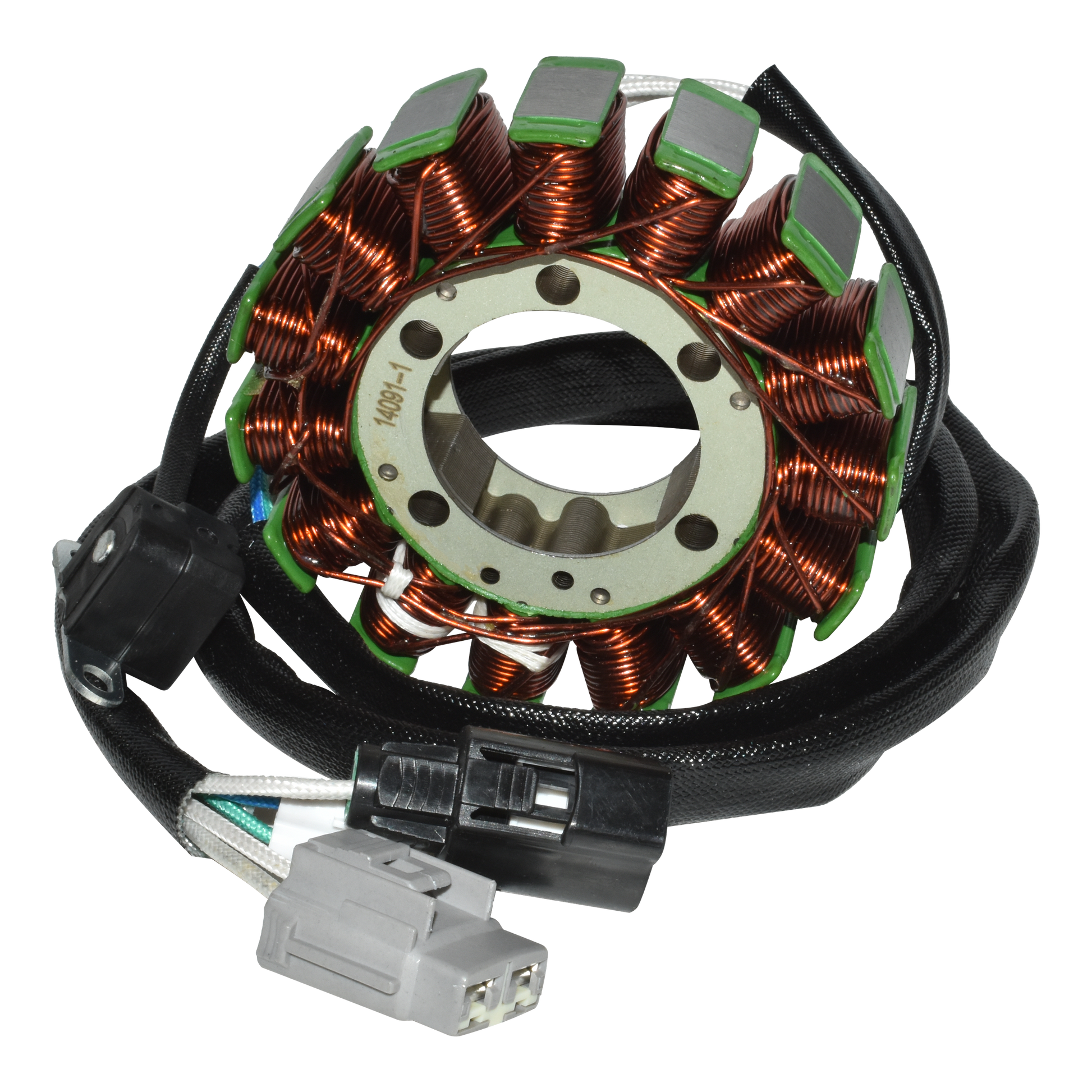

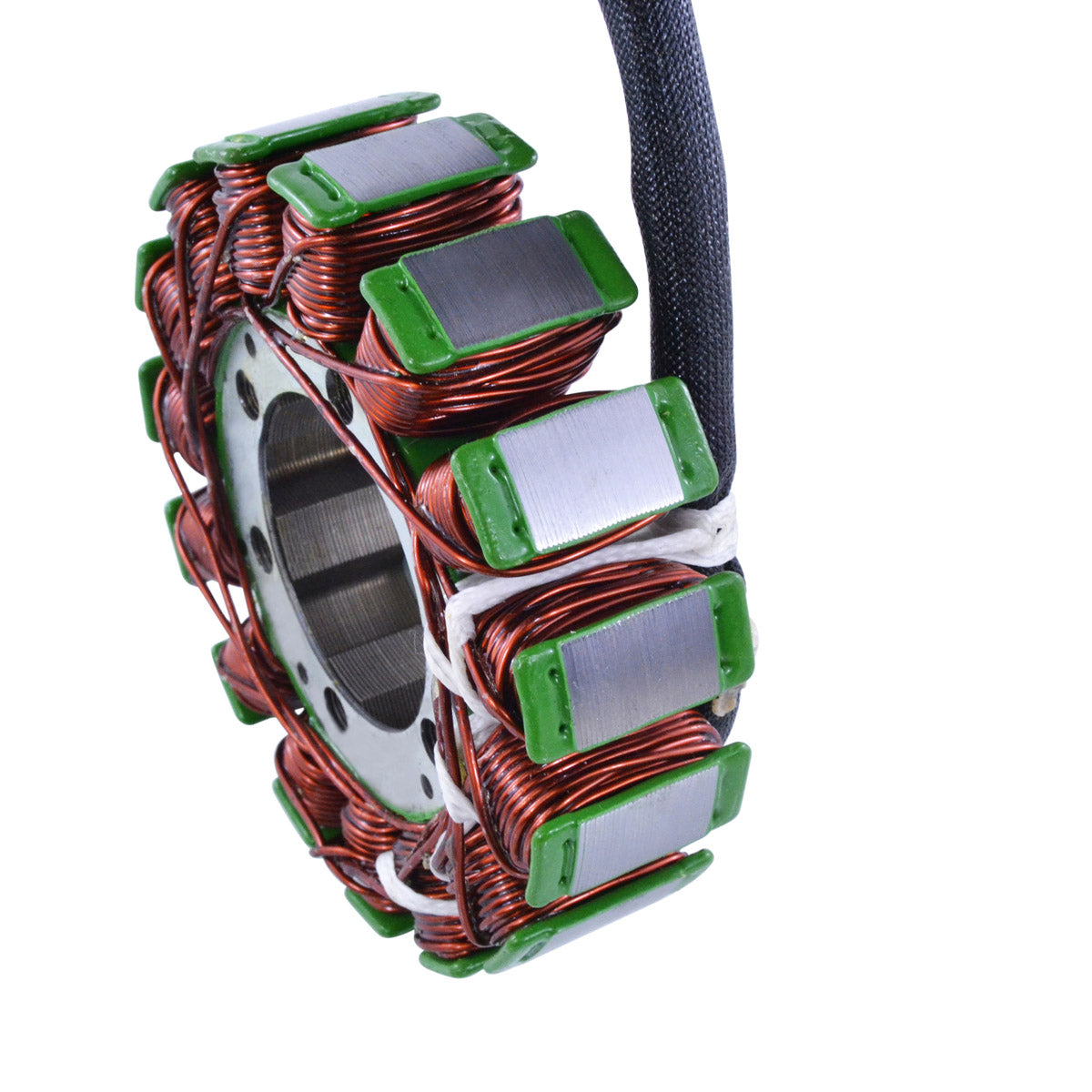

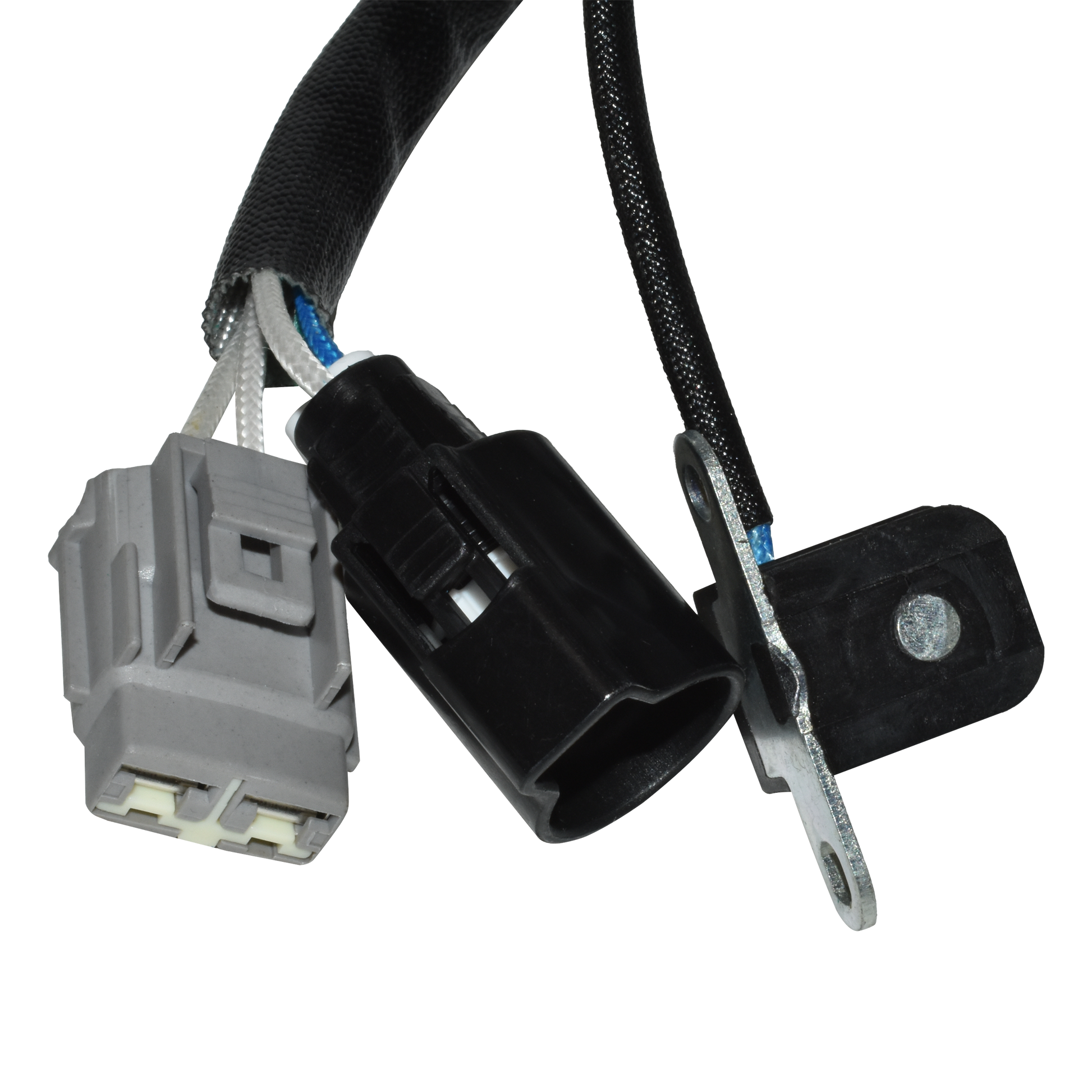

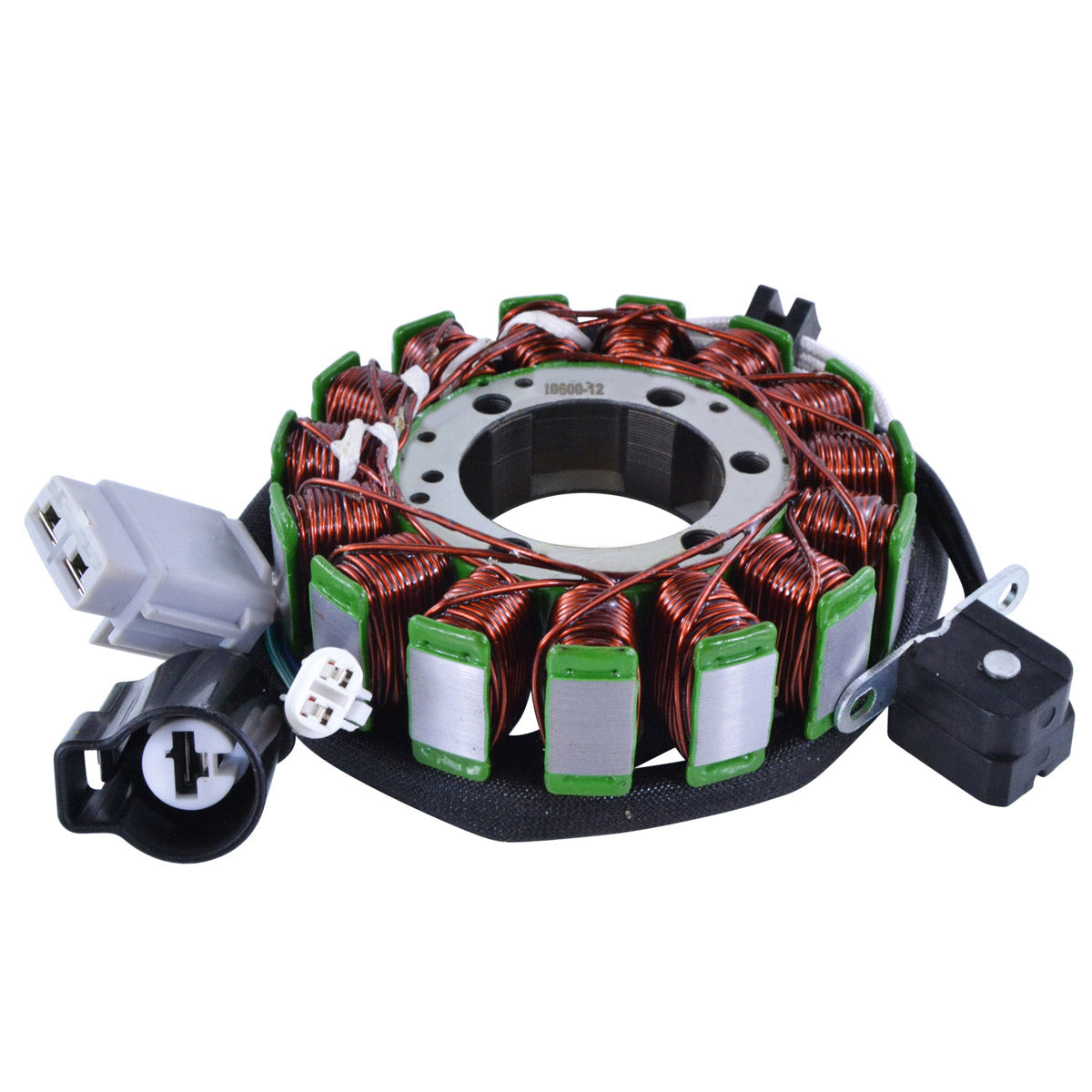

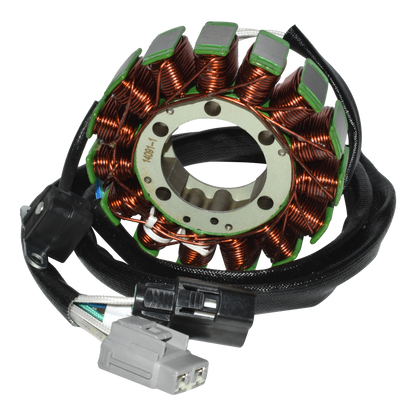

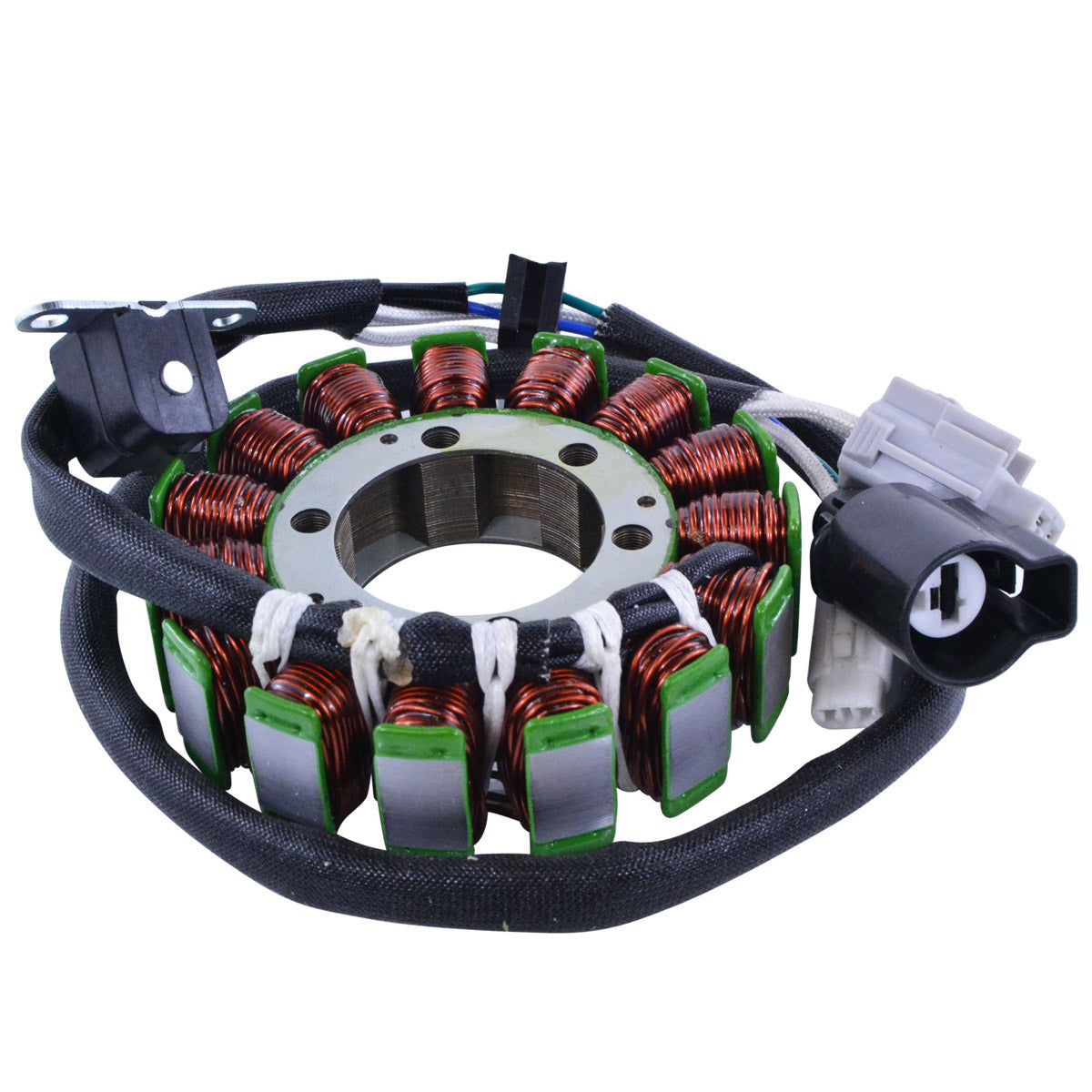

This is a brand new aftermarket generator stator built as a direct replacement for the original charging unit used across the Kawasaki KVF 750 Brute Force, the KRF 800 Teryx and the KRT 750 and 800 side by side models. It is plug-and-play and a direct fit, so it mounts in the standard position and connects to the existing loom with no cutting and no modification. The pick-up pulsar coil is supplied on the assembly, which means the ignition trigger is renewed at the same time as the charging winding.

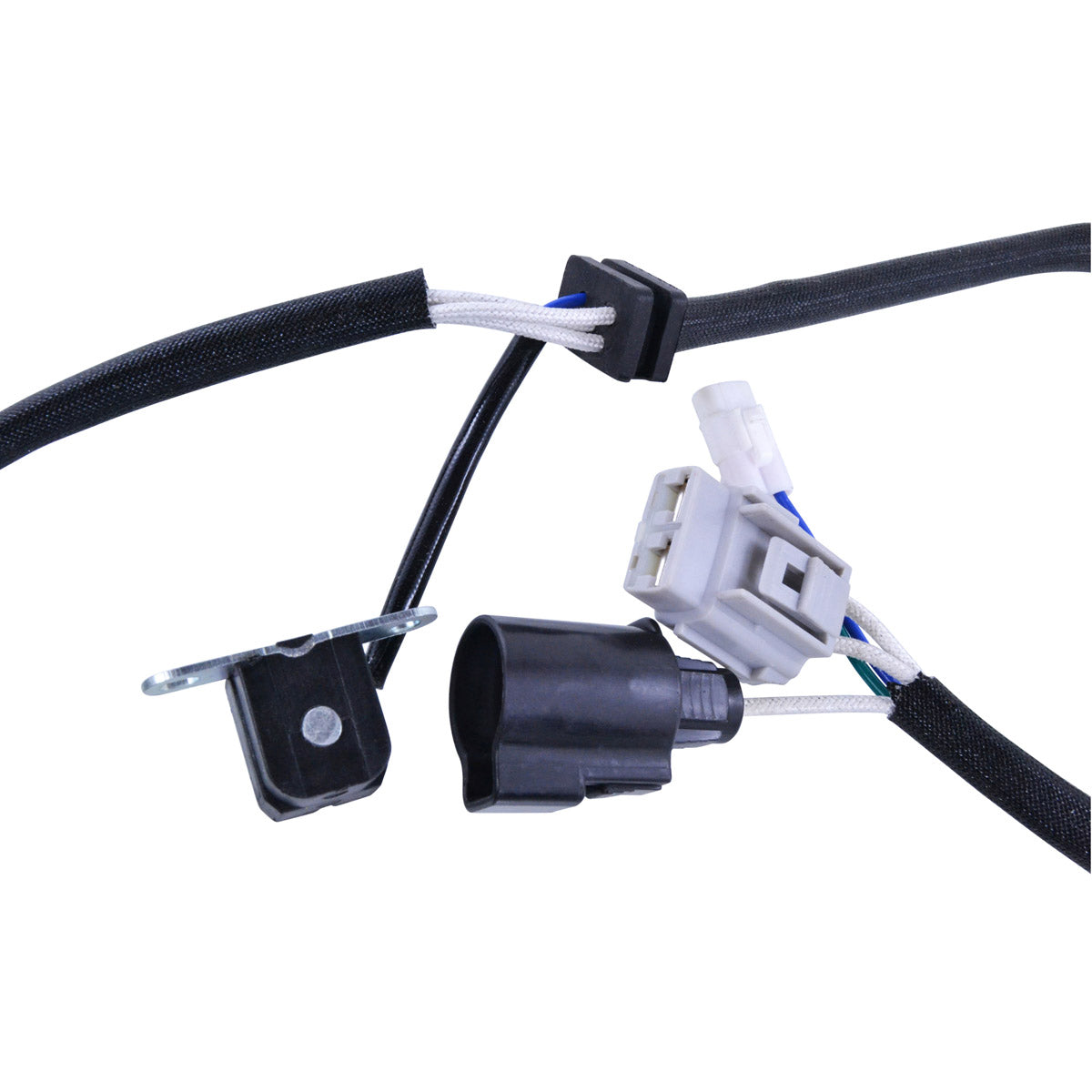

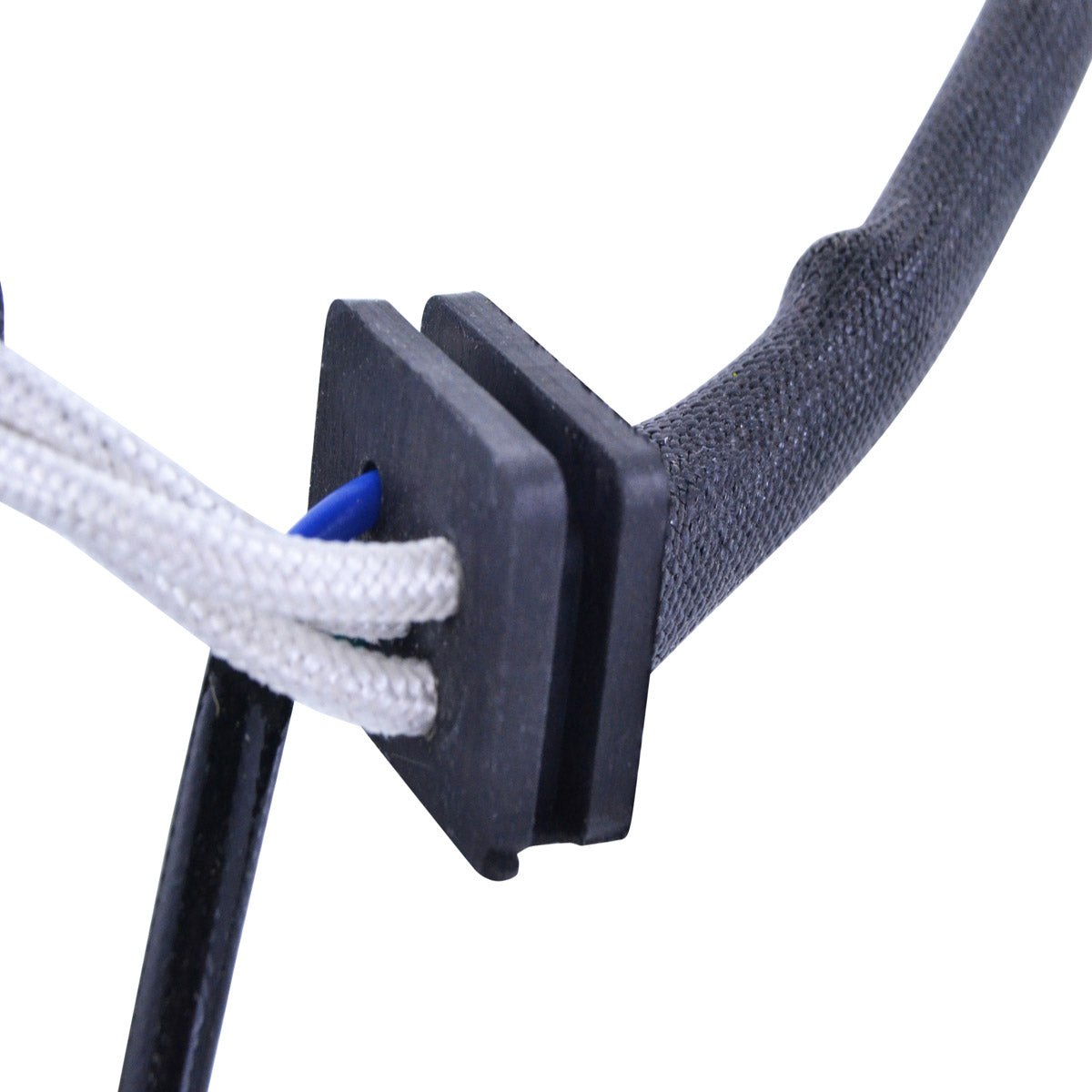

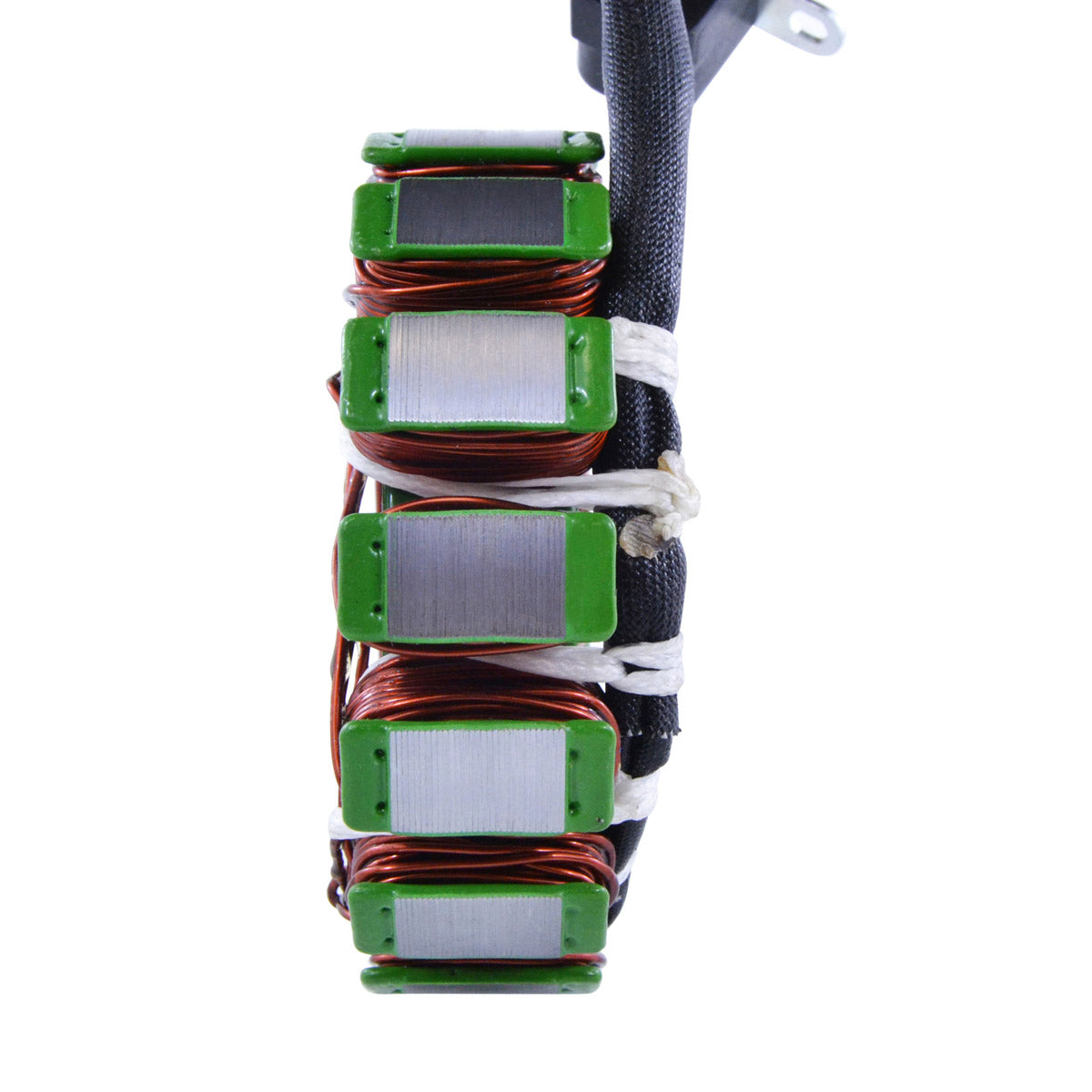

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius, which matters on a working ATV or utility vehicle where the engine and the charging system both run hot for long periods. A connector and a rubber grommet are included, and a long 950 mm lead from the grommet to the plug lets the harness route the same way as the original. All products shipped are tested.
Key Features
- Brand new aftermarket generator stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

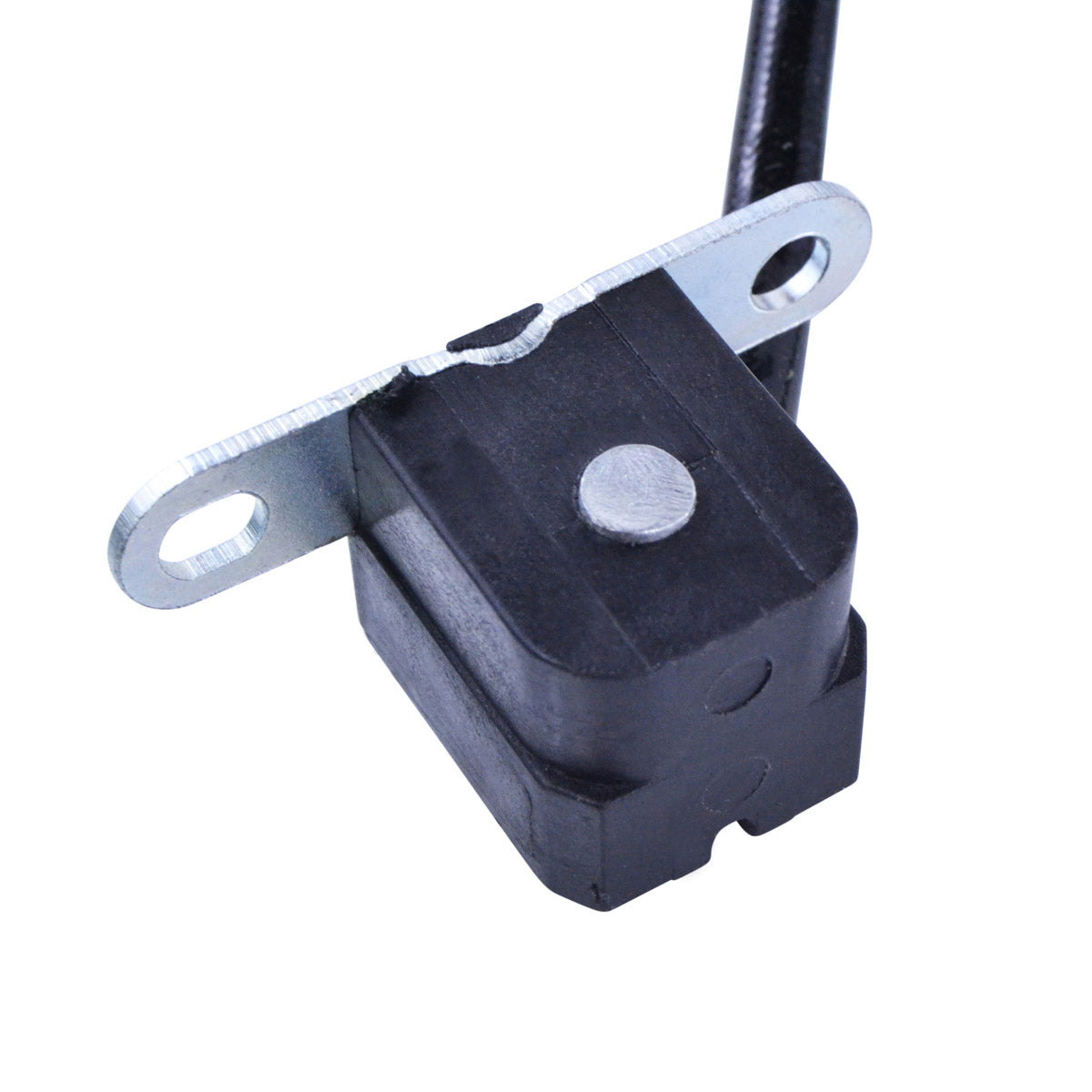

- Pick-up pulsar coil included on the assembly
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

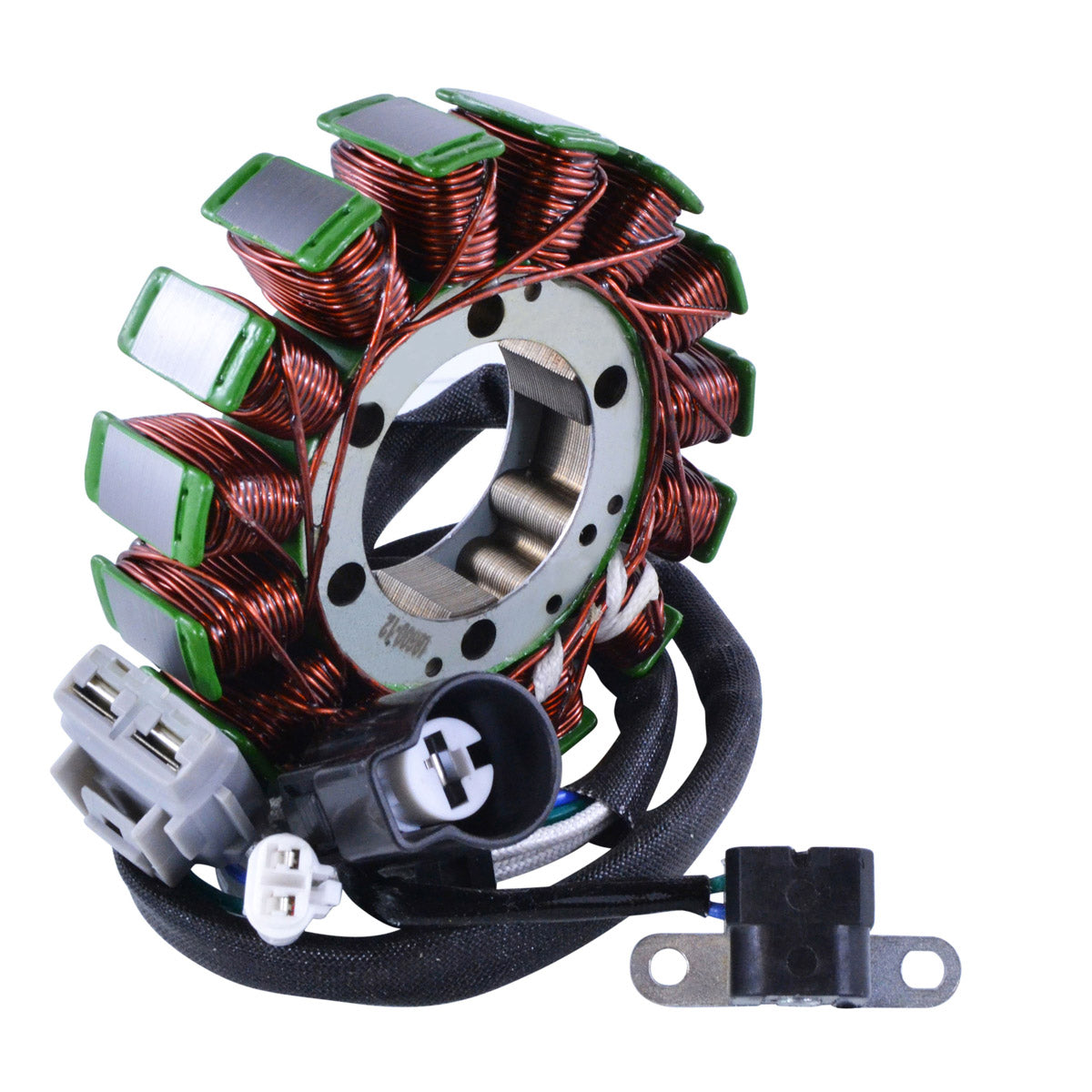

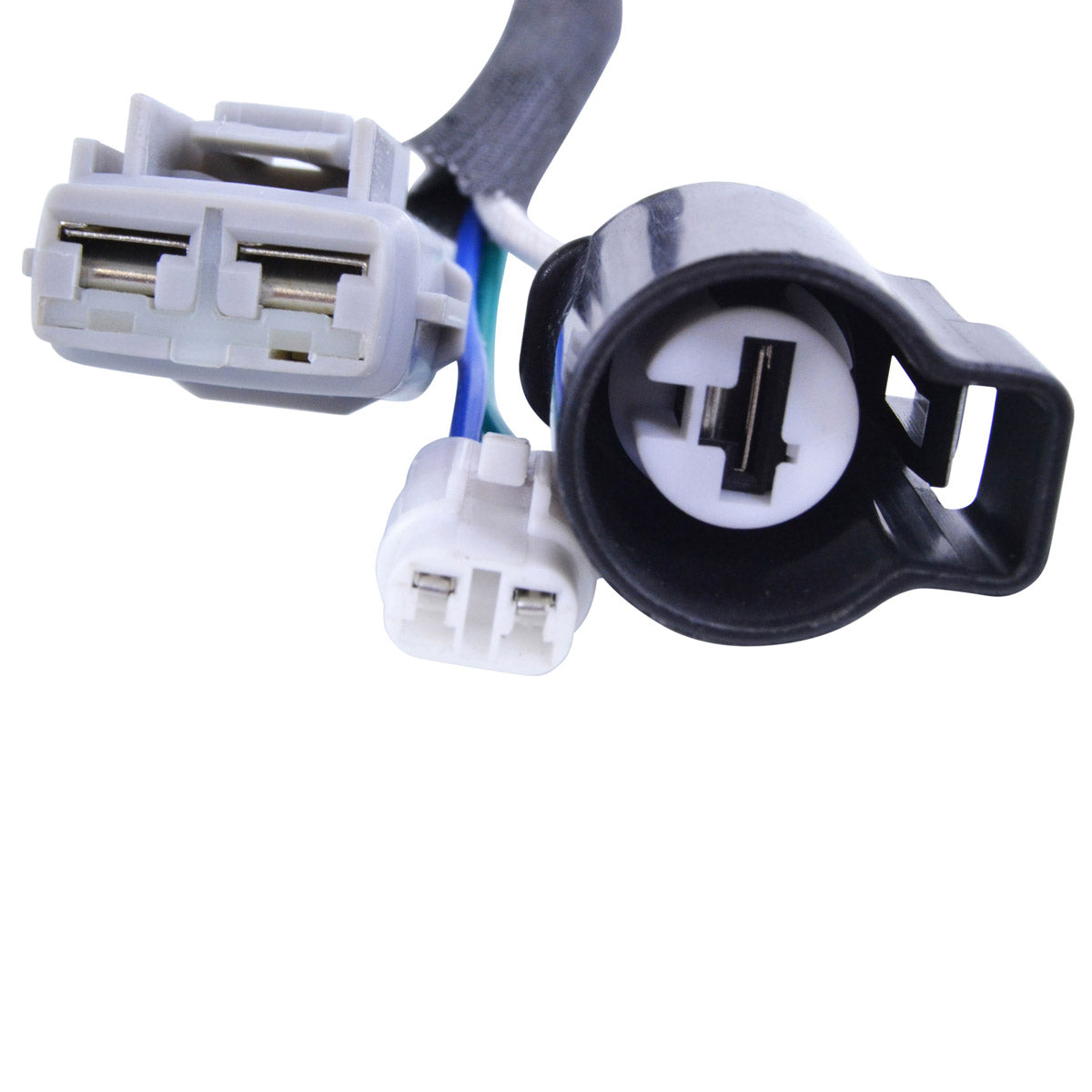

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 105 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 160 mm |
| Wire length, grommet to plug | 950 mm |
| Pick-up coil wire length to grommet | 90 mm |
| Number of wires | 5 |
| Number of plugs | 3 |
| Number of pins | 5 |
| Alternator resistance, White to White | 0.6 ohms +/-20% |
| Pick-up resistance, Green to Blue | 500 ohms +/-20% |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KVF 750 Brute Force | 2012-2024 |
| Kawasaki KRF 800 Teryx | 2012-2024 |
| Kawasaki KRT 750 | 2012-2024 |
| Kawasaki KRT 800 | 2012-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0167 | Kawasaki |
| 21003-0166 | Kawasaki |
| 21003-0143 | Kawasaki |
| 21003-0134 | Kawasaki |
| 21003-0132 | Kawasaki |
| 21003-0108 | Kawasaki |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit and is plug-and-play, so it uses the standard mounting position and connects to the existing harness. No cutting or splicing is required.
What is included in the box?
The generator stator with the pick-up pulsar coil fitted, the connector and the rubber grommet. Every unit is tested before it is shipped.
How do I know whether my old stator has failed?
Compare your multimeter readings with the Technical Specs table above. The alternator winding should read about 0.6 ohms white to white and the pick-up about 500 ohms green to blue, each within 20 per cent. A reading well outside those figures, or continuity from a winding to the stator body, points to a failed unit.
My machine is a Teryx rather than a Brute Force - is this the same part?
Yes. RMSTATOR list one unit covering the KVF 750 Brute Force, the KRF 800 Teryx and the KRT 750 and 800. Check the number stamped on your original stator against the OEM cross reference table above to confirm before ordering.
