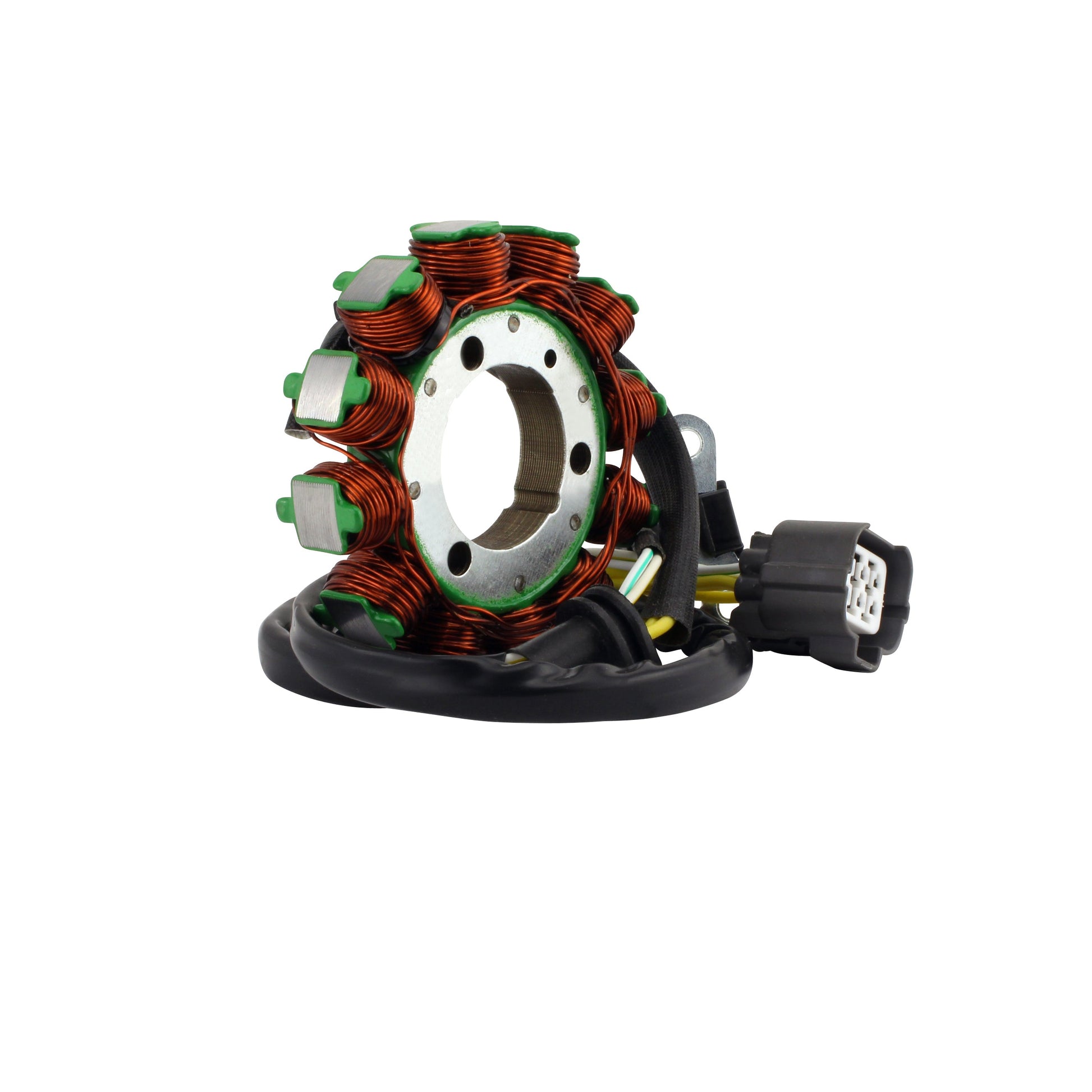

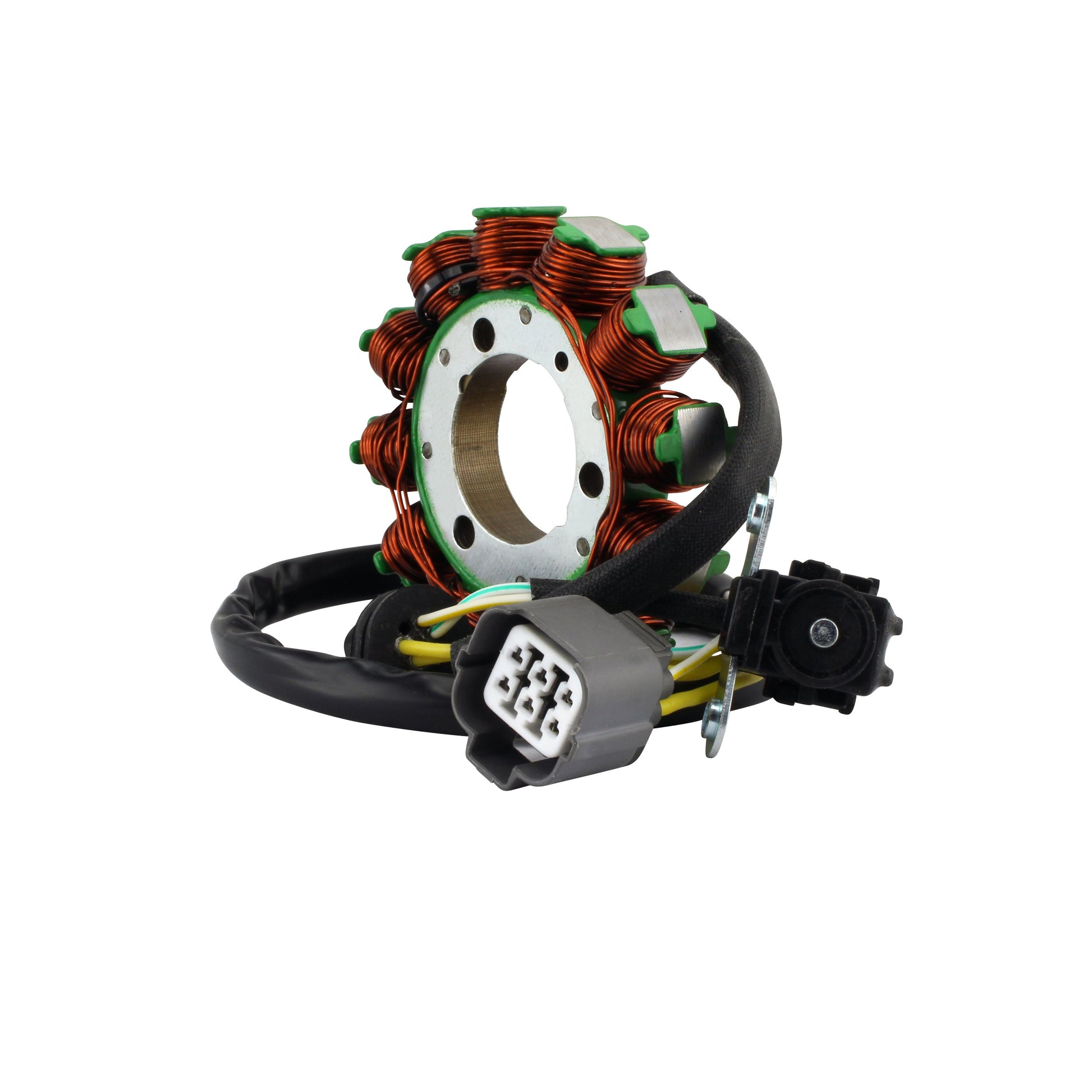

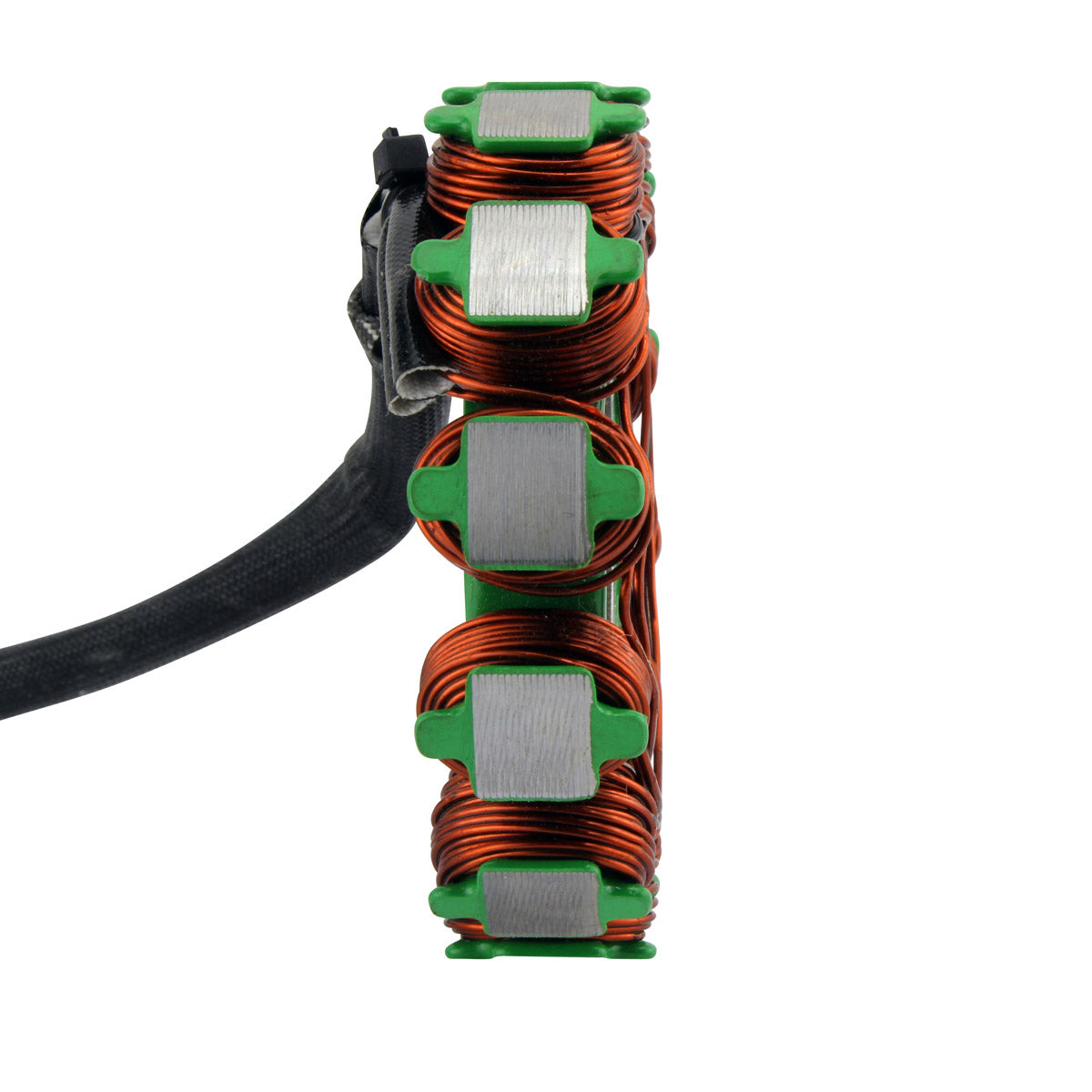

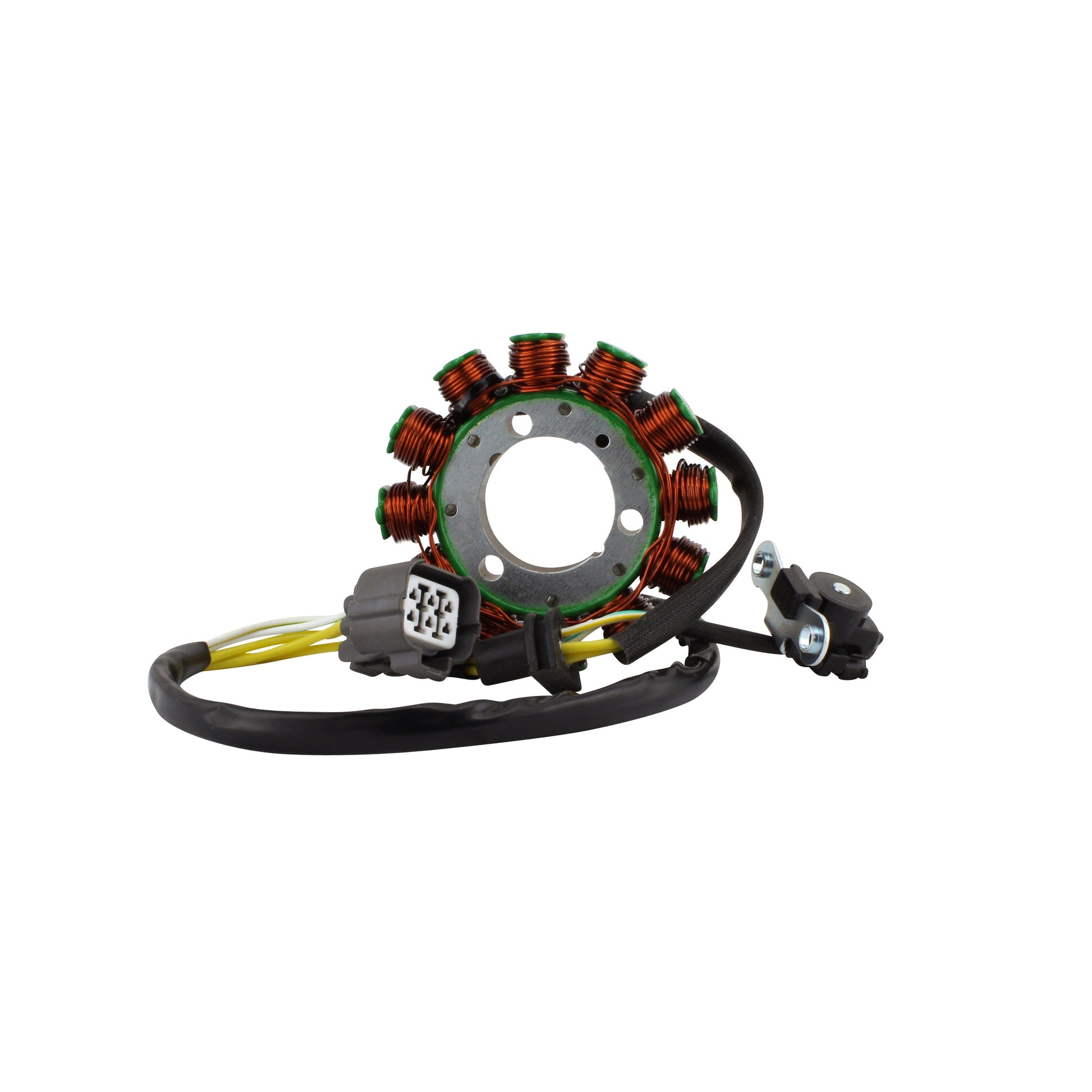

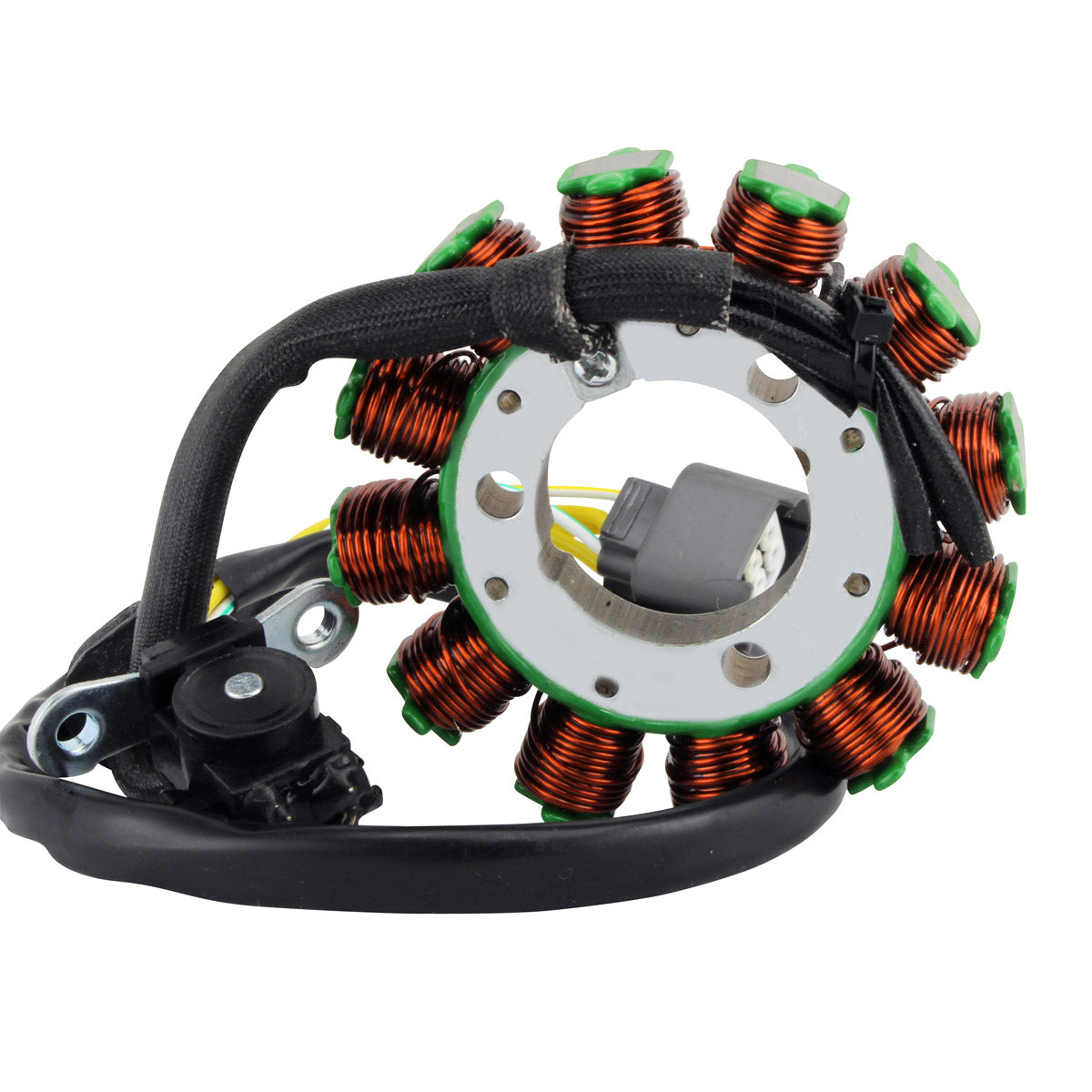

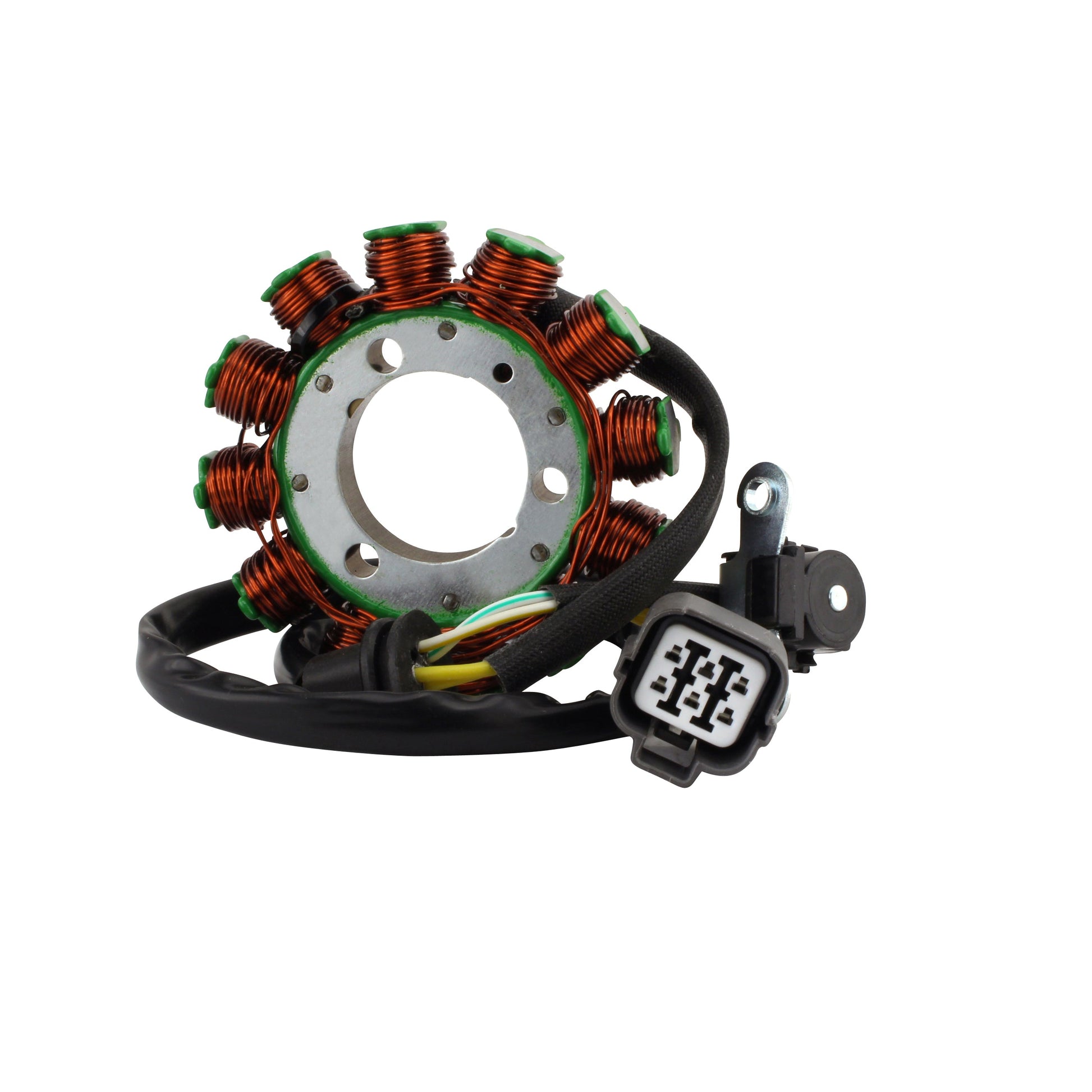

A brand new aftermarket stator designed as a direct swap for the original unit on the Kawasaki KX 250 F and KX 450 F motocross machines. It is a plug-and-play direct fit using the original mounting points, and the pickup pulsar coil, connectors and rubber grommet are all supplied with it.

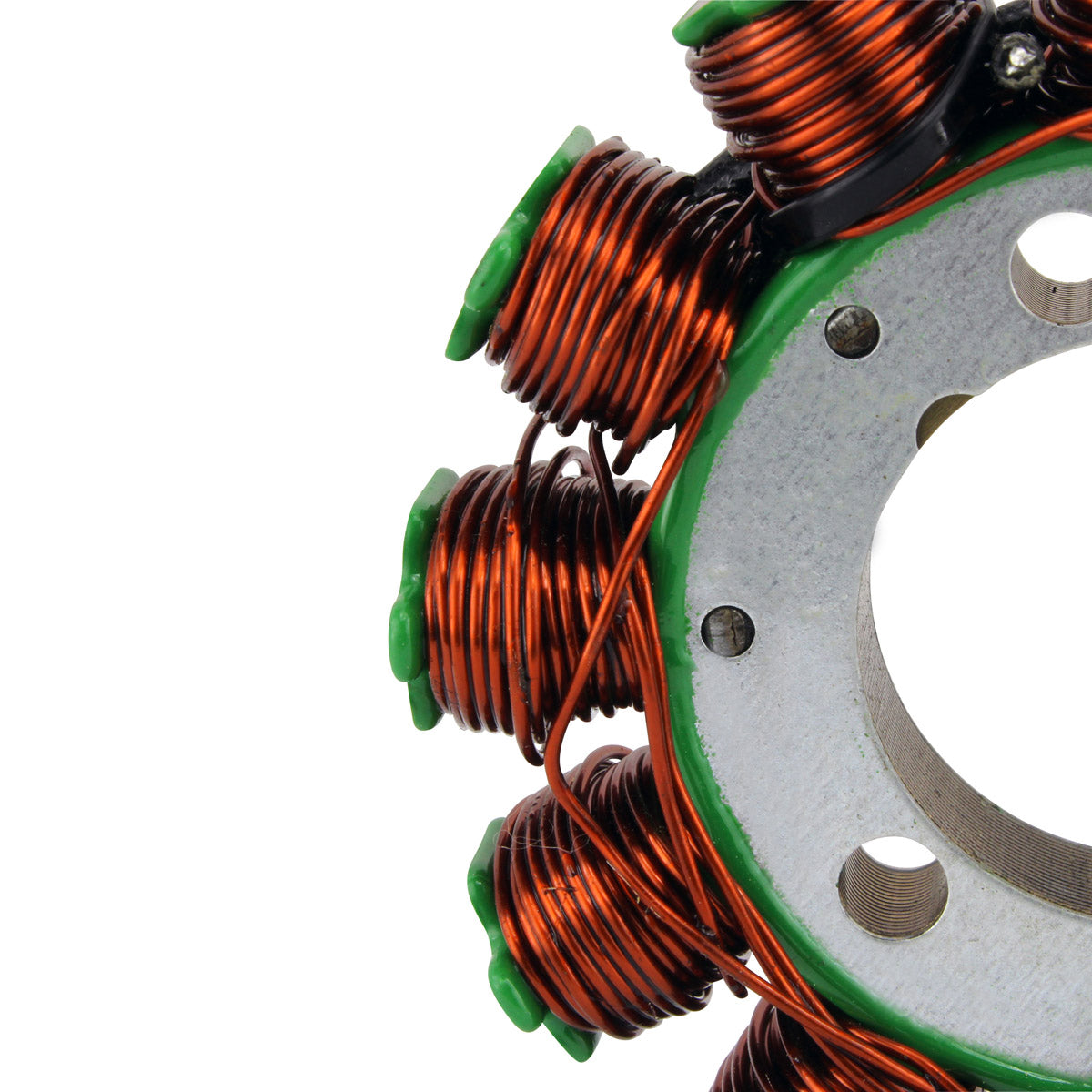

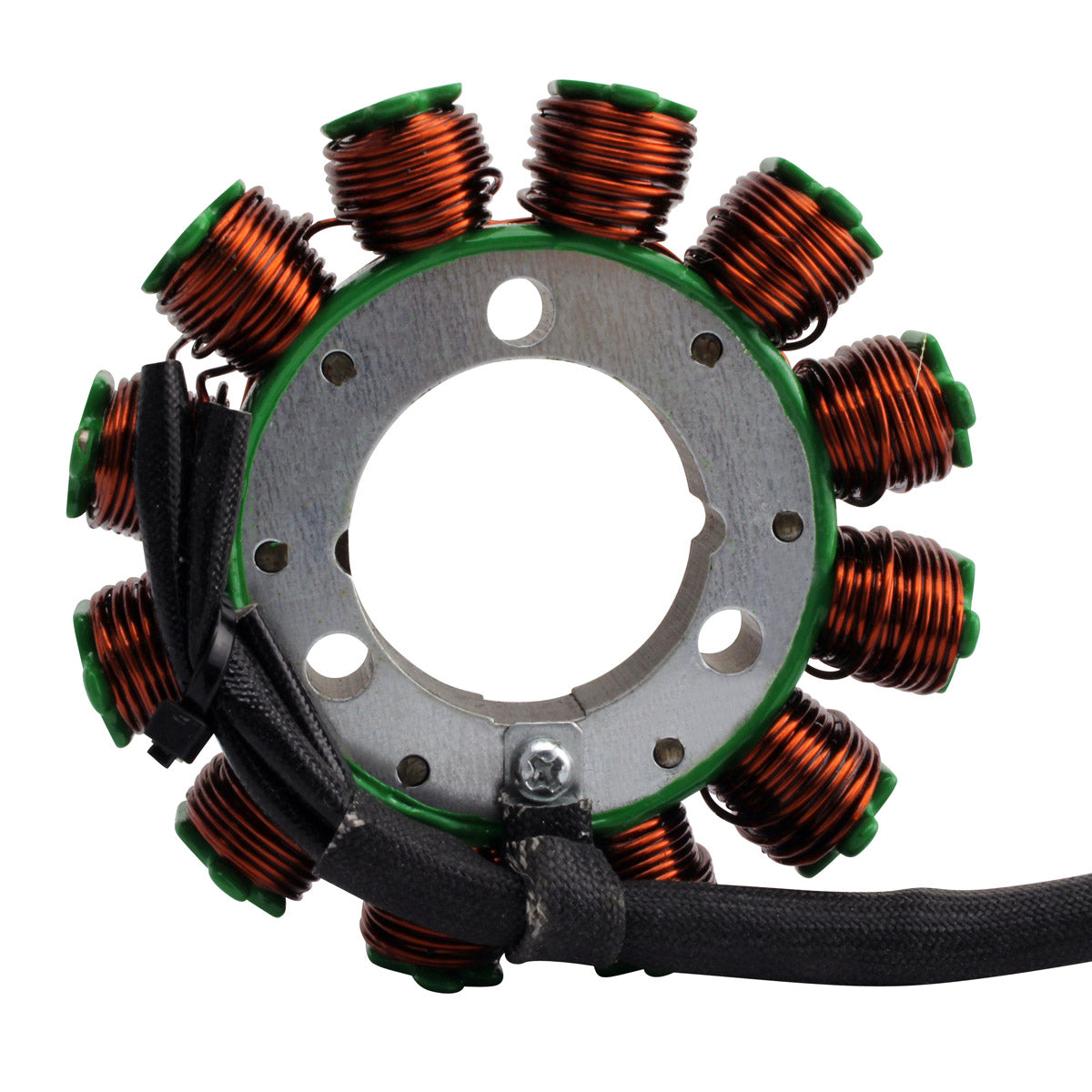

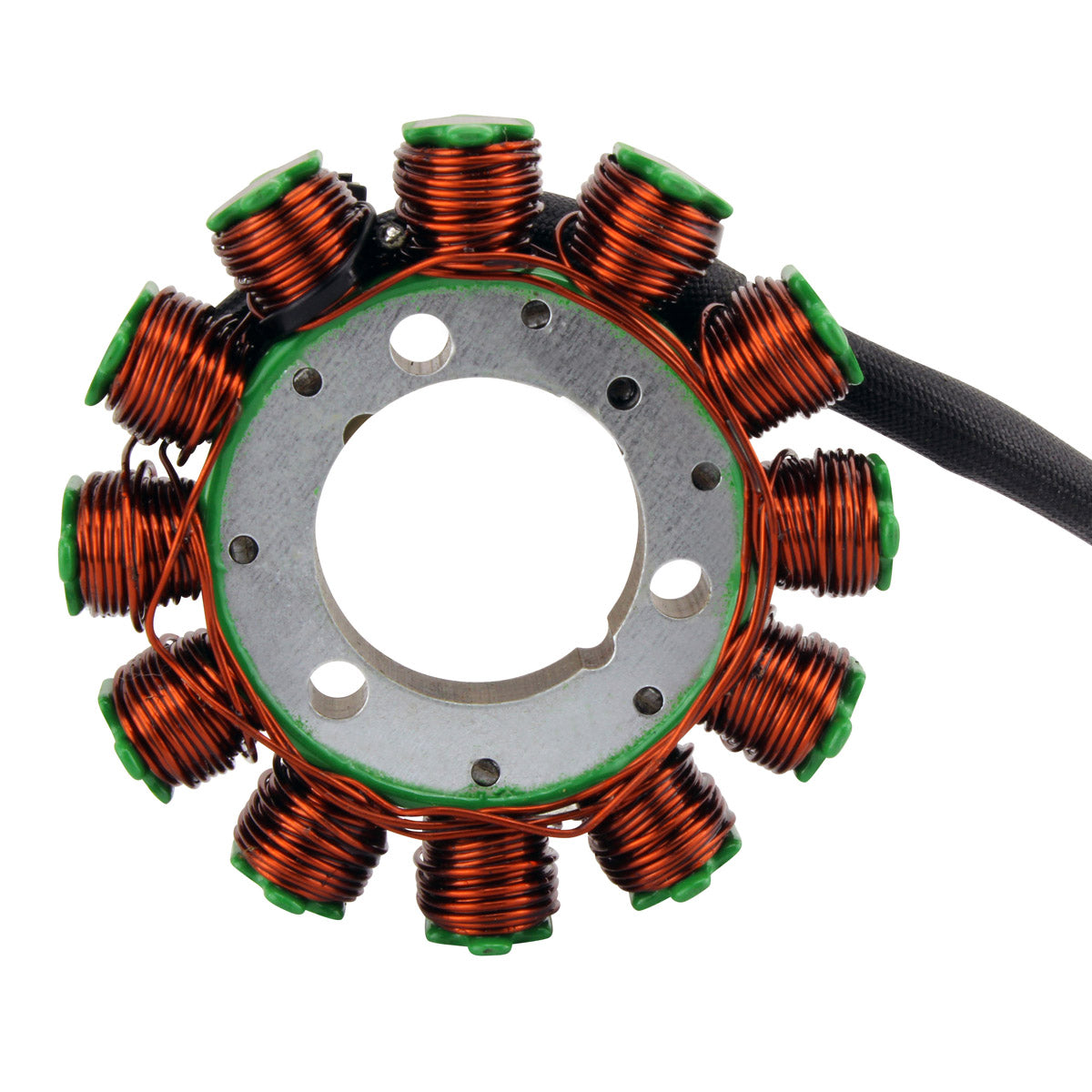

The windings are copper rated to 200 degrees C over high-grade lamination material, so the assembly copes with the heat and the constant vibration of a race engine. Every unit is tested before shipping. This is a twelve-pole stator carrying both the alternator winding and the ignition pickup on a single five-pin plug, which means one part restores charging output and ignition trigger together.
Key Features
- Plug-and-play, direct fit, easy installation
- High-grade lamination materials
- Copper winding rated to 200 degrees C

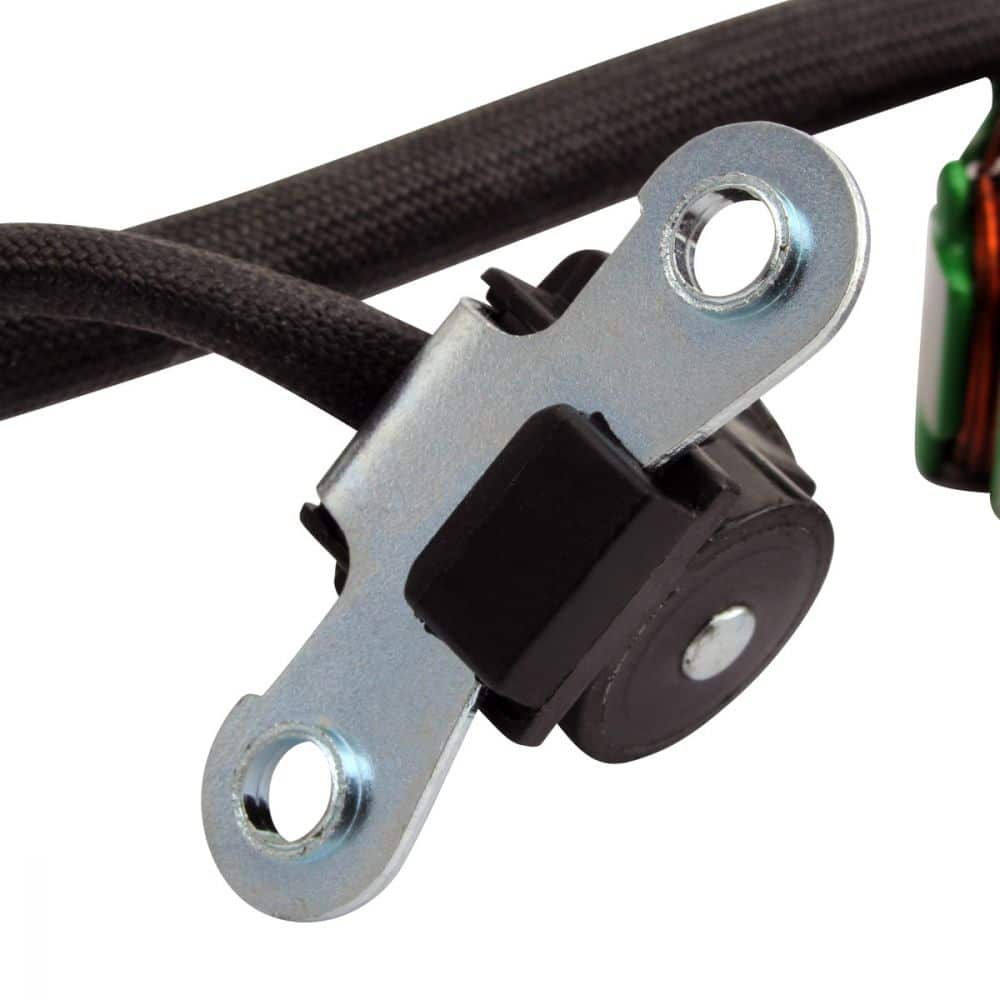

- Pickup pulsar coil included

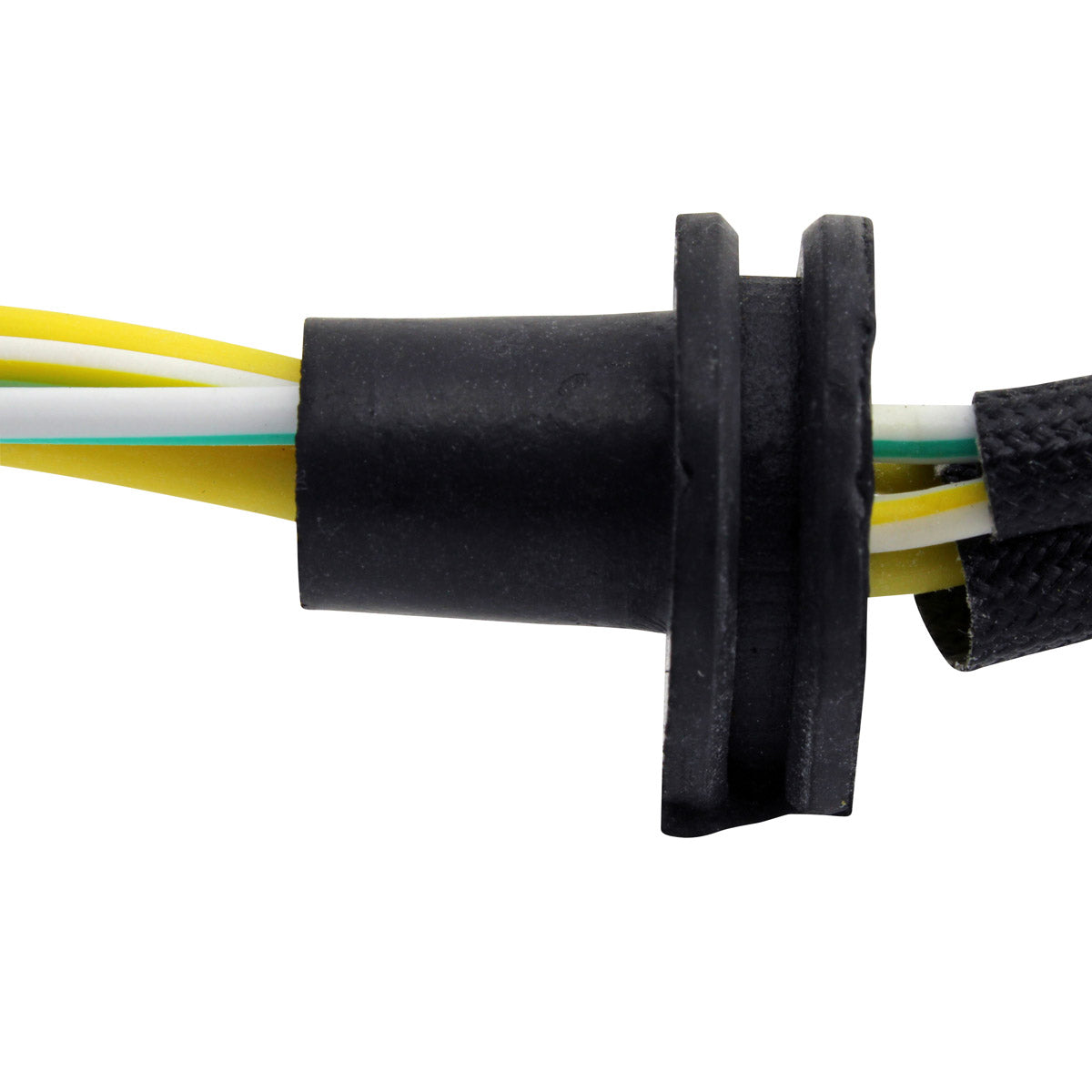

- Connectors and rubber grommet included

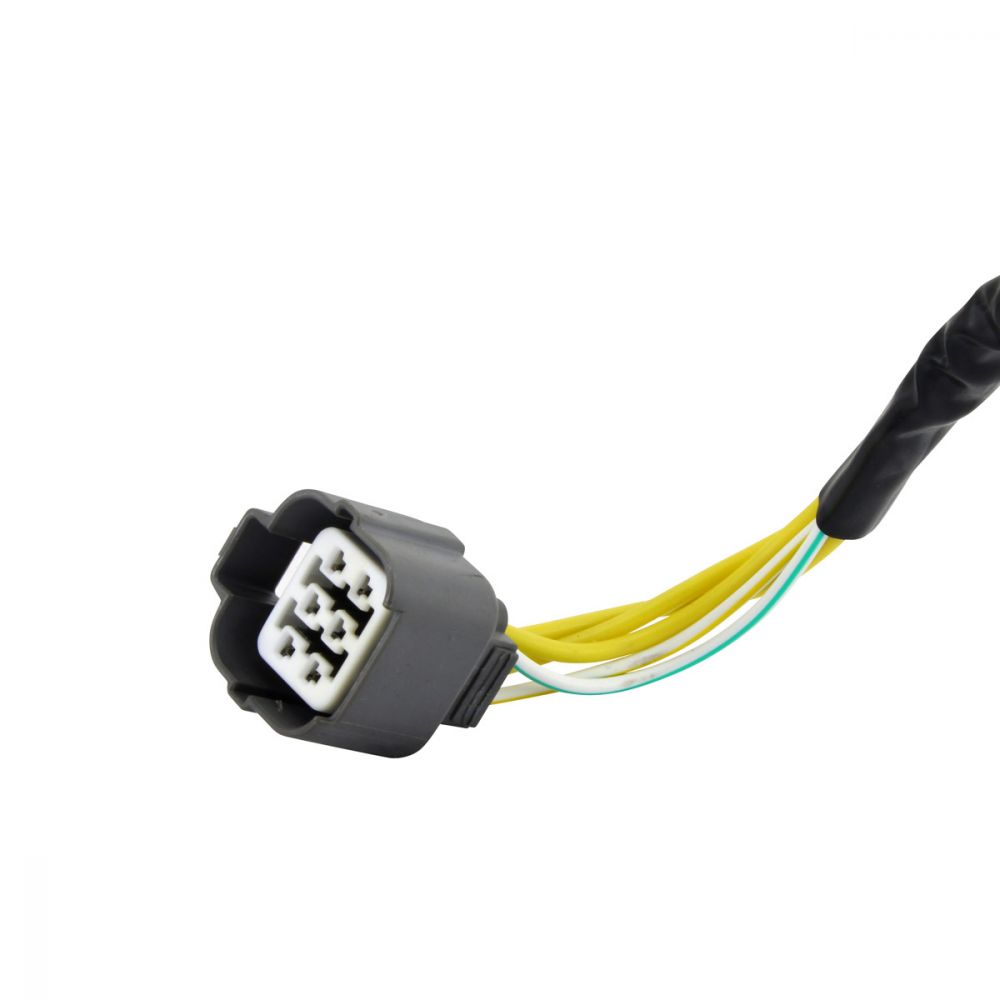

- Single five-pin plug, no rewiring
- All units tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
35 mm |
| Exterior diameter |
89 mm |
| Thickness |
12 mm |
| Number of poles |
12 |
| Number of wires |
5 |
| Number of plugs |
1 |
| Number of pins |
5 |
| Alternator resistance, Yellow to Yellow |
0.8 ohms plus or minus 20 percent |
| Pickup coil resistance, White/Yellow to Green/White |
238 ohms plus or minus 20 percent |
| Wire length, stator to grommet |
120 mm |
| Wire length, grommet to plug |
40 mm |
| Pickup coil wire length |
430 mm |
| Winding temperature rating |
200 degrees C |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki KX 250 F |
2011-2020 |
| Kawasaki KX 450 F |
2009-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0082 |
Kawasaki |
| 21003-0102 |
Kawasaki |
| 21003-0147 |
Kawasaki |
| 21003-0148 |
Kawasaki |
| 21003-0168 |
Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct swap that uses the original mounting points and the original single five-pin connector, so no cutting or splicing is needed on the models and years listed above.
What is included in the box?
The stator unit, the pickup pulsar coil, the connectors and a rubber grommet.
How do I tell whether my old stator has failed?
Measure the alternator winding across the two yellow wires, which should read about 0.8 ohms, and the pickup between white/yellow and green/white, which should read about 238 ohms. Both allow 20 percent either way. Readings well outside those, an open circuit, or continuity from a winding to the stator core all indicate a failed unit. On a KX the usual symptoms are a bike that will not start when hot, an erratic or missing spark, and a battery that will not stay charged on the electric-start models.
Do I need to buy the pickup pulsar coil separately?
No. The pickup pulsar coil is supplied as part of this assembly, so both the charging winding and the ignition trigger are renewed in one fitting.
