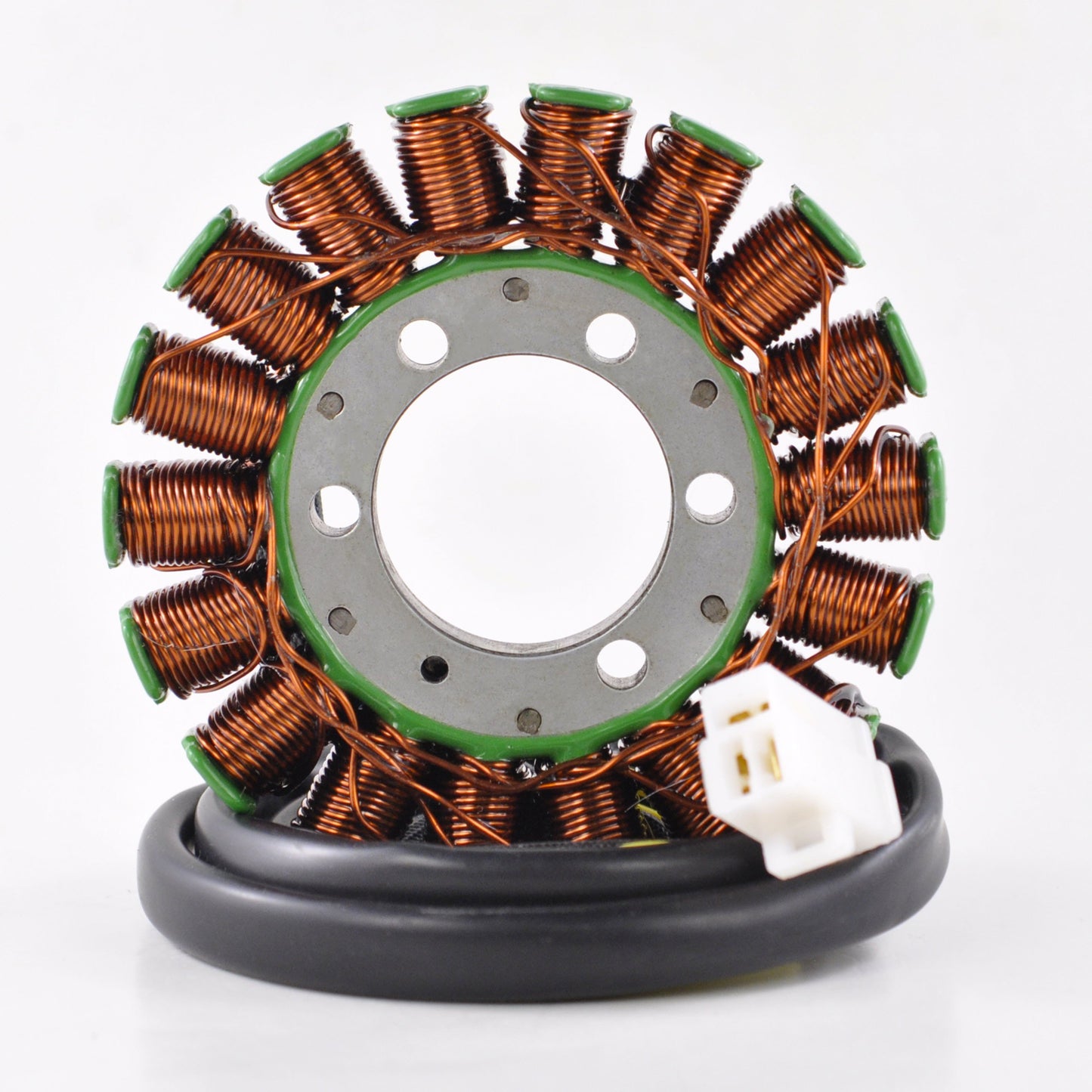

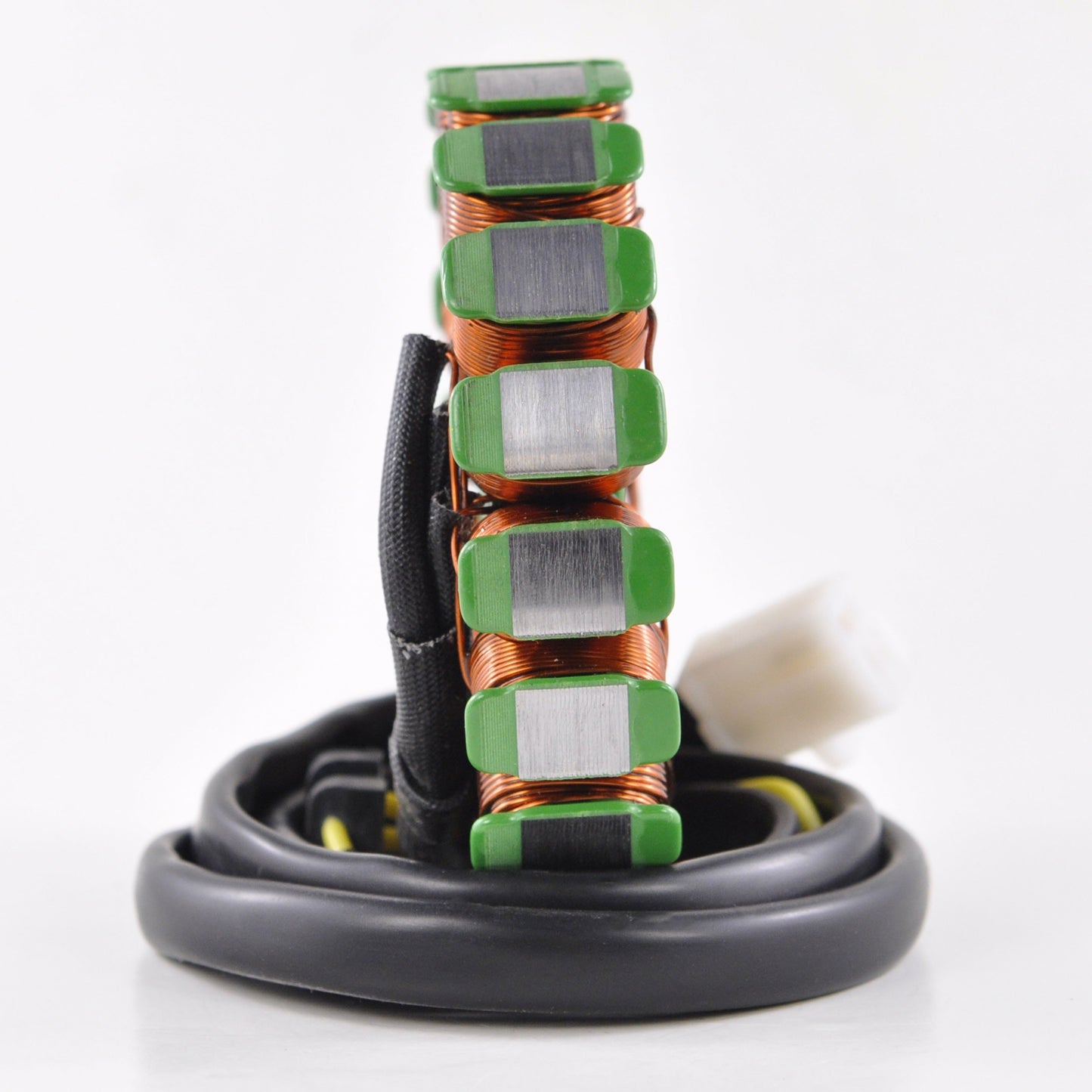

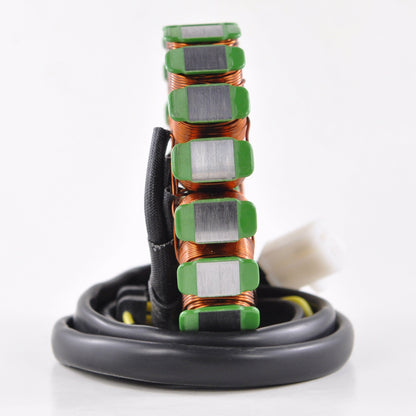

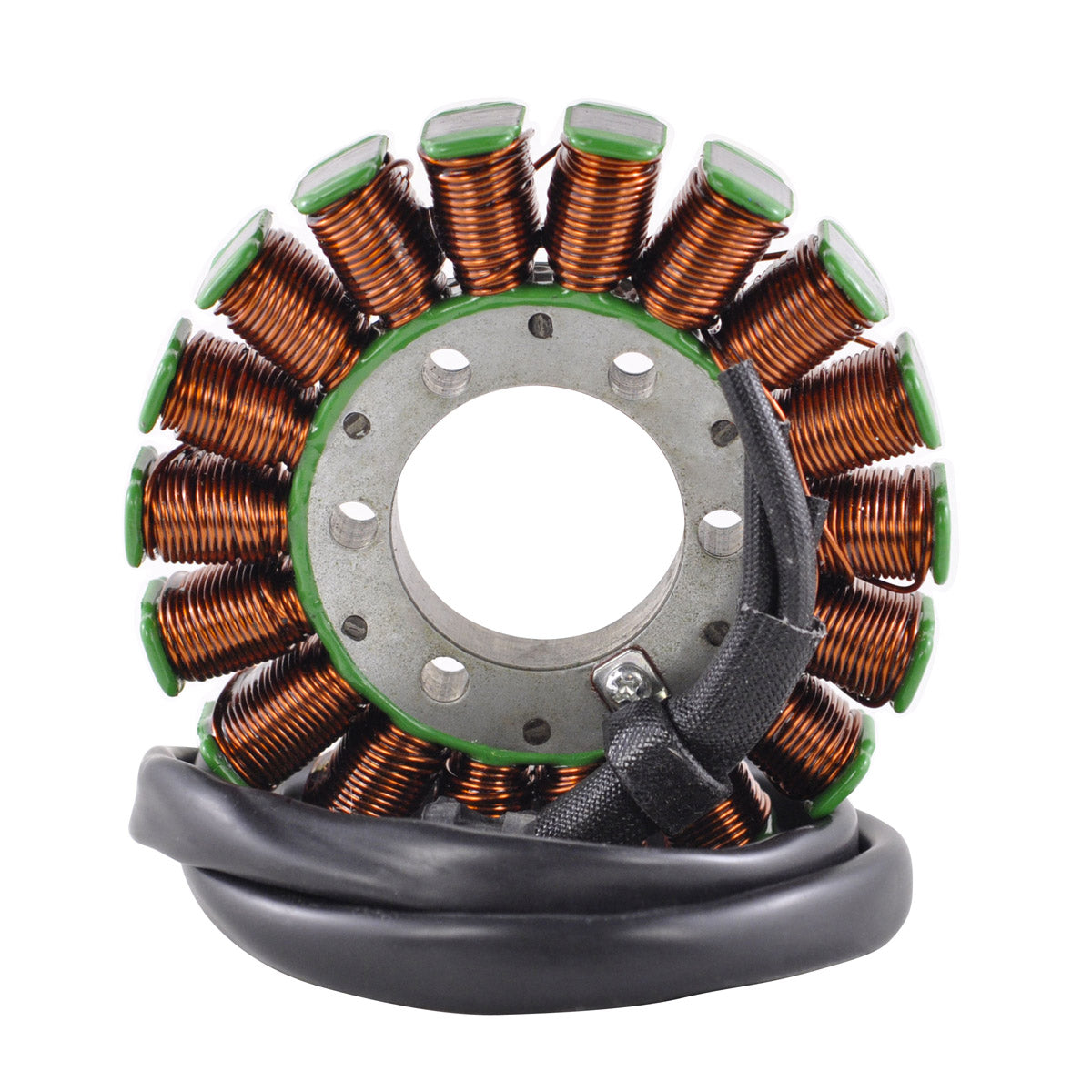

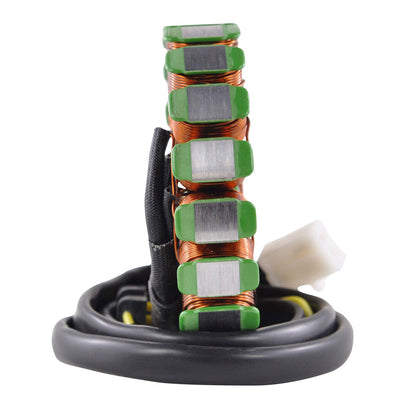

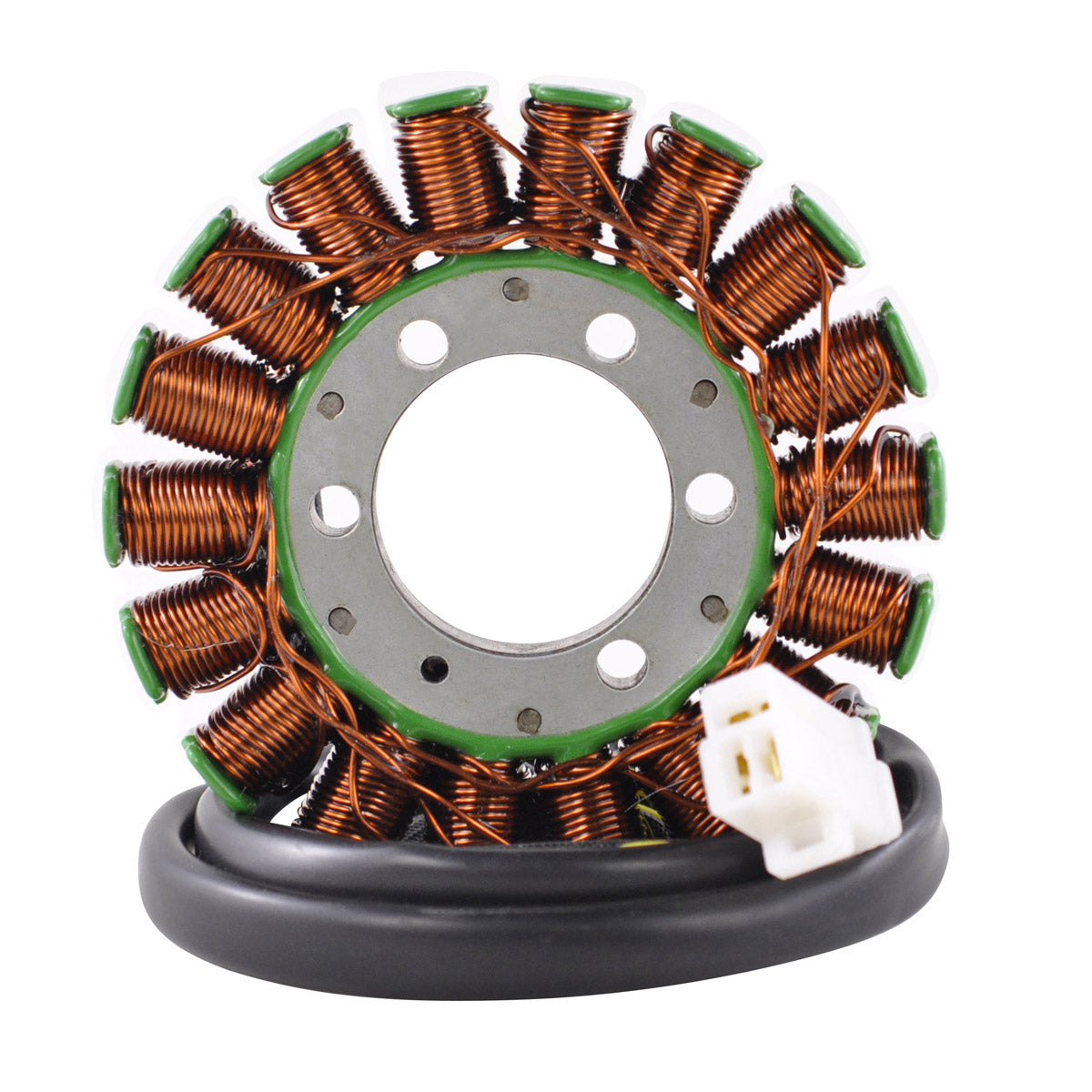

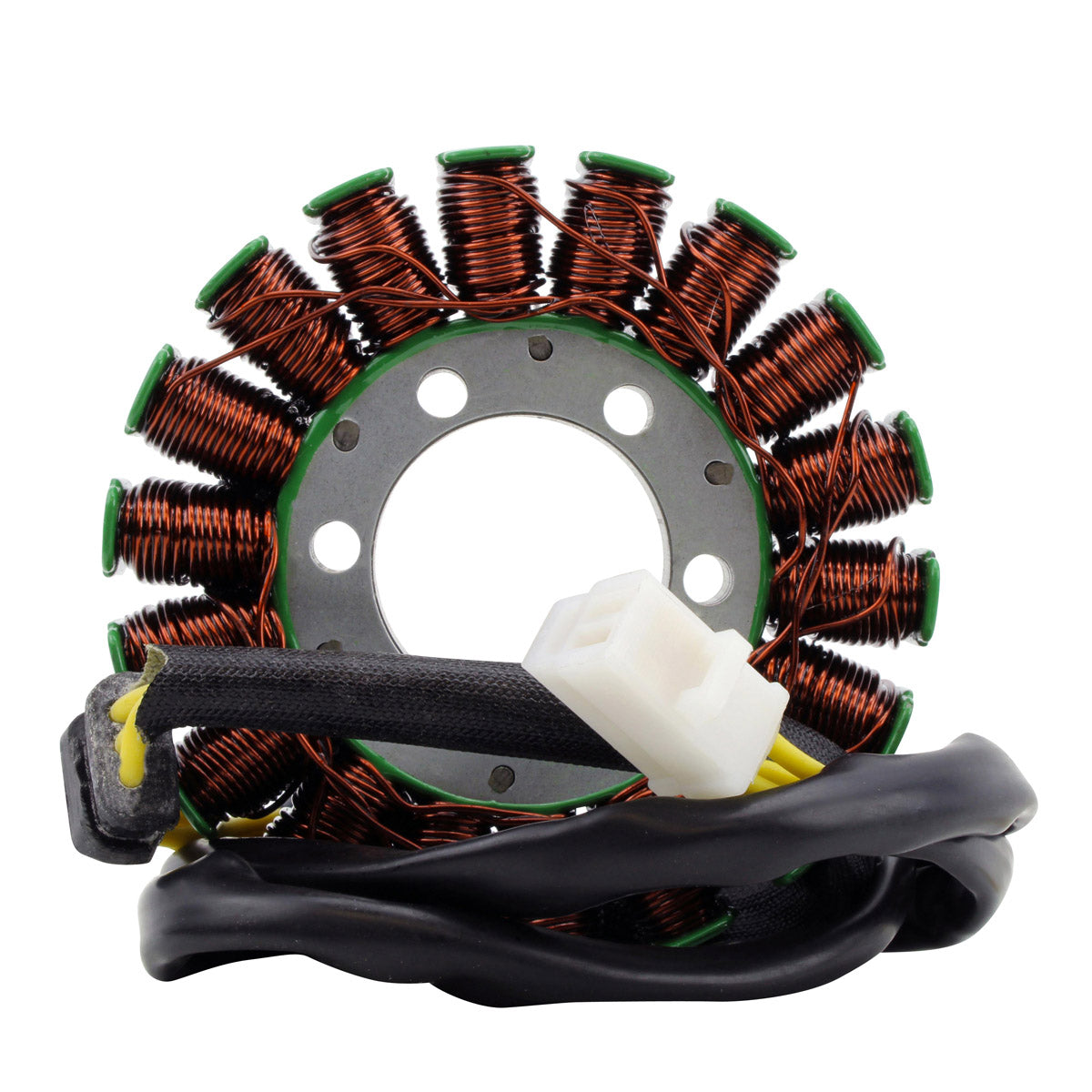

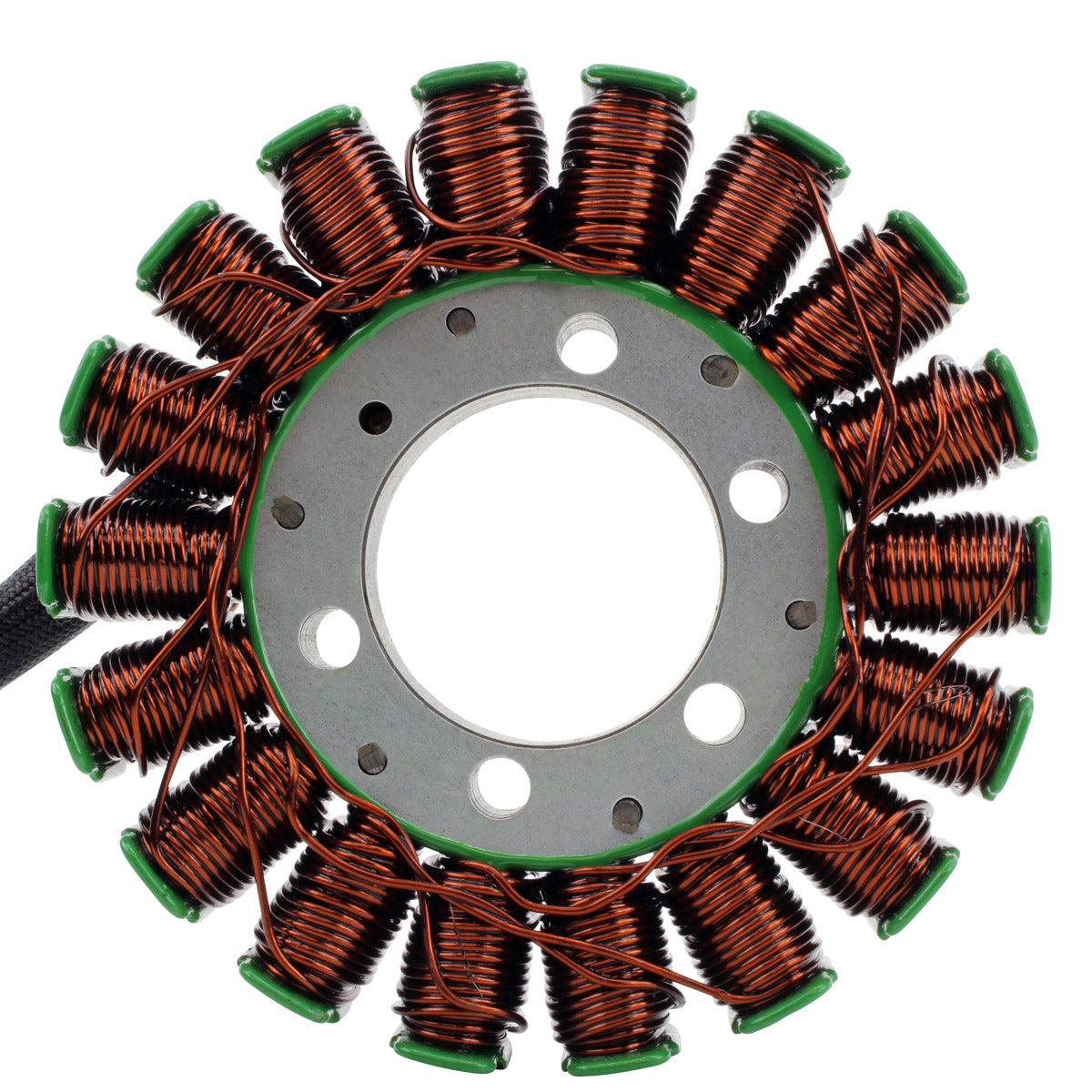

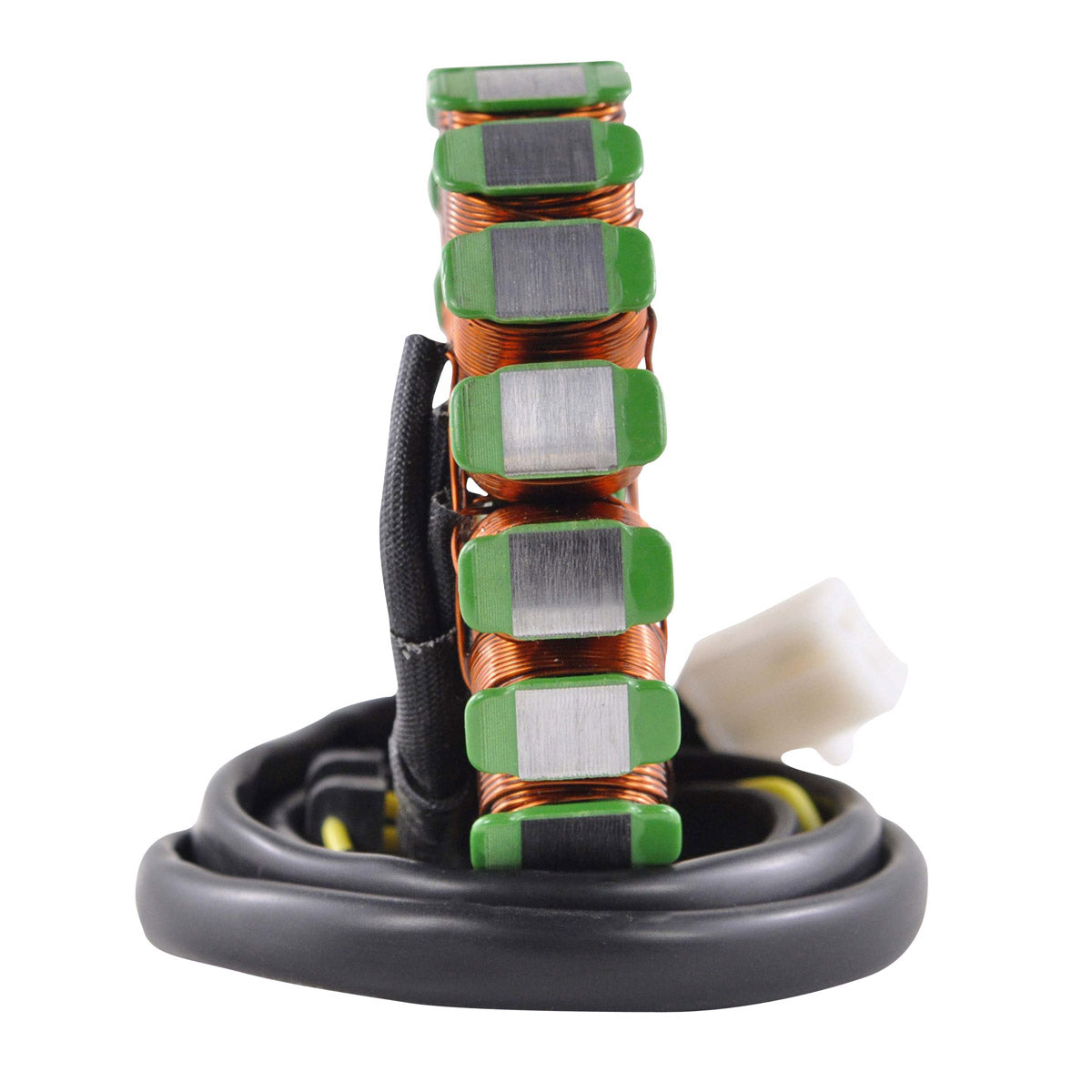

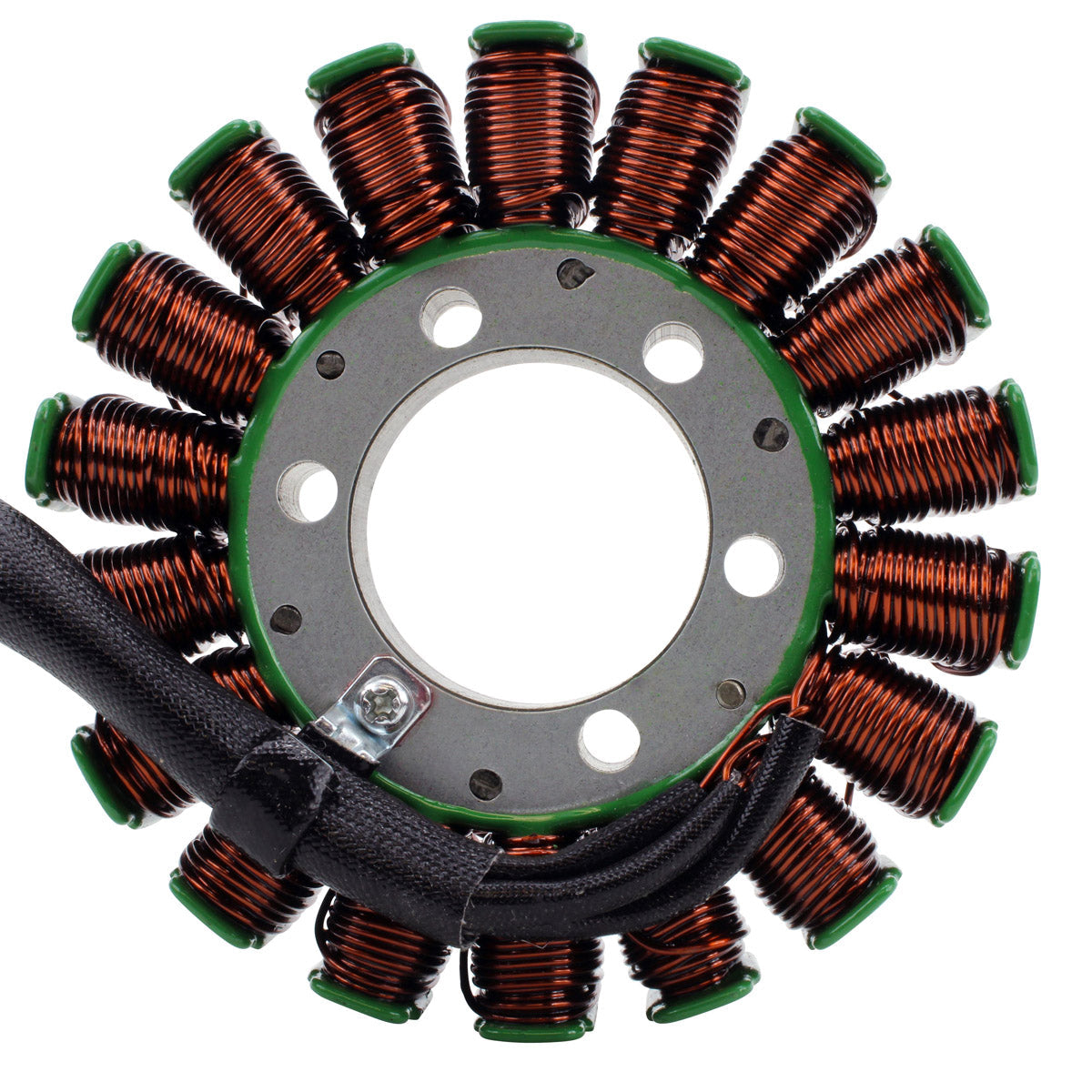

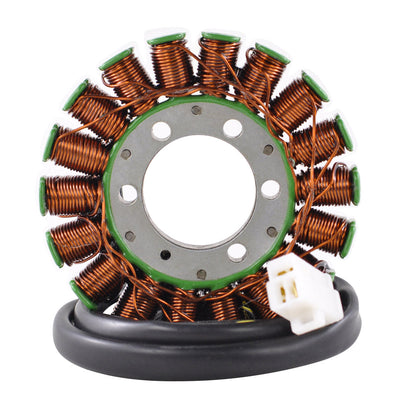

A brand new aftermarket generator stator built as a direct replacement for the original unit fitted to the Kawasaki Ninja 250 R. The stator is the fixed winding inside the alternator cover that produces the AC current your regulator/rectifier converts into the DC supply which charges the battery and feeds the ignition, lighting and instruments. When the windings short, burn or go open circuit, the battery stops charging and the machine will eventually run down and cut out.
This unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on highest grade lamination materials. Fitting is plug-and-play using the original mounting points and the original loom connector, so no cutting, splicing or modification is needed. Connector and rubber grommet are included, and the opposite connector for the main harness side is supplied as well, because those are frequently melted, corroded or defective and are a common cause of repeat electrical faults. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

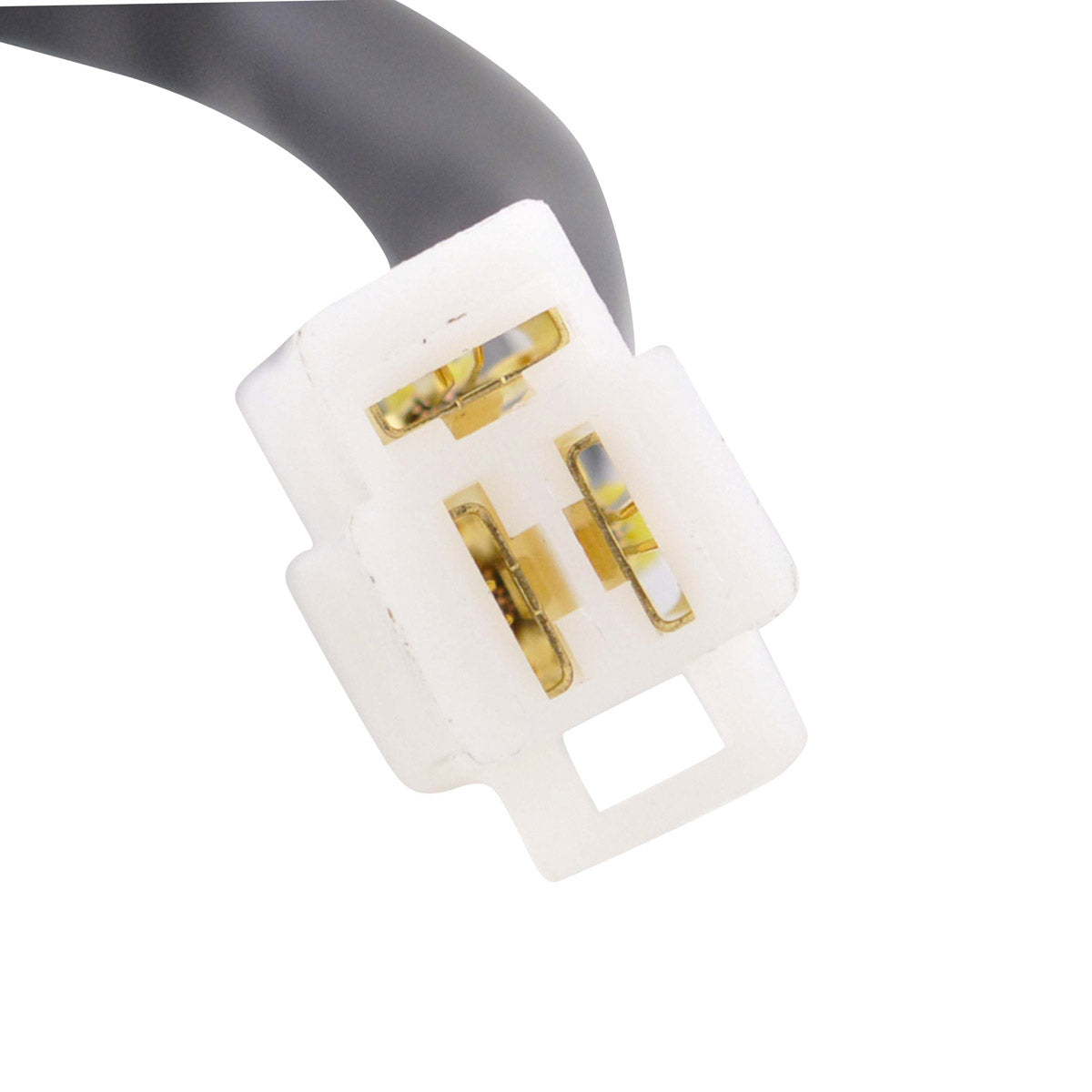

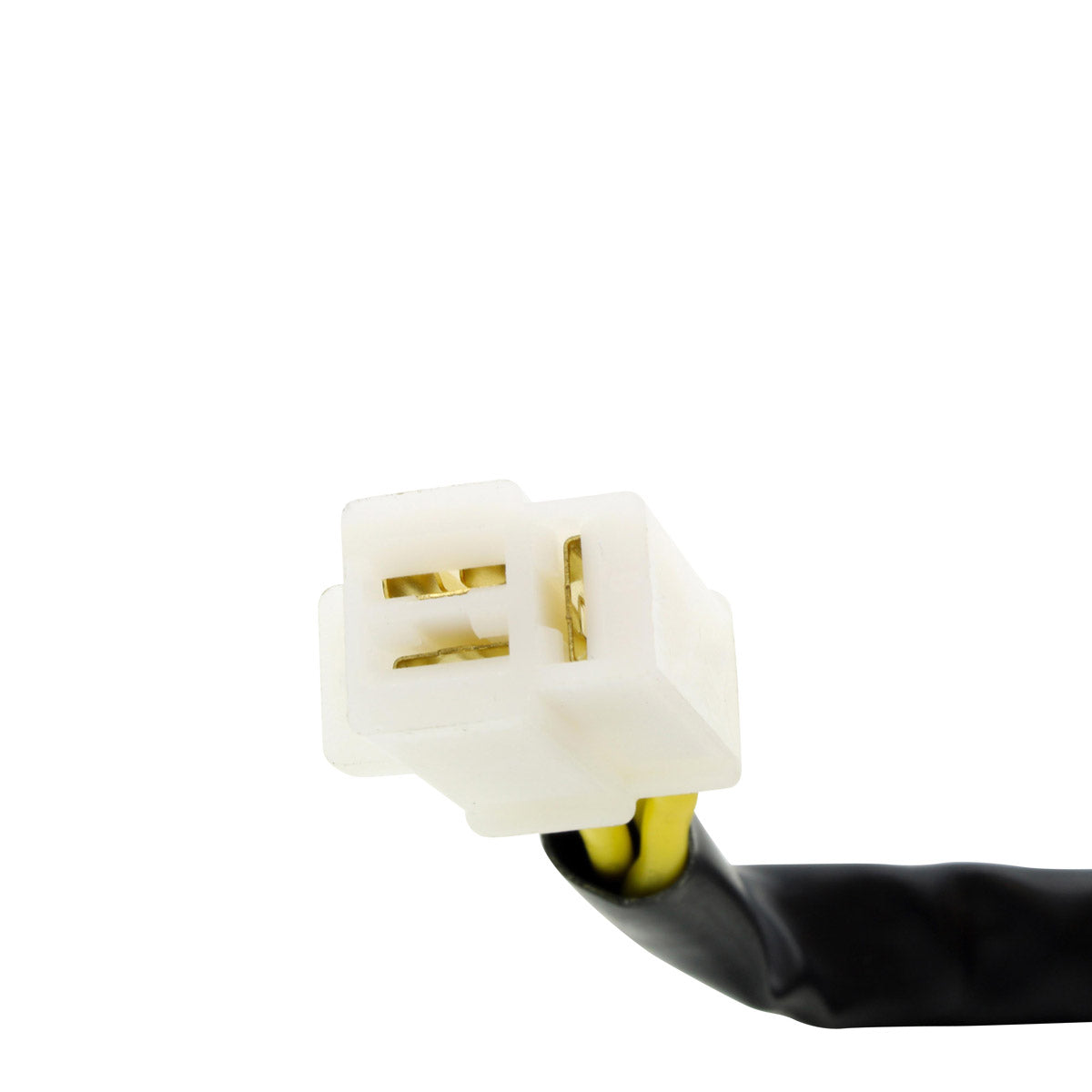

- Connector included
- Rubber grommet included

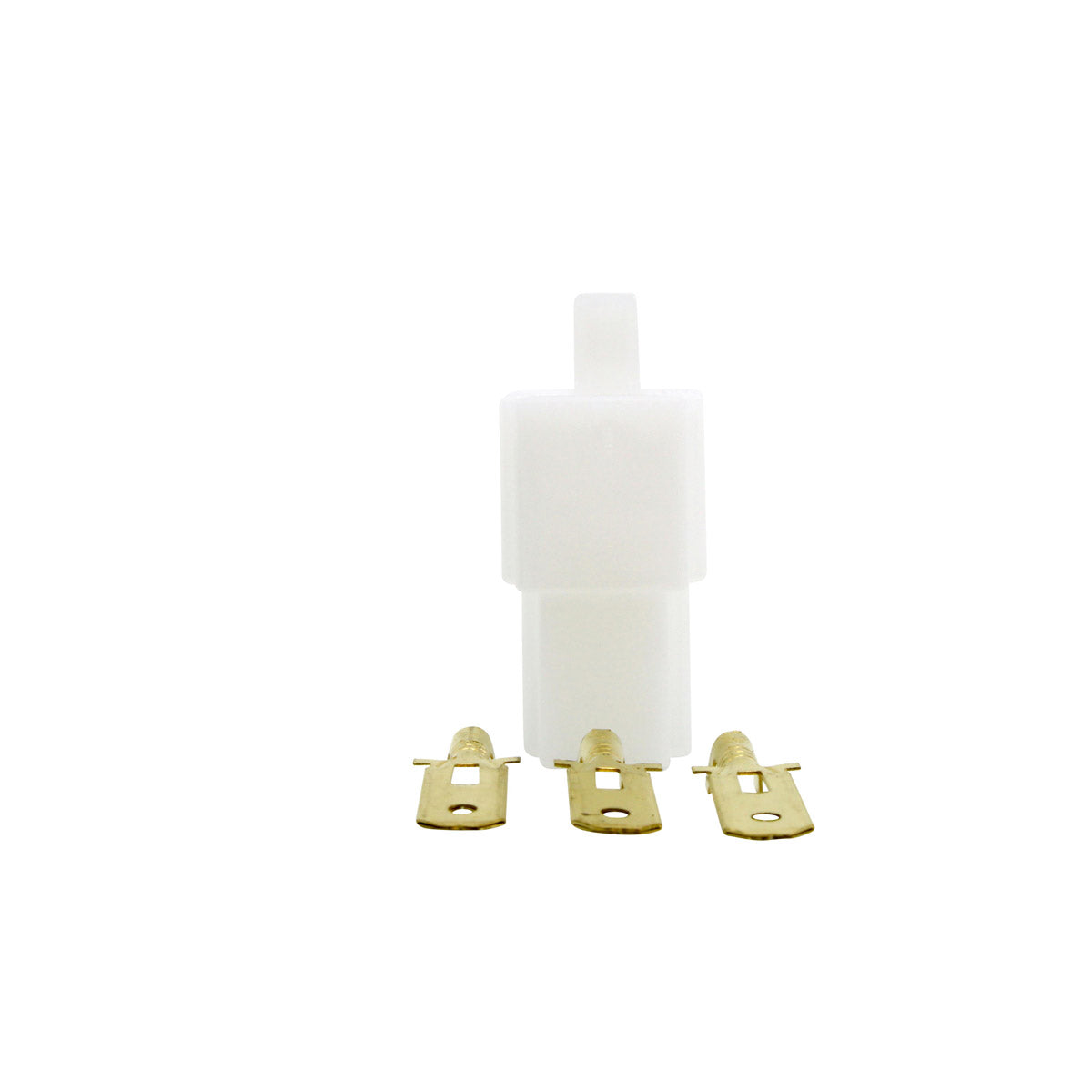

- Opposite connector (main harness side) included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-101490 |
| Interior diameter |
38 mm |
| Exterior diameter |
107 mm |
| Thickness |
15 mm |
| Wire length, stator to grommet |
180 mm |
| Wire length, grommet to plug |
780 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, yellow to yellow |
0.4 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki Ninja 250 R / 250R |
2008-2012 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0074 |
Kawasaki |
| 21003-0114 |
Kawasaki |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit and installs plug-and-play using the standard mounting points and the original loom plug. No cutting, splicing or modification of the harness is required.
What is included?

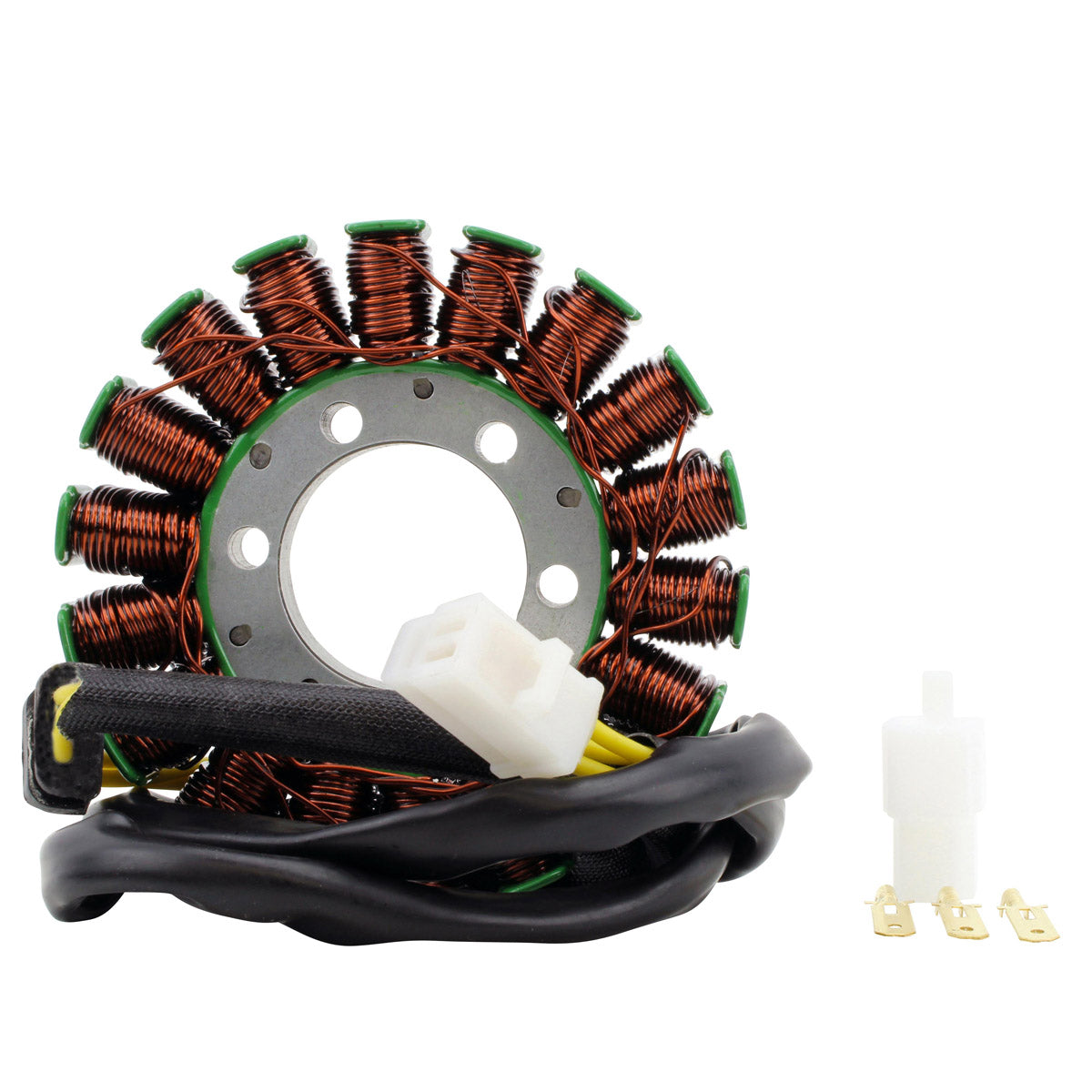

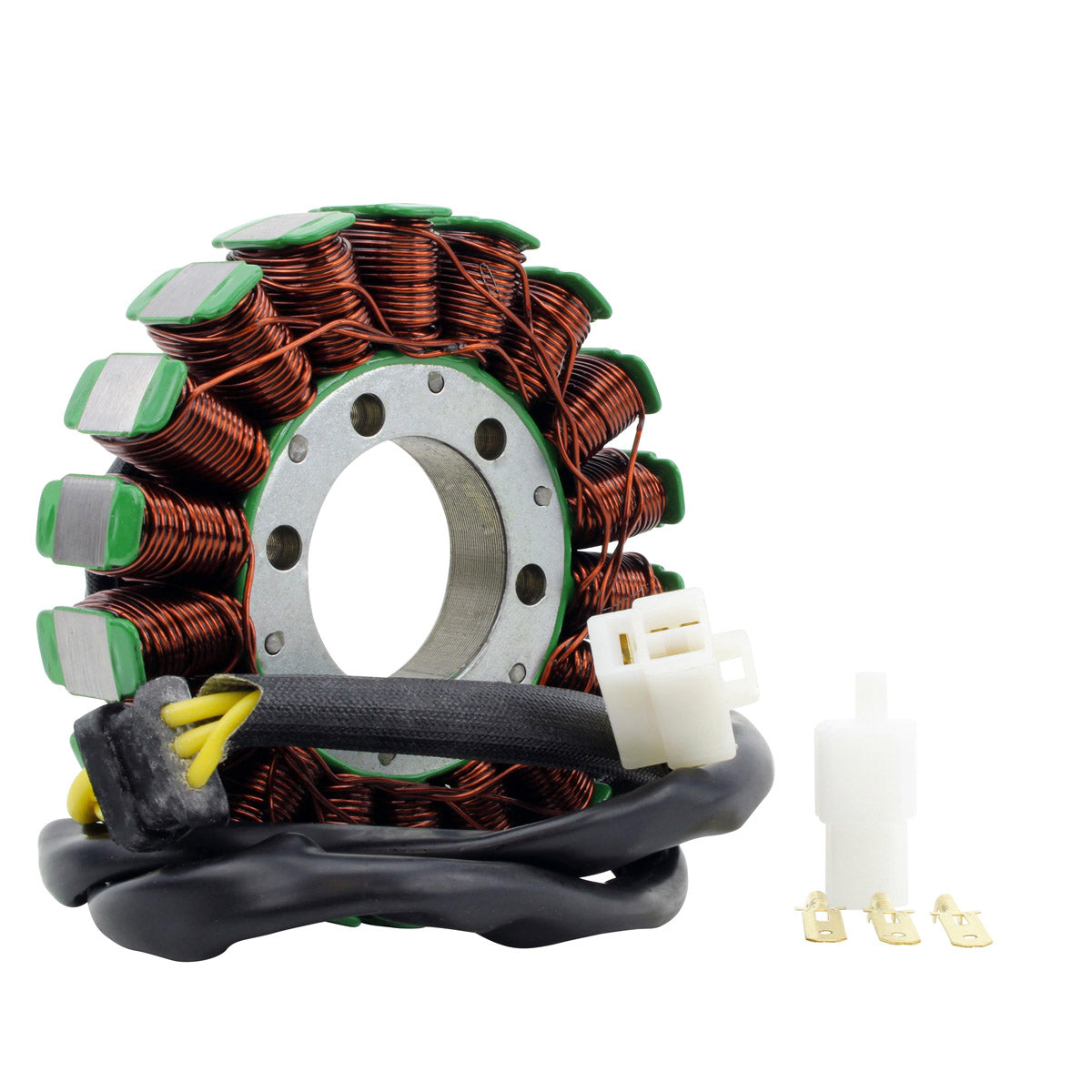

The stator with its connector and rubber grommet, plus the opposite connector for the main harness side, which is included because the original one is often melted, corroded or defective.
How do I know my old stator has failed?
Measure resistance between each pair of yellow alternator wires. A healthy unit reads approximately 0.4 ohms, within plus or minus 20 per cent. A reading far outside that, or continuity between any yellow wire and earth, points to a failed stator. A battery that goes flat in use, dimming lights and a low charging voltage at the battery are the usual symptoms.
How long are the leads on this stator?
There are 3 wires running 180 mm from the stator body to the grommet, then a further 780 mm from the grommet to a single 3-pin plug, matching the original routing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
