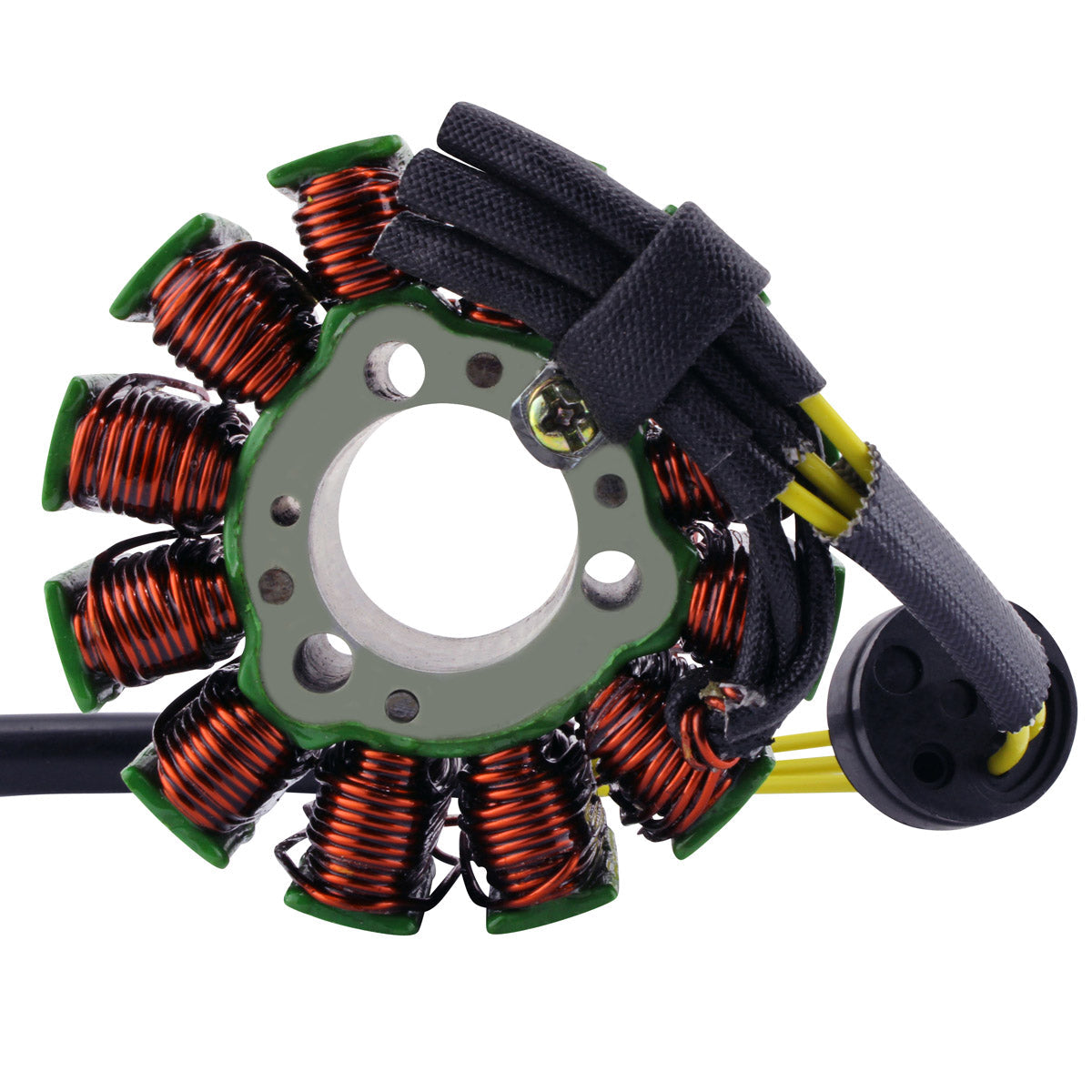

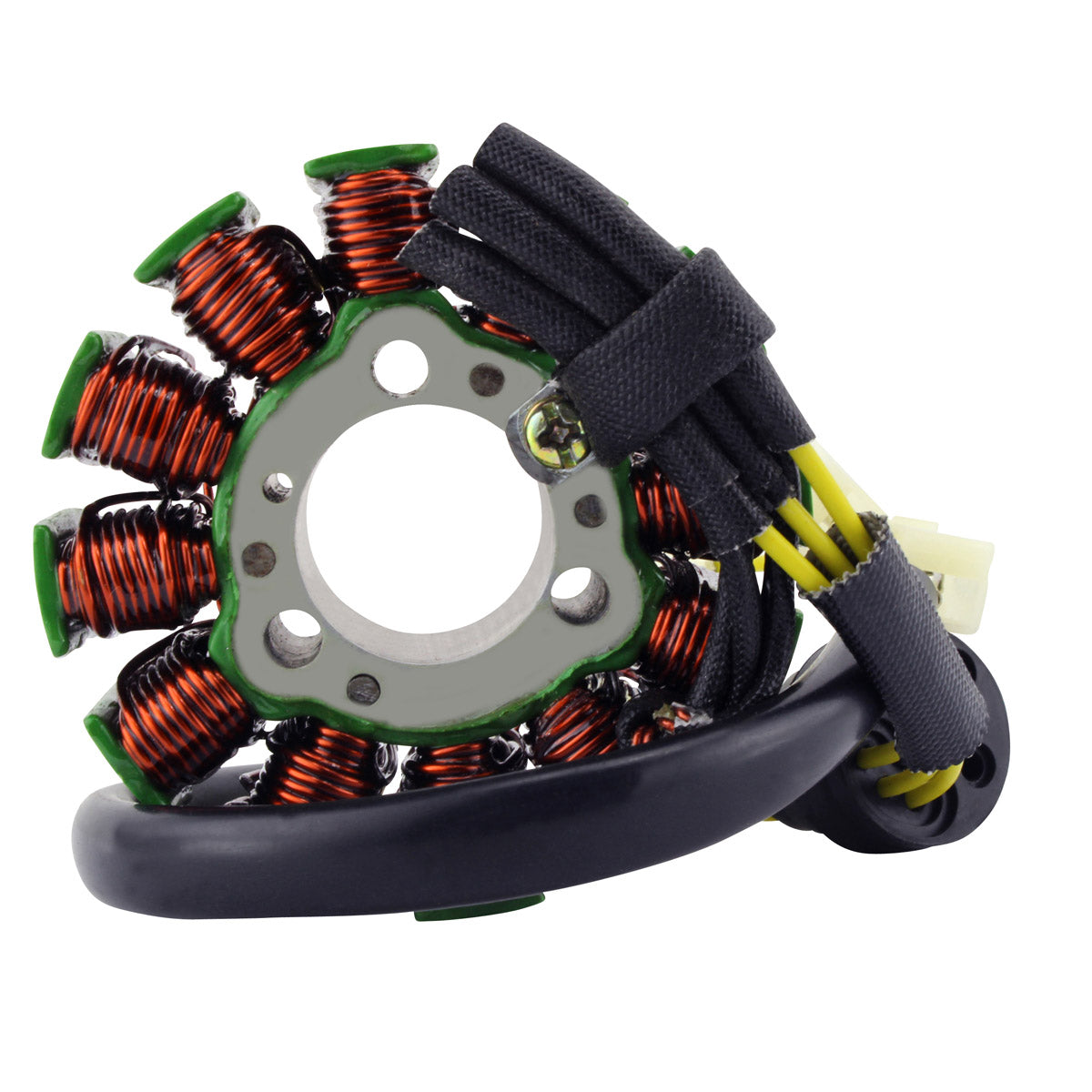

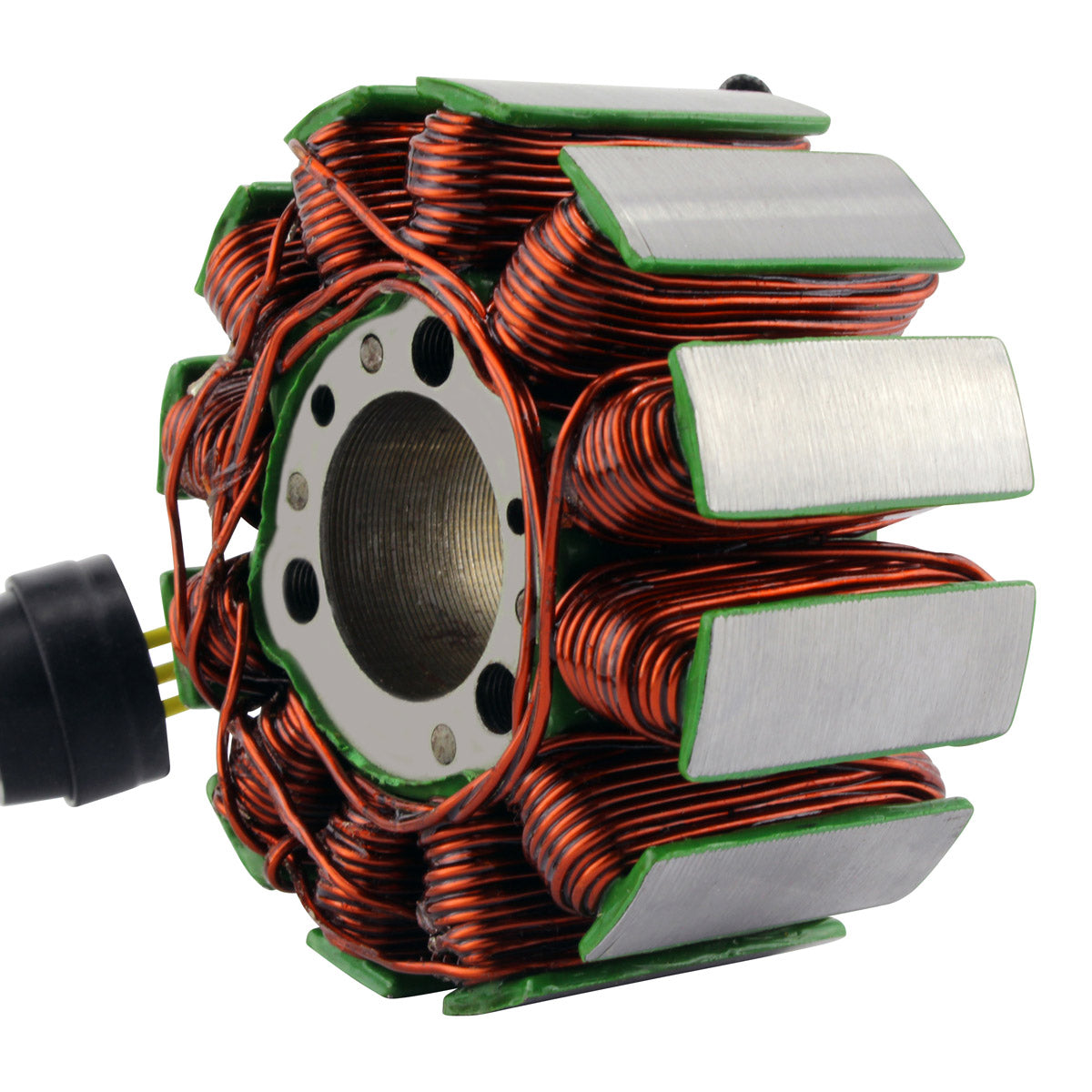

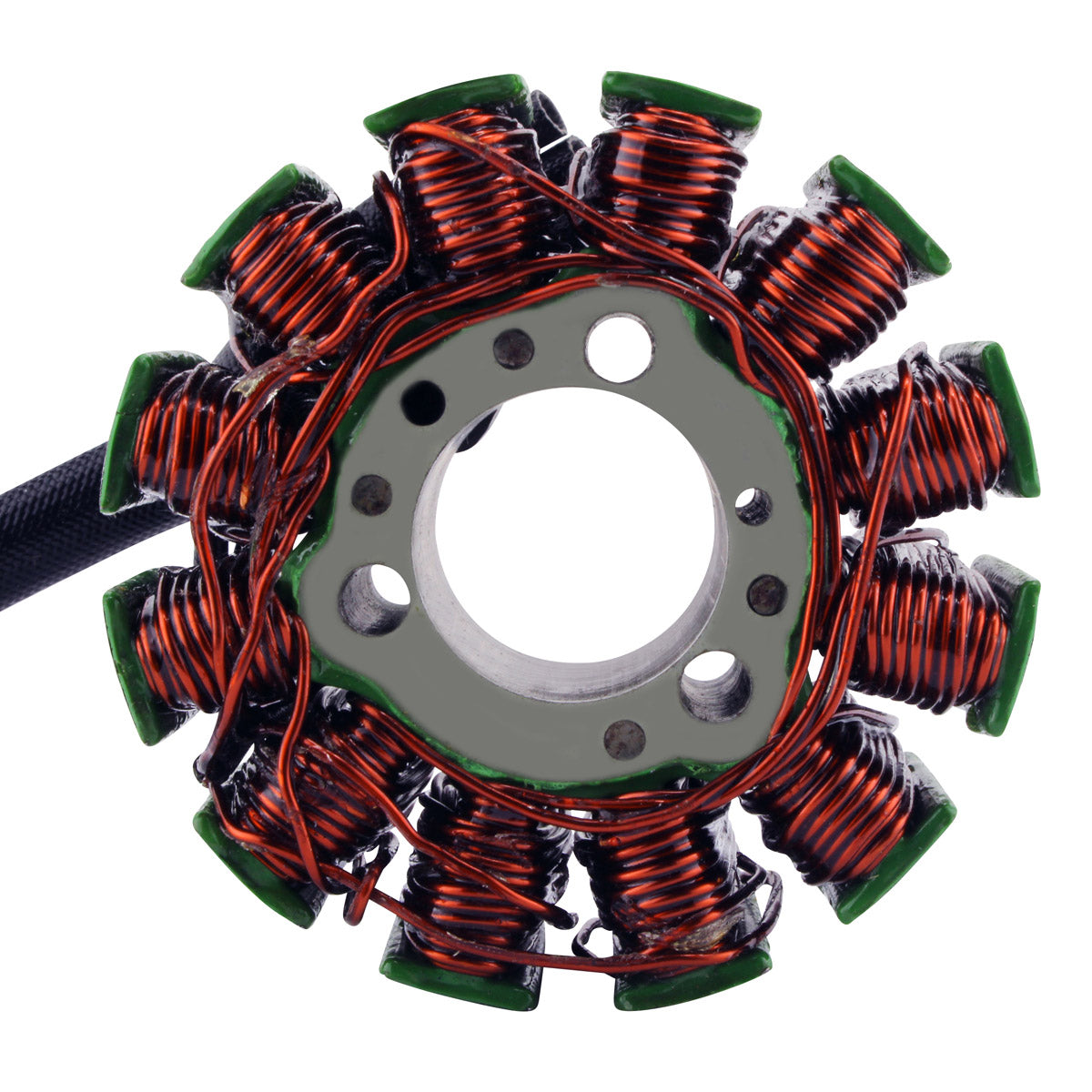

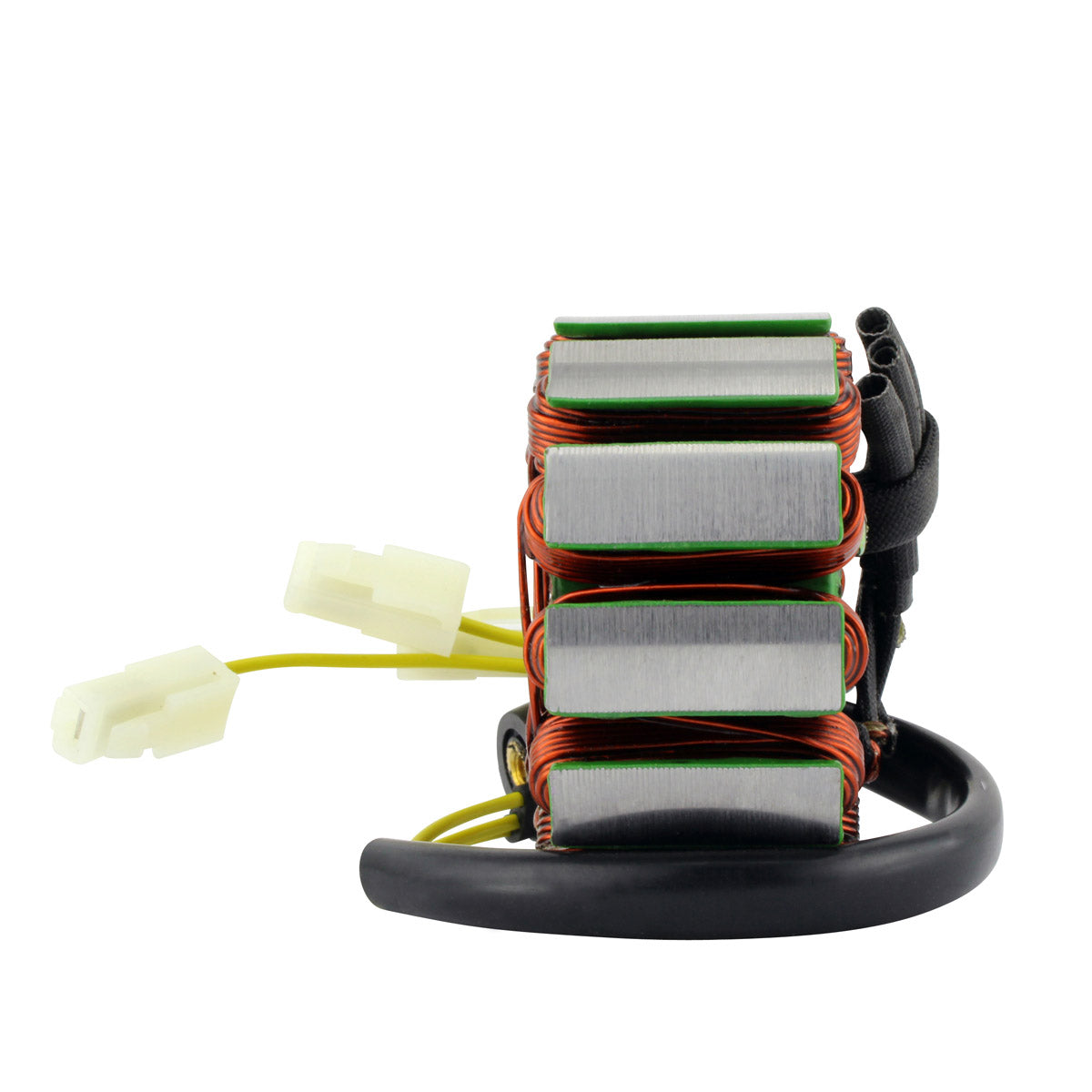

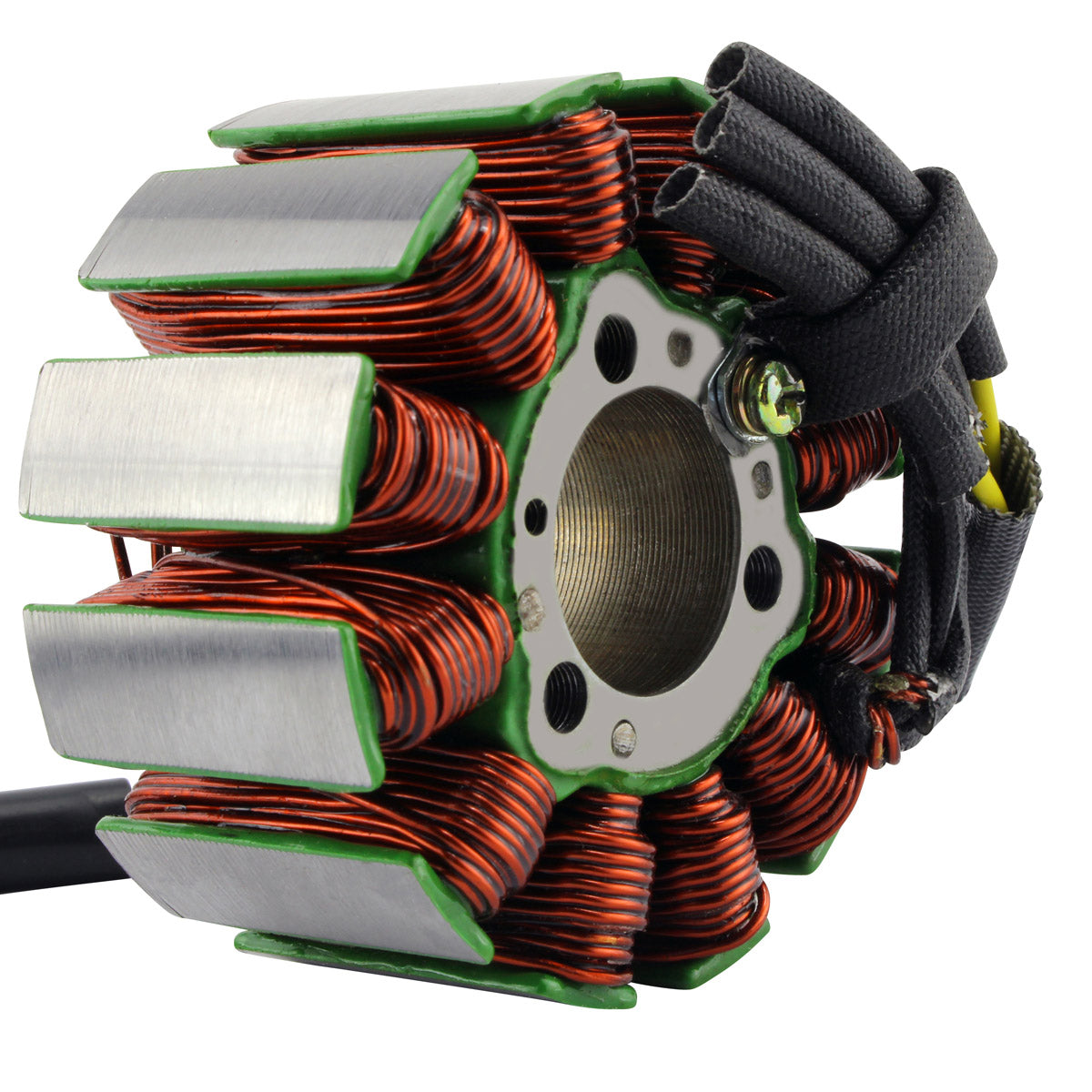

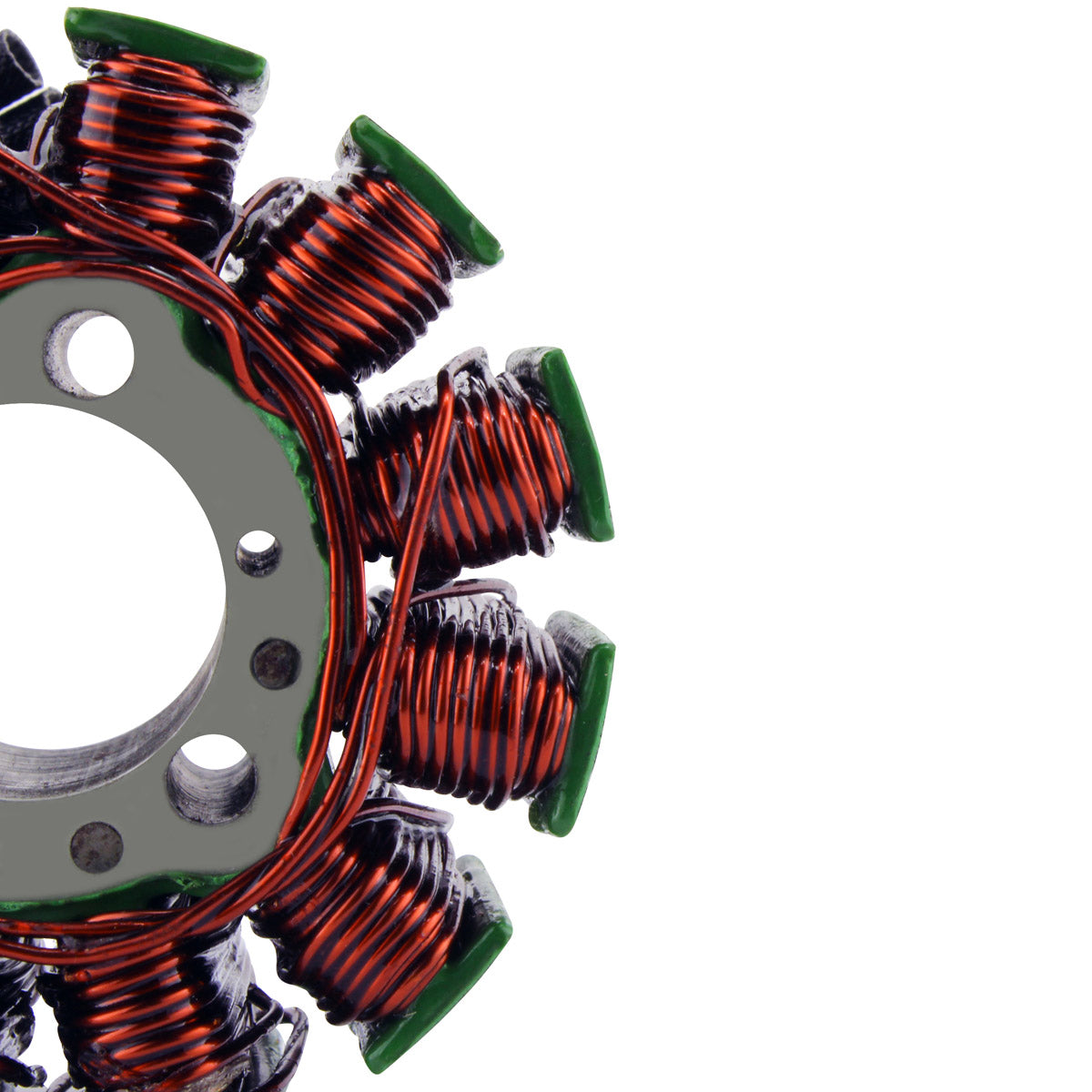

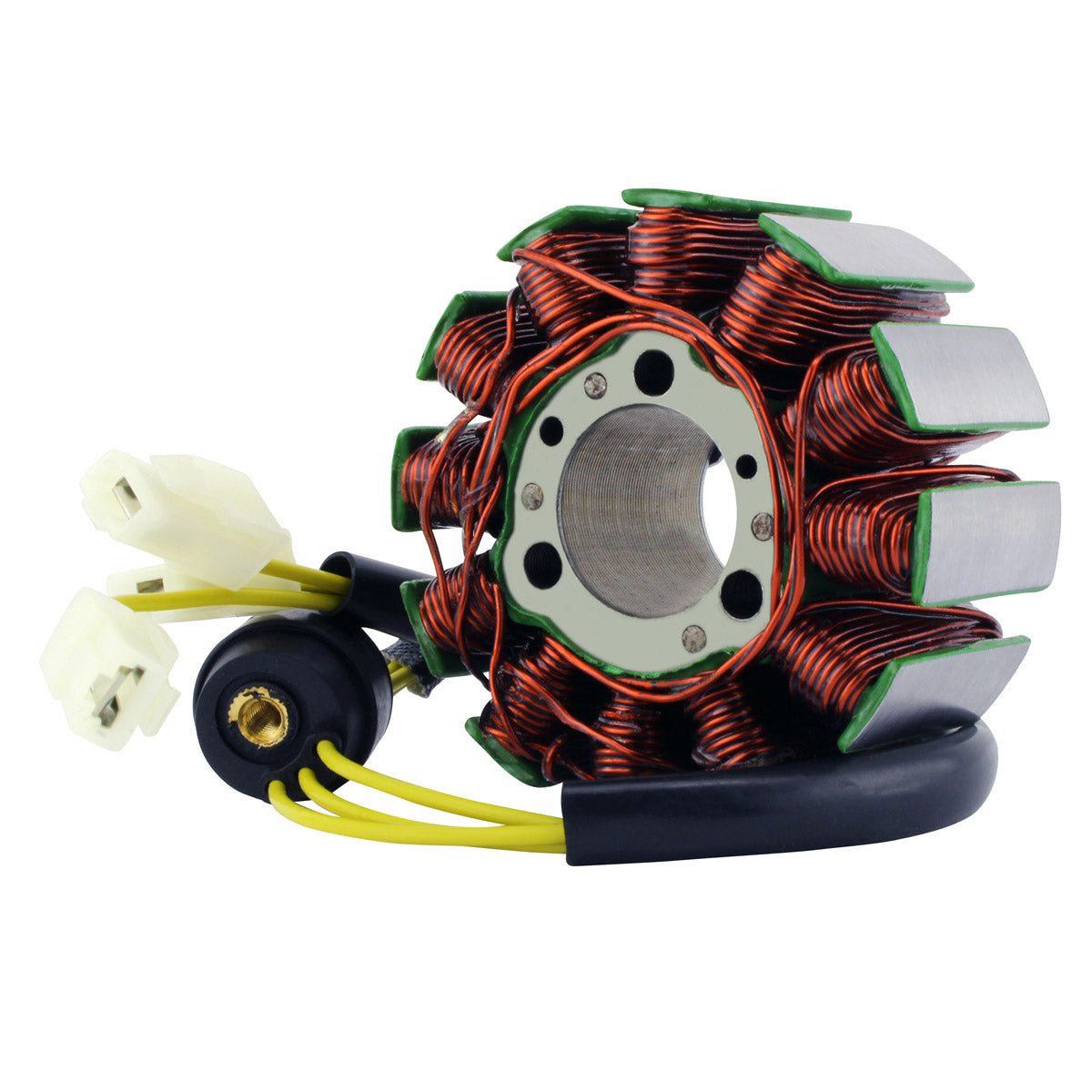

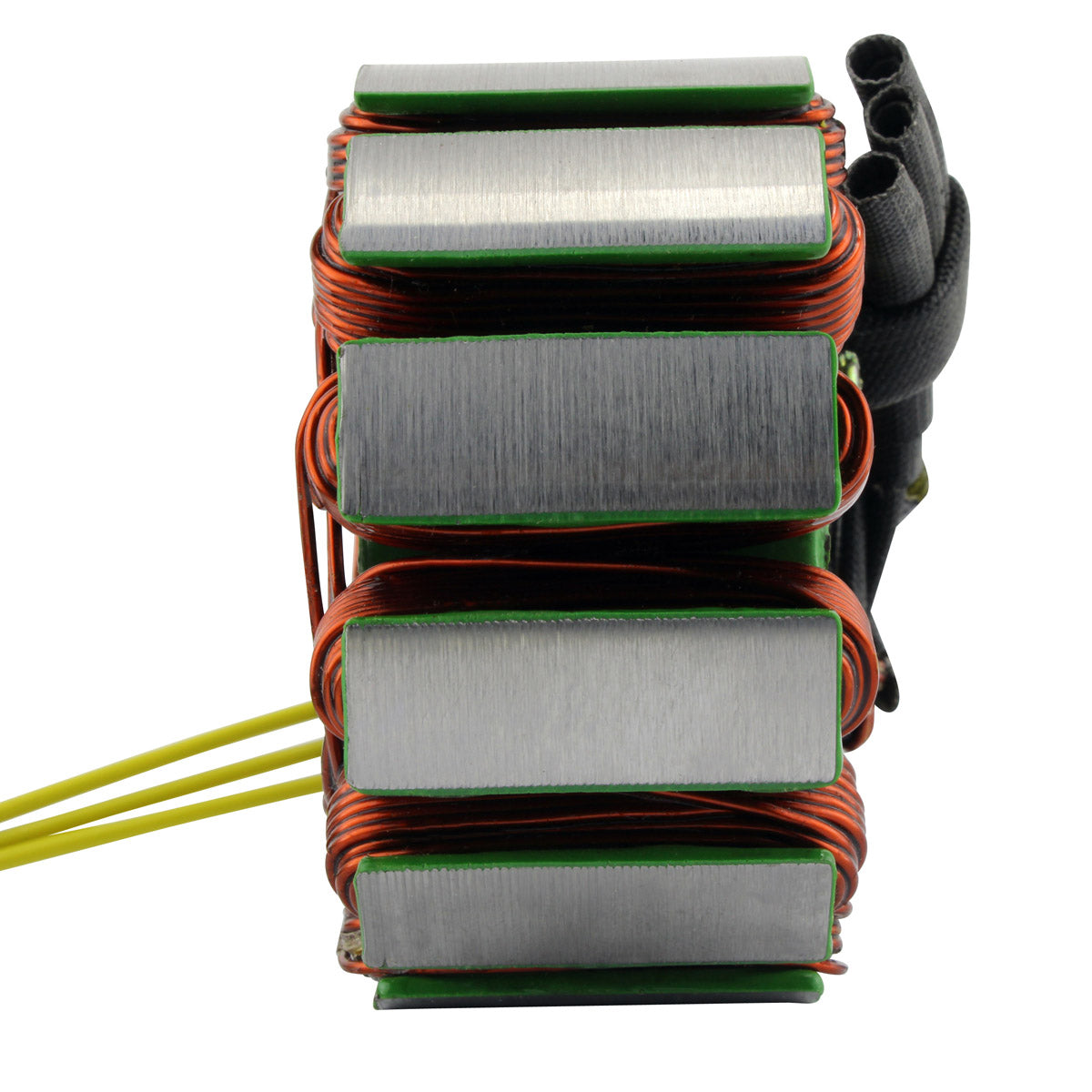

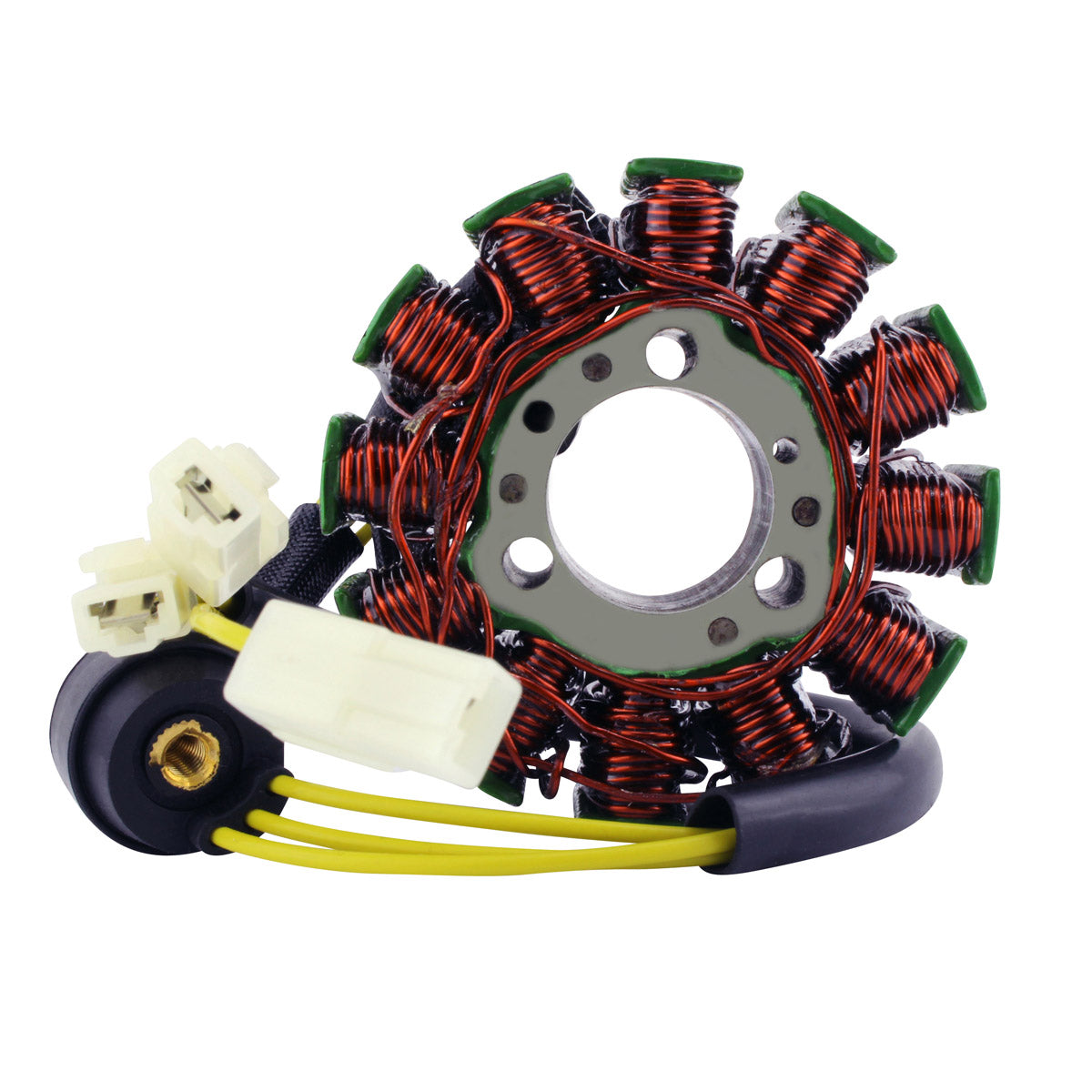

This is a brand new aftermarket stator, built as a direct replacement for the original charging coil fitted to the Kawasaki Ninja ZX-10R of 2004 and 2005. It is a plug-and-play, direct fit unit, so it mounts in the original position and connects to the existing loom without any modification to the engine cases or the wiring harness. Every unit is tested before it is shipped.
The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. It delivers 20% more output over stock while working with all other OEM components, so the standard regulator rectifier, battery and loom can all be retained. Connectors and a rubber grommet are supplied with the unit, and the opposite connector for the main harness side is included as well, because that plug is often melted, corroded or defective and is a major cause of repetitive electrical issues.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- 20% more output over stock, works with all other OEM components
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

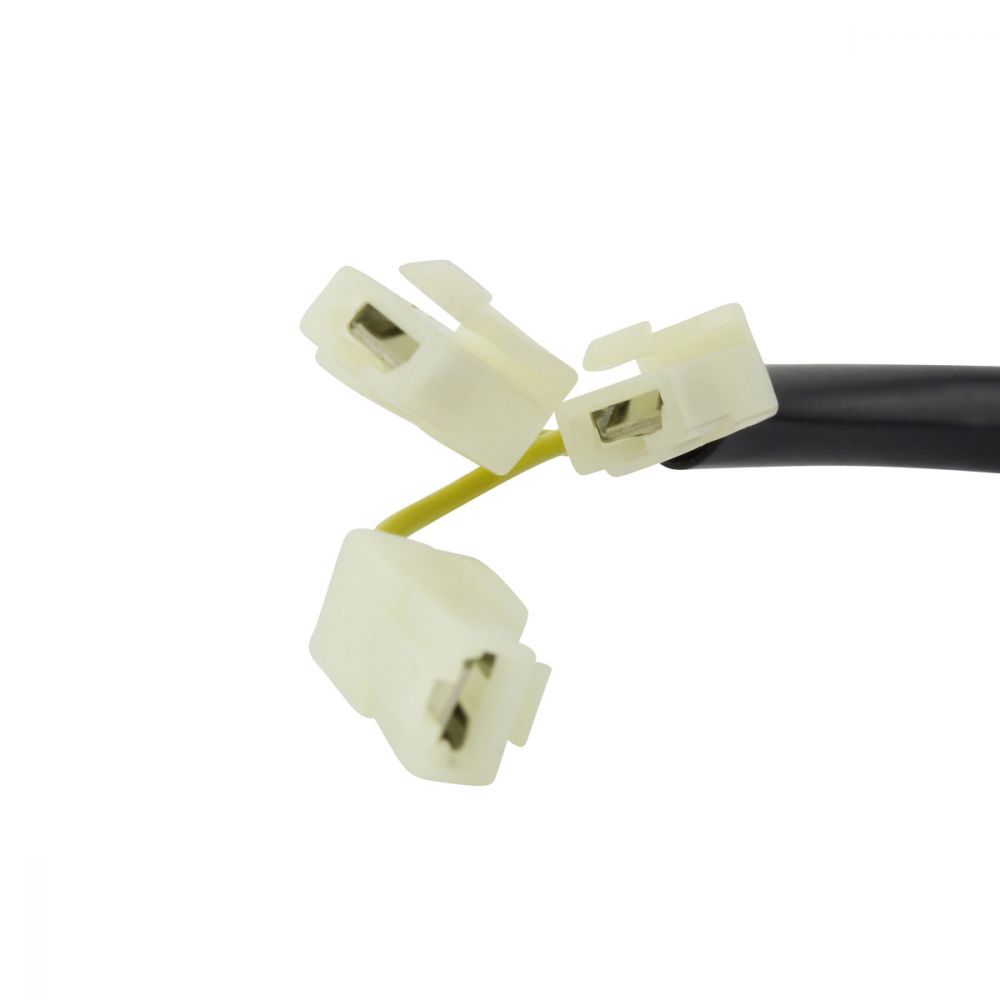

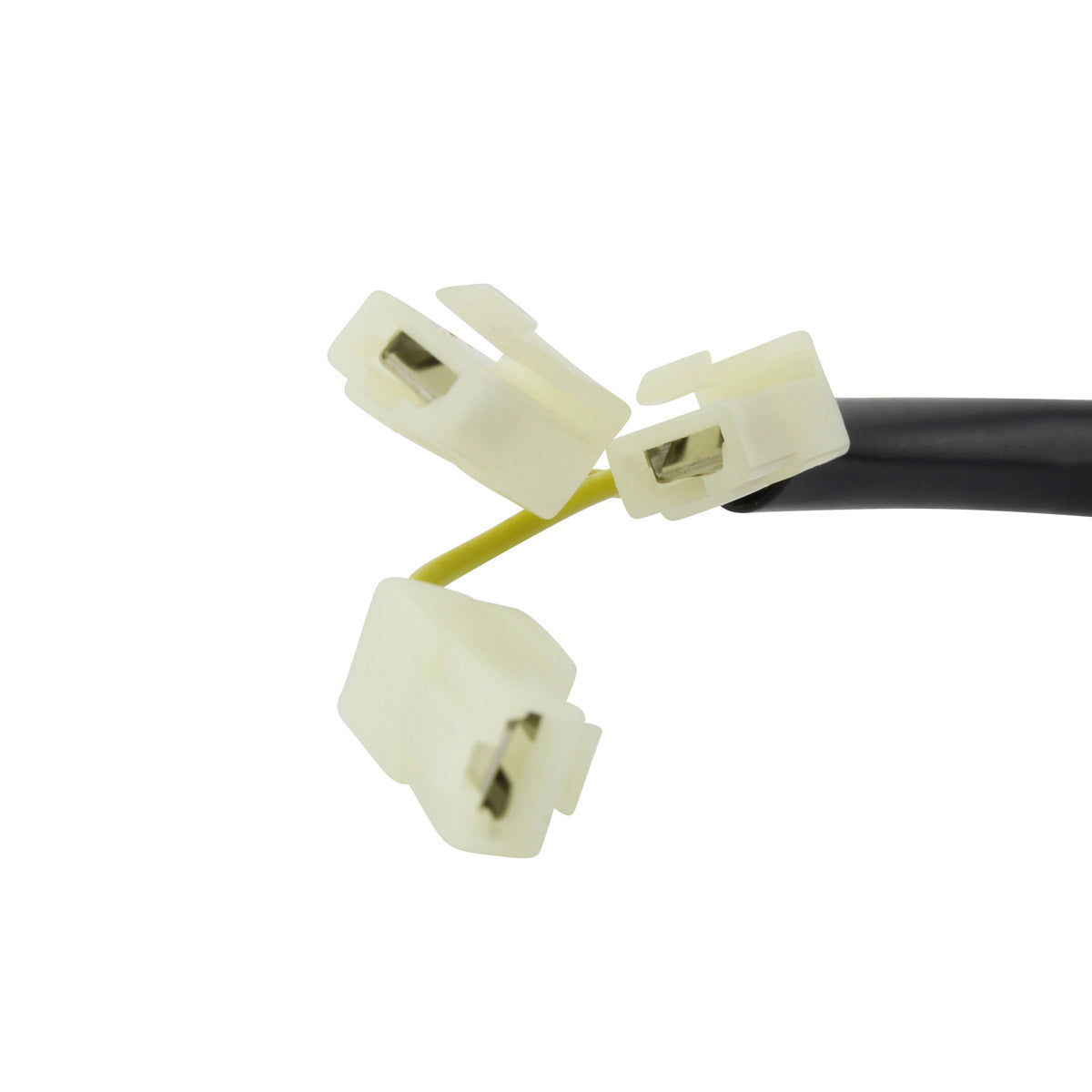

- Connectors included

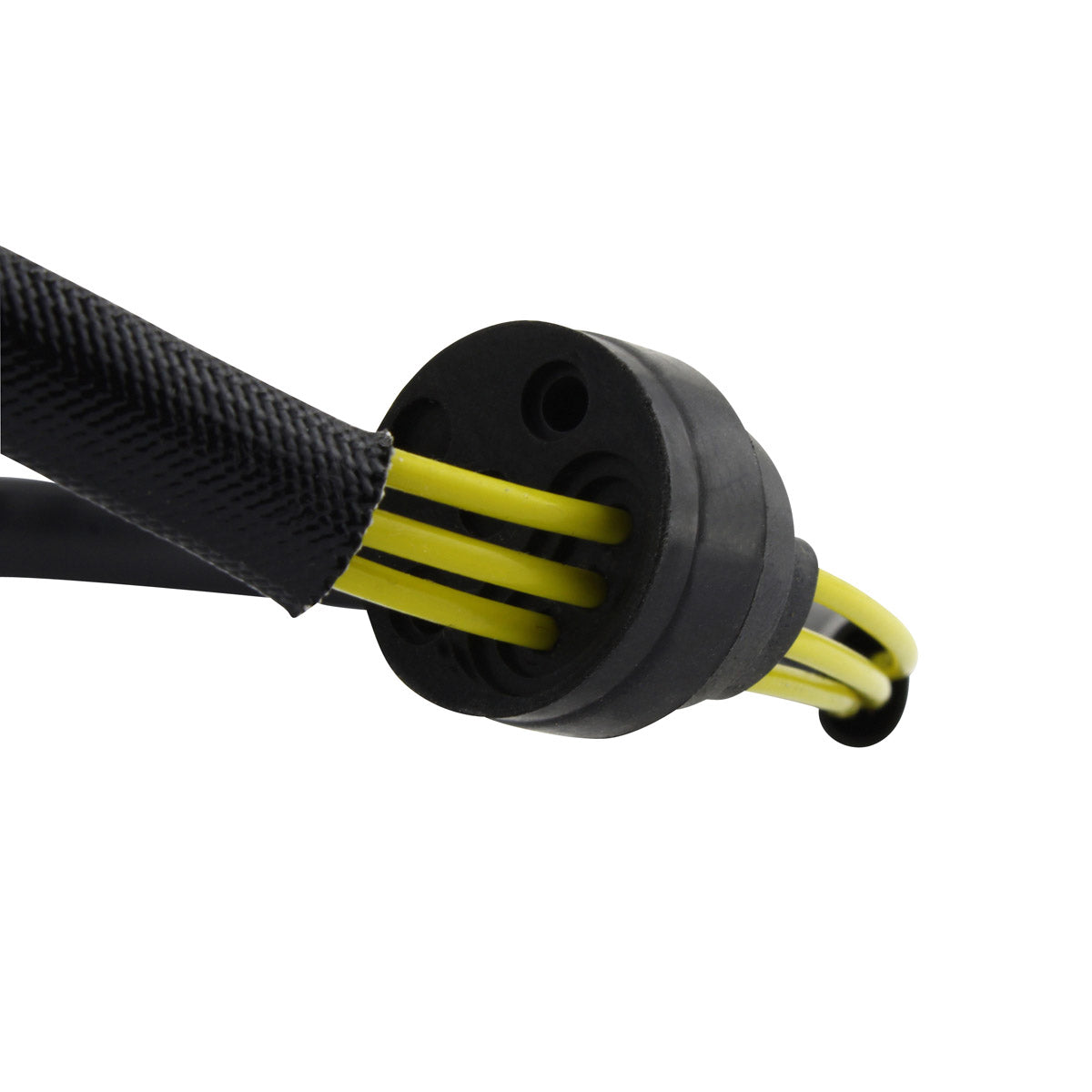

- Rubber grommet included
- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-107644 |
| Interior diameter |
24 mm |
| Exterior diameter |
72 mm |
| Thickness |
32 mm |
| Wire length, stator to grommet |
60 mm |
| Wire length, grommet to plug |
230 mm, 270 mm, 300 mm |
| Number of wires |
3 |
| Number of plugs |
3 |
| Number of pins |
3 |
| Number of poles |
12 |
| Alternator resistance |
Yellow to Yellow = 0.4 ohms +-20% |
| Alternator to ground |
Yellow to ground = O.L |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki Ninja ZX-10R |
2004-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0019 |
Kawasaki |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the Ninja ZX-10R models listed above, using the original mounting points and connectors. No cutting, splicing or modification of the engine cases or the wiring harness is required.
What is included?
The stator, the connectors and a rubber grommet. The opposite connector for the main harness side is also included, so a melted or corroded plug on the loom can be renewed at the same time.
How can I tell that my old stator has failed?
The usual signs are a battery that will not stay charged, dim or flickering lights, and charging voltage that does not rise above battery voltage with the engine running. The resistance figures above help confirm it: a healthy unit reads about 0.4 ohms yellow to yellow, and any yellow wire to ground should read open circuit (O.L). Readings well outside those values point to a shorted or open winding.
Will the extra 20% output upset the standard regulator rectifier?
No. This unit is designed to work with all other OEM components, so the original regulator rectifier, battery and wiring can be kept exactly as they are.
