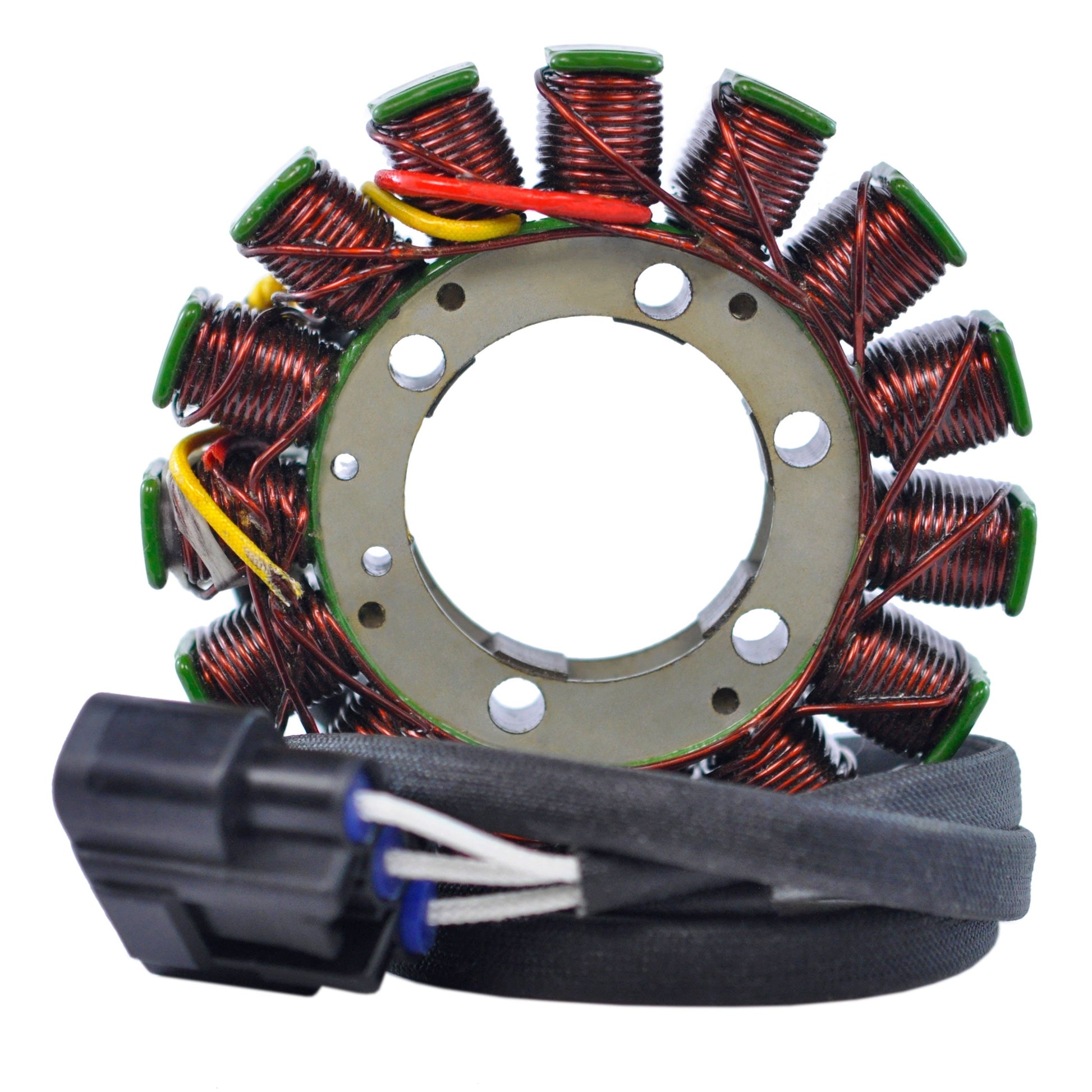

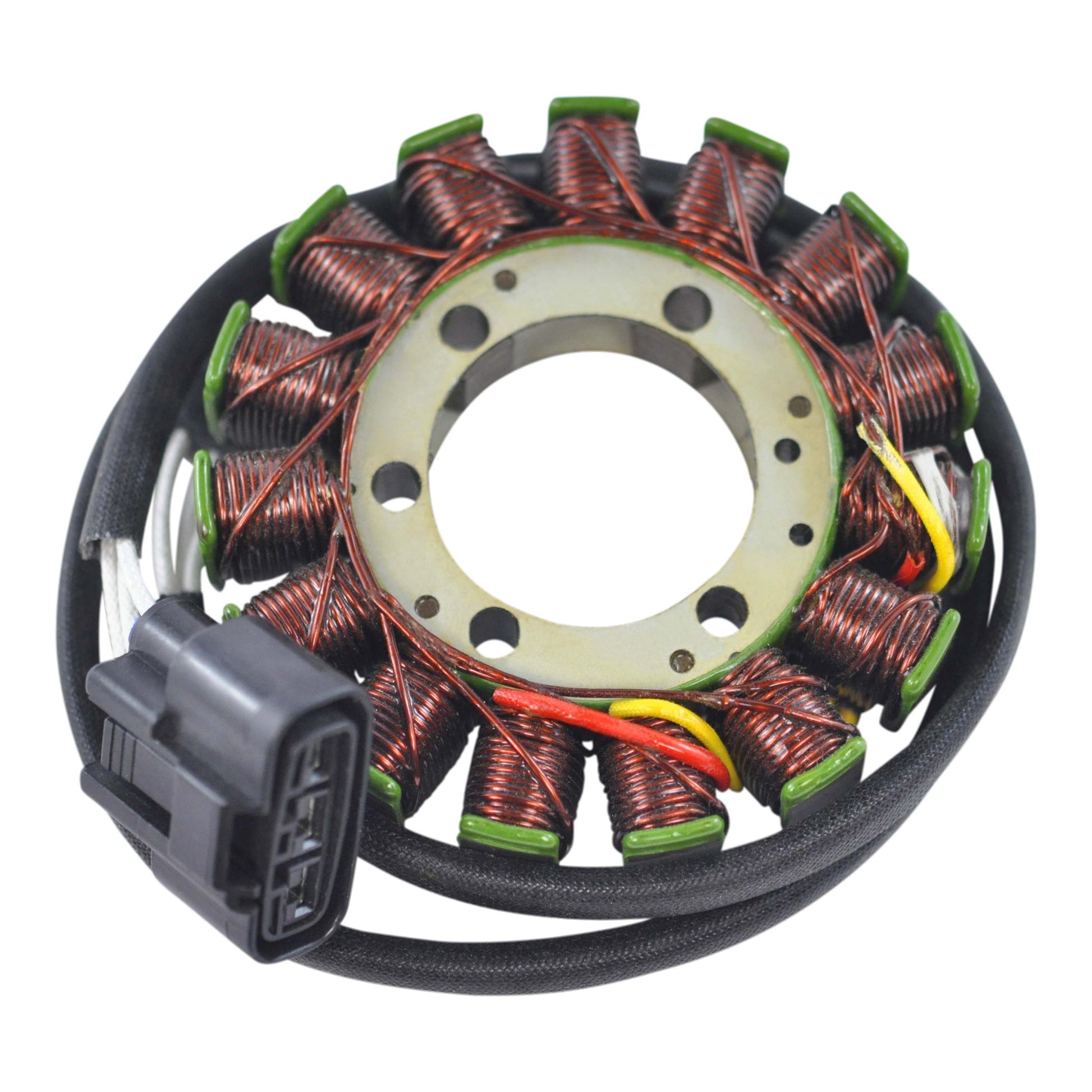

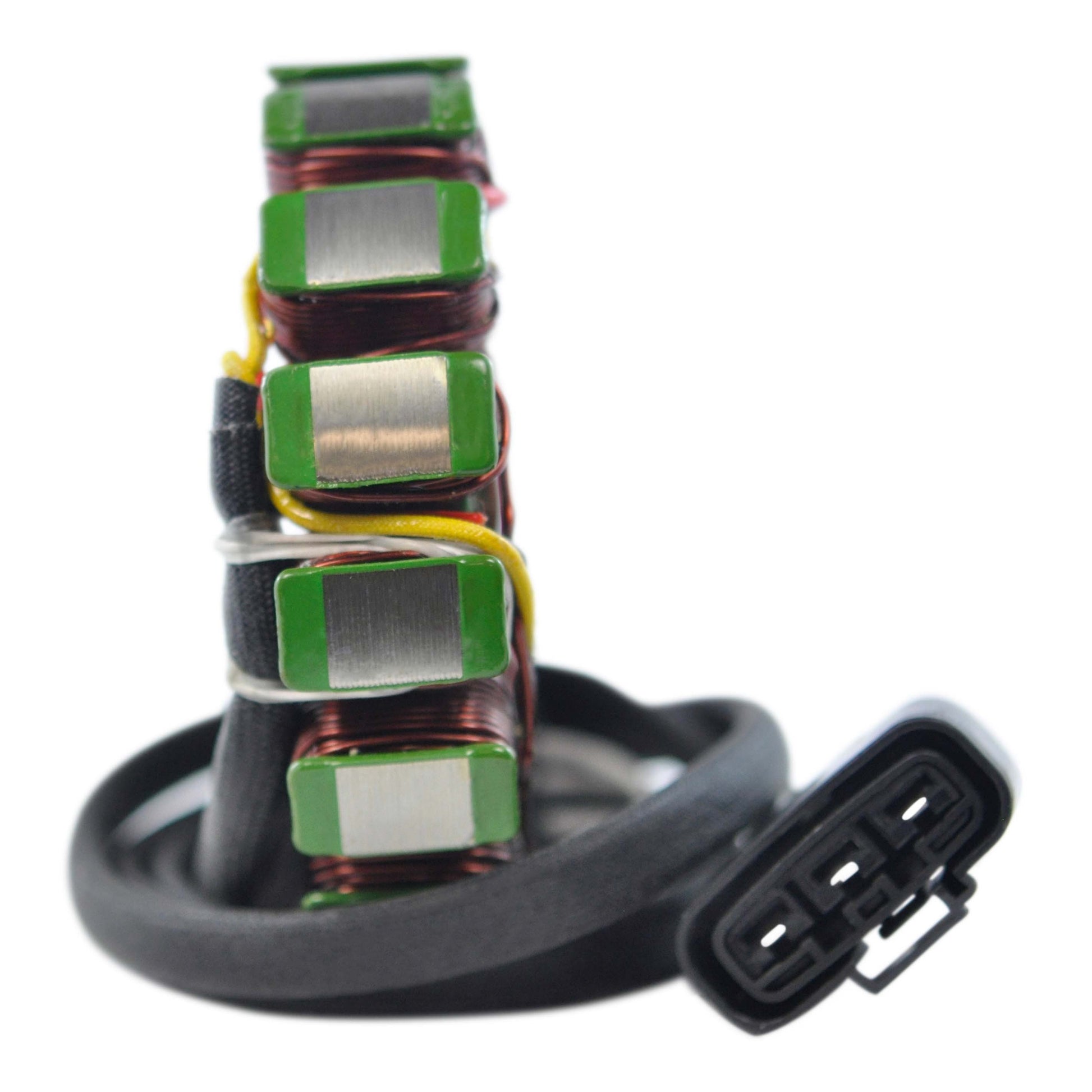

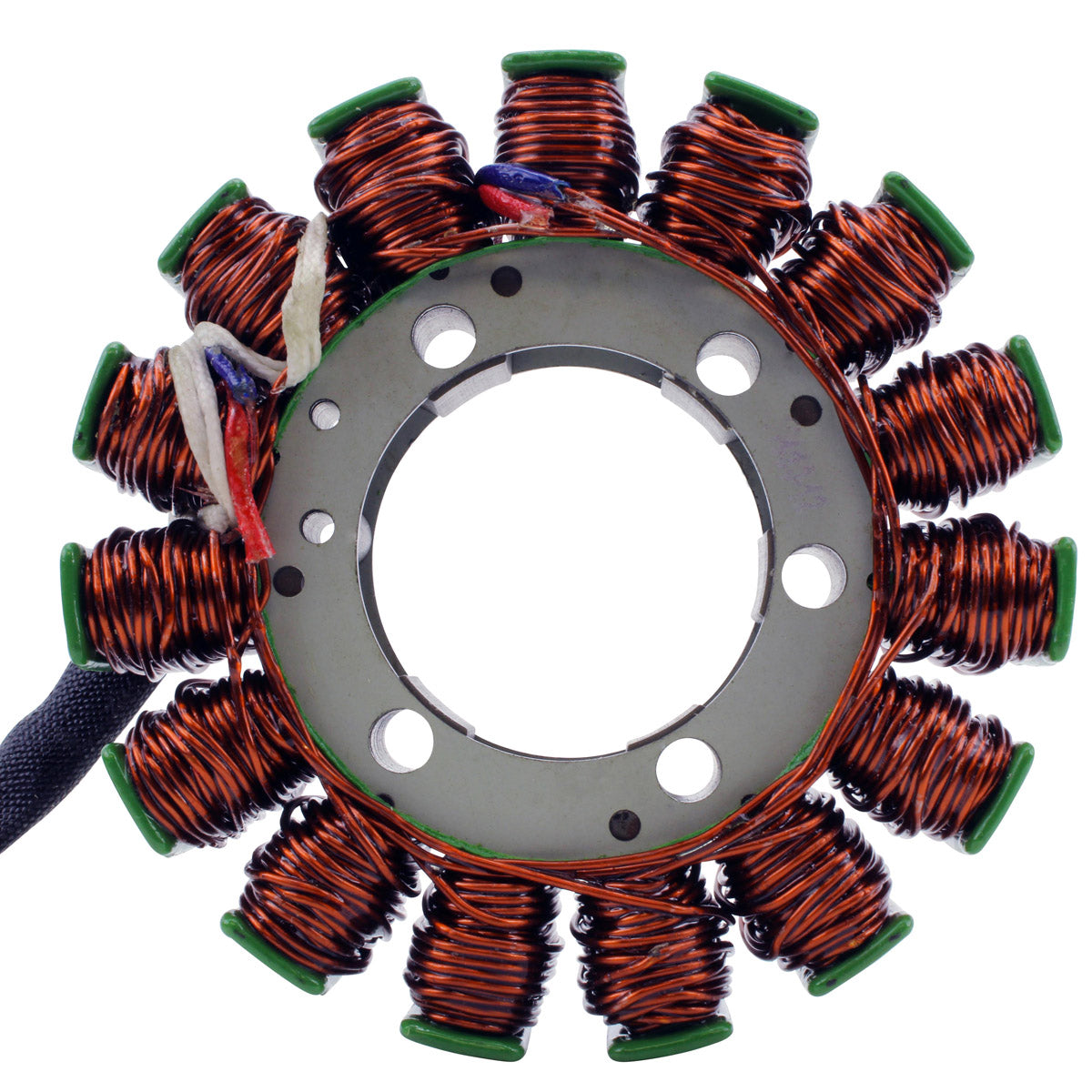

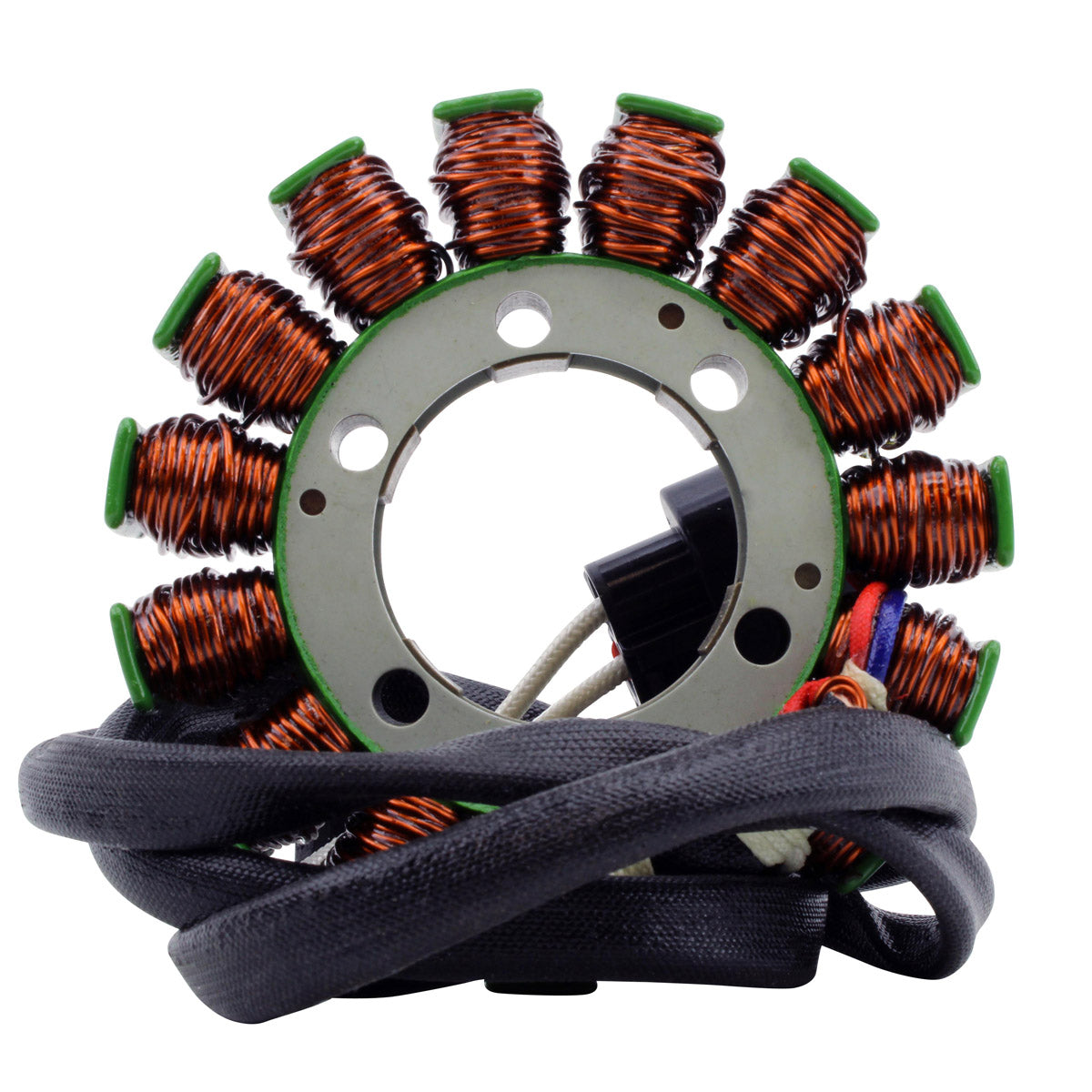

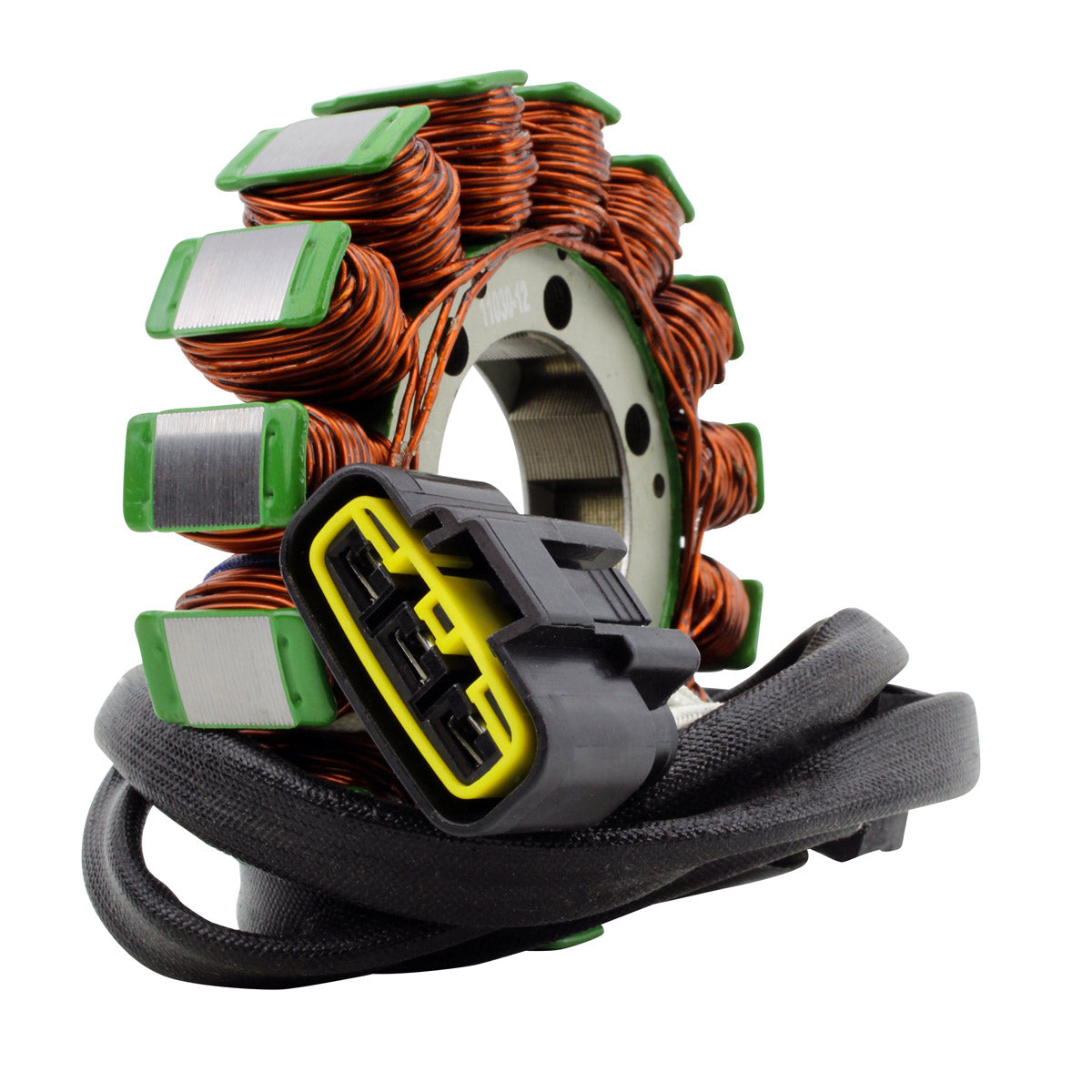

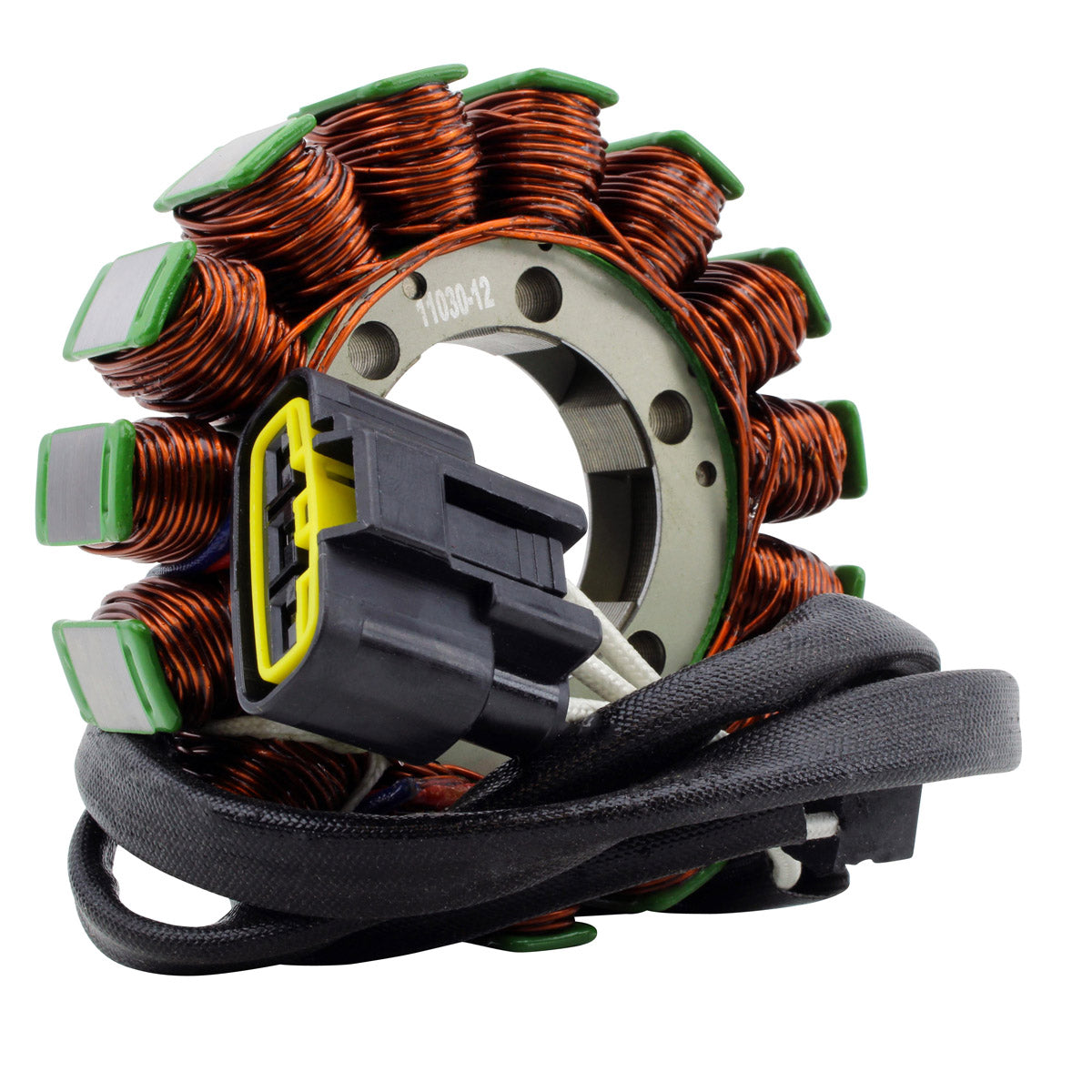

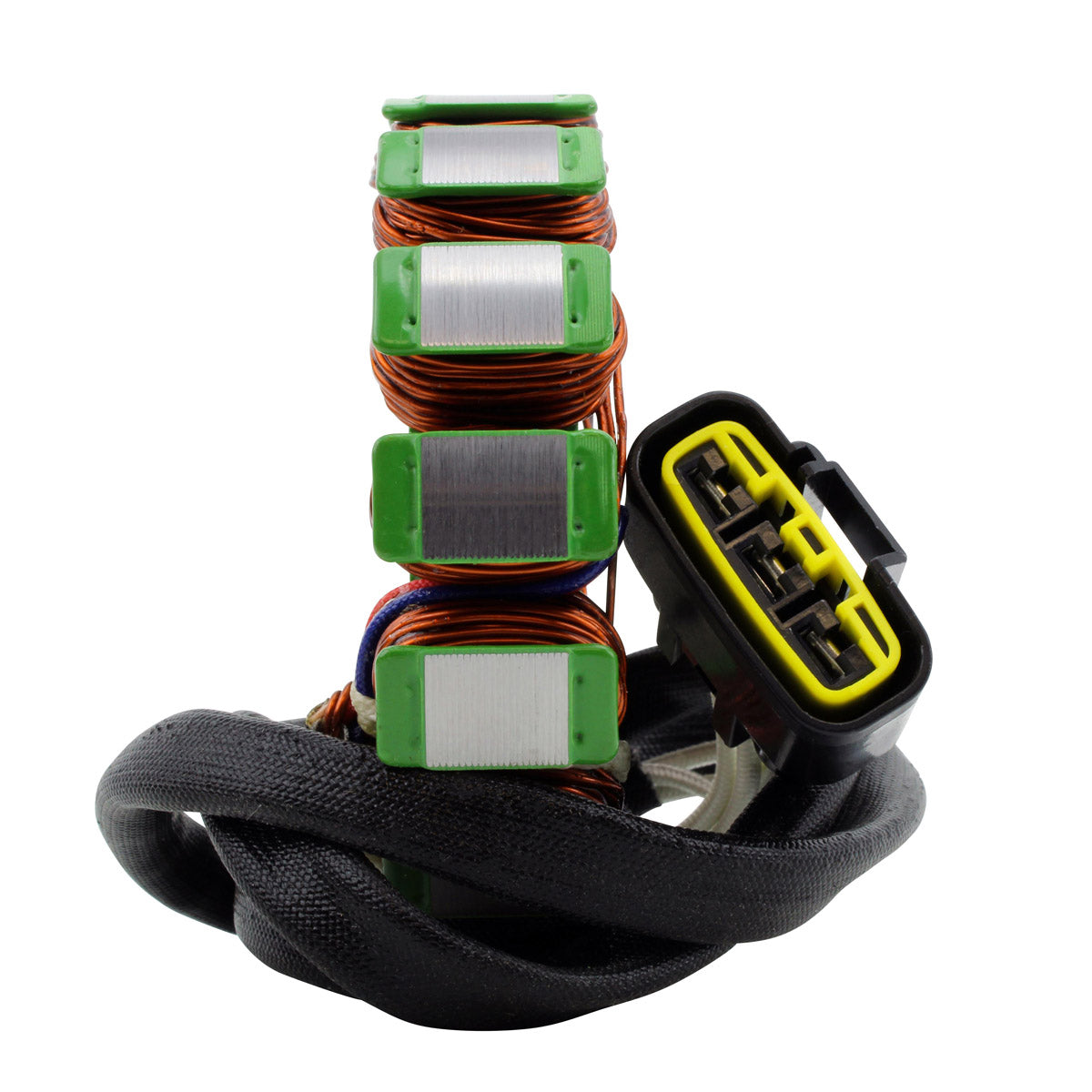

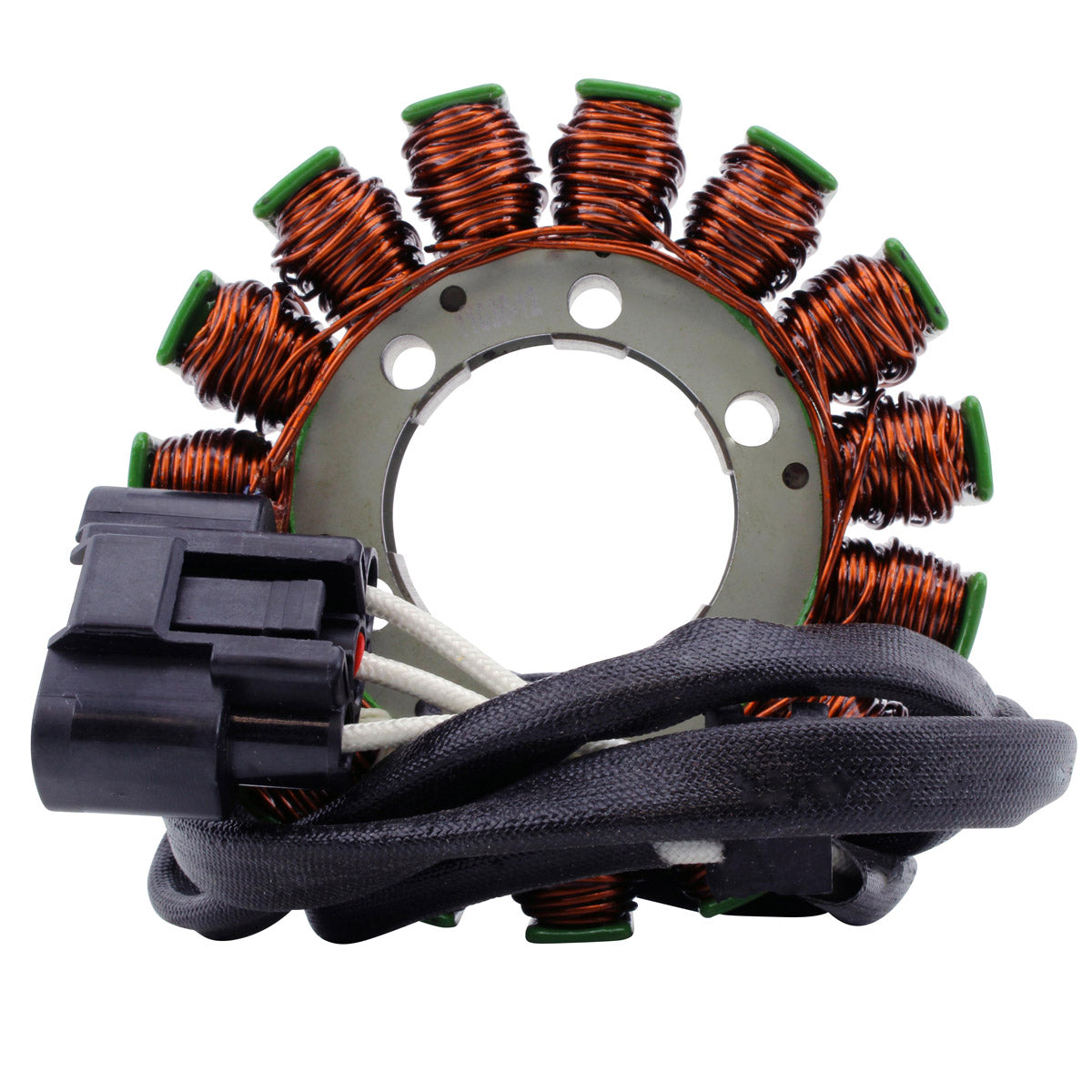

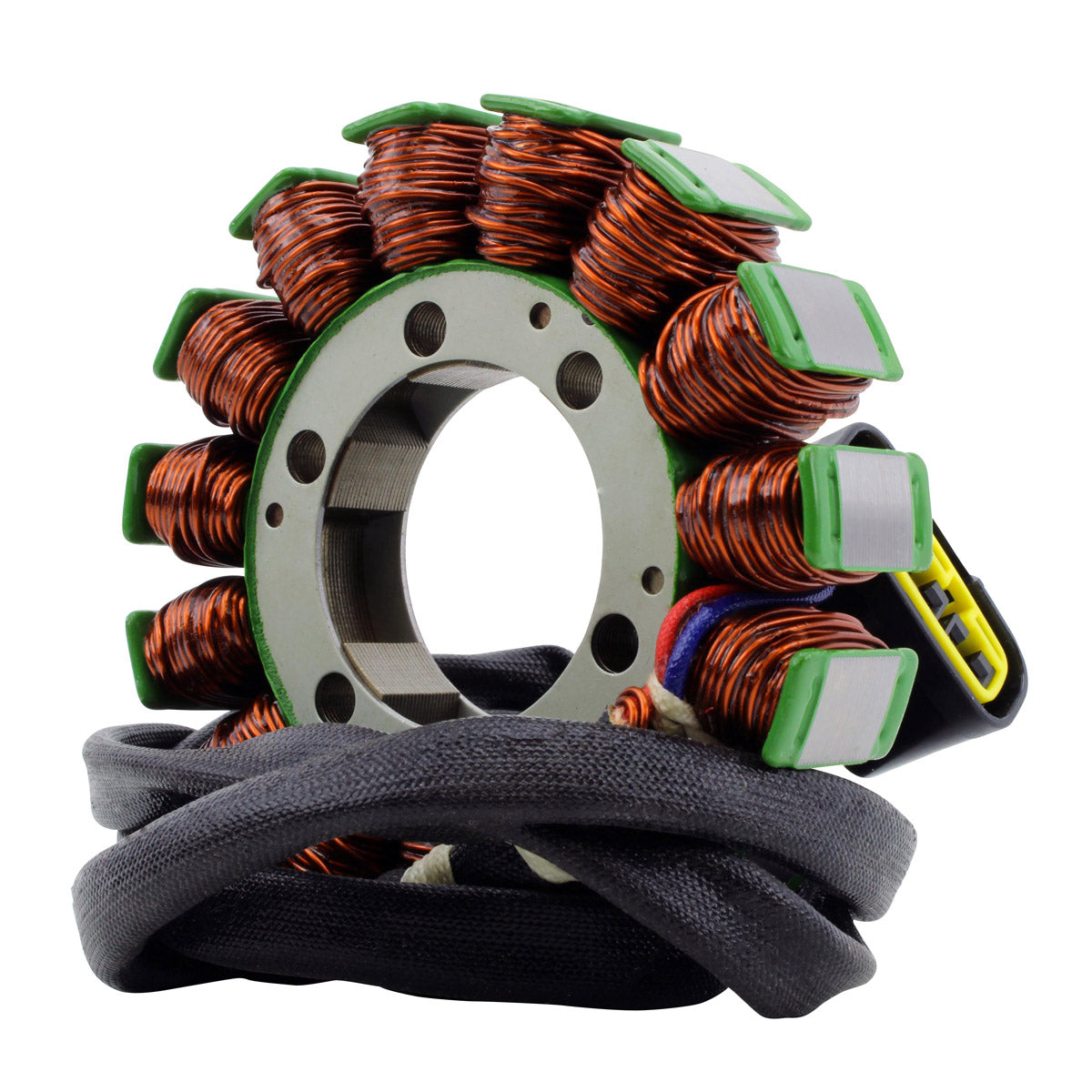

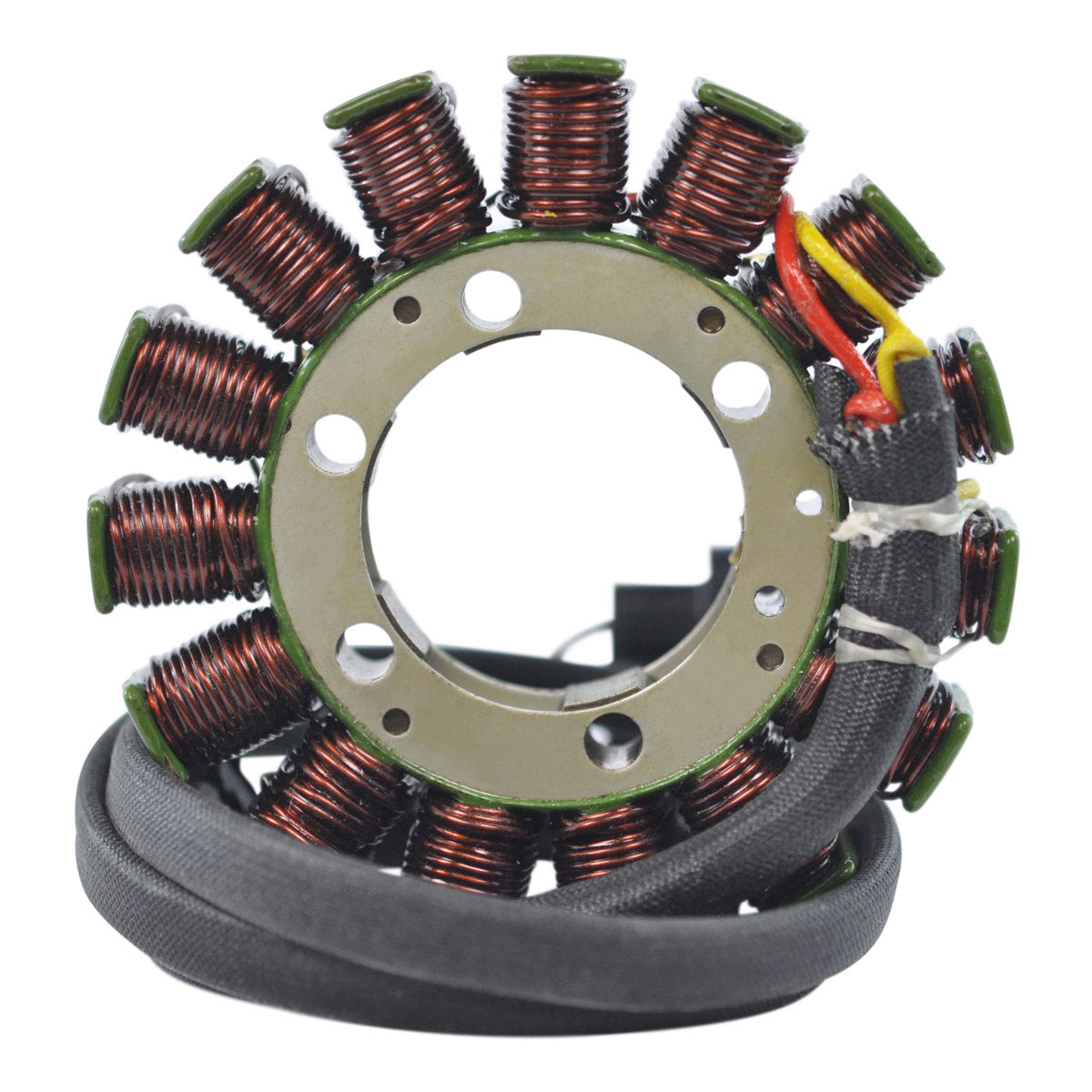

A brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to the Kawasaki Ninja ZX-6R. It is a plug-and-play, direct fit part that goes straight back into the original position with no modification to the engine cases or the wiring loom. The part number is RM01564.

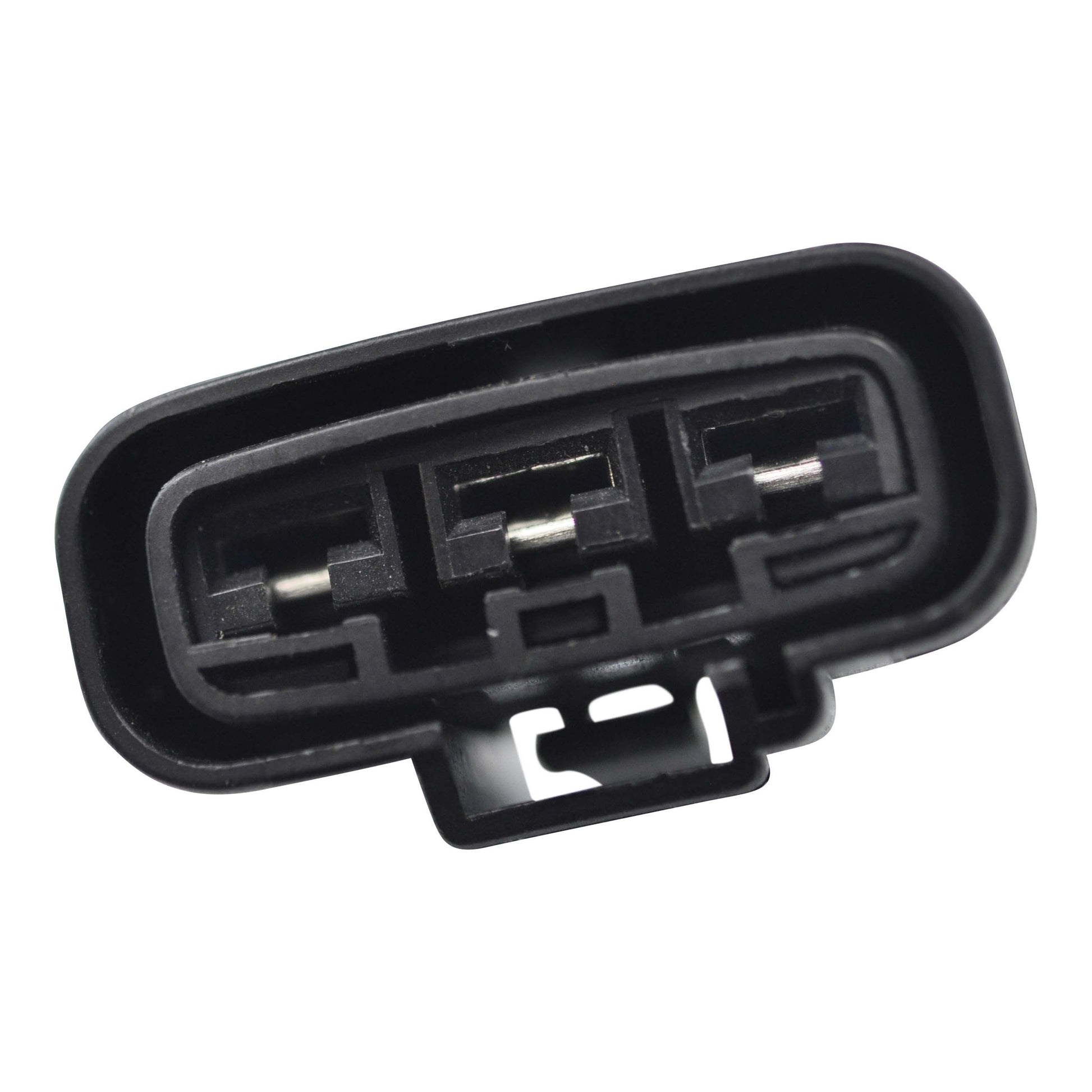

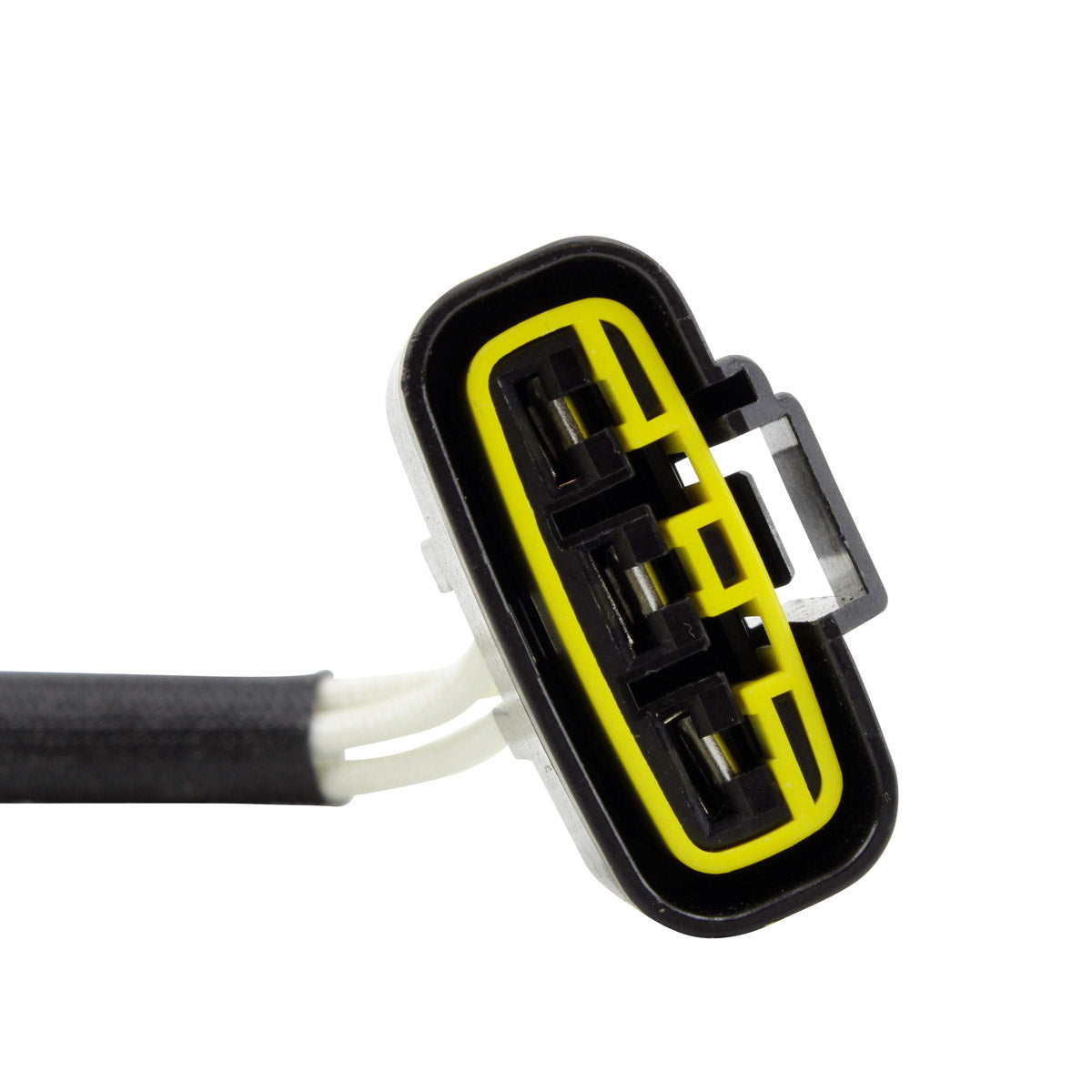

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius, which is where original stators usually give up. Three wires run into a single three pin plug on a long 775 mm tail, and the connector and rubber grommet are supplied already fitted. All units are tested before shipment.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
- Part number RM01564
Technical Specs
| Specification |
Detail |
| Part number |
RM01564 |
| Interior diameter |
41 mm |
| Exterior diameter |
106 mm |
| Thickness |
15 mm |
| Wire length, stator to grommet |
90 mm |
| Wire length, grommet to plug |
775 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator wire to wire resistance |
0.04 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki Ninja ZX-6R |
2009-2012 |
| Kawasaki Ninja ZX-6R |
2021-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0083 |
Kawasaki |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Kawasaki unit on the Ninja ZX-6R, supplied with the connector and rubber grommet already fitted. No cutting or splicing of the loom is required.
What is included in the box?
The stator assembly, the connector and the rubber grommet. All units are tested before they are shipped.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 0.04 ohms +/- 20% wire to wire across the alternator windings. A reading that is open circuit, shorted to earth, or well outside that figure points to a failed stator. Discoloured or visibly burnt windings on the original are another clear sign.
Which model years does it cover?
It covers the Ninja ZX-6R for 2009 to 2012 and again for 2021 and 2022, replacing Kawasaki part number 21003-0083. Check that number on your original unit before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
