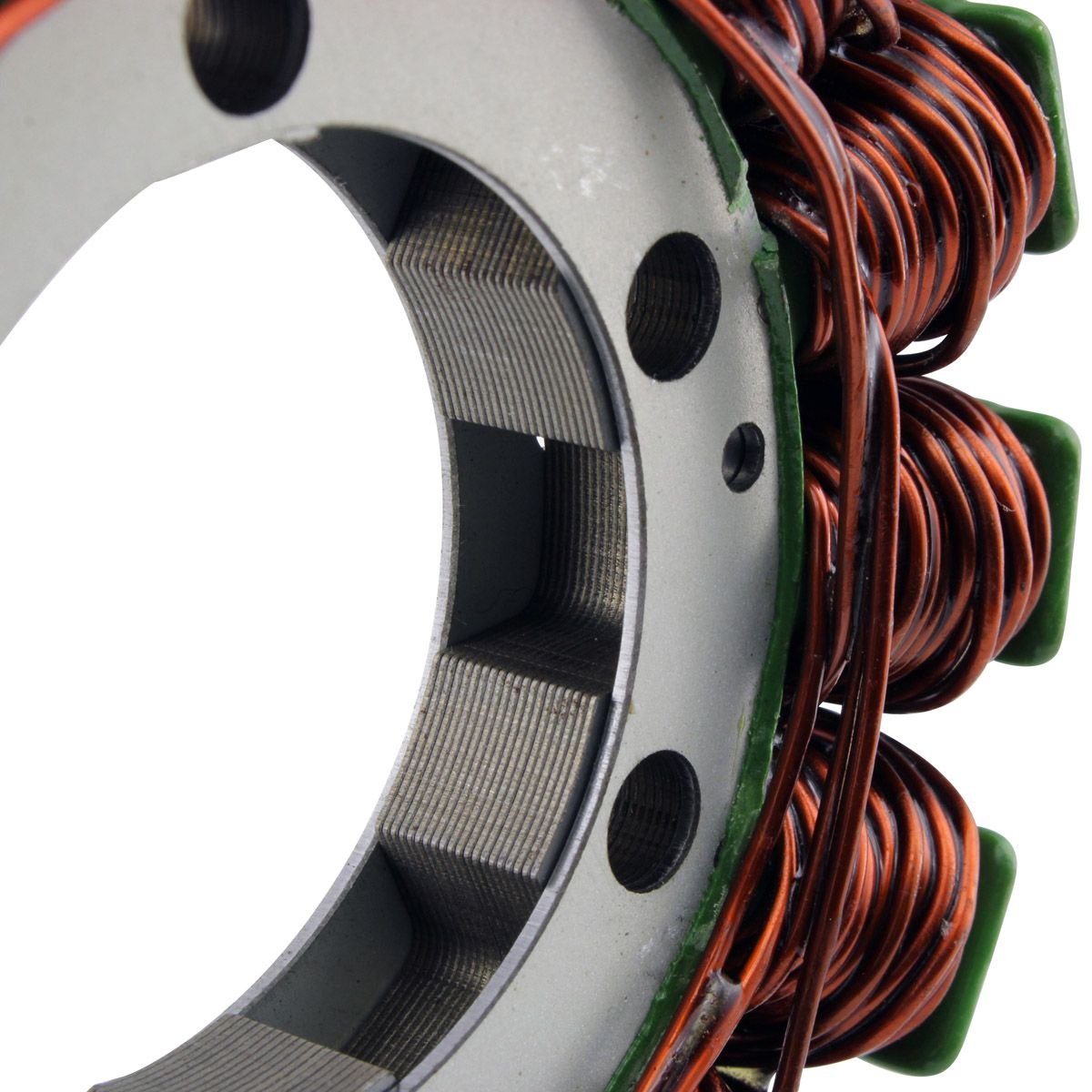

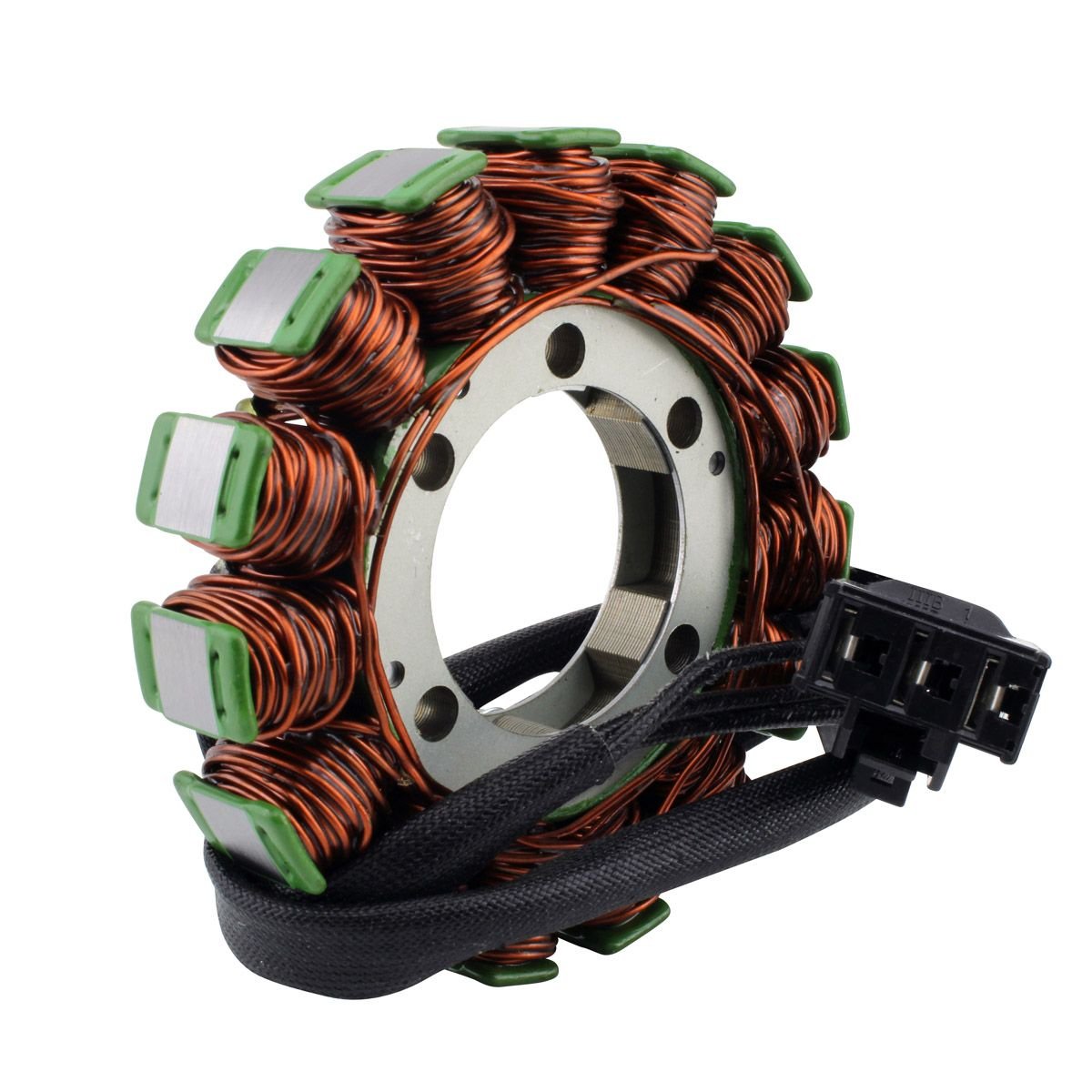

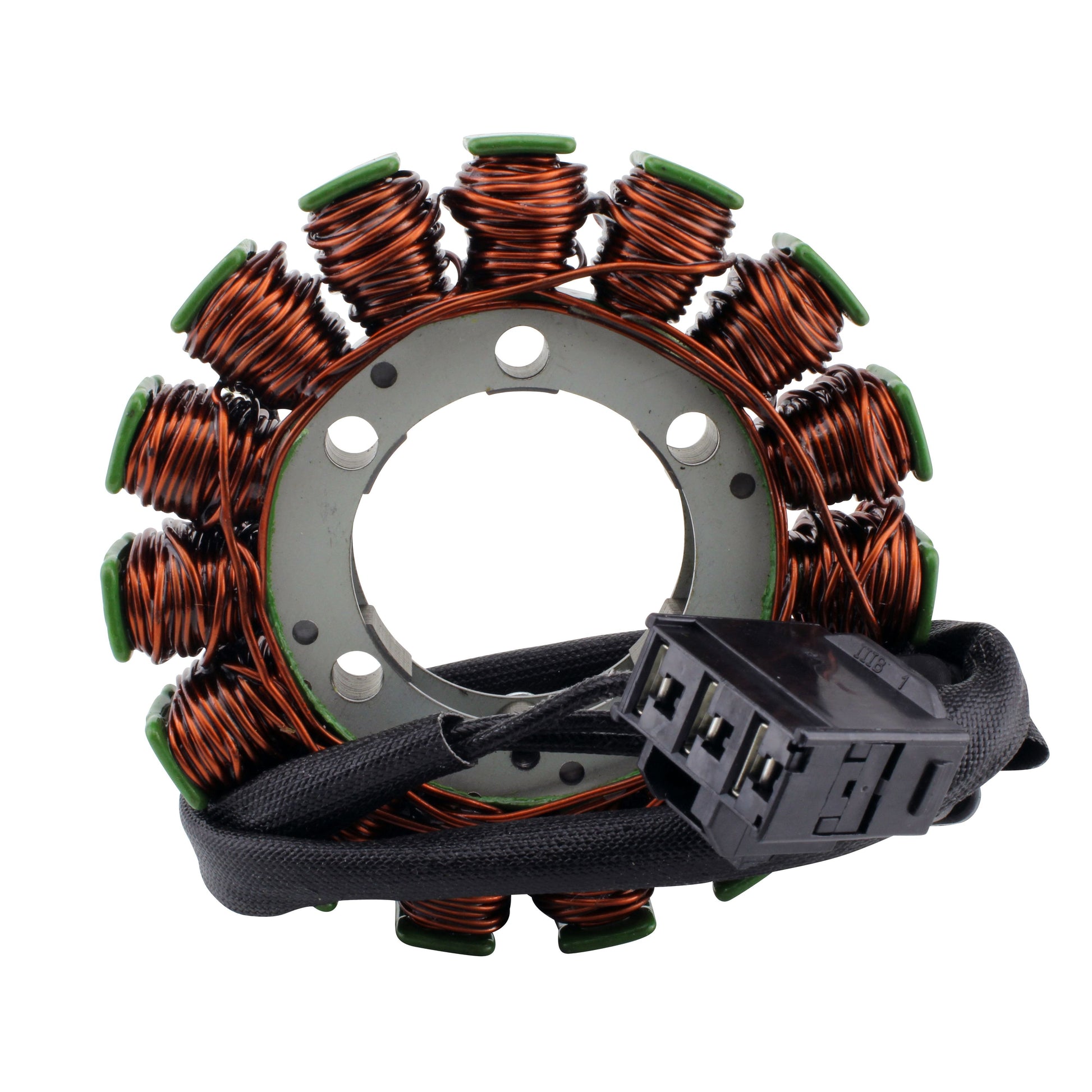

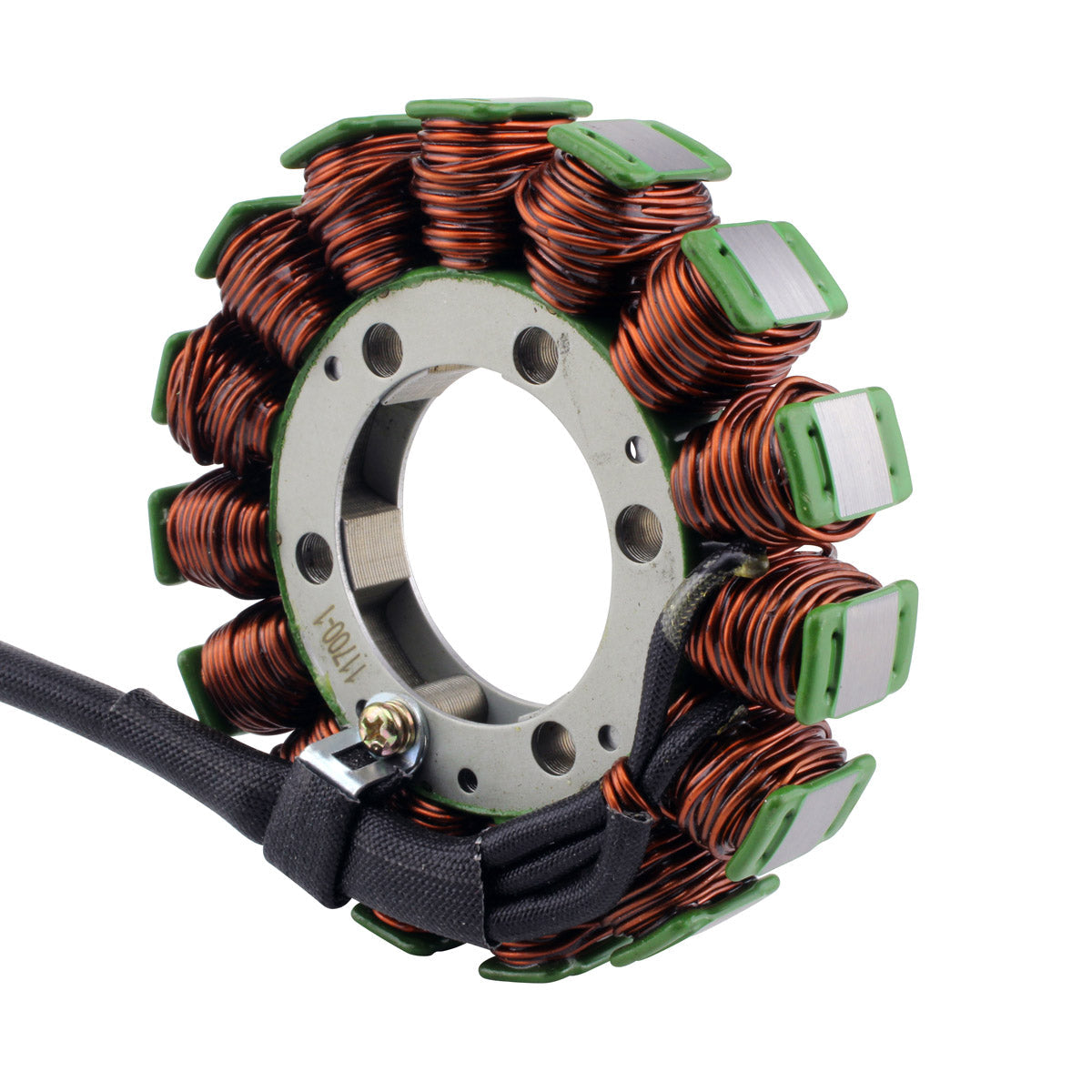

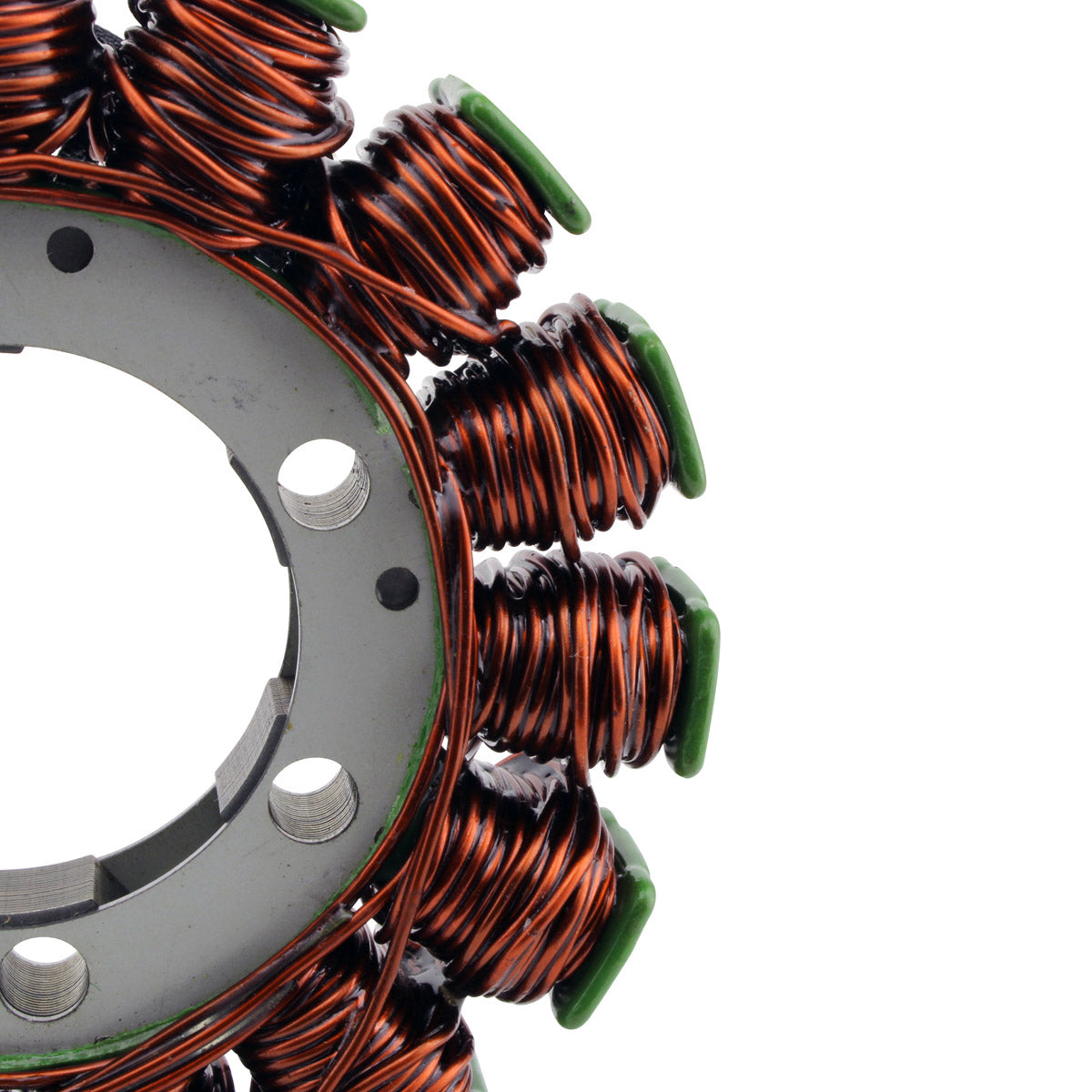

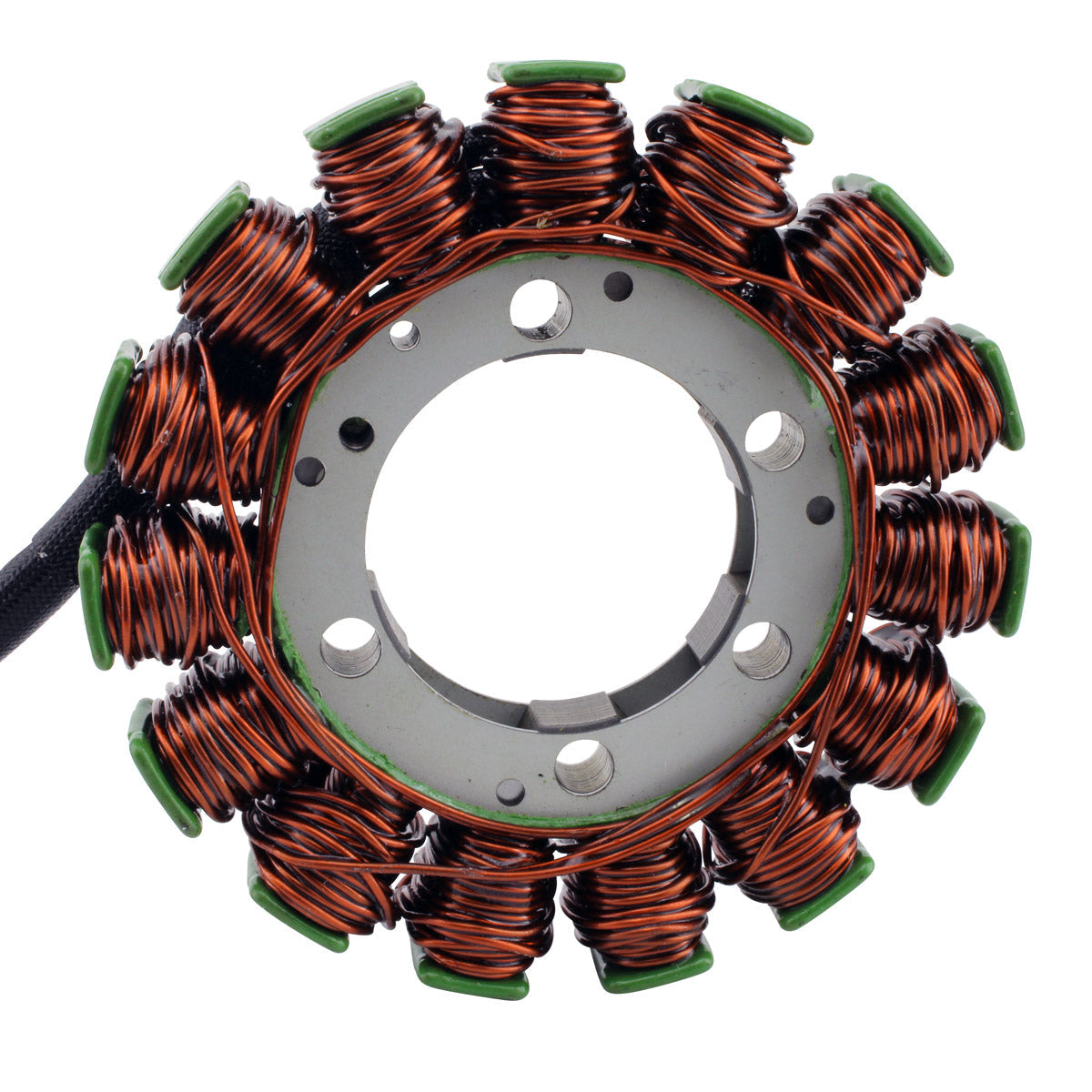

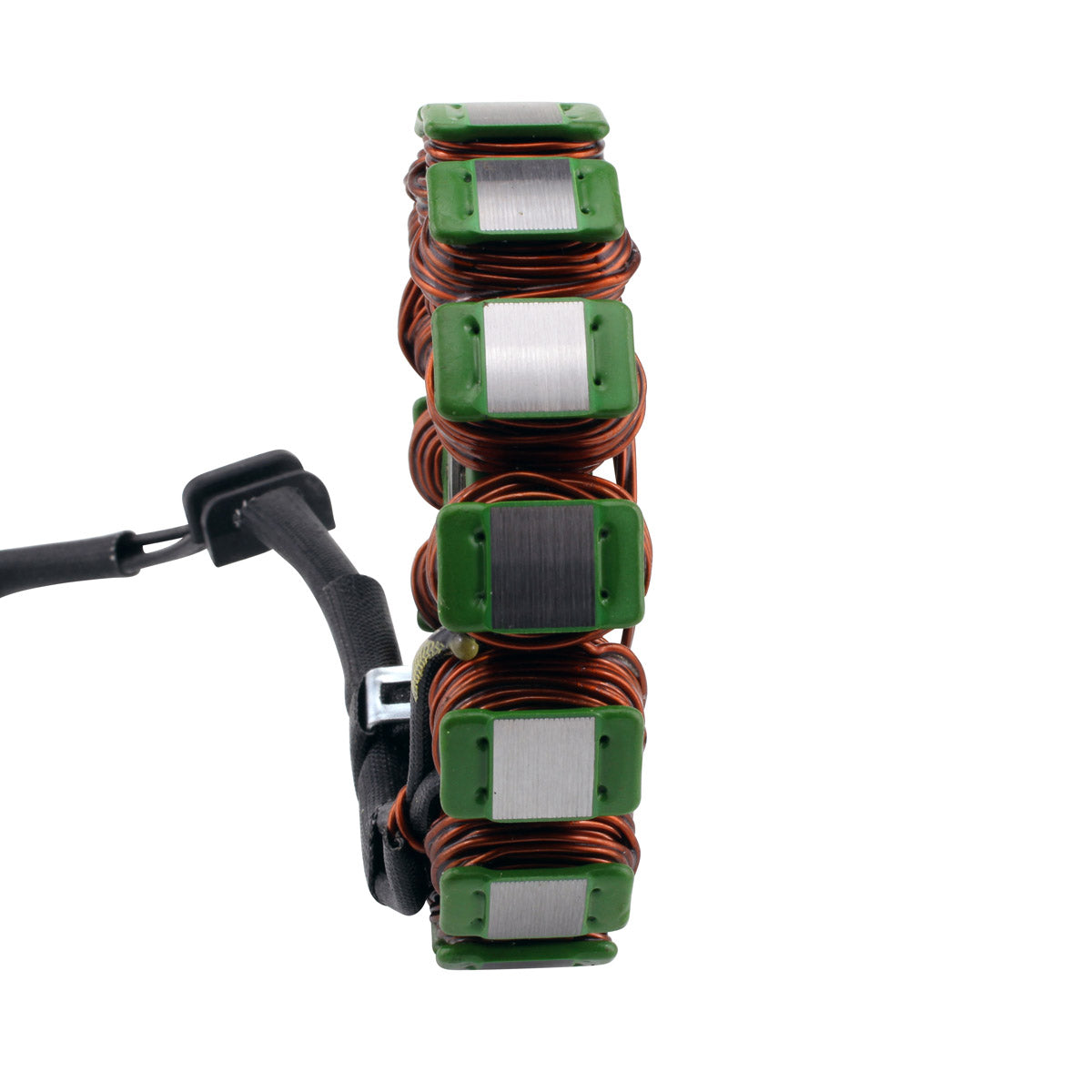

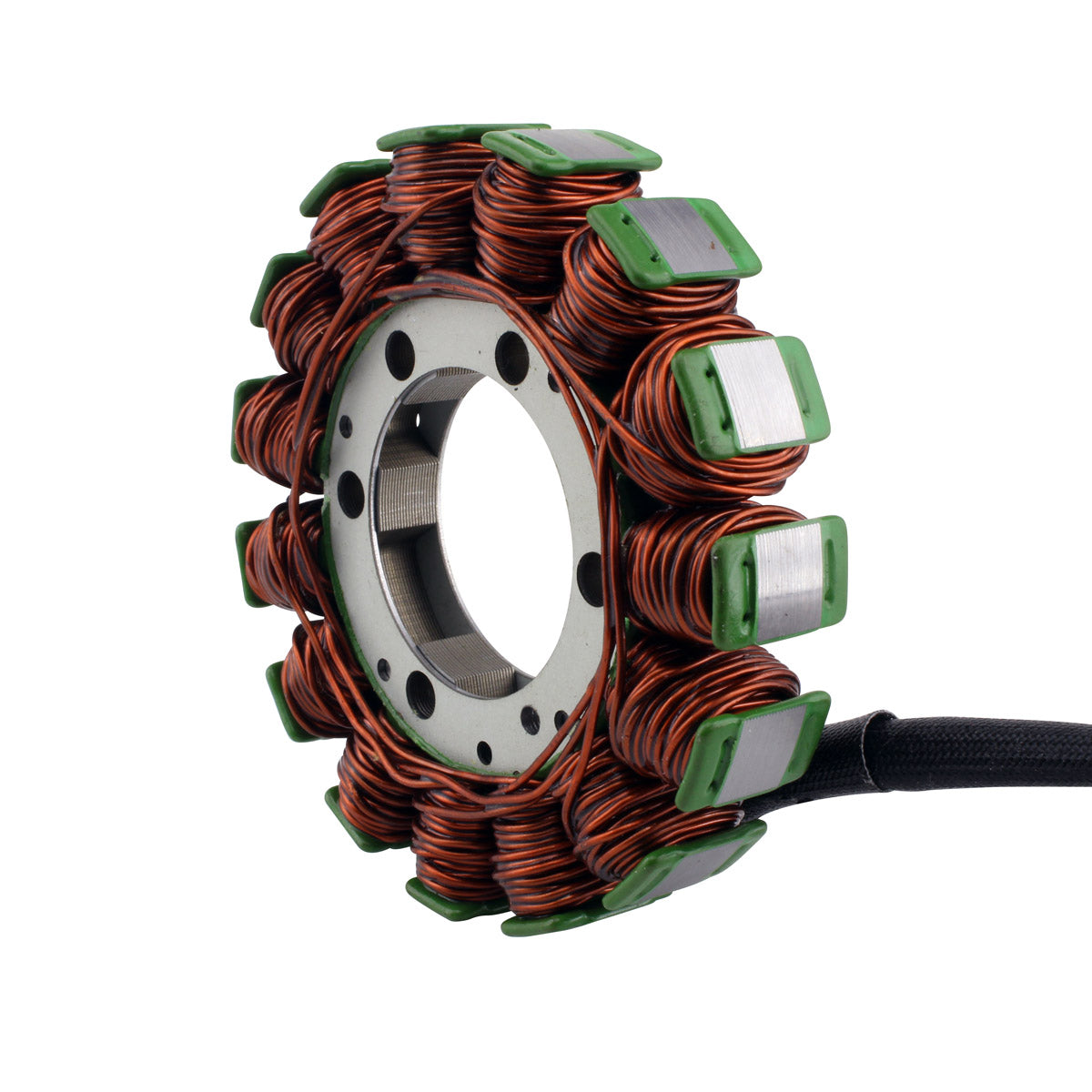

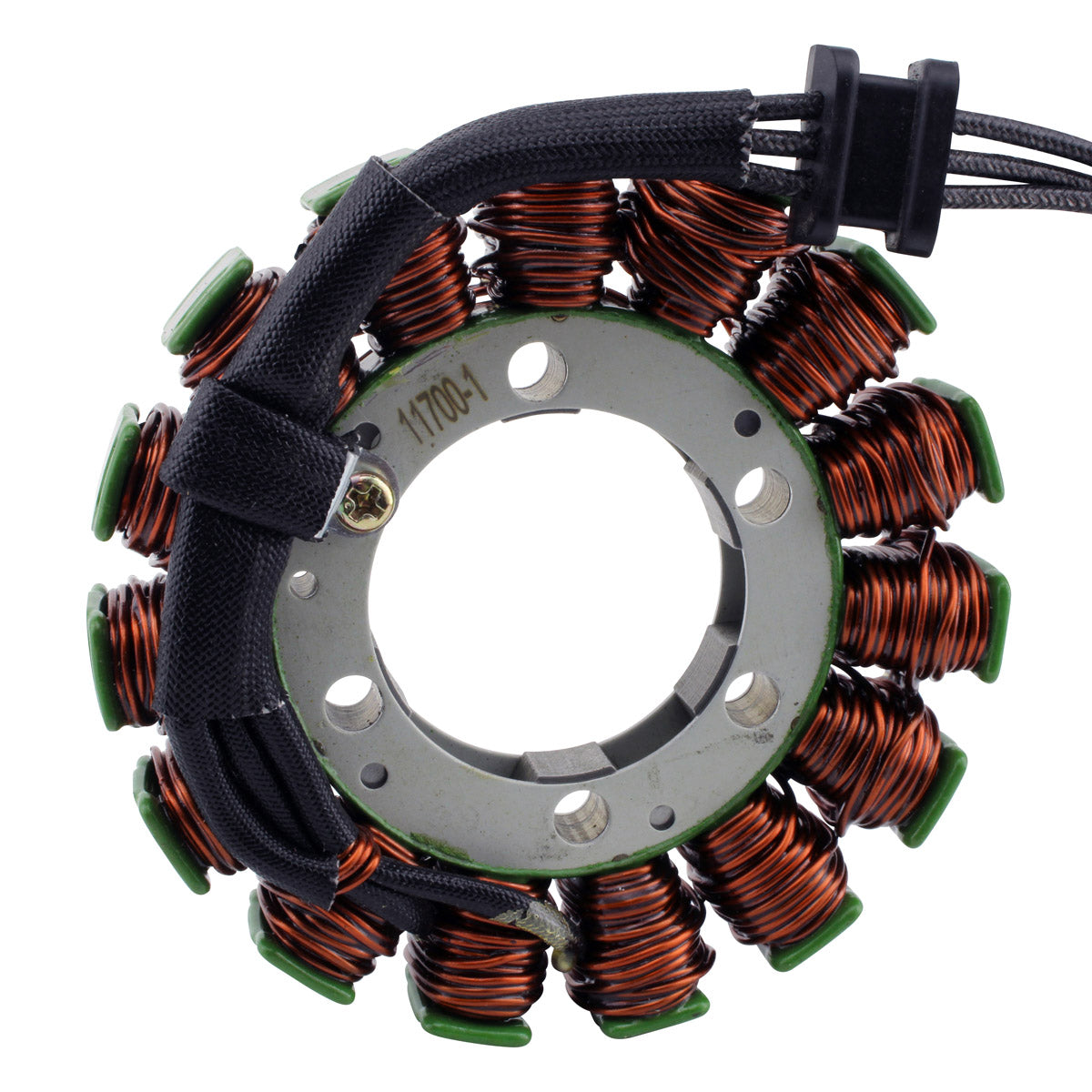

A brand new aftermarket generator stator, supplied as a direct replacement for the original unit on the Kawasaki Ninja ZX-6R. It is plug-and-play and a direct fit, so it mounts in the standard position inside the alternator cover and connects to the standard three-pin plug. Every product we ship is tested before it leaves us.

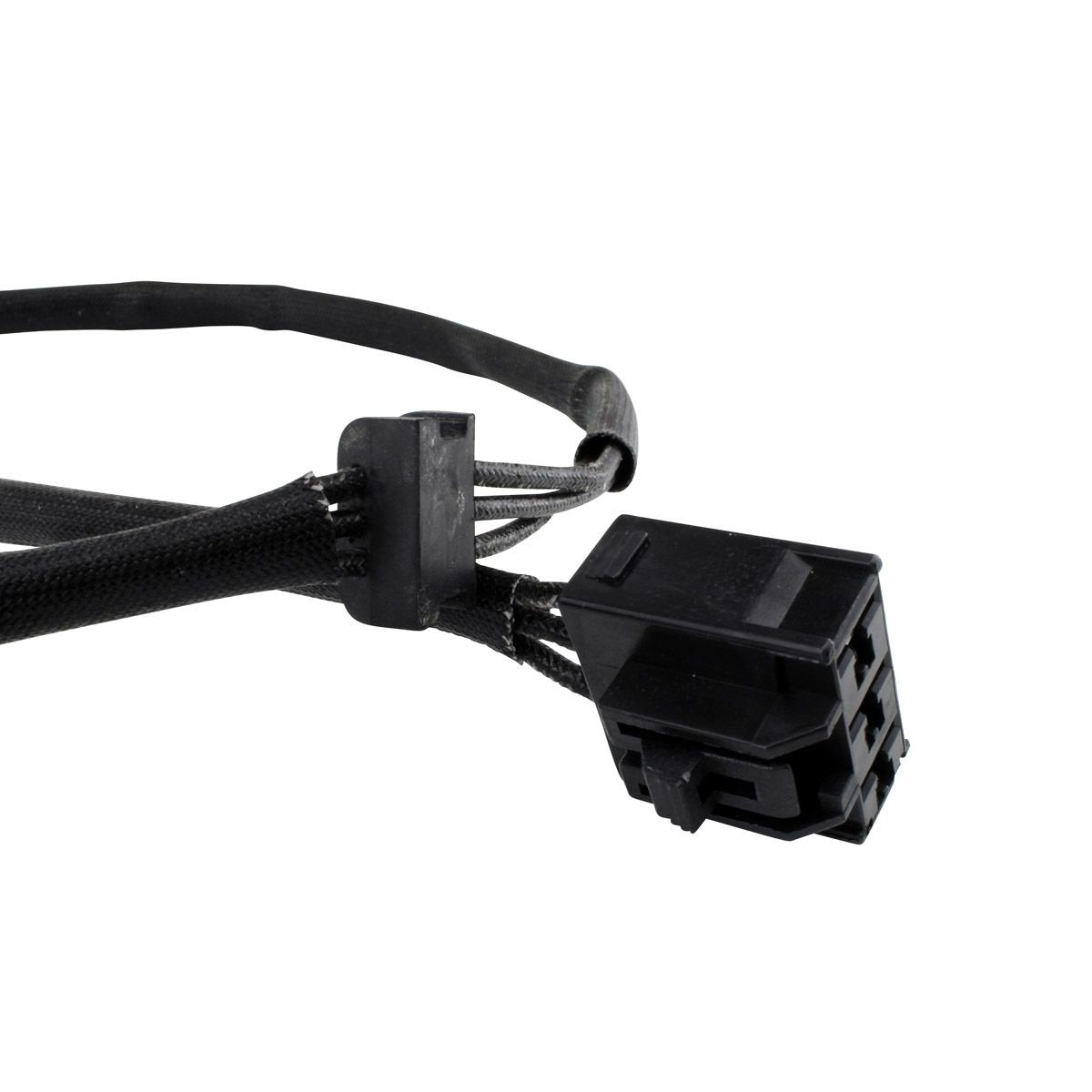

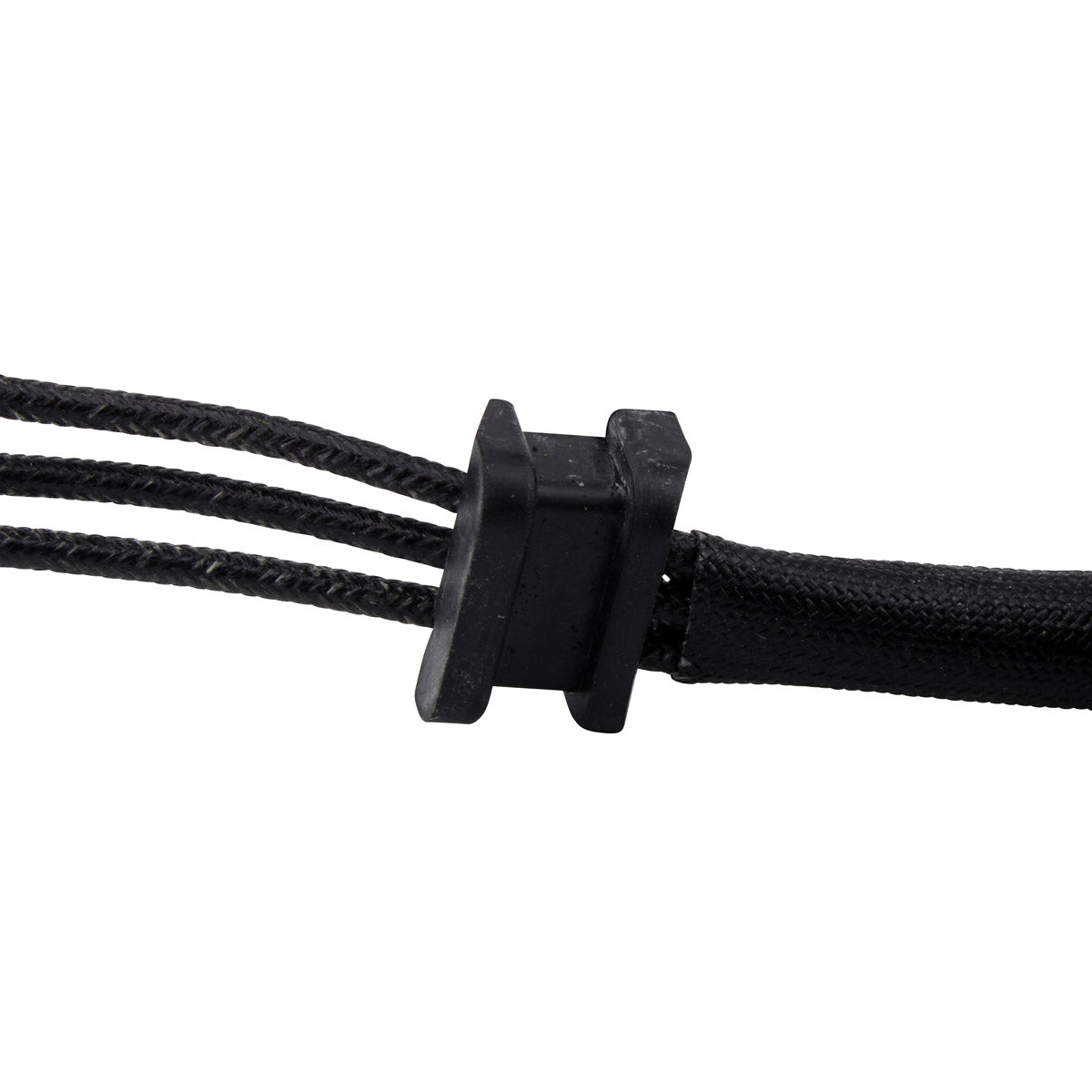

The connectors and the rubber grommet are included, so the assembly can be fitted without sourcing anything further. On a high-revving four-cylinder sports engine the charging windings run hot and are the part of the system most likely to break down with age and mileage; replacing the complete stator restores the correct output to the regulator rectifier and the battery. All of the item pictures are accurate; if you are in any doubt, compare the part shown against your original unit before ordering.
Key Features
- Brand new aftermarket generator stator, not a rewound core
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation

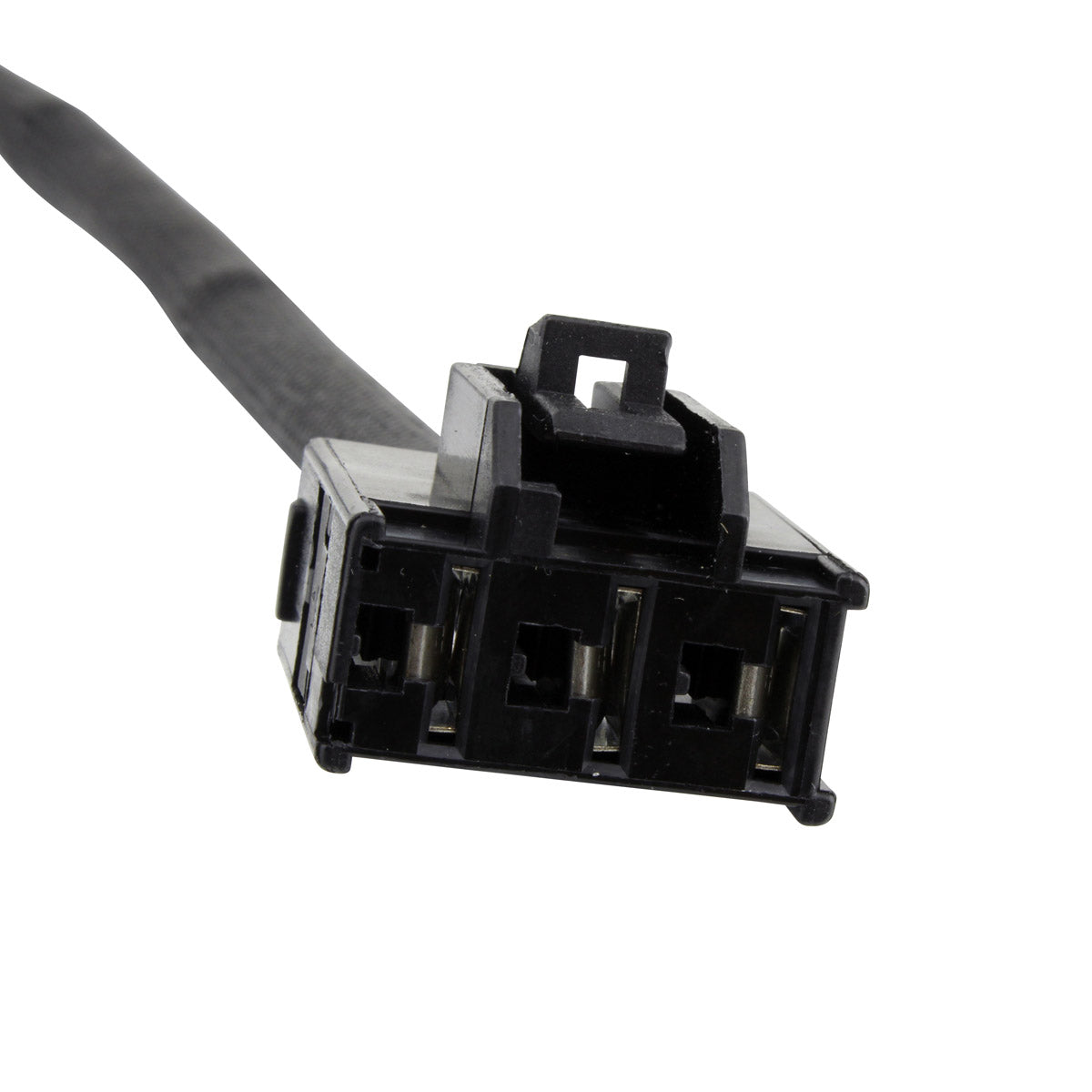

- 15 poles, 3 wires, single plug
- Connectors included
- Rubber grommet included
- All products shipped are tested
- Item pictures are accurate - compare against your original part if in doubt
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
105 mm |
| Thickness |
13 mm |
| Wire length, stator to grommet |
85 mm |
| Wire length, grommet to plug |
535 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
15 |
| Alternator resistance, black to black |
0.4 ohms +/- 20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki Ninja ZX-6R |
2019-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-0185 |
Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. The stator is a direct replacement for the original unit on the Ninja ZX-6R, so it mounts in the standard position and plugs into the standard three-pin connector. No cutting or splicing of the wiring loom is required.
What is included?
The generator stator, the connectors and the rubber grommet.
How do I know my old stator has failed?
A battery that will not stay charged, a charging warning on the dash, or lights that dim as the revs drop all point to the charging circuit. With the engine off and the plug disconnected, measure between each pair of the three black alternator wires: the reading should be 0.4 ohms +/- 20%. An open circuit, a short between phases, or continuity from any wire to the stator body means the winding has failed and the unit needs replacing.
Should I check the regulator rectifier as well?
It is worth doing. A failing regulator rectifier can overheat and take the stator with it, so if the stator has burnt out it is sensible to confirm the regulator is holding the correct charging voltage before the new part is fitted, and to check that the connector between the two is clean and undamaged.
