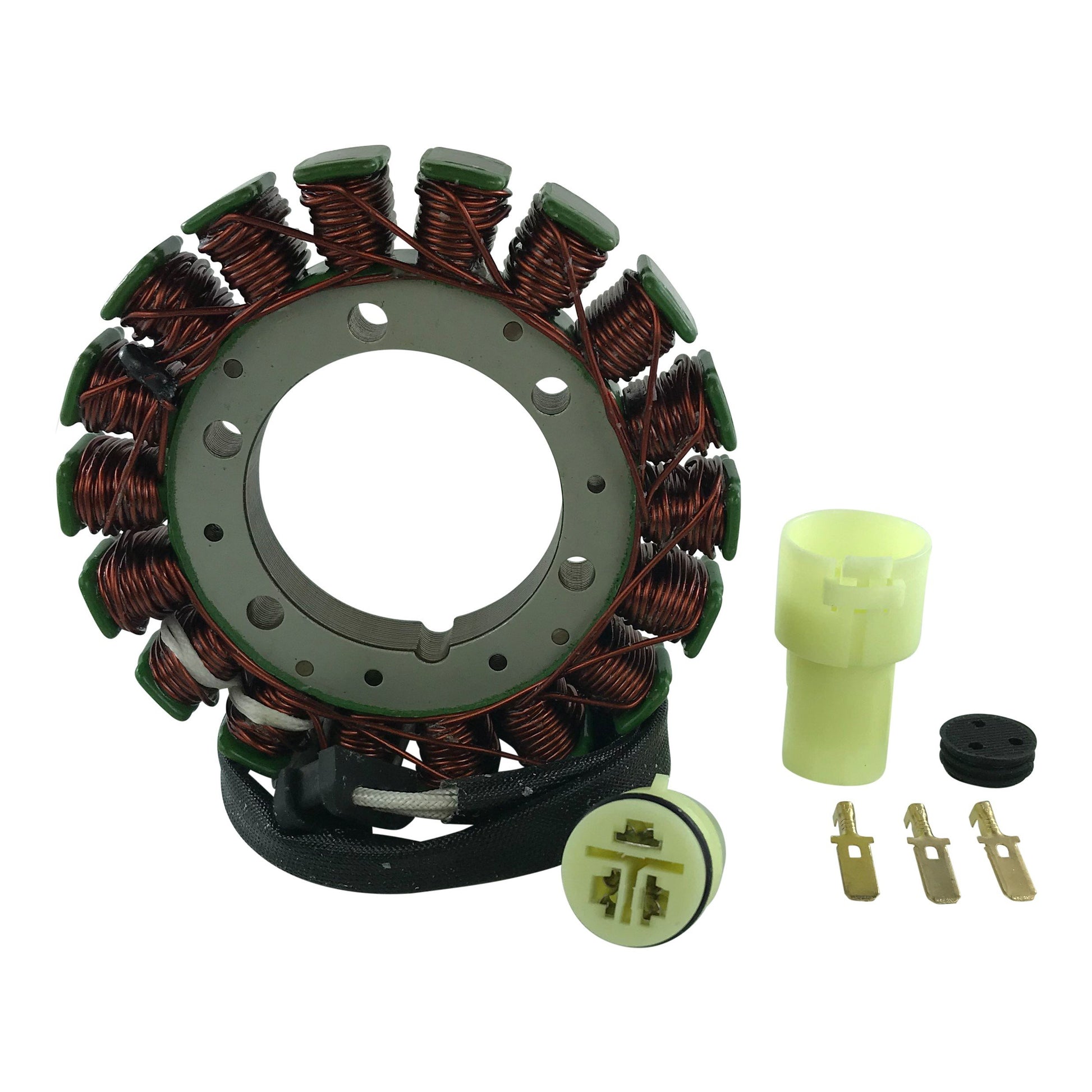

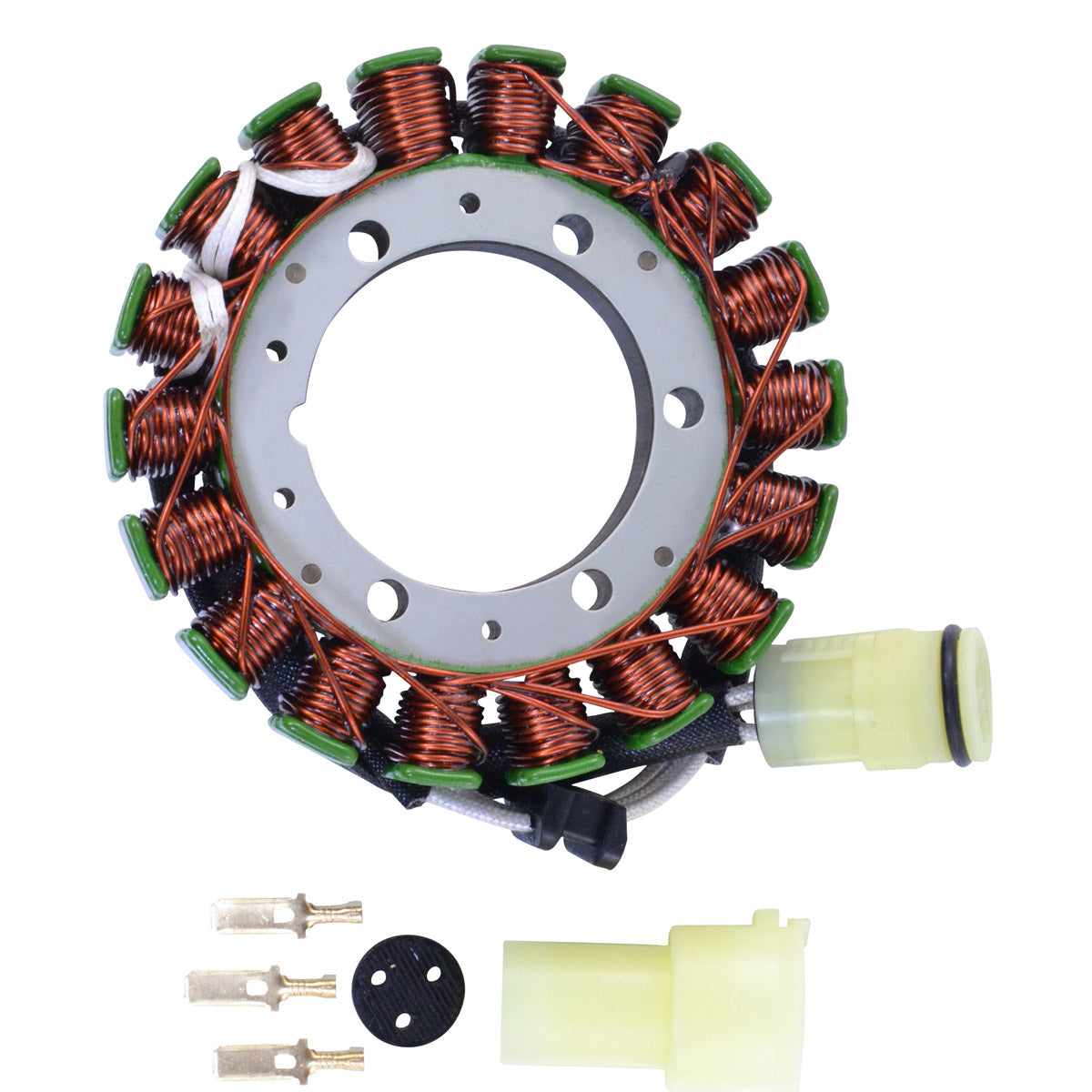

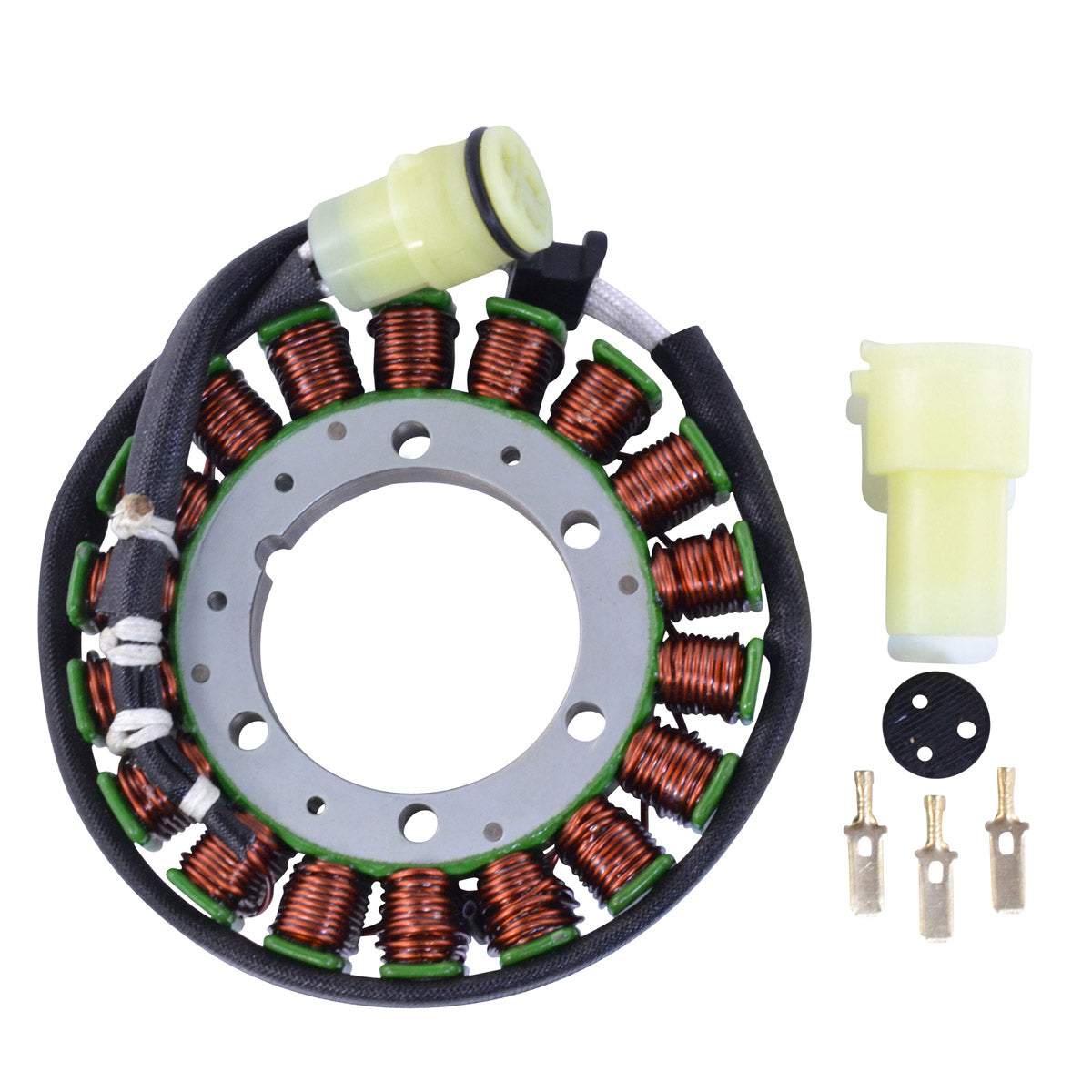

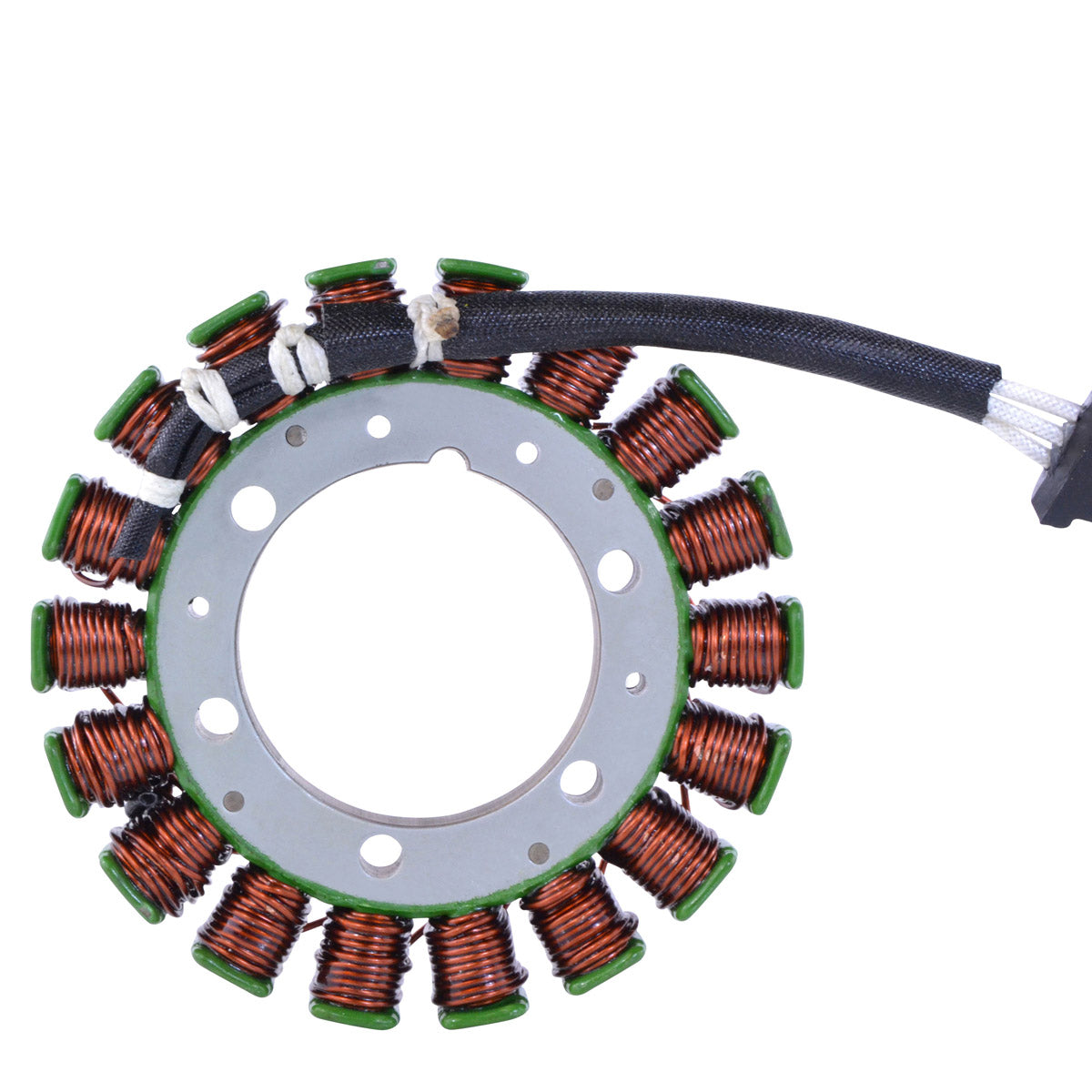

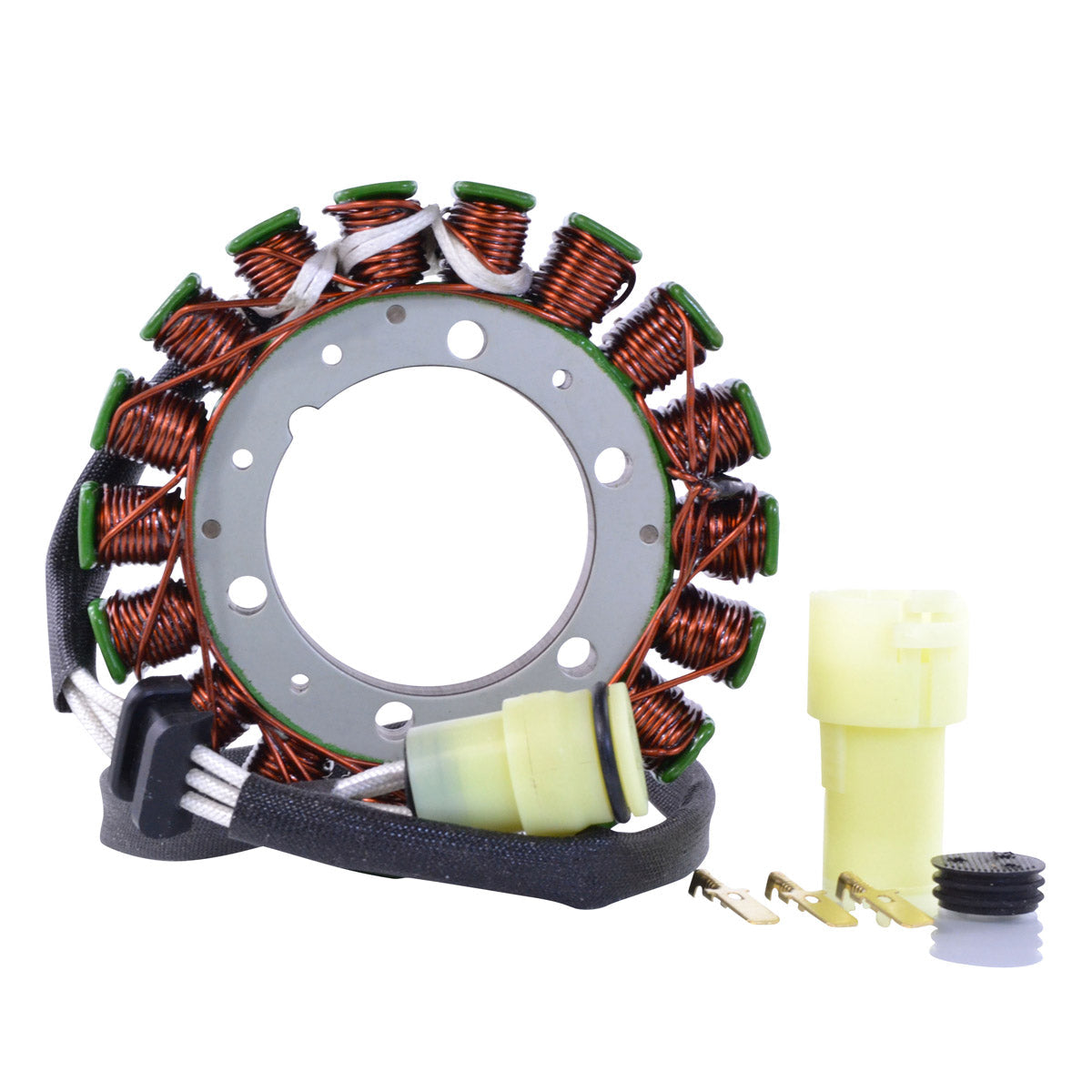

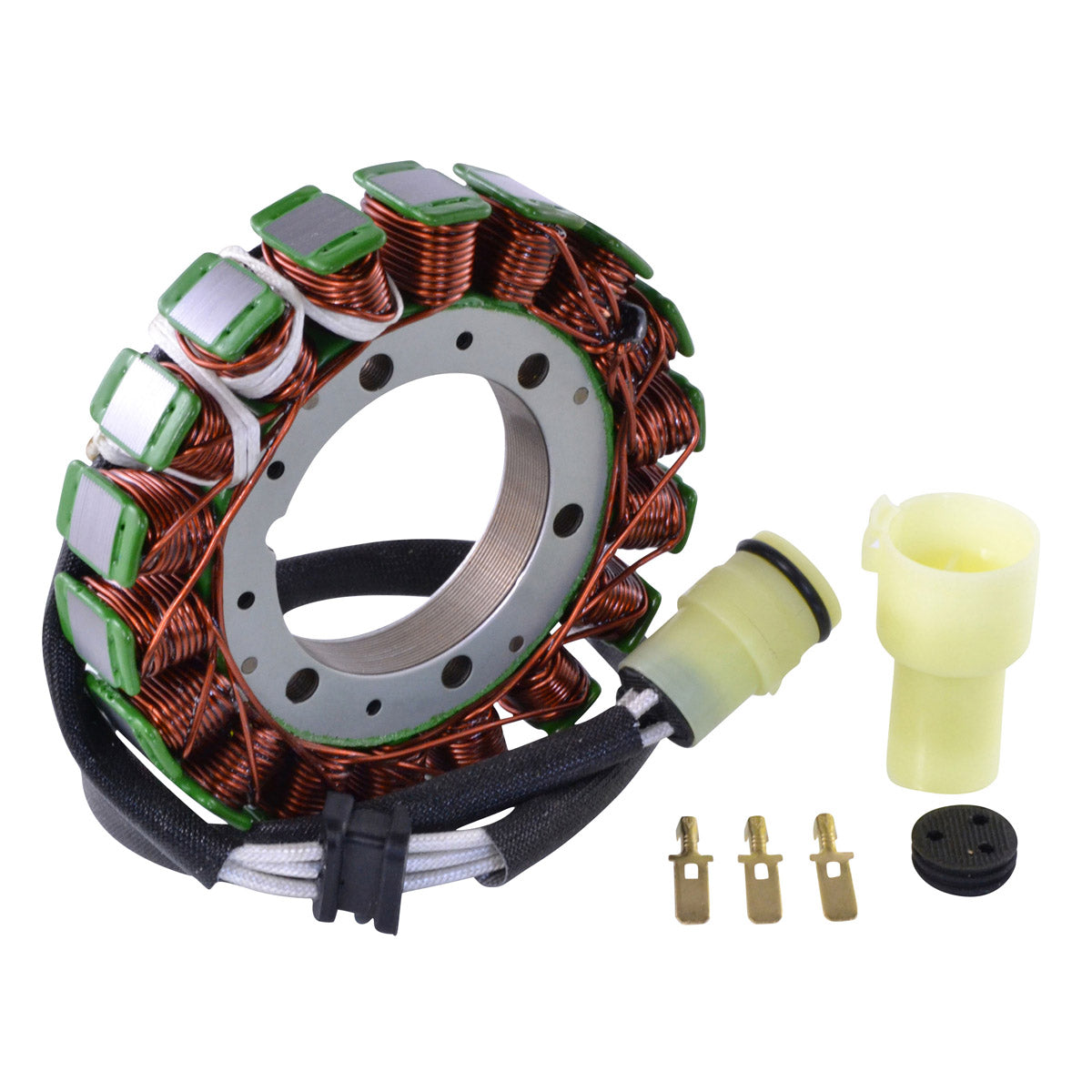

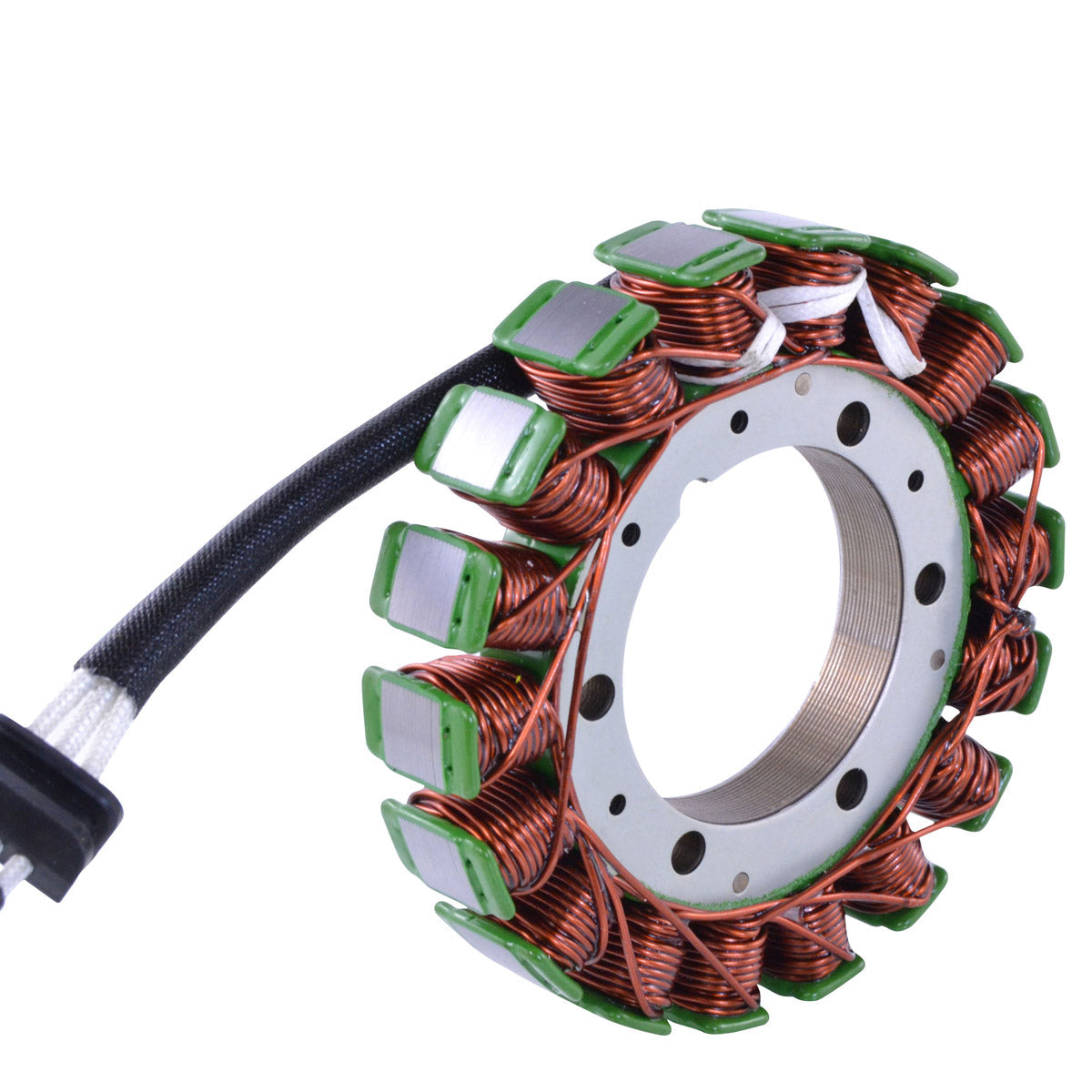

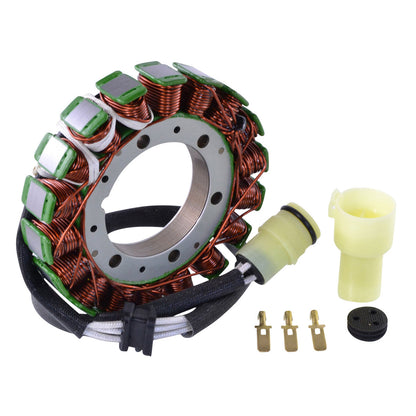

A brand new aftermarket generator stator supplied as a direct replacement for the original unit on the Kawasaki Ninja ZX-6R and ZZR 600. The stator is the fixed three-phase winding inside the alternator cover that produces the AC current the regulator/rectifier converts into the DC supply which charges the battery and feeds the ignition, lighting and instruments. A stator with a shorted or burnt phase cannot maintain charging voltage, and the machine will run on battery power alone until it stops.

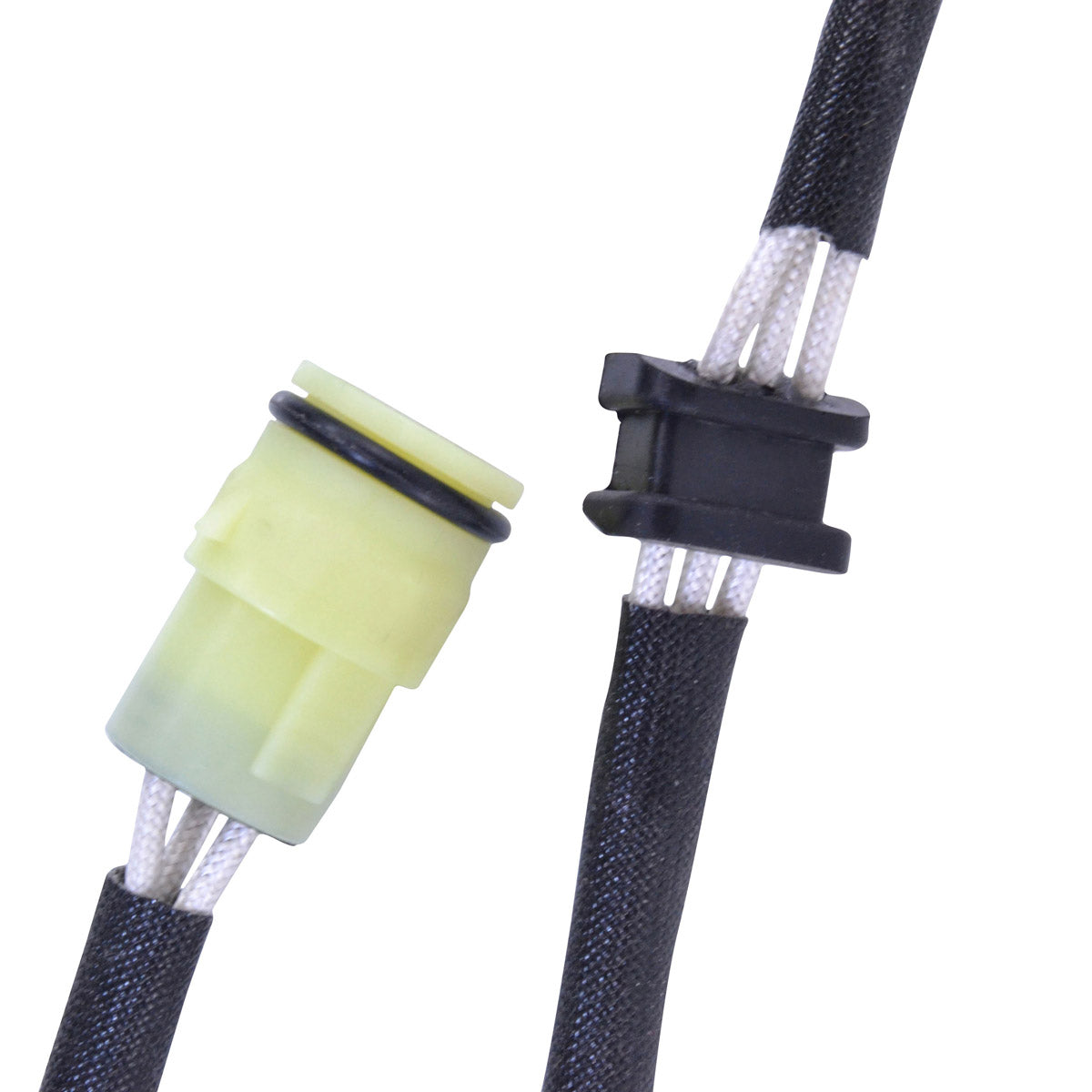

This replacement is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on highest grade lamination materials. It is a plug-and-play, direct fit using the original mounting points and the original loom plug, so no cutting, splicing or modification is needed. Connector and rubber grommet are included, and the opposite connector for the main harness side is supplied as well, because that half of the joint is frequently melted or corroded on high-mileage machines.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

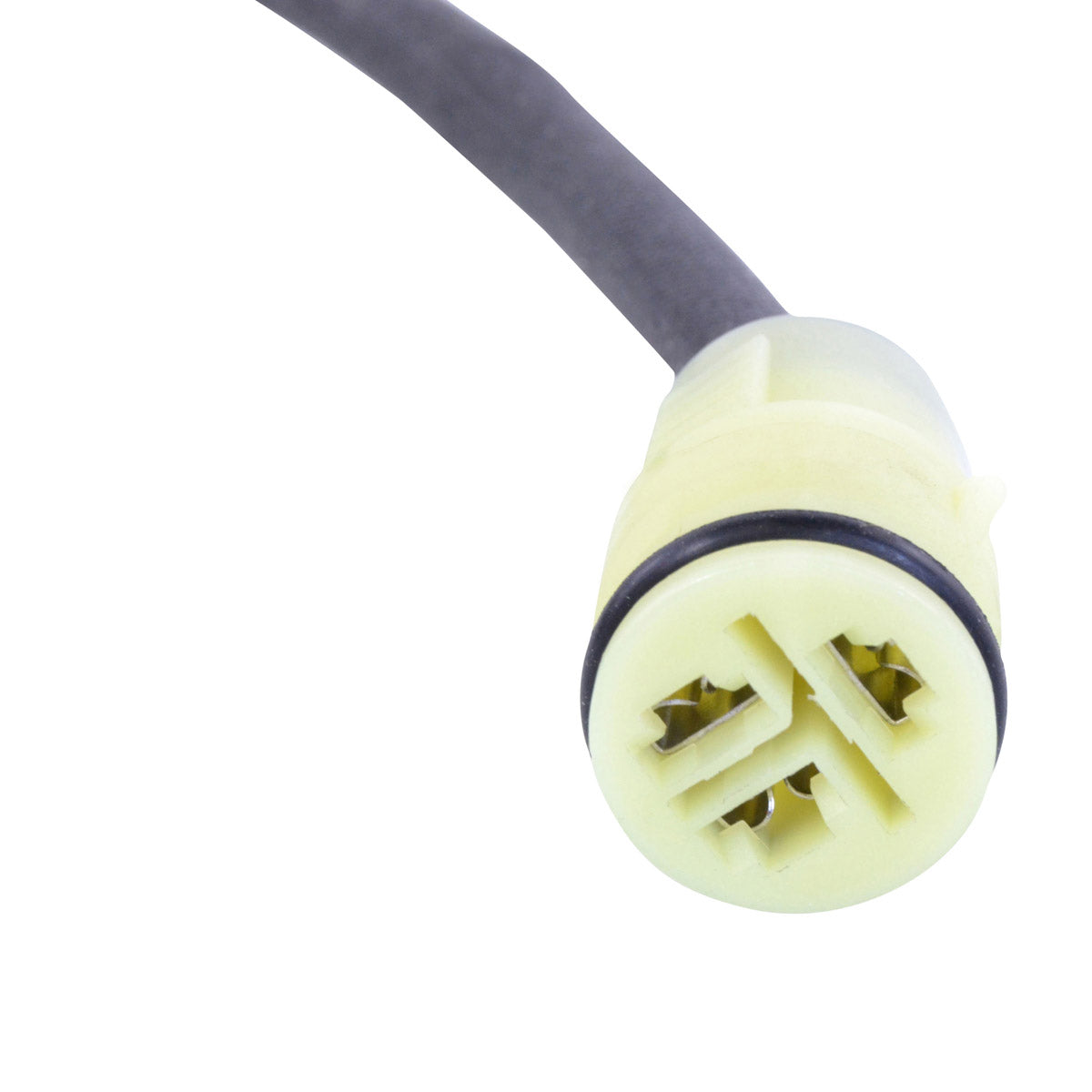

- Connector included

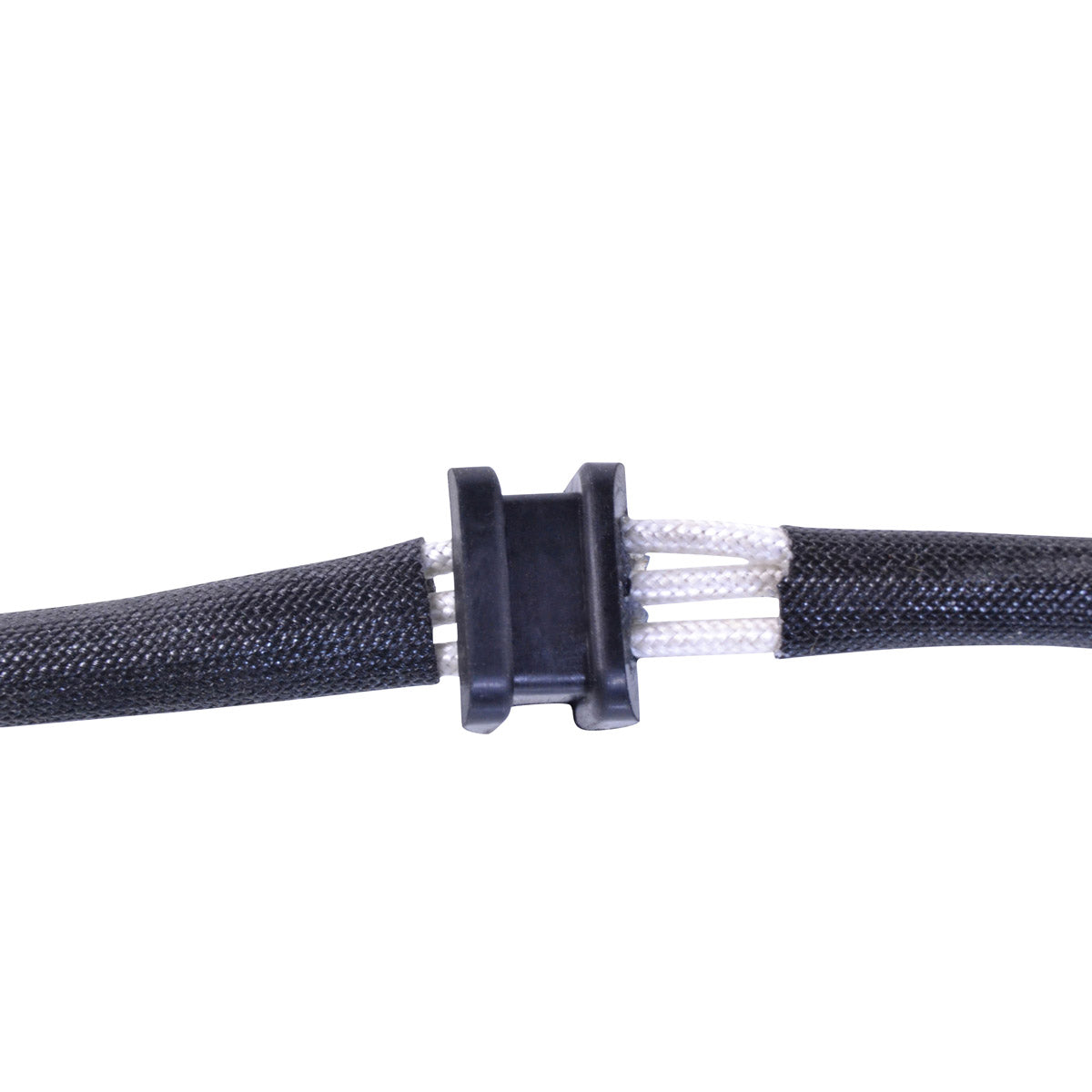

- Rubber grommet included

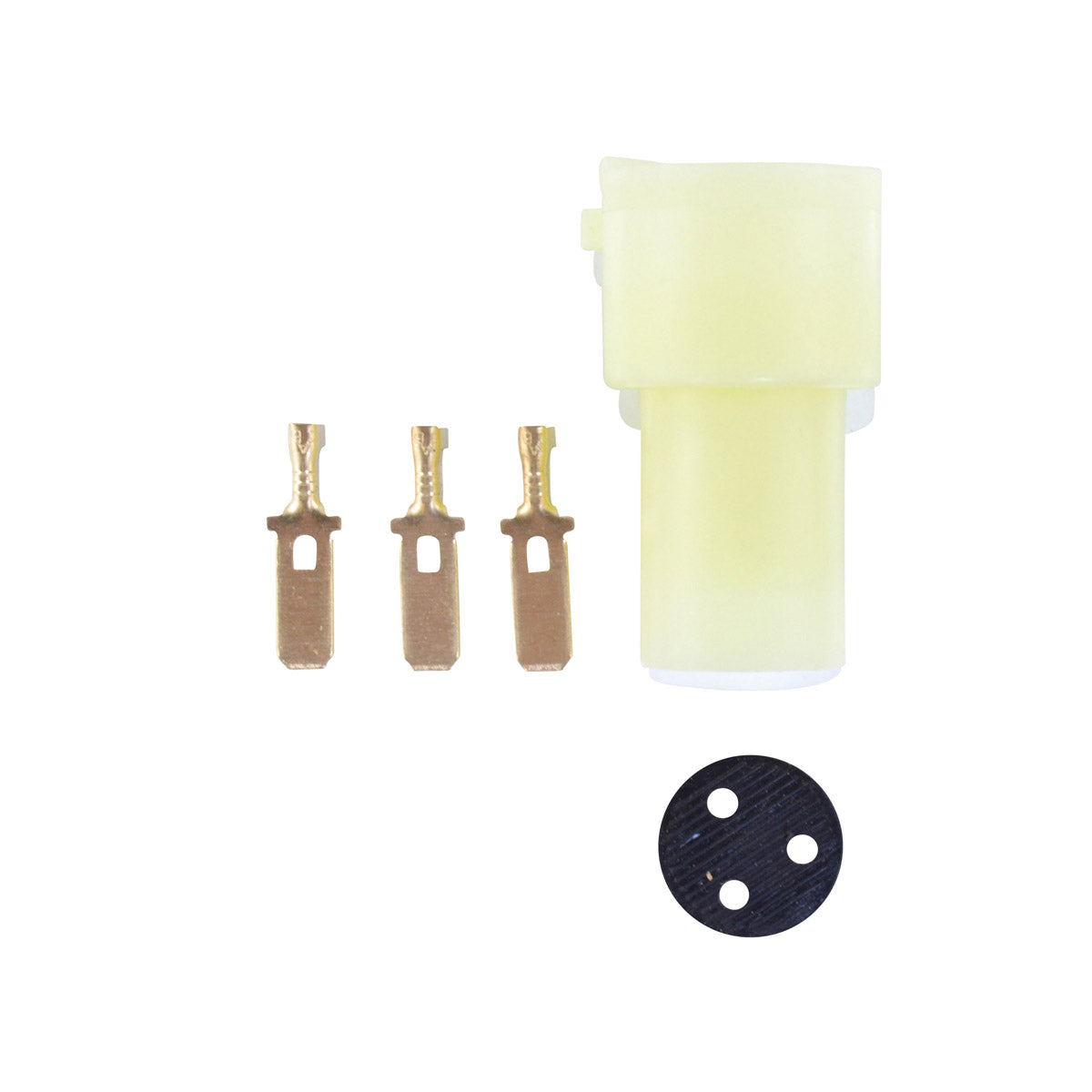

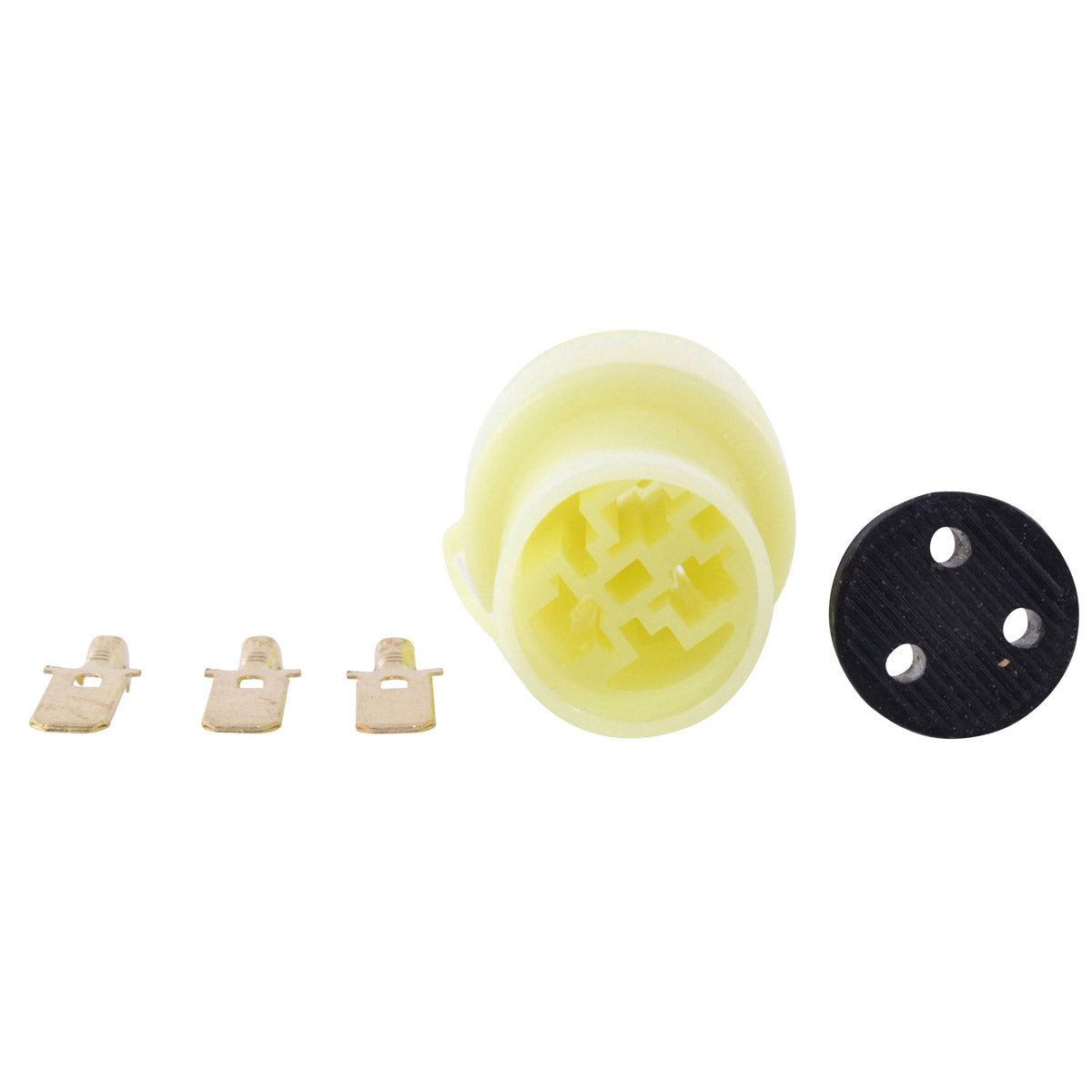

- Opposite connector (main harness side) included
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-104454 |
| Interior diameter |
54 mm |
| Exterior diameter |
114 mm |

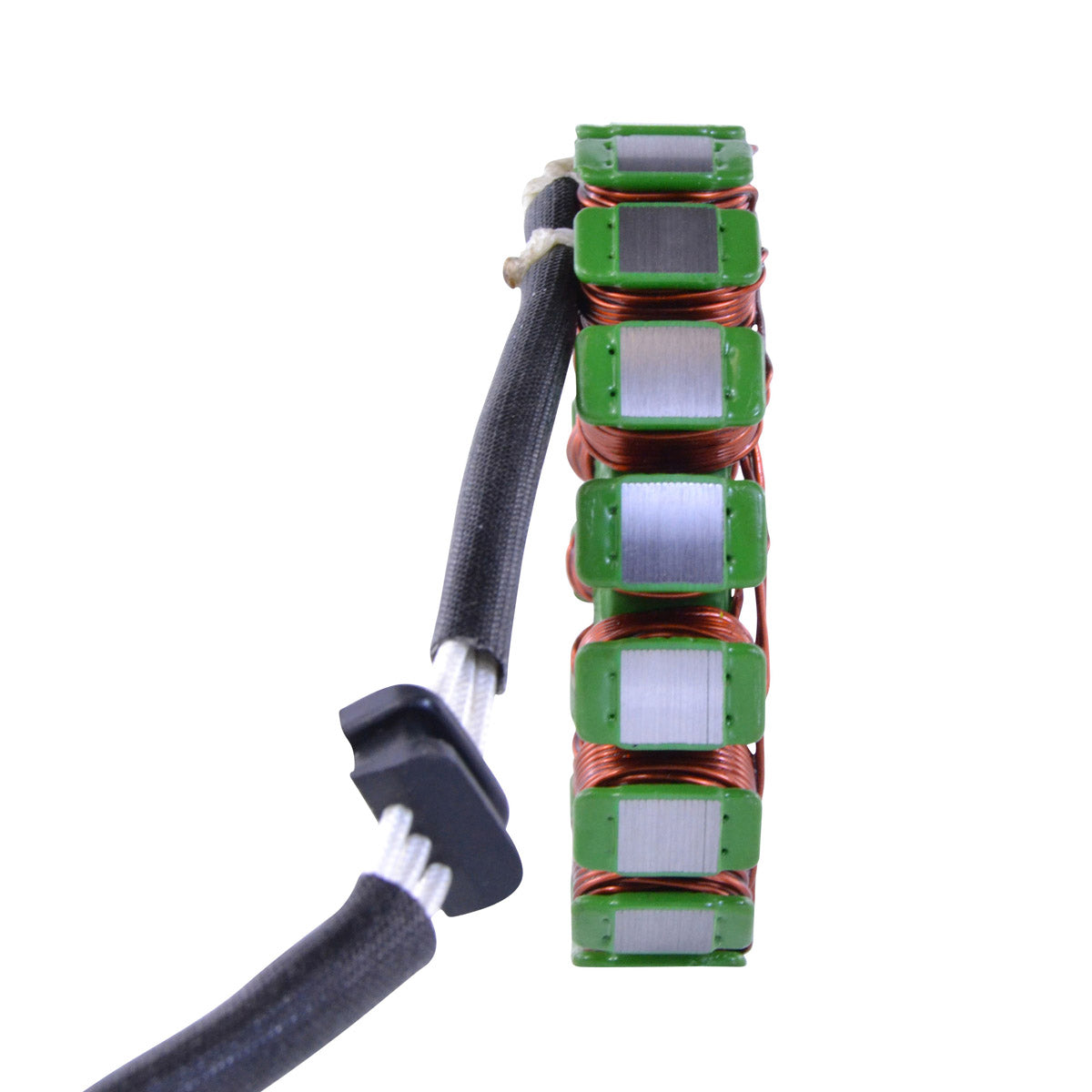

| Thickness |
19 mm |
| Wire length, stator to grommet |
105 mm |
| Wire length, grommet to plug |
360 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, white to white |
0.7 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki Ninja ZX-6R |
2000-2008 |
| Kawasaki ZZR 600 |
2000-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1358 |
Kawasaki |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit and installs plug-and-play on the standard mounting points using the original 3-pin loom plug. No cutting, splicing or modification of the wiring is required.
What is included?
The stator with its connector and rubber grommet, plus the opposite connector for the main harness side so the whole joint can be renewed rather than reusing a damaged plug.
How do I know my old stator has failed?
Disconnect the plug and measure between each pair of white wires. A healthy unit reads about 0.7 ohms, within plus or minus 20 per cent, and no white wire should show continuity to earth. A battery that goes flat in use, dimming lights and charging voltage that will not rise with revs are the usual symptoms.
How do I confirm this is the correct part?
Check the number on your original stator against the OEM reference 21003-1358 listed above. If it matches, this is the correct replacement for your machine.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
