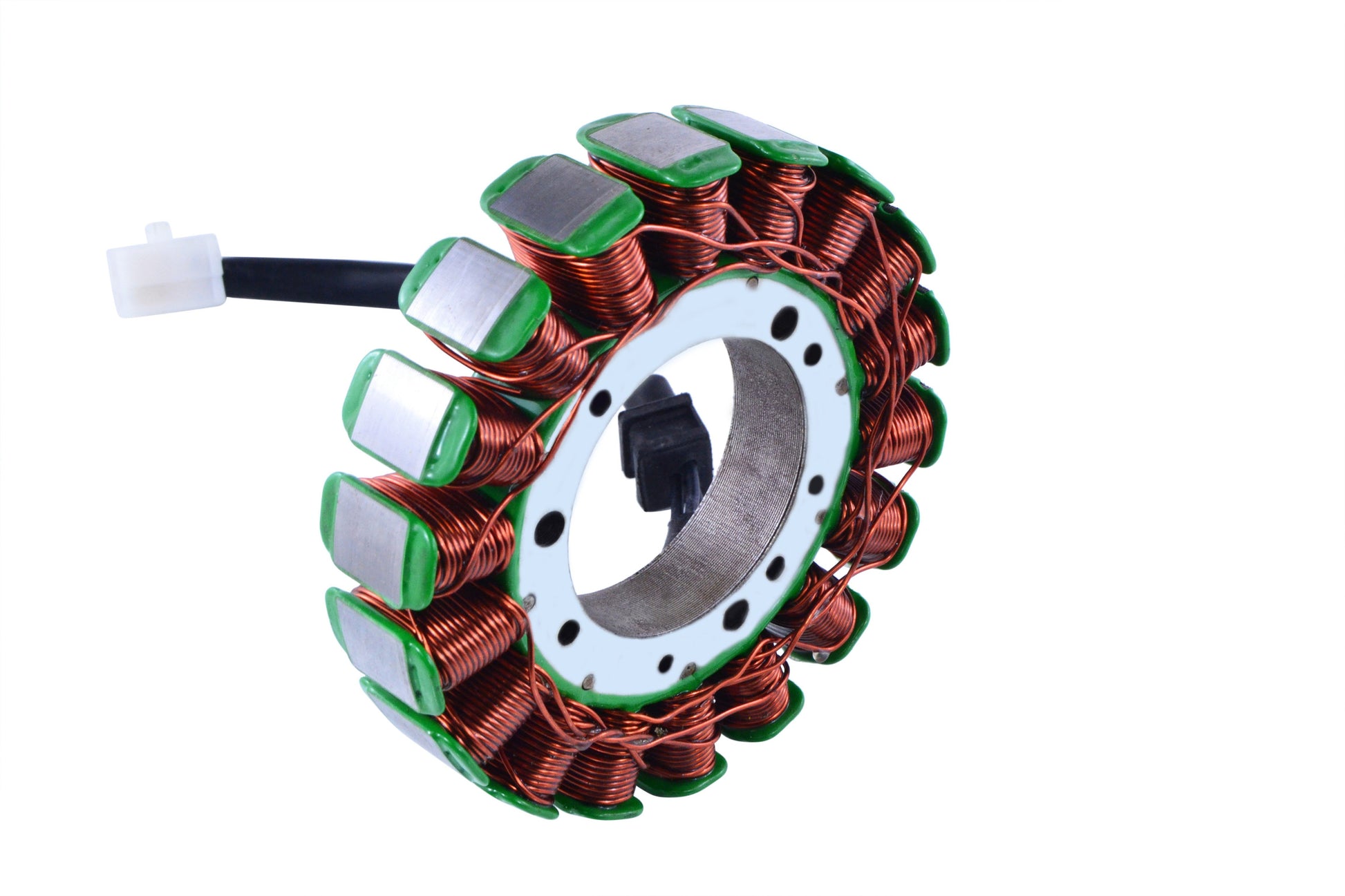

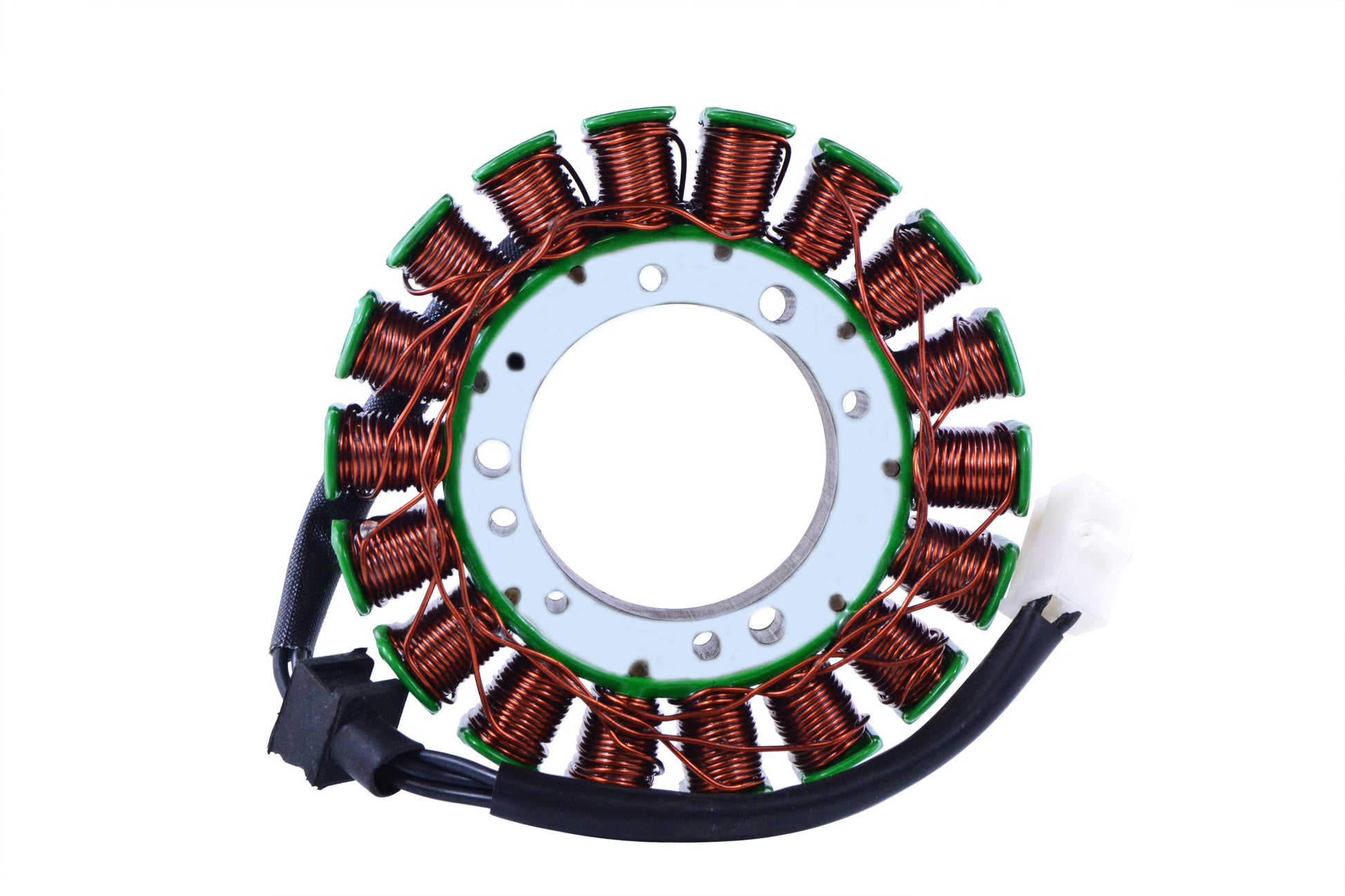

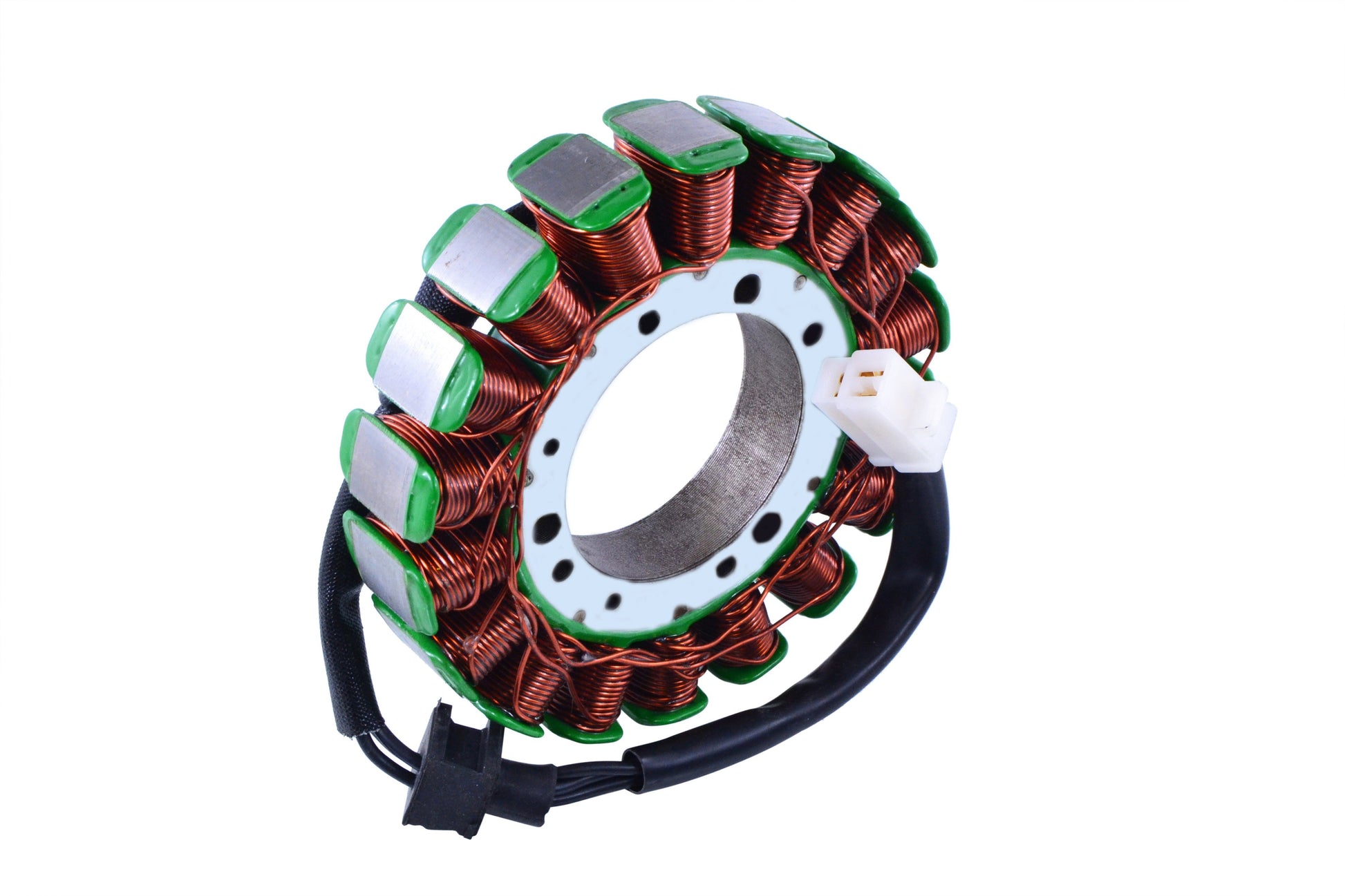

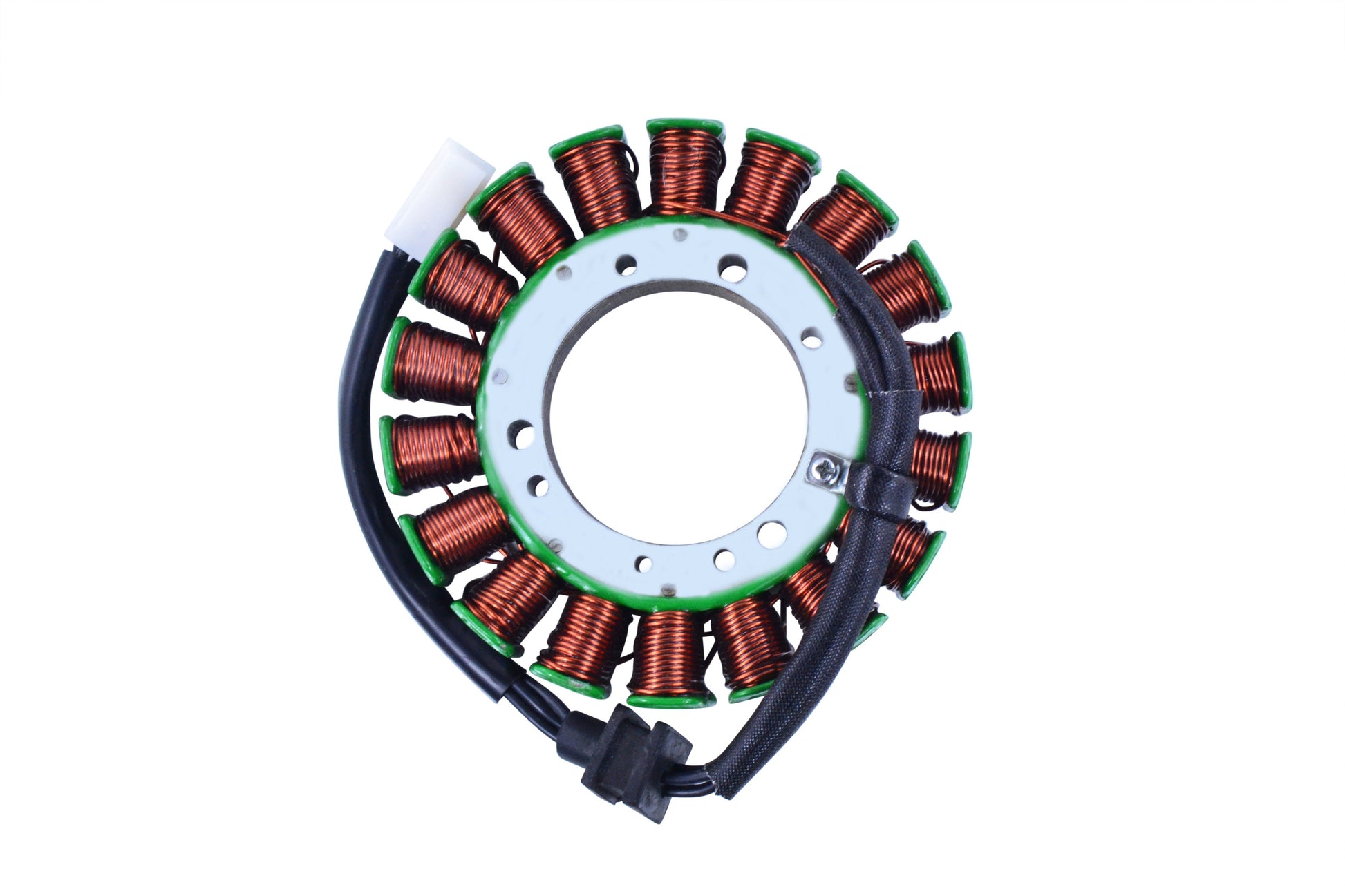

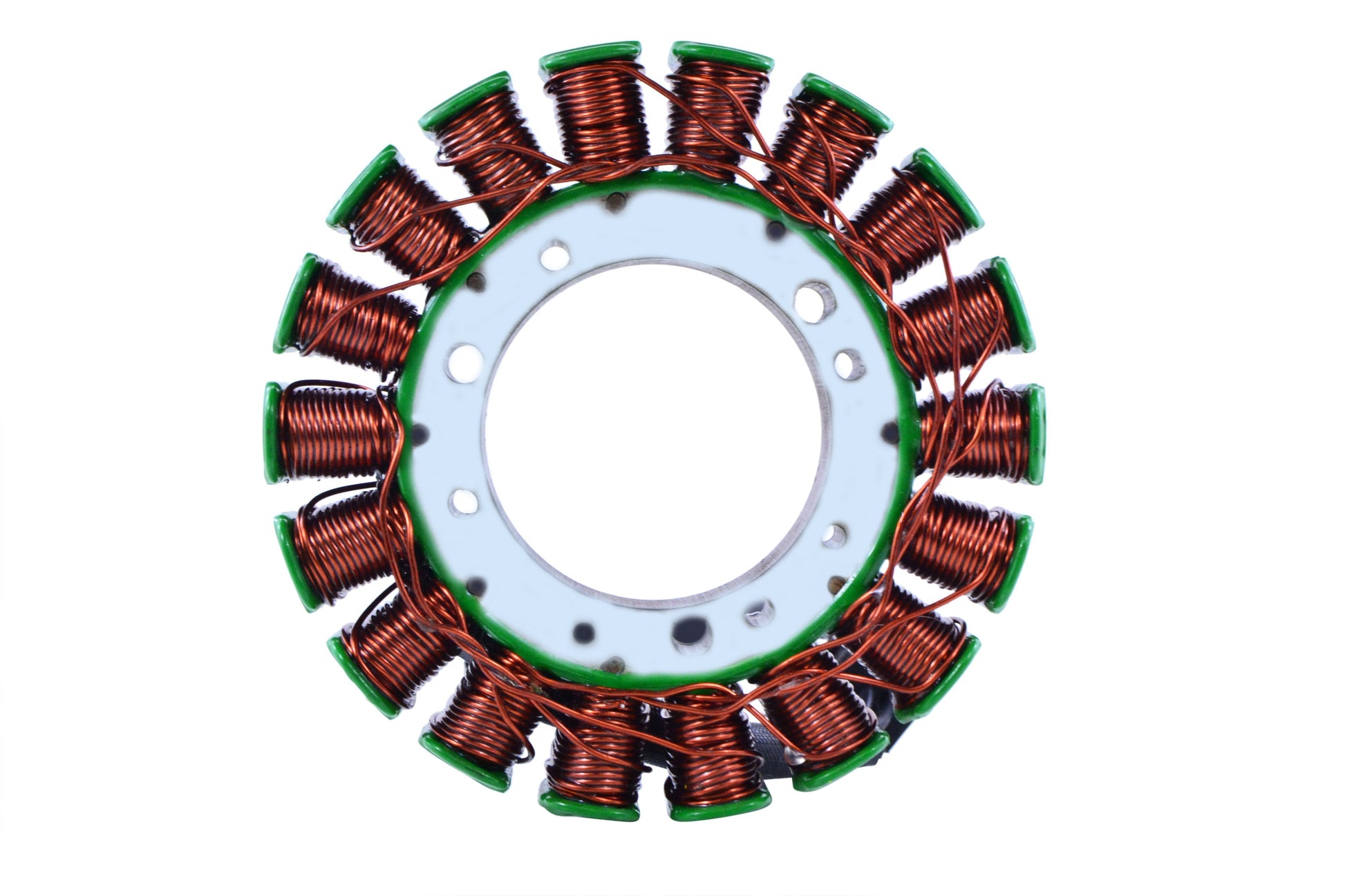

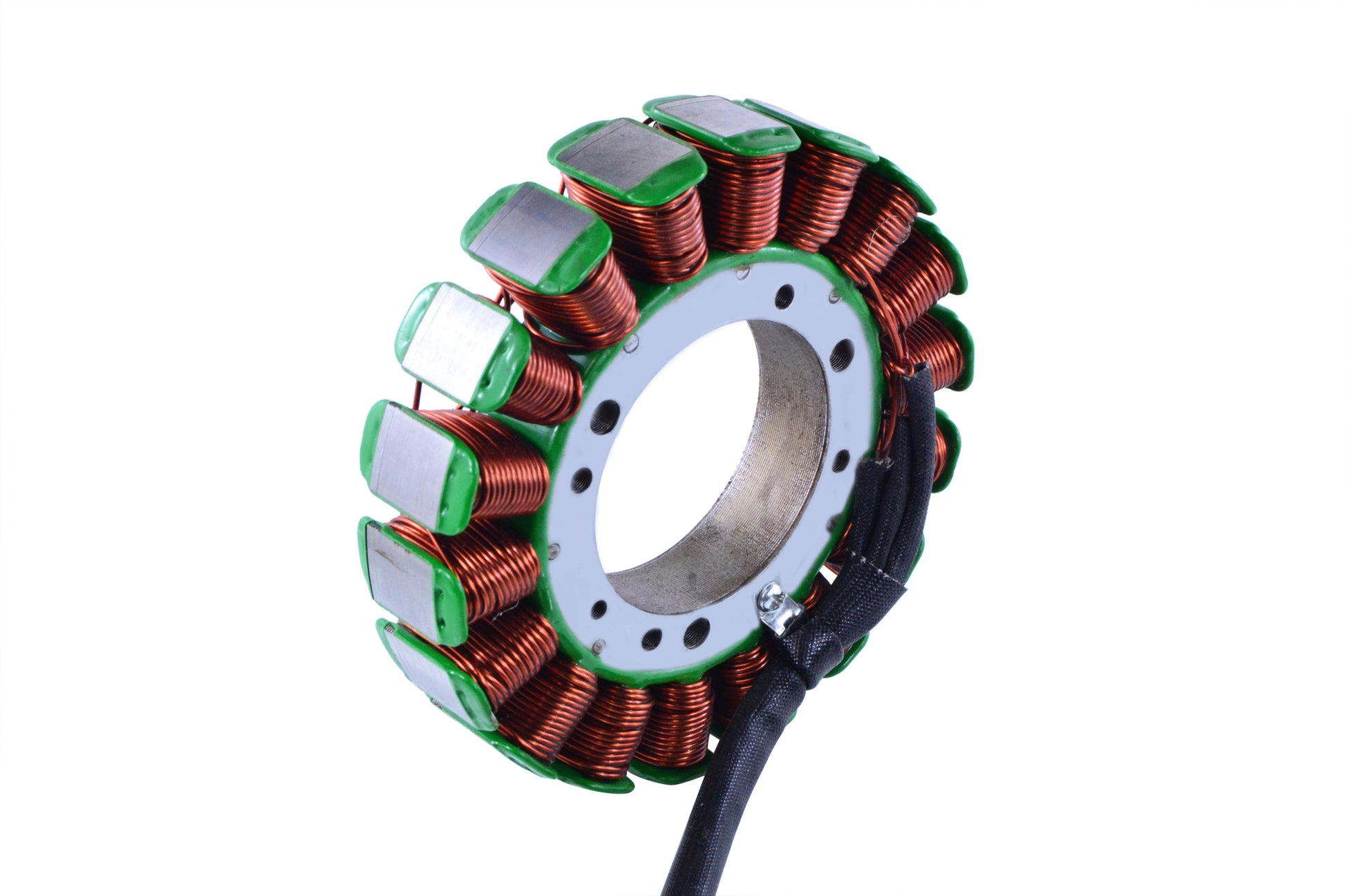

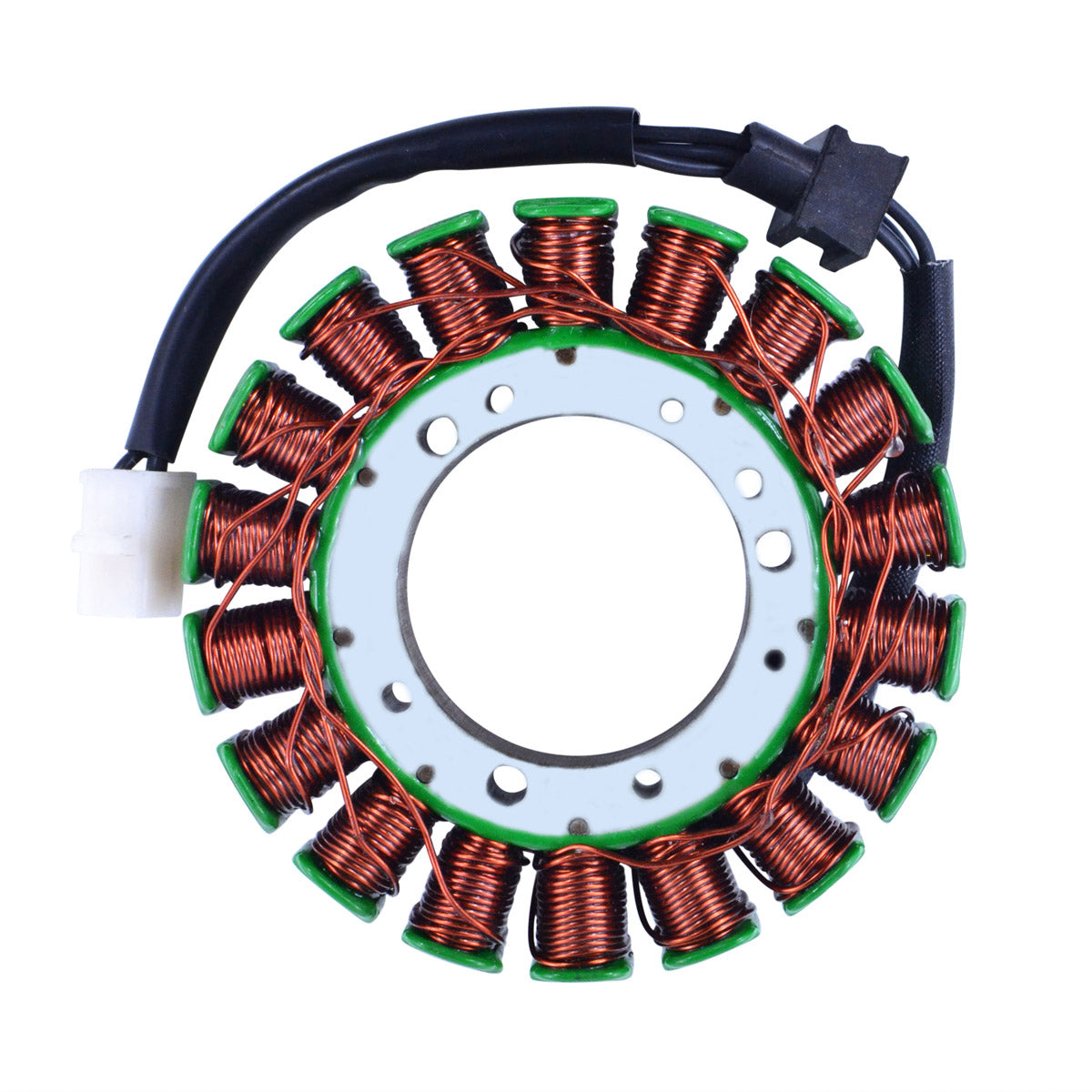

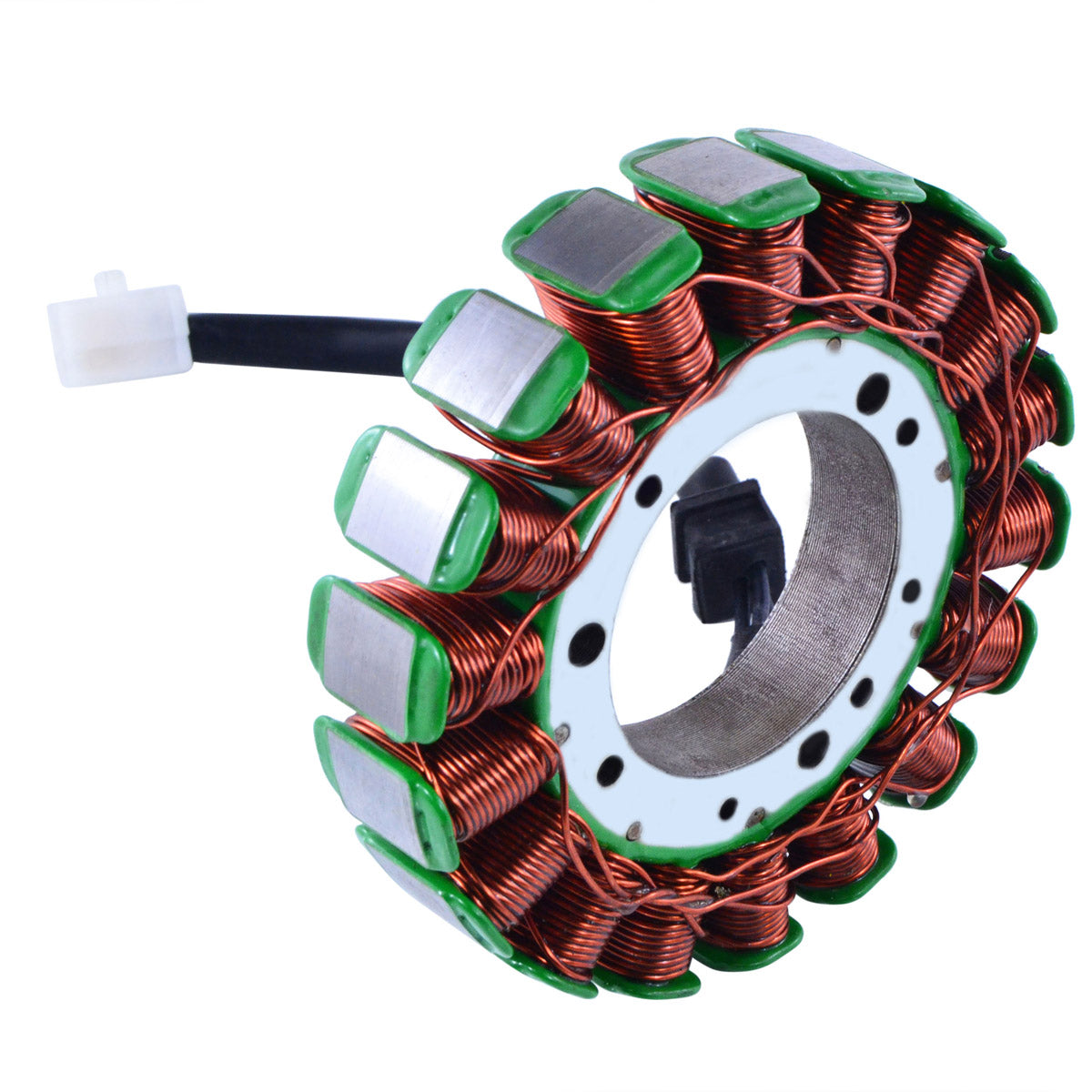

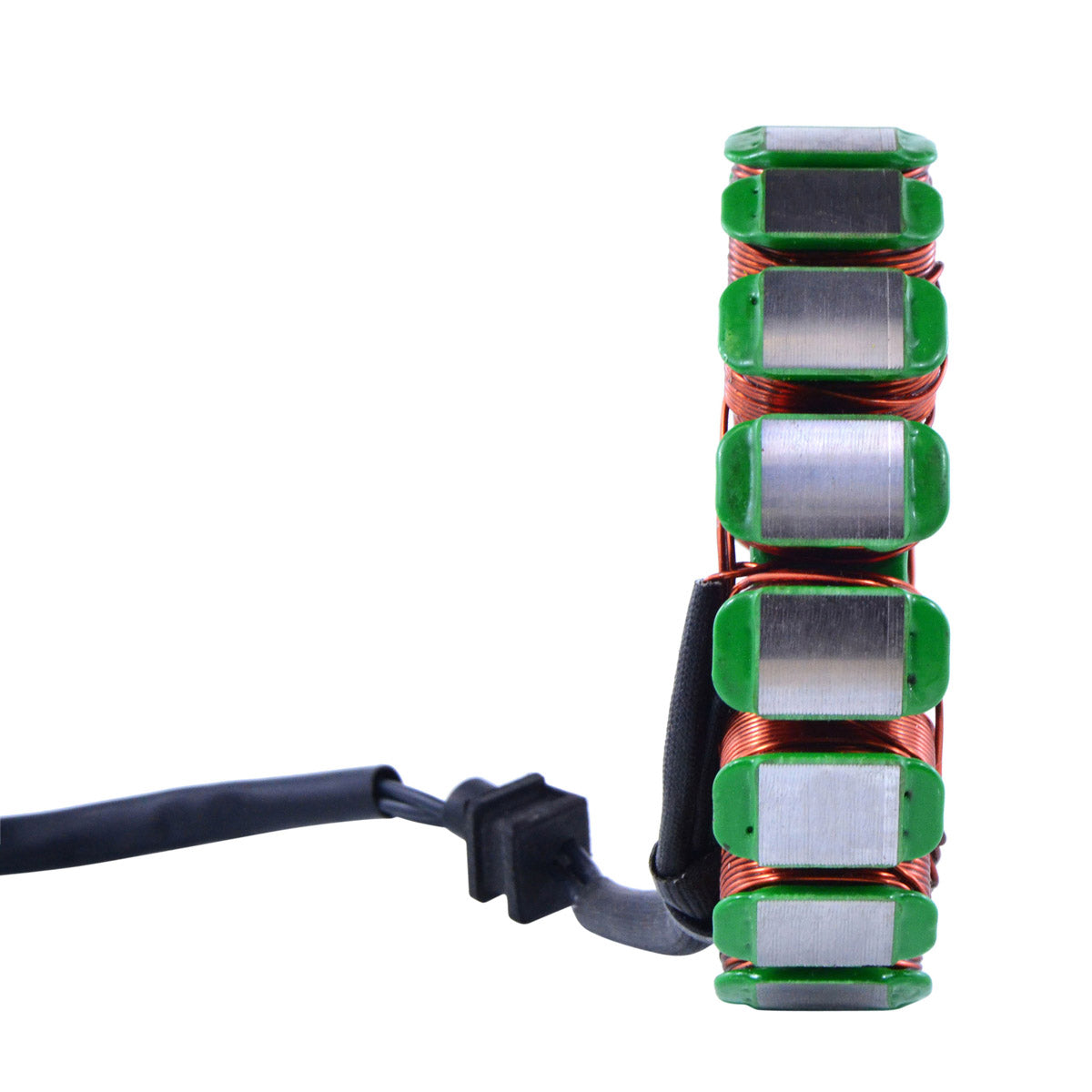

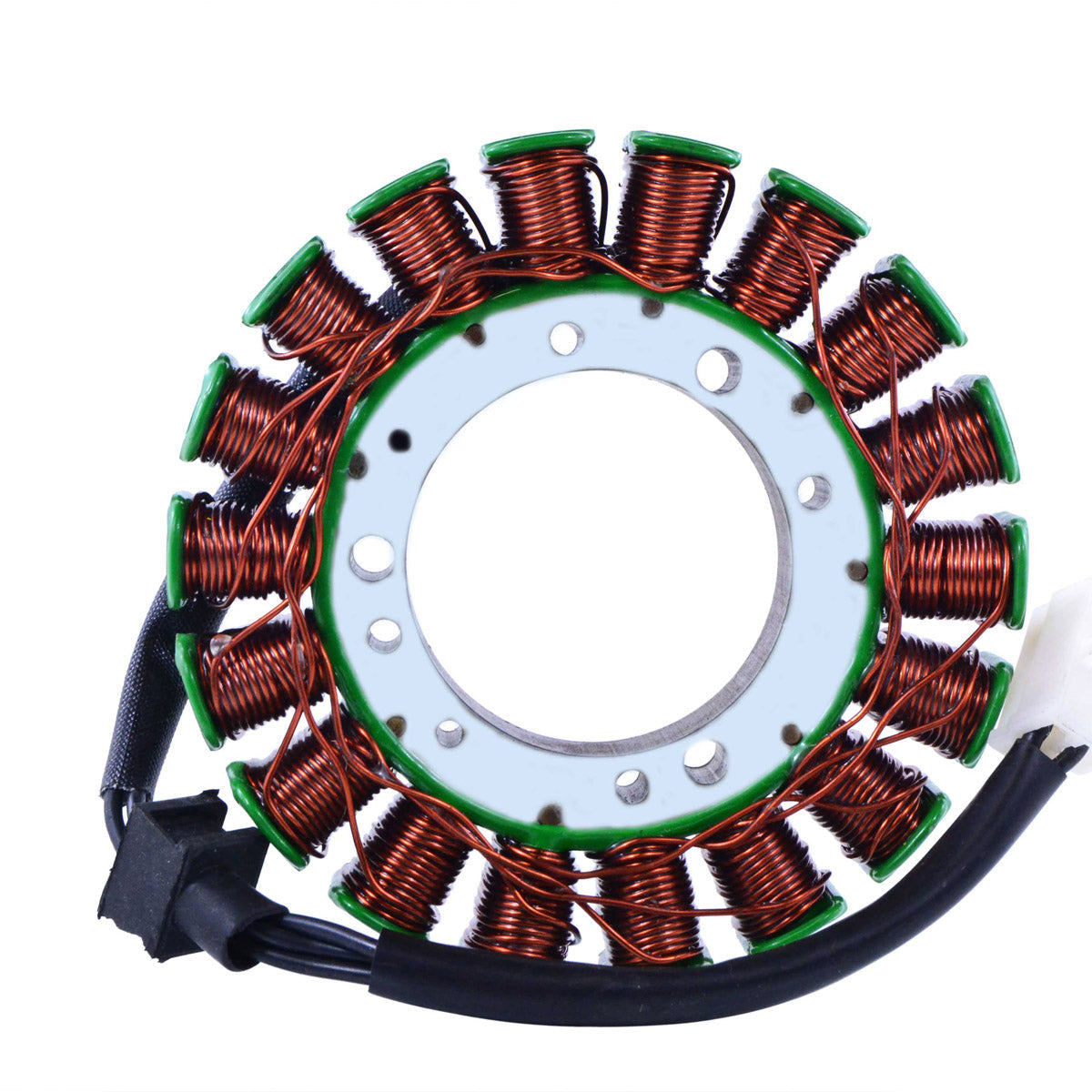

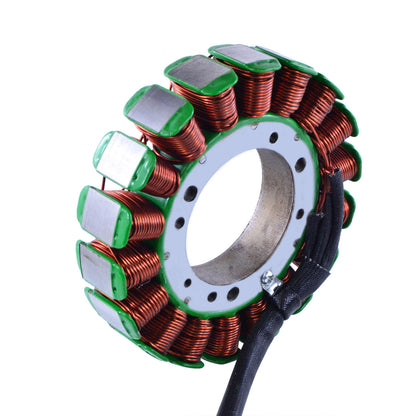

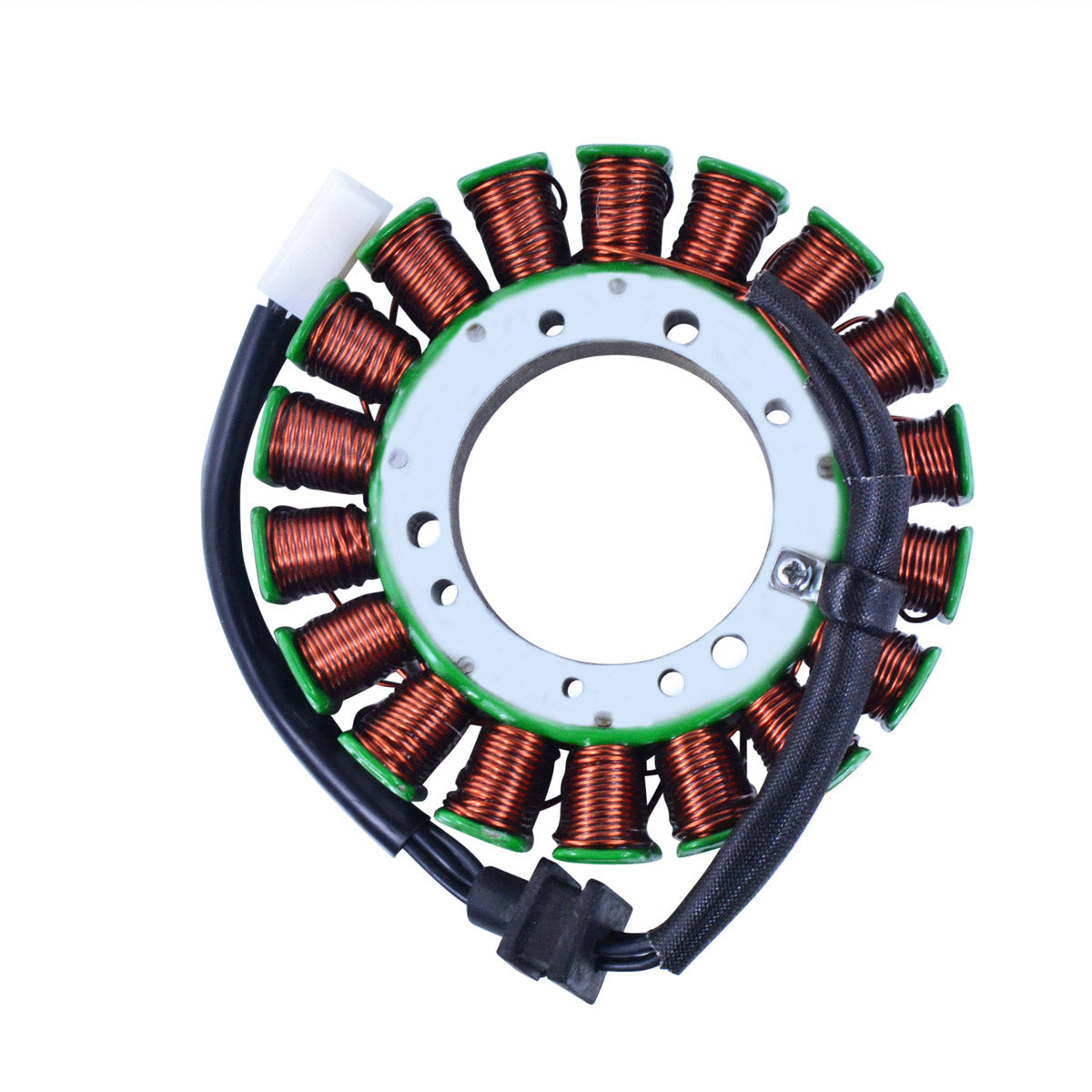

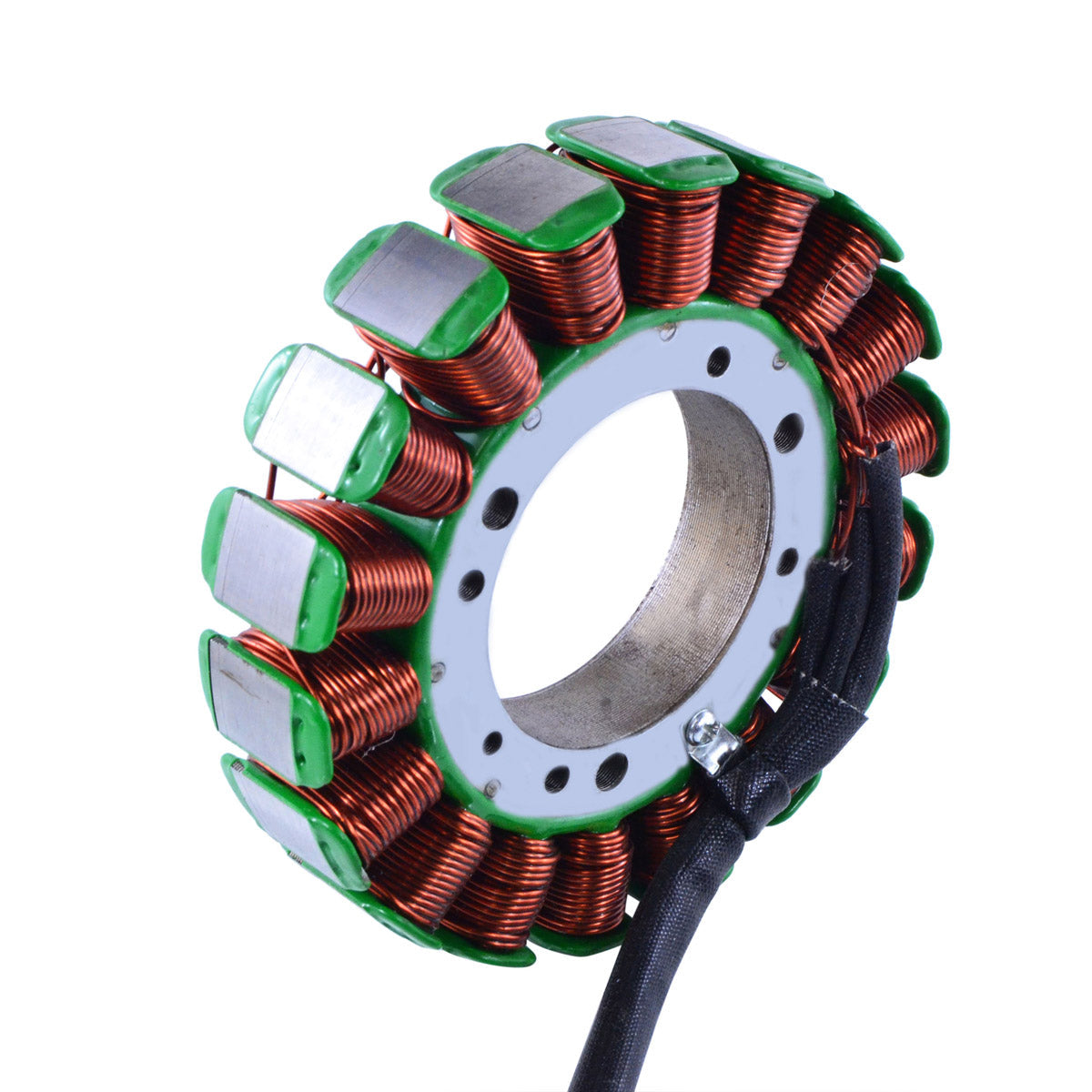

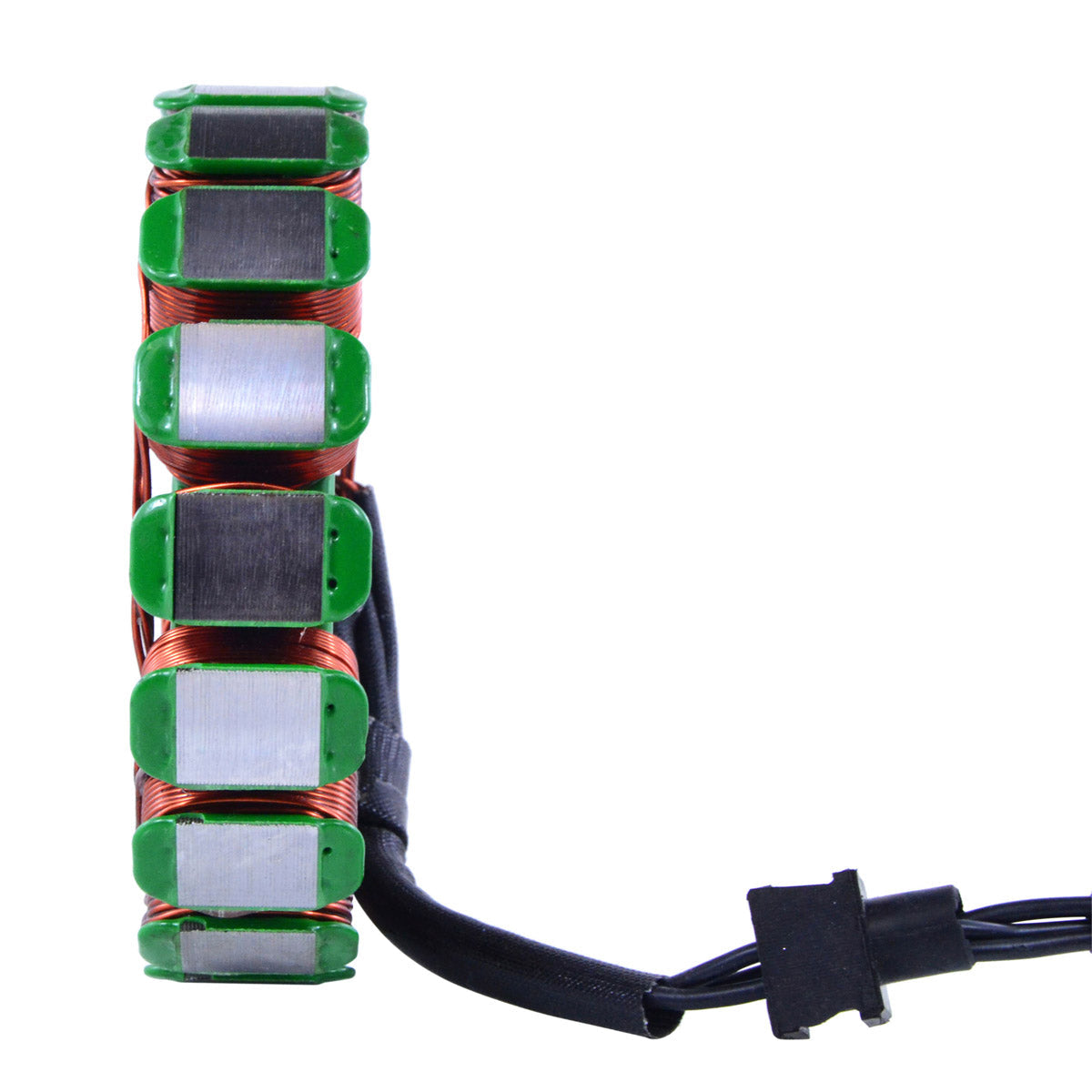

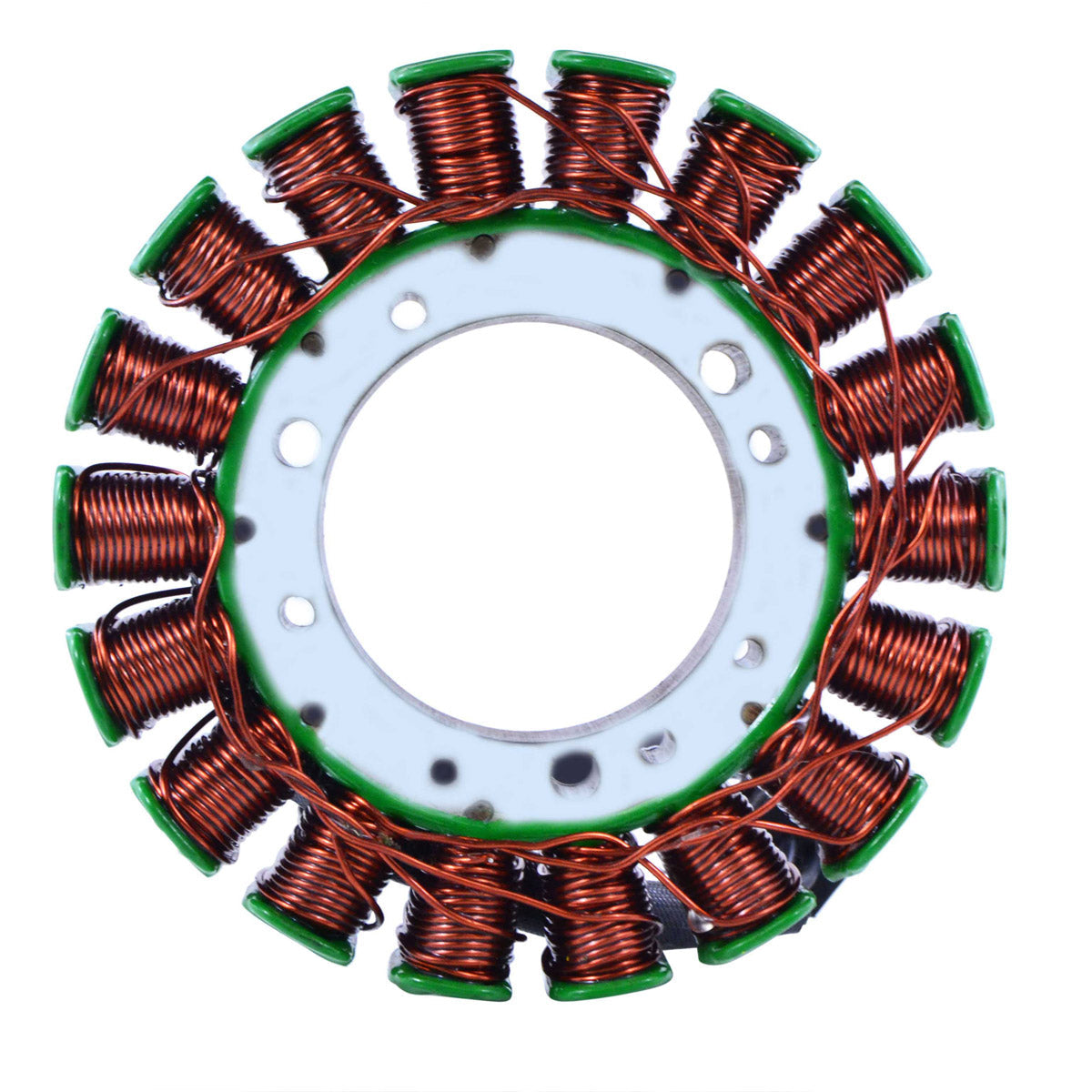

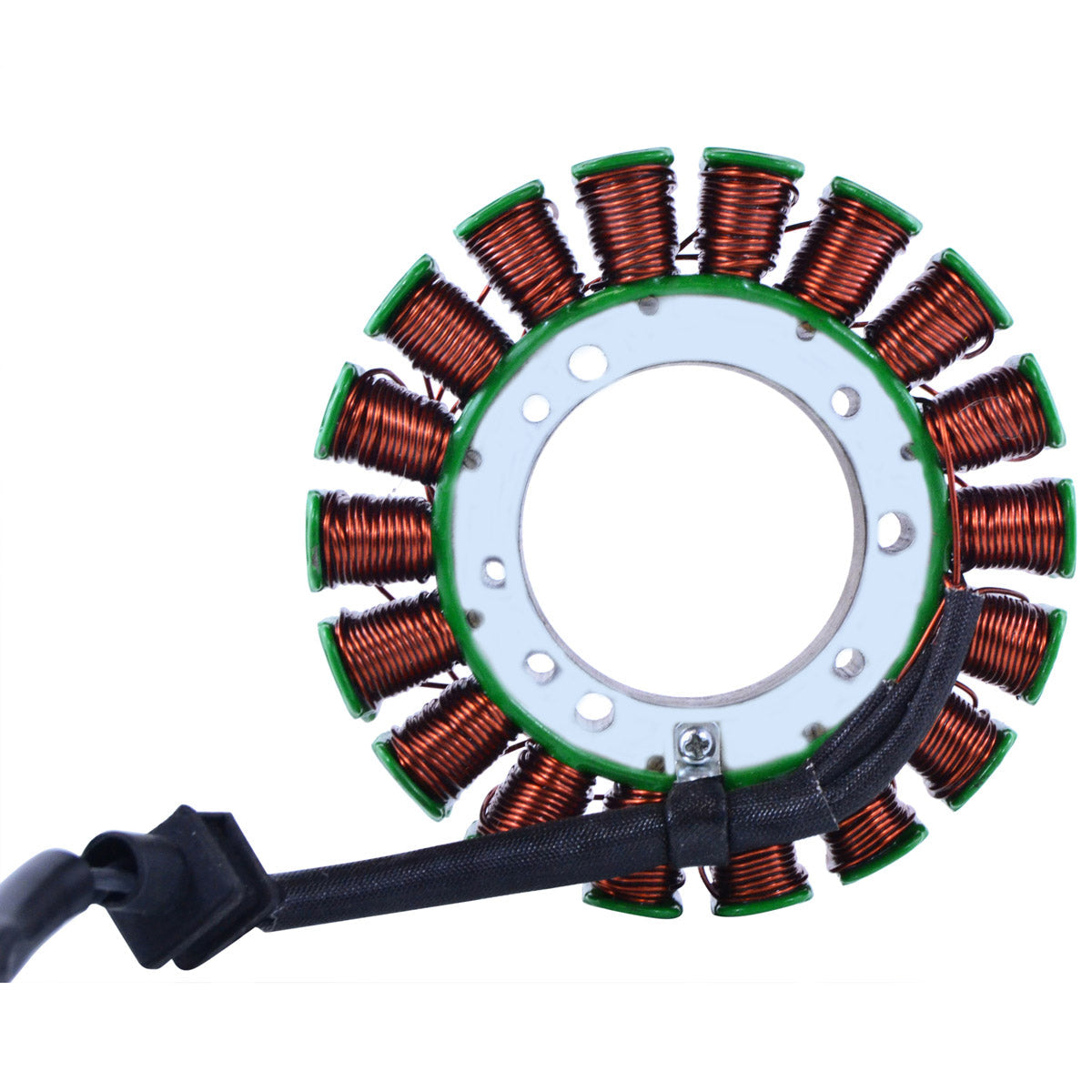

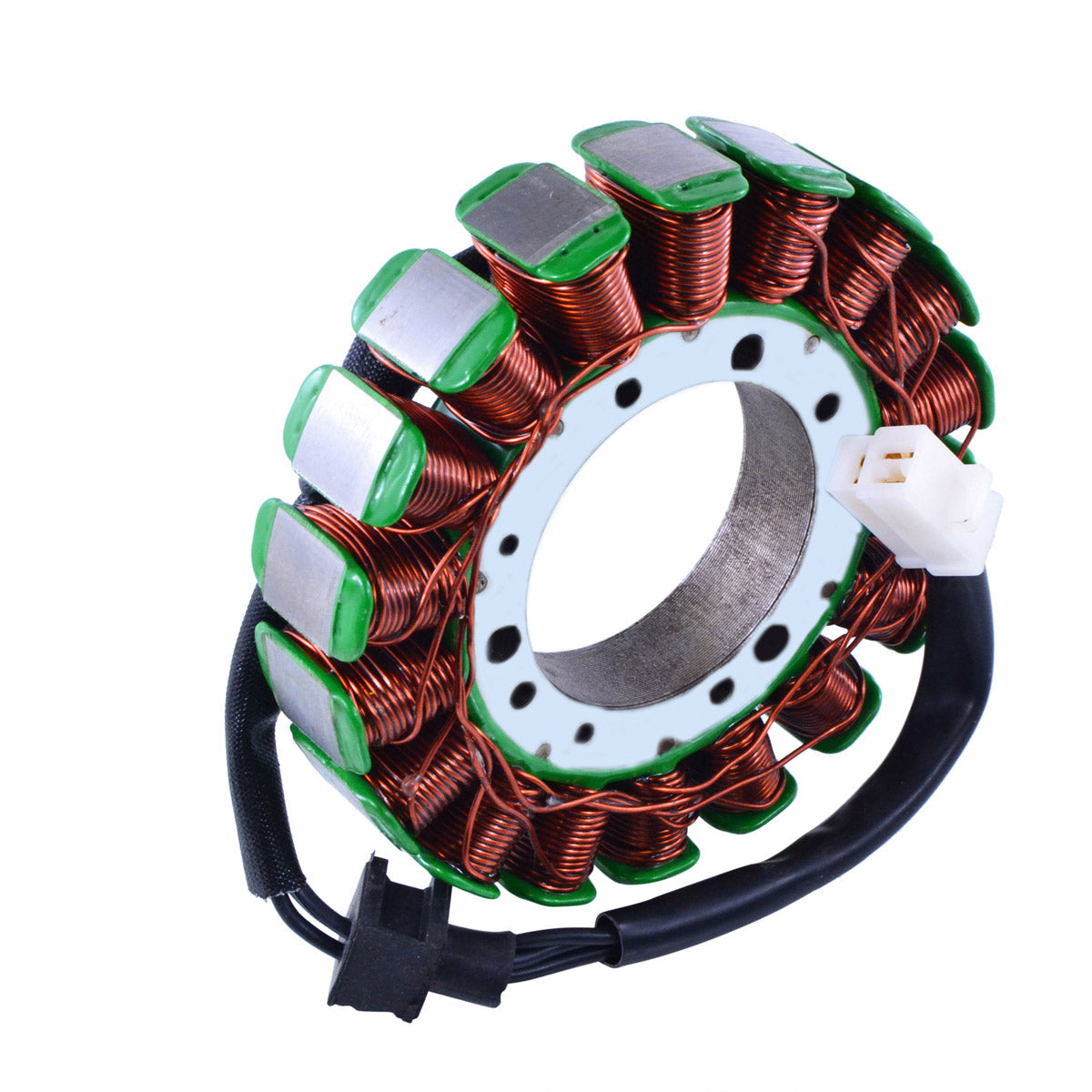

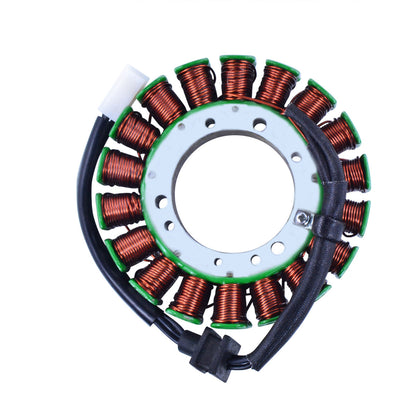

This is a brand new aftermarket generator stator for the big twin Kawasaki Vulcan range, covering the Vulcan 1500 and 1600 in Drifter, Nomad, Classic and Mean Streak form. It is a direct replacement for the original unit, supplied with the connector and rubber grommet already fitted, so it installs in the engine case exactly where the original sat and plugs into the existing harness with no rewiring and no splicing.
These heavyweight cruisers ask a great deal of the charging system - long touring miles, heated grips, driving lights and audio all draw from the same output - and the original stators are known to cook their windings over time. RMSTATOR wind this replacement with the highest grade copper, rated to 200 degrees Celsius, over the highest grade laminations. The opposite connector for the main harness side is supplied too, because a melted or corroded harness plug is one of the most common reasons a newly fitted stator fails again. Every unit is tested before it ships.
Key Features
- Brand new aftermarket generator stator - a direct replacement for your original unit
- Plug-and-play, direct fit, easy installation with no modification required
- Highest grade lamination materials for a stable magnetic circuit
- Highest grade copper windings, resistant to 200 degrees Celsius

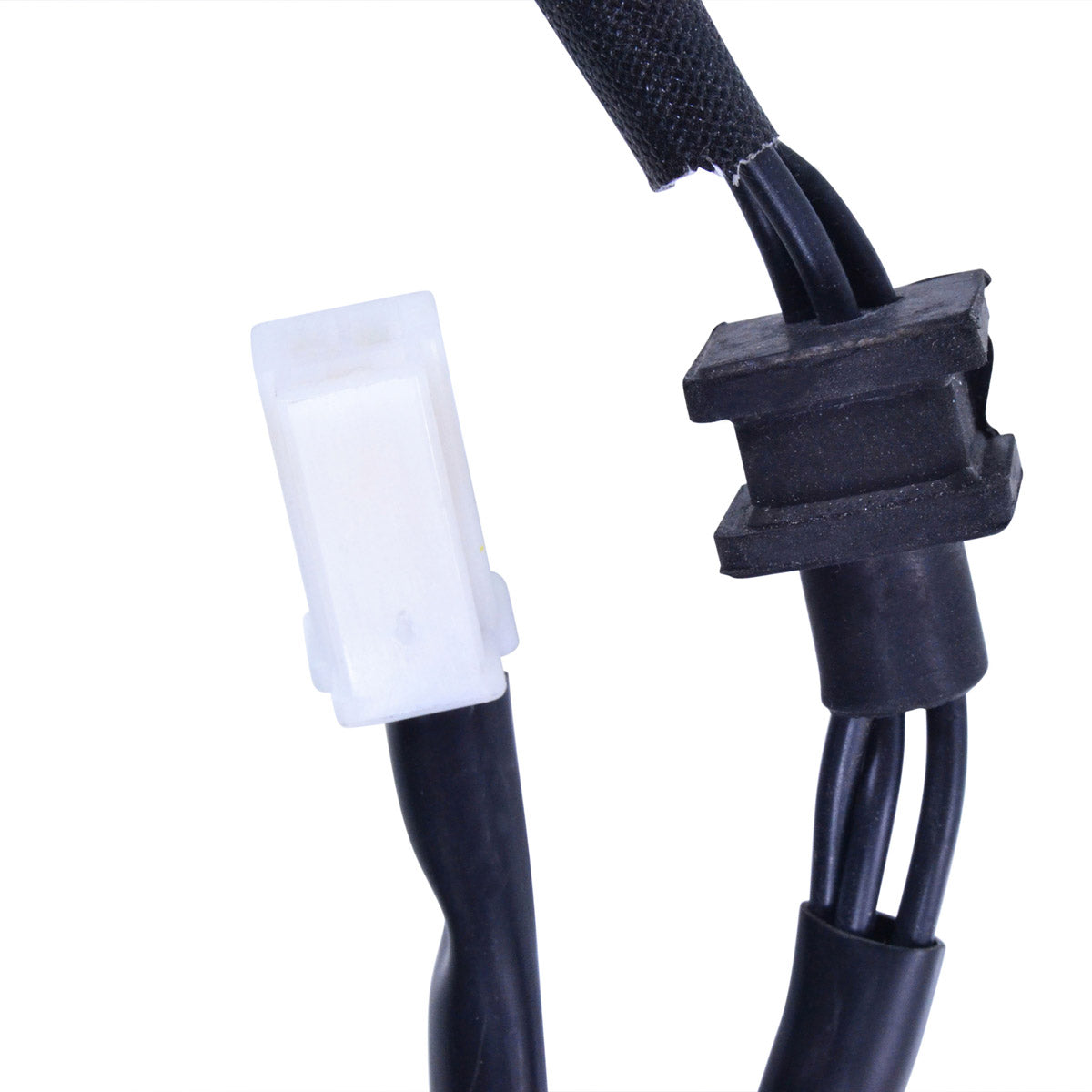

- Connector and rubber grommet included
- Every unit is tested before it is shipped

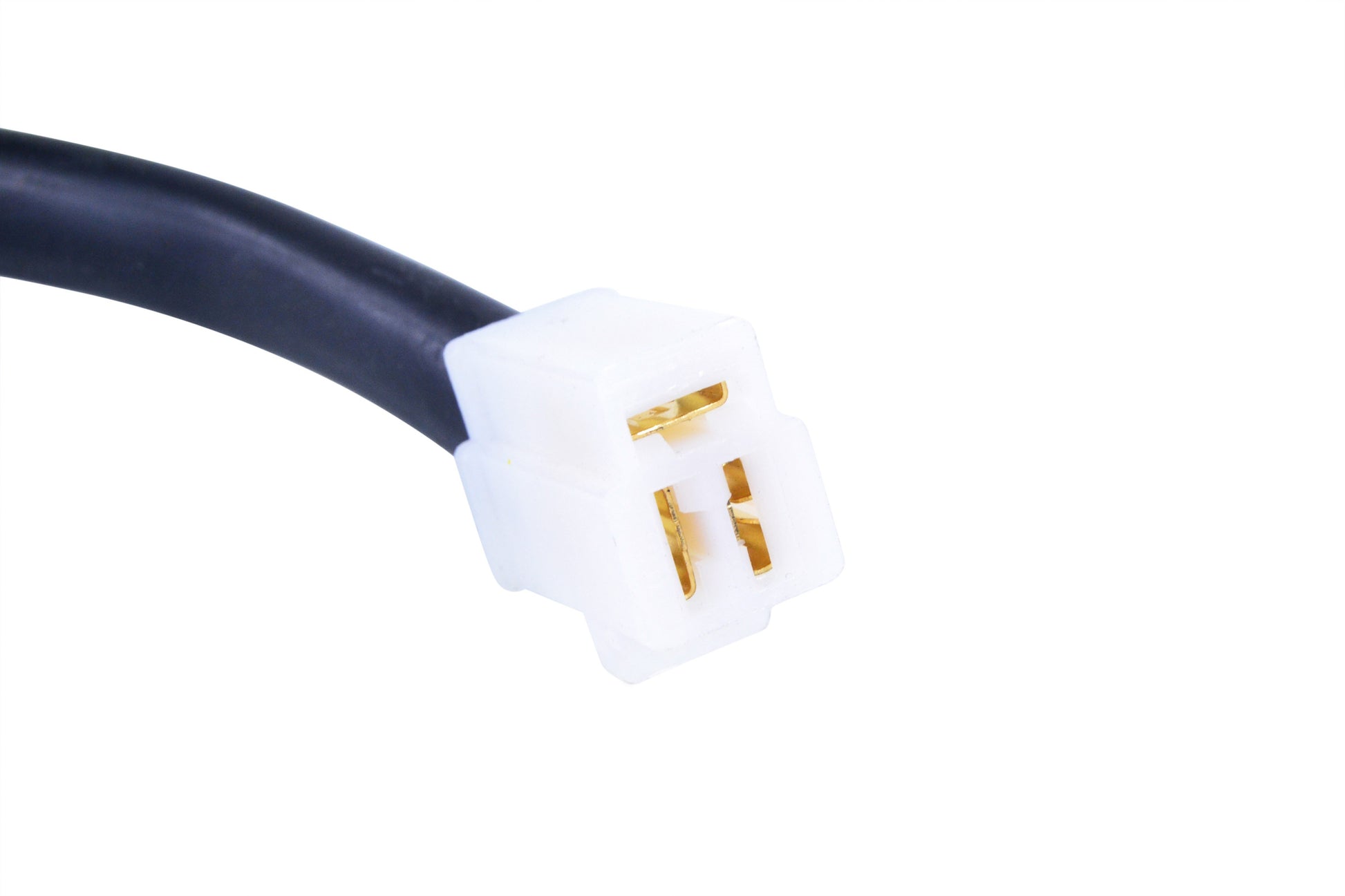

- Three wire, single plug configuration matching the original

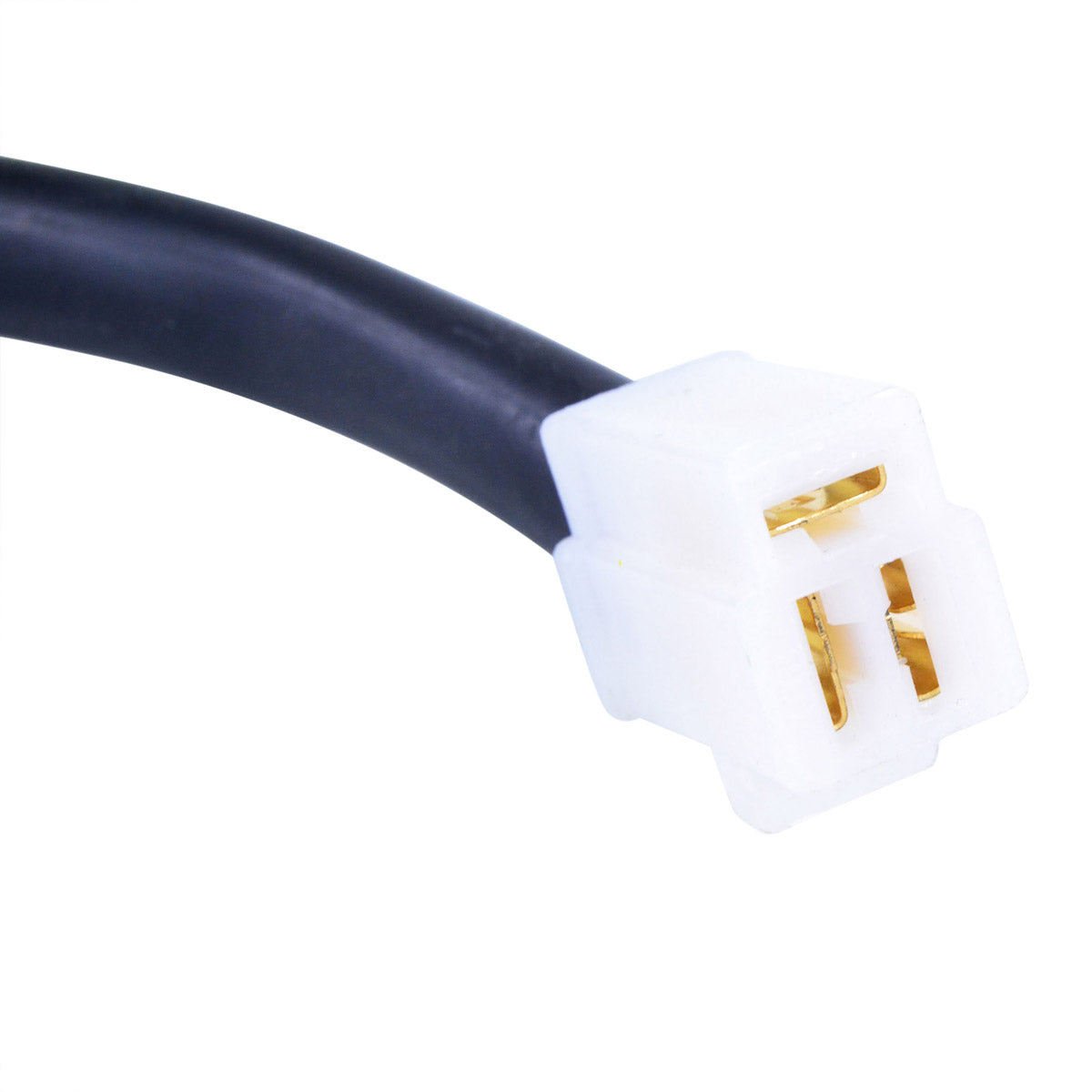

- Opposite connector (main harness side) supplied as well, so both halves of the plug are renewed
Technical Specs
| Specification |
Detail |
| Interior diameter |
58 mm |
| Exterior diameter |
130 mm |

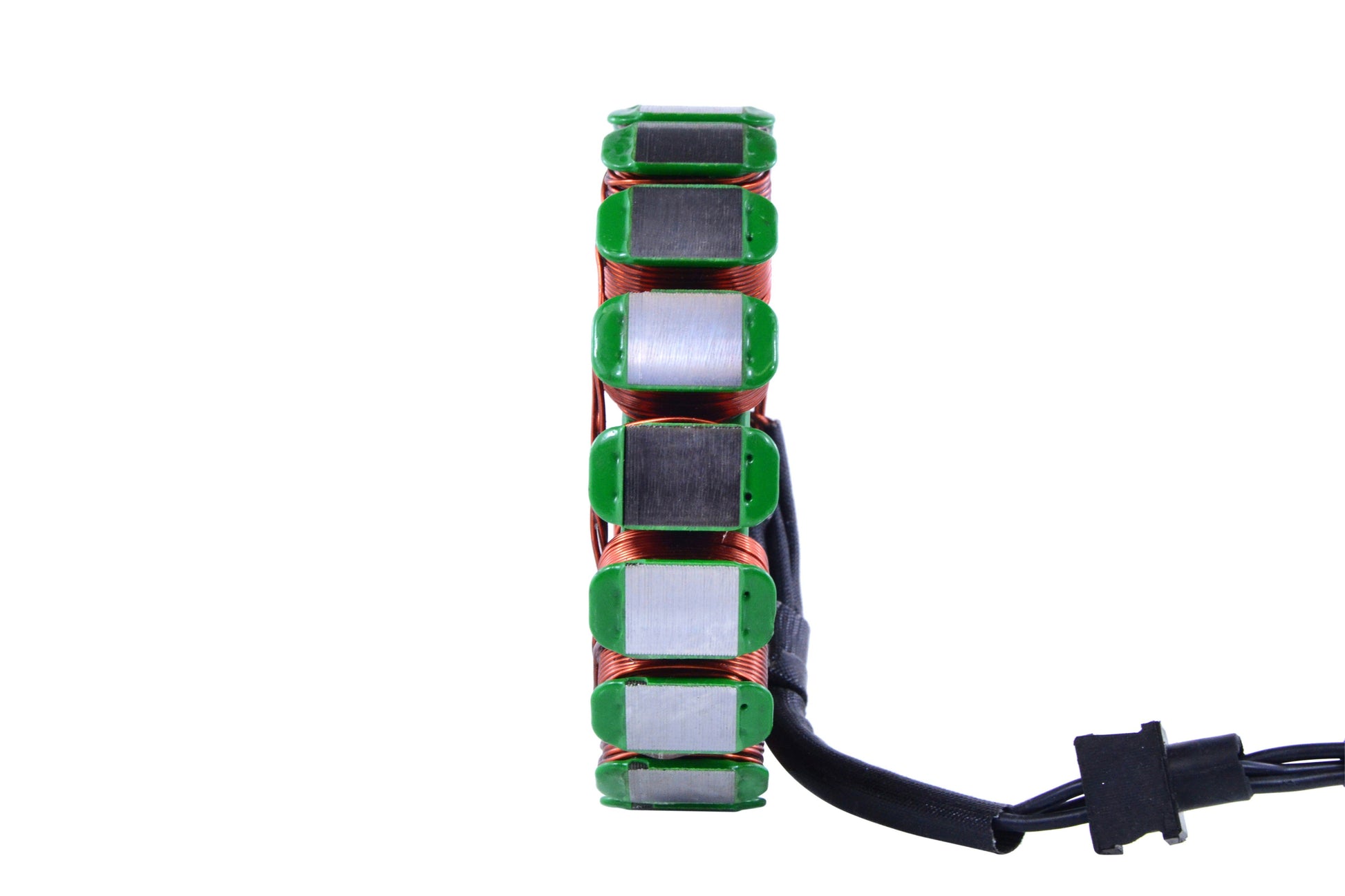

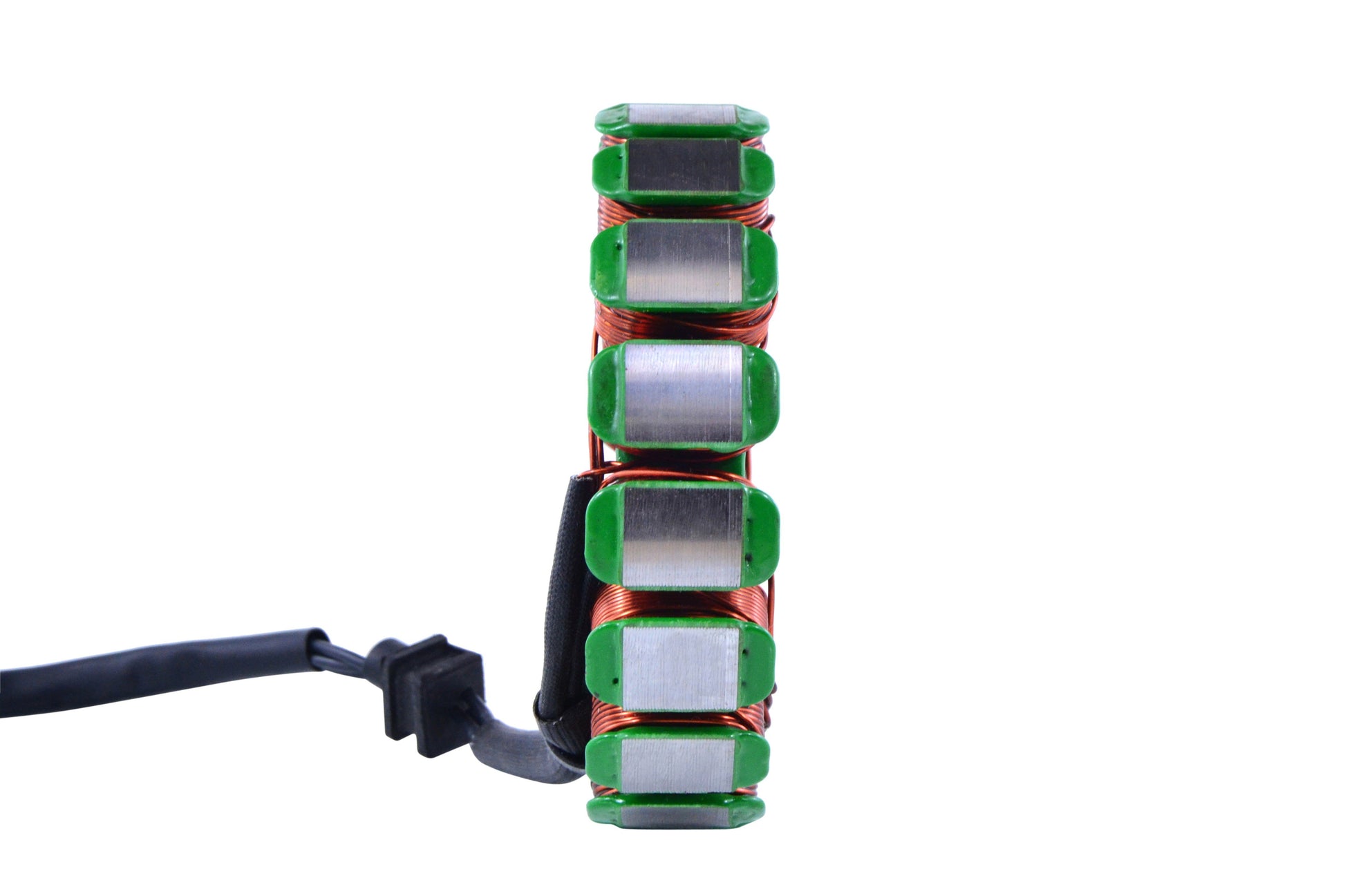

| Thickness |
21 mm |
| Length of wires stator to grommet |
70 mm |
| Length of wires grommet to plug |
125 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Wire to wire resistance |
Black to black = 0.7 ohms +-20% |
| Winding temperature rating |
Resistant to 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki Vulcan 1500 / 1600 Drifter |
1999-2008 |
| Kawasaki Vulcan Nomad |
1999-2008 |
| Kawasaki Vulcan Classic |
1999-2008 |
| Kawasaki Vulcan Mean Streak |
1999-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1372 |
Kawasaki |
| 21003-1375 |
Kawasaki |
| 21003-1326 |
Kawasaki |
| 21003-1376 |
Kawasaki |
| 21003-1373 |
Kawasaki |
| 21003-0007 |
Kawasaki |
| 21003-1325 |
Kawasaki |
| 21003-1356 |
Kawasaki |
| 21003-0008 |
Kawasaki |
Frequently Asked Questions
Will this stator fit without modifying my bike?
Yes. It is a direct, plug-and-play replacement for the original generator stator. The outer and inner diameters, the thickness, the three wire layout and the plug all match the factory part, so nothing needs cutting or adapting.
What is included in the box?
The generator stator with its connector already fitted, the rubber grommet, and in addition the opposite connector for the main harness side.
How do I know my old stator has failed?
A failing stator on these Vulcans shows up as a battery that will not hold charge, charging voltage that does not climb as the engine revs, and in bad cases a burnt smell from the engine. With a multimeter, each pair of black wires should read roughly 0.7 ohms and none of them should show continuity to earth.
Should I replace the regulator rectifier at the same time?
It is worth testing it. A regulator rectifier that has failed short can destroy a new stator, so if the original stator burnt out rather than simply going open circuit, check the regulator rectifier before fitting the replacement.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
