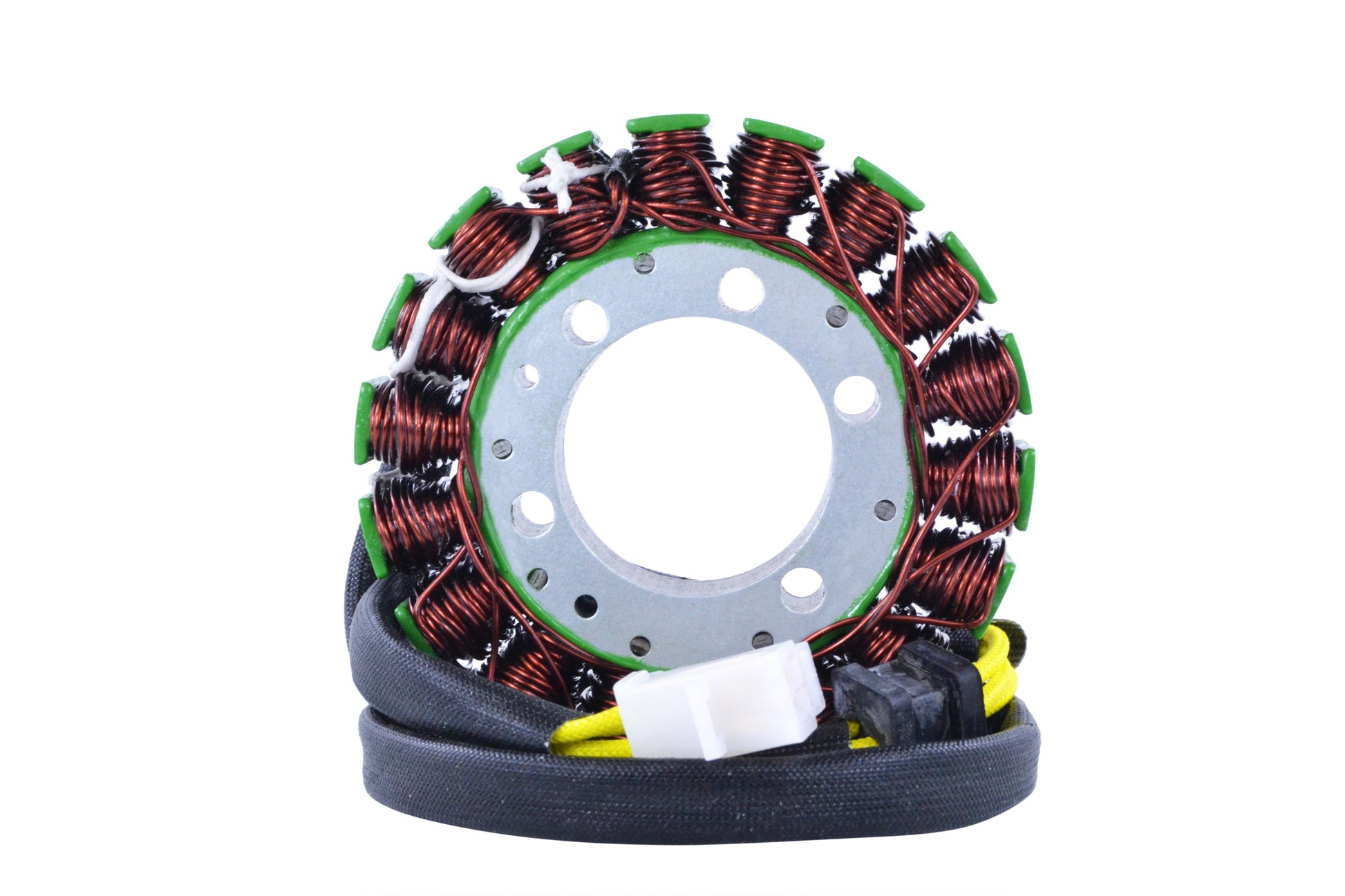

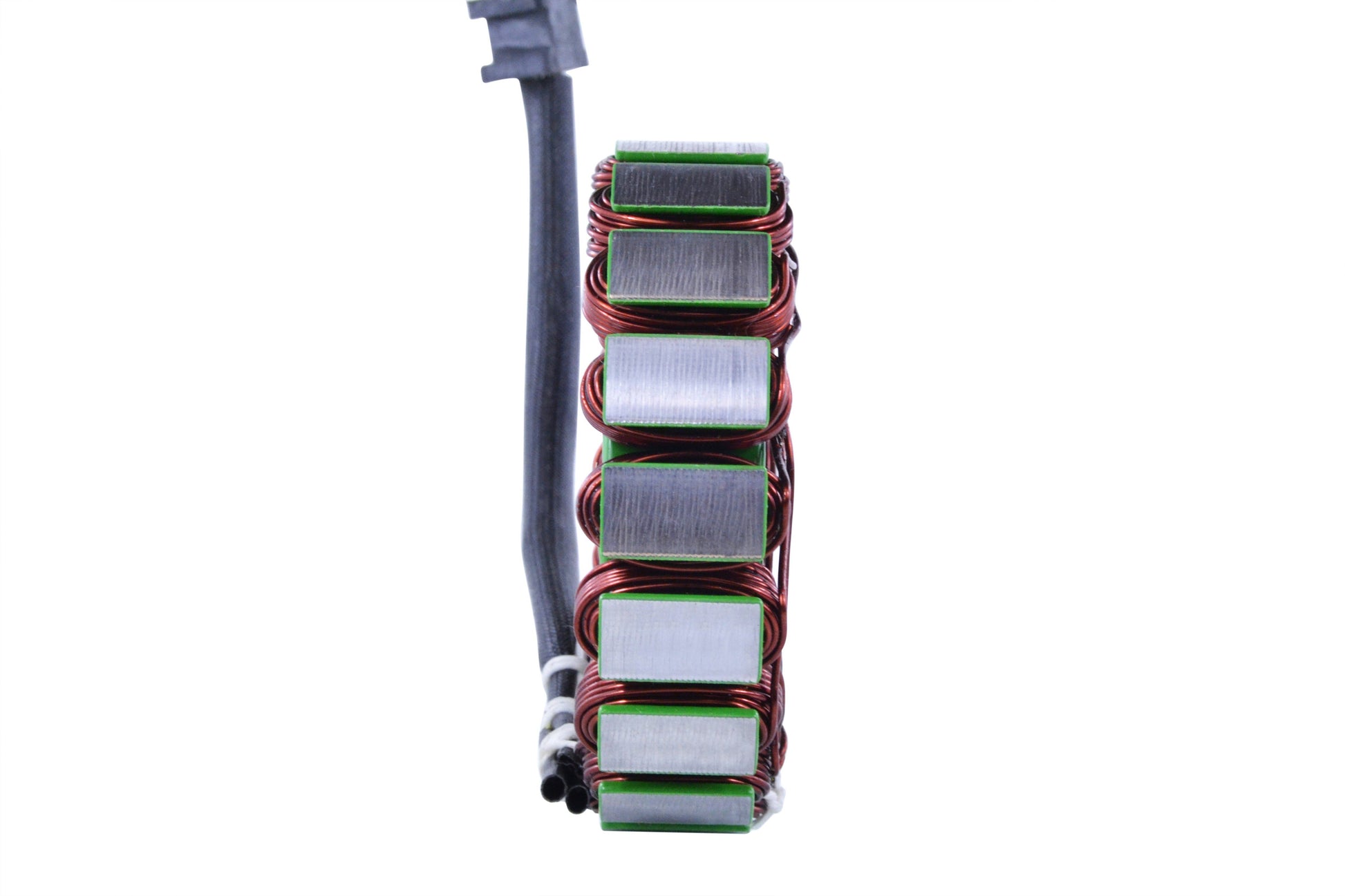

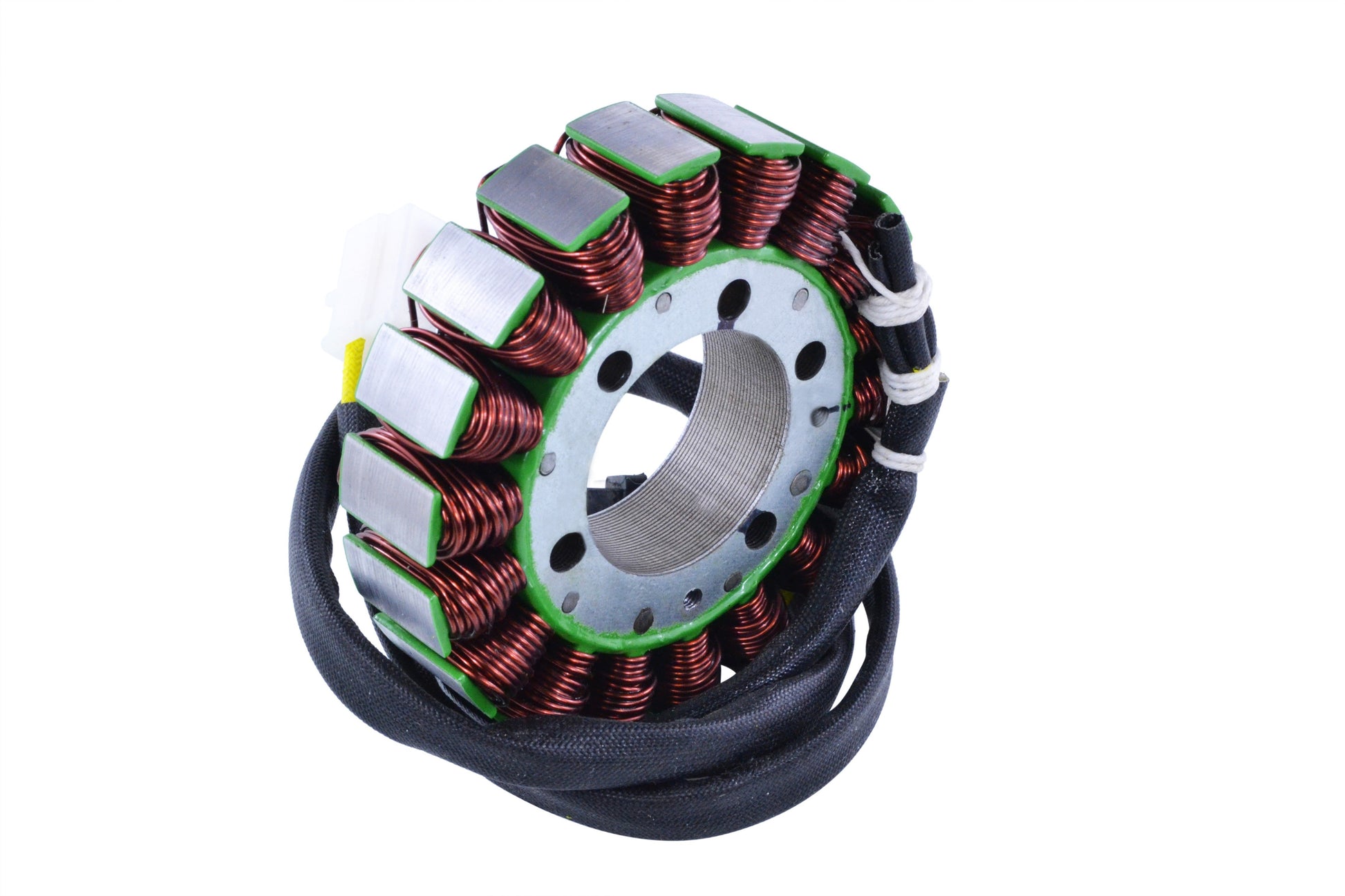

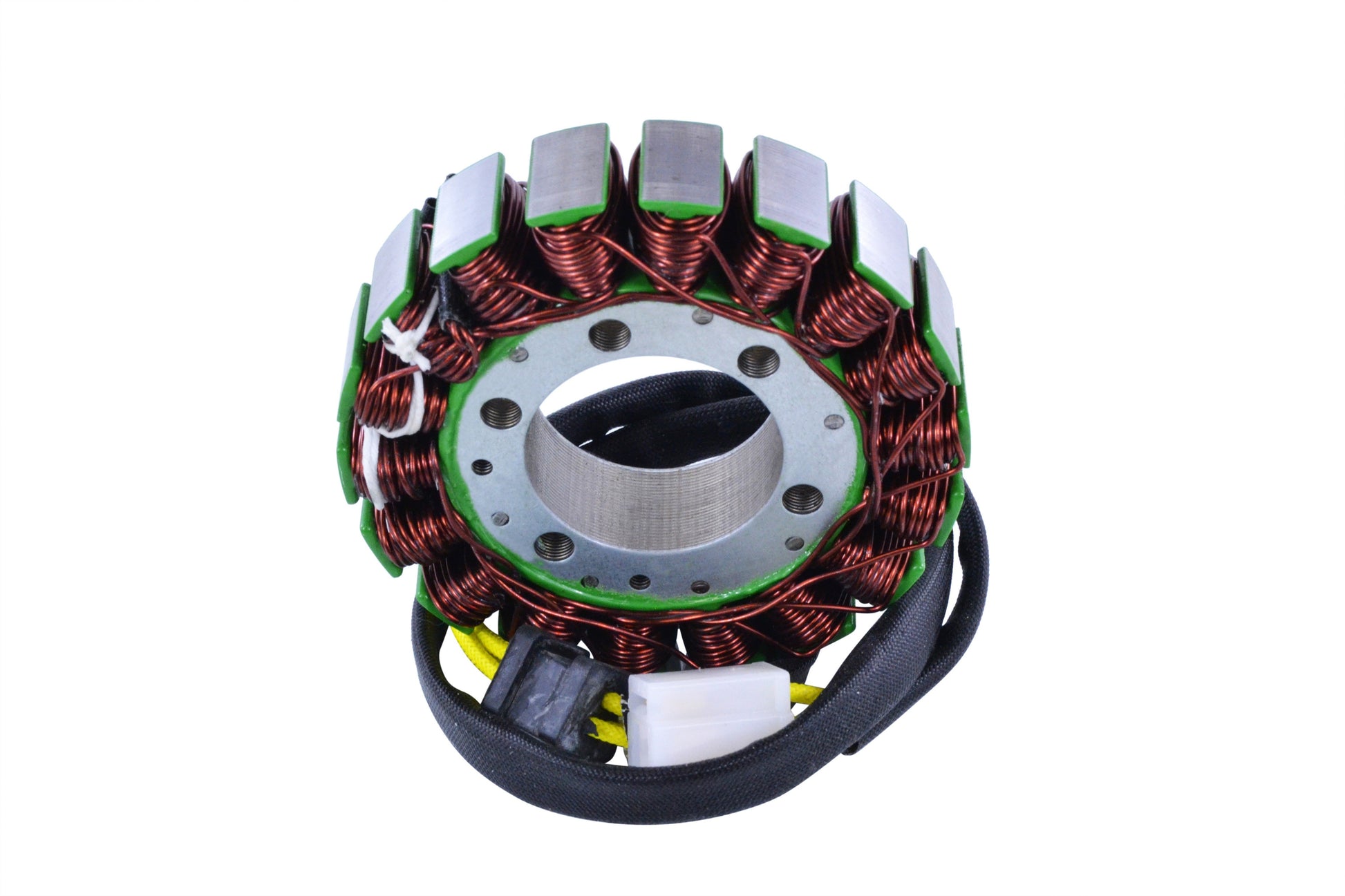

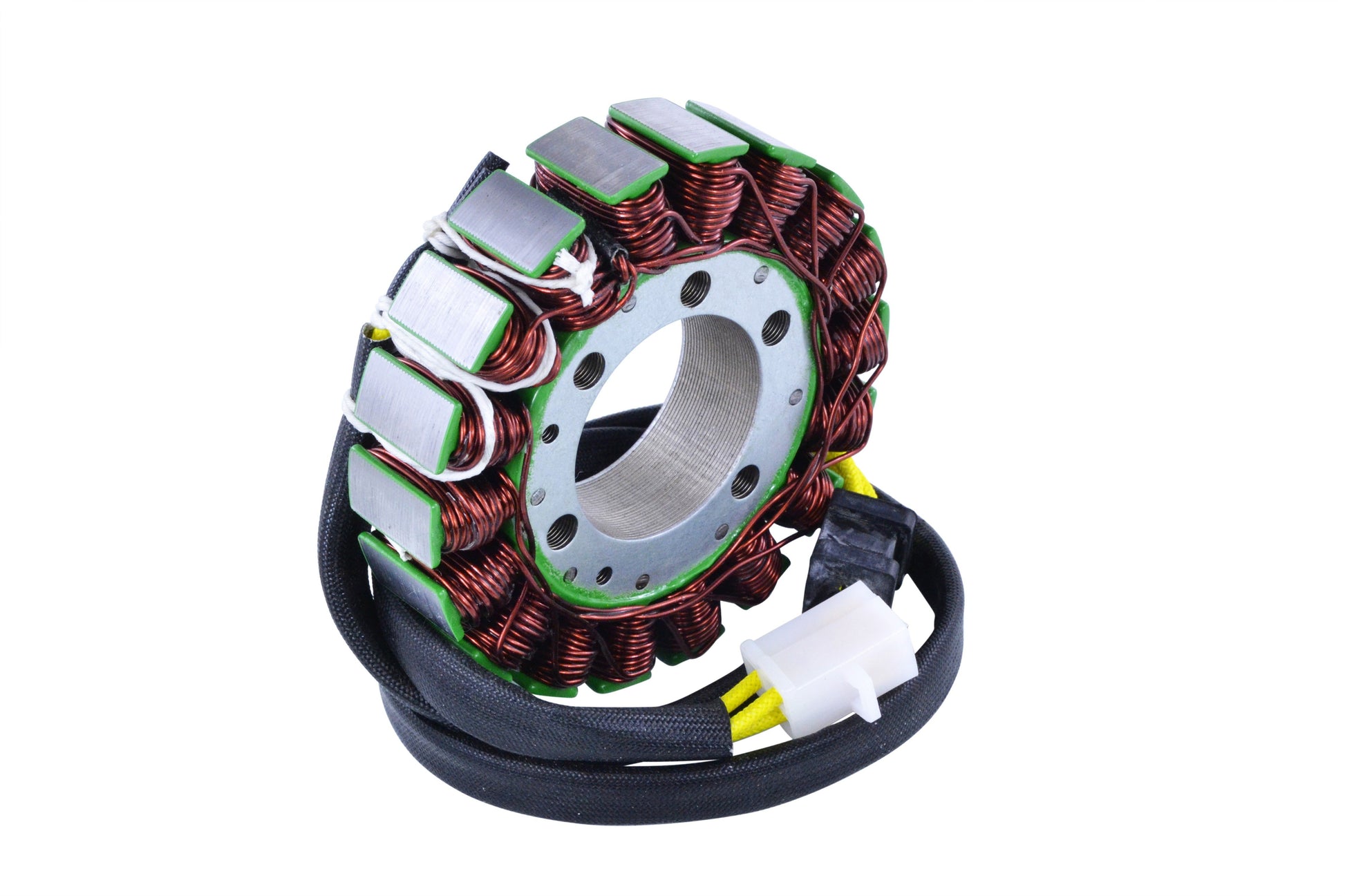

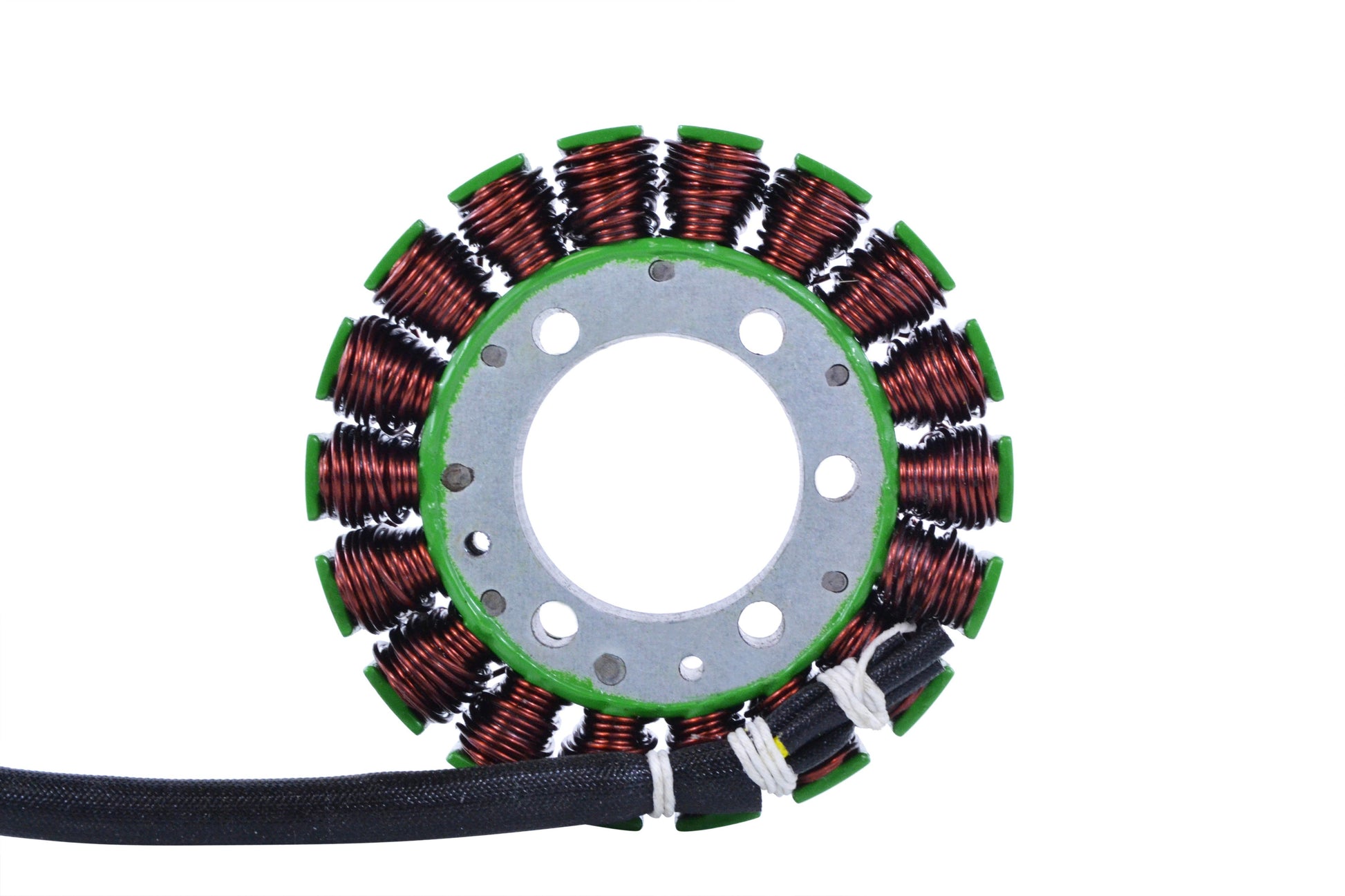

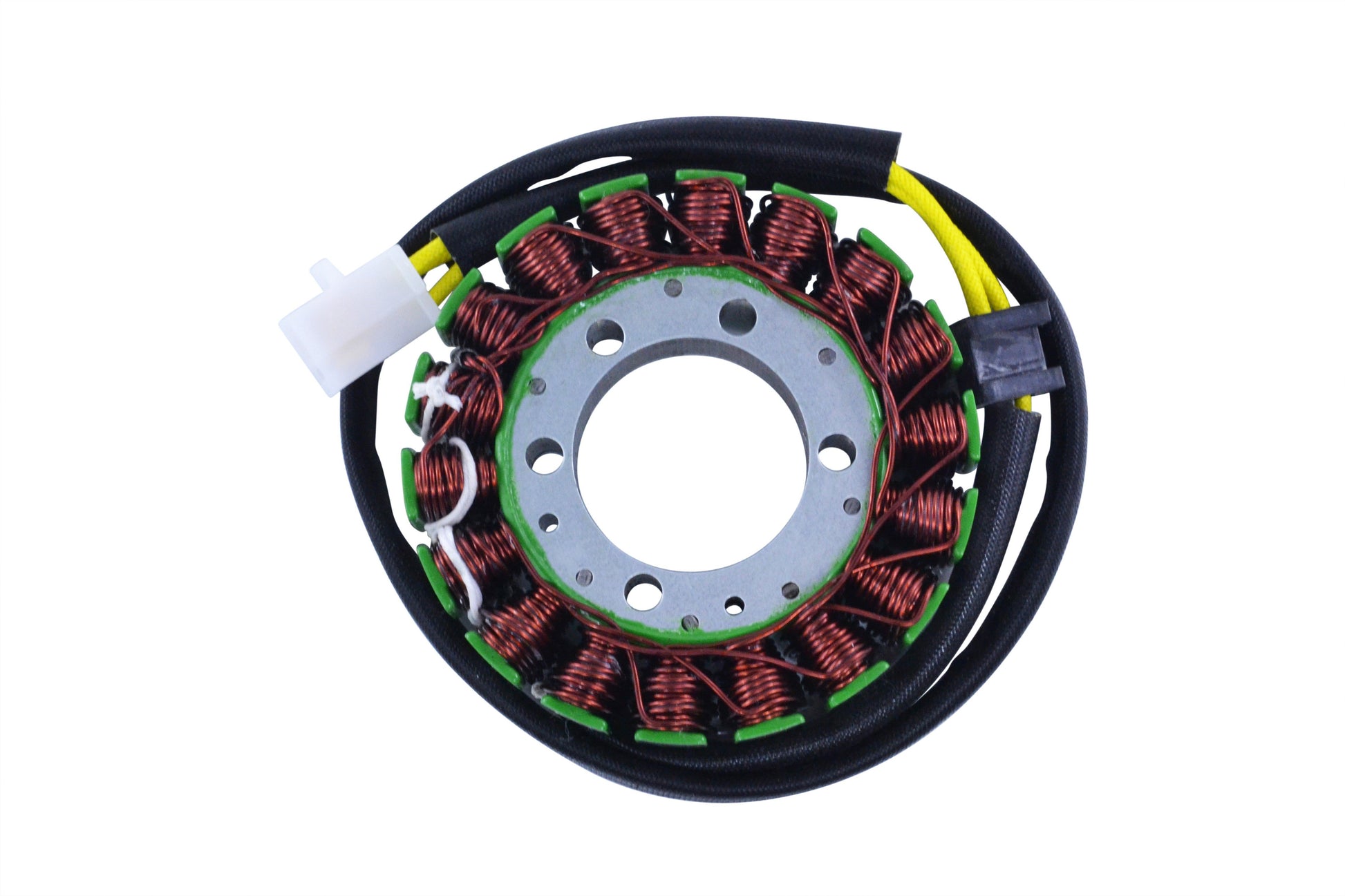

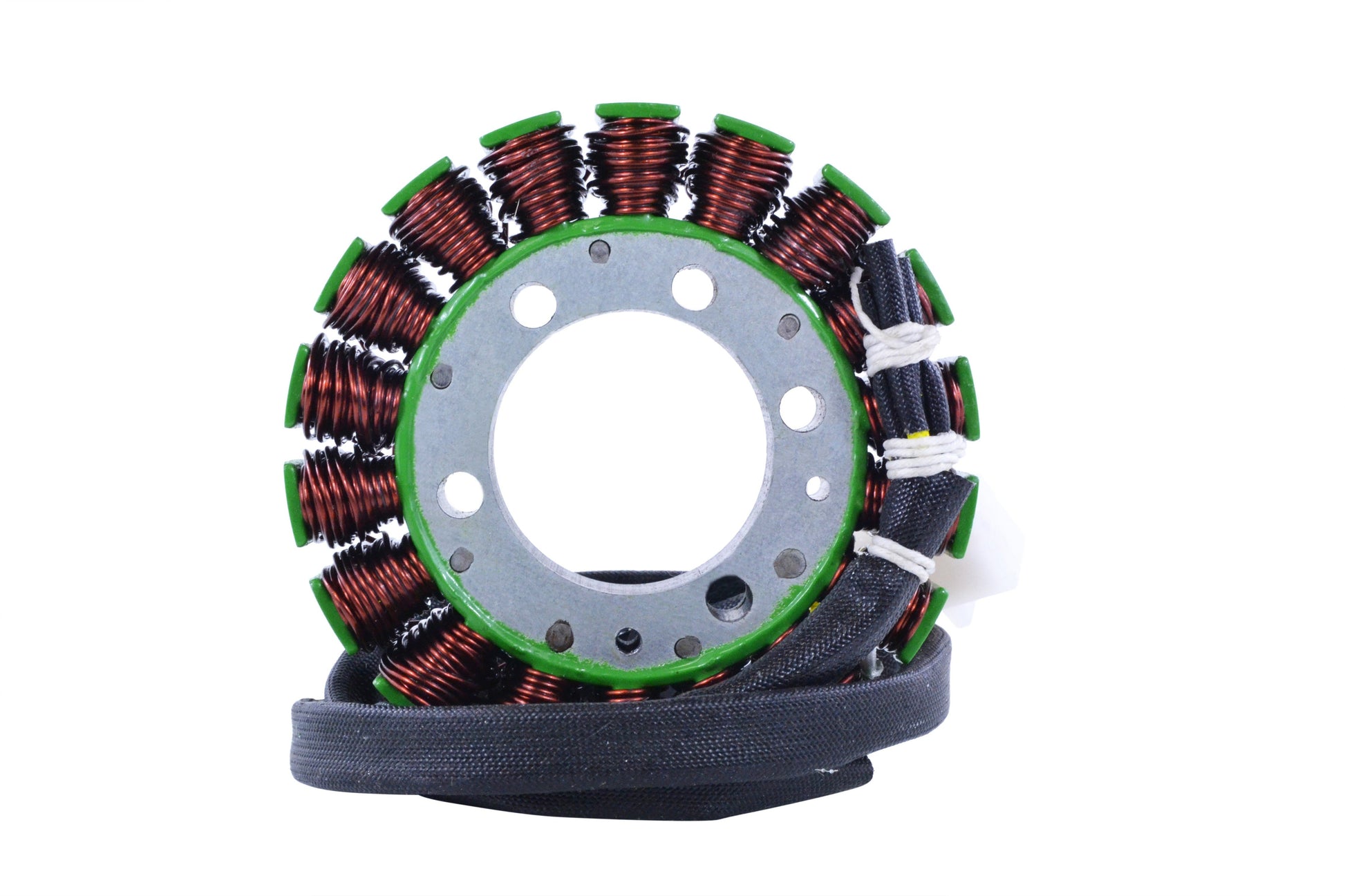

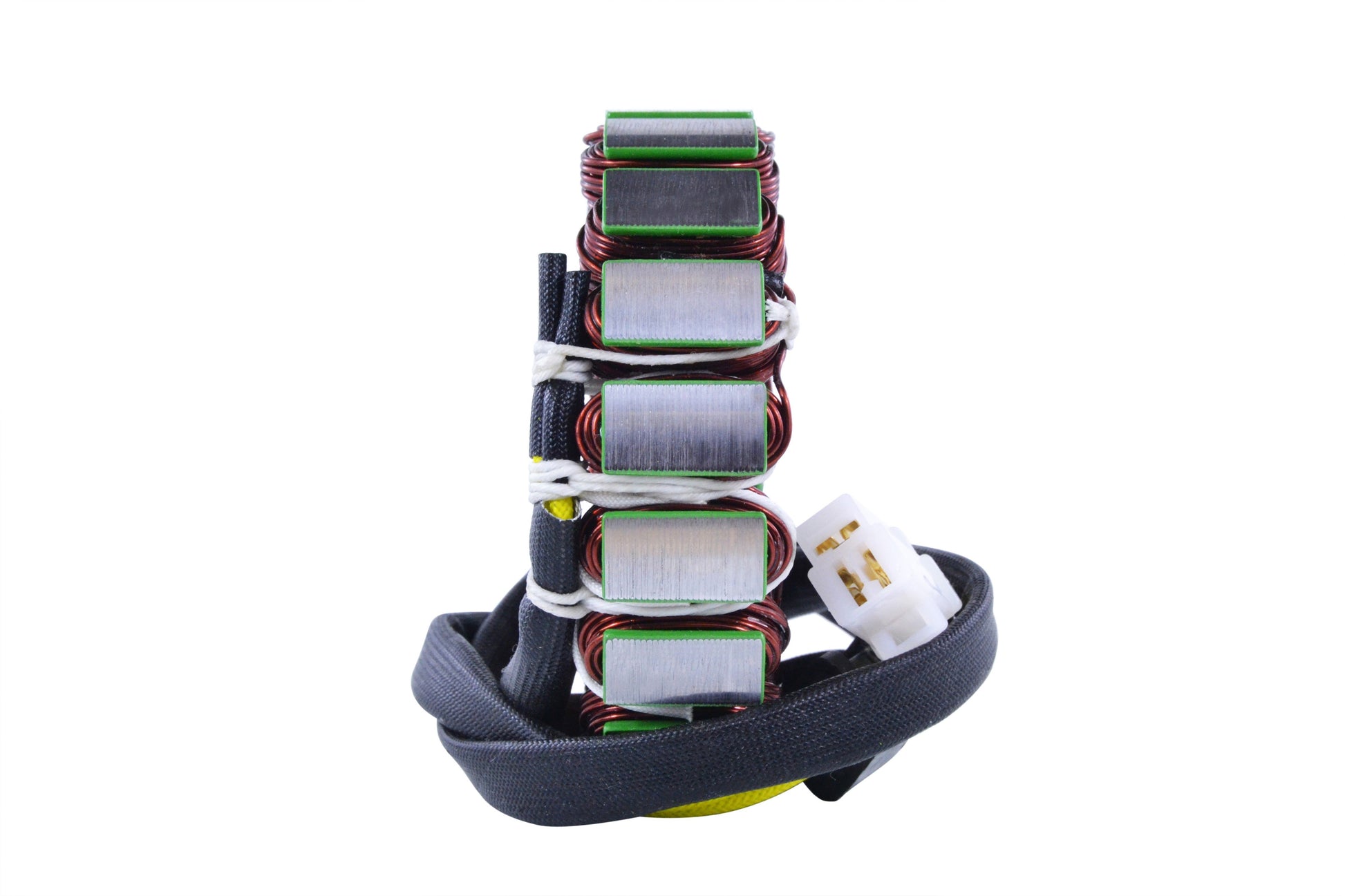

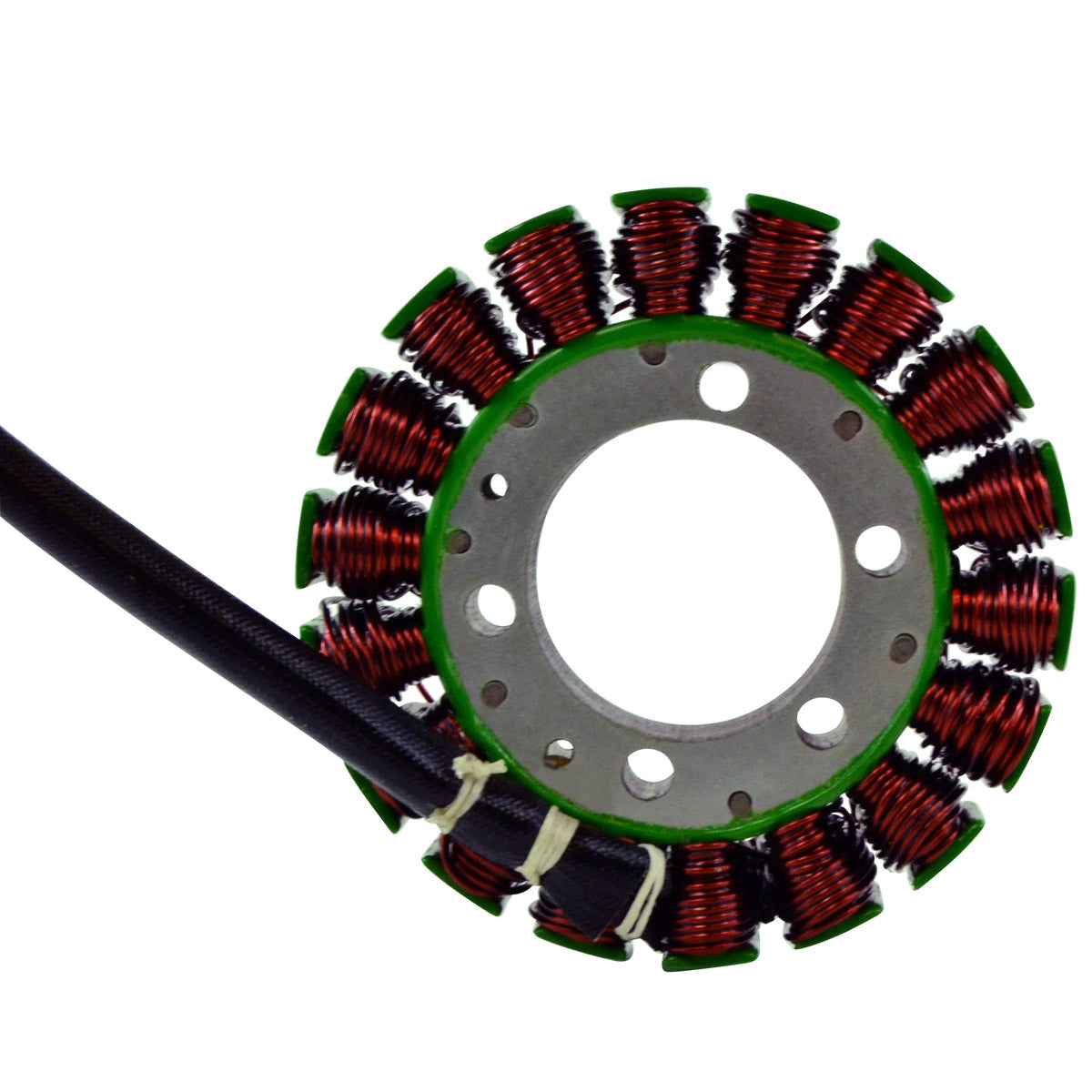

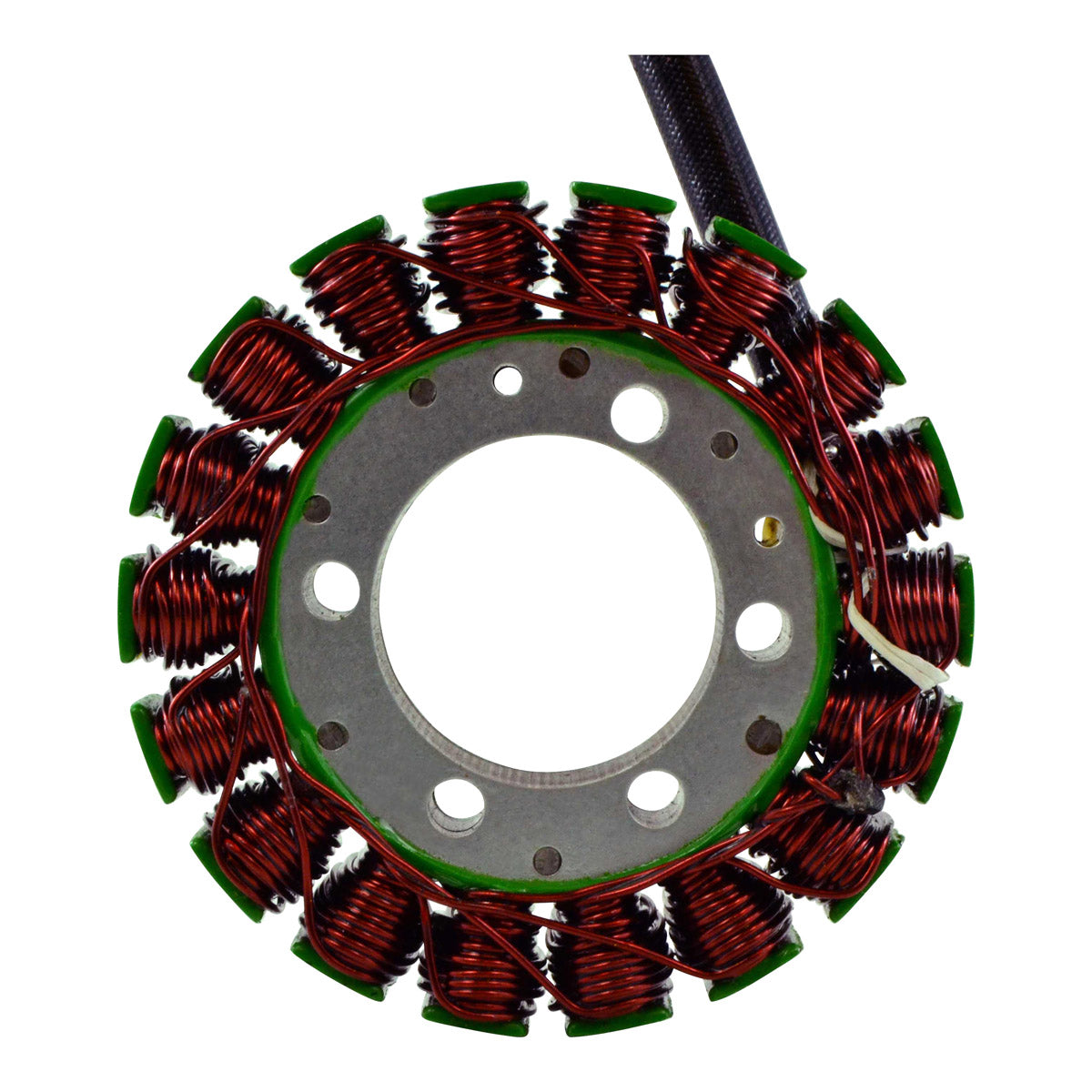

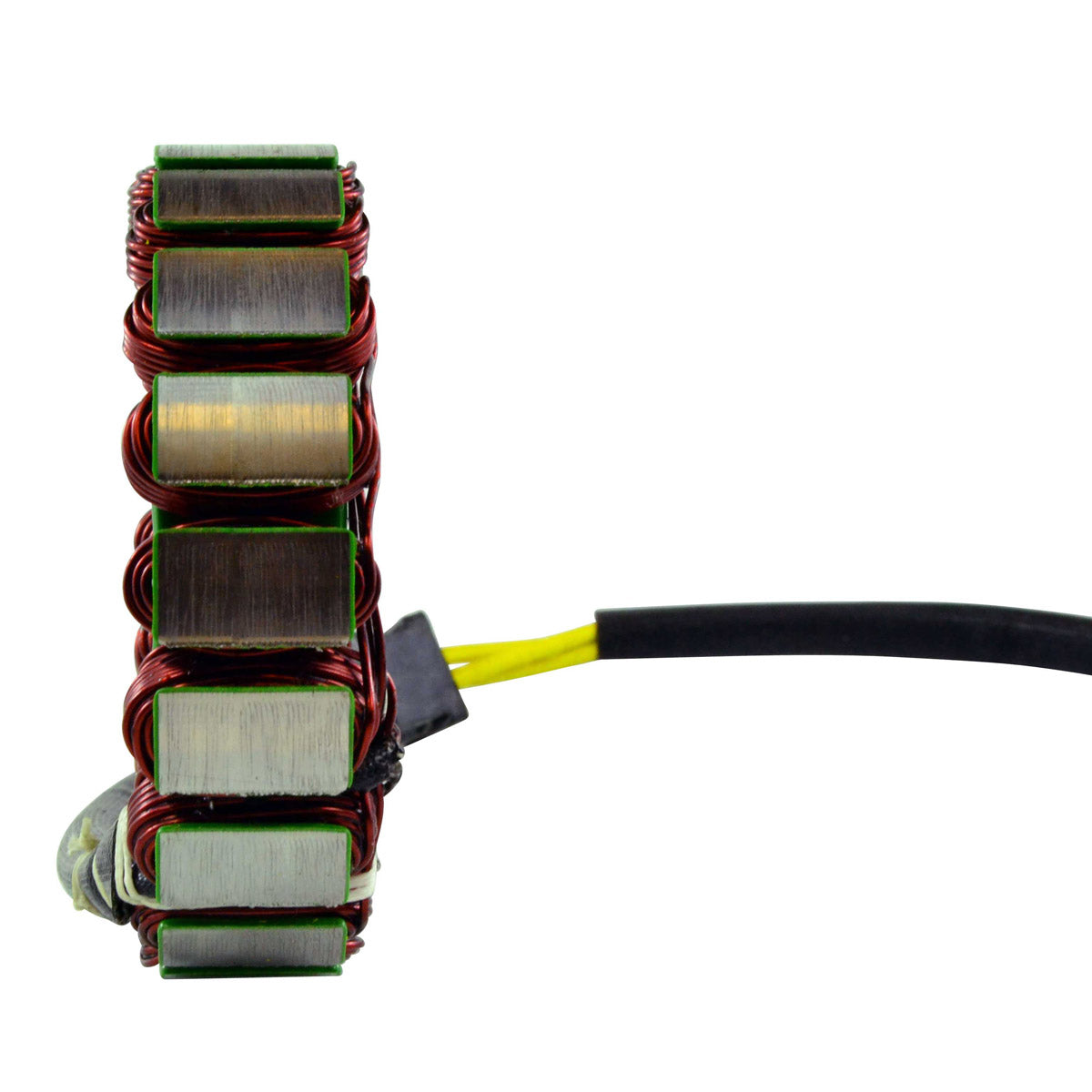

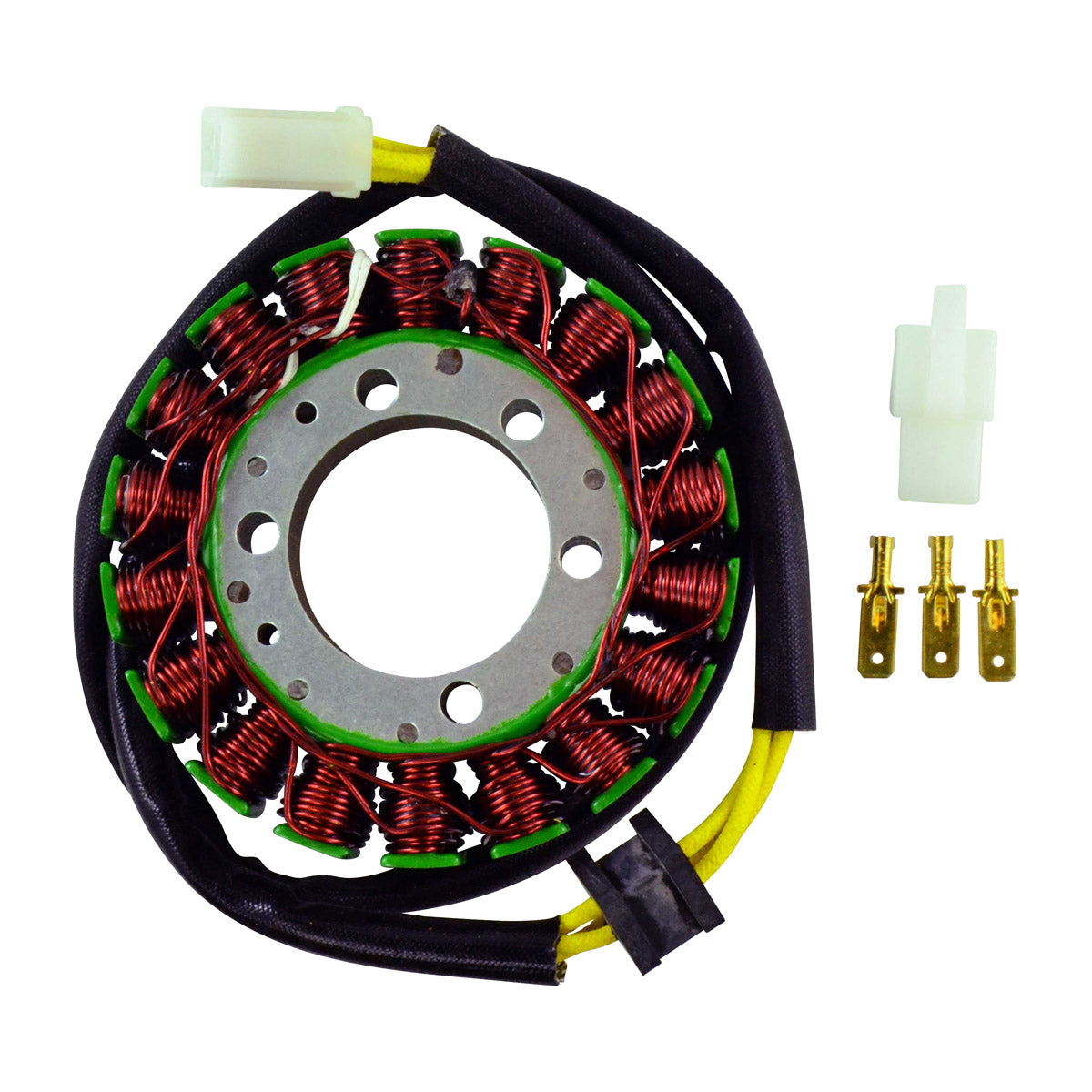

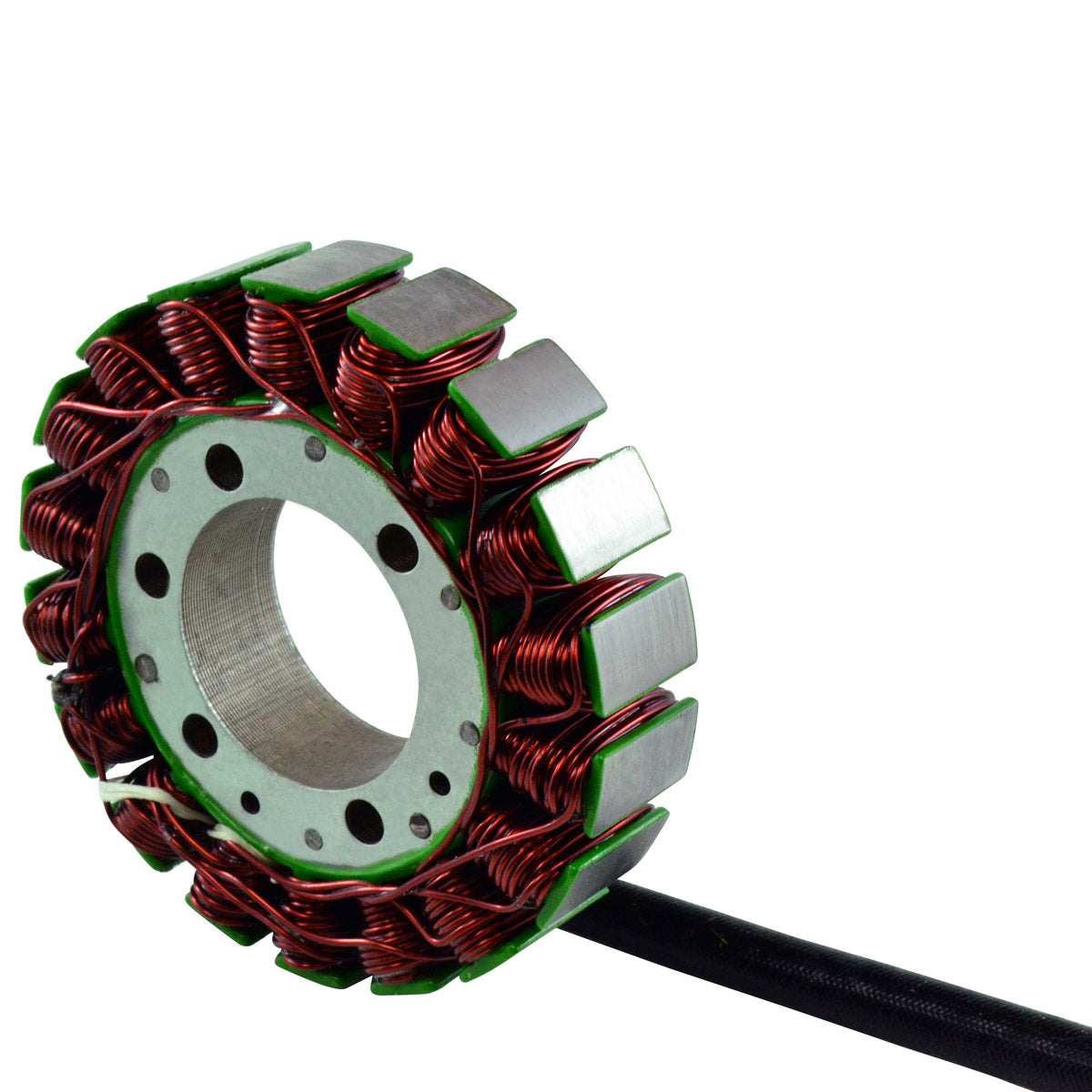

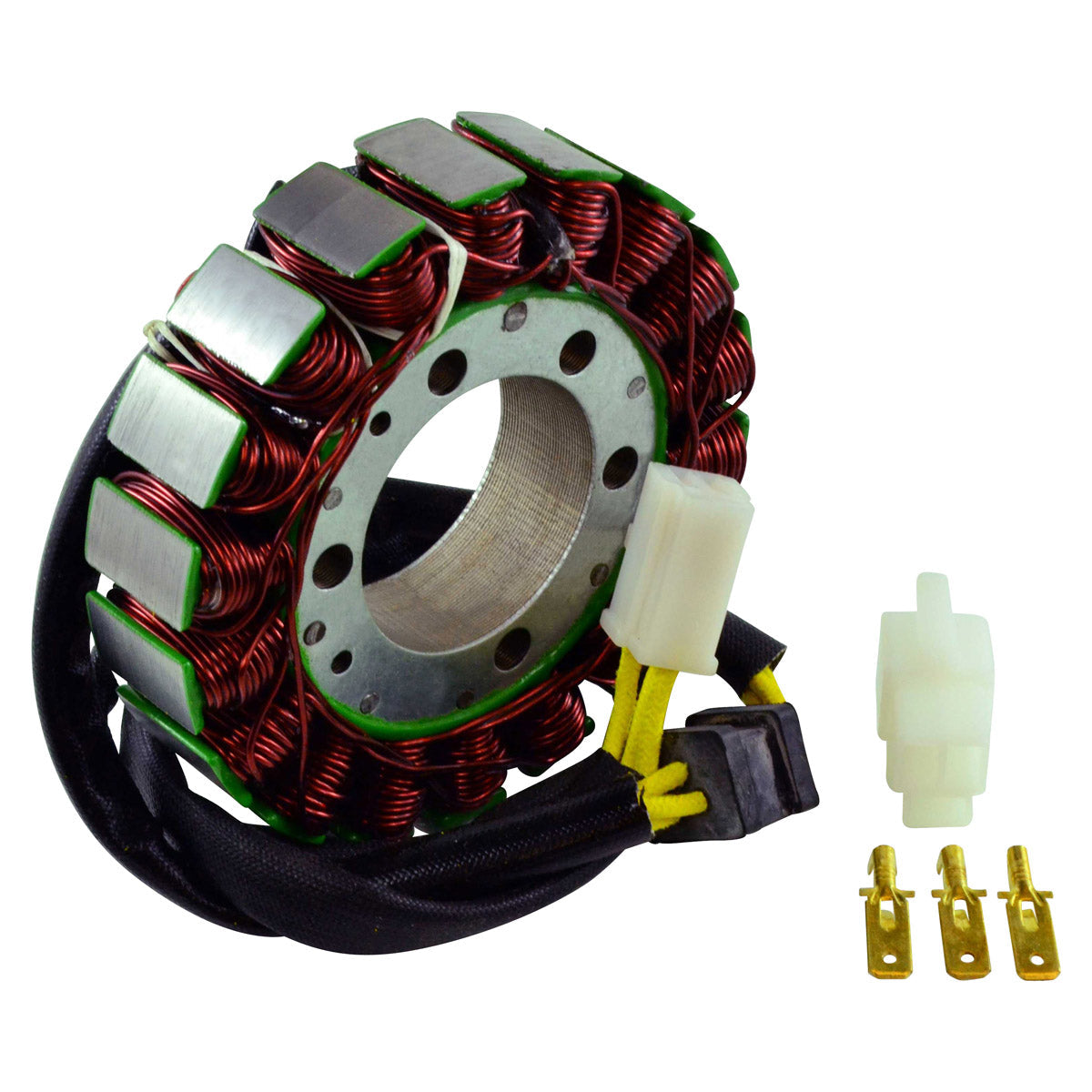

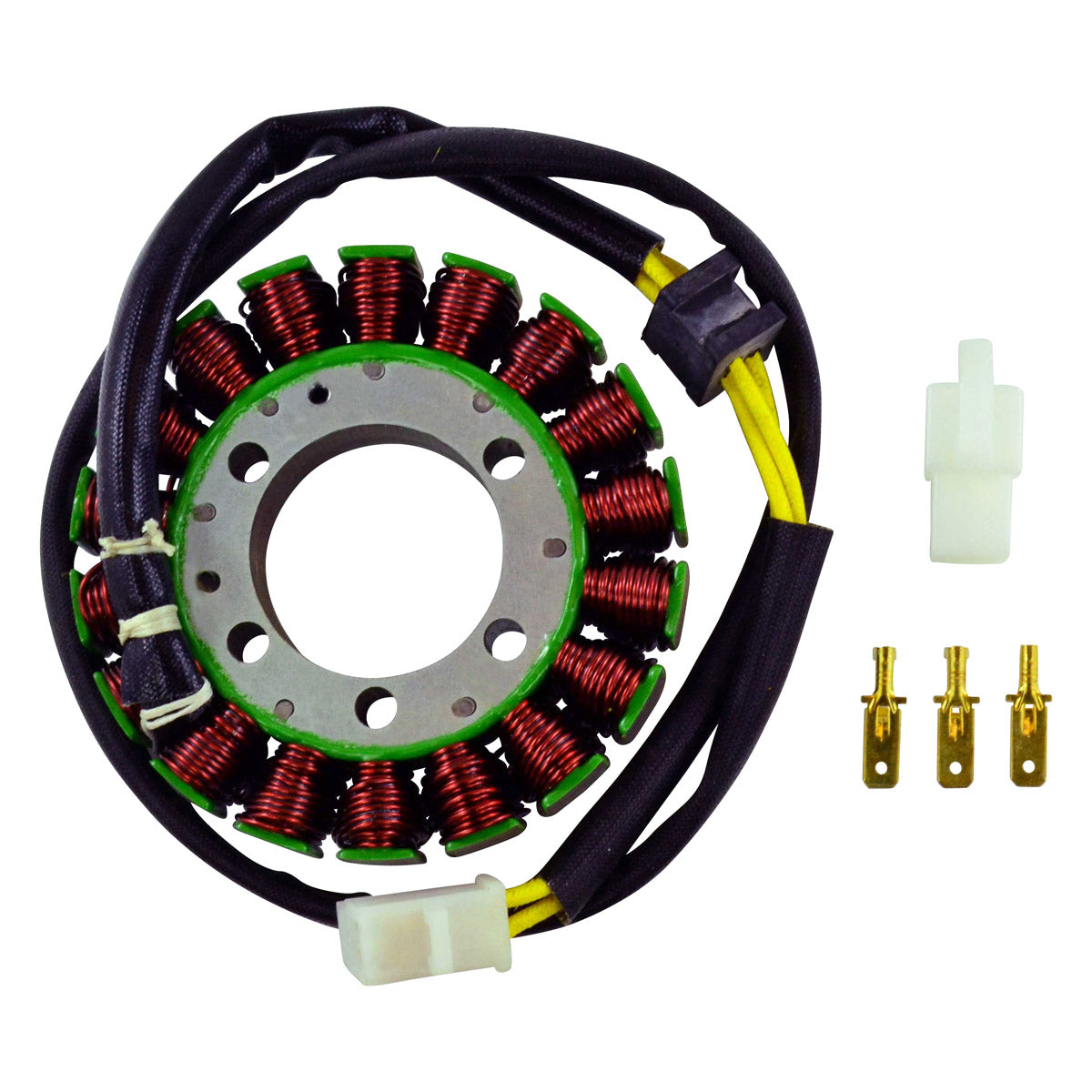

This is a brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to the Kawasaki Vulcan VN 800 Classic and the Vulcan VN 800 Drifter built between 1995 and 2006. It is a plug-and-play, direct fit part, so the existing loom does not need to be cut, spliced or modified in order to install it. The stator arrives with its connector and rubber grommet already fitted, exactly as the original unit was supplied.
The unit is wound using the highest grade of copper winding, rated to resist 200 degrees Celsius, and built on the highest grade of lamination materials. Every stator is tested before it is shipped. An additional opposite connector for the main harness side is included in the box, because on a machine of this age the harness-side plug is very often melted, corroded or otherwise defective, and replacing both halves of the connection at the same time is the only way to be certain of a clean, low-resistance joint.
Key Features
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Highest grade of lamination materials

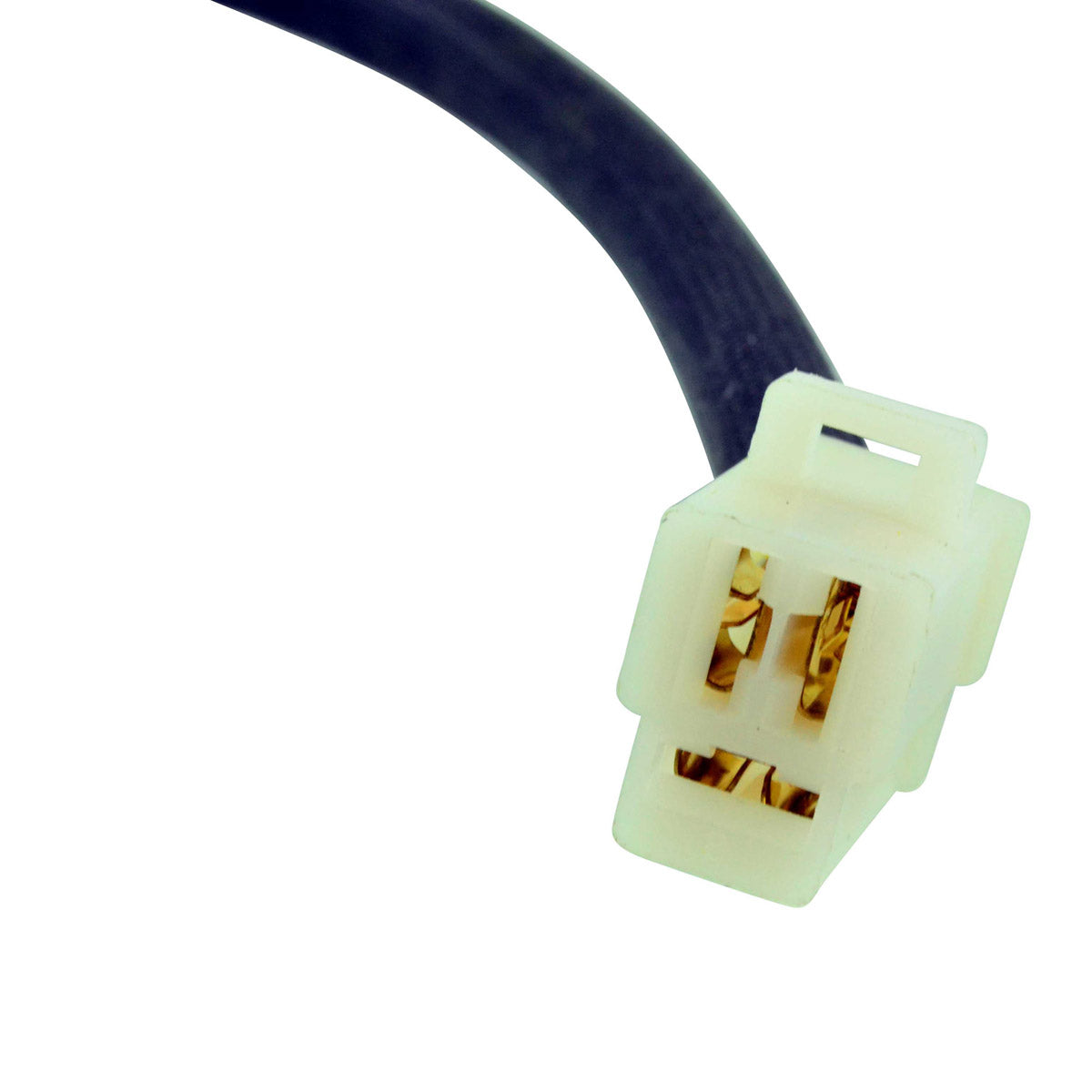

- Three-wire output through a single three-pin plug

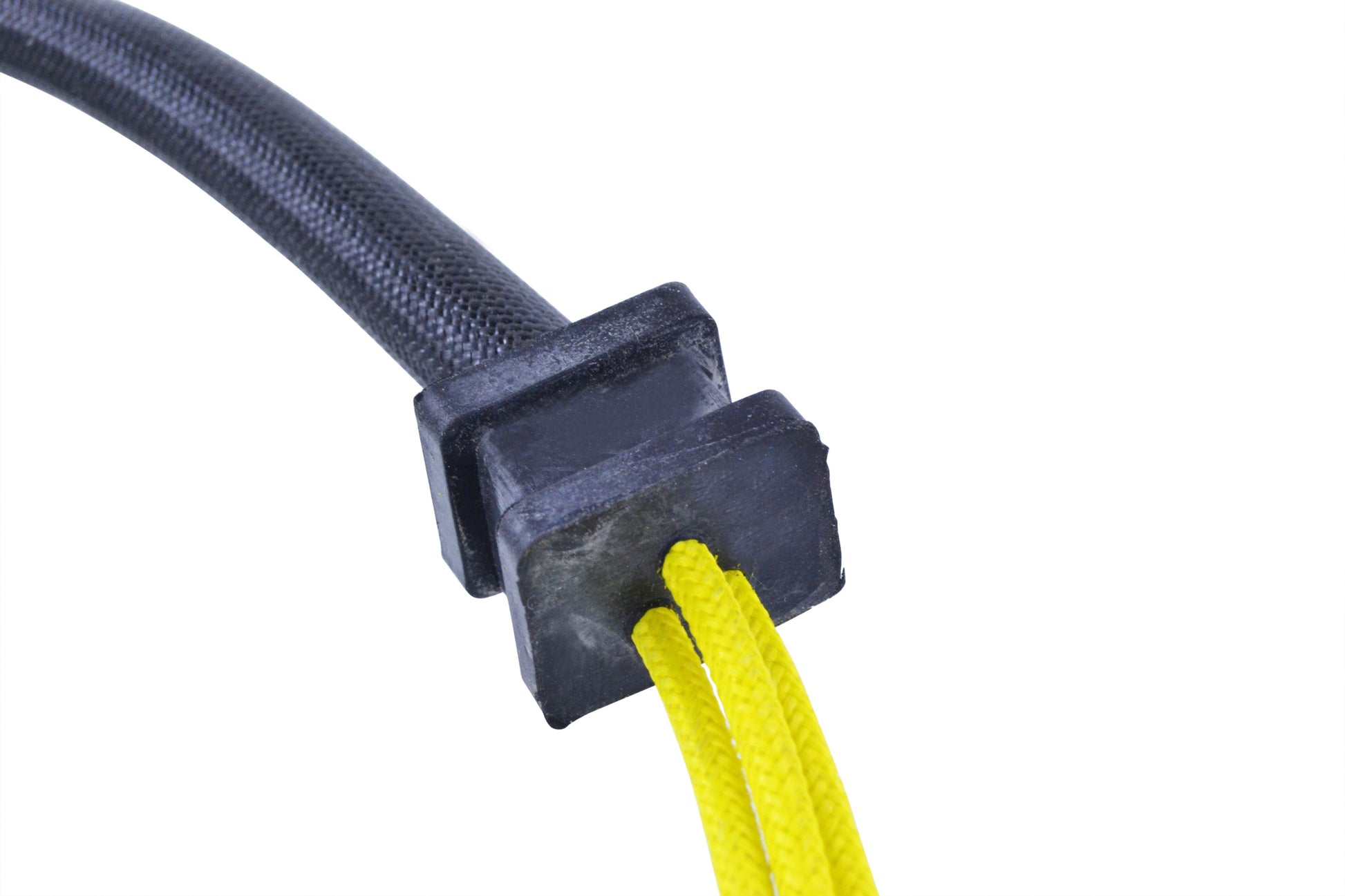

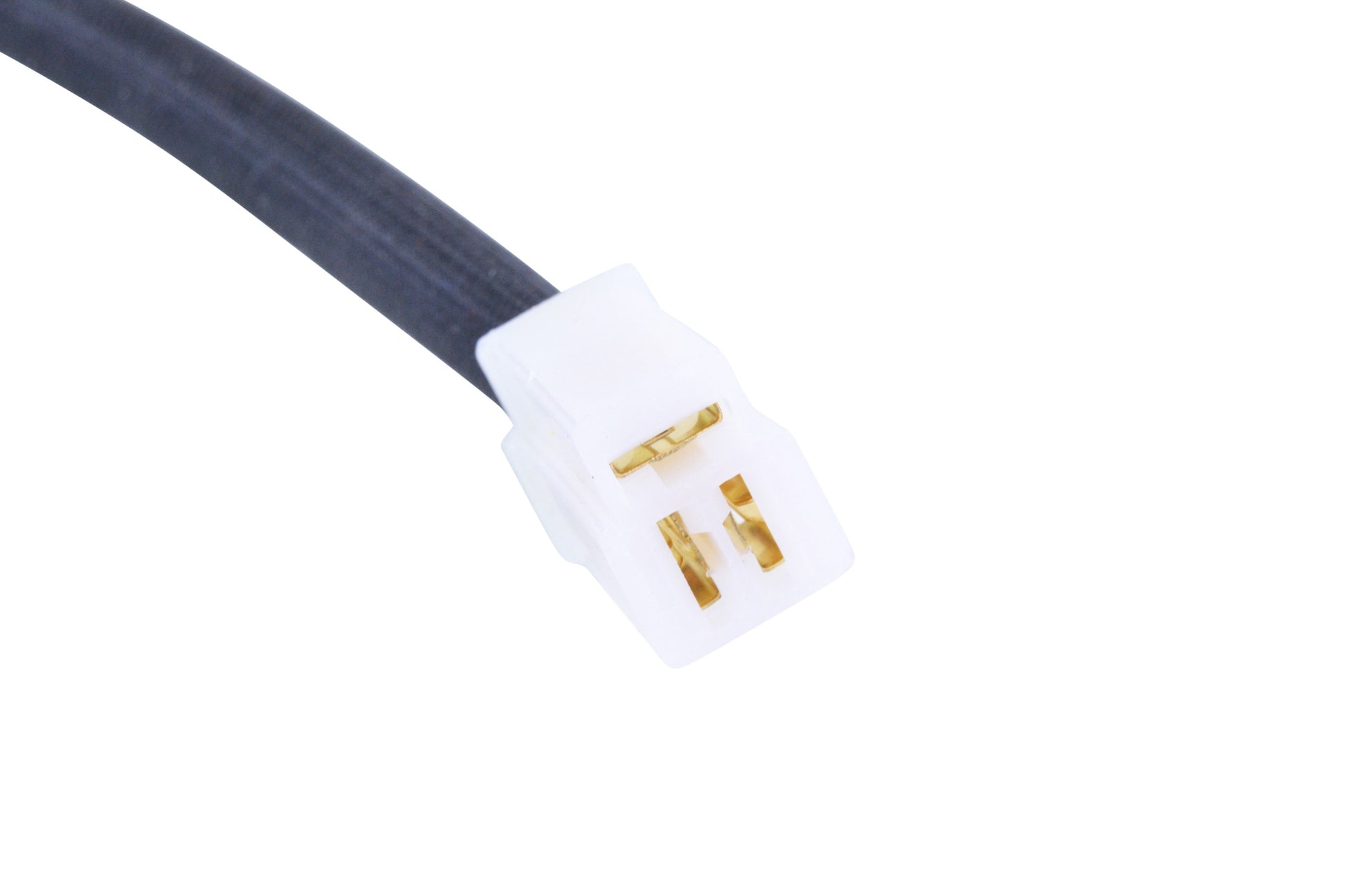

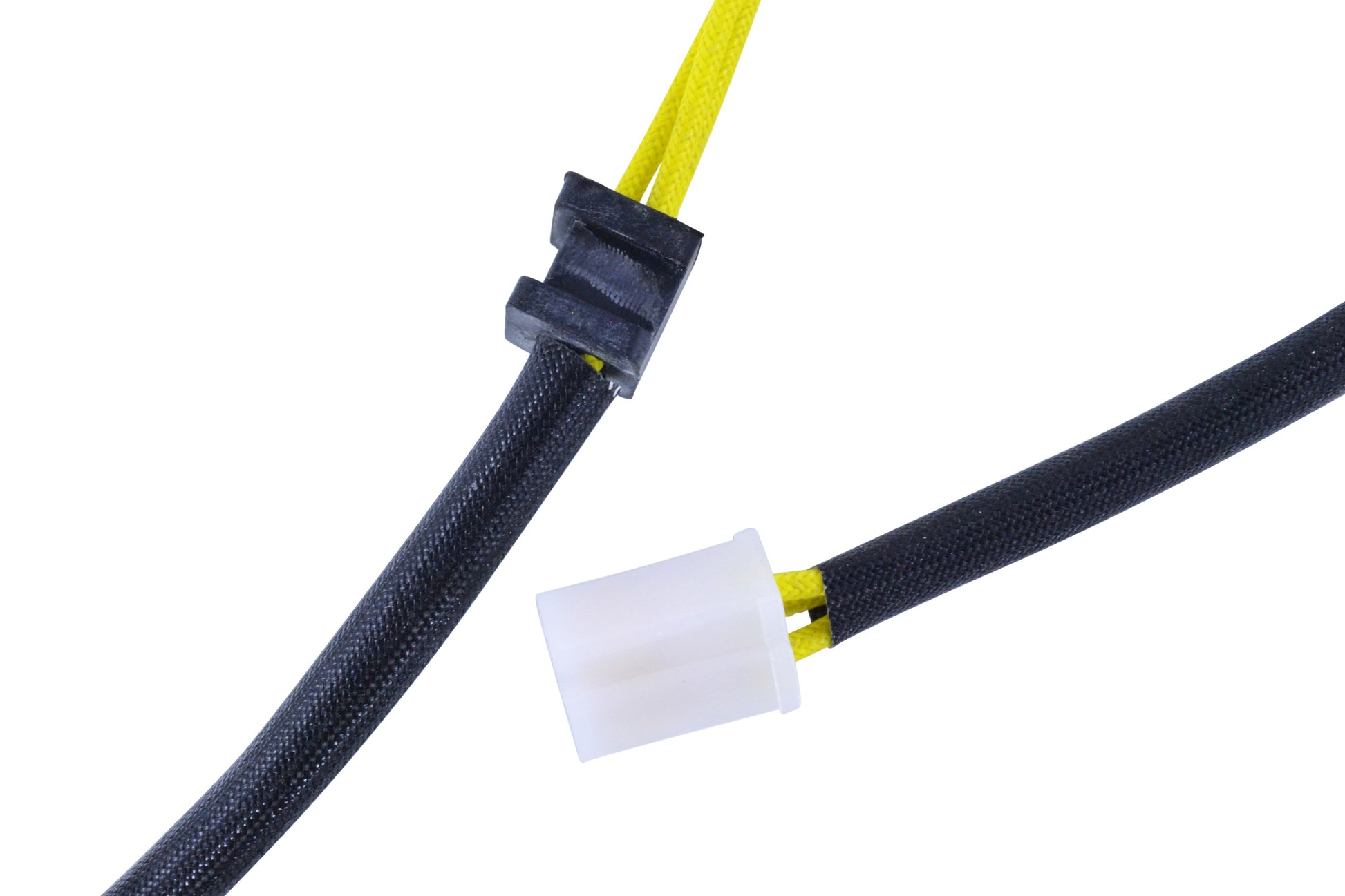

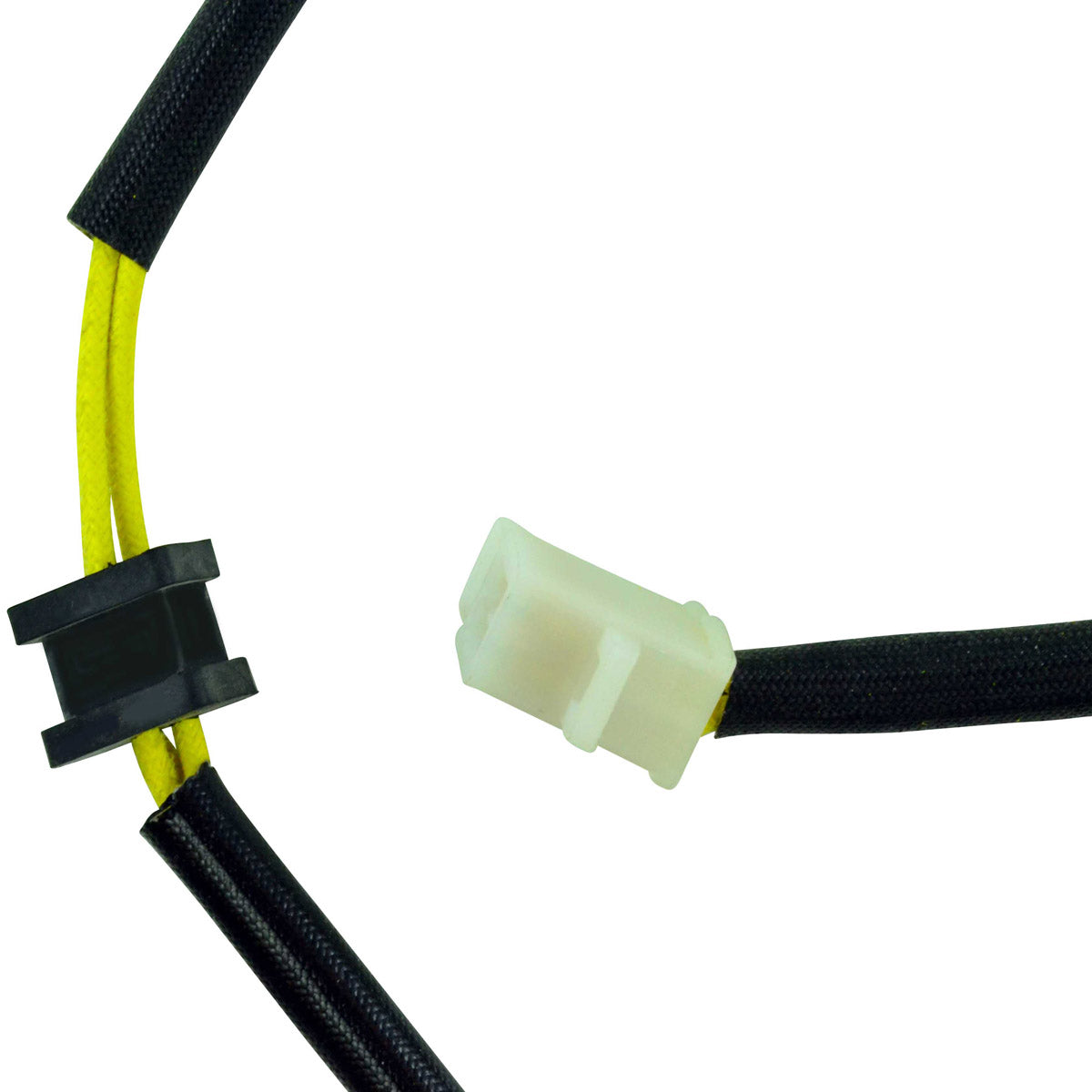

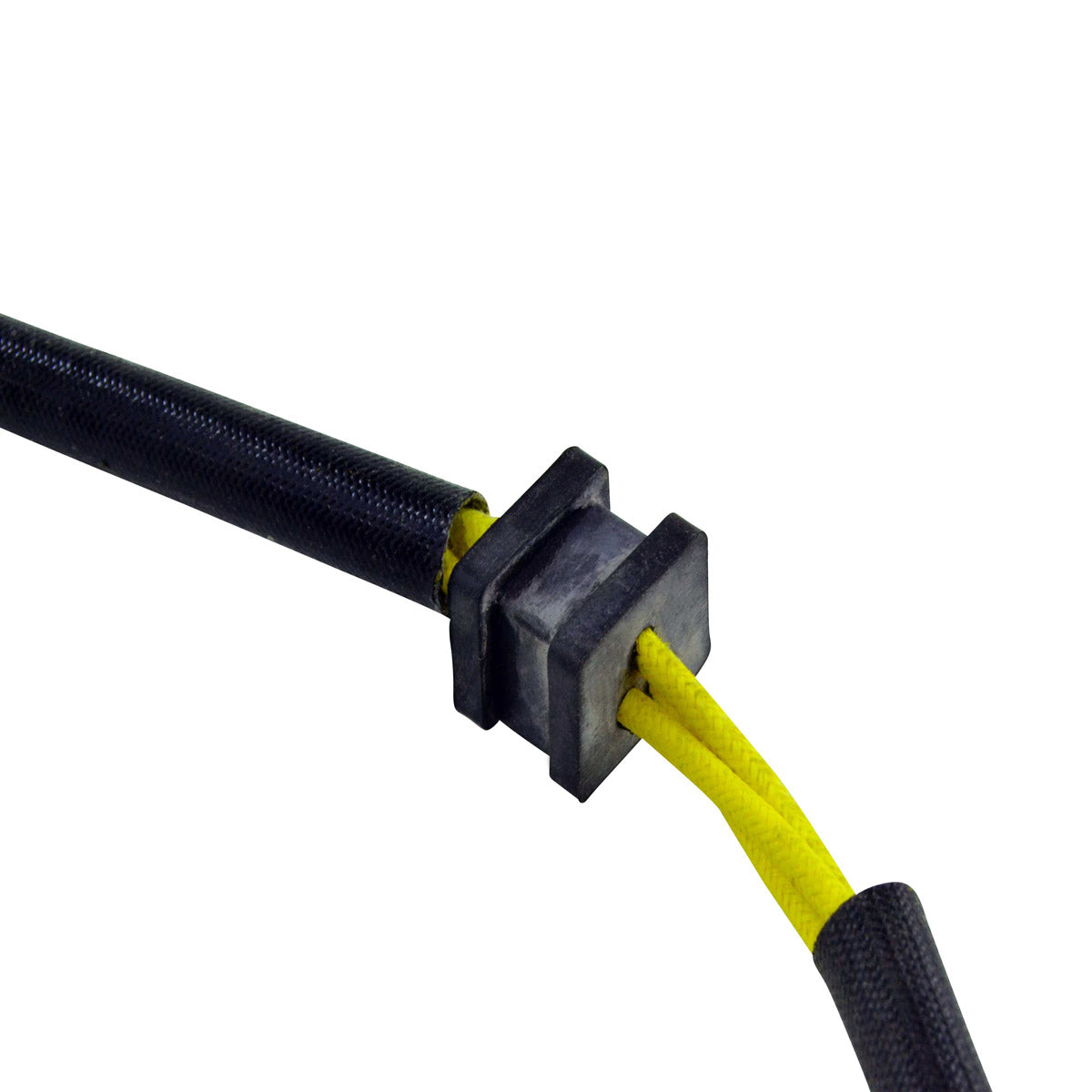

- Supplied with connector and rubber grommet already fitted

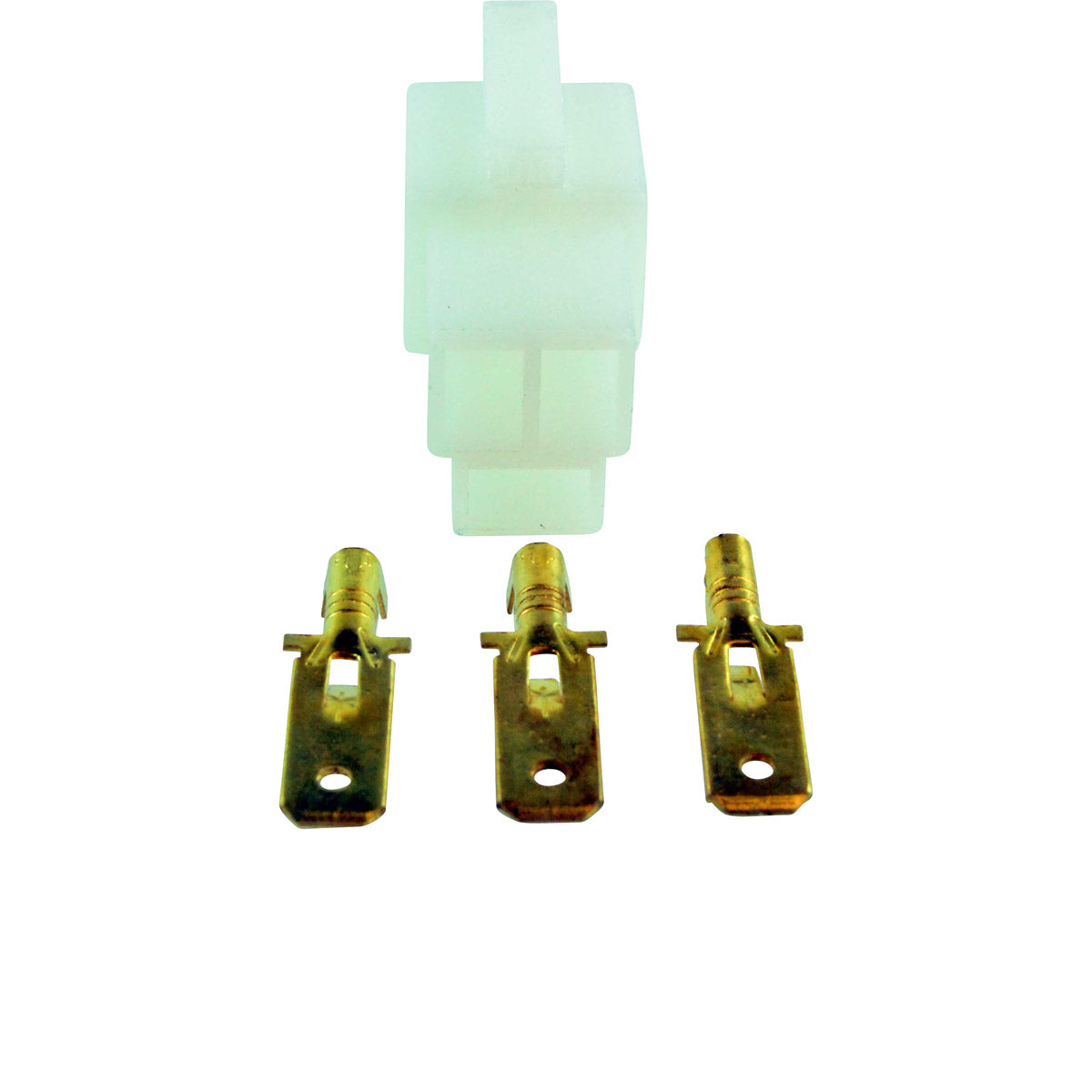

- Additional opposite connector for the main harness side included
- Every unit tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
41 mm |
| Exterior diameter |
103 mm |
| Thickness |
14 mm |
| Wire length, stator to grommet |
140 mm |
| Wire length, grommet to plug |
520 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, yellow to yellow |
0.6 ohms, plus or minus 20% |
| Winding temperature rating |
200 degrees Celsius |
| Part number |
RMS010-104051 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki Vulcan VN 800 Classic |
1995-2006 |
| Kawasaki Vulcan VN 800 Drifter |
1995-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1383 |
Kawasaki |
| 21003-1280 |
Kawasaki |
Frequently Asked Questions
Do I need to modify the wiring to fit this stator?
No. This is a direct fit, plug-and-play replacement for the original unit. It uses the same three-wire, three-pin plug arrangement as the factory stator, so it connects to the existing loom without cutting or splicing.
What is included in the box?

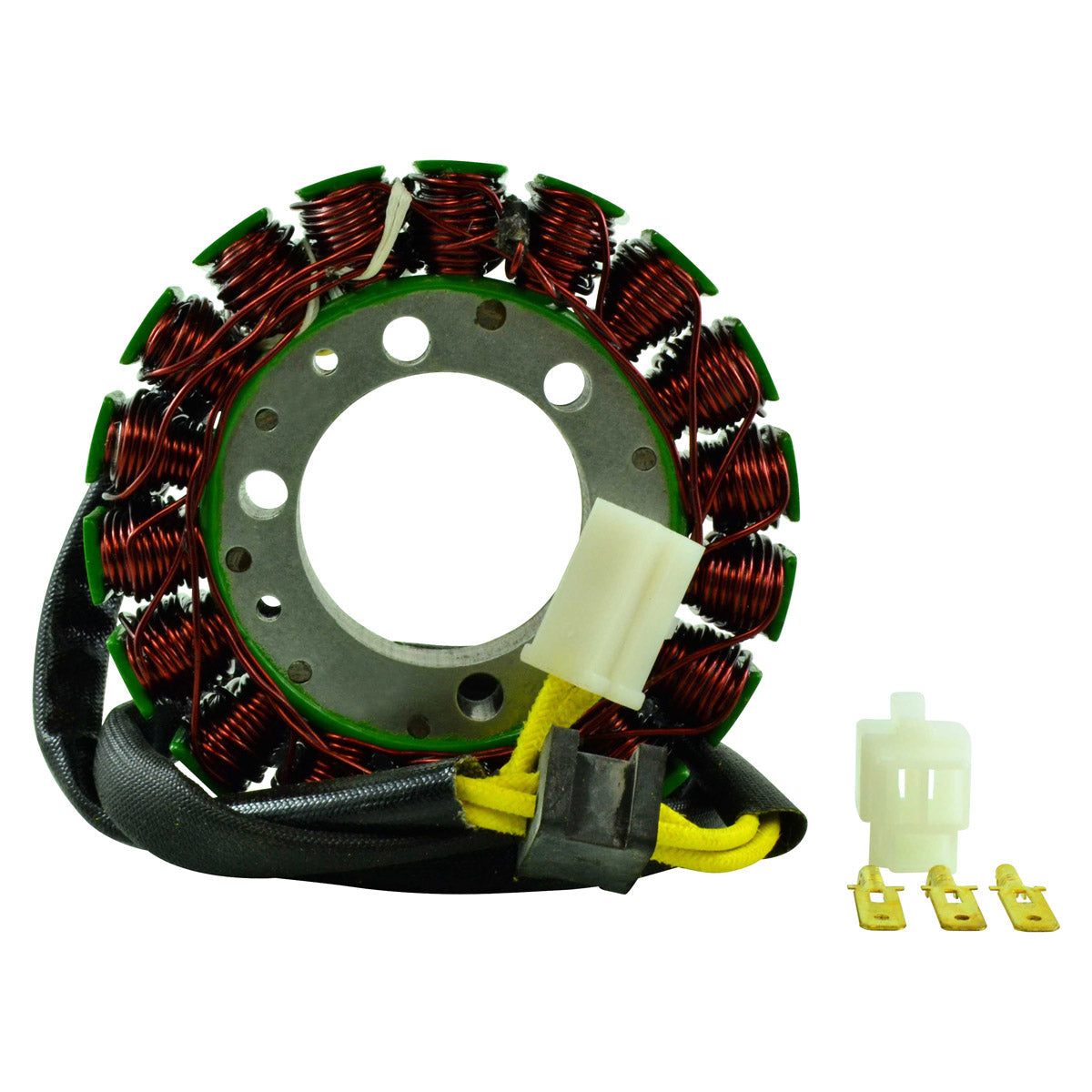

The stator itself with its connector and rubber grommet already fitted, plus an additional opposite connector for the main harness side.
How can I tell whether my old stator has failed?
Measure the resistance between the three yellow alternator wires with the plug disconnected. Each pair should read approximately 0.6 ohms, within about 20%. A reading that is open circuit, or a reading to earth from any of the three wires, indicates a failed winding. A battery that will not hold charge while the engine is running is the usual first symptom.
Why is a second connector supplied?
The plug on the main harness side is a common failure point on machines of this age, as it is frequently melted, corroded or defective. The extra connector lets you renew both halves of the joint at the same time.
