Stator for Kohler 15-20 AMP Lawn & Garden Tractor CH11-CH25, CV11-CV22 & K181-K341
Stator for Kohler 15-20 AMP Lawn & Garden Tractor CH11-CH25, CV11-CV22 & K181-K341
SKU:RMS010-102722
Free shipping over £150. Terms apply
Couldn't load pickup availability

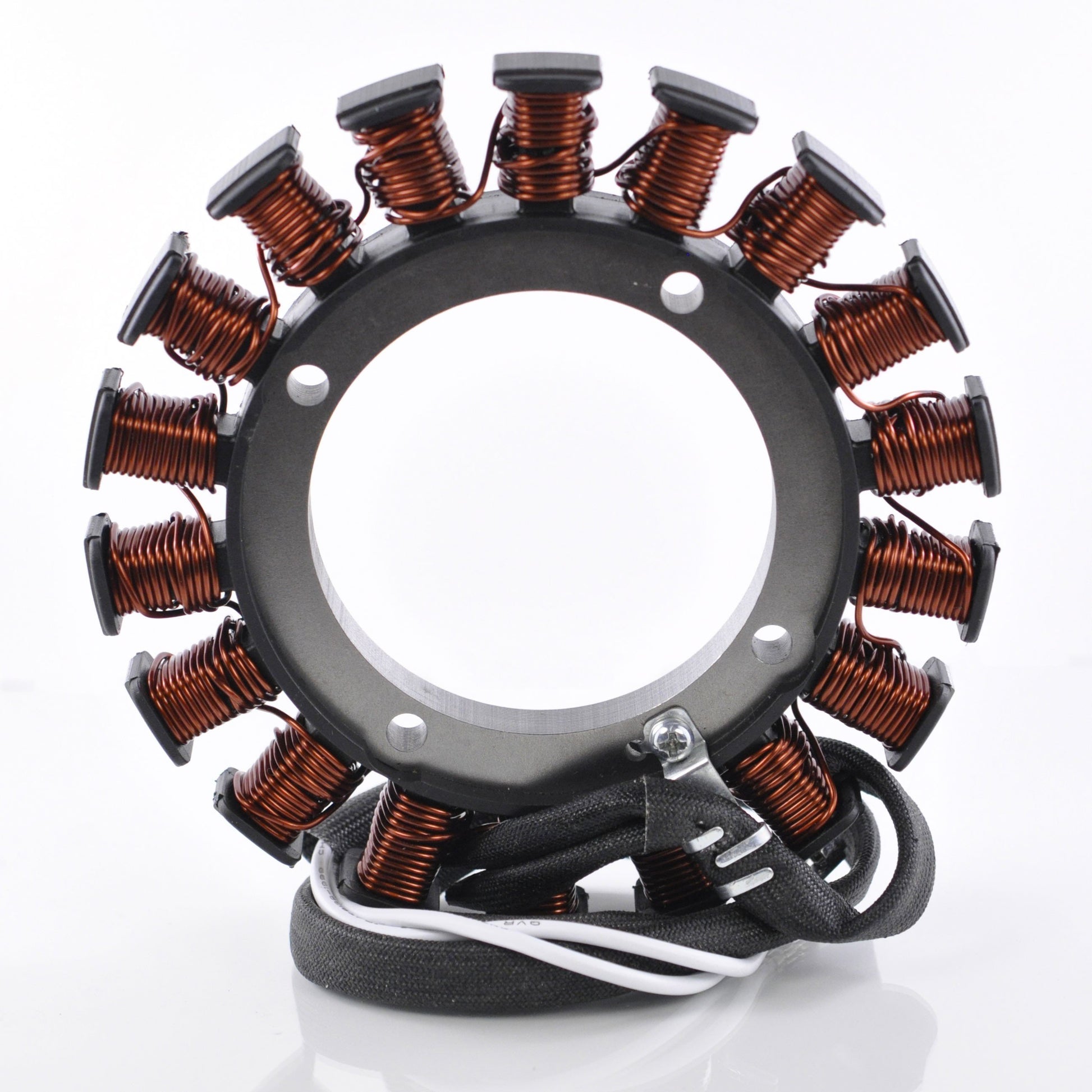

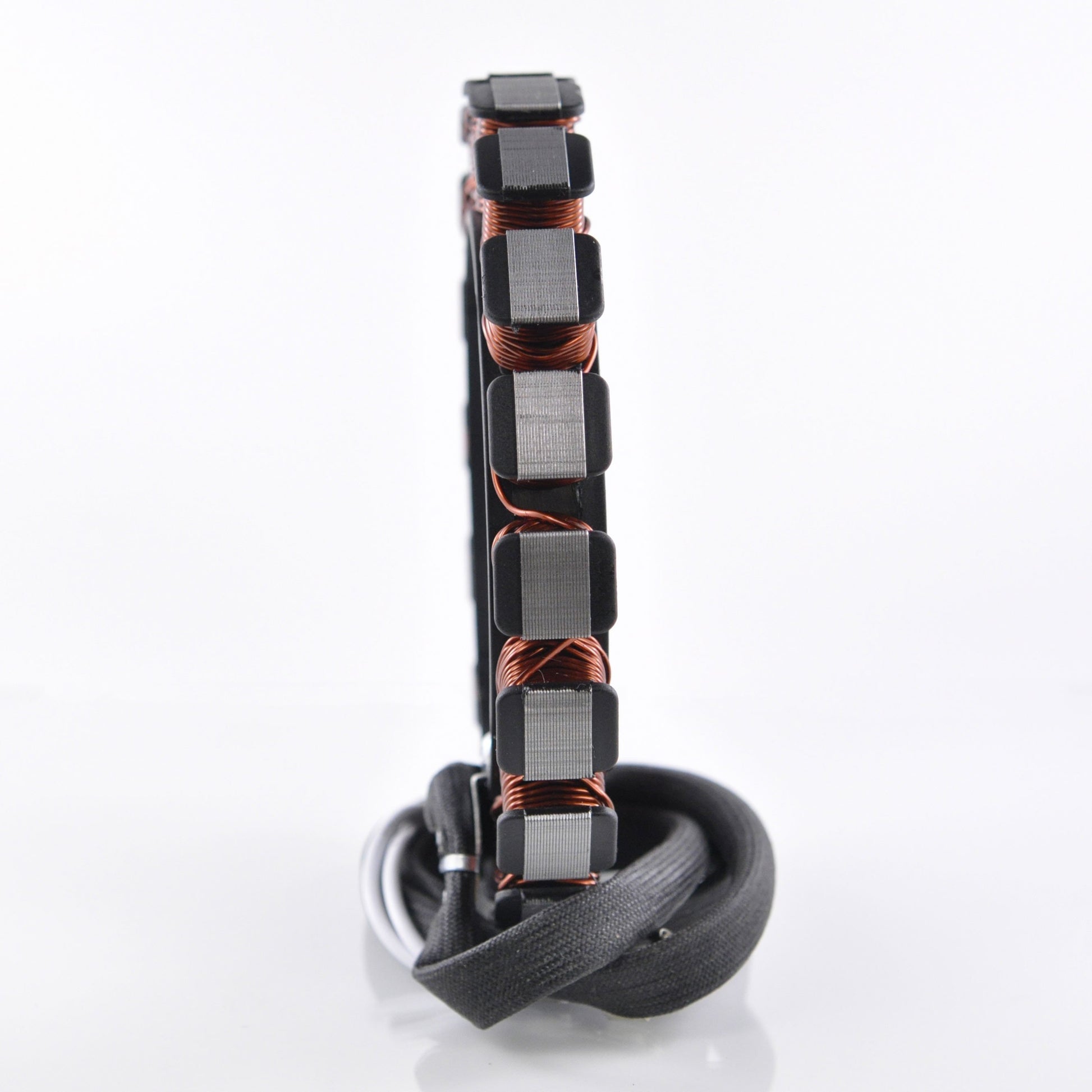

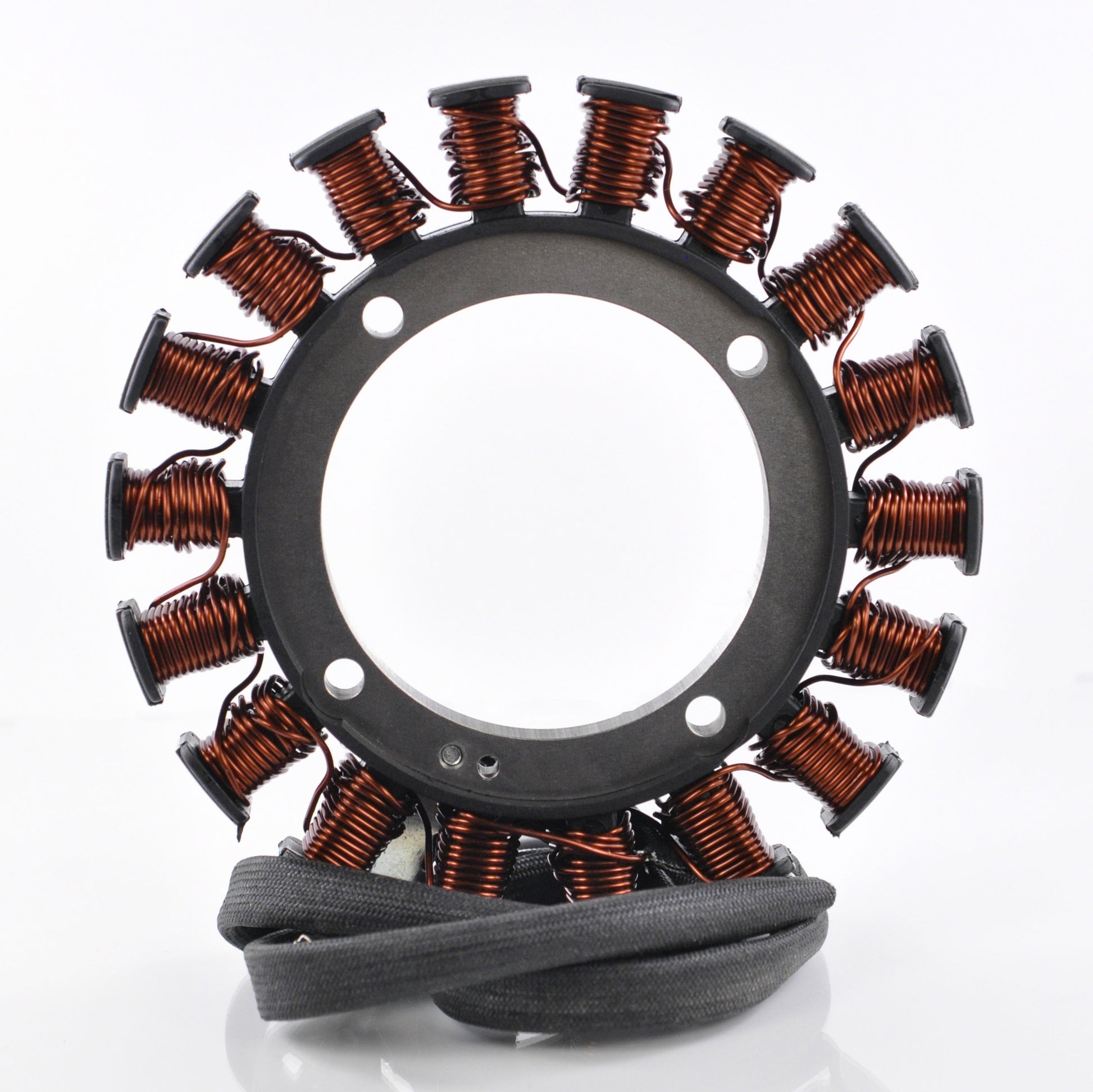

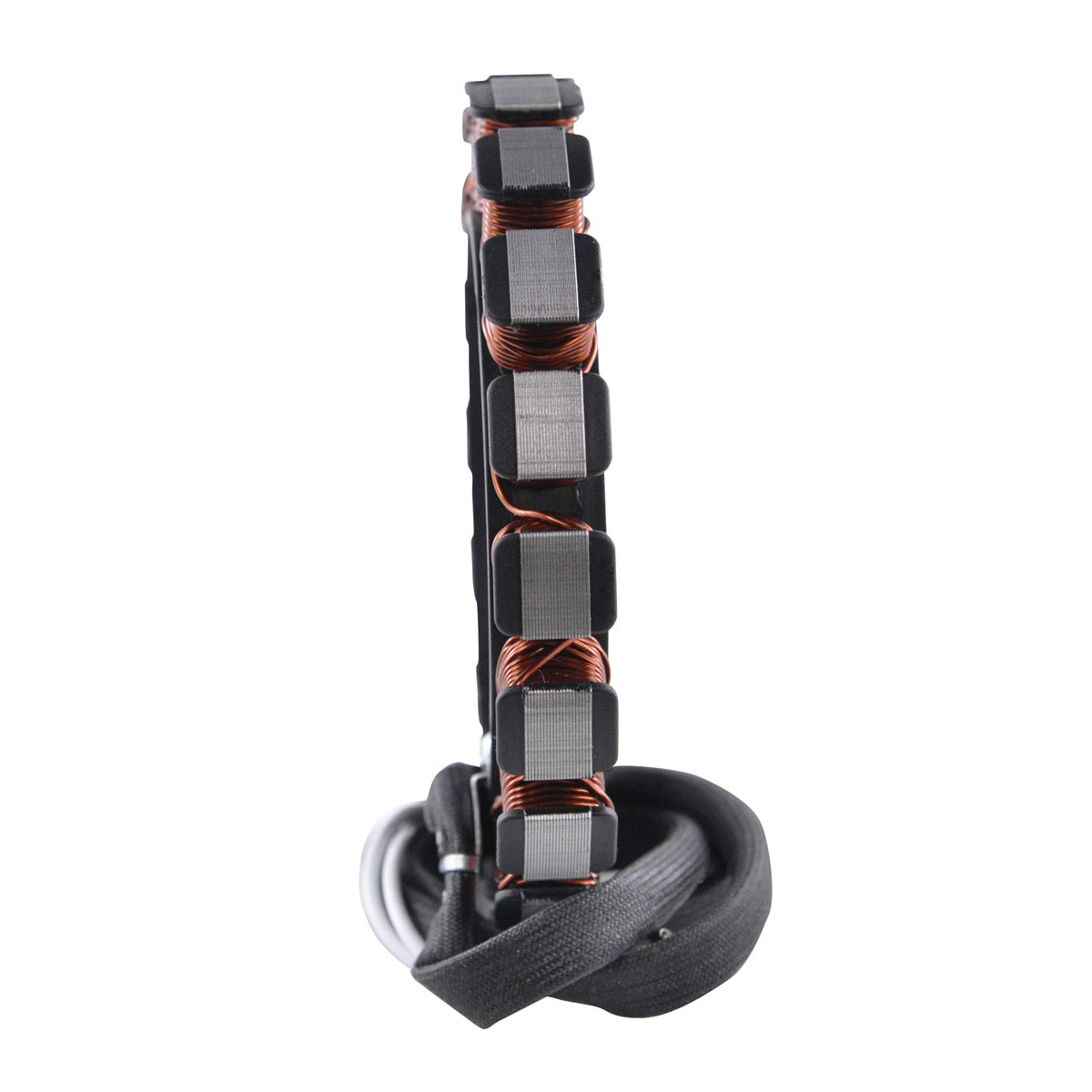

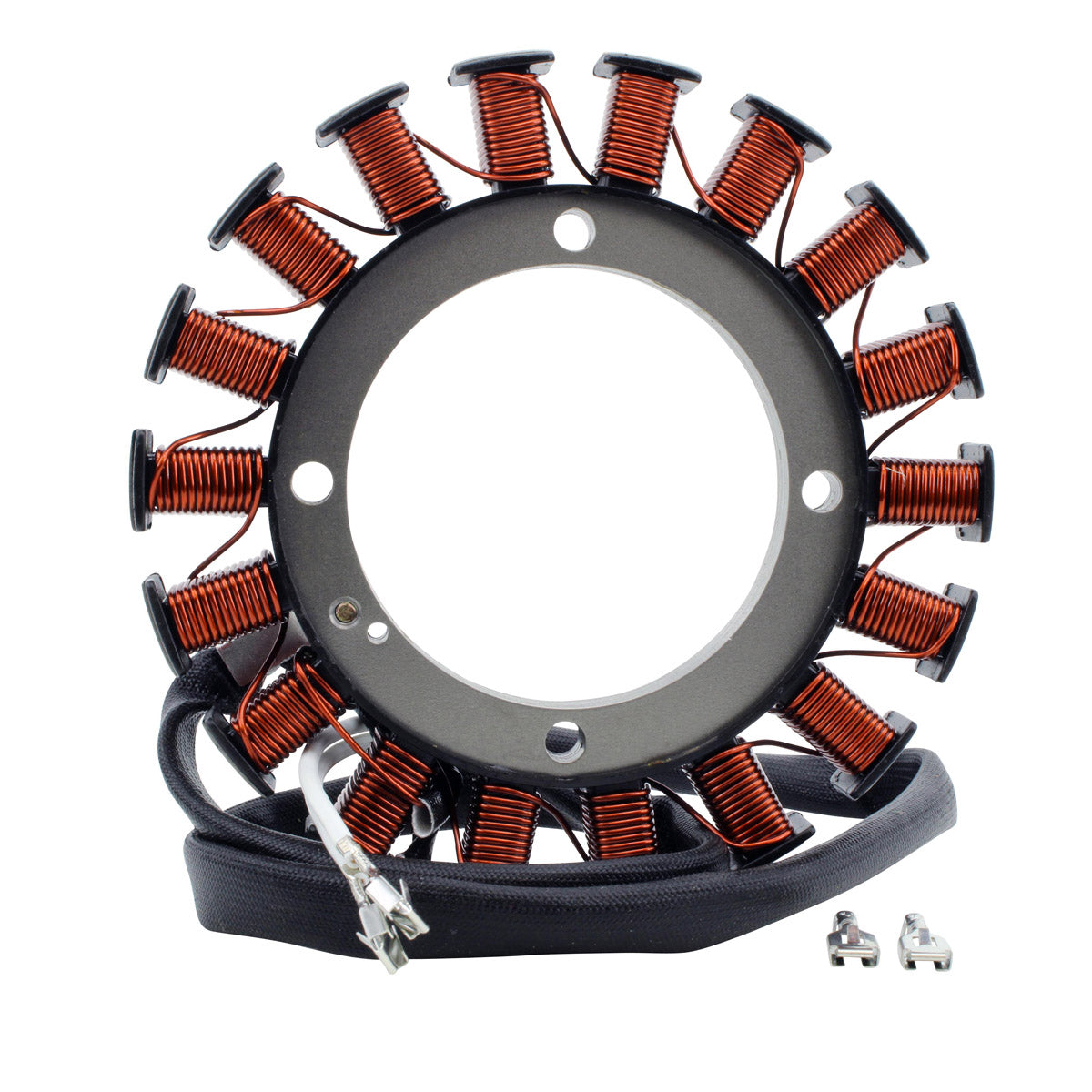

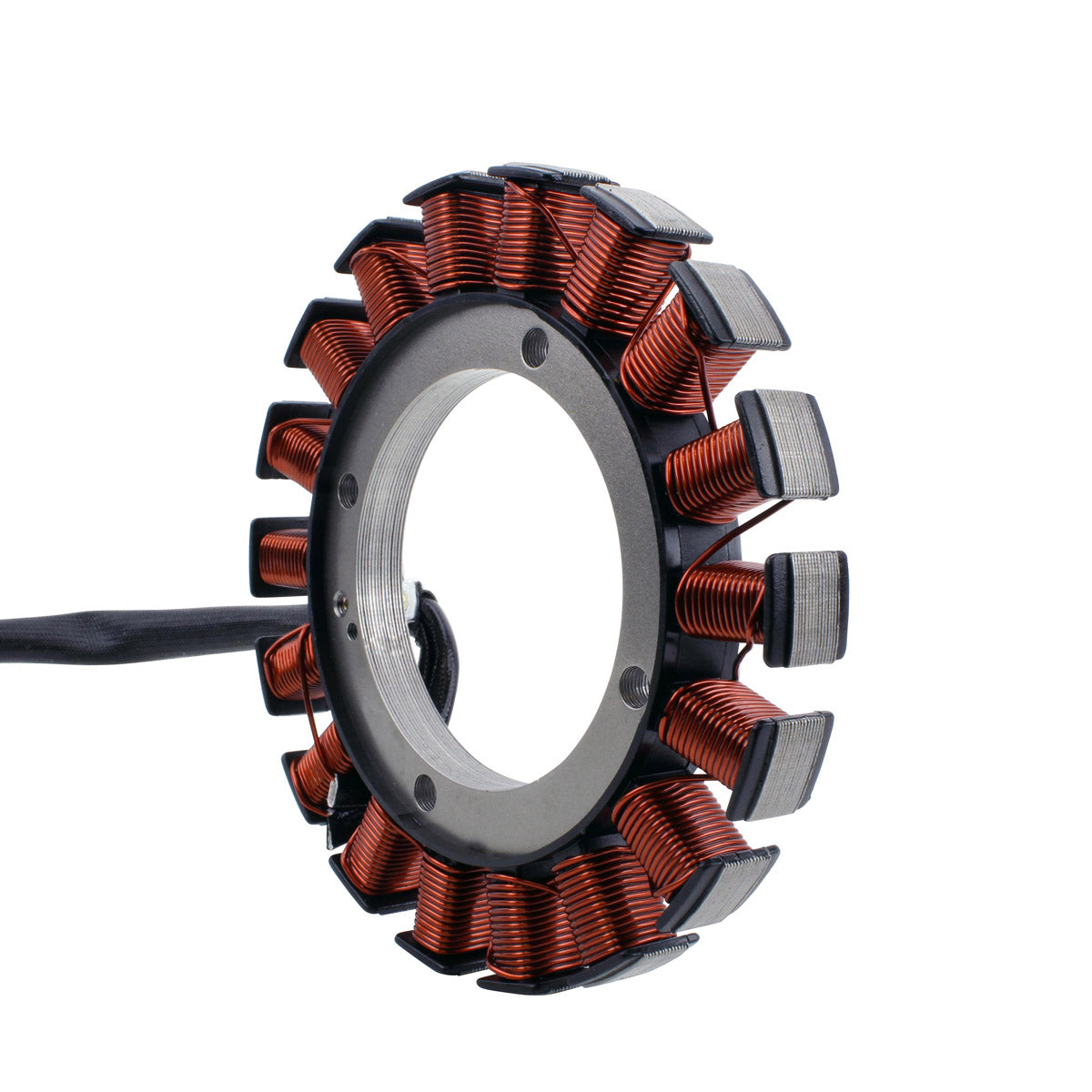

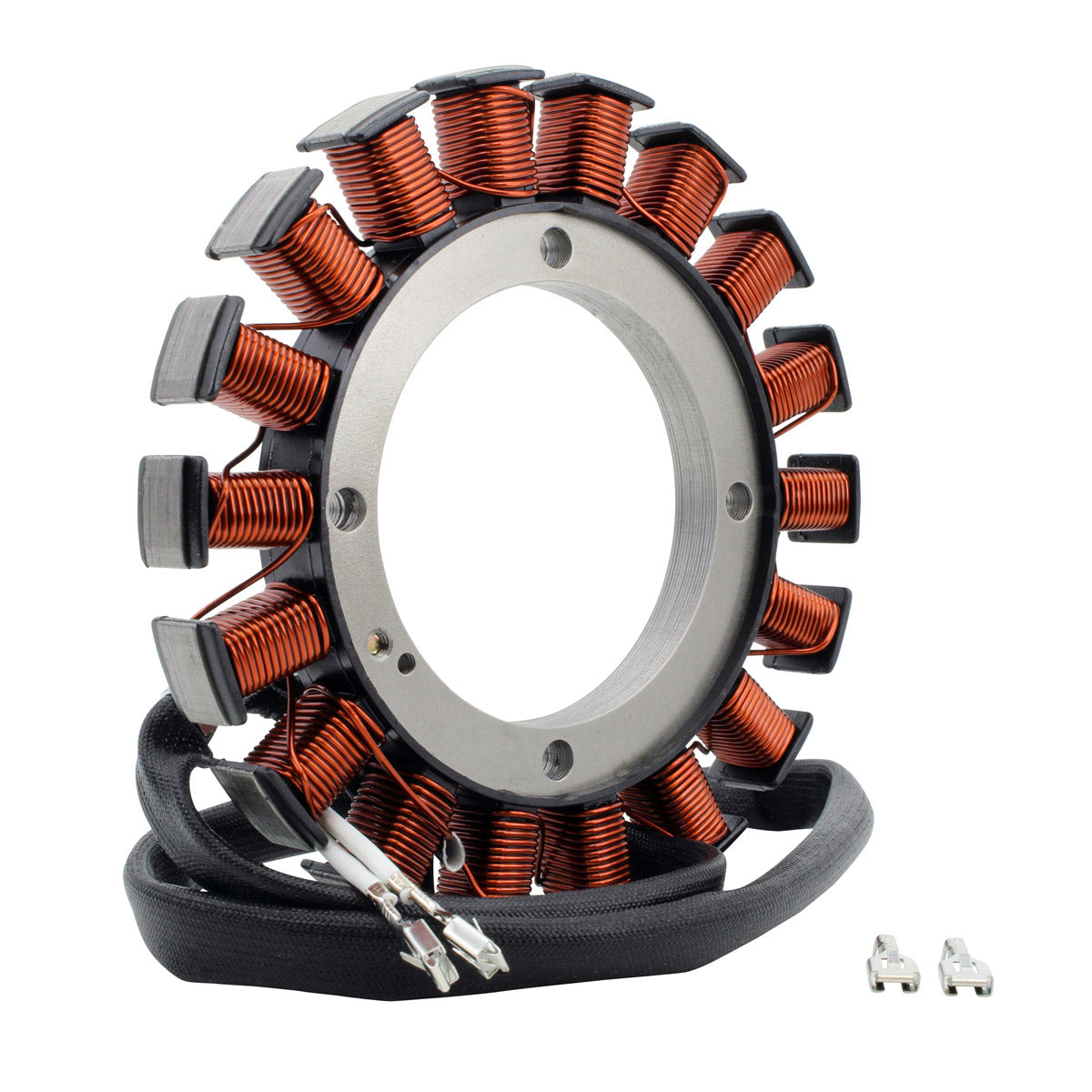

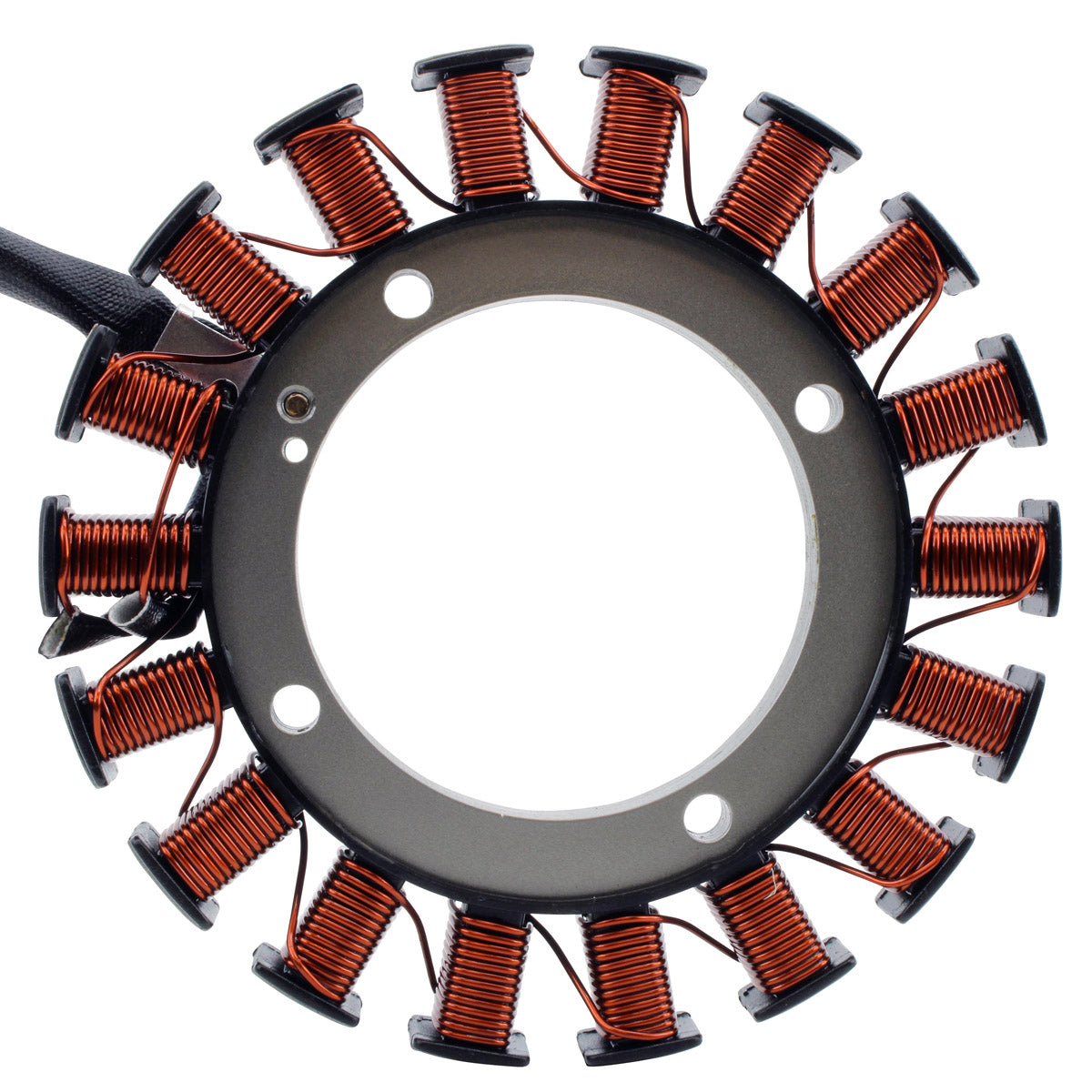

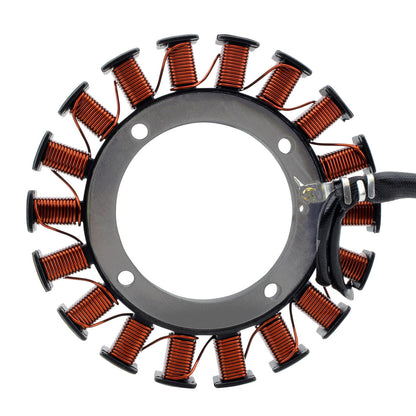

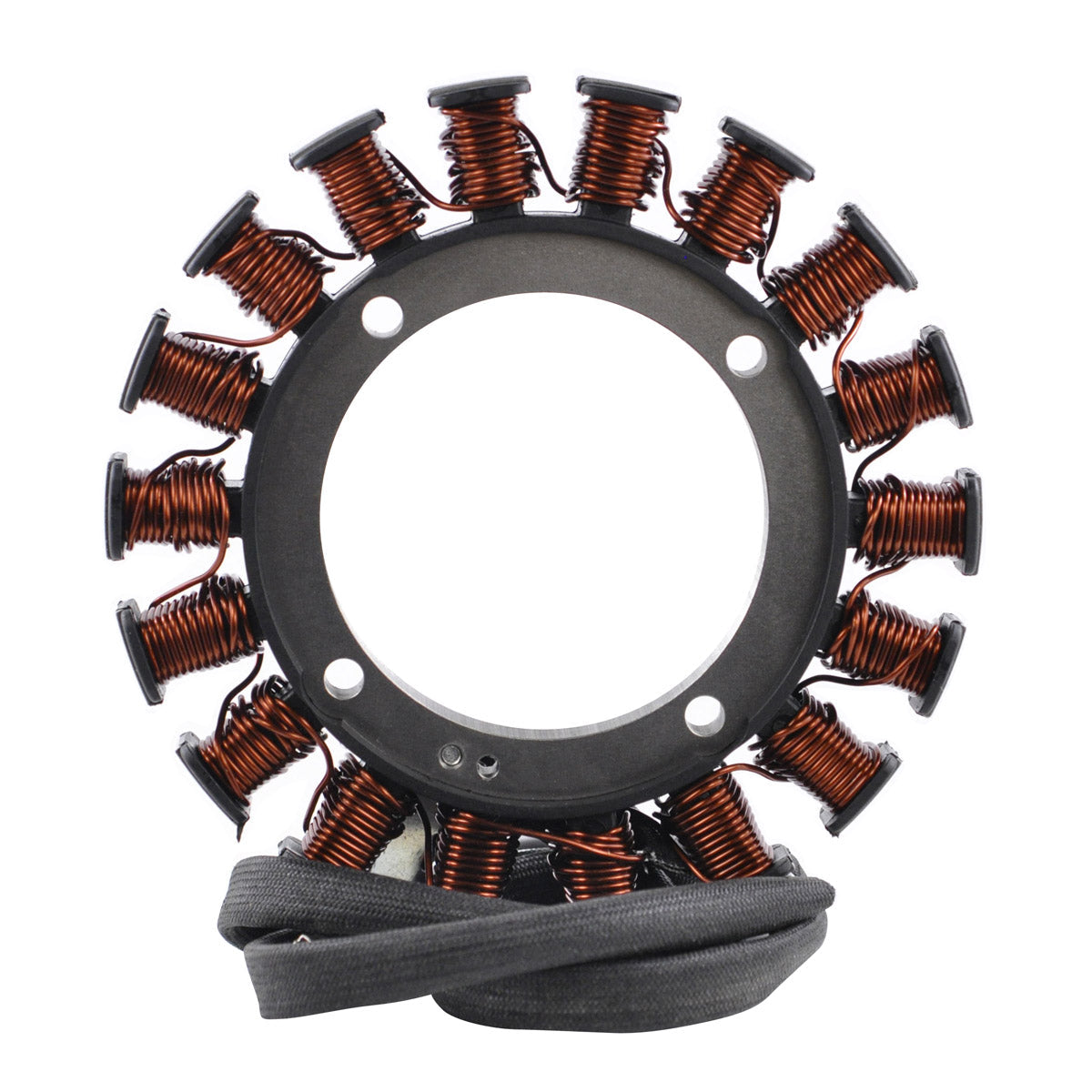

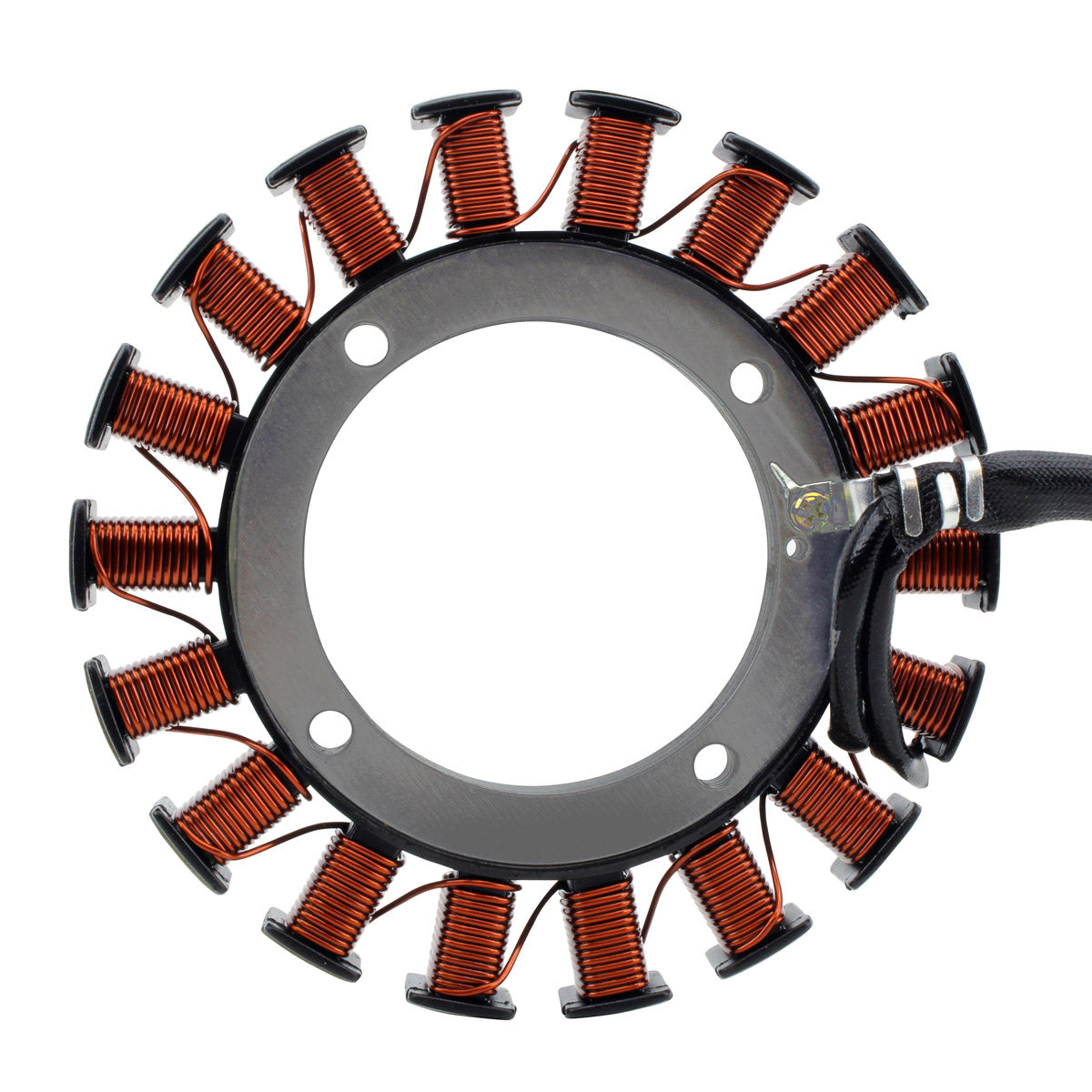

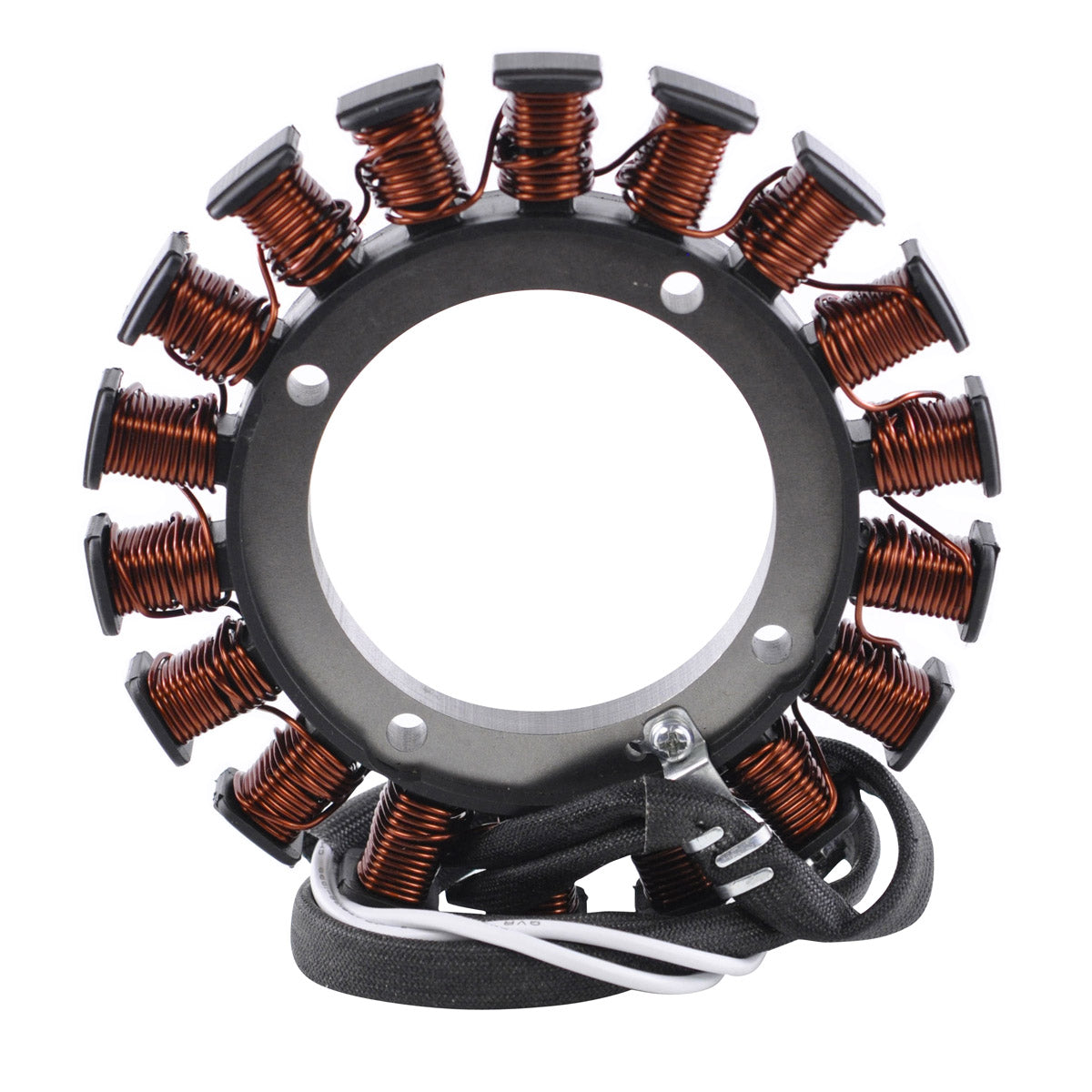

Stator for Kohler 15-20 AMP Lawn and Garden Engines
Kohler CH11-CH25, CV11-CV22, CV18-CV22, K181, K241, K301-K341, KT17 and KT19 - Part number RMS010-102722

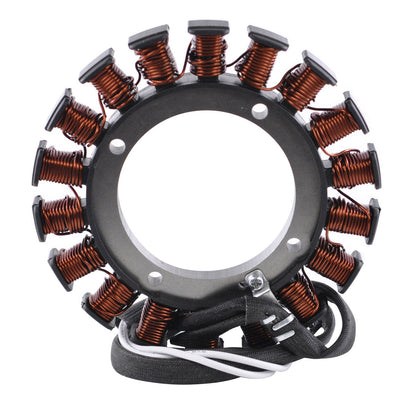

This is a brand new aftermarket stator for the 15 to 20 amp charging system used across the Kohler lawn and garden engine range, covering the CH11 to CH25 and CV11 to CV22 twins as well as the older K181, K241, K301 to K341 singles and the KT17 and KT19 twins. It is built to replace the original 237878-S type stator that sits under the flywheel, and it uses the same mounting arrangement and the same two-wire output so it drops into the standard position.
The core is made from the highest grade lamination materials and the windings are the highest grade copper, resistant to 200 degrees Celsius. On a machine that spends its working life at full throttle with a hot flywheel spinning inches away, that thermal margin is exactly what keeps the windings intact season after season. The leads run a generous 650 mm from the stator body to the terminals, matching the original routing out of the engine. All products shipped are tested, and the photographs on this listing show the actual item, so if you are in any doubt please compare them against your original part before ordering.
Key Features
- Brand new aftermarket stator
- Direct replacement for the Kohler 237878-S type unit
- 15 to 20 amp charging output
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Long 650 mm leads to the terminals
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-102722 |
| Charging output | 15 - 20 AMP |
| Interior diameter | 70 mm |
| Exterior diameter | 138 mm |
| Thickness | 10 mm |

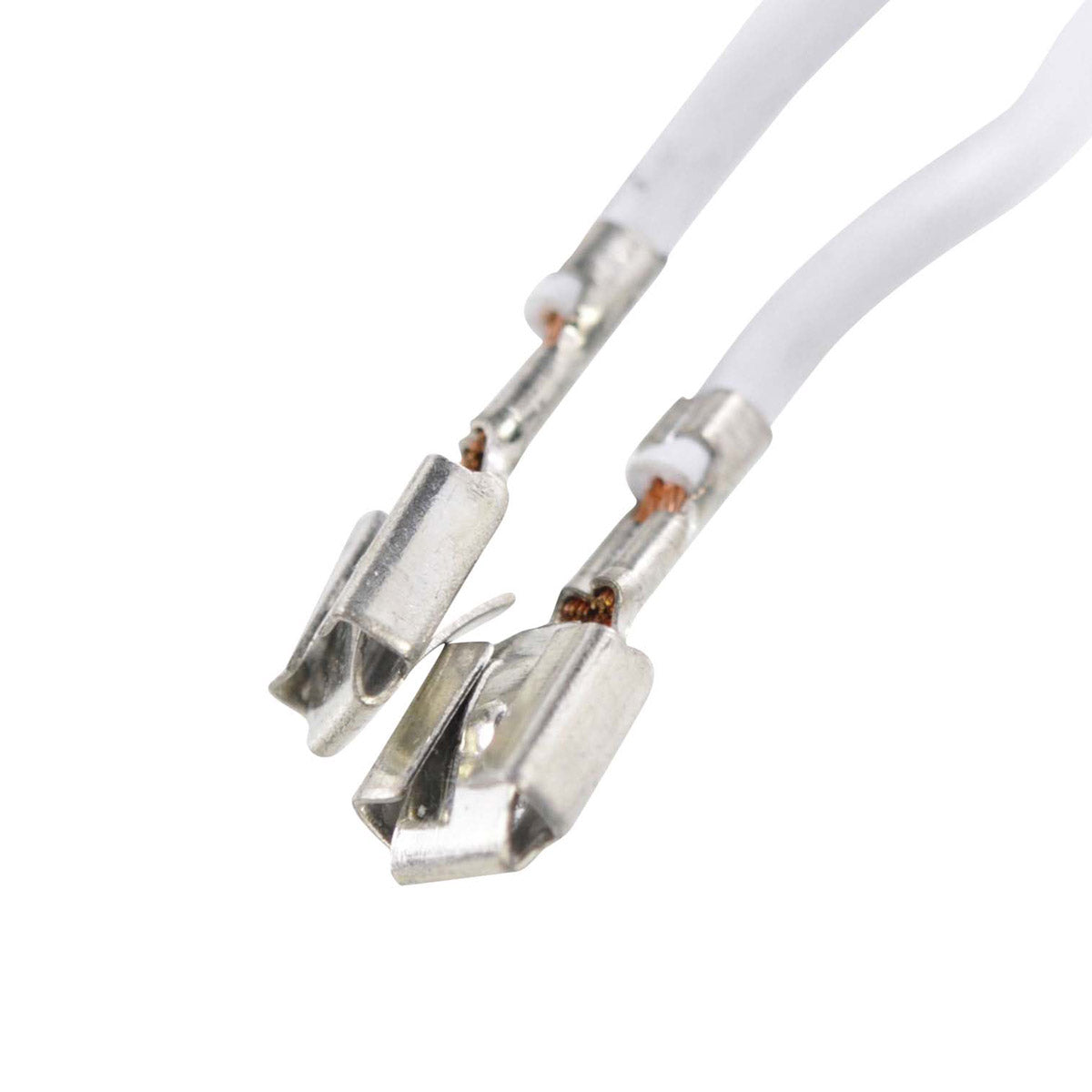

| Wire length, stator to terminals | 650 mm |
| Number of wires | 2 |

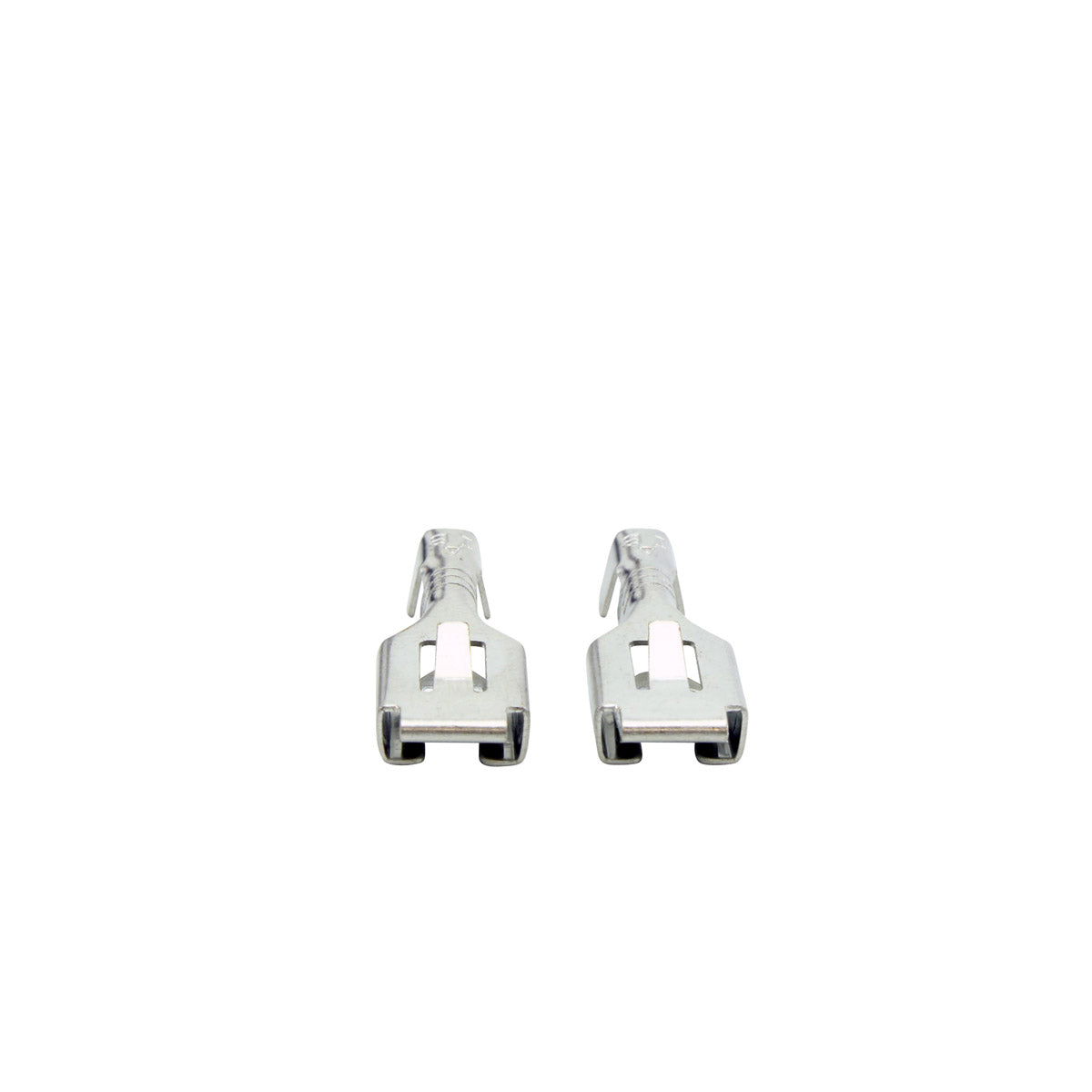

| Number of pins | 2 |
| Alternator resistance (White to White) | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kohler CH11 - CH25 | Not specified |
| Kohler CV11 - CV22 | Not specified |
| Kohler CV18 - CV22 | Not specified |
| Kohler K181 | Not specified |
| Kohler K241 | Not specified |
| Kohler K301 - K341 | Not specified |
| Kohler KT17 | Not specified |
| Kohler KT19 | Not specified |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 237878-S | Kohler |
| 237878S | Kohler |
| 237329 | Interchange reference |
| A-237329 | Interchange reference |
| 237330 | Interchange reference |
| 237331 | Interchange reference |
| 237399 | Interchange reference |
| 237716 | Interchange reference |
| 234859 | Interchange reference |
| 055-489 | Interchange reference |
| 5475509-S | Interchange reference |
| 4108507 | Interchange reference |
| 4708501 | Interchange reference |
| 4708511 | Interchange reference |
Frequently Asked Questions
Will this fit my engine without modification?
It is built to replace the original 237878-S type stator and uses the same mounting and the same two-wire output, so no modification is needed. Kohler used this charging stator across a very wide range of engines, so the safest check is to read the part number off the unit you are removing and match it against the cross reference table above.
How do I tell whether my old stator has failed?
Disconnect the two output leads and measure the resistance between them. The reading should be 0.4 ohms plus or minus 20 per cent. Then check between either lead and the engine block, where there should be no continuity. An open circuit, a very high reading, or continuity to earth all confirm the stator has gone. A battery that goes flat over a few hours of mowing is the usual first symptom.
Which output does this stator give?
It is the 15 to 20 amp unit. Kohler also fitted lower output charging stators to some engines in these families, so check the amperage of the system you are working on before ordering.

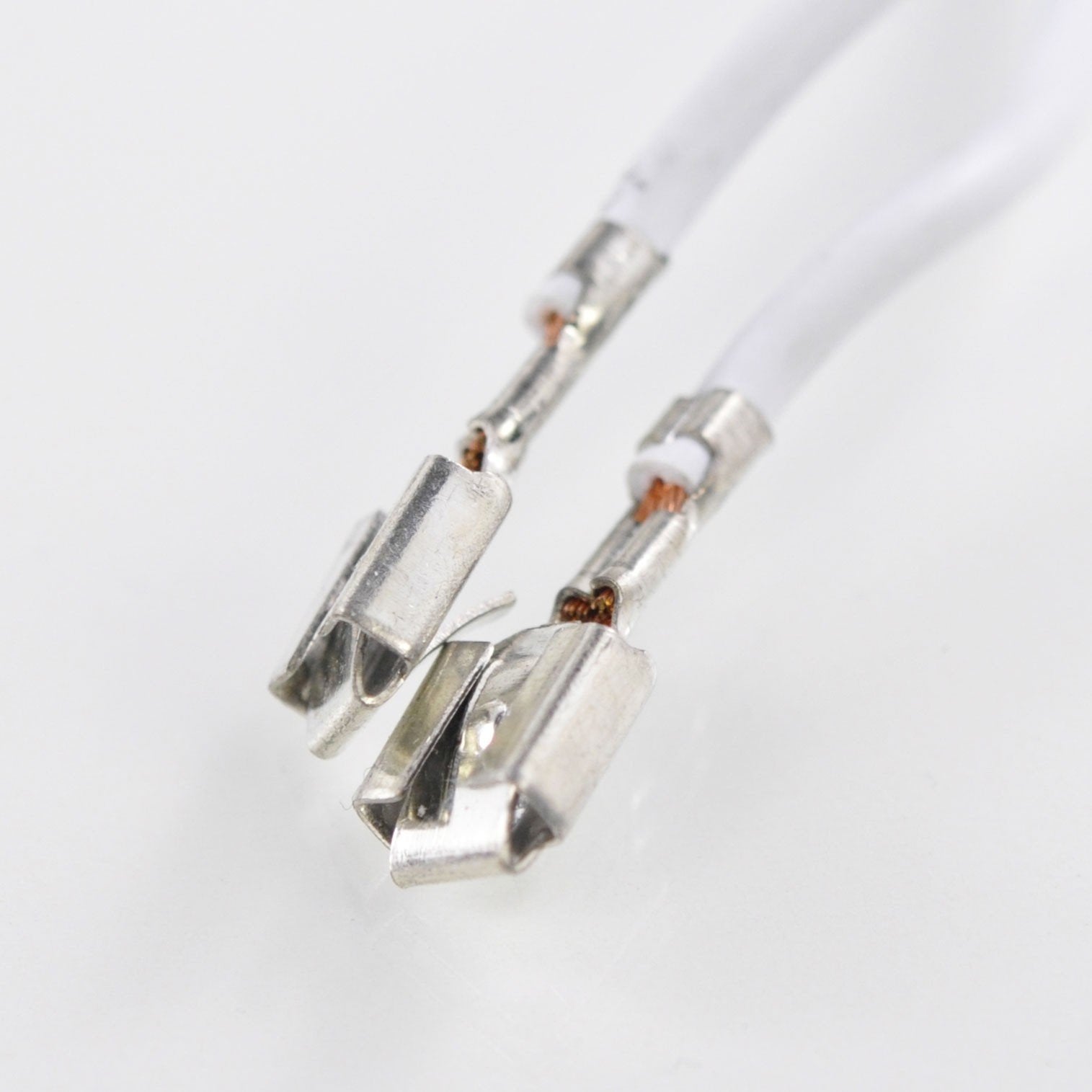

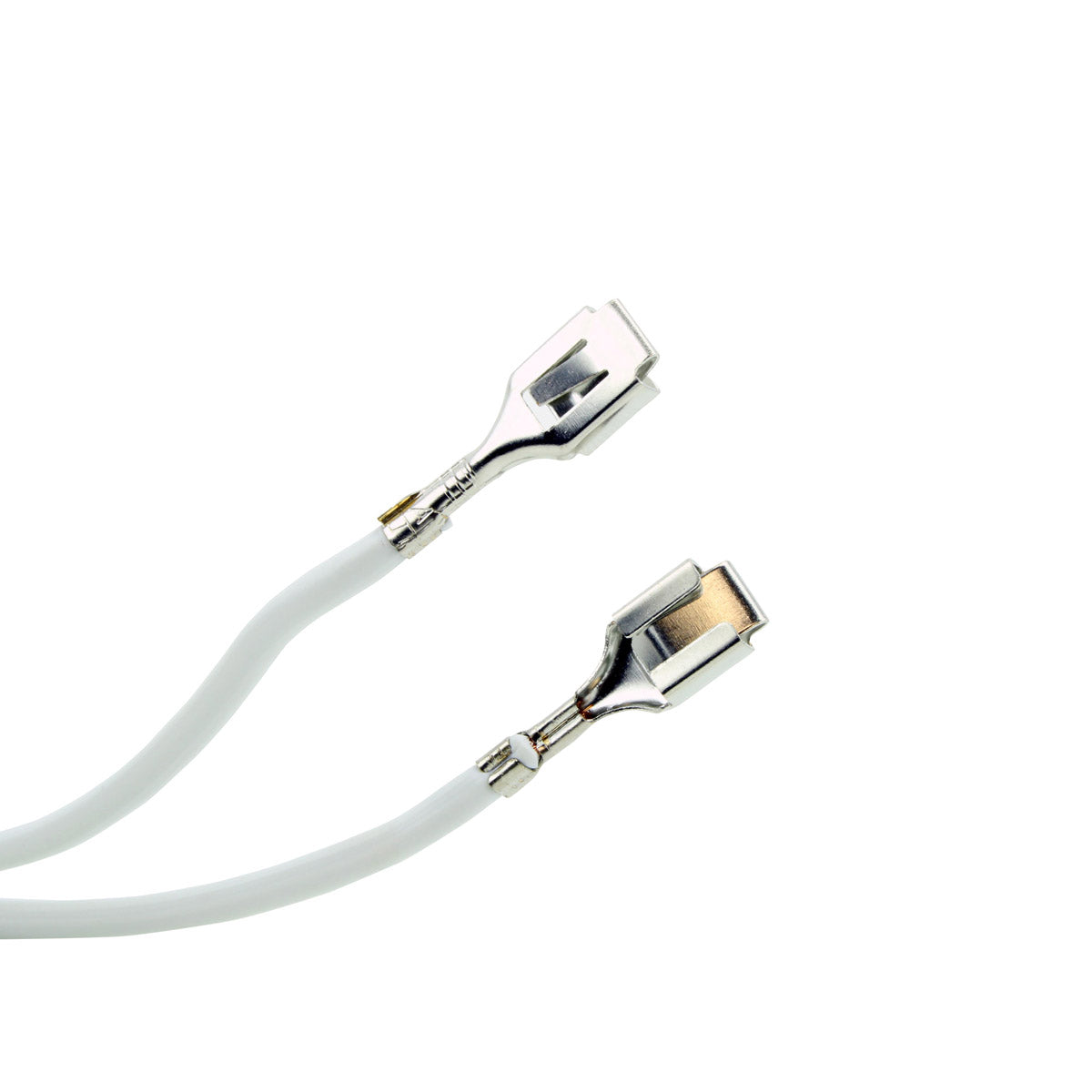

How long are the leads?
The wires run 650 mm from the stator body to the terminals, which follows the original routing out from under the flywheel shroud, so there is no need to extend or splice anything.
