Stator for KTM 150, 200, 250 & 300 XC XC-W 2007-2022
Stator for KTM 150, 200, 250 & 300 XC XC-W 2007-2022
SKU:RMS010-101534
Free shipping over £150. Terms apply
Couldn't load pickup availability

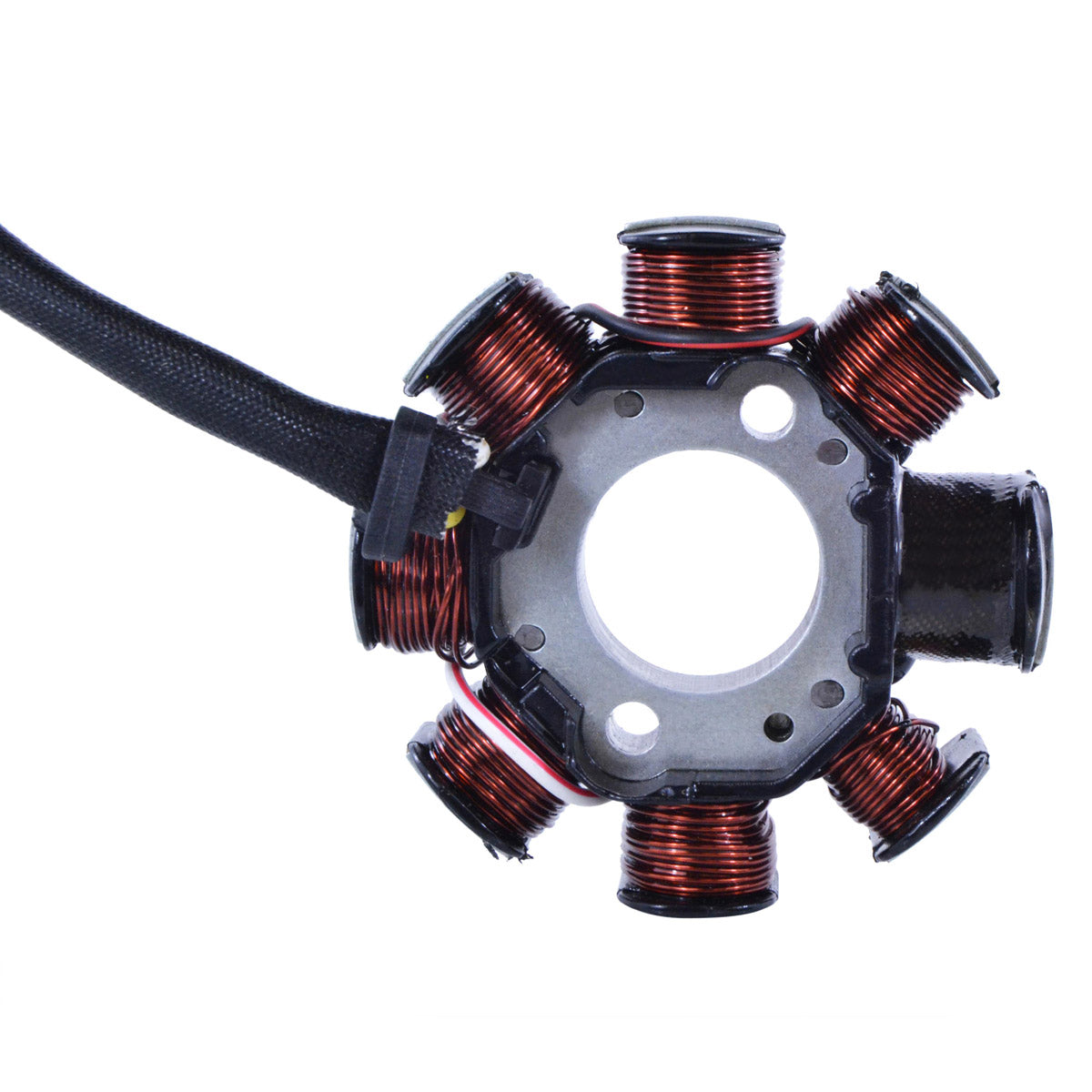

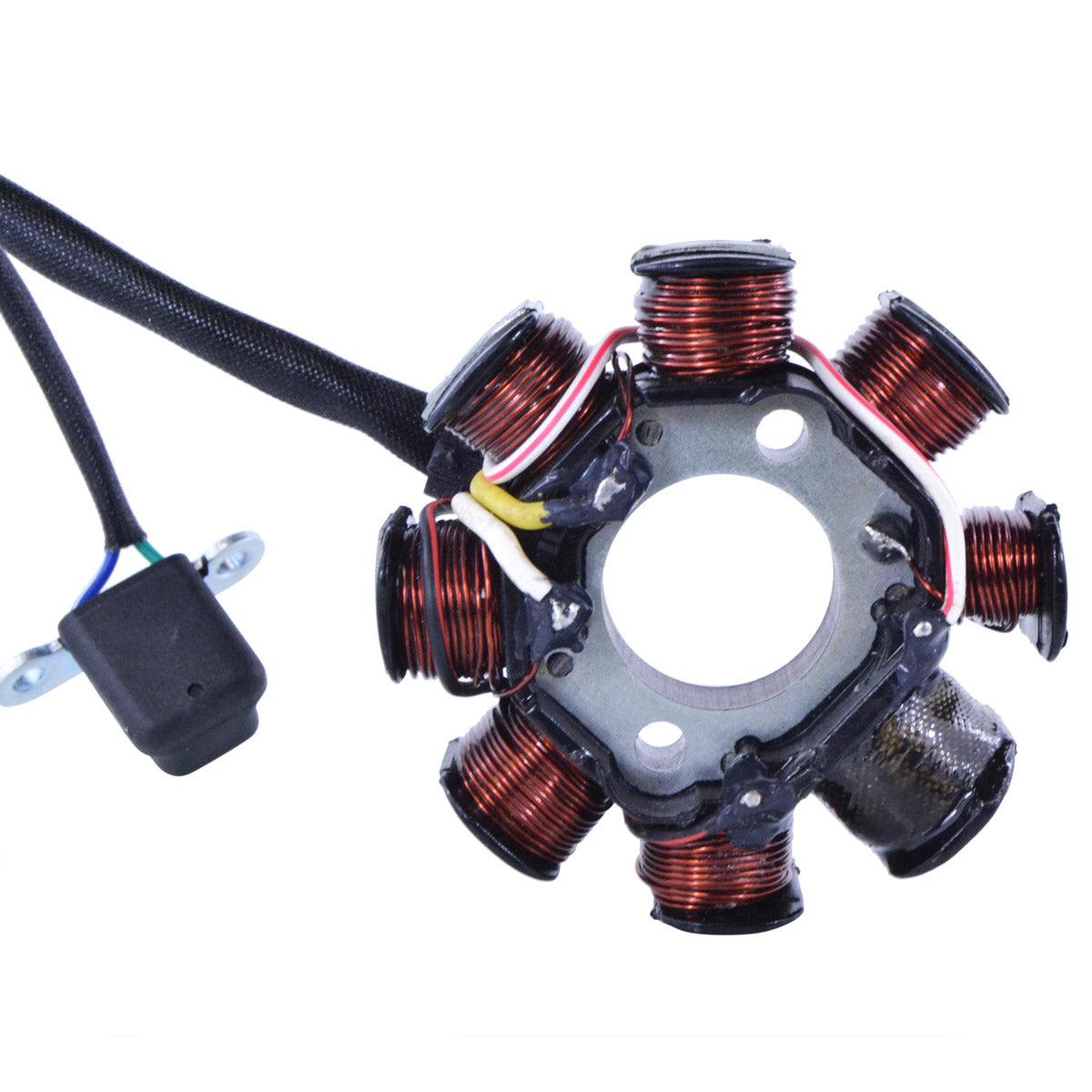

Stator for KTM 150, 200, 250 & 300 XC XC-W
KTM 150 XC-W and 200 / 250 / 300 XC and XC-W - 2007-2022 - Part RMS010-101534

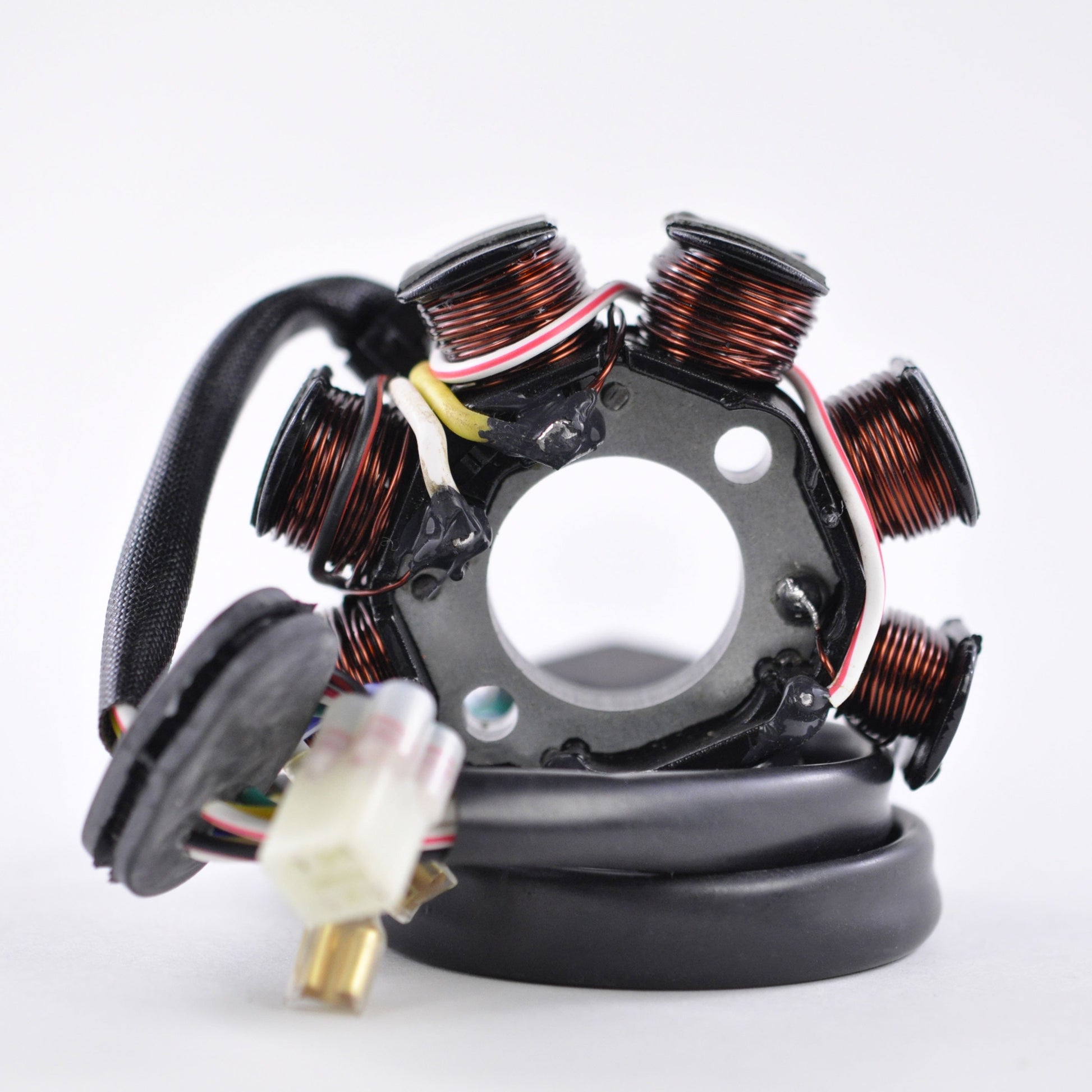

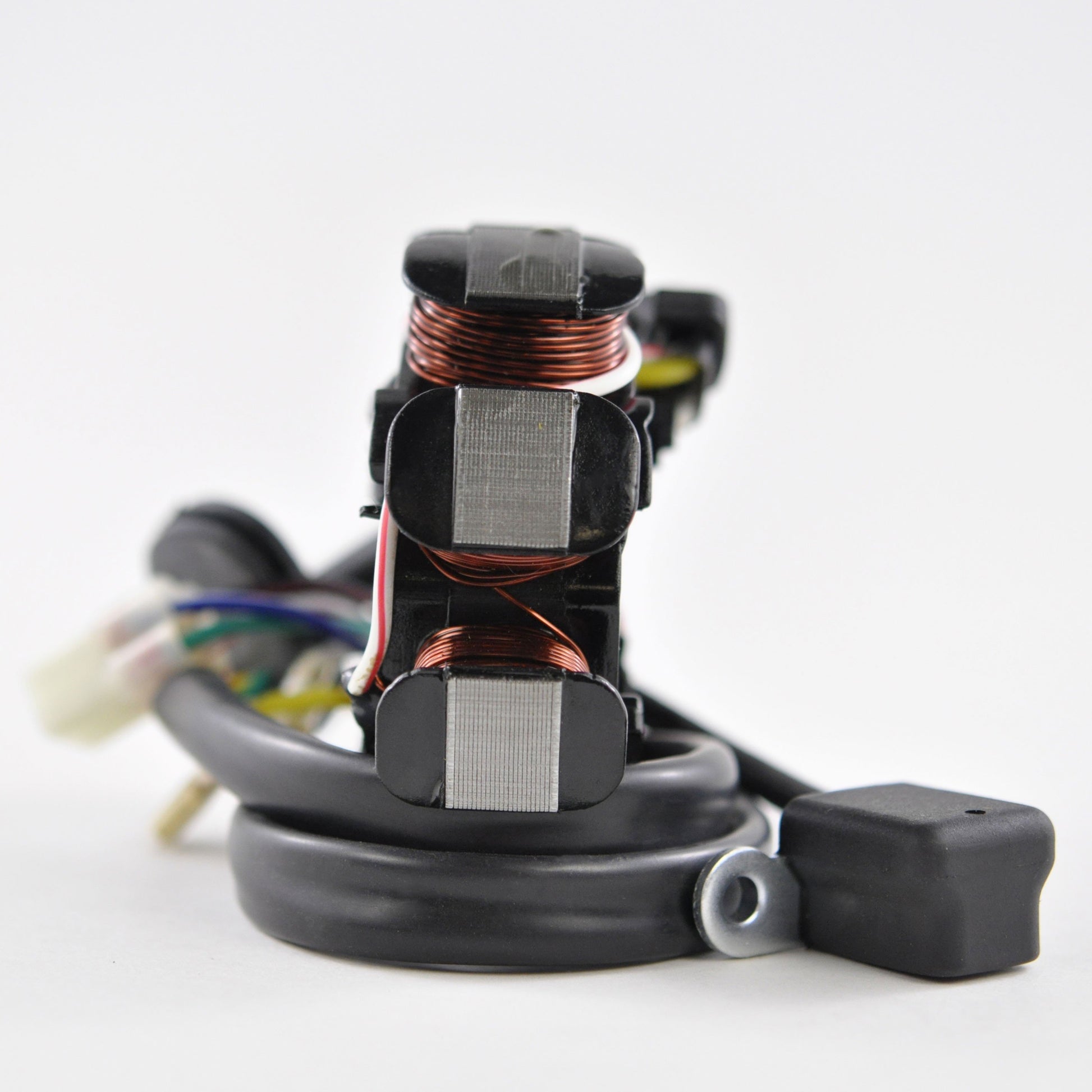

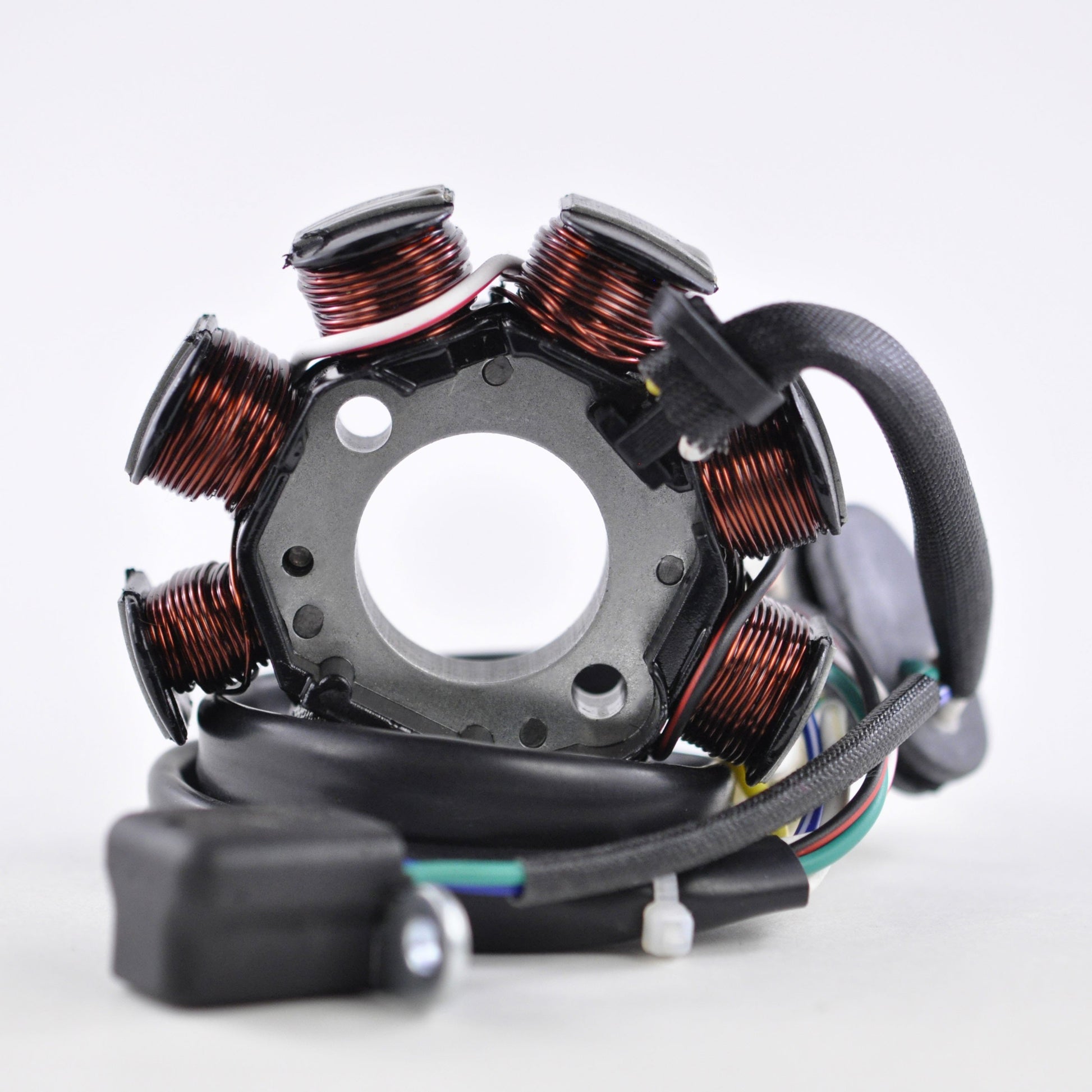

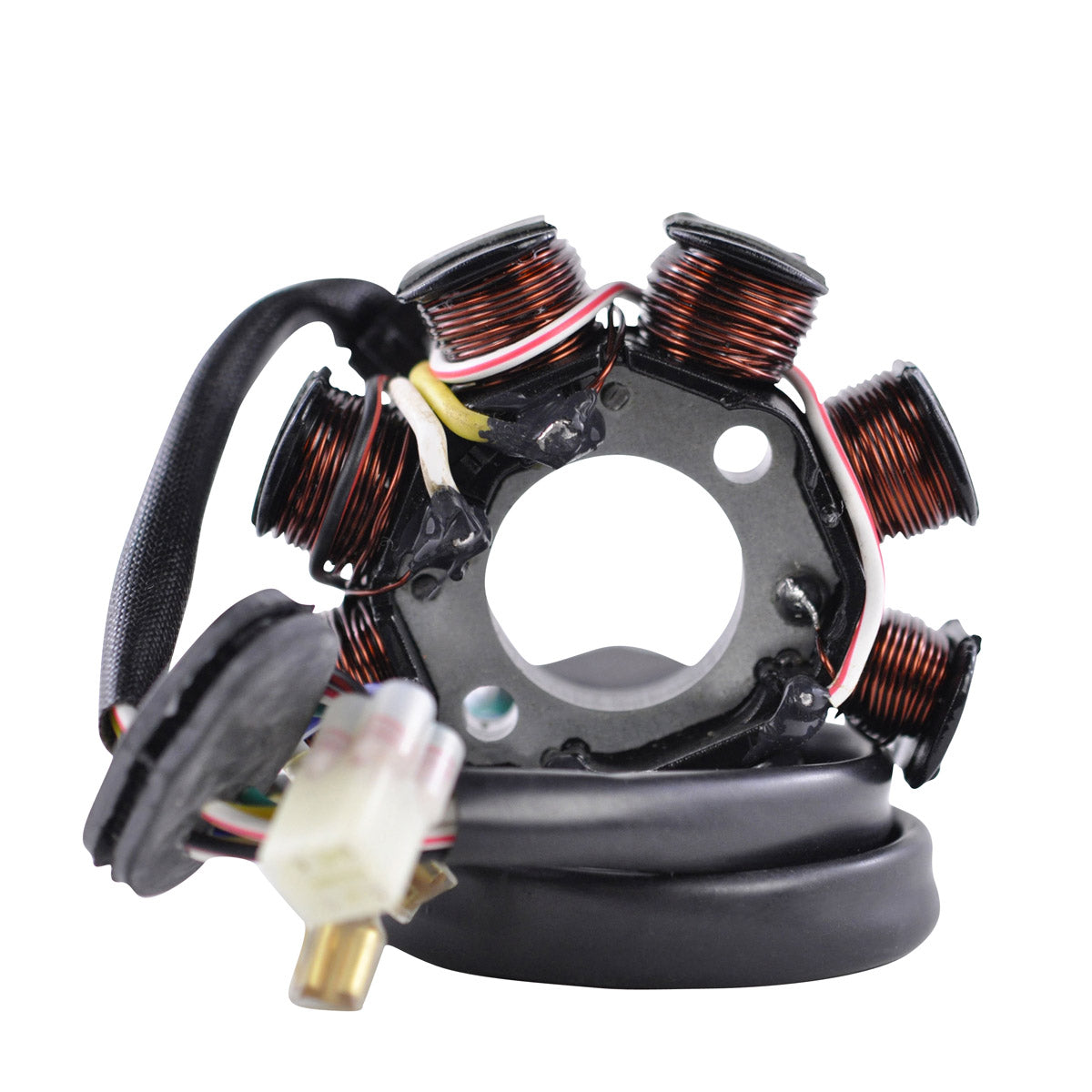

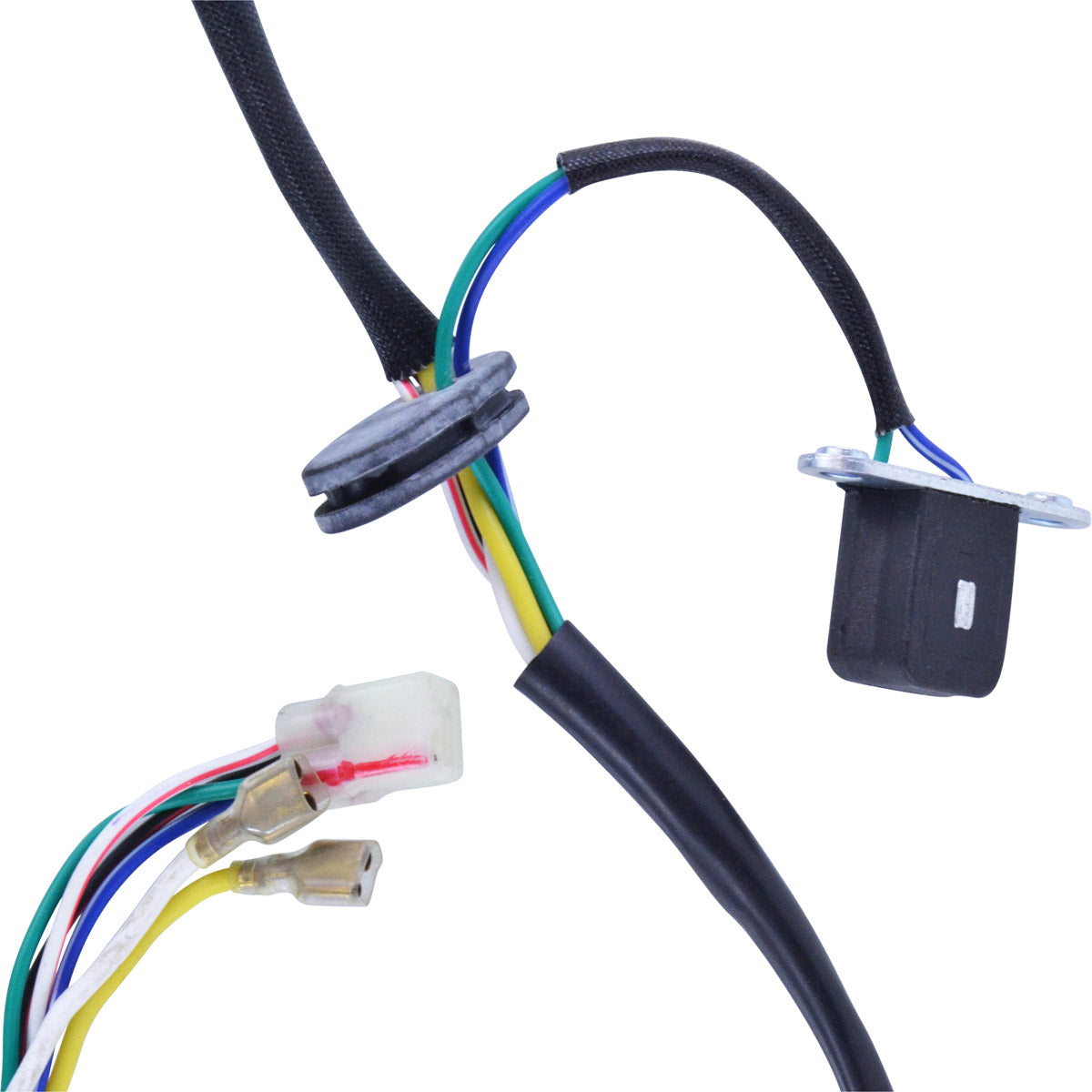

This is a brand new aftermarket stator, built as a direct replacement to your original unit on KTM 150 XC-W and 200, 250 and 300 XC and XC-W models. It is a plug-and-play, direct fit part with easy installation, so there is no need to splice wires, re-pin a connector or modify the standard loom in any way. The assembly is supplied complete with its pick up pulsar coil, its connector and its rubber grommet, which means everything that comes out with the old unit goes back in with the new one.
The stator is manufactured using the highest grade lamination materials and the highest grade copper windings, which are resistant to 200 degrees Celsius. That temperature rating matters on a hard-worked two-stroke enduro or cross-country engine, where the charging coils sit close to a great deal of heat and vibration. Every unit is tested before it is shipped. Typical symptoms of a failed original stator include a battery that will not hold charge, lights that dim or flicker as the revs rise and fall, a weak or intermittent spark, or a machine that runs only until the battery is flat.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

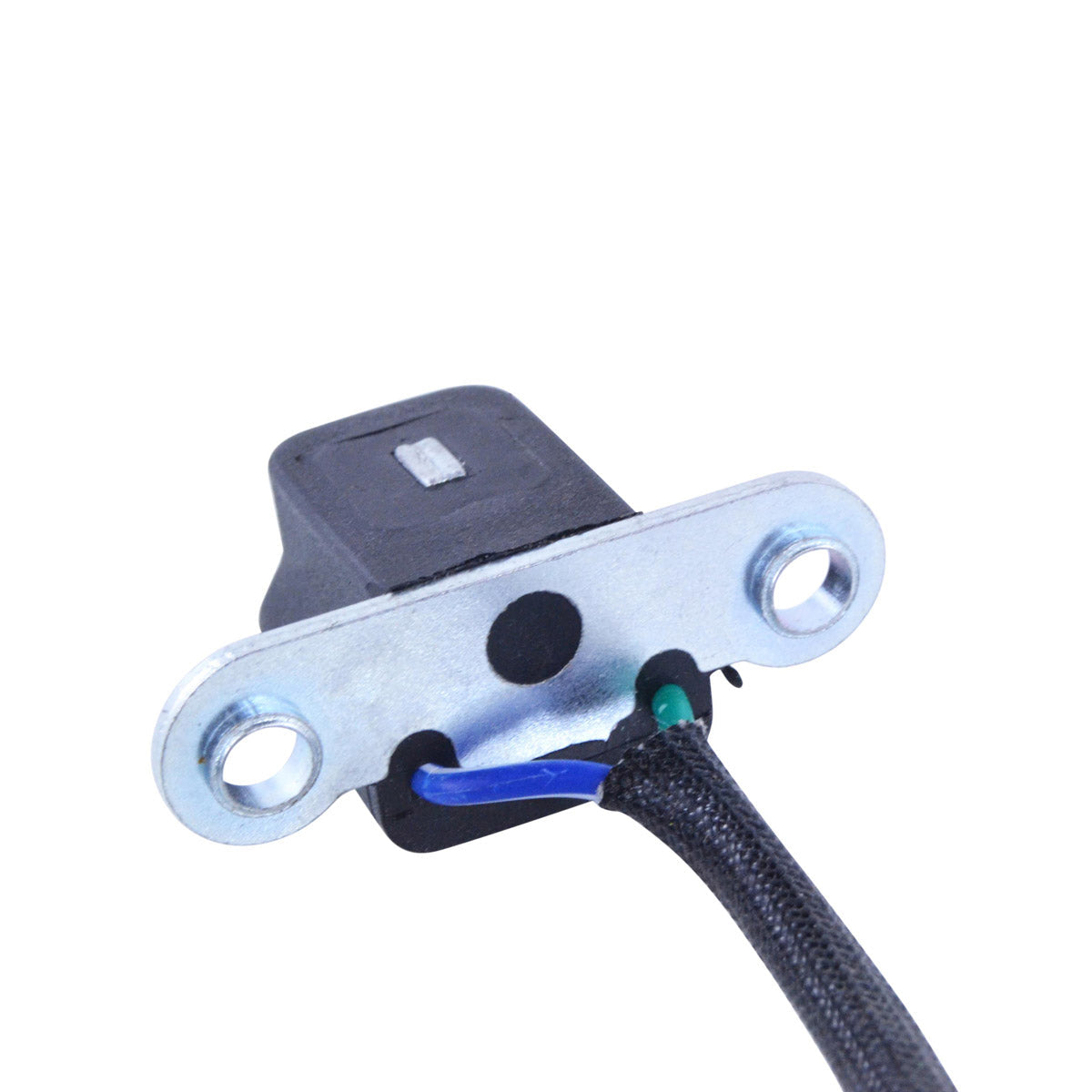

- Pick up pulsar coil included

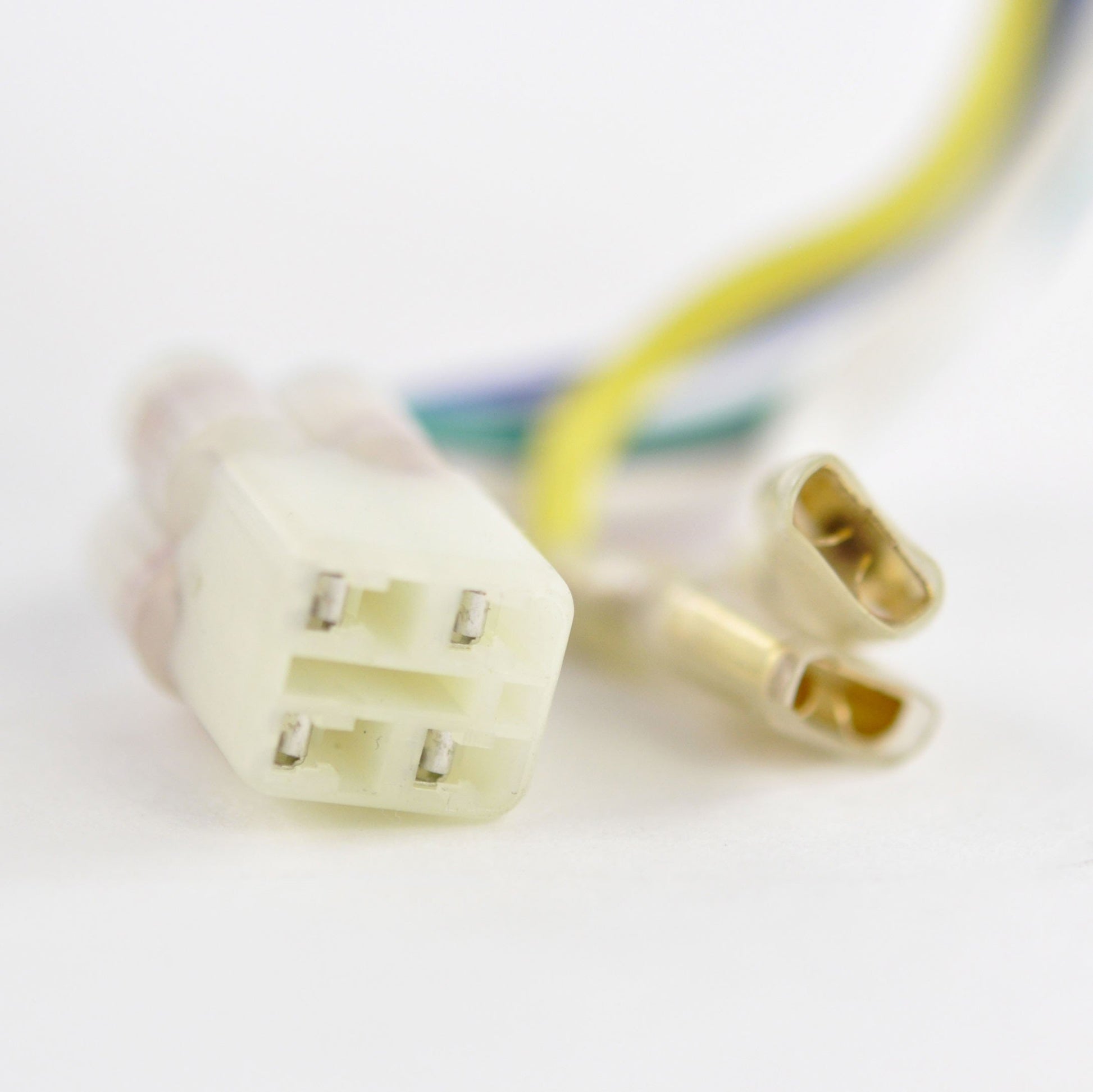

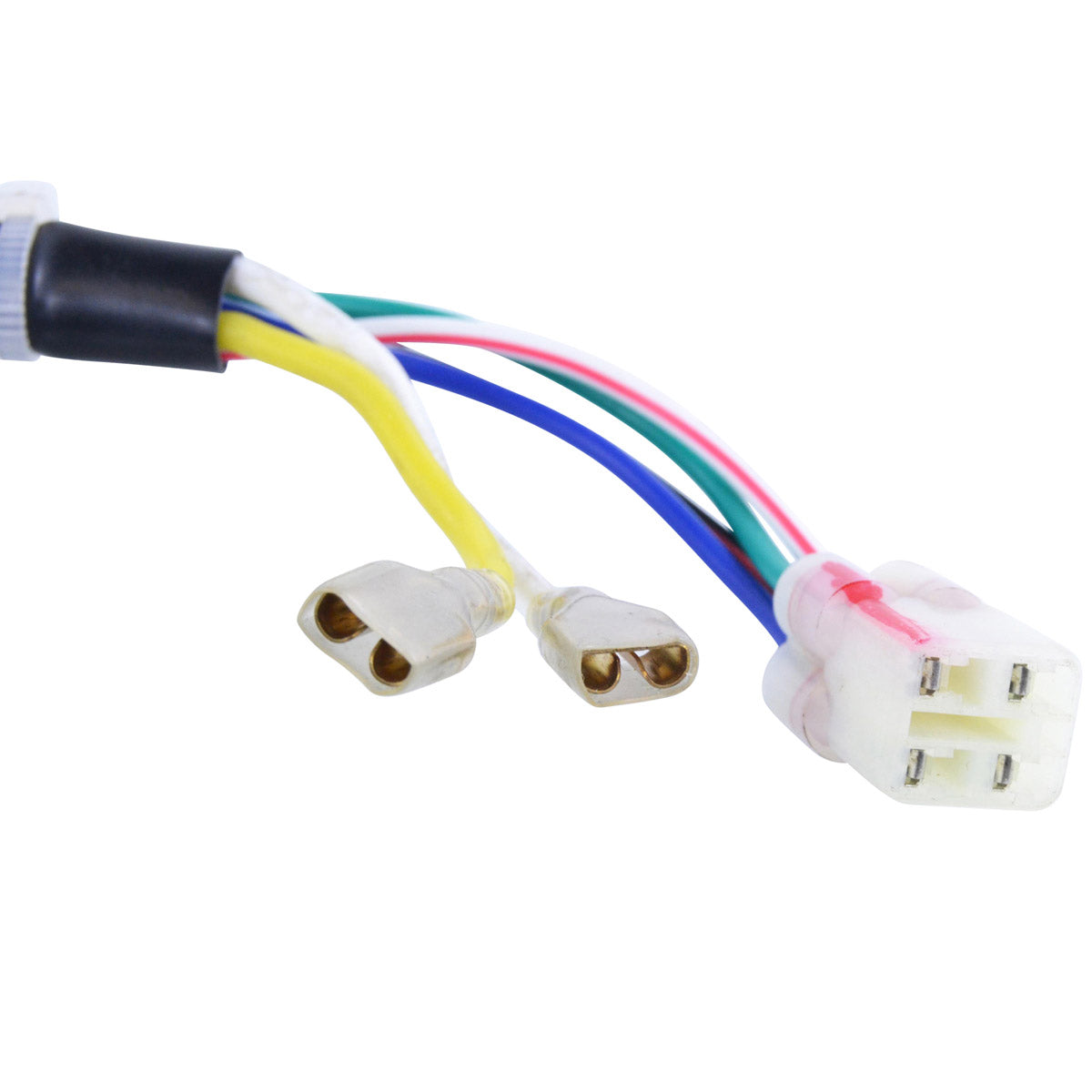

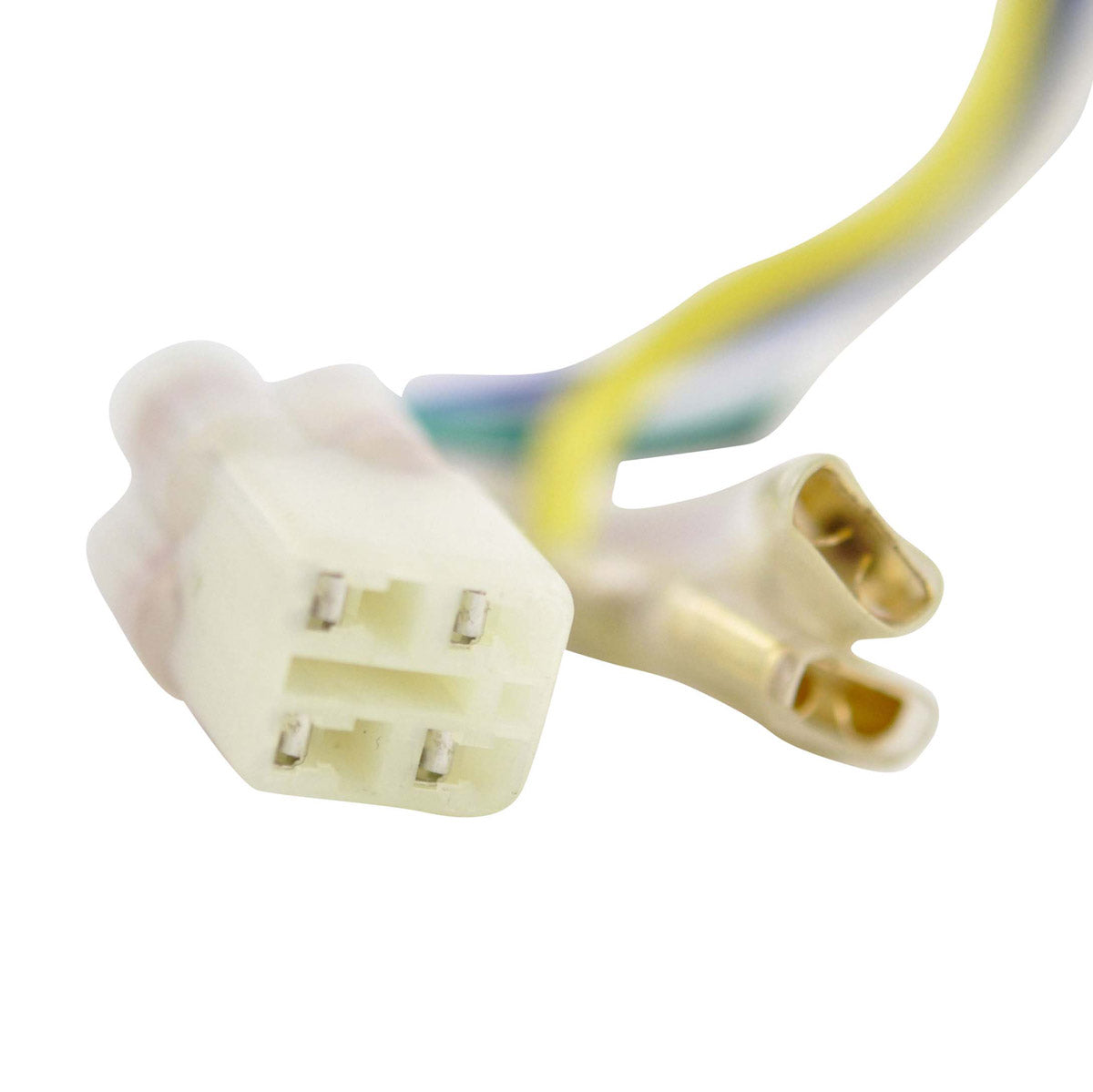

- Connector included

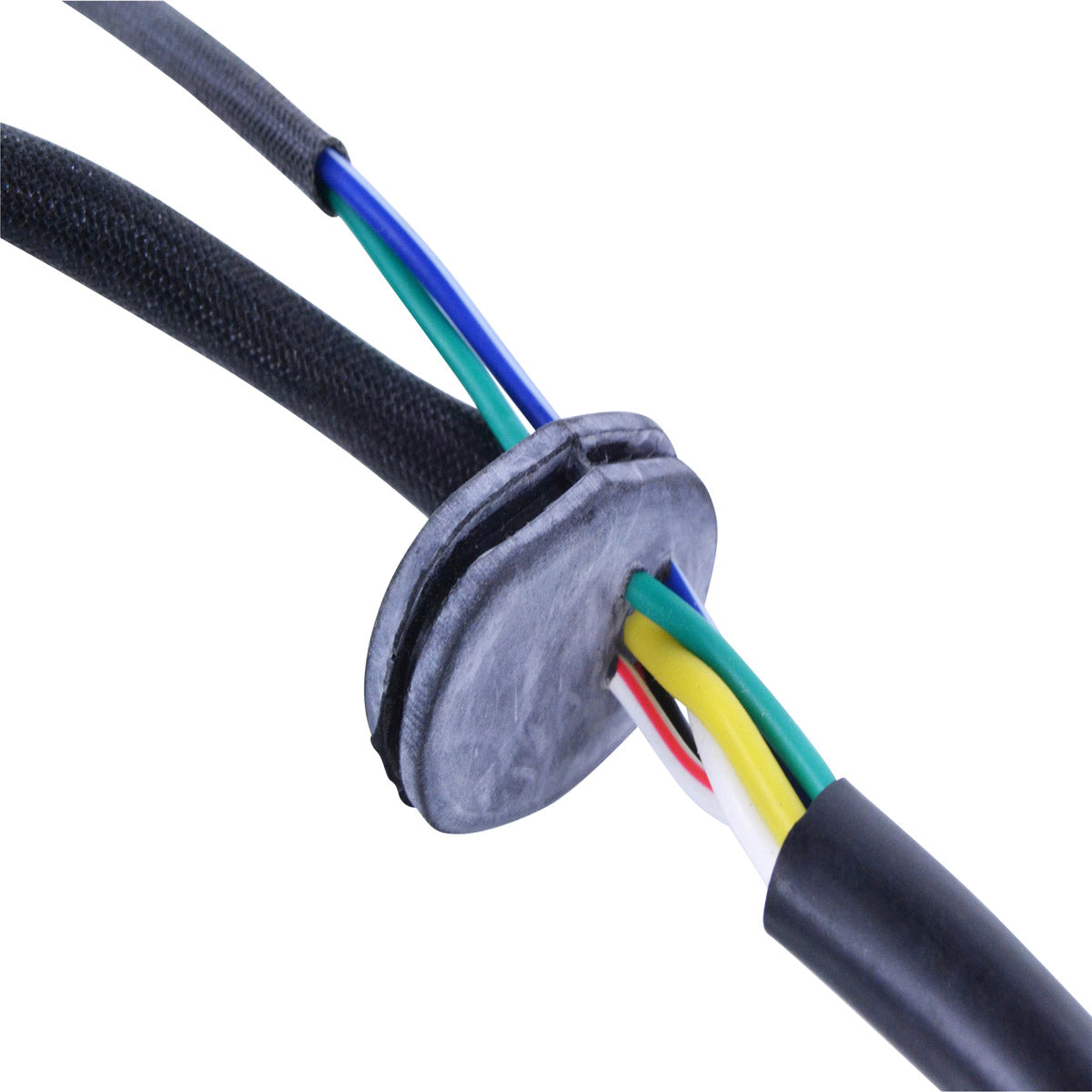

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 28 mm |
| Exterior diameter | 84 mm |

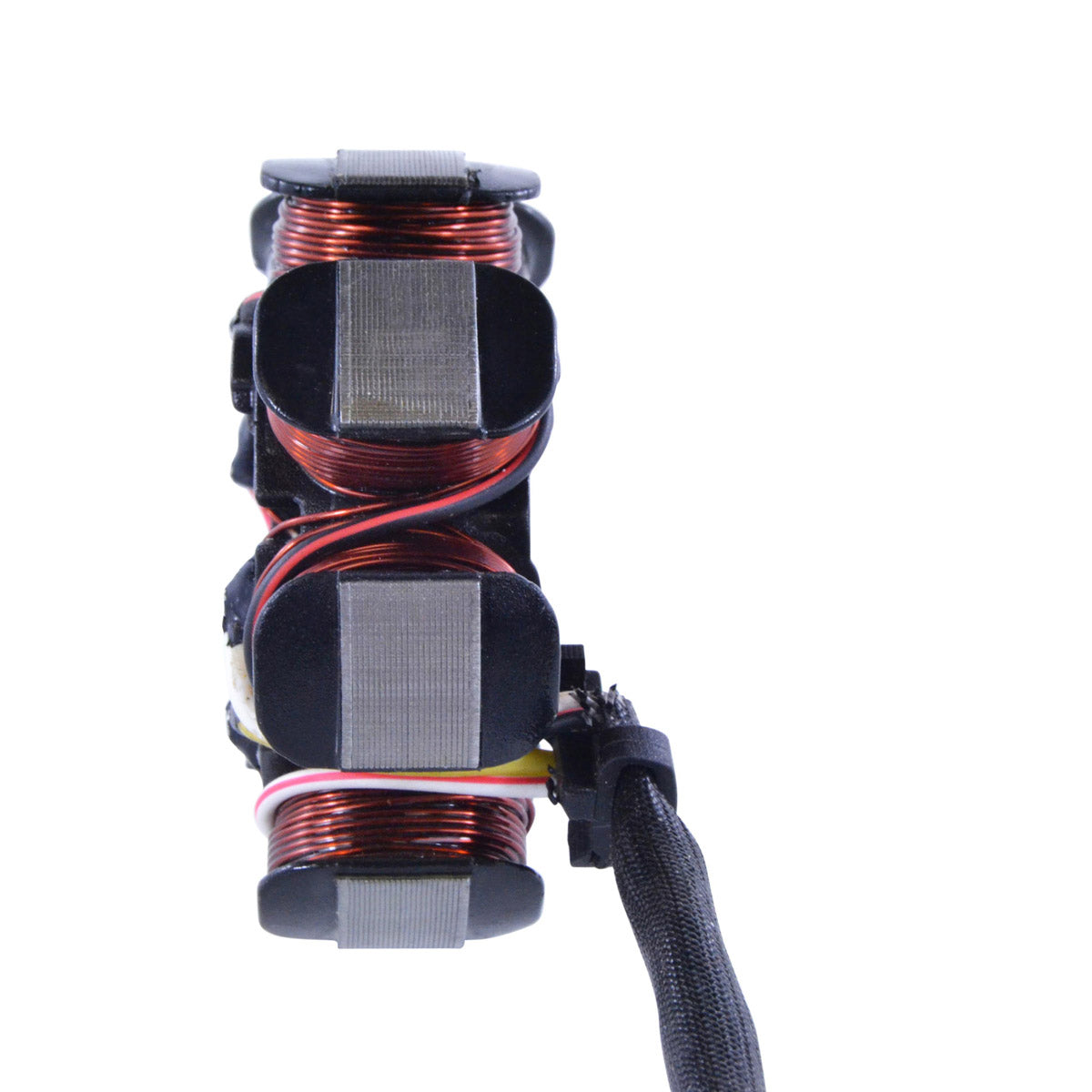

| Thickness | 12 mm |
| Wire length, stator to grommet | 82 mm |
| Wire length, grommet to plug | 400 mm |
| Pick up coil wire length to grommet | 40 mm |
| Number of wires | 6 |
| Number of plugs | 3 |
| Number of pins | 6 |
| Alternator resistance, white to yellow | 0.6 ohms +/-20% |
| Pickup resistance, green to red | 100 ohms +/-20% |
| Source resistance, red/white to black/red | 15 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RMS010-101534 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| KTM 150 XC-W | 2007-2022 |
| KTM 200 XC / XC-W | 2007-2022 |
| KTM 250 XC / XC-W | 2007-2022 |
| KTM 300 XC / XC-W | 2007-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 55139004000 | KTM |
| 55139004100 | KTM |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a plug-and-play, direct fit replacement for the original unit, supplied with the correct connector and rubber grommet, so it goes straight back into the standard wiring without cutting or splicing.
What is included in the box?
The stator itself, the pick up pulsar coil, the connector and the rubber grommet. Every unit is tested before it is shipped.
How do I tell whether my original stator has failed?
Measure the resistance across the coils with a multimeter and compare the readings with the values in the specification table above: 0.6 ohms +/-20% white to yellow on the alternator, 100 ohms +/-20% green to red on the pickup, and 15 ohms +/-20% red/white to black/red on the source coil. A reading that is open circuit, shorted to the core or well outside those tolerances indicates a failed winding.
Will it fit both the XC and the XC-W models?
Yes. This stator covers the 150 XC-W and the 200, 250 and 300 XC and XC-W models across the 2007 to 2022 coverage span. Because KTM changed ignition suppliers within that period, check the number stamped on your original unit against 55139004000 or 55139004100 before ordering.
