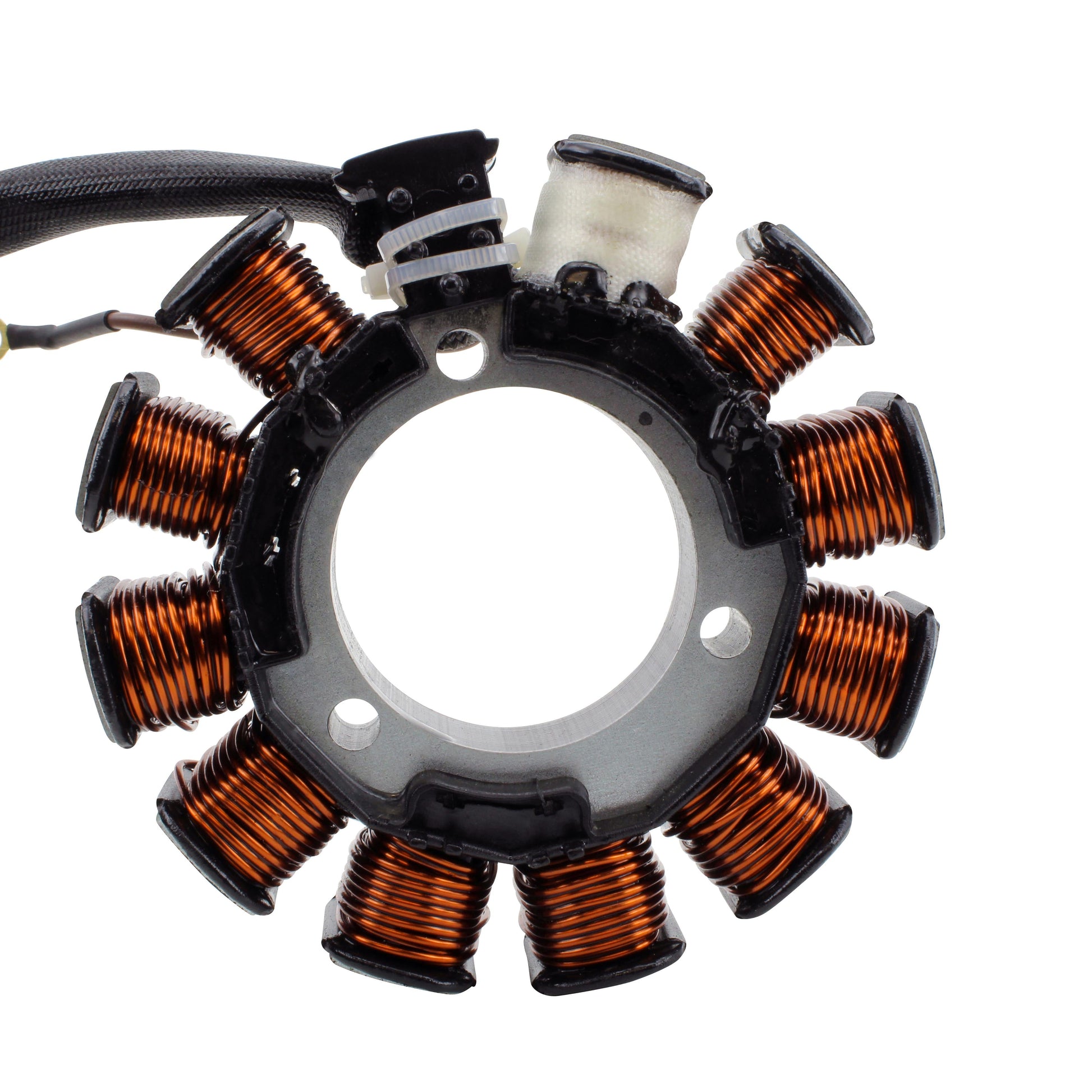

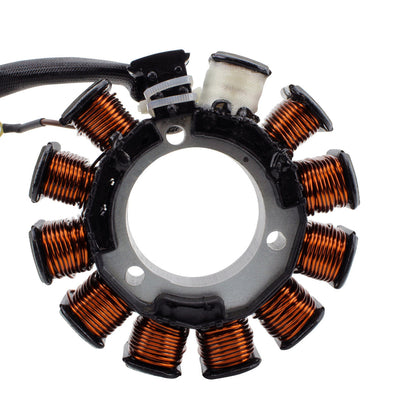

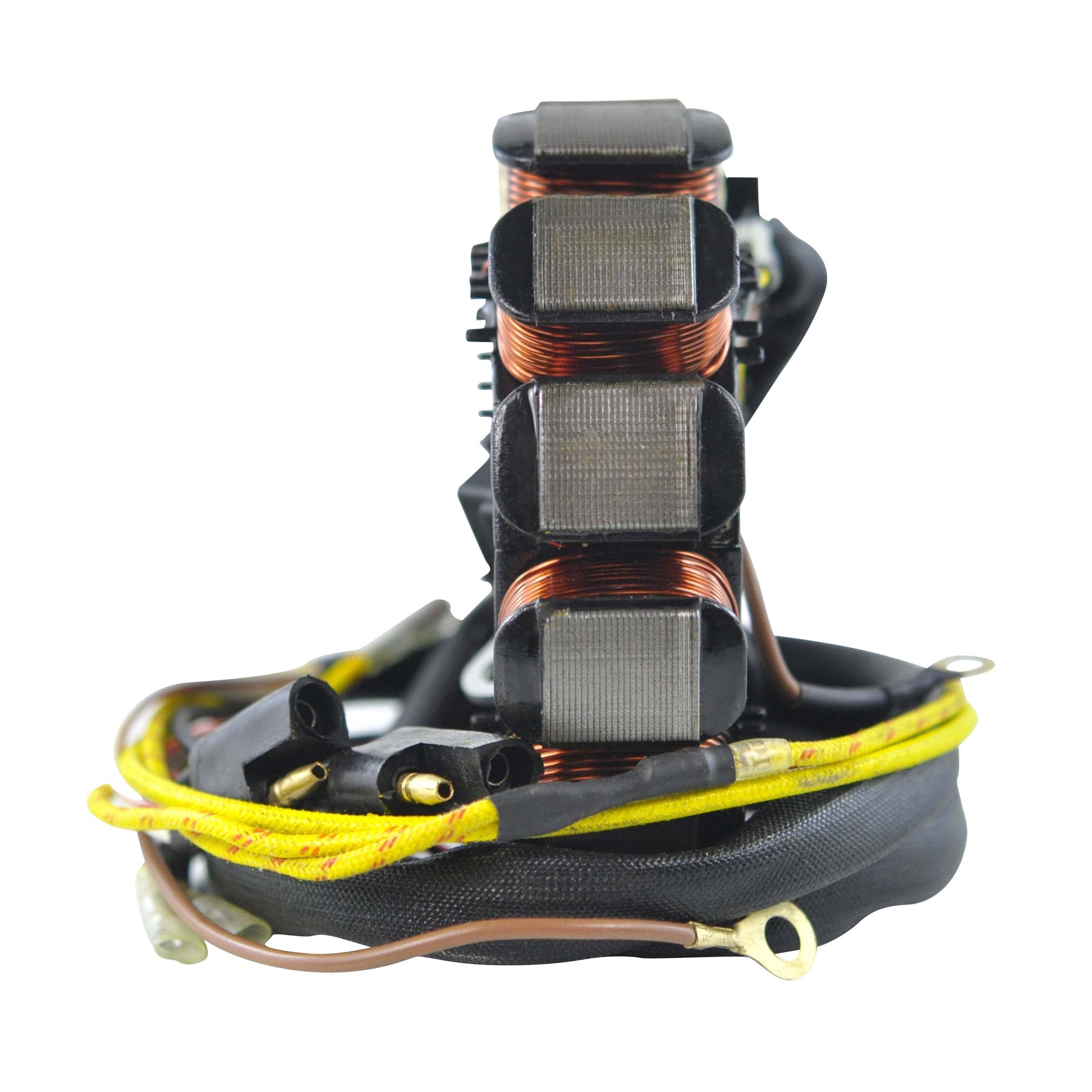

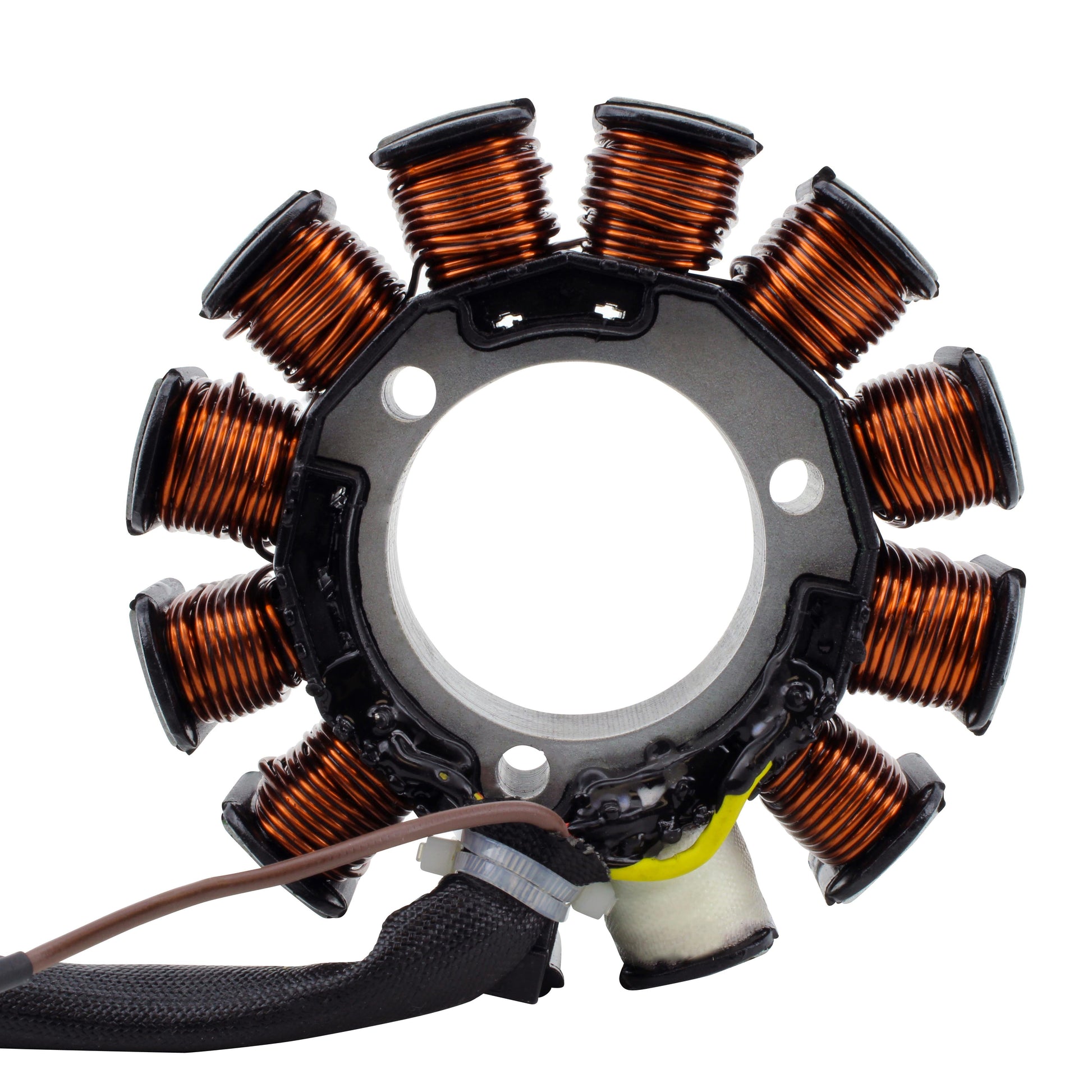

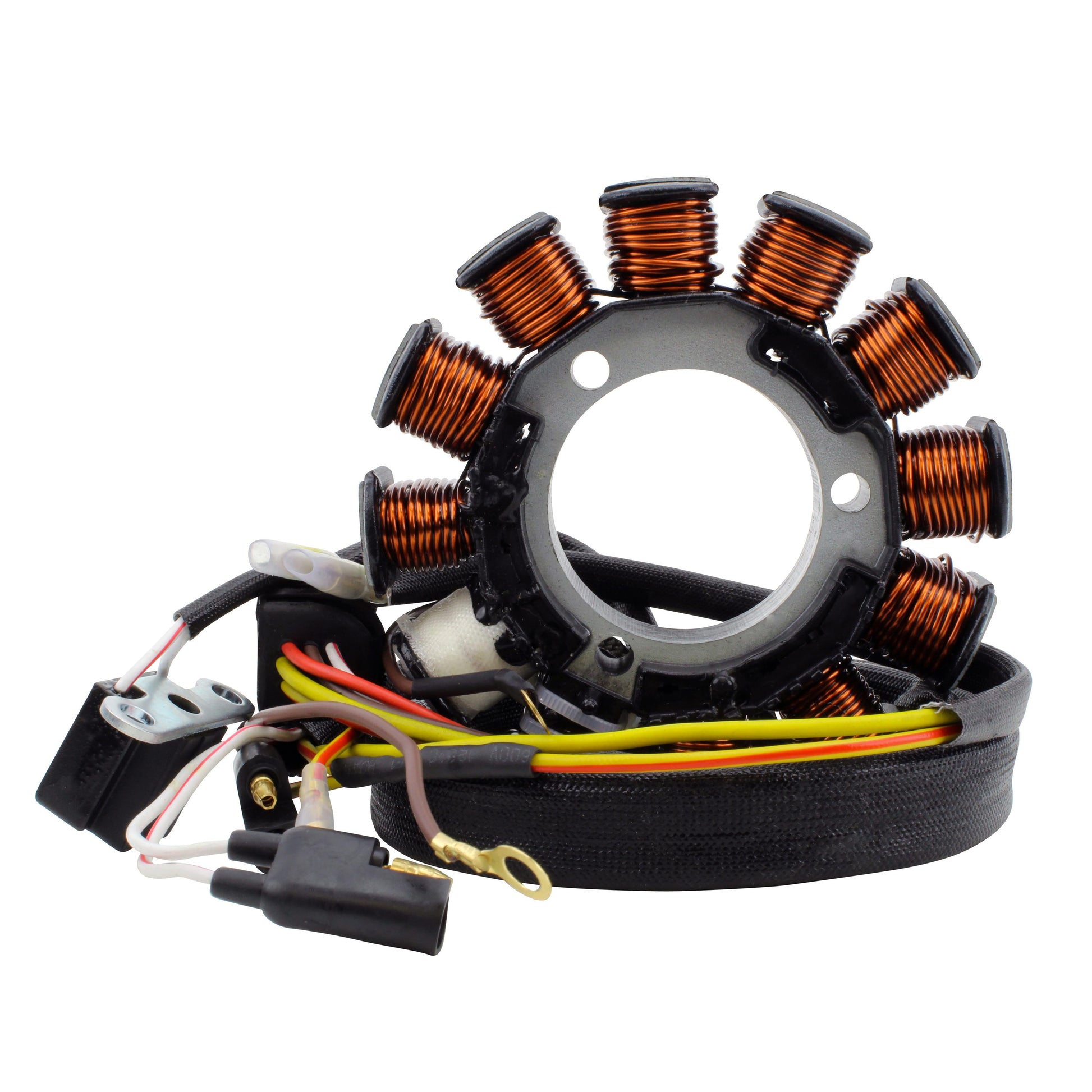

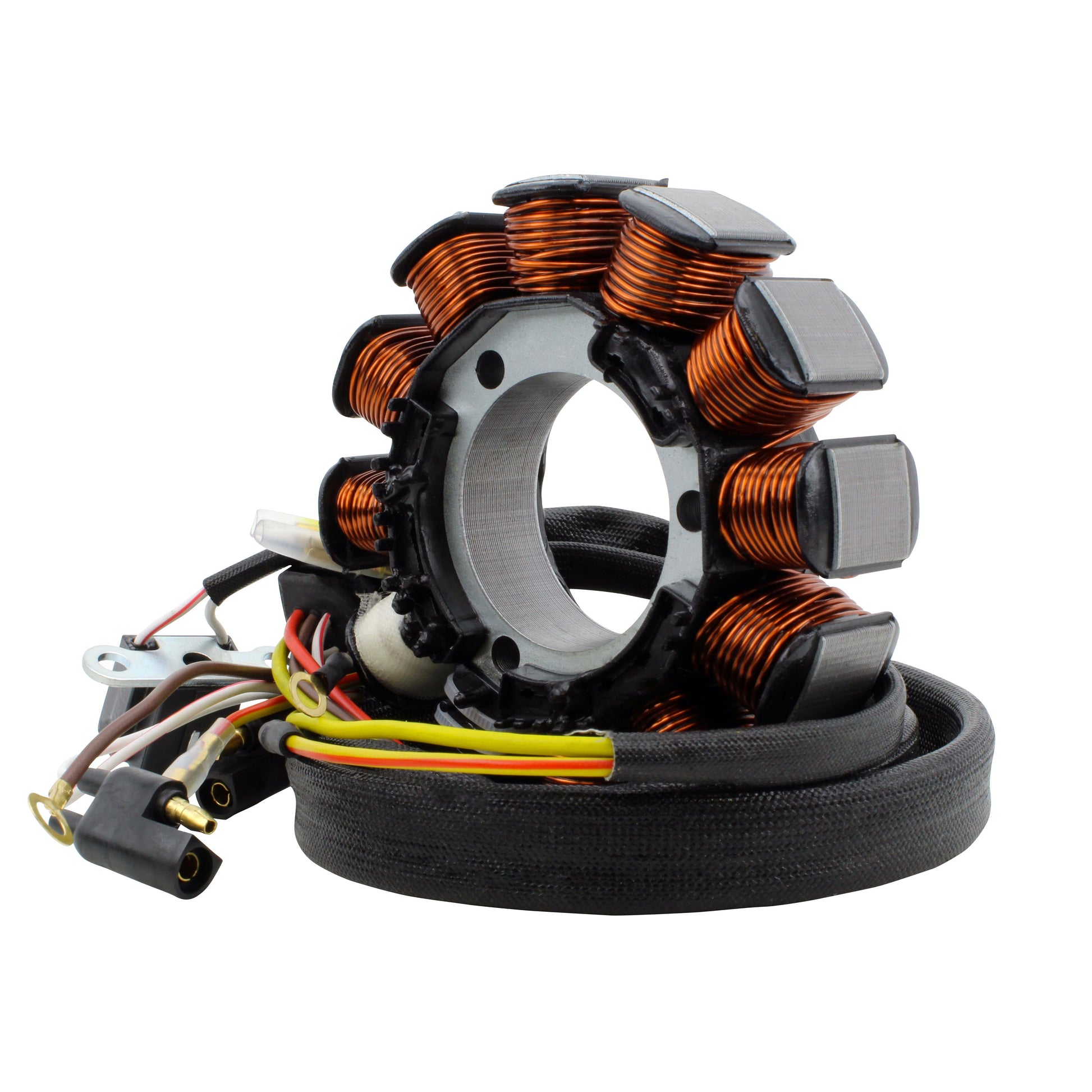

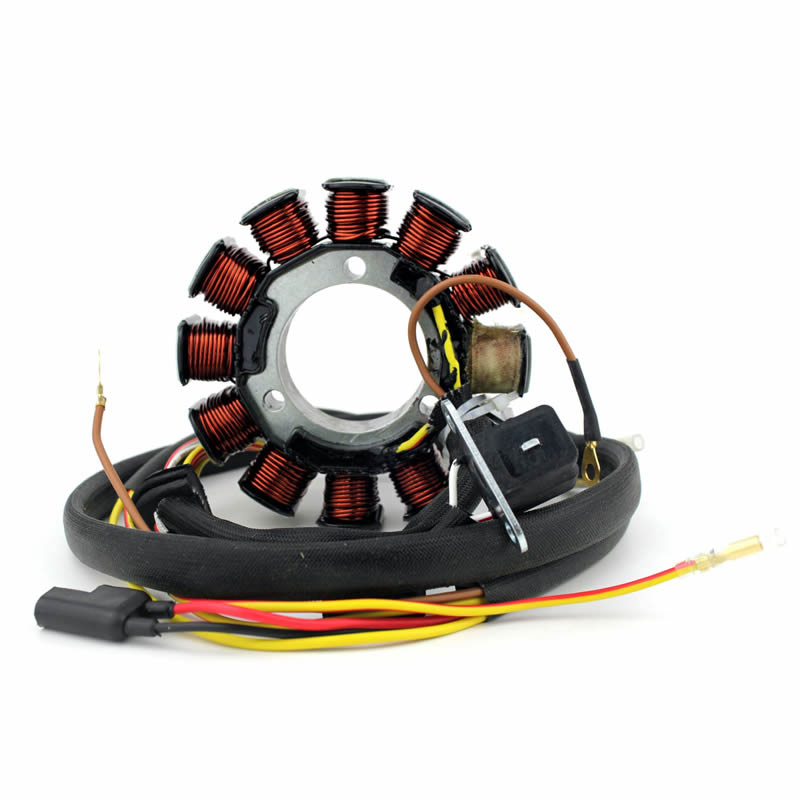

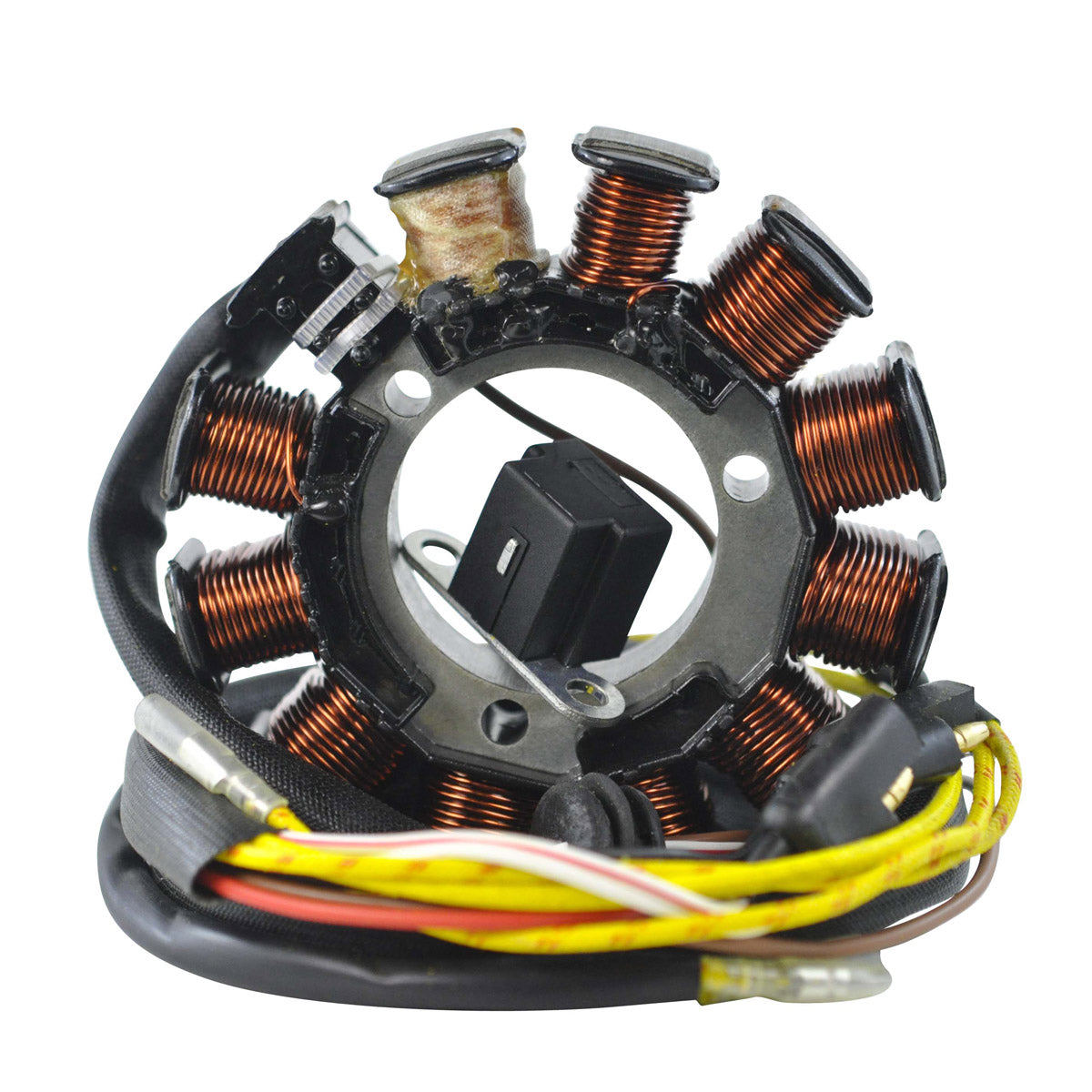

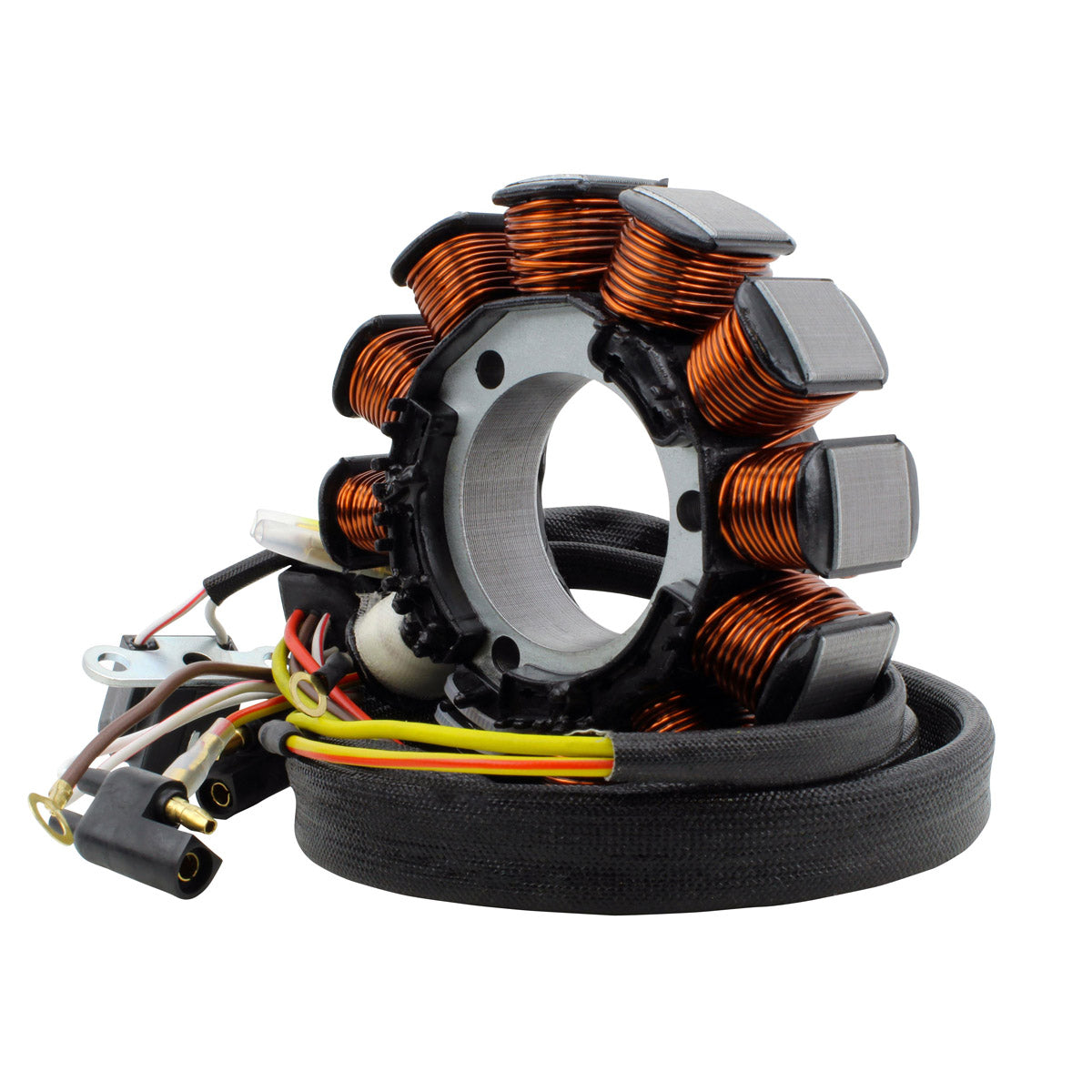

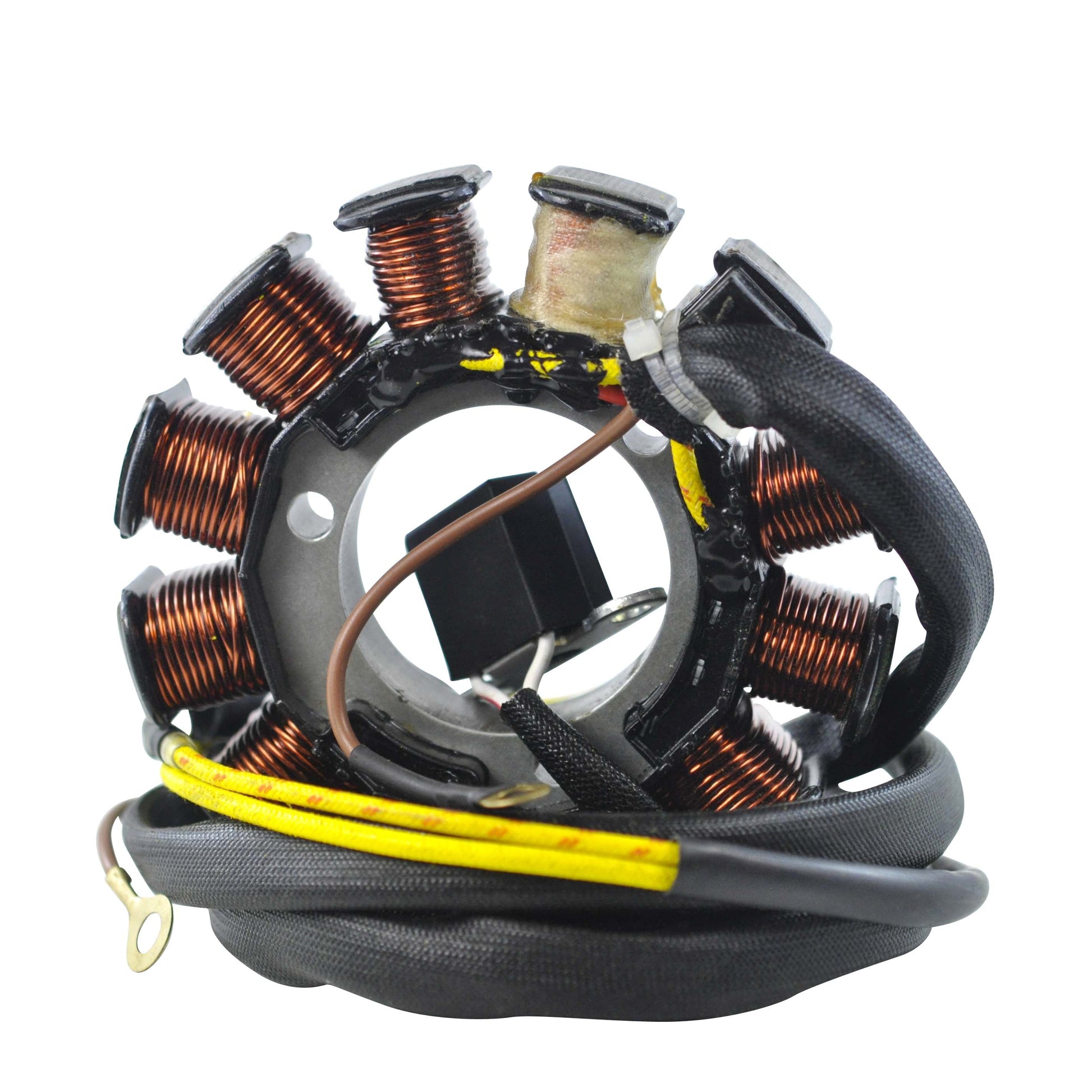

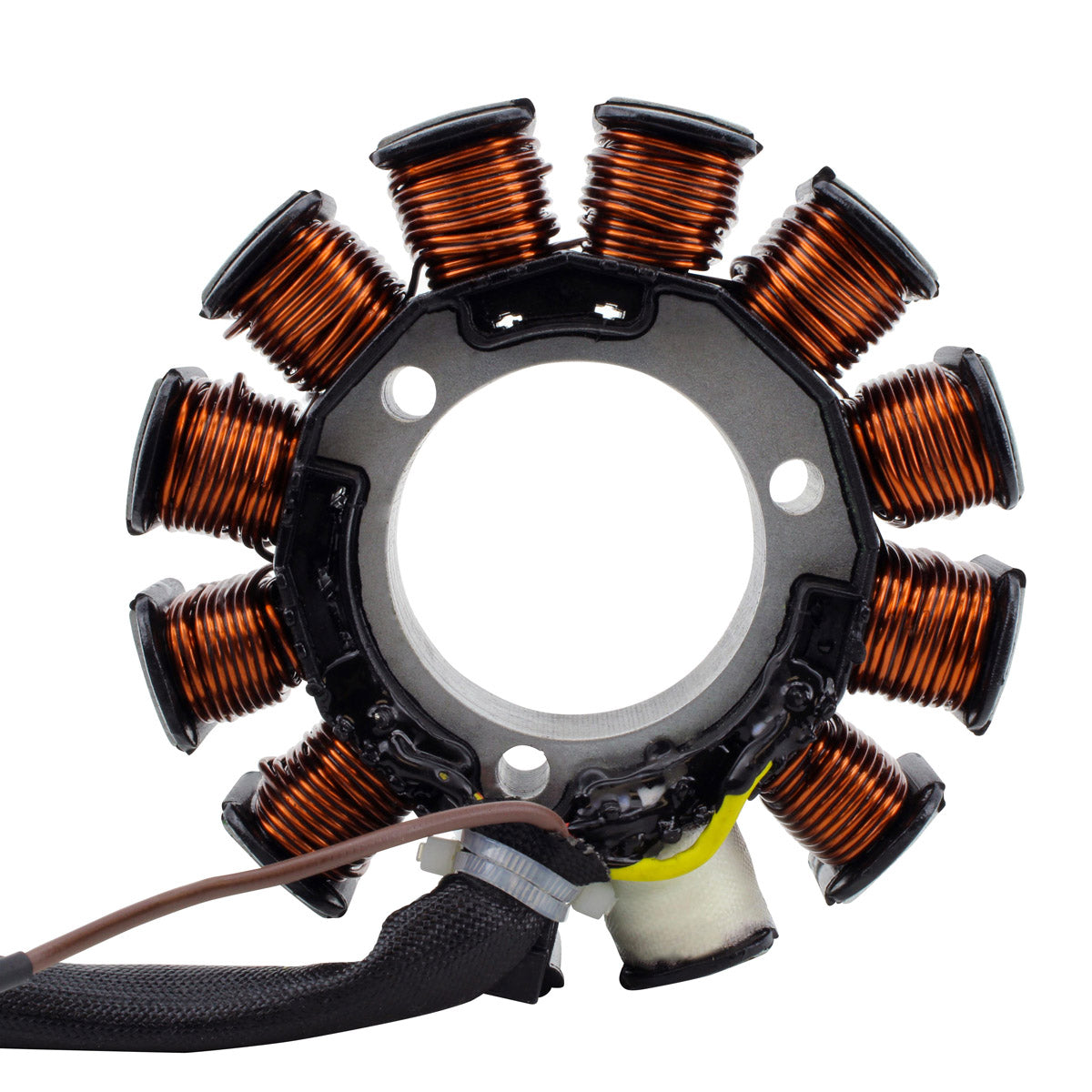

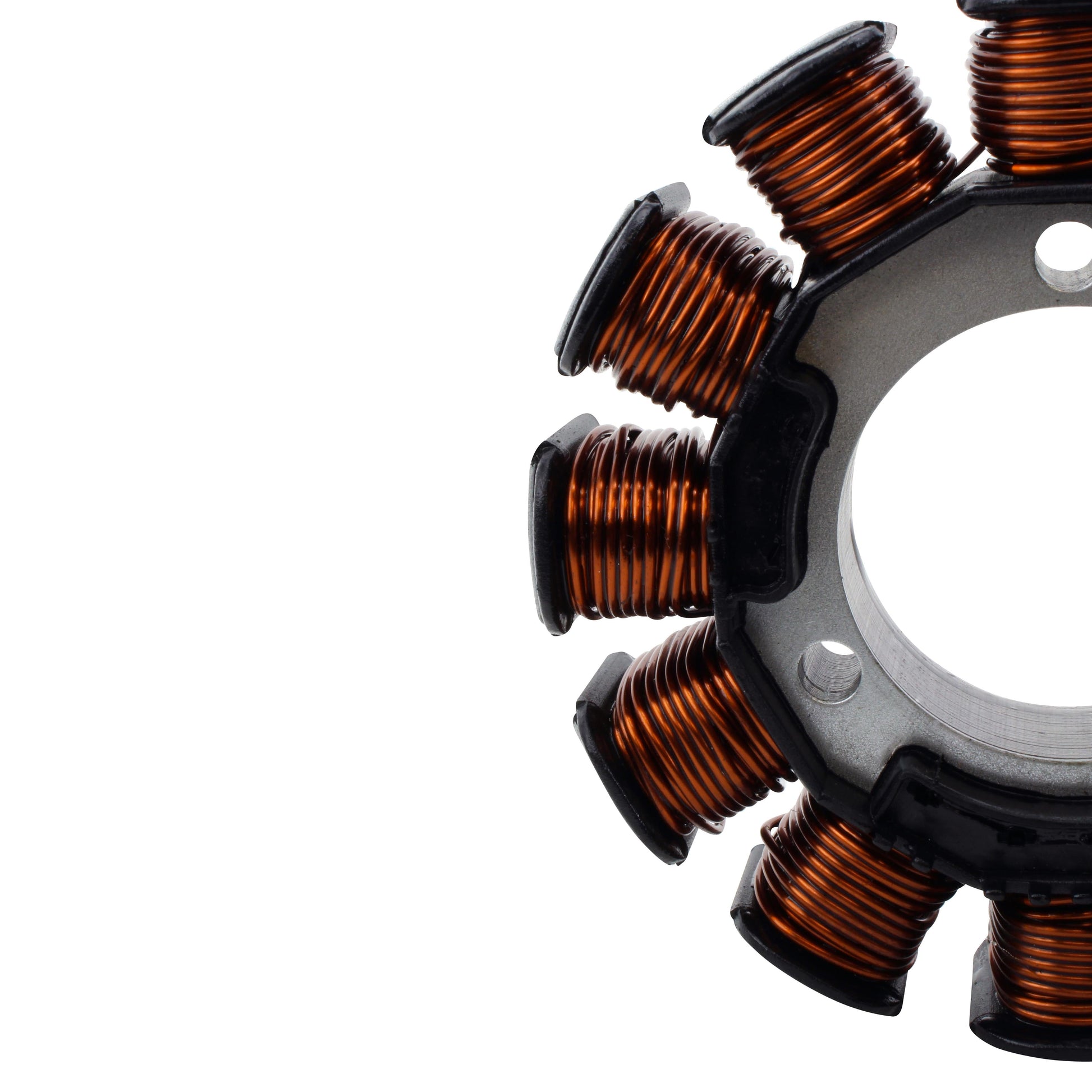

Brand new aftermarket stator, built as a direct replacement to your original unit on the Polaris 500 series ATV and utility machines built between 2000 and 2003. It is plug-and-play, a direct fit, and an easy installation - the mounting pattern and the connectors match the original part, so no cutting, splicing or wiring modification is required.
The stator is wound with the highest grade of copper winding, resistant to 200 degrees Celsius, on the highest grade of lamination materials. The pick-up pulsar coil, the connector and the rubber grommet are all supplied with the unit, and every product shipped is tested. This part carries the reference RM01347 and cross-references Polaris OEM part number 3086984.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

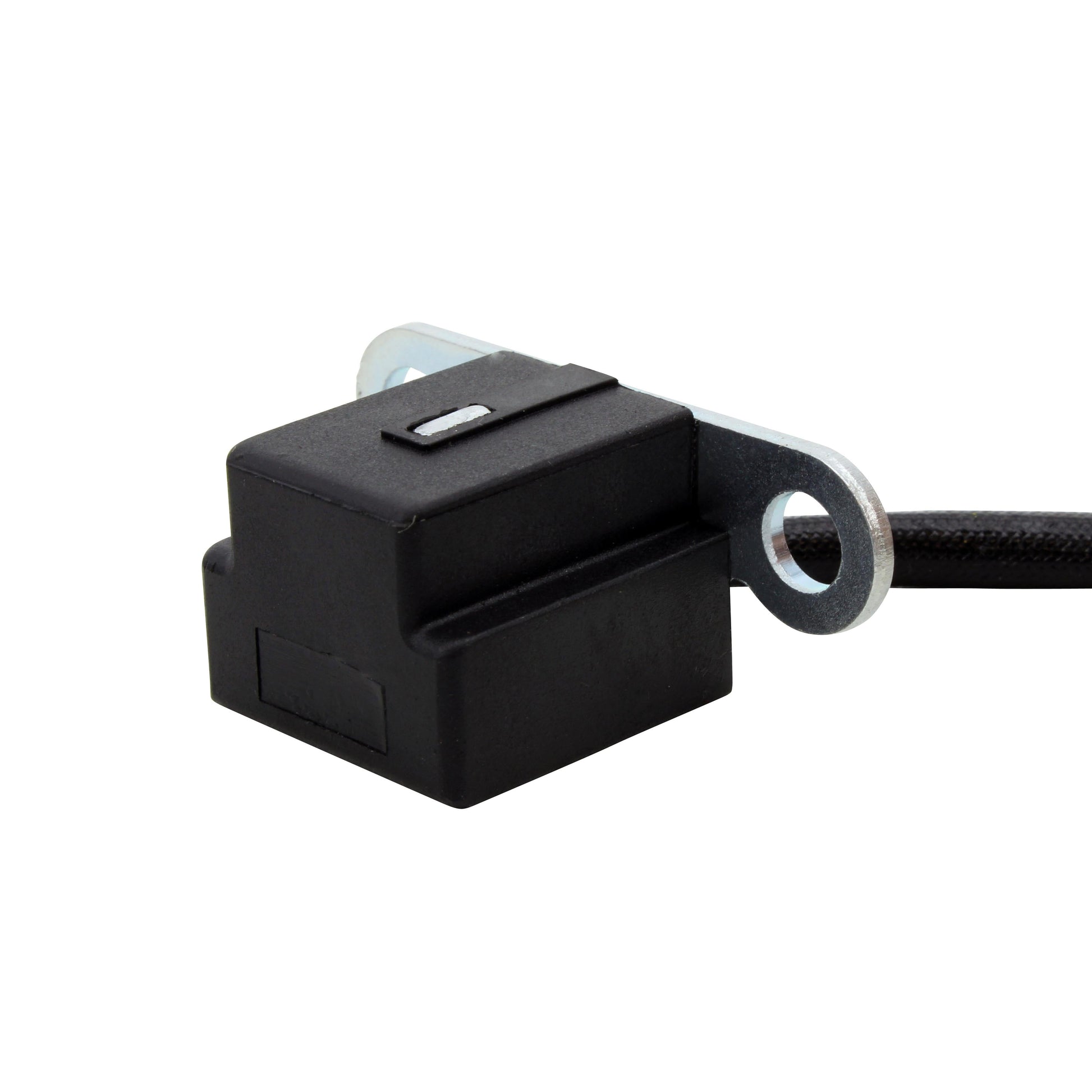

- Pick-up pulsar coil included

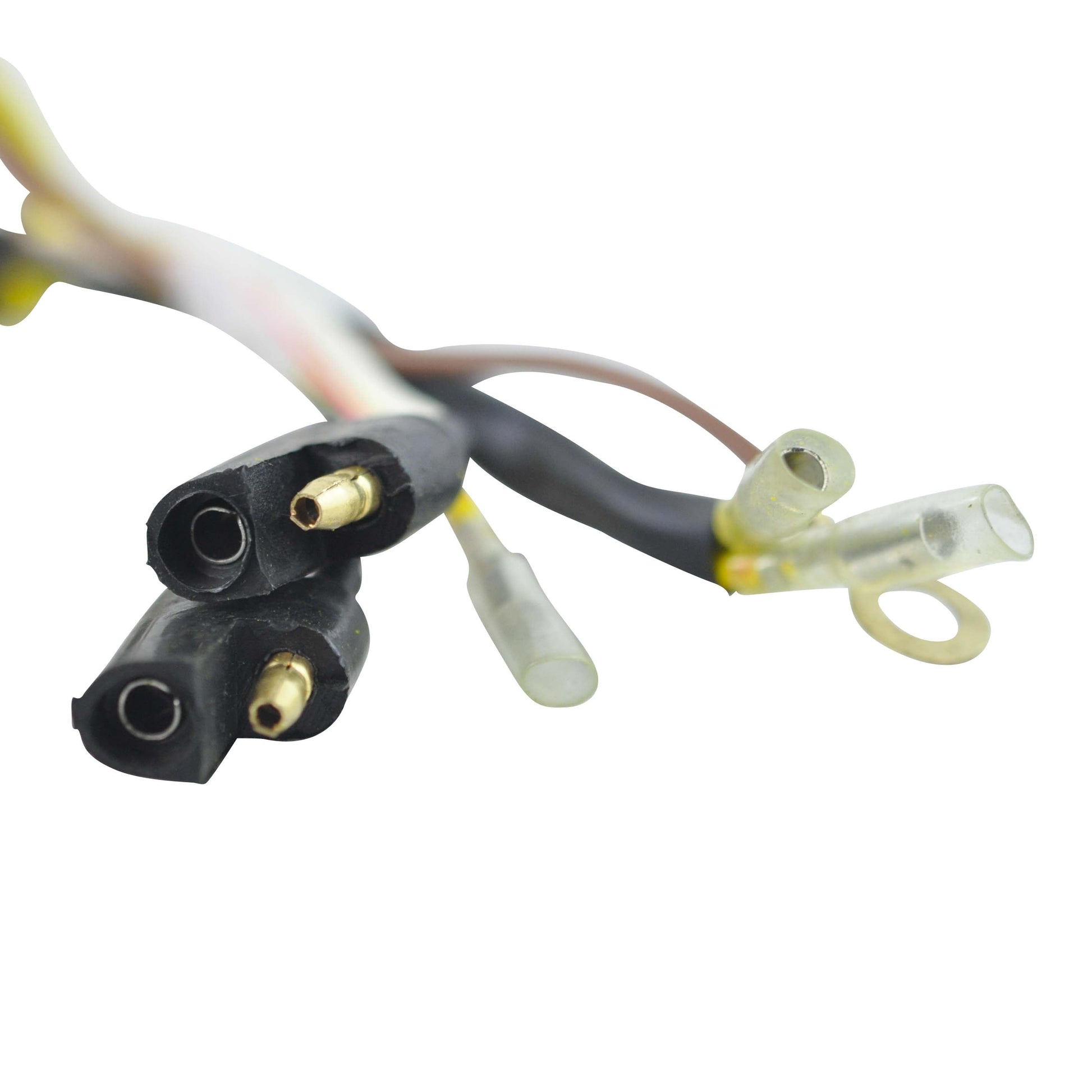

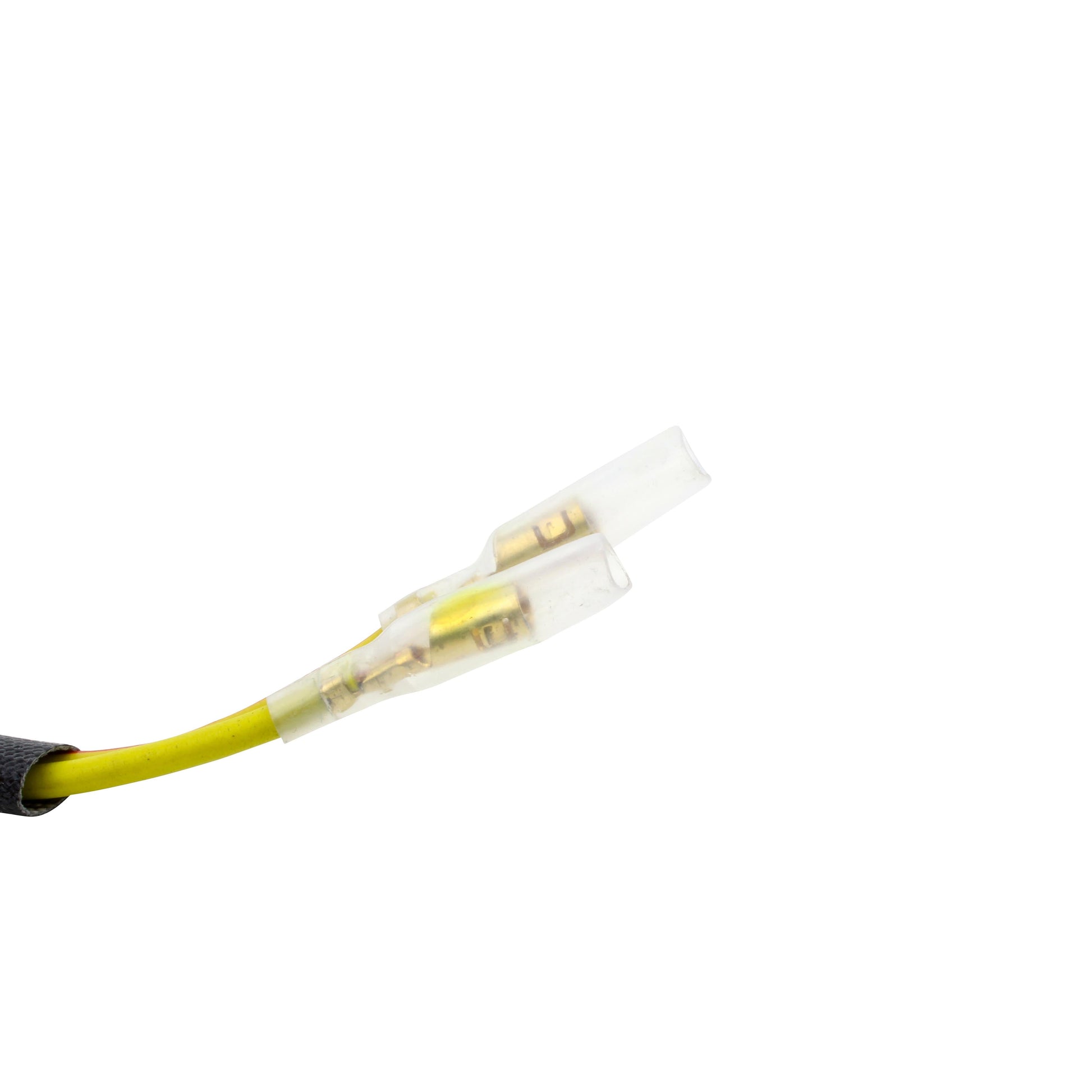

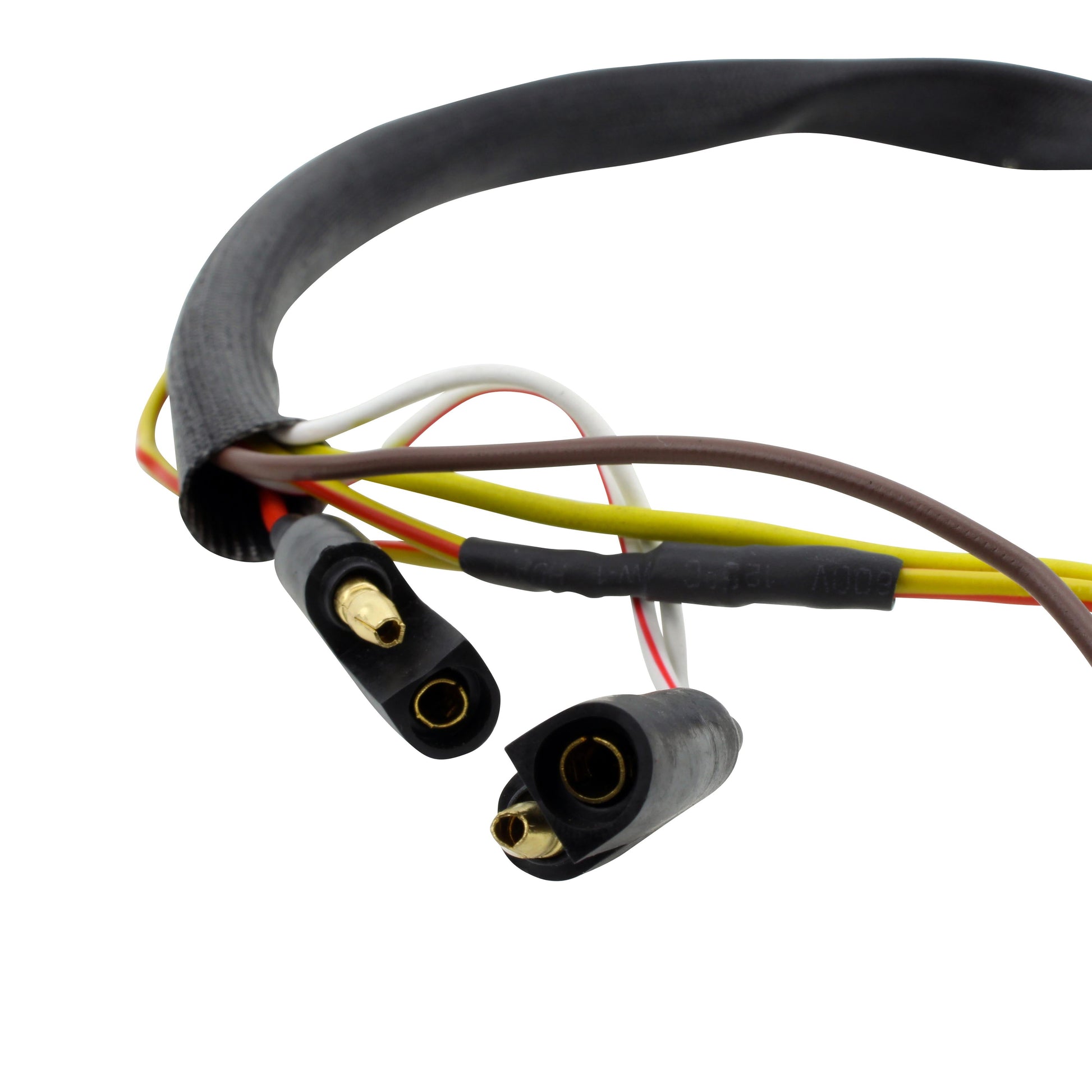

- Connector included
- Rubber grommet included
- All products shipped are tested
- Cross-references Polaris OEM 3086984
Technical Specs
| Specification |
Detail |
| Interior diameter |
48 mm |
| Exterior diameter |
115 mm |
| Thickness |
20 mm |
| Number of wires |
9 |
| Number of plugs |
7 |
| Number of pins |
9 |
| Wire length, stator to grommet |
135 mm |
| Wire length, grommet to plug |
1200 mm |
| Pick-up coil wire to grommet |
120 mm |
| Alternator resistance, Yellow/Red to Yellow |
0.4 ohms +/-20% |
| Pickup resistance, White/Red to White |
130 ohms +/-20% |
| Source resistance, Red to Black |
20 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part reference |
RM01347 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris Big Boss 500 |
2000-2003 |
| Polaris Magnum 500 |
2000-2003 |
| Polaris Scrambler 500 |
2000-2003 |
| Polaris Sportsman 500 |
2000-2003 |
| Polaris Worker 500 |
2000-2003 |
On 2000 model year machines this stator fits serial number 00-01961 and after. 2002-2003 machines require the rectangular 2x2-pin rubber connectors.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3086984 |
Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement to your original unit on the Polaris 500 models listed above and uses the original mounting pattern and connectors, so it is plug-and-play with no cutting or splicing. Note the two fitment conditions: on 2000 model year machines it fits serial number 00-01961 and after, and 2002-2003 machines require the rectangular 2x2-pin rubber connectors.
What is included in the box?
The stator assembly, the pick-up pulsar coil, the connector and the rubber grommet. Every product shipped is tested before it leaves the warehouse.
How do I tell whether my old stator has failed?
The usual signs are a battery that will not hold charge, dim or flickering lights, weak or intermittent spark, and charging voltage that does not rise above battery voltage as the engine is revved. Confirm it with a multimeter against the figures in the specification table: 0.4 ohms +/-20% on the alternator windings between Yellow/Red and Yellow, 130 ohms +/-20% on the pickup between White/Red and White, and 20 ohms +/-20% on the source coil between Red and Black. A reading that is open circuit, near zero, or a winding shorted to the stator body means the unit has failed.
Does it replace Polaris part number 3086984?
Yes. This unit cross-references Polaris OEM 3086984. It is an aftermarket part and is not manufactured by Polaris; the OEM number is quoted so you can check it against the number stamped or printed on the unit you are removing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
