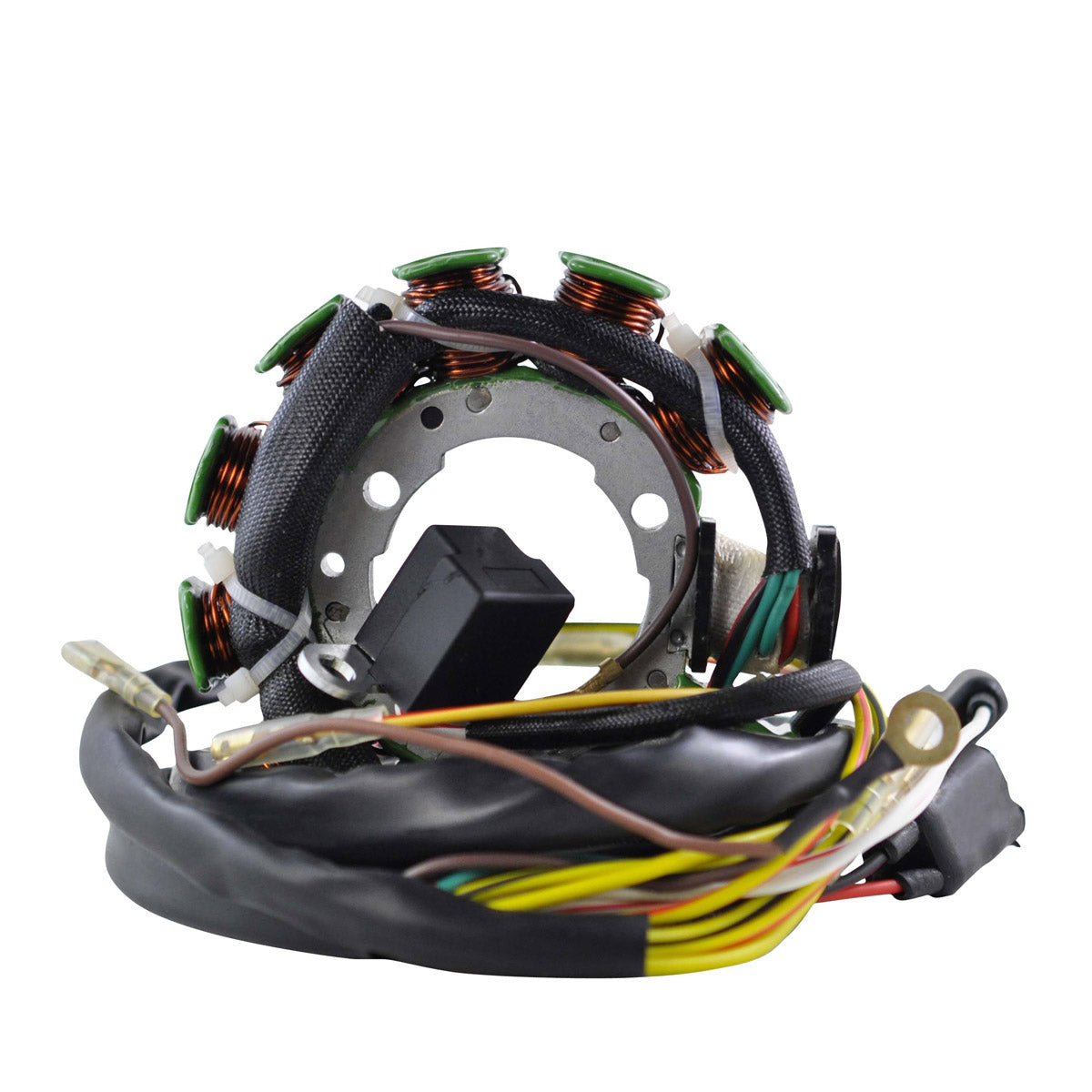

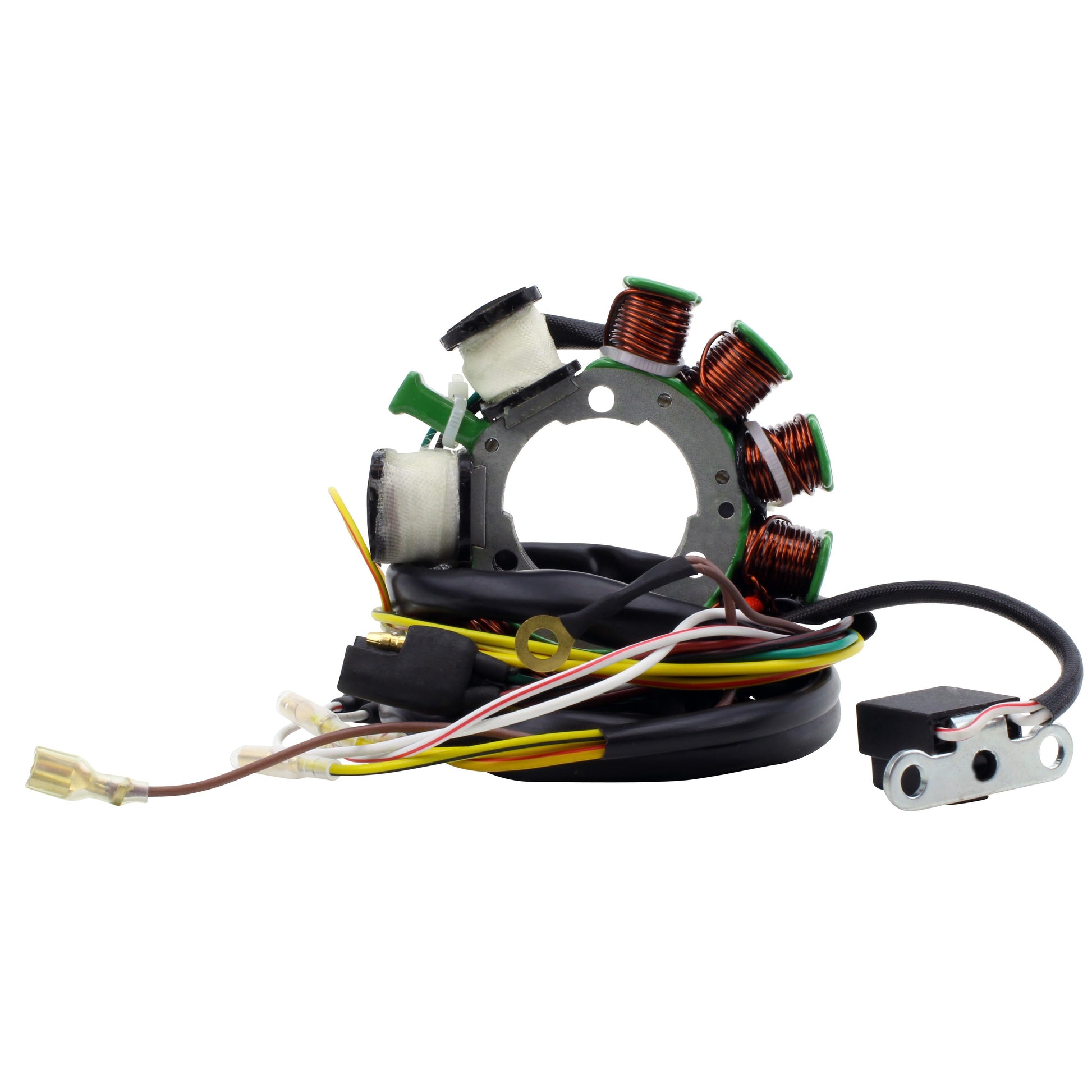

Stator for Polaris Magnum 425, Sportsman 400 & 500, Ranger 500
Magnum 425, Ranger 500, Sportsman 400 and 500, Xpedition 325 and 425, Xplorer 500 - 1995-2004

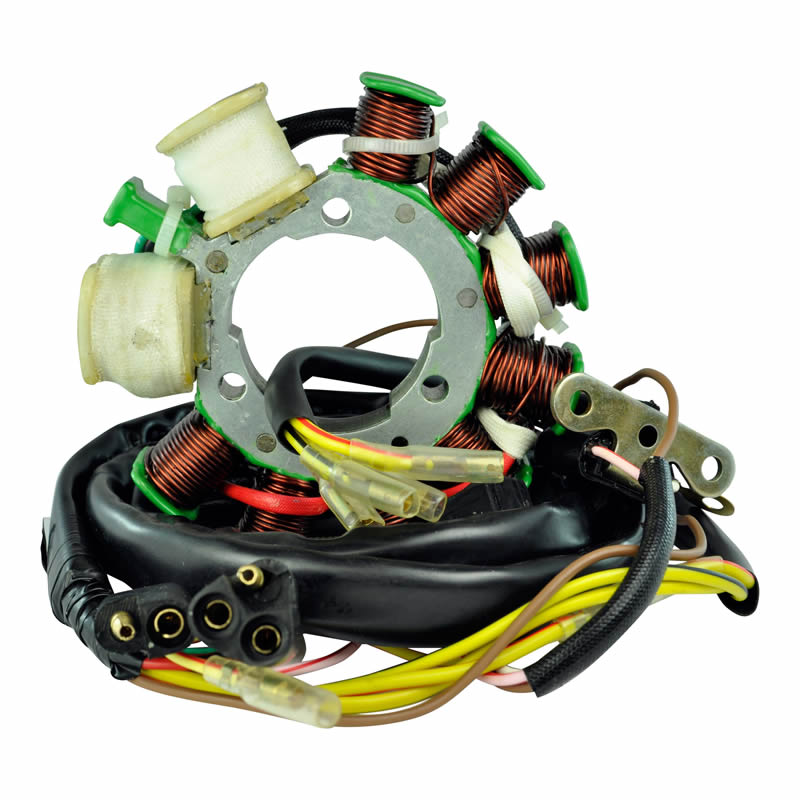

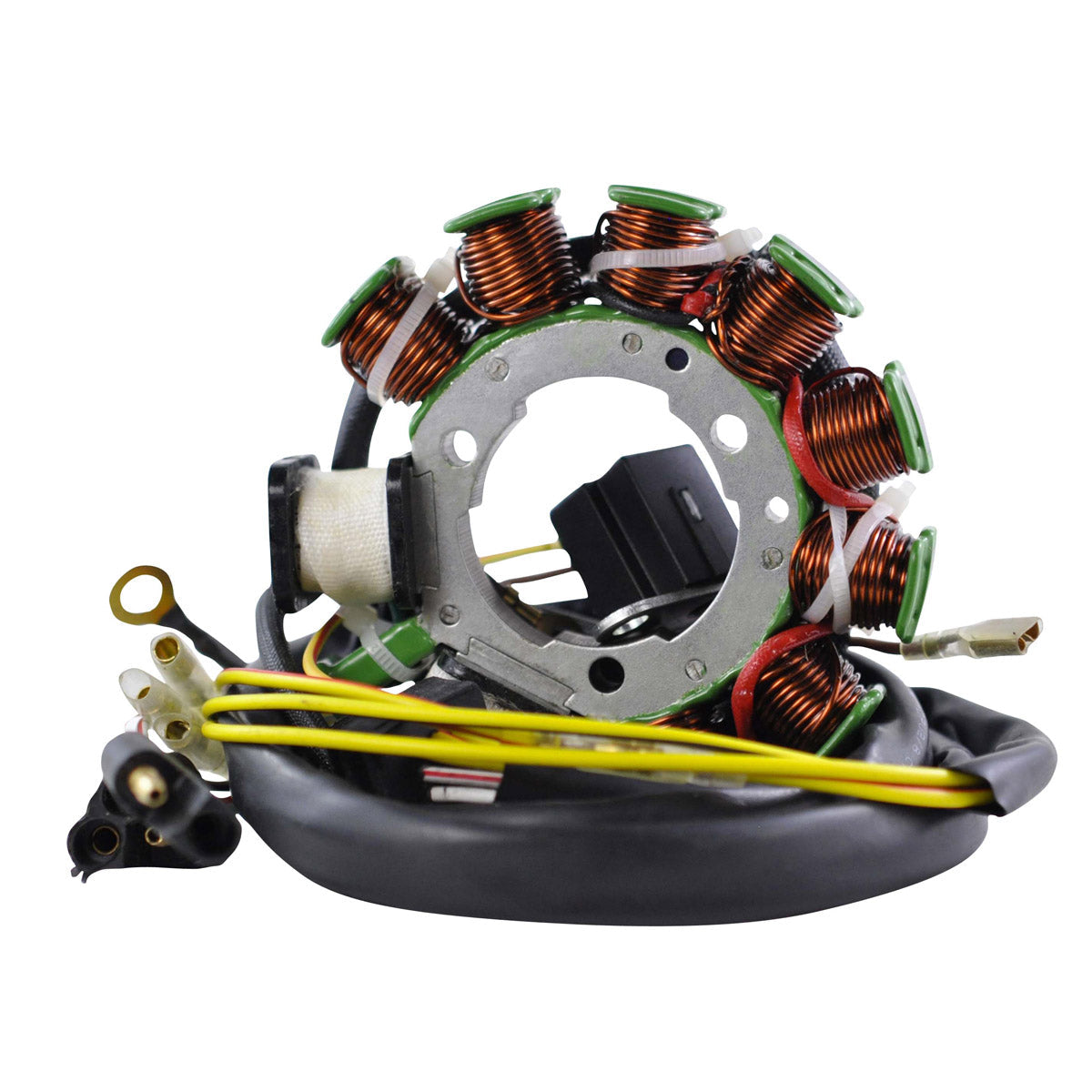

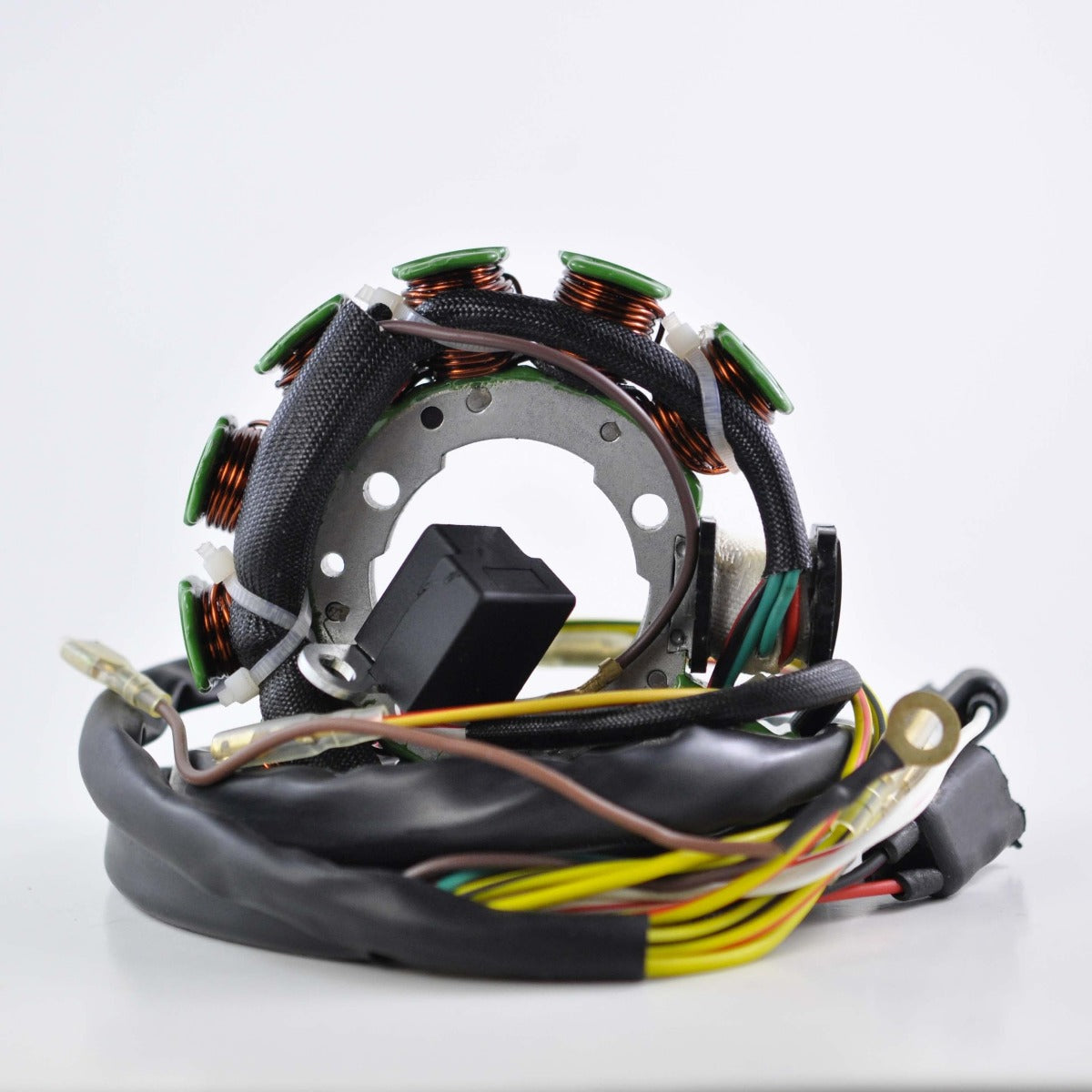

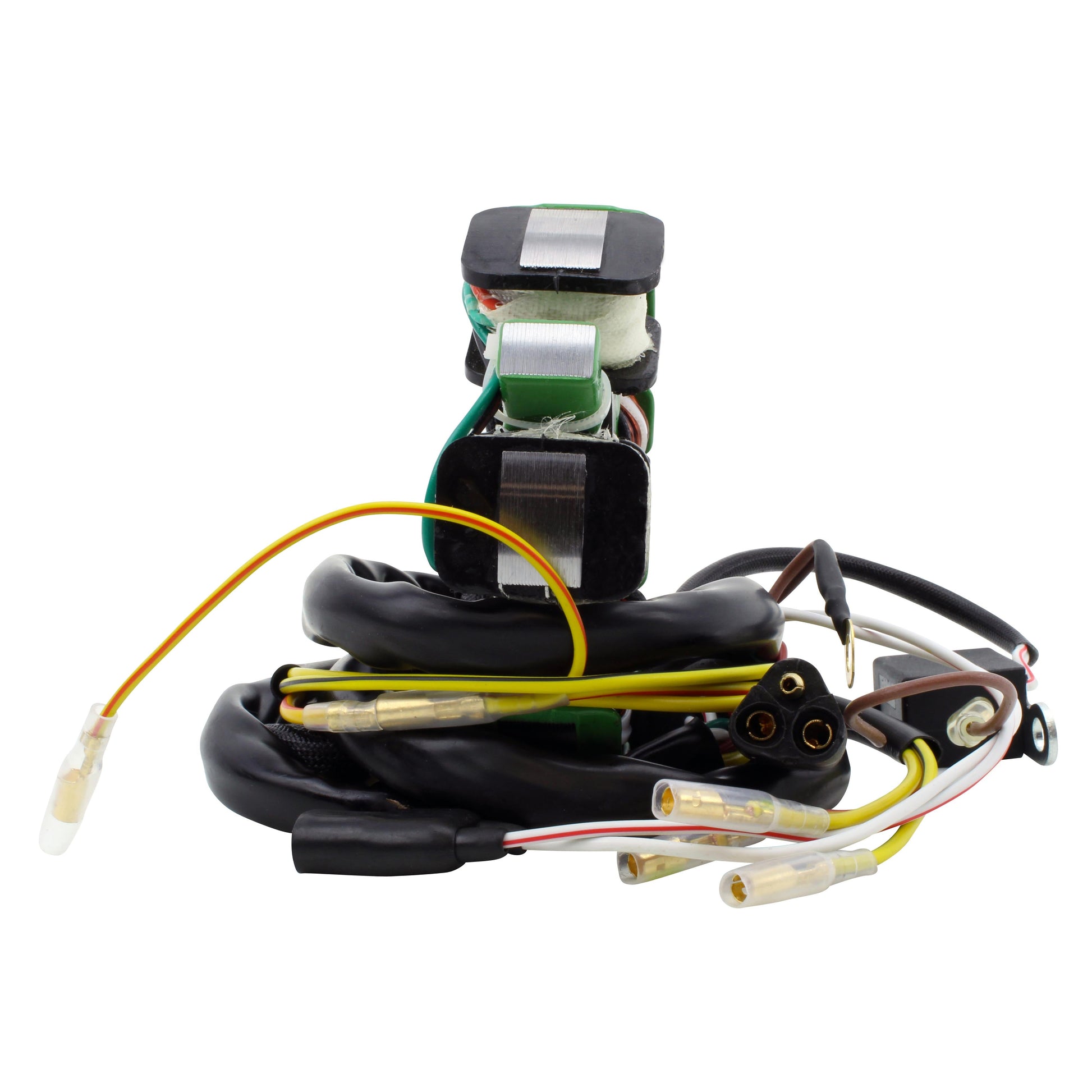

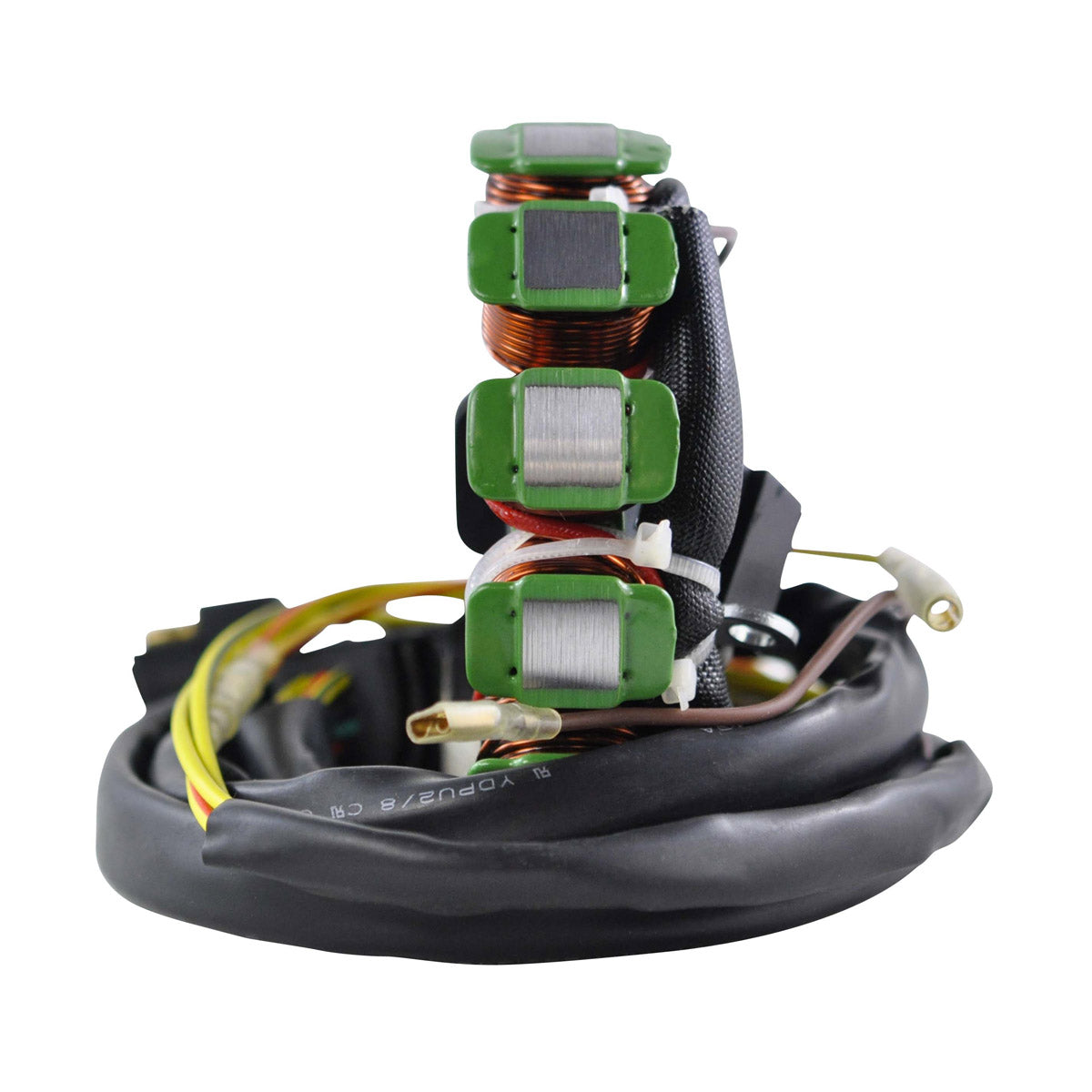

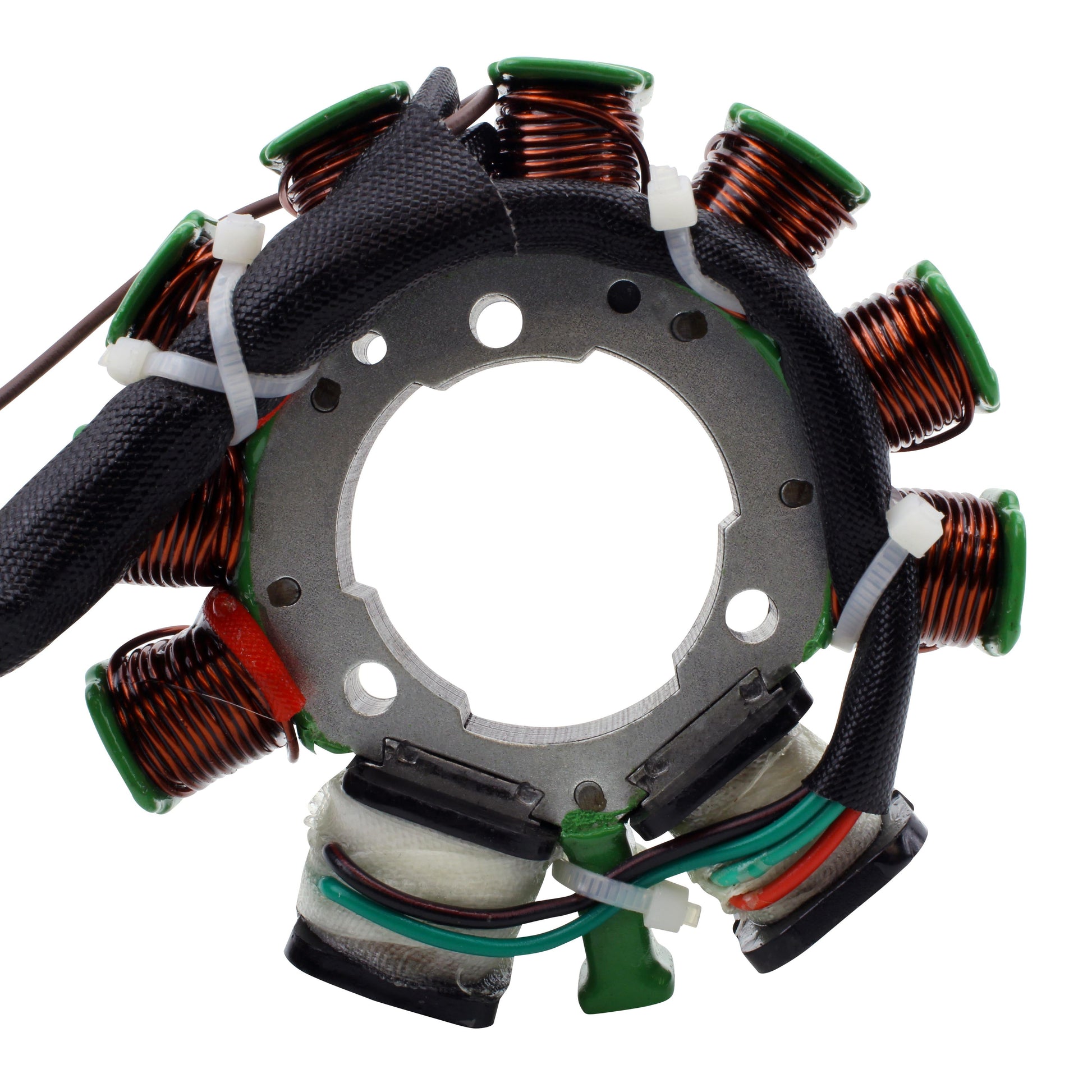

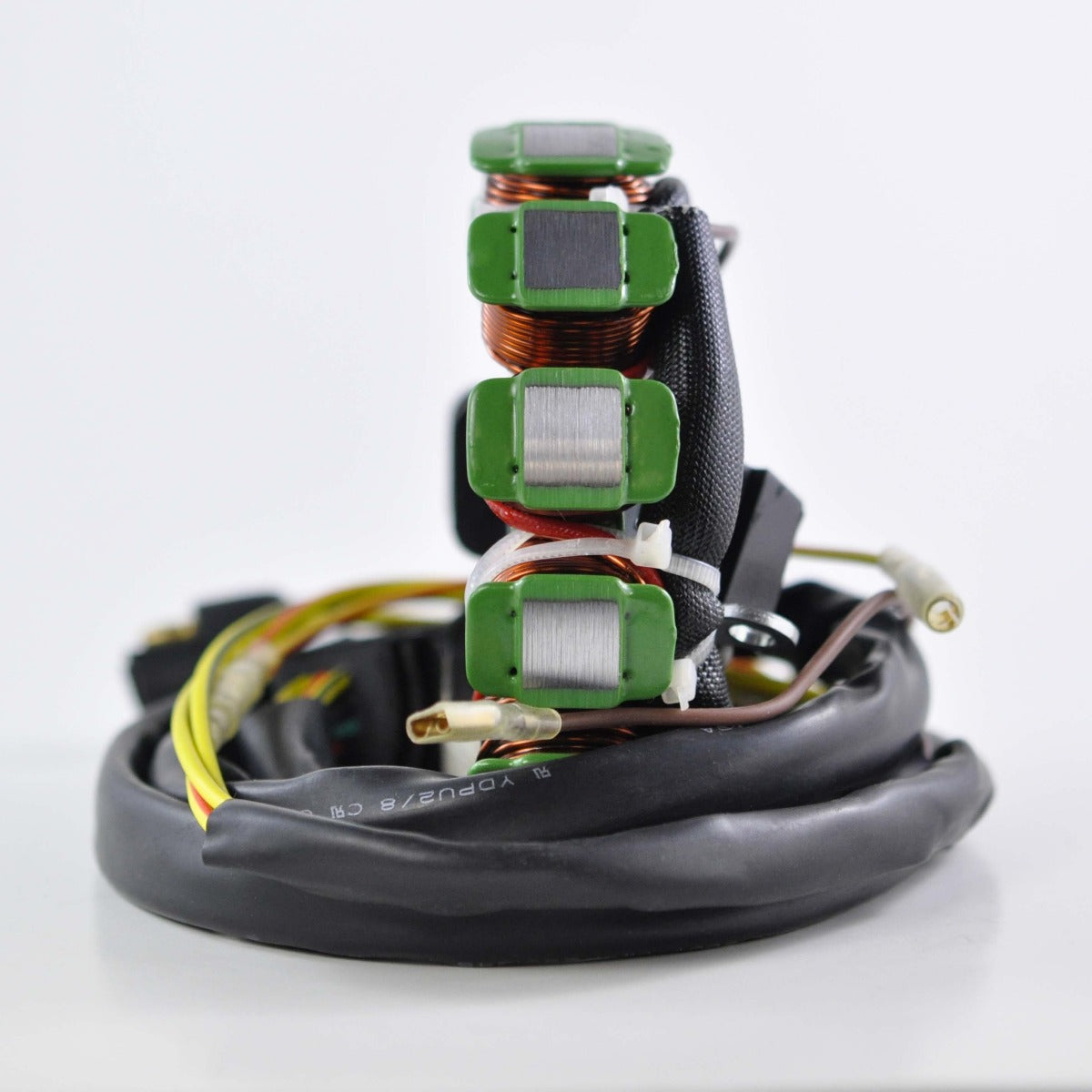

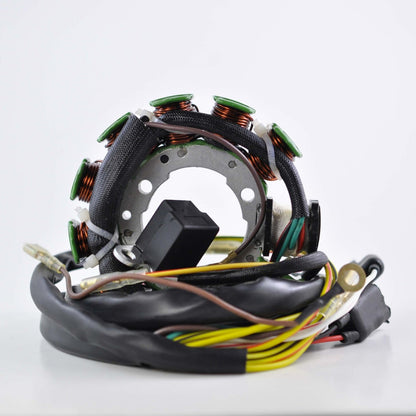

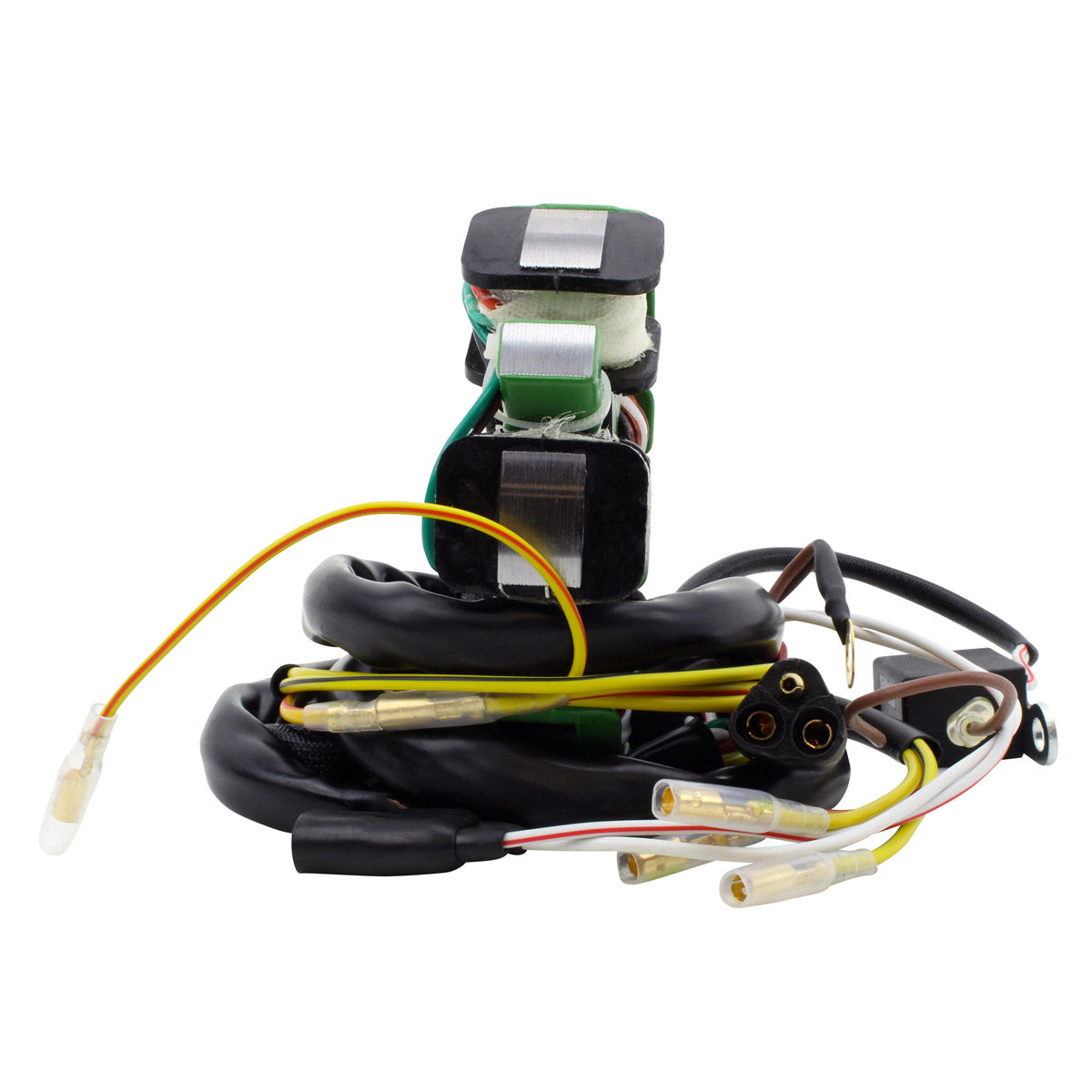

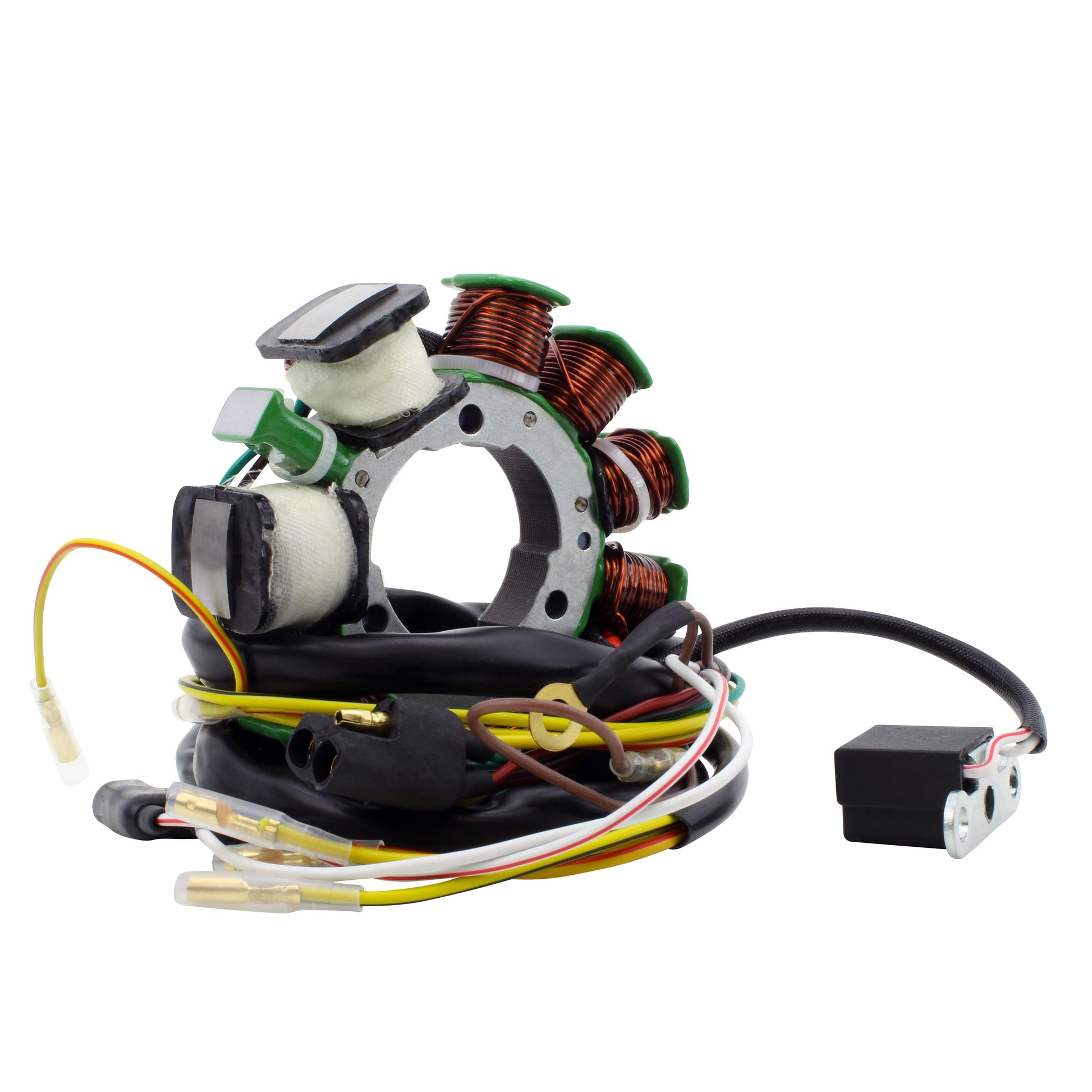

This is a brand new replacement stator (RMSTATOR part RM01052) built as a direct replacement for the original charging and ignition unit fitted to a wide range of Polaris utility and sport ATVs built between 1995 and 2004. It is a plug-and-play, direct fit part - the plugs, the wire lengths and the mounting pattern all match the factory unit, so no cutting, splicing or modification of the wiring harness is required.

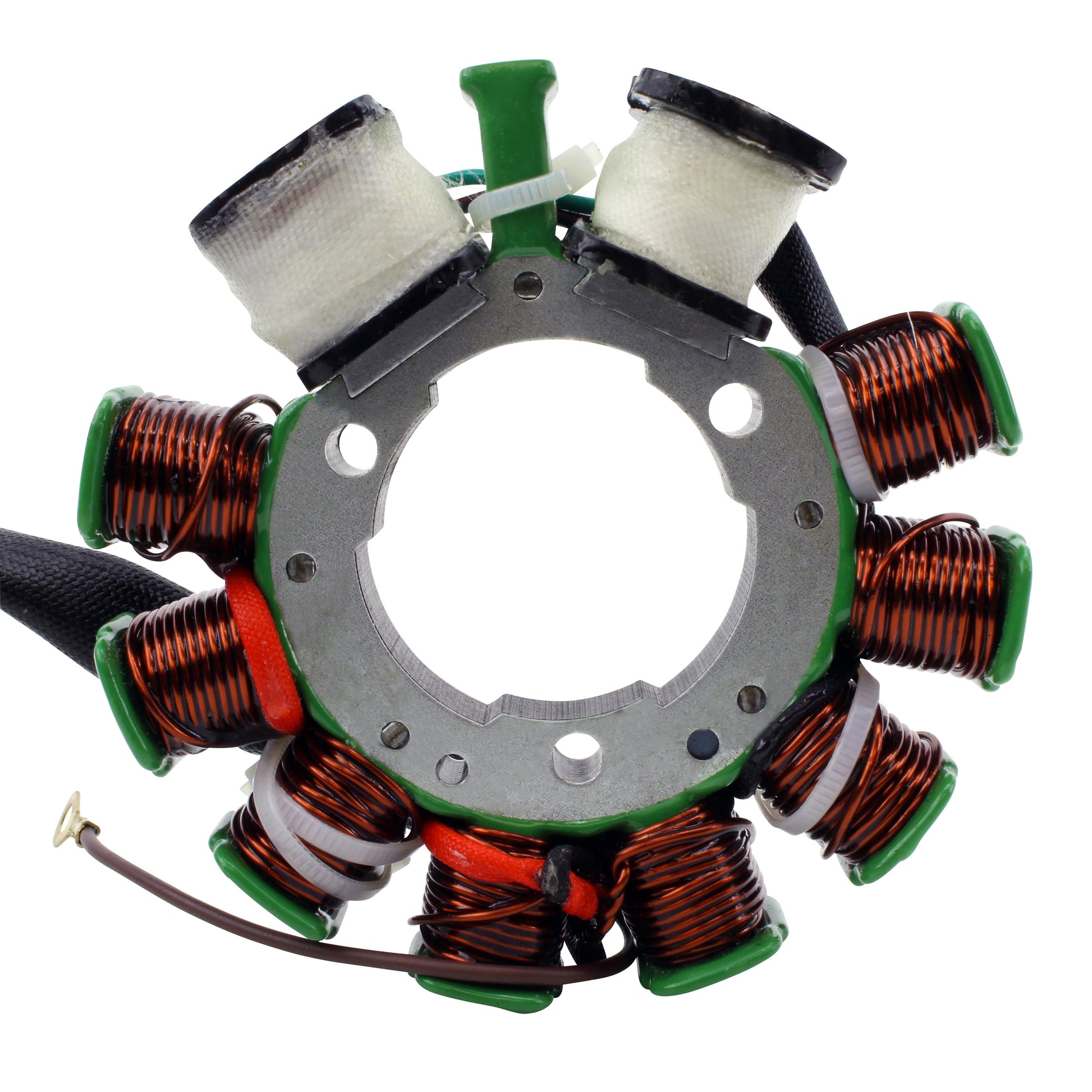

The stator is wound with the highest grade copper windings on highest grade lamination material, and the windings are rated to withstand 200 degrees Celsius. That temperature rating matters on Polaris singles and twins, where the stator sits inside the engine case and runs hot for long periods. The unit is supplied complete with its pickup pulsar coil, connector and rubber grommet, and every unit is tested before it is shipped.
Key Features
- Brand new stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

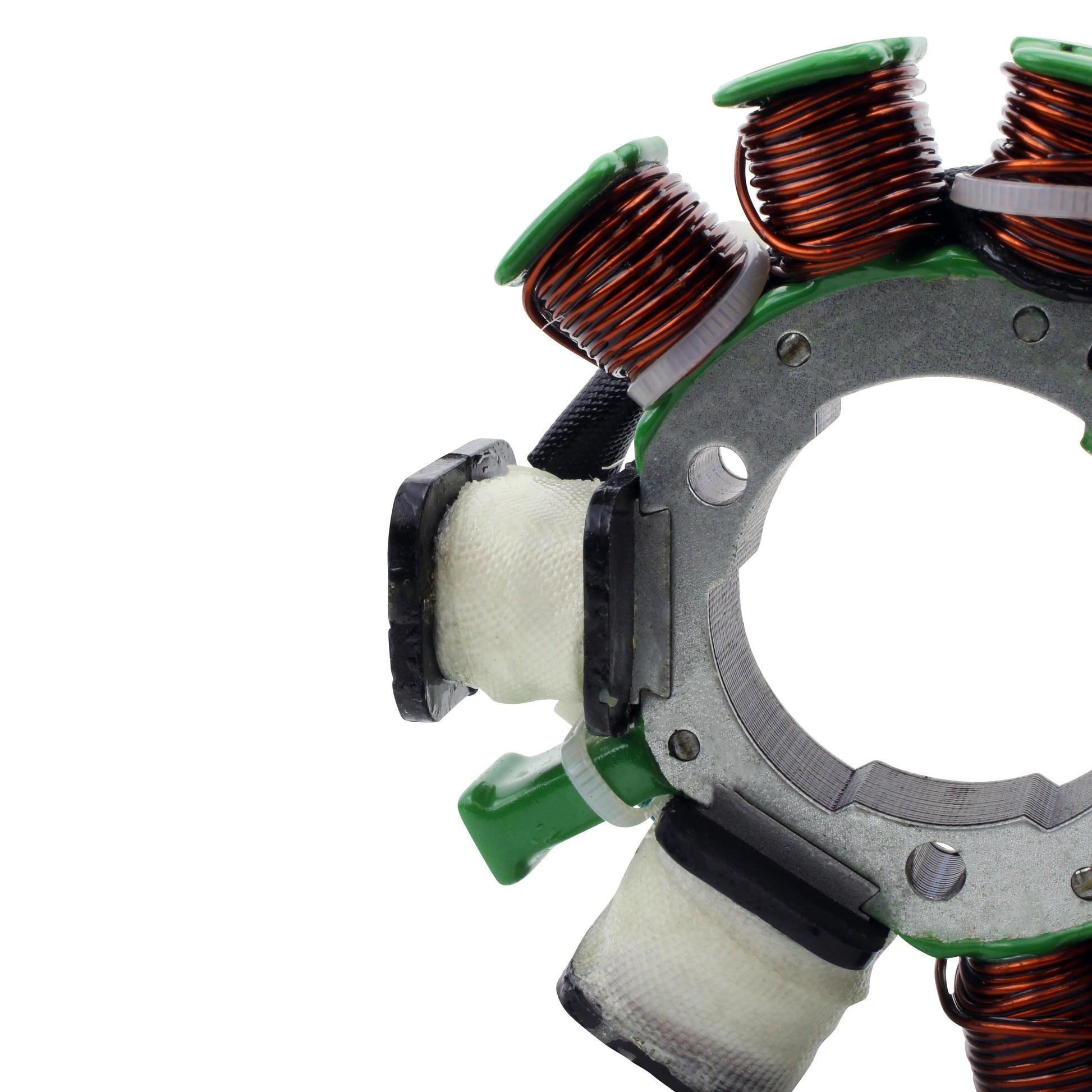

- Pickup pulsar coil included

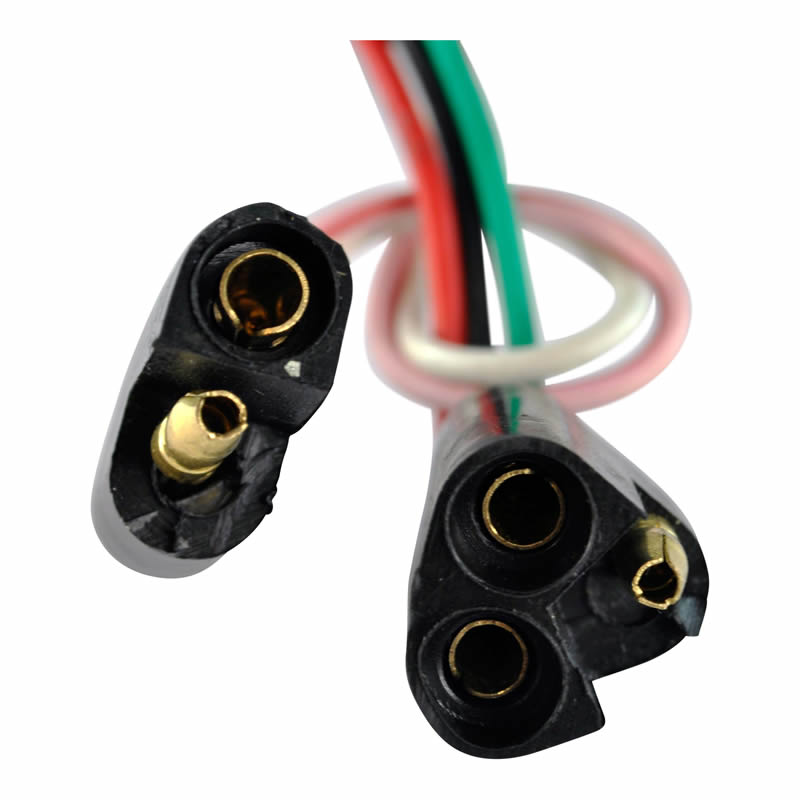

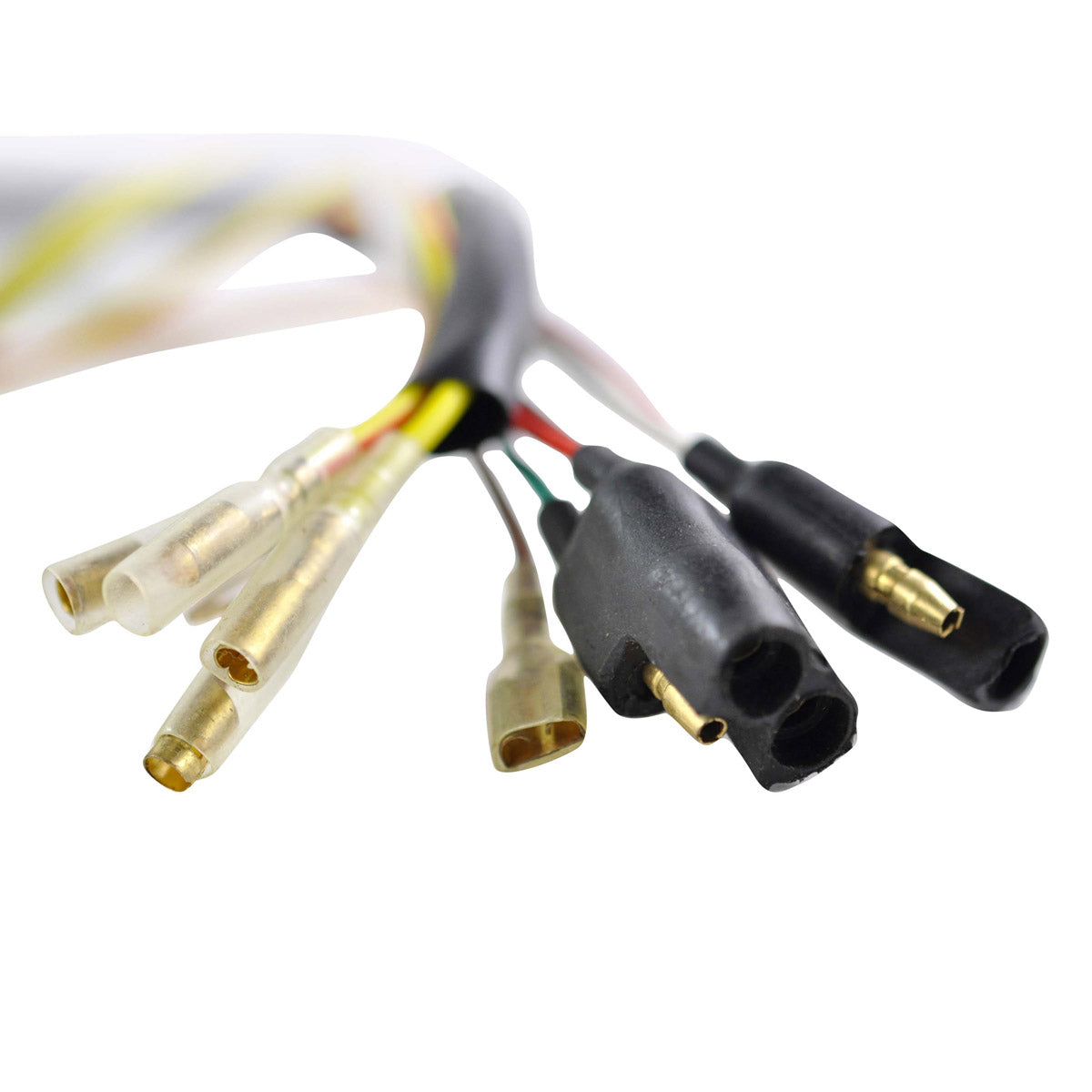

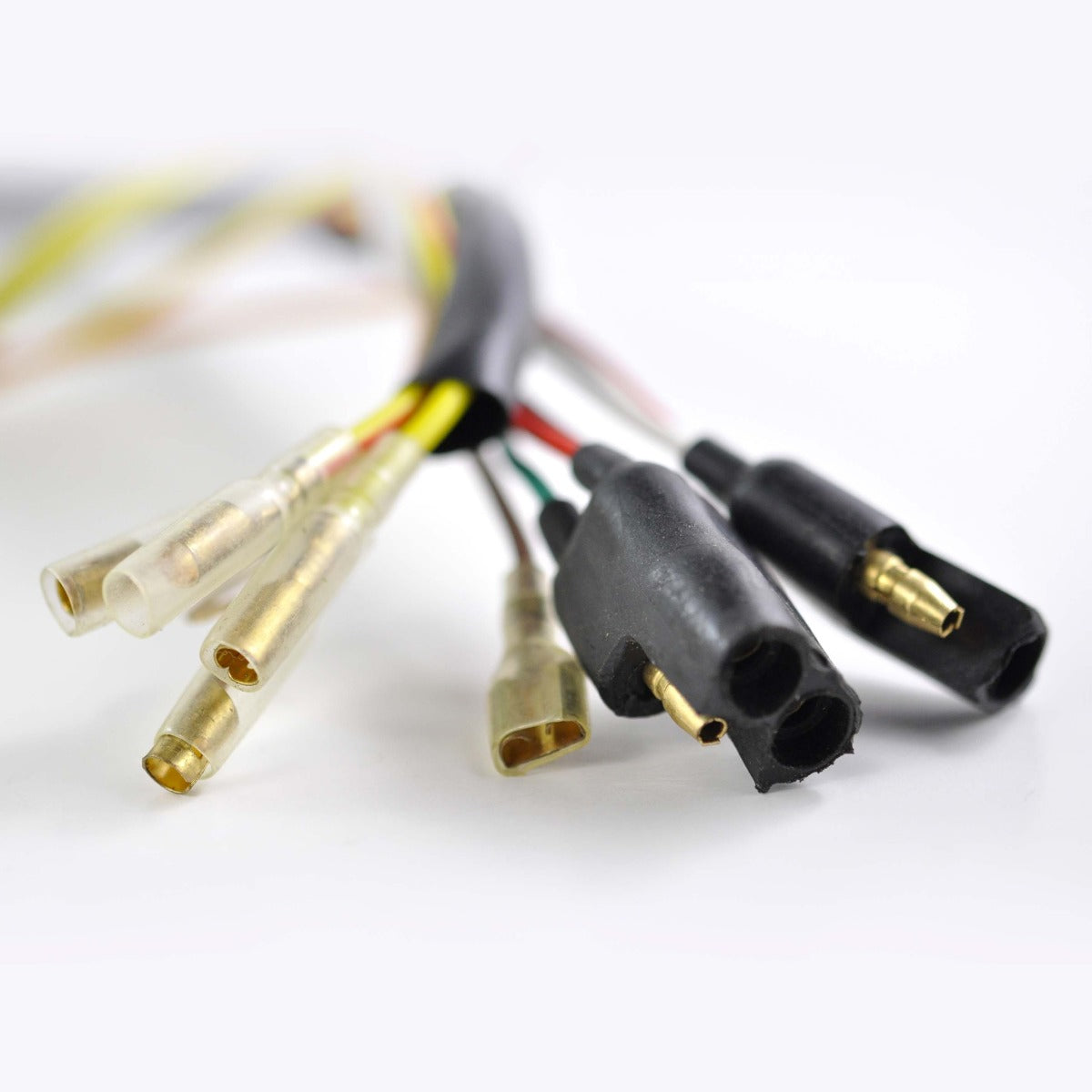

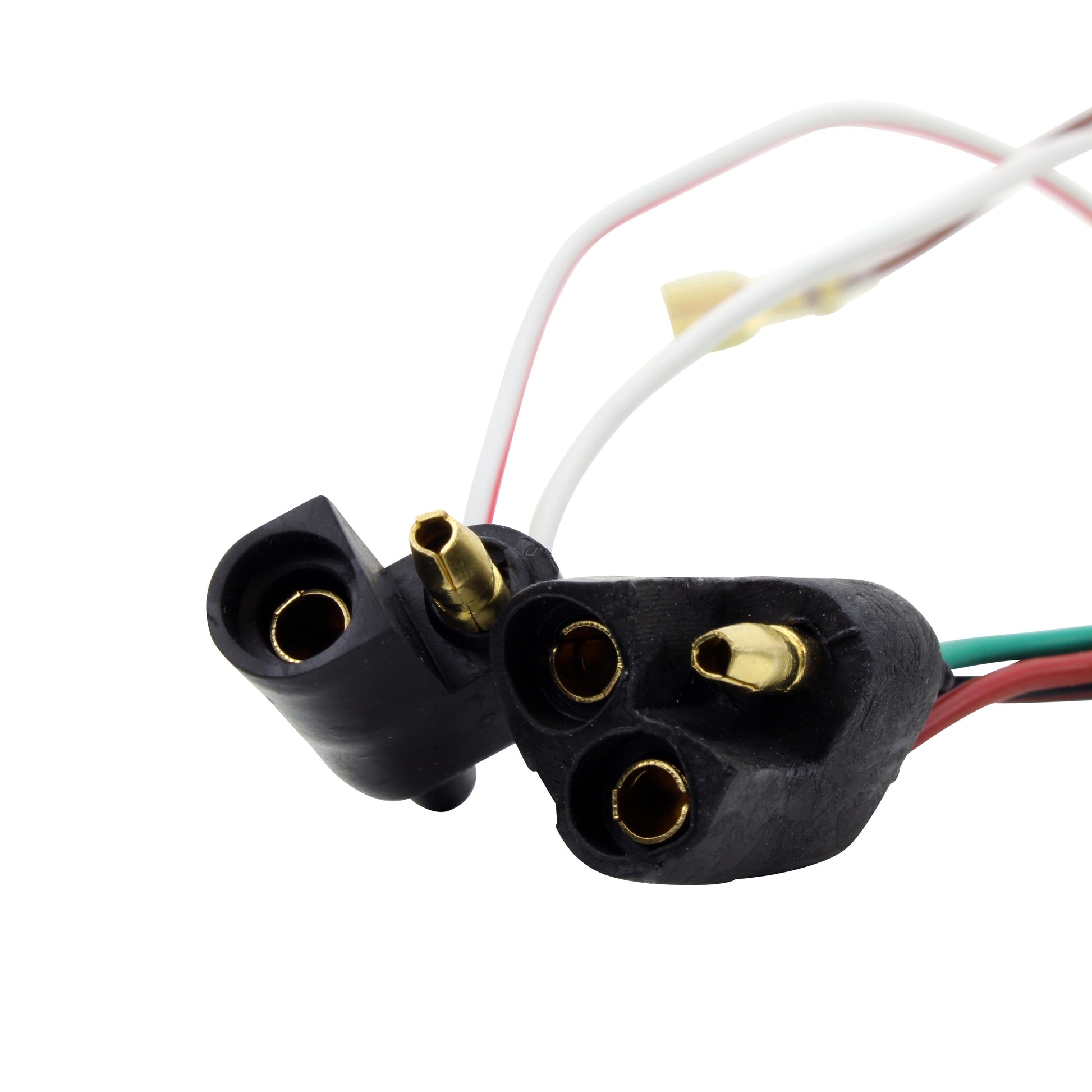

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01052 |
| Interior diameter |
42 mm |
| Exterior diameter |
105 mm |
| Thickness |
32 mm |
| Wire length - stator to grommet |
140 mm |
| Wire length - grommet to plug |
1000 mm |
| Pickup coil wire length |
170 mm |
| Number of wires |
9 |
| Number of plugs |
7 |
| Number of pins |
12 |
| Alternator resistance (Yellow to Yellow/Red) |
0.4 ohms +/-20% |
| Pickup resistance (White/Red to White) |
115 ohms +/-20% |
| Source resistance (Black/Red to Green) |
450 ohms +/-20% |
| Source 2 resistance (Red to Green) |
4.1 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Magnum 425 |
1995-2004 |
| Polaris Ranger 500 |
1995-2004 |
| Polaris Sportsman 400 |
1995-2004 |
| Polaris Sportsman 500 |
1995-2004 |
| Polaris Xpedition 325 |
1995-2004 |
| Polaris Xpedition 425 |
1995-2004 |
| Polaris Xplorer 500 |
1995-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3084974 |
Polaris |
| 3086232 |
Polaris |
| 3086239 |
Polaris |
| 3086860 |
Polaris |
| 3087141 |
Polaris |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. This is a plug-and-play, direct fit replacement for the original unit. It uses the same plugs, the same wire lengths and the same mounting pattern, so no cutting or splicing of the harness is needed.
What is included in the box?
The stator itself, the pickup pulsar coil, the connector and the rubber grommet.
How do I know my old stator has failed?
Test the windings with a multimeter and compare them against the resistance figures in the specification table above. On this unit the alternator legs should read about 0.4 ohms, the pickup about 115 ohms and the source coil about 450 ohms, each within plus or minus 20 percent. A reading that is open circuit, near zero, or shorted to the stator body indicates a failed unit. A battery that will not stay charged, weak or flickering lights and no-spark conditions are the usual symptoms.

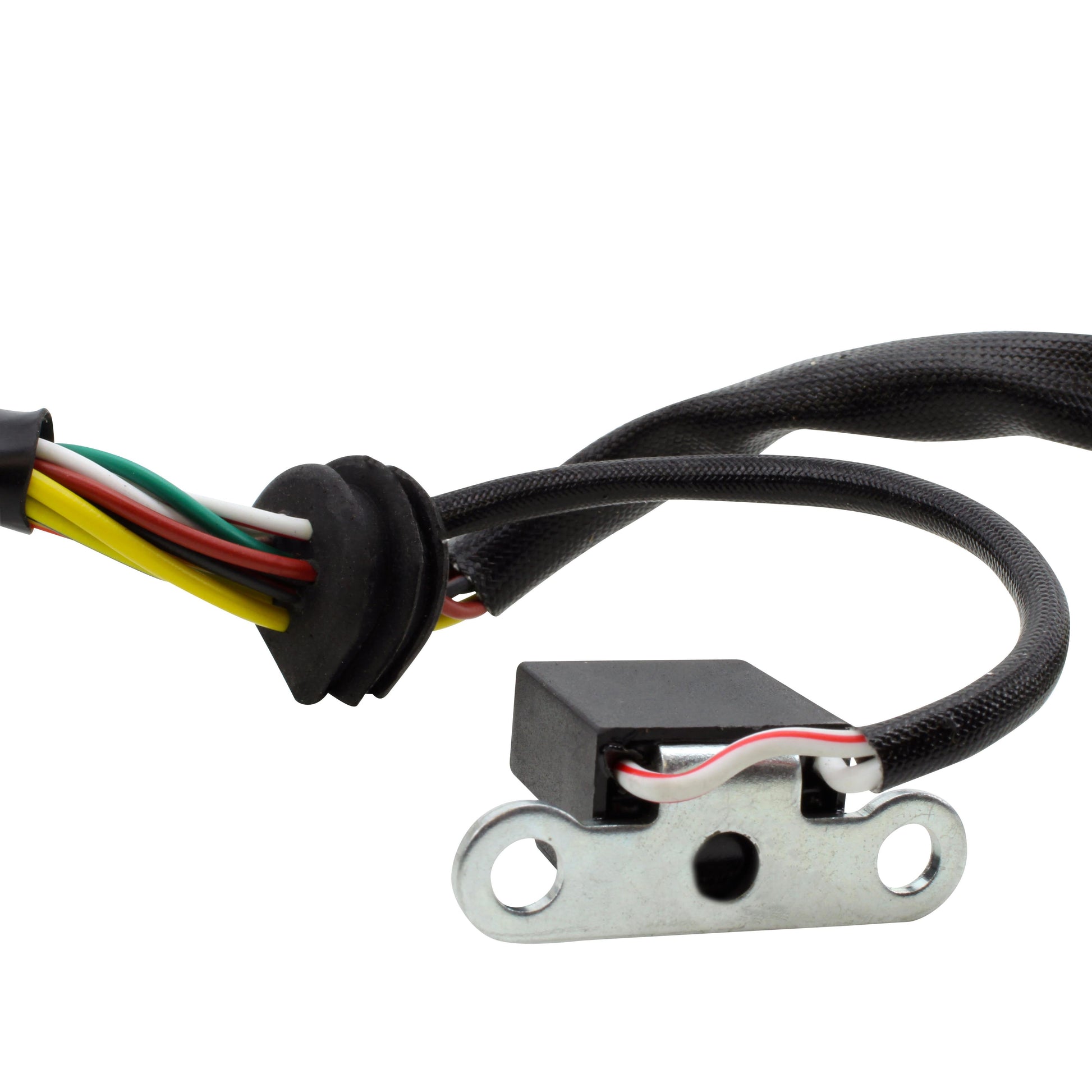

Does it include the pickup pulsar coil, or do I reuse my old one?
The pickup pulsar coil is supplied with the stator, so you do not need to transfer the old one across. Its lead is 170 mm long to the grommet, matching the factory routing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
