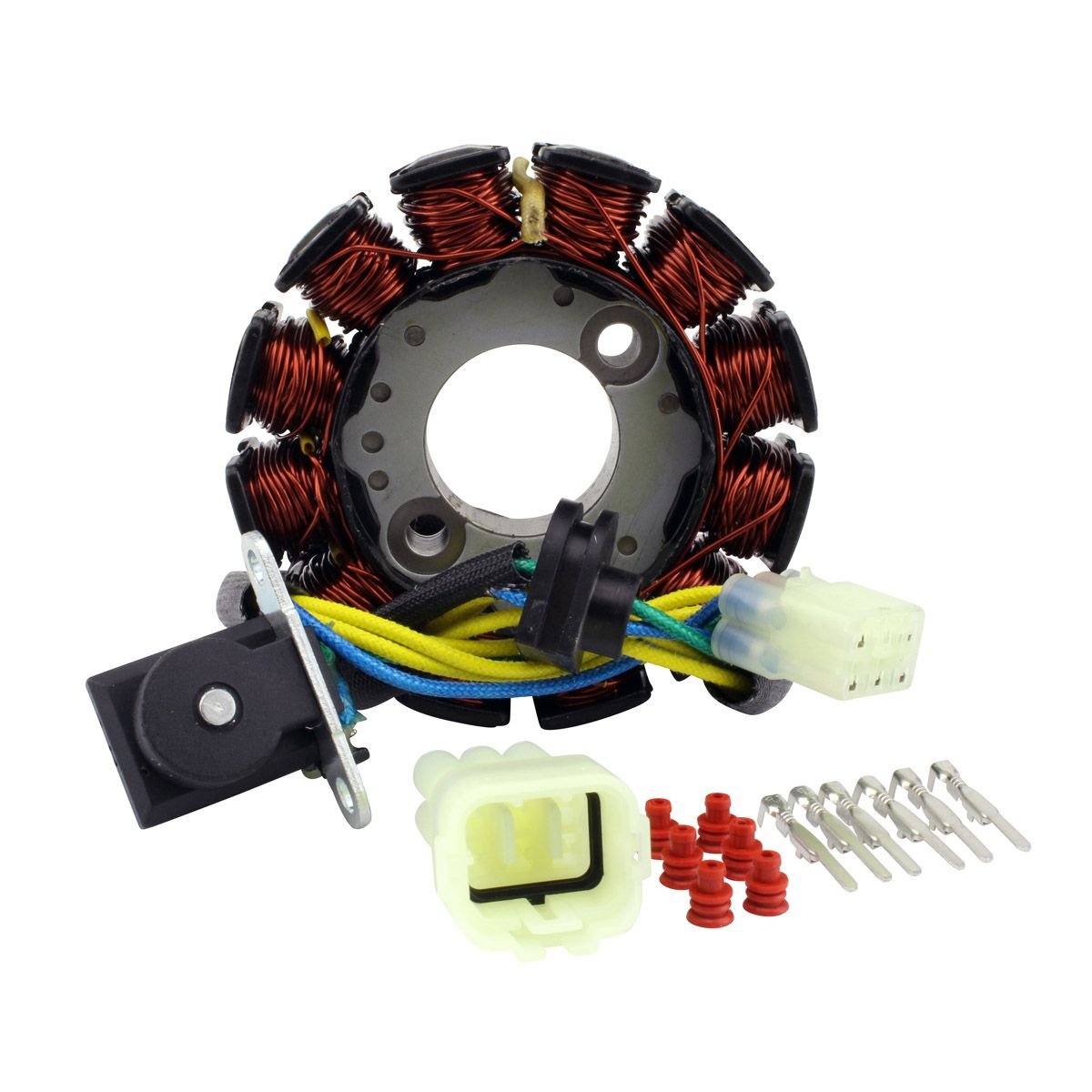

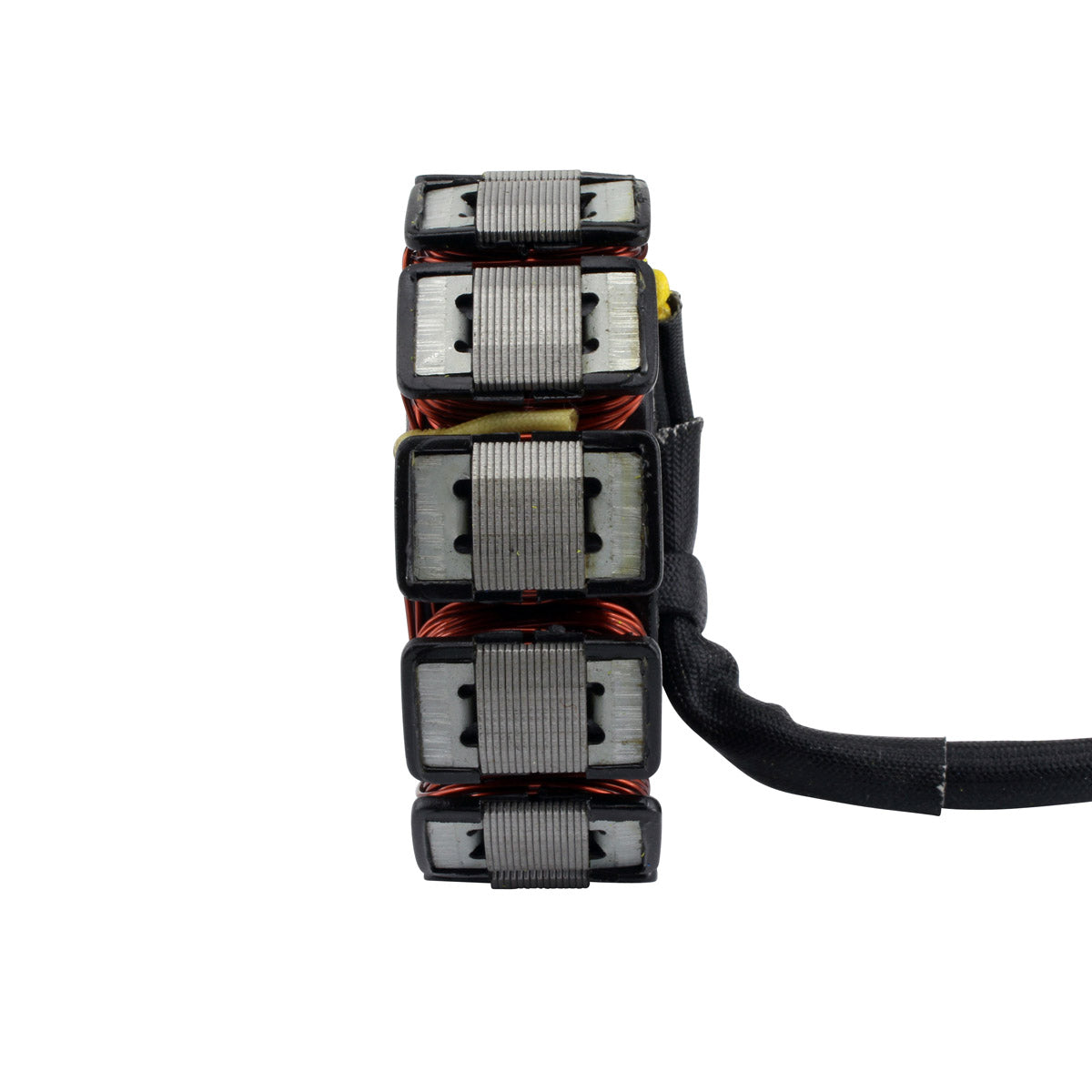

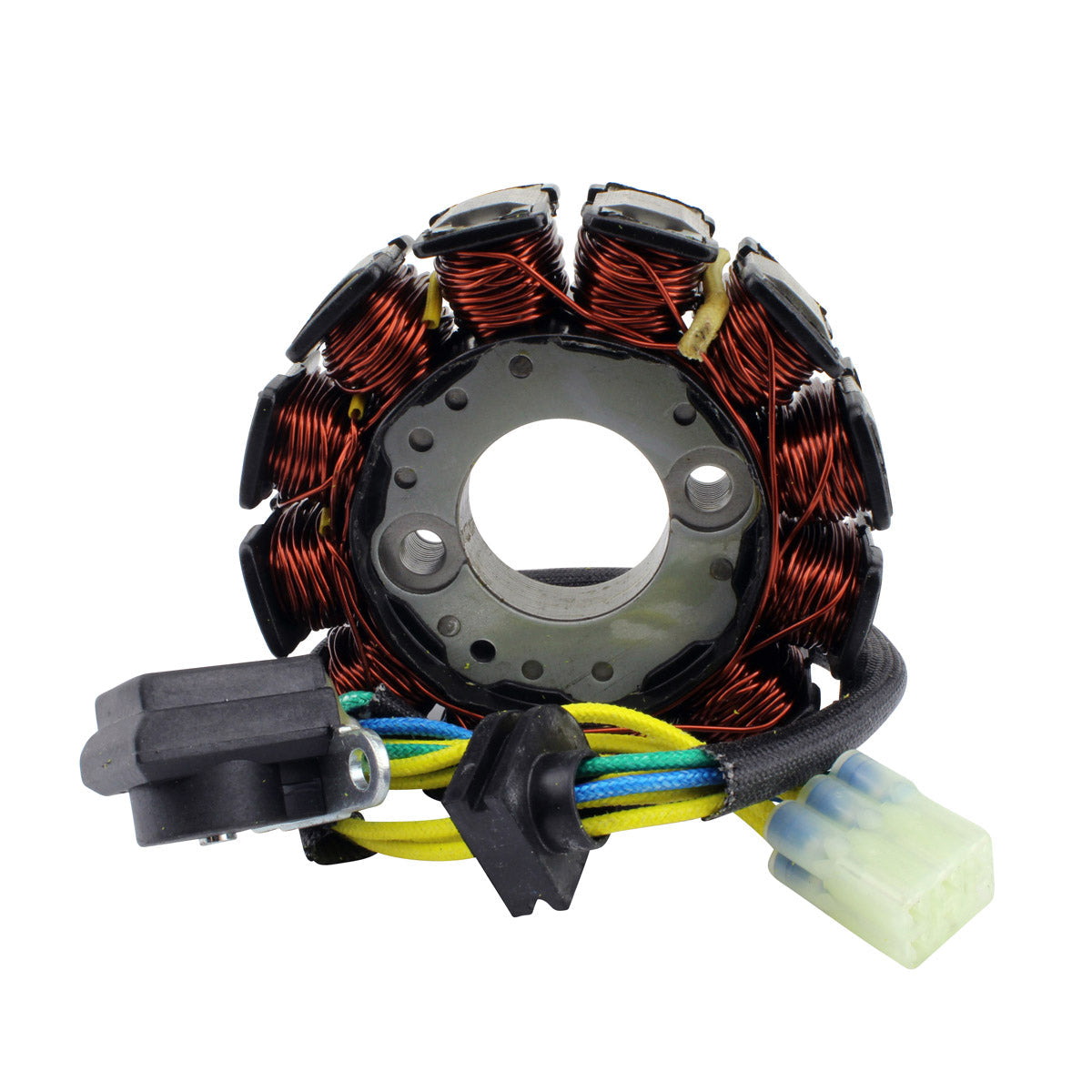

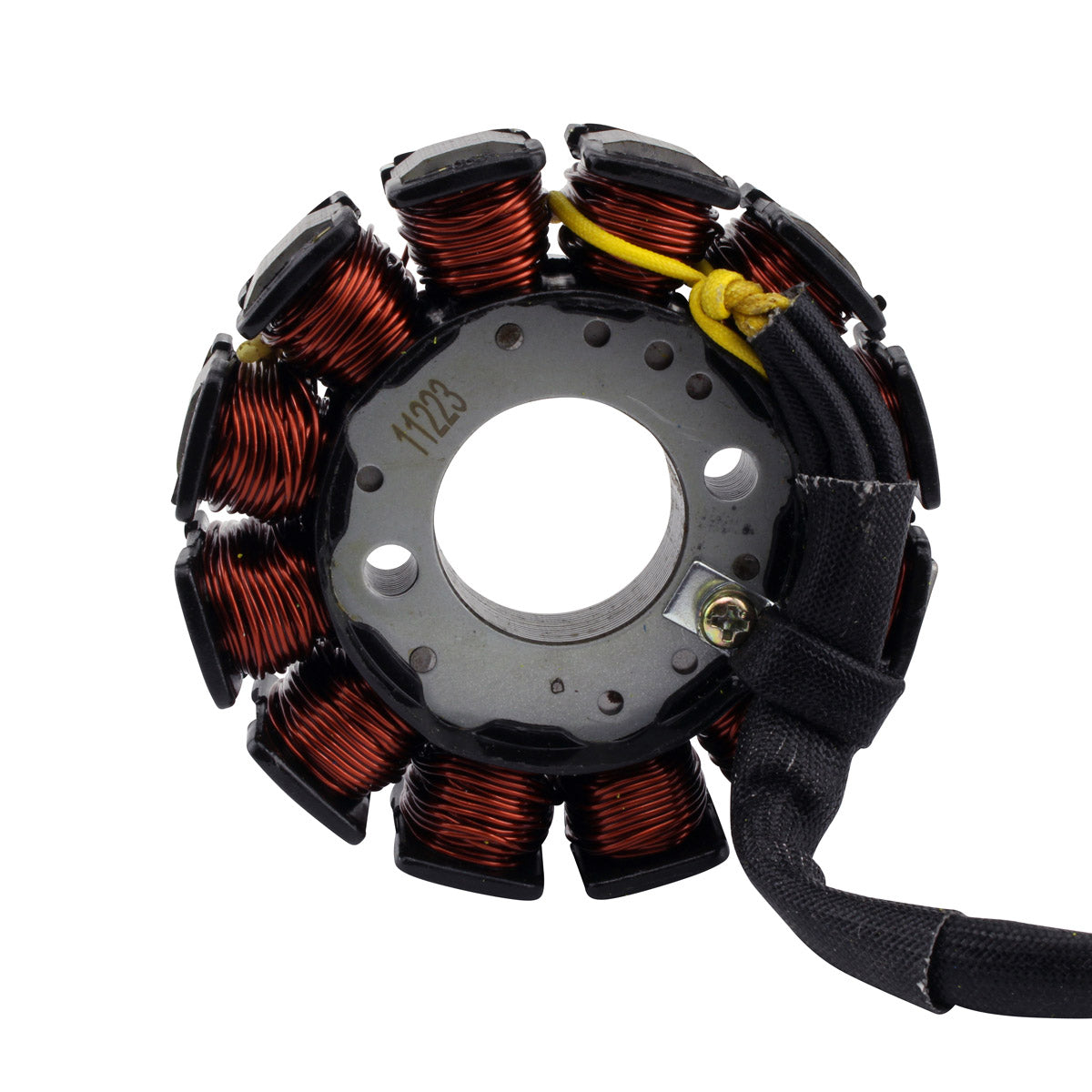

This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to the Polaris Outlaw 110 and Sportsman 110 youth quads from 2016 to 2023. It is supplied complete with the pickup pulsar coil, the connectors and the rubber grommet already fitted, so the assembly is plug-and-play. Every unit shipped is tested before it leaves the warehouse.

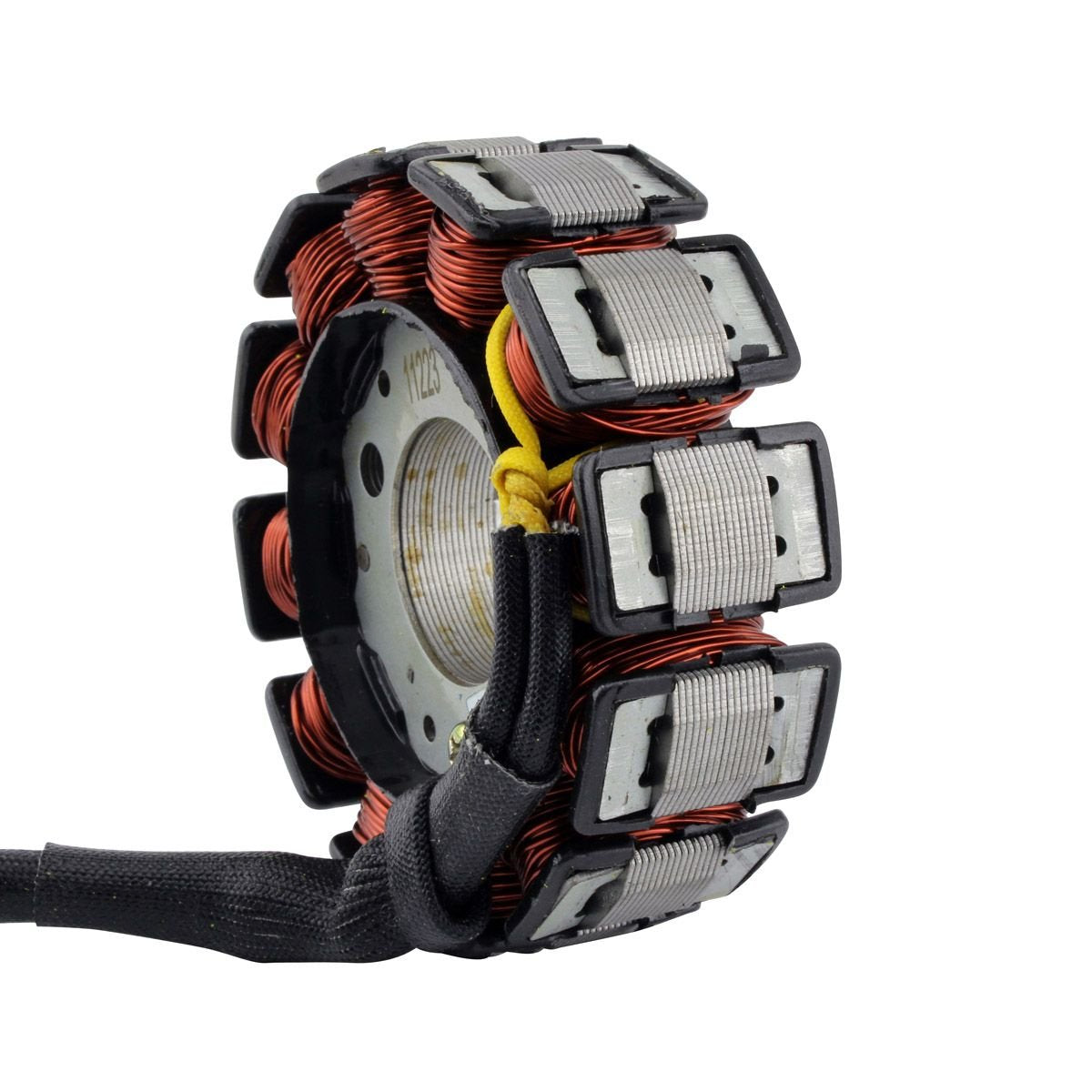

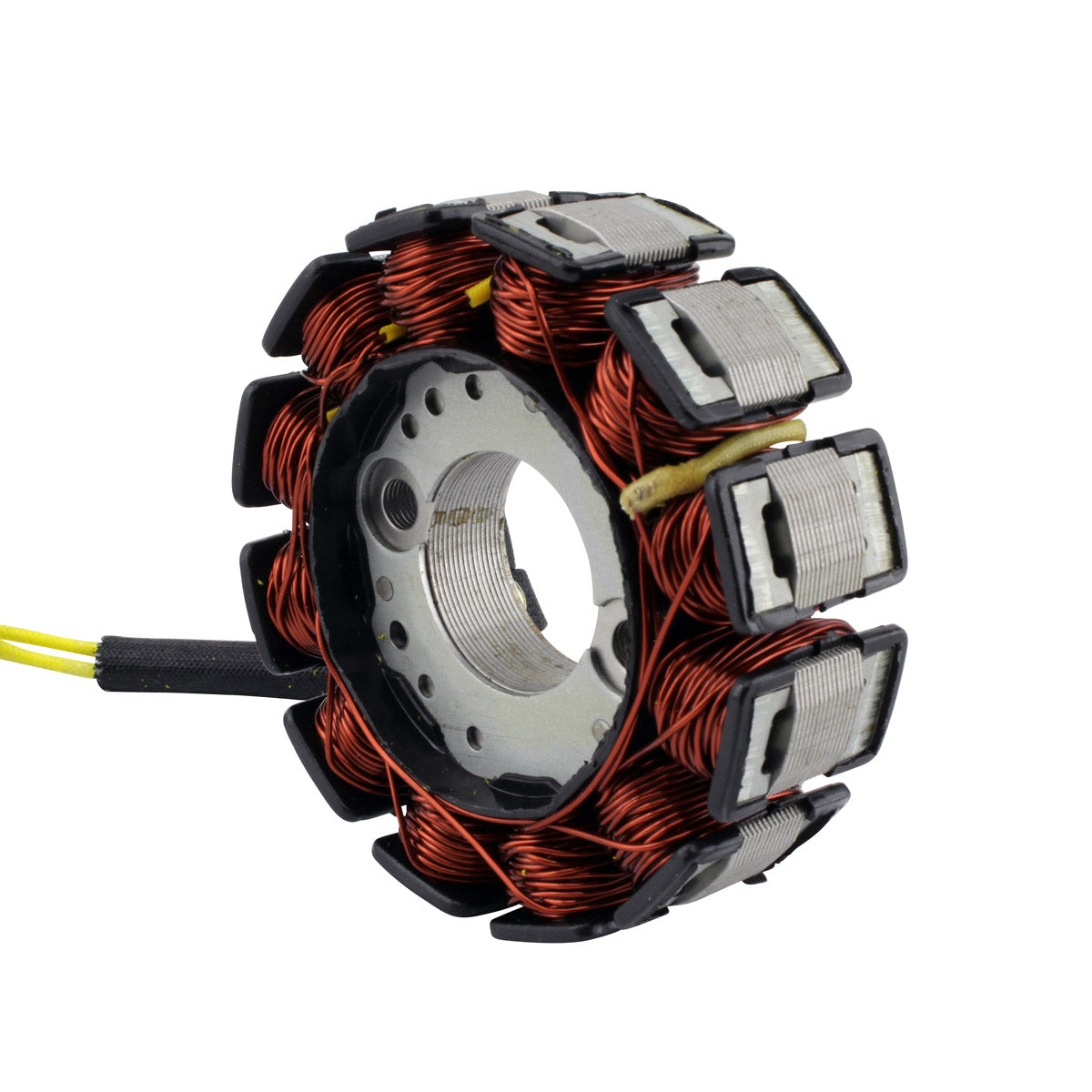

The stator is the charging and ignition heart of the machine. Its twelve poles generate the alternating current that keeps the battery topped up, while the pickup pulsar coil bonded to the same plate tells the CDI when to fire. When the windings break down - usually from heat, vibration or oil contamination - the symptoms are a battery that will not hold charge, dim or flickering lights, a weak or absent spark, and eventually a machine that will not start at all. This unit measures 88 mm across the outer diameter with a 29 mm interior diameter and an 18 mm thickness, carries five wires through a single five-pin plug, and reads 1 ohm across the yellow alternator wires and 120 ohms across the pickup coil. Part number RMS010-106983.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit

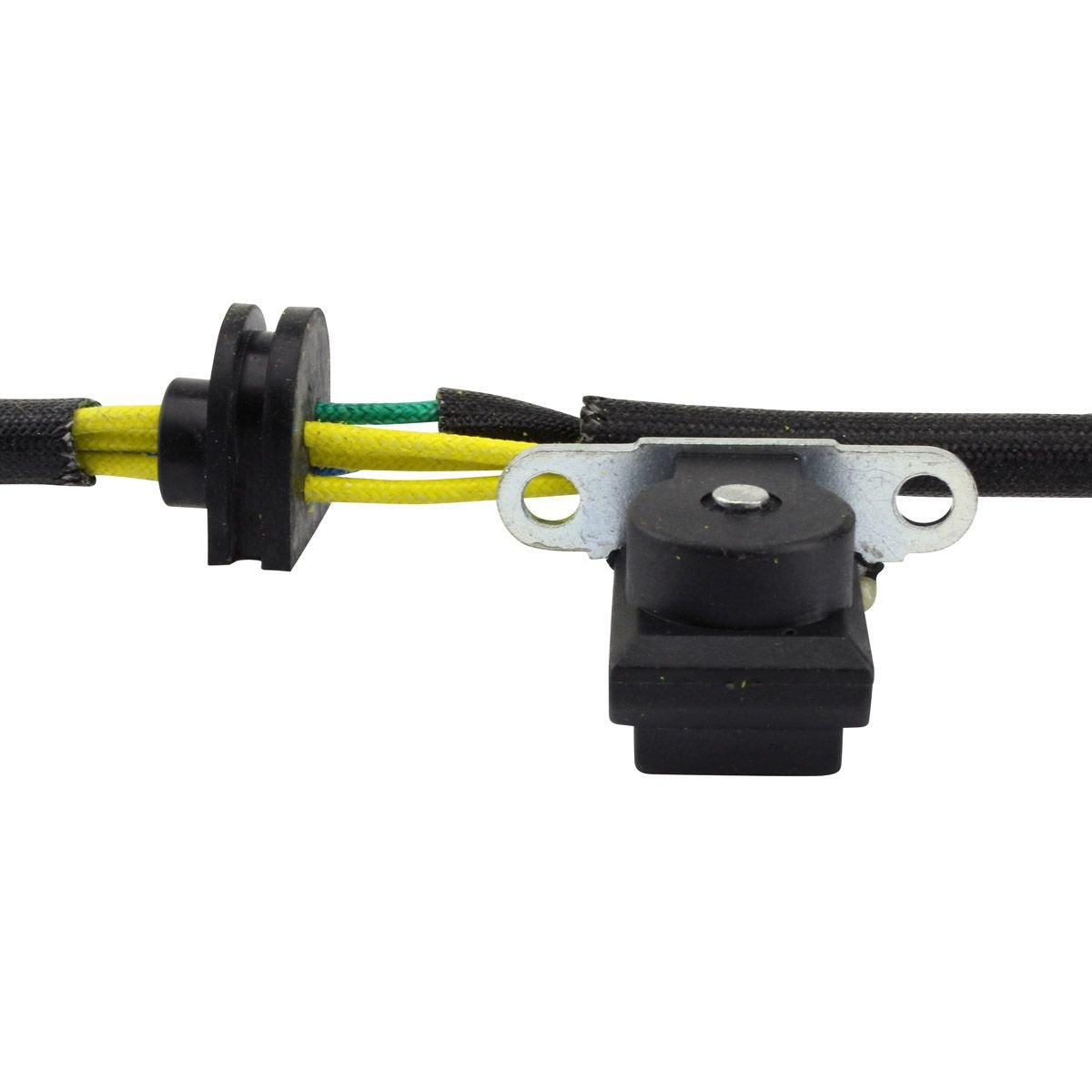

- Pickup pulsar coil included and pre-fitted

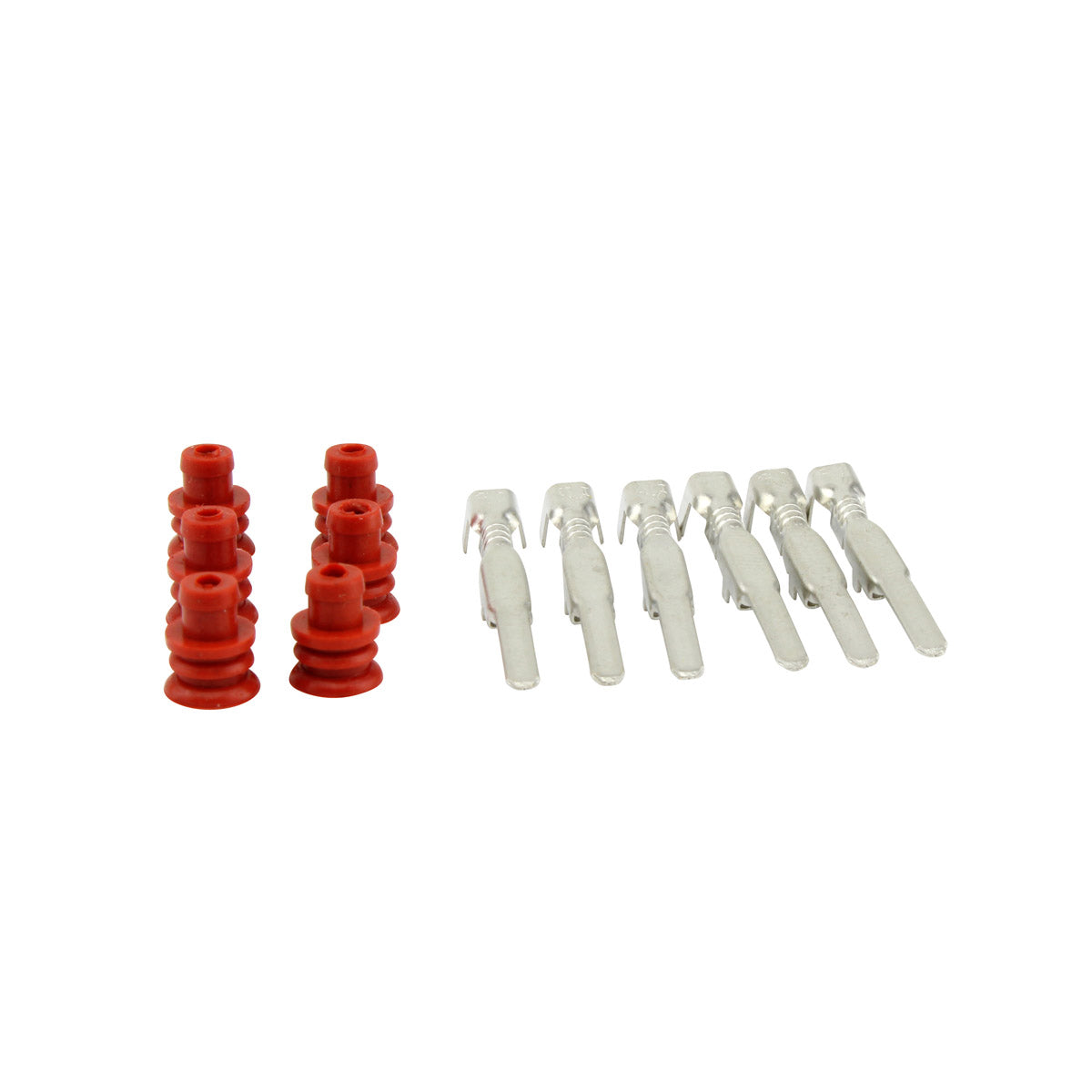

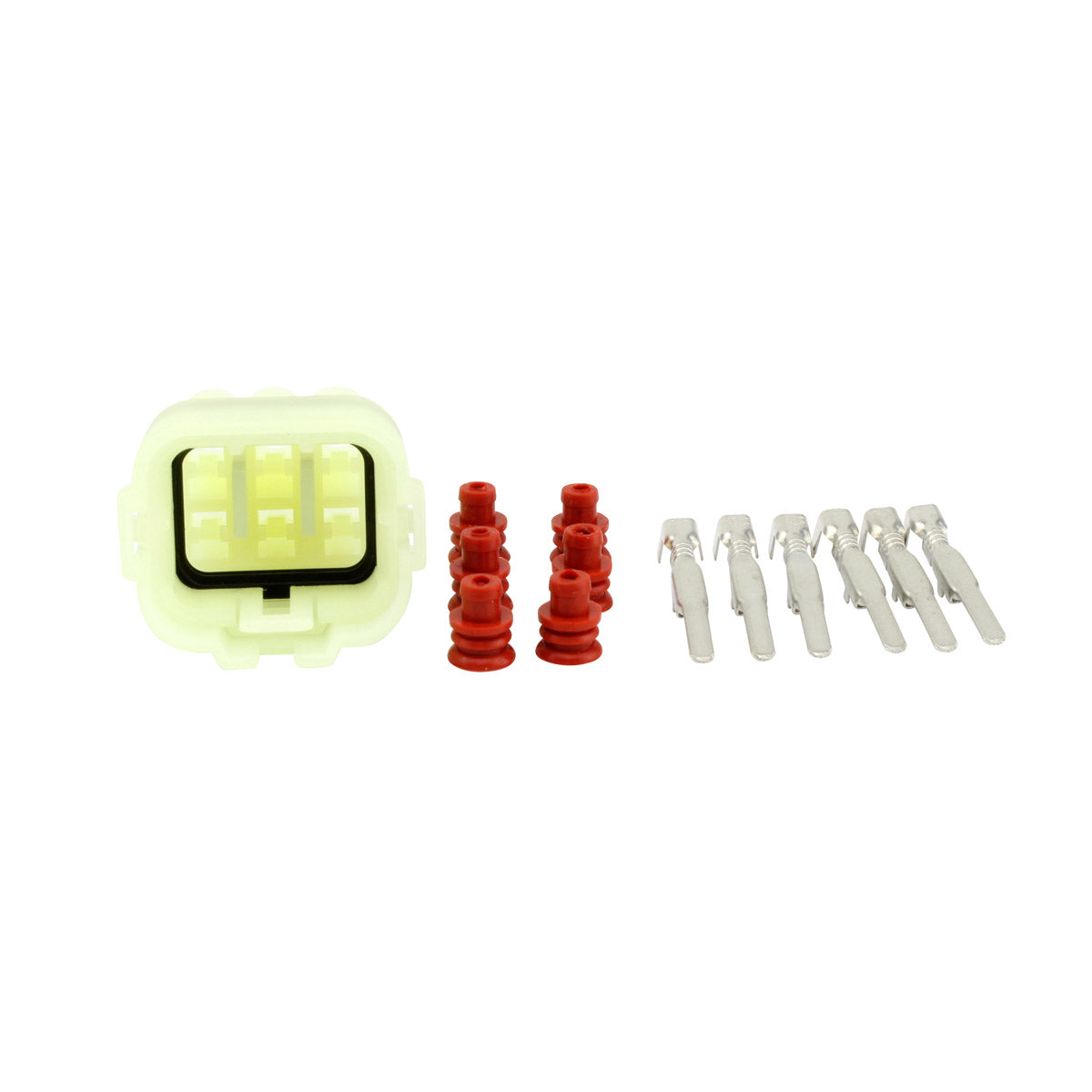

- Connectors and rubber grommet included
- Plug-and-play, direct fit, easy installation
- 12-pole winding

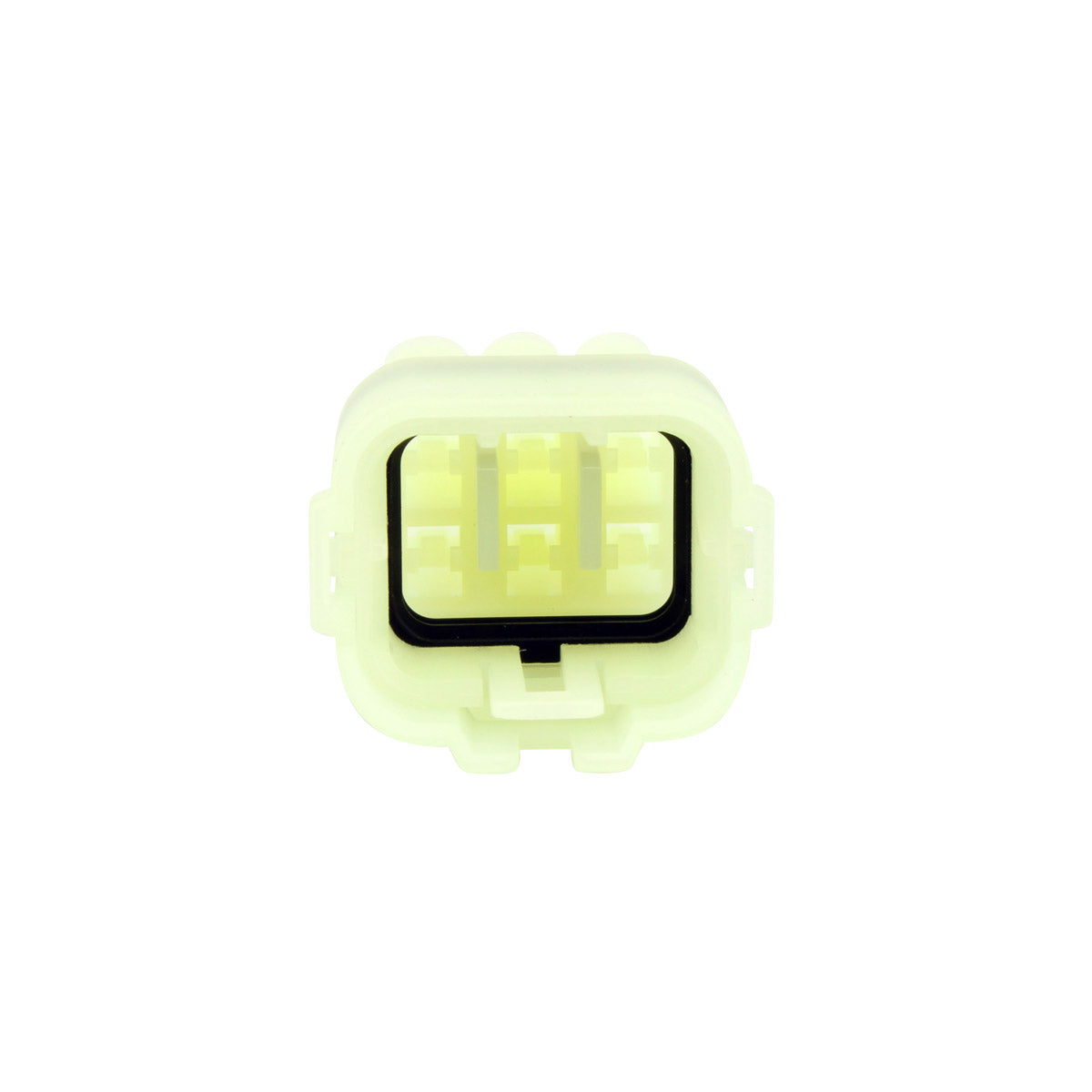

- Five wires through a single five-pin plug
- Every unit is tested before shipment
Technical Specs
| Specification |
Detail |
| Part Number |
RMS010-106983 |
| Interior Diameter |
29 mm |
| Exterior Diameter |
88 mm |
| Thickness |
18 mm |
| Wire Length (stator to grommet) |
120 mm |
| Wire Length (grommet to plug) |
290 mm |
| Pickup Coil Wire Length |
30 mm |
| Number of Wires |
5 |
| Number of Plugs |
1 |
| Number of Pins |
5 |
| Number of Poles |
12 |
| Alternator Resistance (yellow to yellow) |
1 ohm +/- 20% |
| Pickup Resistance (green to blue) |
120 ohms +/- 20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Outlaw 110 |
2016-2023 |
| Polaris Sportsman 110 |
2016-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0455121 |
Polaris |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct, plug-and-play replacement for the original stator on the Polaris Outlaw 110 and Sportsman 110. The connectors and grommet are already fitted, so the loom plugs straight in with no cutting or splicing.
What is included?
The stator assembly, the pickup pulsar coil, the connectors and the rubber grommet. There is nothing further to buy to complete the fit.
How do I know the old stator has failed?
The common signs are a battery that goes flat overnight or will not stay charged, dim or flickering lights, weak or intermittent spark, and hard starting that gets worse as the engine warms up. A meter confirms it: across the two yellow alternator wires you should read about 1 ohm, and across the green and blue pickup wires about 120 ohms, both within 20%. A reading that is open circuit, shorted, or far outside those figures points to a failed stator.
Does the pickup pulsar coil come with it, or is that separate?

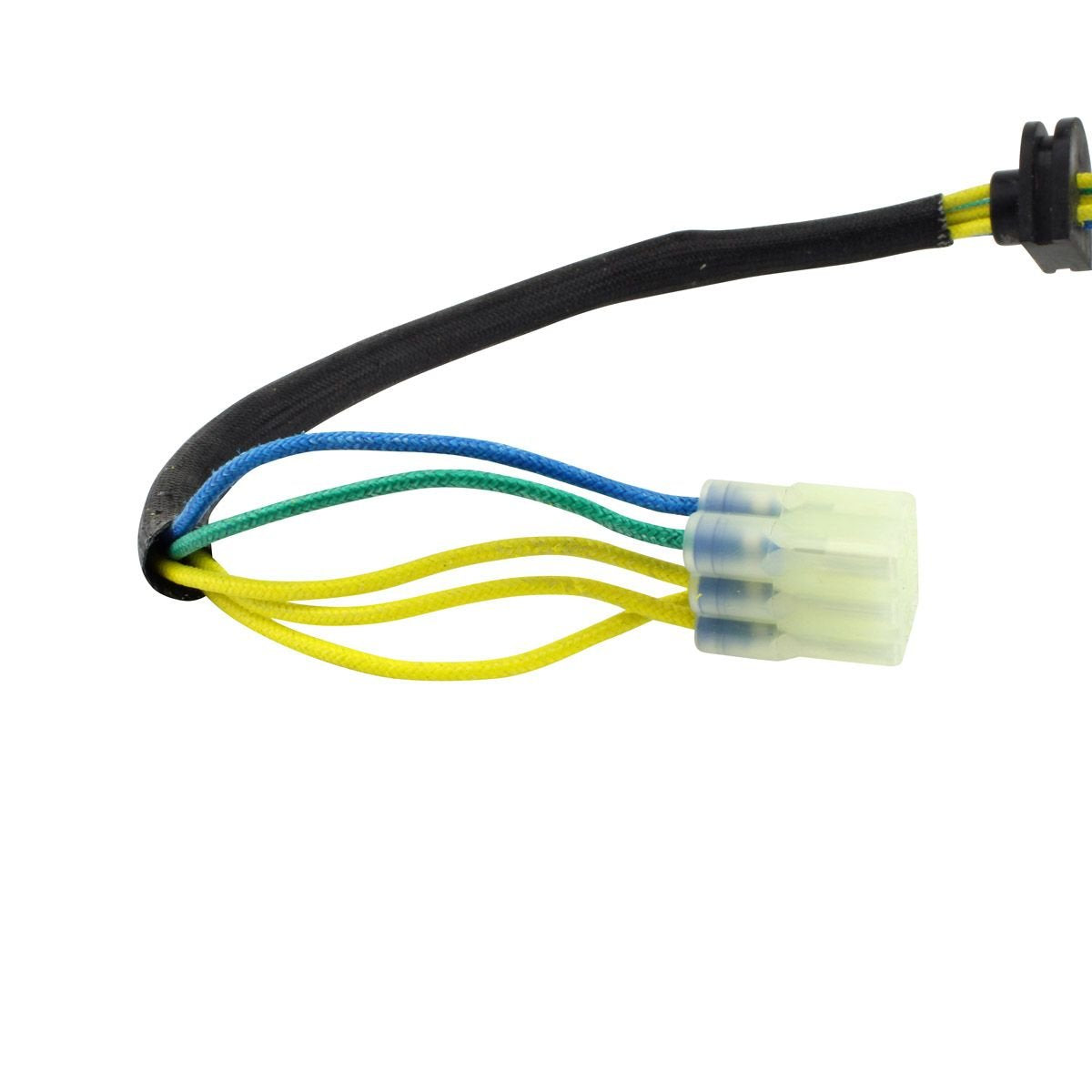

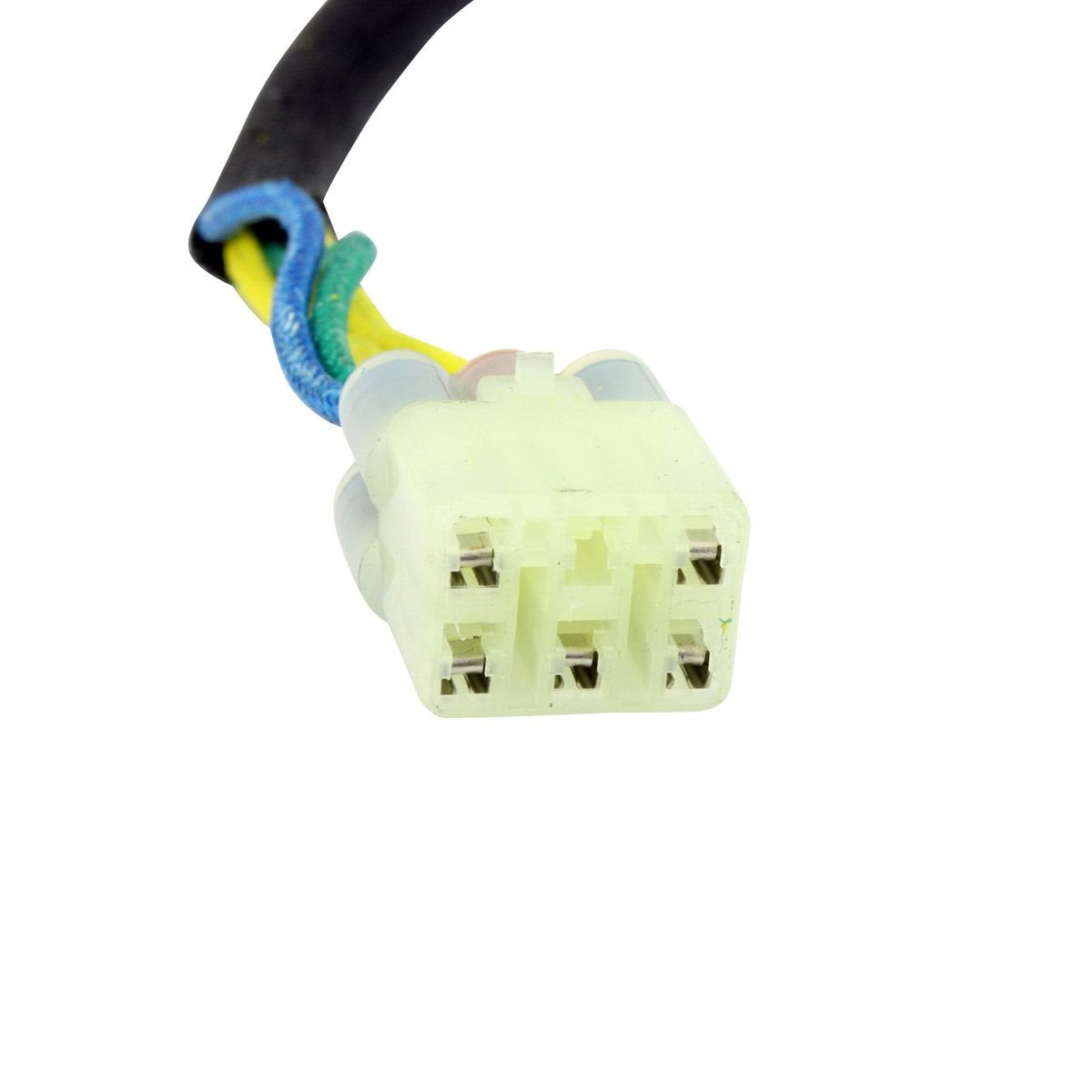

It comes with it. The pickup pulsar coil is supplied already mounted on the stator plate, which is why the assembly carries five wires through a single five-pin plug rather than needing a second part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
