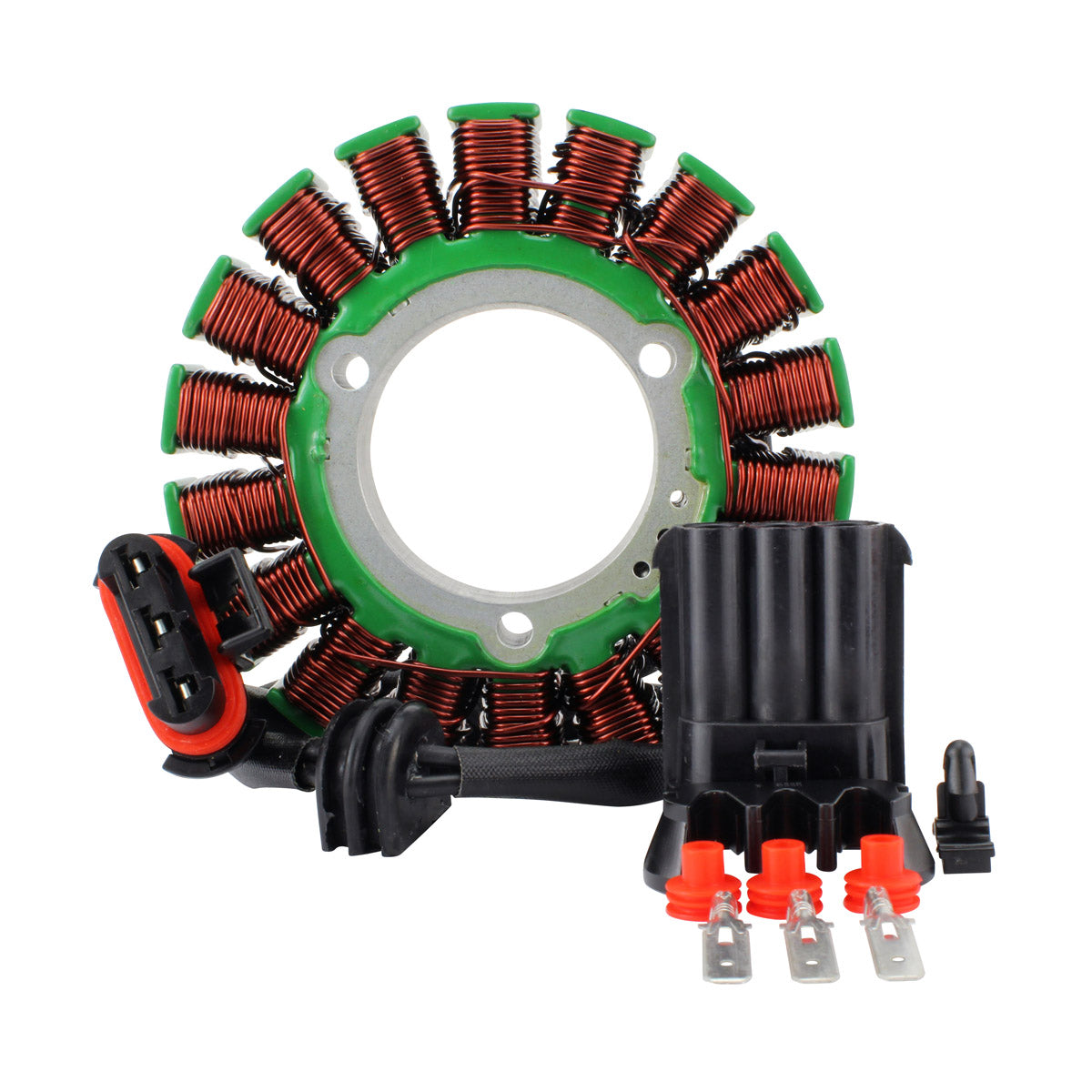

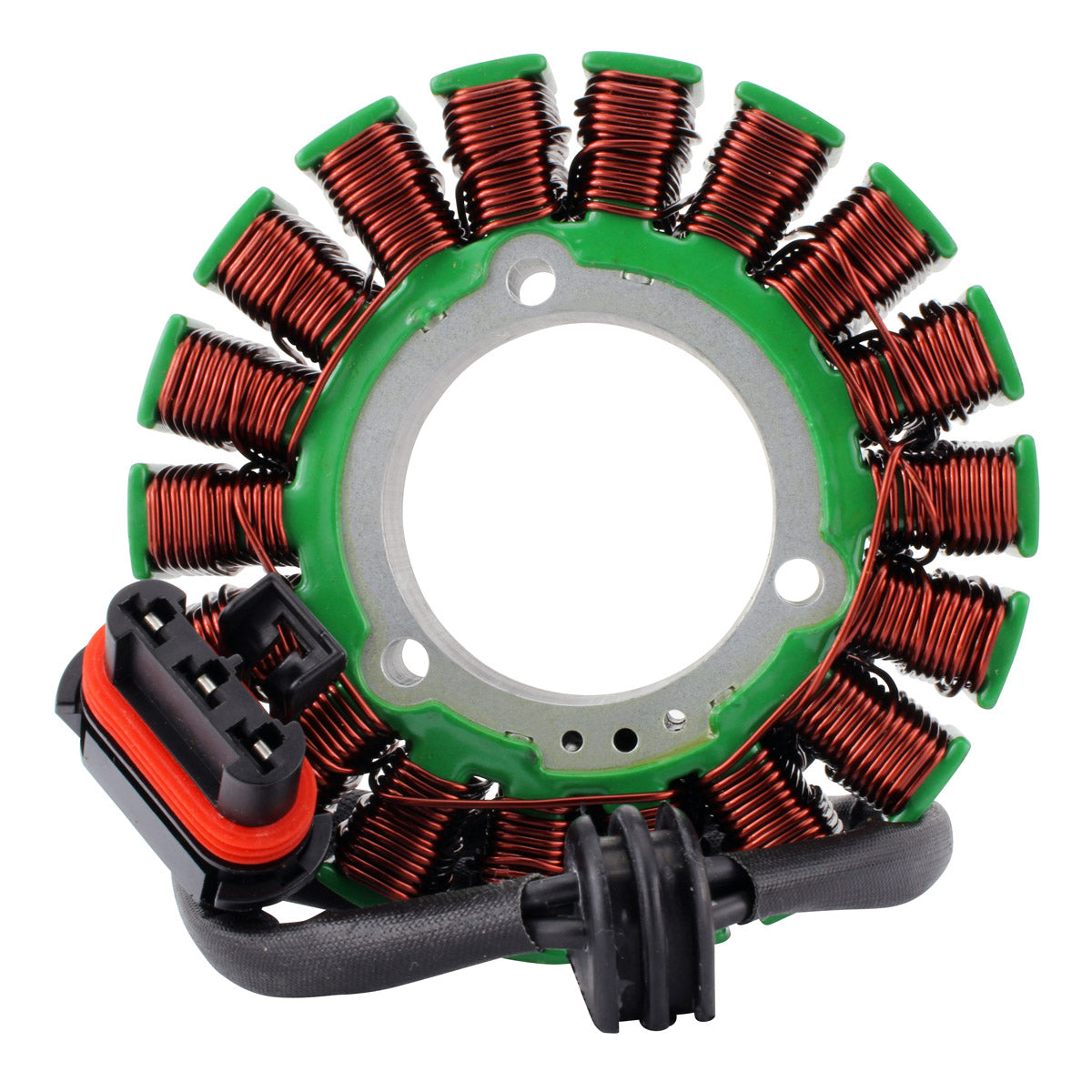

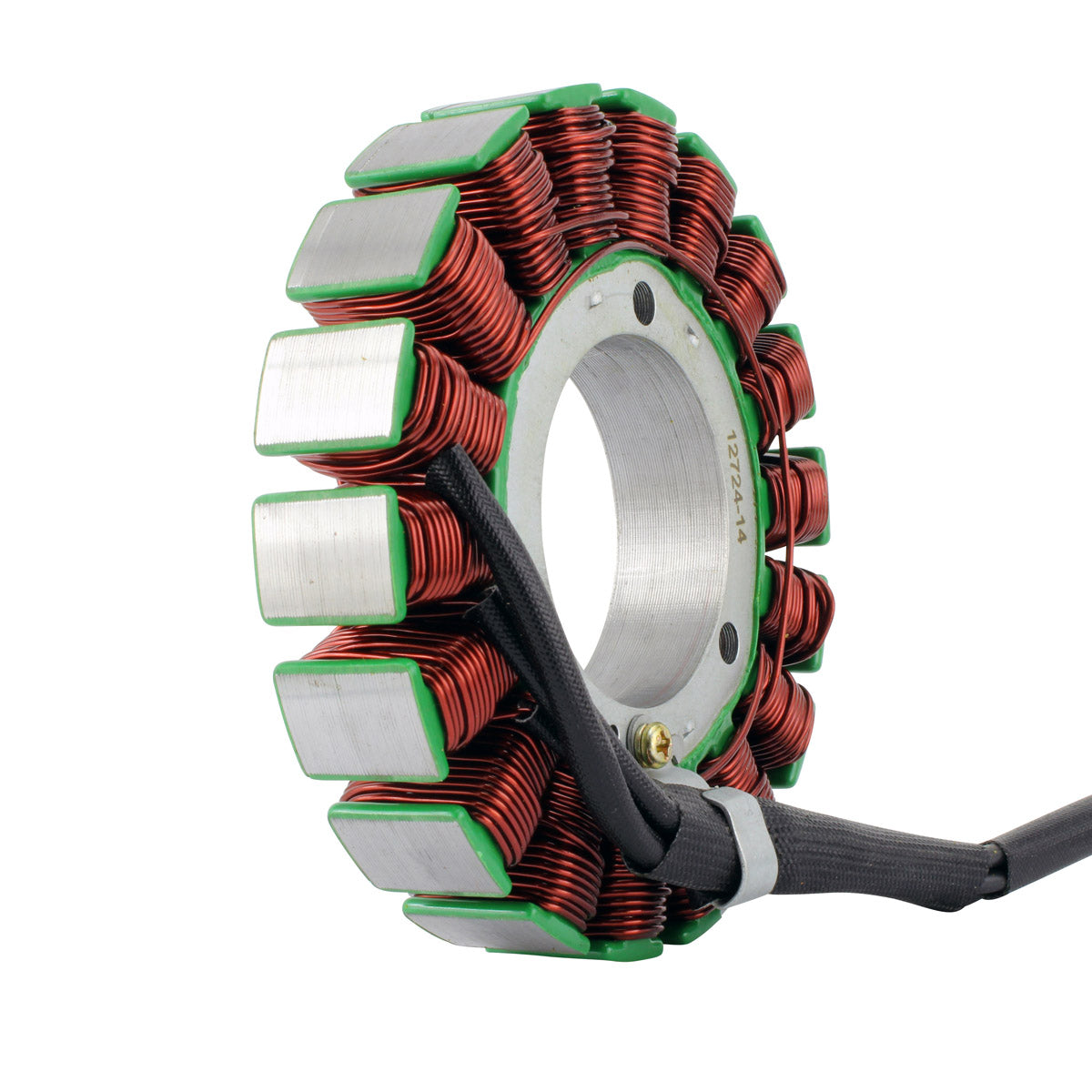

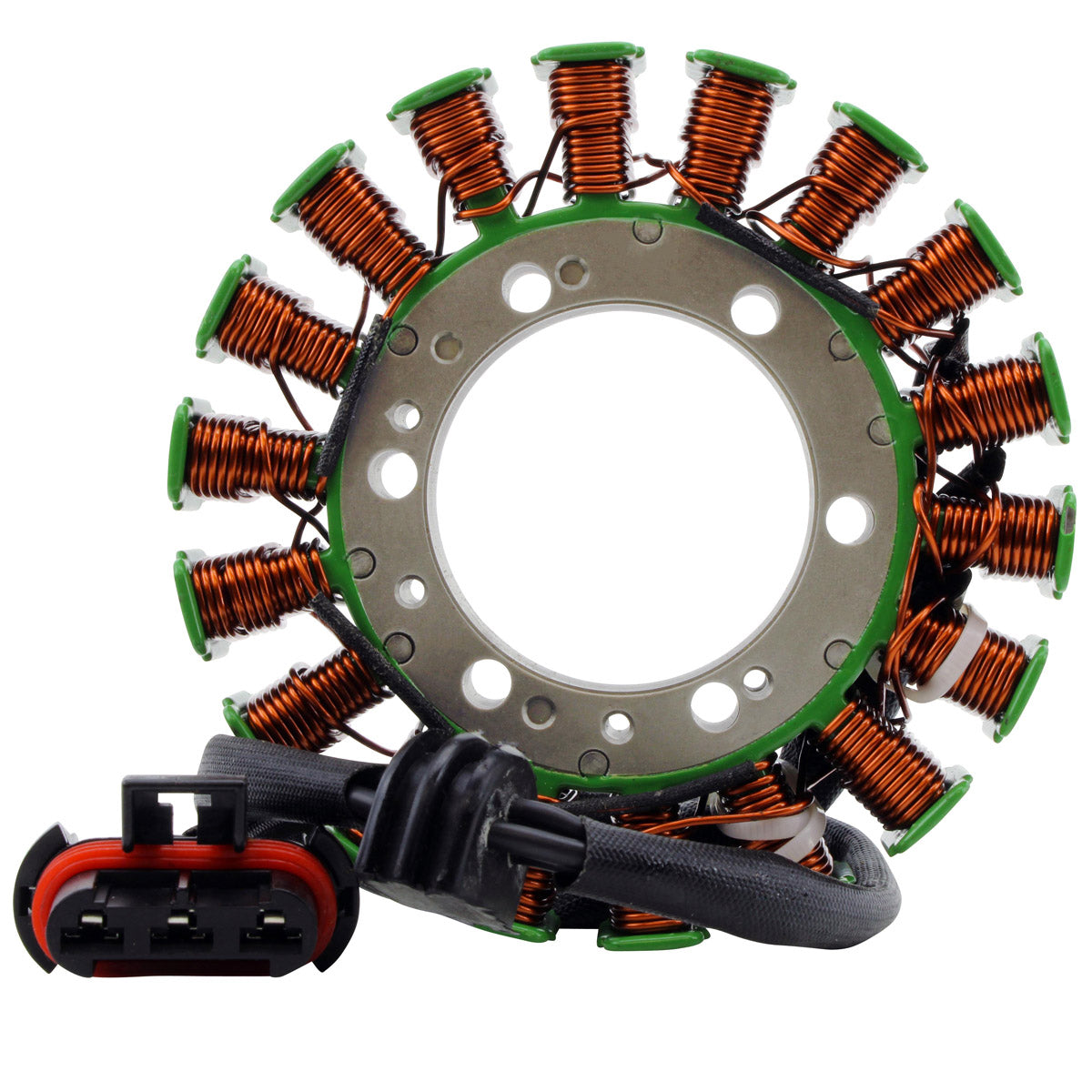

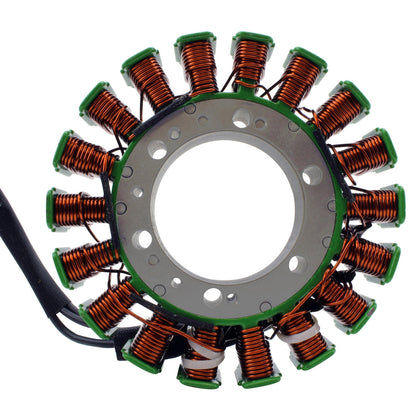

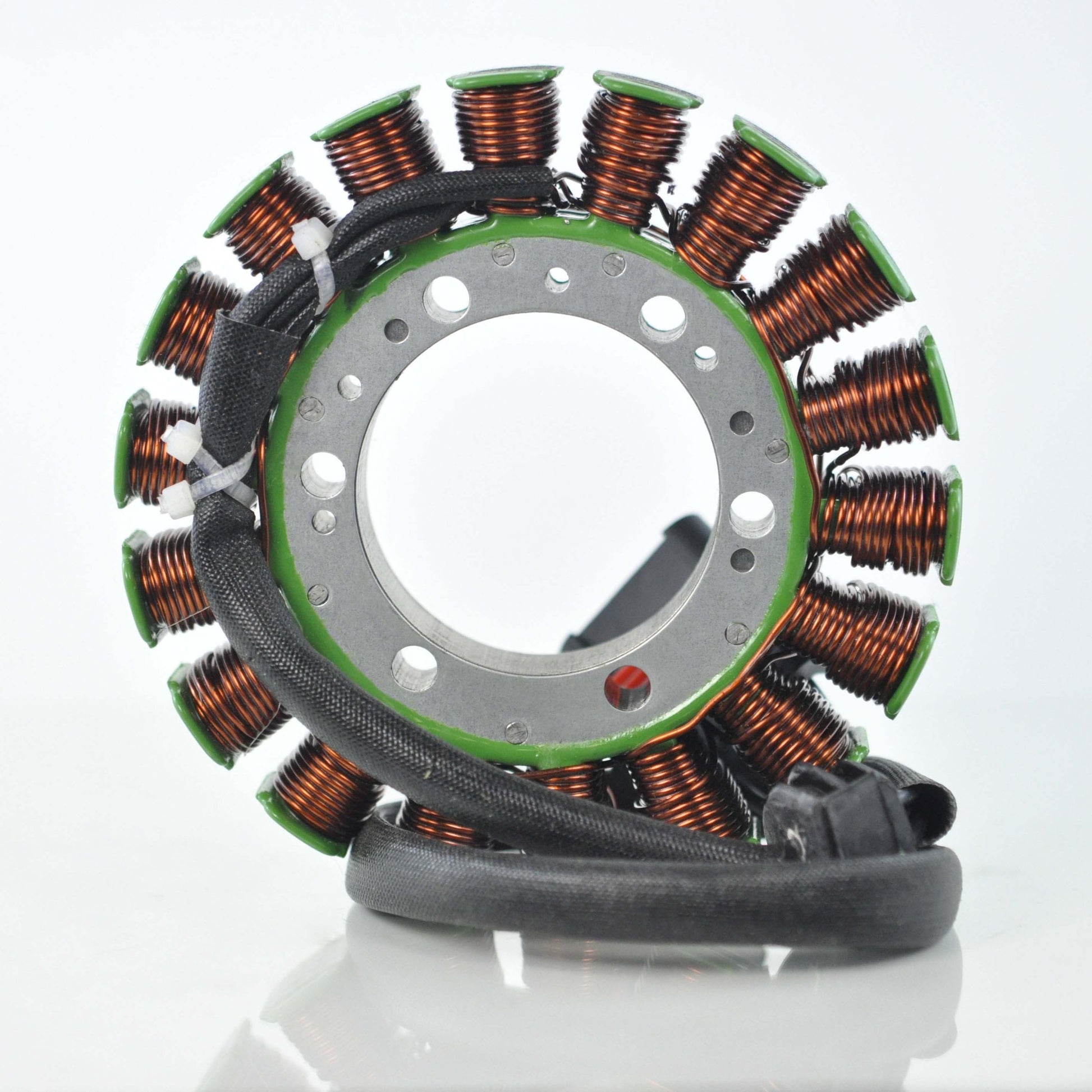

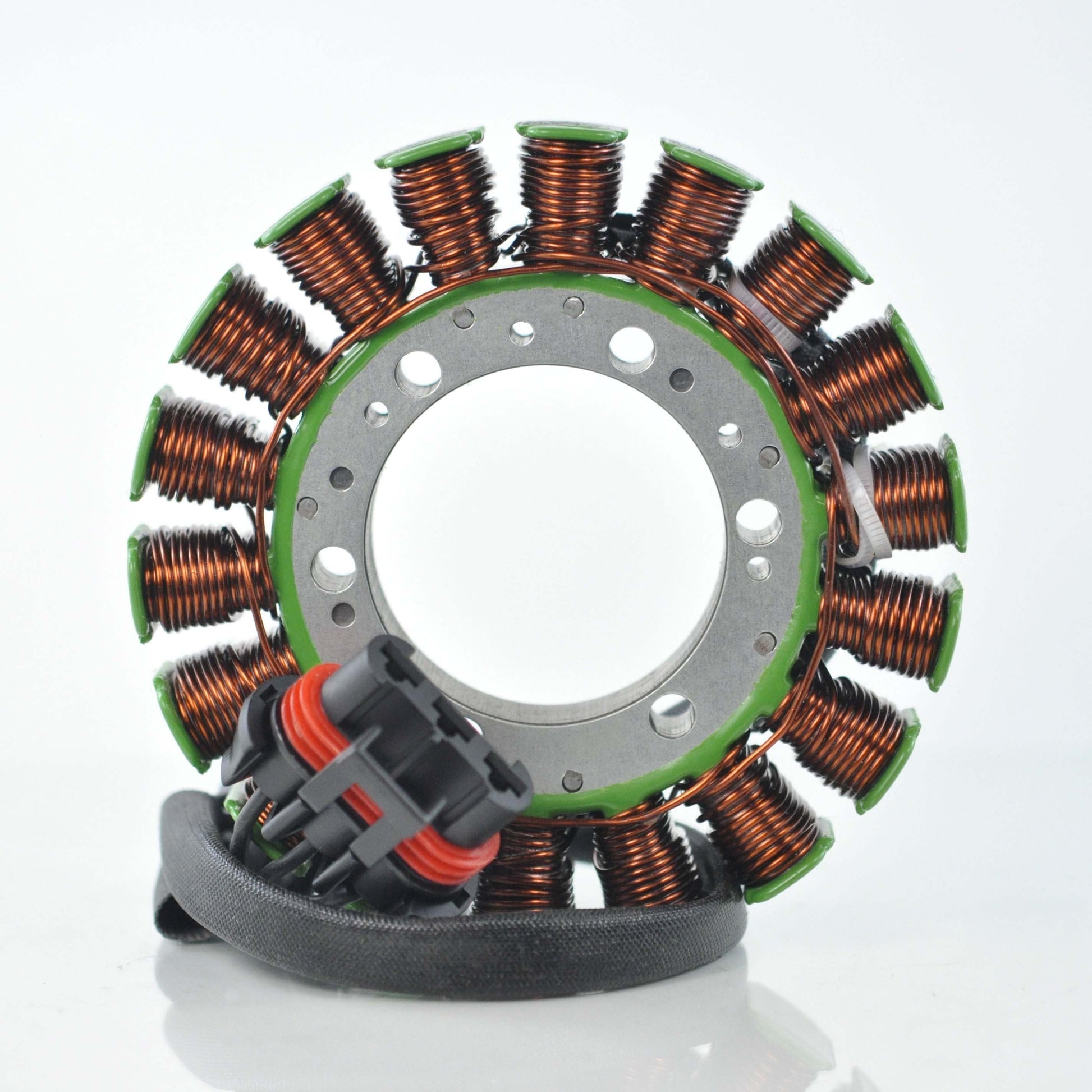

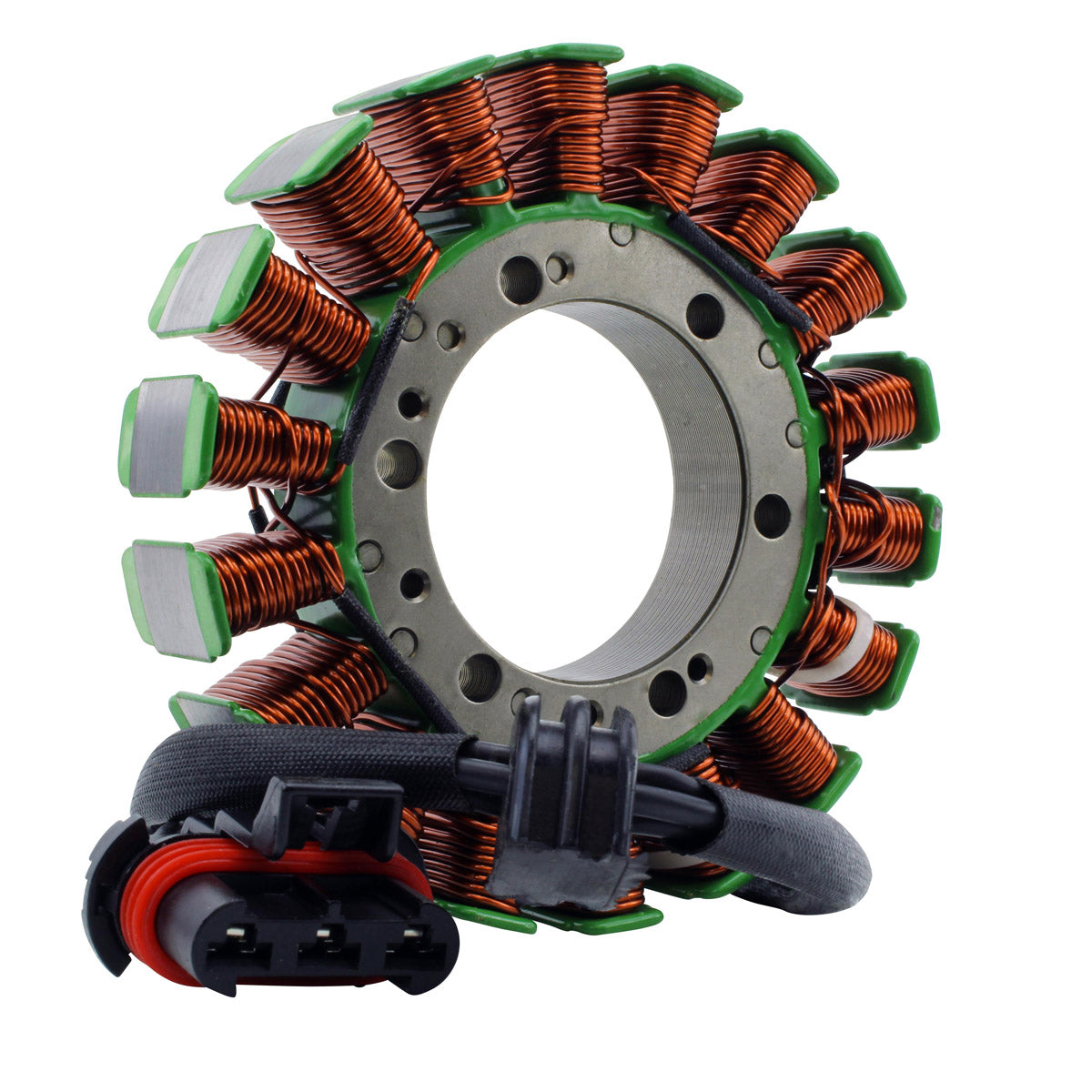

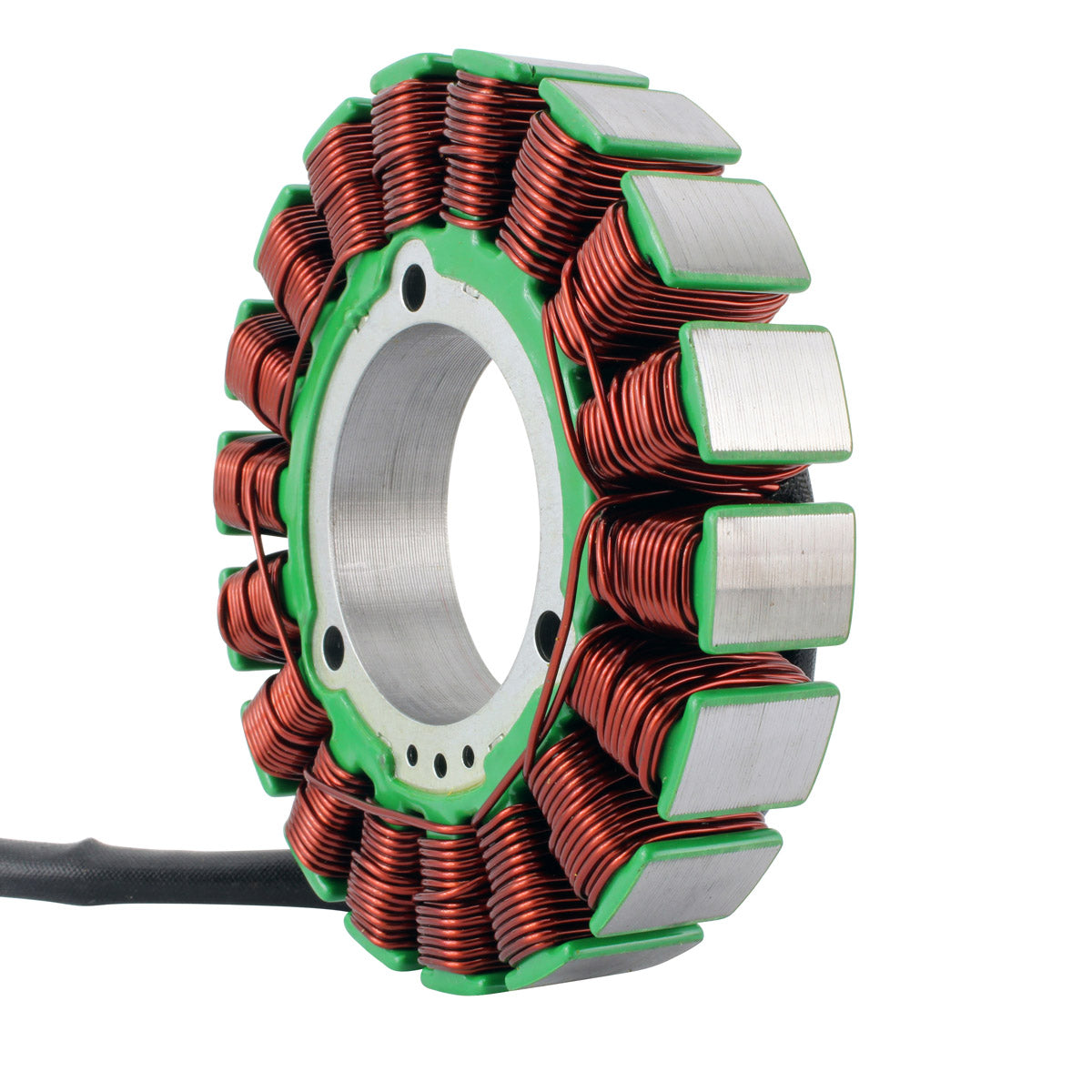

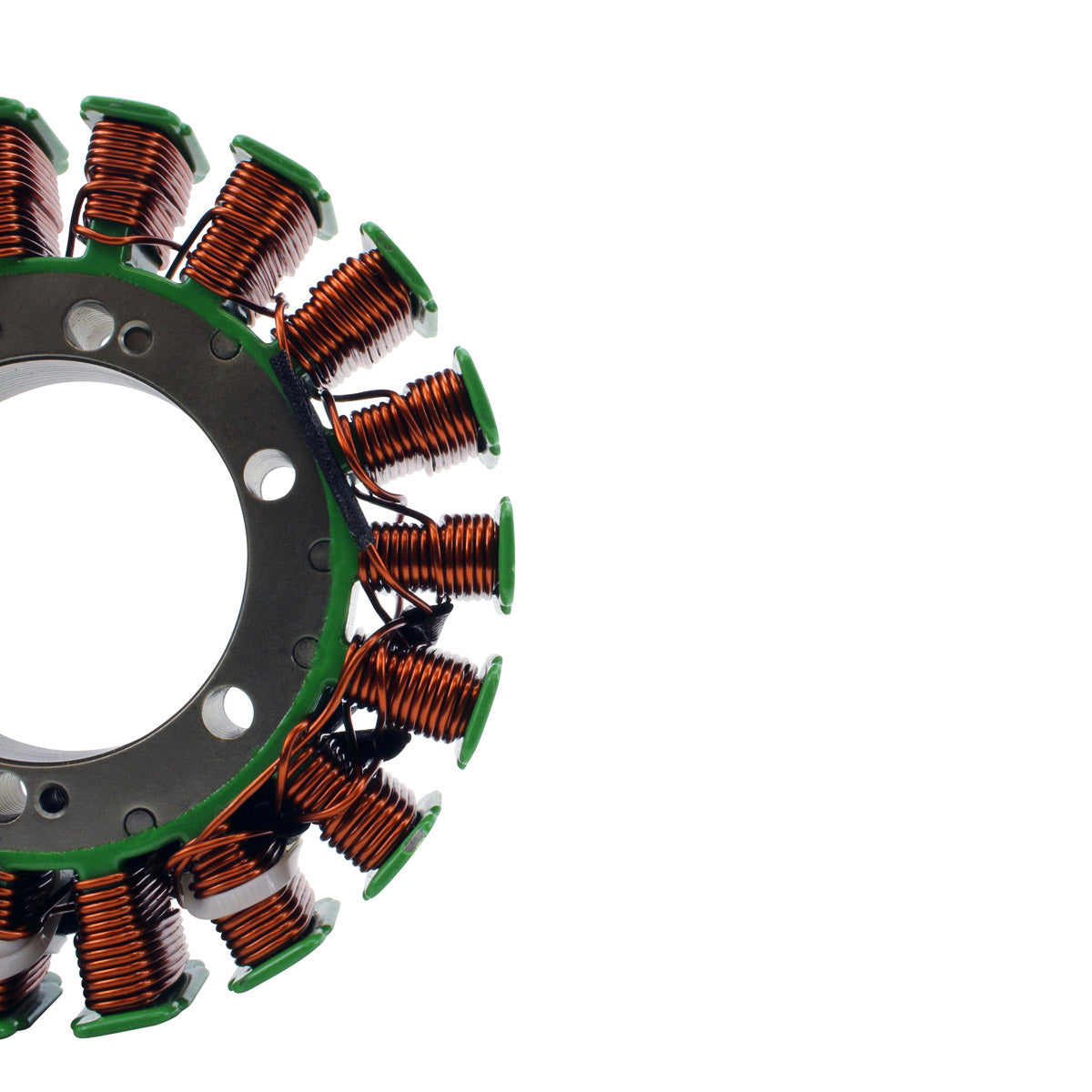

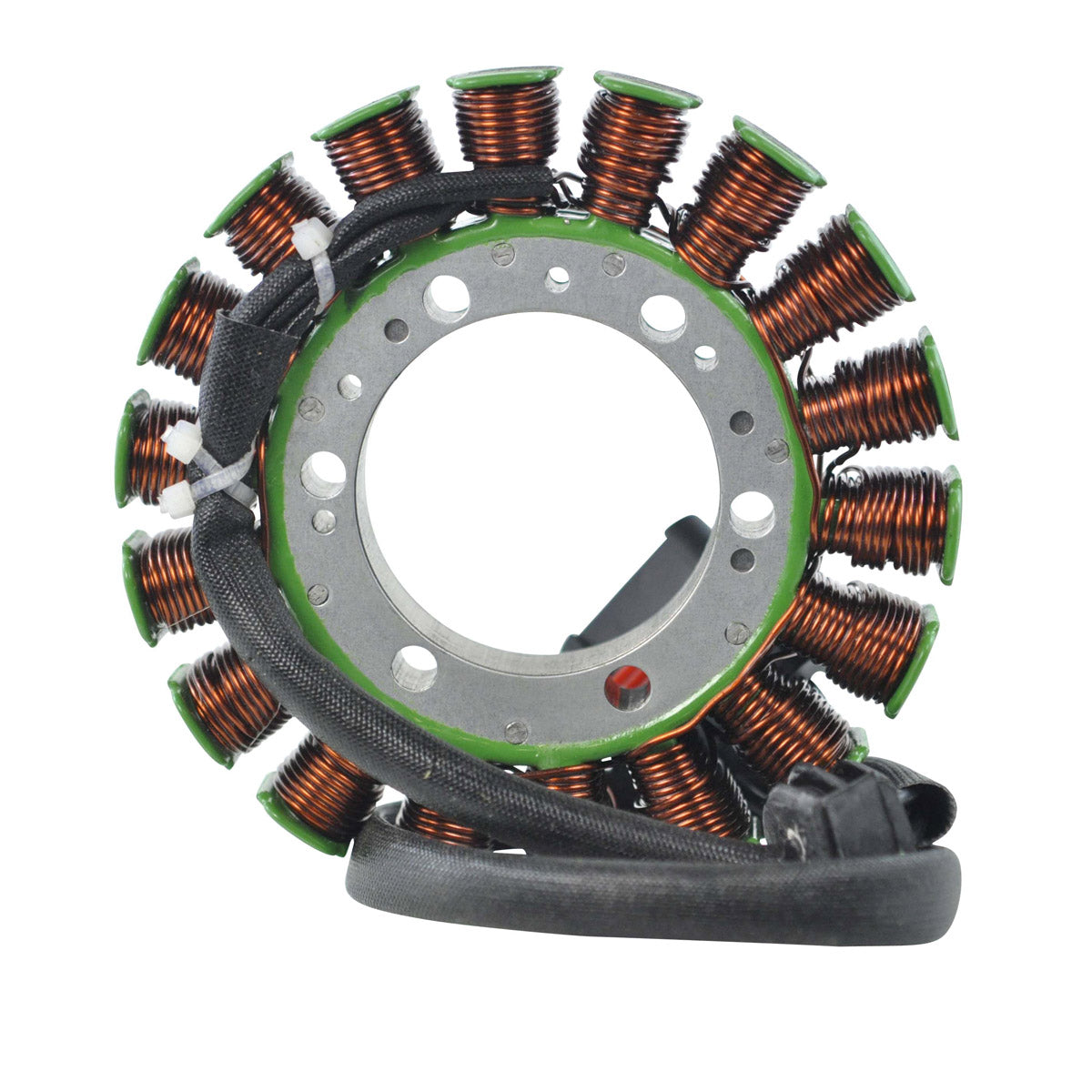

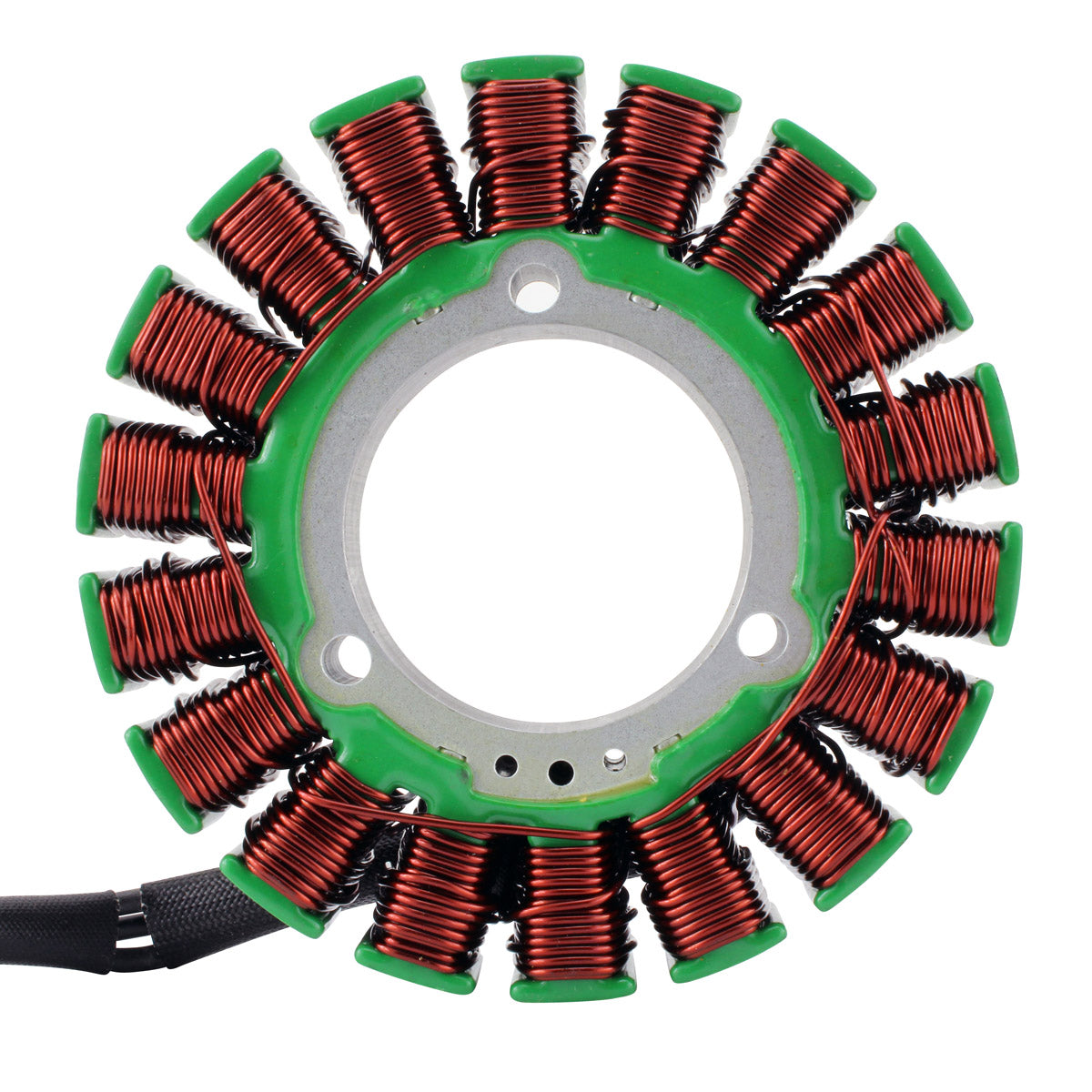

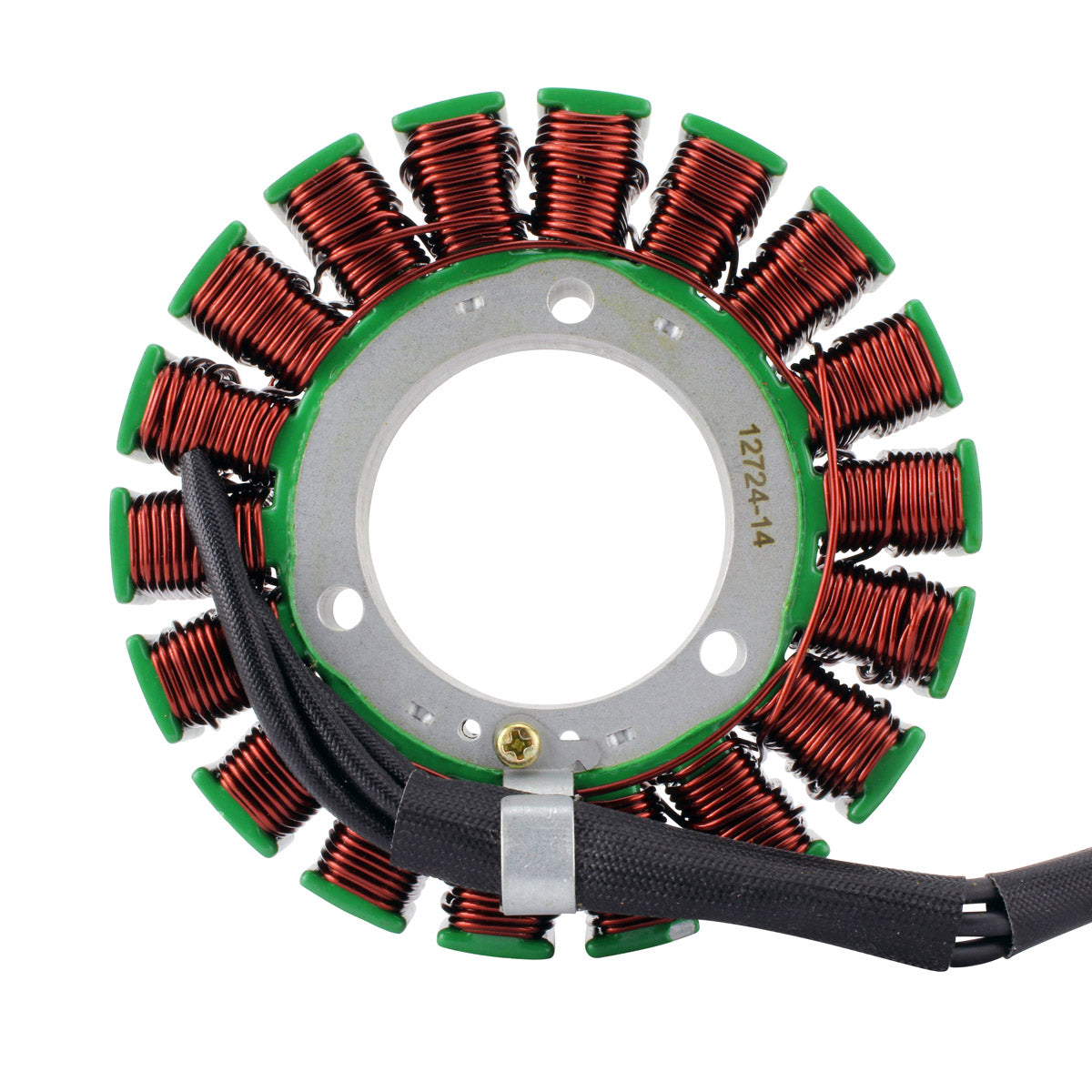

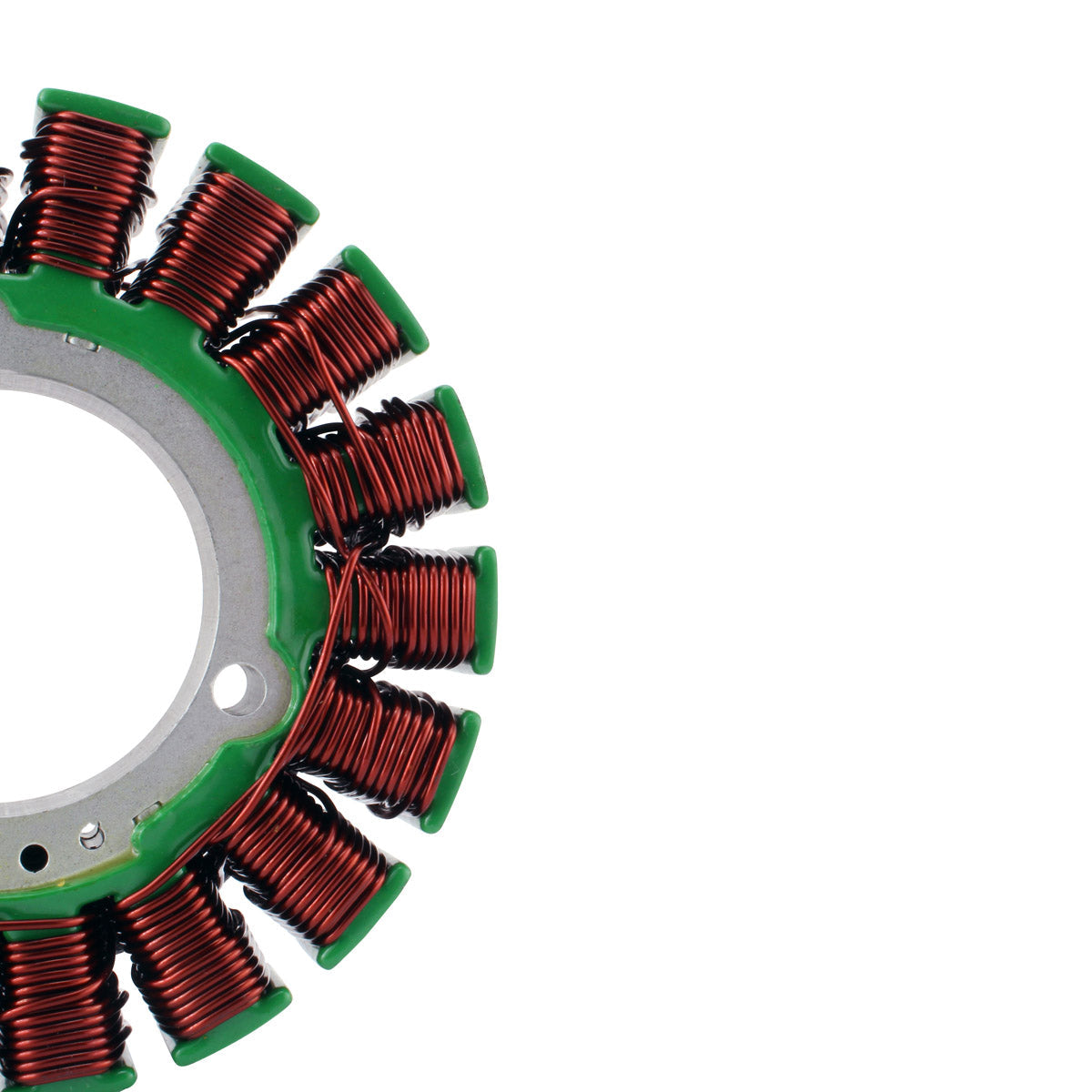

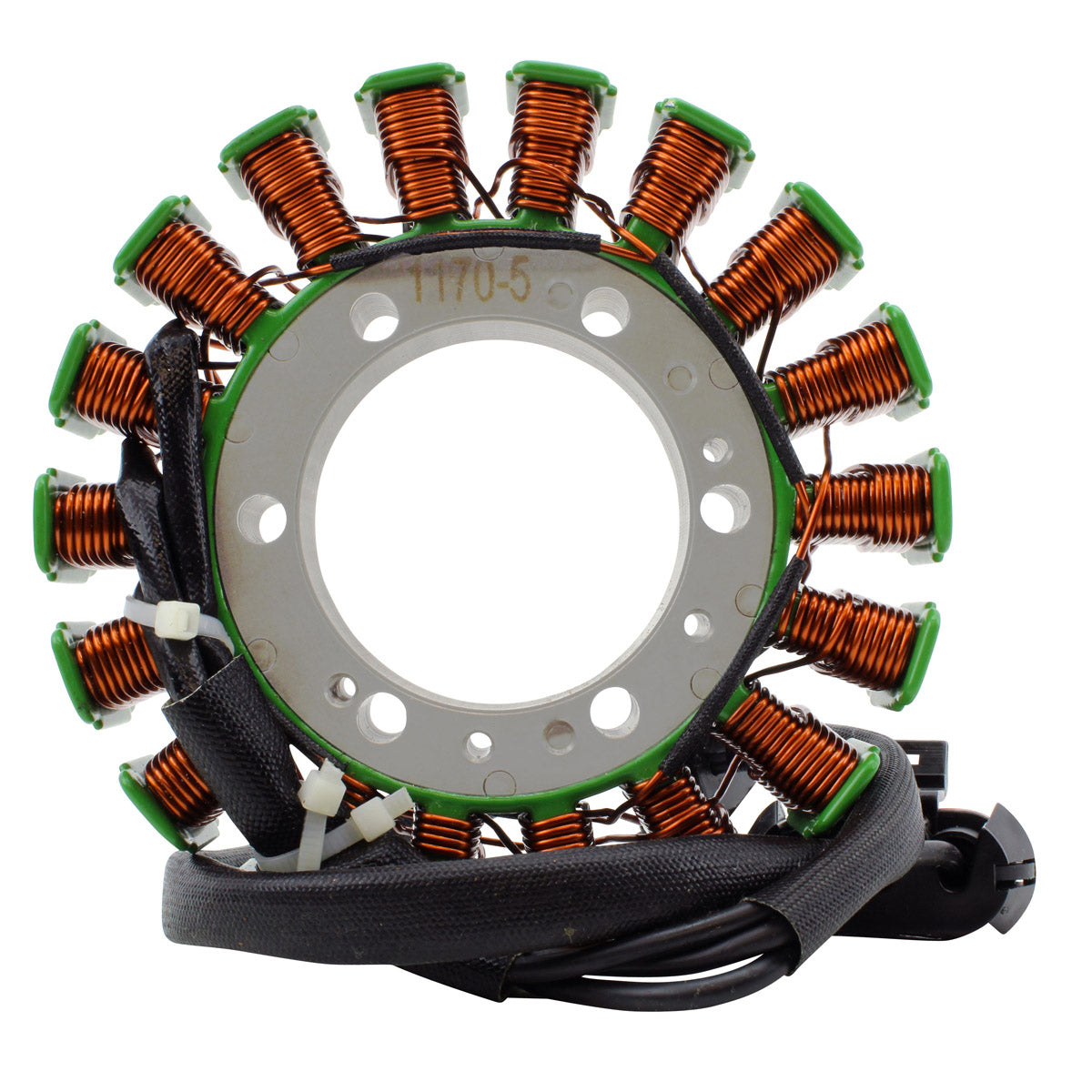

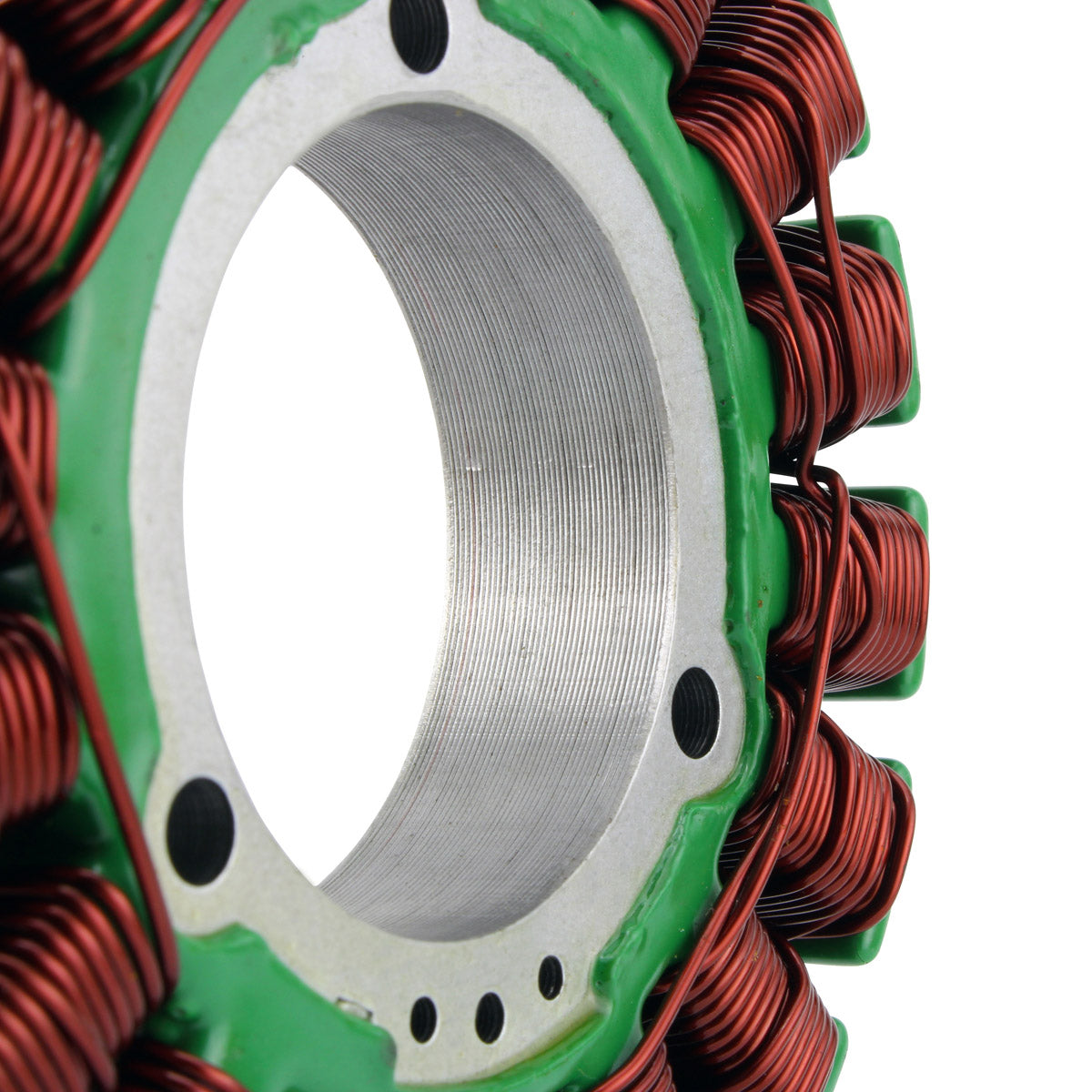

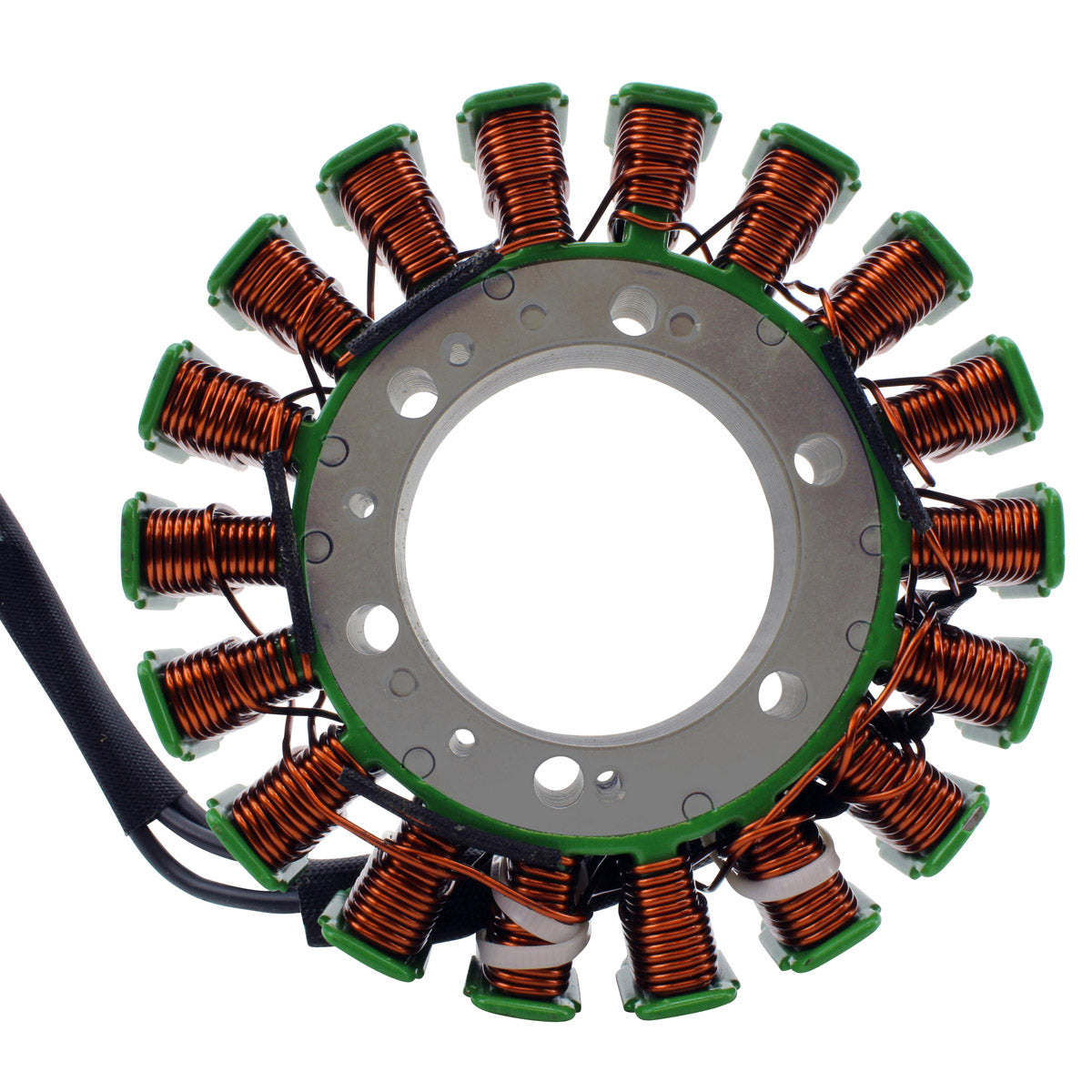

A brand new aftermarket generator stator built as a direct replacement for the original unit used across a wide span of the Polaris range - the Ranger 500, 570 and 900 utility vehicles, the RZR 900 and 1000 sport side-by-sides, and the Sportsman 570, 850 and 1000 ATVs. It is a compact three-phase stator with a single three-pin plug, restoring the charging output the machine was designed around.

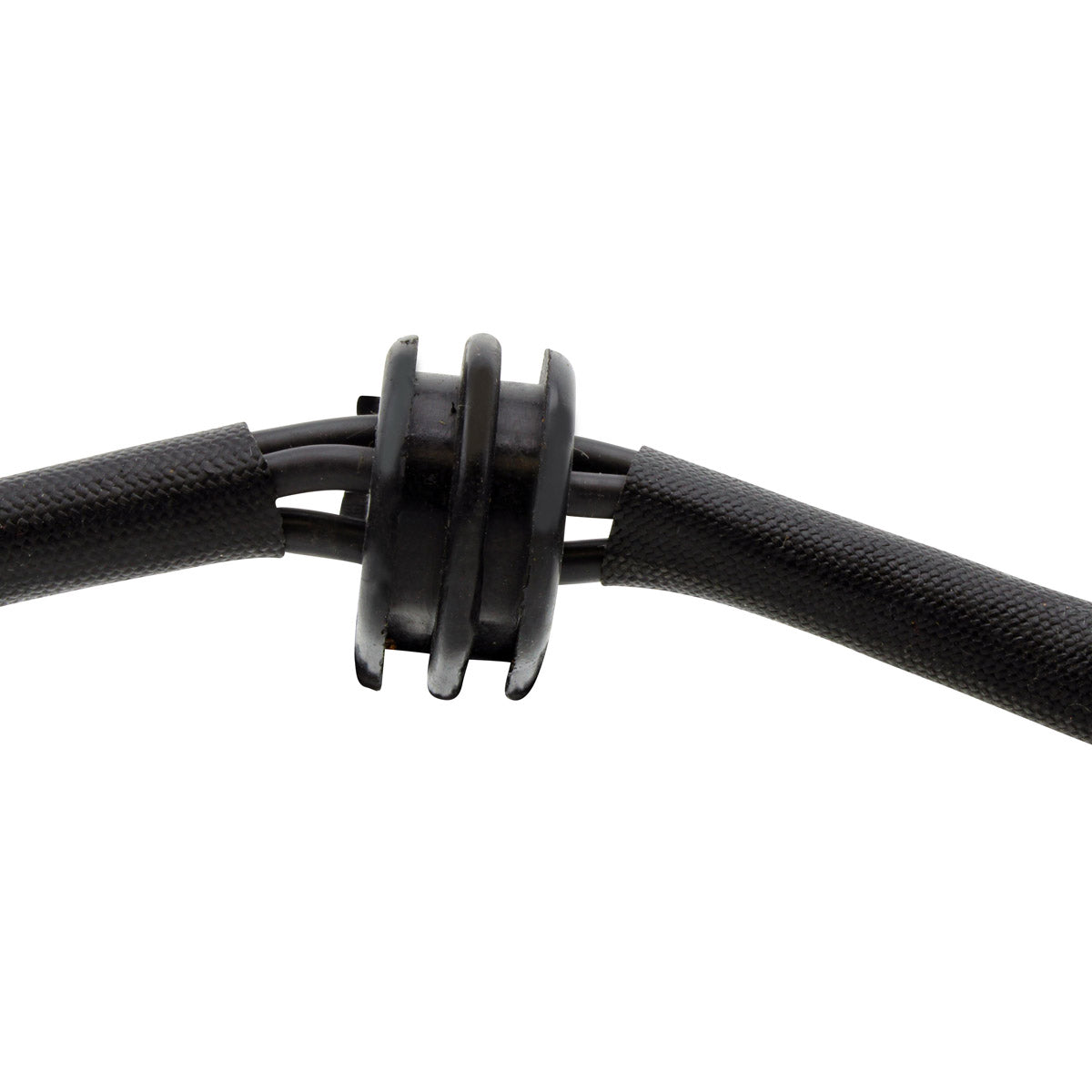

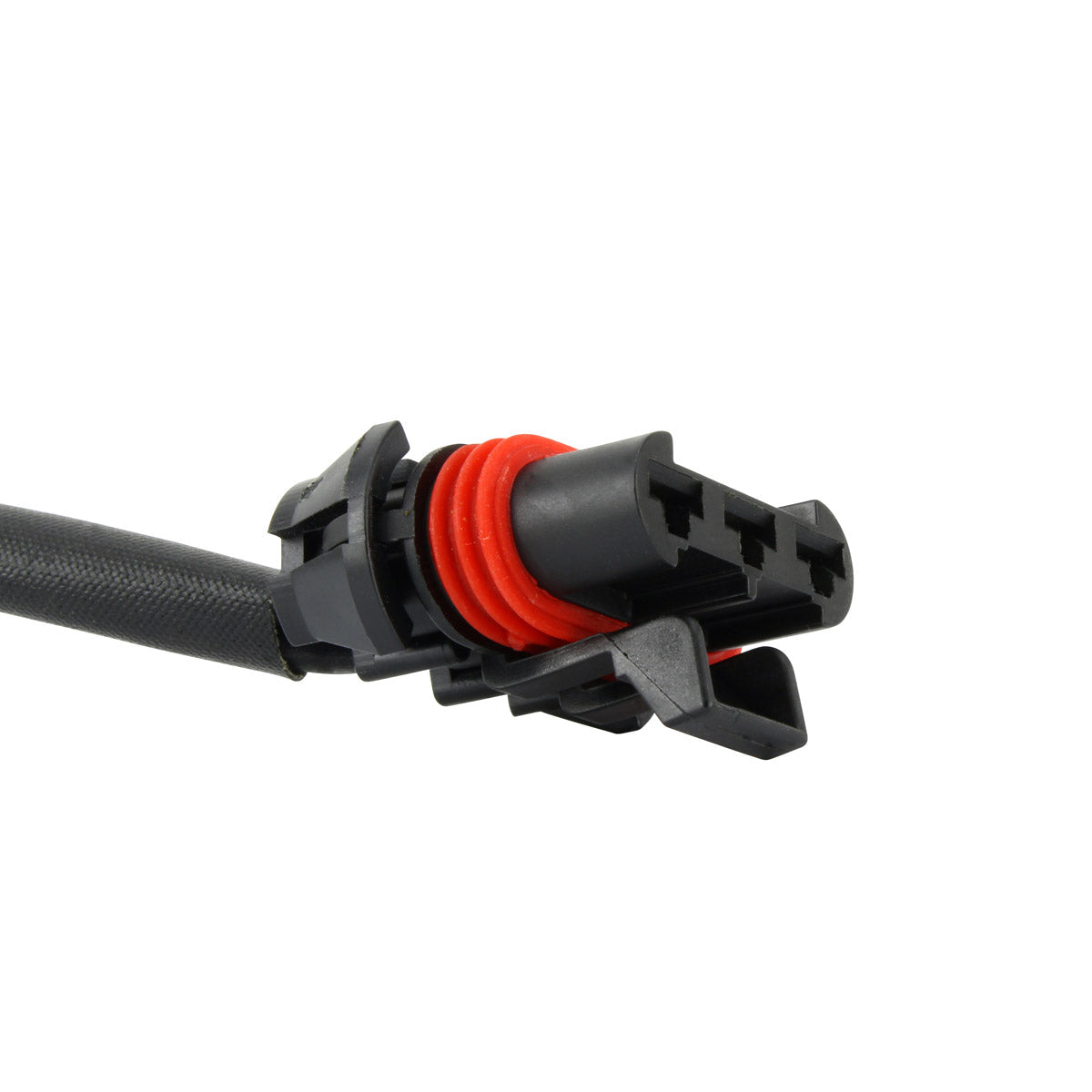

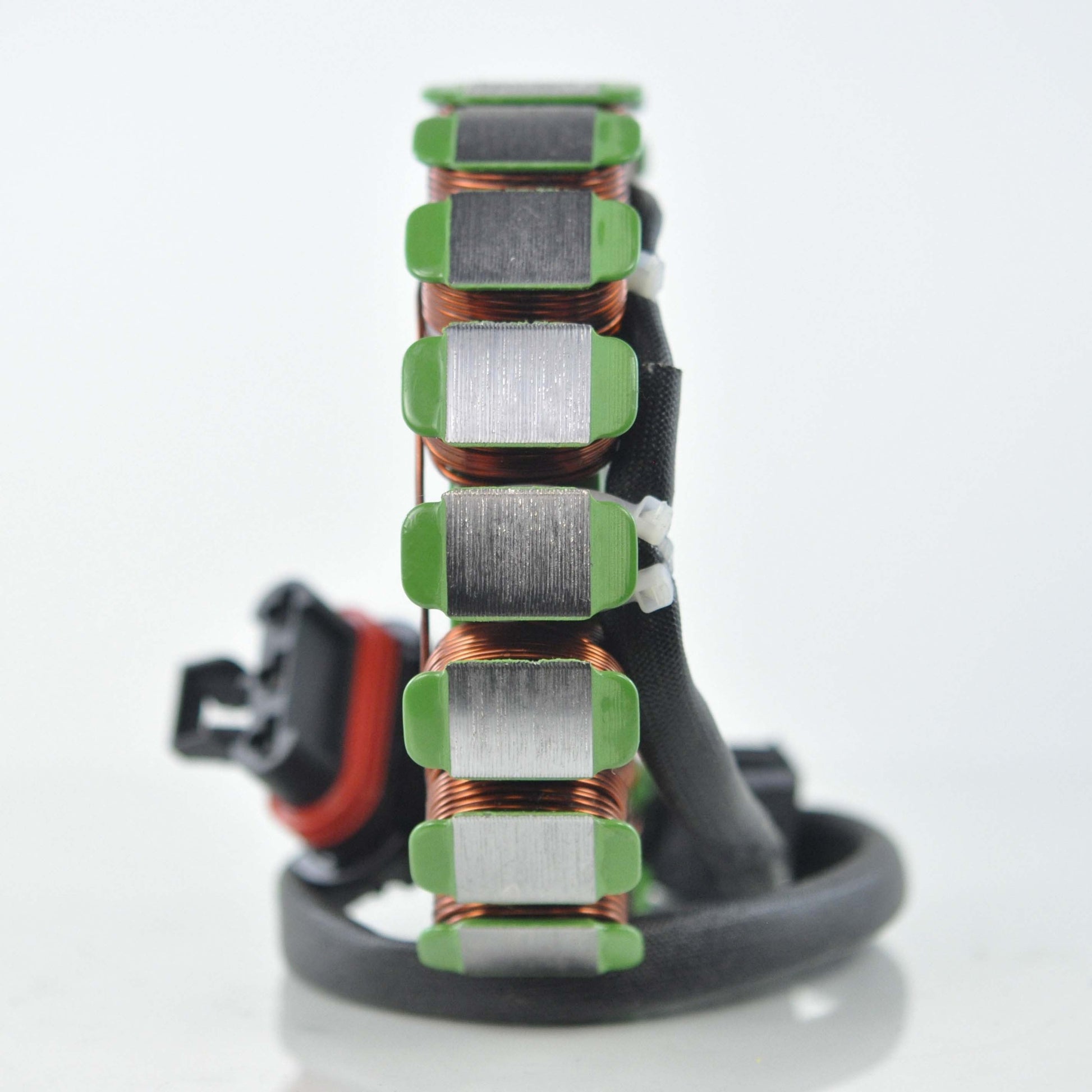

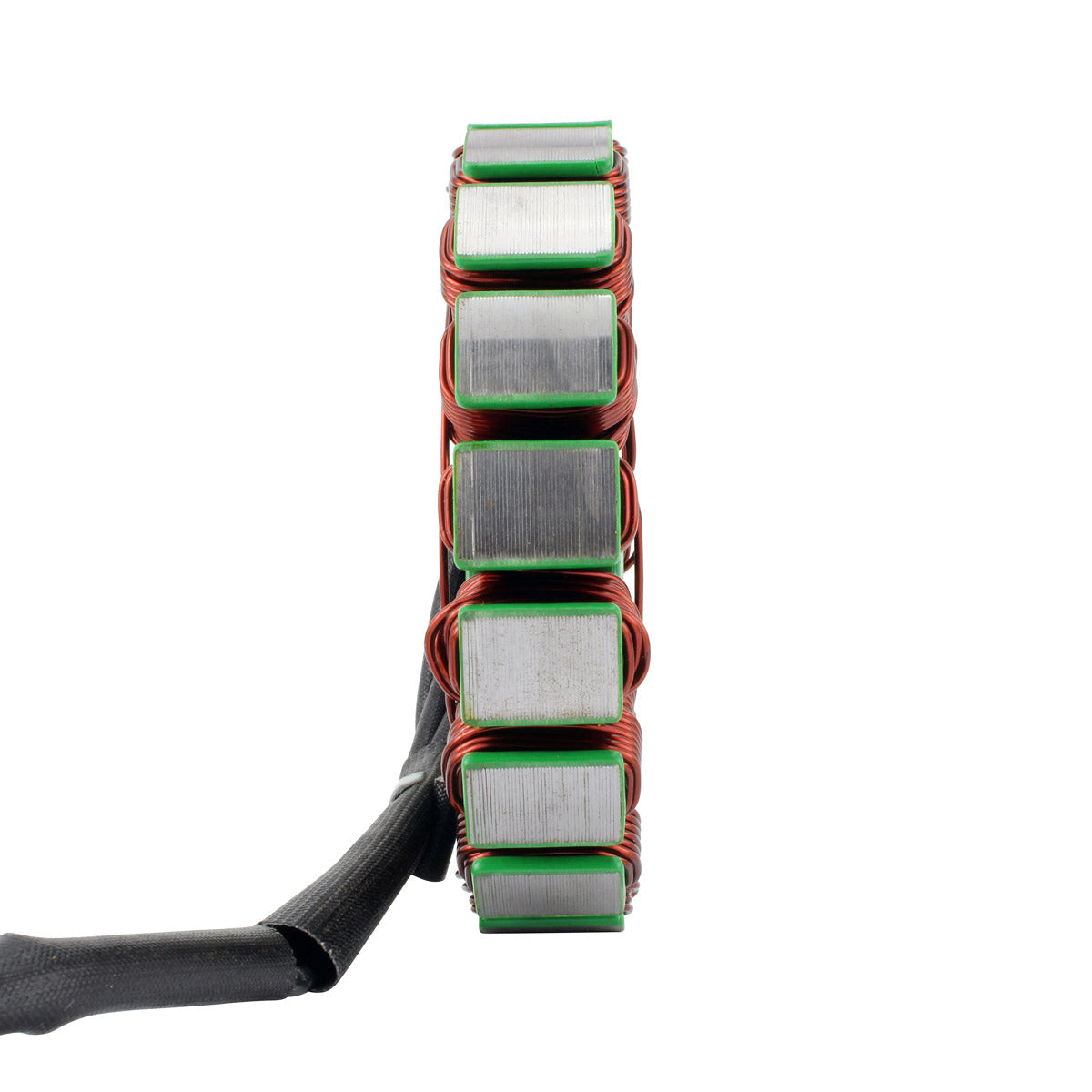

Fitting is plug-and-play: the 126 mm outer diameter, the 54 mm bore and the 19 mm stack thickness follow the factory pattern, and the harness runs 85 mm from the stator to the grommet and a further 290 mm to the plug, matching the original routing so nothing needs extending or splicing. The windings are the highest grade copper insulated to withstand 200 degrees Celsius, laid on the highest grade lamination material. The connector and the rubber grommet are supplied fitted, and every unit is electrically tested before it is despatched.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Covers Ranger, RZR and Sportsman models across a wide model span
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

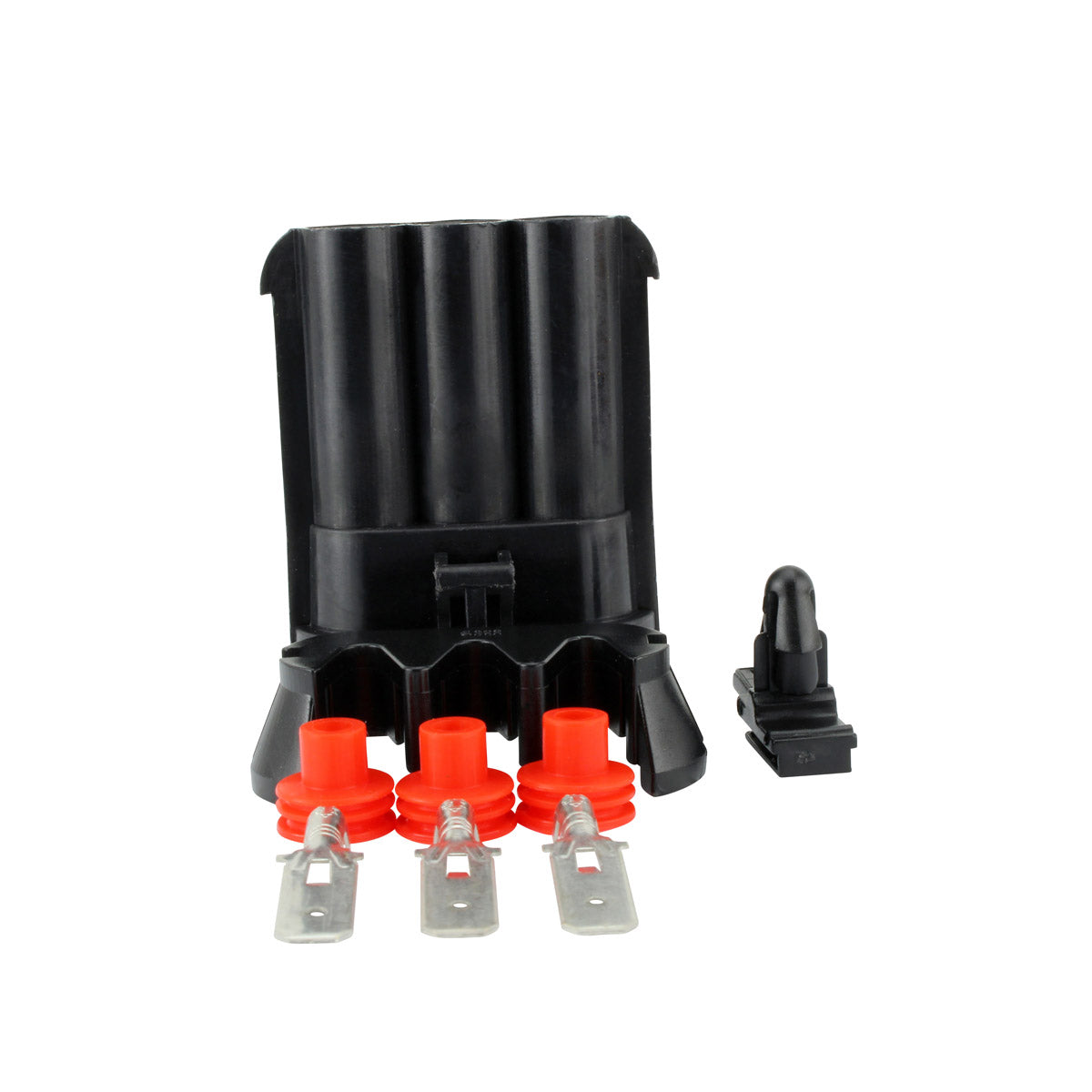

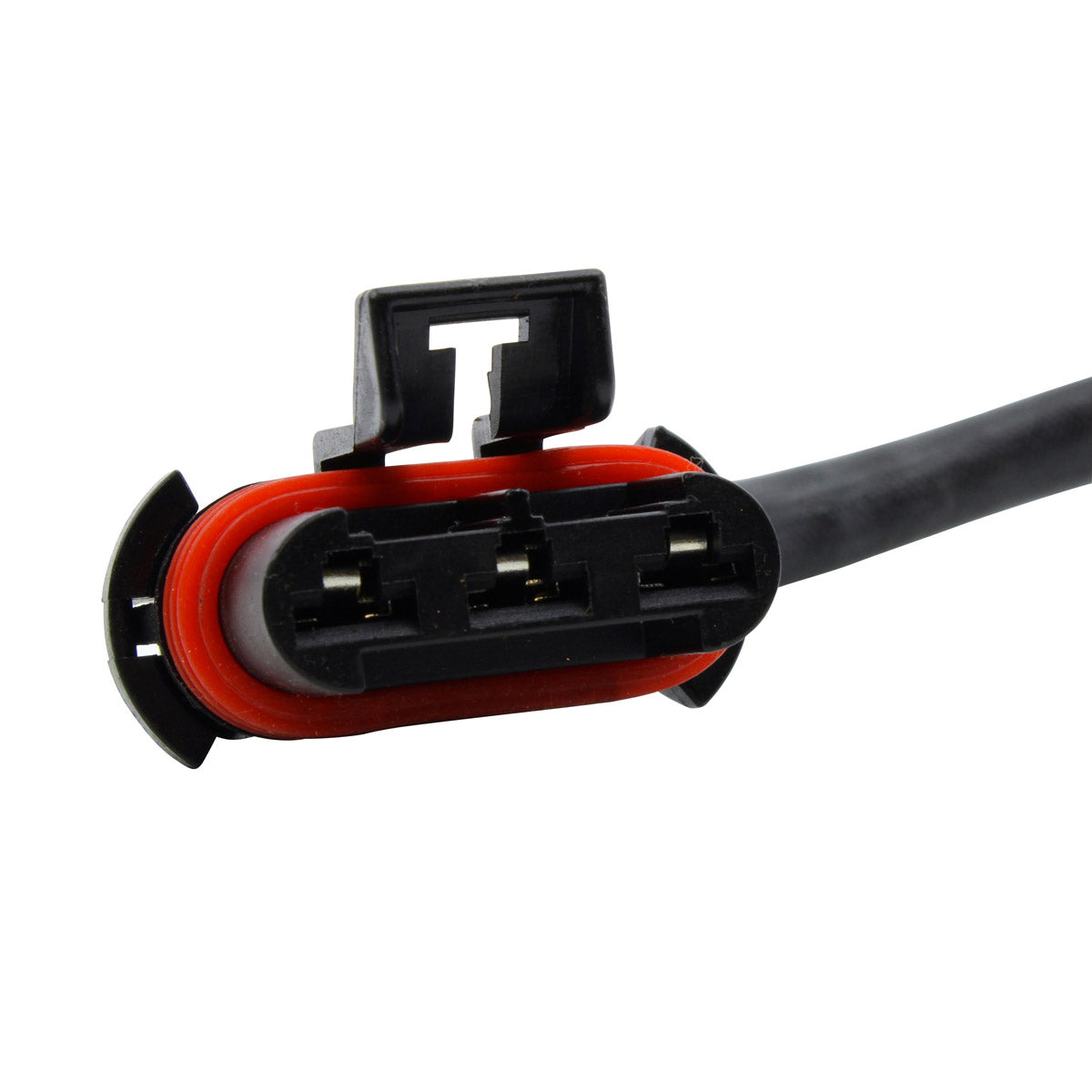

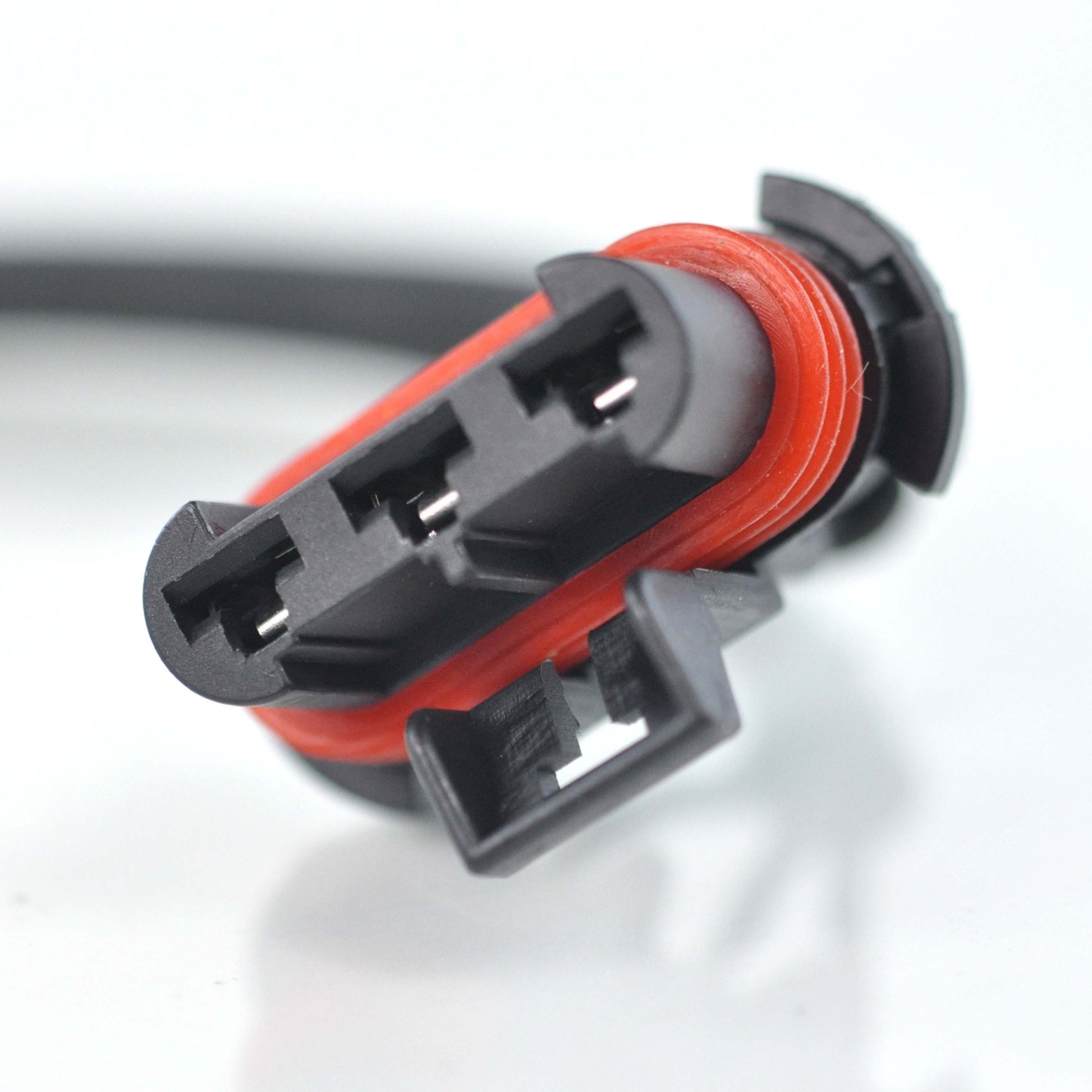

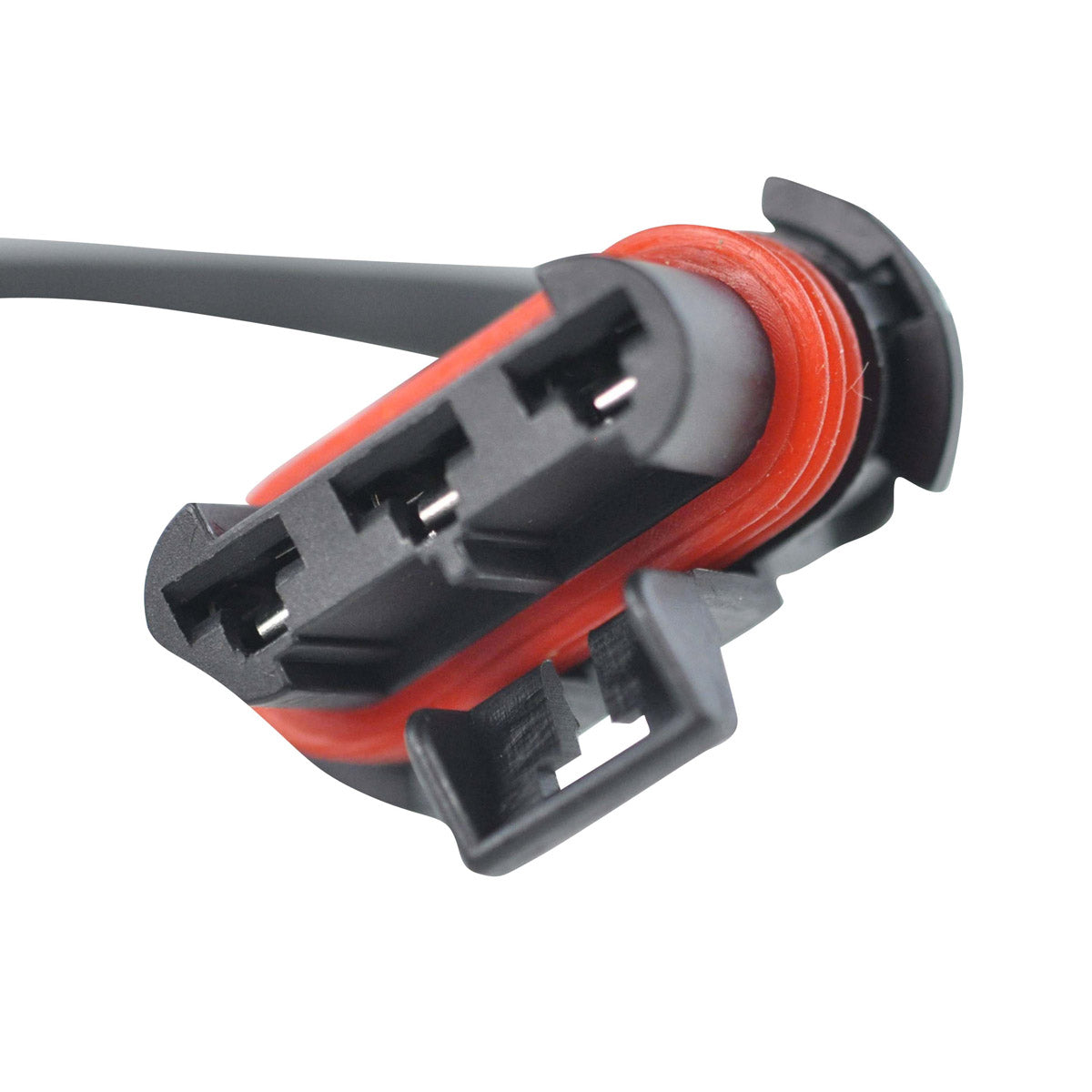

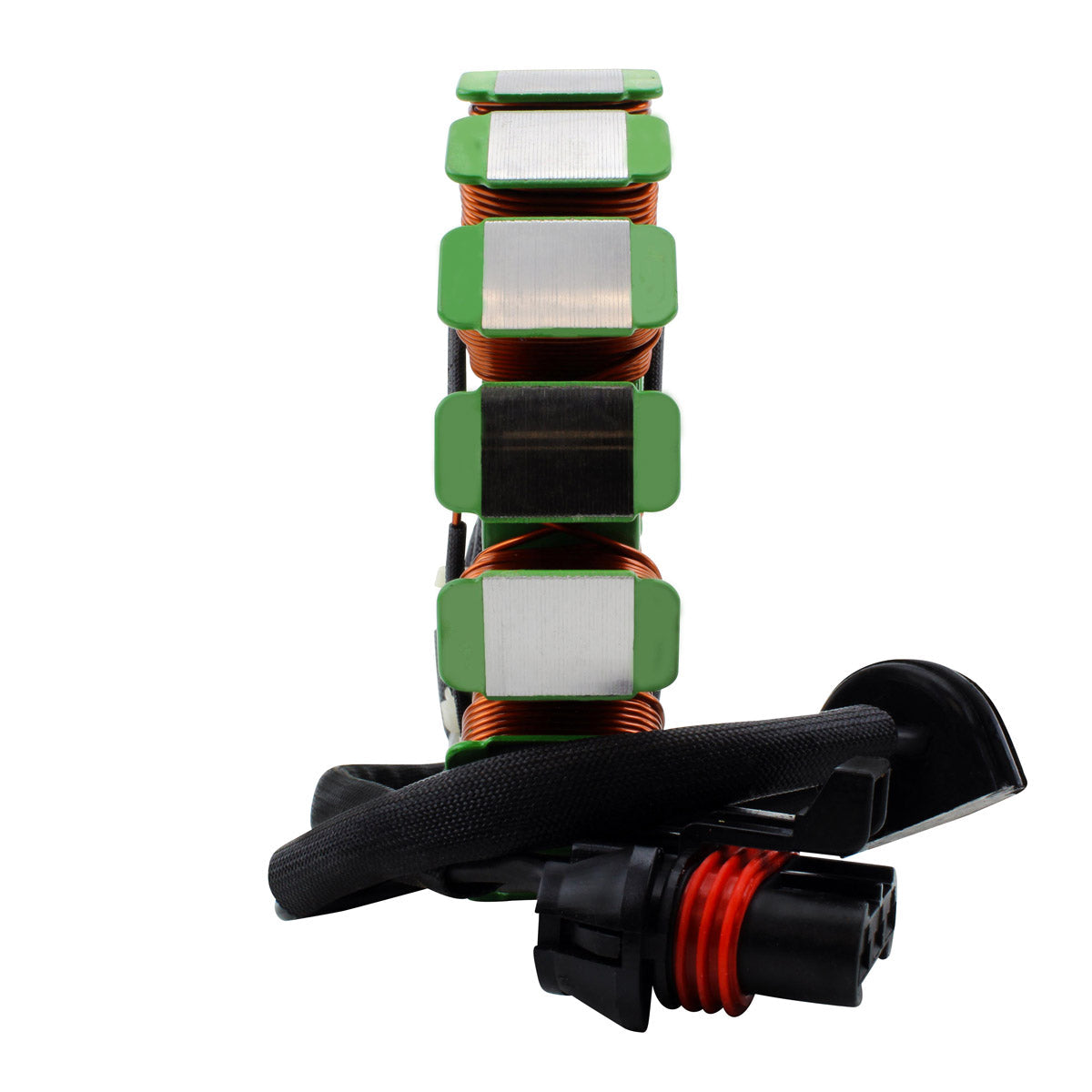

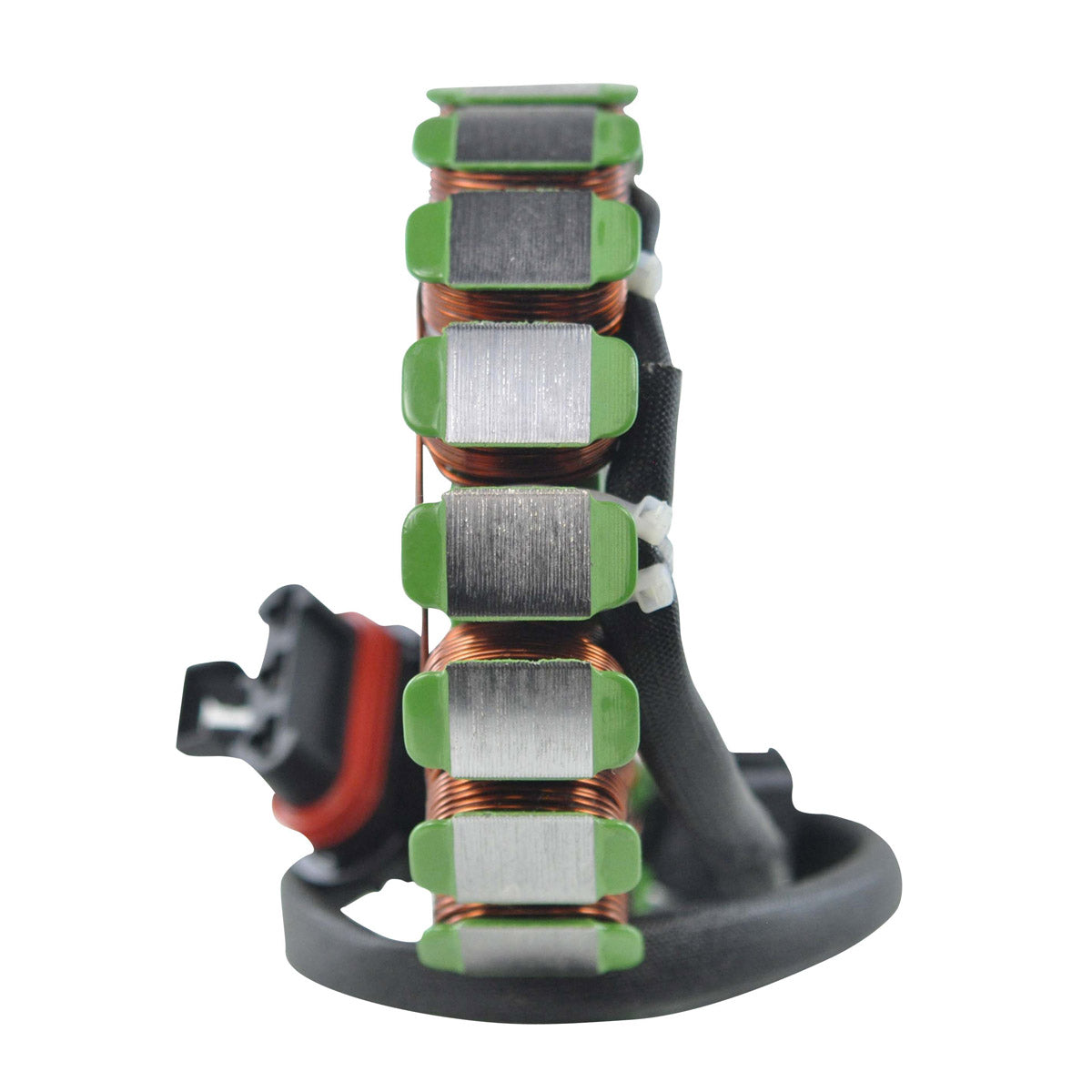

- Connector included

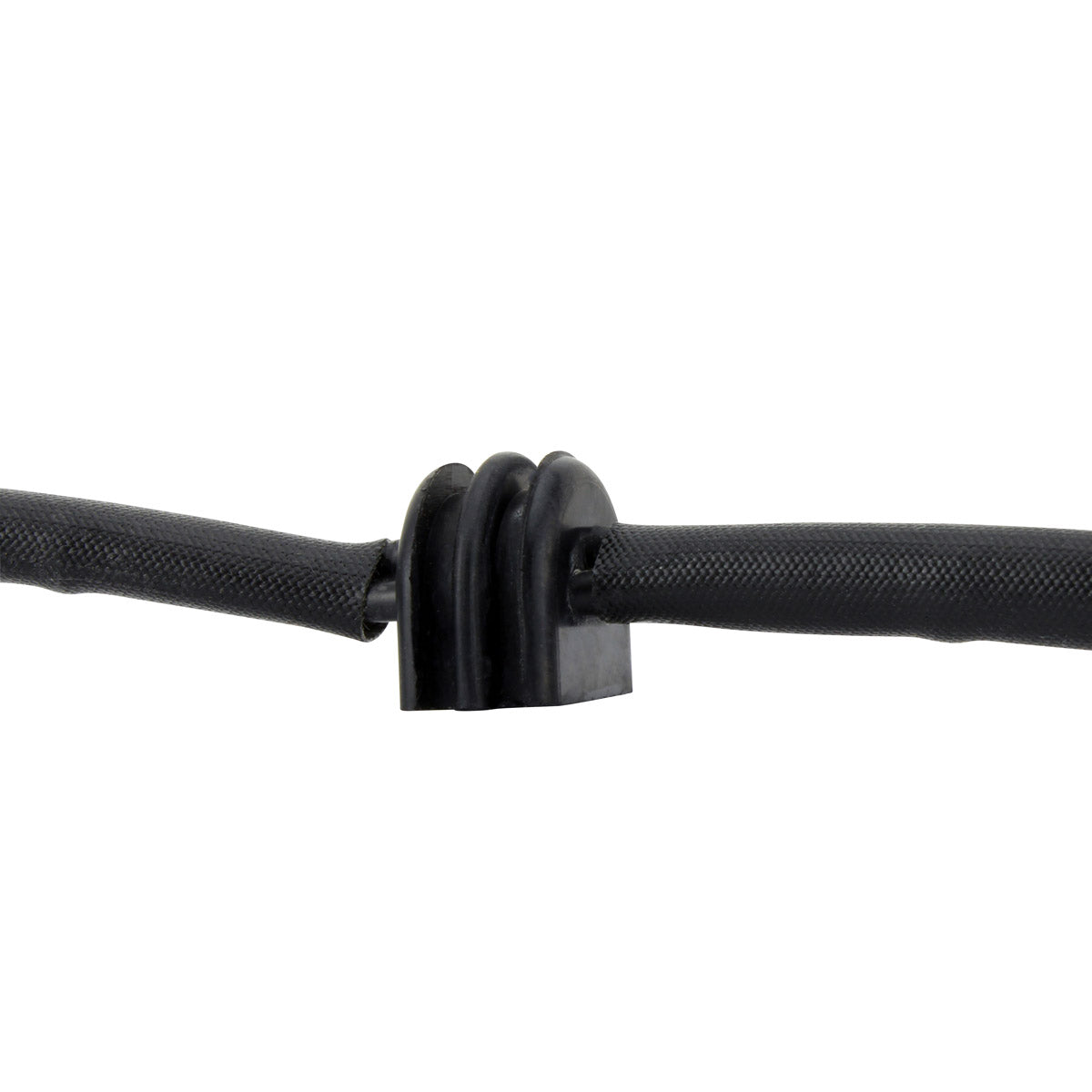

- Rubber grommet included
- Every unit tested before dispatch
Technical Specs
| Specification |
Detail |
| Manufacturer reference |
RM01394 |
| Interior diameter |
54 mm |
| Exterior diameter |
126 mm |
| Thickness |
19 mm |
| Wire length, stator to grommet |
85 mm |
| Wire length, grommet to plug |
290 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator, between each Black wire |
0.4 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Ranger 500 |
2012-2025 |
| Polaris Ranger 570 |
2012-2025 |
| Polaris Ranger 900 |
2012-2025 |
| Polaris RZR 900 |
2012-2025 |
| Polaris RZR 1000 |
2012-2025 |
| Polaris Sportsman 570 |
2012-2025 |
| Polaris Sportsman 850 |
2012-2025 |
| Polaris Sportsman 1000 |
2012-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4013013 |
Polaris |
| 4013970 |
Polaris |
| 4013990 |
Polaris |
| 4014402 |
Polaris |
| 4014406 |
Polaris |
| 4014839 |
Polaris |
| 4015292 |
Polaris |
| 4015340 |
Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play direct fit for the Polaris models listed above. The 126 mm outer diameter, the 54 mm bore and the single three-pin plug match the original, and the harness lengths follow the factory routing, so no cutting or splicing is required. Because this stator covers a wide model span, the safest check is the part number on your original unit against the cross reference table.
What is included?
The stator with its harness, the connector and the rubber grommet, supplied fitted. The flywheel, the stator cover and its gasket are not included and should be reused from your machine.
How do I tell whether my old stator has failed?
With a multimeter set to ohms, measure across each pair of Black wires - all three readings should be about 0.4 ohms, within plus or minus 20 per cent, and should be close to one another. A phase that reads noticeably higher or lower than the other two has broken down. Then check each Black wire against the stator body: any continuity to earth means a winding has shorted to the case. The typical symptoms are a battery that will not stay charged, charging voltage that does not rise above battery voltage at speed, or a machine that dies as soon as the winch or lights are used.
Should I replace the regulator rectifier at the same time?
It is worth testing it. On these Polaris machines a failing regulator rectifier can overheat the stator windings and take the new stator with it, so if the old unit failed by shorting to earth, check the regulator before the replacement goes in.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
