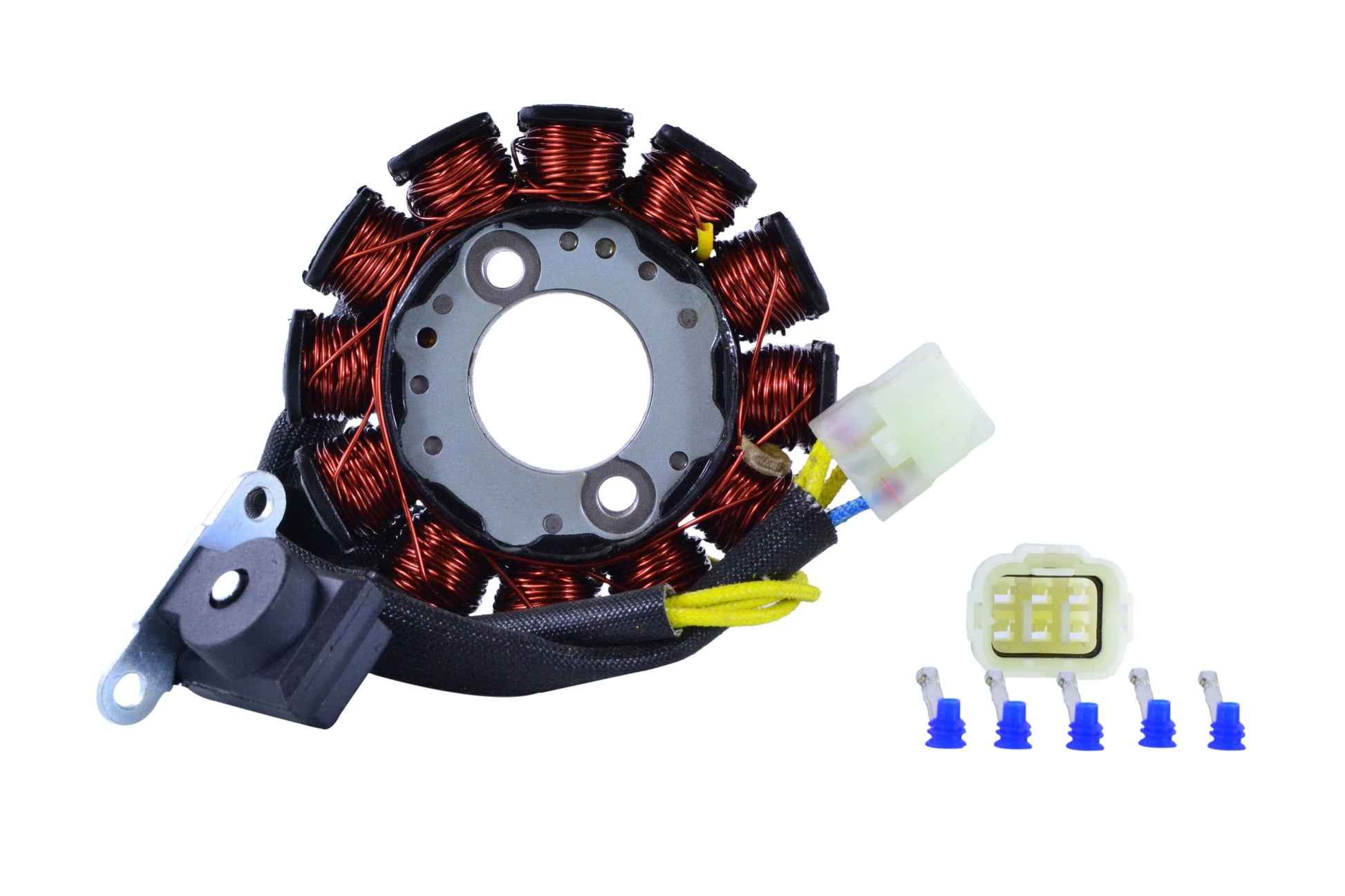

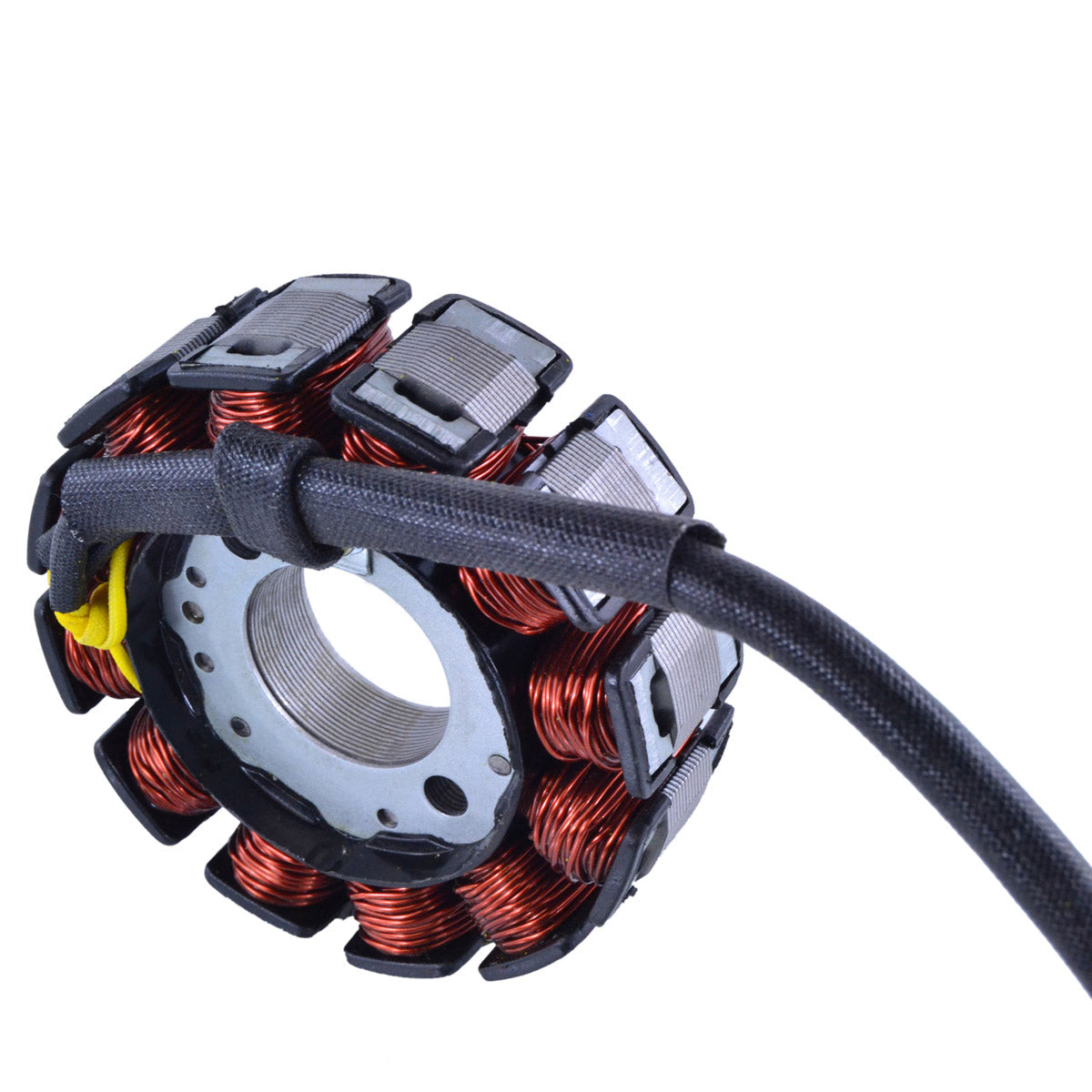

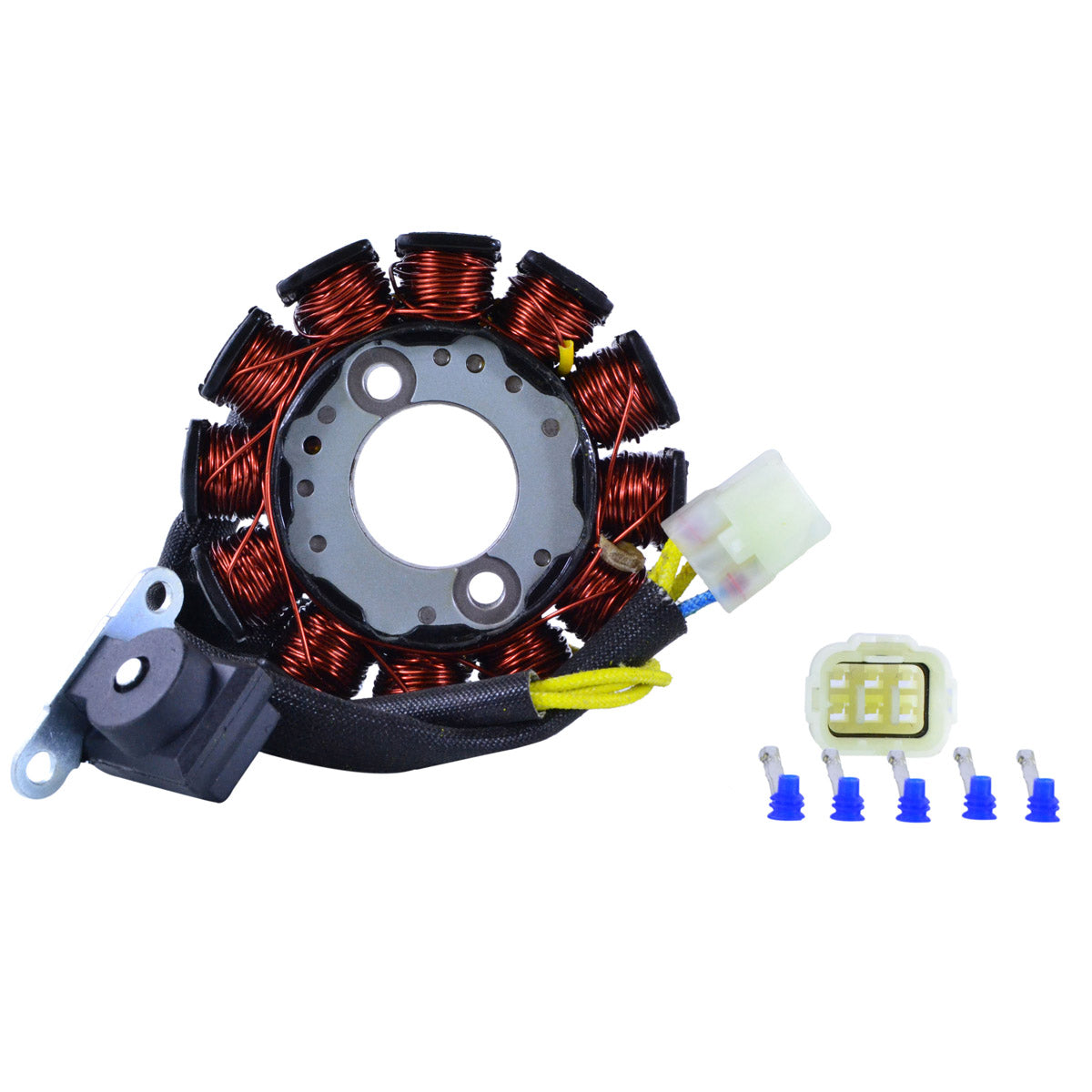

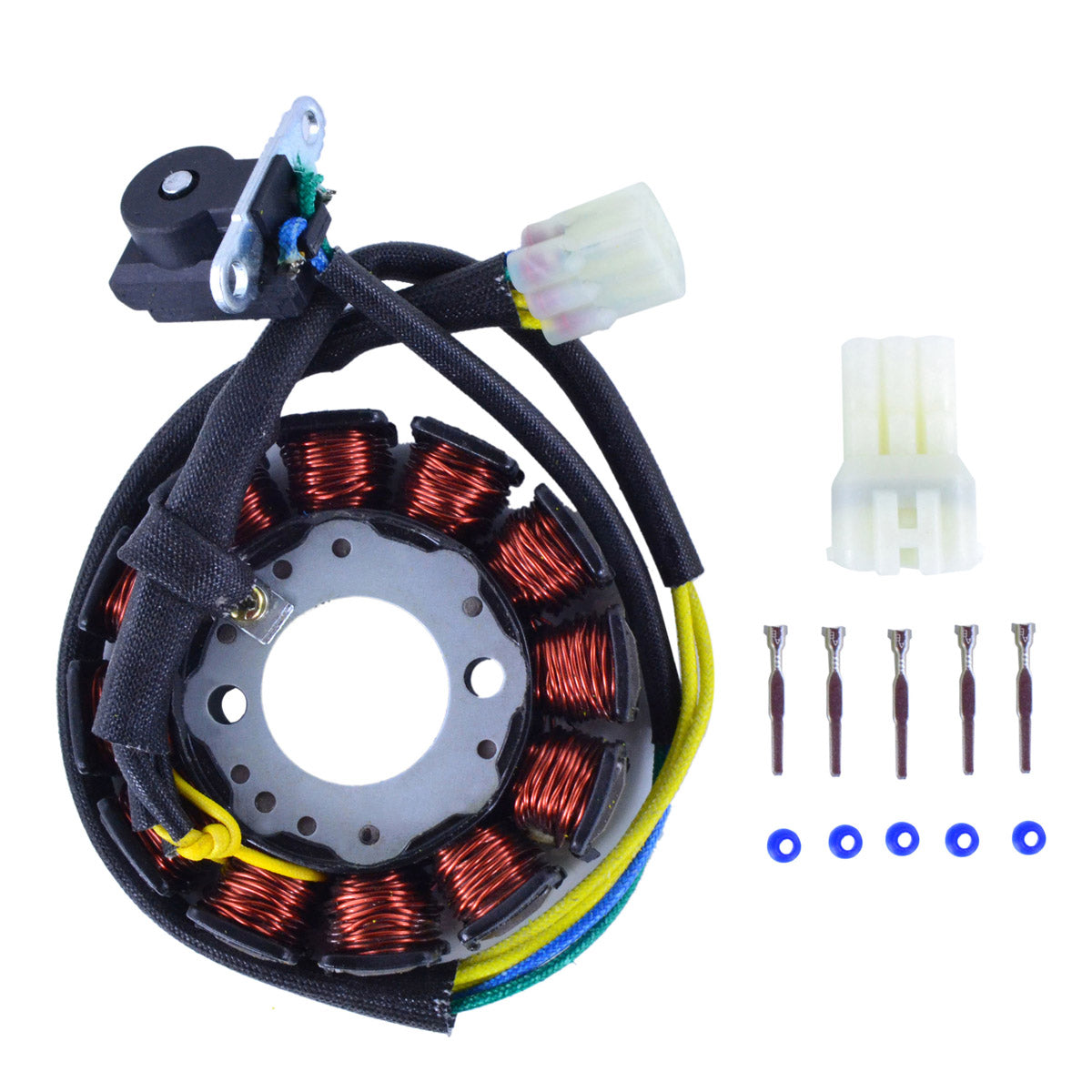

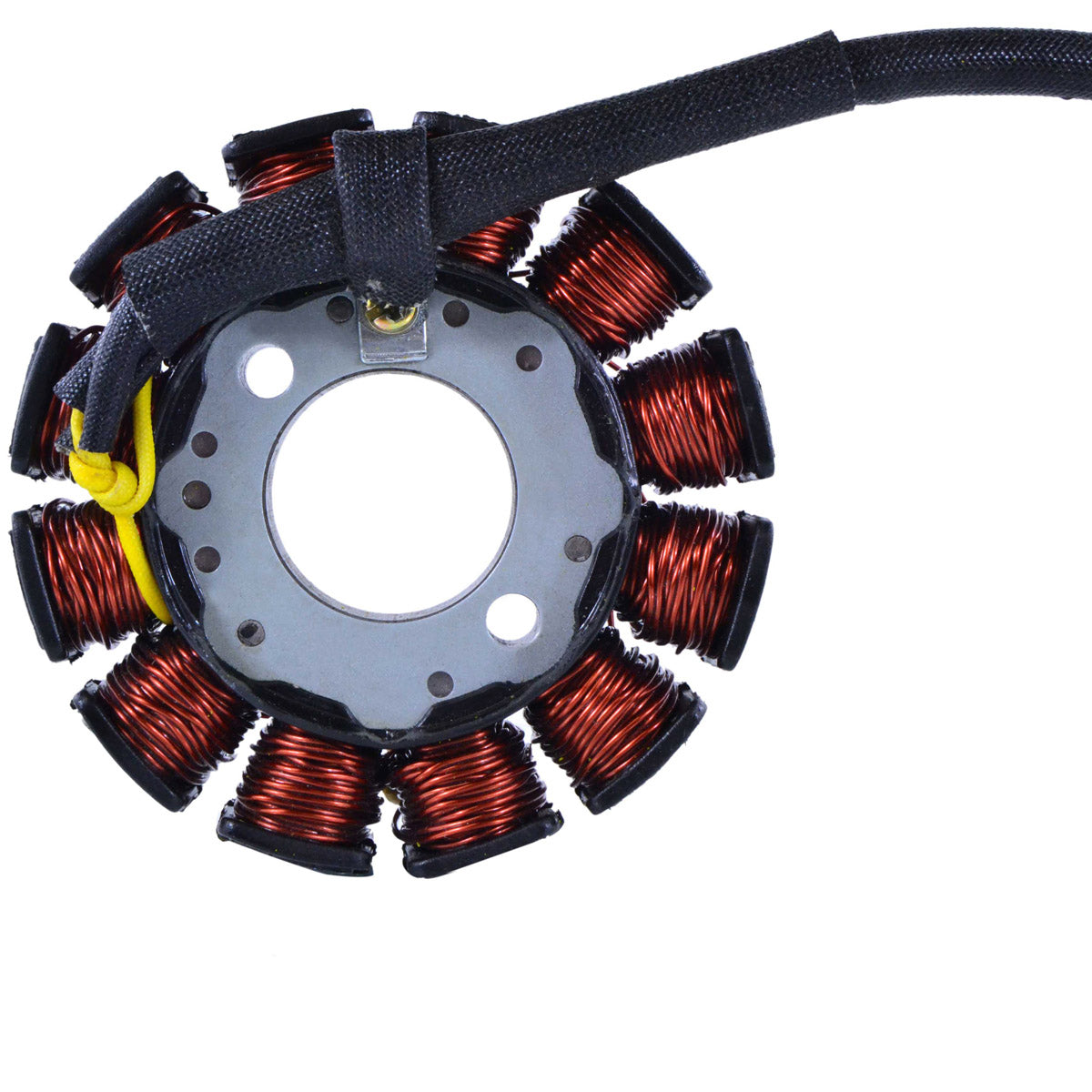

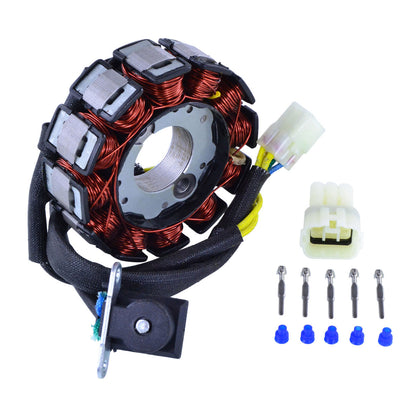

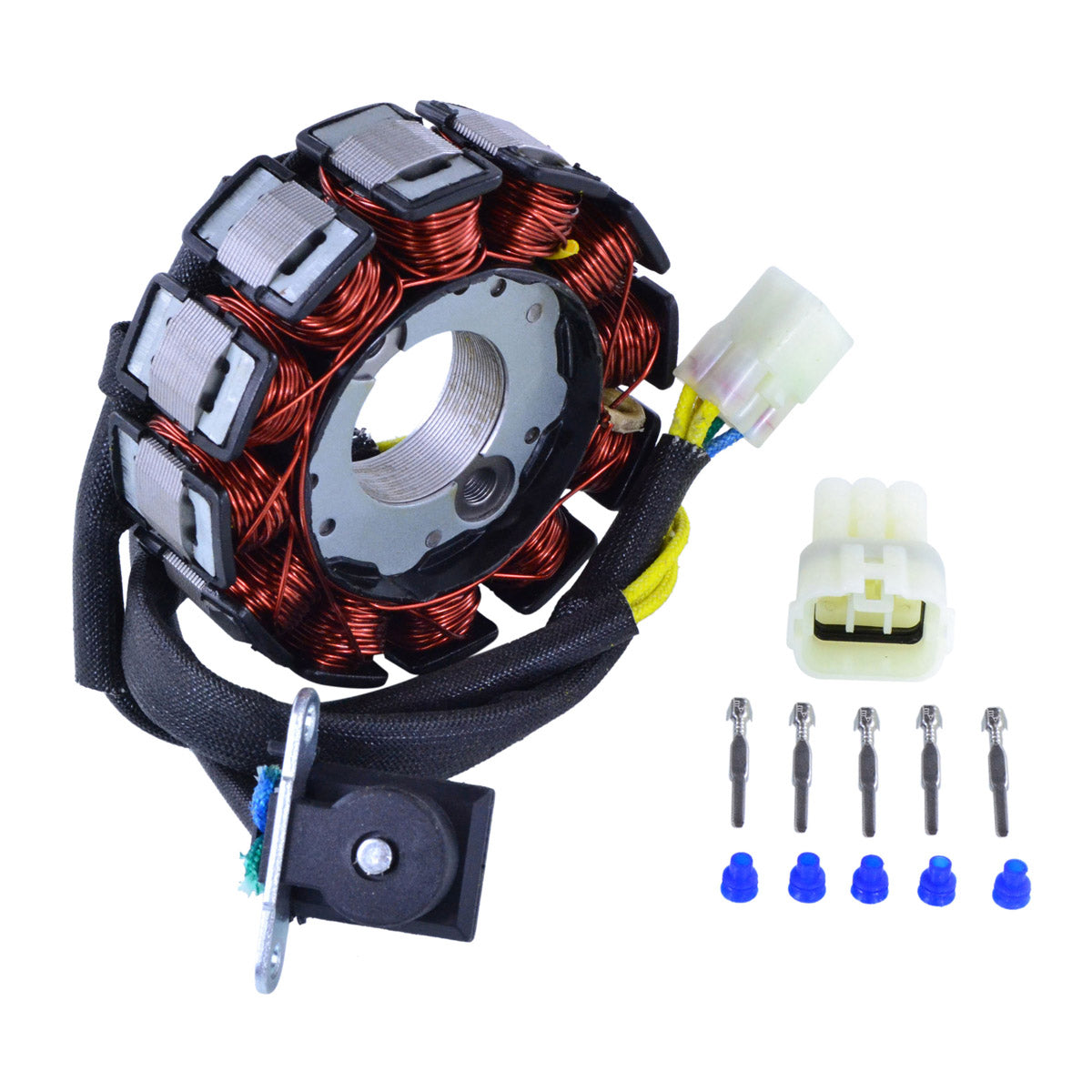

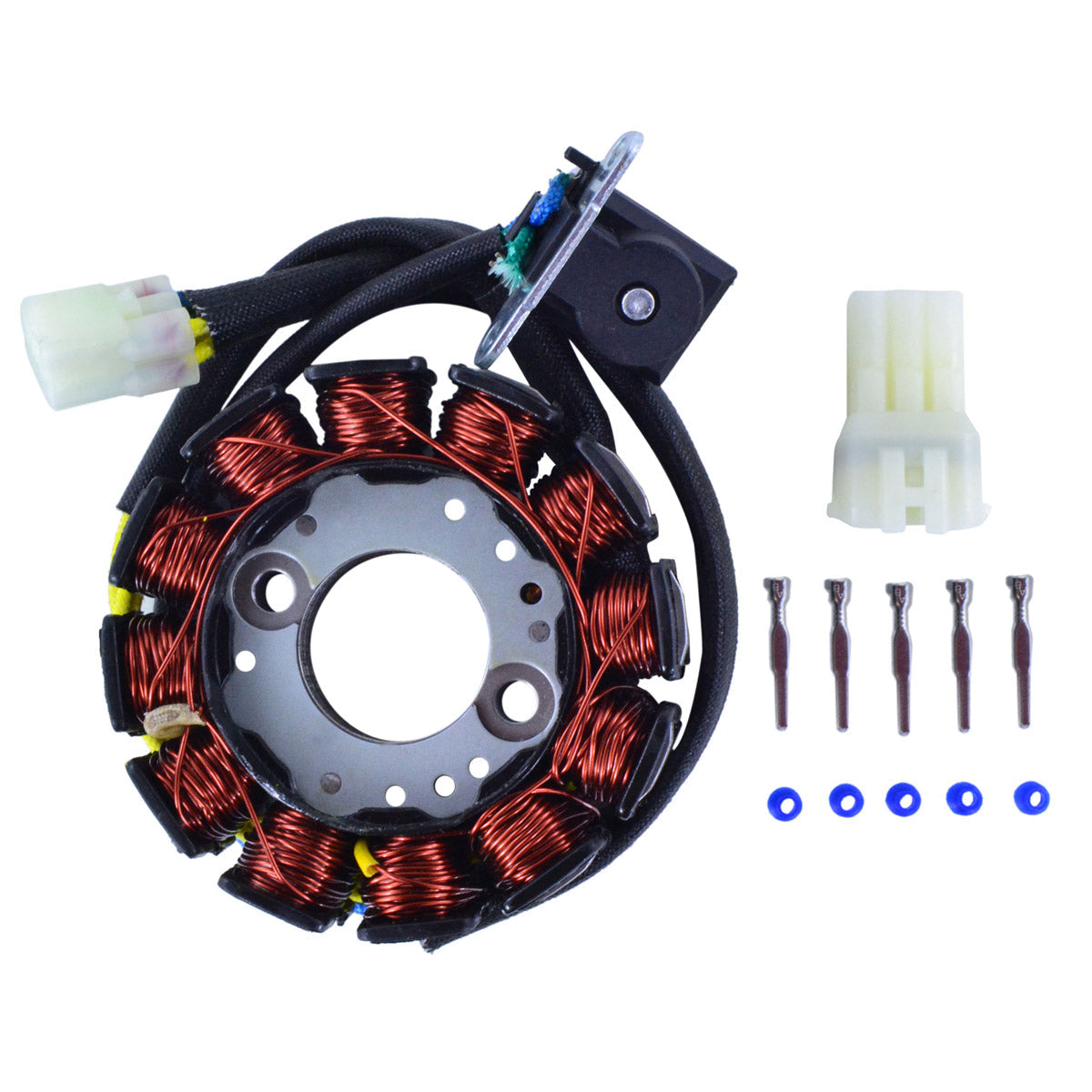

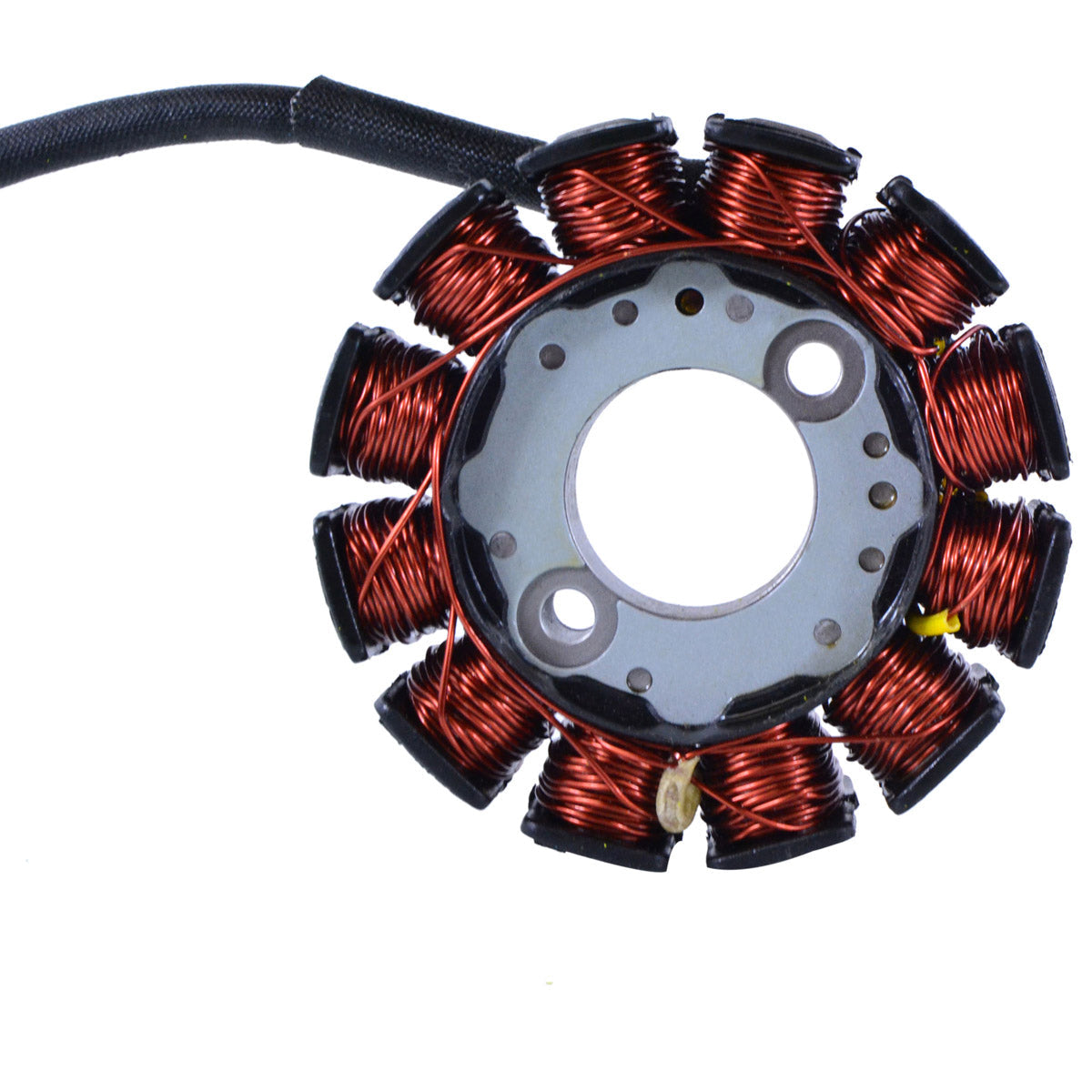

This is a brand new aftermarket stator, supplied complete with its pick up pulsar coil, built as a direct replacement for the original charging unit fitted to the Polaris RZR 170 UTV for model years 2015, 2016, 2017, 2018, 2019, 2020 and 2021. It replaces OEM part number 0455068. The unit is a plug-and-play, direct fit and very easy to install, so the loom and the engine cases are left untouched.
The stator uses the highest grade of lamination materials and the highest grade of copper winding, resistant to 200 degrees Celsius. The pick up pulsar coil and connector are included, along with the opposite connector for the main harness side. All products shipped are tested. Our part number for this stator is RMS010-104230.
Key Features
- Brand new aftermarket generator stator, not a rewound or repaired unit
- Direct replacement for OEM 0455068
- Plug-and-play, direct fit, very easy to install
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

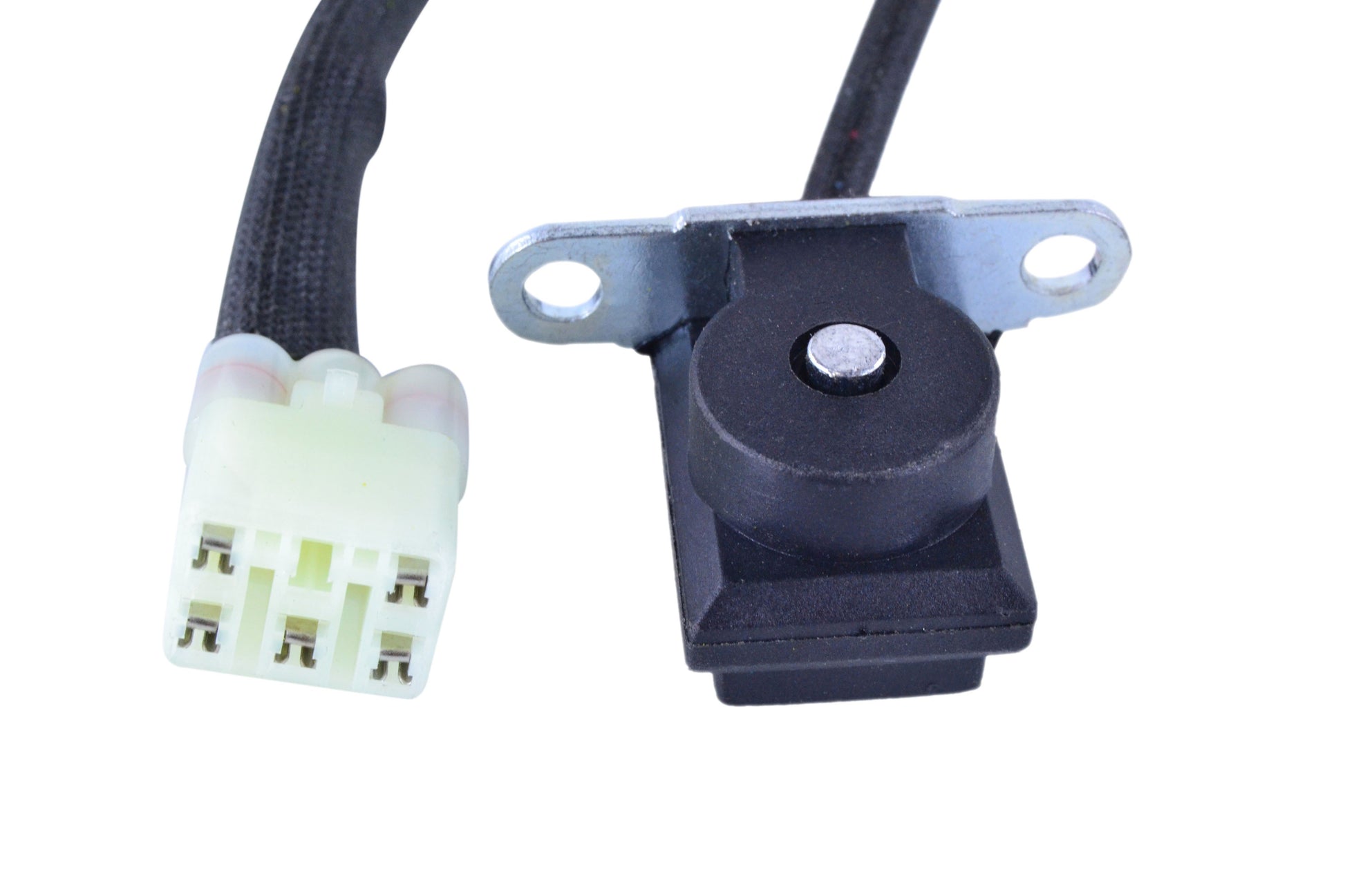

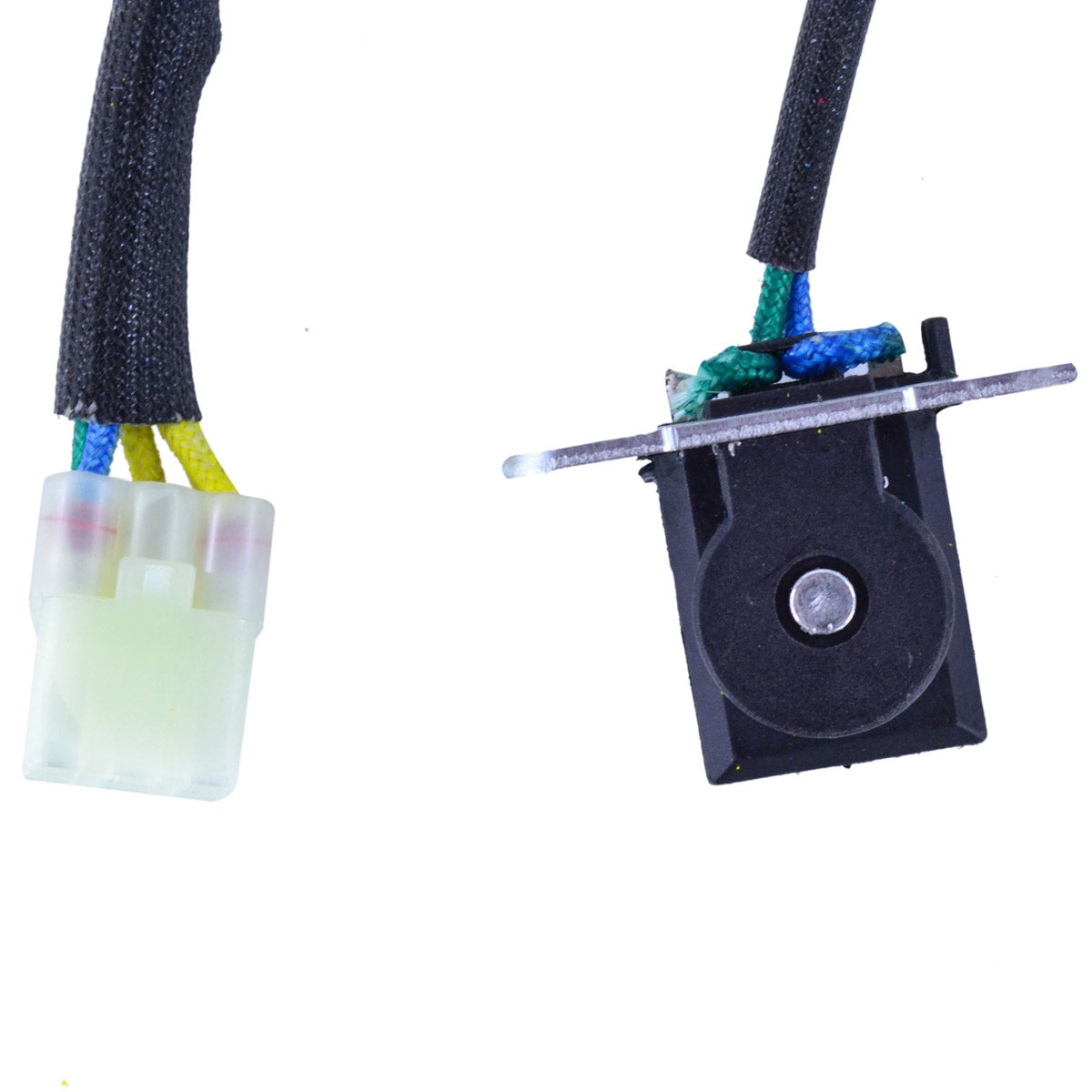

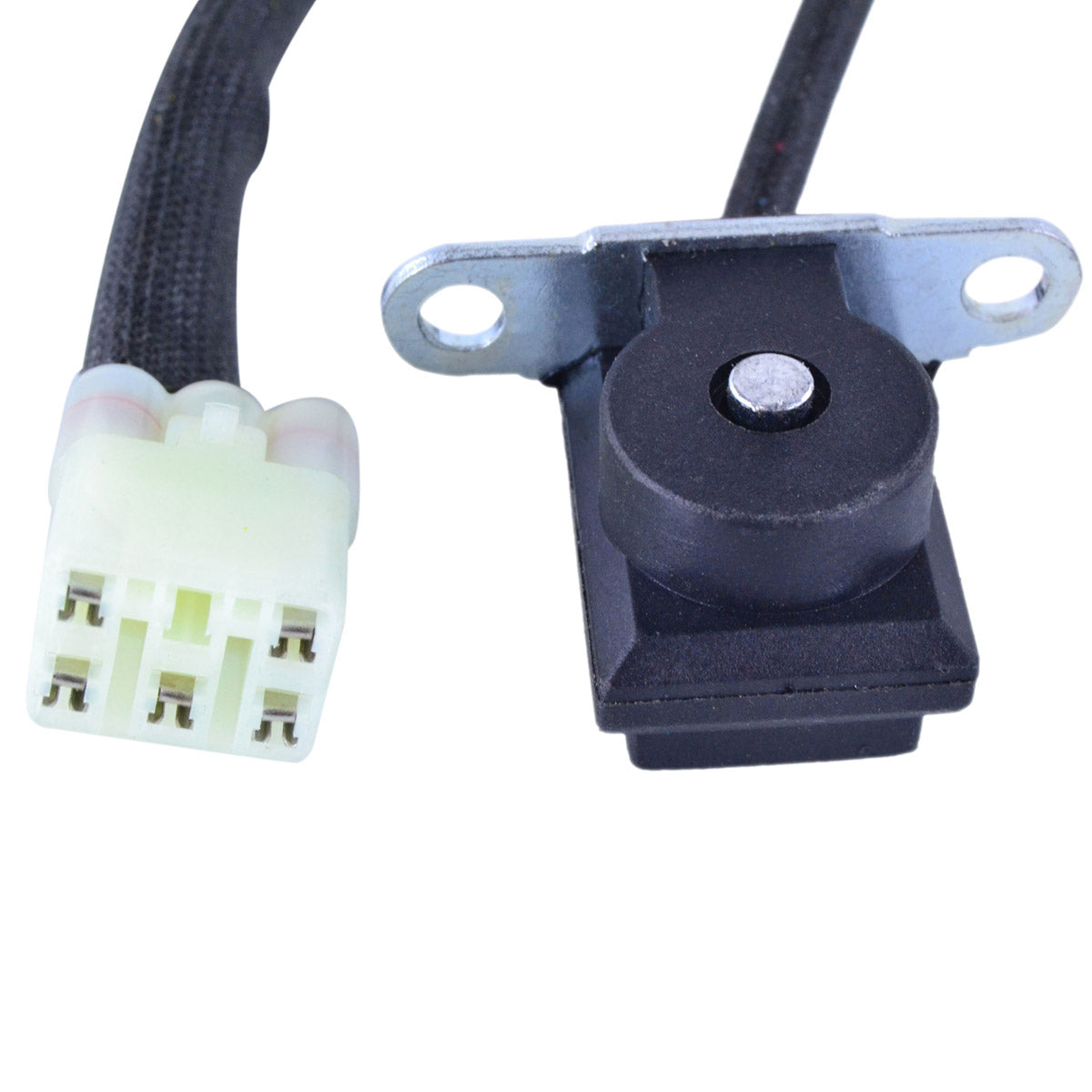

- Pick up pulsar coil included

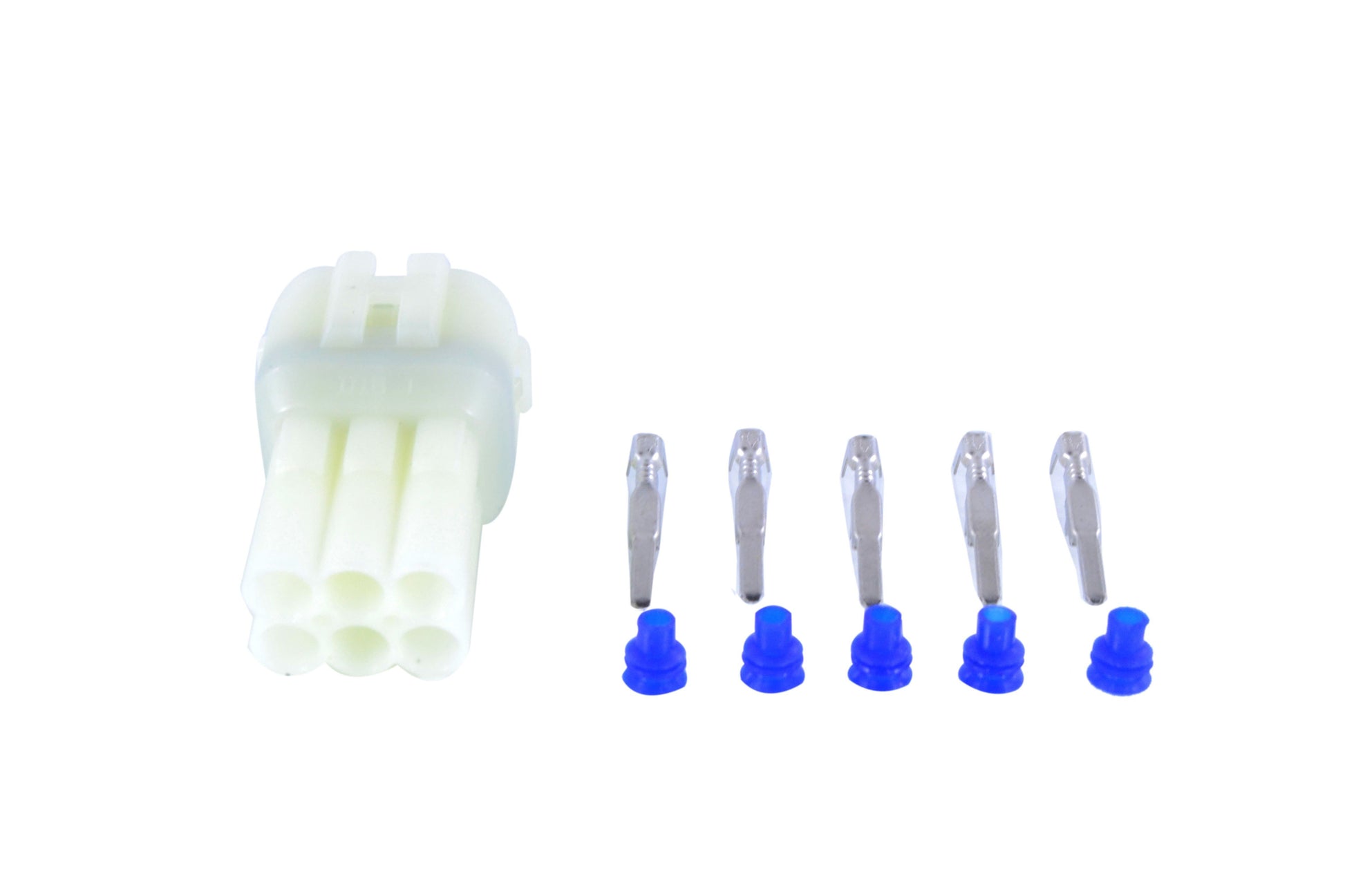

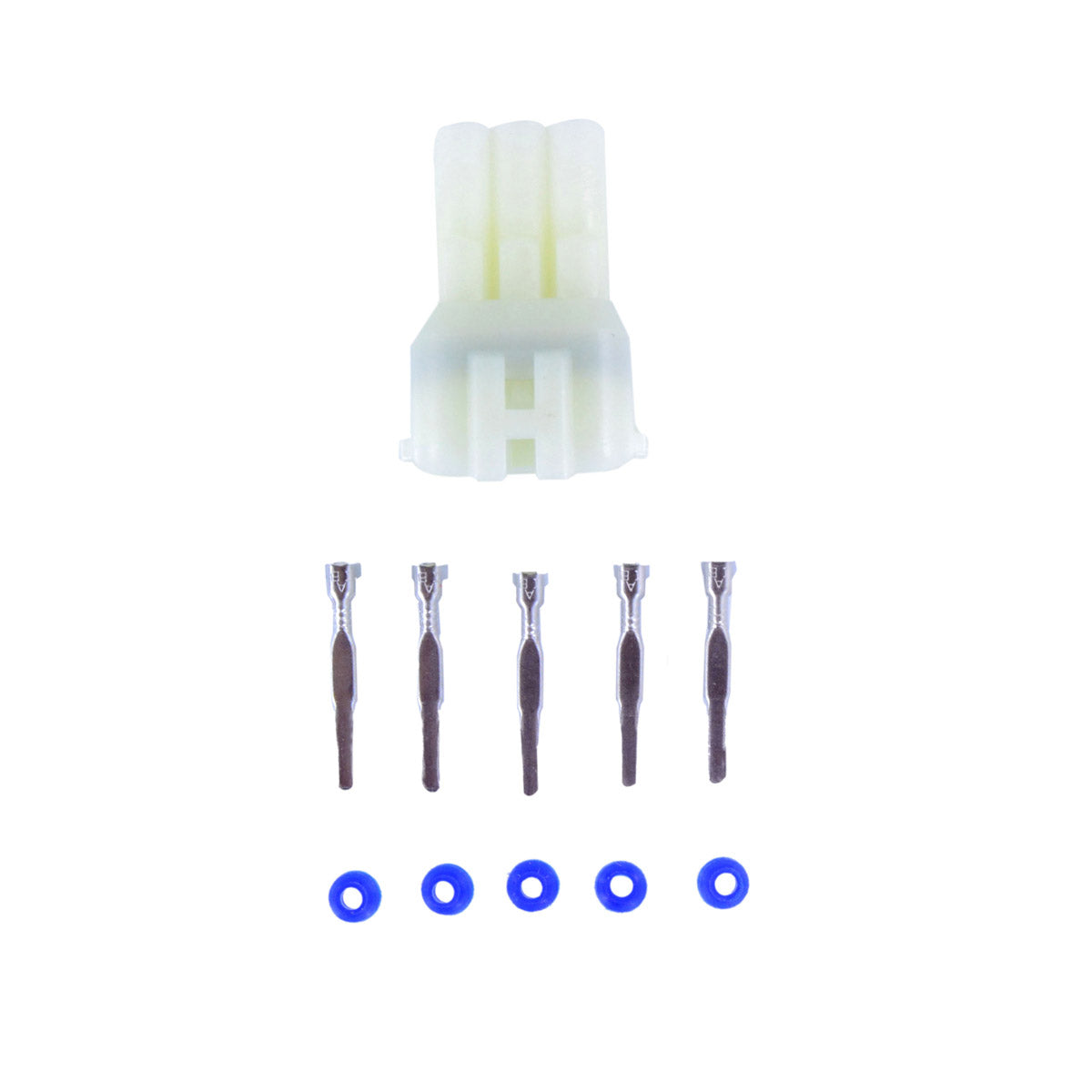

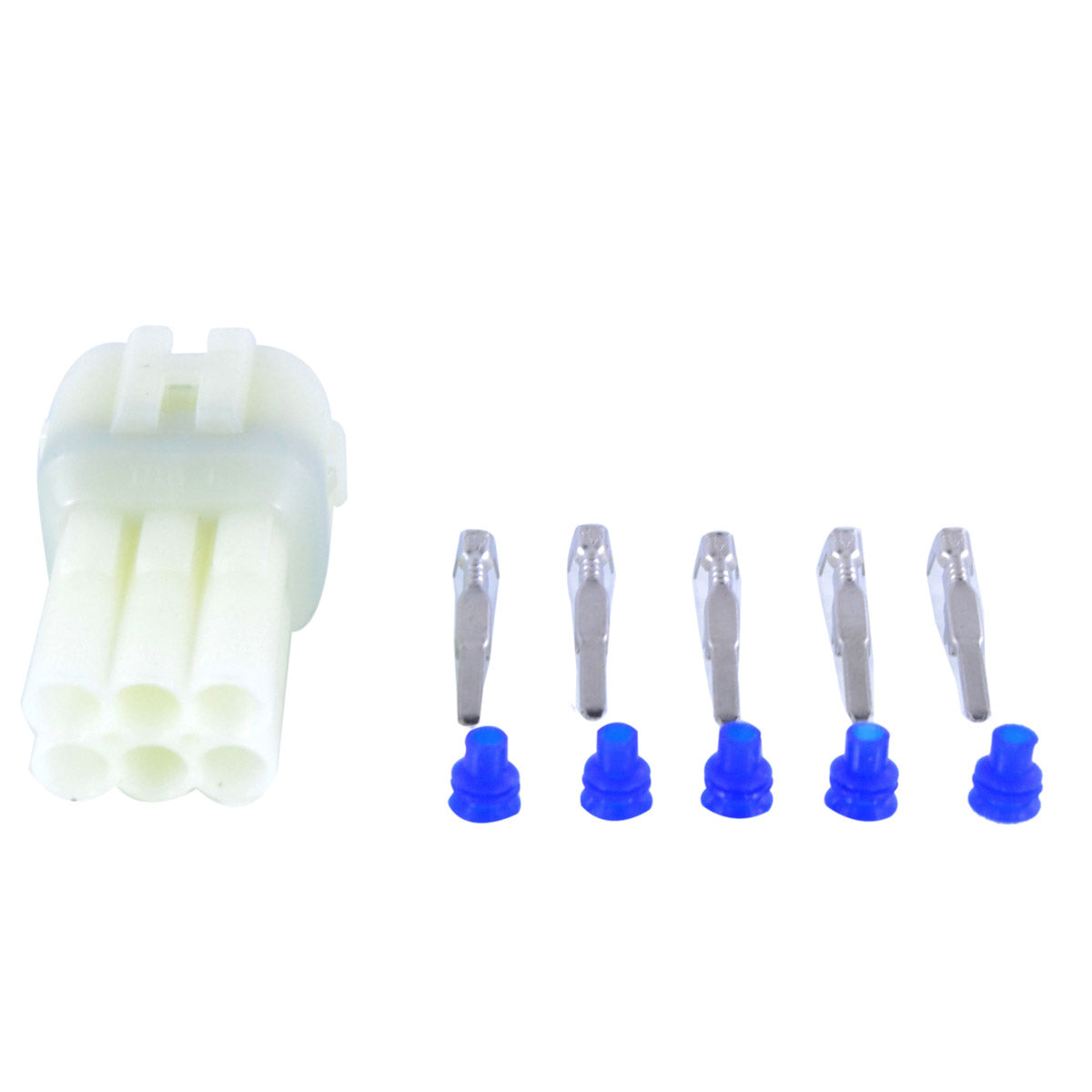

- Connector included, plus the opposite connector for the main harness side
- Five wires, one plug, five pins
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-104230 |
| Interior diameter |
30 mm |
| Exterior diameter |
88.4 mm |
| Thickness |
14.75 mm |
| Length of wires, stator to grommet |
140 mm |
| Length of wires, grommet to plug |
260 mm |
| Length of pick up coil wire to grommet |
100 mm |
| Number of wires |
5 |
| Number of plugs |
1 |
| Number of pins |
5 |
| Alternator resistance, between each Yellow |
0.4 ohms +/- 20% |
| Pick up resistance, Green to Blue |
100 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris RZR 170 UTV |
2015, 2016, 2017, 2018, 2019, 2020, 2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0455068 |
Polaris |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play direct fit on the Polaris RZR 170 from 2015 to 2021, and the manufacturer describes it as very easy to install. No cutting or splicing of the harness is needed.
What is included?
The stator unit with its pick up pulsar coil and connector, plus the opposite connector for the main harness side.
How can I tell that my old stator has failed?
A RZR 170 that flattens its battery over a ride, will not restart when warm, or shows a falling charge voltage at the battery terminals is a candidate. Unplug the stator and measure between each Yellow wire: it should read 0.4 ohms, plus or minus 20%. Green to Blue on the pick up coil should read 100 ohms, plus or minus 20%.
The RZR 170 is a youth machine. Is this the right part for it?
Yes, this stator is specific to the RZR 170 and matches OEM 0455068. It is a small unit at 88.4 mm exterior diameter and 14.75 mm thick, so check those dimensions against your original if you are unsure which stator your machine carries.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
