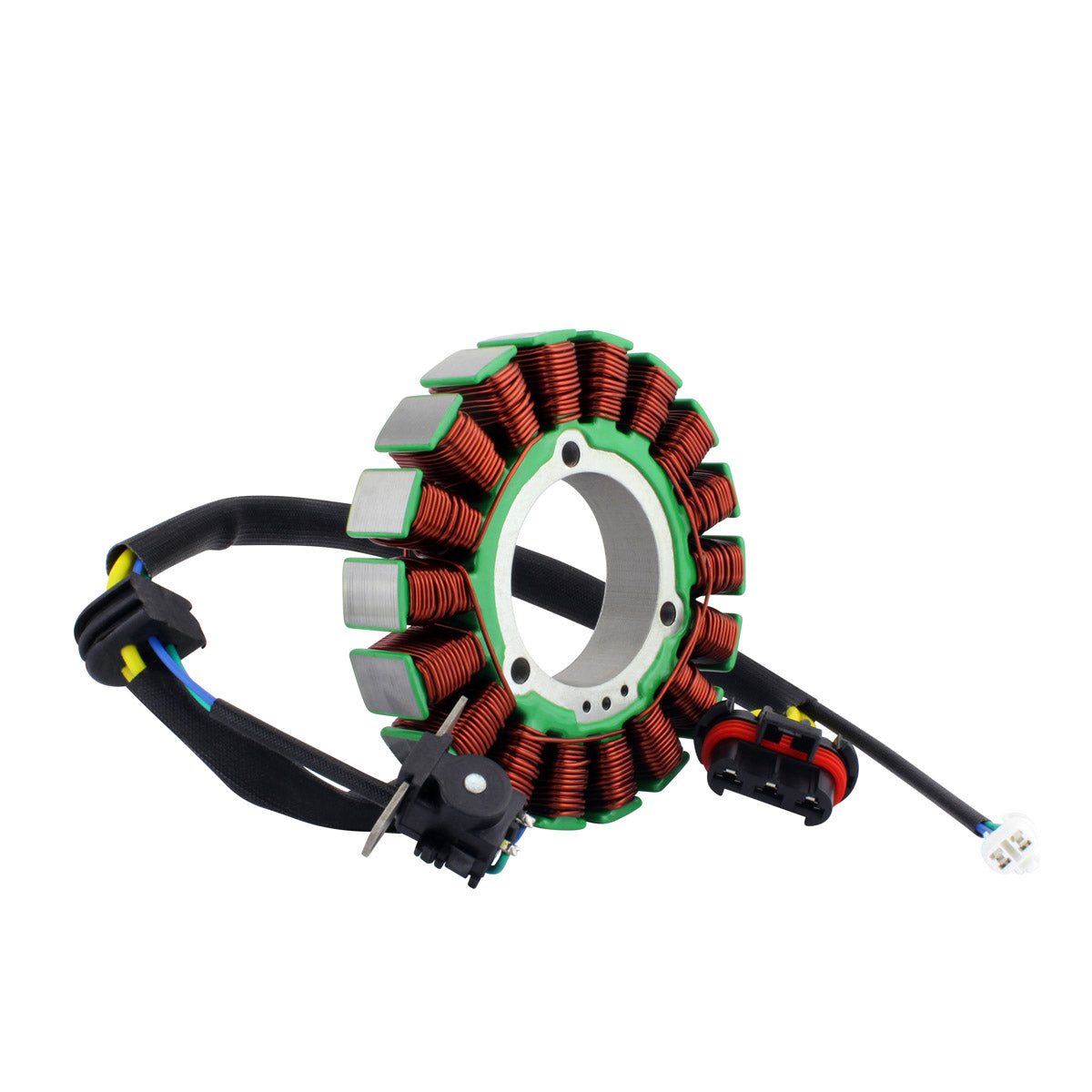

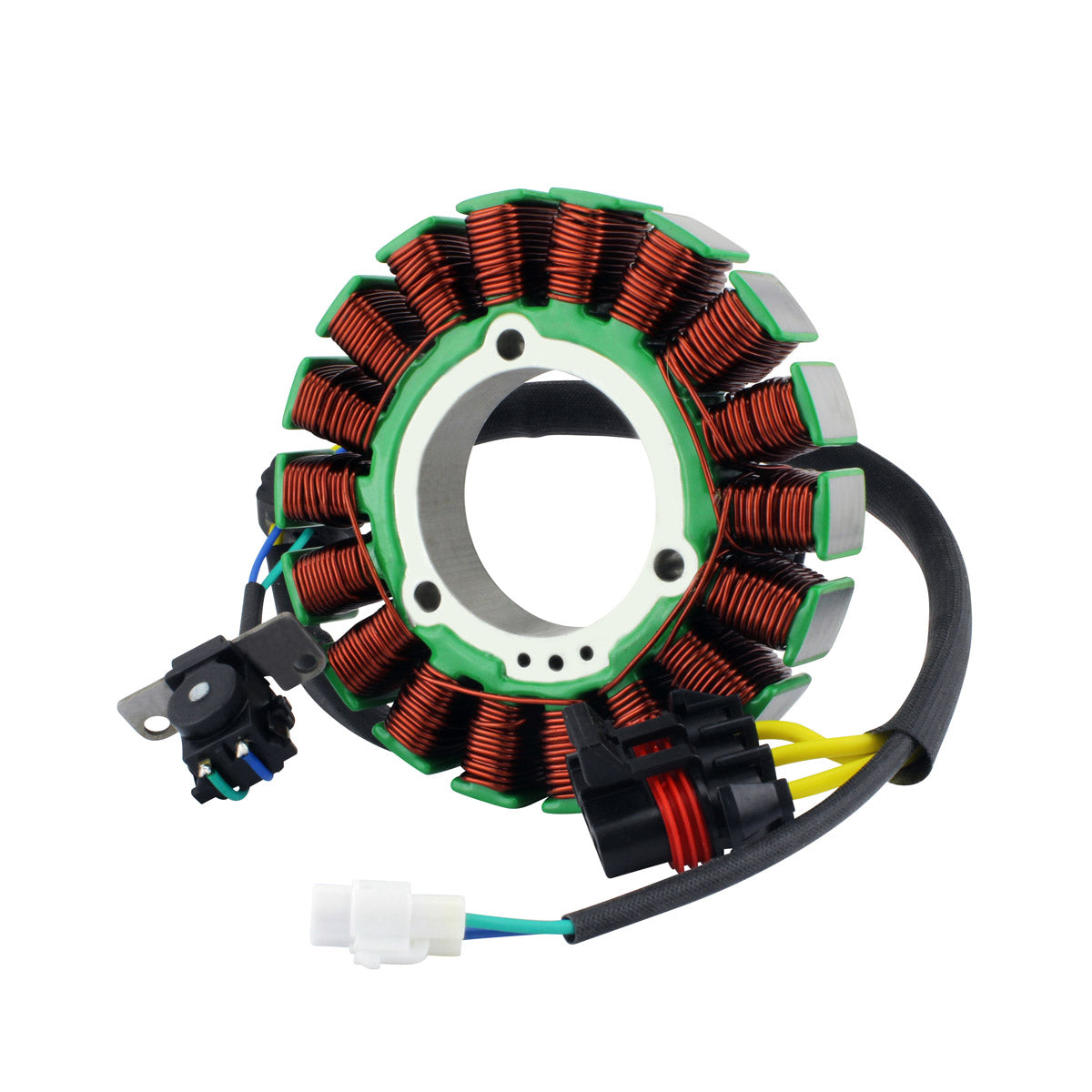

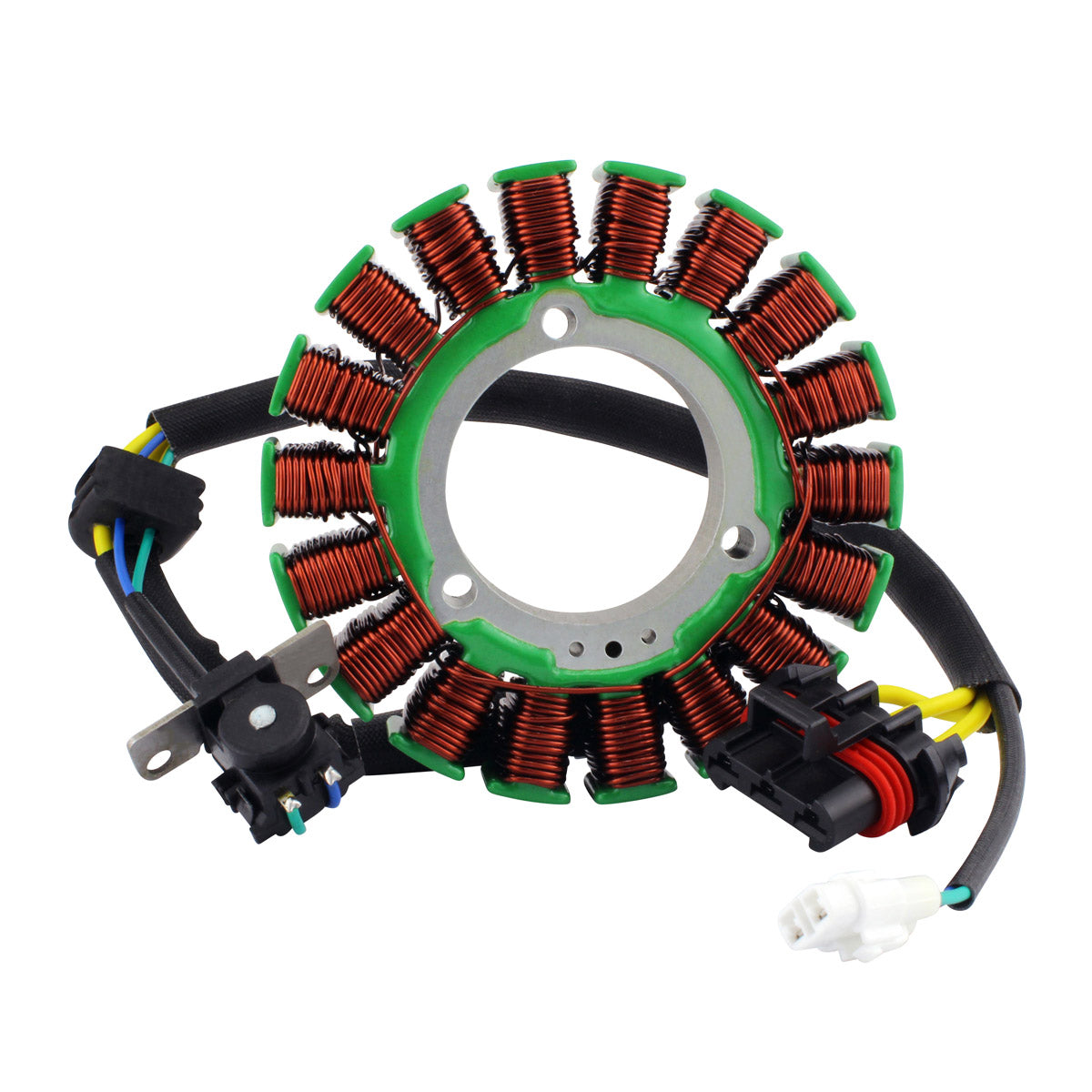

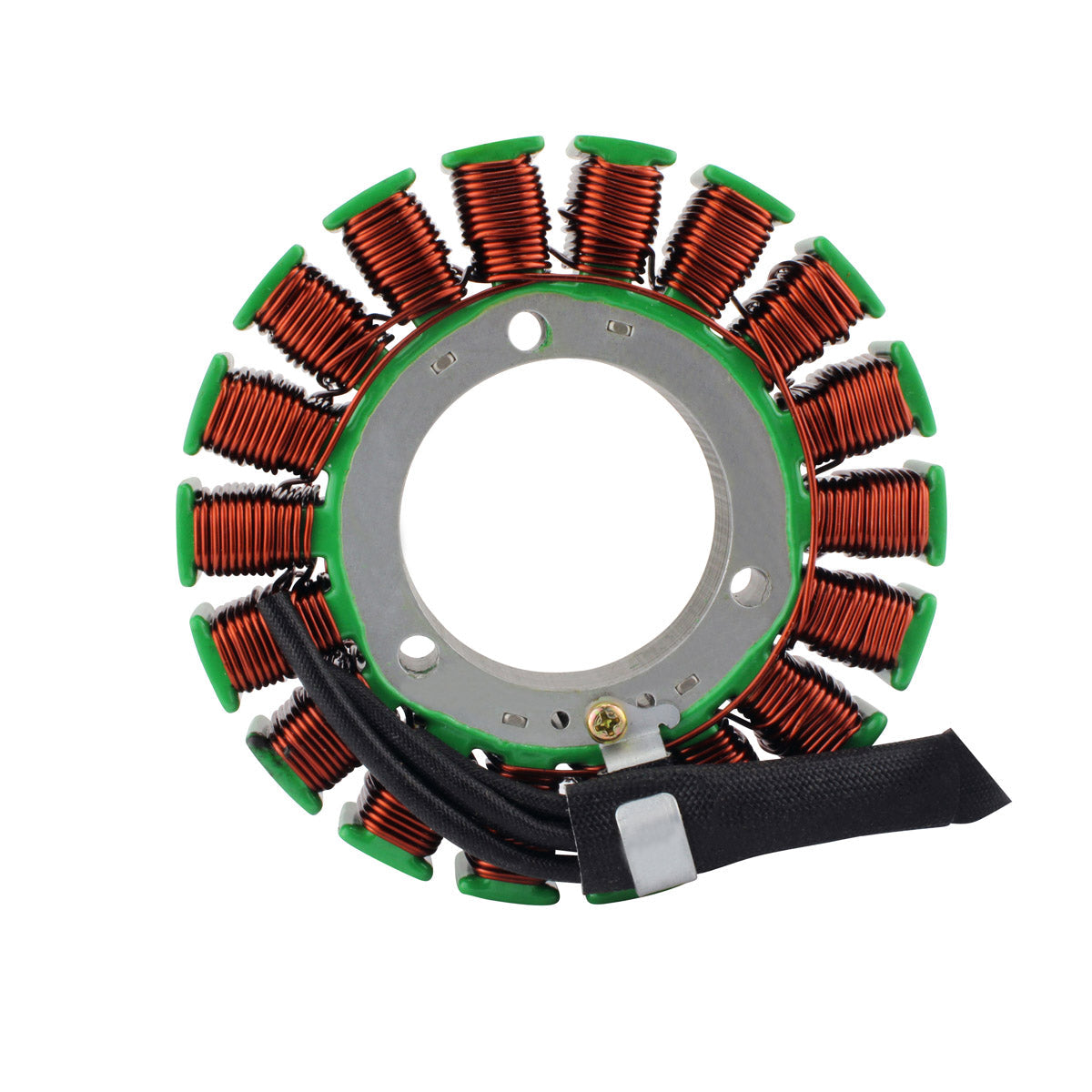

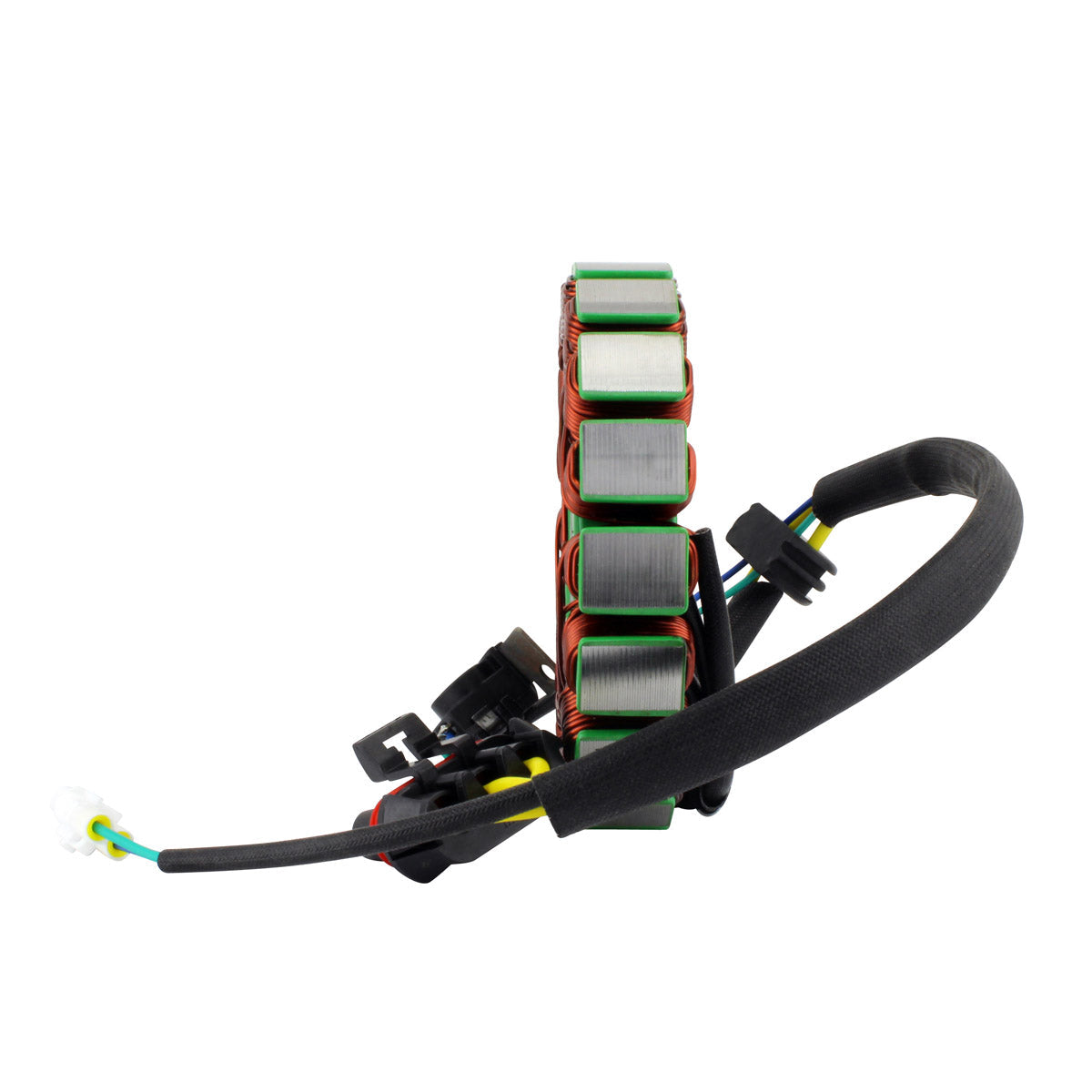

This is a brand new aftermarket 660W stator, built as a direct replacement for the original charging coil fitted to the Polaris Ranger and Ranger Crew 570, the Sportsman 450 HO and 570, and the PRO XD and PRO XD Crew 900. It is plug-and-play and a direct fit, so it mounts on the original fixings and connects to the standard loom with no modification. Every unit is tested before it is shipped.

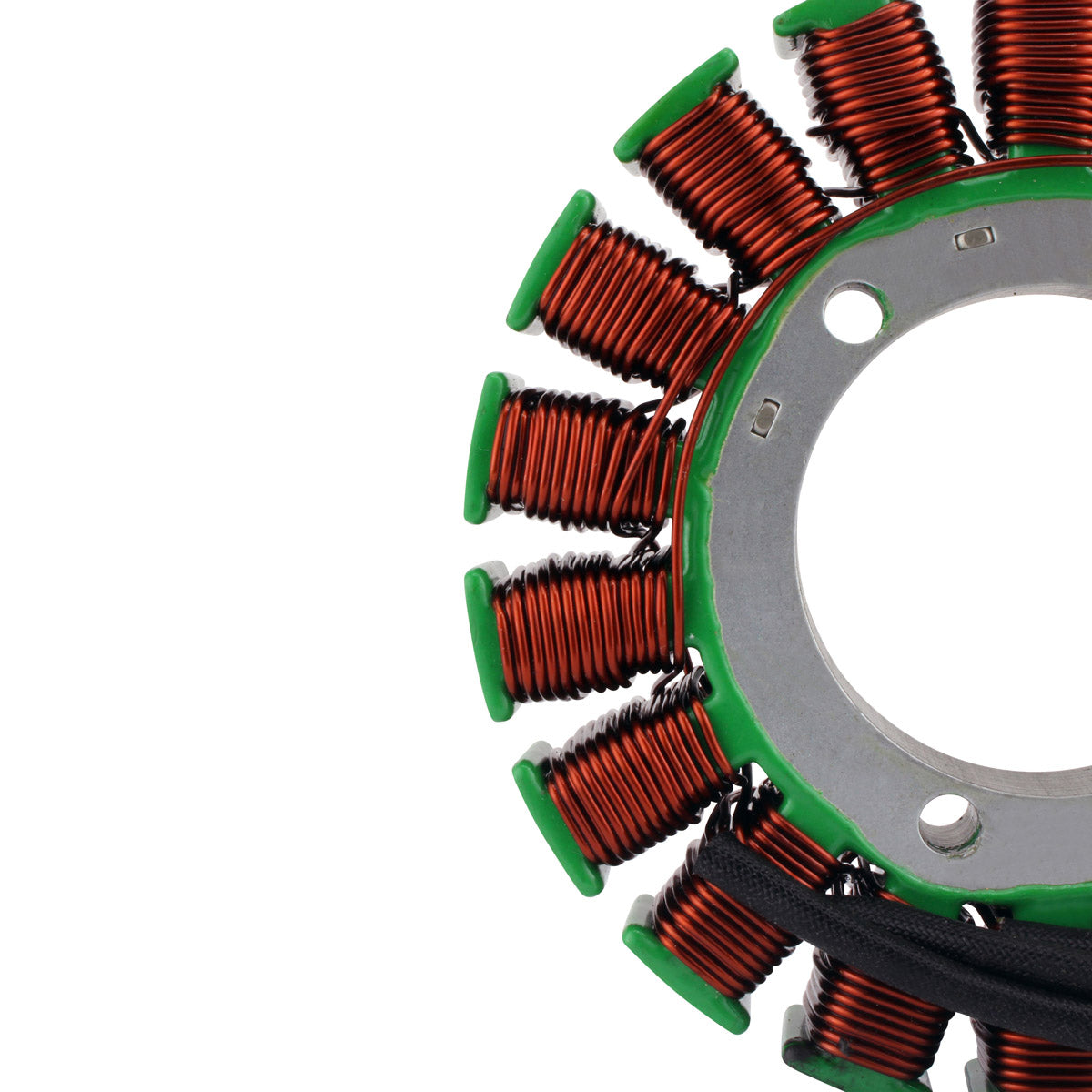

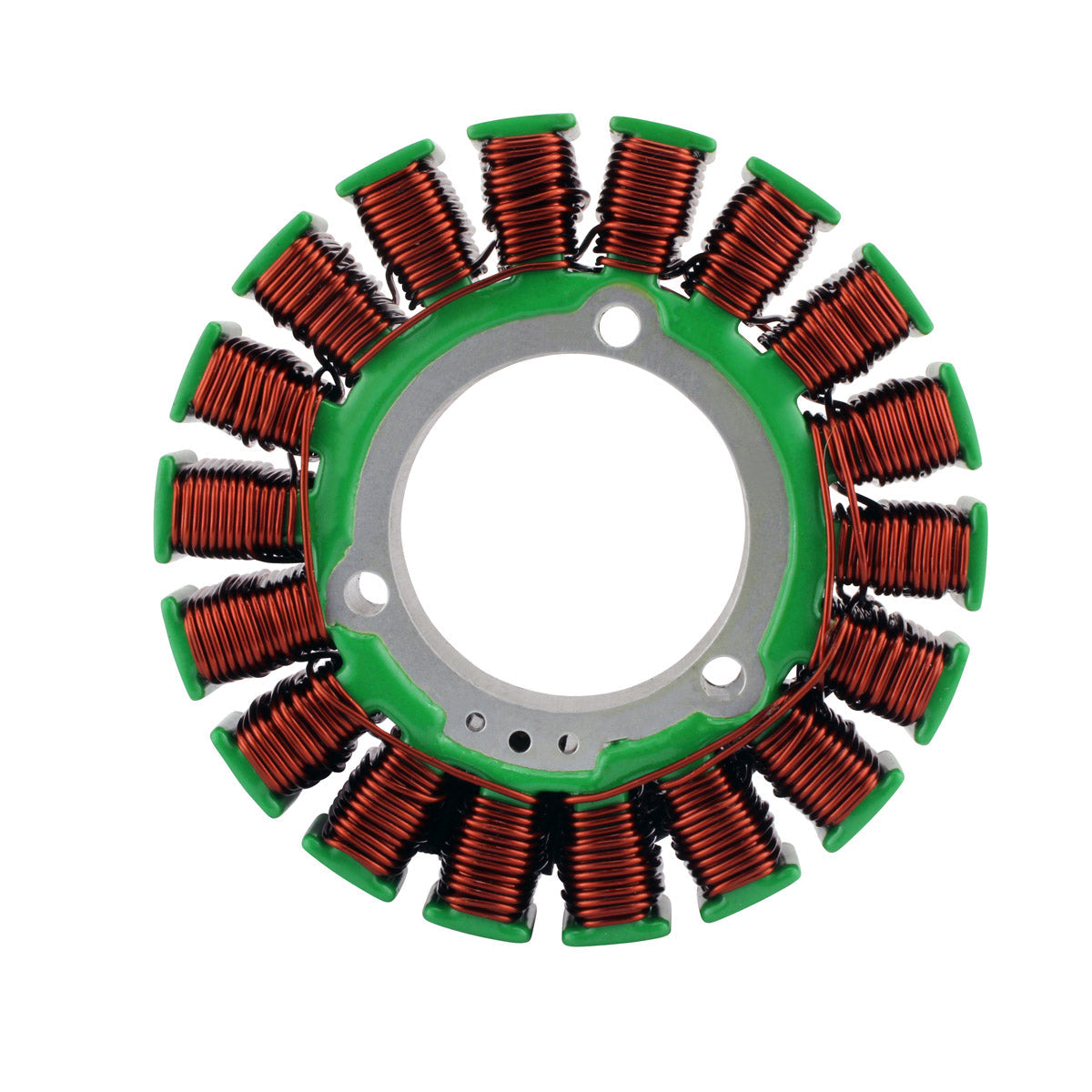

The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius, which is what allows an 18-pole unit of this size to run continuously at 660W without cooking its insulation. The pick up pulsar coil is supplied with the assembly, so the ignition trigger is renewed at the same time as the charging coils, and connectors and a rubber grommet are included with the part.
Key Features
- Brand new aftermarket 660W stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

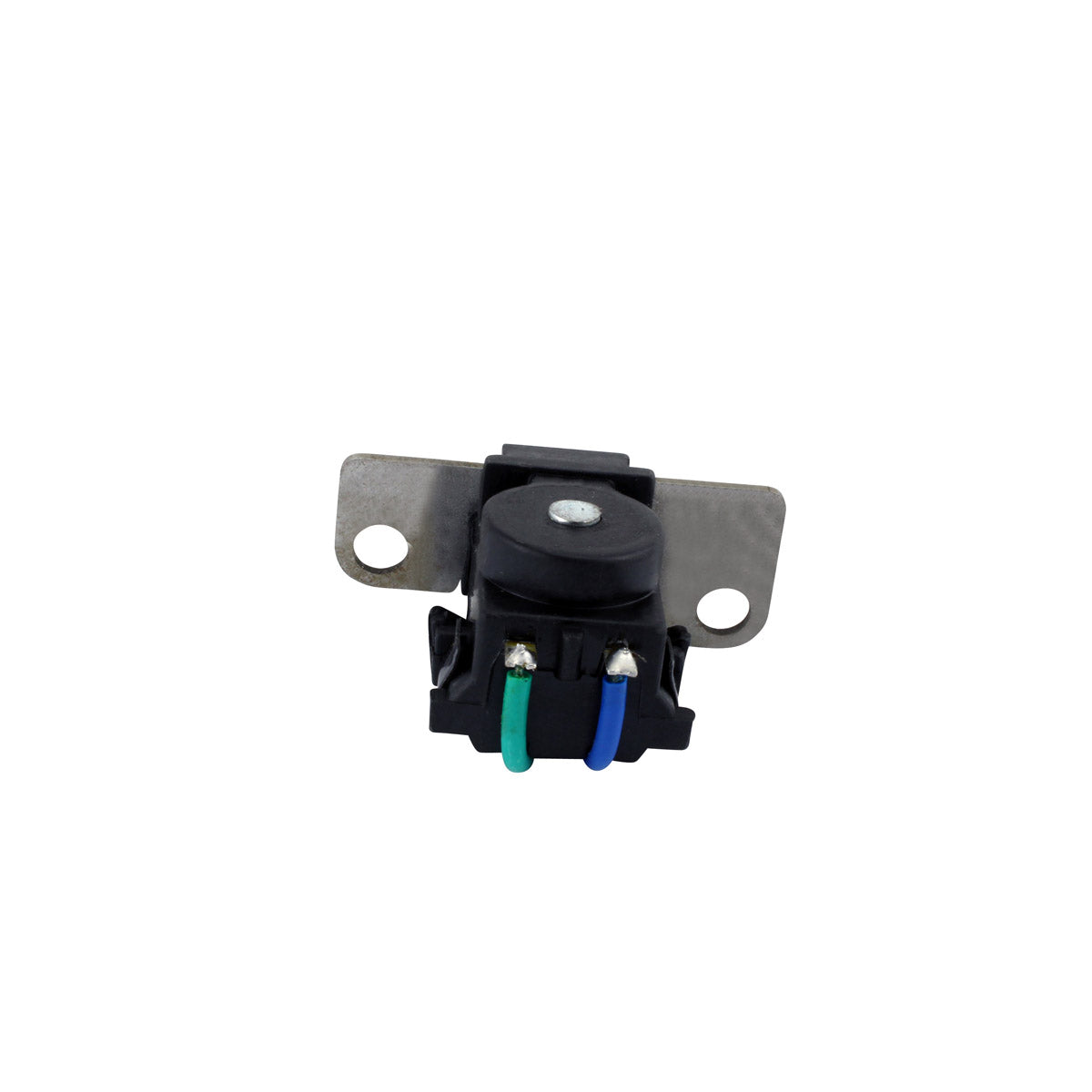

- Pick up pulsar coil included

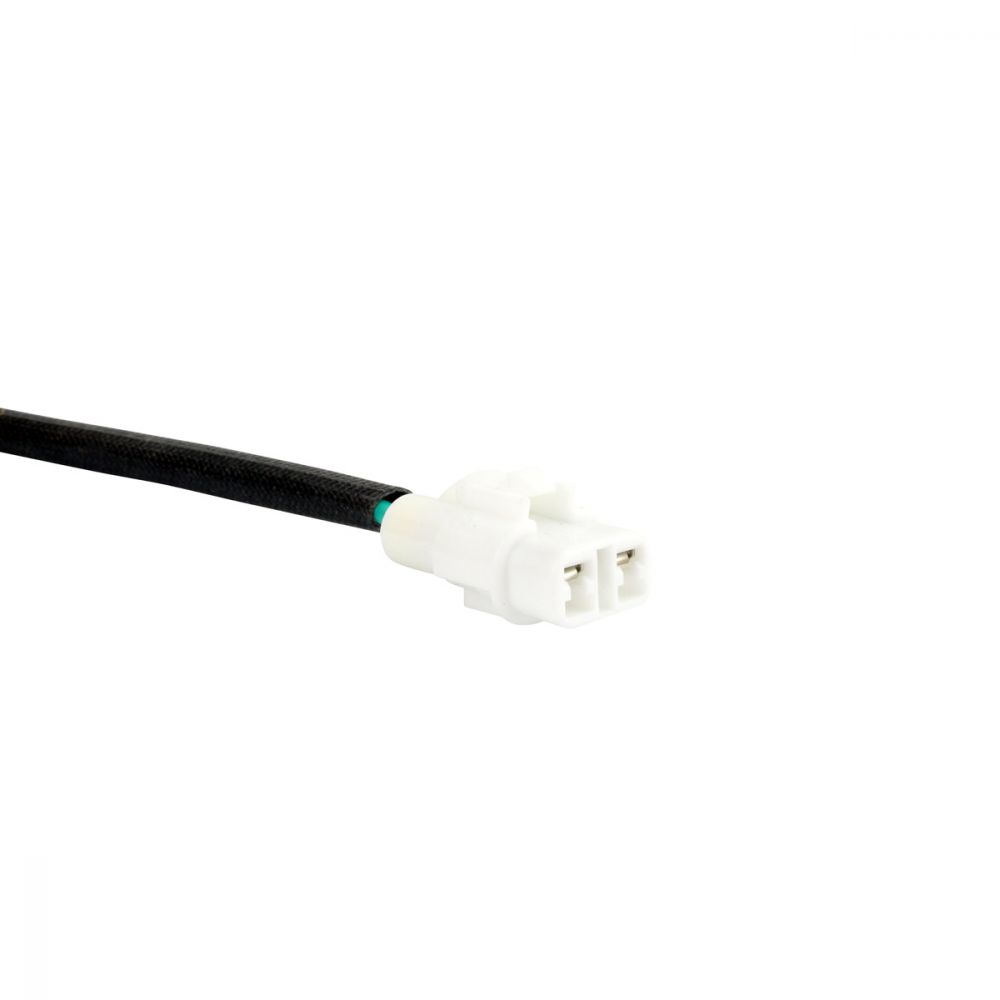

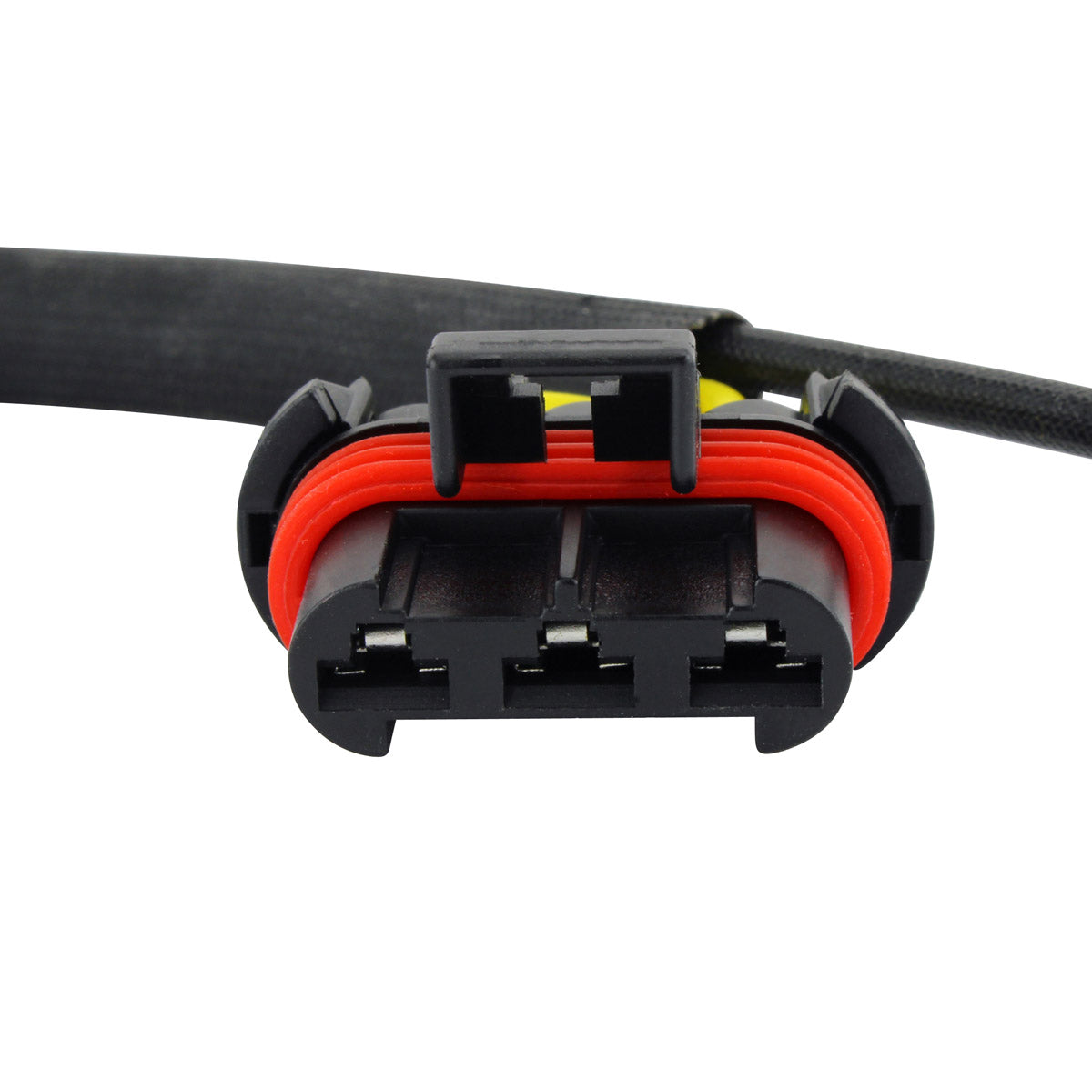

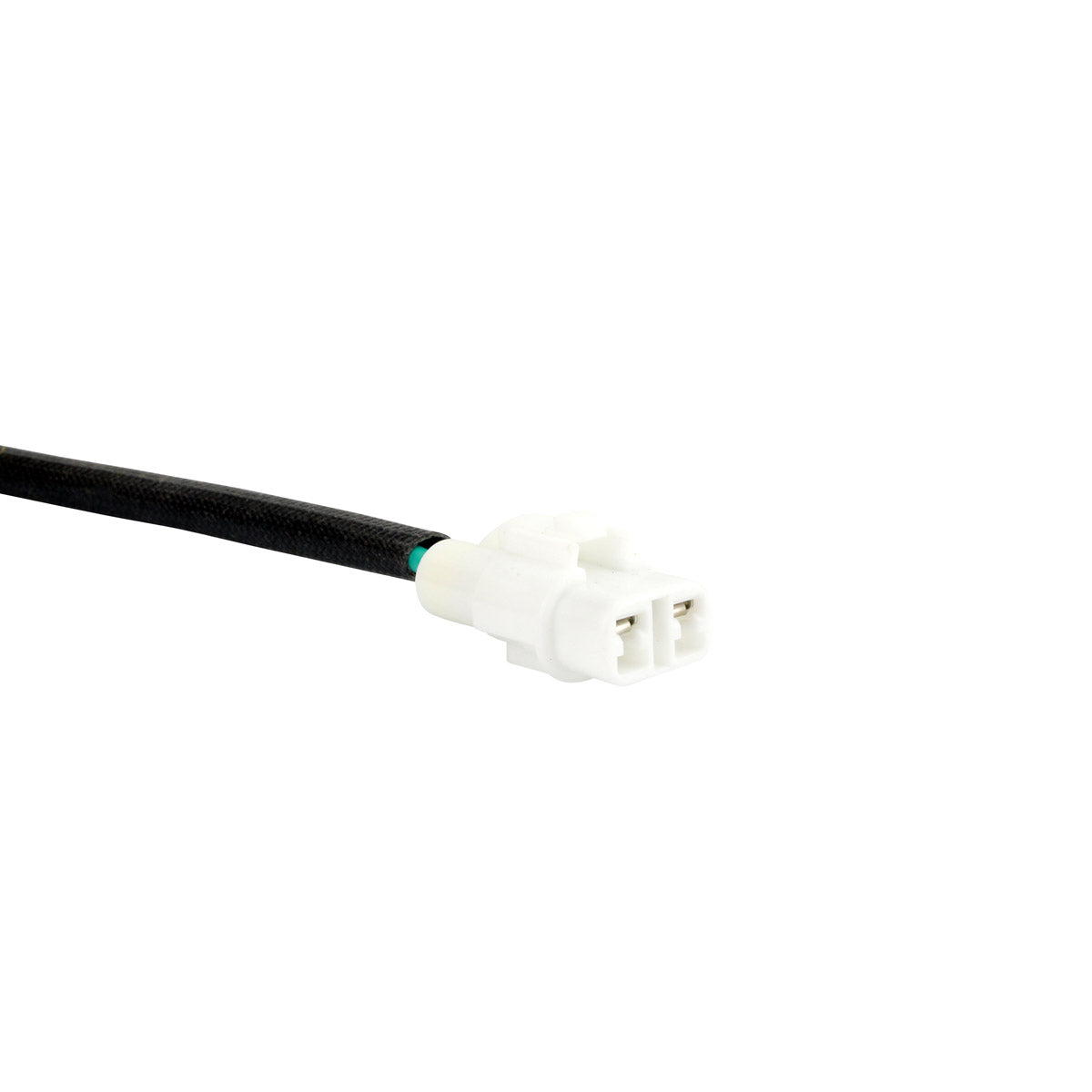

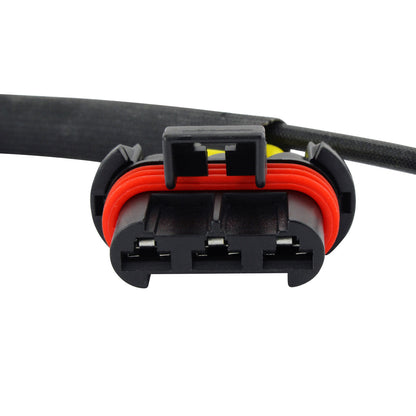

- Connectors included

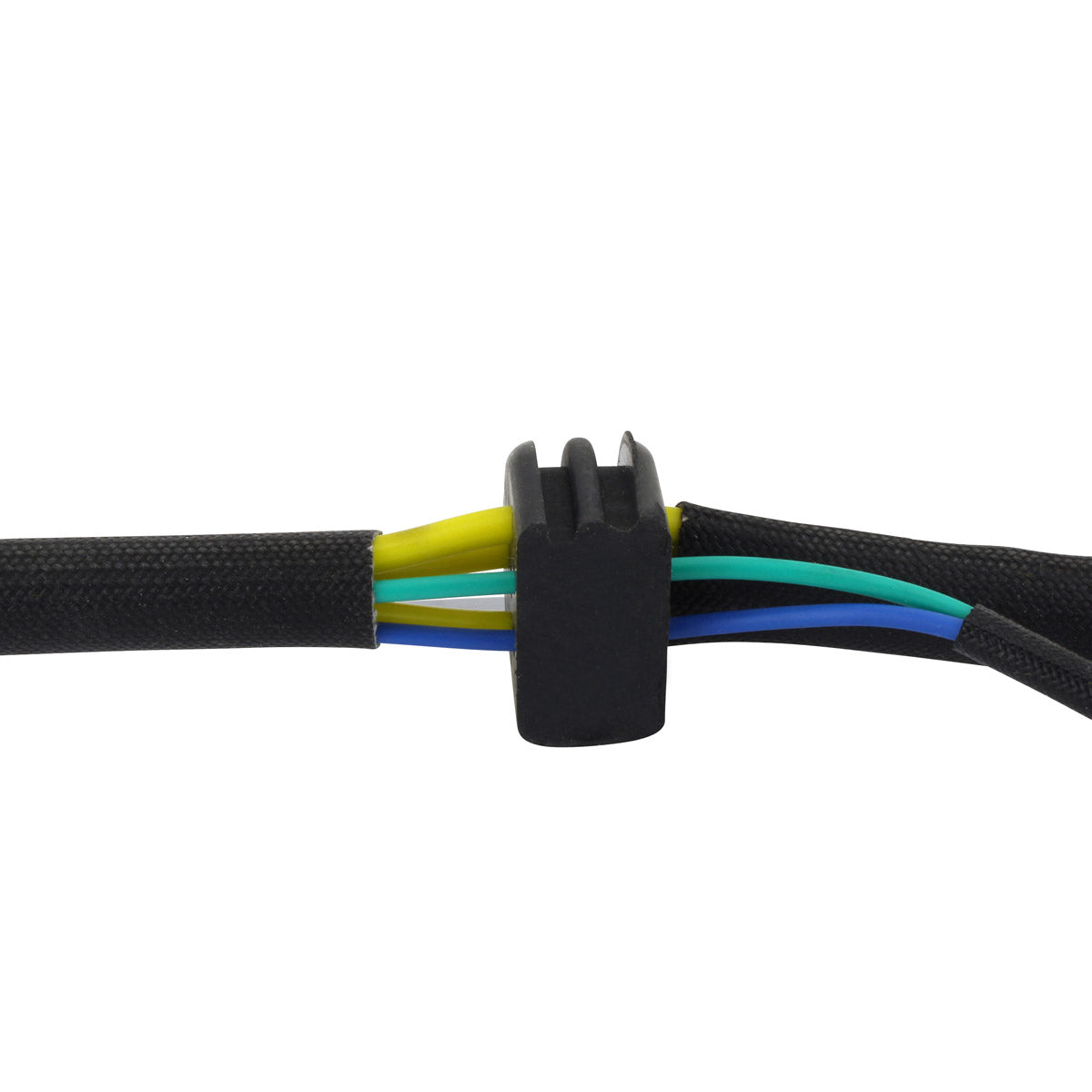

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-107775 |
| Power output |
660 W |
| Interior diameter |
54 mm |
| Exterior diameter |
126 mm |

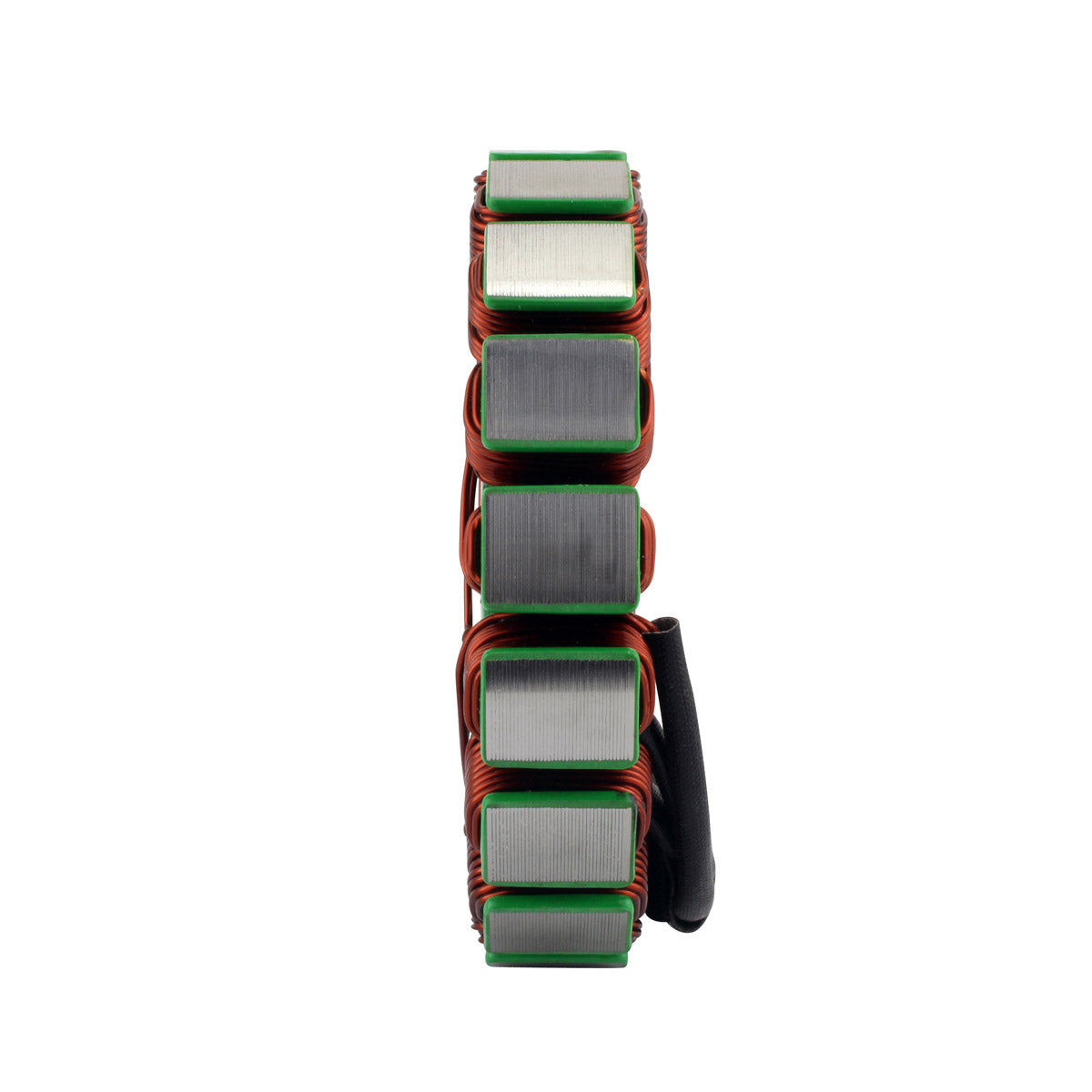

| Thickness |
20 mm |
| Wire length, stator to grommet |
130 mm |
| Wire length, grommet to plug |
365 mm |
| Pick up coil wire to grommet |
70 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Pickup resistance |
125 ohms +-20% |
| Source resistance |
0.4 ohms +-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Ranger 570 |
2021-2027 |
| Polaris Ranger Crew 570 |
2021-2027 |
| Polaris Sportsman 450 HO |
2021-2027 |
| Polaris Sportsman 570 |
2021-2027 |
| Polaris PRO XD 900 |
2021-2027 |
| Polaris PRO XD Crew 900 |
2021-2027 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4018938 |
Polaris |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play direct fit for the Polaris models listed above, using the original mounting points and the two standard plugs, so there is no need to cut, splice or adapt the wiring.
What is included?
The stator, the pick up pulsar coil, the connectors and a rubber grommet. Replacing the pickup at the same time as the charging coils avoids having to strip the cover a second time.
How do I know my old stator has failed?
Typical signs are a battery that goes flat despite being good, dim or flickering lights, winch and accessory circuits that drop out under load, and charging voltage that will not rise above battery voltage with the engine running. Use the figures above to confirm: about 0.4 ohms across the source windings and about 125 ohms across the pickup. Readings far outside those values point to a shorted or open winding.
Is 660W the same output as my original stator?
This is a 660W unit supplied as the direct replacement for Polaris part number 4018938. If your machine carries accessories such as a winch, a heated grip kit or auxiliary lighting, the full rated output is worth having, and no change to the regulator rectifier or wiring is required to use it.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
