Stator for Sea-Doo Sportster LE DI, RX DI & GTX DI 2000-2007
Stator for Sea-Doo Sportster LE DI, RX DI & GTX DI 2000-2007
SKU:RMS010-101524
Free shipping over £150. Terms apply
Couldn't load pickup availability

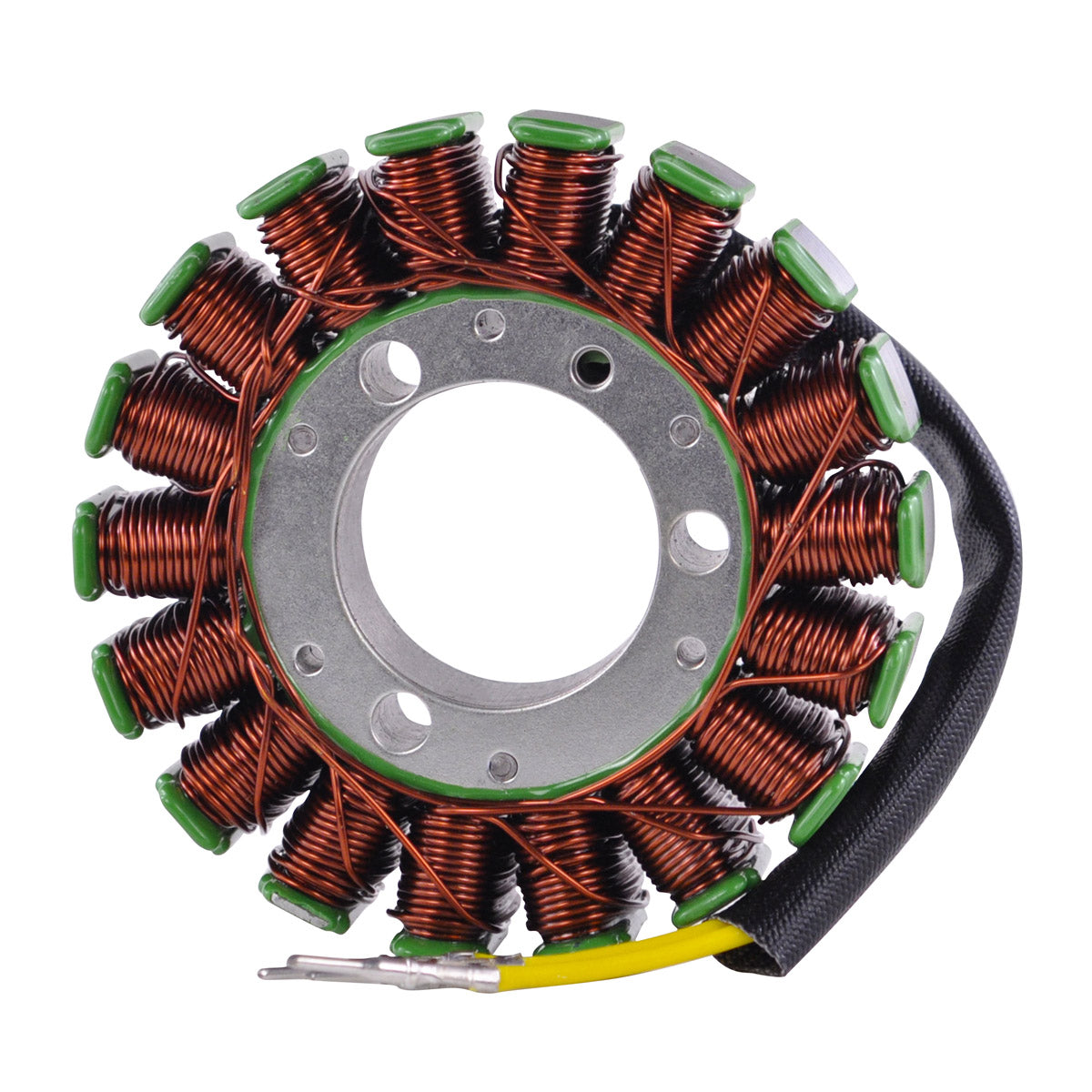

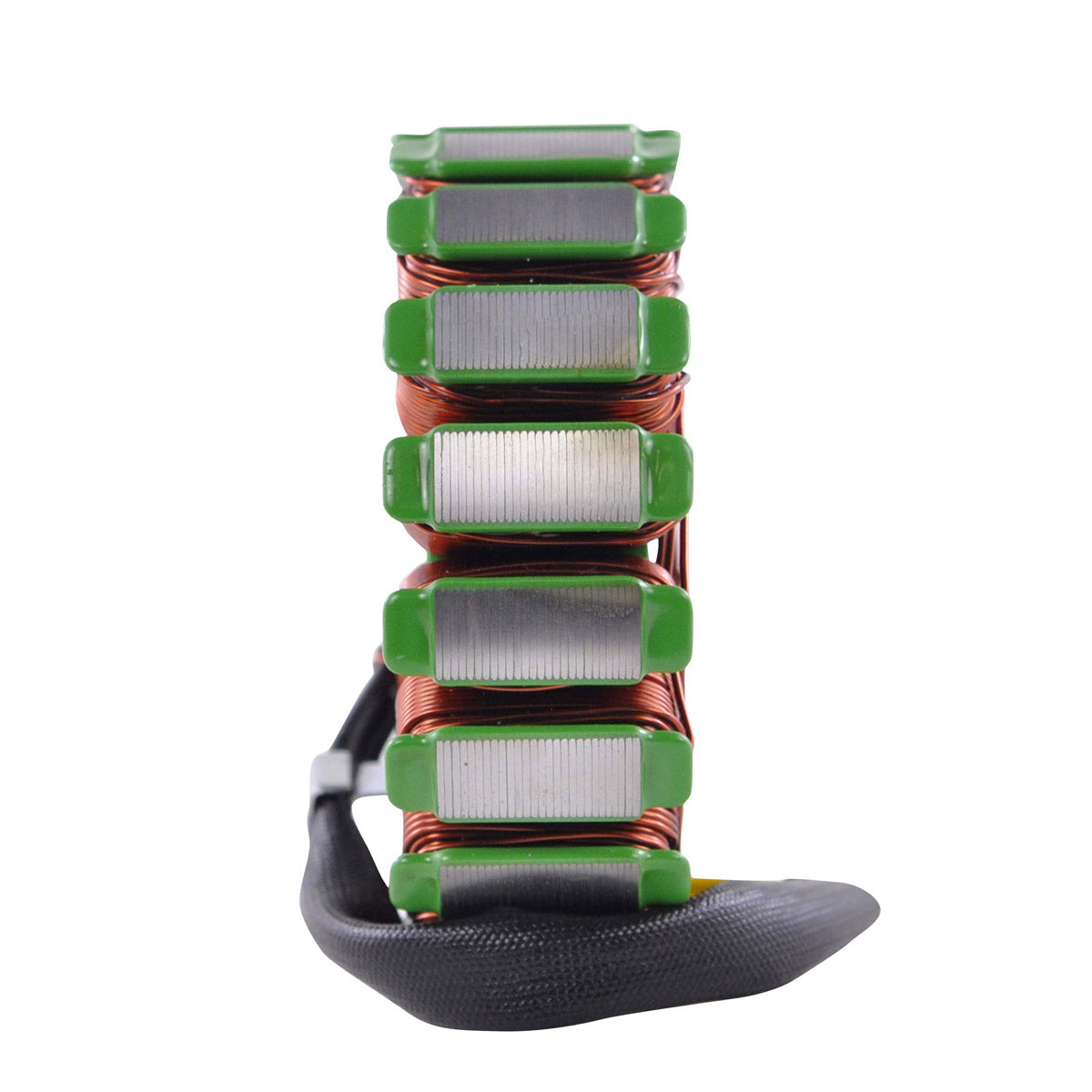

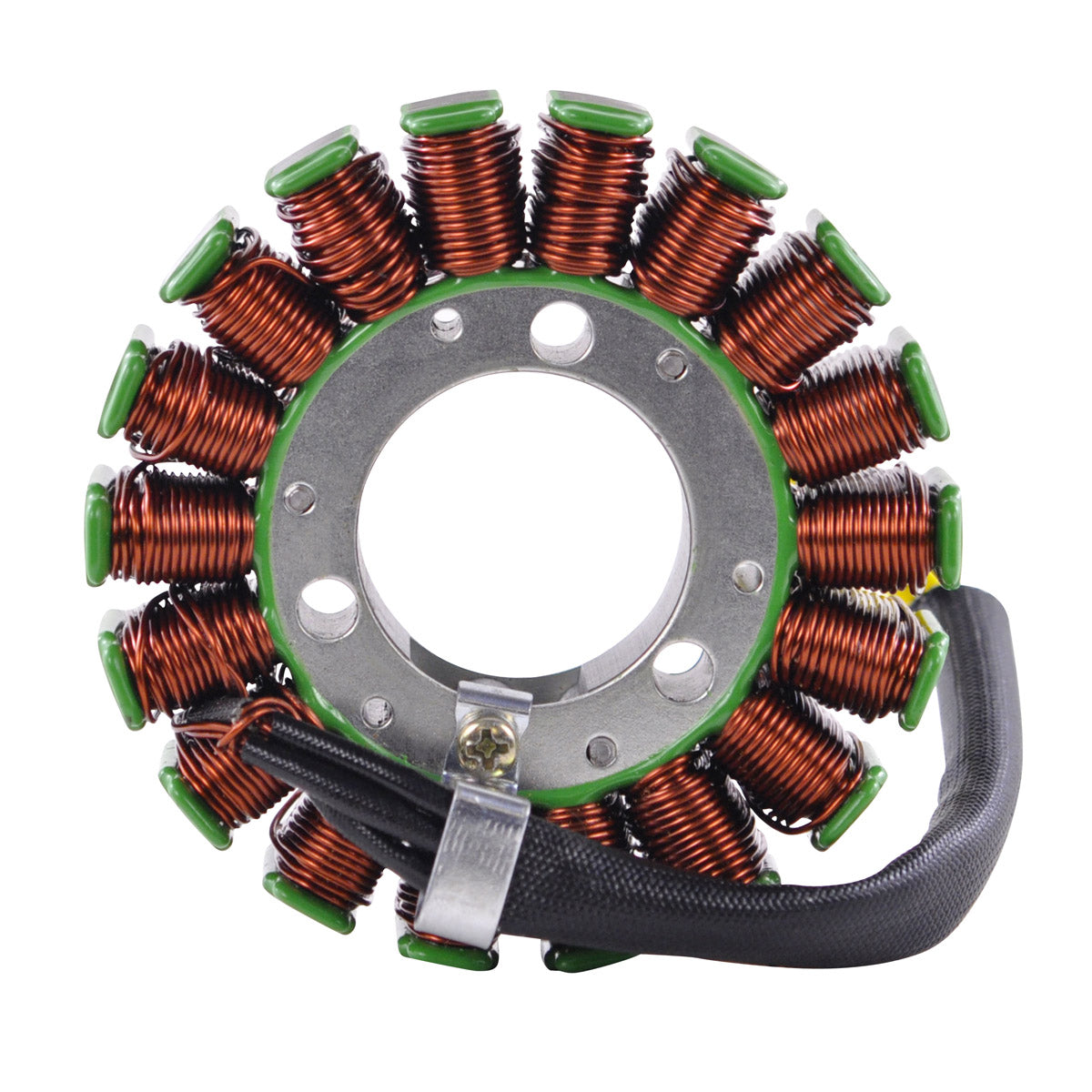

Generator Stator for Sea-Doo DI Watercraft
Sportster LE DI, RX DI, GTX DI, LRV DI, XP DI and 3D 947 DI - 2000-2007
Brand new aftermarket generator stator, supplied under RMSTATOR part number RMS010-101524 and built as a direct replacement for the original unit fitted to Sea-Doo direct injection watercraft. It is a plug-and-play, direct fit assembly, so the wiring loom and the stator housing are left exactly as they are - there is no cutting, splicing or drilling involved in the installation.
The stator is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on the highest grade lamination materials. Overheated windings are one of the most common reasons an original stator stops charging, so the temperature rating of the copper matters on a watercraft that spends its life working hard in a hot engine bay. The connector is supplied with the part and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator - direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

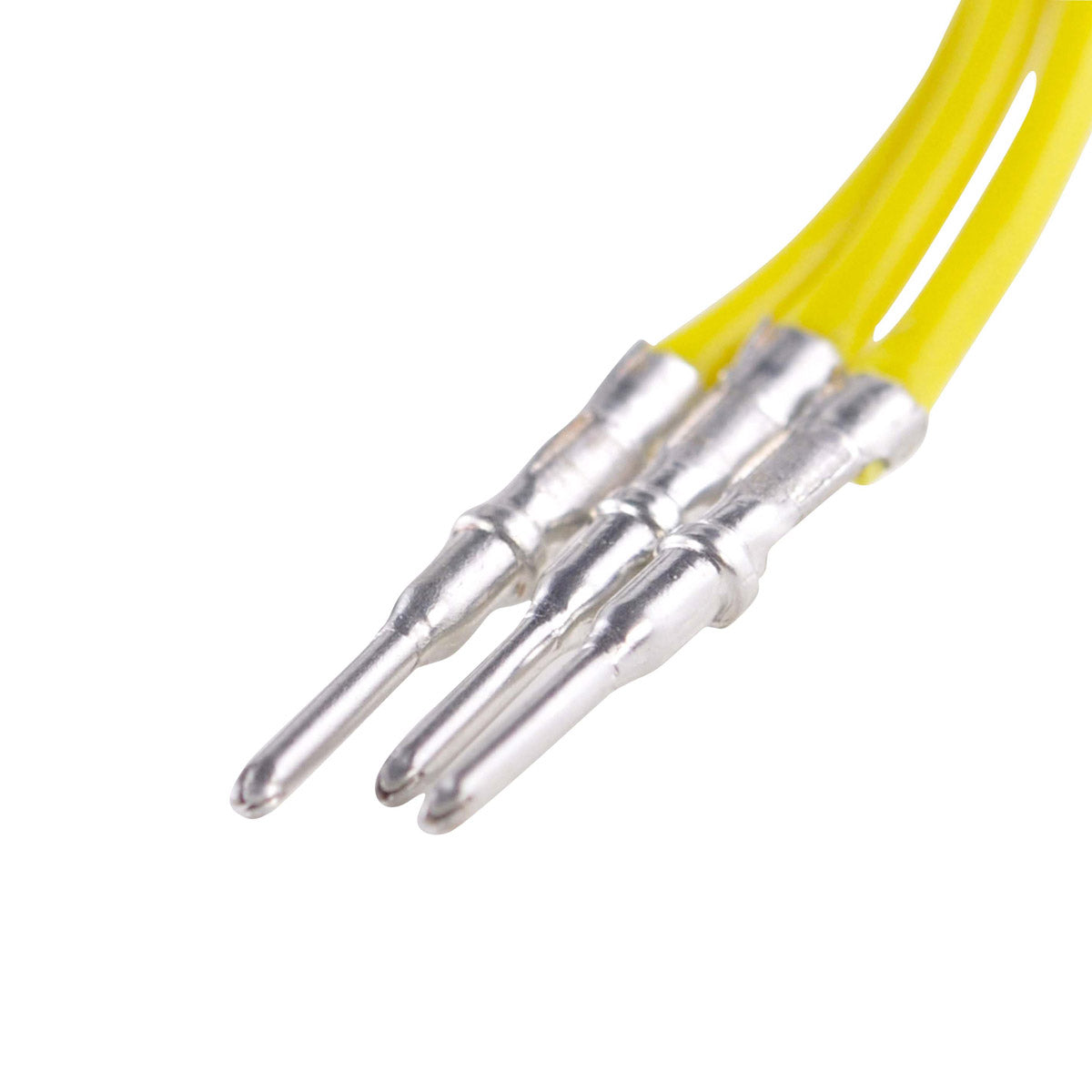

- Connector included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RMS010-101524 |
| Interior Diameter | 35 mm |
| Exterior Diameter | 93 mm |
| Thickness | 22 mm |
| Wire Length (stator to plug) | 115 mm |
| Number of Wires | 3 |
| Number of Plugs | 1 |
| Number of Pins | 3 |
| Wire to Wire Resistance (Yellow to Yellow) | 0.7 ohms +/- 20% |
| Winding Temperature Resistance | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Sea-Doo Sportster LE DI | 2000-2007 |
| Sea-Doo RX DI | 2000-2007 |
| Sea-Doo GTX DI | 2000-2007 |
| Sea-Doo LRV DI | 2000-2007 |
| Sea-Doo XP DI | 2000-2007 |
| Sea-Doo 3D 947 DI | 2000-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 290888652 | Sea-Doo |
| 420888652 | Sea-Doo |
| 290888650 | Sea-Doo |
| 290888651 | Sea-Doo |
| 420888656 | Sea-Doo |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct fit replacement for the original stator on the Sea-Doo DI models listed above. It uses the same three wires terminating in a single three-pin plug, so it connects straight to the existing harness with no cutting or splicing.
What is included?
The stator assembly with its connector, which carries three pins. Every unit is tested before it is dispatched.
How do I tell whether my old stator has failed?
The usual signs are a battery that will not hold its charge and weak or erratic ignition. Measuring wire to wire across the yellow leads should read approximately 0.7 ohms, with a tolerance of 20 per cent. A reading well outside that range, or continuity between a winding and the stator body, points to a failed stator.
Are the windings suitable for hot running conditions?
The copper windings are resistant to 200 degrees Celsius and are wound on the highest grade lamination materials. Heat damage to the windings is a common failure point on original units, so the temperature rating is one of the more useful things to compare when replacing one.
