Stator for Ski-Doo Formula, Grand Touring, MX Z and Summit Snowmobiles
Formula 500 583 670, Grand Touring 500 583, MX Z 500 670 and Summit 500 670 - 1998 to 2000 - RMSTATOR RM01315

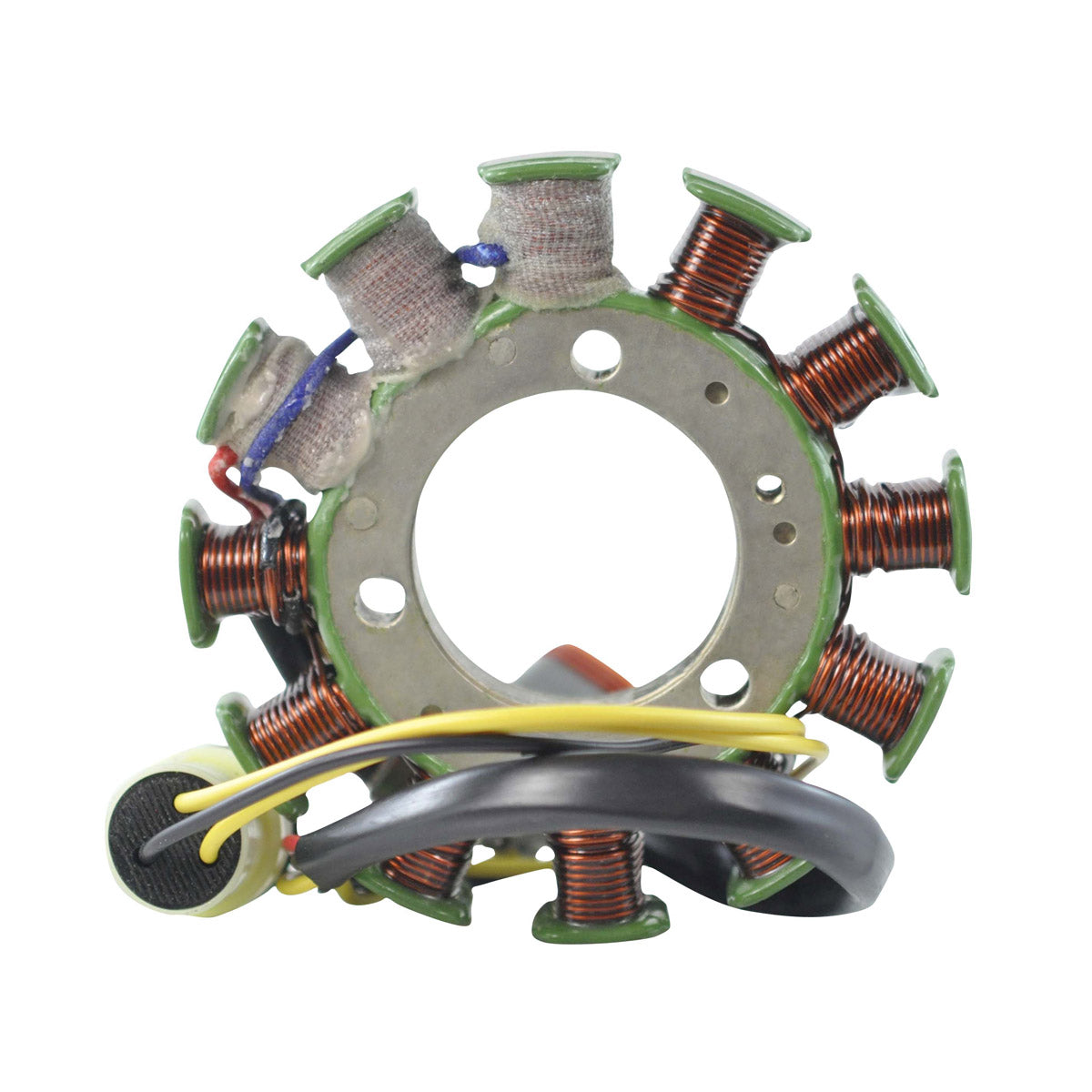

A brand new stator built as a direct replacement for the original charging and ignition unit fitted to Ski-Doo Formula, Grand Touring, MX Z and Summit snowmobiles built between 1998 and 2000. It is a plug-and-play, direct fit assembly that mounts in the factory position using the original fixings, so no modification to the engine, the flywheel or the wiring loom is required to install it.

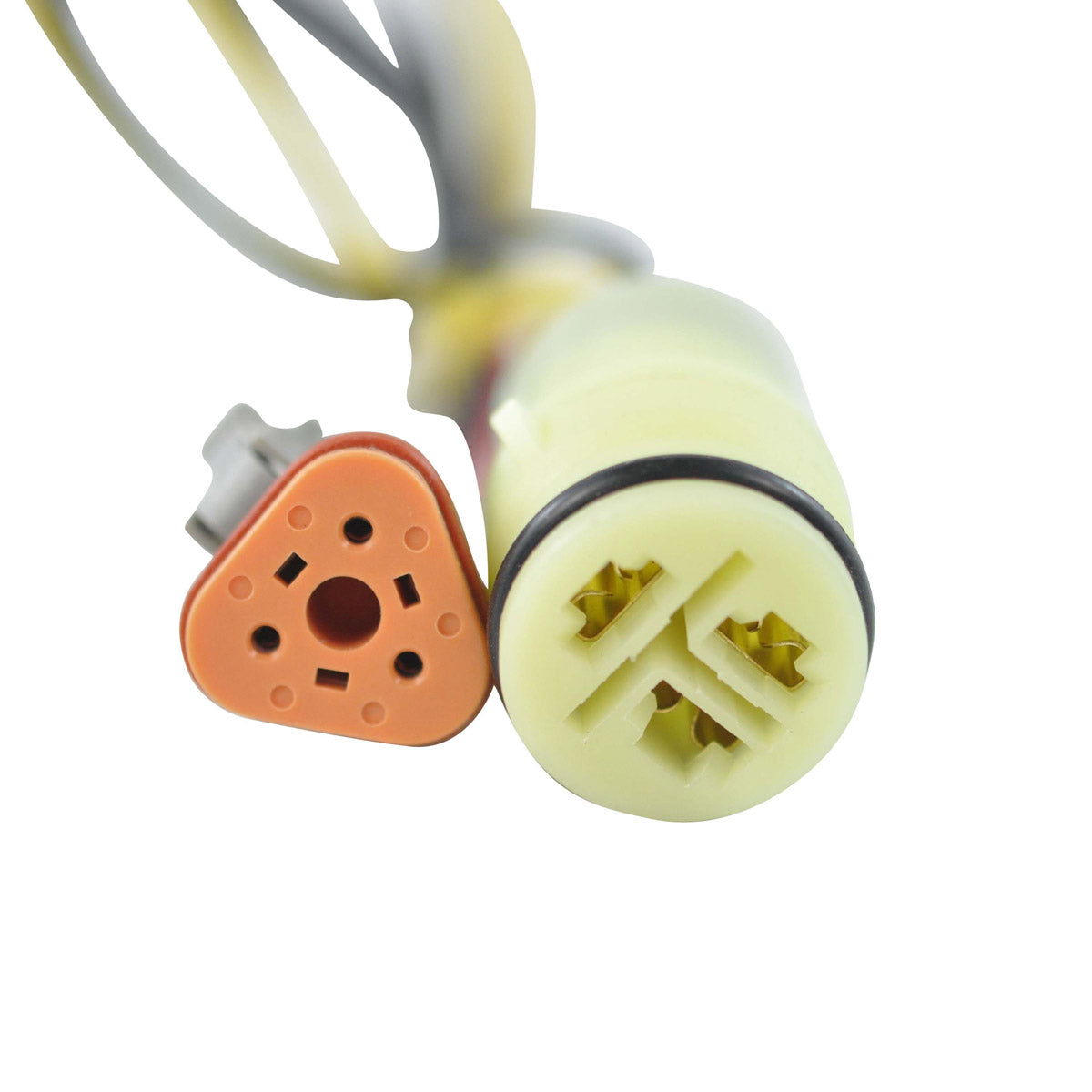

The unit is built on the highest grade lamination material and wound with the highest grade copper, rated to withstand 200 degrees Celsius. The connector is supplied with the stator, so there is nothing to salvage from the old part before fitting. Every unit is bench tested before it is shipped. The stator carries six wires terminating in two plugs, with a short 200 mm lead to the first plug and a longer 370 mm lead to the second - check these lengths against your original unit before ordering.
Key Features
- Direct replacement for the original Ski-Doo stator
- Plug-and-play, direct fit, easy installation
- No modification to engine, flywheel or loom required
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Every unit is tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 103 mm |
| Thickness | 15 mm |
| Length of wires, stator to plug 1 | 200 mm |
| Length of wires, stator to plug 2 | 370 mm |
| Number of wires | 6 |
| Number of plugs | 2 |
| Number of pins | 6 |
| Alternator resistance | Yellow to Yellow = 0.4 ohms +/-20% |
| Source coil resistance | Black/Red to Red = 13 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Manufacturer part number | RM01315 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Ski-Doo Formula 500 | 1998-2000 |
| Ski-Doo Formula 583 | 1998-2000 |
| Ski-Doo Formula 670 | 1998-2000 |
| Ski-Doo Grand Touring 500 | 1998-2000 |
| Ski-Doo Grand Touring 583 | 1998-2000 |
| Ski-Doo MX Z 500 | 1998-2000 |
| Ski-Doo MX Z 670 | 1998-2000 |
| Ski-Doo Summit 500 | 1998-2000 |
| Ski-Doo Summit 670 | 1998-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 410922100 | Ski-Doo |
| 410922904 | Ski-Doo |
| 410922905 | Ski-Doo |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit on the models listed above, mounts in the factory position on the original fixings, and plugs into the existing loom without any cutting, splicing or re-routing.
What is included?
The stator itself, with the connector included. Every unit is tested before it leaves the warehouse.
How do I tell whether the old stator has failed?
Typical symptoms are a battery that will not stay charged, dim or flickering lights, a weak or intermittent spark, and a machine that cuts out once it warms up. Measure the resistance across the two yellow alternator wires and across the black/red to red source wires and compare the readings with the specification table above.
Why are the two plug leads different lengths?
The original Ski-Doo harness routes the alternator output and the source coil output to two separate connection points, so the leads are 200 mm and 370 mm respectively. Compare both lengths against your original stator to confirm you have the correct variant.
