Stator for Ski-Doo Expedition, GSX, MXZ, Renegade and Grand Touring
Ski-Doo Expedition, GSX, MXZ, Renegade and Grand Touring 2009-2019 and Lynx 69 Ranger Alpine 2012-2014 - SKU RM01364

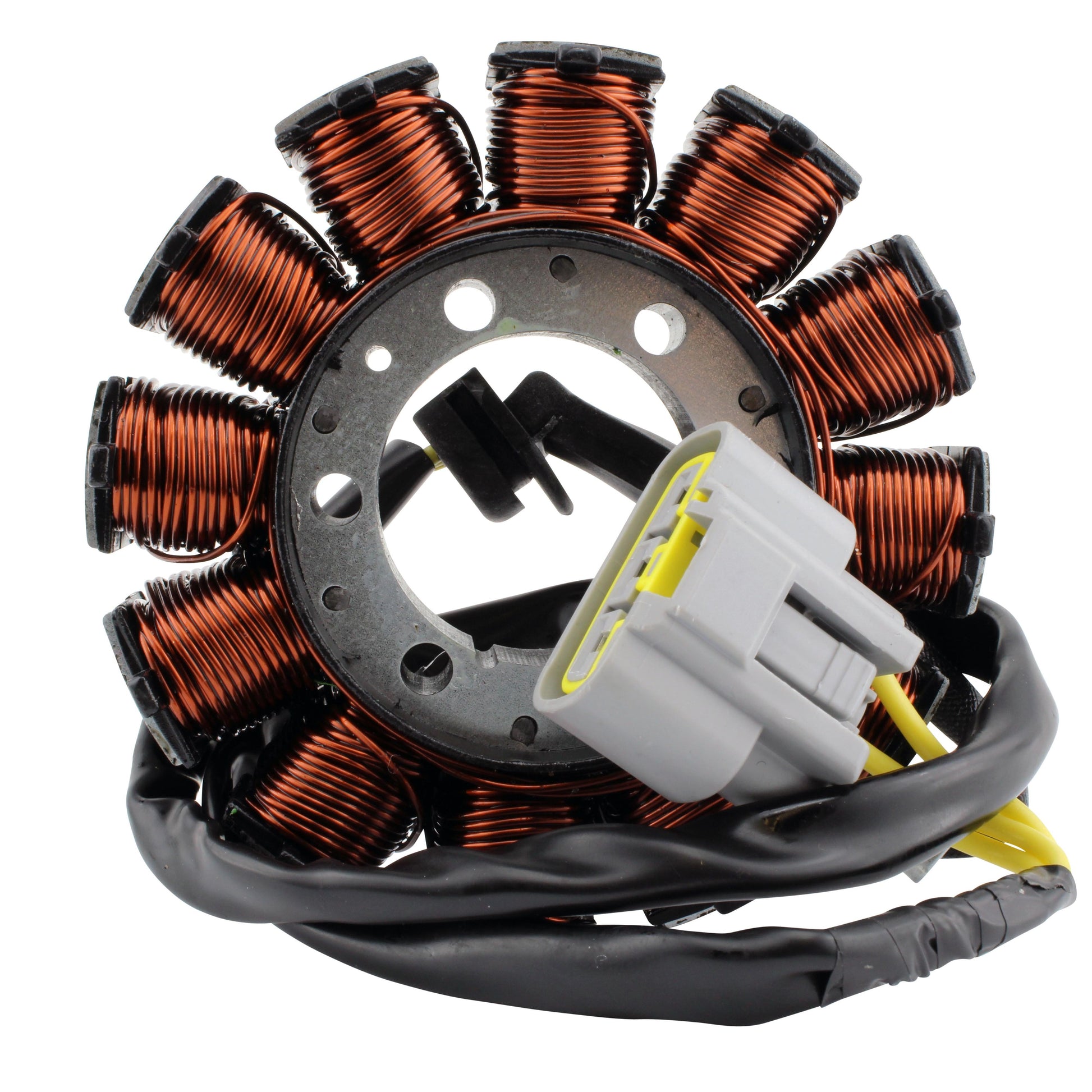

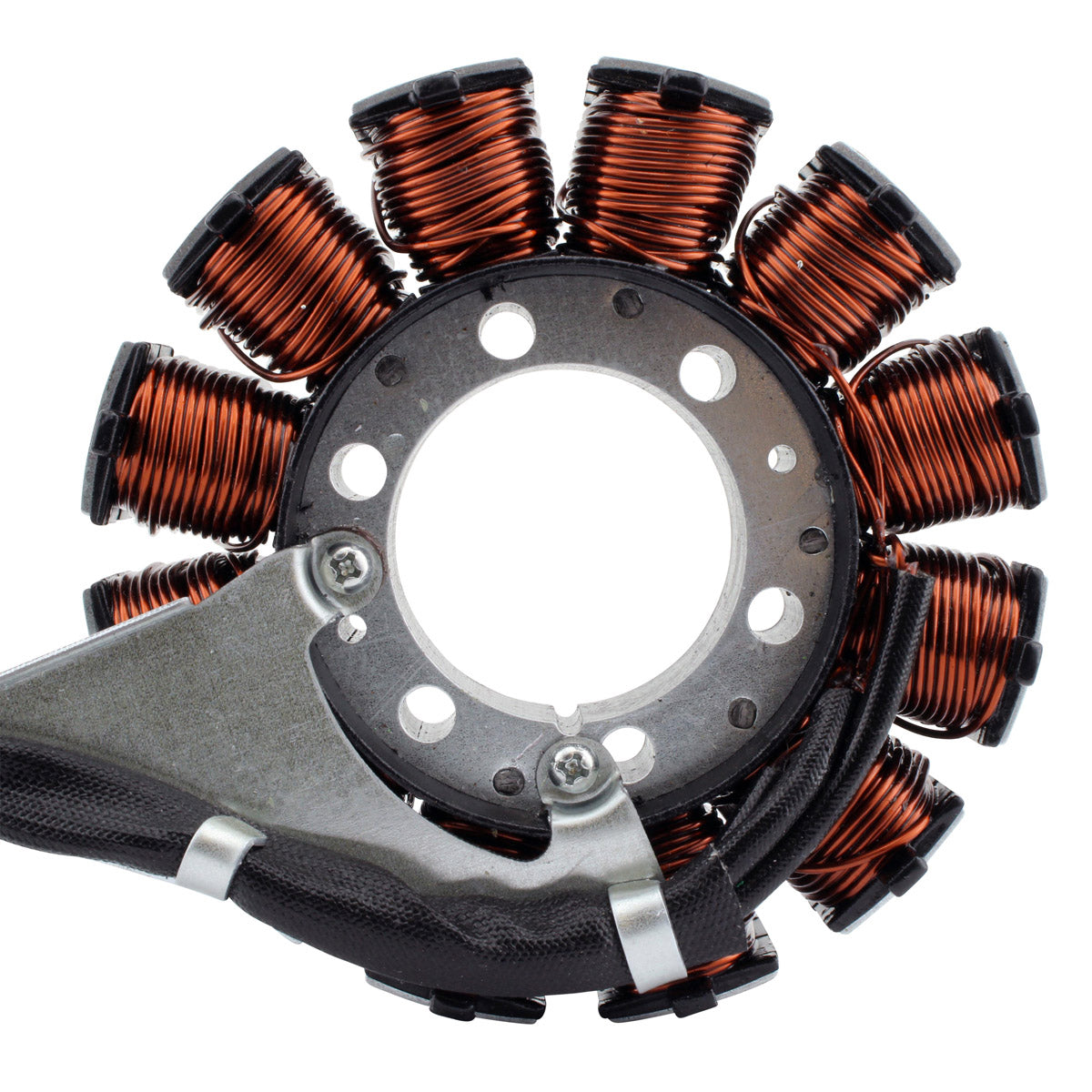

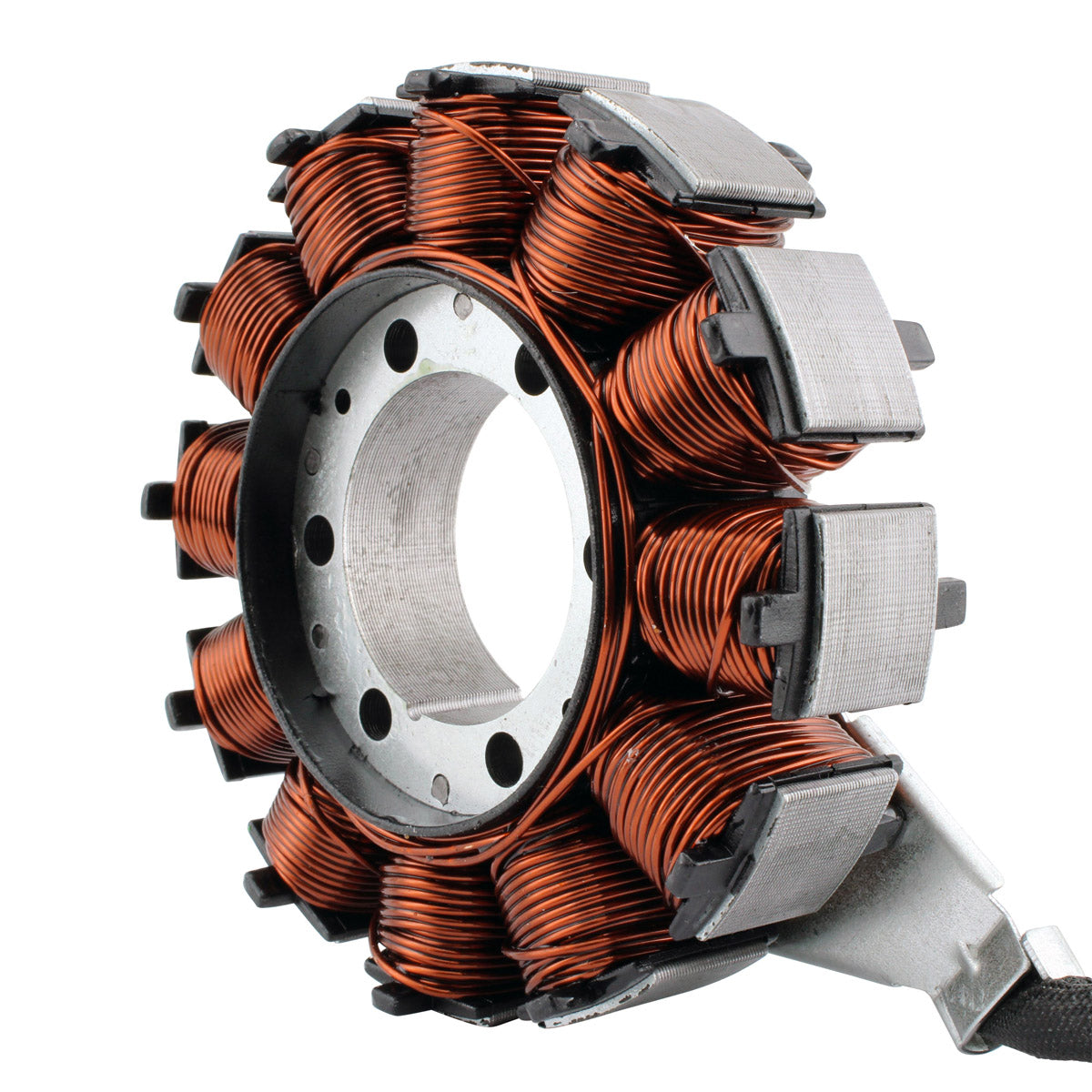

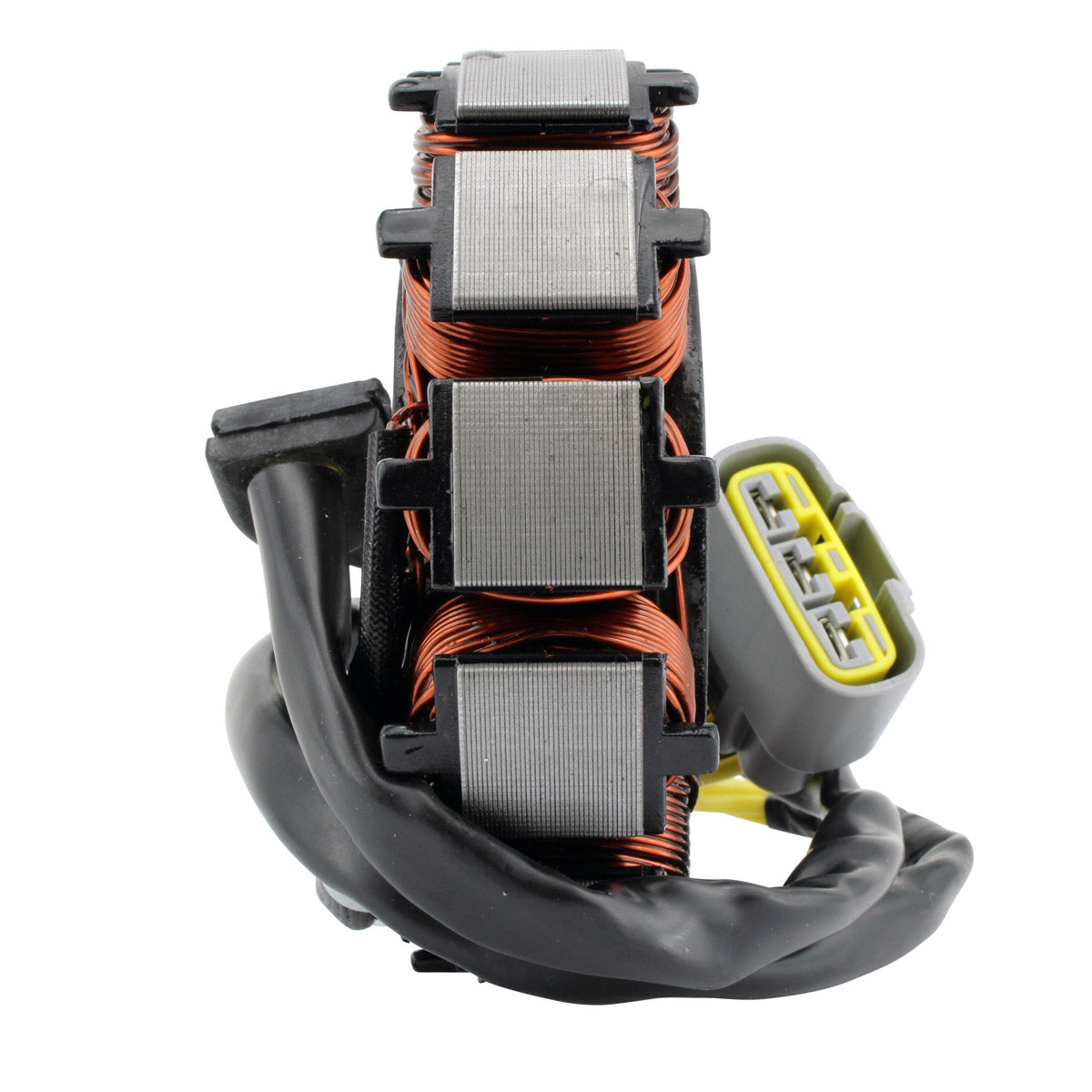

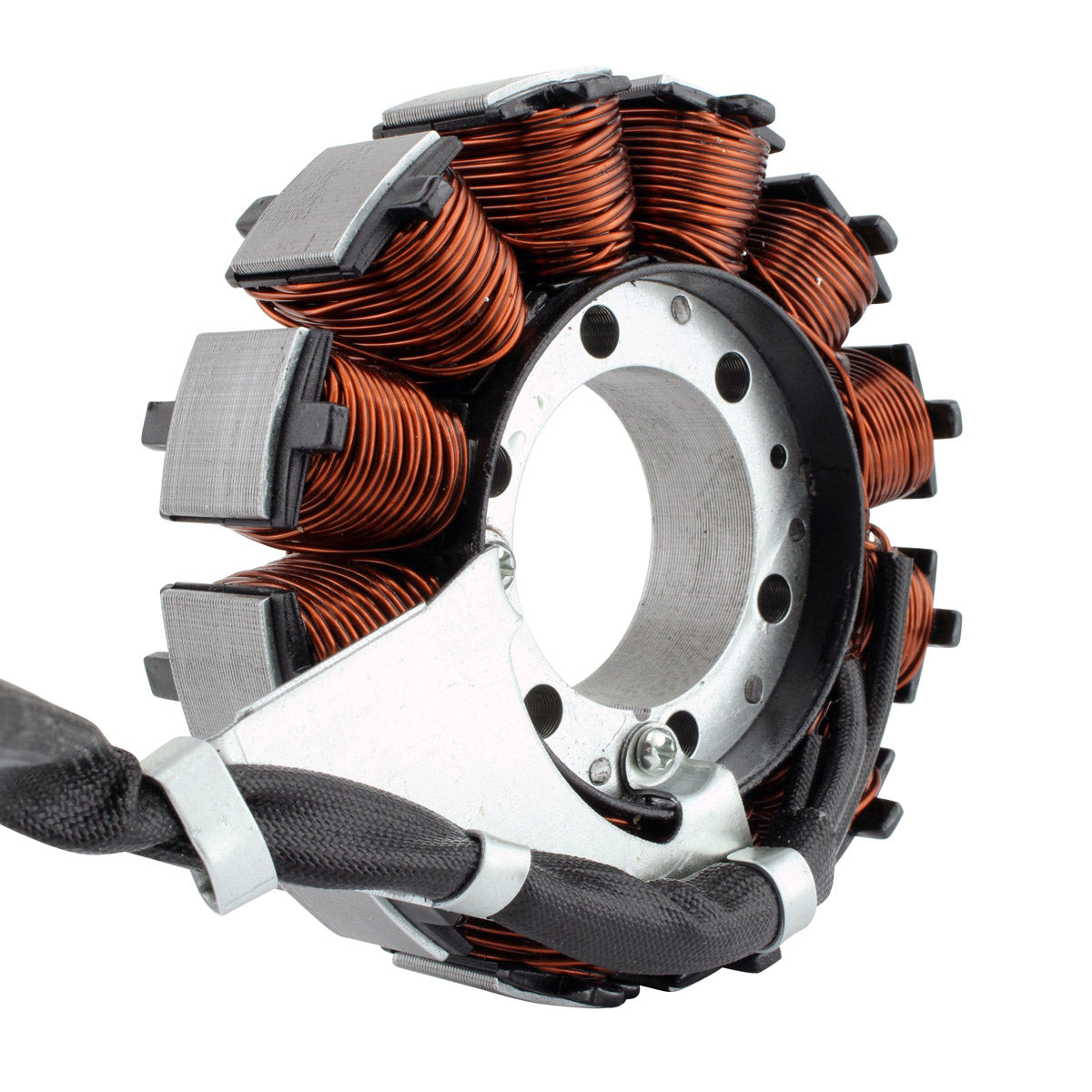

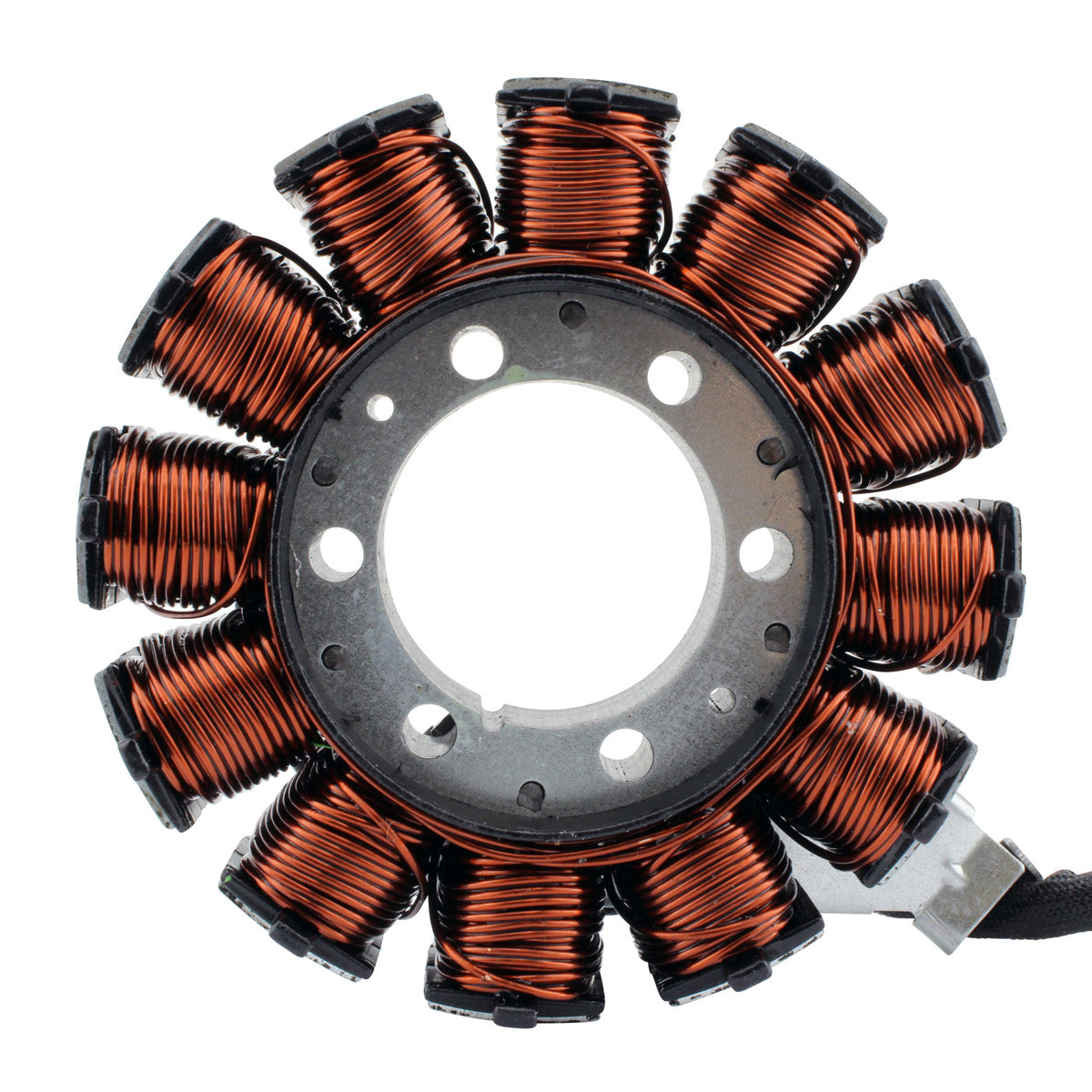

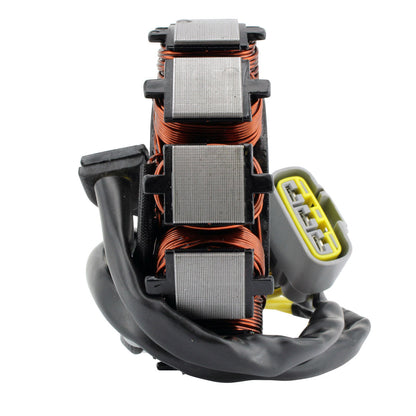

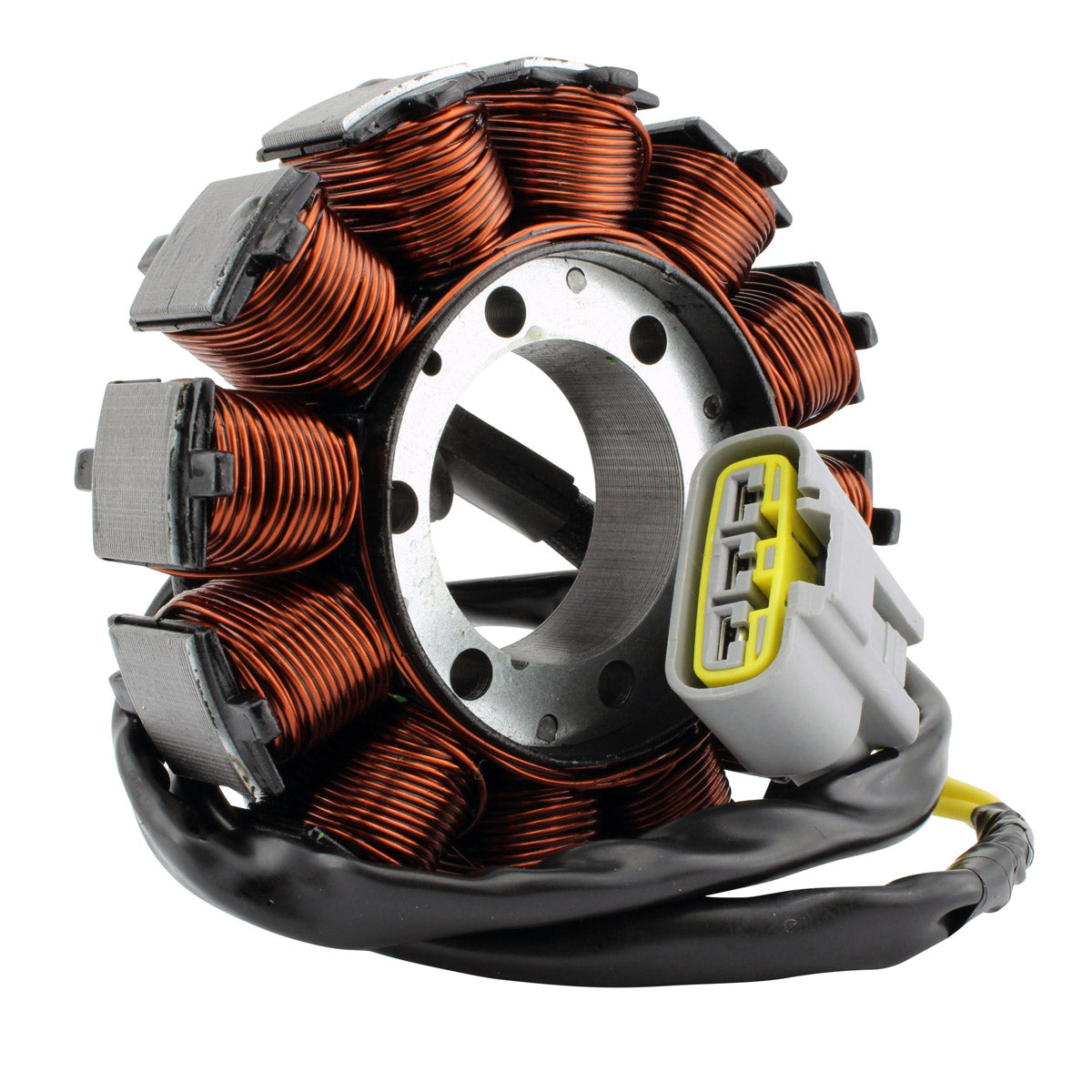

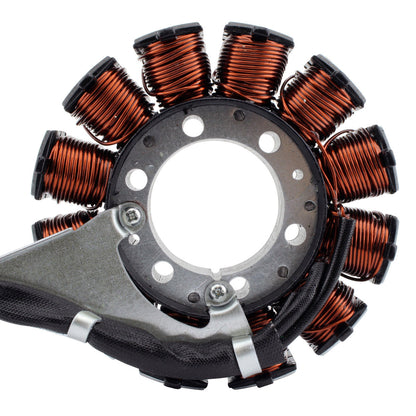

This is a brand new stator and a direct replacement for the original unit fitted to the Ski-Doo Expedition, GSX, MXZ, Renegade and Grand Touring, and to the Lynx 69 Ranger Alpine. It is plug-and-play, a direct fit and easy to install, so the repair is a straightforward swap rather than a rewiring job. The connector and rubber grommet are both supplied with the stator.
Construction uses the highest grade lamination materials and the highest grade copper windings, rated to resist 200 degrees Celsius. That matters on a snowmobile, where the charging system has to run a heated grip and accessory load in deep cold while the stator itself sits in a hot crankcase. Sustained heat is what breaks down the insulation on a tired original unit and causes the intermittent charging faults and dead batteries these machines are known for. Every product shipped is tested before it leaves us.
Key Features
- Brand new stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation

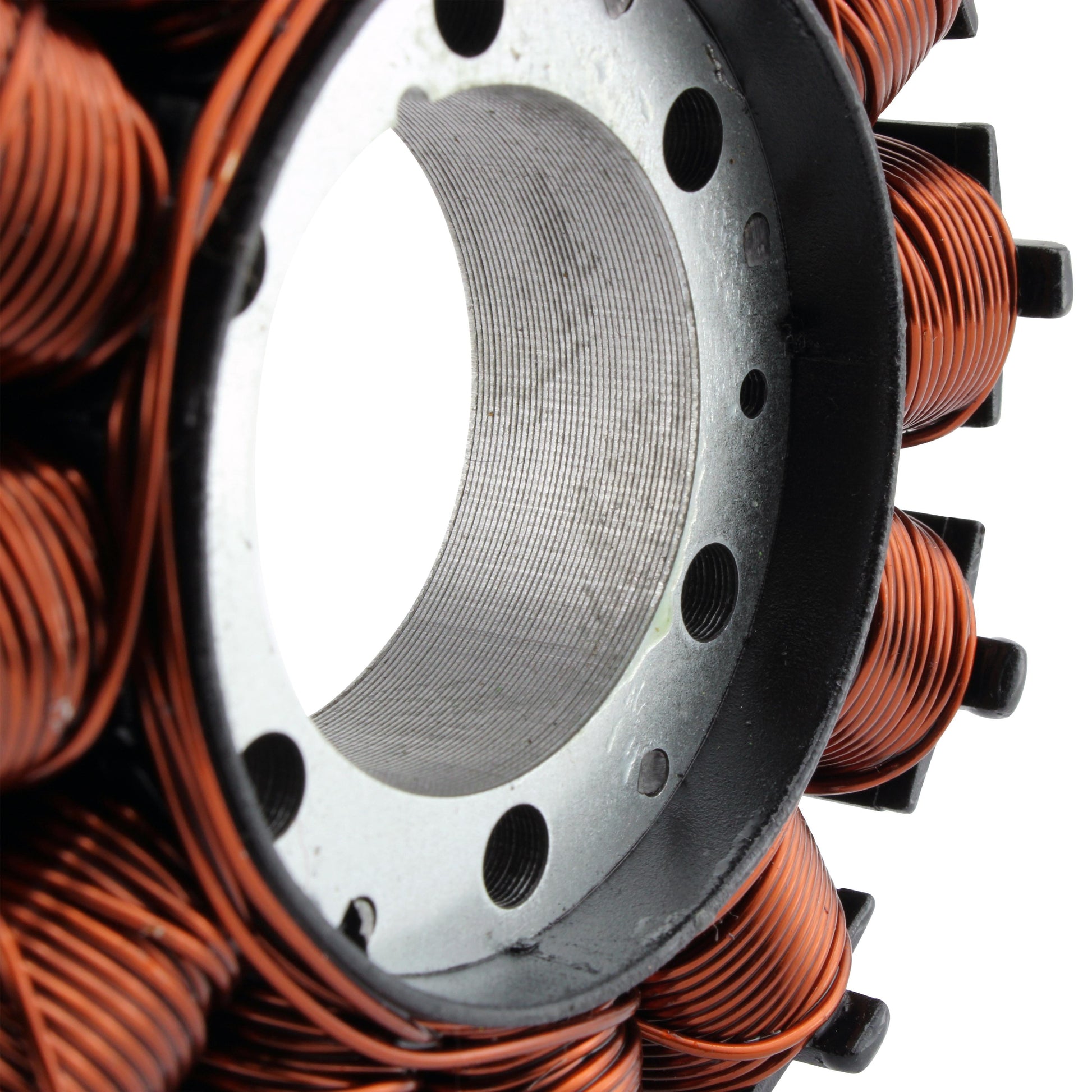

- Highest grade lamination materials

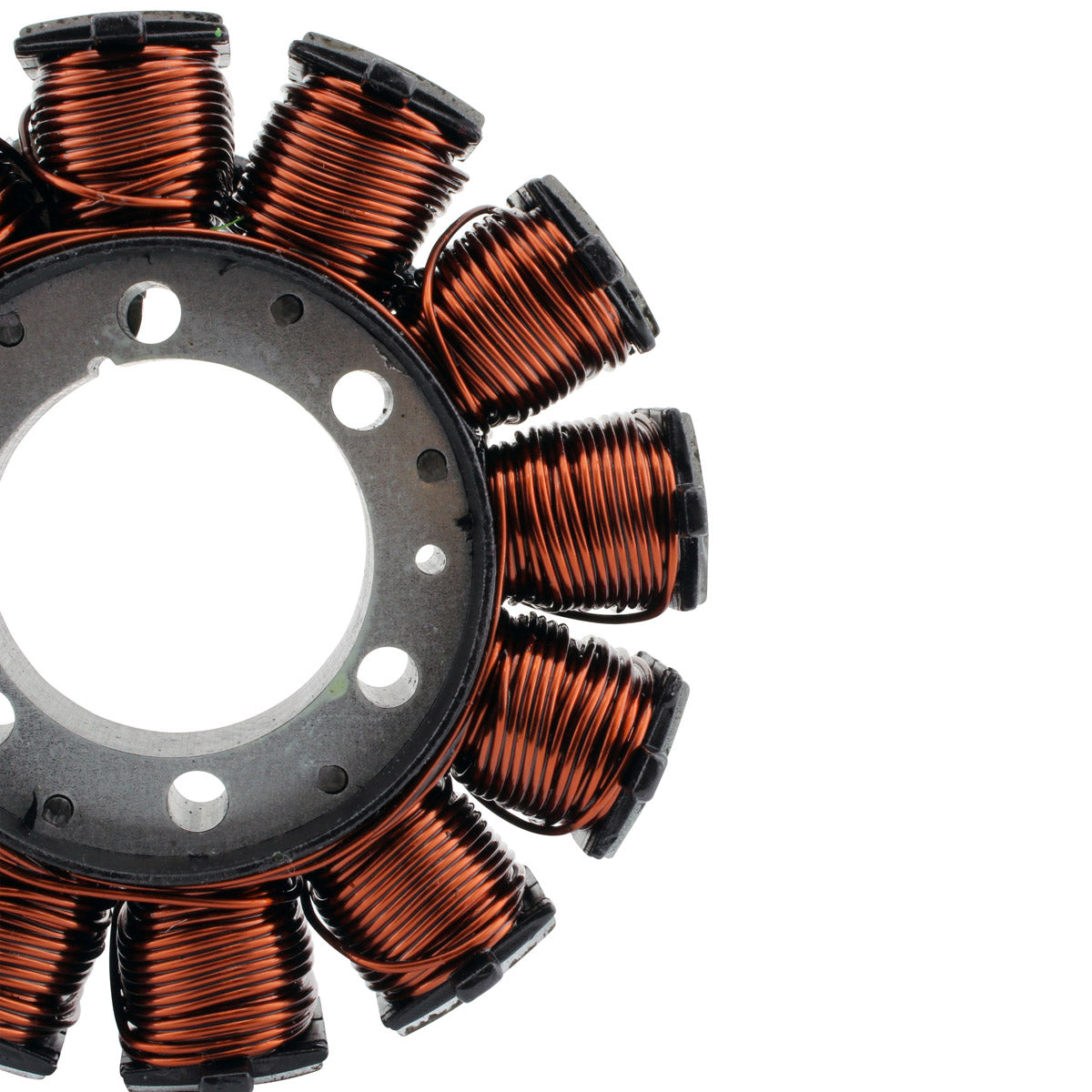

- Highest grade copper windings, resistant to 200 degrees Celsius

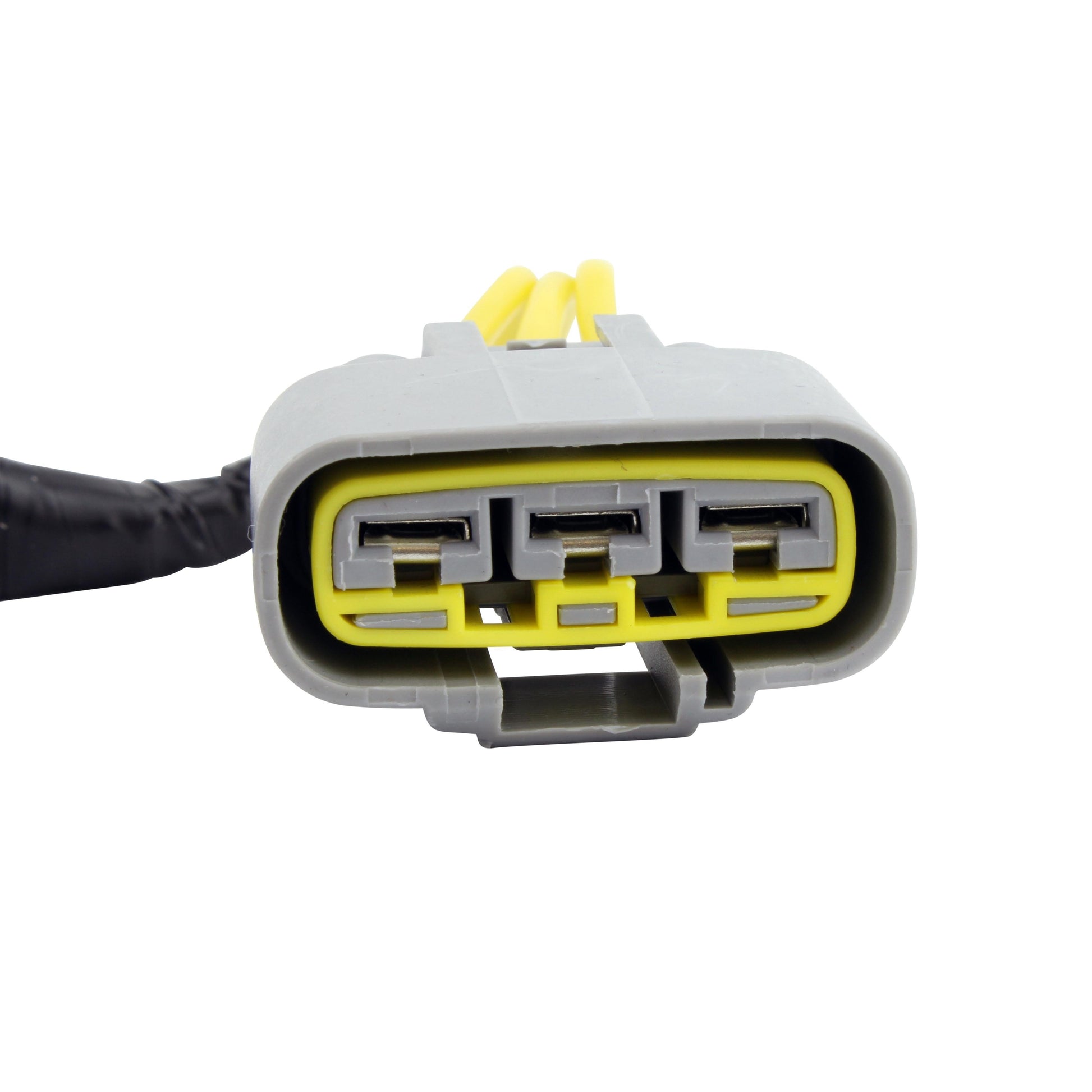

- Connector included

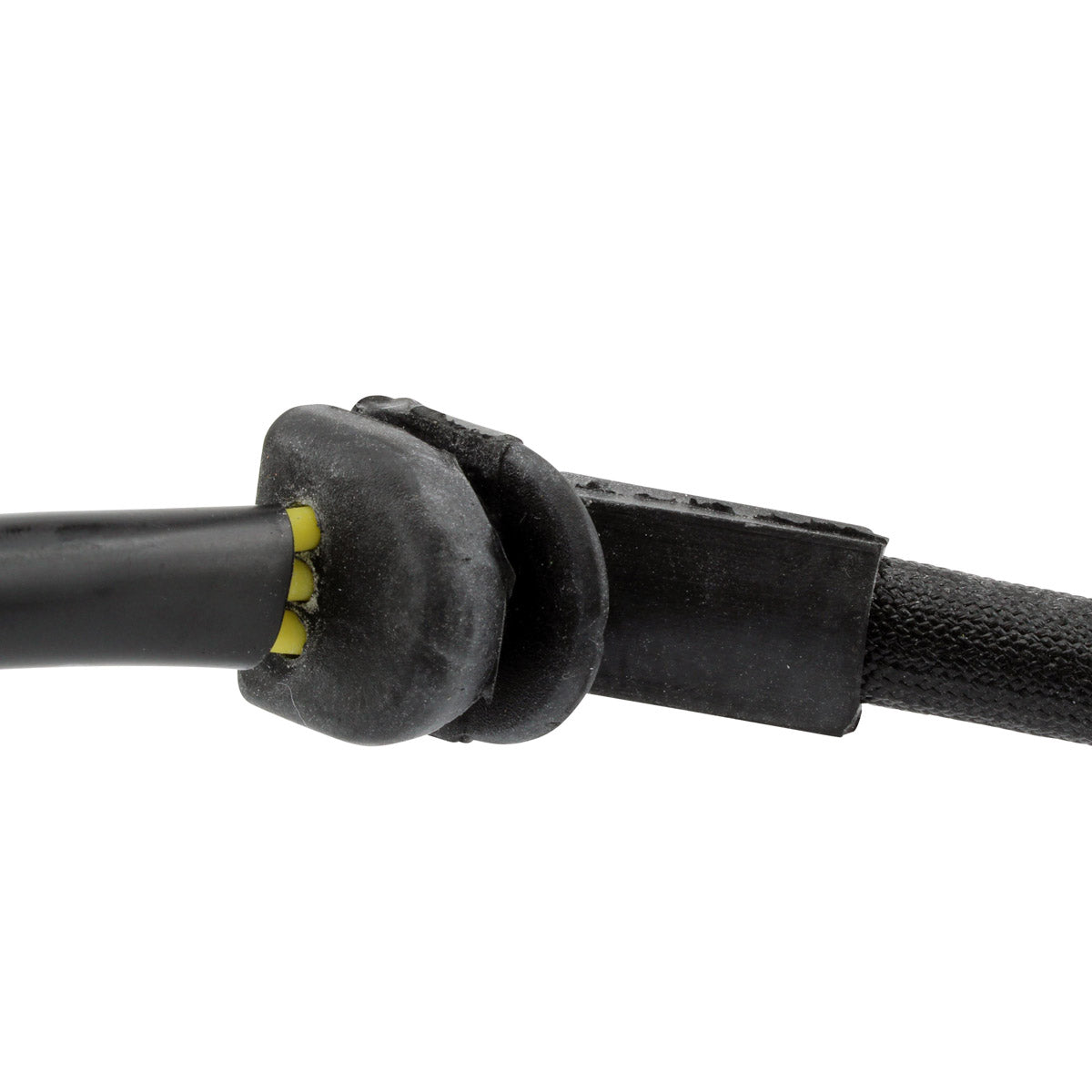

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
114 mm |

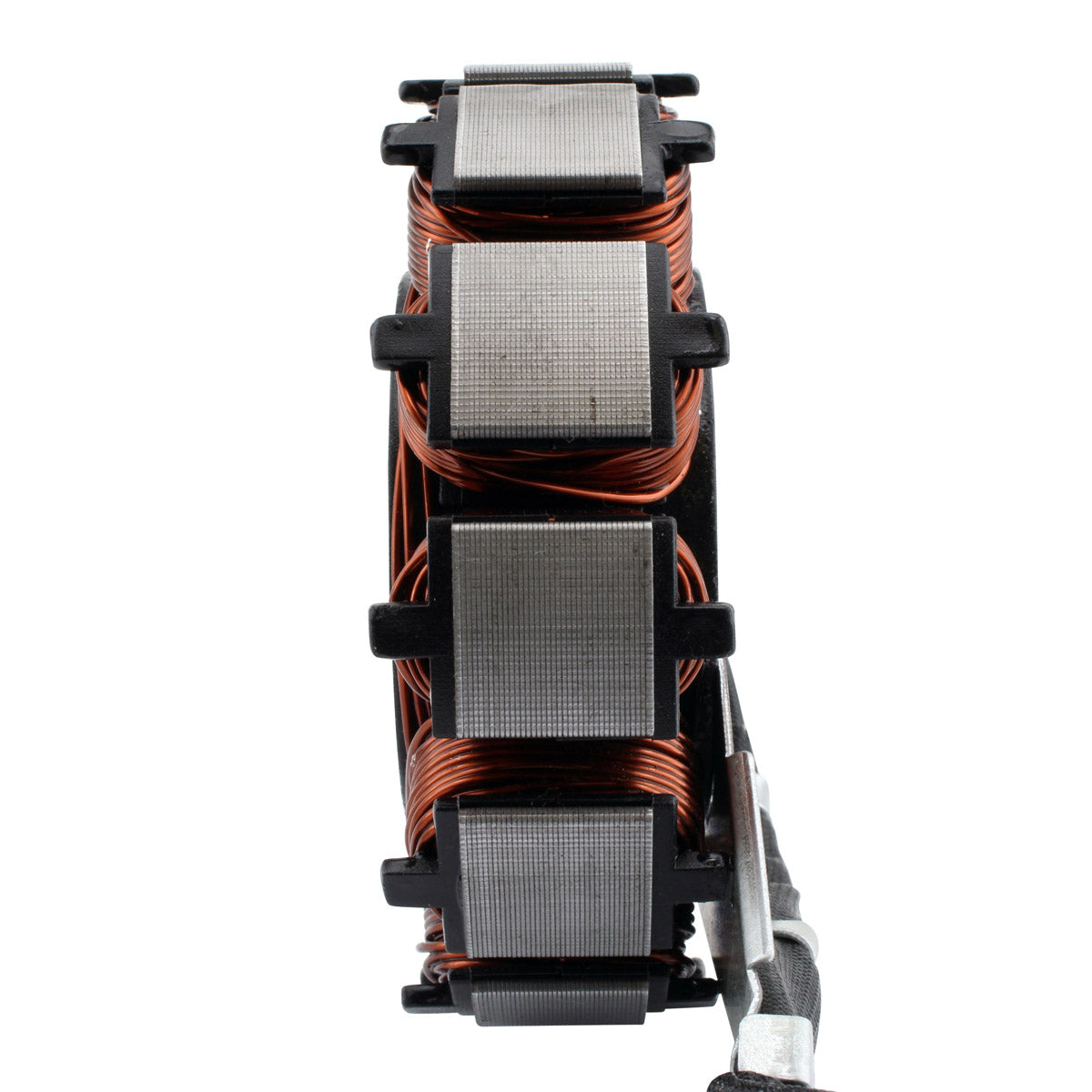

| Thickness |
19 mm |
| Wire length, stator to grommet |
110 mm |
| Wire length, grommet to plug |
600 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Ski-Doo Expedition |
2009-2019 |
| Ski-Doo GSX |
2009-2019 |
| Ski-Doo MXZ |
2009-2019 |
| Ski-Doo Renegade |
2009-2019 |
| Ski-Doo Grand Touring |
2009-2019 |
| Lynx 69 Ranger Alpine |
2012-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420892370 |
Ski-Doo / BRP |
| 420892371 |
Ski-Doo / BRP |
| 420892373 |
Ski-Doo / BRP |
| 420892374 |
Ski-Doo / BRP |
| 420892376 |
Ski-Doo / BRP |
| 420892378 |
Ski-Doo / BRP |
| RM01364 |
Manufacturer SKU |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit - plug-and-play, direct fit and easy installation. The connector and rubber grommet come fitted, so there is no cutting or splicing of the loom.
What is included in the box?
The stator itself, with its connector and rubber grommet included. The unit is tested before it is shipped.
How do I tell whether my old stator has failed?
Typical symptoms are a battery that will not hold charge, dim or flickering lights, heated grips that fade, and a charging voltage that stays at or below battery voltage with the engine running. With the plug disconnected, a stator that reads open circuit between its output wires, or that shows continuity from any output wire to earth, has failed.
Will it fit my Lynx as well as a Ski-Doo?
Yes. The same unit covers the Lynx 69 Ranger Alpine from 2012 to 2014 alongside the Ski-Doo models listed. Check the number stamped on your original stator against the cross reference table above to be certain.
