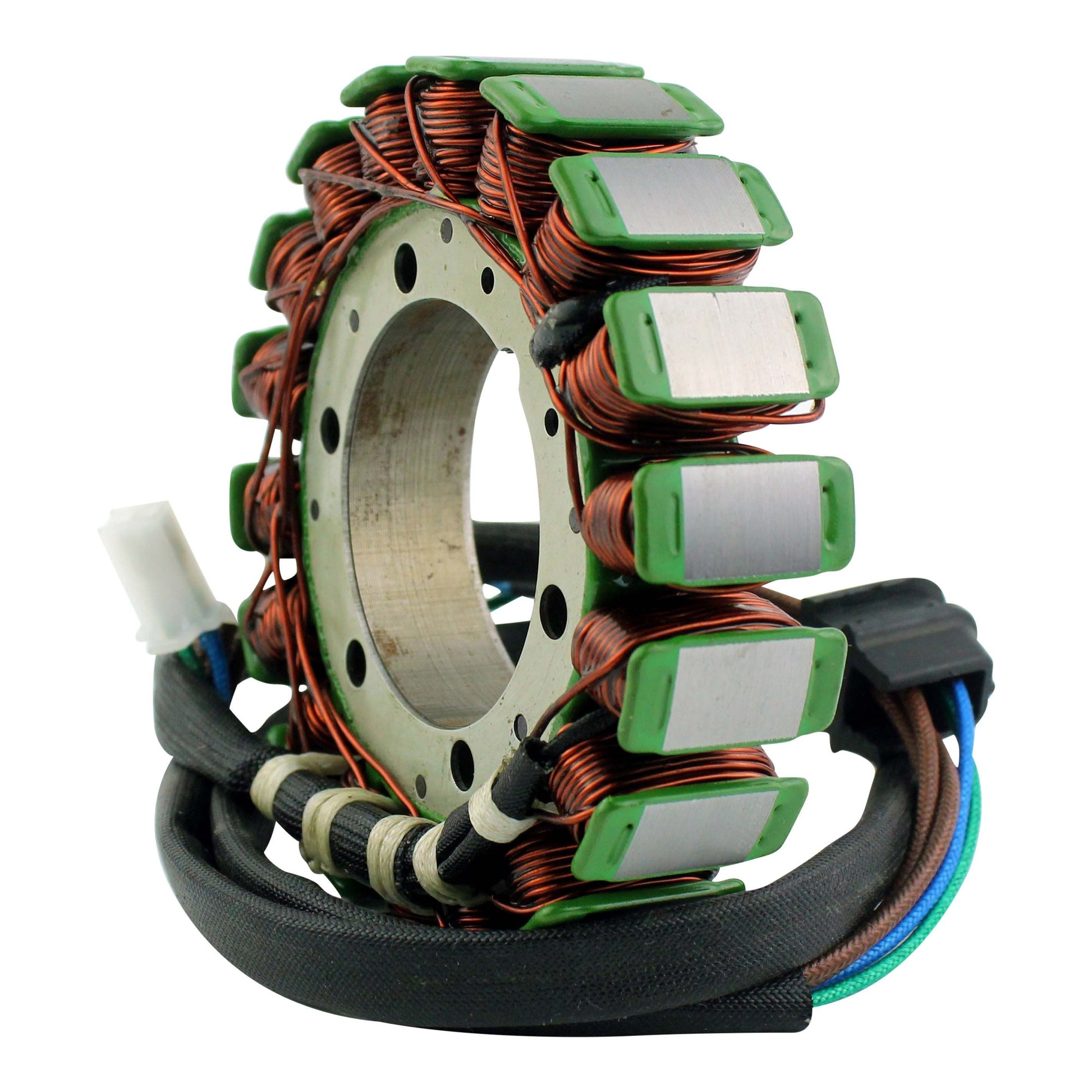

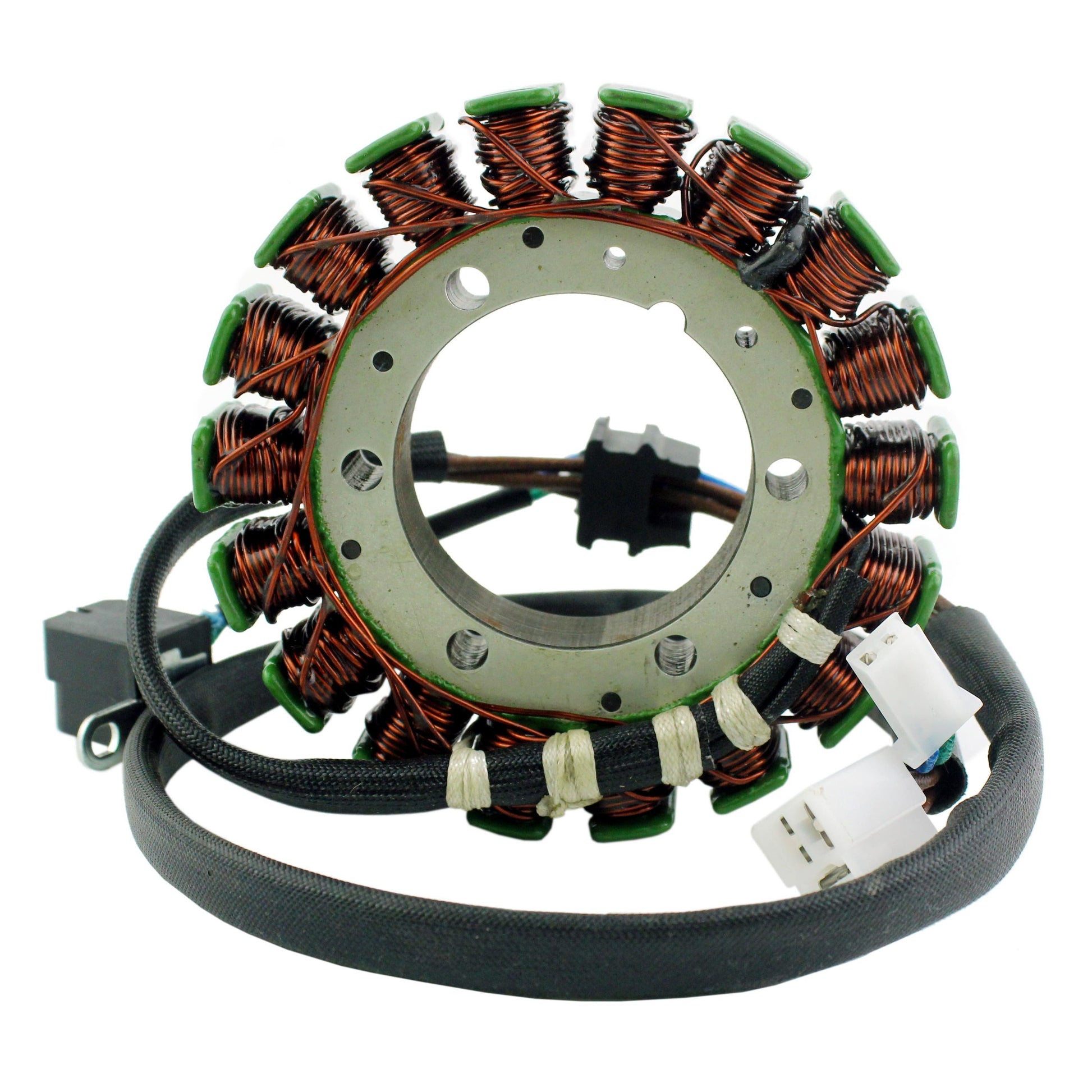

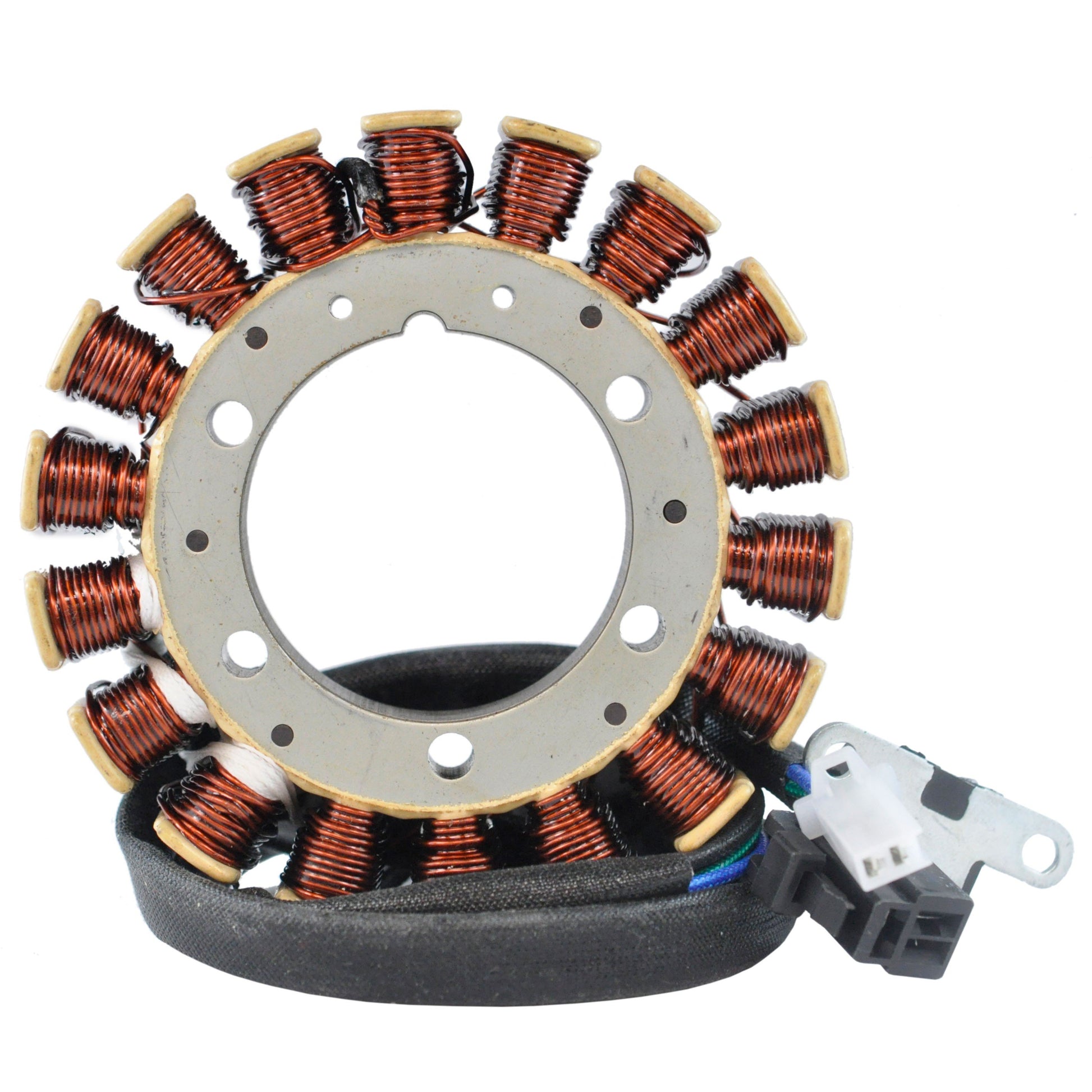

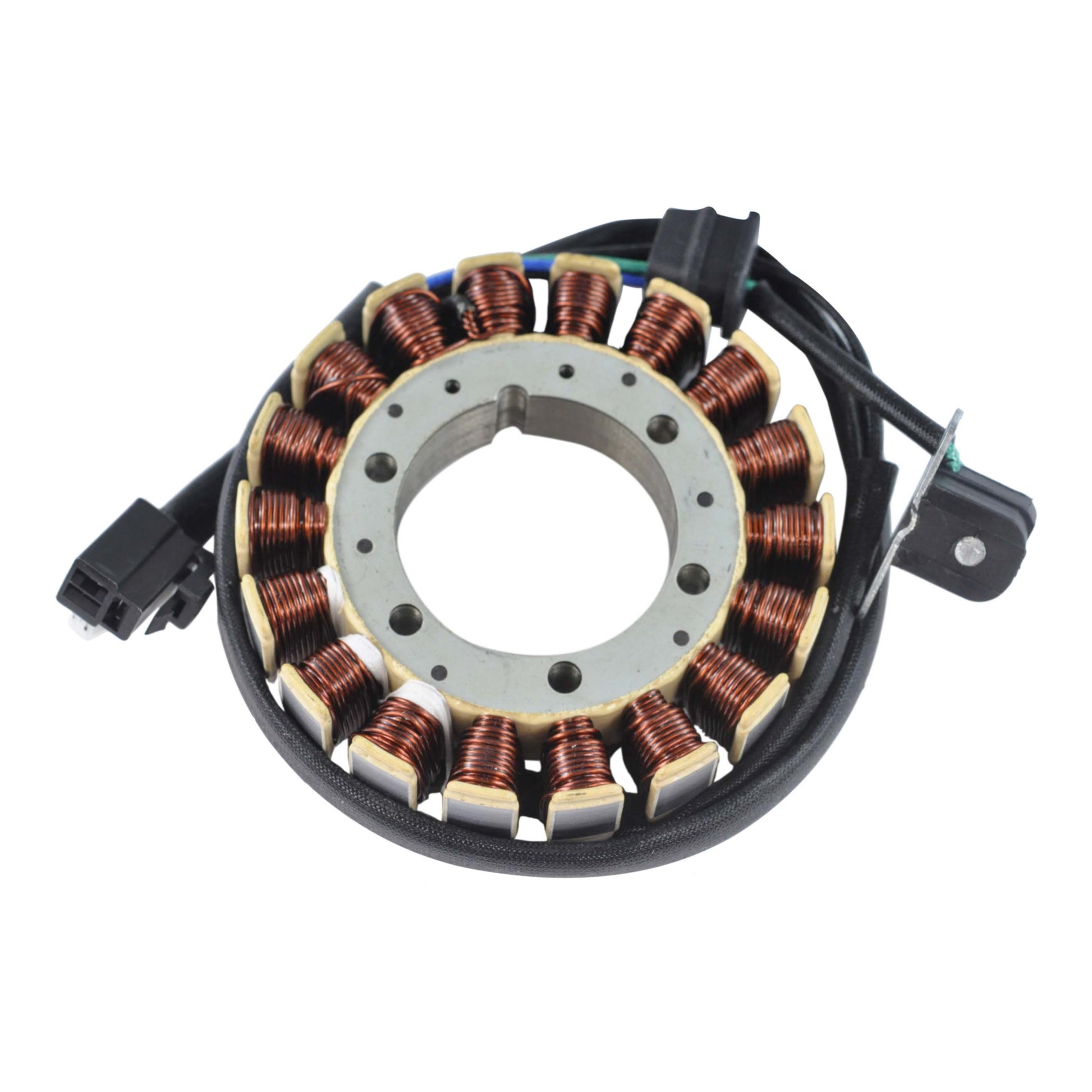

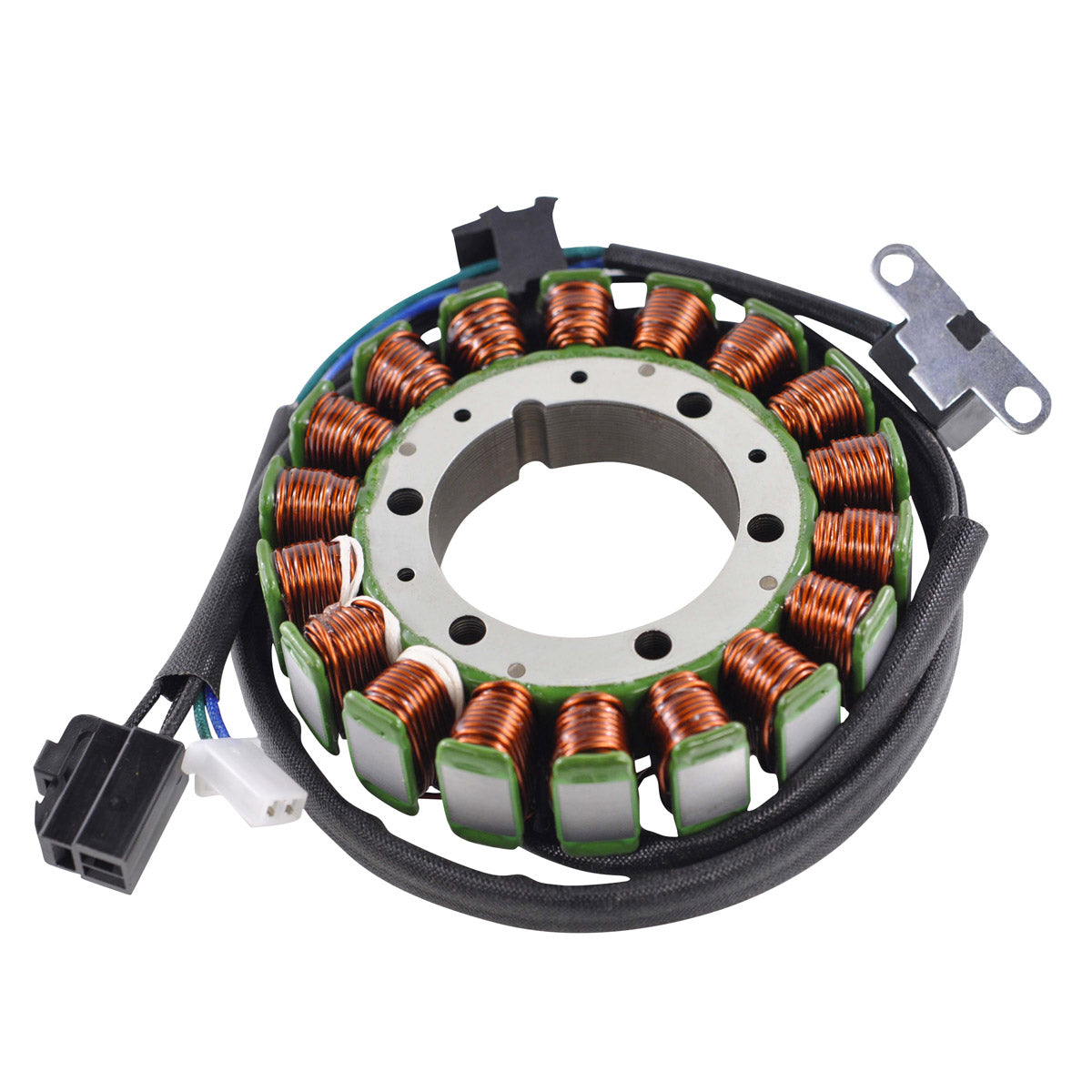

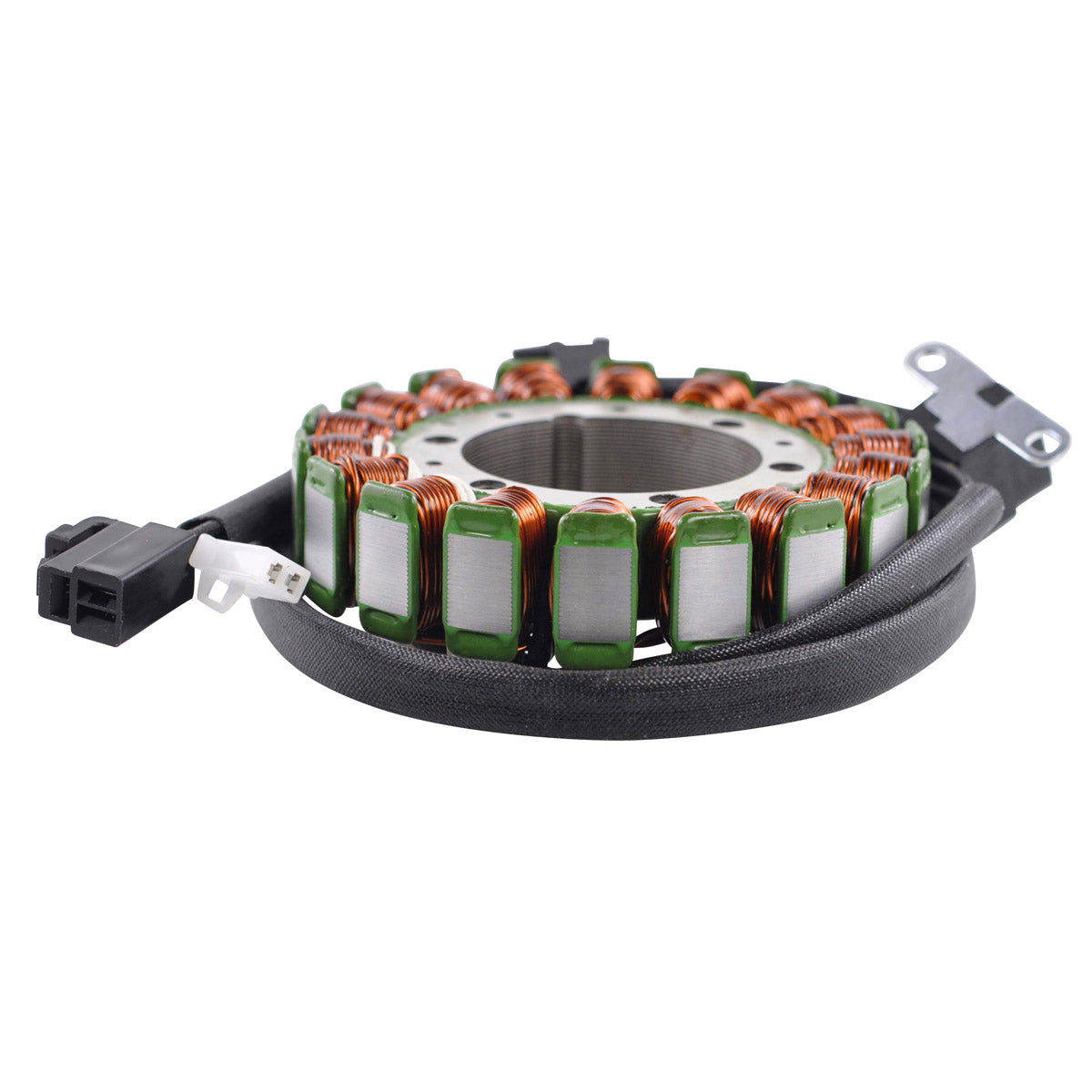

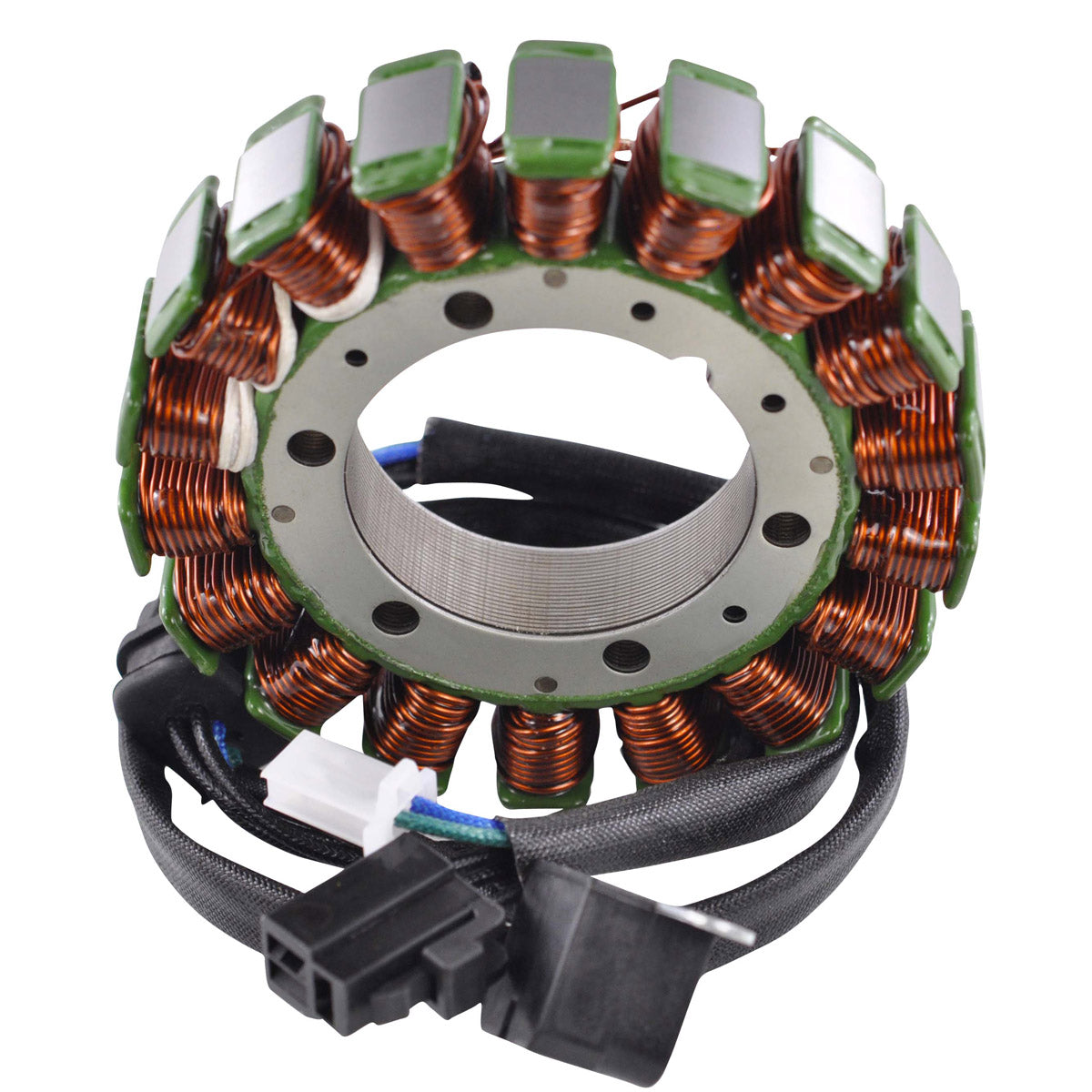

This is a brand new generator stator built as a direct replacement for the original unit fitted to the Suzuki Boulevard C90 VL 1500 from 2005 to 2009. It cross references Suzuki part numbers 32101-10F10, 32101-10F11 and 32101-10F12 and is a plug-and-play, direct fit item that uses the standard mounting points and factory connectors, so no cutting, splicing or modification of the wiring loom is needed.
The assembly is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. The pickup pulsar coil is supplied on the unit along with the connector and rubber grommet, so the ignition trigger is renewed at the same time as the charging winding rather than being carried over from the old part. Alternator and pickup resistance figures are listed below for diagnosing your existing stator.
Key Features
- Brand new generator stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials

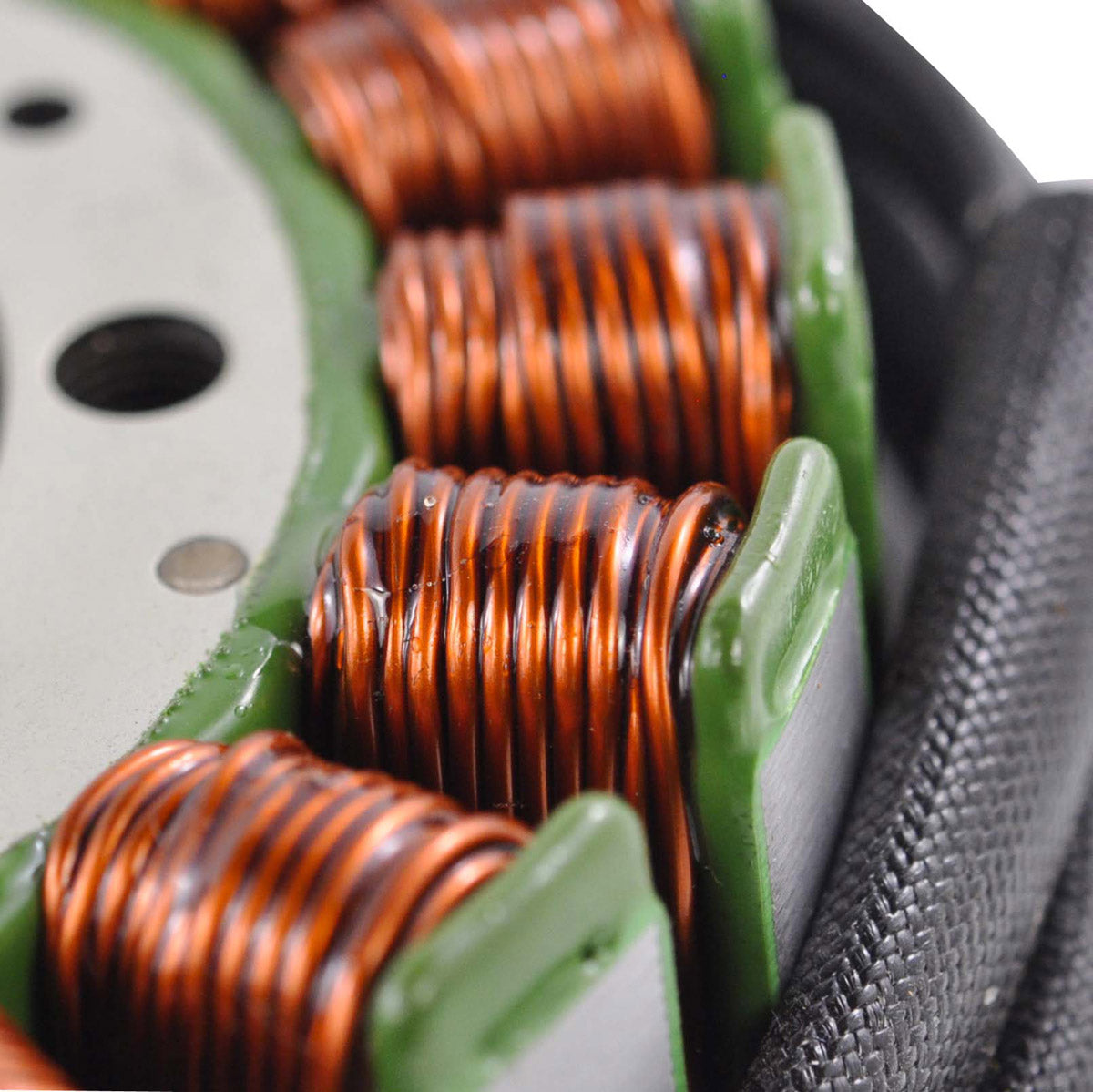

- Highest grade copper windings, resistant to 200 degrees Celsius
- Pickup pulsar coil included

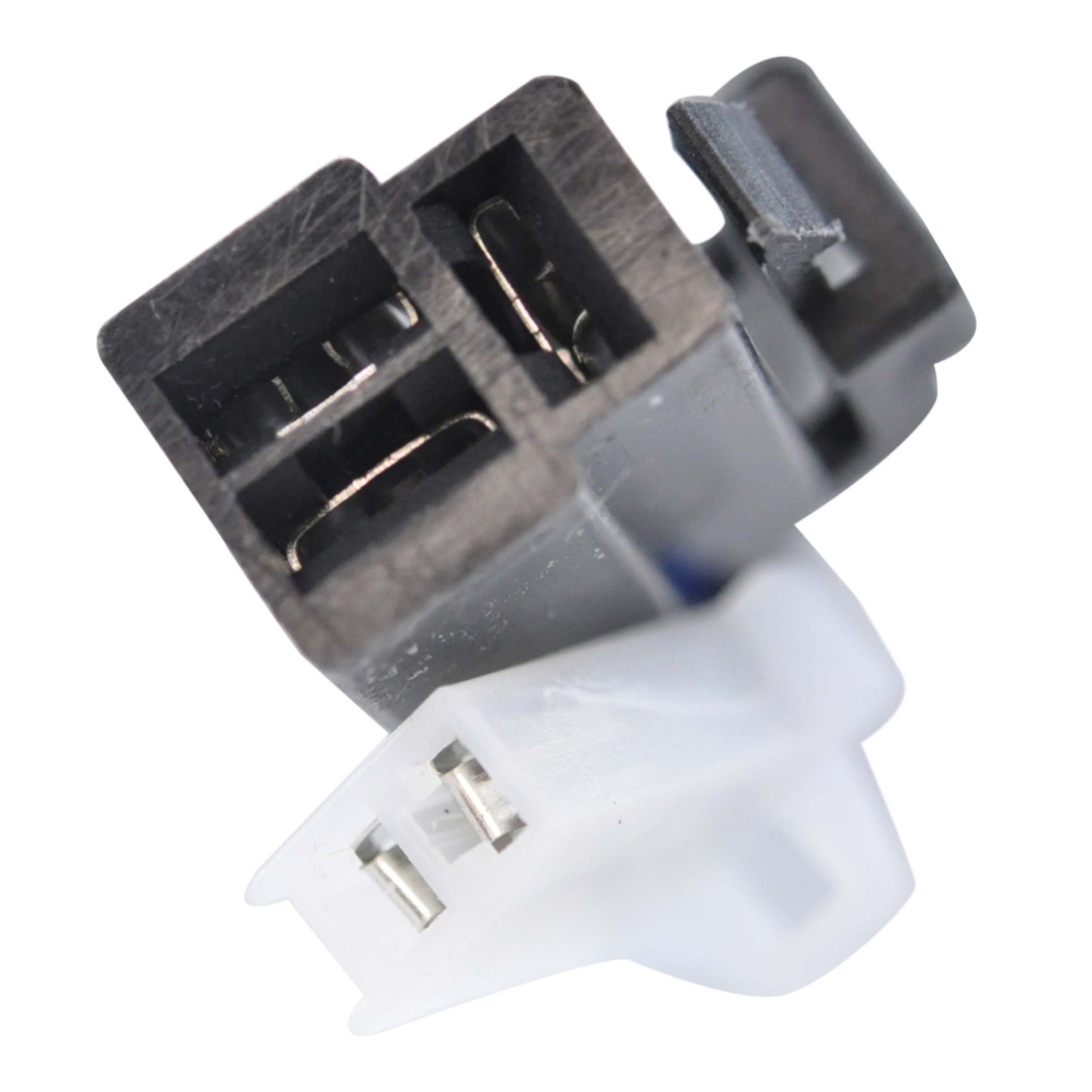

- Connector included
- Rubber grommet included
- Cross references Suzuki 32101-10F10, 32101-10F11 and 32101-10F12
Technical Specs
| Specification |
Detail |
| Part number |
RM01195S |
| Interior diameter |
53 mm |
| Exterior diameter |
115 mm |
| Thickness |
20 mm |
| Wire length (stator to grommet) |
120 mm |
| Wire length (grommet to plug) |
410 mm |
| Pickup coil wire length to grommet |
45 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance (black to black) |
0.4 ohms +/- 20% |
| Pickup resistance (blue to green) |
220 ohms +/- 20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki Boulevard C90 VL 1500 |
2005-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-10F10 |
Suzuki |
| 32101-10F11 |
Suzuki |
| 32101-10F12 |
Suzuki |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct, plug-and-play replacement for the original generator stator on the 2005 to 2009 Boulevard C90 VL 1500, using the standard mounting points and factory connectors, so no cutting or splicing is required. Confirm the number on your original unit is 32101-10F10, 32101-10F11 or 32101-10F12 before ordering.
What is included in the box?
The generator stator with the pickup pulsar coil, plus the connector and the rubber grommet.
How do I tell whether my old stator has failed?
Typical symptoms are a battery that goes flat, dim lights at idle, a charging warning, hard starting, and eventually the engine stopping and not restarting. Test with a multimeter: the alternator winding should read 0.4 ohms +/- 20% between the black wires, and the pickup should read 220 ohms +/- 20% from blue to green. An open circuit, continuity to the engine case, or readings well outside those bands confirm a failed stator.
Does this include the pickup coil?

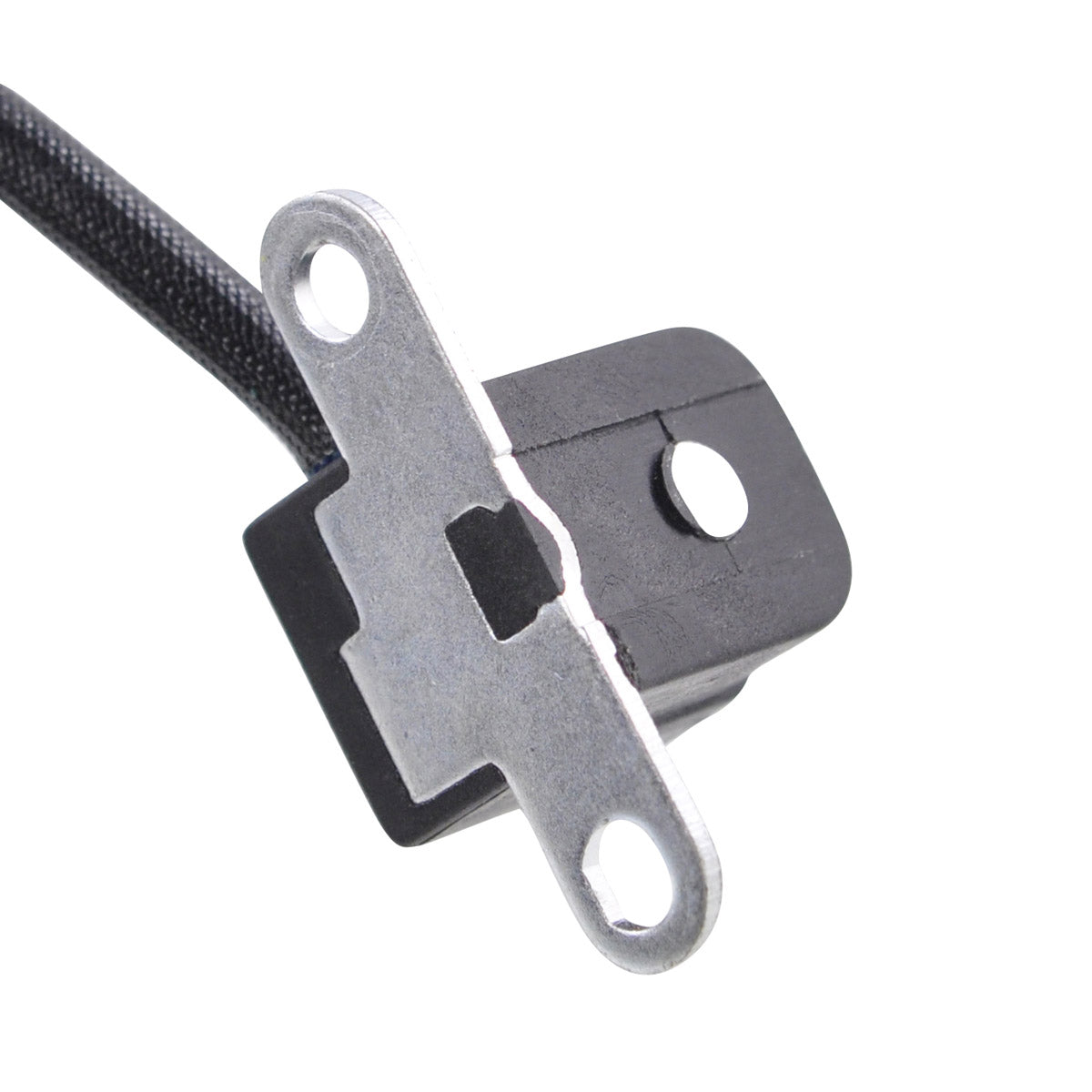

Yes. The pickup pulsar coil is fitted to the assembly on a 45 mm lead to the grommet, so the ignition trigger is replaced along with the charging winding. There are 5 wires in total, terminating in 2 plugs with 5 pins.
