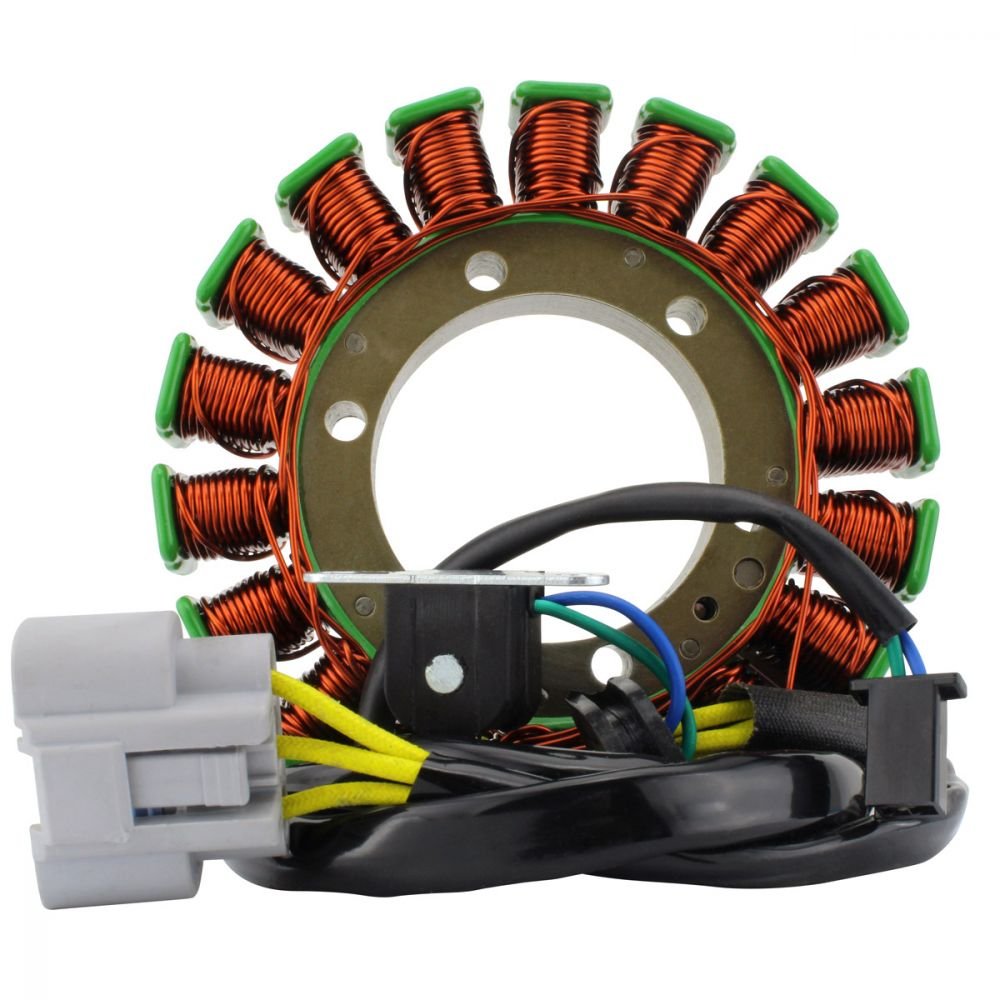

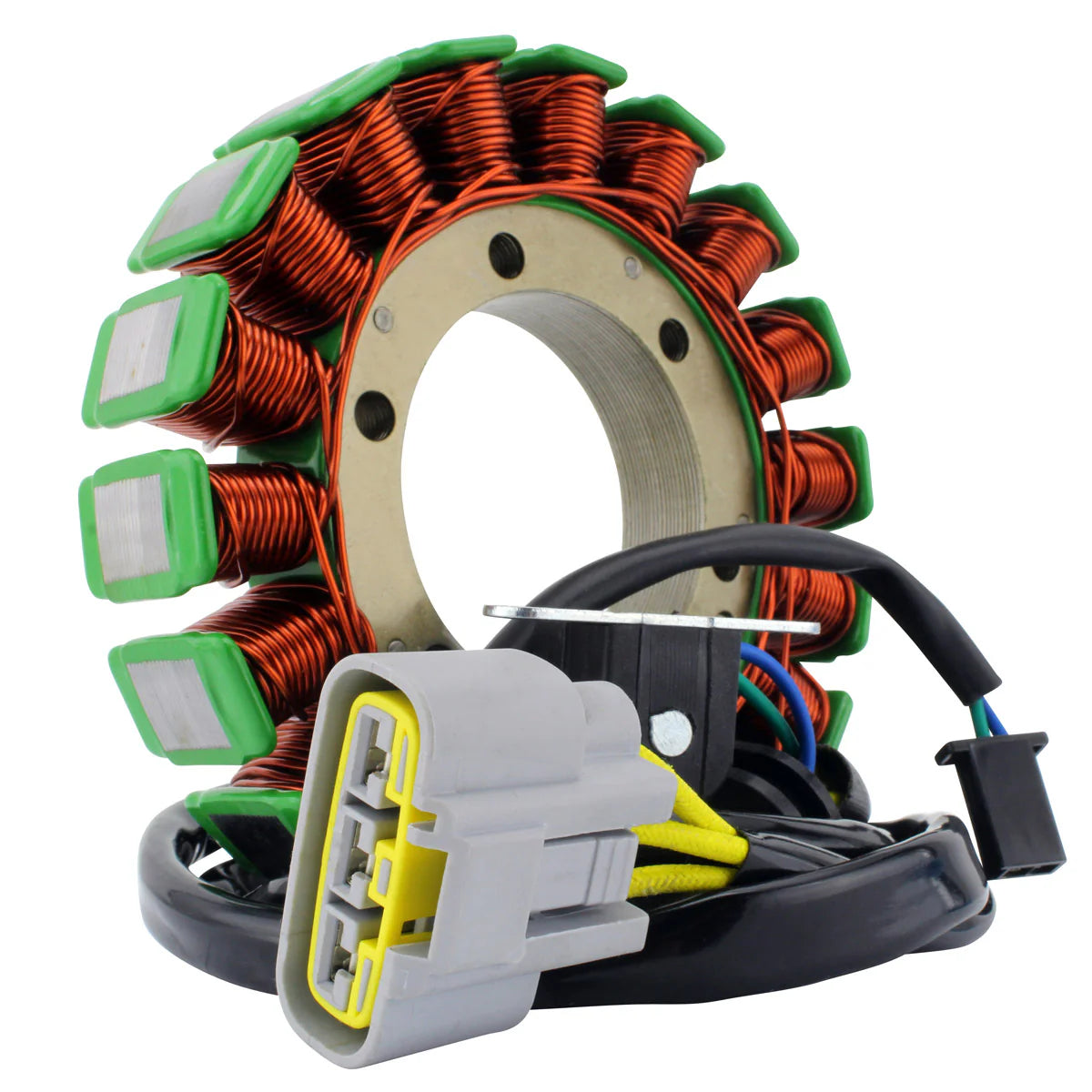

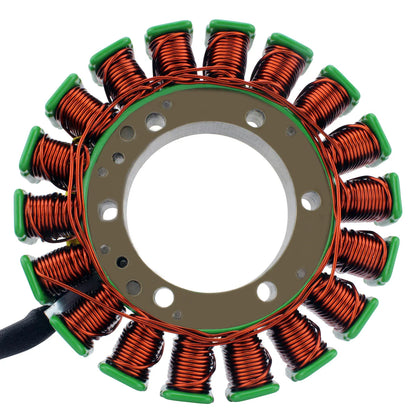

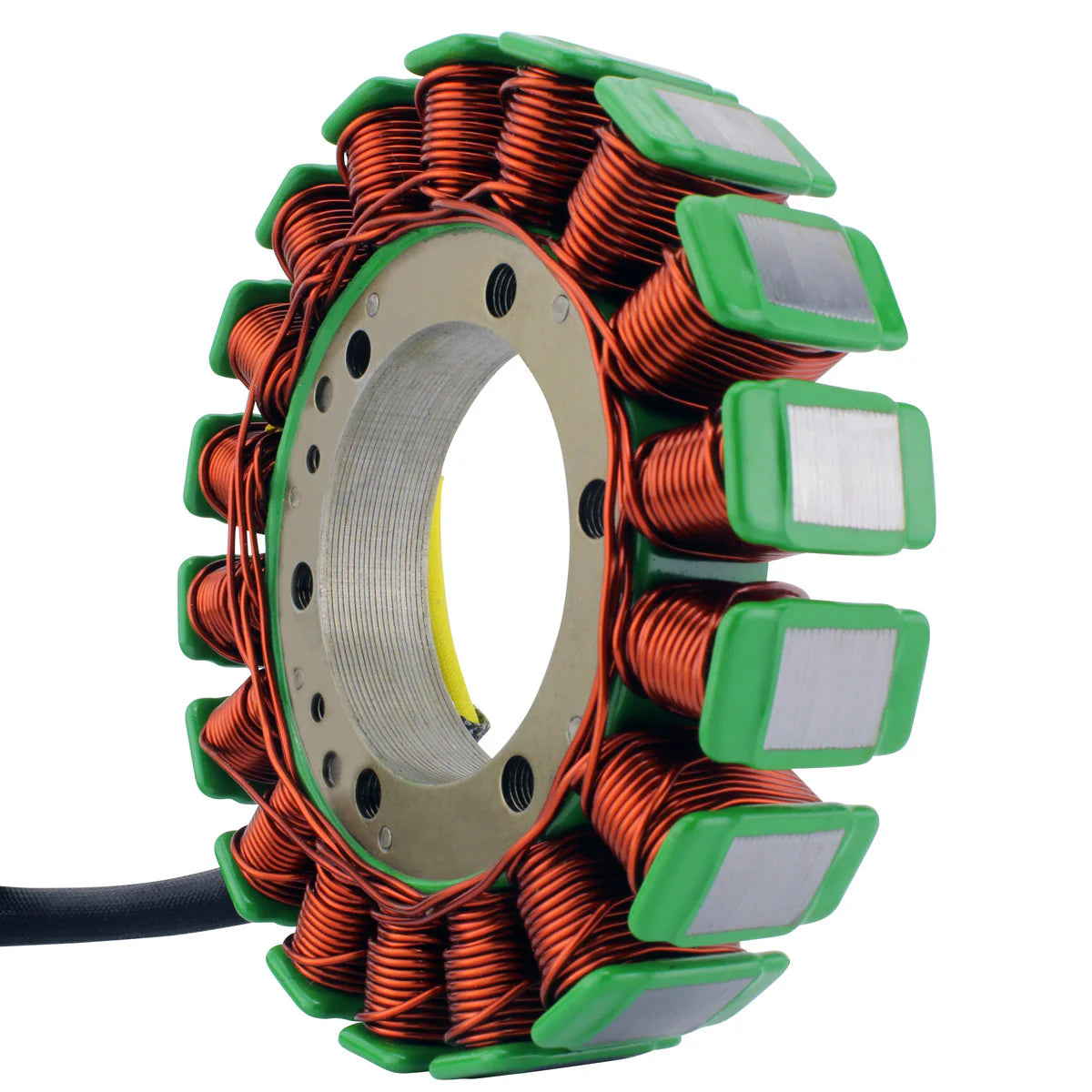

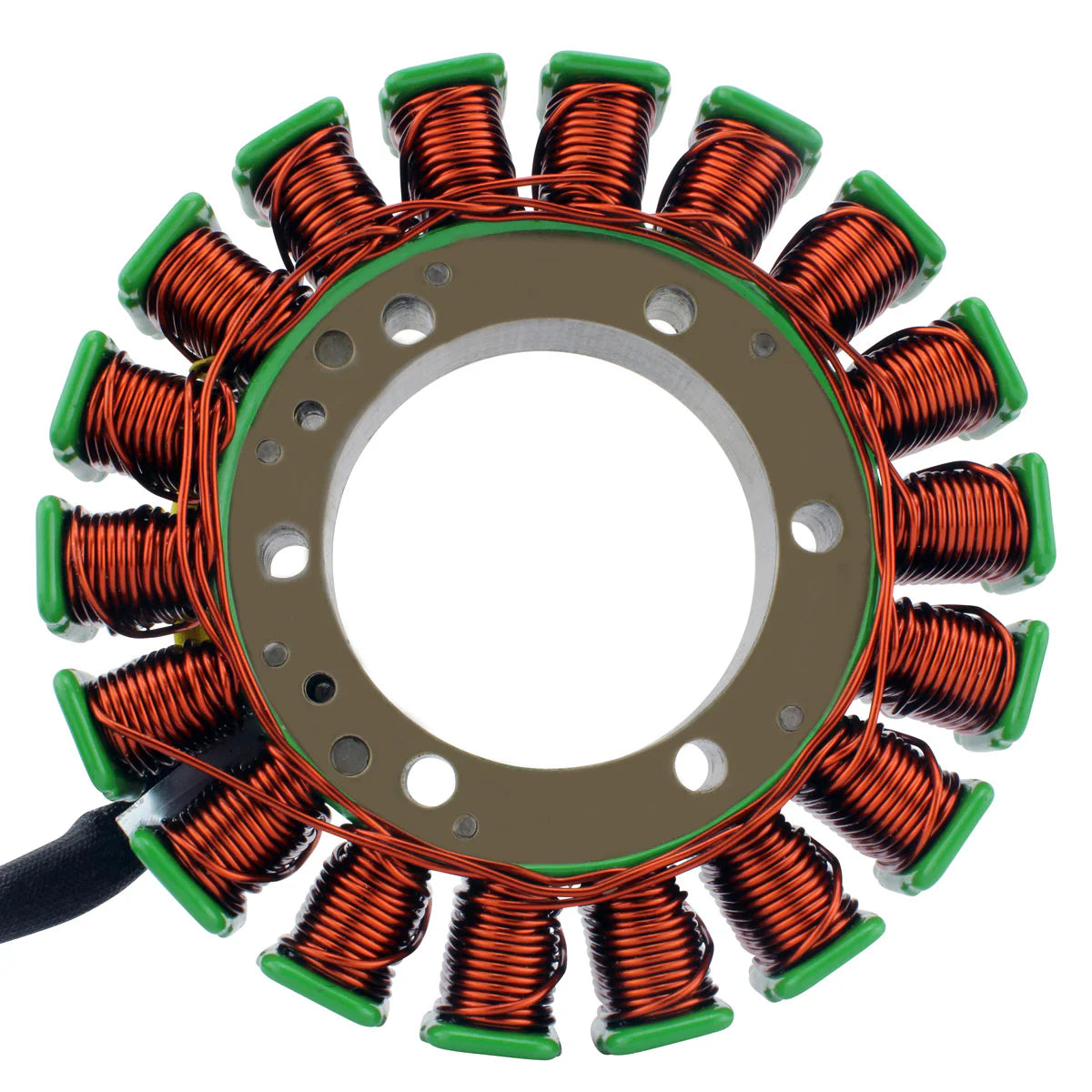

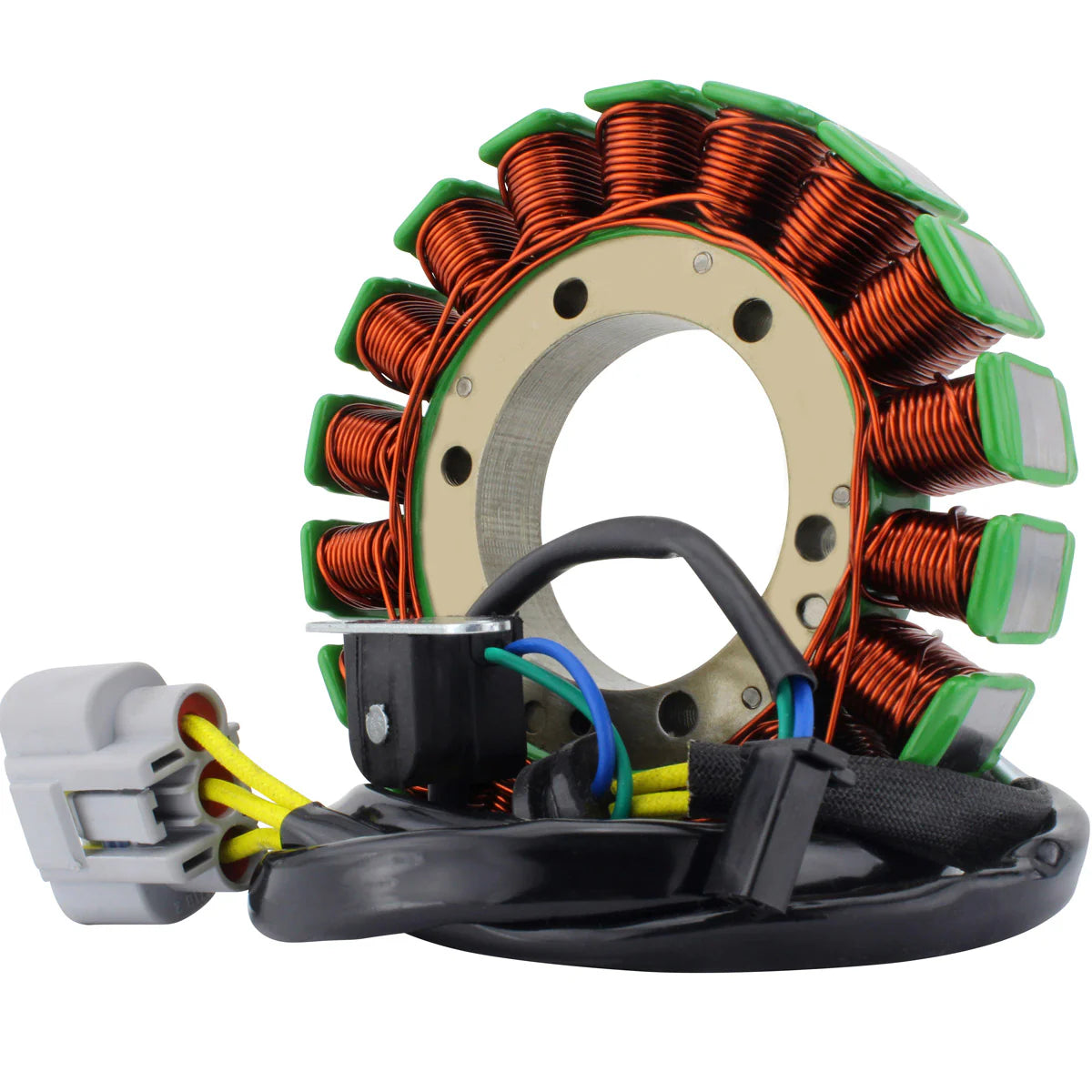

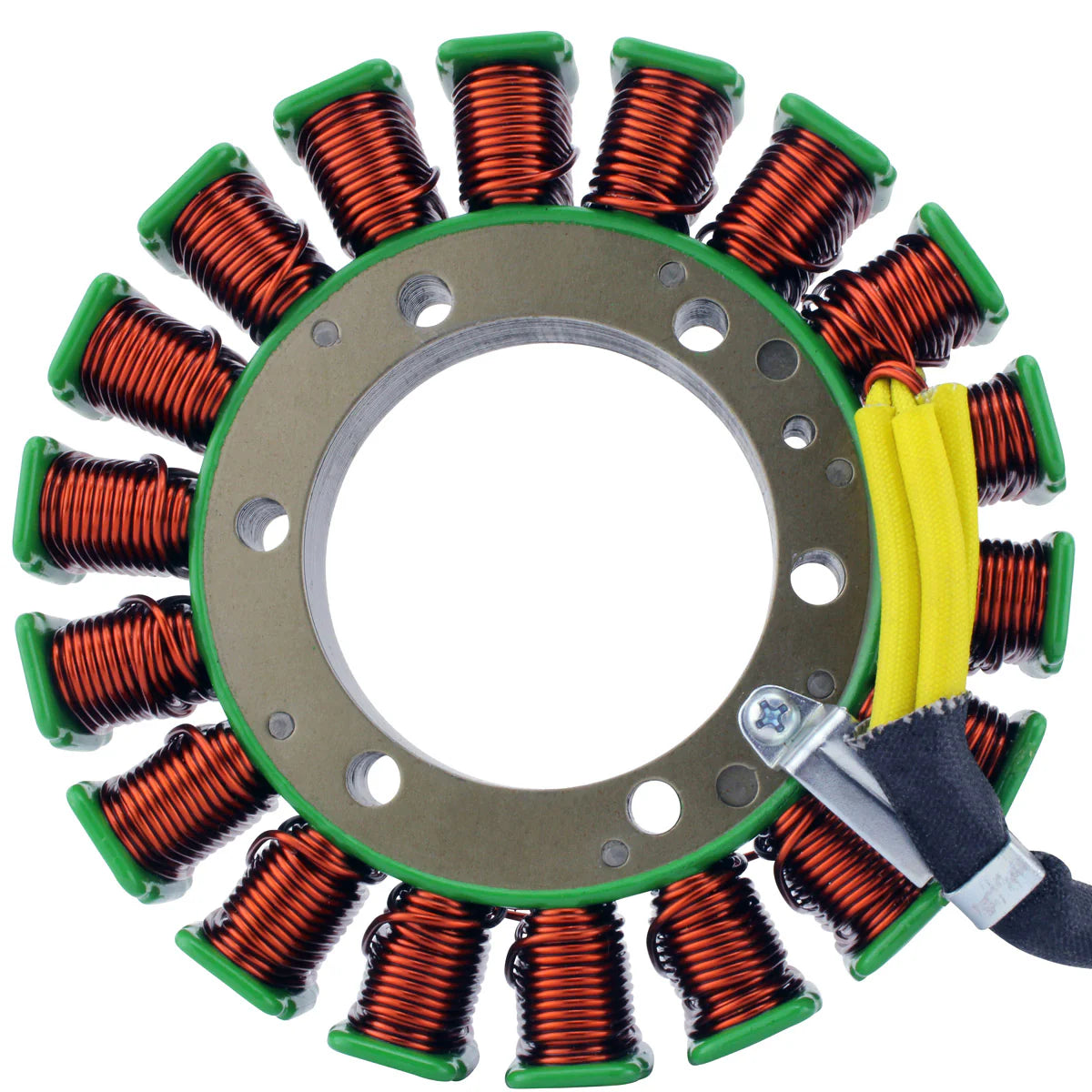

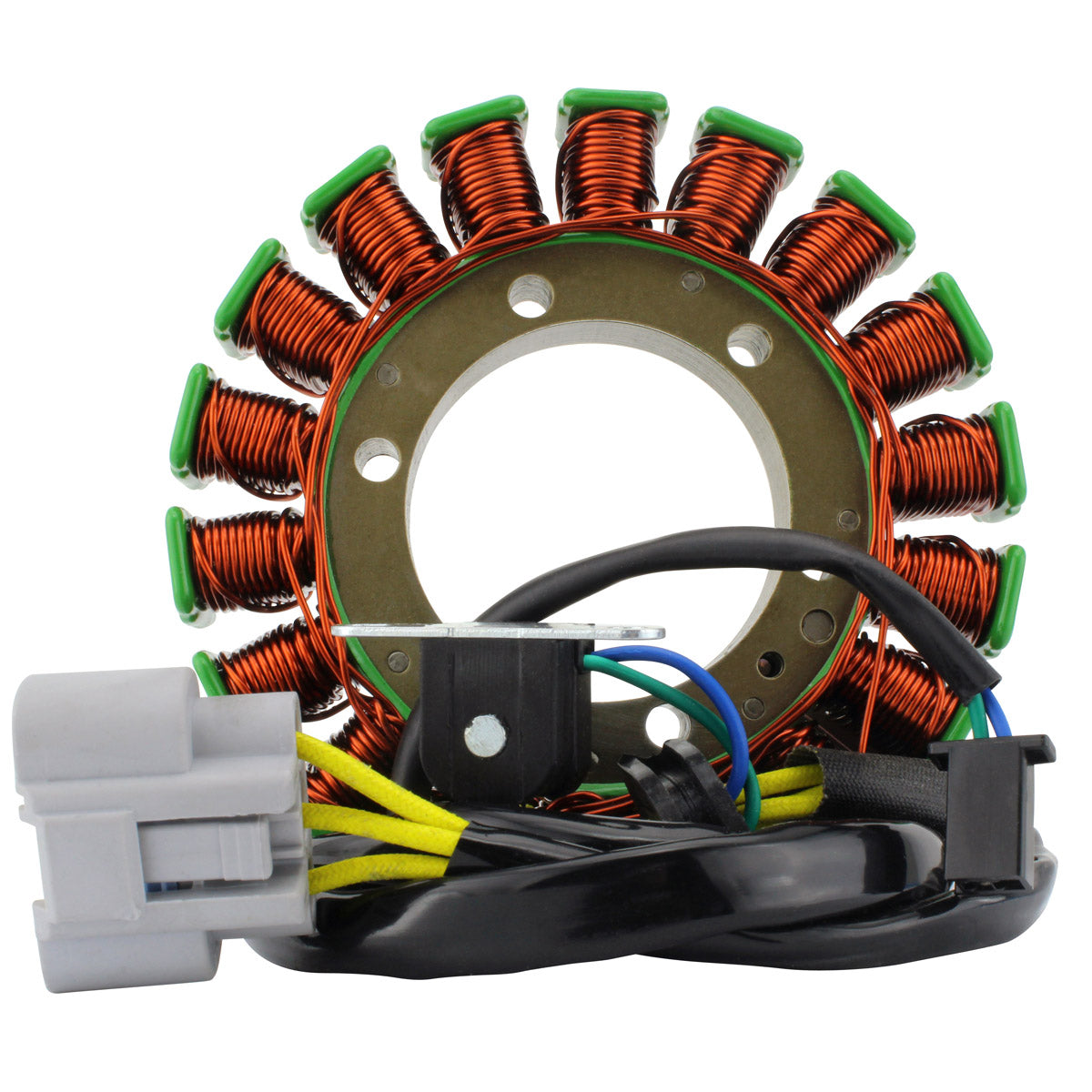

This is a brand new aftermarket generator stator for the Suzuki Burgman AN 650 maxi-scooter, built as a direct replacement for the original charging system stator. It is a plug-and-play, direct fit part: the mounting pattern, the wire lengths and the connectors follow the factory unit, so the job needs no drilling, cutting or alteration to the wiring harness. The pick-up pulsar coil is supplied with the stator, so the ignition trigger and the charging winding are renewed together in one operation.
A Burgman 650 carries a heavy electrical load - fuel injection, the electronically controlled transmission, heated grips and lighting all draw from the same charging circuit - which is why the winding on this unit uses the highest grade of copper on the highest grade of lamination material and is rated to 200 degrees Celsius. Connectors and the rubber grommet are supplied so the loom can be sealed correctly on reassembly, and every unit is tested before it leaves the factory.
Key Features
- Brand new aftermarket stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

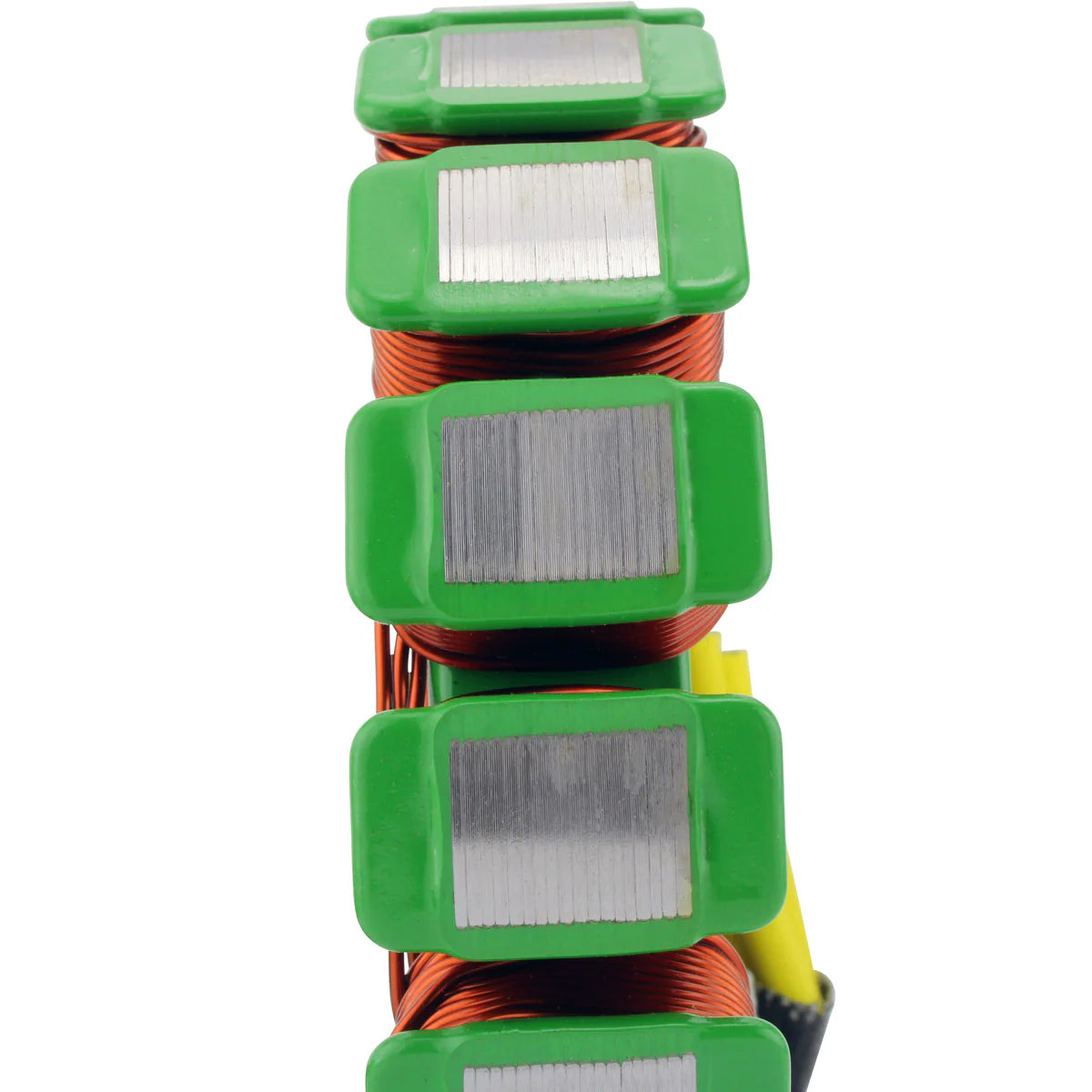

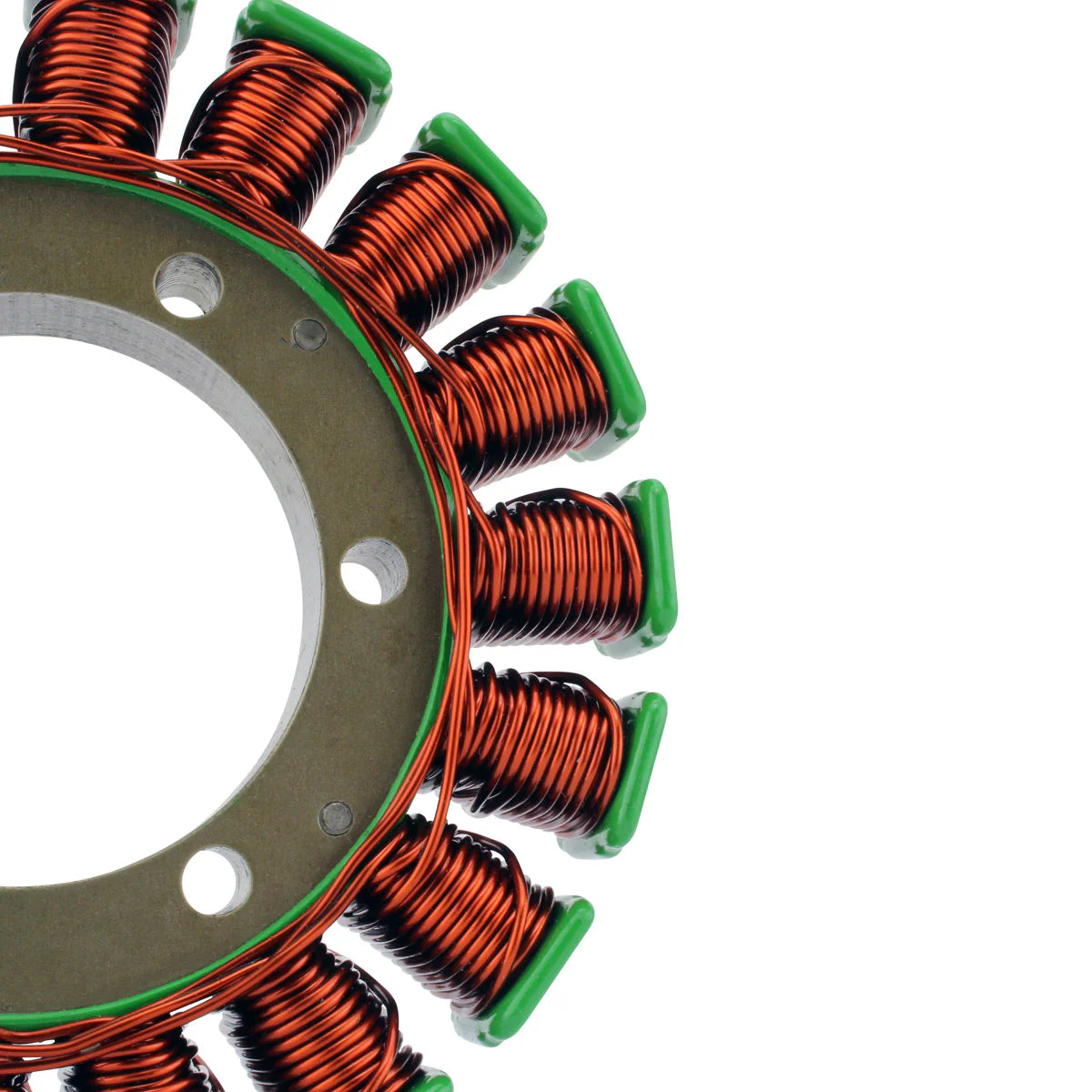

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

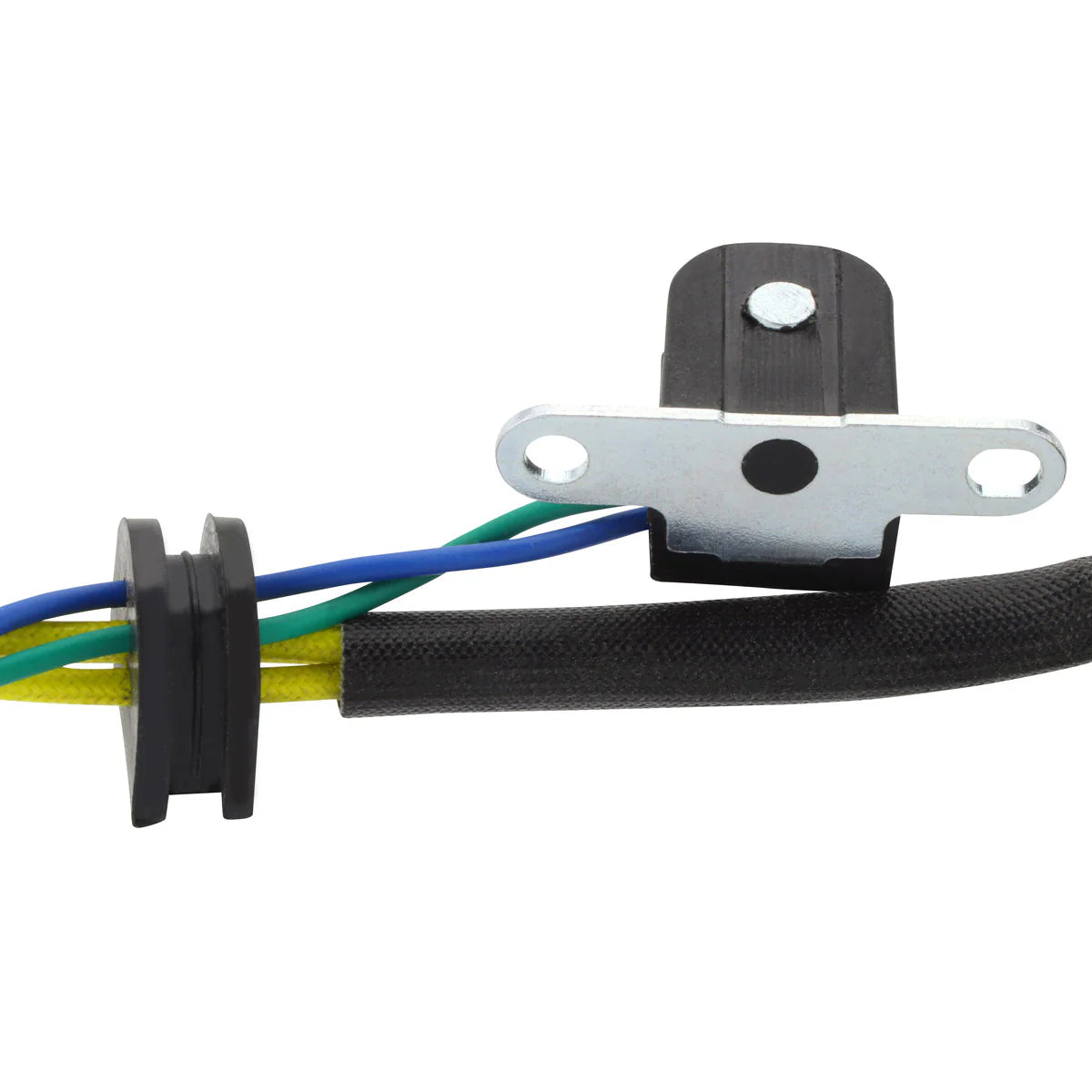

- Pick-up pulsar coil included

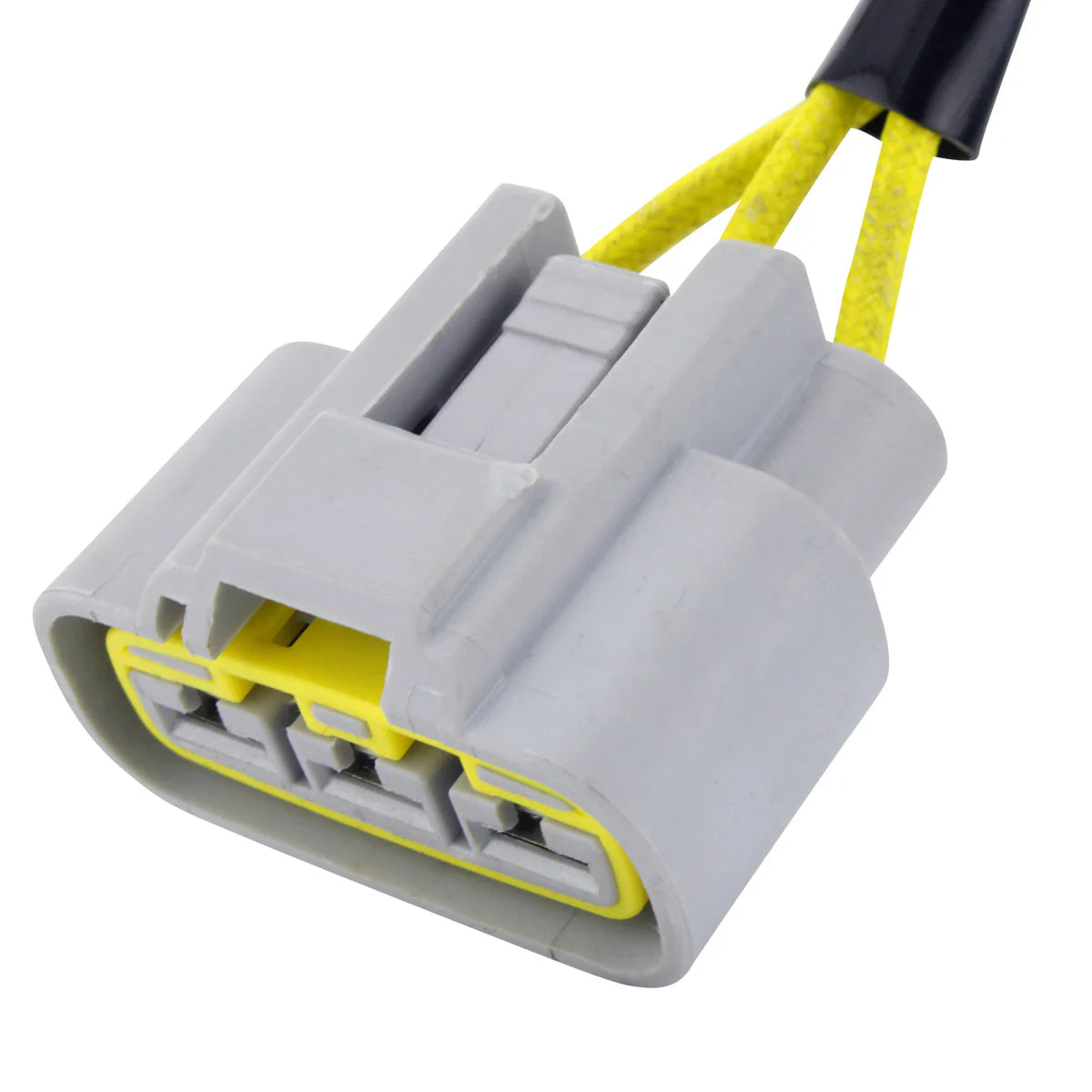

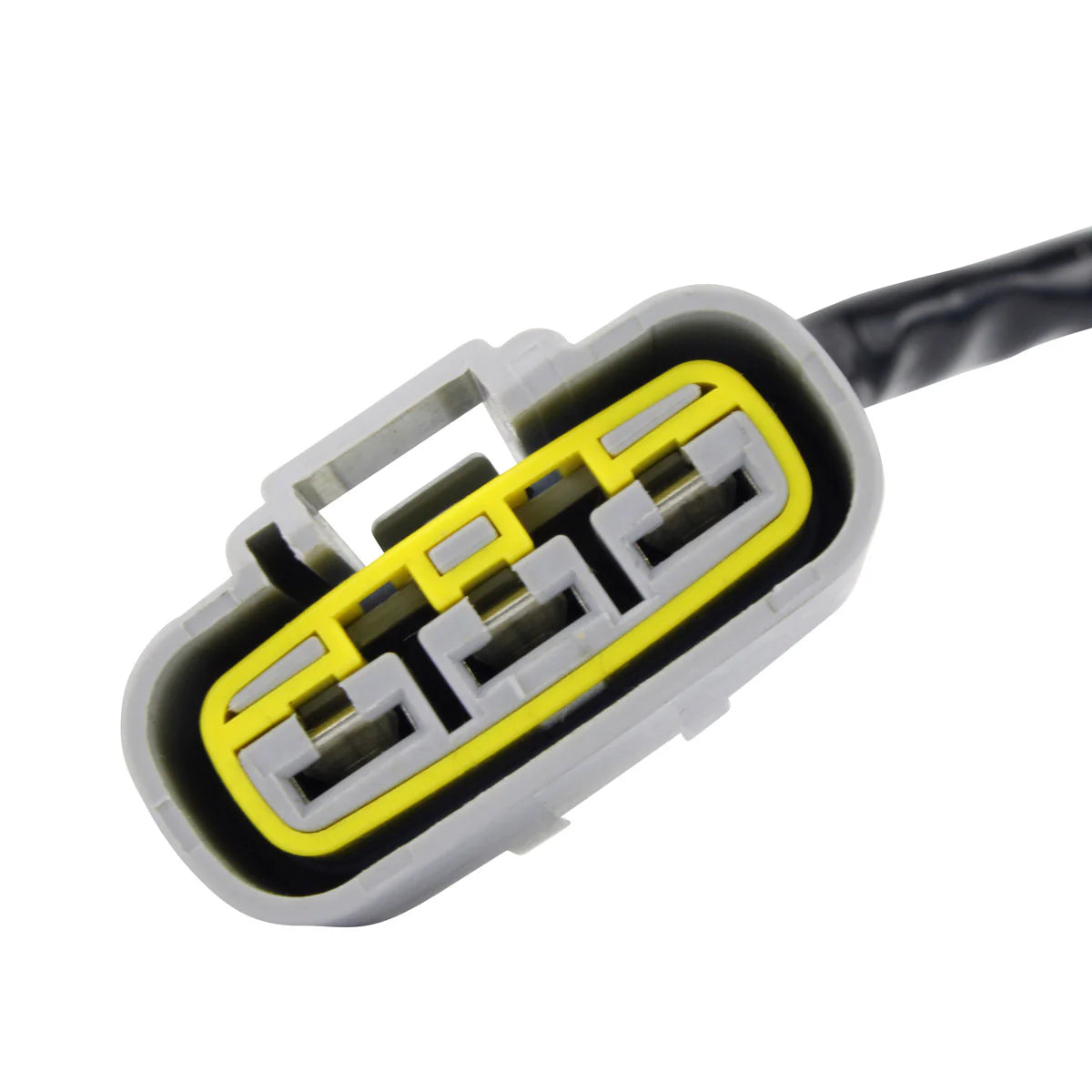

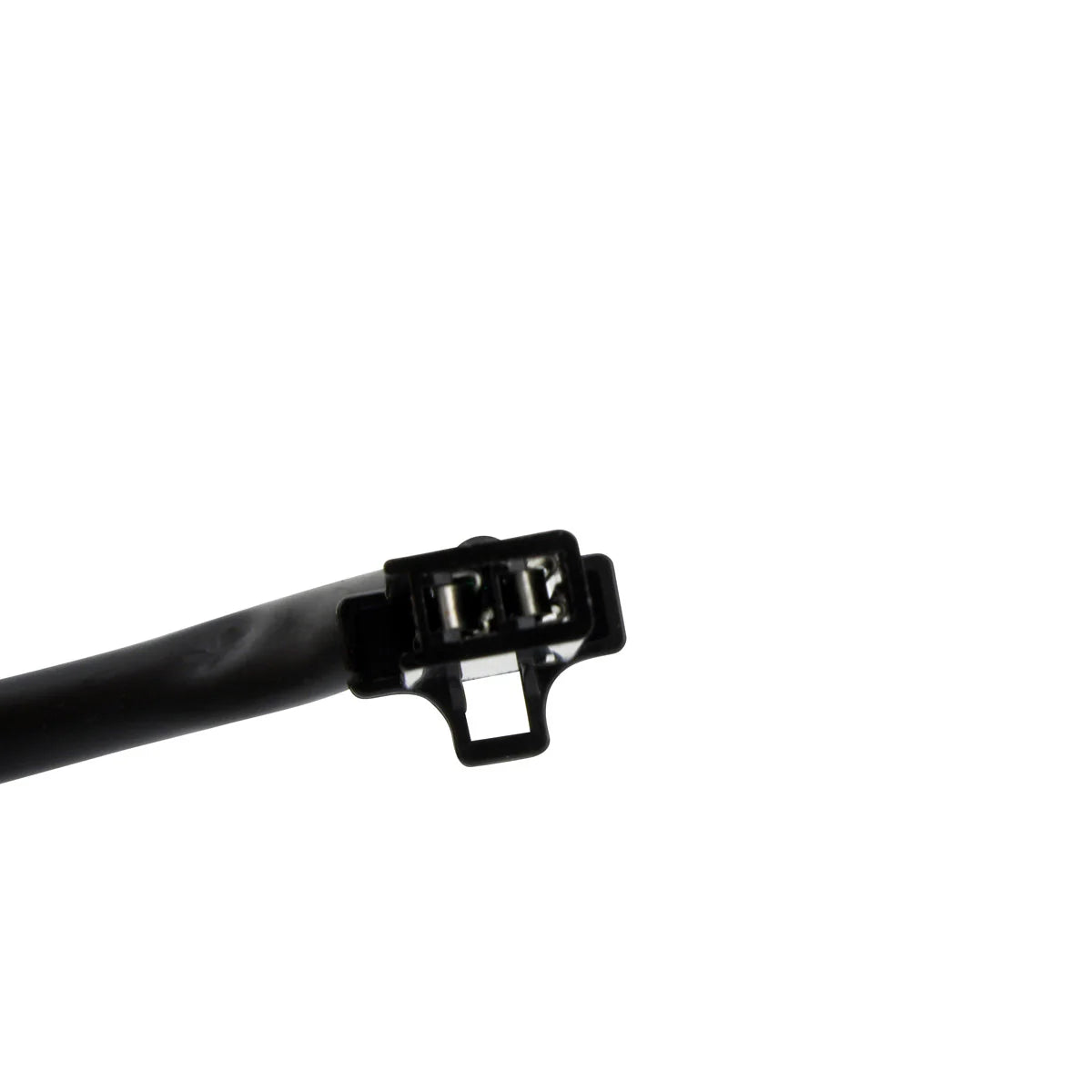

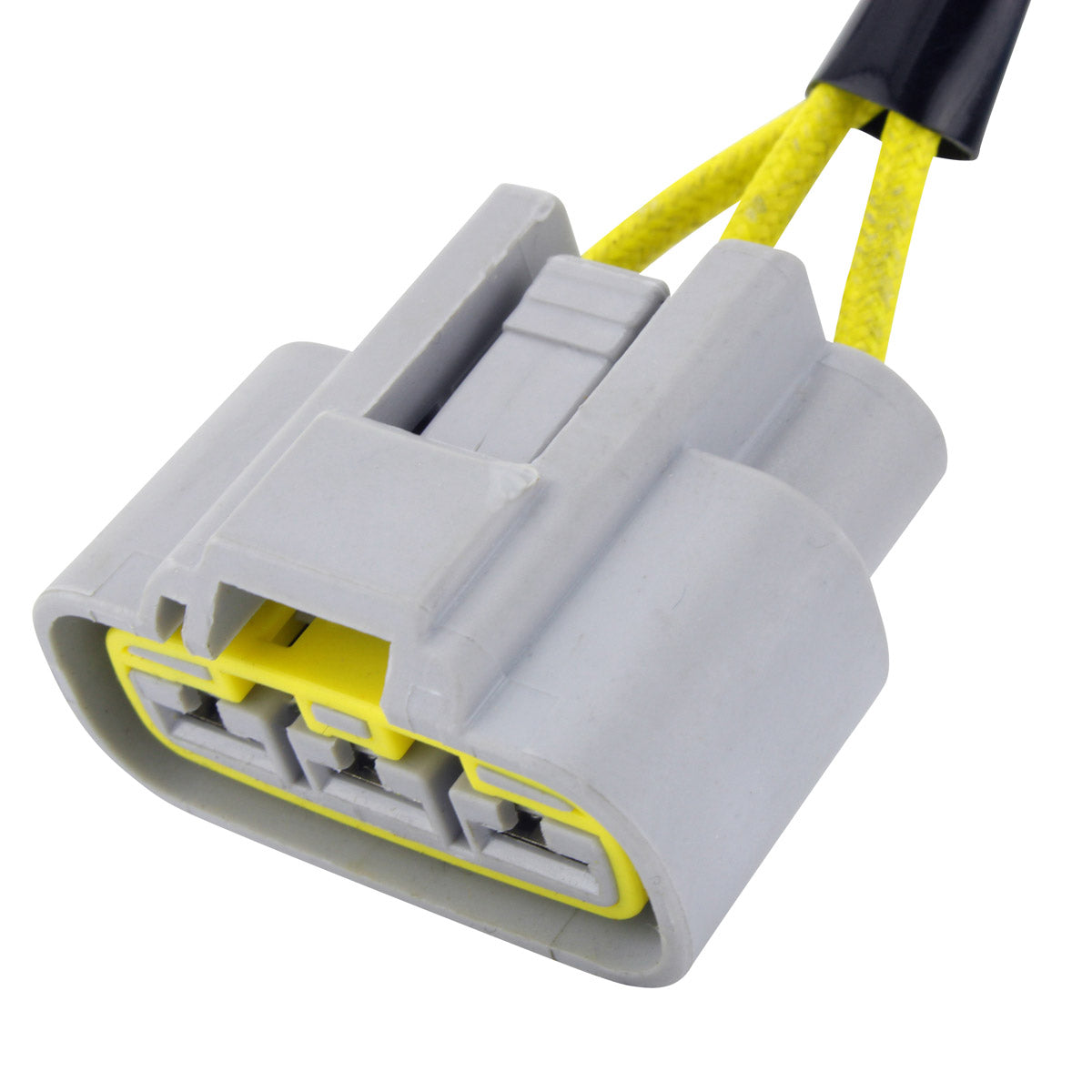

- Connectors included
- Rubber grommet included
- All products shipped are tested

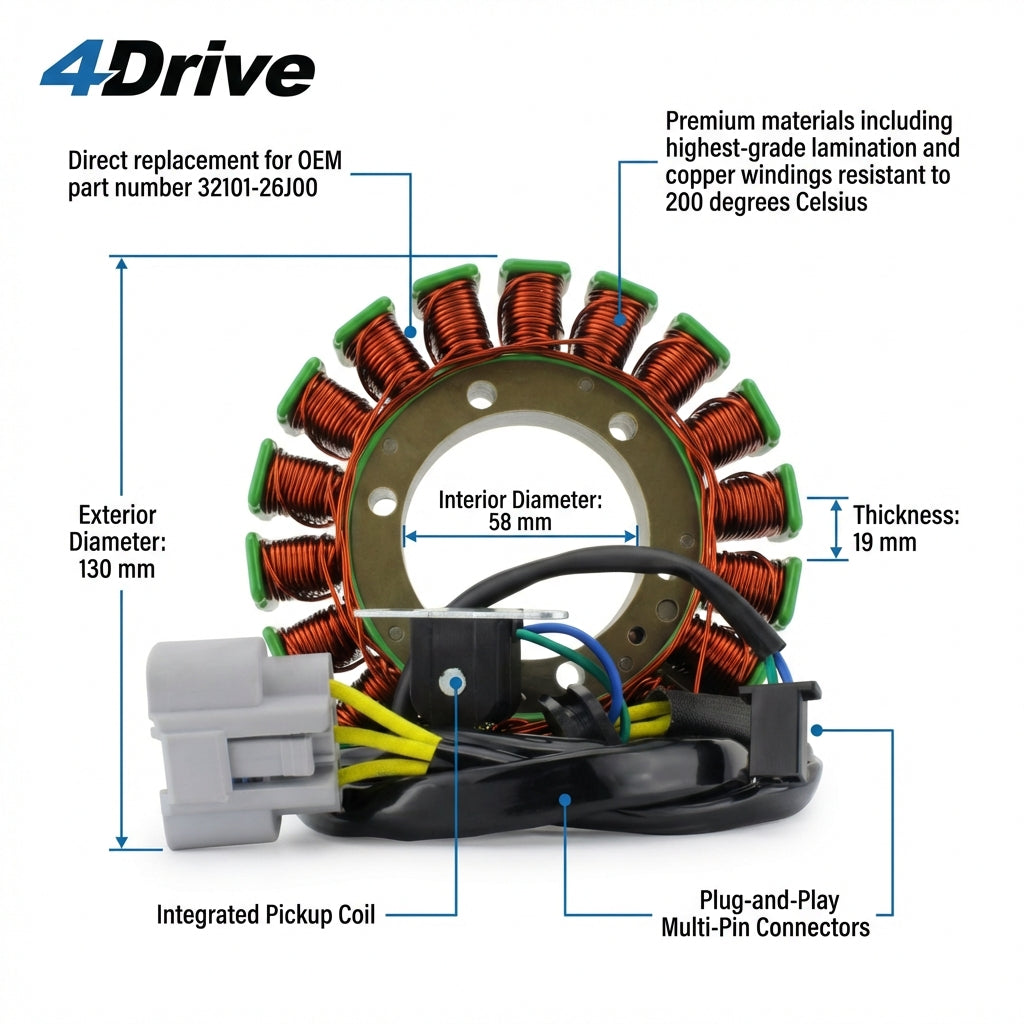

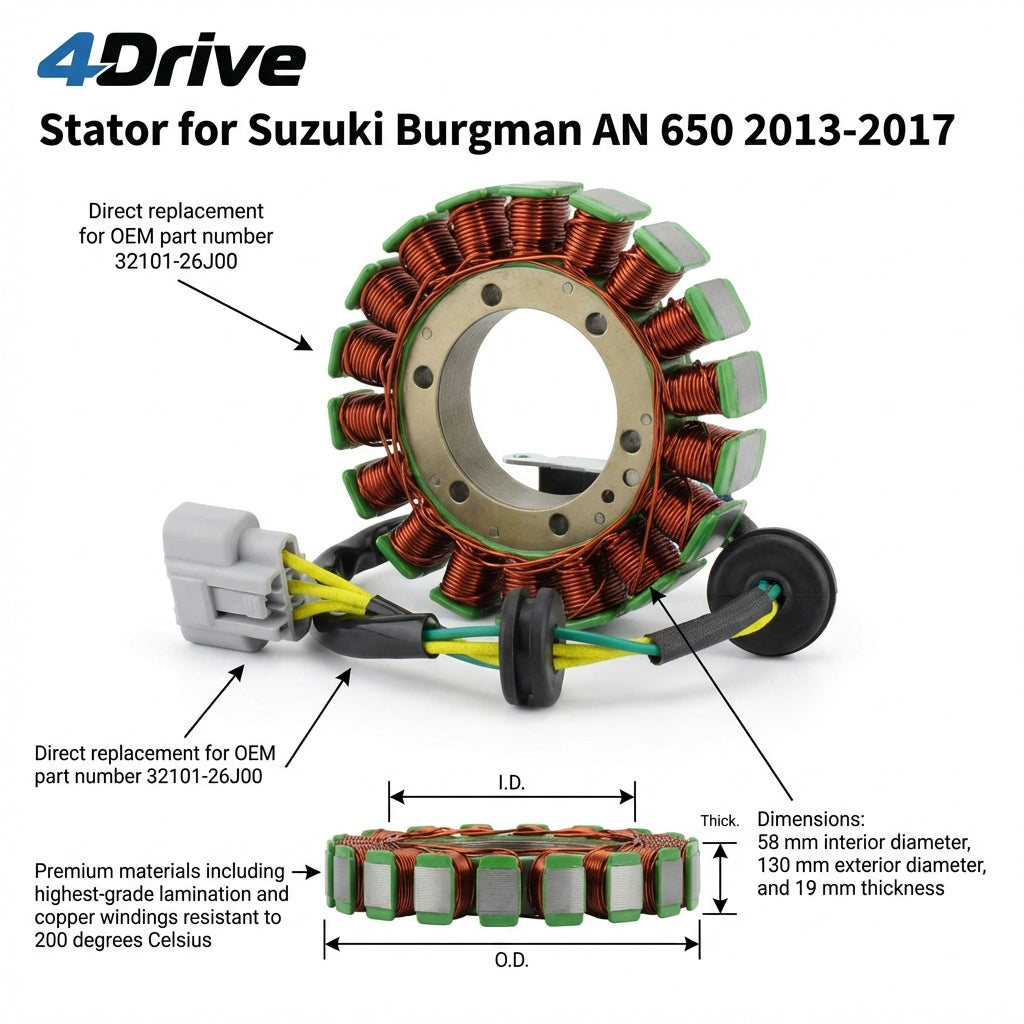

Technical Specs
| Specification |
Detail |

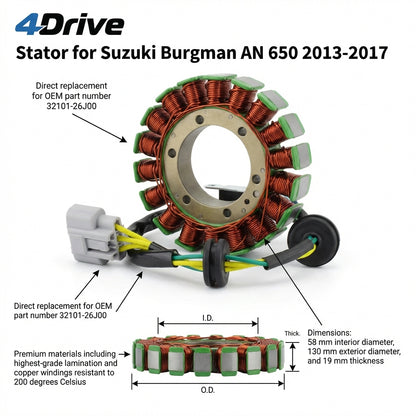

| Interior diameter |
58 mm |
| Exterior diameter |
130 mm |
| Thickness |
19 mm |
| Wire length, stator to grommet |
80 mm |
| Wire length, grommet to plug |
180 mm and 1000 mm |
| Pick-up coil wire length to grommet |
30 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, yellow to yellow |
0.4 ohms +/- 20% |
| Alternator, yellow to ground |
O.L (open circuit) |
| Pick-up resistance, blue to green |
200 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki Burgman AN 650 |
2013-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-26J00 |
Suzuki |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a plug-and-play, direct fit replacement for the original unit on the Burgman AN 650 from 2013 to 2017. The mounting pattern and the connectors match the factory part, so there is no drilling, cutting or rewiring involved.
What is included?
The stator with its pick-up pulsar coil, the connectors and the rubber grommet, so the harness can be plugged in and sealed exactly as it was originally.
How can I tell that the old stator has failed?
A failing stator normally shows up as a battery that goes flat overnight or will not recover on a run, warning lights or dashboard glitches, and a scooter that eventually will not restart. Confirm it with a meter: the alternator should read about 0.4 ohms from one yellow wire to another, any yellow wire to ground should read open circuit, and the pick-up coil should read about 200 ohms blue to green. Readings well away from those figures, or continuity to ground, point to a failed winding.
Why does this stator have two different lead lengths?
The Burgman routes its charging and trigger leads to two separate connectors in different places on the machine, so the harness leaves the grommet as one 180 mm run and one 1000 mm run. Both are supplied at the correct length, which is why the part drops straight into the standard routing.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
