This is a brand new aftermarket stator assembly built as a direct replacement for the original unit fitted to the Suzuki DR 650 S between 1990 and 1993. It is a plug-and-play, direct fit part: the factory mounting holes and the original nine-pin connector are used exactly as they were, so no cutting, splicing or modification of the wiring loom is needed.

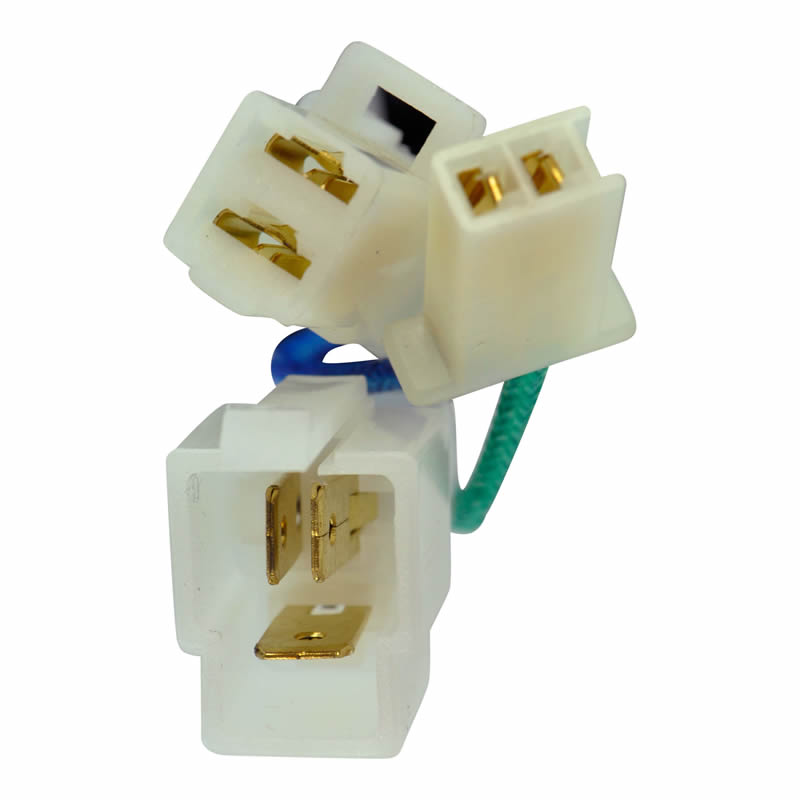

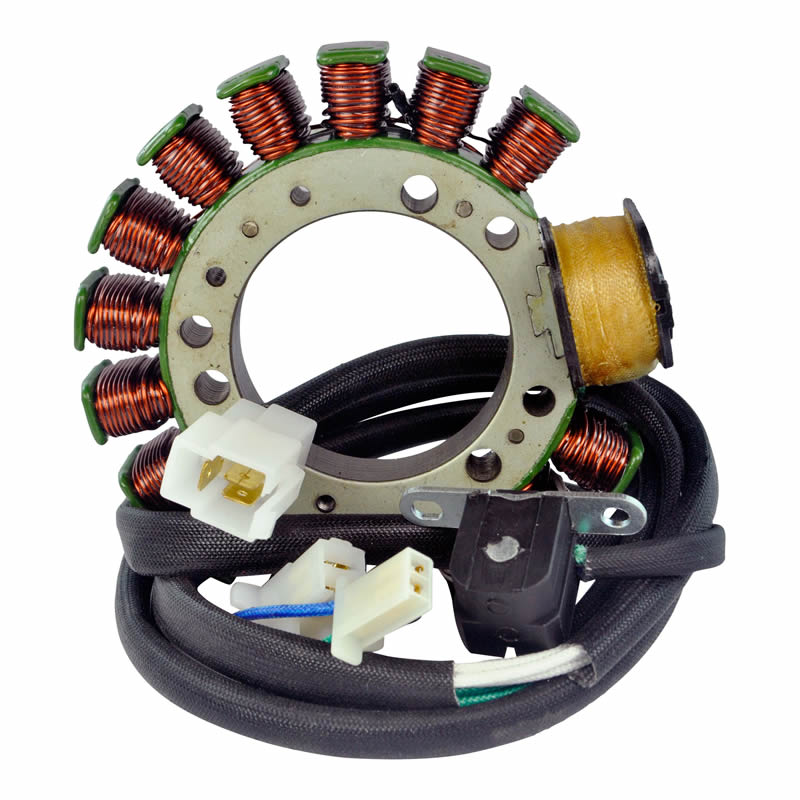

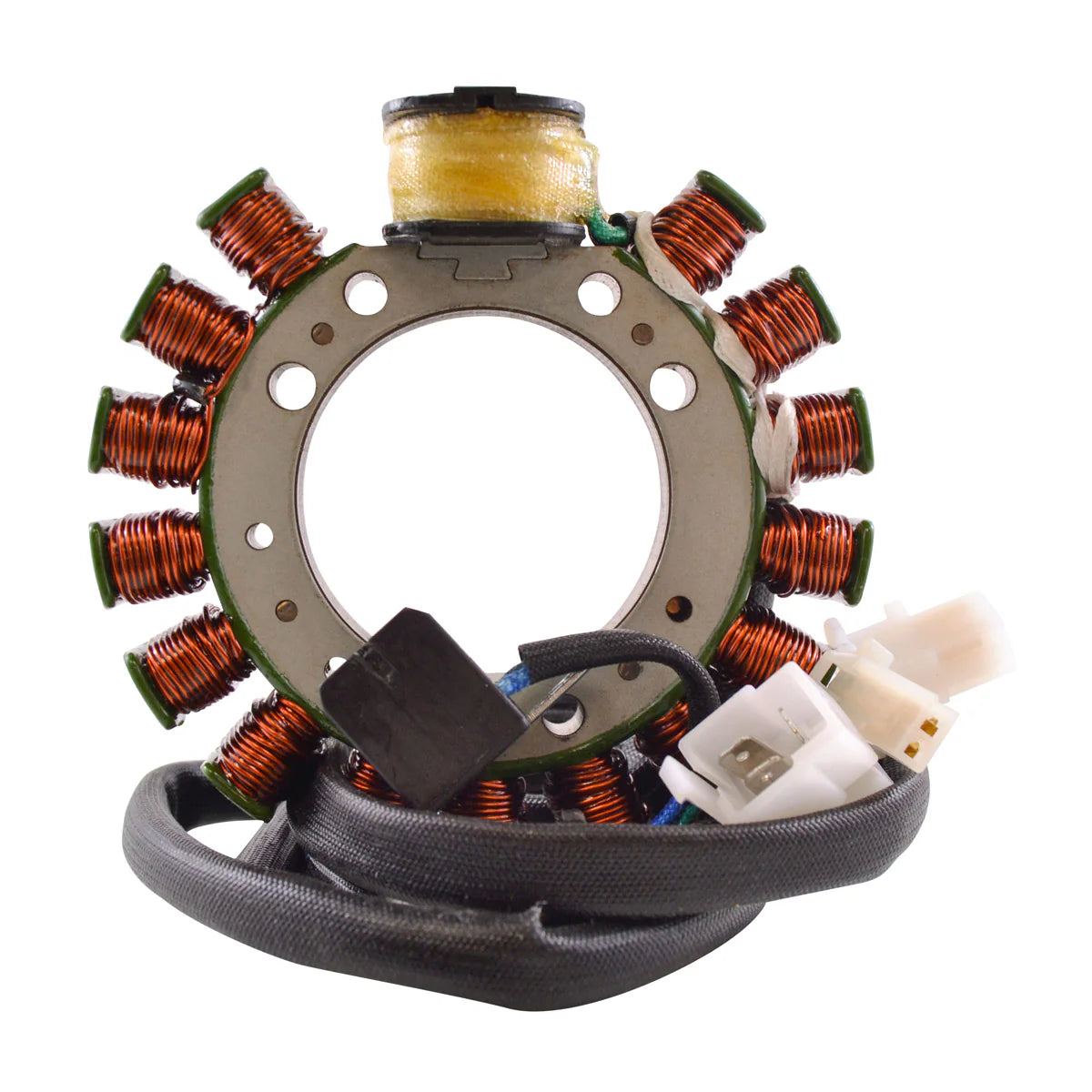

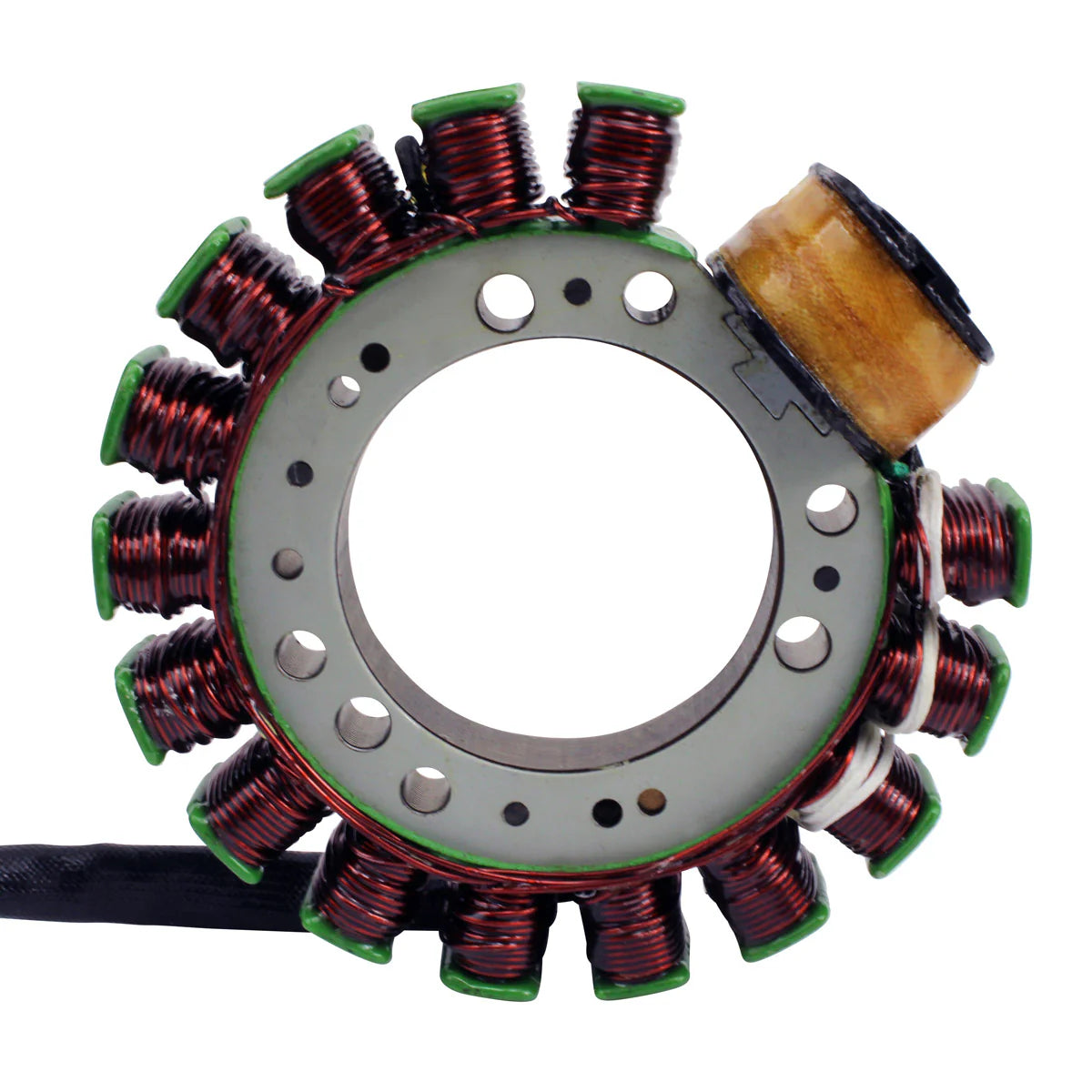

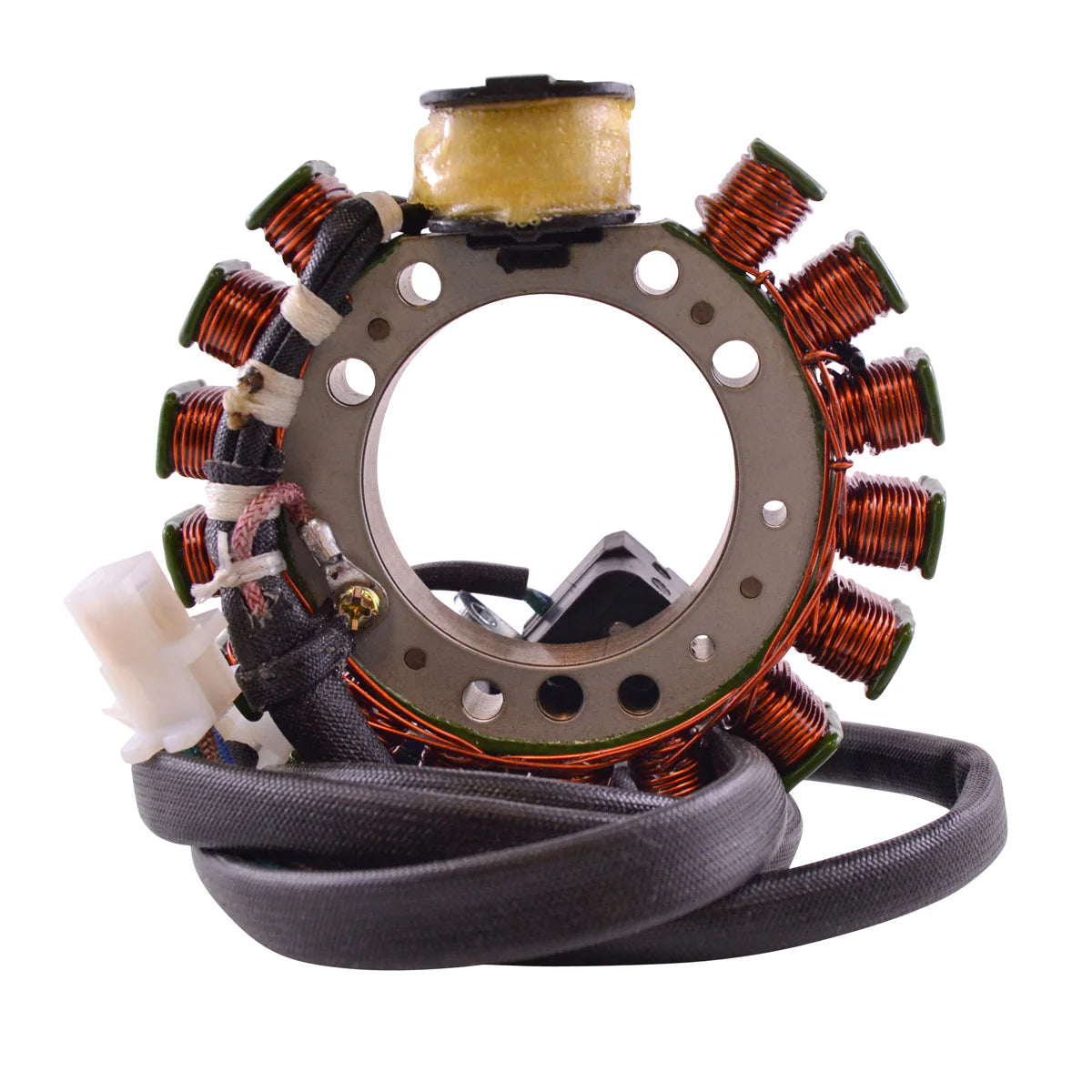

This is a complete assembly rather than a bare charging coil. It carries seven wires and combines three separate circuits on one plate - the alternator windings that charge the battery, the ignition source coil, and the pick-up pulsar coil that tells the CDI when to fire. The pick-up pulsar coil is supplied already fitted, which matters on the DR 650 S because a failed pick-up is a common cause of a no-spark condition and replacing it separately means splitting the assembly again. The stator is built on the highest grade lamination materials and wound with the highest grade copper, insulated to resist 200 degrees Celsius. The connector and the rubber grommet are included, and every unit is tested before it leaves the warehouse.
Key Features
- Brand new aftermarket stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation

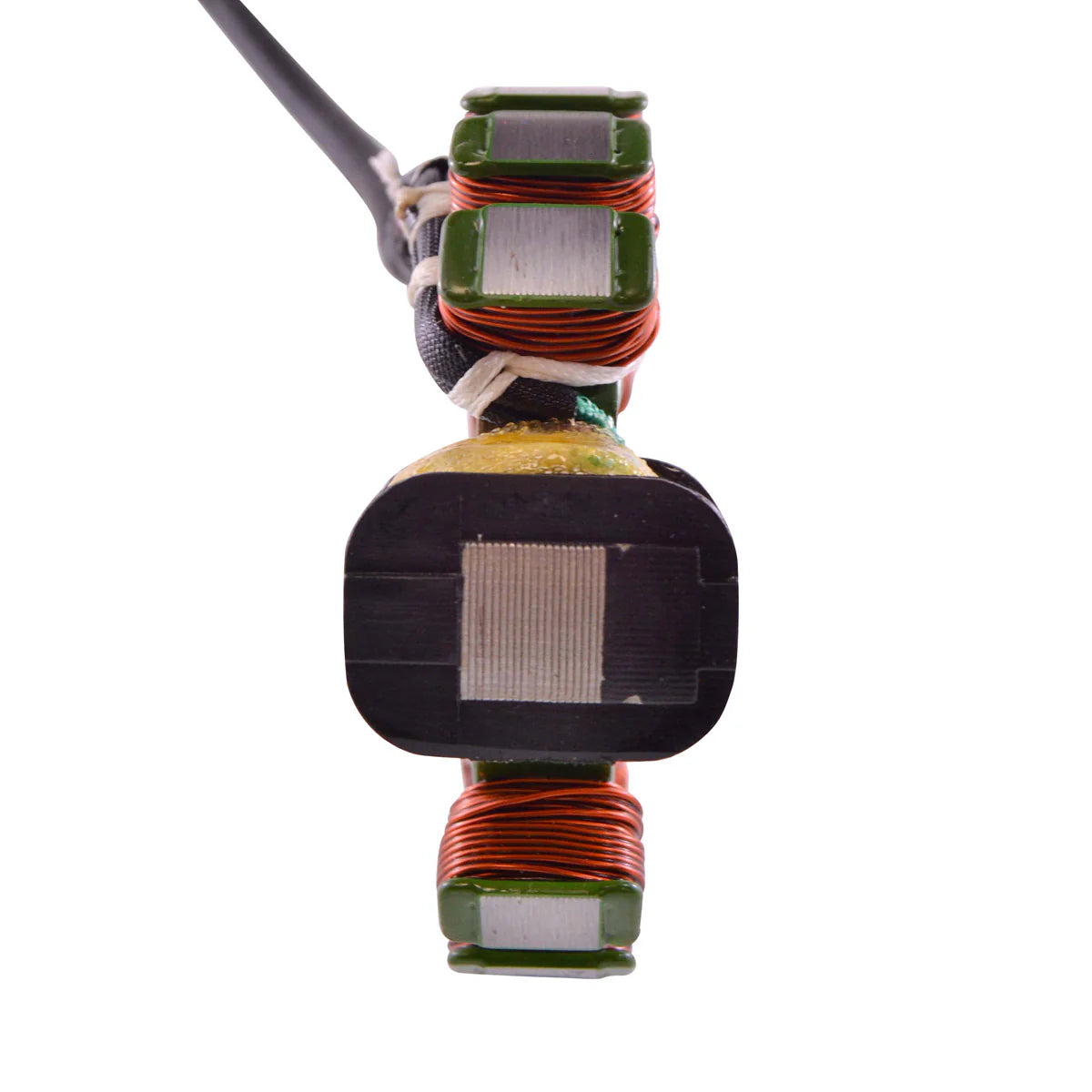

- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

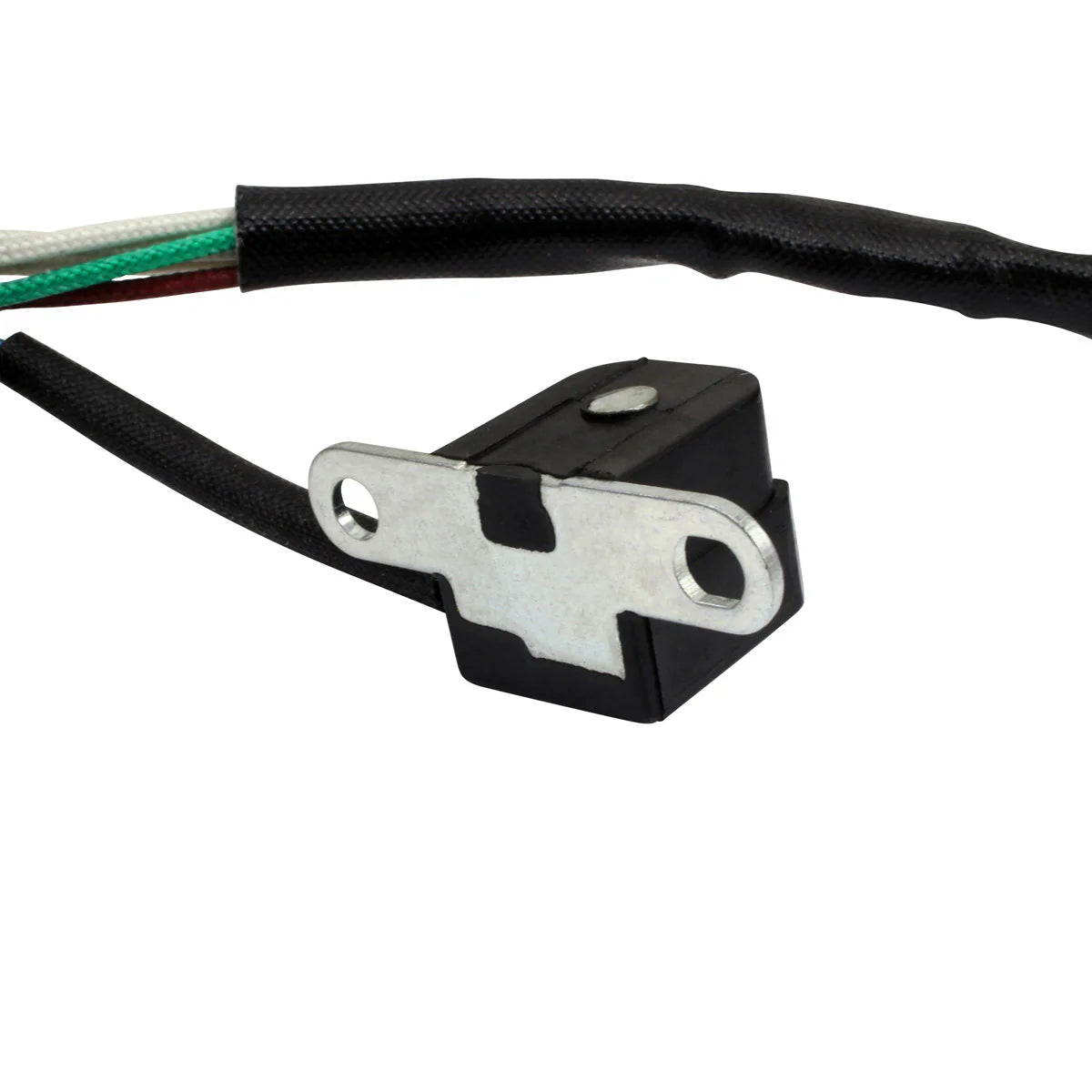

- Pick-up pulsar coil included

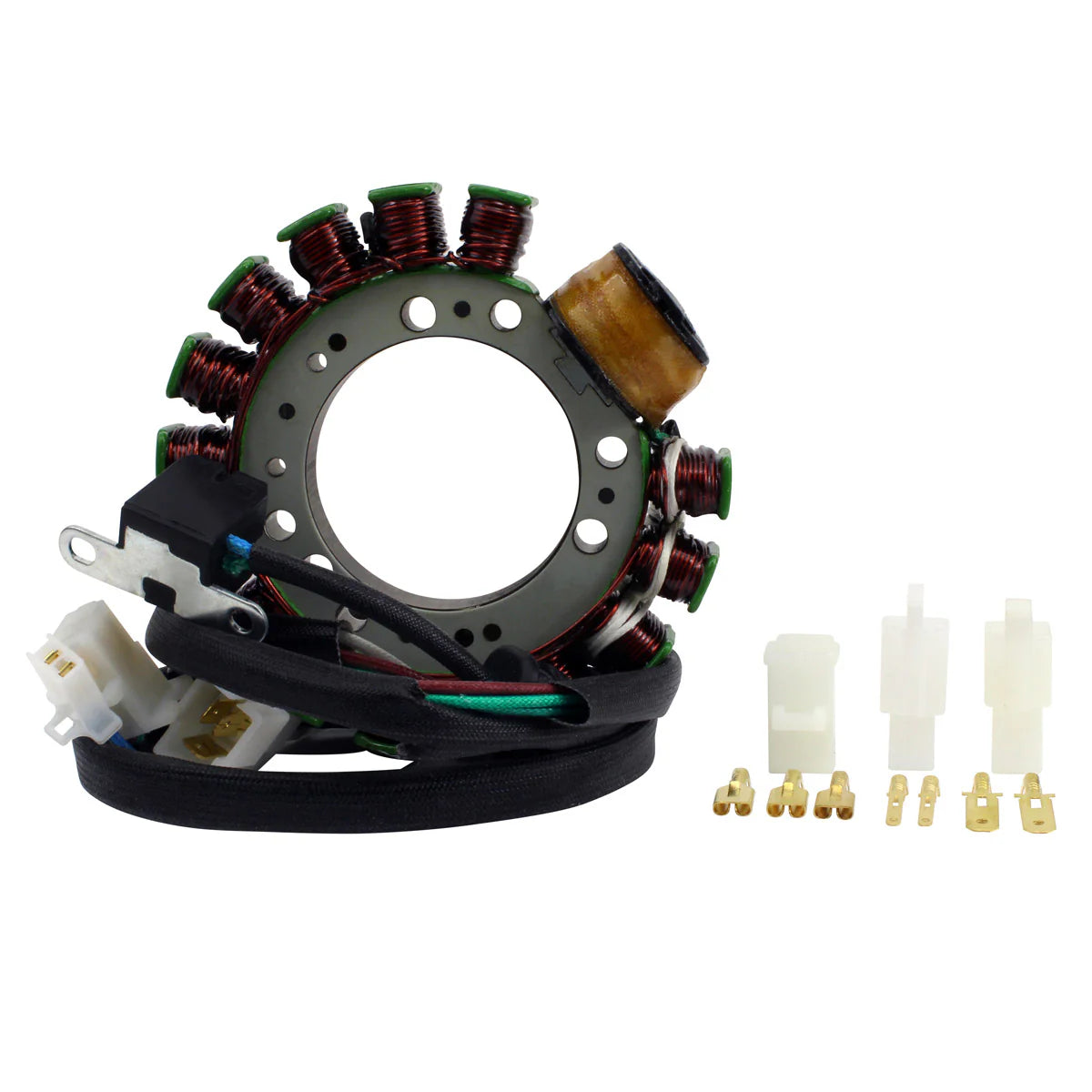

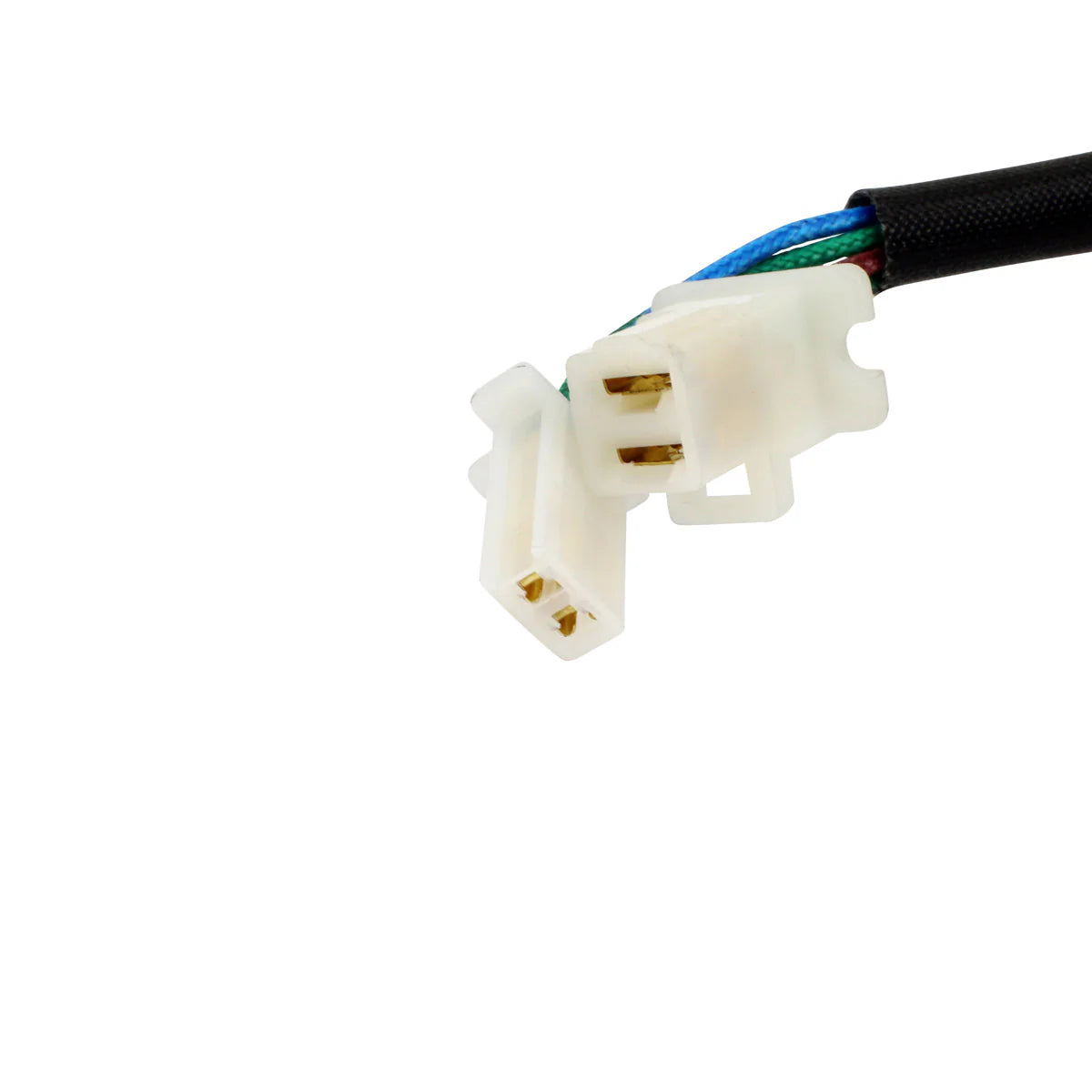

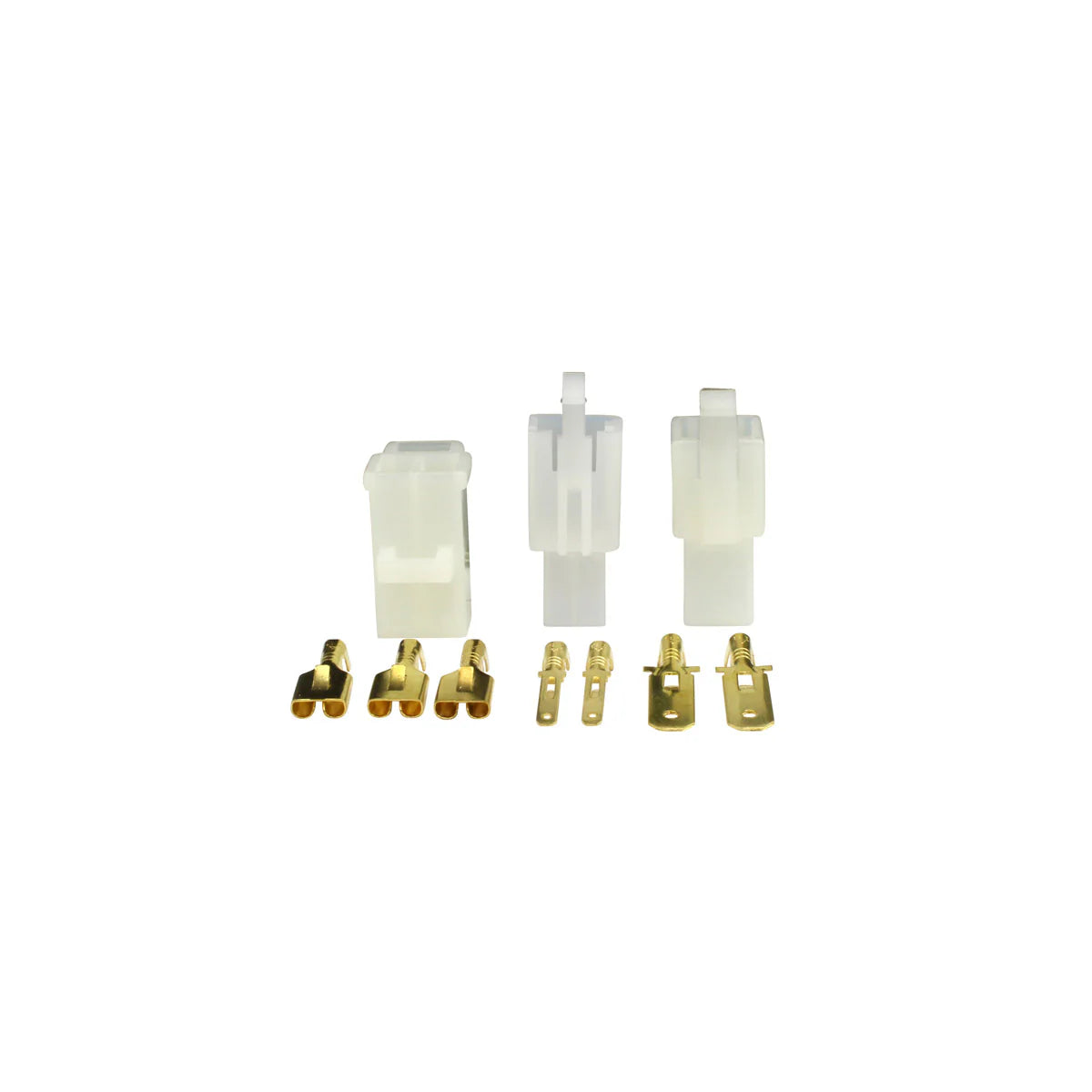

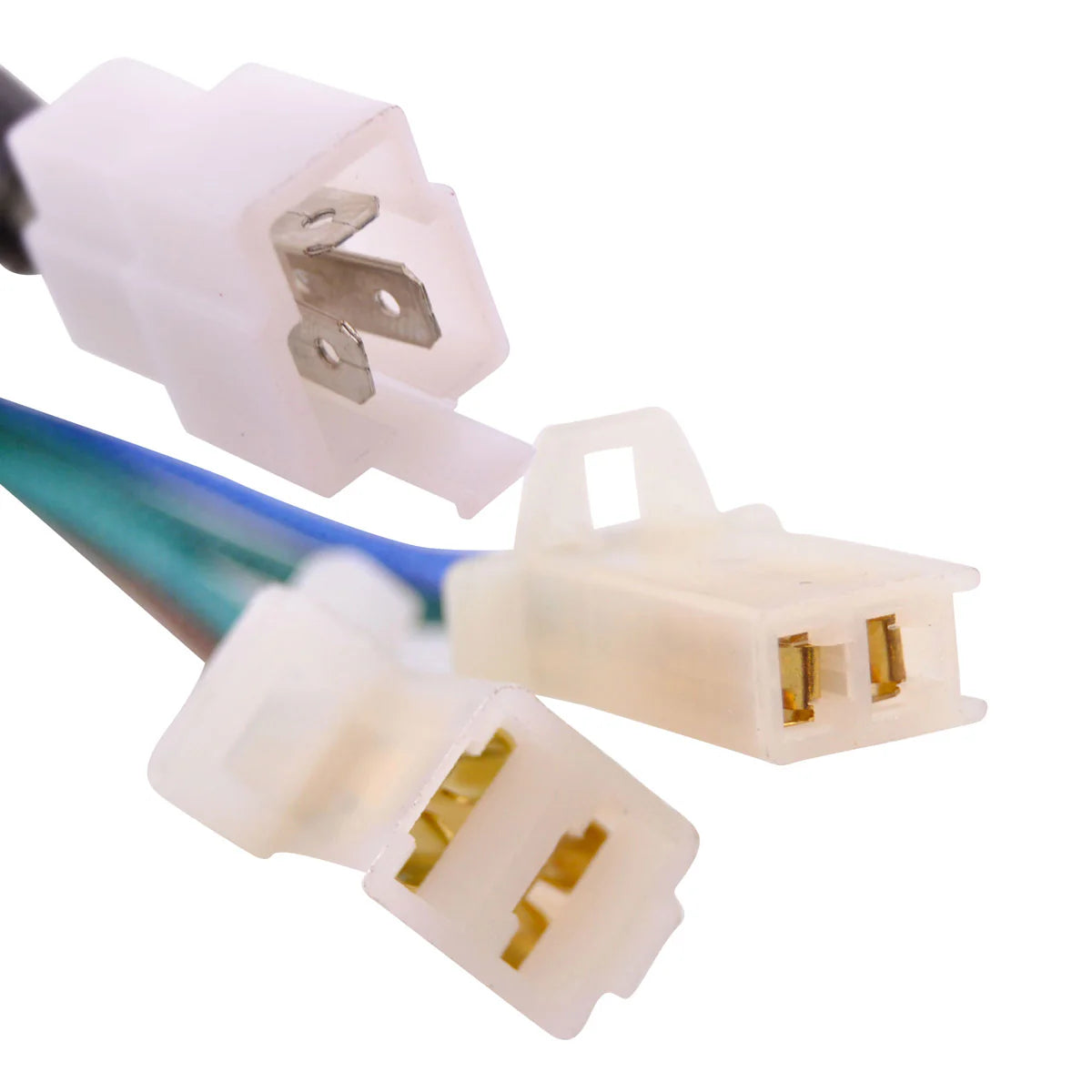

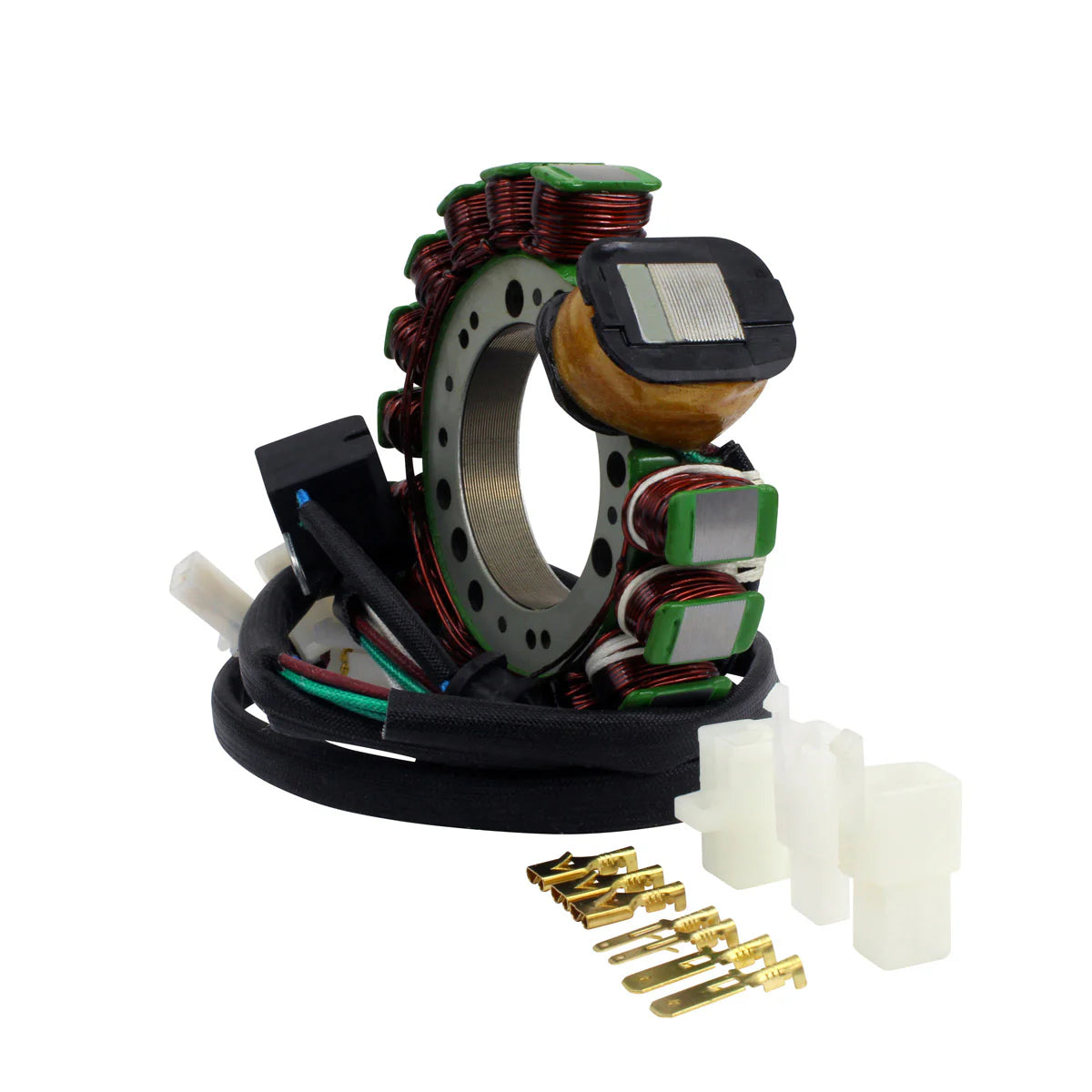

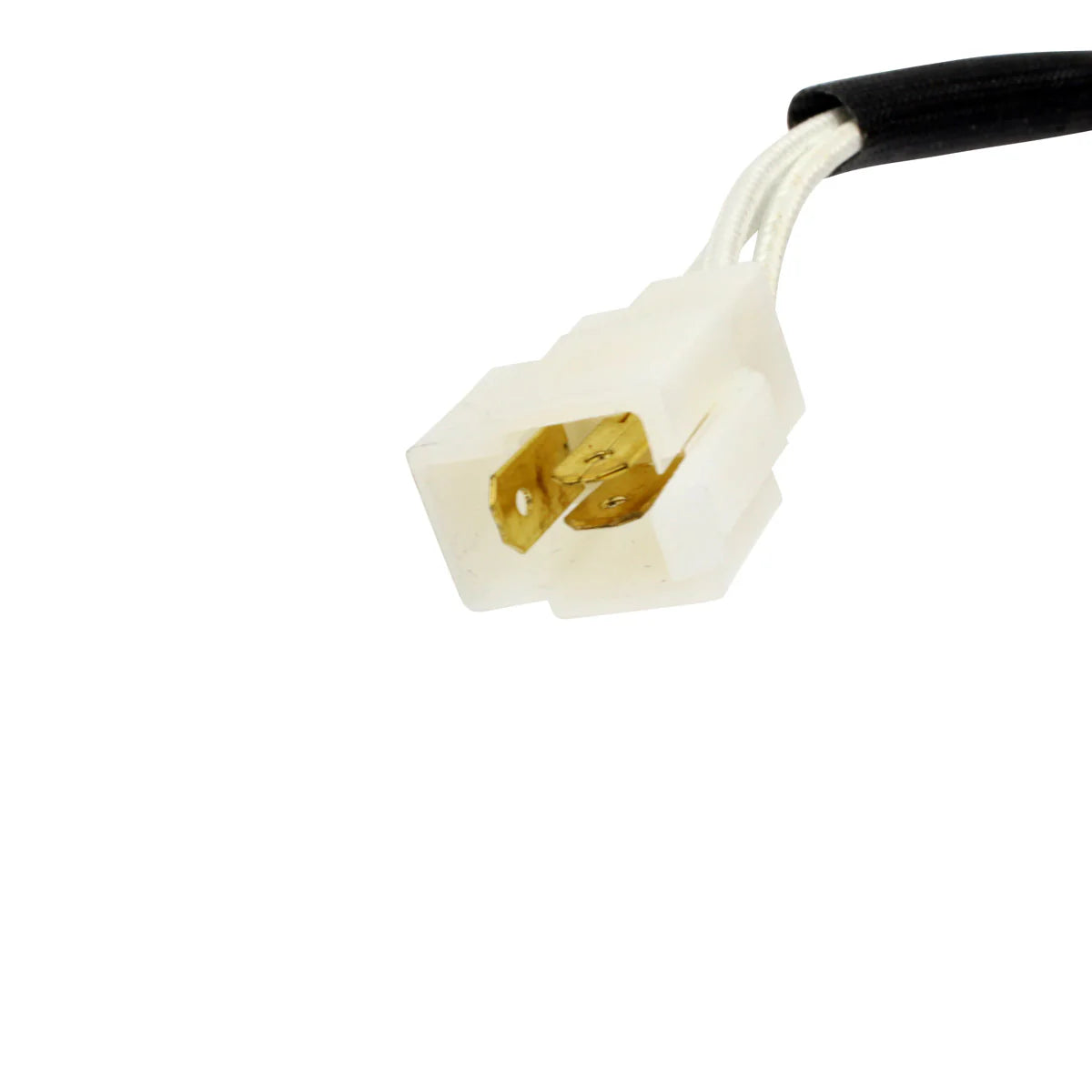

- Connector included

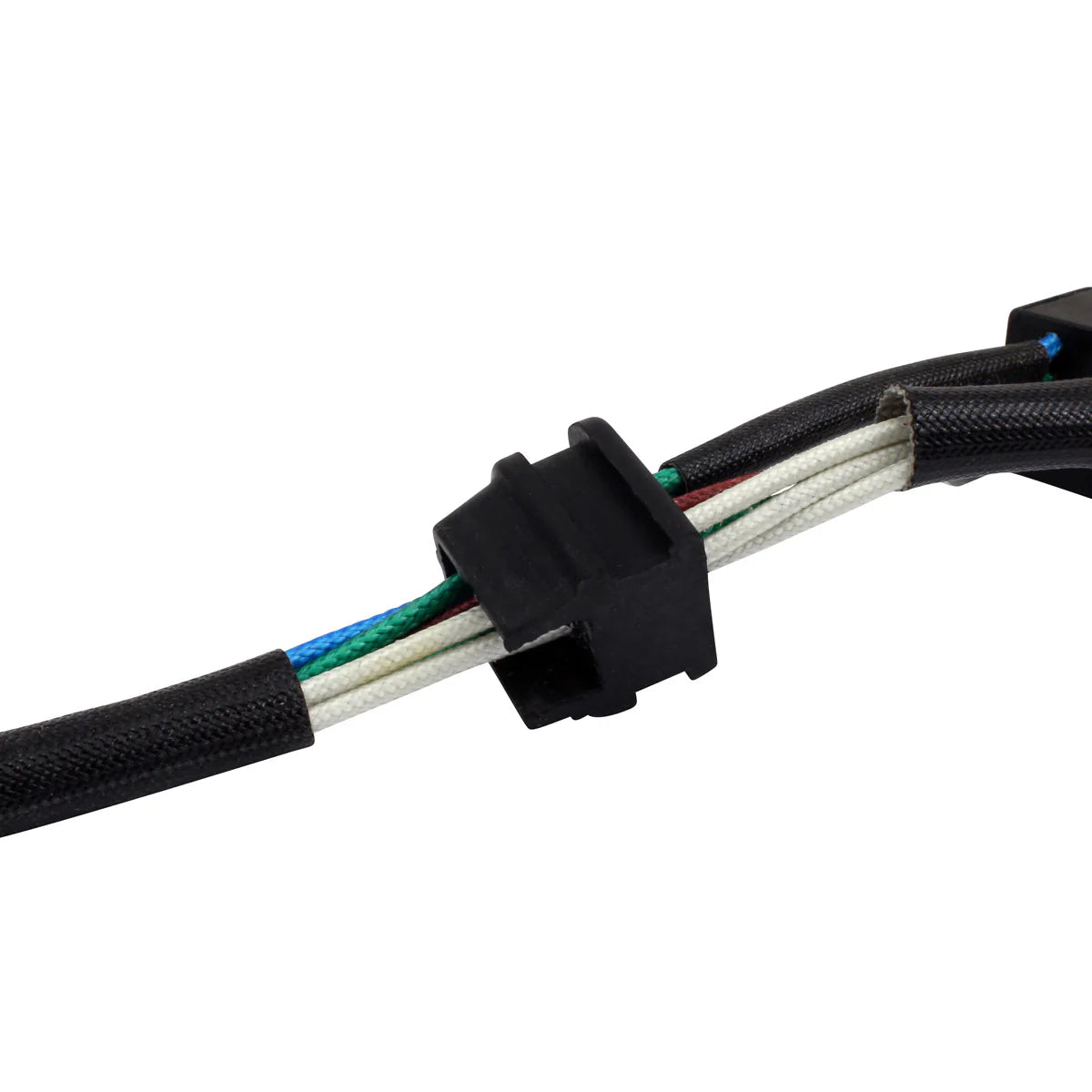

- Rubber grommet included
Technical Specs
| Specification |
Detail |
| Interior diameter |
58 mm |
| Exterior diameter |
150 mm |
| Thickness |
40 mm |
| Wire length, stator to grommet |
160 mm |
| Wire length, grommet to plug |
55 mm |
| Pick-up coil wire length to grommet |
720 mm |
| Number of wires |
7 |
| Number of plugs |
1 |
| Number of pins |
9 |
| Alternator resistance, White between each White |
2.3 ohms +/-20% |
| Pick-up resistance, Blue to Green |
200 ohms +/-20% |
| Source resistance, Brown to Green |
300 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki DR 650 S |
1990-1993 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-12D00 |
Suzuki |
Frequently Asked Questions
Do I need to modify the wiring to fit this?
No. It is a plug-and-play, direct fit replacement that uses the factory nine-pin connector and the original mounting holes. Route the pick-up coil lead the same way the original was routed and refit the rubber grommet in the case.
Is the pick-up pulsar coil included?
Yes. The pick-up pulsar coil is supplied already fitted to the assembly, along with the connector and the rubber grommet, so nothing needs to be transferred from the old unit.
How do I test my old stator before ordering?
Unplug the connector and measure across the three white alternator wires - each pair should read about 2.3 ohms, plus or minus 20 per cent. Blue to green is the pick-up coil at about 200 ohms, and brown to green is the source coil at about 300 ohms, both plus or minus 20 per cent. Any open circuit, any short to the engine case, or a reading well outside those figures means the unit has failed.
My DR 650 has spark but will not charge. Is this the right part?
Very likely, but check the regulator rectifier as well. The alternator windings on this stator feed the regulator rectifier, and a failure in either can leave the battery flat. Measuring the white-to-white resistance is the quickest way to tell them apart.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
