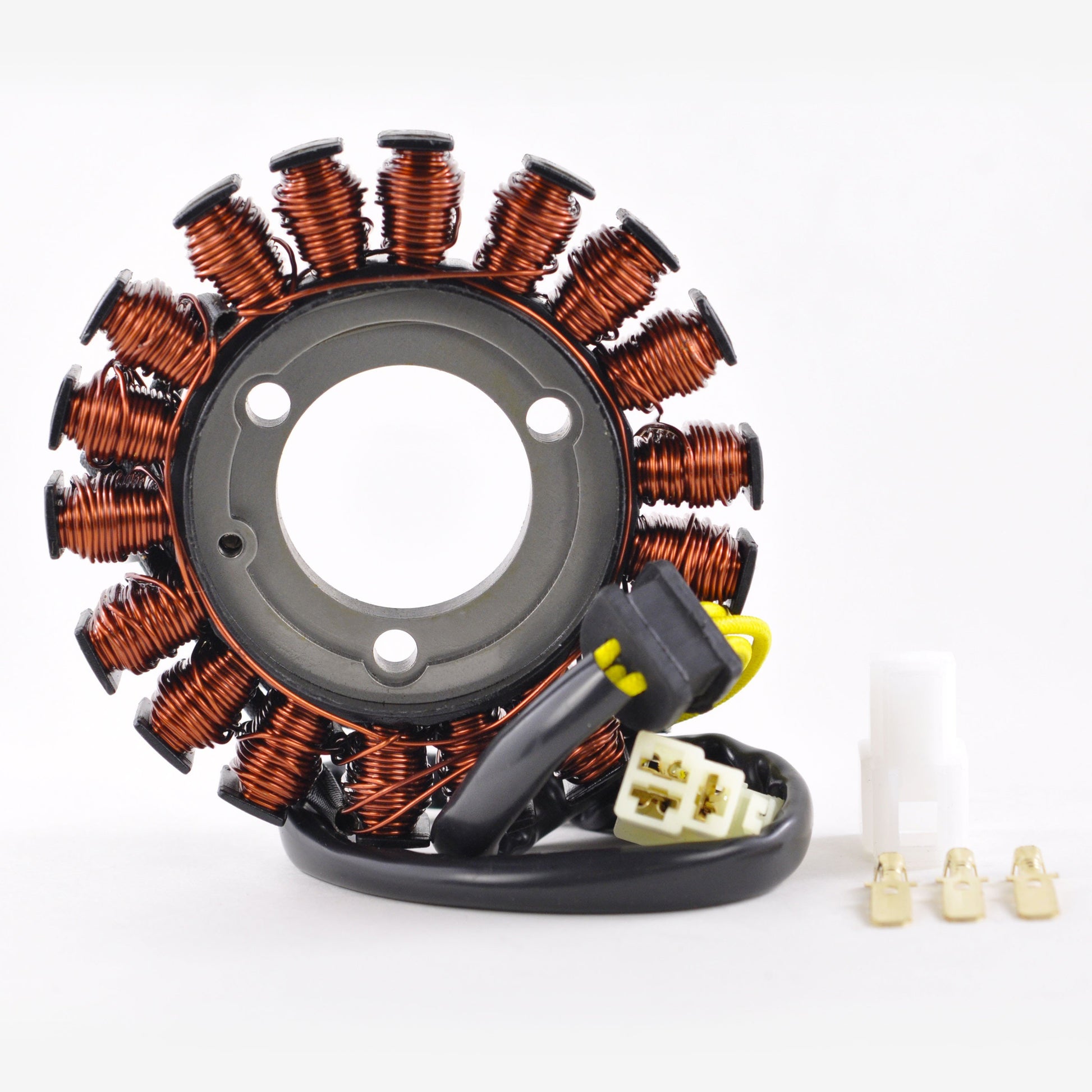

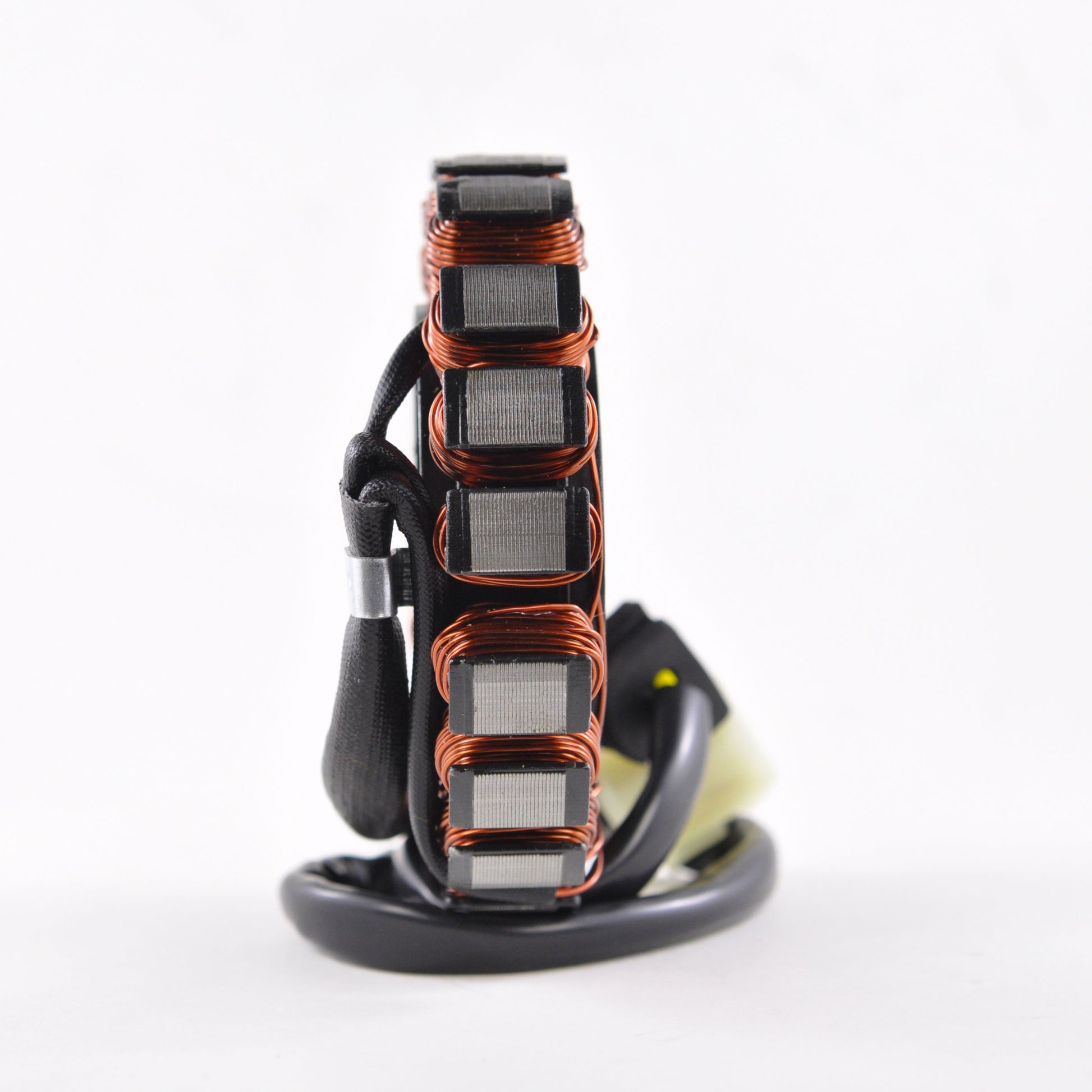

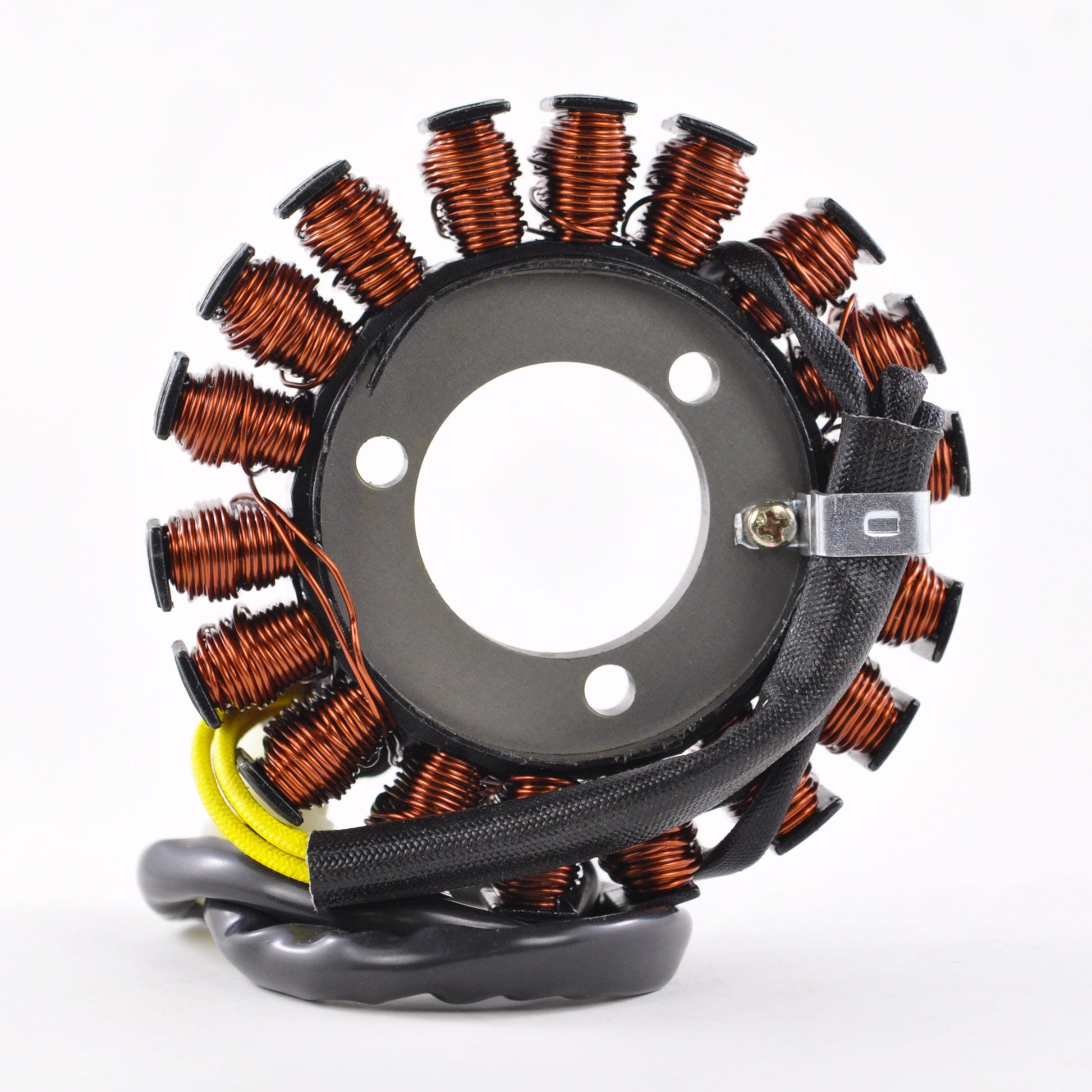

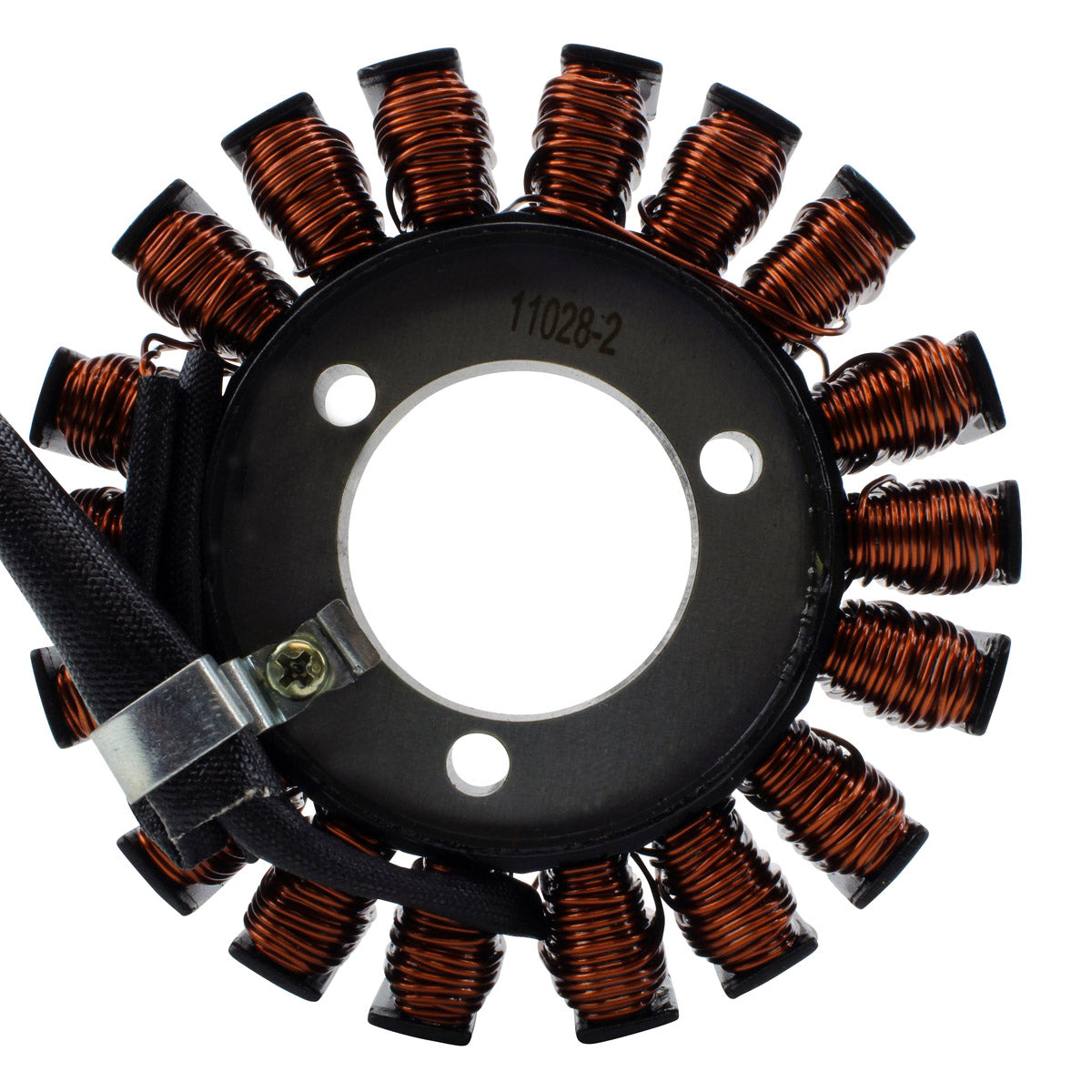

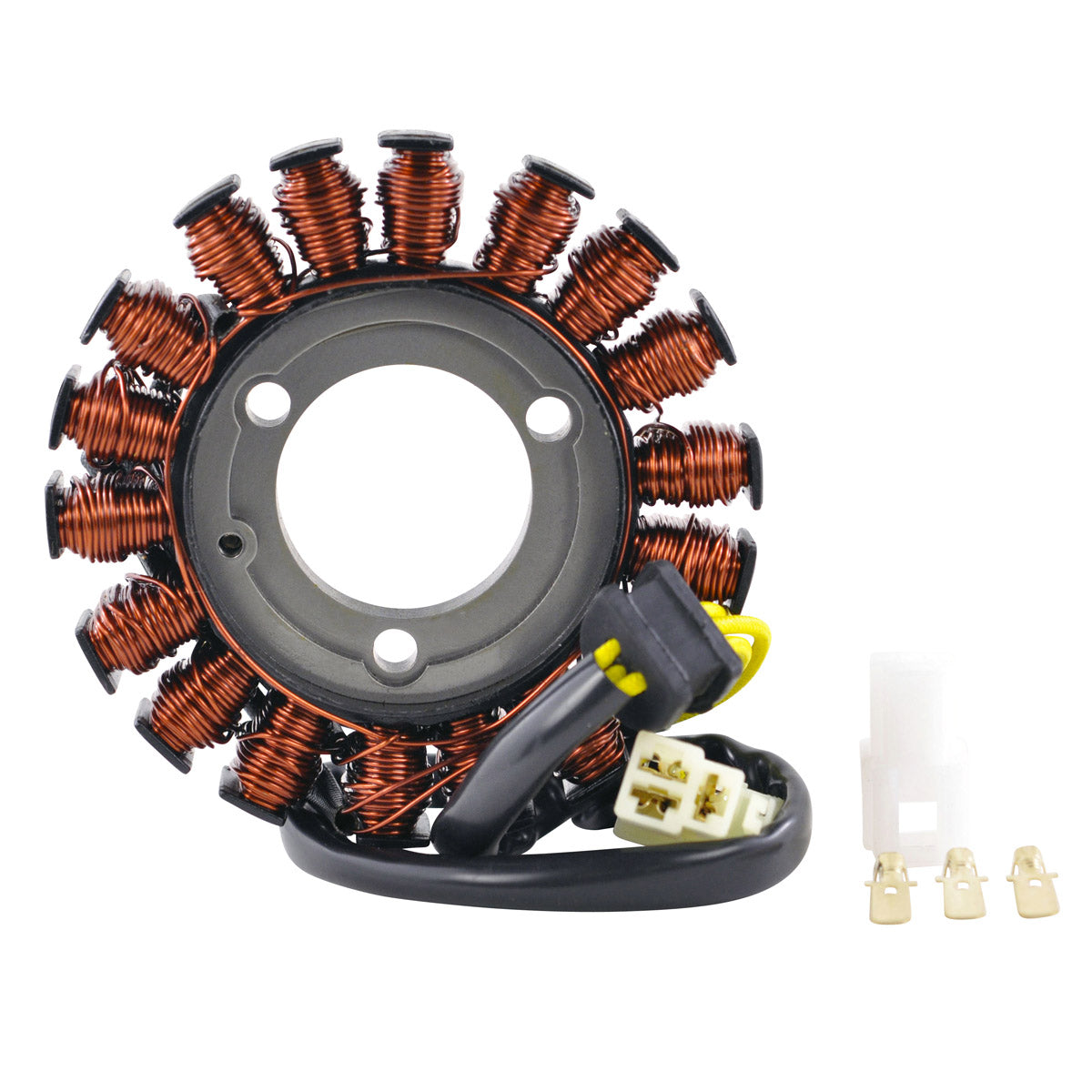

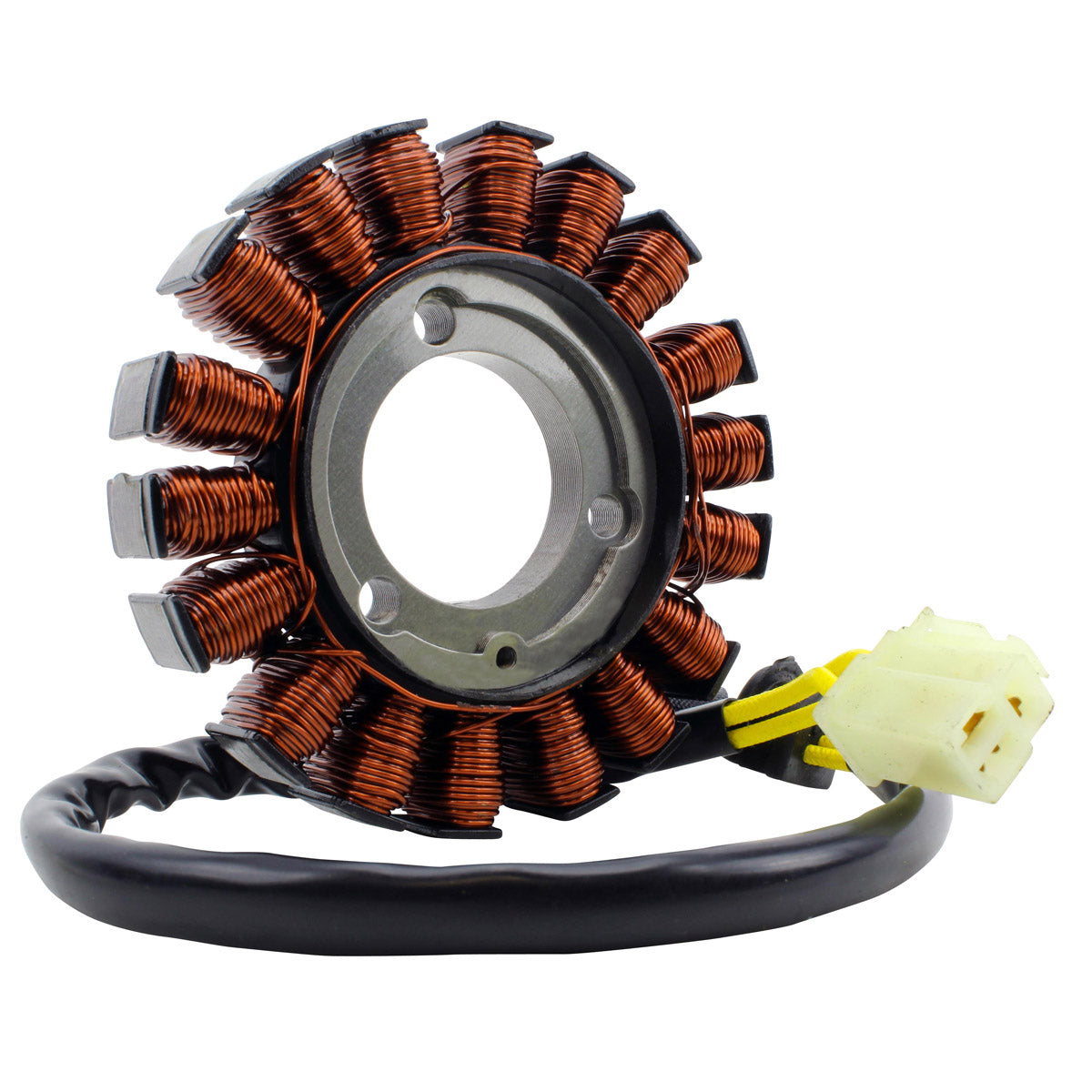

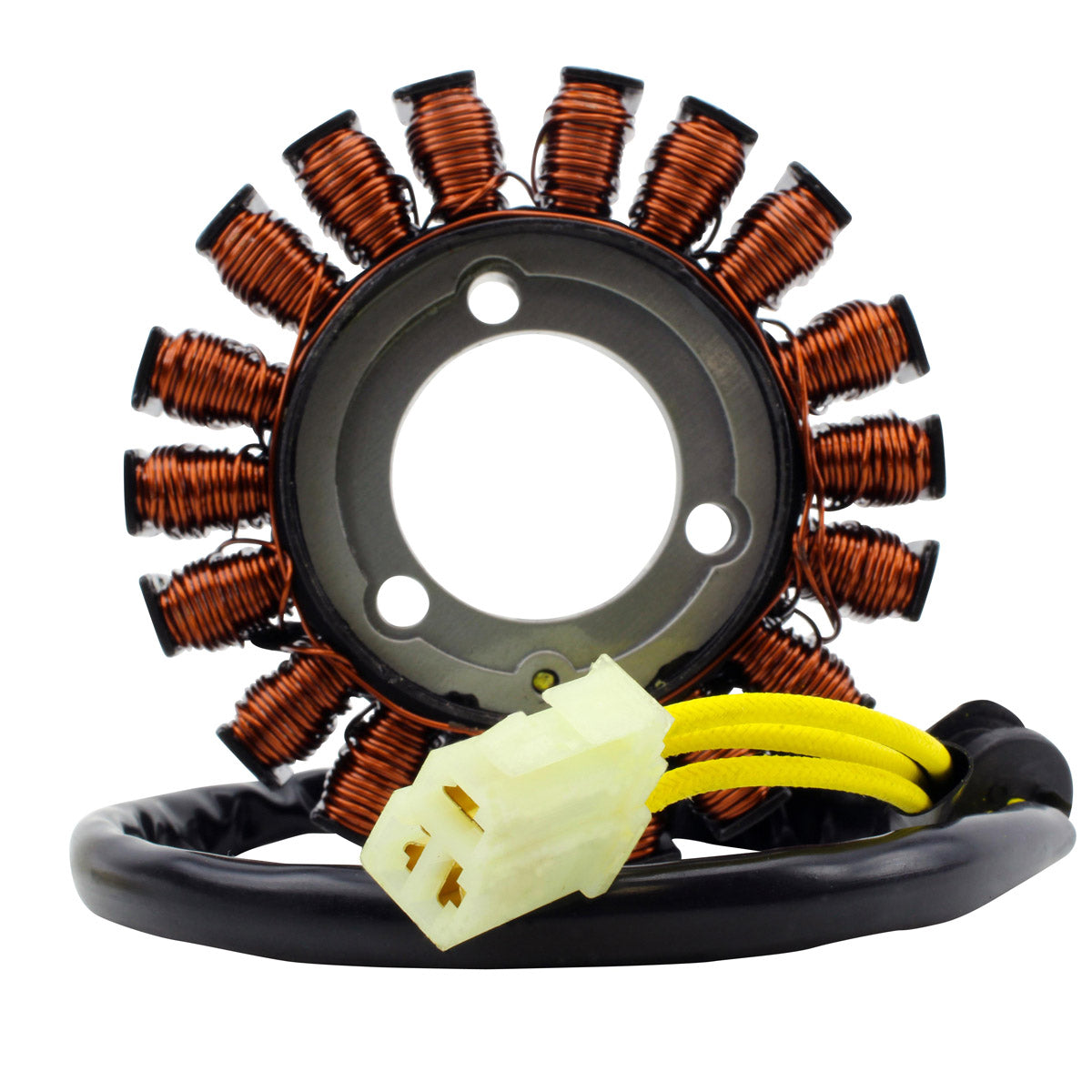

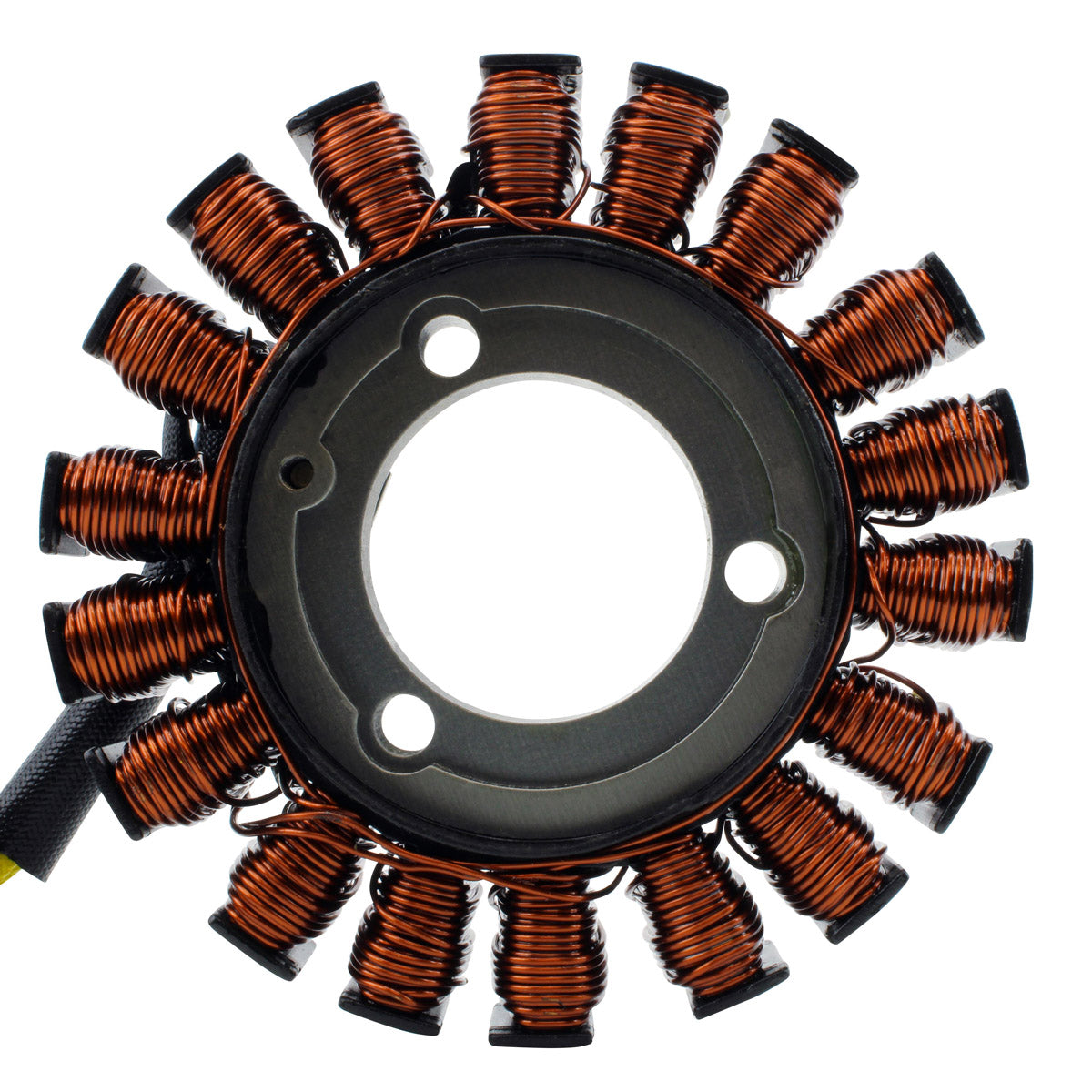

A brand new aftermarket generator stator for the Suzuki GSX-R 600 and GSX-R 750, built by RMSTATOR as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install, with the connector and rubber grommet supplied ready to go.
The windings are the highest grade copper on highest grade lamination materials, rated to resist 200 degrees Celsius - important on a compact sportbike stator that sits in oil behind the cover and runs hot. All shipped products are tested. The opposite connector for the main harness side is packed with it, because these connectors are often melted, corroded or defective and are a major cause of repetitive electrical issues.
Key Features
- Brand new generator stator, direct replacement for the original Suzuki unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Copper windings resistant to 200 degrees Celsius

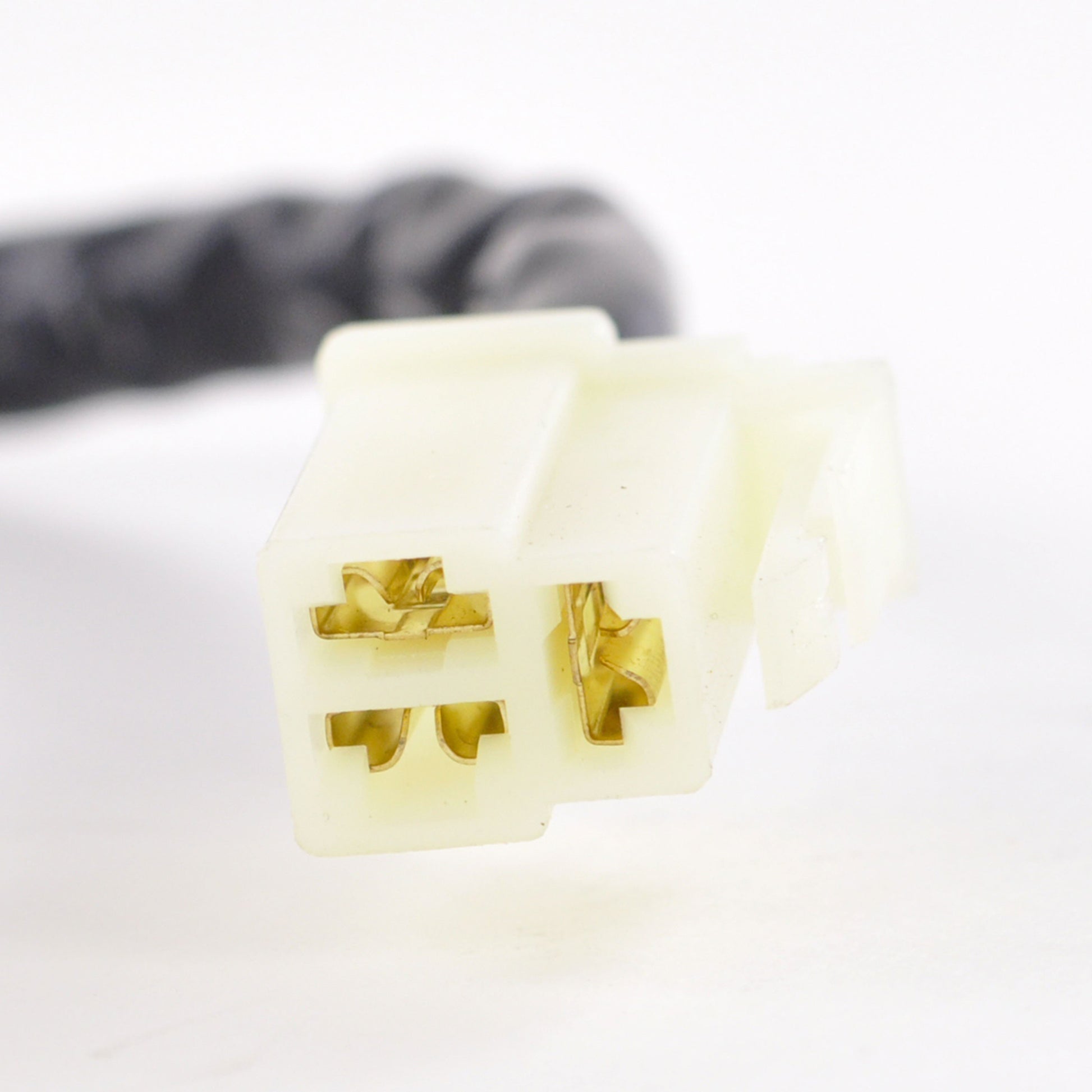

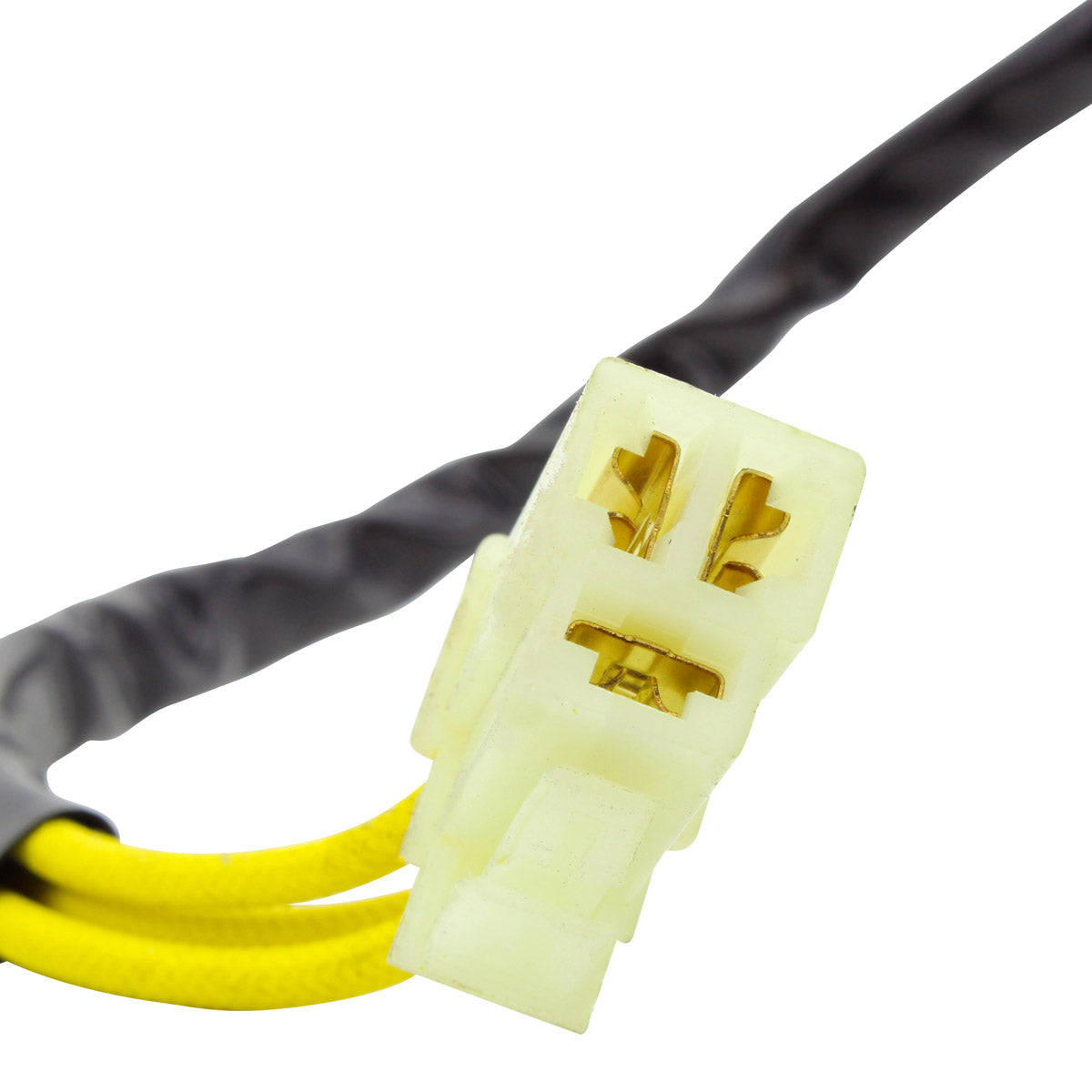

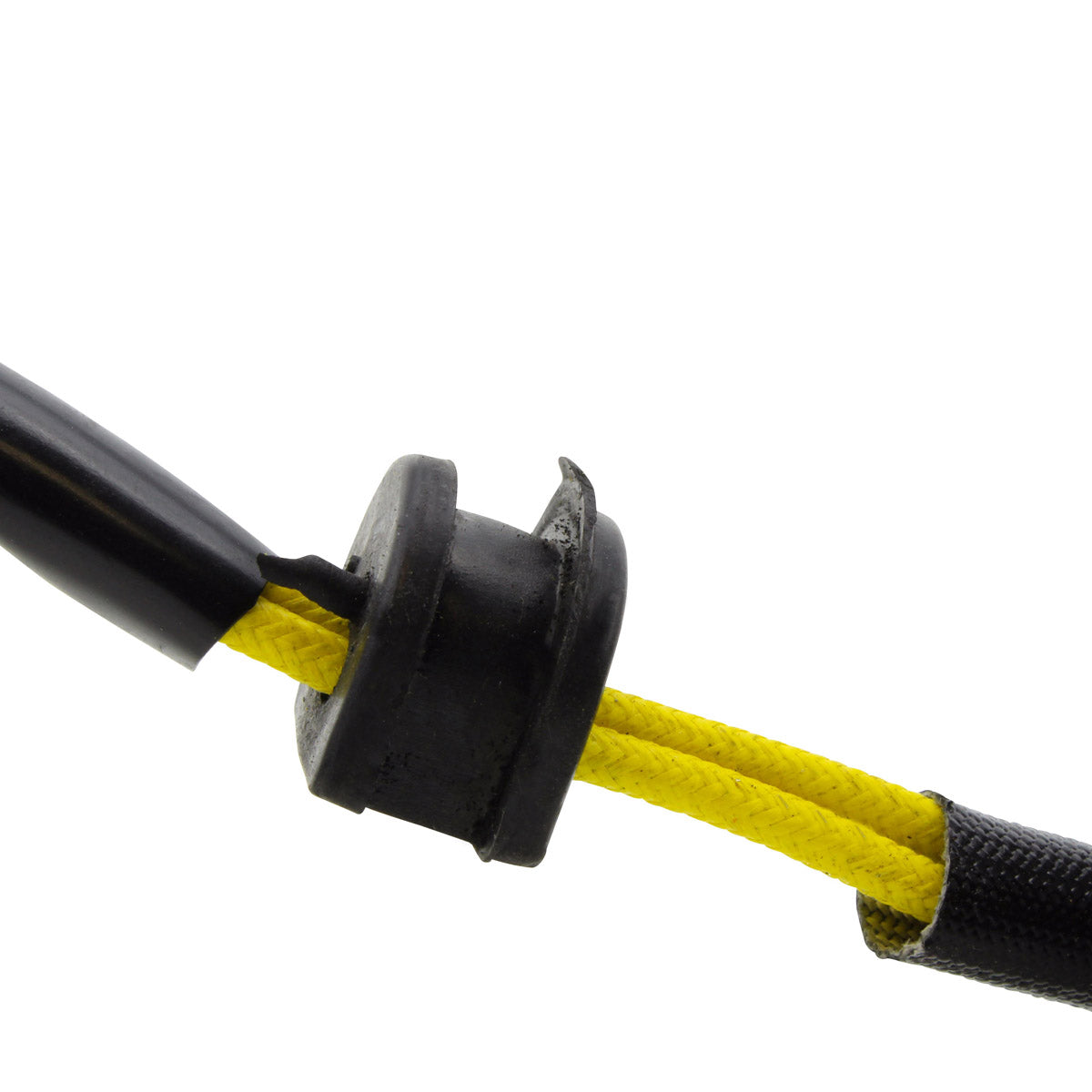

- Connector and rubber grommet included

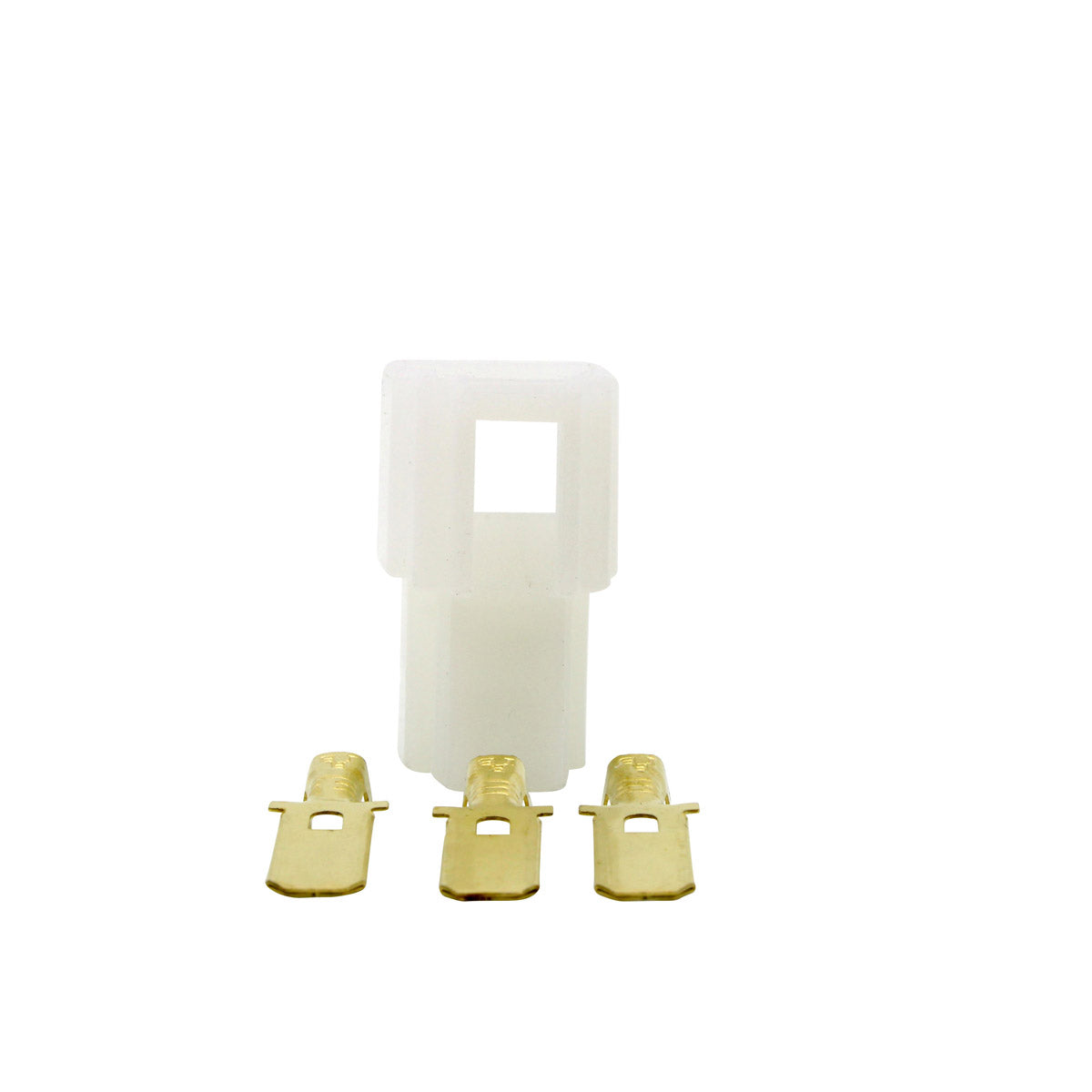

- Opposite connector for the main harness side included
- All shipped products are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
38 mm |
| Exterior diameter |
107 mm |
| Thickness |
12 mm |
| Wire length, stator to grommet |
160 mm |
| Wire length, grommet to plug |
330 mm |
| Number of wires |
3 |
| Number of plugs |
1 |

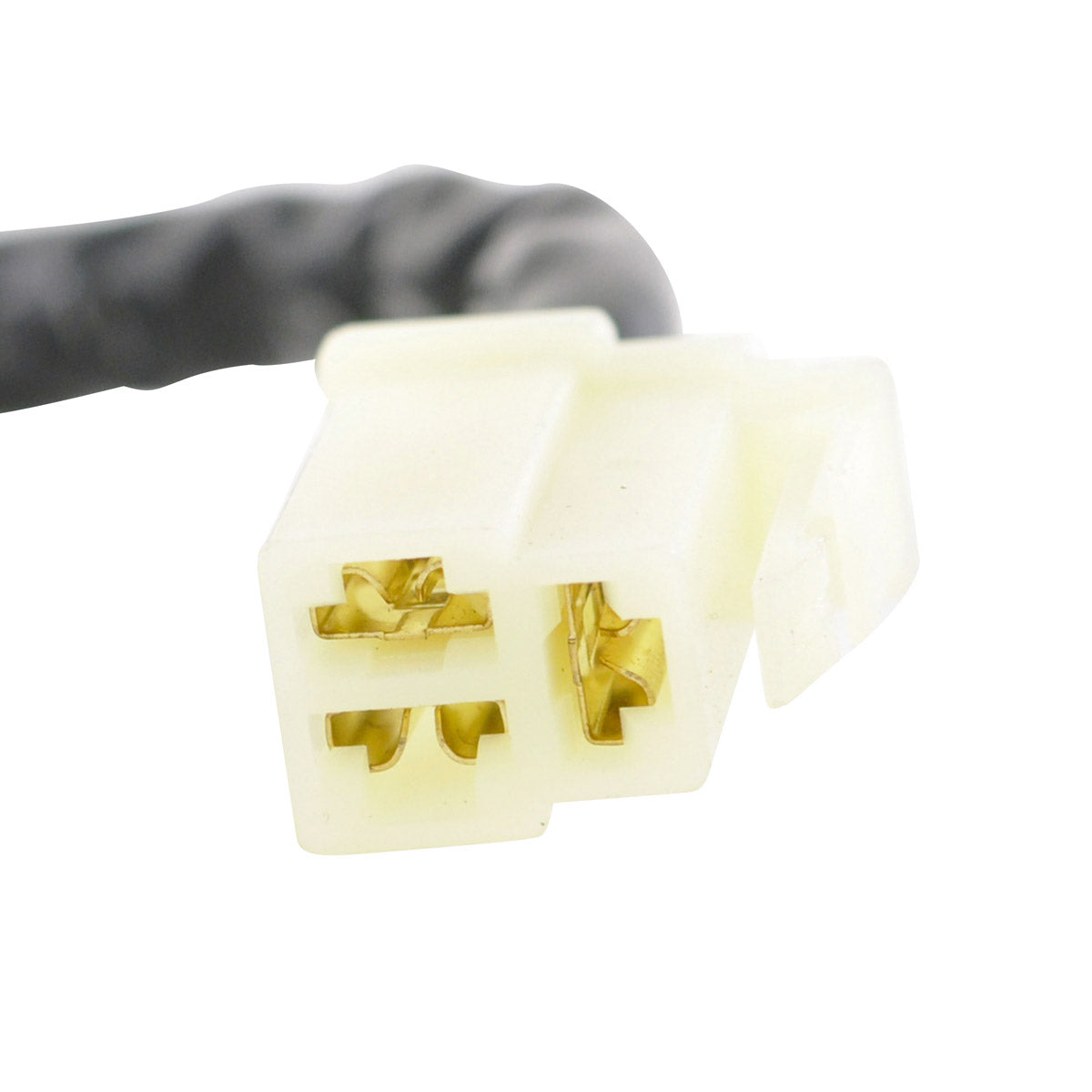

| Number of pins |
3 |
| Alternator resistance, Yellow to Yellow |
0.5 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01092 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki GSX-R 600 |
2006-2024 |
| Suzuki GSX-R 750 |
2006-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31401-01H00 |
Suzuki |
| 31401-01H10 |
Suzuki |
| 31401-01H11 |
Suzuki |
| 31401-01H20 |
Suzuki |
| 31401-01H21 |
Suzuki |
Frequently Asked Questions
Will it fit without modification?
Yes. RMSTATOR supplies this as a direct replacement for the original Suzuki stator - plug-and-play, direct fit, easy installation. The connector and rubber grommet are included so the loom side needs no alteration.
What is included in the box?

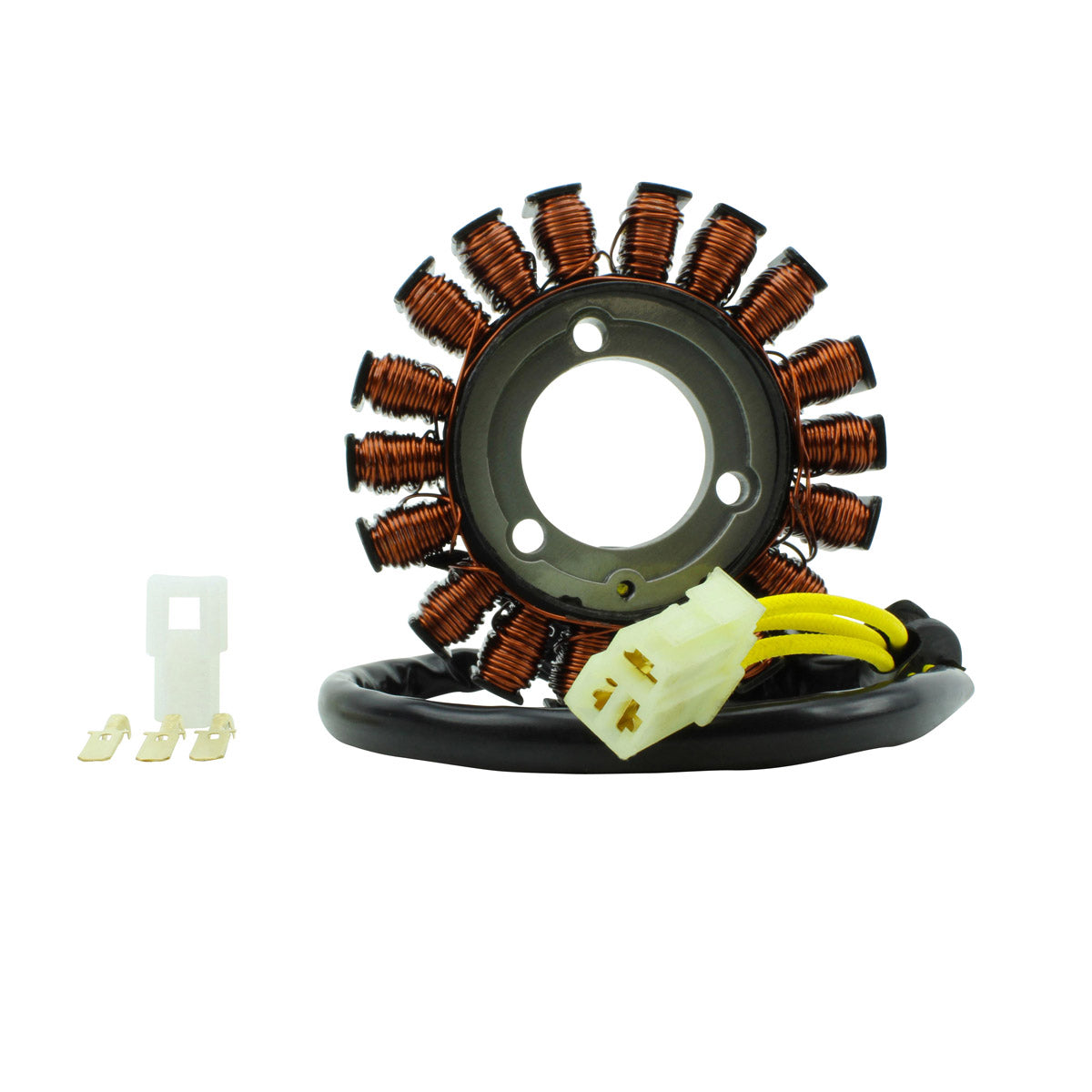

The generator stator, the connector, the rubber grommet, and an opposite connector for the main harness side.
How do I check whether my stator has failed?
With a multimeter set to ohms, measure between each pair of Yellow wires: the reading should be 0.5 ohms +/-20%. Each Yellow wire should also be open circuit to the stator body. A shorted or open winding, or a burnt smell from the cover, confirms the stator has failed.
Does the same stator cover the whole 2006 to 2024 span?
RMSTATOR lists this part across that span for the GSX-R 600 and GSX-R 750. Because Suzuki superseded the OEM number more than once, check the number on your original unit against the cross reference table above before ordering.
