High Output 500W Stator for Suzuki GSX1300R Hayabusa and B-King
GSX1300R Hayabusa and B-King - 2008 to 2025 - Part RM01597

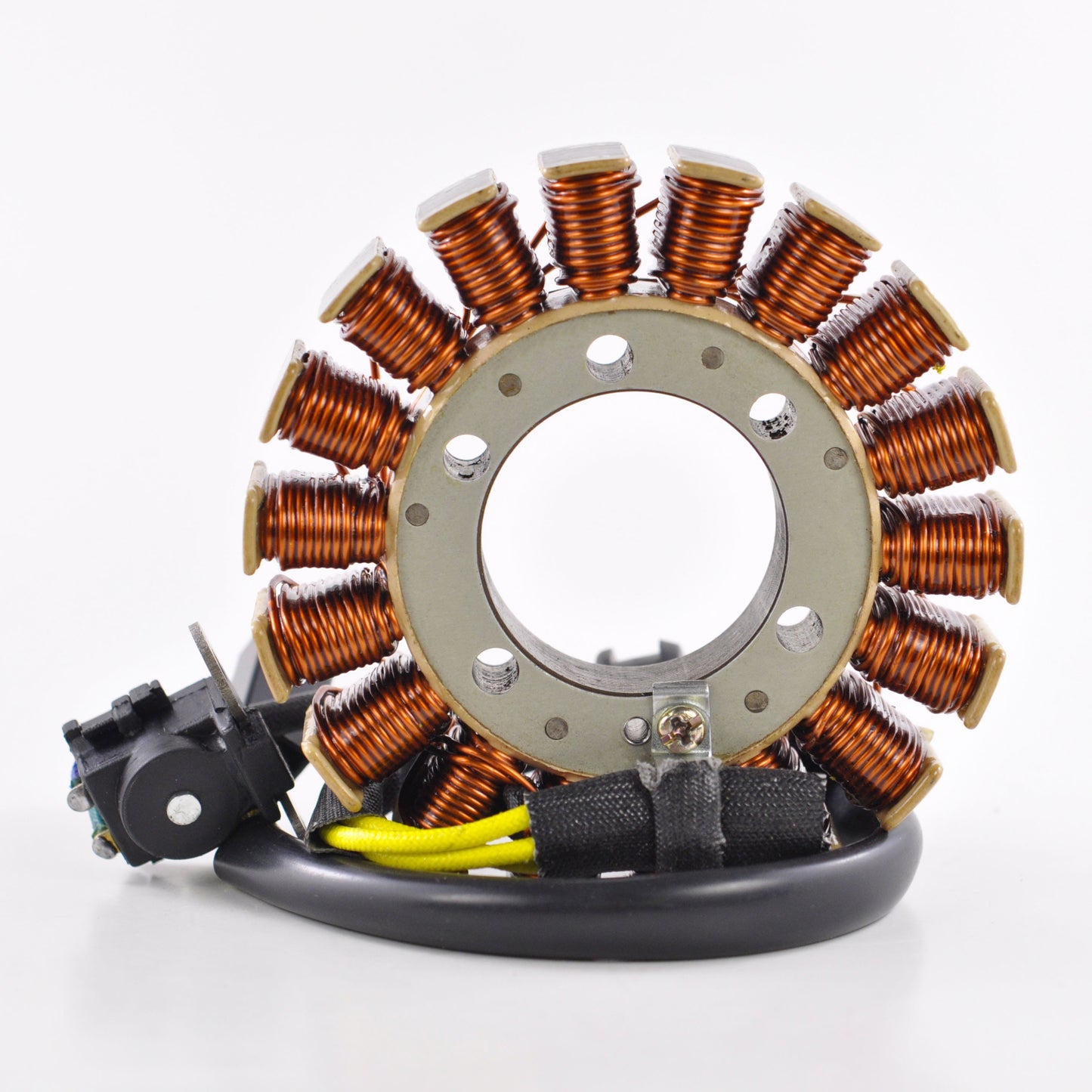

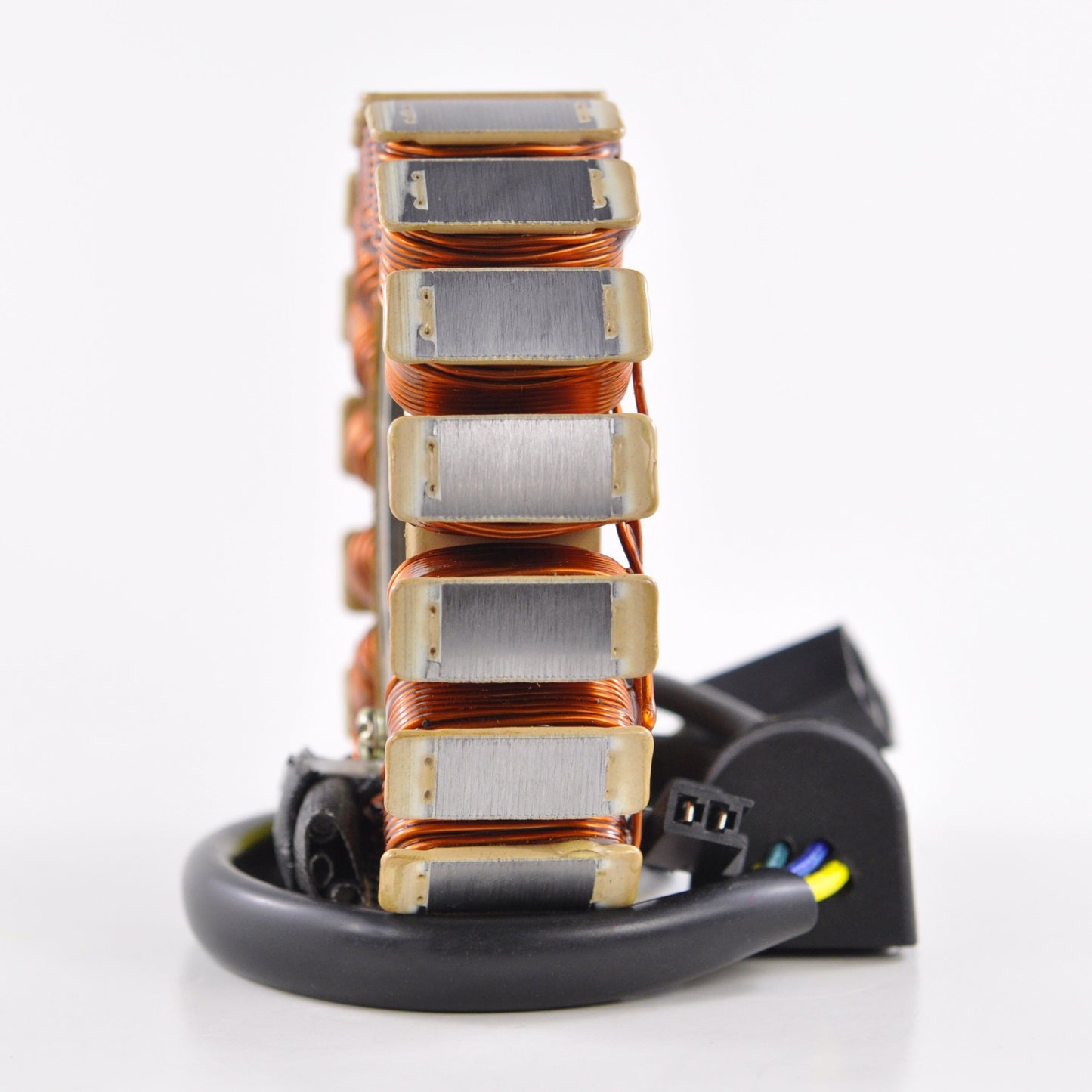

This is a brand new aftermarket high output stator for the Suzuki GSX1300R Hayabusa and the B-King, covering the 2008 to 2025 span. It is a direct replacement for the original Suzuki unit, so it fits the same mounting position in the cover, uses the same wire routing and the same factory plugs, and needs no modification to the loom or to the charging circuit. Installation is plug-and-play.

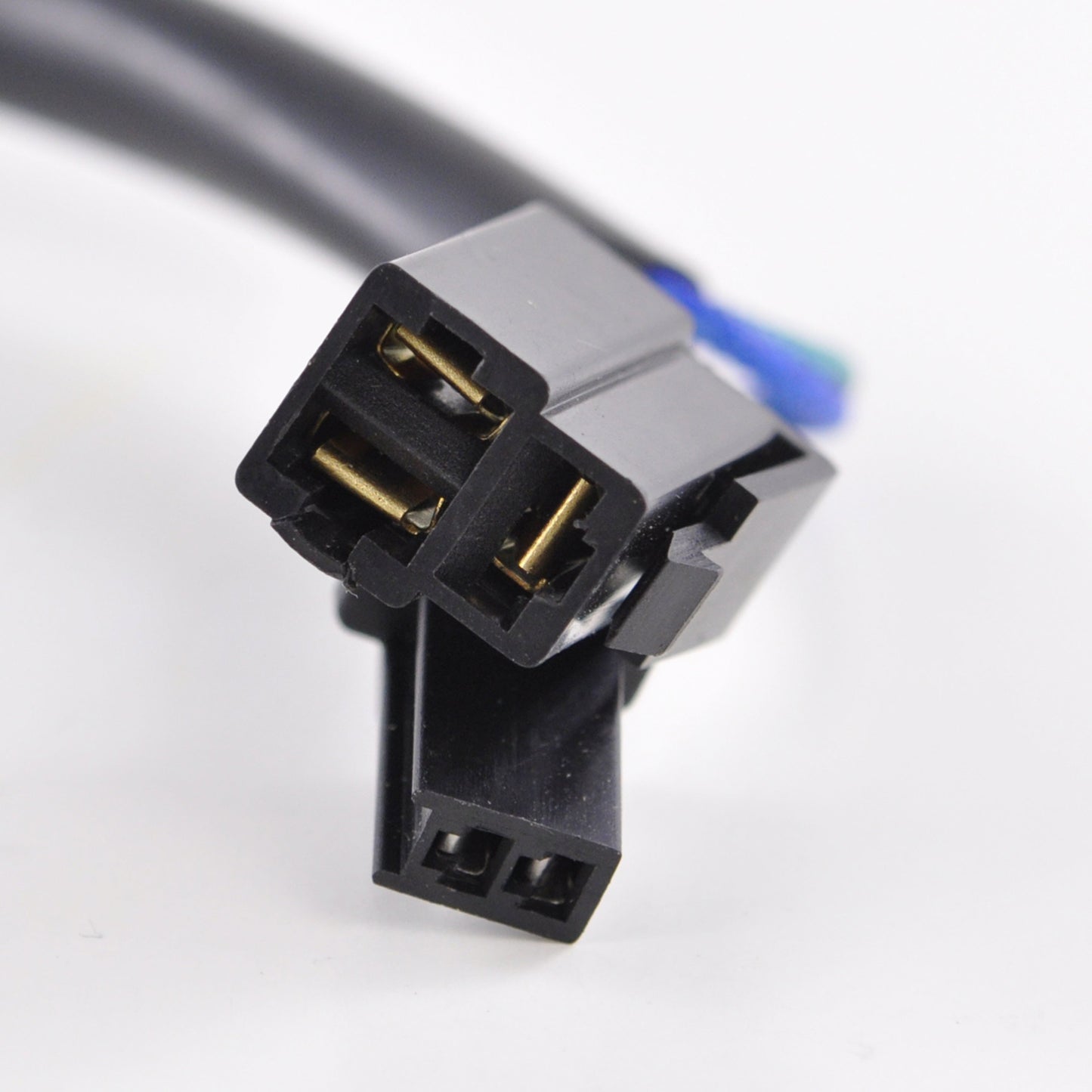

Where it differs from a standard replacement is output: this unit is rated at 500 watts, which gives headroom for heated kit, auxiliary lighting, a satnav or an alarm without leaving the battery permanently under-charged. The core uses the highest grade lamination materials and the windings the highest grade copper, resistant to 200 degrees Celsius, because a high output stator sitting in hot engine oil is only as good as the insulation on its windings. The pick-up pulsar coil is supplied with the assembly, along with the connector, the rubber grommet, and an additional connector for the main harness side to deal with the corrosion that commonly builds up in that plug. Every unit is tested before it is shipped.
Key Features
- High output: 500W rating
- Brand new aftermarket stator, not a rewound used core
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector and rubber grommet included
- Additional main harness connector included to address corrosion
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Power output | 500W |

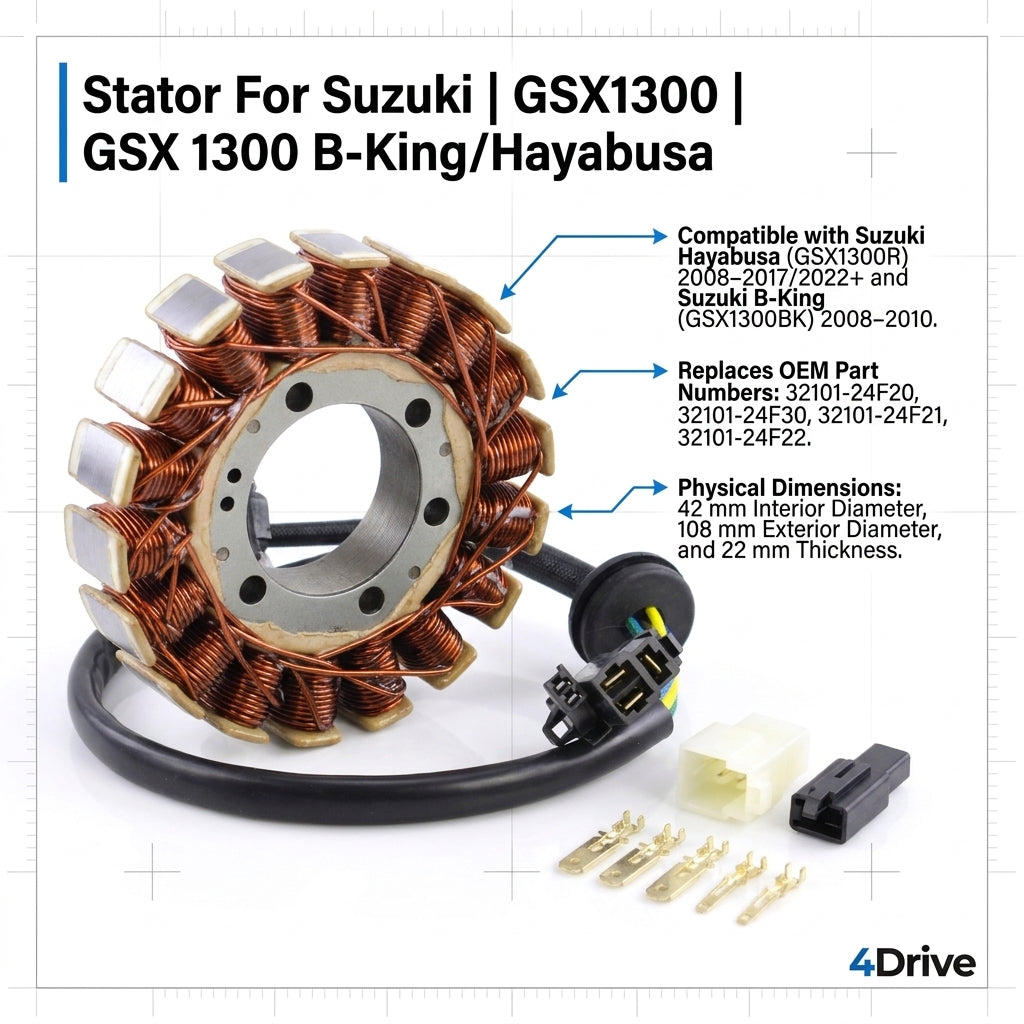

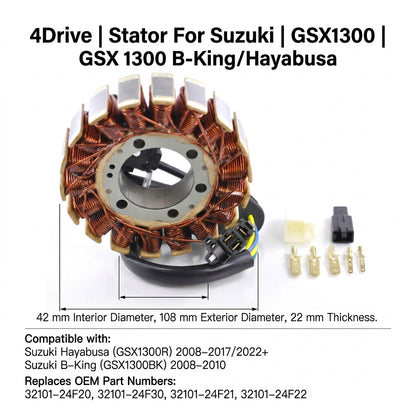

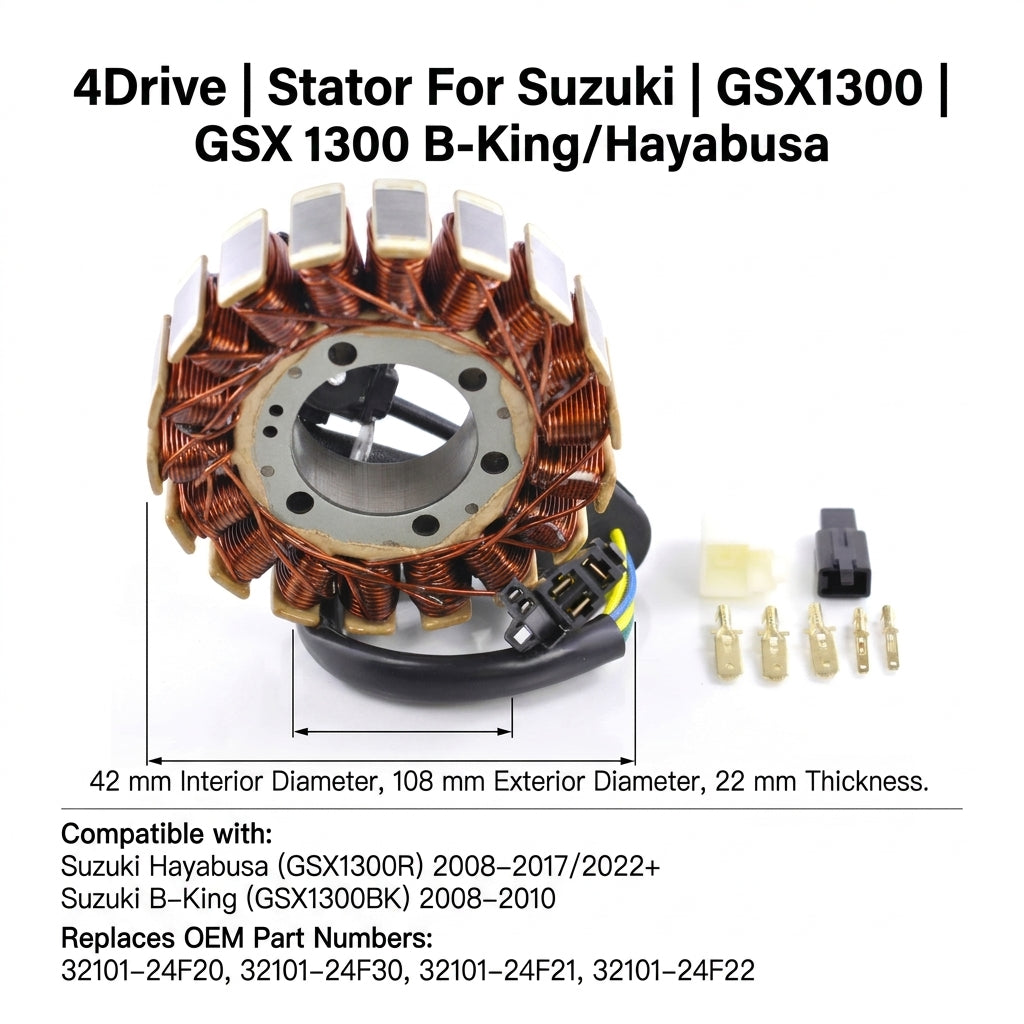

| Interior diameter | 42 mm |
| Exterior diameter | 108 mm |
| Thickness | 22 mm |
| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 200 mm |
| Pick-up coil wire length | 55 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, White to White | 0.5 ohms +/-20% |
| Pick-up resistance, Blue to Green | 239 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki GSX1300R Hayabusa | 2008-2025 |
| Suzuki B-King | 2008-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-24F20 | Suzuki |
| 32101-24F21 | Suzuki |
| 32101-24F22 | Suzuki |
| 32101-24F30 | Suzuki |
Frequently Asked Questions
Does this stator fit without modification?
Yes. Despite the higher output it is a direct replacement for the original unit on the listed models and years, using the same mounting points, the same wire routing and the same factory plugs. No cutting, splicing or adapter loom is required.
What is included in the box?

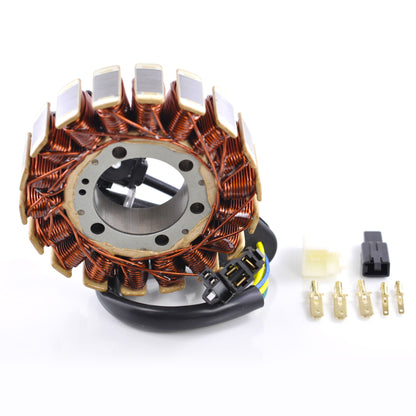

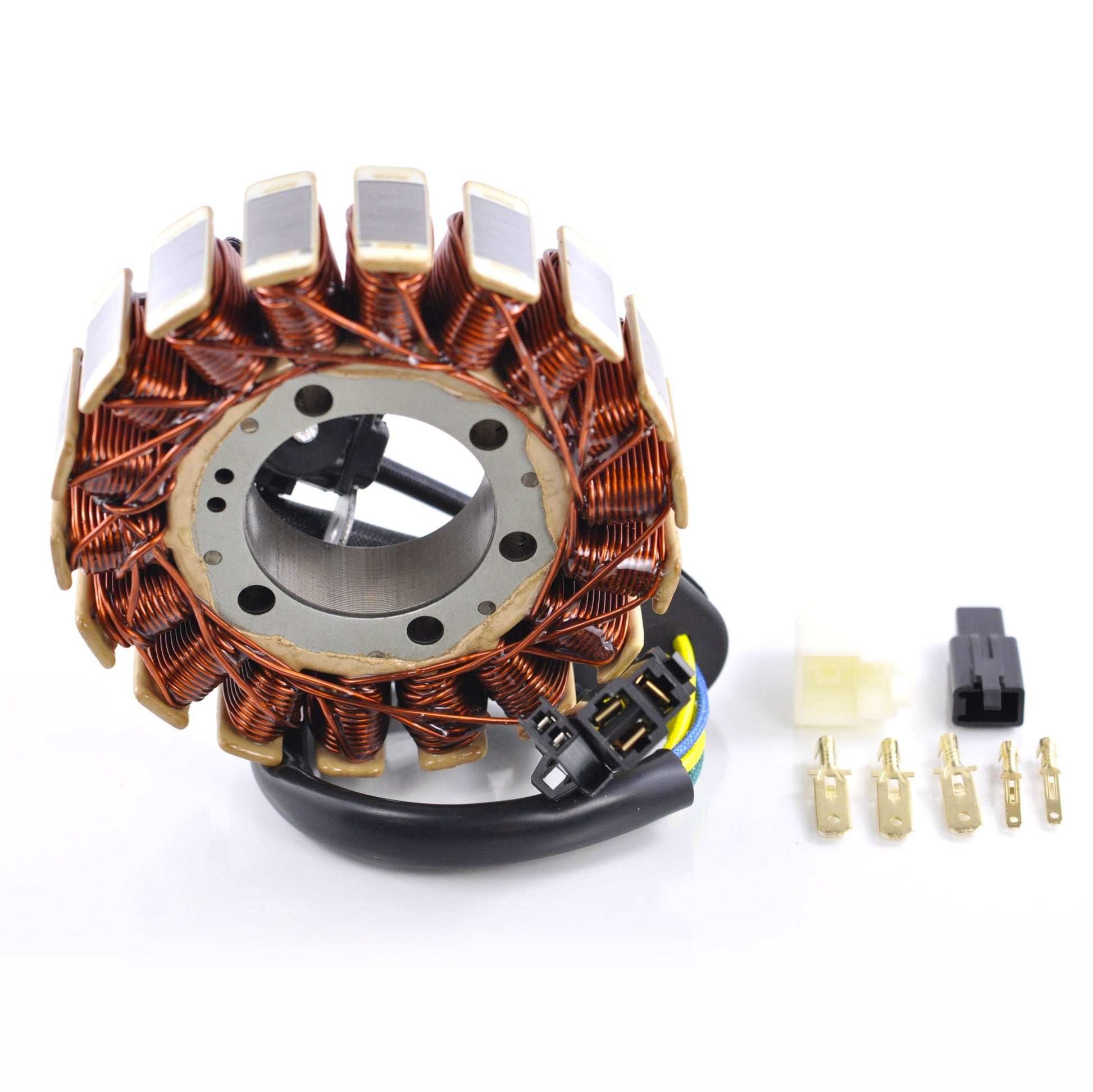

The stator, the pick-up pulsar coil, the connector, the rubber grommet, and an additional connector for the main harness side so a corroded plug can be renewed during the same job.
How can I tell my old stator has failed?
Look for a battery that will not stay charged, headlights that dim at idle, a bike that cuts out or will not start, or a burnt smell from the stator plug. With a multimeter set to ohms, the alternator windings should read about 0.5 ohms White to White and the pick-up about 239 ohms Blue to Green, each within plus or minus 20 per cent. An open circuit, a near-zero reading, or continuity between any output wire and the engine case means the stator has failed.
What does the 500W rating give me over a standard stator?
It provides extra charging headroom at the same fitment. If heated grips, a heated jacket, auxiliary lights, a satnav and an alarm are all drawing at once, a standard output unit can leave the battery slowly discharging in traffic. The 500W rating gives margin for those loads. The regulator rectifier and the battery must be in good order for that output to be usable.
