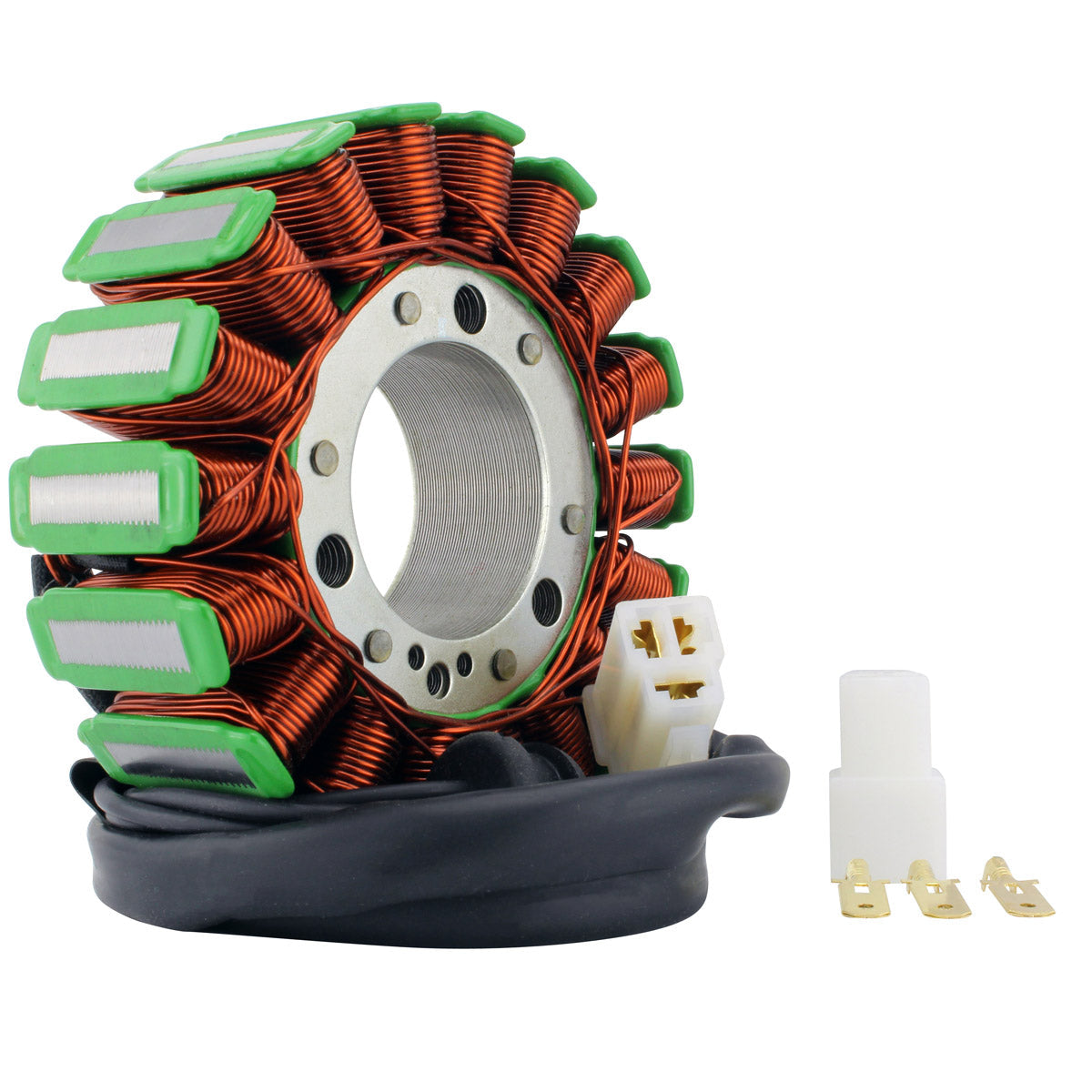

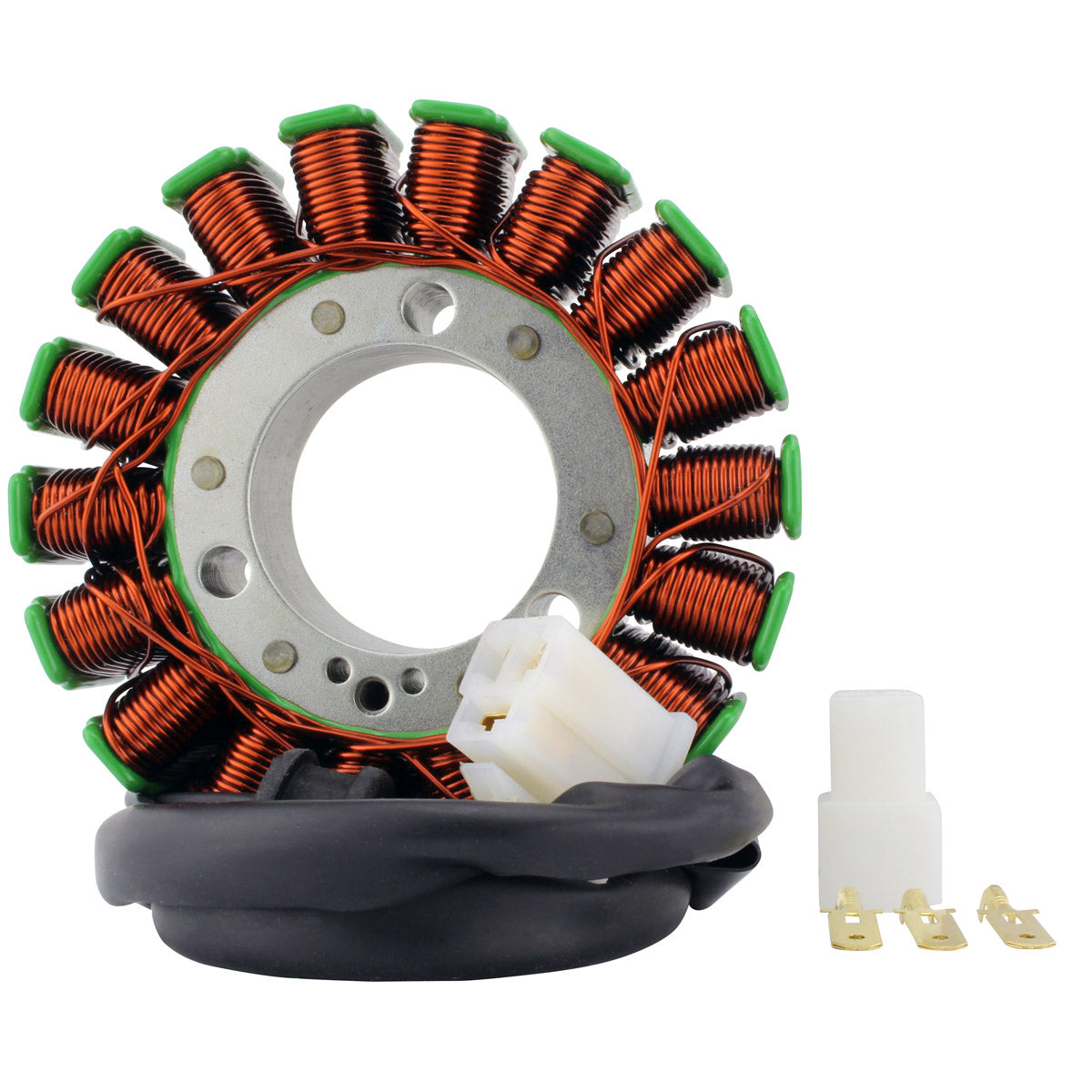

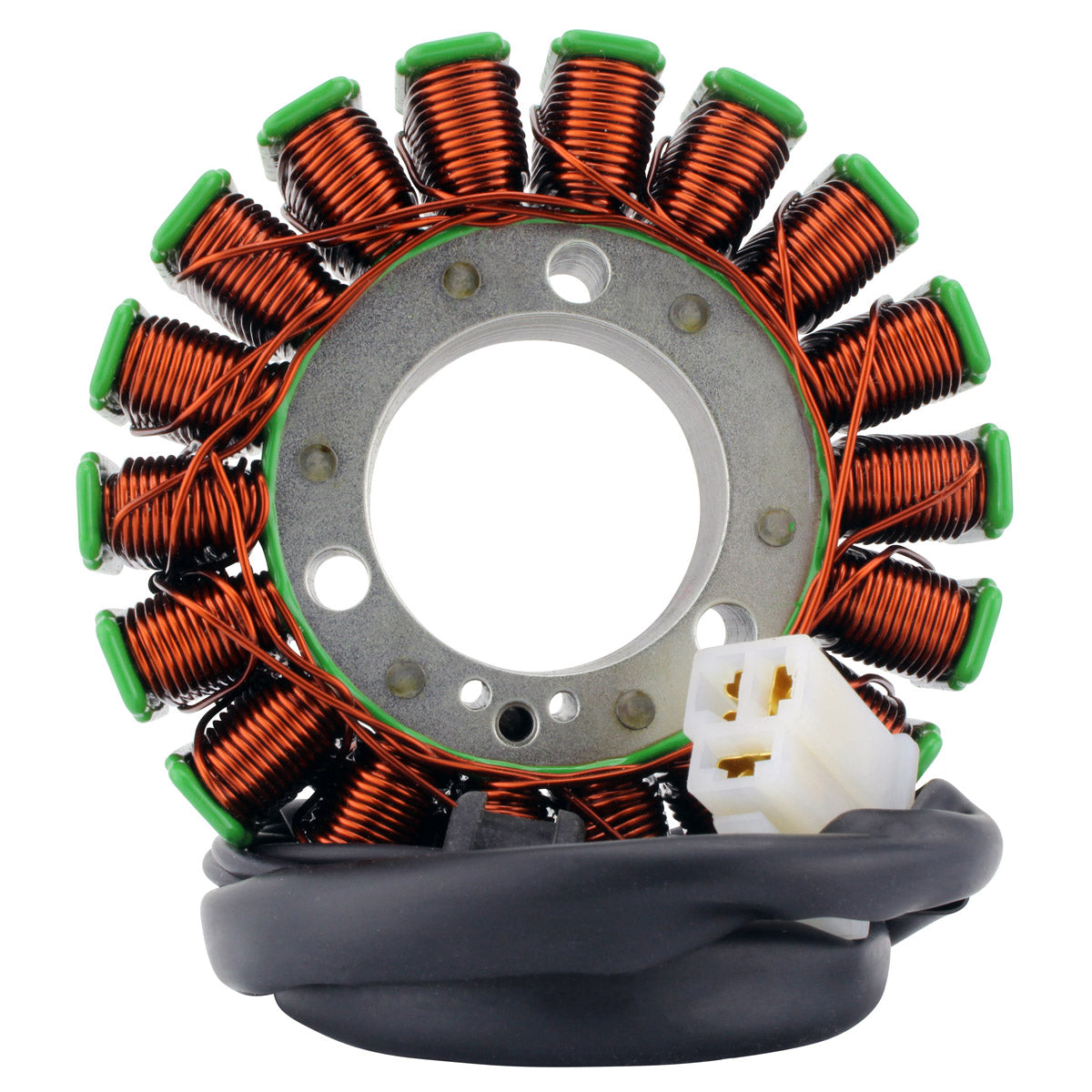

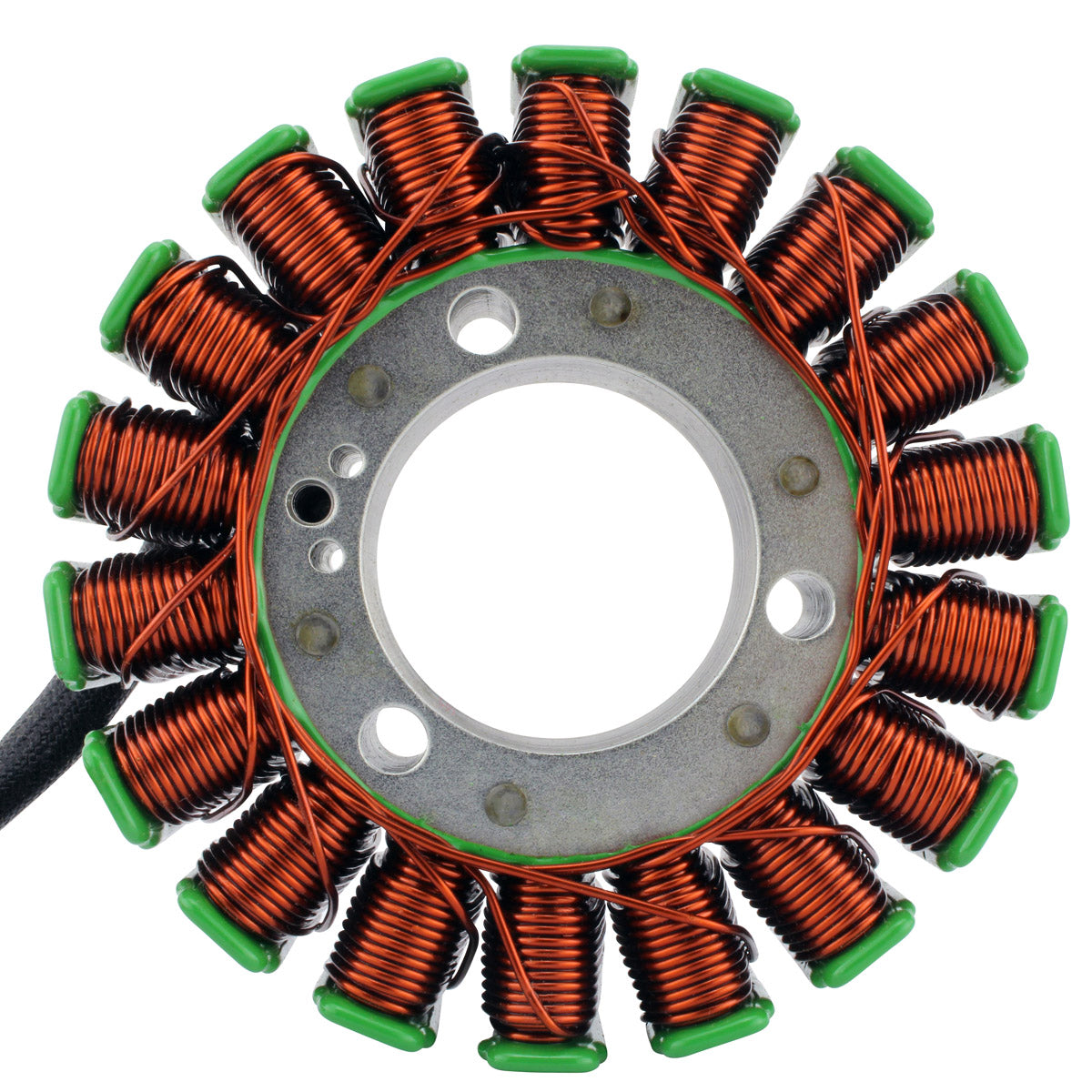

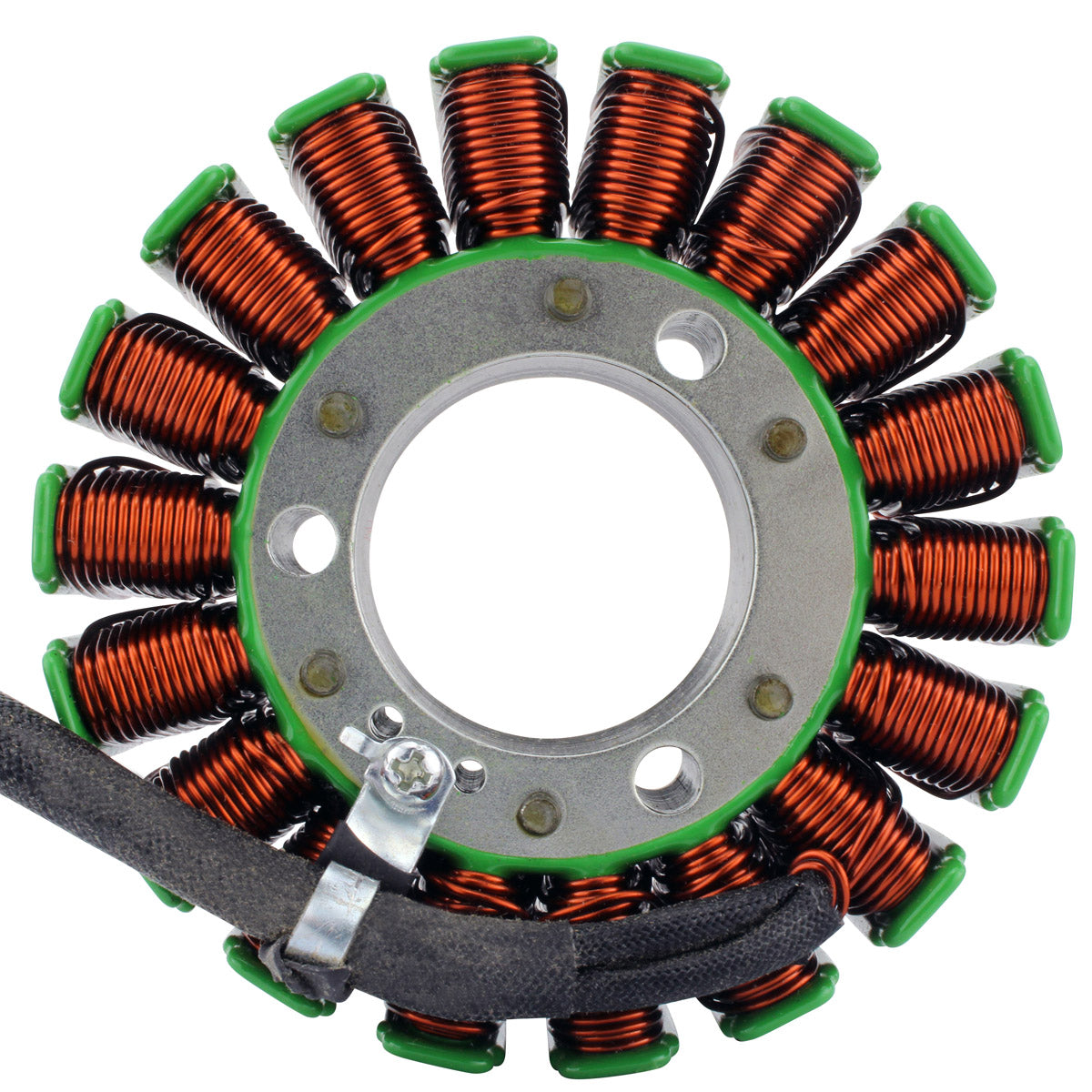

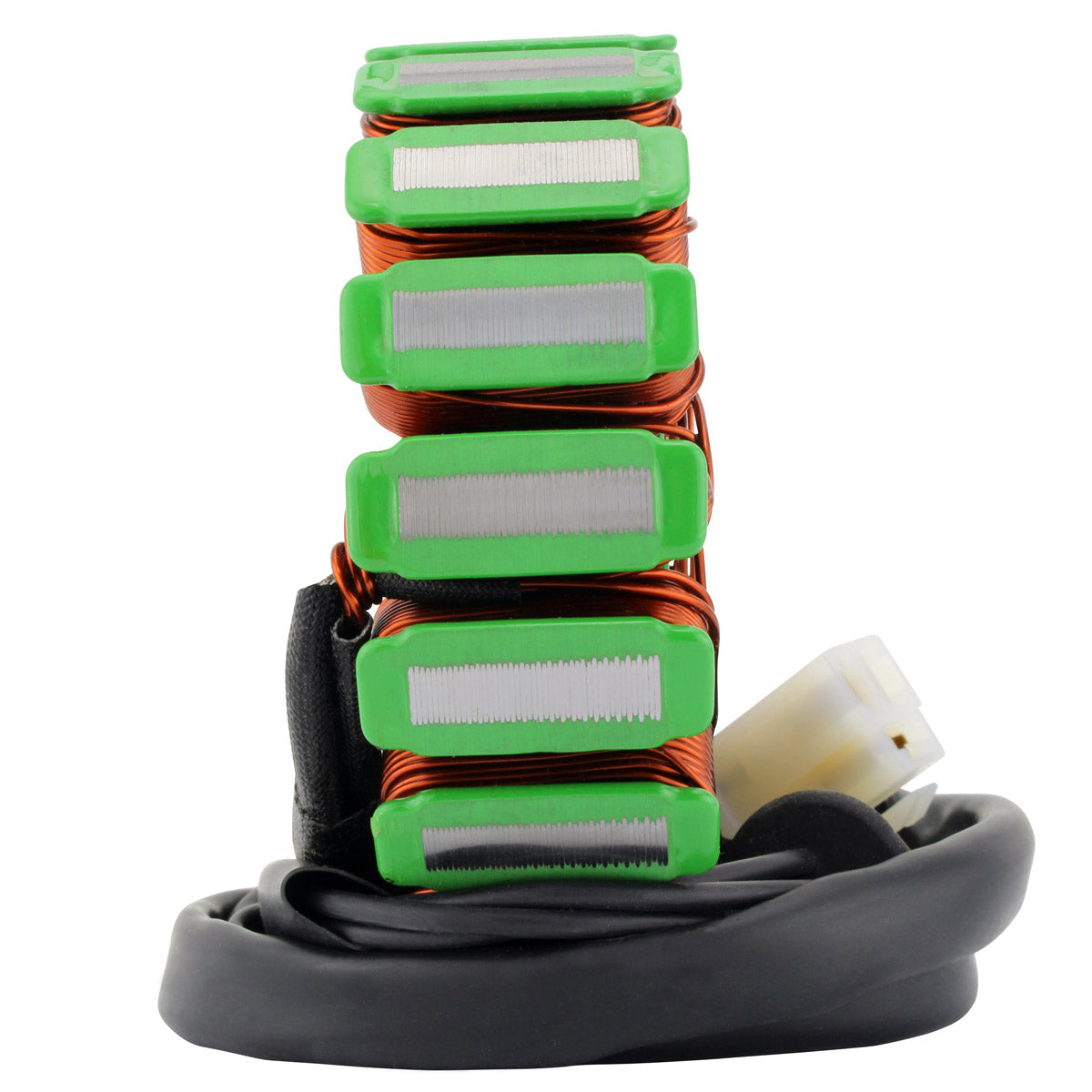

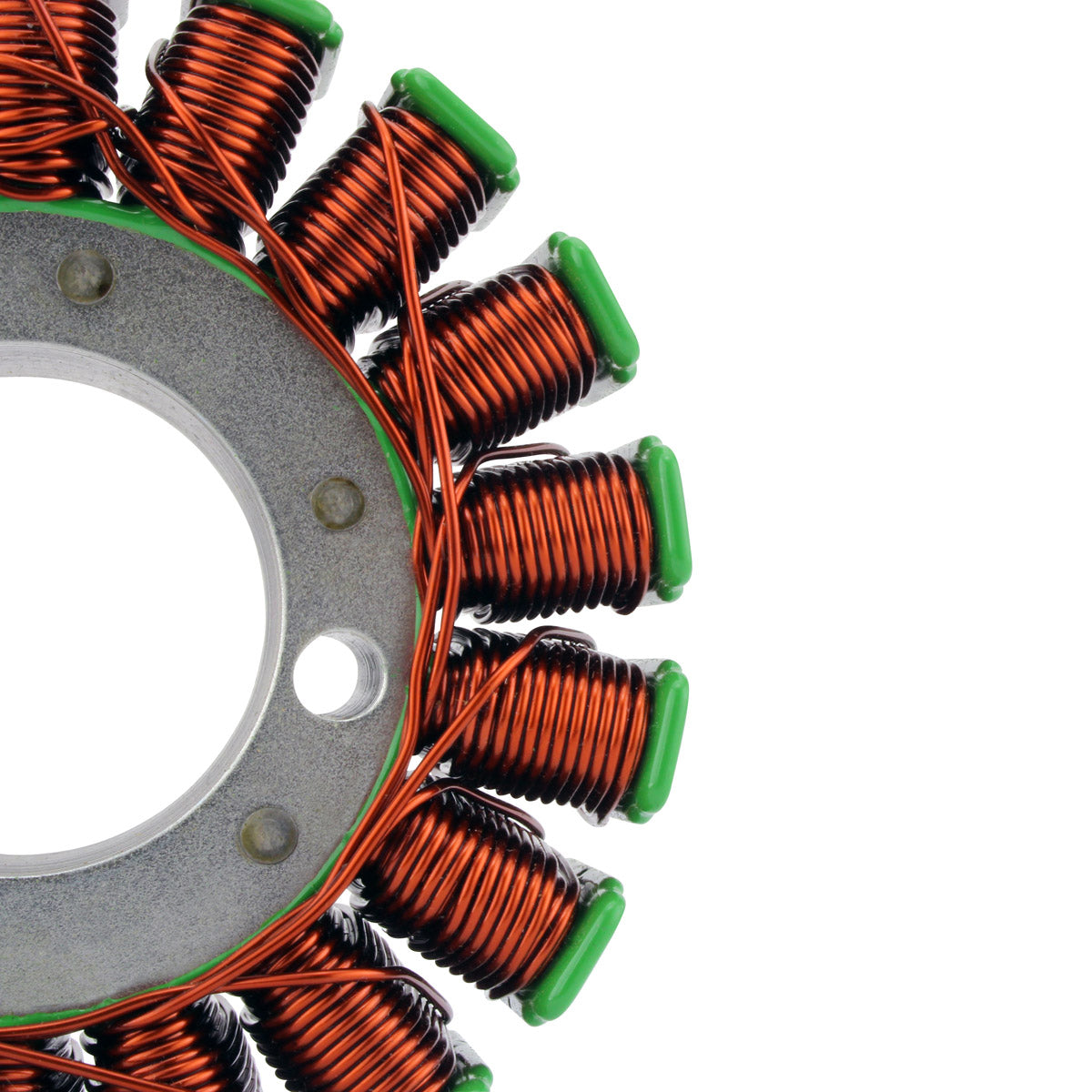

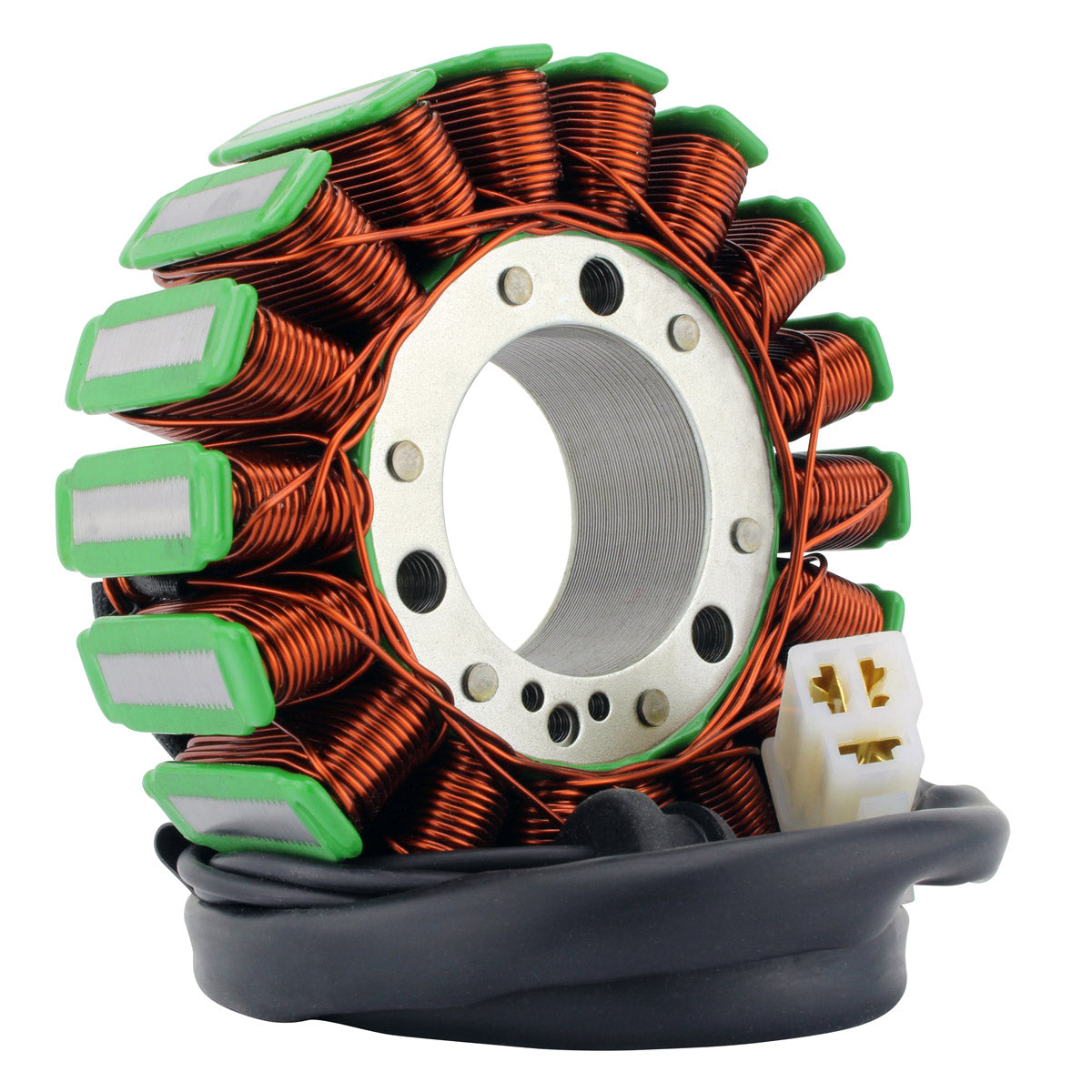

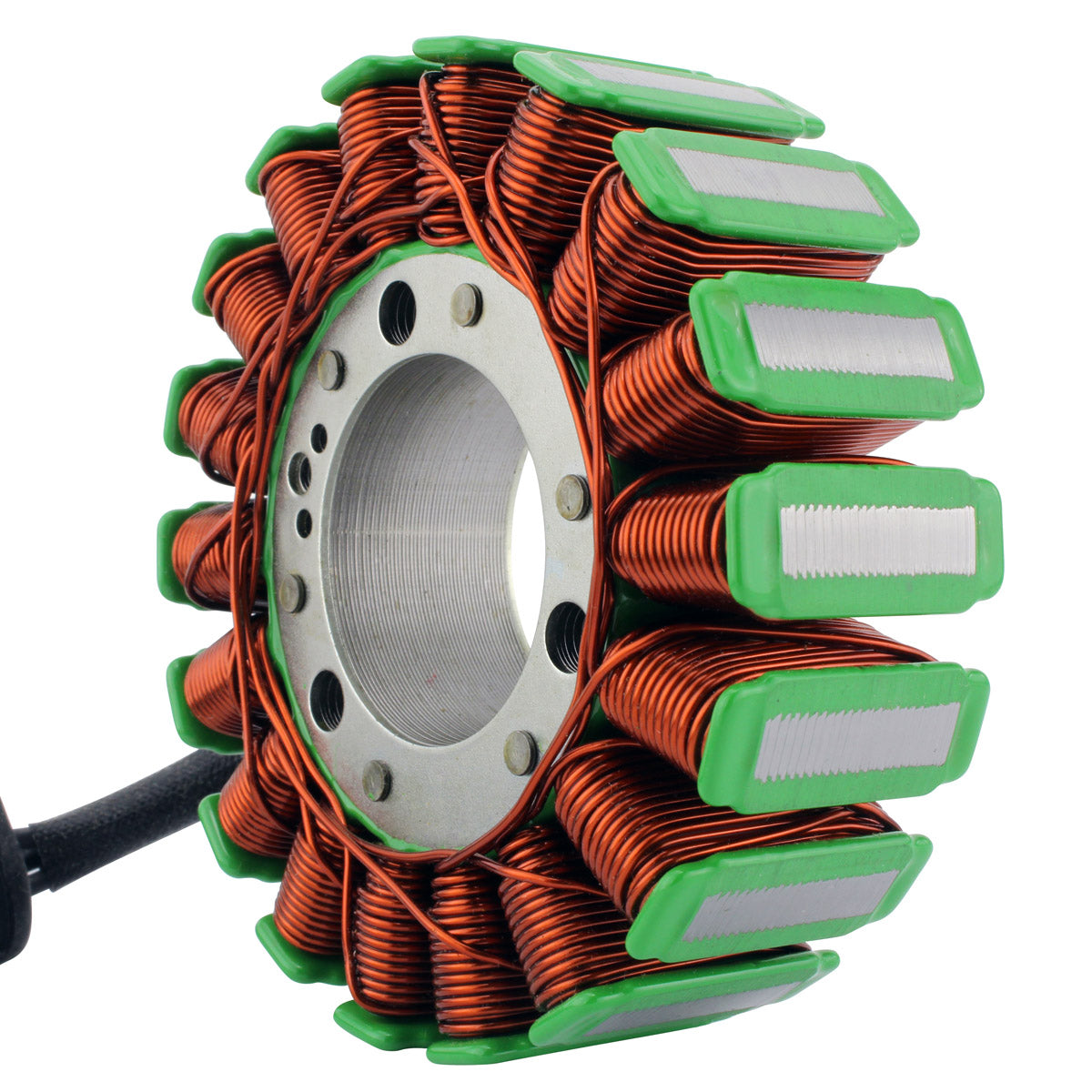

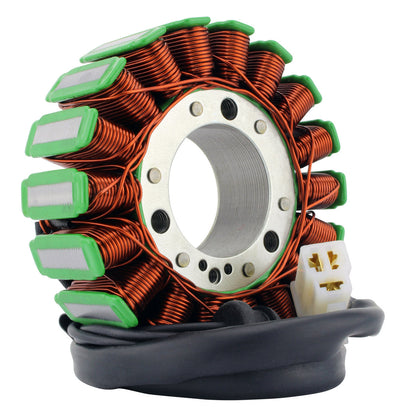

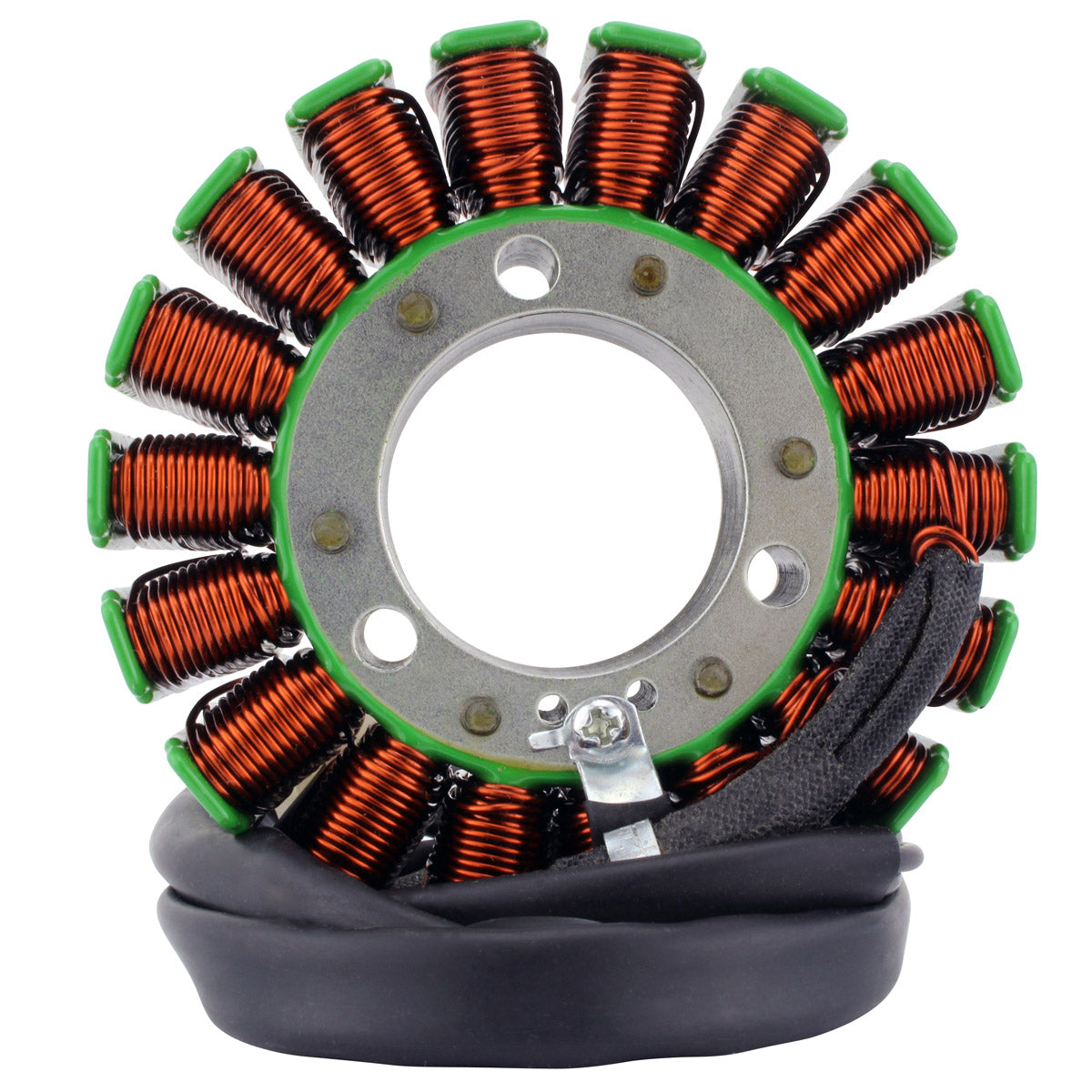

This is a brand new aftermarket generator stator built as a direct replacement for the original charging unit fitted to the Suzuki GSXR 600 and GSXR 750. It is plug-and-play and a direct fit, so it goes into the standard mounting position and connects to the existing wiring without cutting or modification. An 18 pole winding and a 650 mm lead from the grommet to the plug mean the unit routes the same way as the original.

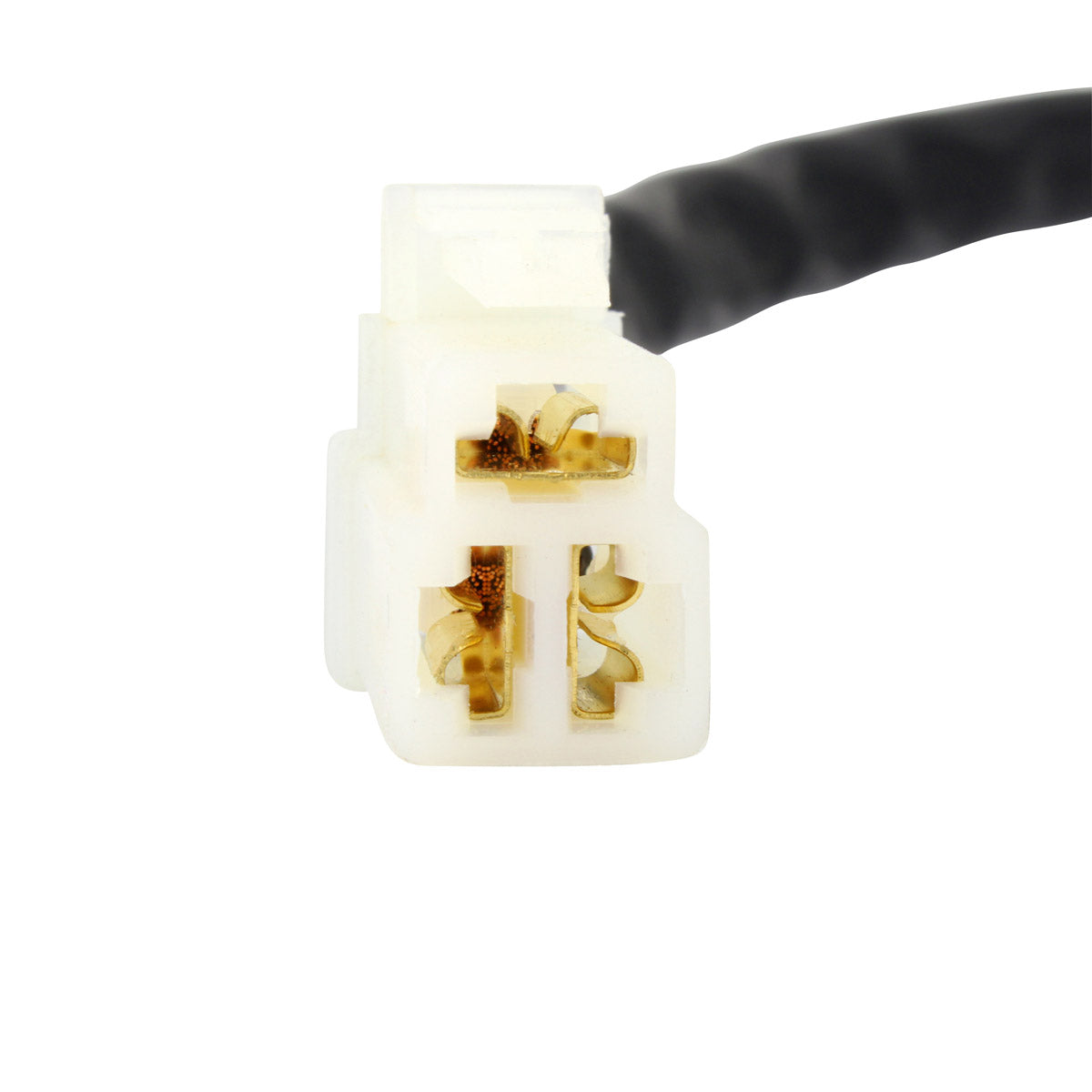

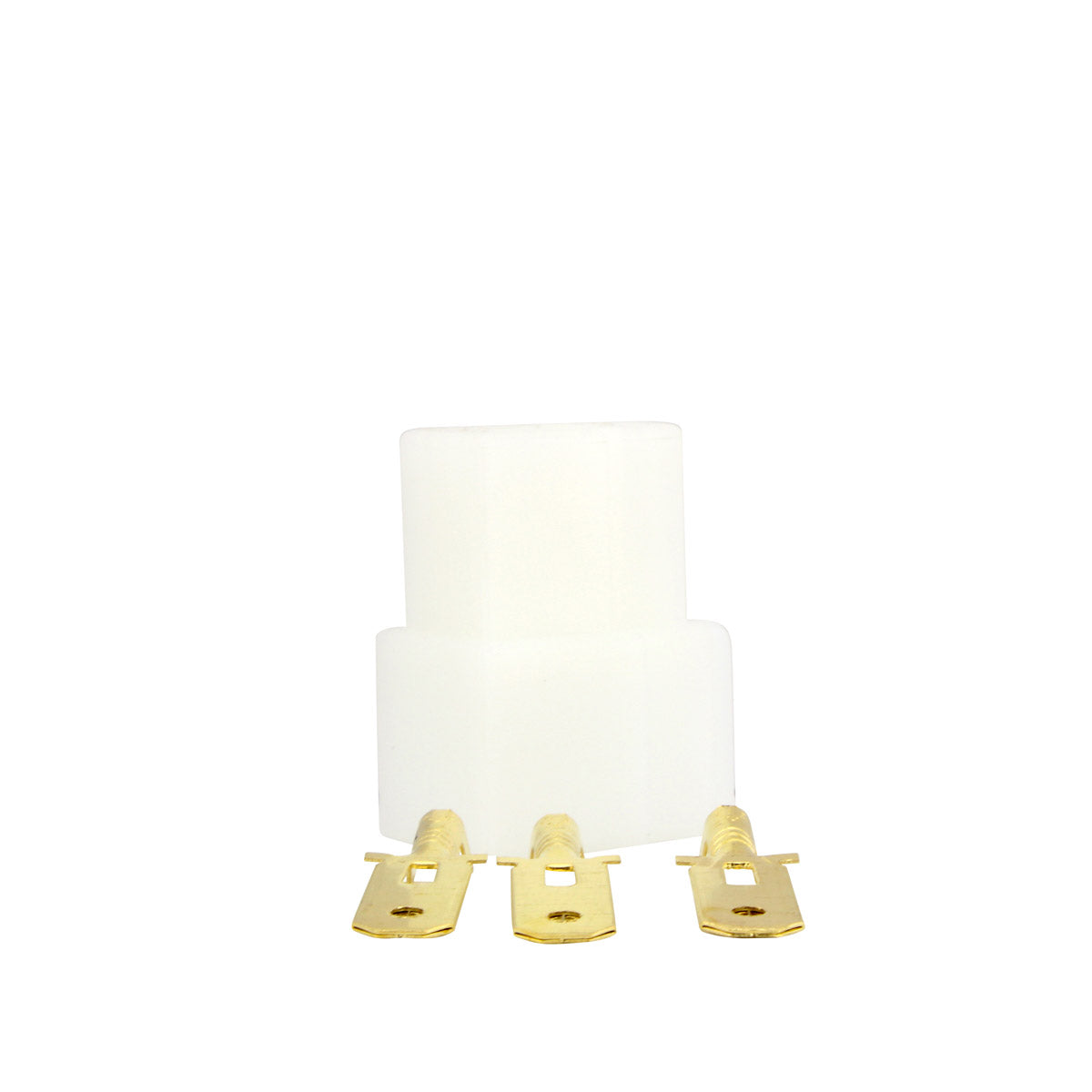

The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. Connectors and a rubber grommet are supplied. RMSTATOR also include the opposite connector for the main harness side, because that connector is often melted, corroded or defective and is a major cause of repeat electrical issues. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- 18 pole winding, three wire output
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included, plus the opposite main harness side connector
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
38 mm |
| Exterior diameter |
99 mm |
| Thickness |
27 mm |
| Wire length, stator to grommet |
100 mm |
| Wire length, grommet to plug |
650 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
18 |
| Wire resistance, Black to Black |
0.6 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki GSXR 600 |
1997-2000 |
| Suzuki GSXR 750 |
1996-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31401-33E00 |
Suzuki |
| 31401-33E10 |
Suzuki |
Frequently Asked Questions
Does fitting this stator require any modification?
No. It is a direct replacement for the original unit and is plug-and-play, so it uses the standard mounting position and the existing connector. No cutting or splicing of the loom is needed.
What is included in the box?
The stator assembly, the connectors including the opposite connector for the main harness side, and the rubber grommet. Every unit is tested before it is shipped.
How can I tell whether my old stator has failed?
Check the winding resistance with a multimeter. Each pair of the three black output wires should read about 0.6 ohms, within 20 per cent, and no wire should show continuity to the stator body. A shorted, open or badly out of specification winding means the stator has failed.
My GSXR 750 is a 1996 model - is this the right stator?
Yes. This unit covers the GSXR 750 from 1996 to 1999 and the GSXR 600 from 1997 to 2000. If you are unsure, check the part number stamped on your original unit against the OEM cross reference table above before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
