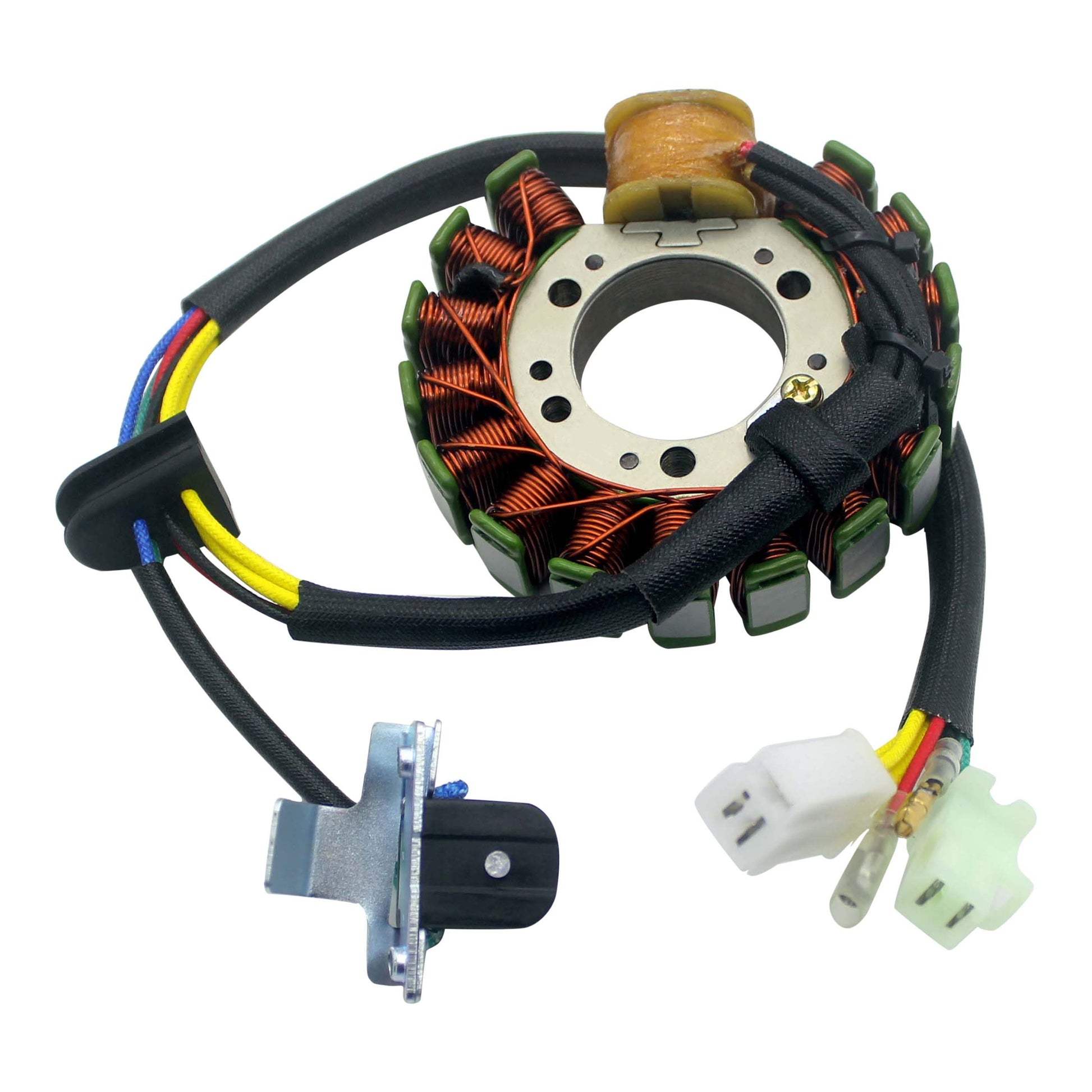

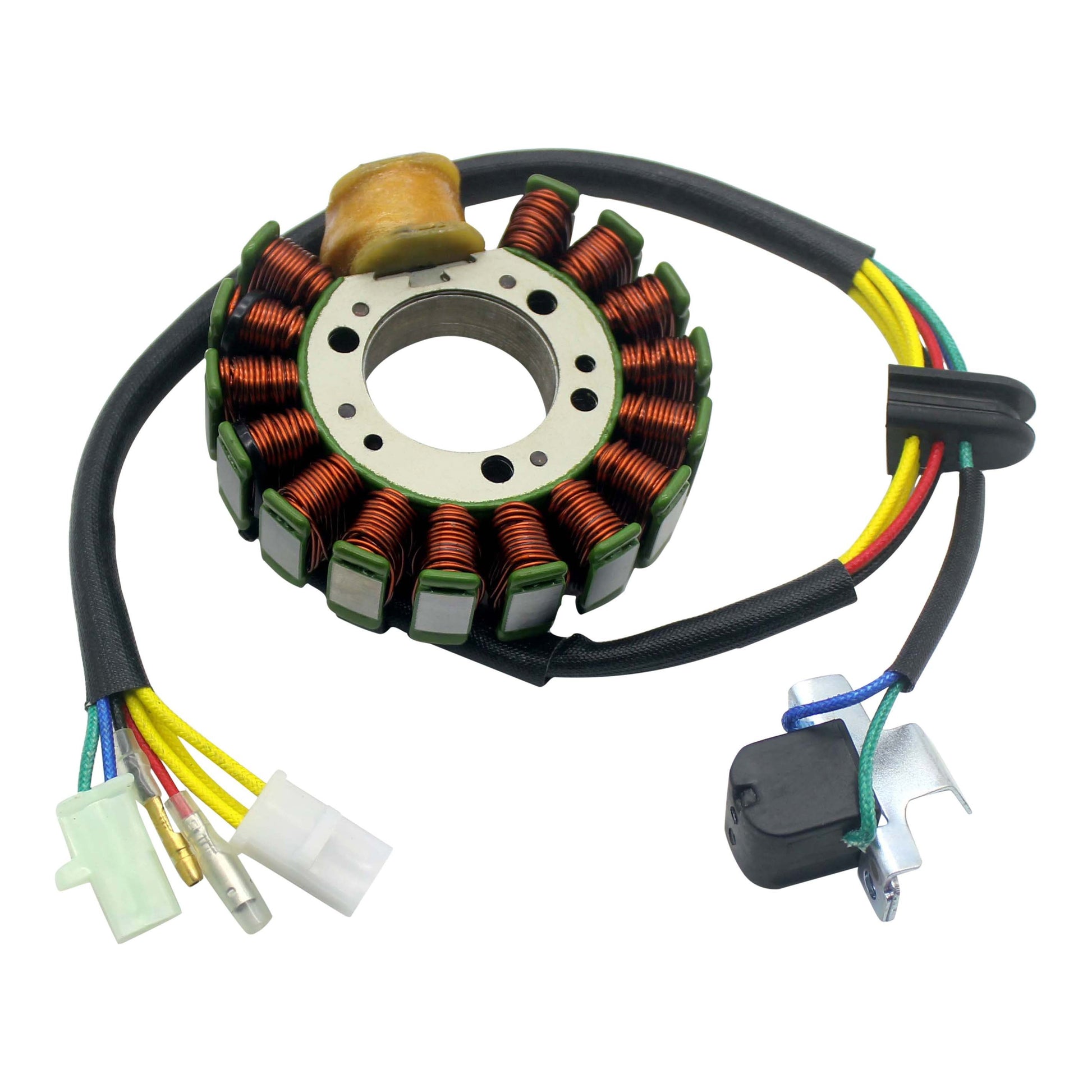

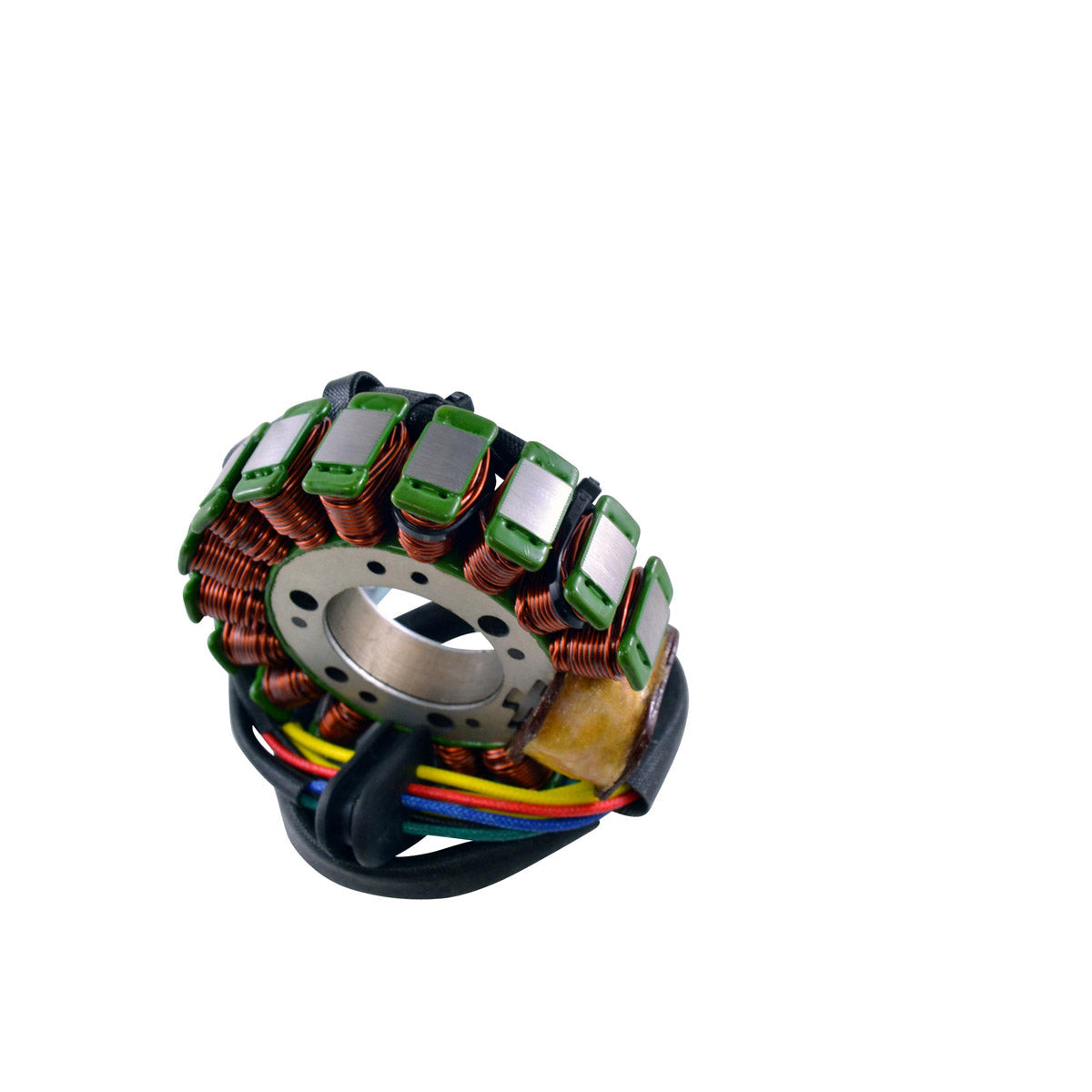

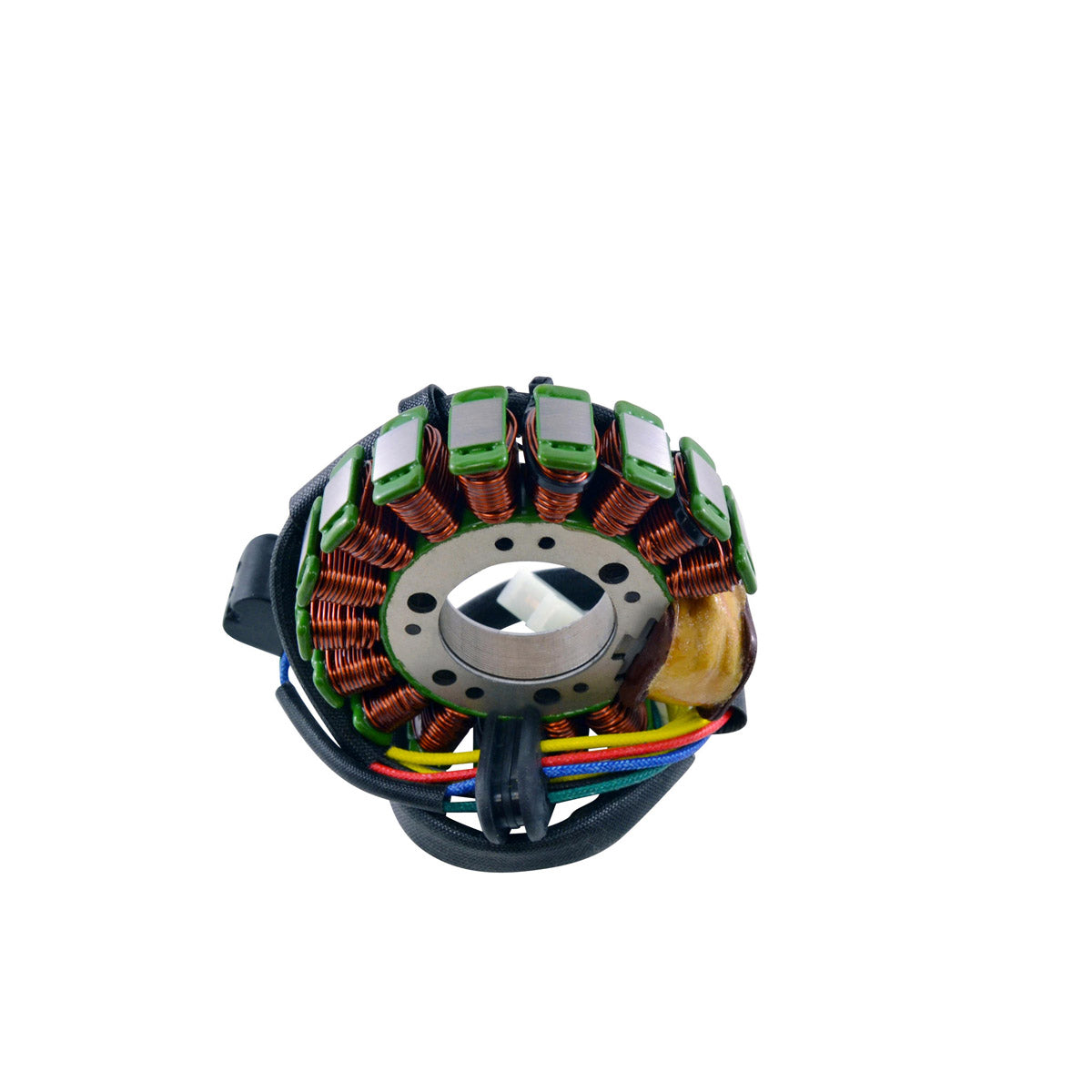

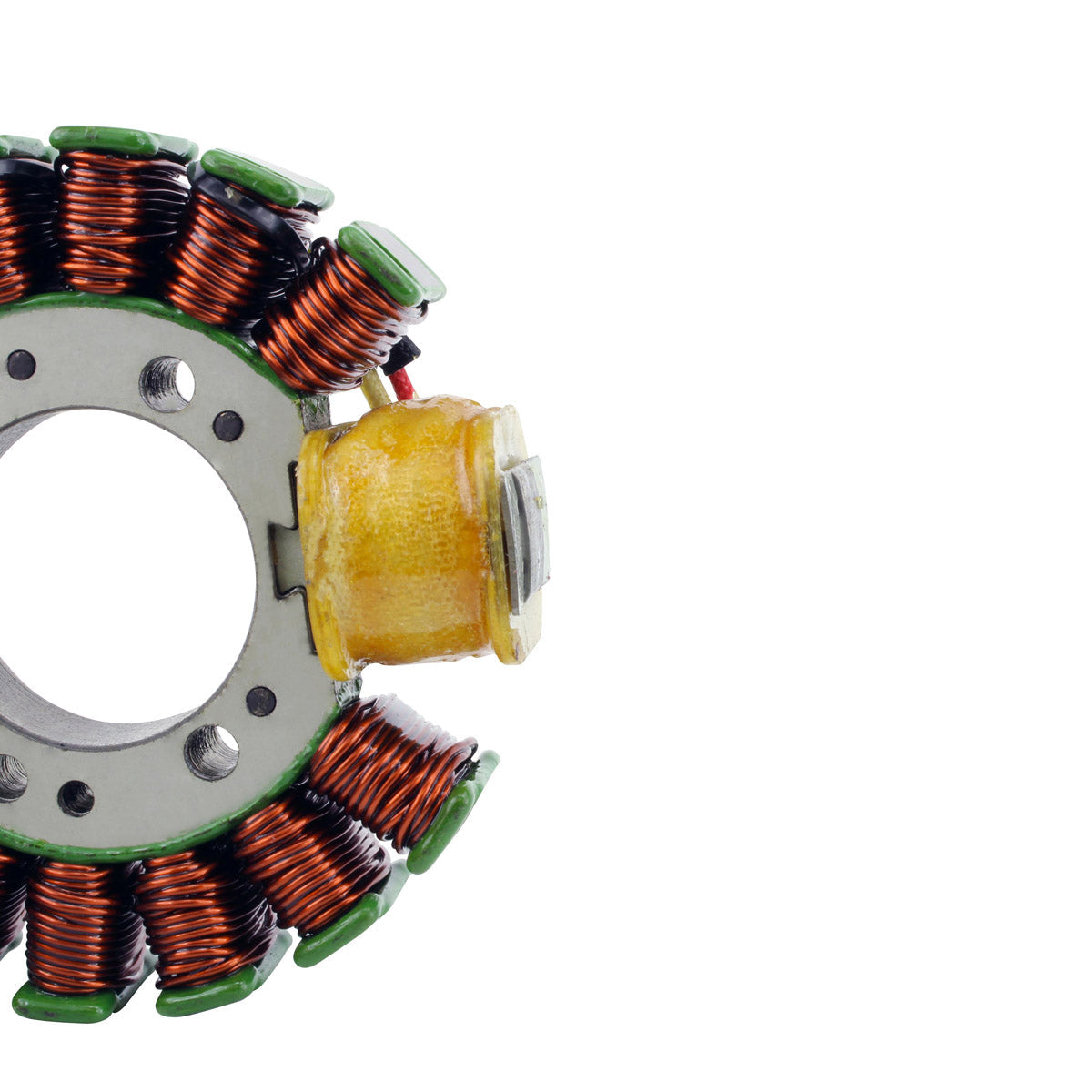

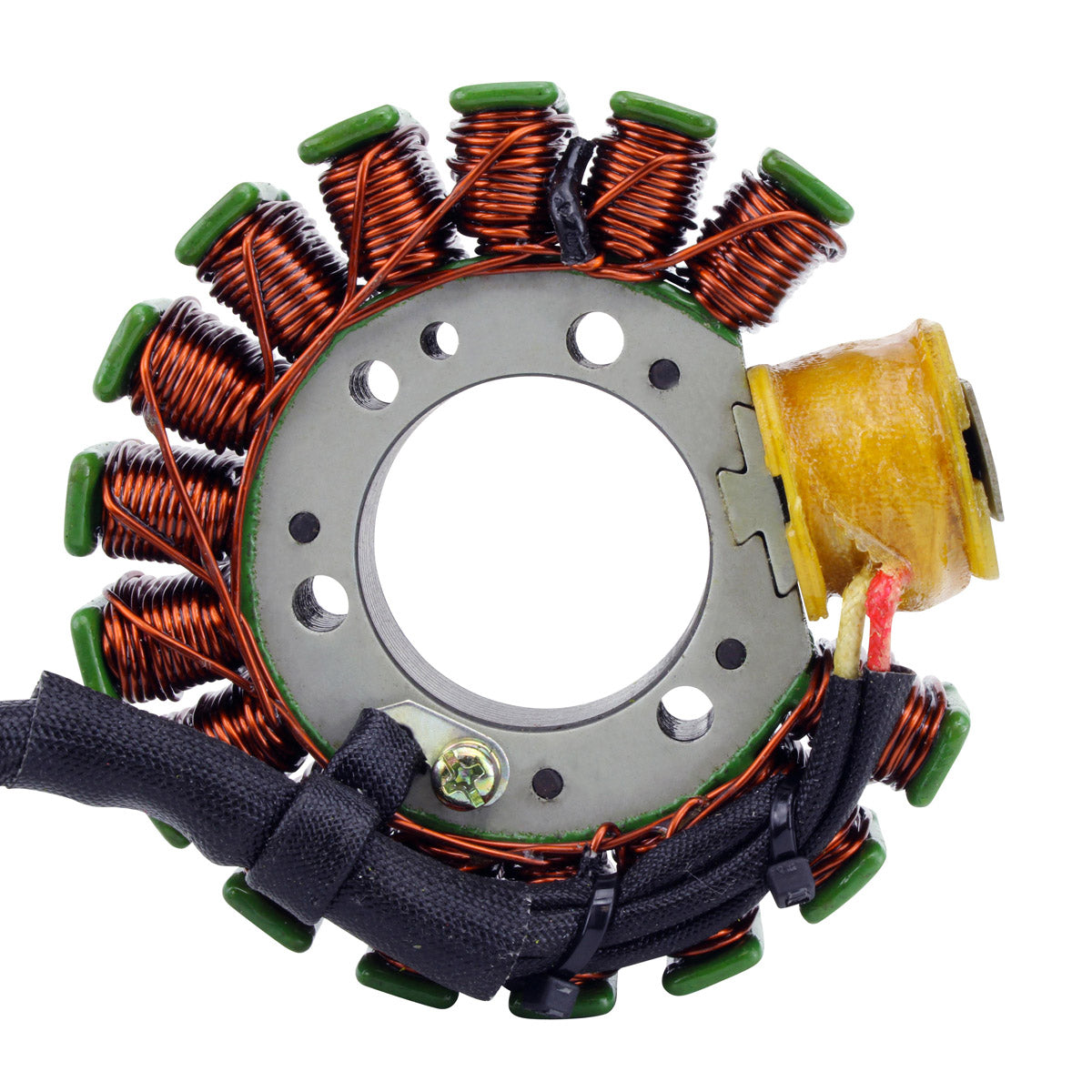

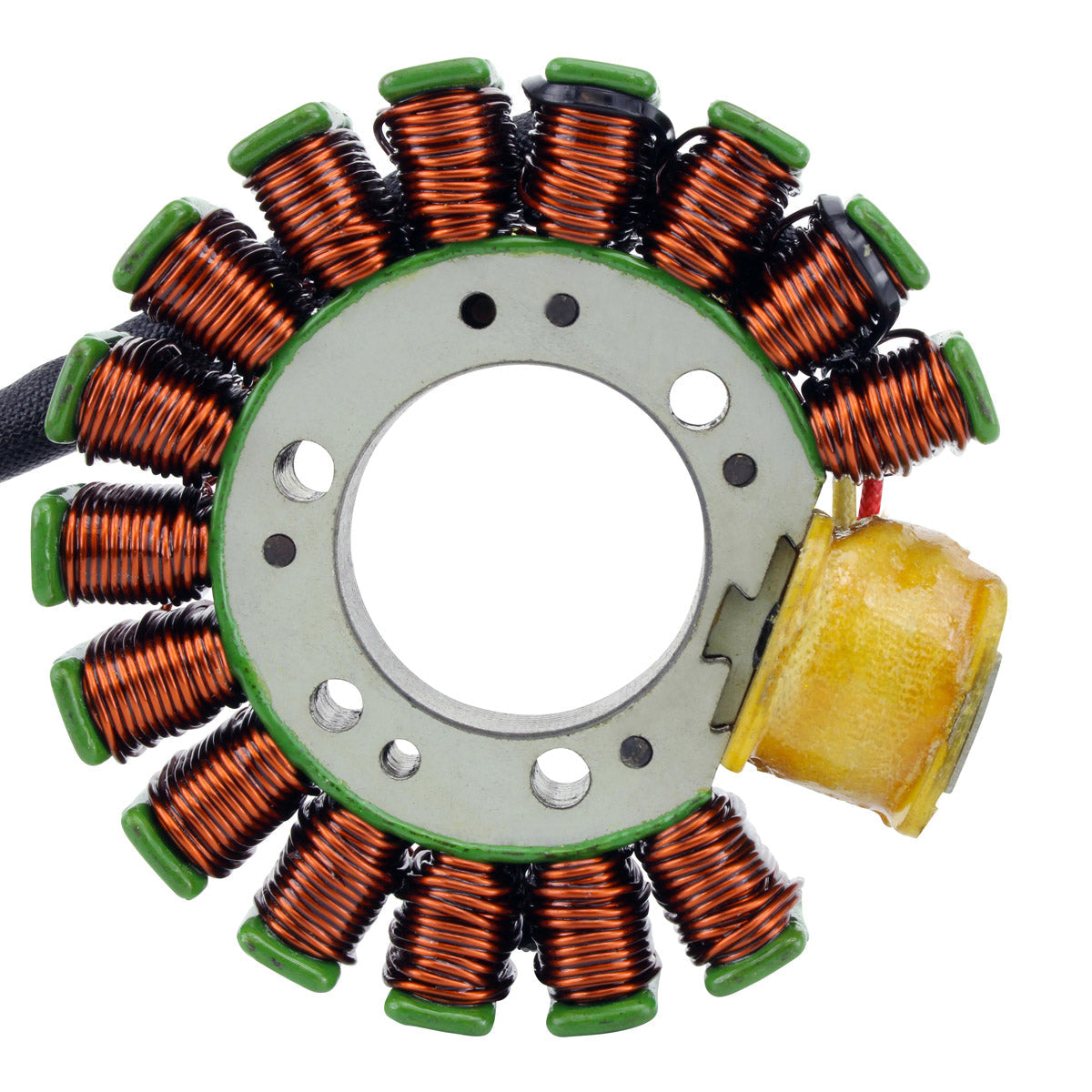

A brand new aftermarket stator built as a direct replacement for the original unit on the Suzuki LT 160 E Quadrunner and the LTF 160 Quad Runner Manual. The assembly carries both the charging windings and the pickup pulsar coil, so a machine suffering from a flat battery, weak spark or an intermittent no-start fault can have the whole generating side of the ignition renewed in one operation.

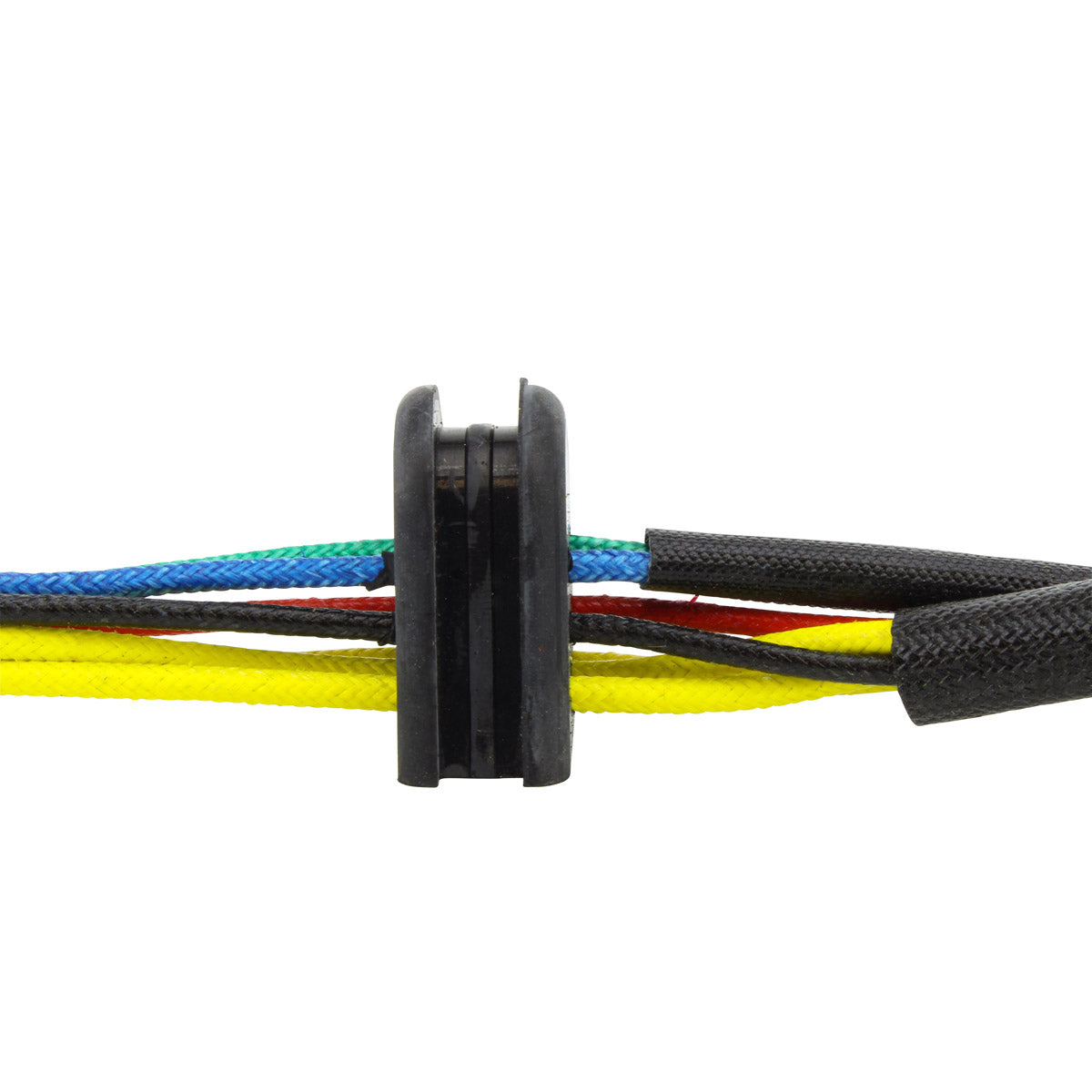

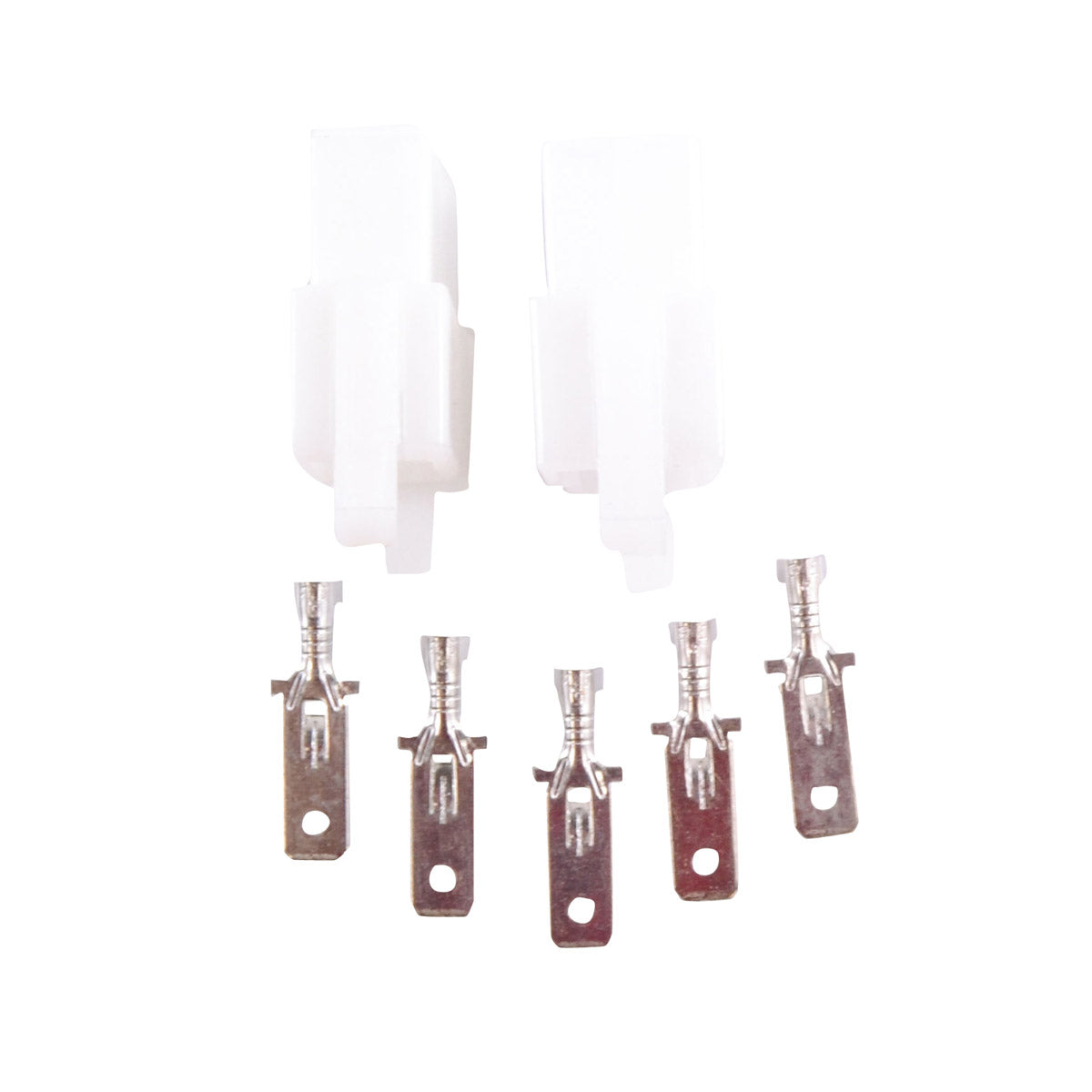

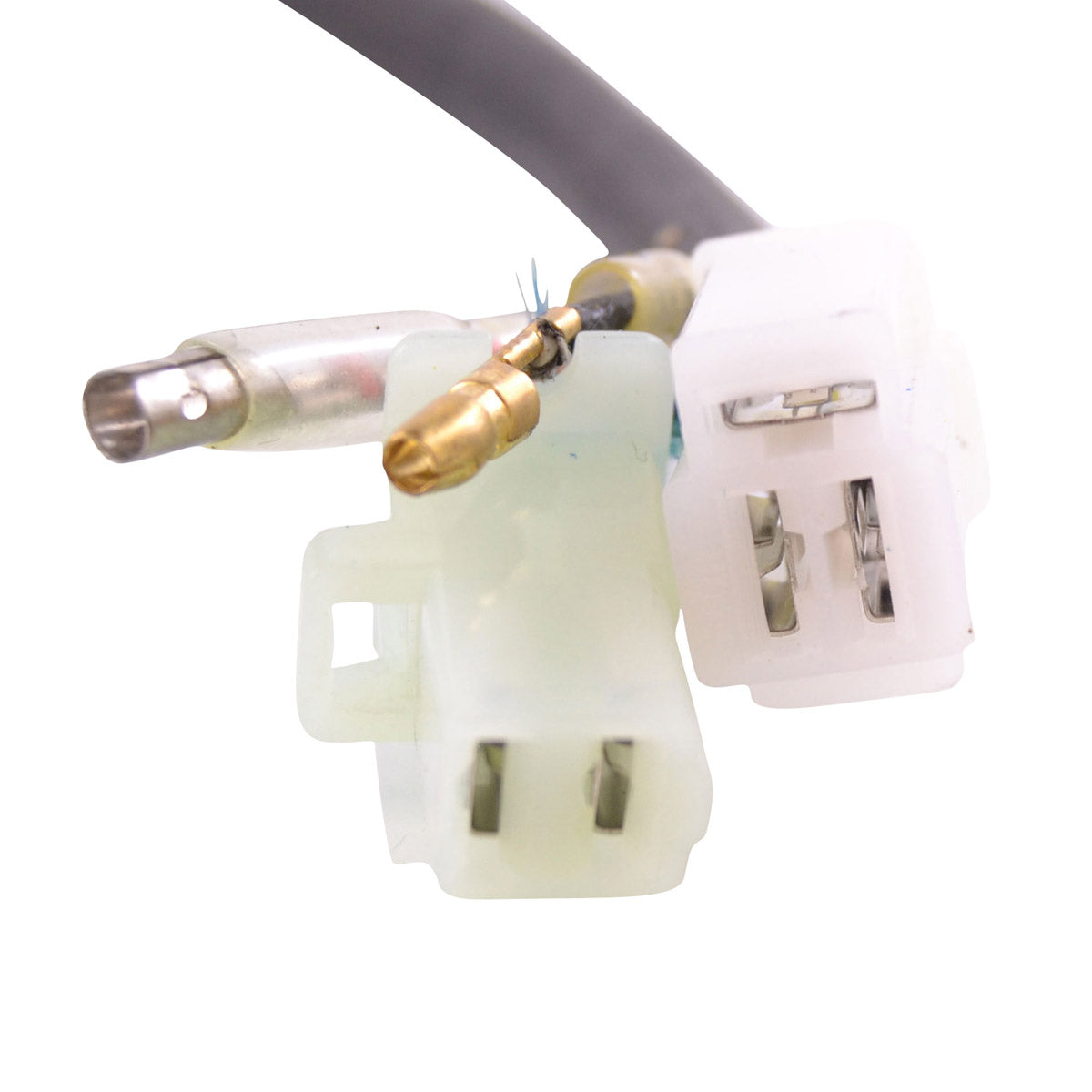

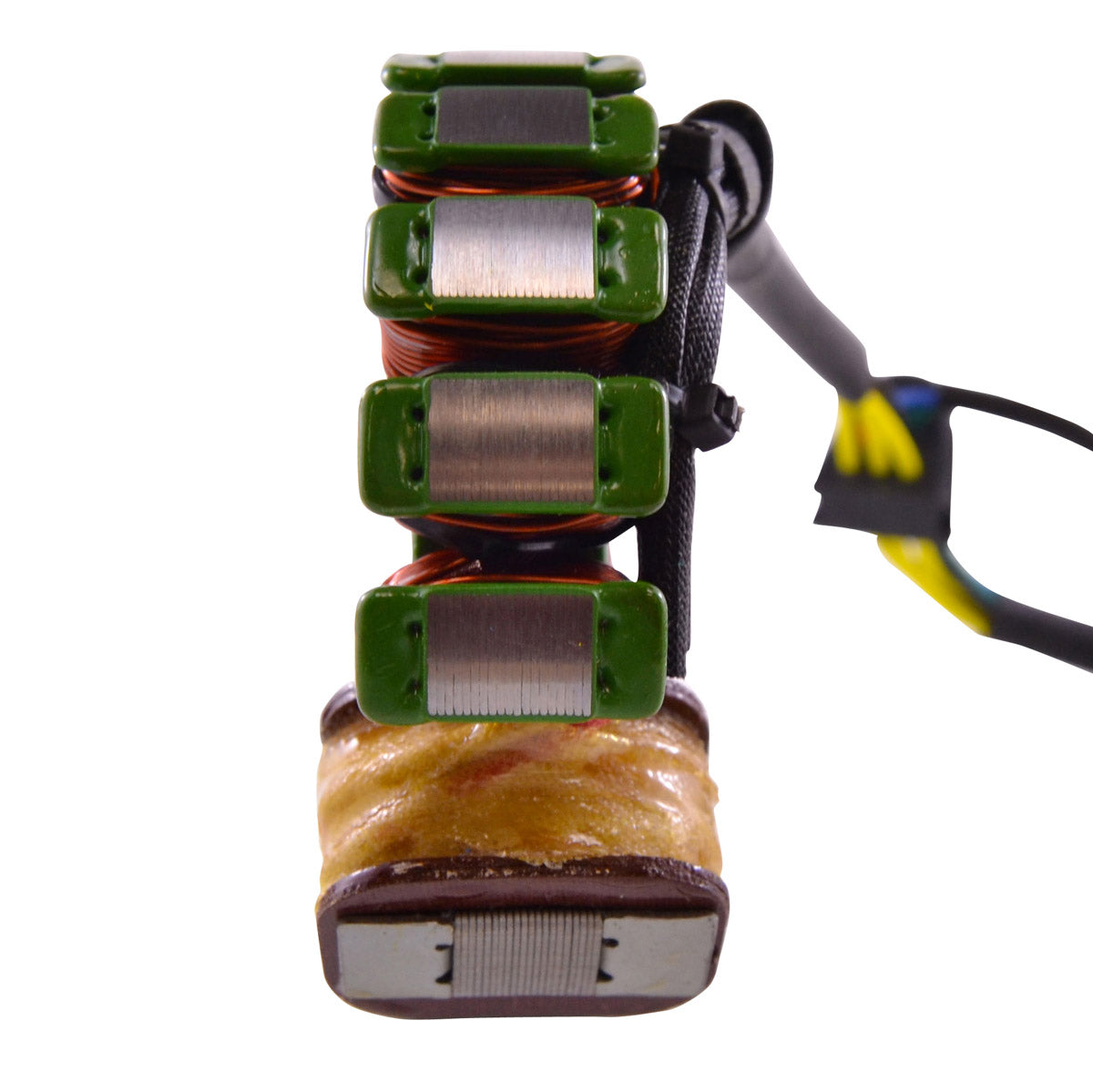

Construction uses the highest grade lamination materials and the highest grade copper windings, rated to resist 200 degrees Celsius - important on an air-cooled utility quad that spends long periods at low road speed. Installation is plug-and-play and direct fit, with the connector and rubber grommet supplied so the loom can be sealed correctly against water and dust. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

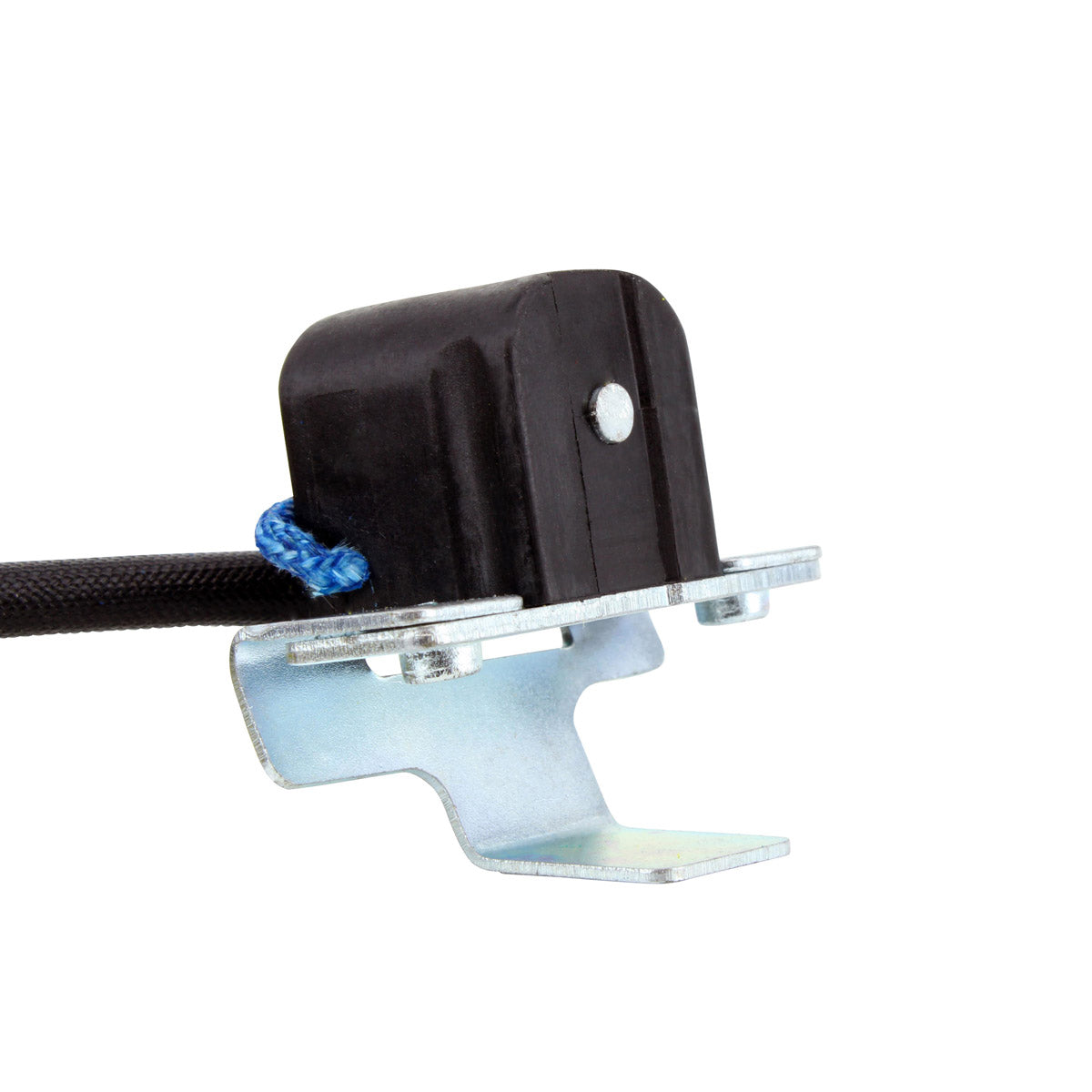

- Pickup pulsar coil included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

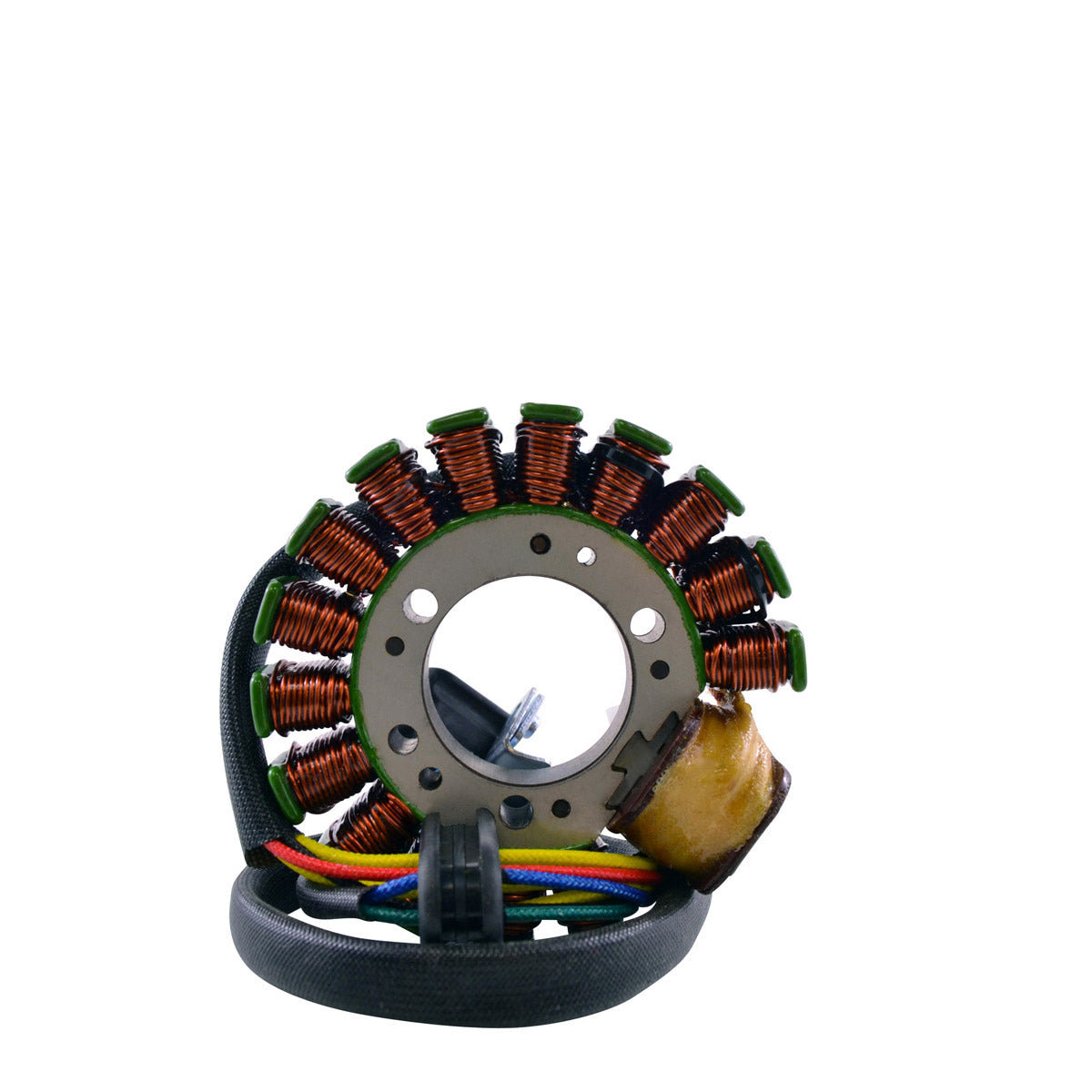

- Connector and rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
35 mm |
| Exterior diameter |
93 mm |
| Thickness |
12 mm |
| Stator wire length to plug |
400 mm |
| Pickup coil wire length to plug |
380 mm |
| Number of wires |
7 |
| Number of plugs |
4 |
| Number of pins |
7 |
| Alternator resistance (yellow to yellow) |
0.2 ohms +/- 20% |
| Pickup coil resistance (blue to green) |
425 ohms +/- 20% |
| Source coil resistance (brown to black) |
330 ohms +/- 20% |
| Pickup coil bracket (centre to centre) |
30 mm |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki LT 160 E Quadrunner |
1989-2001 |
| Suzuki LTF 160 Quad Runner Manual |
1989-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-02C00 |
Suzuki |
Frequently Asked Questions
Does this stator need modification to fit?
No. It is a plug-and-play, direct fit replacement for the original unit on the listed Suzuki models, with 7 wires, 4 plugs and 7 pins matching the factory arrangement.
What is included?

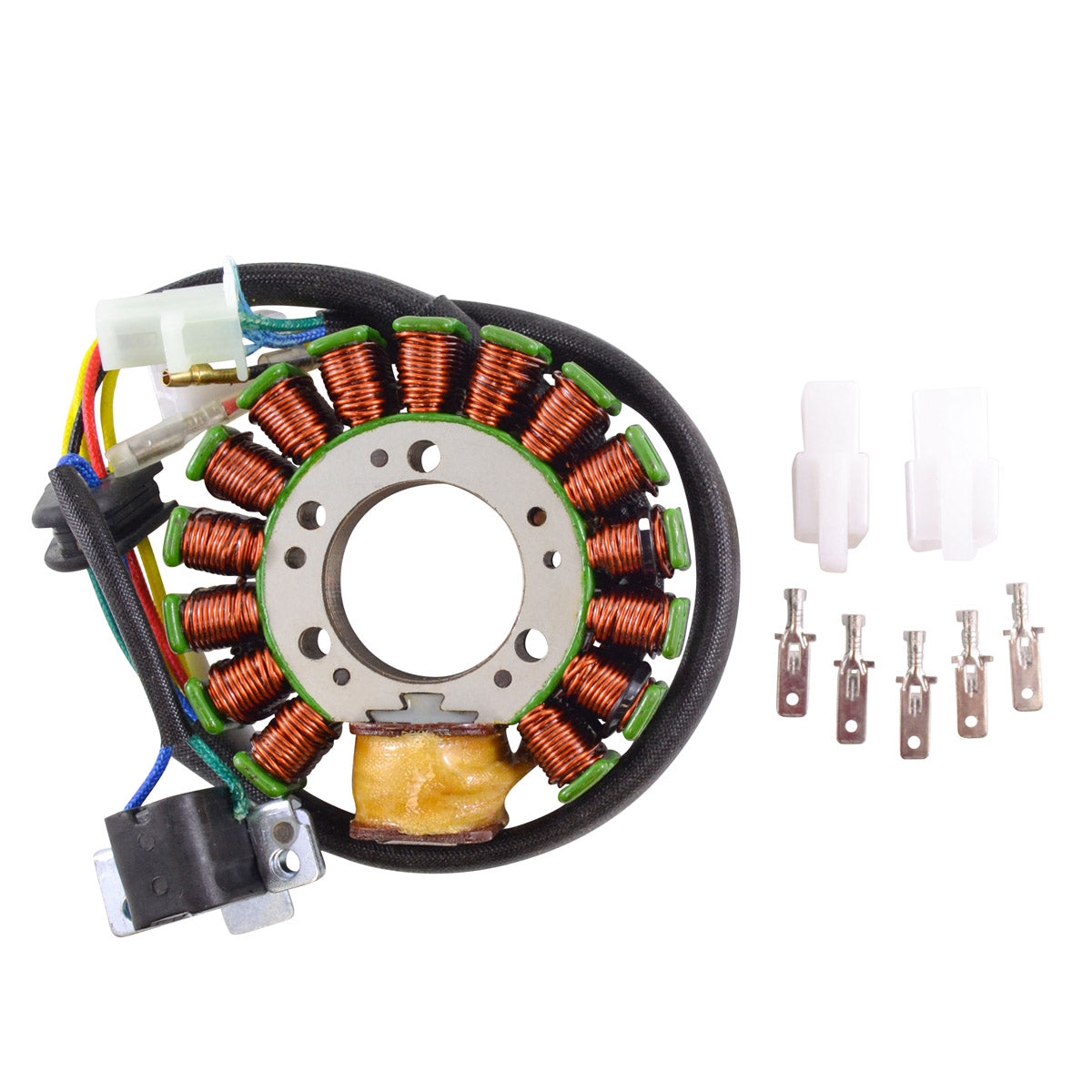

The stator assembly, the pickup pulsar coil, the connector and the rubber grommet.
How can I tell whether my old stator has failed?
Check resistance with a multimeter against the figures for this replacement unit: 0.2 ohms plus or minus 20% yellow to yellow on the alternator windings, 425 ohms plus or minus 20% blue to green on the pickup coil, and 330 ohms plus or minus 20% brown to black on the source coil. An open circuit, a short to the stator core, or a reading well outside those bands indicates a failed unit.
Do I have to replace the pickup coil separately?
No. The pickup pulsar coil is supplied as part of this assembly, with its own 380 mm lead to the plug, so both the charging and the triggering side are renewed together.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
