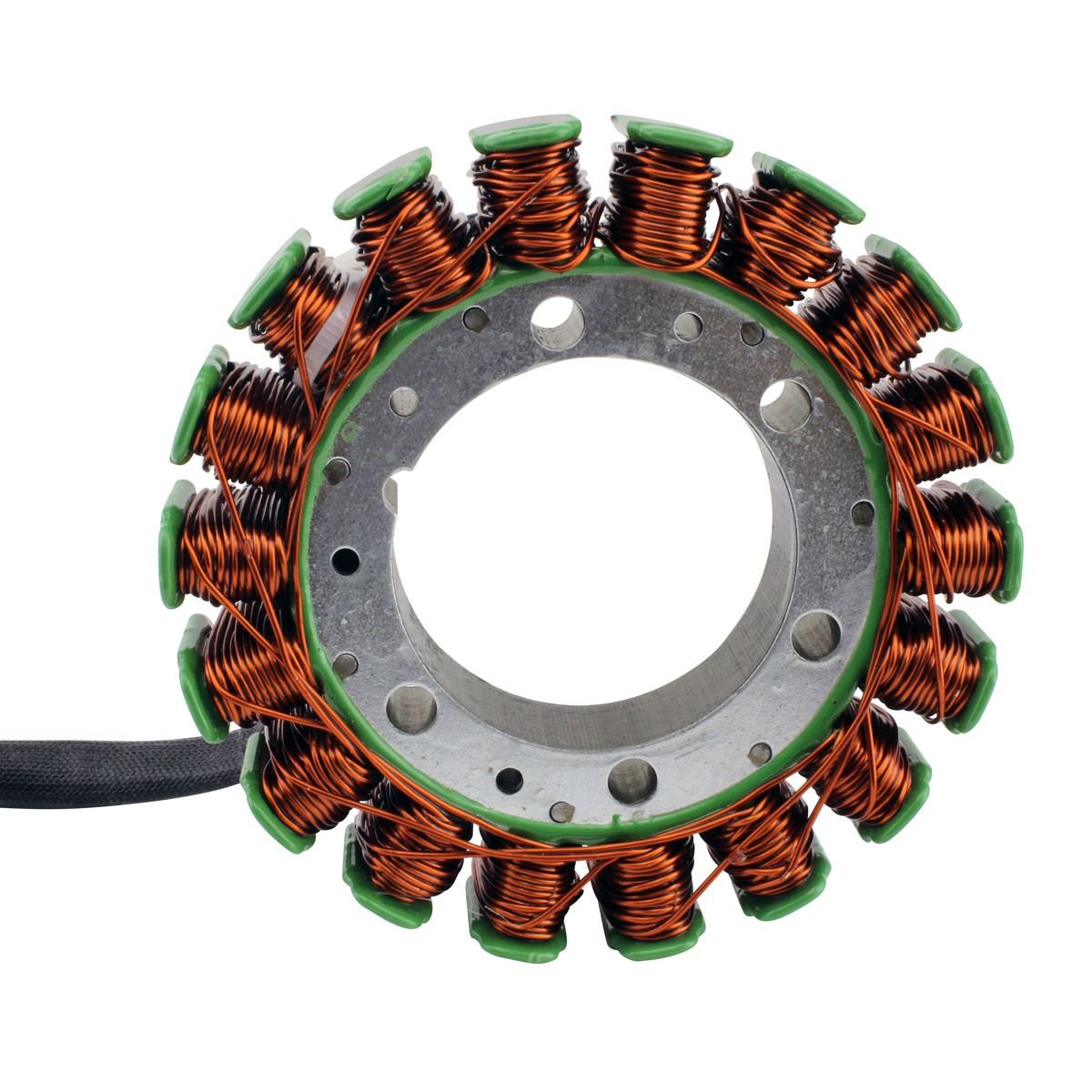

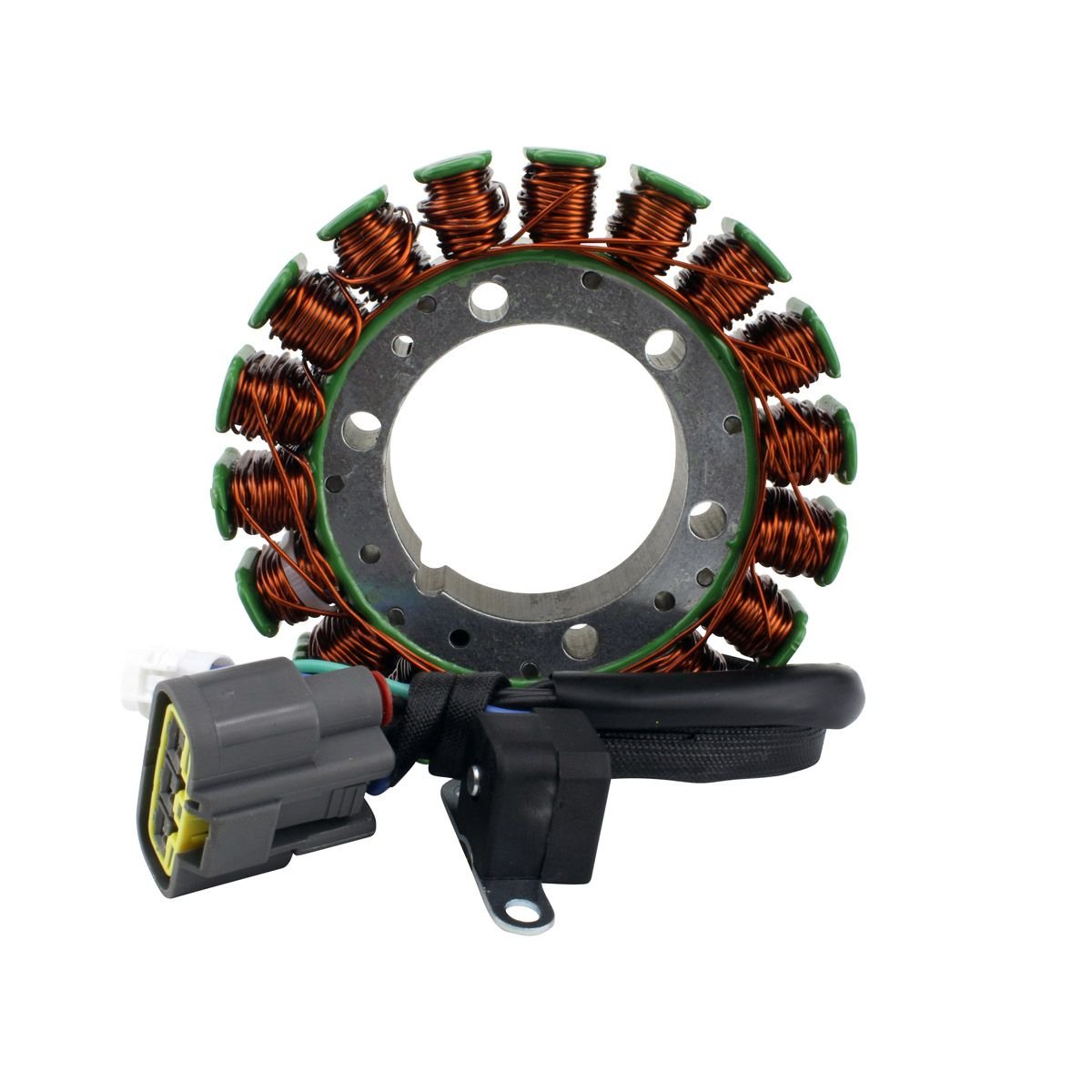

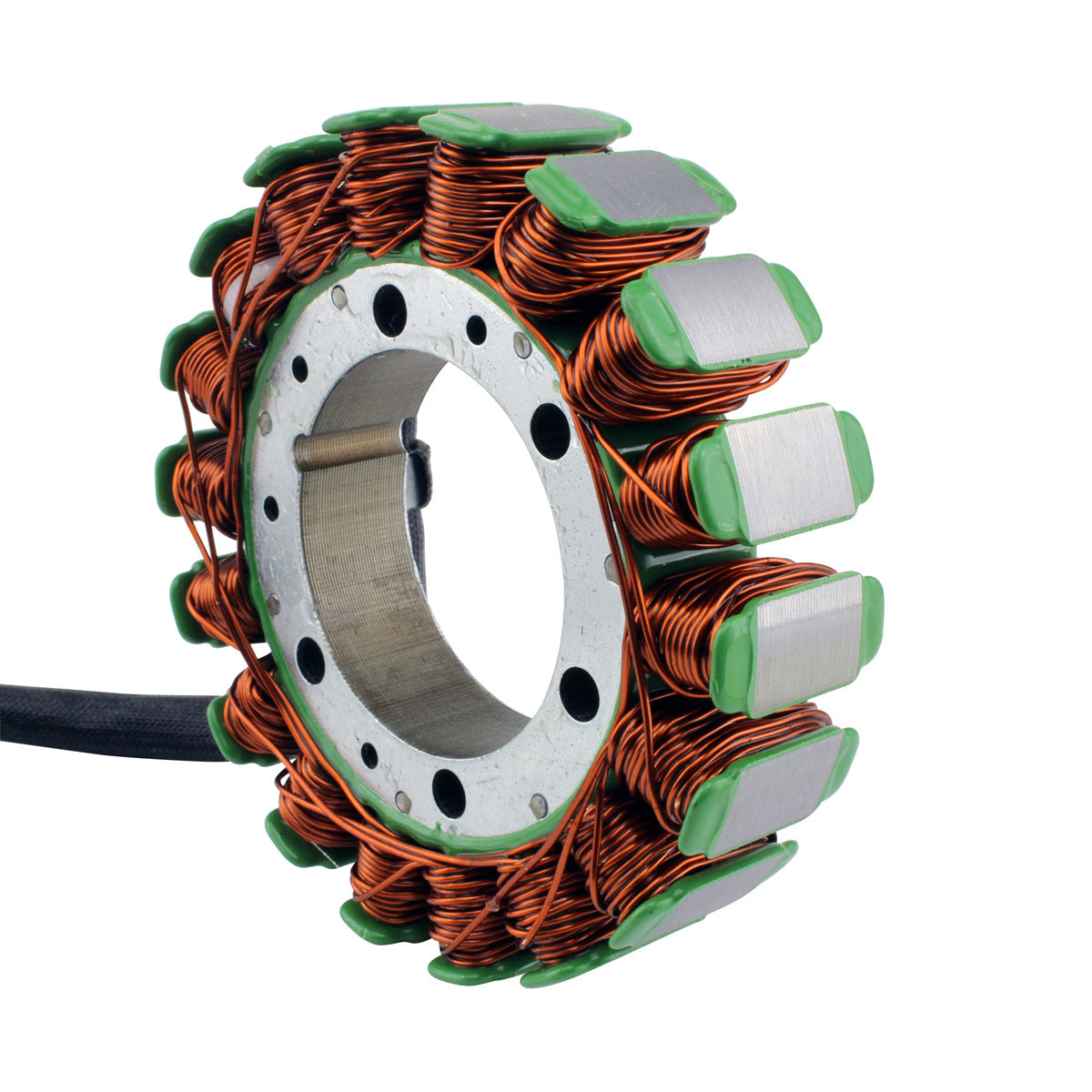

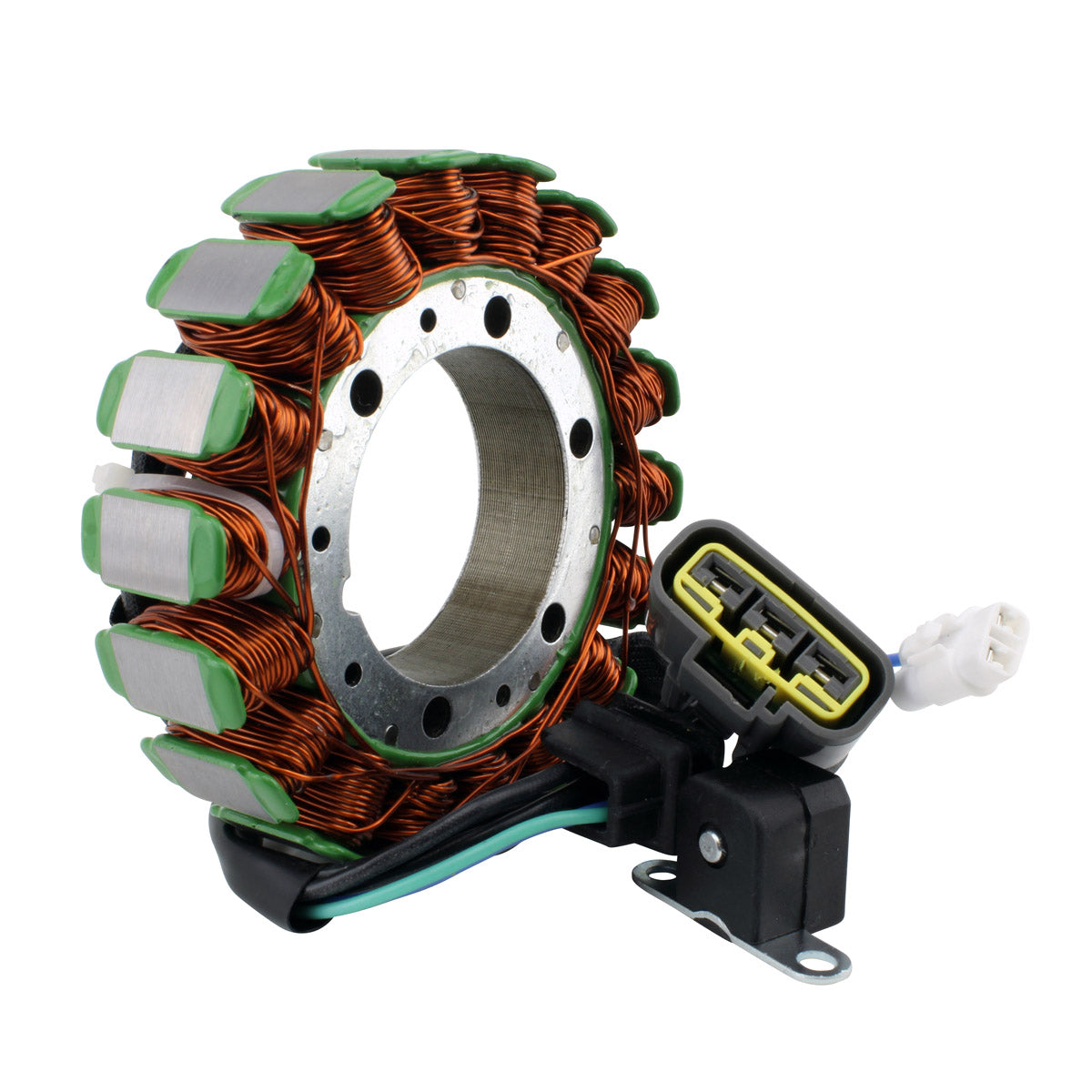

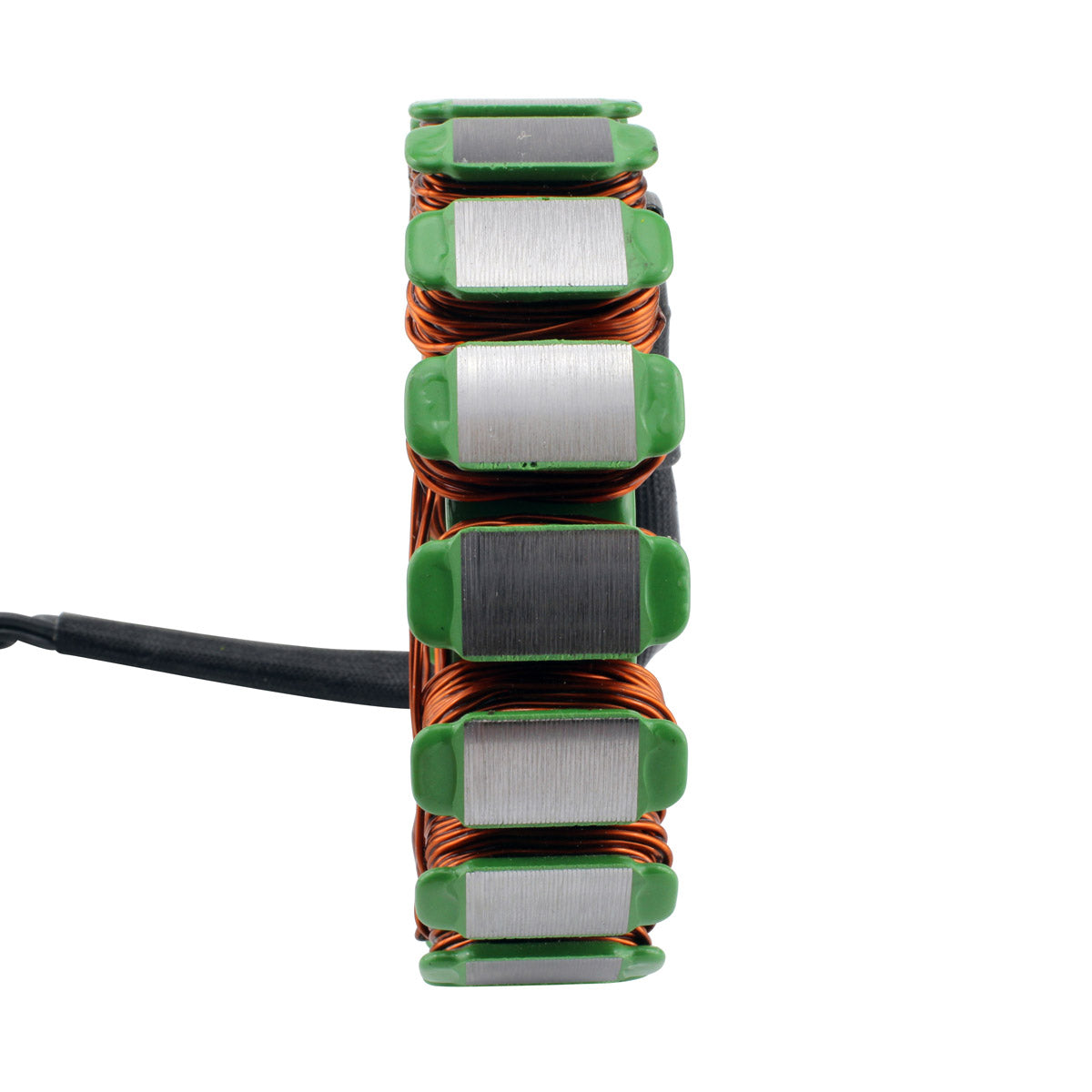

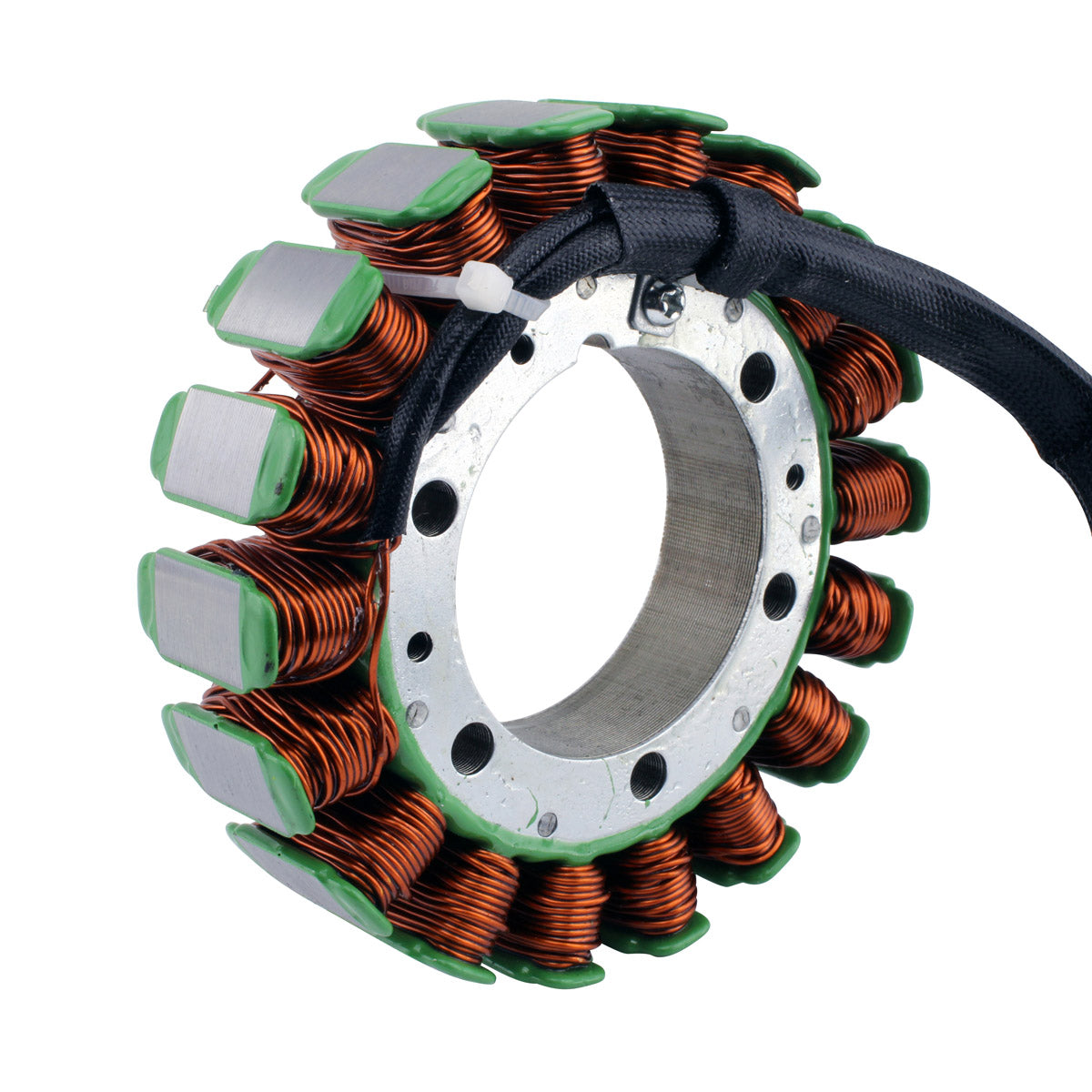

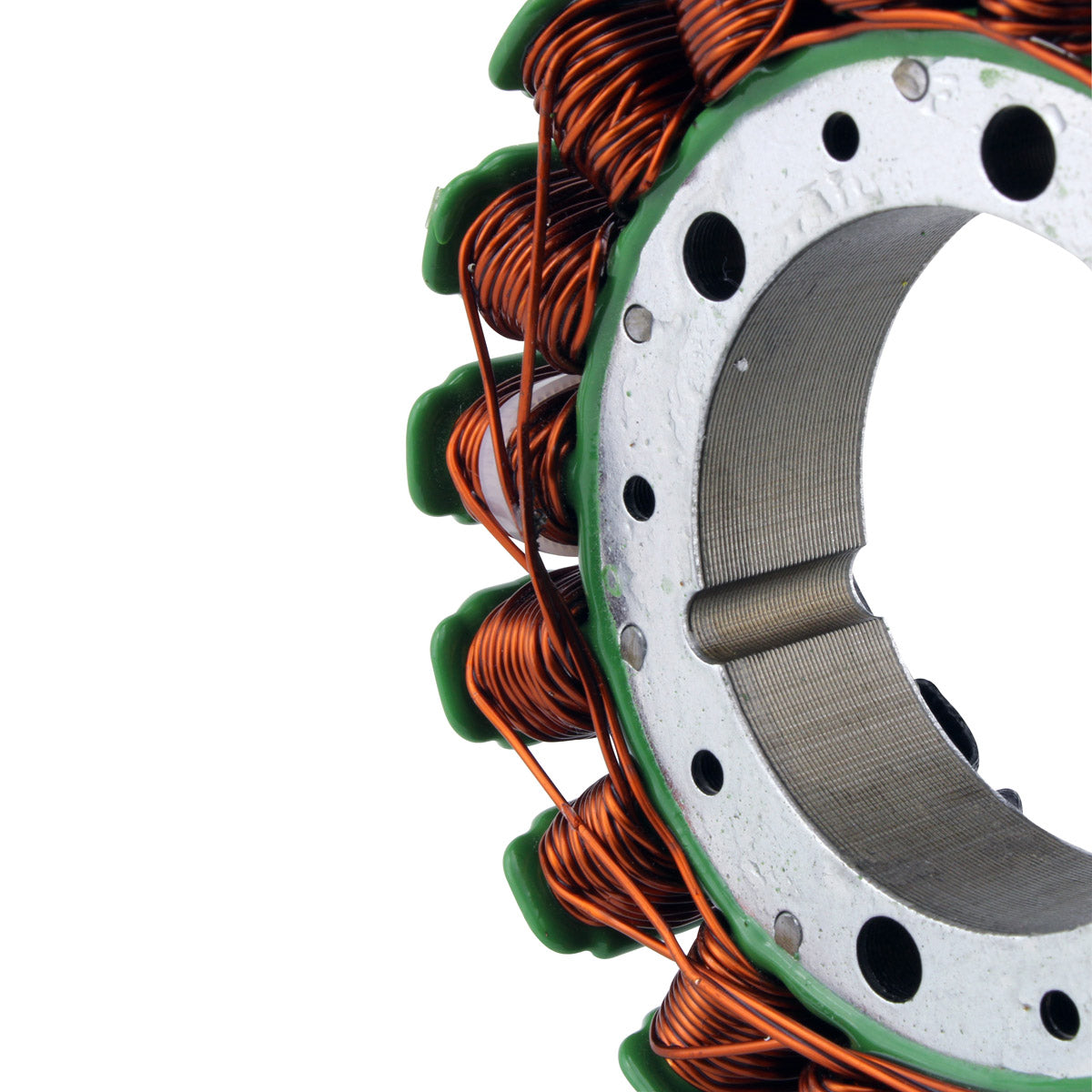

This is a brand new aftermarket generator stator for the Suzuki LTA 500 KingQuad AXi and AXi SE, supplied under part number RMS010-106985. It is engineered as a direct replacement for the original unit and fits plug-and-play, so the wiring connects to your existing harness without cutting, splicing or adapters.
The assembly is supplied complete with the pickup pulsar coil, the connectors and the rubber grommet already fitted, which means the whole charging and ignition trigger assembly is replaced in one go rather than salvaging parts from the old unit. Every stator is tested before it is shipped, and it cross references to Suzuki original part number 32101-35K00.
Key Features
- Brand new aftermarket stator, a direct replacement for the original unit
- Plug-and-play, direct fit, easy installation - no wiring modification required

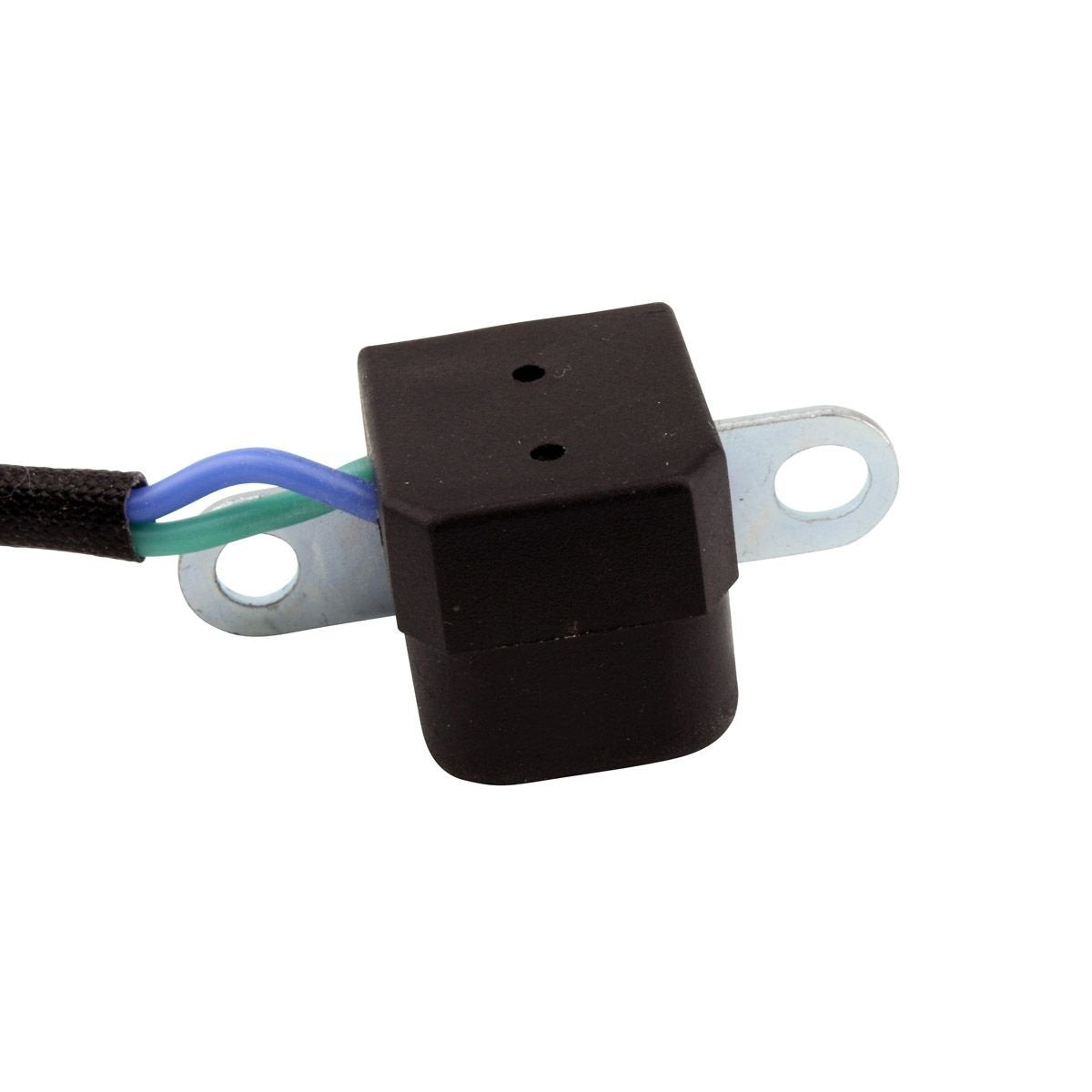

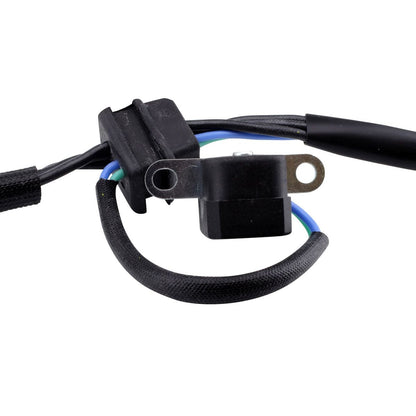

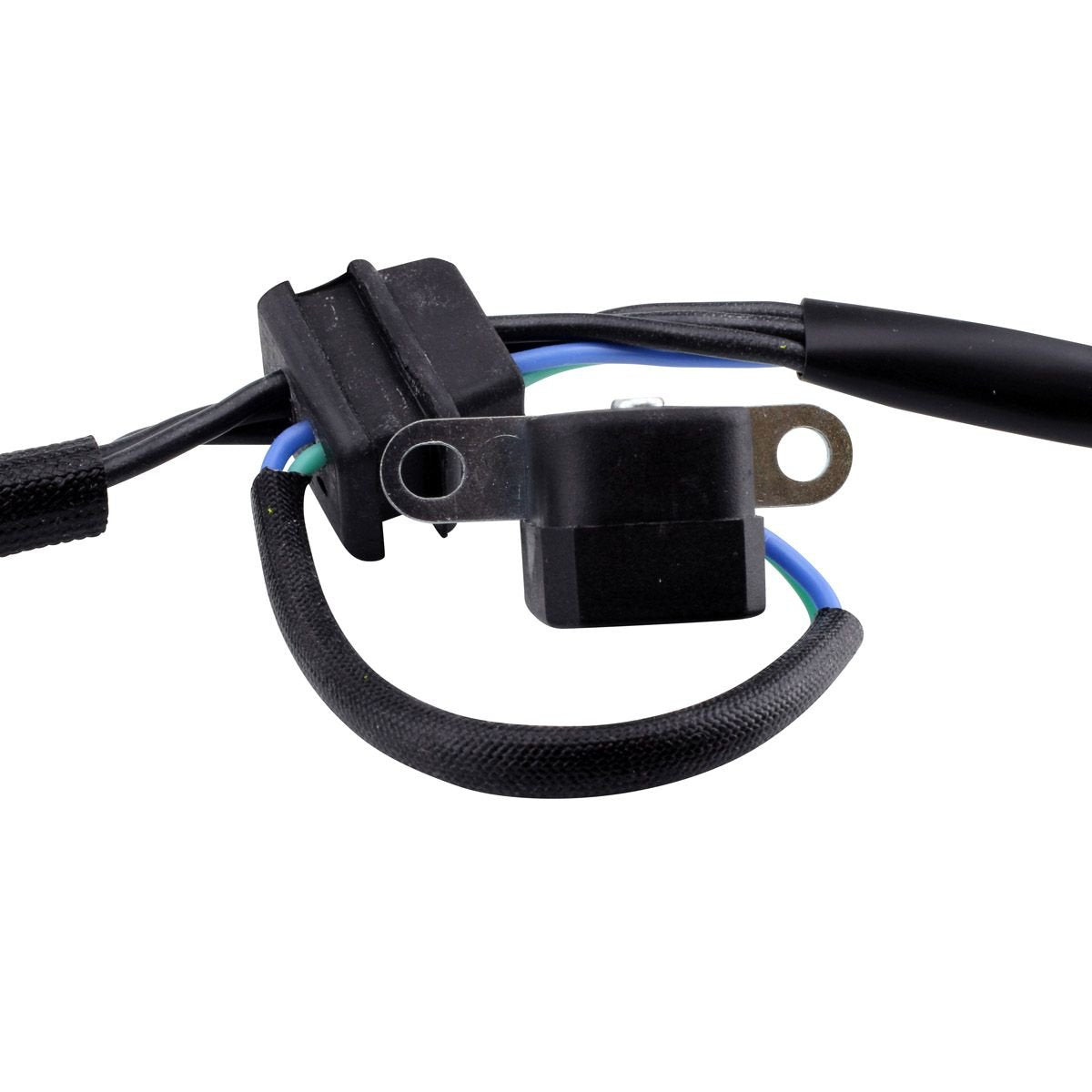

- Pickup pulsar coil included and already mounted to the assembly

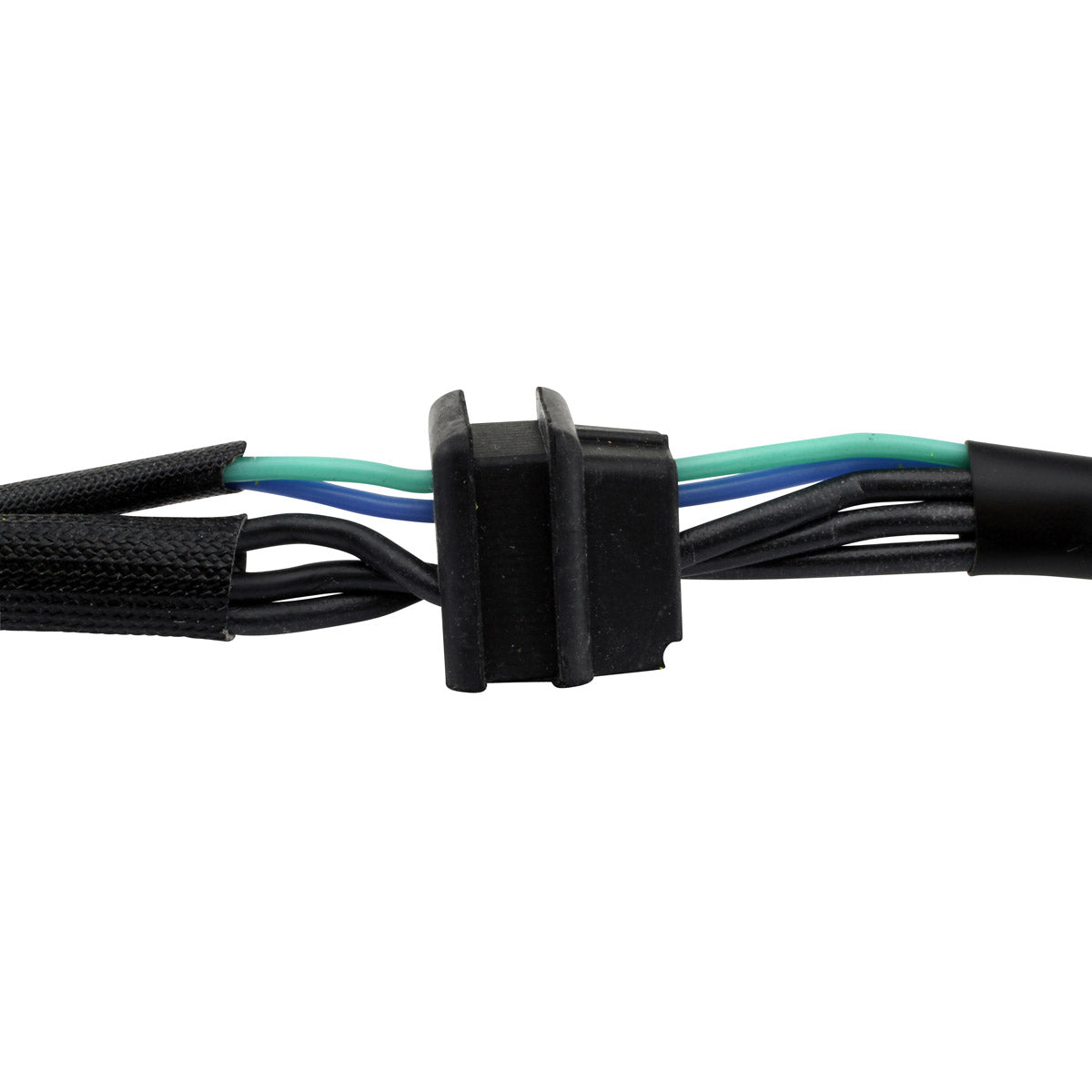

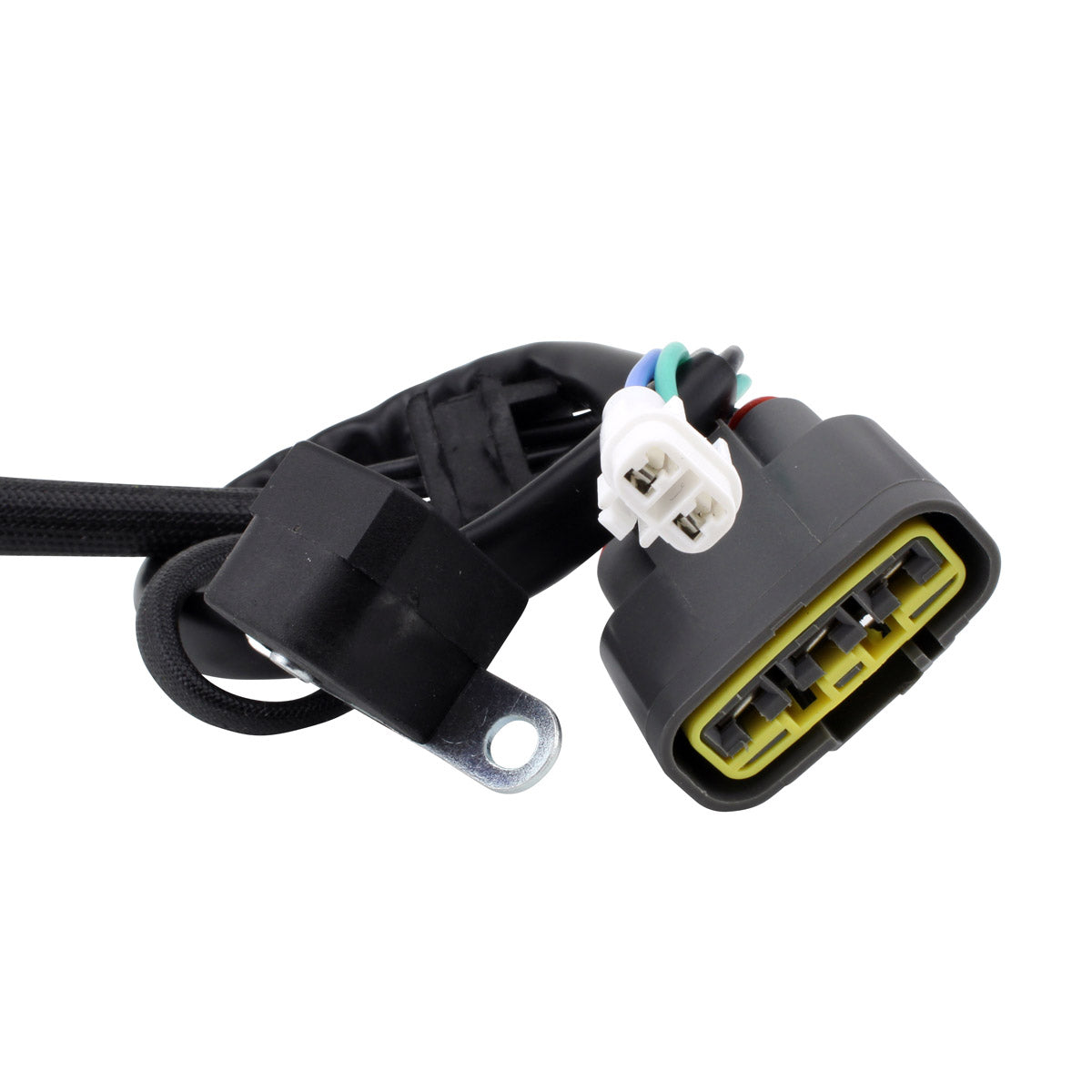

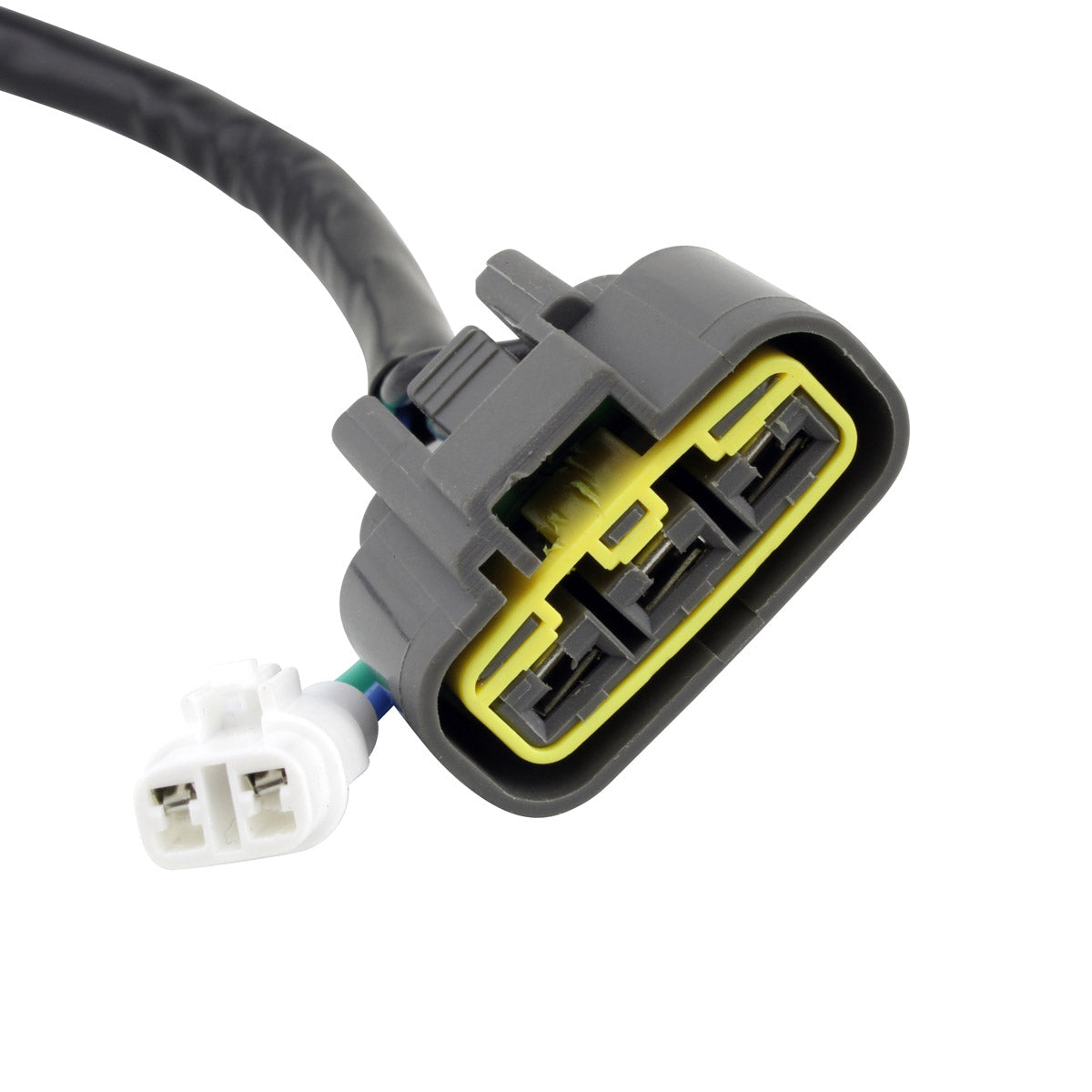

- Connectors and rubber grommet included
- 18 pole design with 5 wires terminating in 2 plugs and 5 pins
- Alternator winding resistance of 0.5 ohms and pickup coil resistance of 209 ohms
- Every unit is tested before it is shipped
- Cross references to Suzuki OEM 32101-35K00
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
21 mm |
| Wire length, stator to grommet |
175 mm |
| Wire length, grommet to plug |
310 mm |
| Pickup coil wire length to grommet |
120 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance (black to black) |
0.5 ohms +/- 20% |
| Pickup coil resistance (white to blue) |
209 ohms +/- 20% |
| Part number |
RMS010-106985 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki LTA 500 KingQuad AXi |
2019-2021 |
| Suzuki LTA 500 KingQuad AXi SE |
2019-2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-35K00 |
Suzuki |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct, plug-and-play replacement for the original unit on the Suzuki LTA 500 KingQuad AXi and AXi SE from 2019 to 2021. The connectors match the factory harness and the mounting dimensions follow the original, so no cutting, splicing or adapters are needed.
What is included?
The stator assembly is supplied with the pickup pulsar coil, the connectors and the rubber grommet. Everything on the loom side of the assembly is new, so nothing needs to be transferred across from the old stator.
How do I know the old stator has failed?
A failing stator normally shows as a battery that will not stay charged, dimming lights, or a machine that cuts out or will not start. The quickest check is a resistance test at the plug: the alternator windings should read about 0.5 ohms black to black, and the pickup coil about 209 ohms white to blue, both within 20 per cent. A reading far outside those figures, or continuity to the stator body, indicates a failed winding.
Do I need to replace the pickup coil separately?
No. The pickup pulsar coil is part of this assembly and is supplied already fitted, so the ignition trigger is renewed at the same time as the charging windings. That matters because the pickup coil sits in the same oil and heat environment as the stator and often degrades alongside it.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
