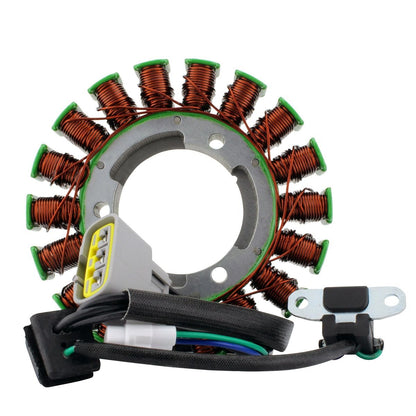

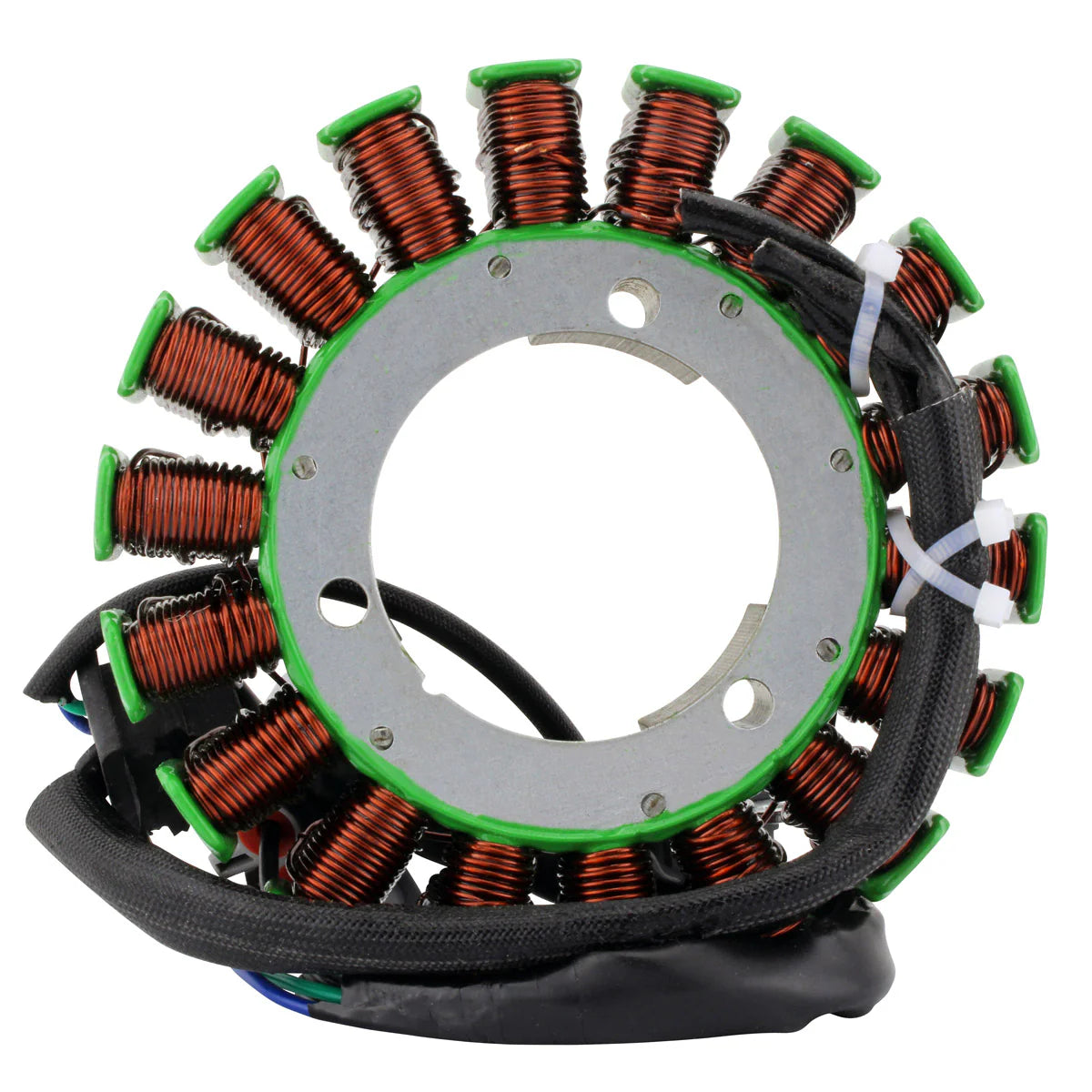

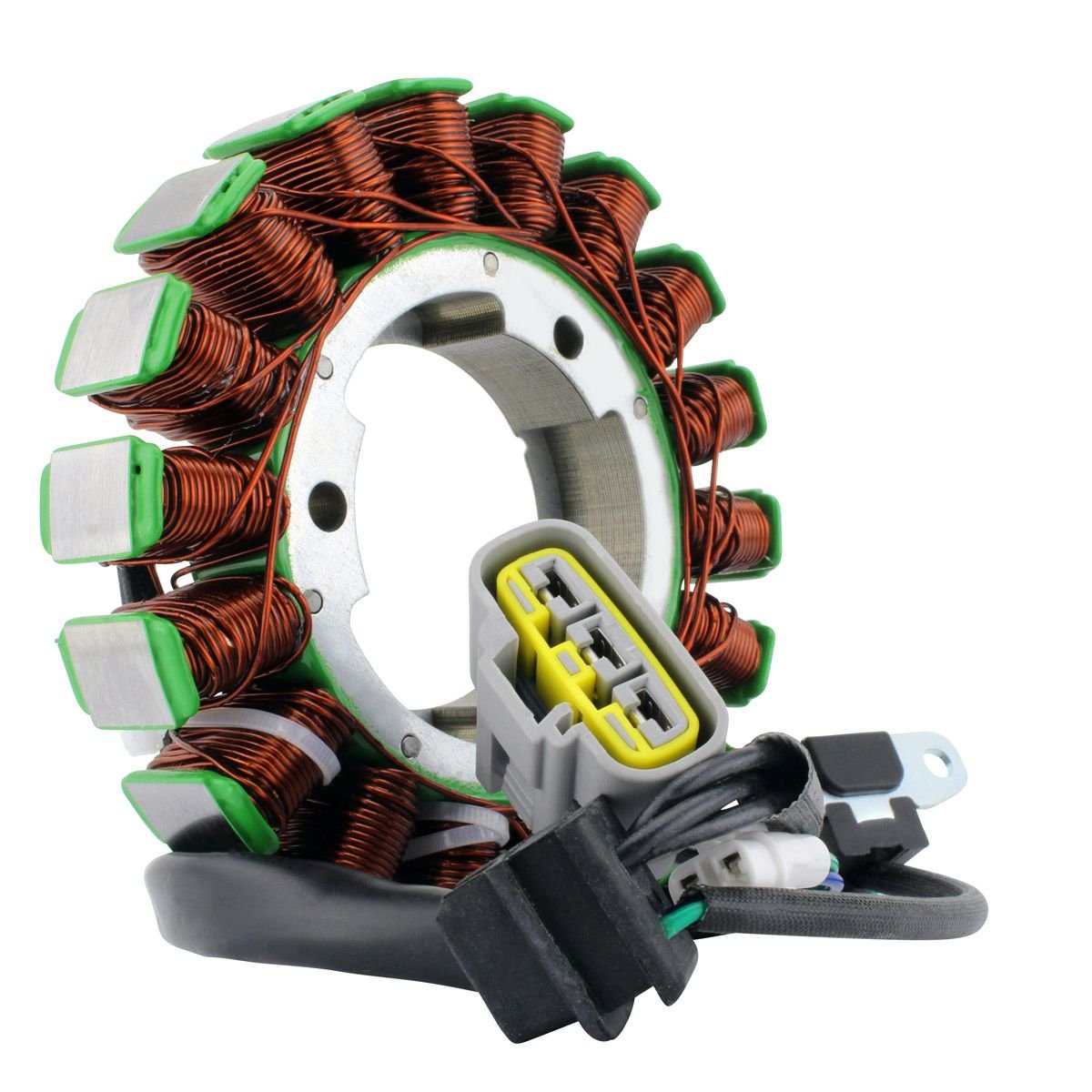

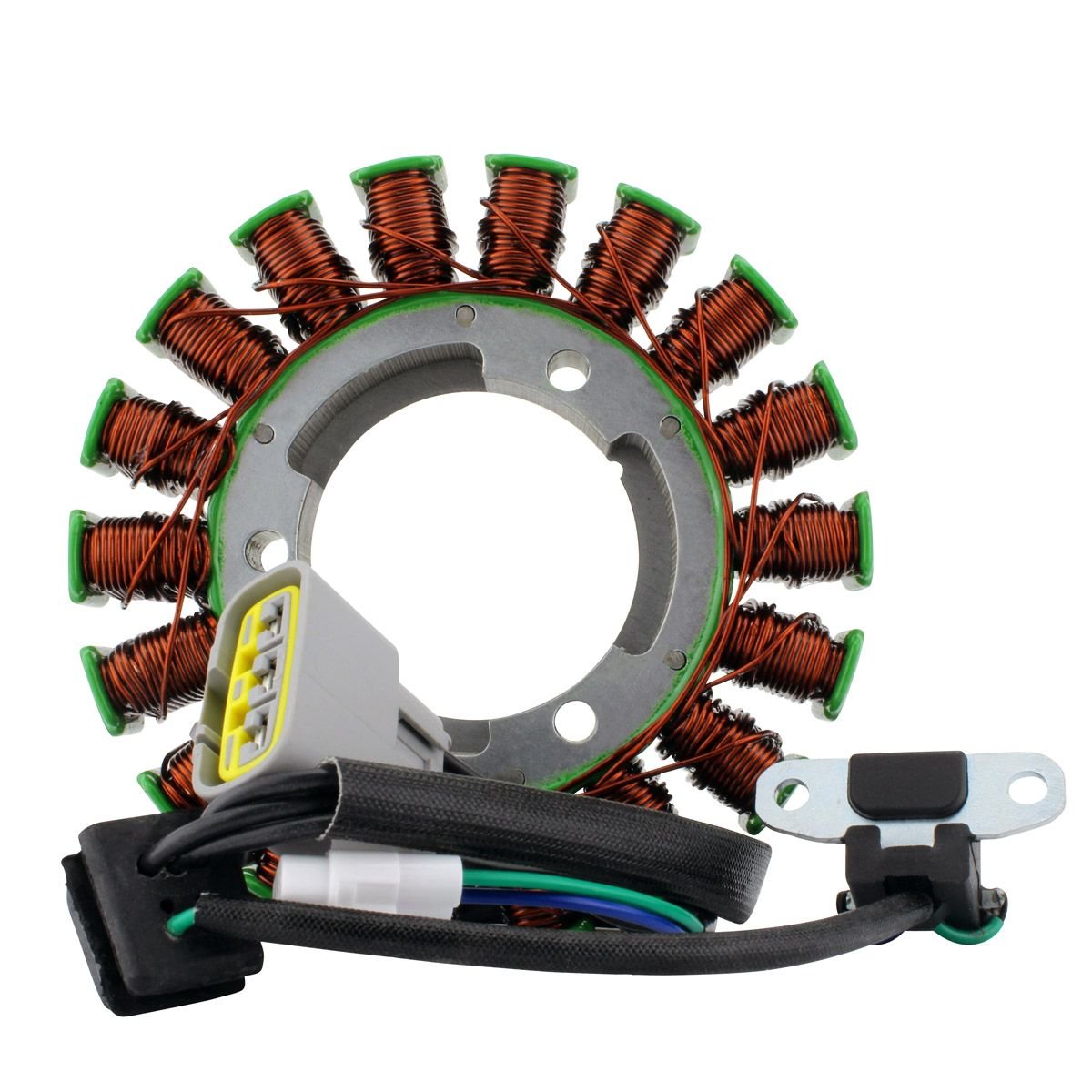

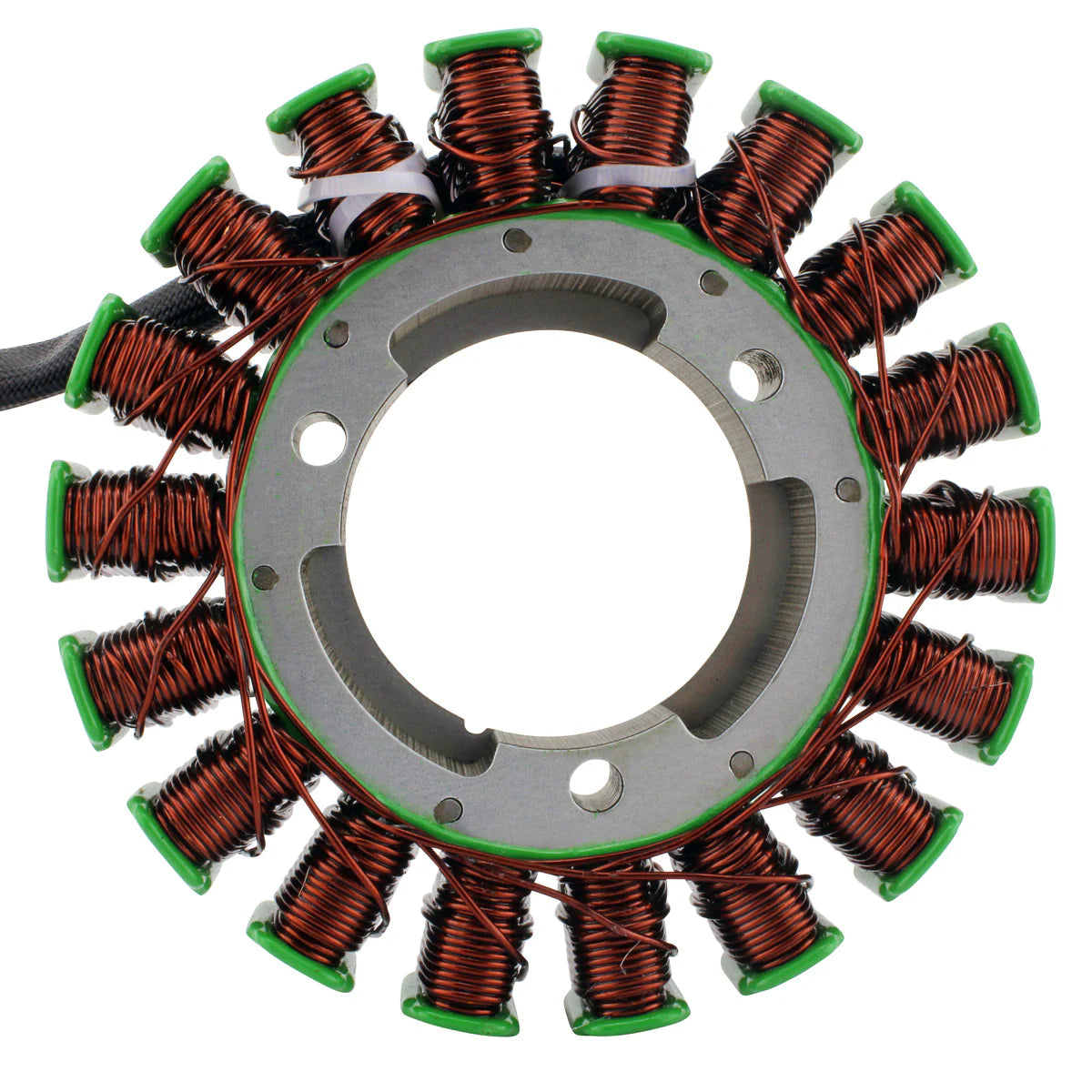

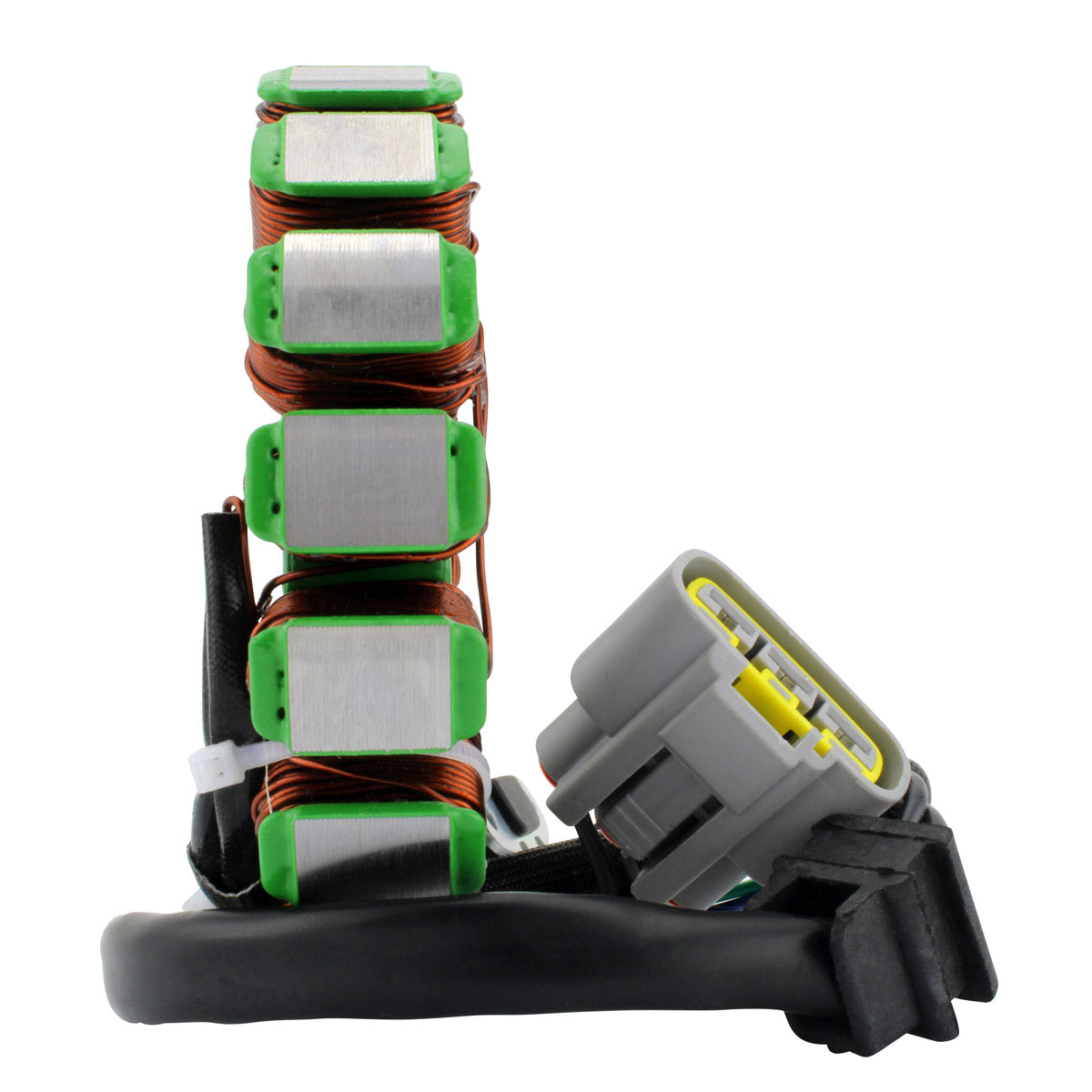

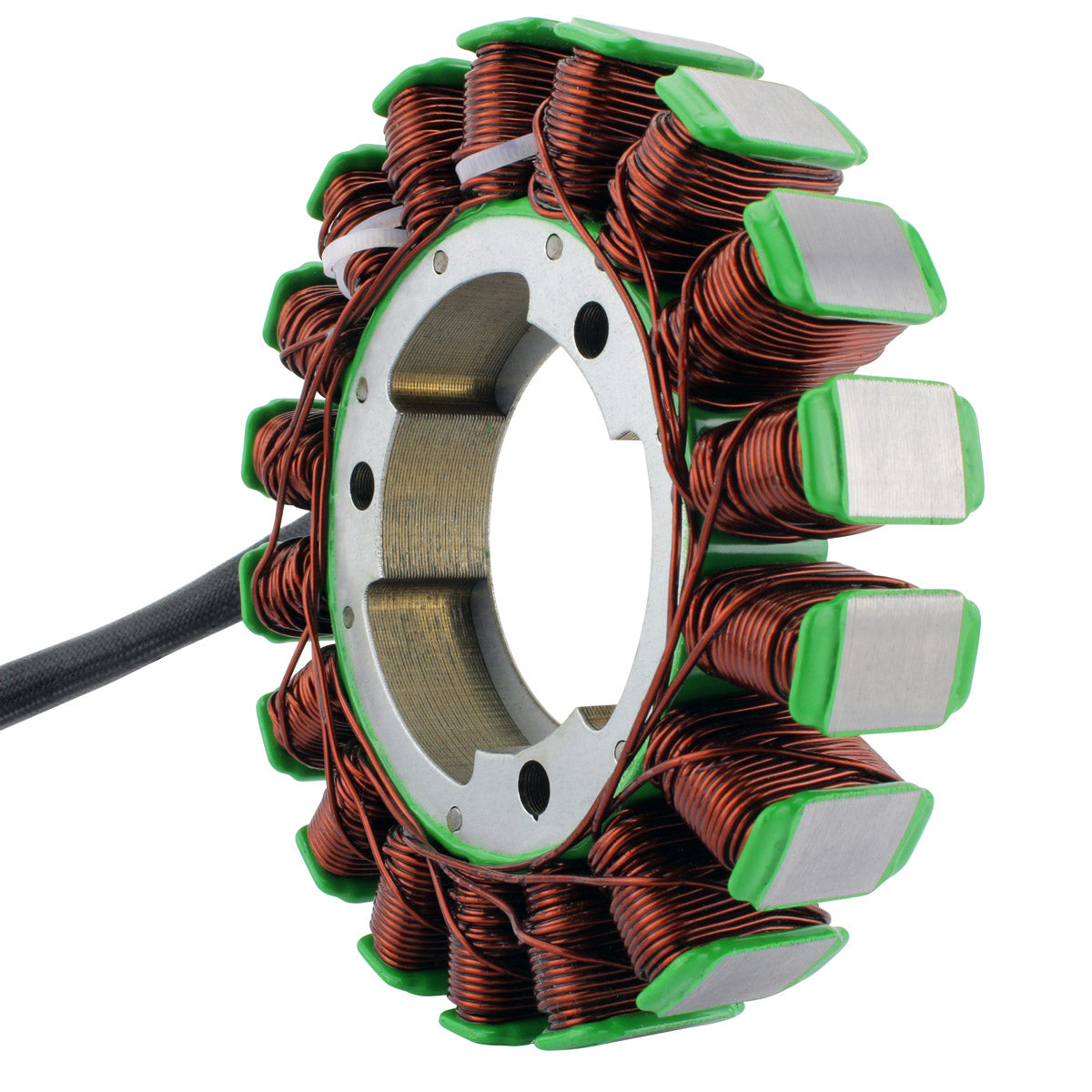

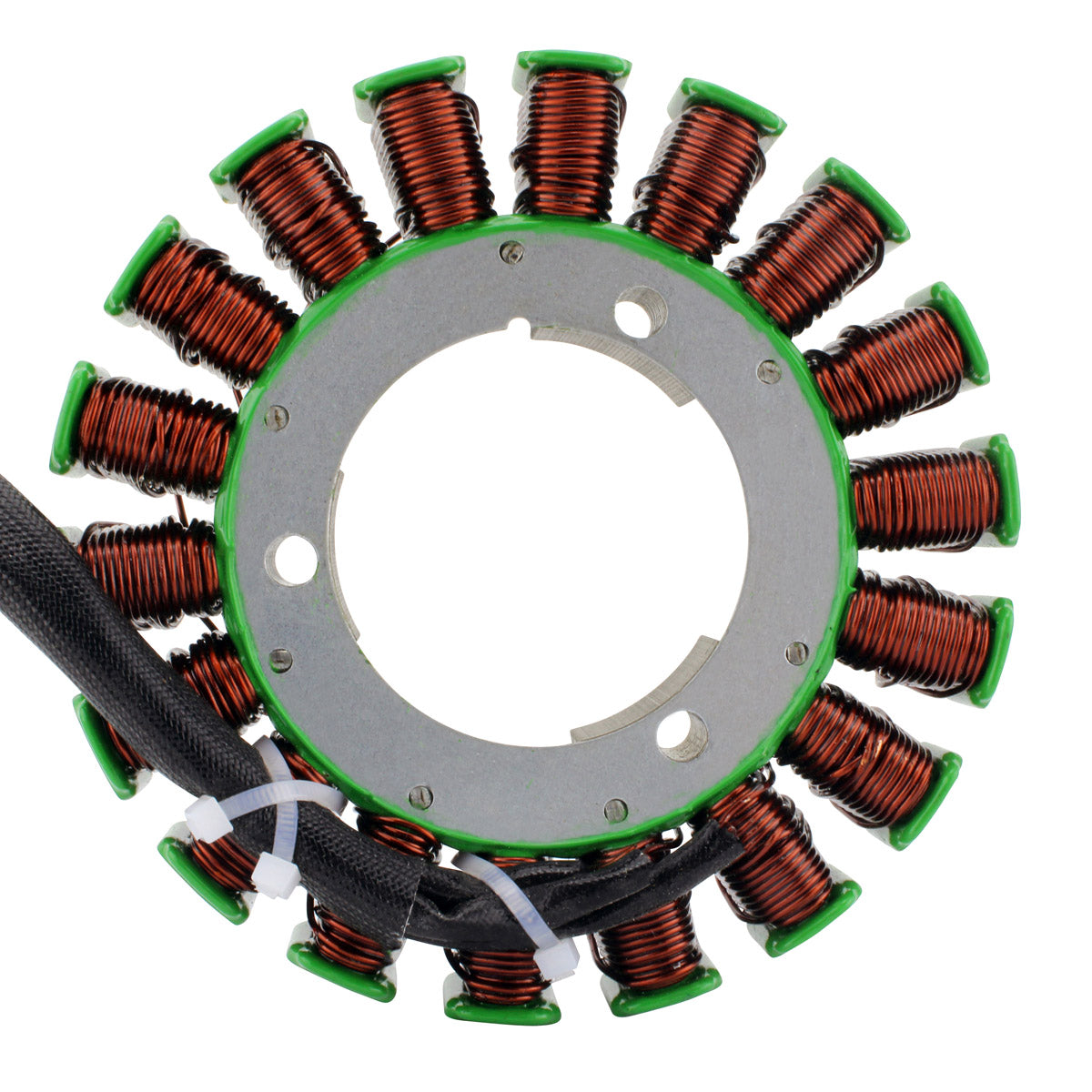

This is a brand new aftermarket generator stator, built as a direct replacement for the original unit on the Suzuki LTA 750 KingQuad AXi. It is plug-and-play and a direct fit, so installation is a straightforward swap using the original mounting arrangement, and the pick-up pulsar coil is already fitted to the assembly.

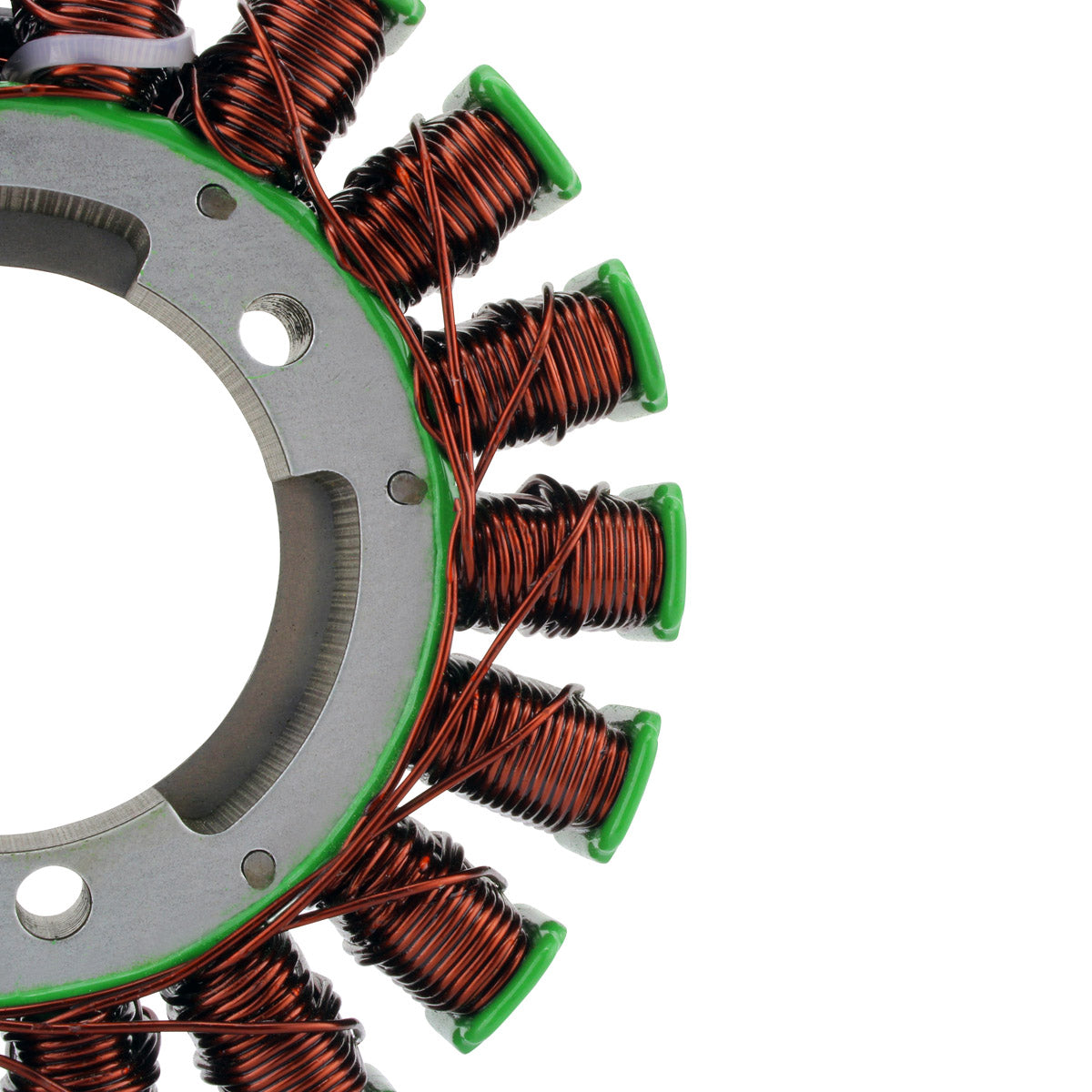

The stator uses the highest grade of lamination materials and the highest grade of copper winding, rated to resist 200 degrees Celsius. That temperature rating matters on a machine that spends its working life at low speed and high load, where there is little airflow past the engine cases and the stator sits in hot oil. Connectors and the rubber grommet are included so the loom can be sealed properly on reassembly, and every product shipped is tested before it leaves the factory.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

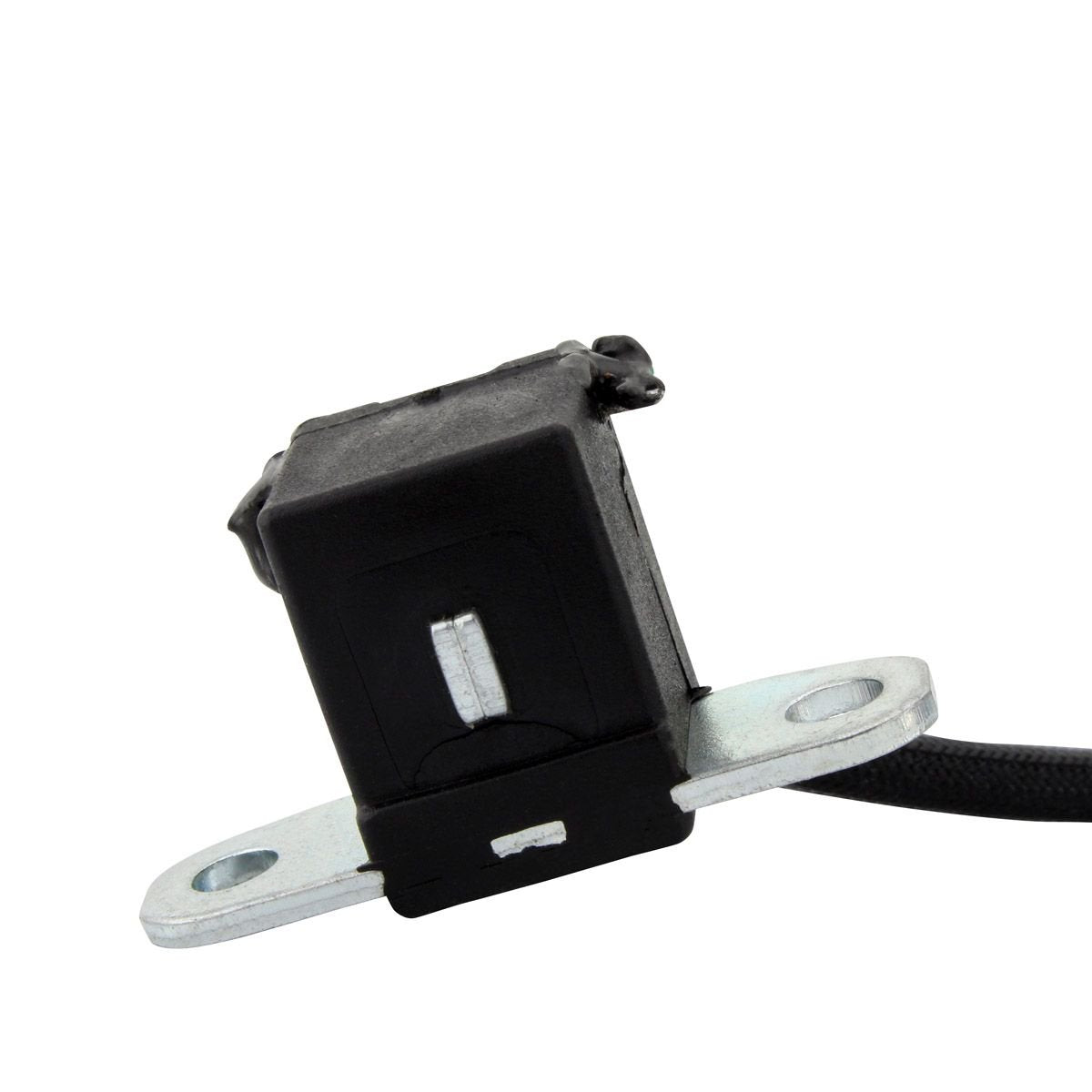

- Pick-up pulsar coil included and pre-fitted

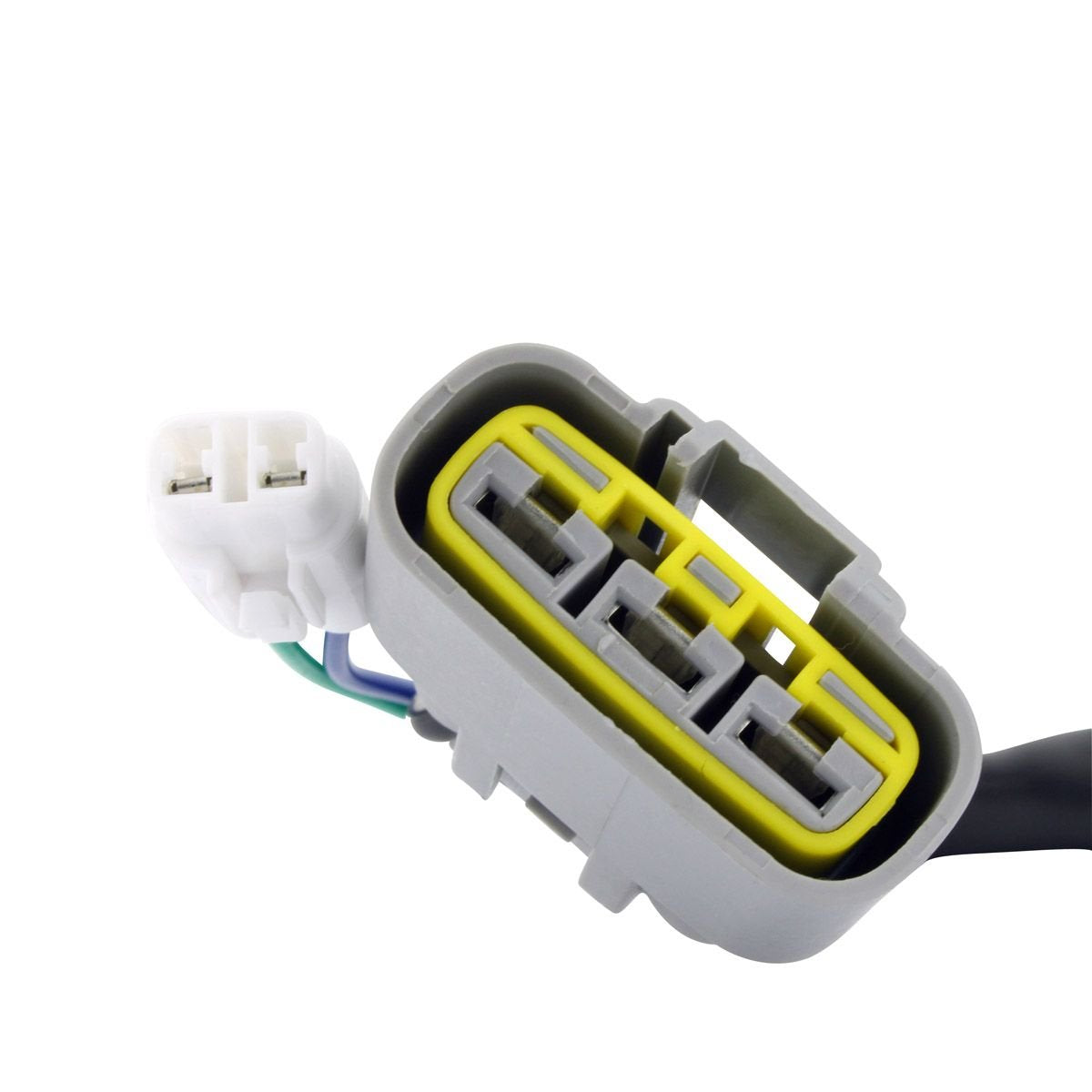

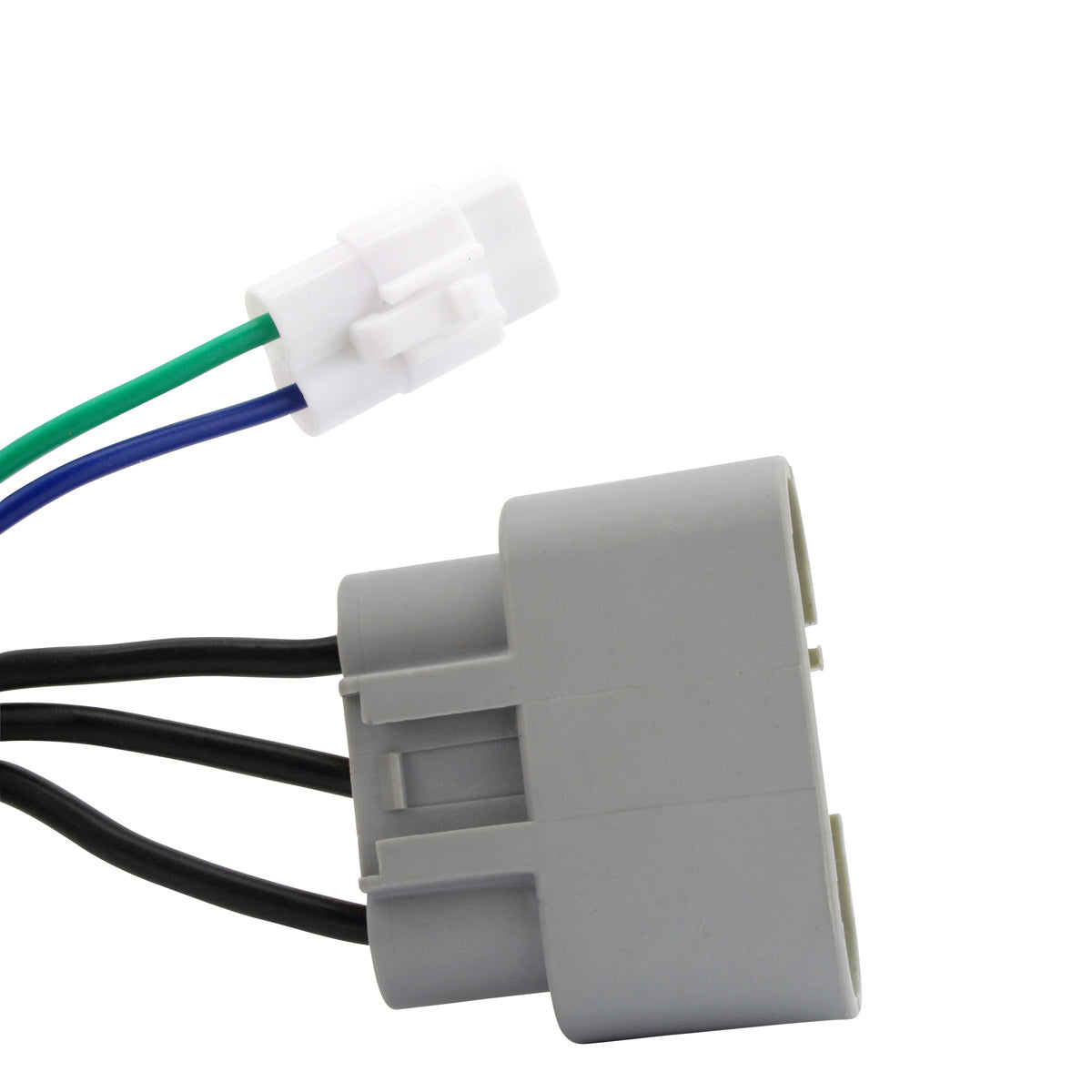

- Connectors included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
127 mm |

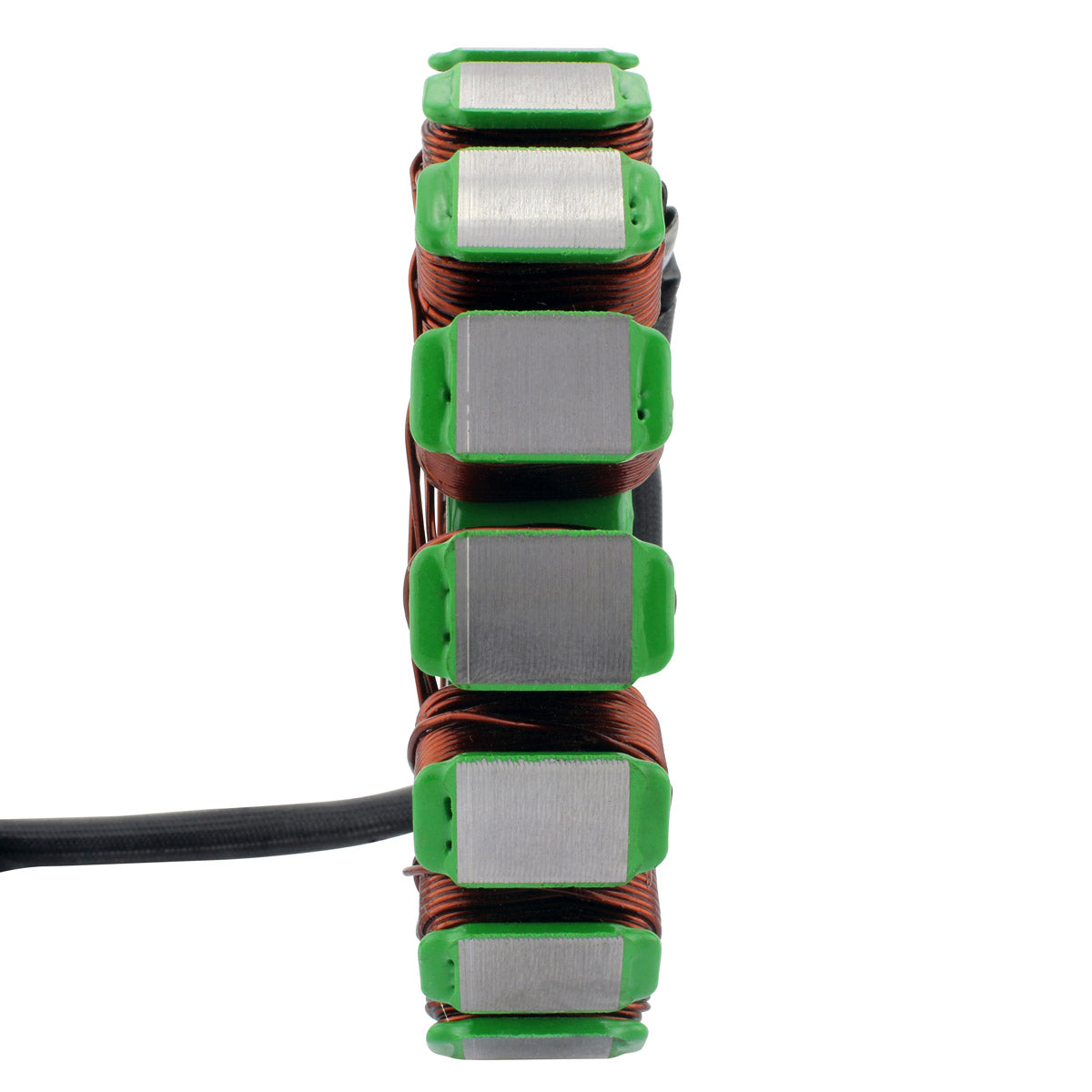

| Thickness |
19 mm |
| Wire length, stator to grommet |
195 mm |
| Wire length, grommet to plug 1 |
250 mm |
| Wire length, grommet to plug 2 |
270 mm |
| Pick-up coil wire length |
130 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, black to black |
0.6 ohms +/- 20% |
| Alternator resistance to ground |
O.L |
| Pick-up coil resistance, green to blue |
196 ohms +/- 20% |
| Temperature rating |
200 C |
| RMSTATOR part number |
RMS010-107459 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki LTA 750 KingQuad AXi |
2019-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-34K00 |
Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play direct fit for the Suzuki LTA 750 KingQuad AXi from 2019 to 2022, using the original mounting points and connectors. Confirm the OEM number 32101-34K00 against your original unit before ordering.
What is included?
The stator itself, the pick-up pulsar coil, the connectors and the rubber grommet. The grommet is included because the original is normally hardened or torn by the time the stator is removed, and a poor seal at that point lets oil weep out of the case.
How do I know my old stator has failed?
Common signs are a battery that will not stay charged, dim or flickering lights, and a machine that runs the battery flat on a long ride. Test the stator cold with a multimeter: black to black should read about 0.6 ohms with a 20 per cent tolerance, and any black lead to ground should read open circuit. A reading to ground means the winding insulation has broken down.
How do I test the pick-up coil?
Measure between the green and blue wires. A healthy pick-up coil reads about 196 ohms with a 20 per cent tolerance. An open circuit or a very low reading points to a failed coil, which typically shows up as a no-spark or intermittent-spark condition.
