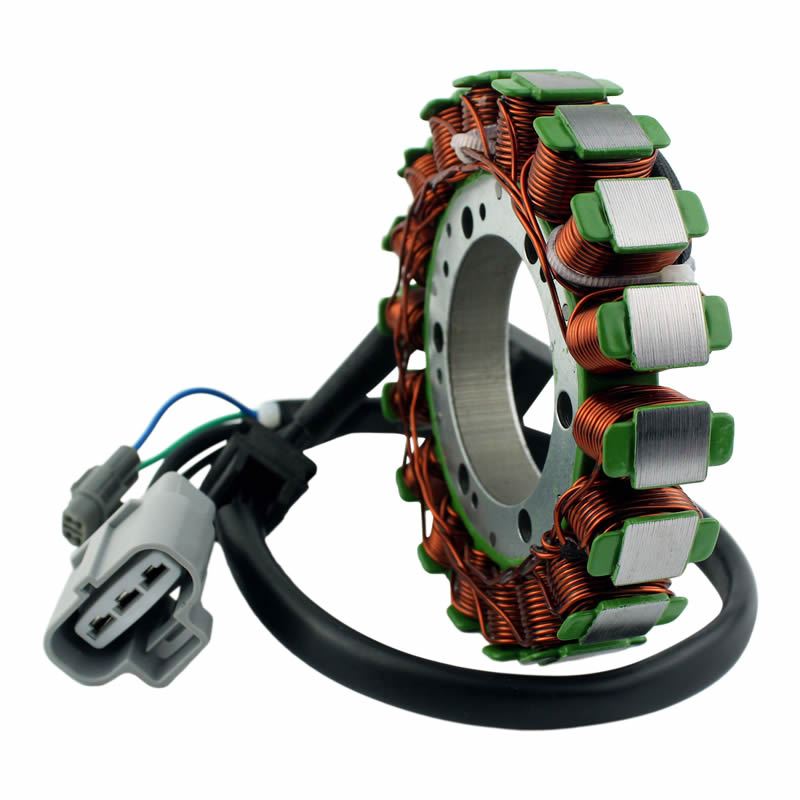

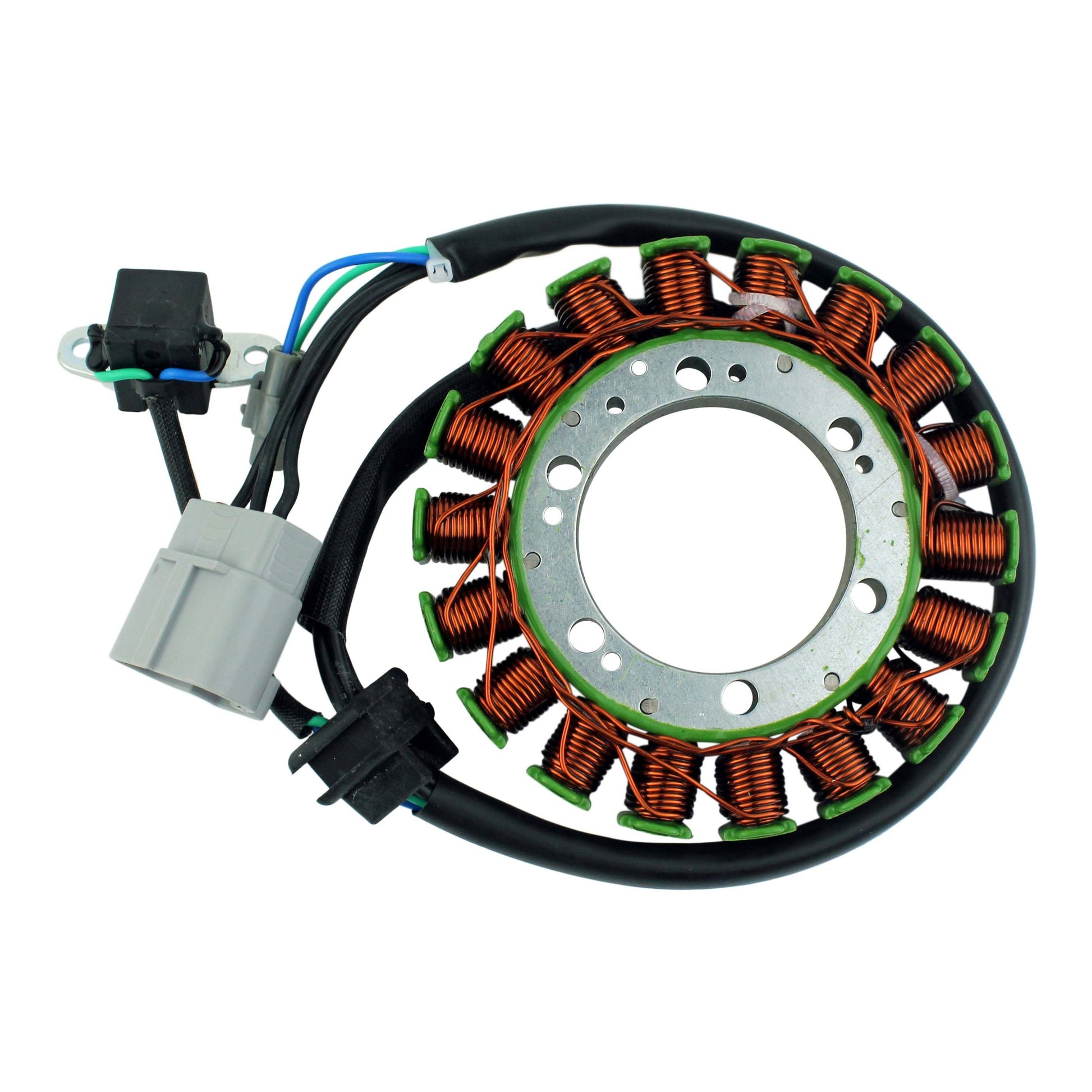

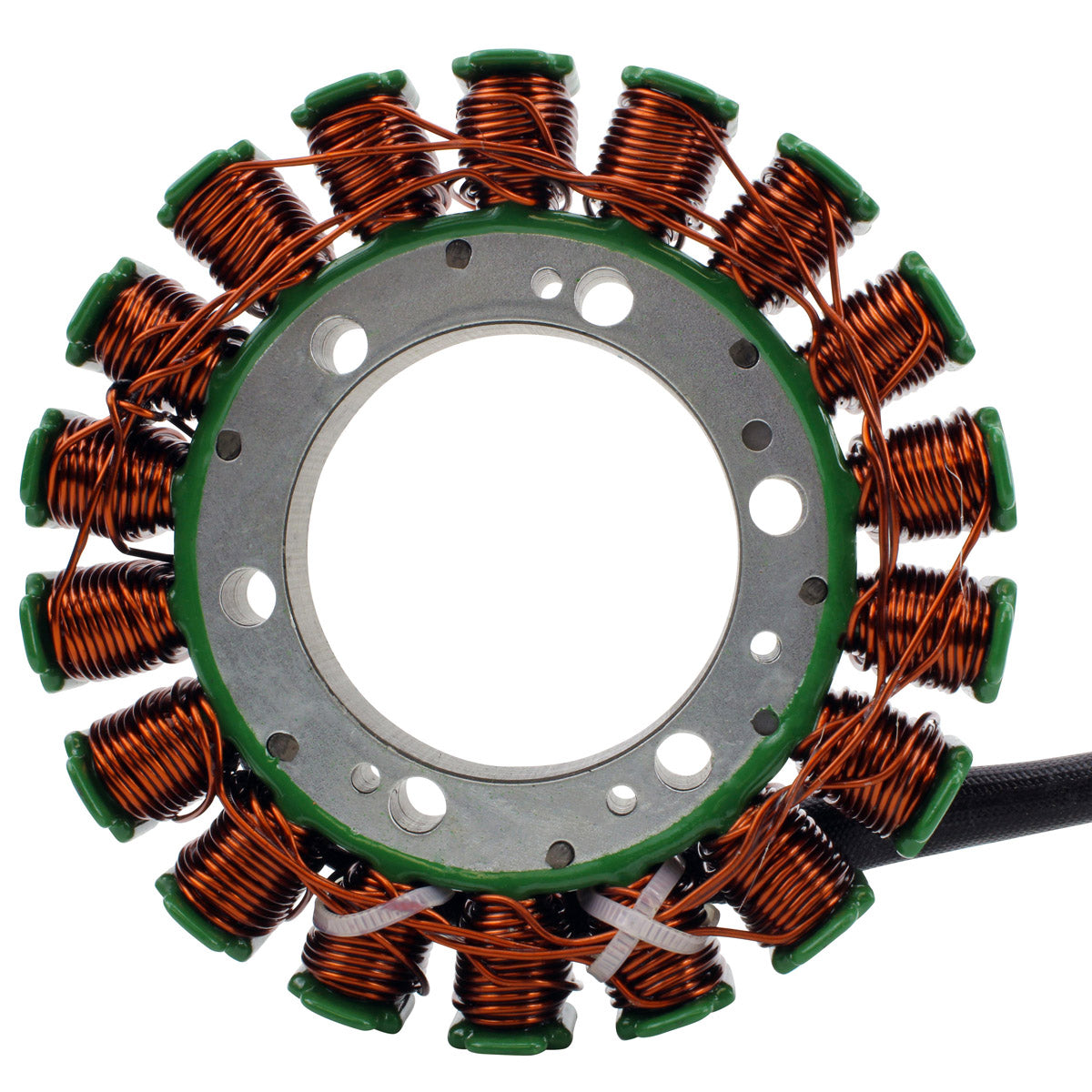

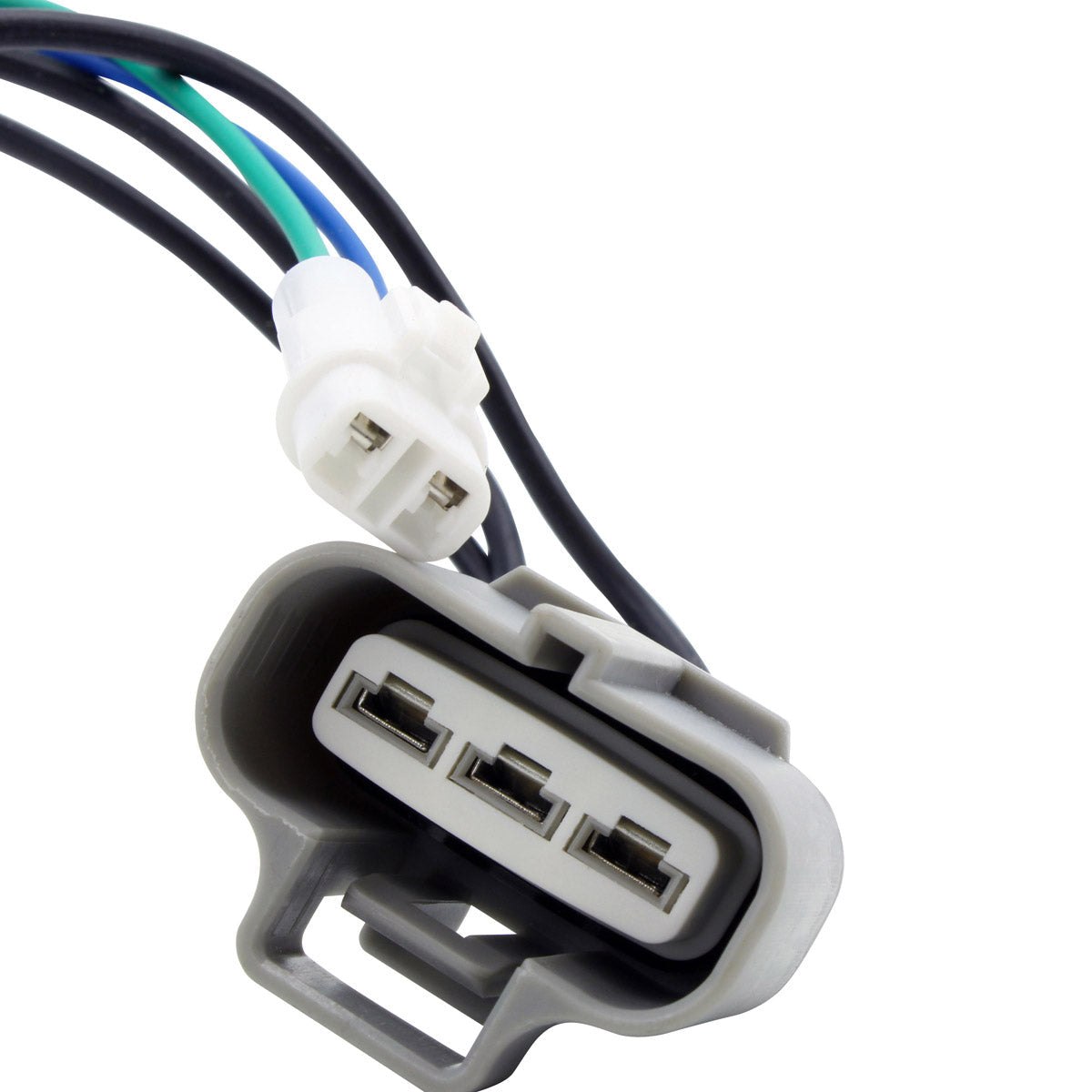

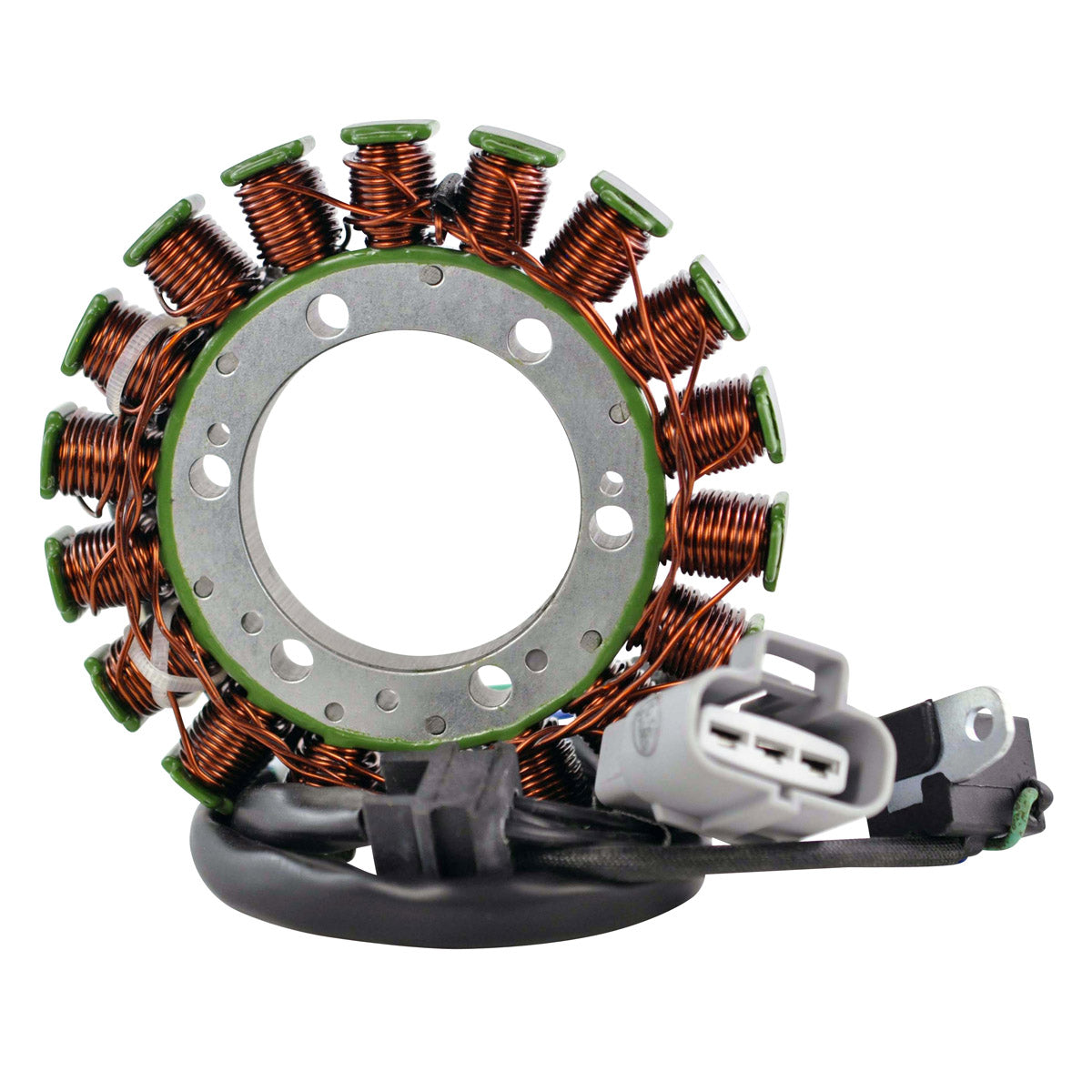

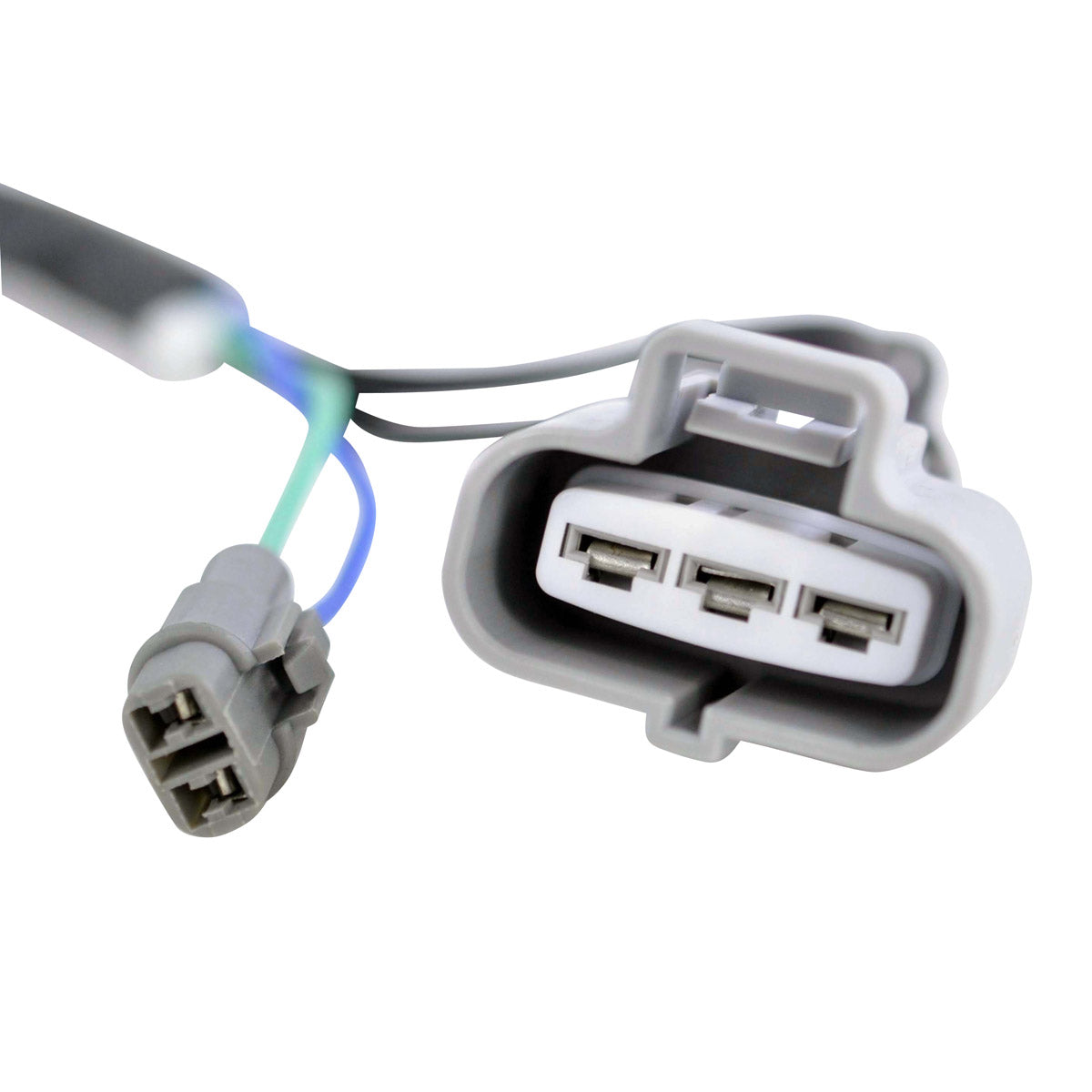

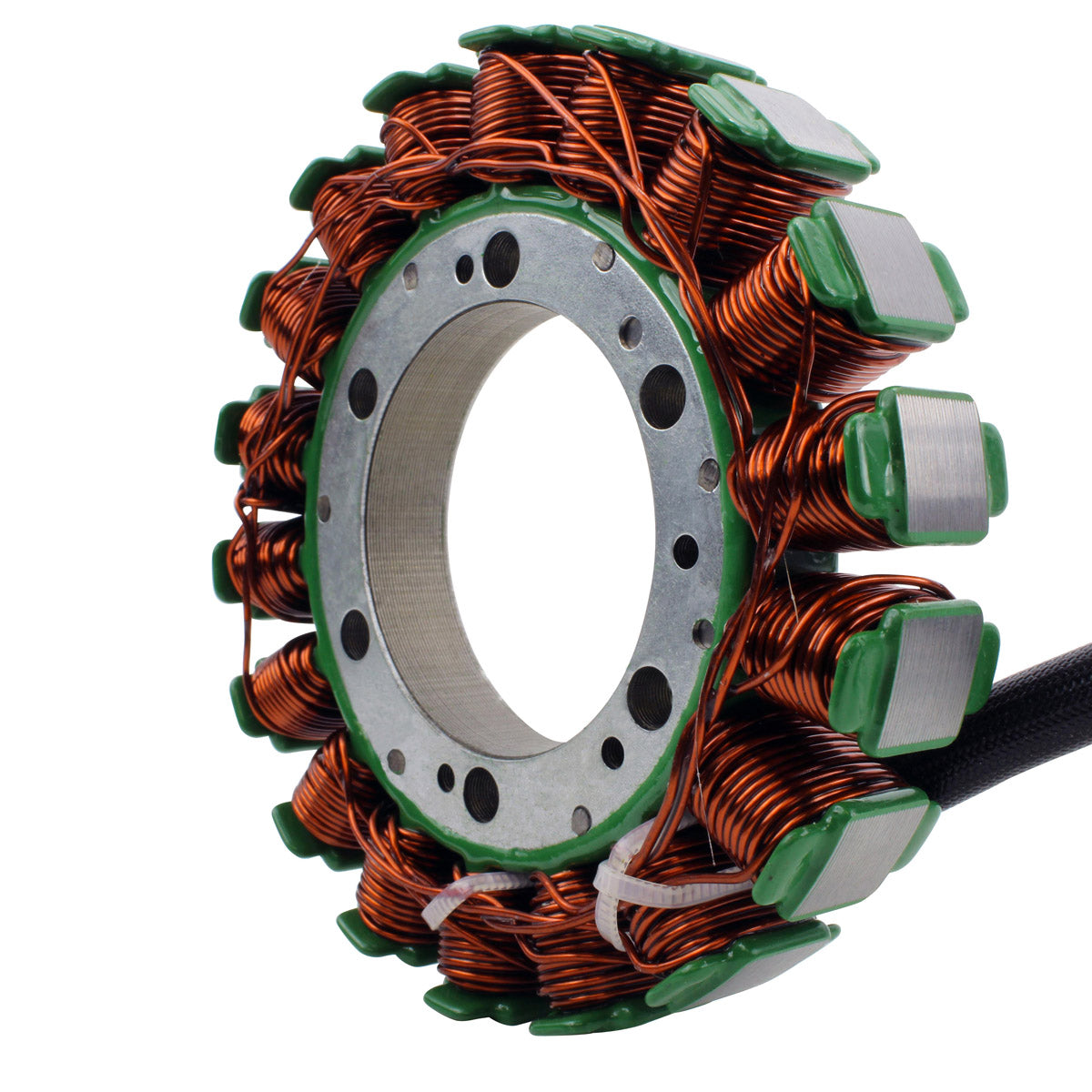

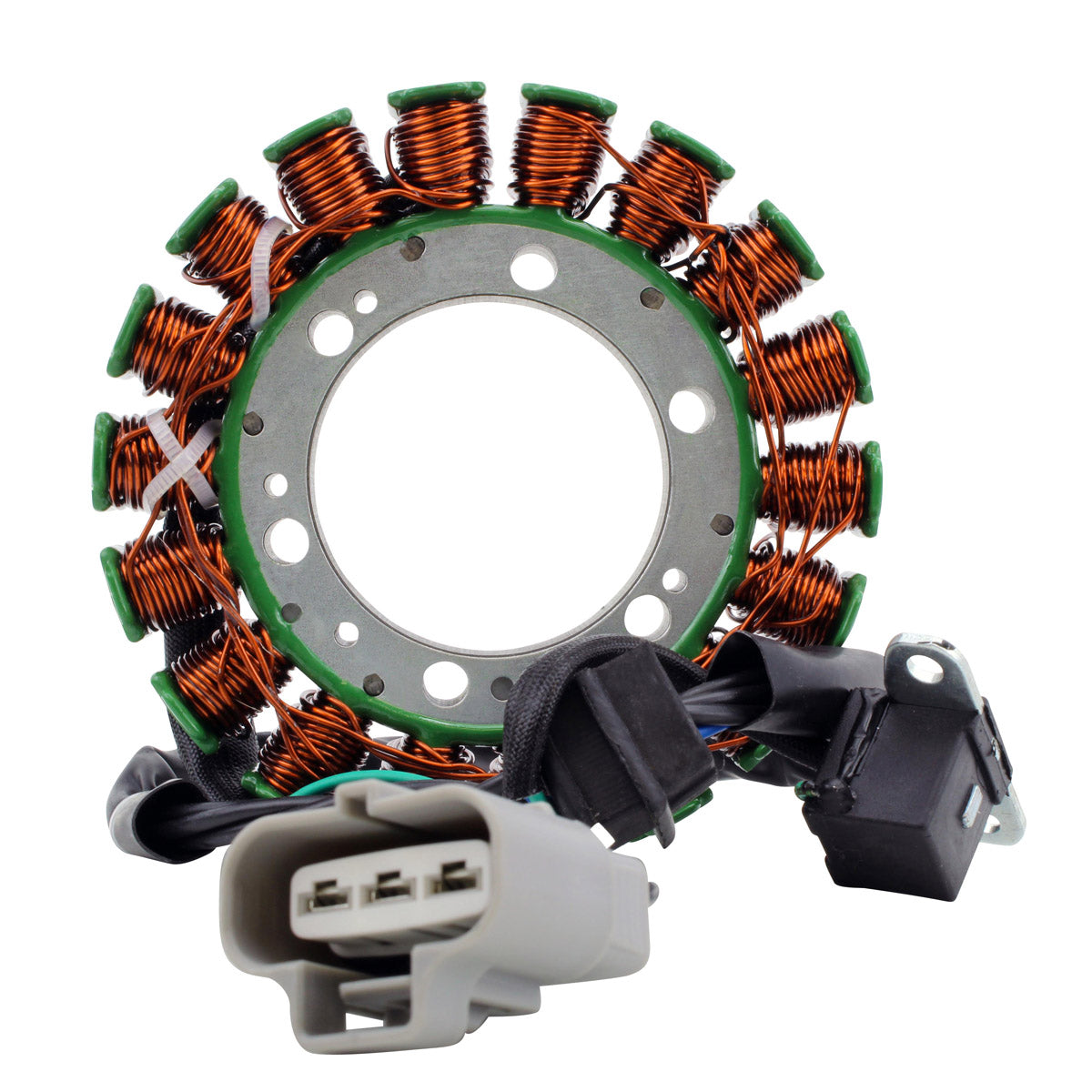

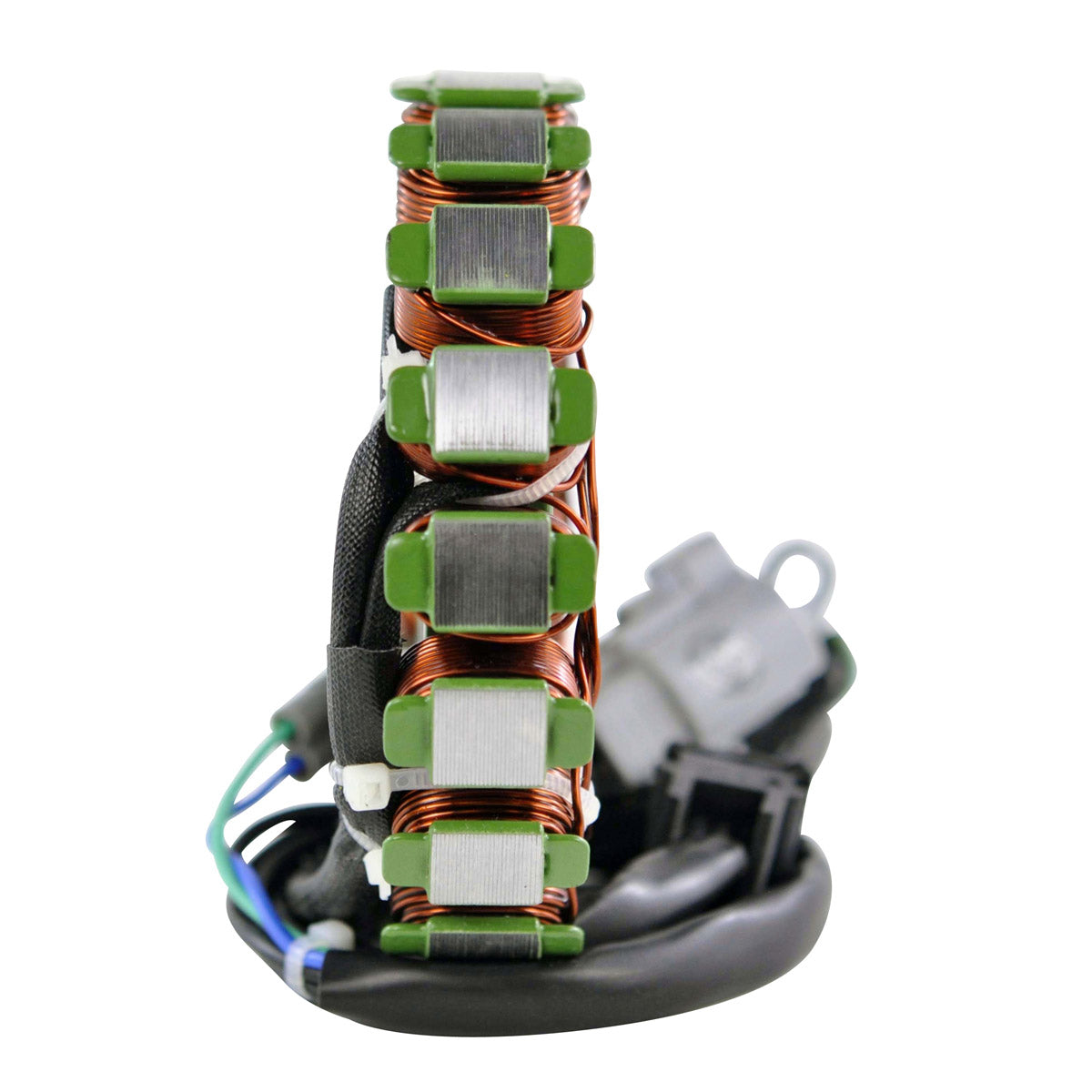

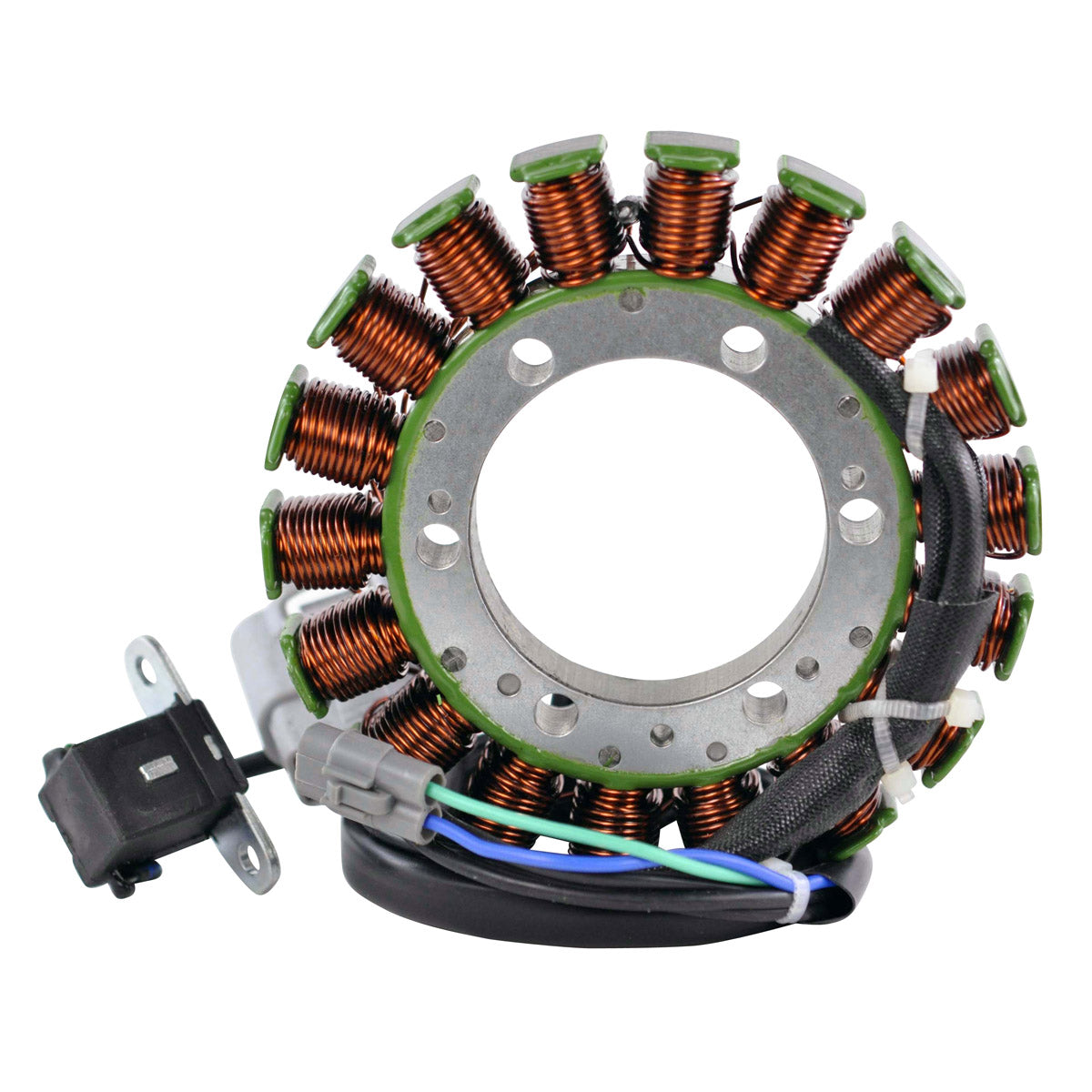

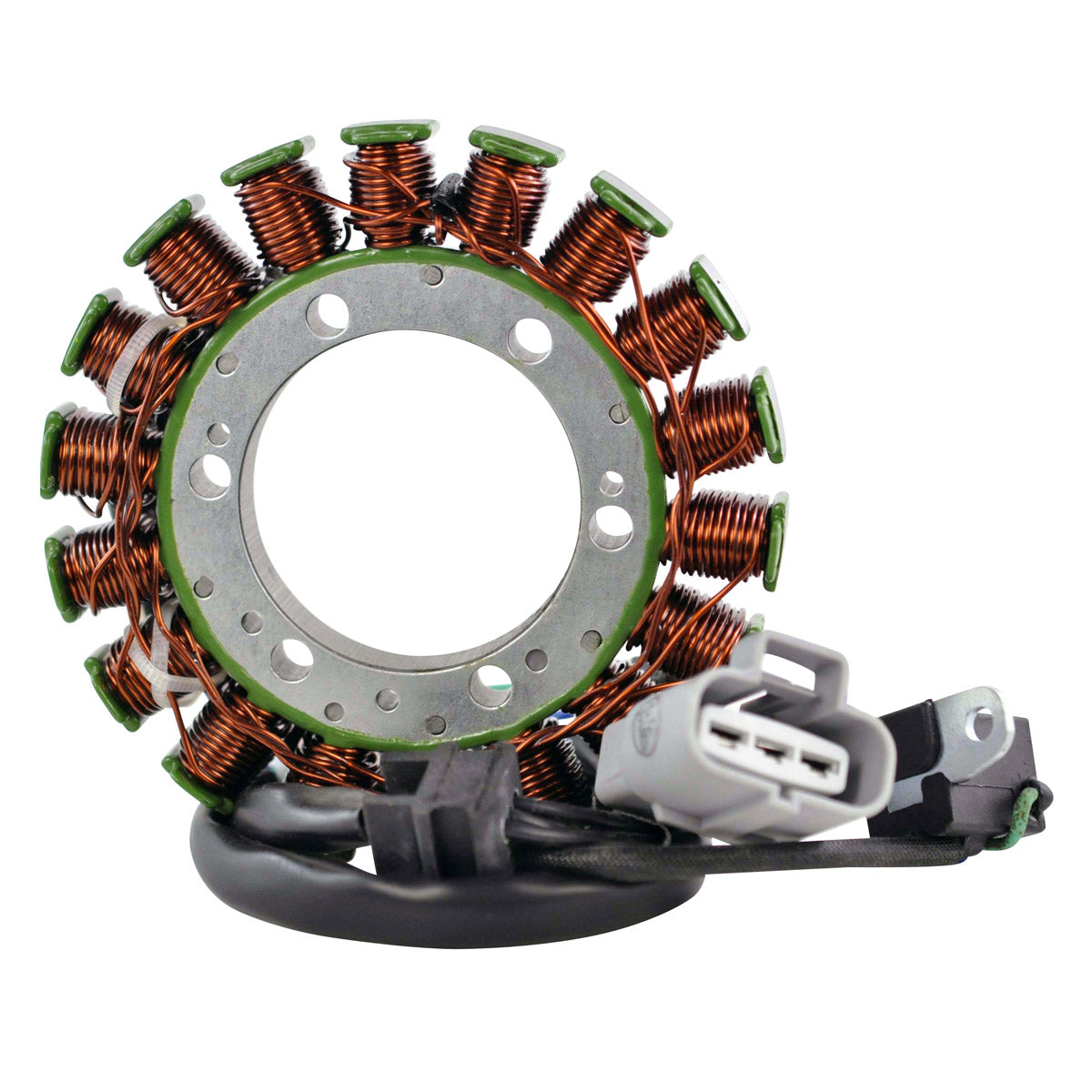

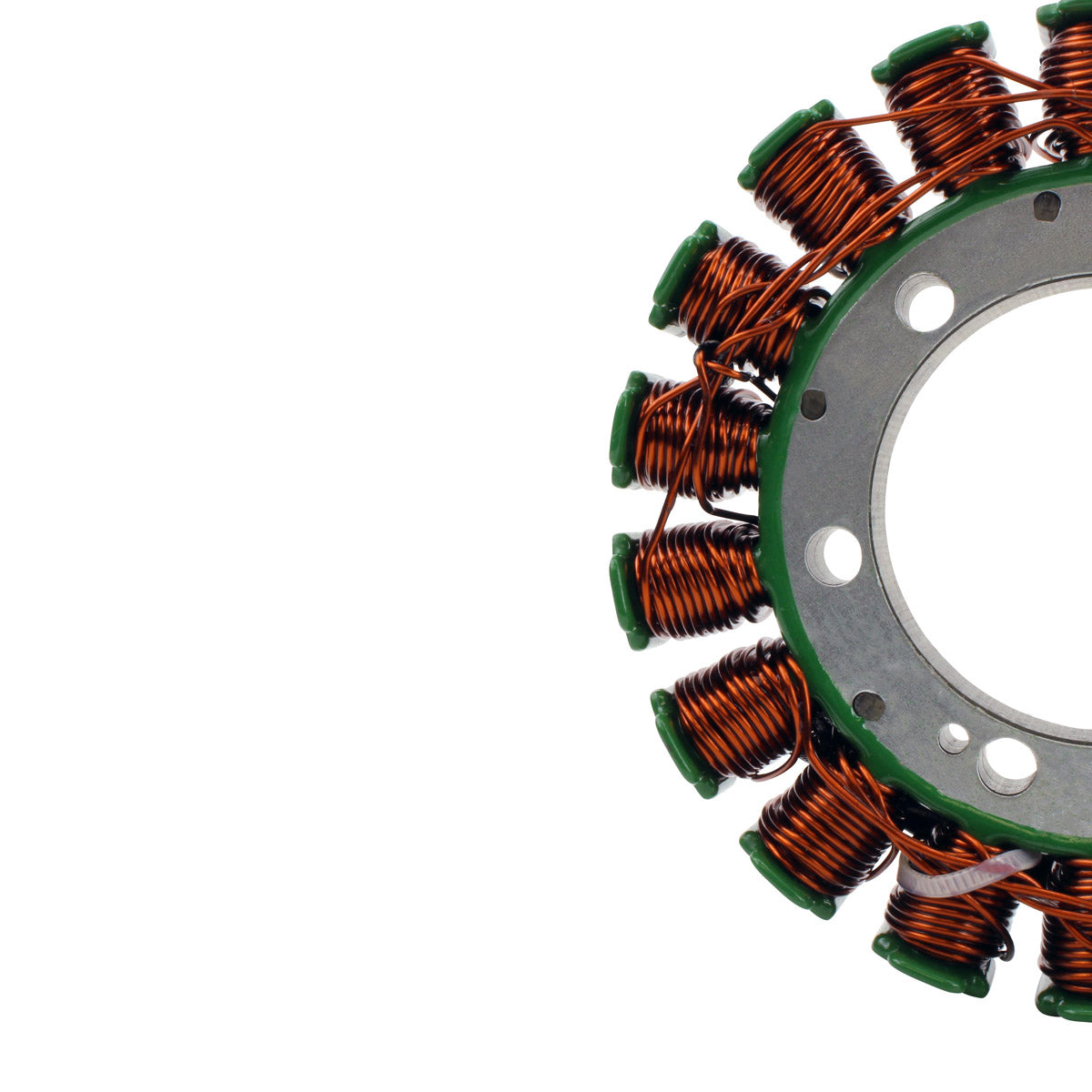

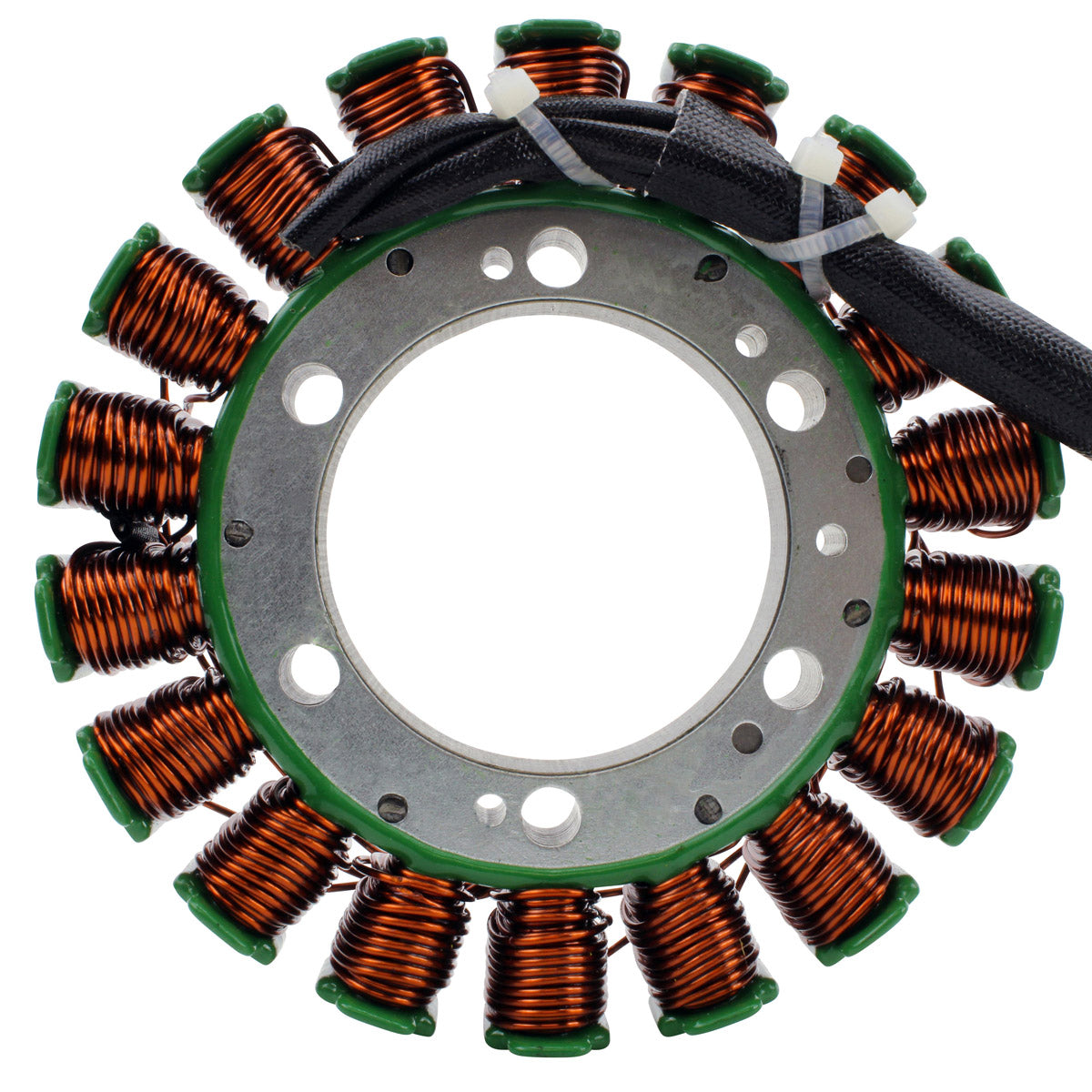

This is a brand new magneto stator (RMSTATOR part RM01071) supplied as a direct replacement for the original charging unit fitted to the Suzuki KingQuad 400 across its long production run, from 2008 right through to 2024, in LTA, LTF and F variants. It is a plug-and-play, direct fit part - the two plugs, five pins and the short 380 mm harness lead match the factory item exactly, so the machine's wiring needs no cutting or splicing.

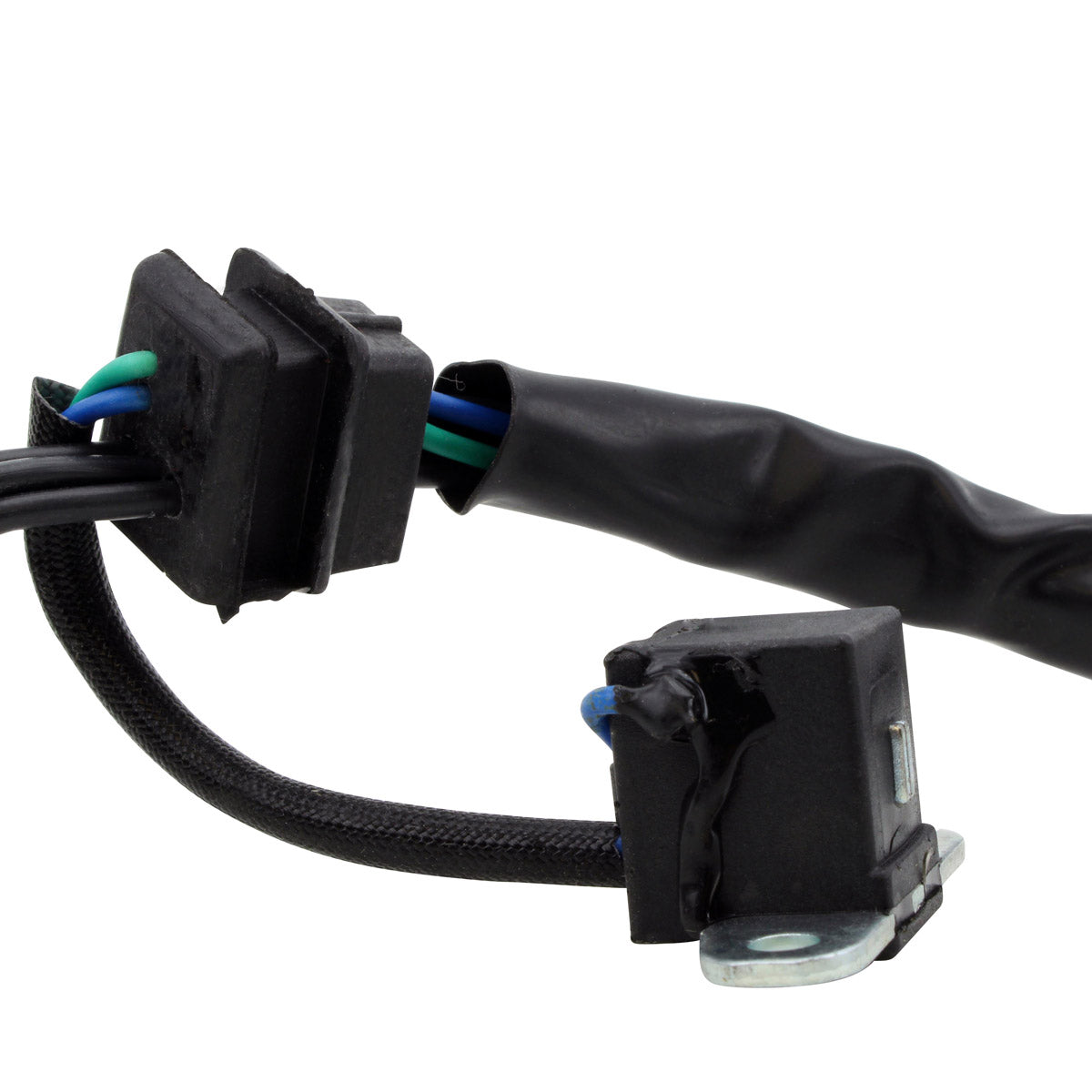

The stator uses the highest grade lamination materials and highest grade copper windings, resistant to 200 degrees Celsius. It is supplied complete with the pickup pulsar coil, the connector and the rubber grommet, so the whole assembly goes on as one piece, and every unit is tested before it is shipped. Suzuki used essentially the same magneto design on this machine for the best part of two decades, so confirming the OEM number on your original unit is the surest way to check the match.
Key Features
- Brand new magneto stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pickup pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01071 |
| Interior diameter |
53 mm |
| Exterior diameter |
118 mm |
| Thickness |
15 mm |
| Wire length - stator to grommet |
112 mm |
| Wire length - grommet to plug |
380 mm |
| Pickup coil wire length |
50 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Alternator resistance (Black to Black) |
0.4 ohms +/-20% |
| Pickup resistance (Blue to Green) |
196 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki LTA 400 KingQuad |
2008-2024 |
| Suzuki LTA 400 F KingQuad |
2008-2024 |
| Suzuki LTF 400 KingQuad |
2008-2024 |
| Suzuki LTF 400 F KingQuad |
2008-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-27H10 |
Suzuki |
| 32101-27H00 |
Suzuki |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. It is a plug-and-play, direct fit replacement with the same two plugs, five pins and 380 mm lead as the original, so no cutting or splicing of the harness is required.
What is included in the box?
The magneto stator, the pickup pulsar coil, the connector and the rubber grommet.
How do I know my old stator has failed?
Test cold with a multimeter. The alternator legs (Black to Black) should read about 0.4 ohms and the pickup (Blue to Green) about 196 ohms, each within plus or minus 20 percent. Also check from each winding to the stator body - that must be open circuit. A shorted or open winding, a battery that keeps going flat, or an intermittent no-start condition all point to a failed stator.
My KingQuad is a later model - will this still fit?
RMSTATOR list coverage from 2008 through to 2024 for the LTA and LTF 400 KingQuad, so late machines are included. The safest check is the OEM number on your existing stator: it should be 32101-27H10 or 32101-27H00.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
