Stator for Suzuki RM 125 2002-2006 - Replaces 32101-36F10
Stator for Suzuki RM 125 2002-2006 - Replaces 32101-36F10
SKU:RM01449
Free shipping over £150. Terms apply
Couldn't load pickup availability

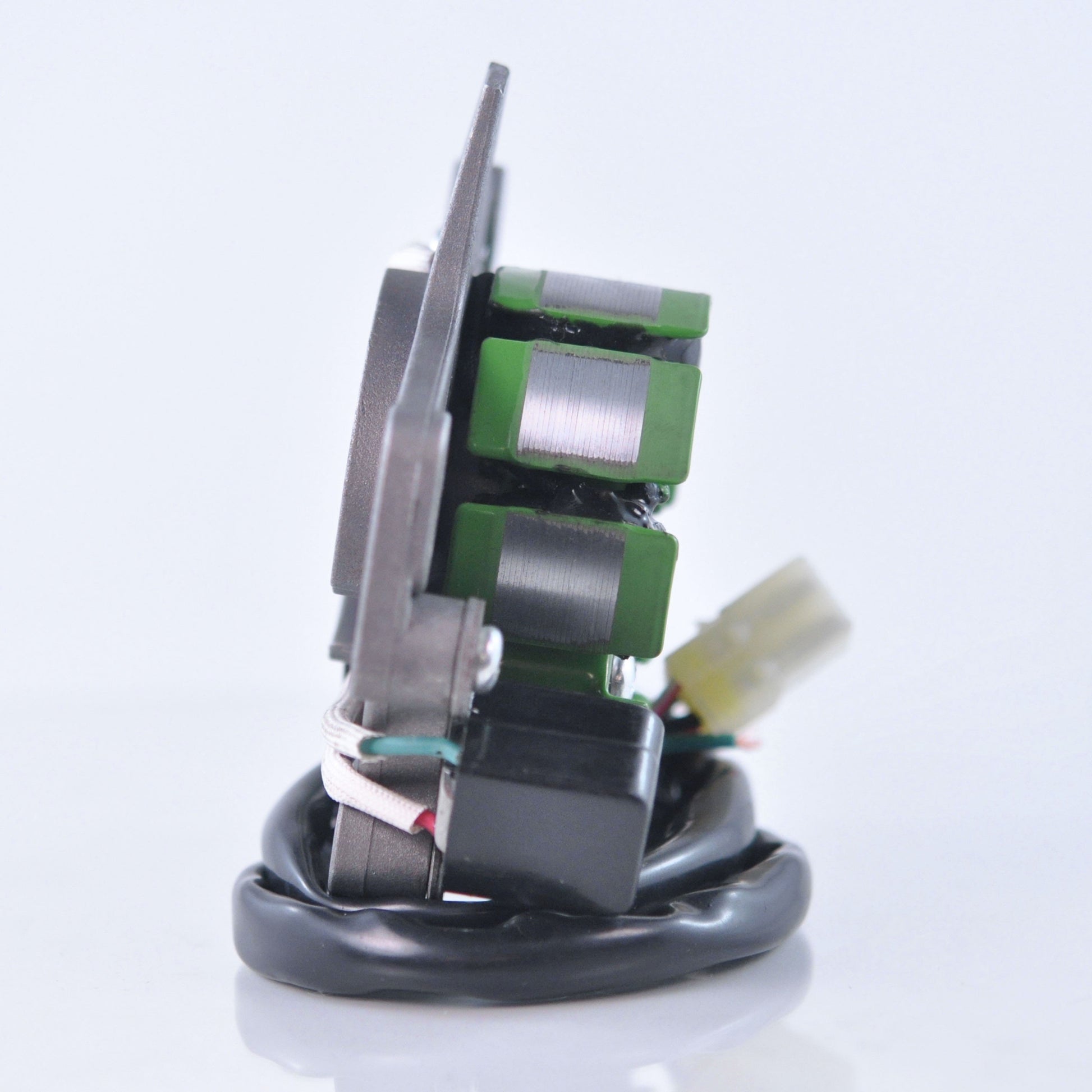

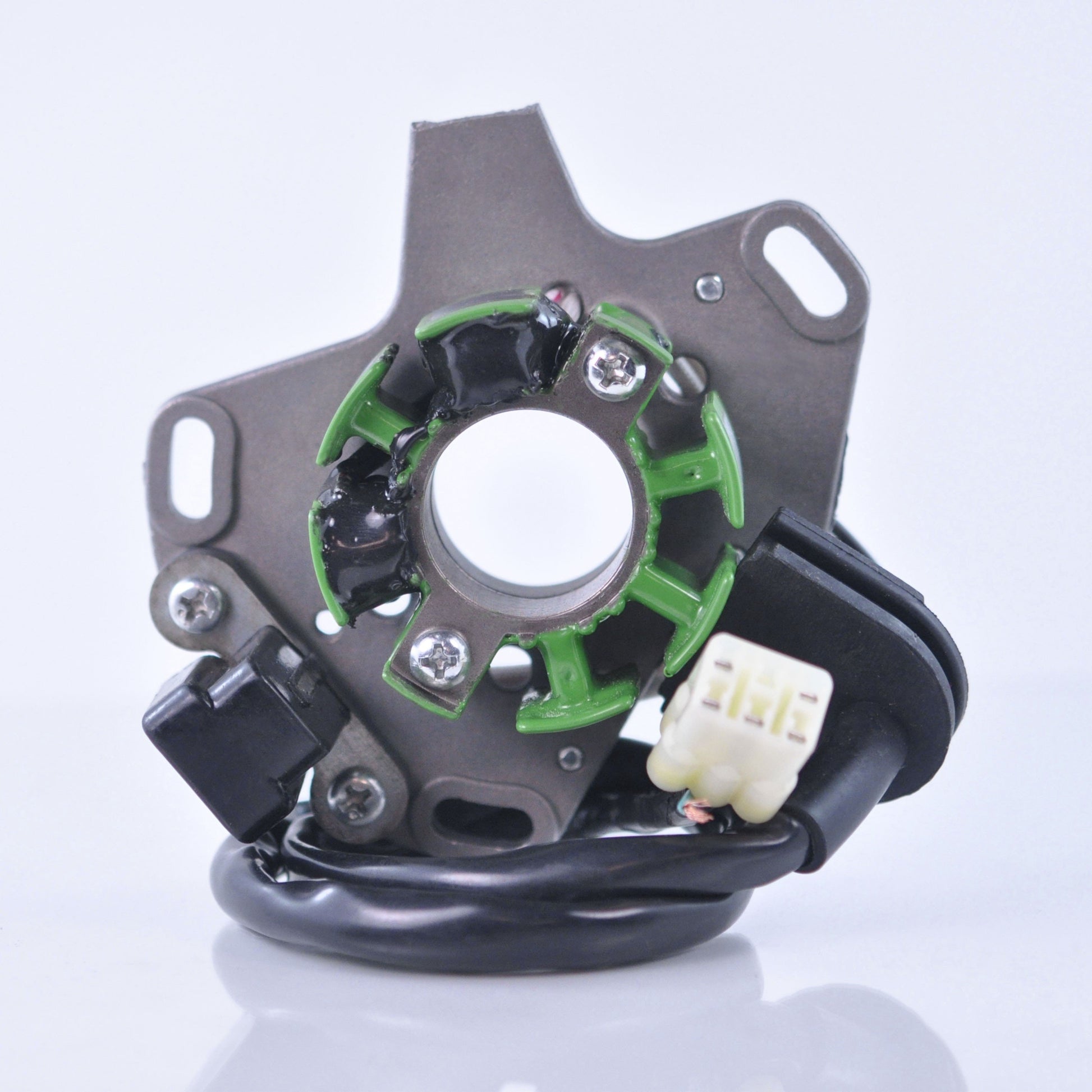

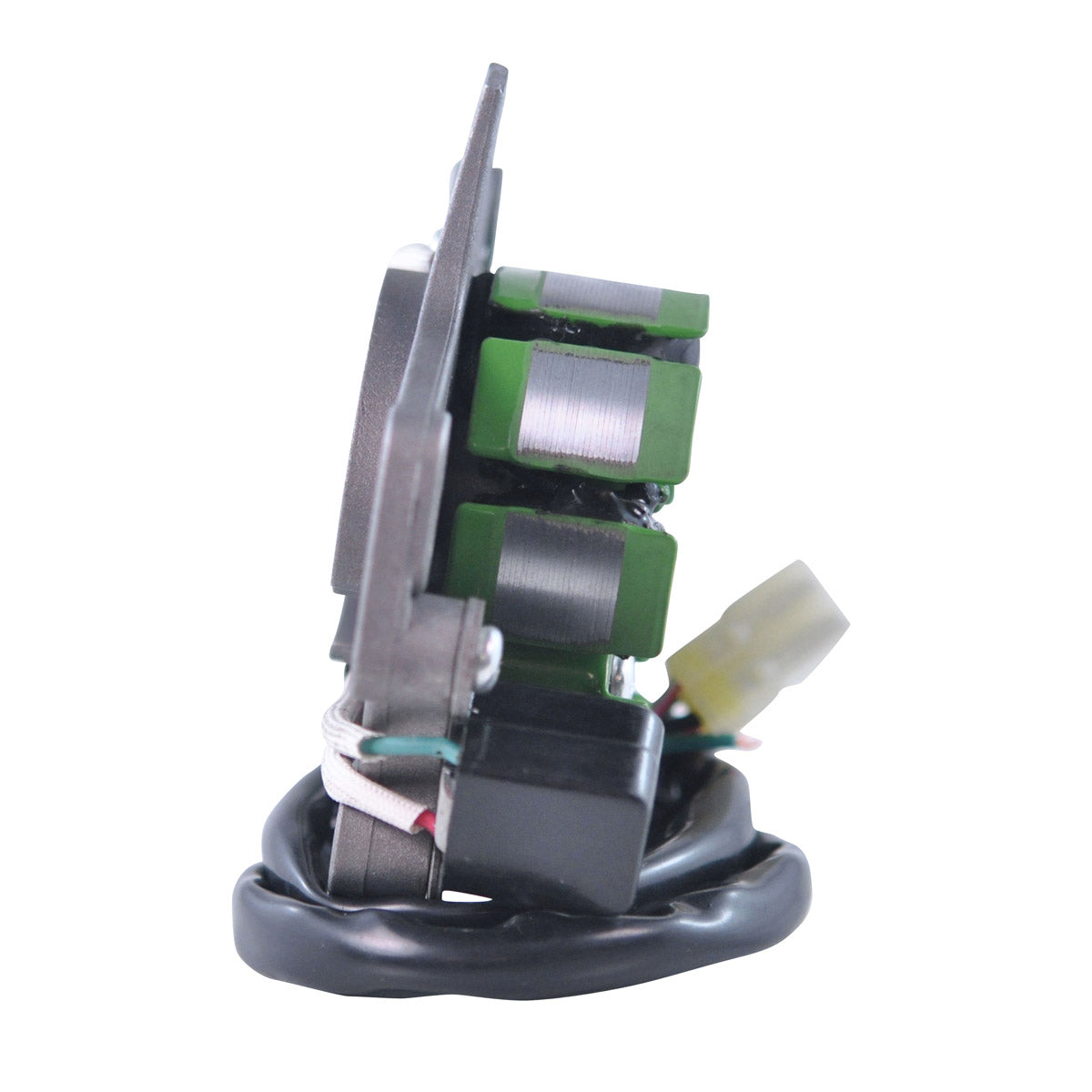

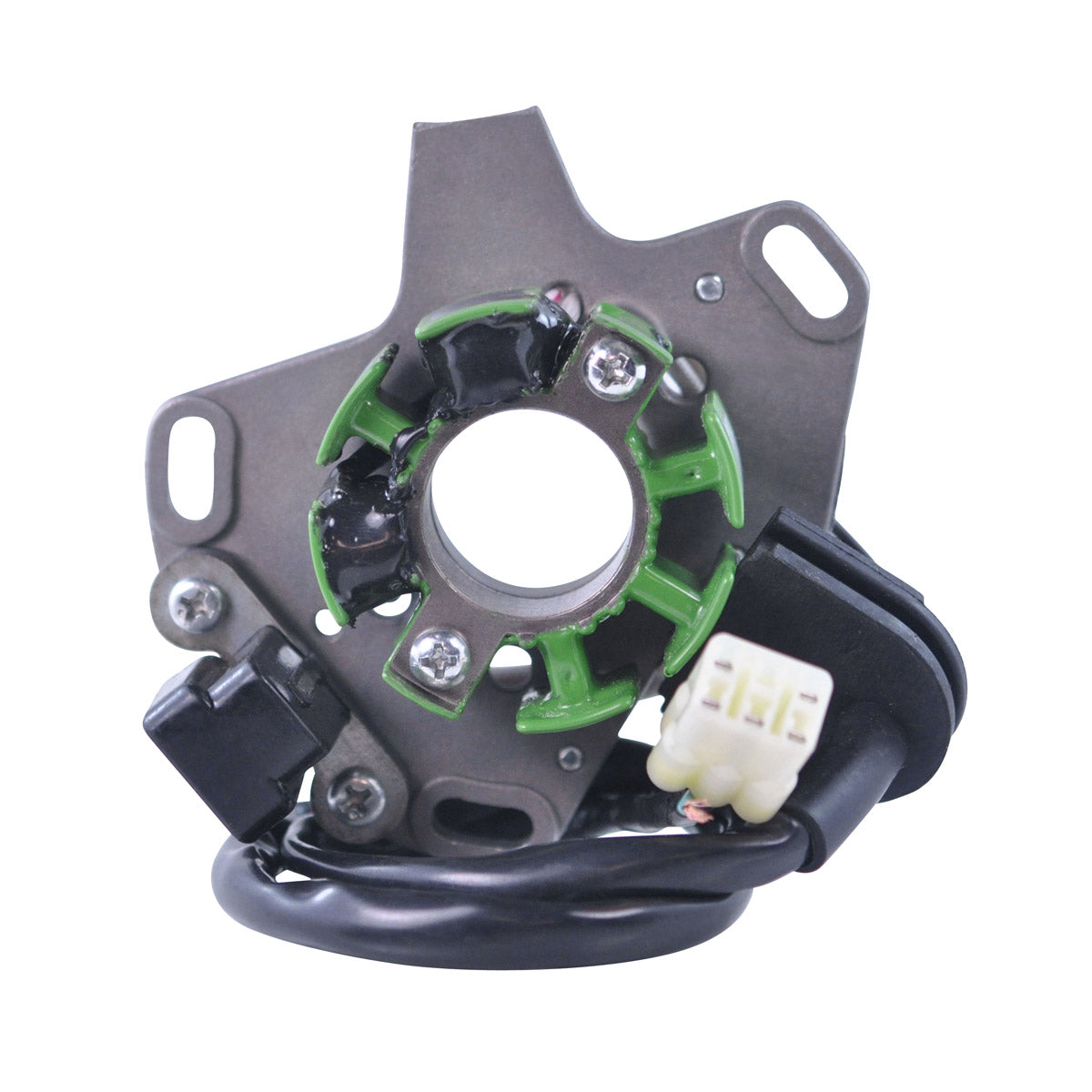

Stator for Suzuki RM 125 - OEM 32101-36F10
Suzuki RM 125 2002-2006 - part number RM01449

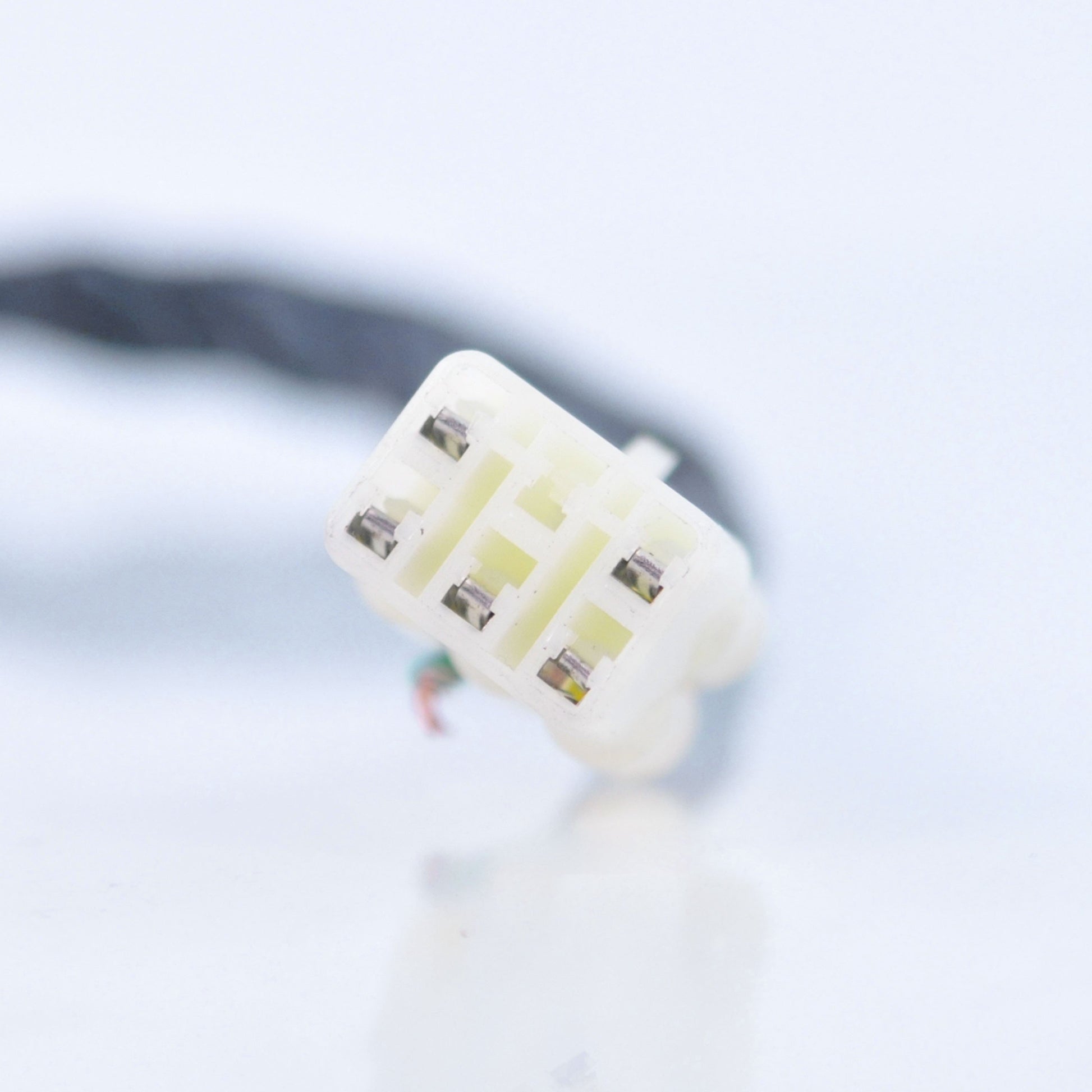

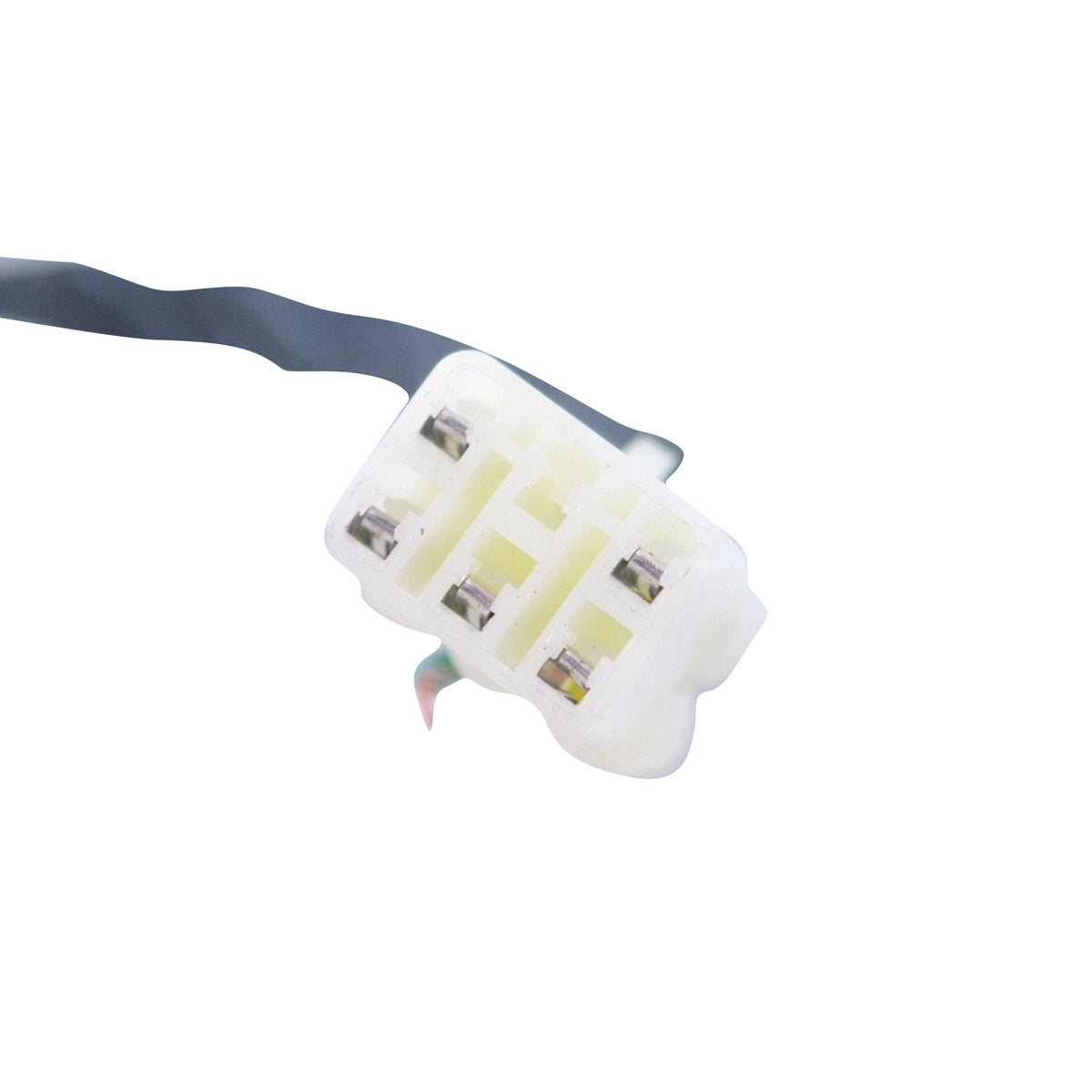

A brand new aftermarket stator for the Suzuki RM 125 of 2002 to 2006, supplied as a direct replacement for the original unit. It is plug-and-play and a direct fit, so it mounts on the standard fixings behind the flywheel and connects through the standard five-pin plug with no rewiring and no modification to the bike.

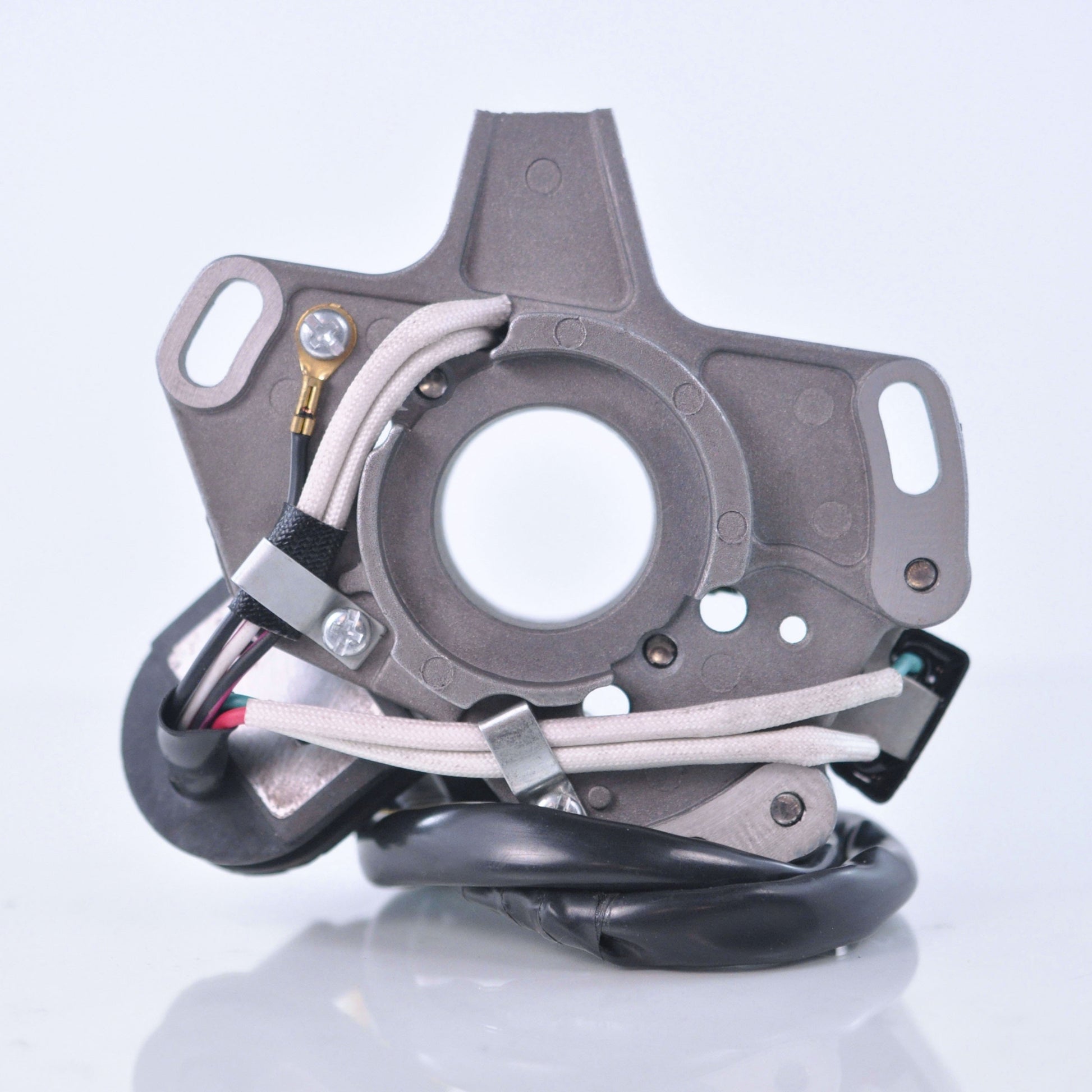

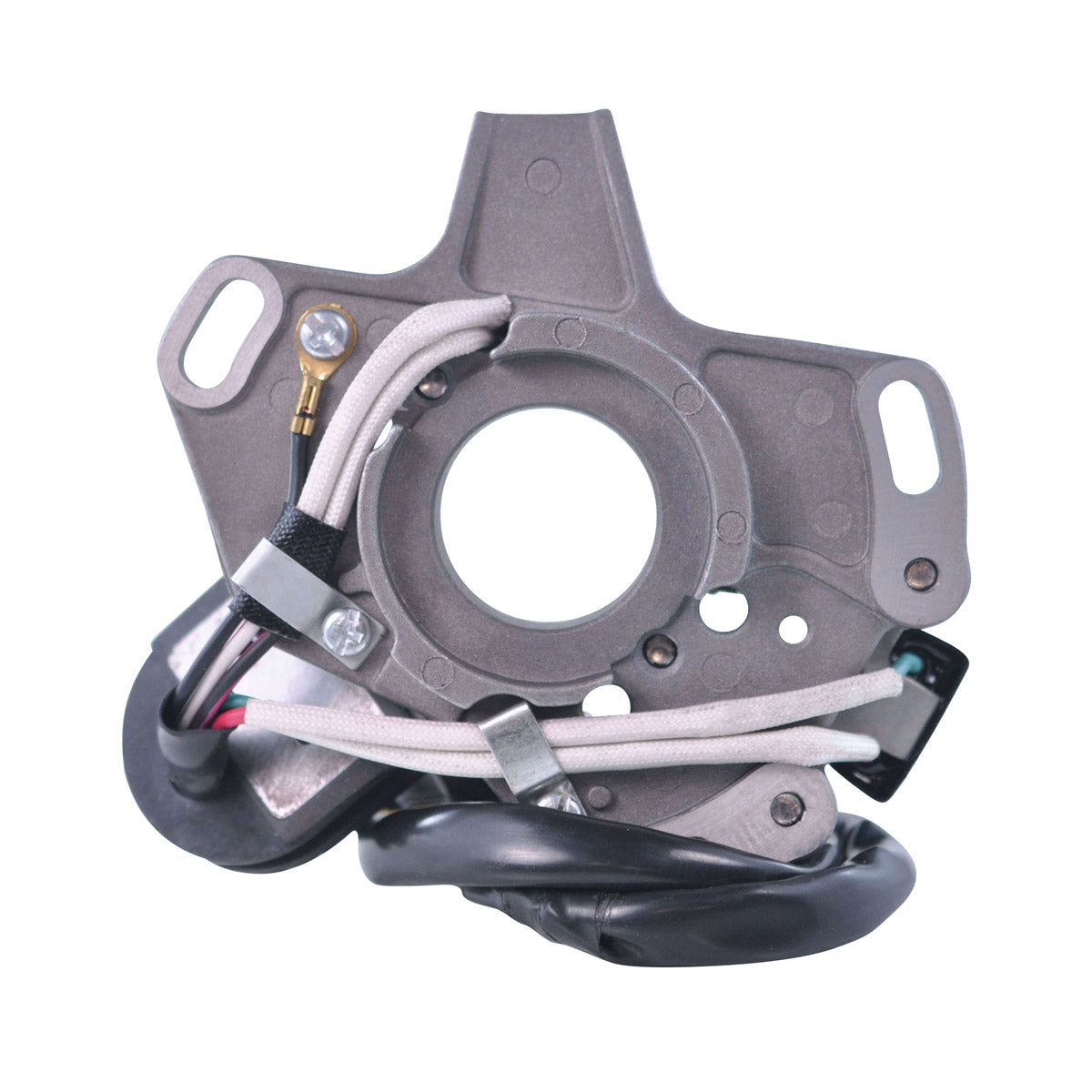

This is a complete assembly rather than a bare winding: the pick up pulsar coil and the back plate are both included, so the ignition timing reference and the source coil are renewed together in one job. Construction uses highest grade lamination materials and highest grade copper windings that resist 200 degrees Celsius, which is what a hard-worked two-stroke motocrosser asks of its ignition. Every unit is tested before it is shipped, and the connector and rubber grommet come with it.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Back plate included
- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01449 |
| Interior diameter | 28 mm |
| Exterior diameter | 58 mm |
| Thickness | 16 mm |
| Wire length, stator to grommet | 12 mm |
| Wire length, grommet to plug | 425 mm |
| Pickup coil wire to grommet | 60 mm |
| Number of wires | 5 |
| Number of plugs | 1 |
| Number of pins | 5 |
| Pickup resistance, Red to Green | 102 ohms +/-20% |
| Source resistance, Red/White to Black/Red | 26 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki RM 125 | 2002-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-36F10 | Suzuki |
Frequently Asked Questions
Is any modification needed?
No. It is a direct replacement for the original unit and fits plug-and-play on the standard mounting points and the standard connector. Check that the number on your original unit is 32101-36F10 before ordering.
What is included in the box?
The stator with the pick up pulsar coil, the back plate, the connector and the rubber grommet. All products shipped are tested.
How do I know the old stator has failed?
Measure the two circuits with a meter. The pickup, taken Red to Green, should read about 102 ohms, plus or minus 20 per cent. The source coil, taken Red/White to Black/Red, should read about 26 ohms, plus or minus 20 per cent. An open circuit, a badly out of range reading, or continuity from a winding to the stator body all point to a failed unit.
Is there anything to watch when fitting it?
The manufacturer advises checking the AC output before installation, replacing any corroded connectors, using high temperature dielectric grease on the joints, and setting the pickup coil with a proper air gap of at least 0.010 inch.
