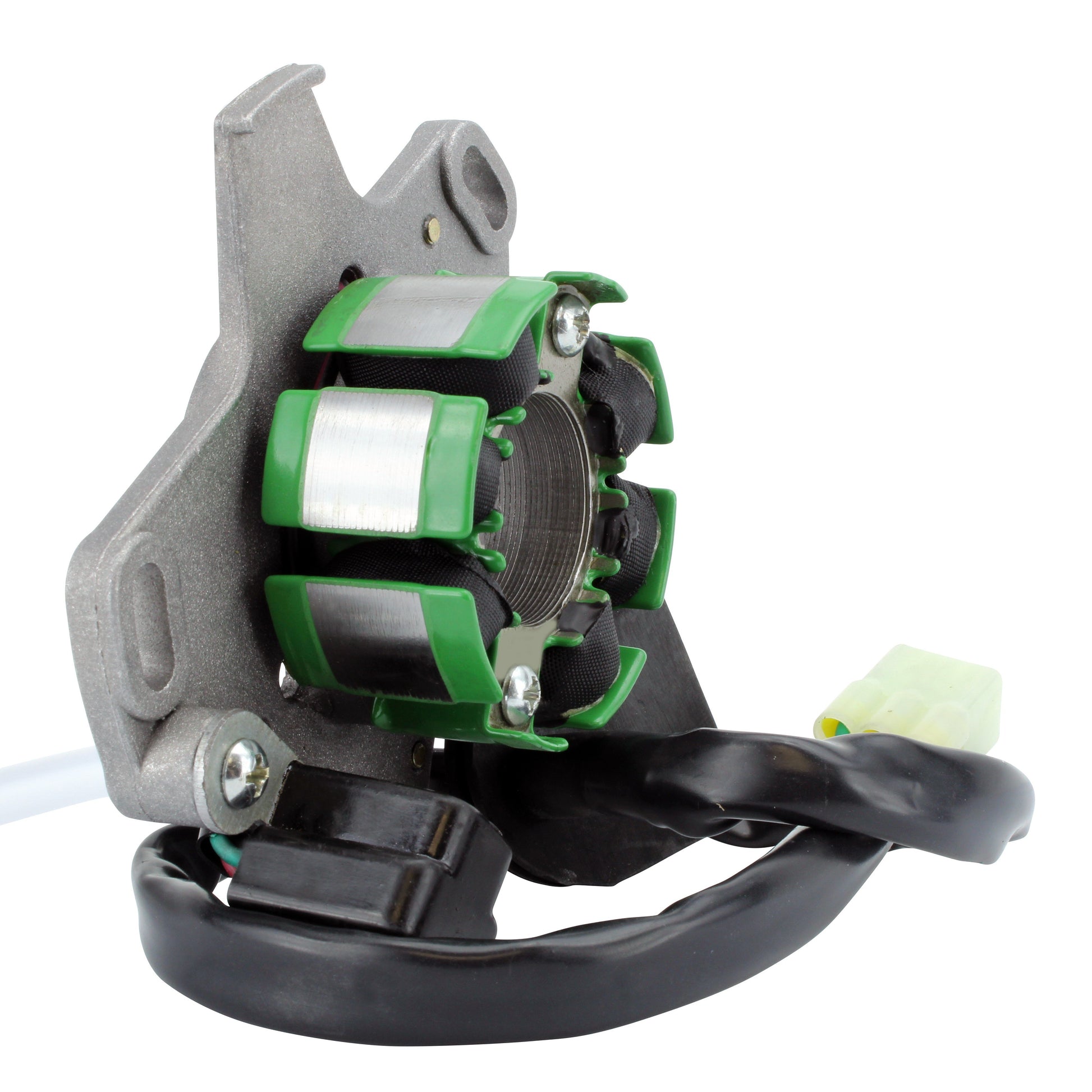

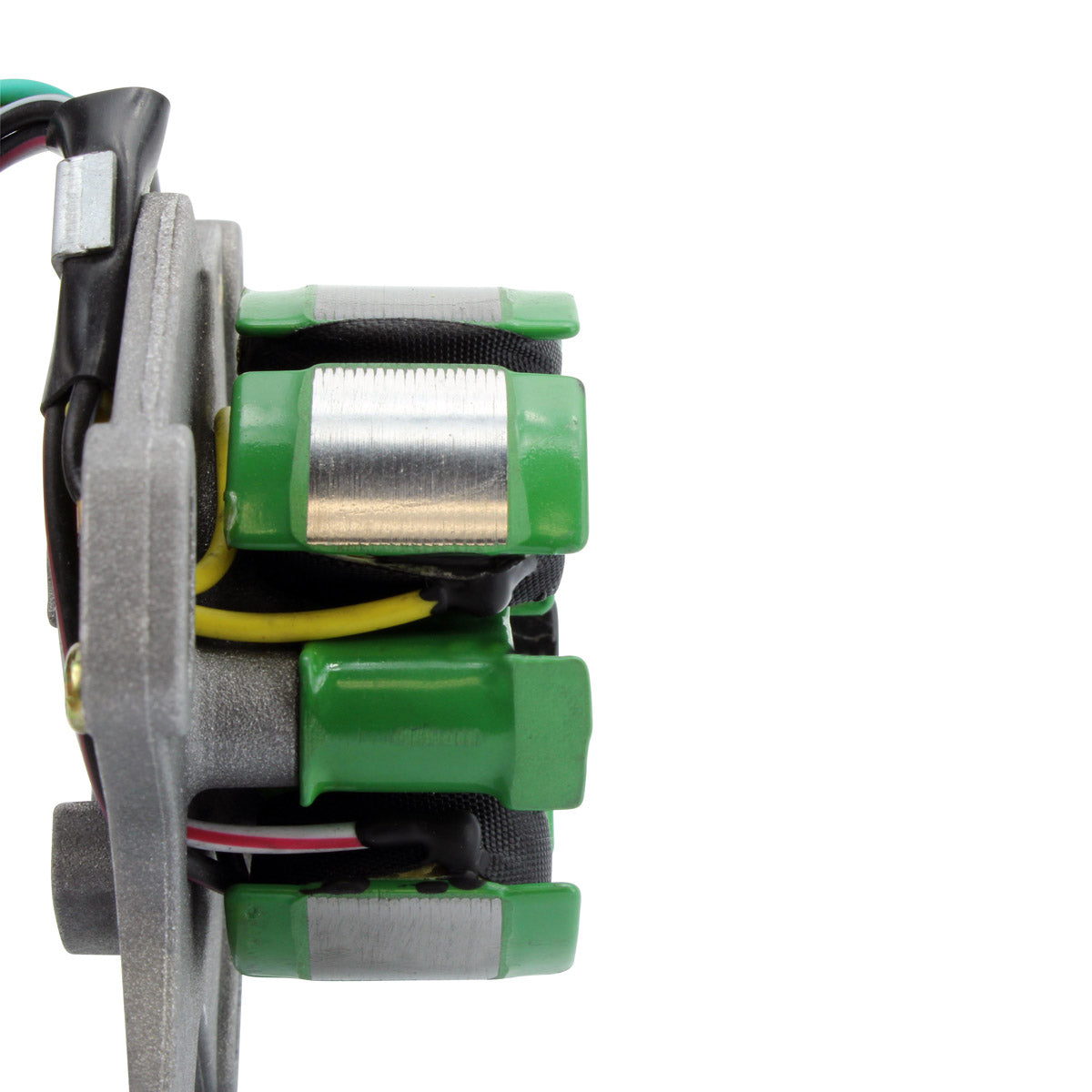

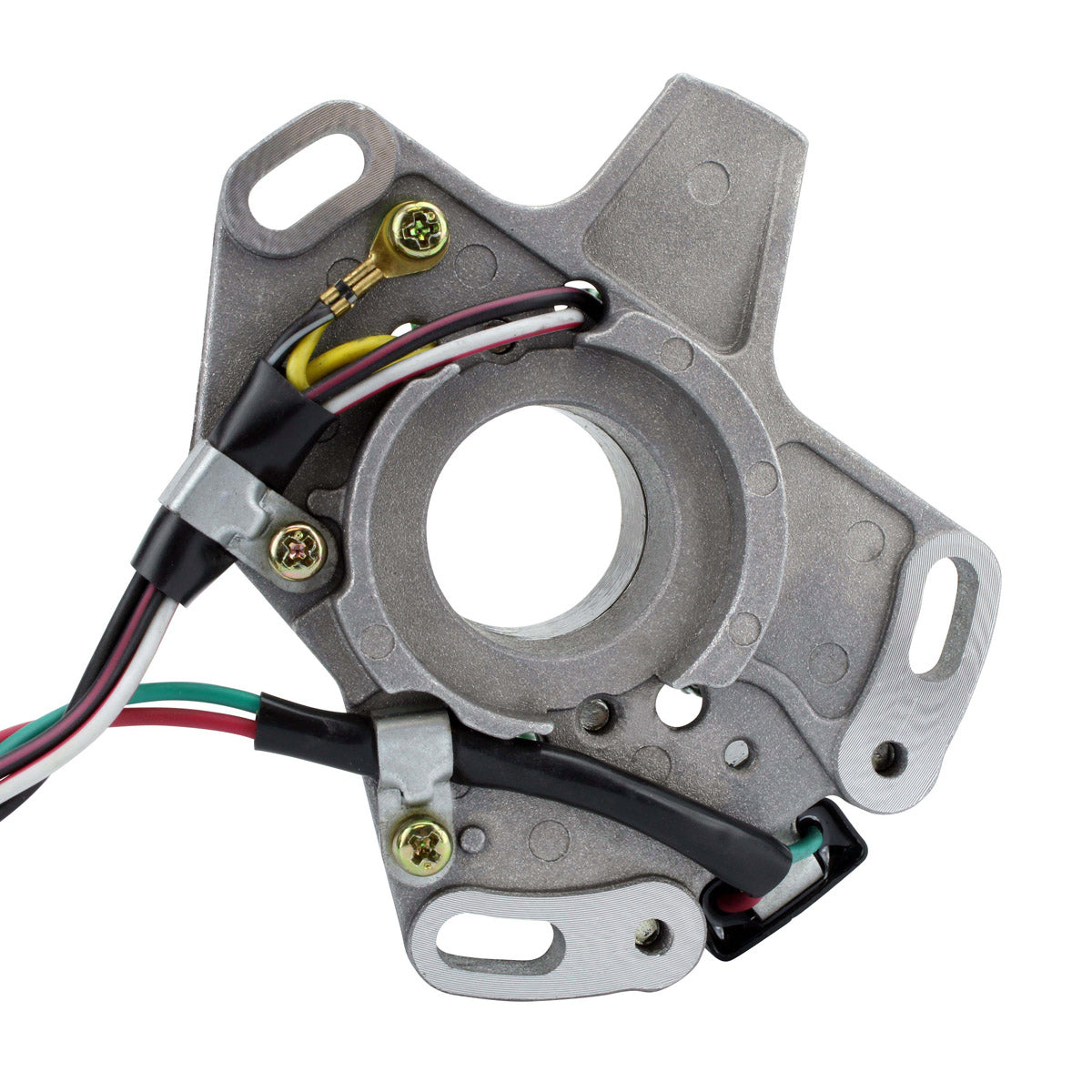

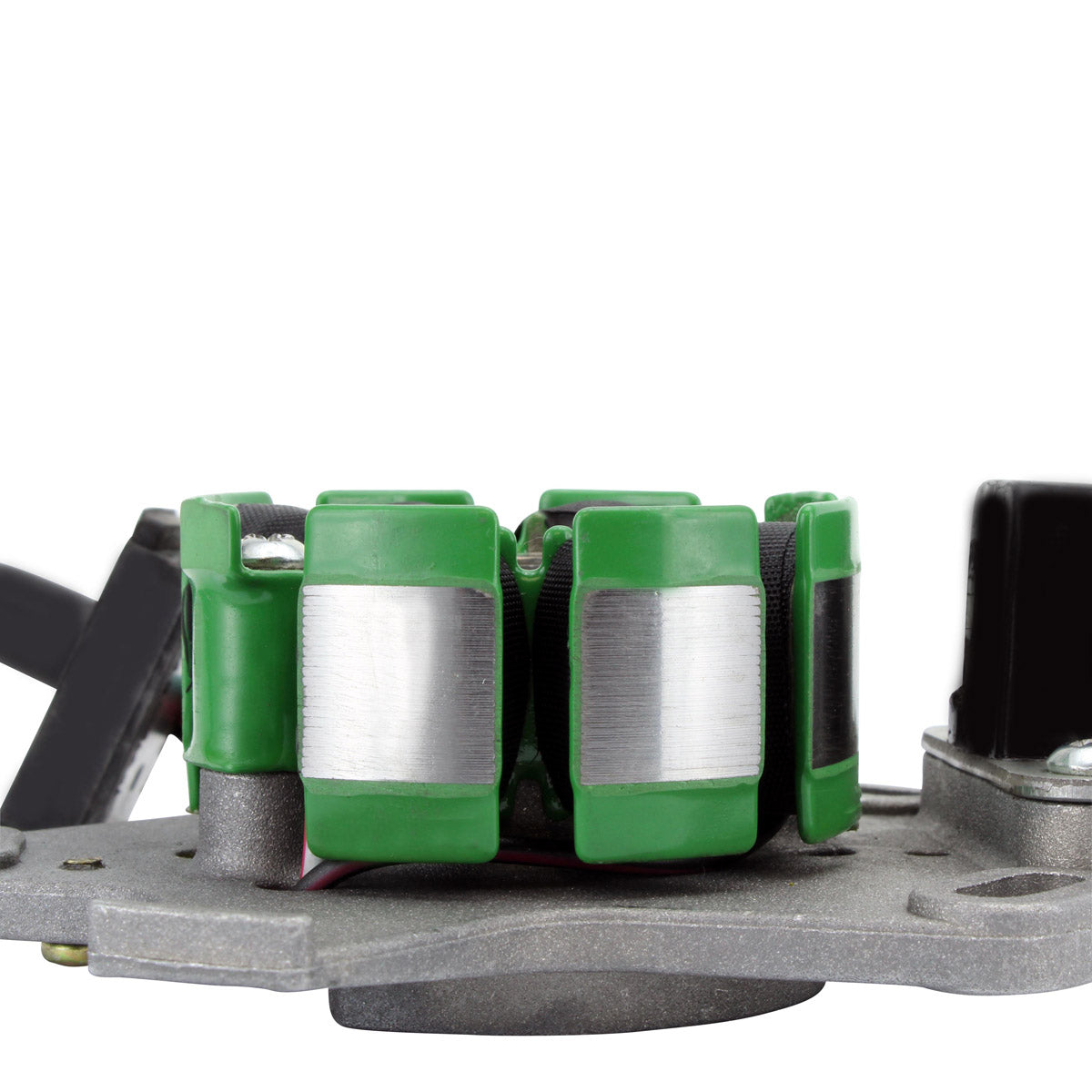

This is a brand new aftermarket stator for the Suzuki RM 125, supplied as a complete assembly with the pickup pulsar coil and back plate already fitted. On this machine the stator carries three separate windings on one plate: the alternator winding, the source coil that supplies the ignition, and the pickup coil that tells the CDI when to fire. A fault in any one of them shows up as a hard-starting engine, an intermittent misfire, or a bike that cuts out and will not restart until it cools.

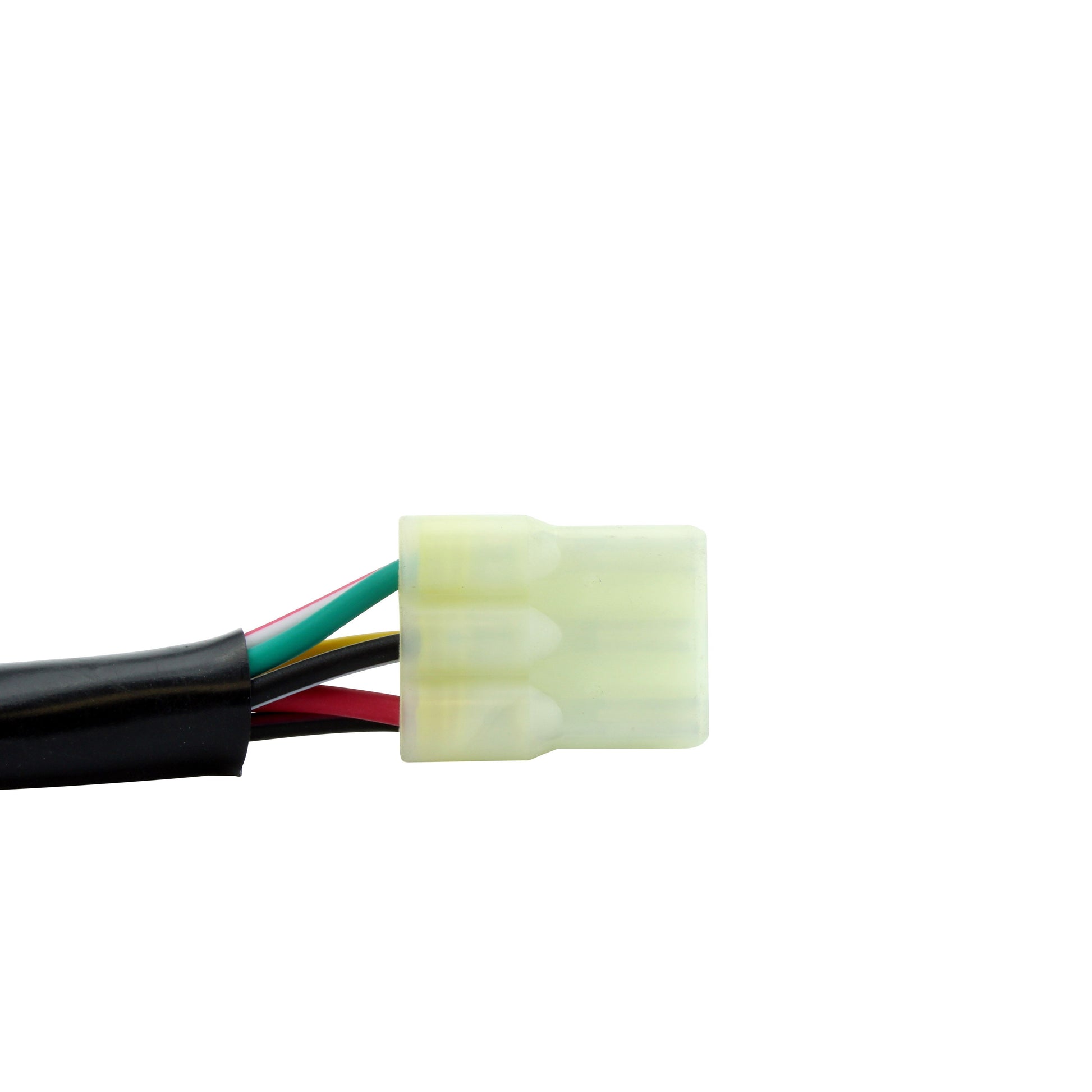

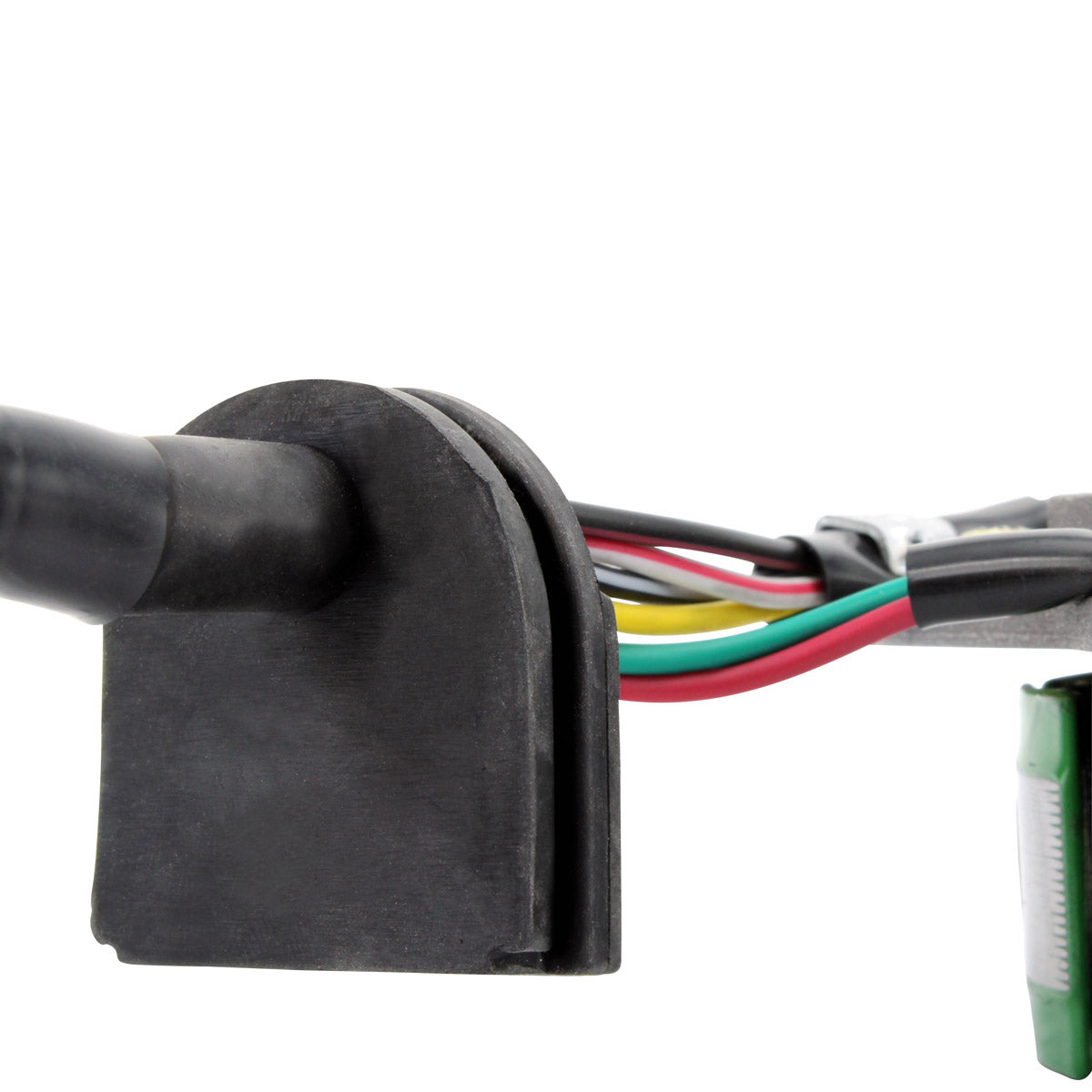

The unit is a plug-and-play, direct fit replacement for the original. It shares the same 58 mm outside diameter, the same six-wire output through a single plug and the same mounting plate, so it drops into the standard position with no cutting, splicing or modification. It is built on the highest grade lamination materials with the highest grade copper winding, rated to resist 200 degrees Celsius, and every unit is tested before it is shipped. The connector and rubber grommet are included, along with the opposite connector for the main harness side, since those plugs are often melted, corroded or defective and are a major cause of repeat electrical issues.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Pickup pulsar coil included
- Back plate included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included
- Opposite connector for the main harness side included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-102183 |
| Interior diameter |
28 mm |
| Exterior diameter |
58 mm |
| Thickness |
12 mm |
| Wire length, stator to grommet |
15 mm |
| Wire length, grommet to plug |
530 mm |
| Number of wires |
6 |
| Number of plugs |
1 |
| Number of pins |
6 |
| Alternator resistance, yellow to black/white |
0.4 ohms +/- 20% |
| Pickup resistance, red to green |
100 ohms +/- 20% |
| Source coil resistance, black/red to red/white |
32 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Suzuki RM 125 |
2005-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 32101-36F30 |
Suzuki |
Frequently Asked Questions
Will I have to modify the bike or the loom?
No. It is a plug-and-play, direct fit part. The plate, the six wires and the single plug match the original, so it fits the standard mounting position and connects to the existing harness with no cutting or splicing.
What is included in the box?

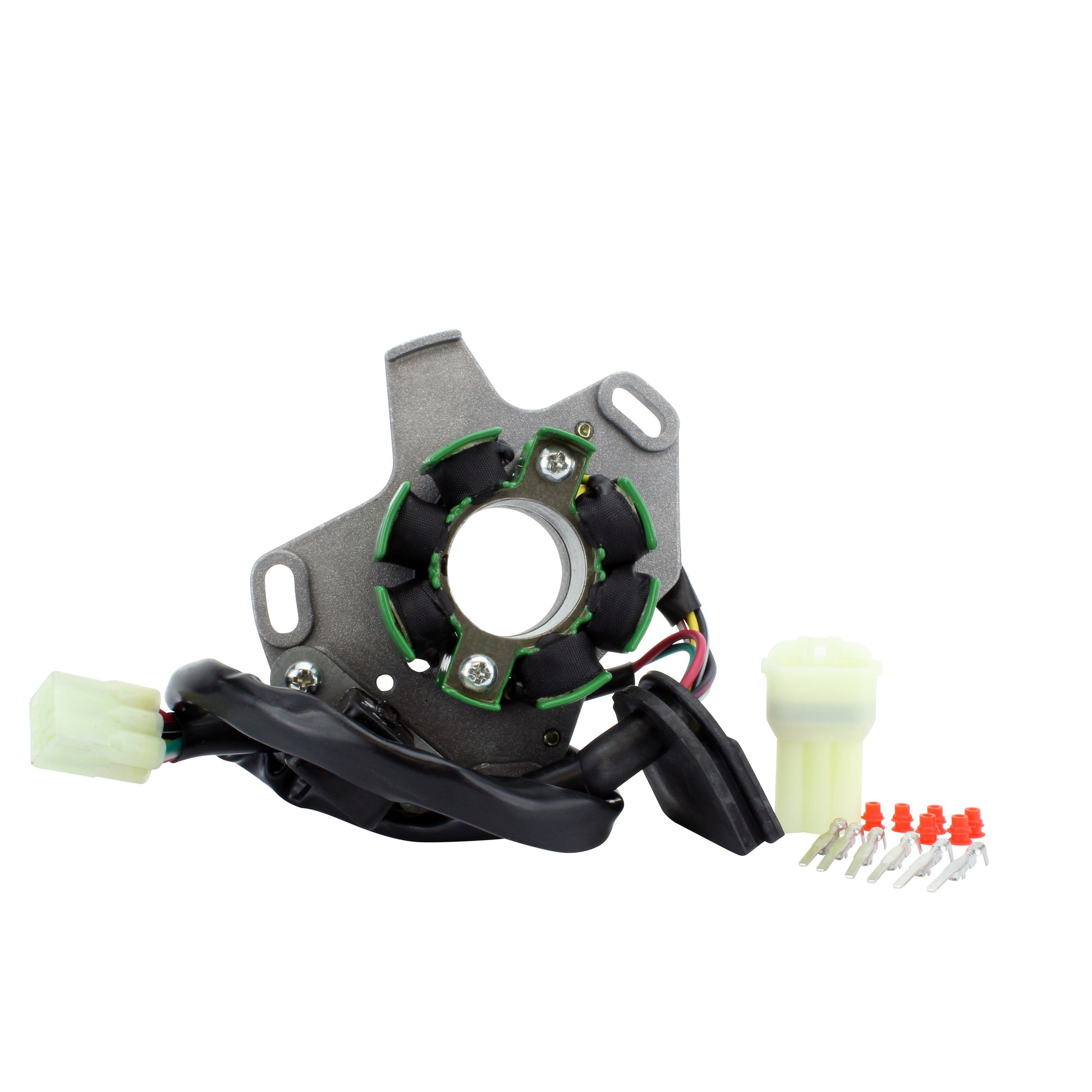

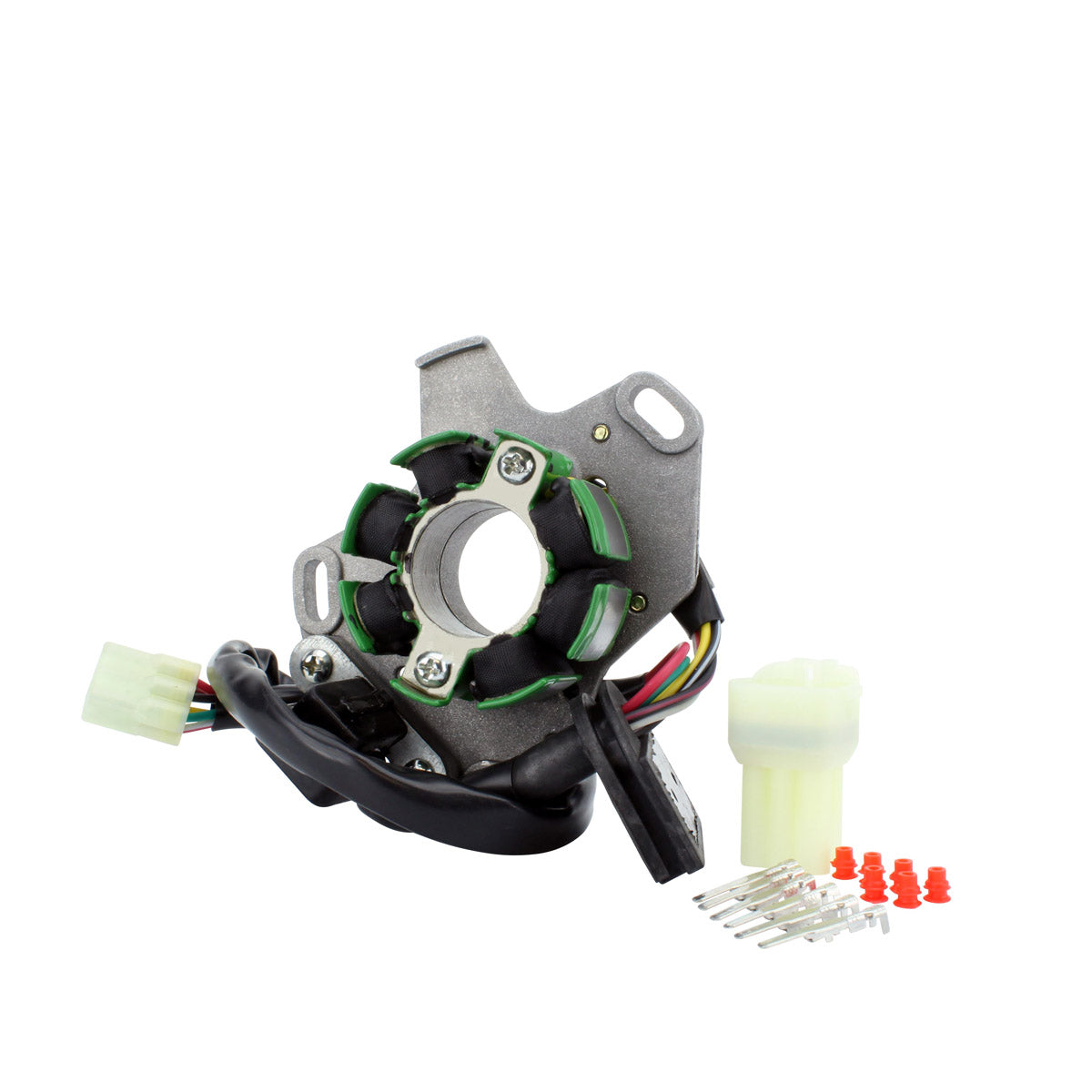

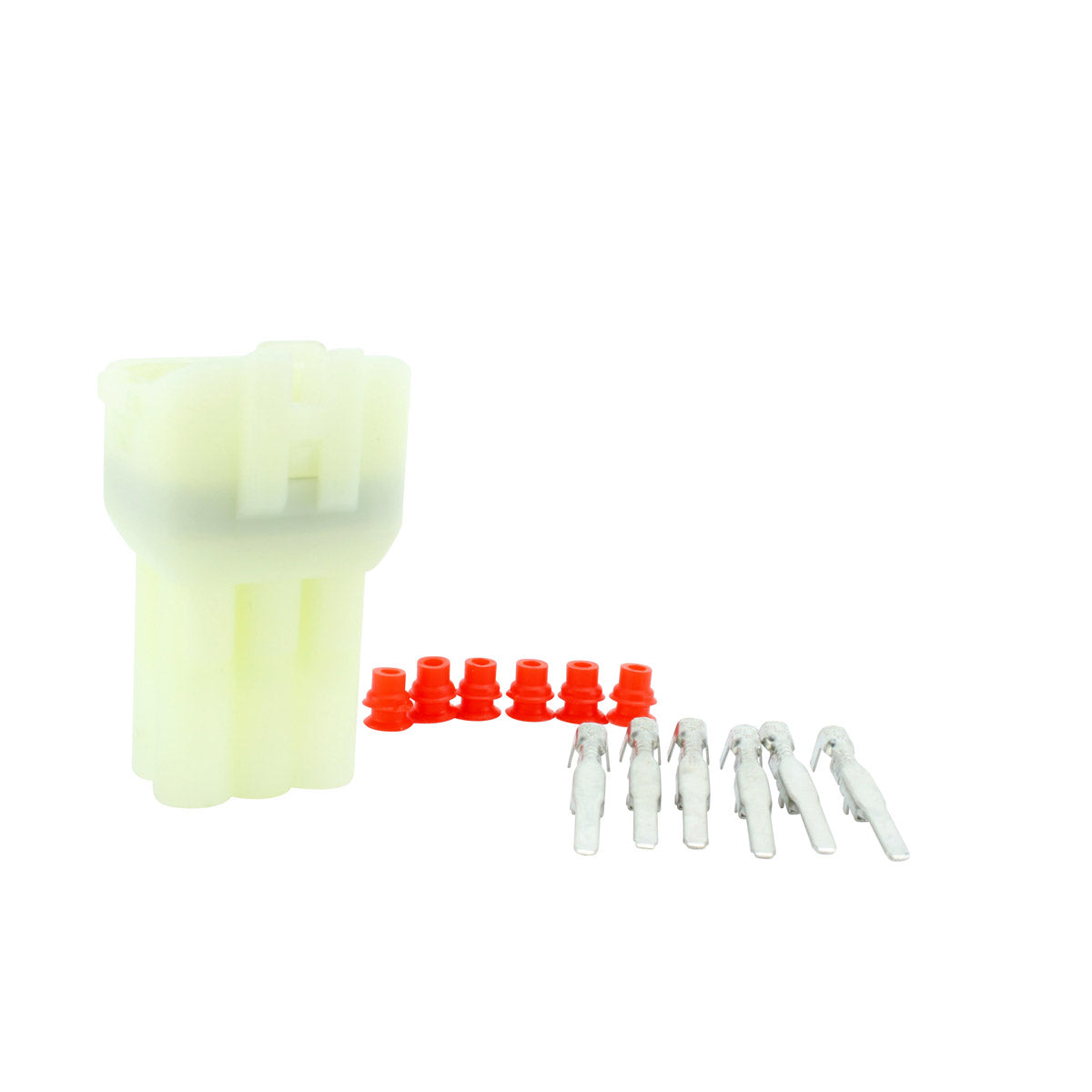

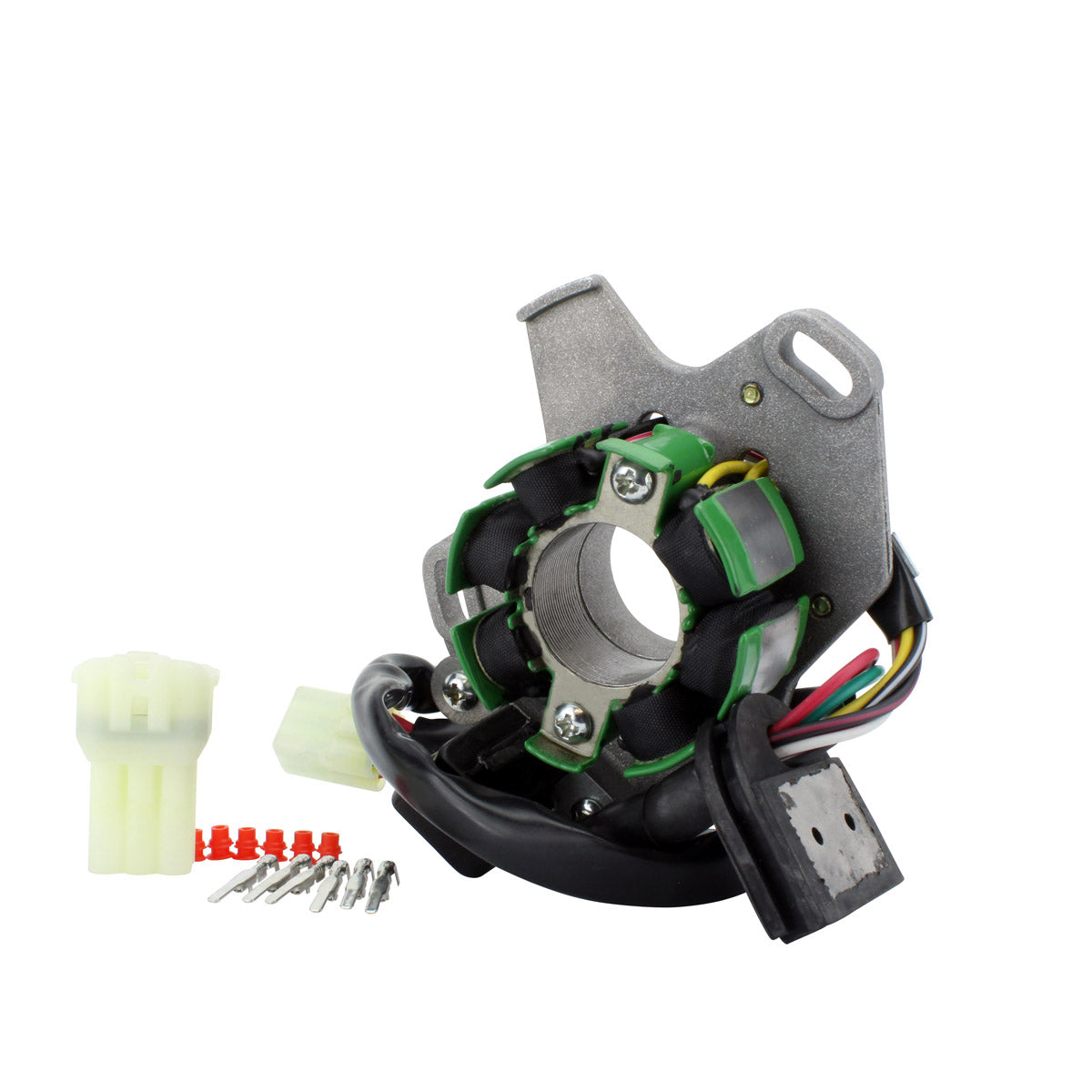

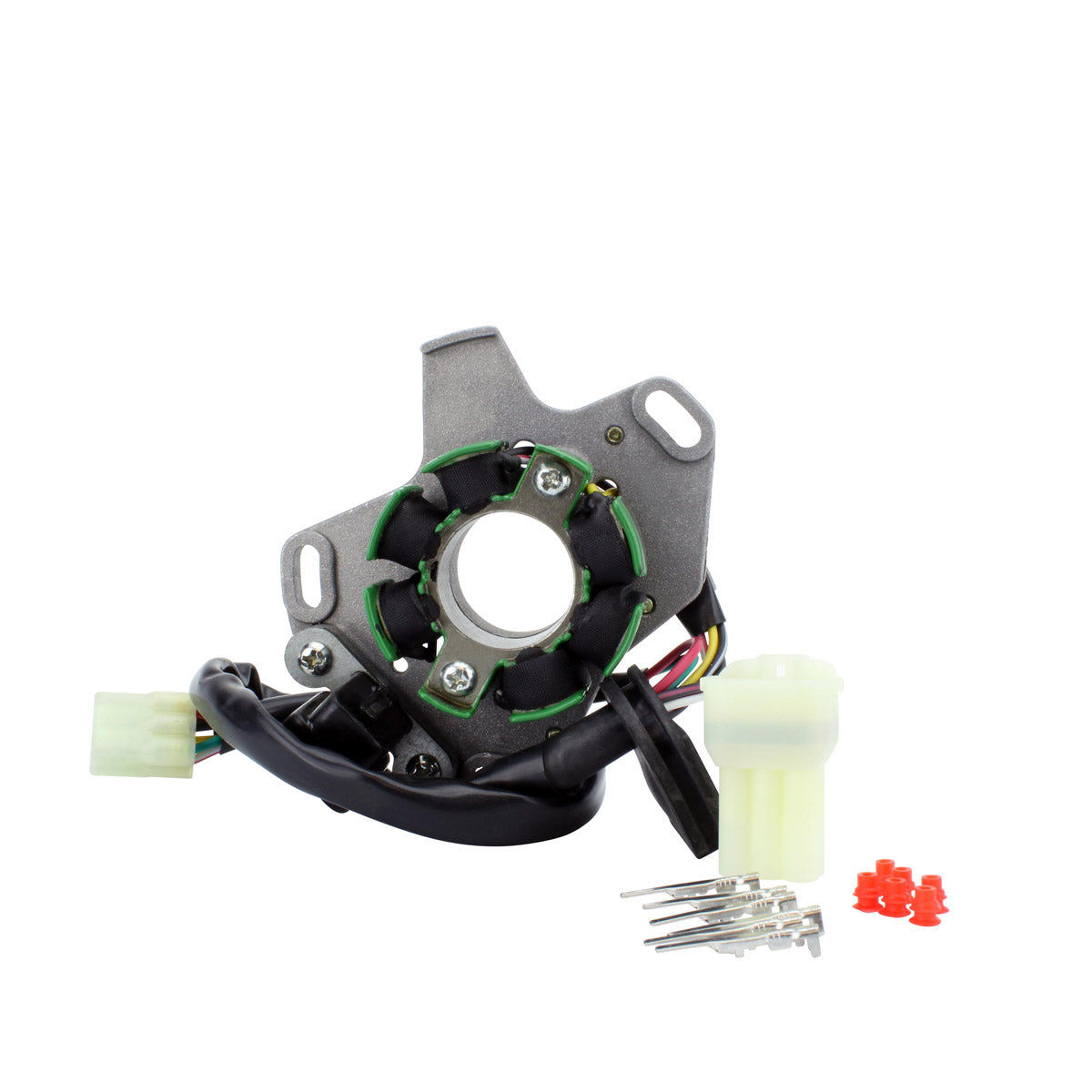

The stator with its connector, the pickup pulsar coil, the back plate, the rubber grommet and the opposite connector for the main harness side.
How do I test the old one before I strip the engine?
Unplug the connector and take three readings. Yellow to black/white should be about 0.4 ohms, red to green about 100 ohms, and black/red to red/white about 32 ohms, each within roughly 20 per cent. An open circuit on any of those pairs, or continuity from a winding wire to the engine casing, means the stator has failed.
Why does this stator have three different windings?

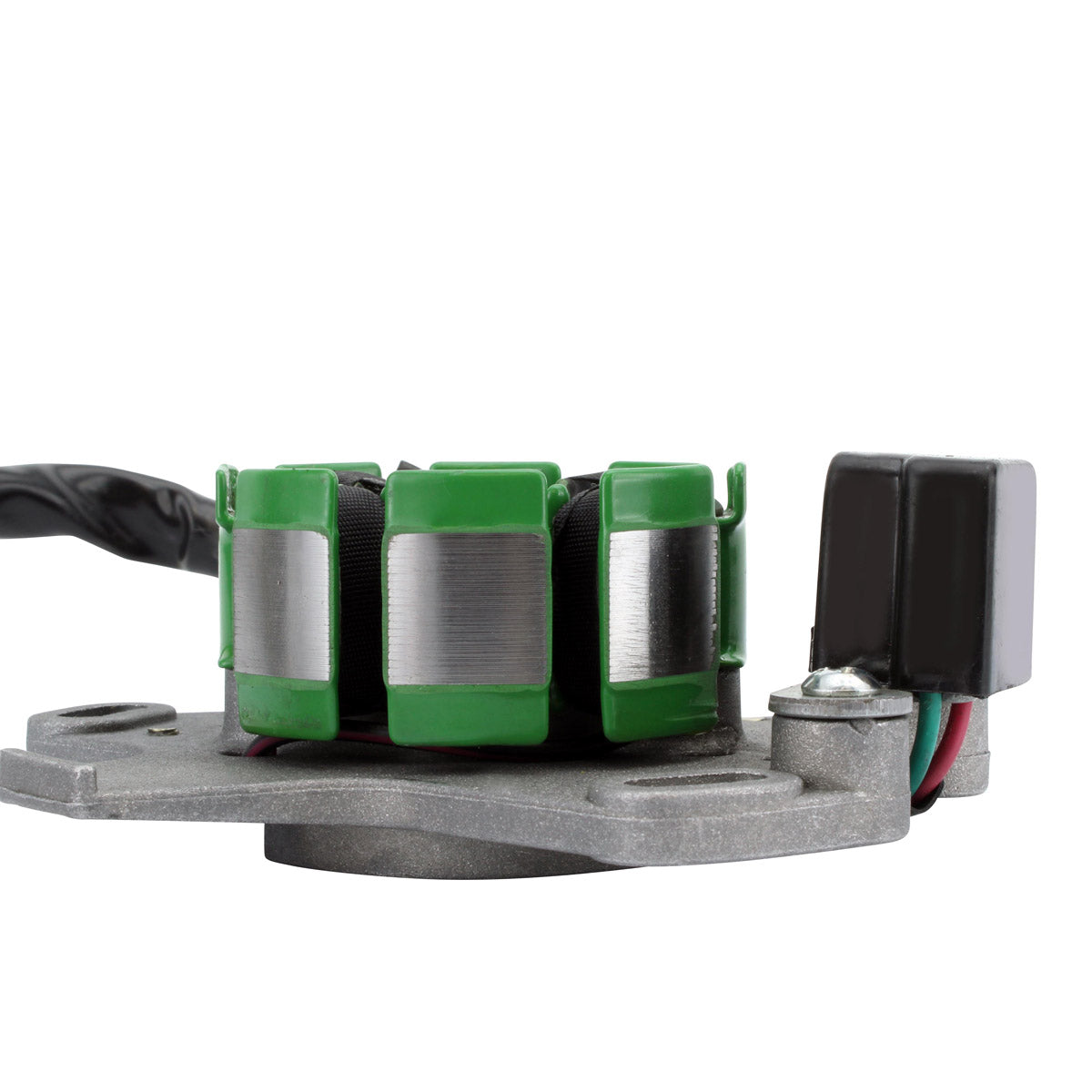

The RM 125 plate carries the alternator winding, the source coil for the ignition and the pickup coil that provides the trigger signal, all on the same assembly. That is why there are six wires rather than the usual three, and why all three resistance figures above need to be within tolerance for the engine to run correctly.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
