Generator Stator for Triumph Daytona 955i 2002-2006
Triumph Daytona 955i - 2002 to 2006 - RMSTATOR part RM01388S

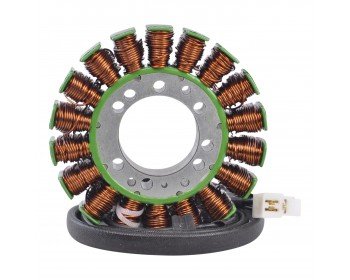

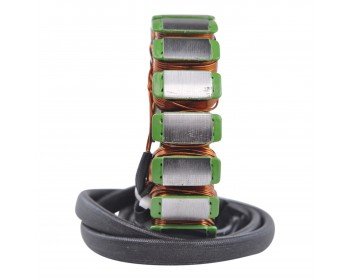

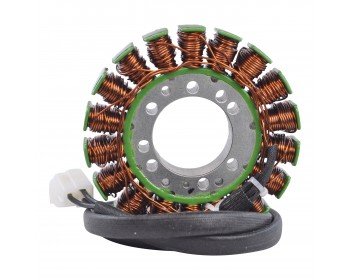

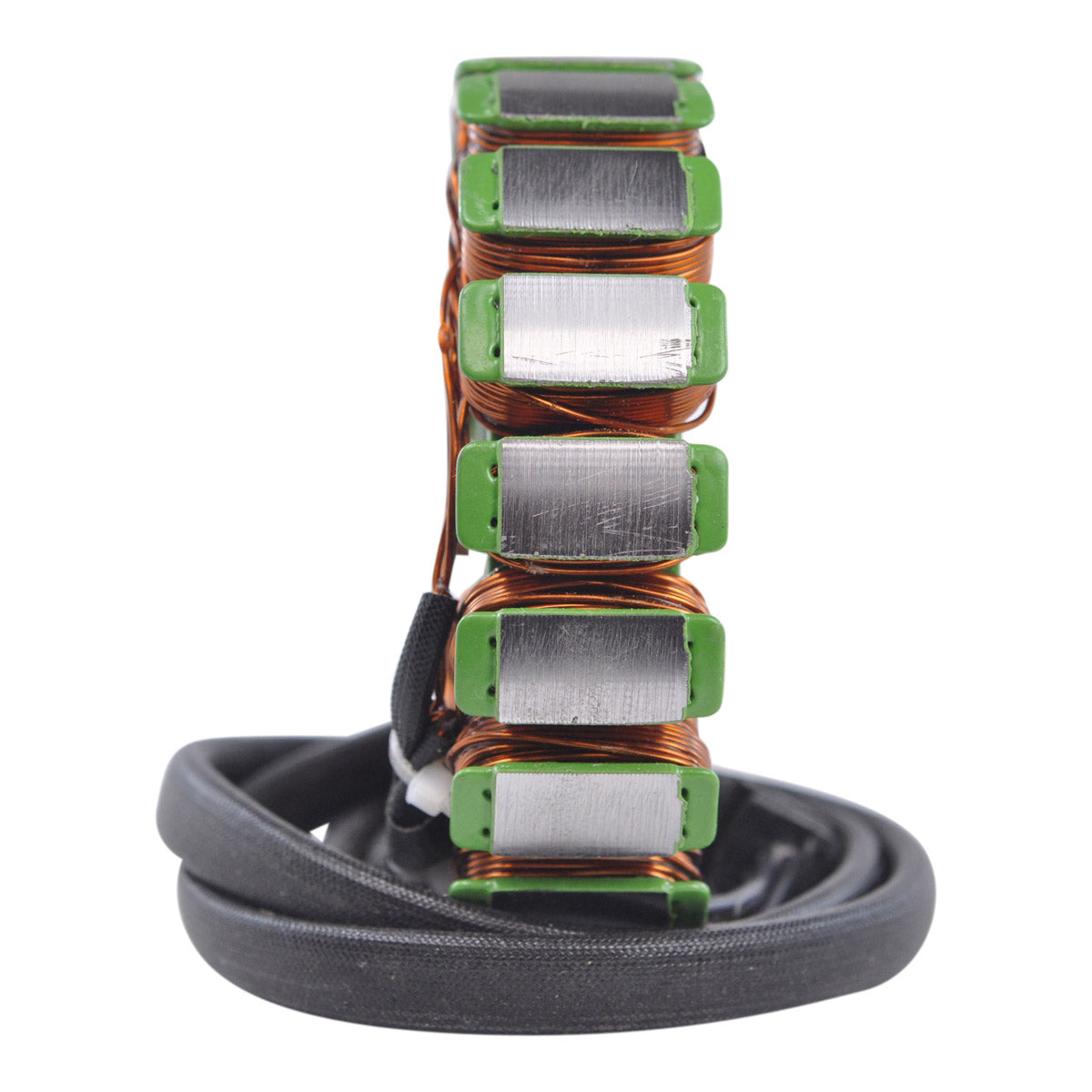

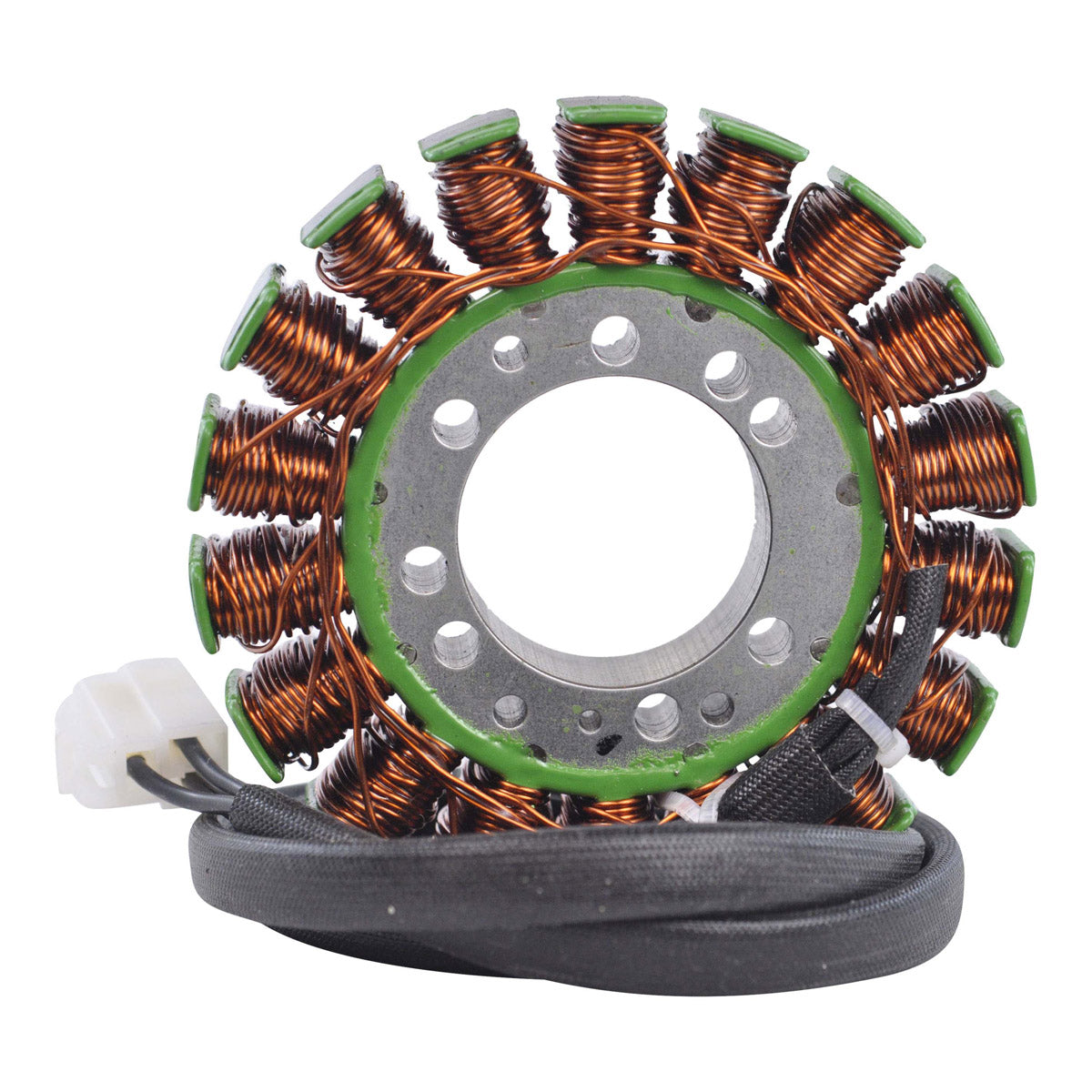

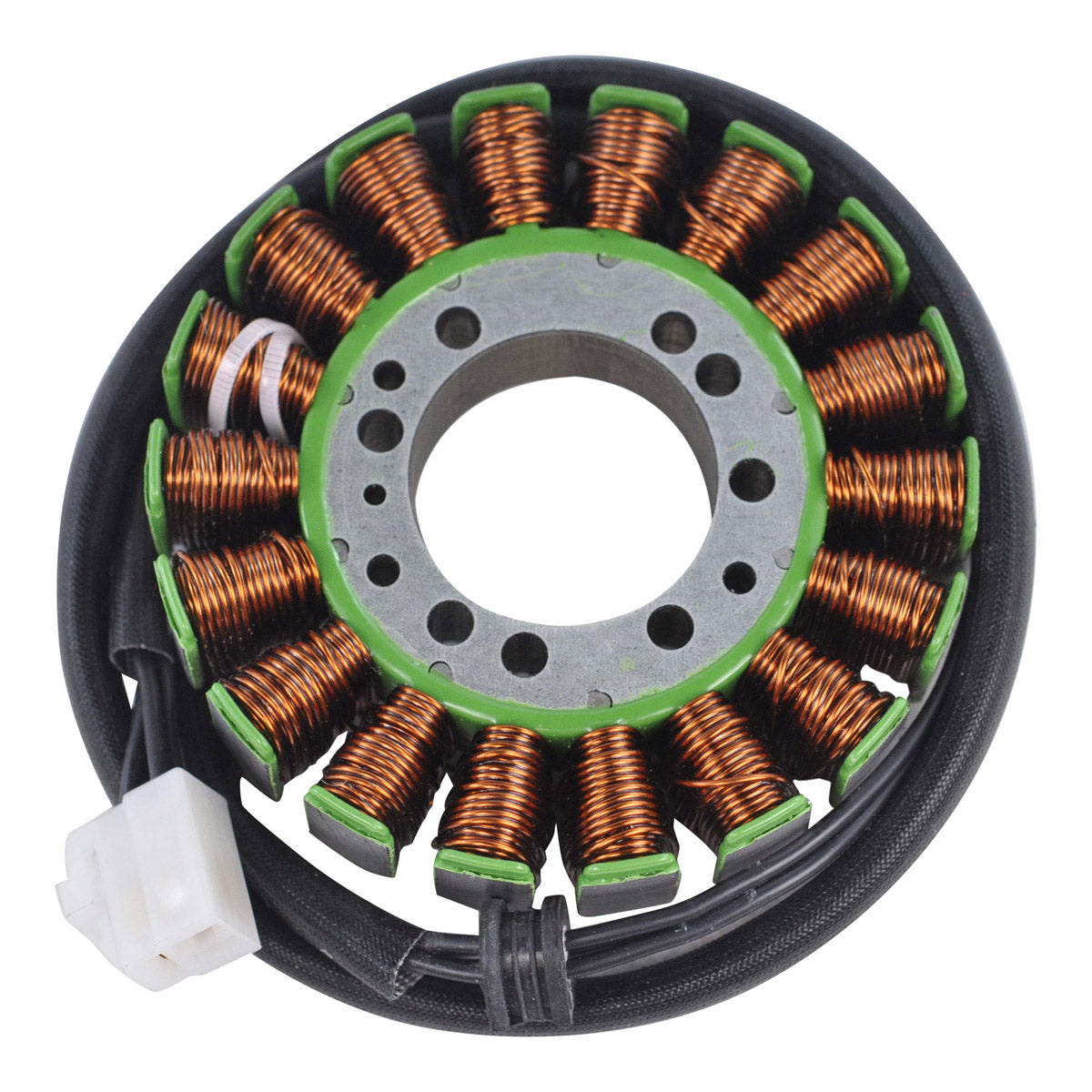

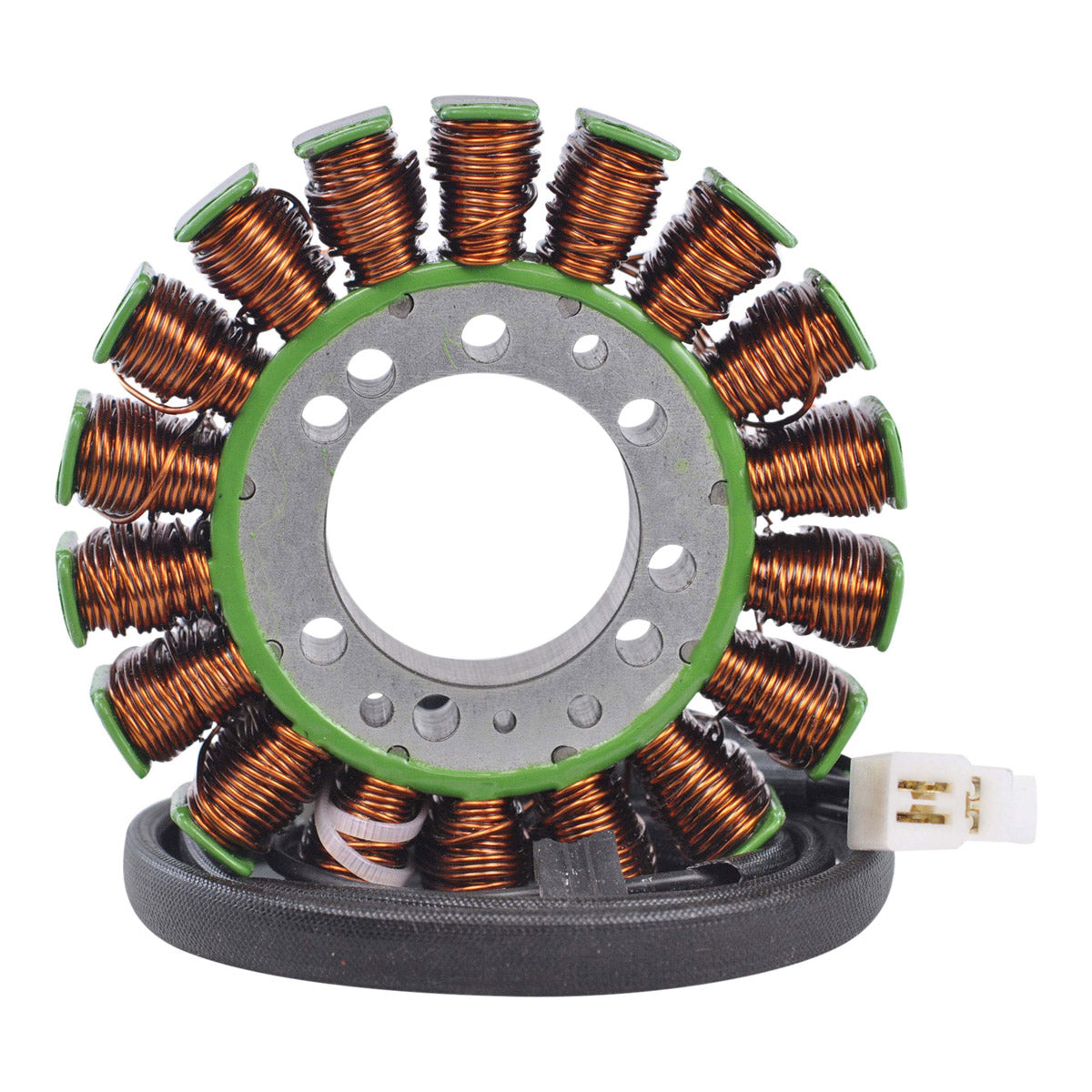

This is a brand new aftermarket generator stator for the Triumph Daytona 955i built between 2002 and 2006. It is supplied as a direct replacement for the original unit and installs plug-and-play: it mounts in the original position inside the alternator cover and its three-pin plug mates with the standard loom, so the harness does not need to be cut, spliced or re-pinned.
The core is built from high grade lamination material and the windings from copper rated to resist 200 degrees Celsius. A stator lives directly against a hot engine casing on a machine like the 955i, so the winding temperature rating is what determines how long it survives. The connector and the rubber grommet are supplied with the unit, and every stator is tested before it is shipped.
Key Features
- Brand new aftermarket generator stator, not a rewound core
- Direct replacement for the original Triumph unit

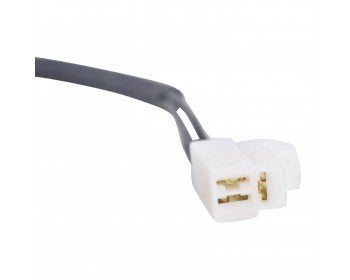

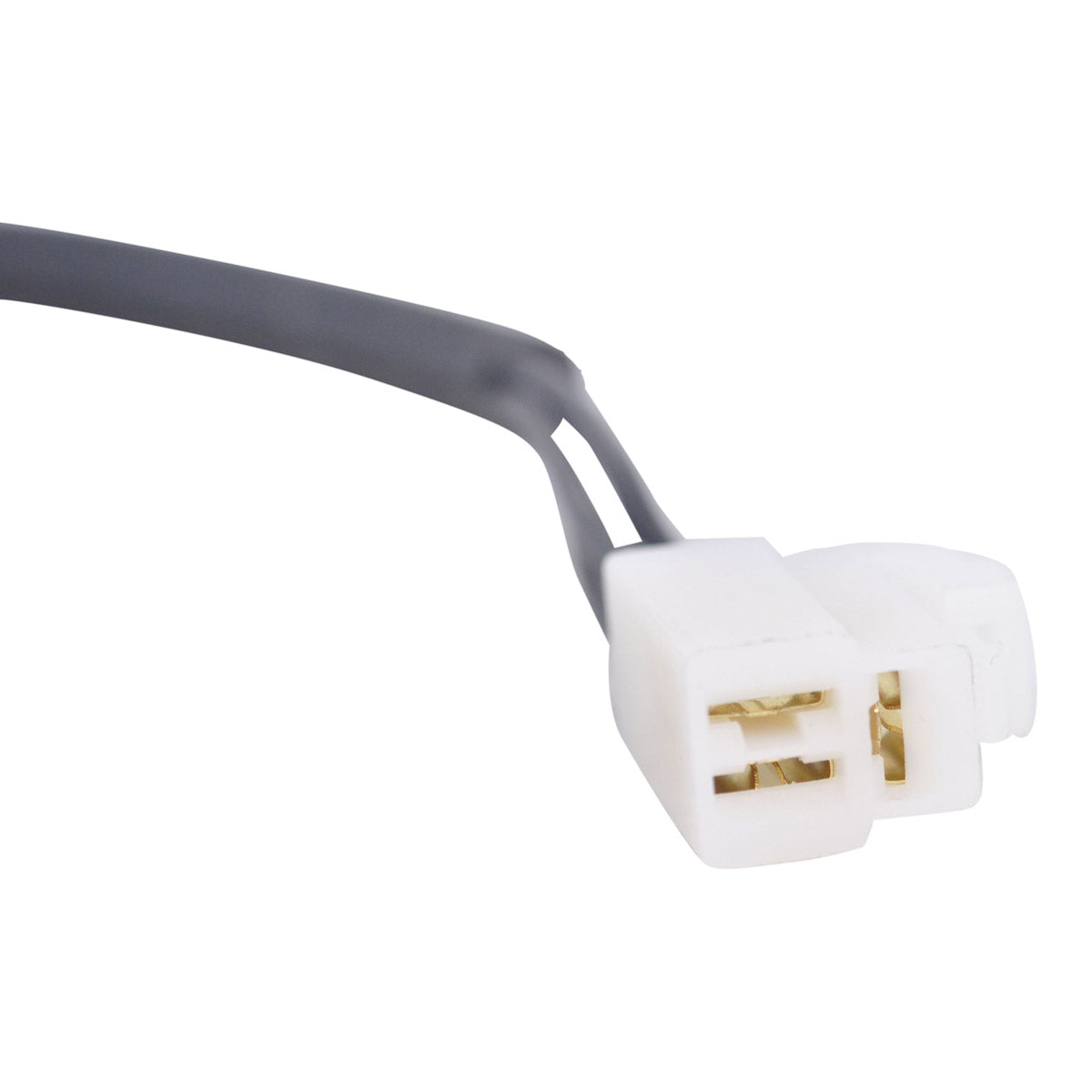

- Plug-and-play fitment, three-pin plug
- Copper winding rated to 200 degrees Celsius
- High grade lamination material
- 650 mm harness from the grommet to the plug
- Connector and rubber grommet included
- Every unit tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 115 mm |
| Width | 21 mm |
| Harness length, stator to grommet | 80 mm |
| Harness length, grommet to plug | 650 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of terminals | 3 |
| Wire-to-wire resistance, between black wires | 0.5 ohms +/- 20% |
| Copper winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01388S |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Triumph Daytona 955i | 2002-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| T1300507 | Triumph |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit on the 2002 to 2006 Daytona 955i. It mounts in the original position and the three-pin plug connects to the standard loom, so no cutting or splicing is required.
What is included in the box?
The generator stator with its 650 mm harness, the connector and the rubber grommet.
How do I tell whether my old stator has failed?
Disconnect the three-pin plug and measure between each pair of the three black wires. All three readings should be about 0.5 ohms, within 20 per cent. Then check each wire against the stator plate or engine casing - there should be no continuity at all. A battery that will not stay charged, a reading well outside 0.5 ohms on one pair, or any continuity to earth all point to a failed stator.
Does it replace Triumph part T1300507?
Yes. This is the aftermarket equivalent of T1300507 for the Daytona 955i in the years listed. Check the number on the unit you are removing to confirm before ordering.
