Stator for Triumph America, Bonneville T100, Speedmaster & Thruxton 900 2002-2008
Stator for Triumph America, Bonneville T100, Speedmaster & Thruxton 900 2002-2008
SKU:RMS010-103225
Free shipping over £150. Terms apply
Couldn't load pickup availability

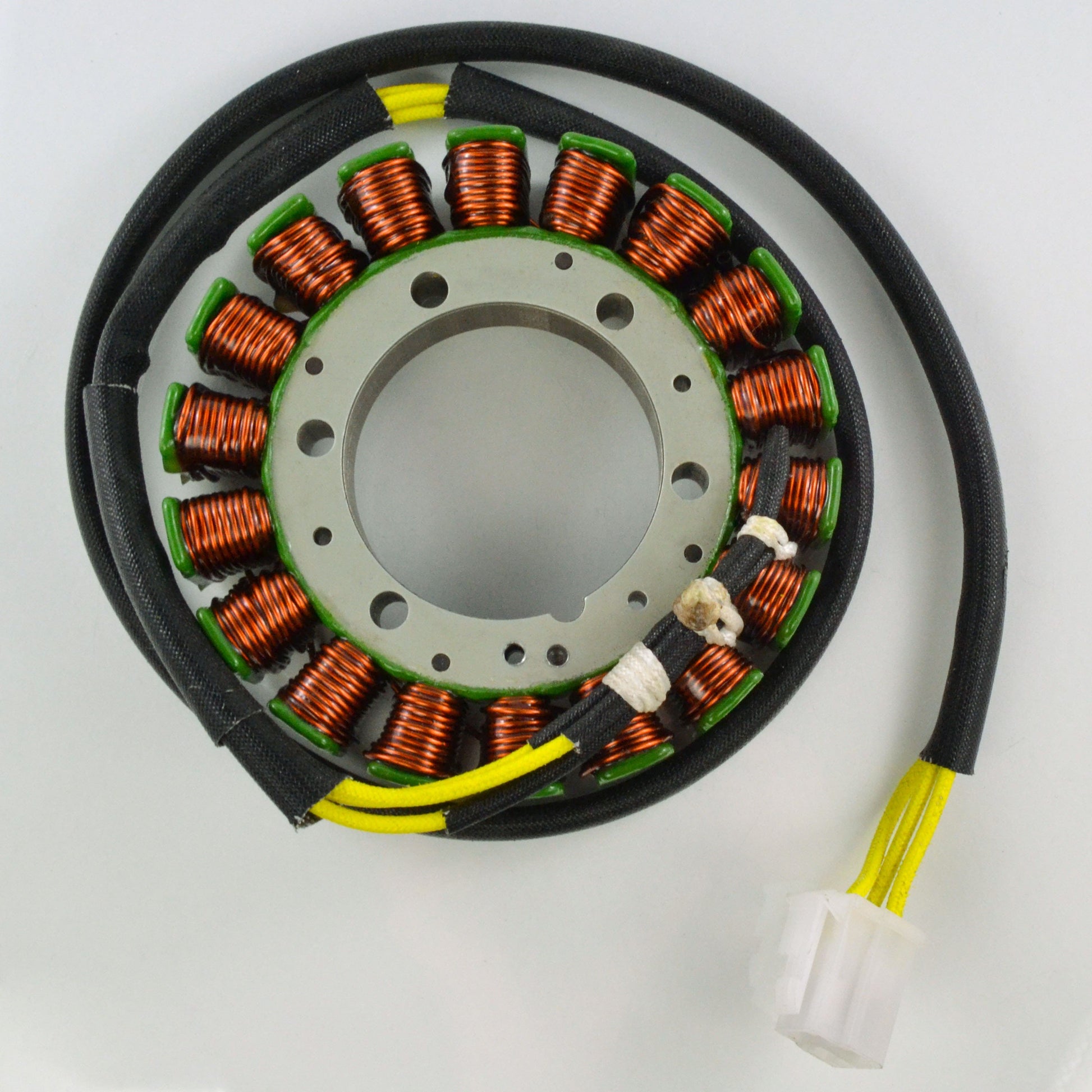

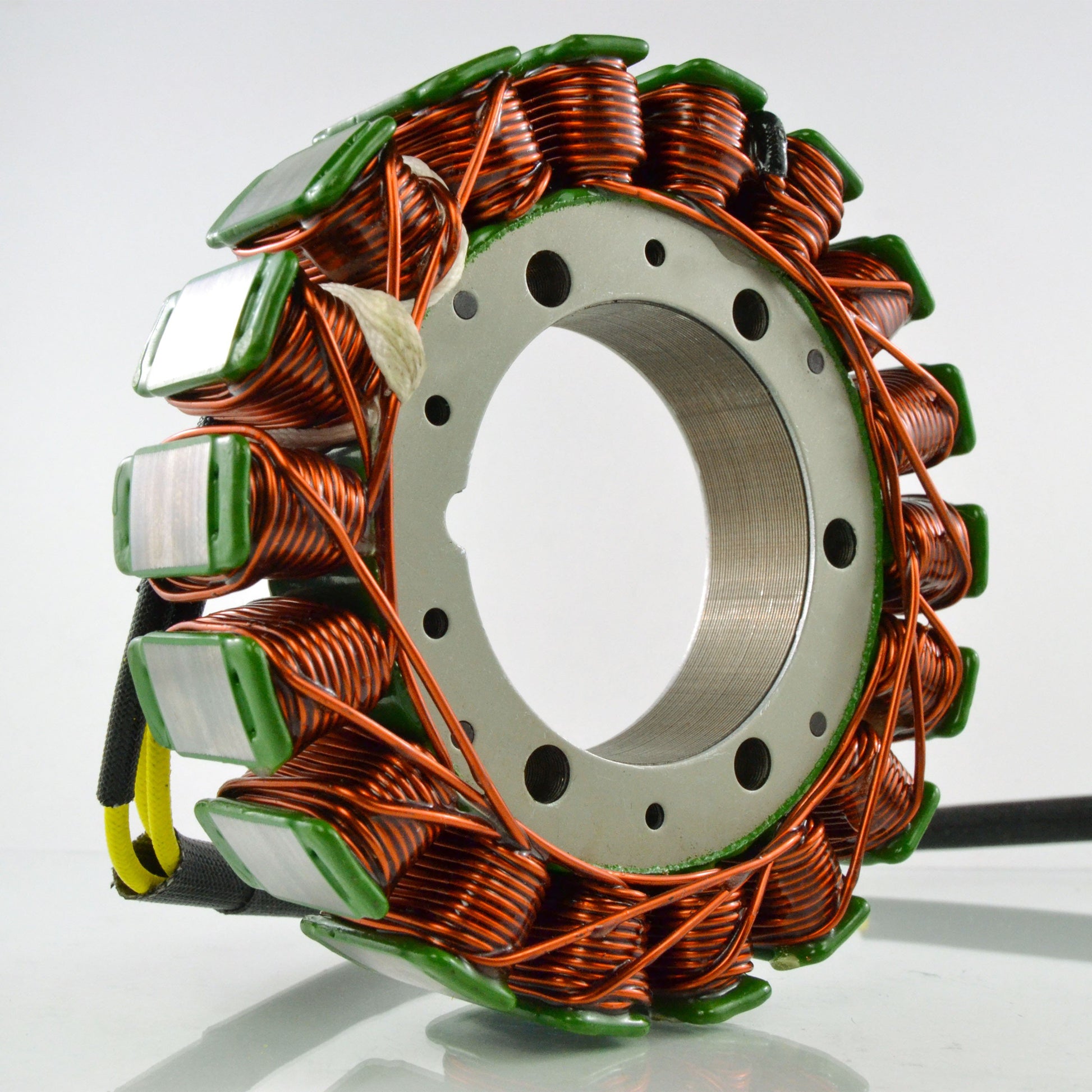

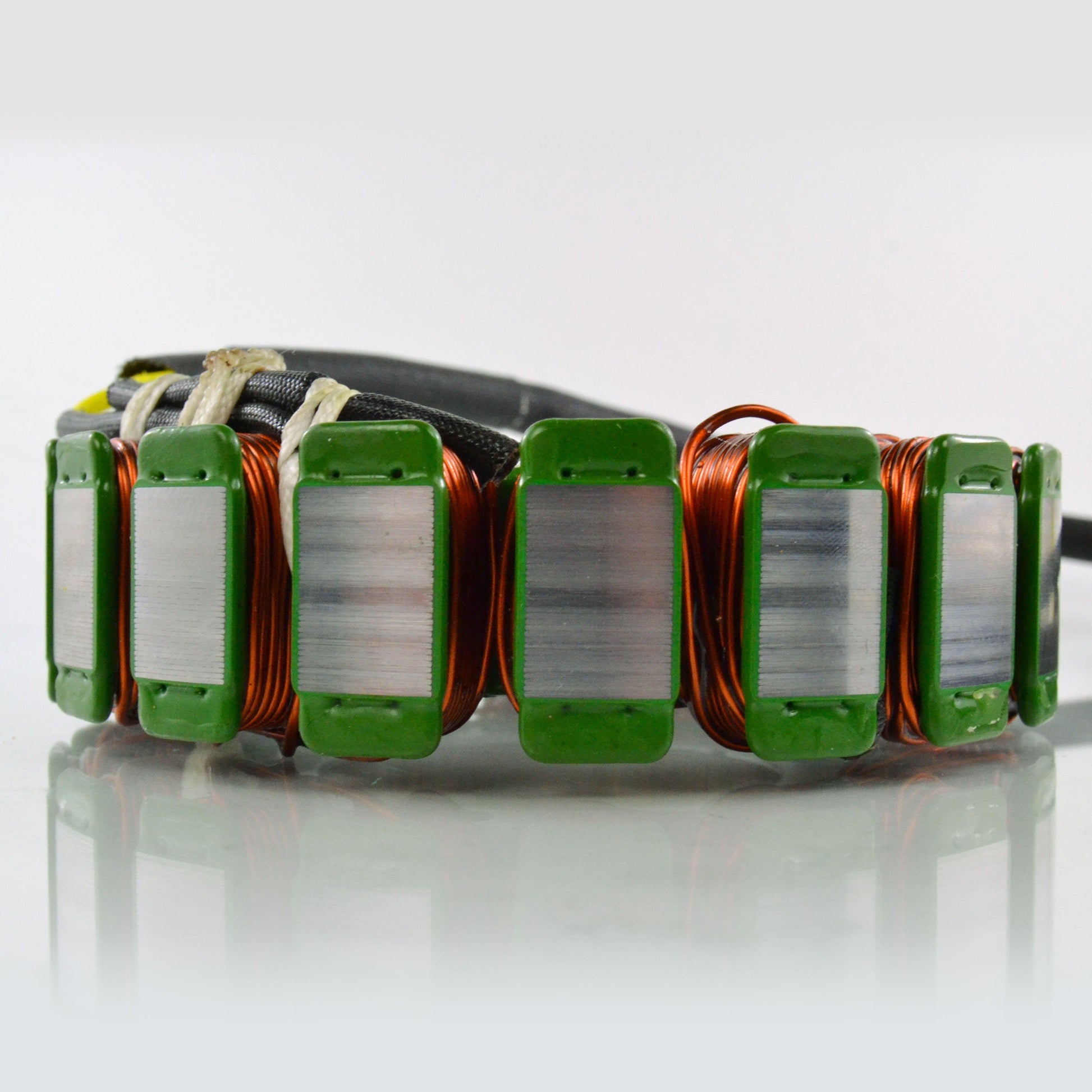

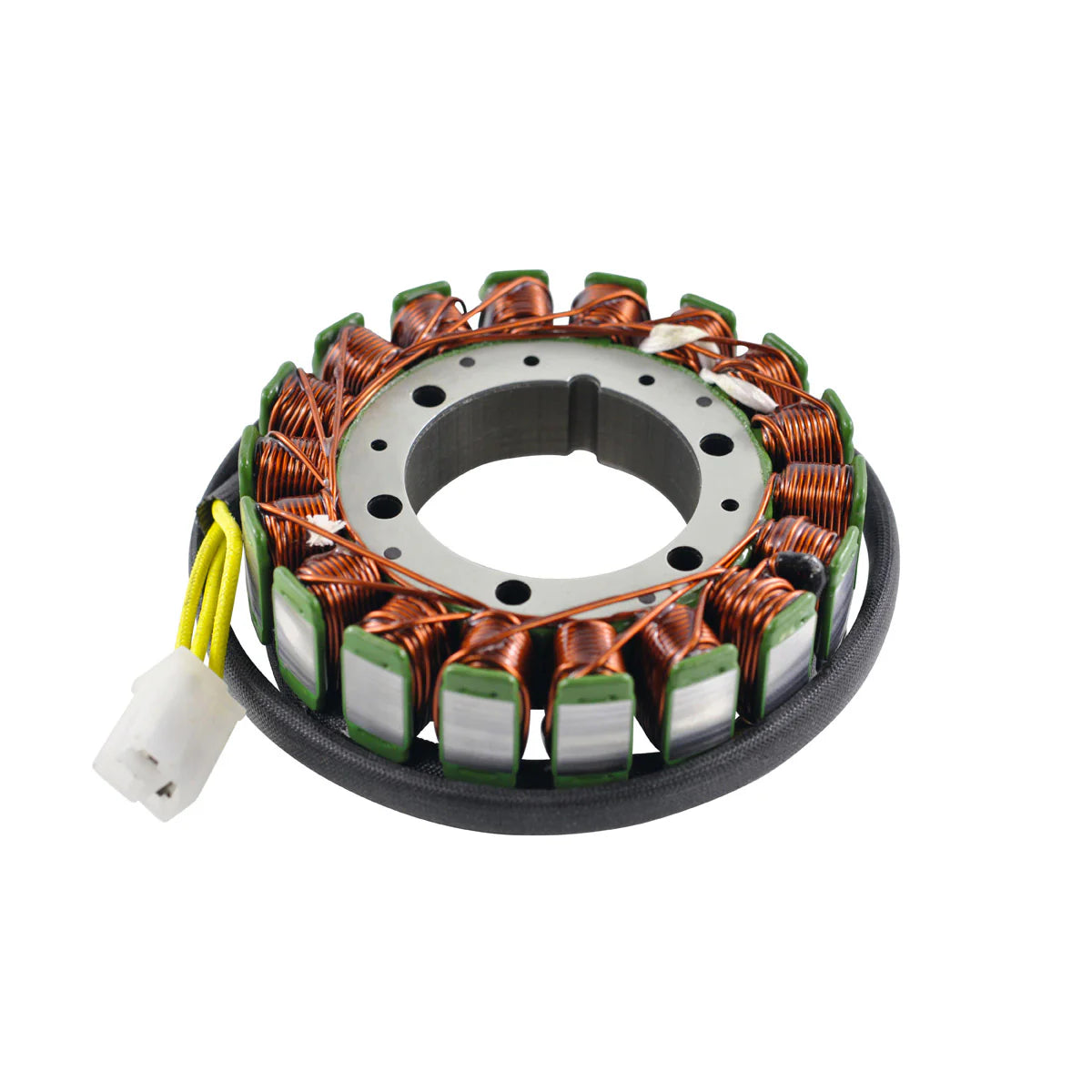

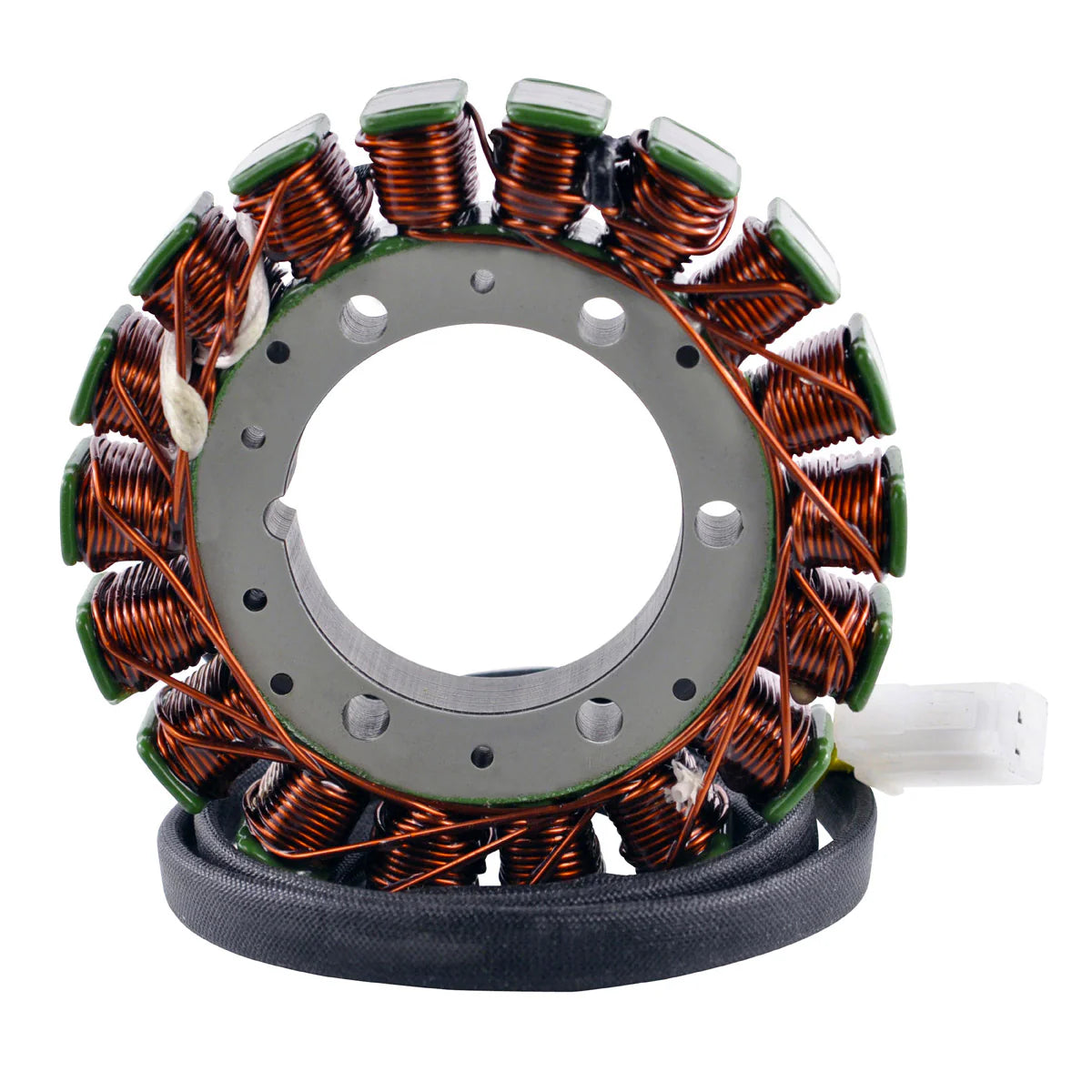

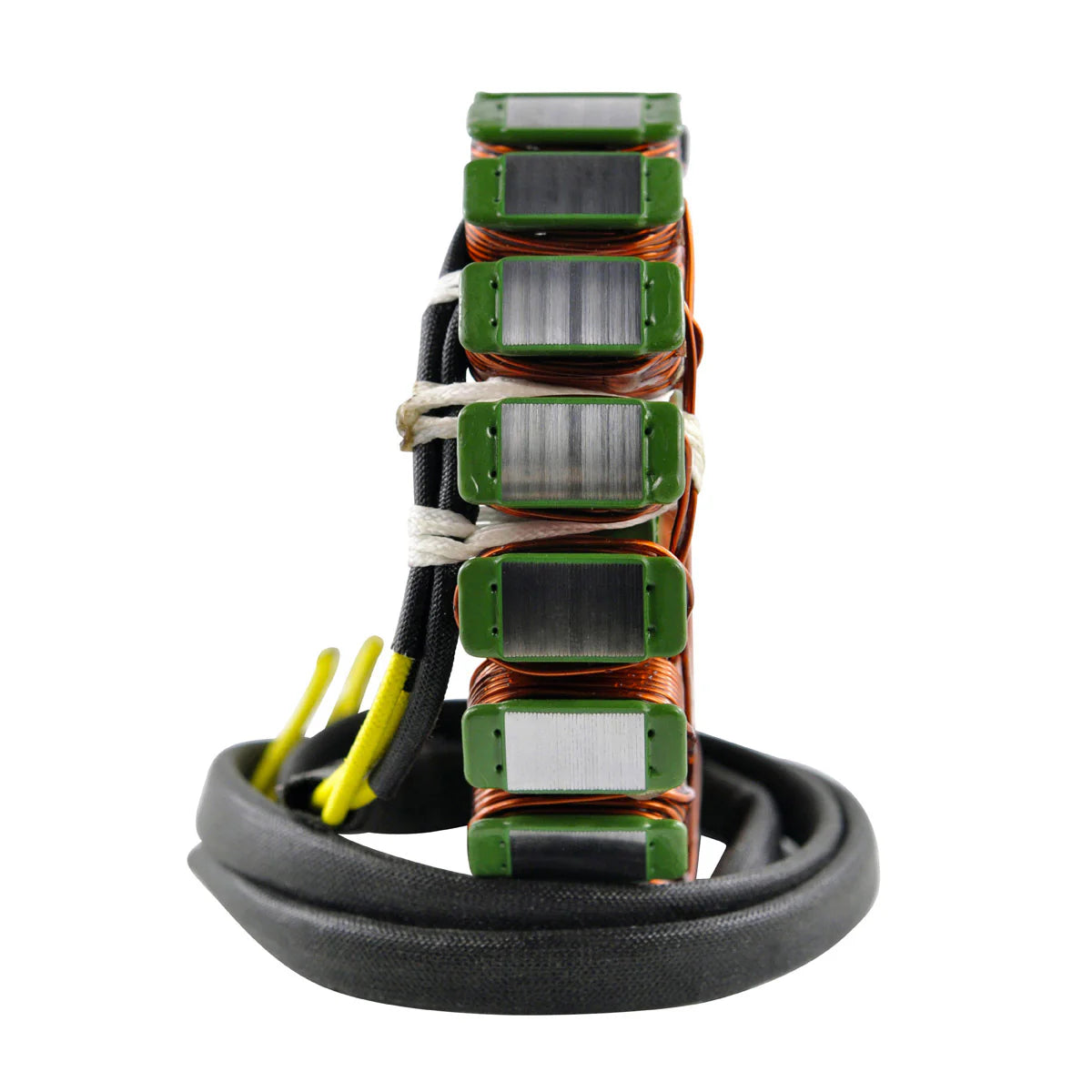

Stator for Triumph Modern Classics - Replaces T1300076
America 800 / 900, Bonneville T100, Speedmaster 800 / 900 and Thruxton 900, 2002-2008

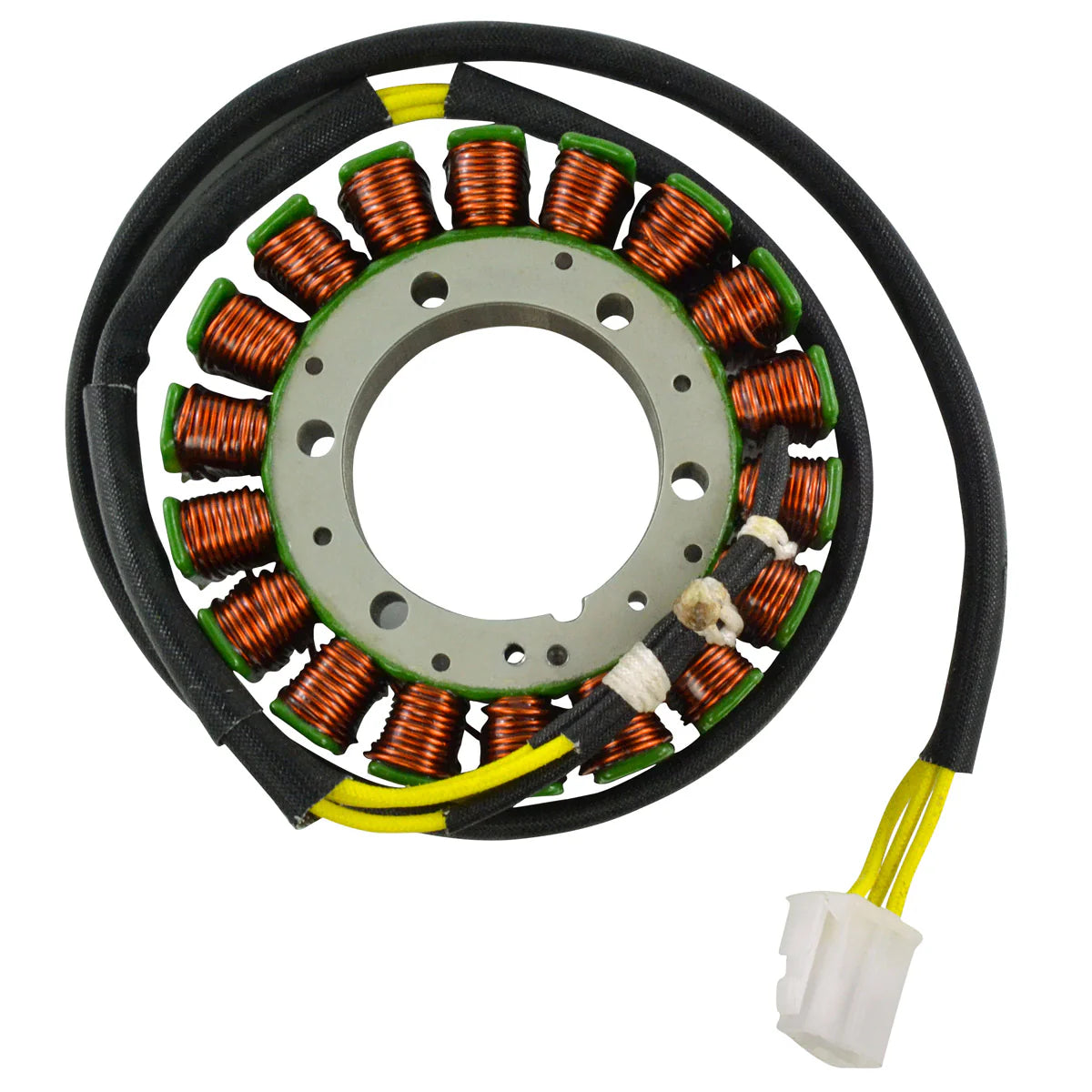

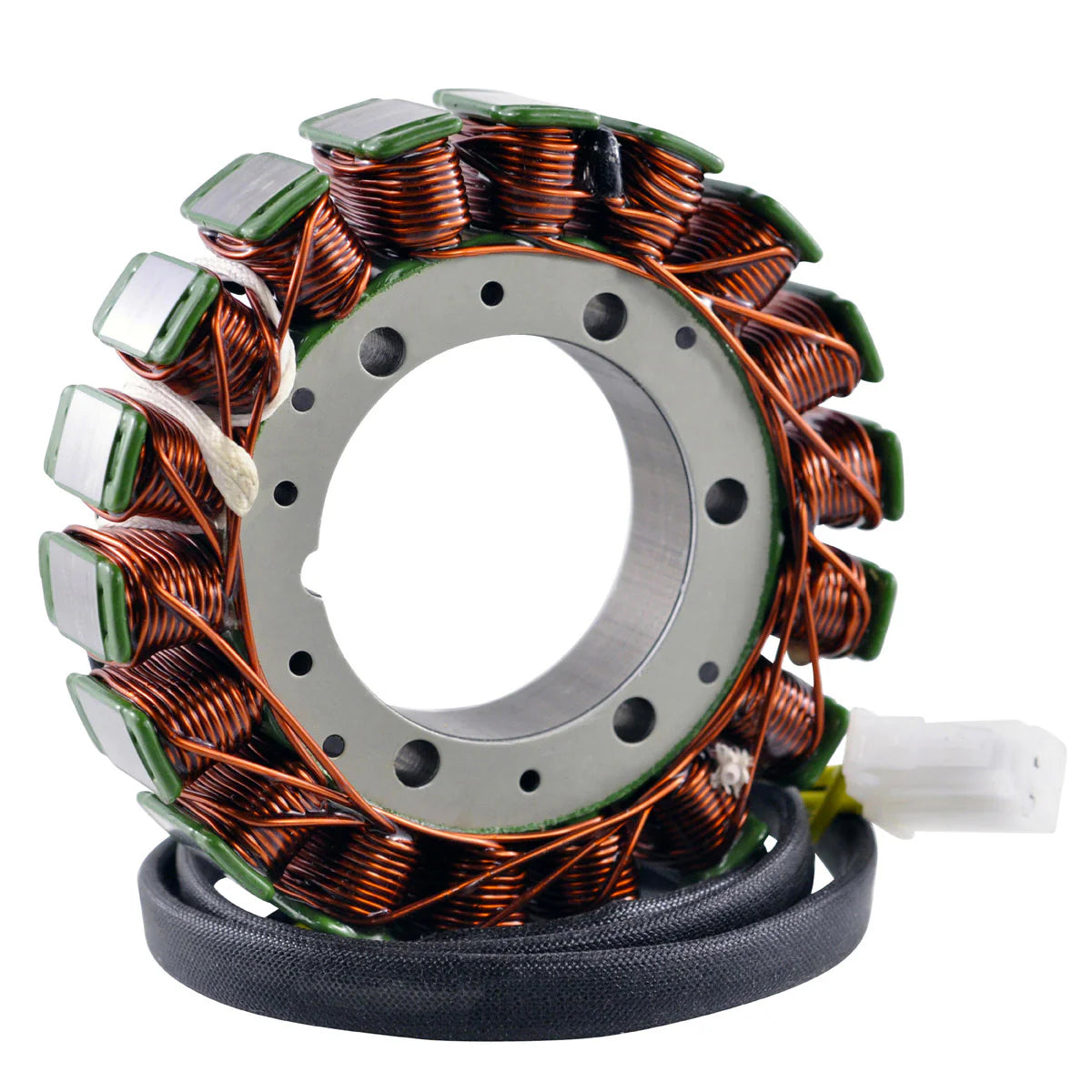

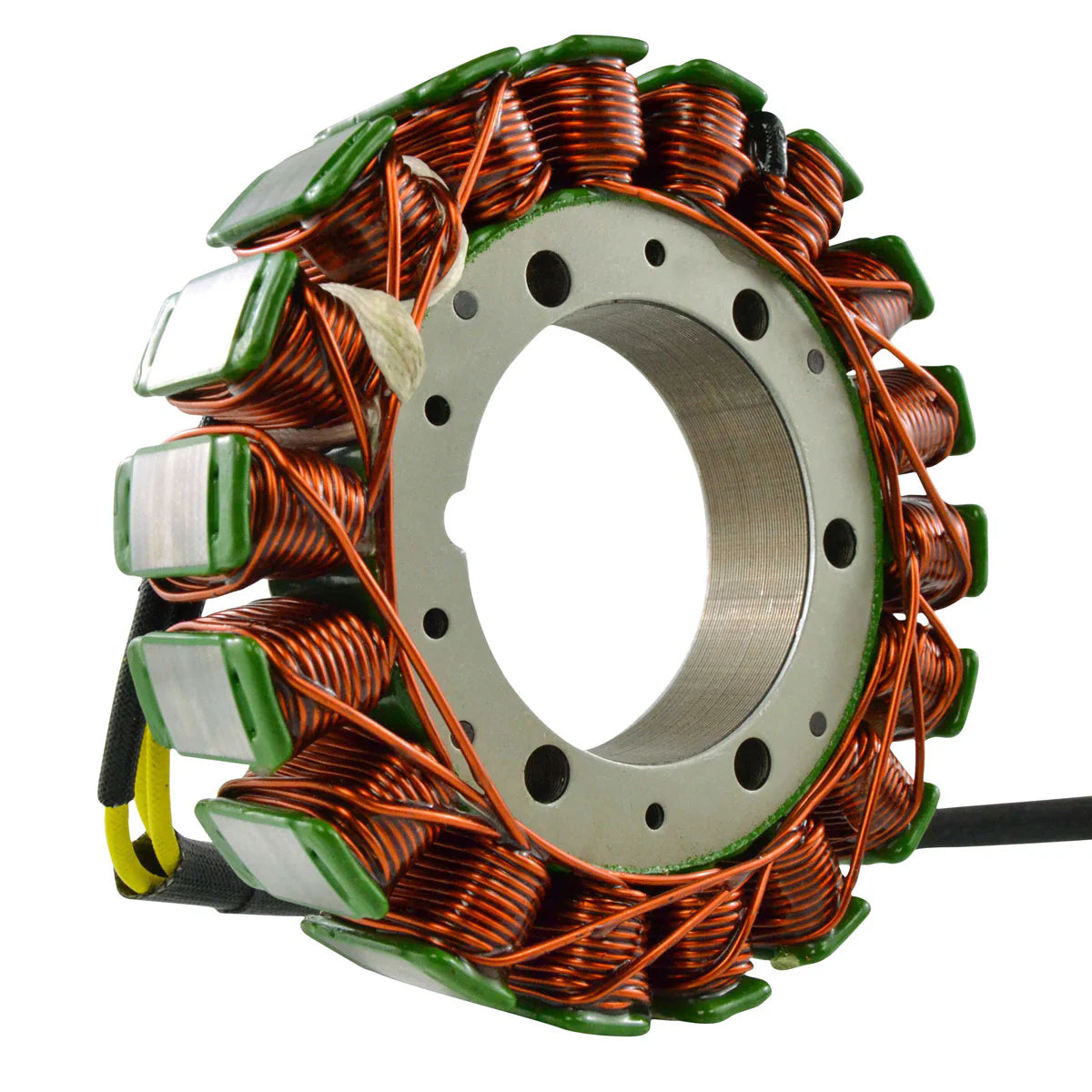

This is a brand new aftermarket stator for the 2002 to 2008 Triumph modern classic range, covering the America 800 and 900, the Bonneville T100, the Speedmaster 800 and 900, and the Thruxton 900. It is a direct replacement for the original unit and is plug-and-play, fitting the original position and mating with the factory loom with no cutting, splicing or modification. Part number RMS010-103225, replacing Triumph OEM number T1300076.

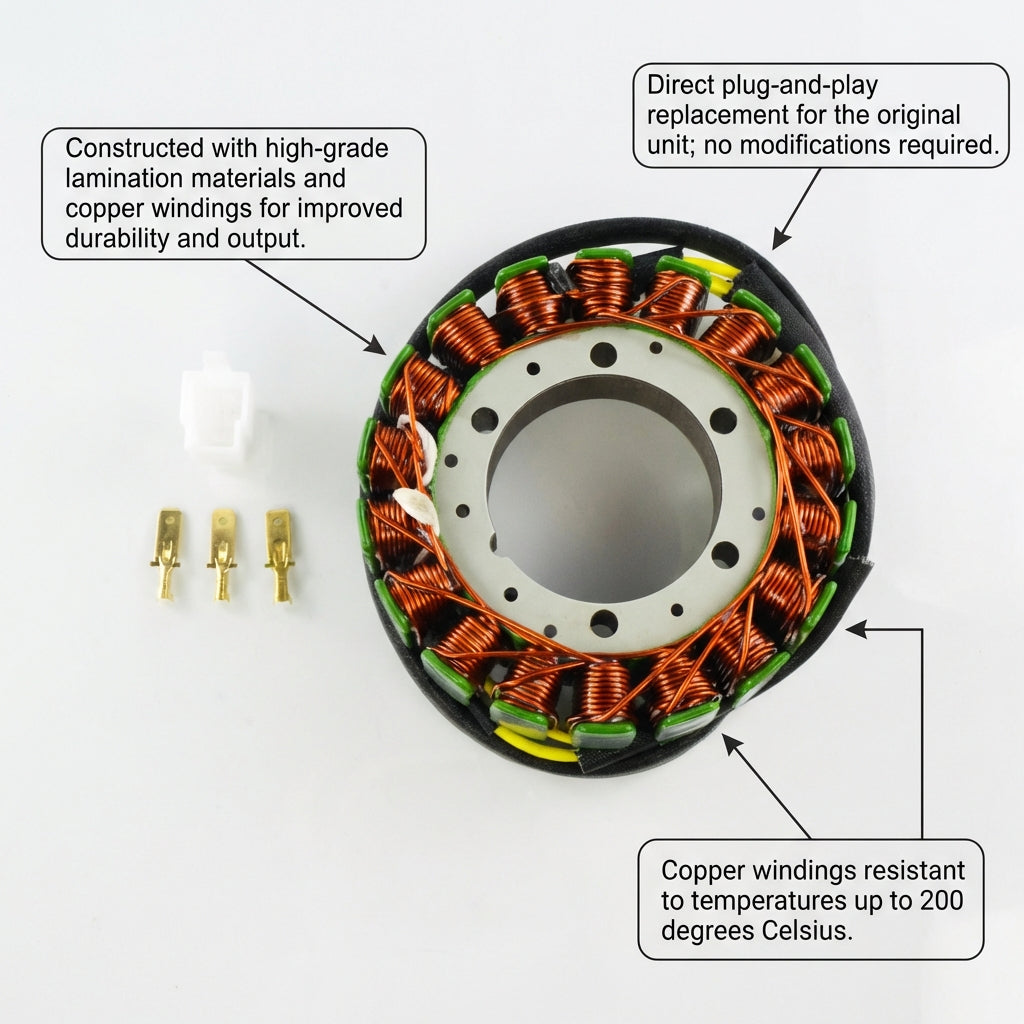

The core uses the highest grade lamination materials and the windings are the highest grade copper, rated to resist 200 degrees Celsius. The connector and rubber grommet are supplied already fitted, and the opposite connector for the main harness side is included as well - these harness-side plugs are frequently melted, corroded or defective and are a major cause of repeat electrical faults. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for Triumph OEM part T1300076

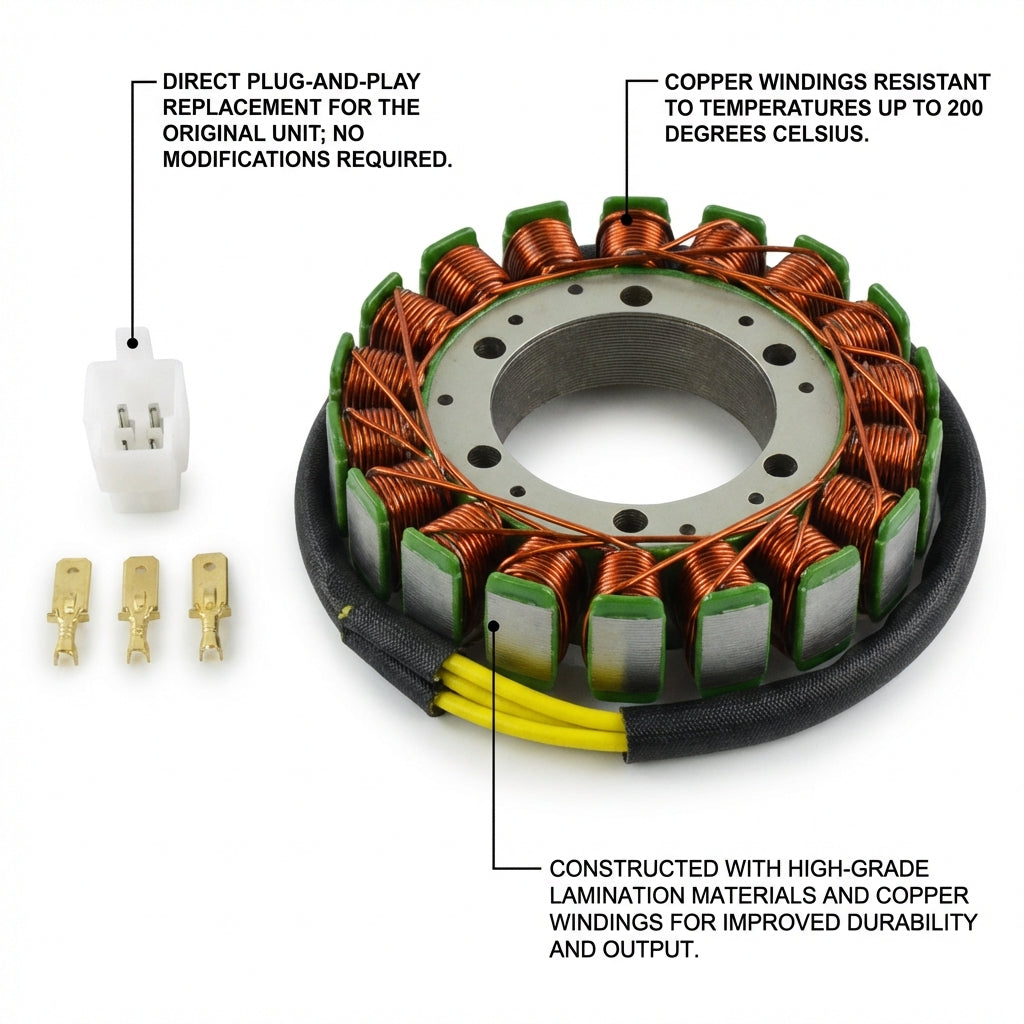

- Plug-and-play, direct fit, straightforward installation

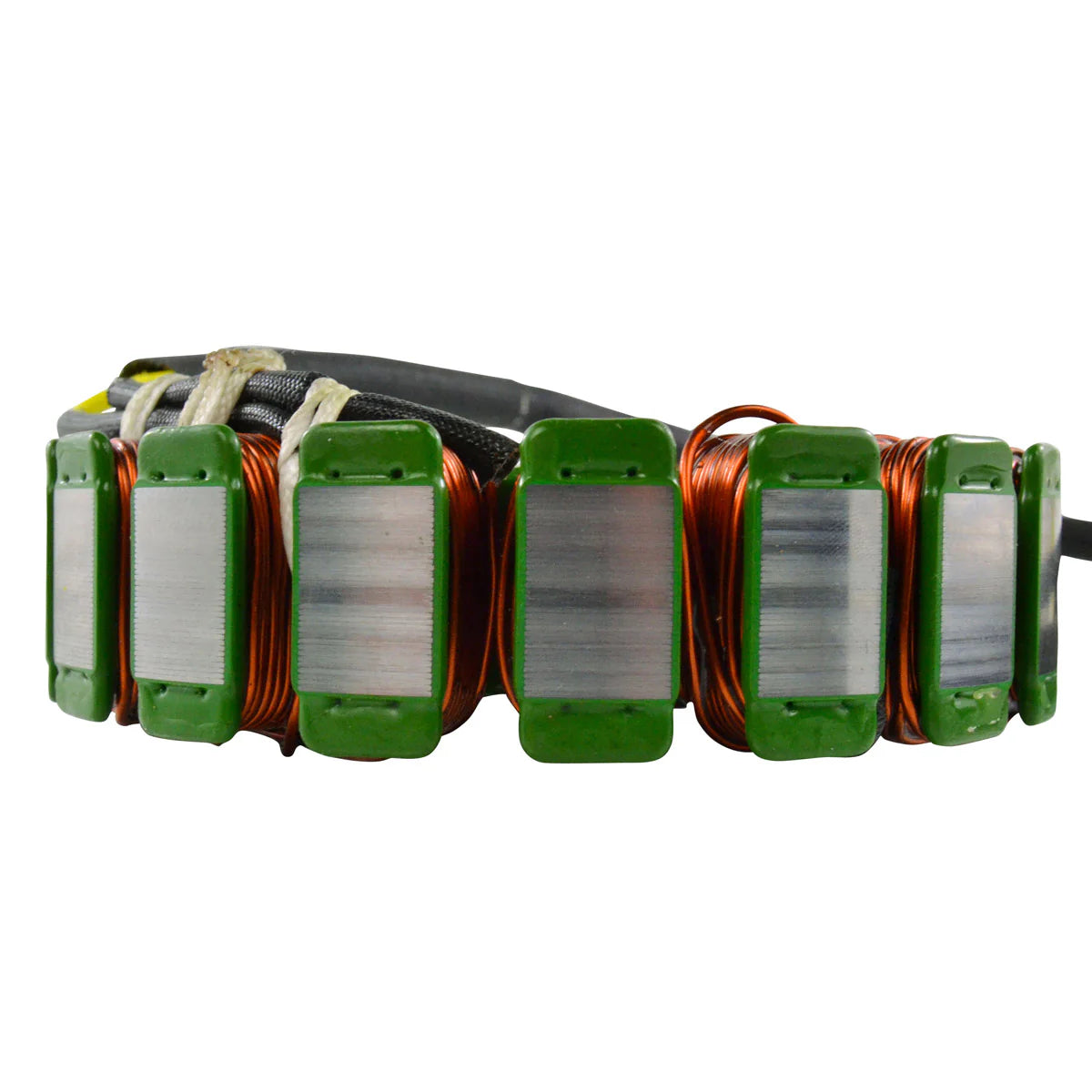

- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius

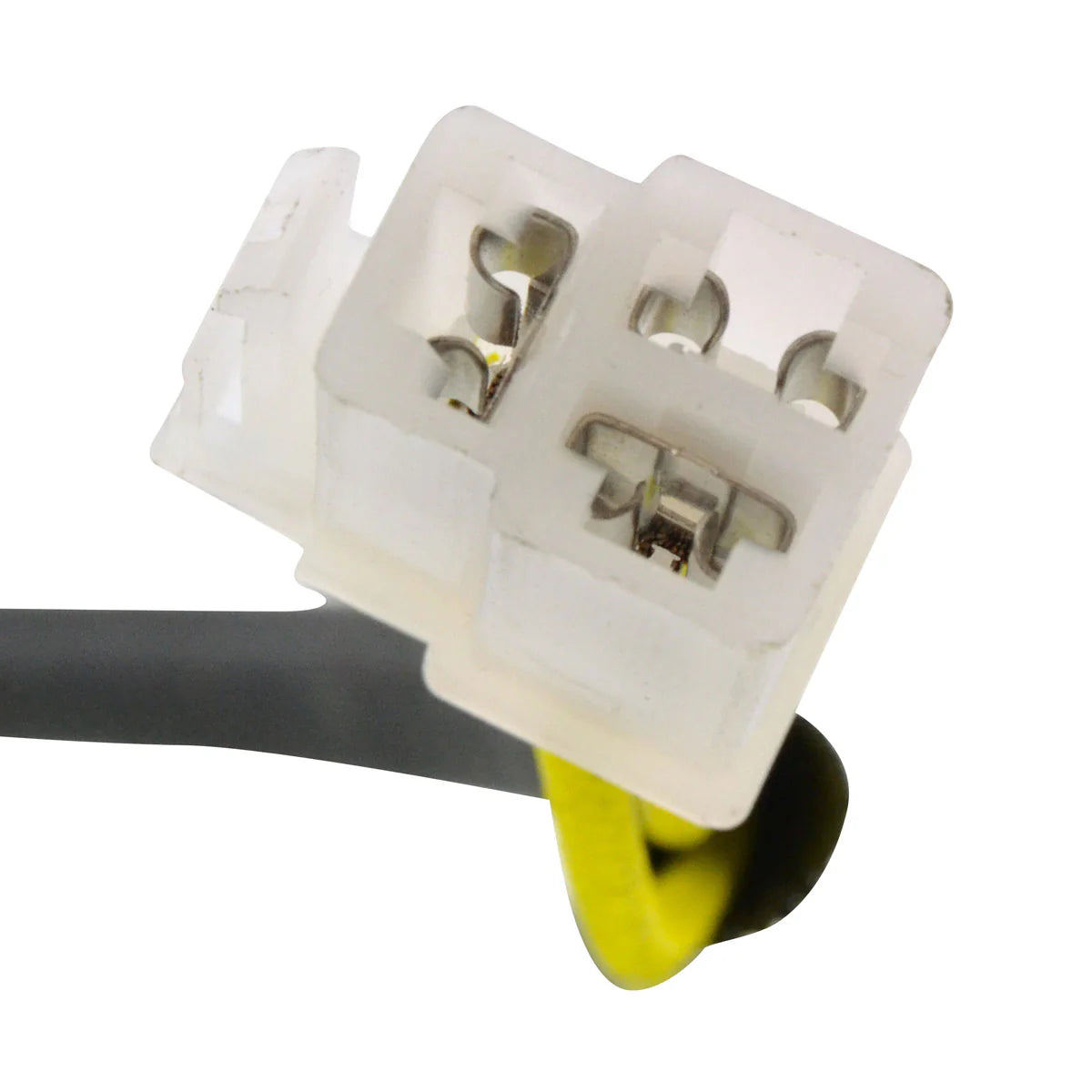

- Connector and rubber grommet included and already fitted

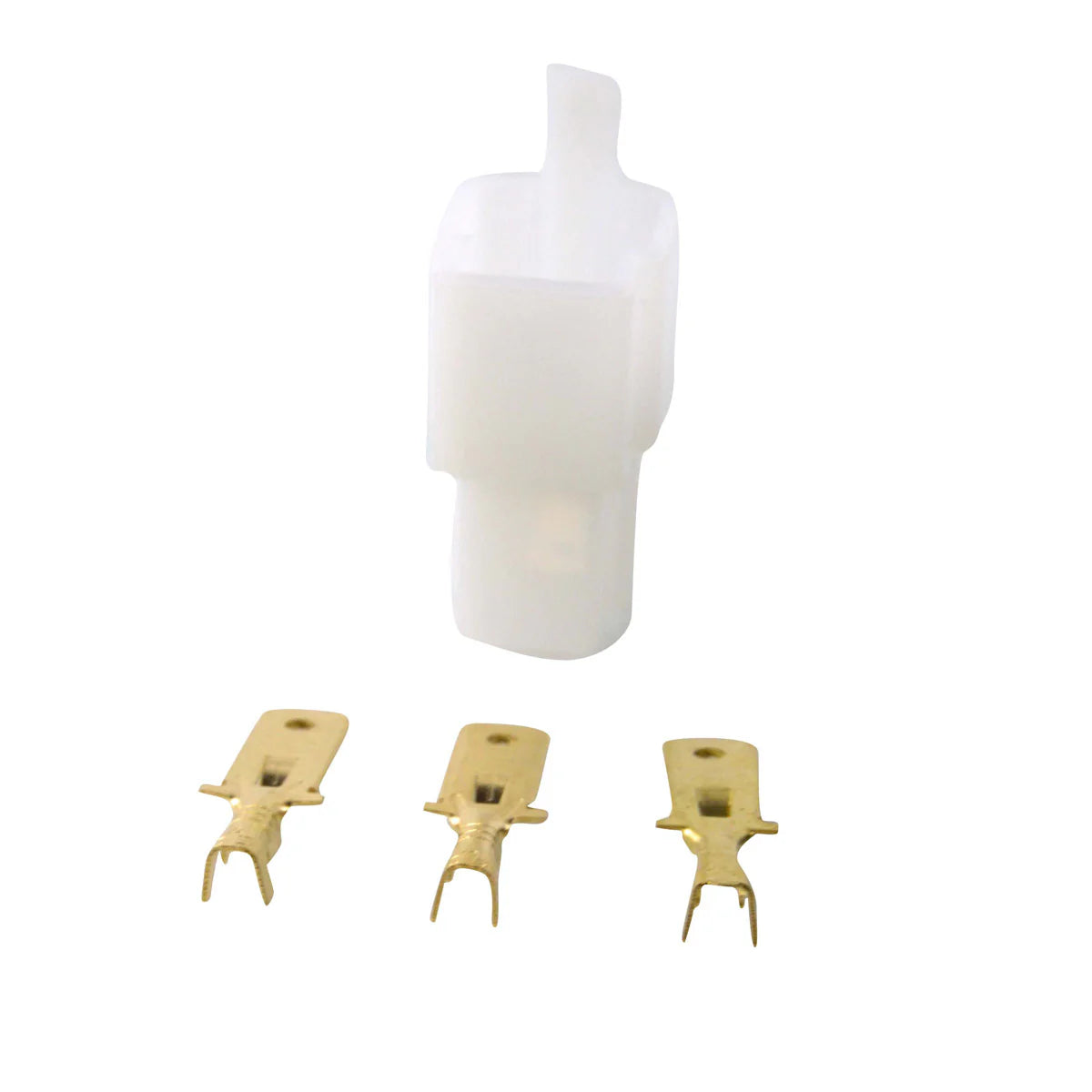

- Opposite connector for the main harness side included
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-103225 |
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 20 mm |
| Length of wires, stator to grommet | 195 mm |
| Length of wires, grommet to plug | 660 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, yellow between yellow | 0.4 ohms +-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Triumph America 800 | 2002-2008 |
| Triumph America 900 | 2002-2008 |
| Triumph Bonneville T100 | 2002-2008 |
| Triumph Speedmaster 800 | 2002-2008 |
| Triumph Speedmaster 900 | 2002-2008 |
| Triumph Thruxton 900 | 2002-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| T1300076 | Triumph |
Frequently Asked Questions
Will this fit without modification?
Yes. This is a direct, plug-and-play replacement for the original Triumph stator. It uses the original mounting points and the supplied connector mates with the factory loom, so no cutting, splicing or rewiring is needed. Confirm that your original unit carries Triumph part number T1300076 before ordering.
What is included in the box?

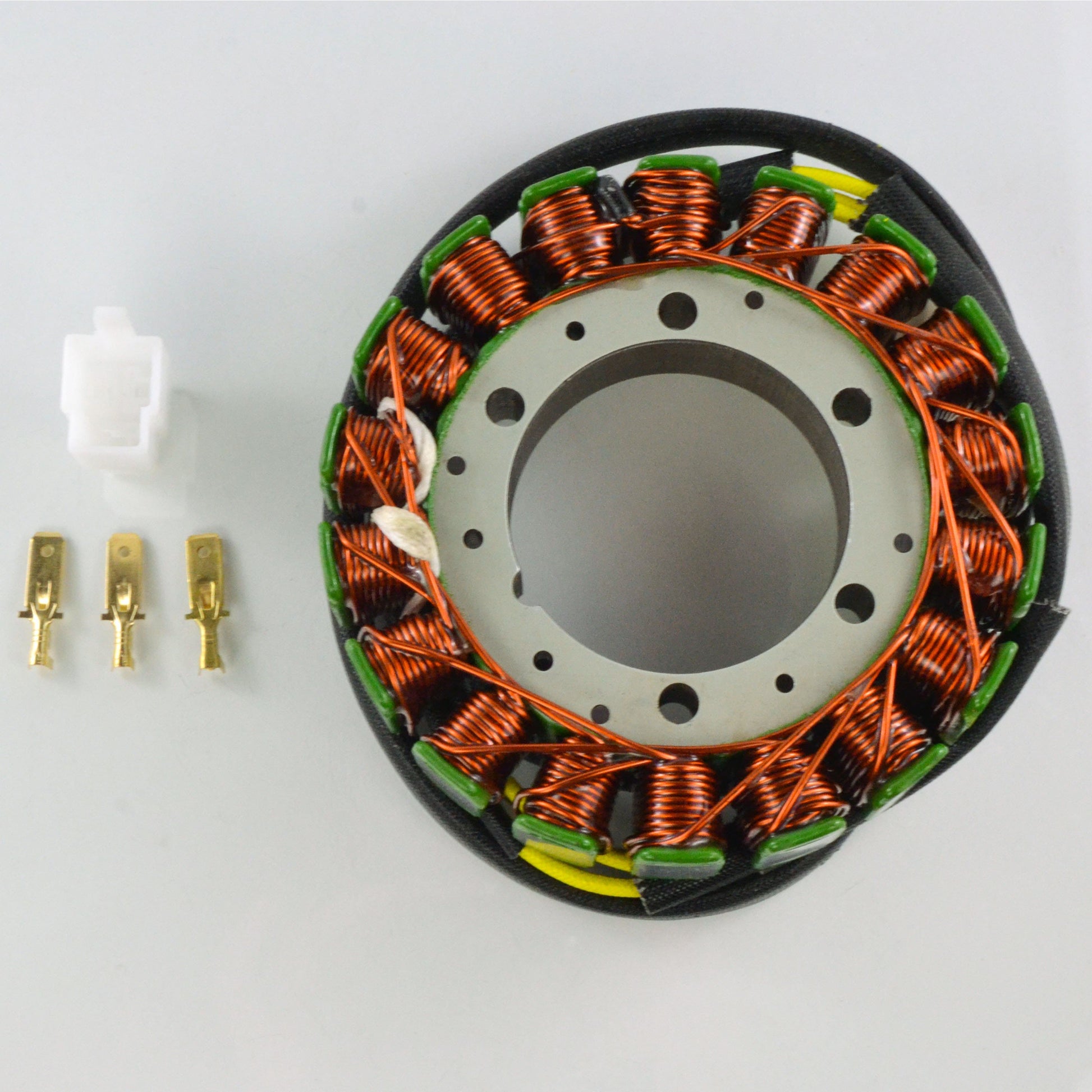

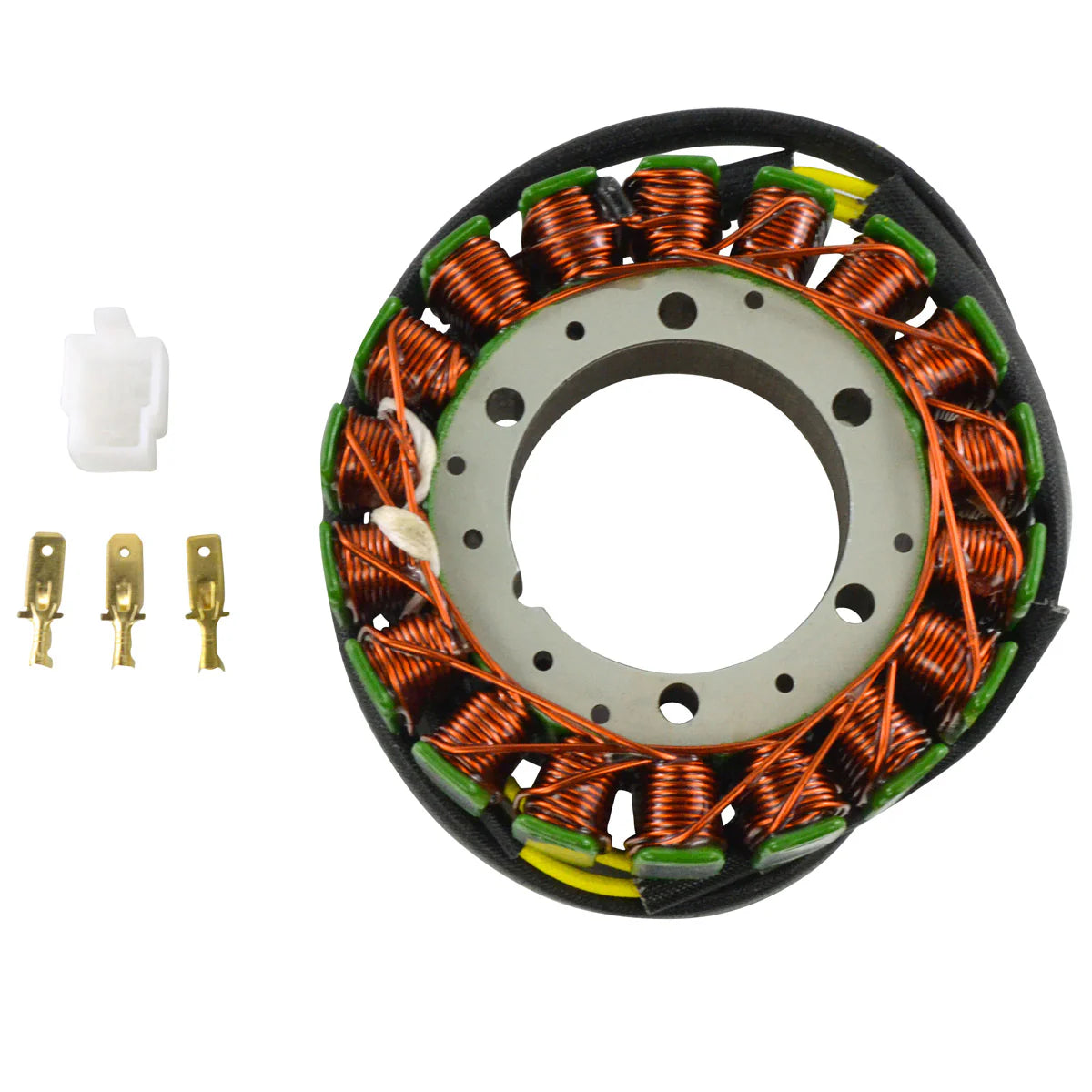

The stator with its connector and rubber grommet already fitted, plus the opposite connector for the main harness side. That extra connector is supplied because the original is often melted, corroded or defective and will otherwise keep causing electrical faults after a new stator is fitted.
How do I tell whether my old stator has failed?
The common symptoms are a flat or perpetually undercharged battery, dim or flickering lights, and charging voltage that will not rise with revs. Measured with a multimeter, resistance between any two of the three yellow wires should be approximately 0.4 ohms with a 20 percent tolerance. An open or shorted winding, a reading far outside that figure, or continuity between a yellow wire and the stator body confirms a failed stator.
Does one stator really cover the 800 and 900 models?
Yes. Across the 2002 to 2008 range the America, Speedmaster, Bonneville T100 and Thruxton 900 share the same charging system and the same Triumph part number, T1300076, in both 800 and 900 capacities. Matching that OEM number is the most reliable fitment check.
