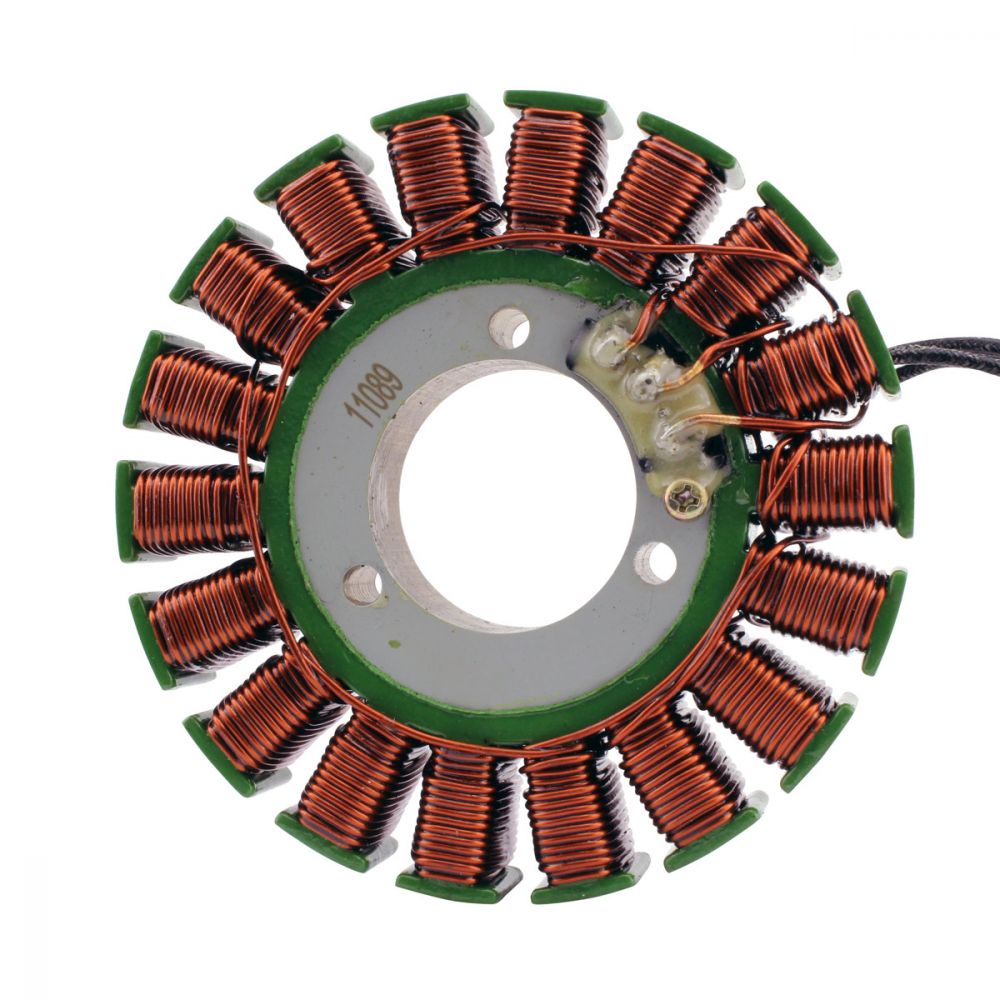

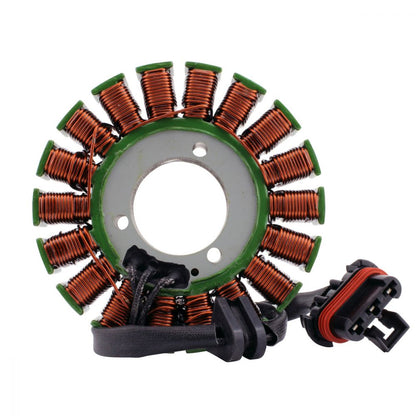

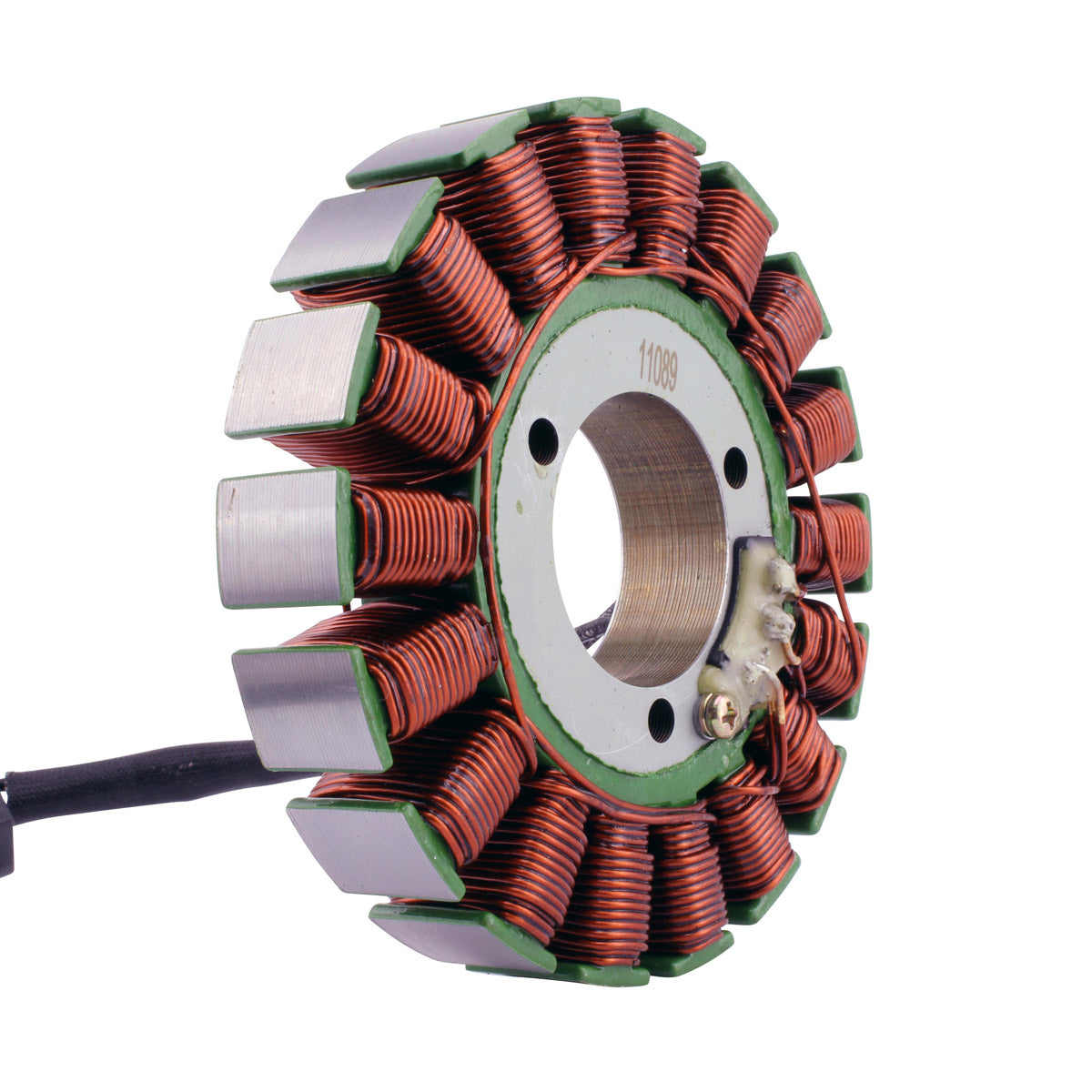

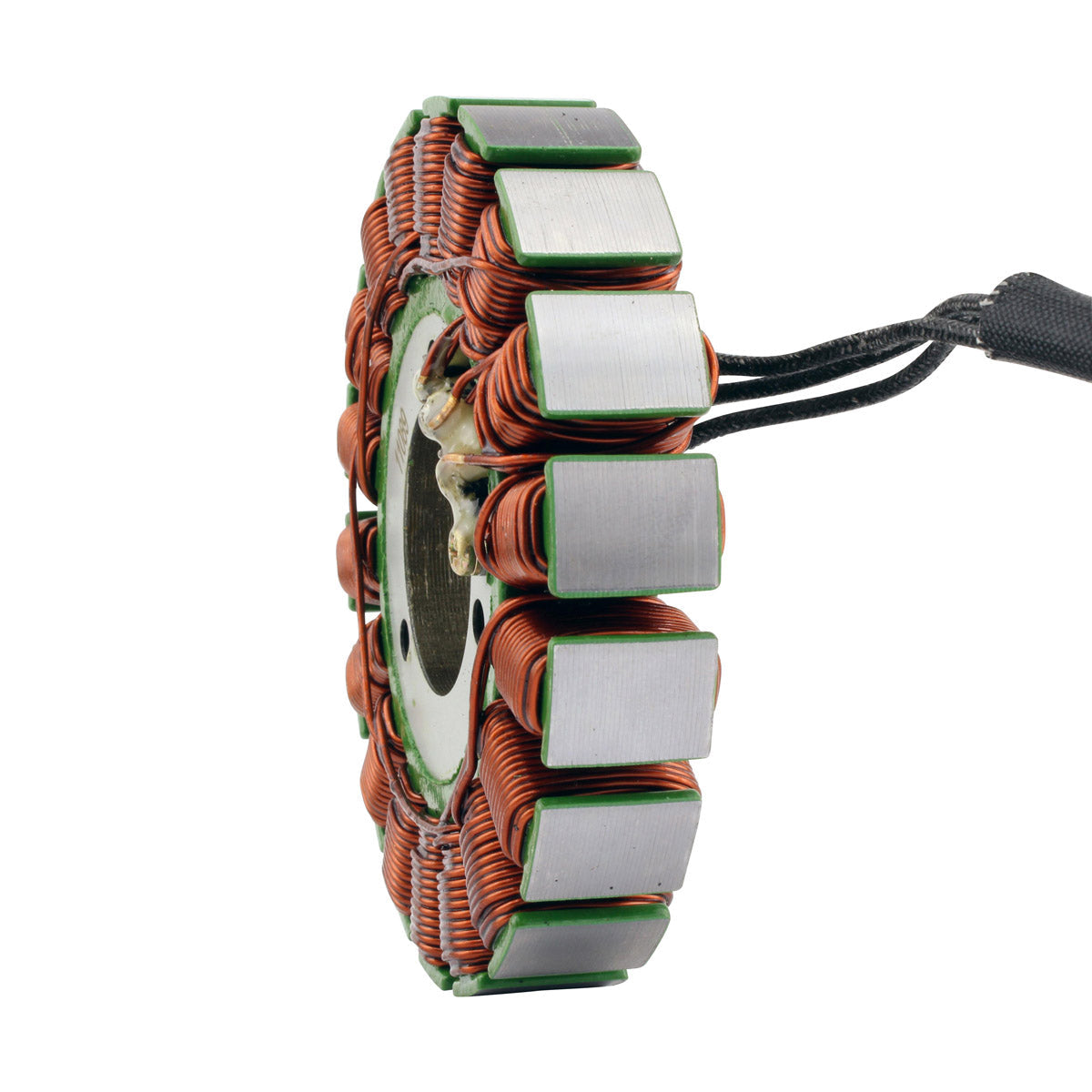

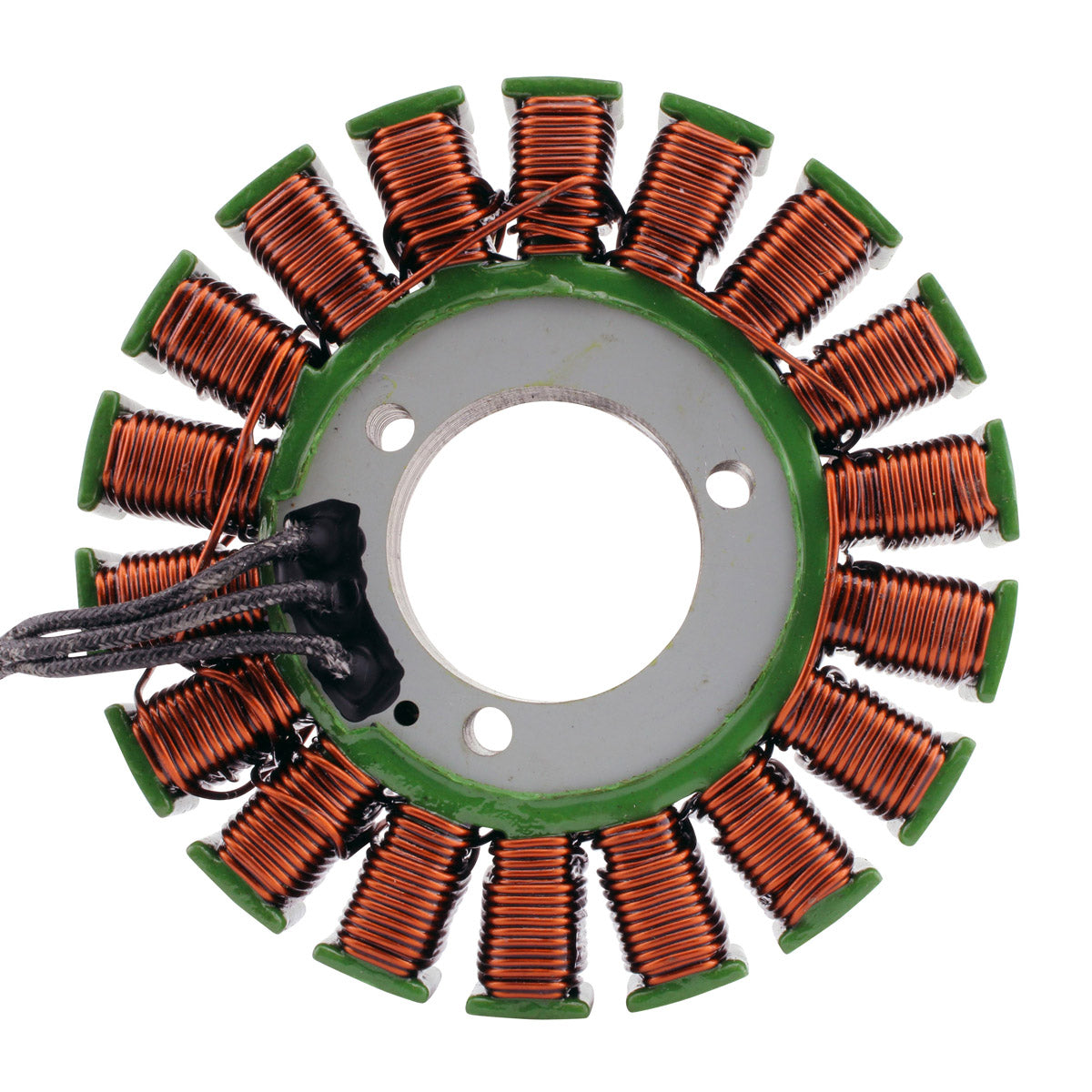

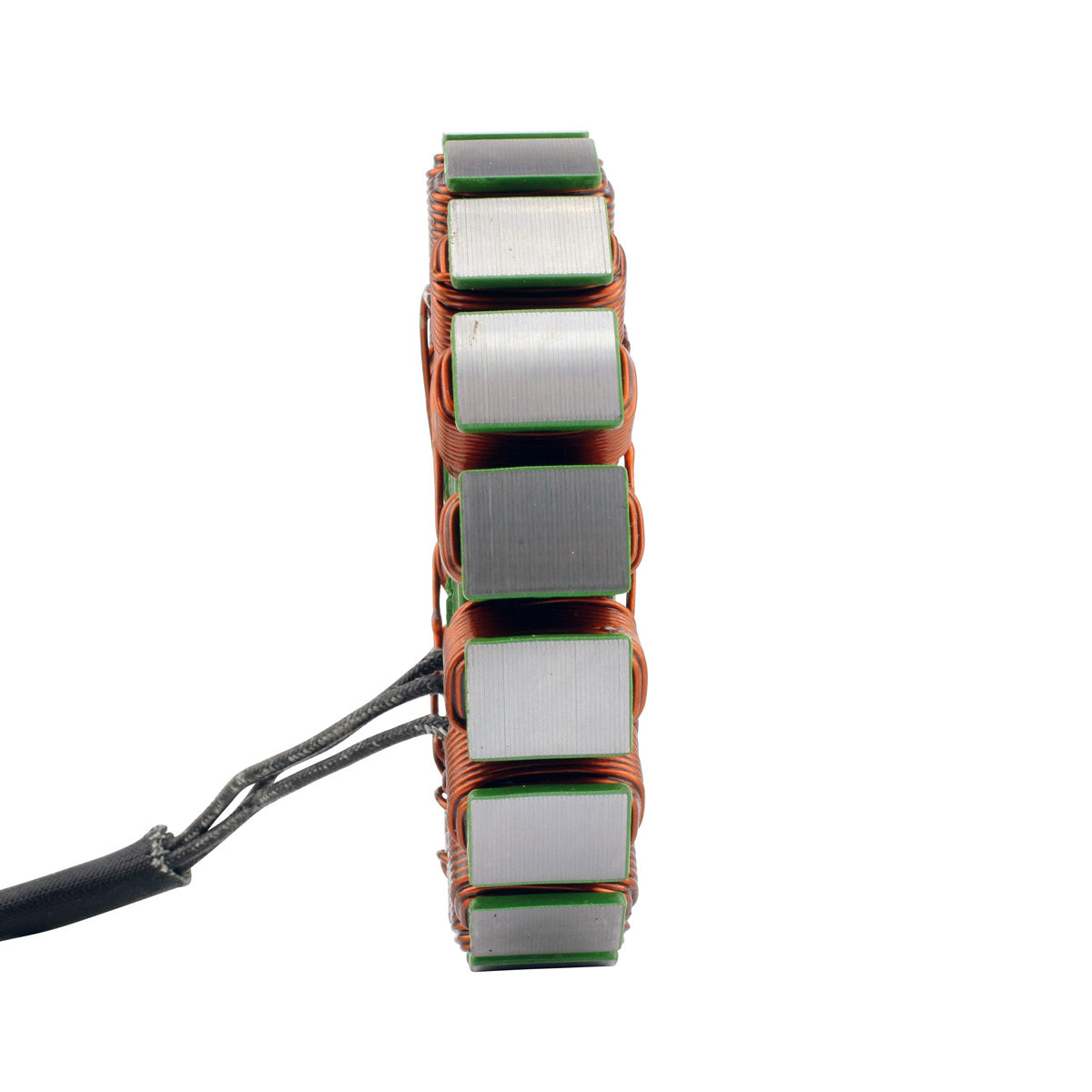

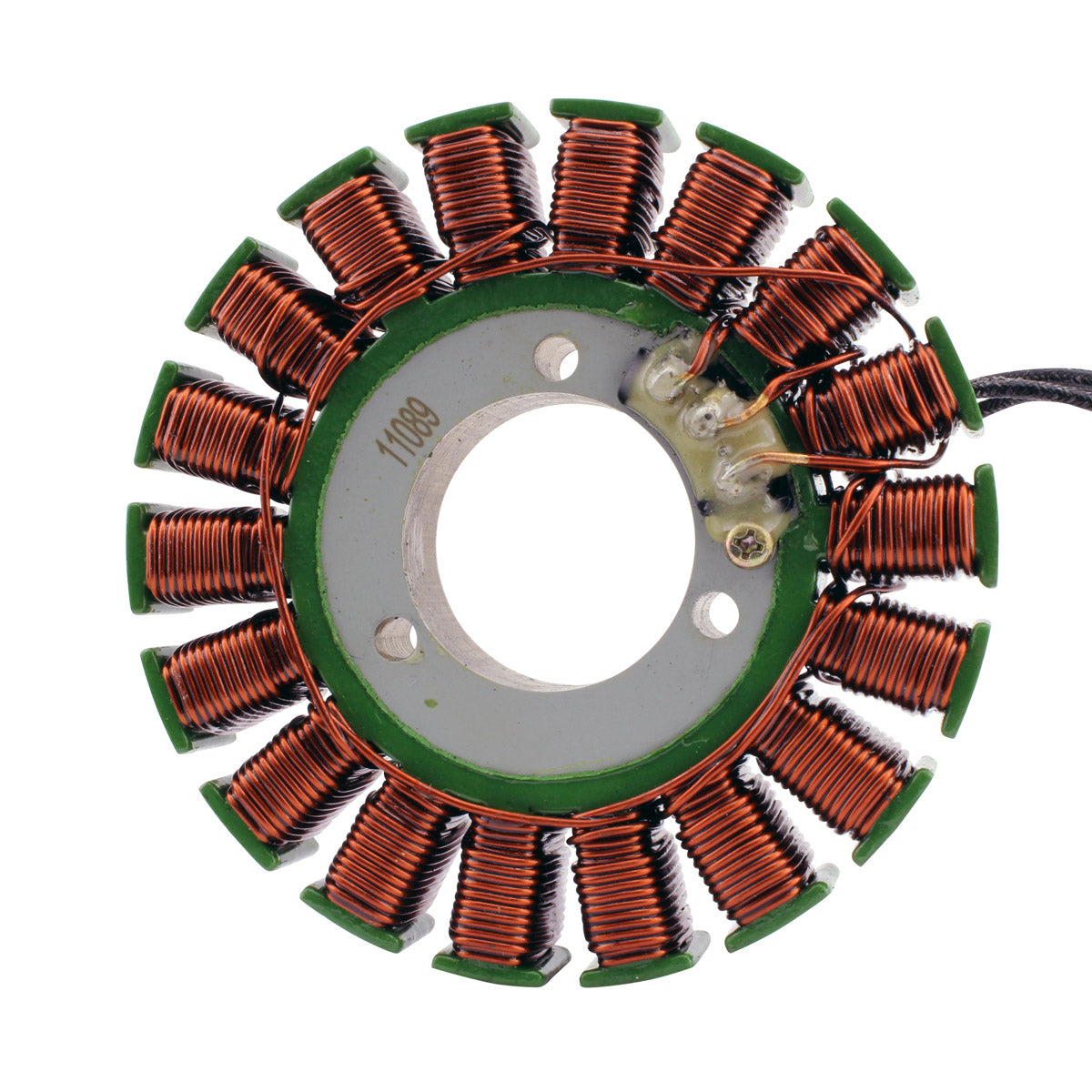

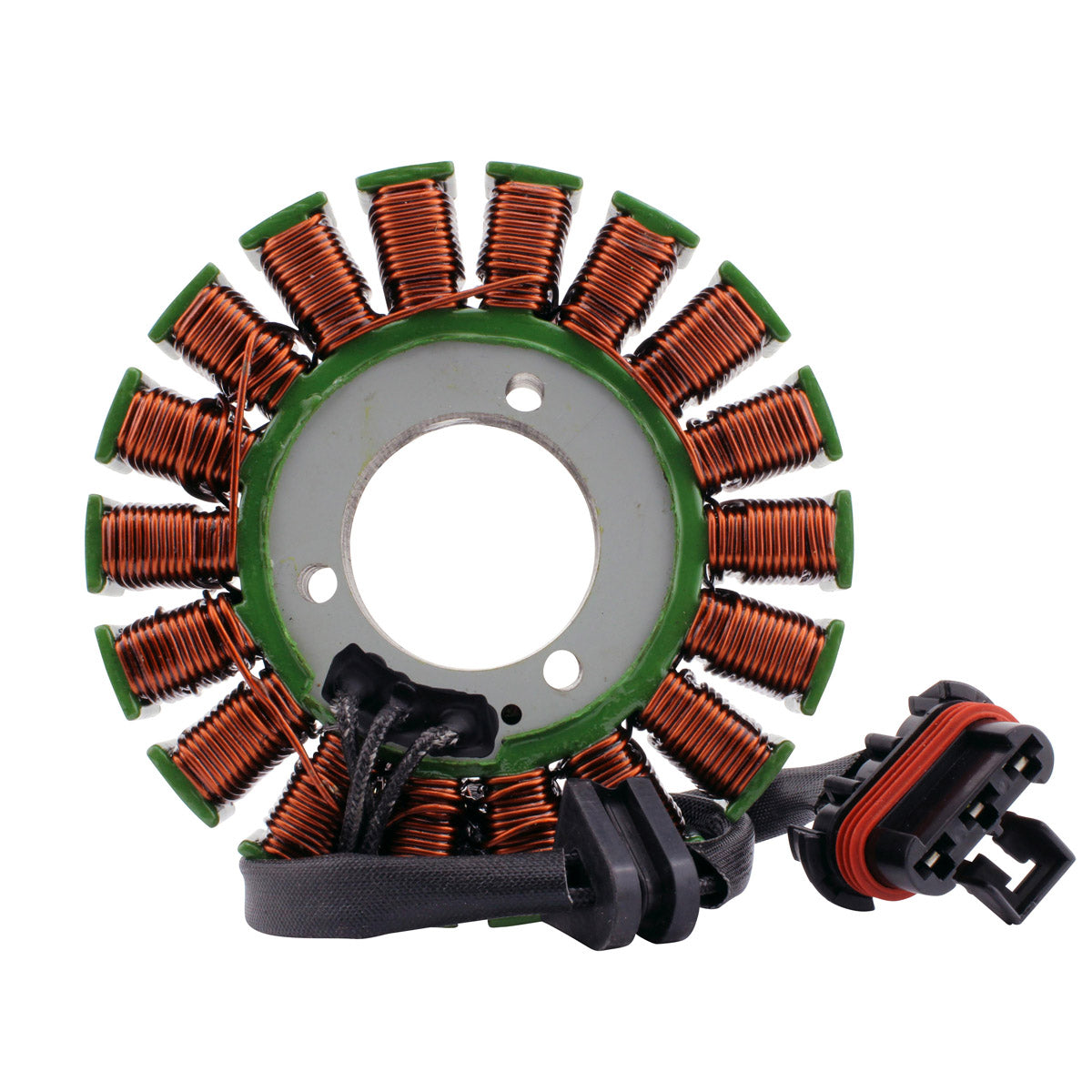

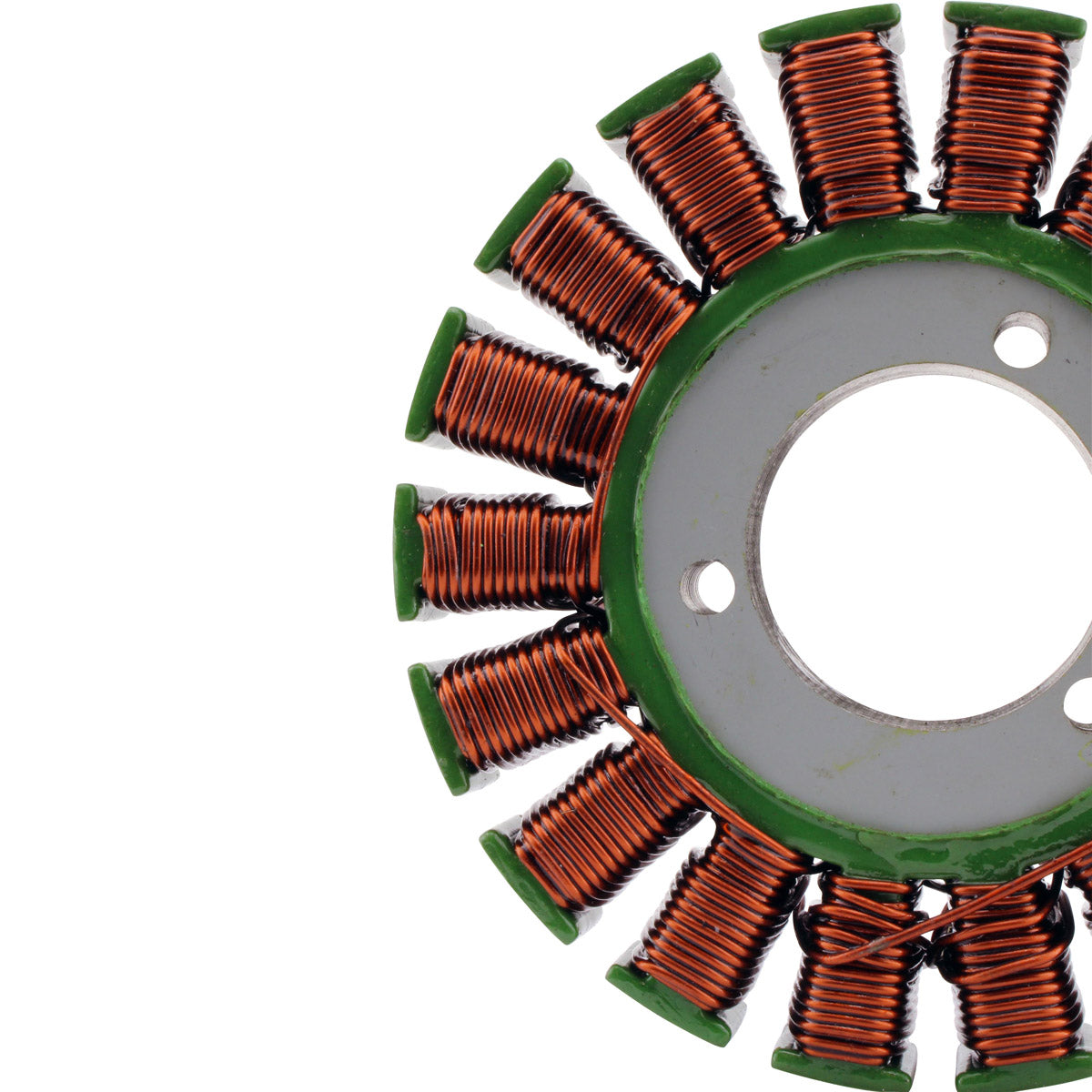

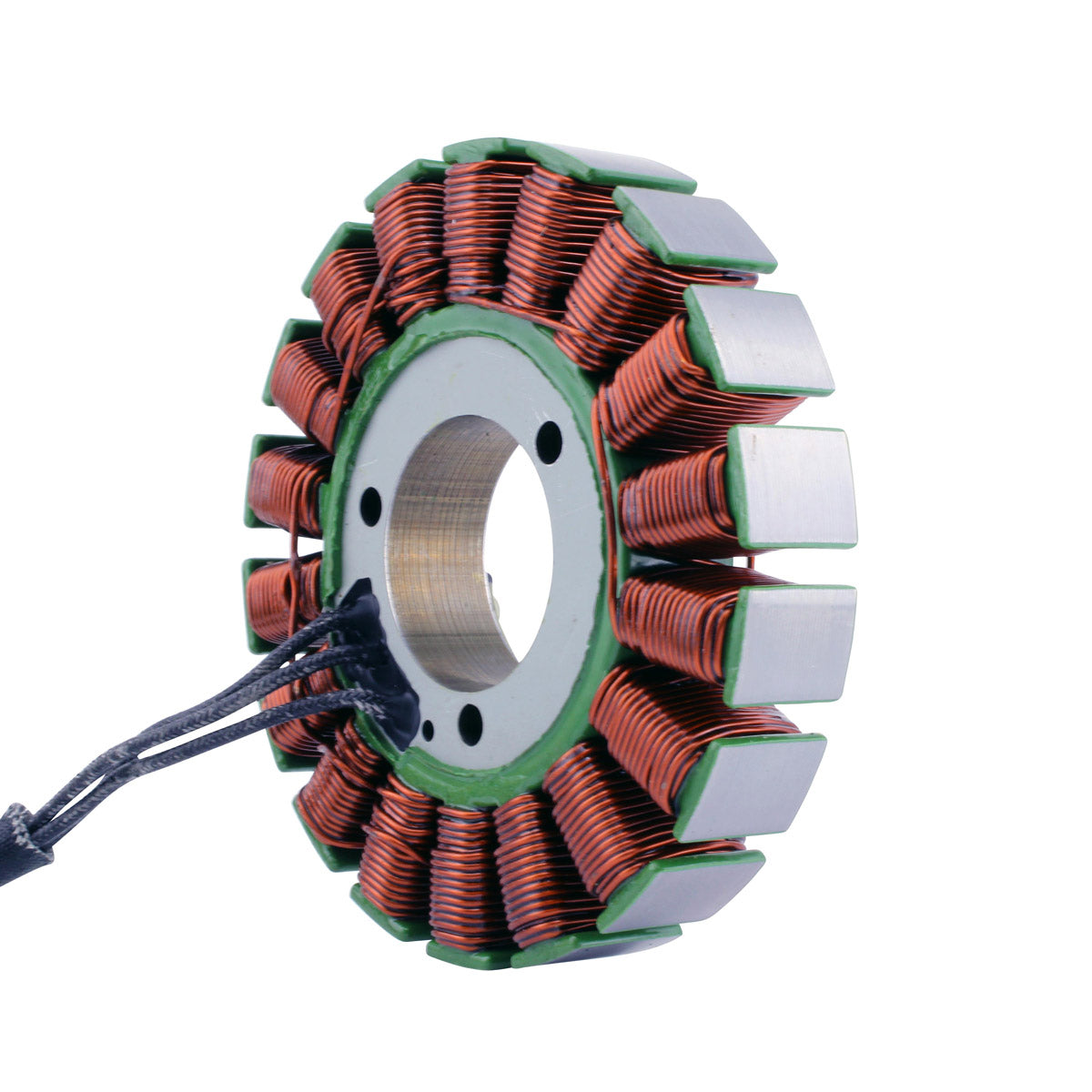

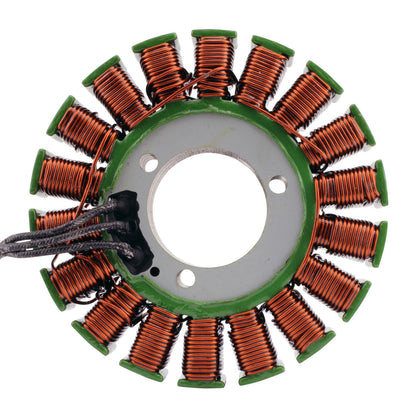

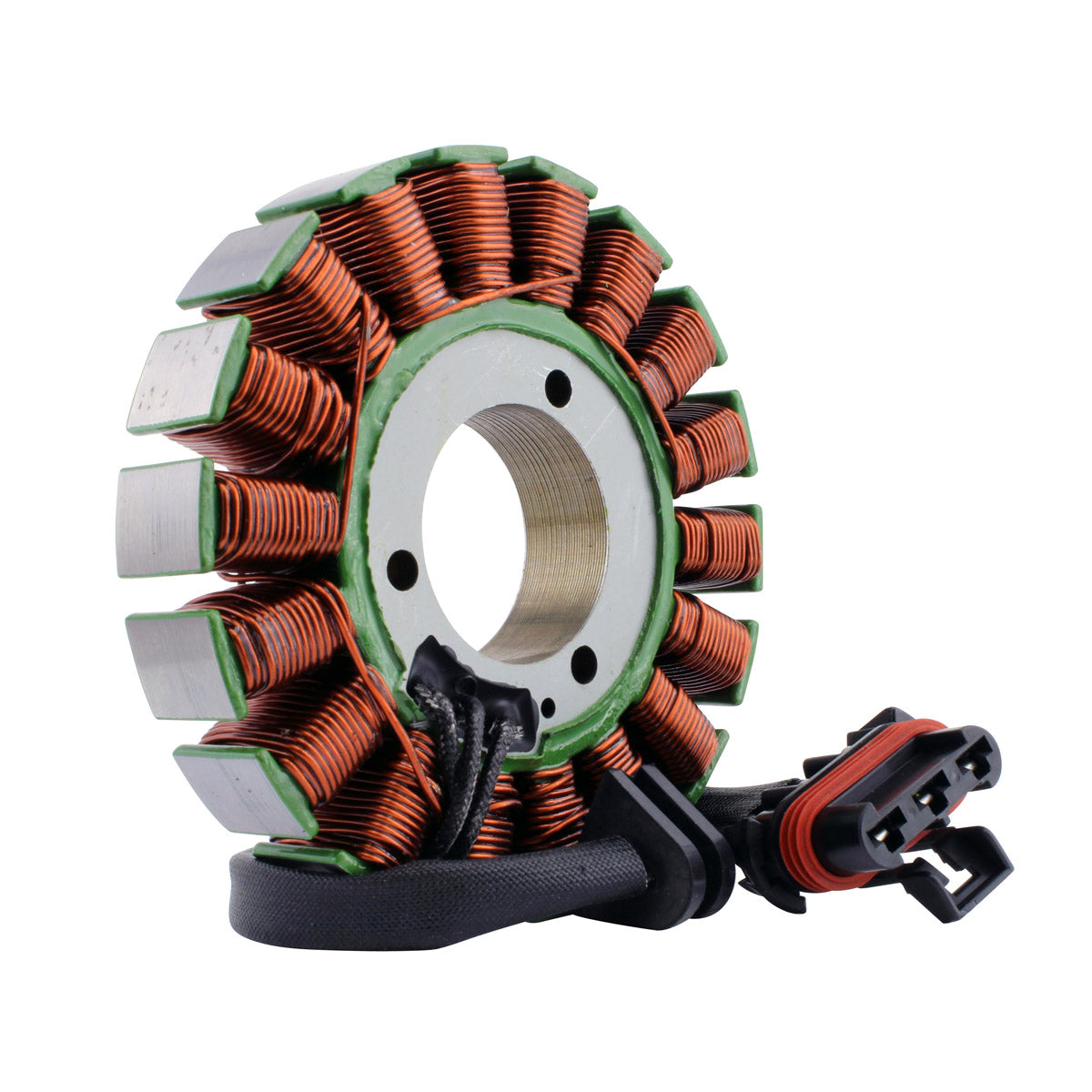

This is a brand new aftermarket stator covering the 2008-2017 Victory range, including the Cross Country, Hammer, Highball, Jackpot, Kingpin, Magnum, Vegas and Vision. It is a direct replacement for the original unit and fits plug-and-play, so the standard loom connects to it as it did to the original and no cutting, splicing or machining is required.
The stator is built with the highest grade lamination materials and the highest grade copper windings, rated to resist 200 degrees Celsius. On a large air-cooled v-twin the stator lives in a hot environment for its whole service life, and the temperature rating of the winding insulation is the single specification that most determines how long it lasts. The connector and rubber grommet are supplied with the unit, and every stator is tested before it is shipped.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

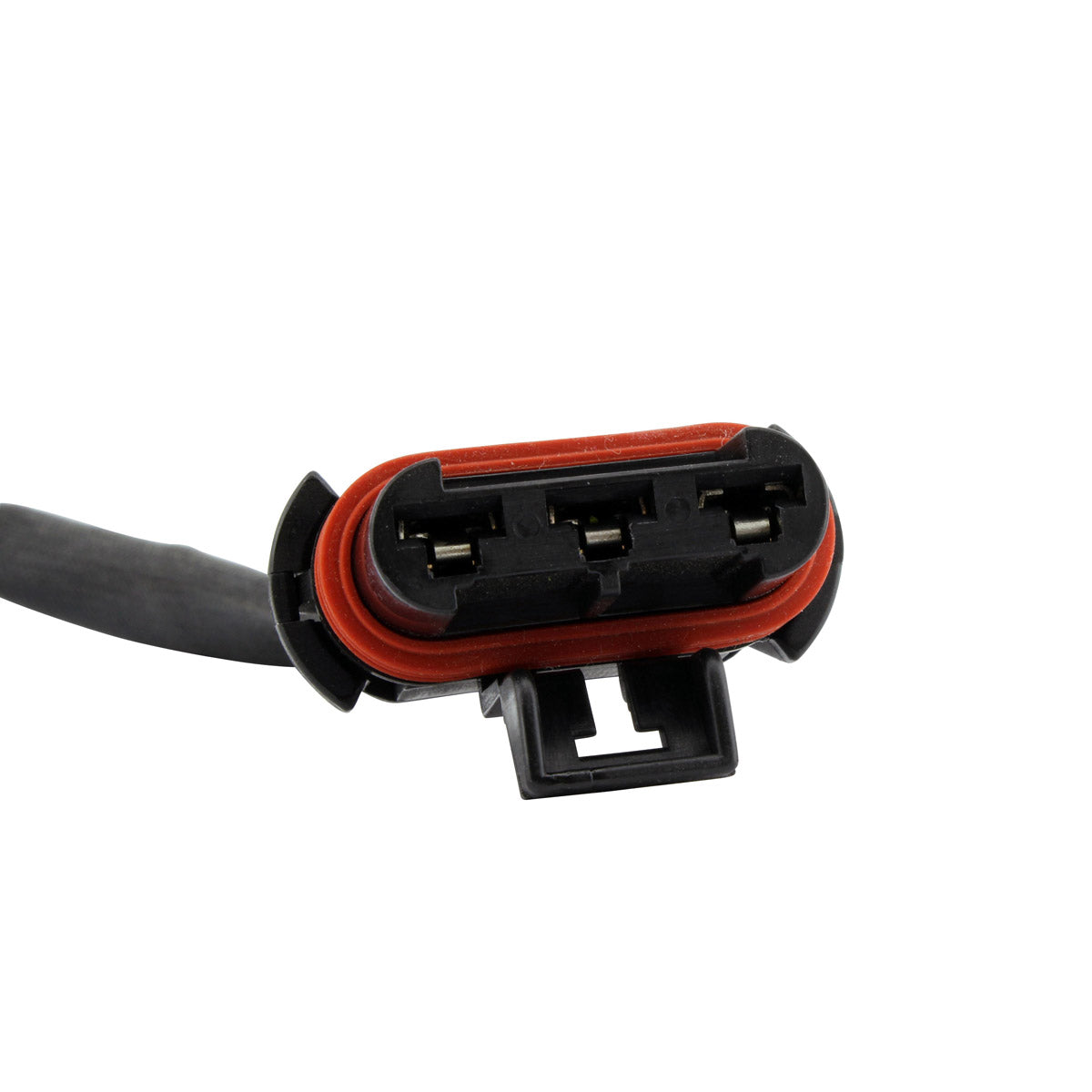

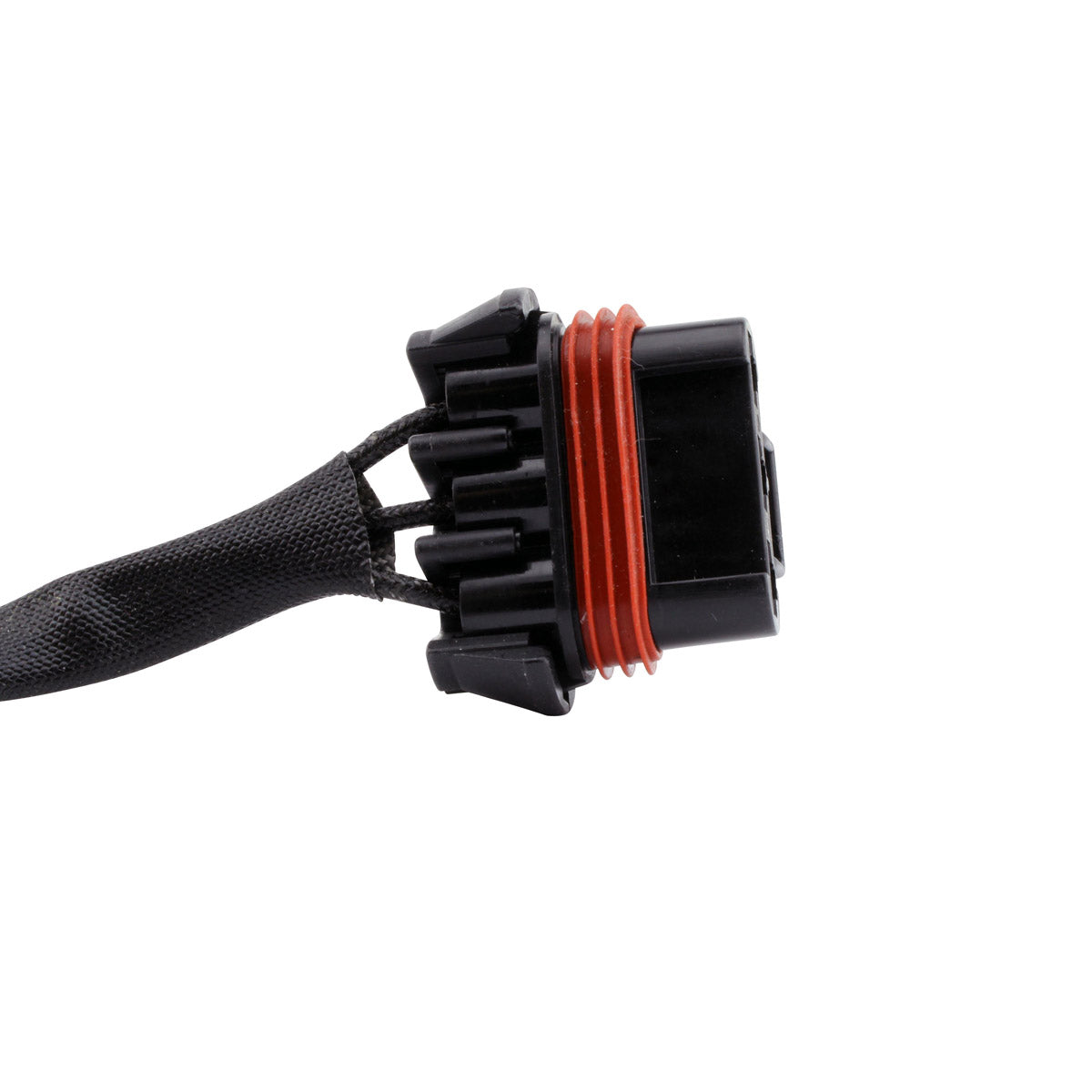

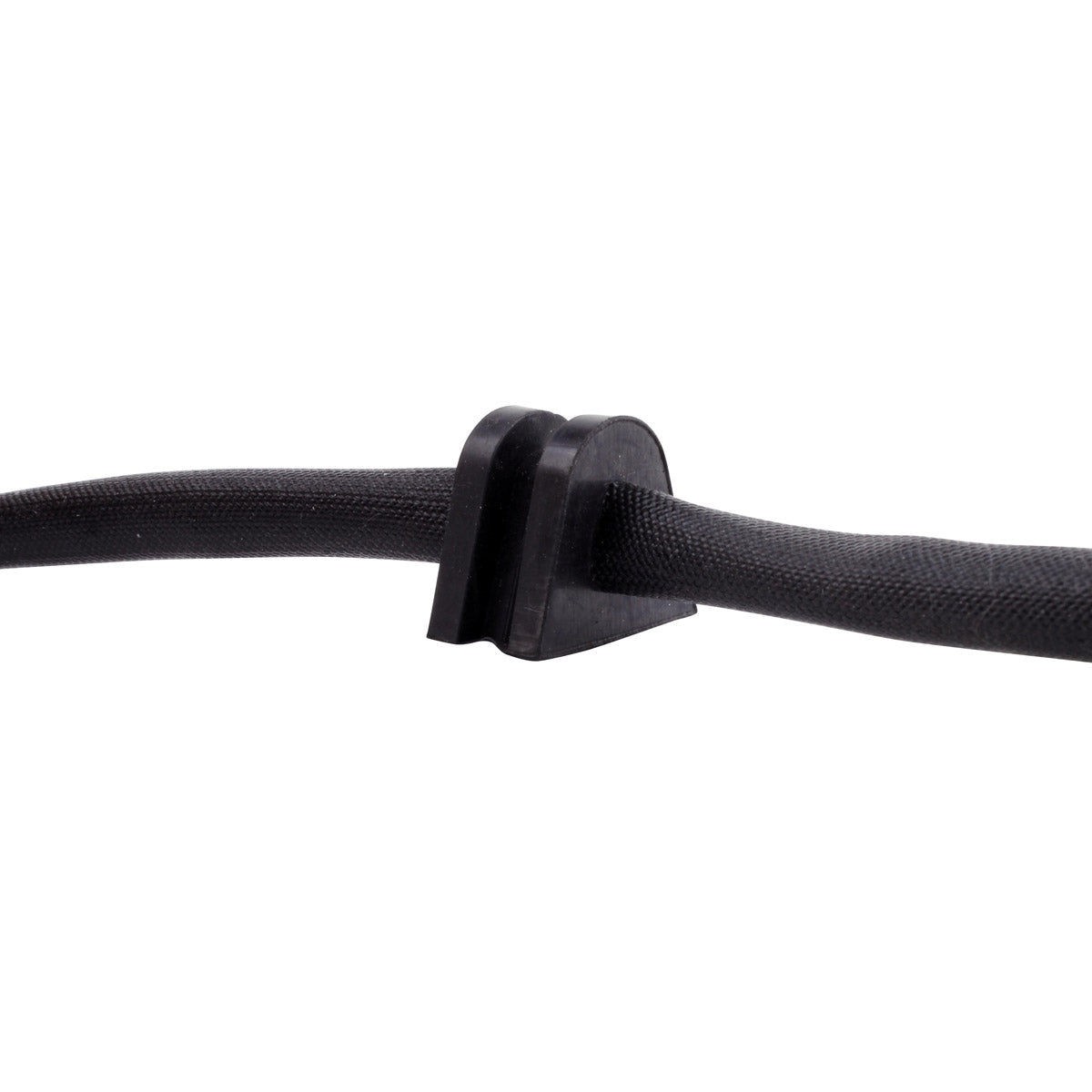

- Connector and rubber grommet included
- Covers eight Victory models across 2008-2017
- Every unit tested before shipping
- Aftermarket replacement for OEM 4011061
Technical Specs
| Specification |
Detail |
| Interior diameter |
41 mm |
| Exterior diameter |
125 mm |
| Thickness |
21 mm |
| Wire length (stator to grommet) |
160 mm |
| Wire length (grommet to plug) |
250 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Resistance (Black to Black) |
0.3 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part number |
RMS010-100178 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Victory Cross Country |
2008-2017 |
| Victory Hammer |
2008-2017 |
| Victory Highball |
2008-2017 |
| Victory Jackpot |
2008-2017 |
| Victory Kingpin |
2008-2017 |
| Victory Magnum |
2008-2017 |
| Victory Vegas |
2008-2017 |
| Victory Vision |
2008-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4011061 |
Victory |
| 4012363 |
Victory |
| 4011887 |
Victory |
| 4012364 |
Victory |
| 4015588 |
Victory |
| 4012715 |
Victory |
| 4011920 |
Victory |
| 4012082 |
Victory |
| 2204532 |
Victory |
Frequently Asked Questions
Will this fit my bike without modification?
Yes. It is a plug-and-play direct replacement for the original stator across the listed 2008-2017 Victory models, so nothing needs to be cut, spliced or machined.
What is included?
The stator with its connector and the rubber grommet.
How do I tell whether my stator has failed?
With the engine off and the plug disconnected, measure between the Black wires - this unit reads 0.3 ohms +/-20% between each pair. Open circuit, near-zero, or continuity from any wire to the engine case all indicate a failed winding. A battery that keeps going flat on a bike that otherwise runs is the usual first sign.
My original part number is not 4011061 - will this still fit?
Several Victory part numbers supersede one another across this range. Check the cross reference table above, which lists the full set this unit replaces, against the number stamped on your original before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
