Stator for Yamaha Nytro, Phazer, RS Rage, RS Vector & RS Venture
Direct replacement stator with pick-up pulsar coil, 2005-2018

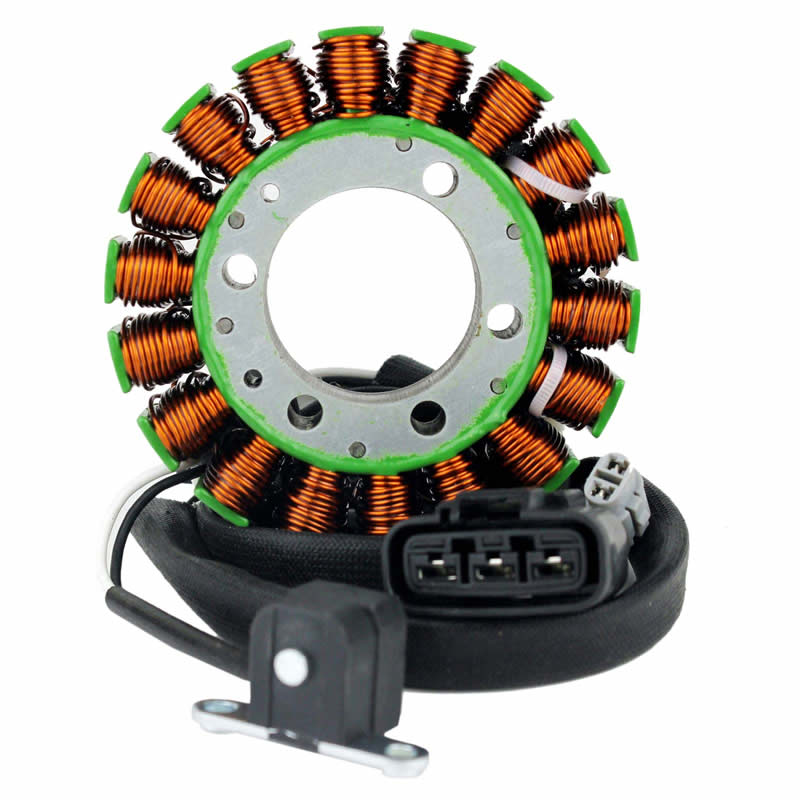

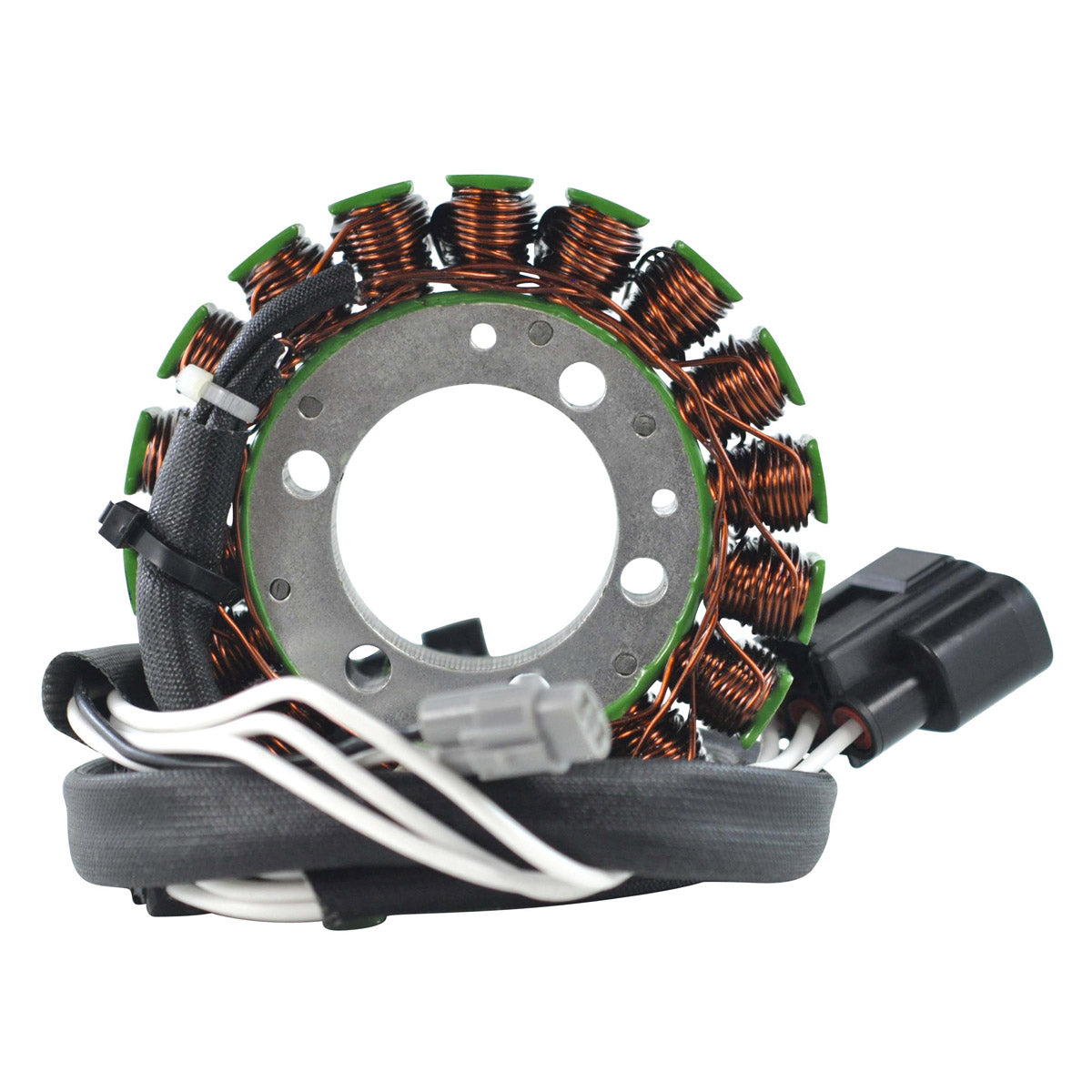

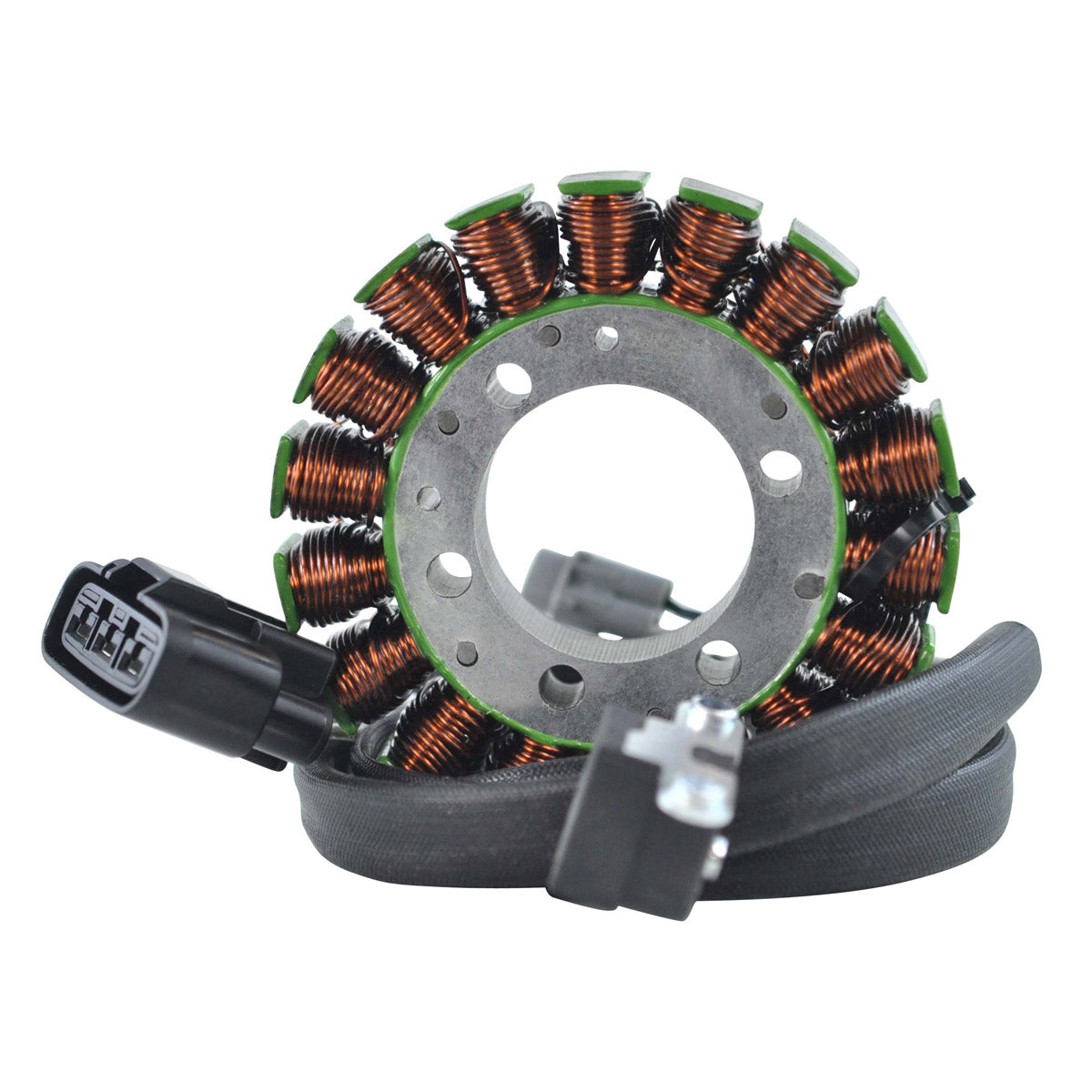

This is a brand new stator for the Yamaha Nytro 1000, Phazer 500, RS Rage 1000, RS Vector 1000 and RS Venture 1000 built between 2005 and 2018, supplied as RMSTATOR part RM01339. It is a direct replacement for your original unit, fitting the factory mounting points and plugging into the existing harness, so installation needs no cutting or splicing.

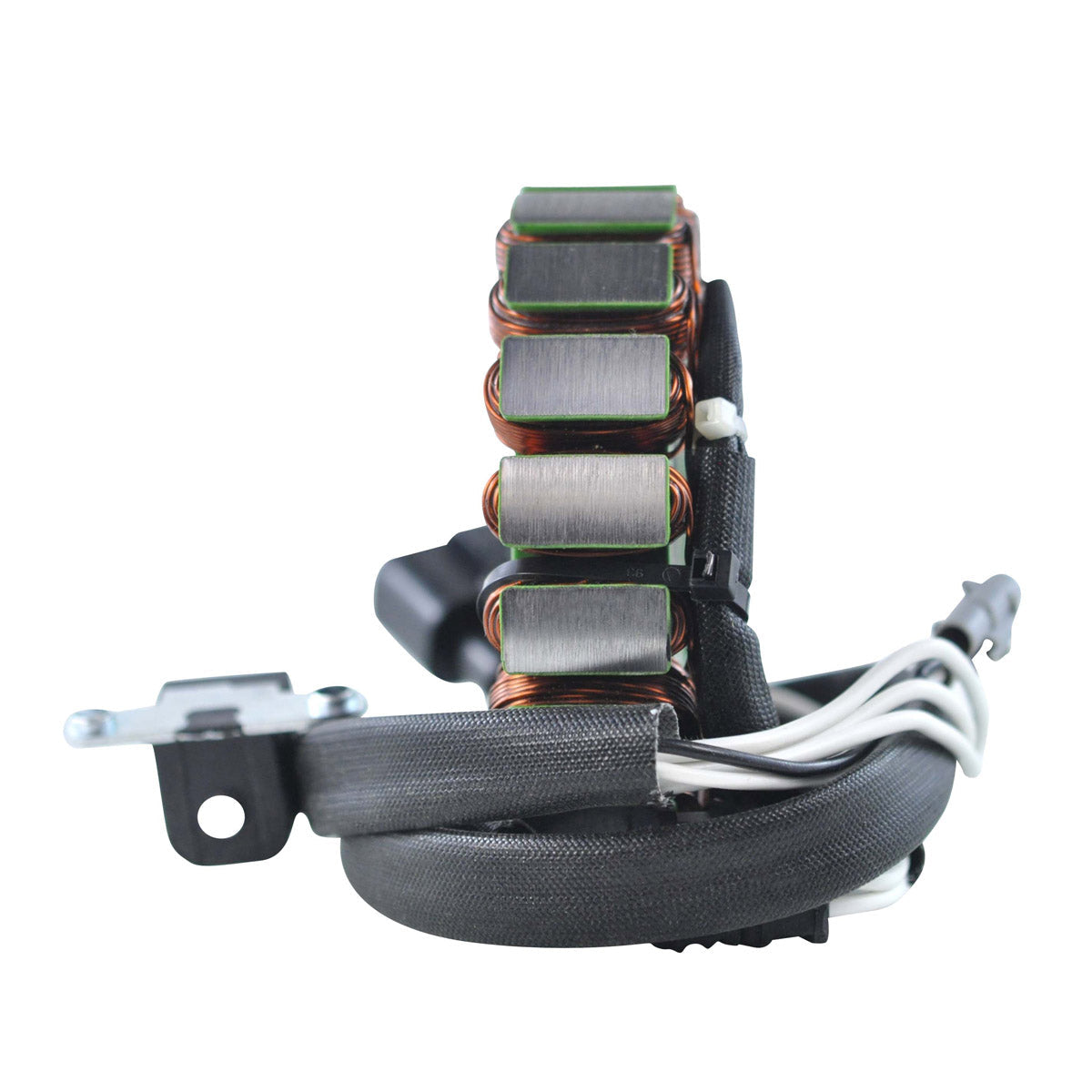

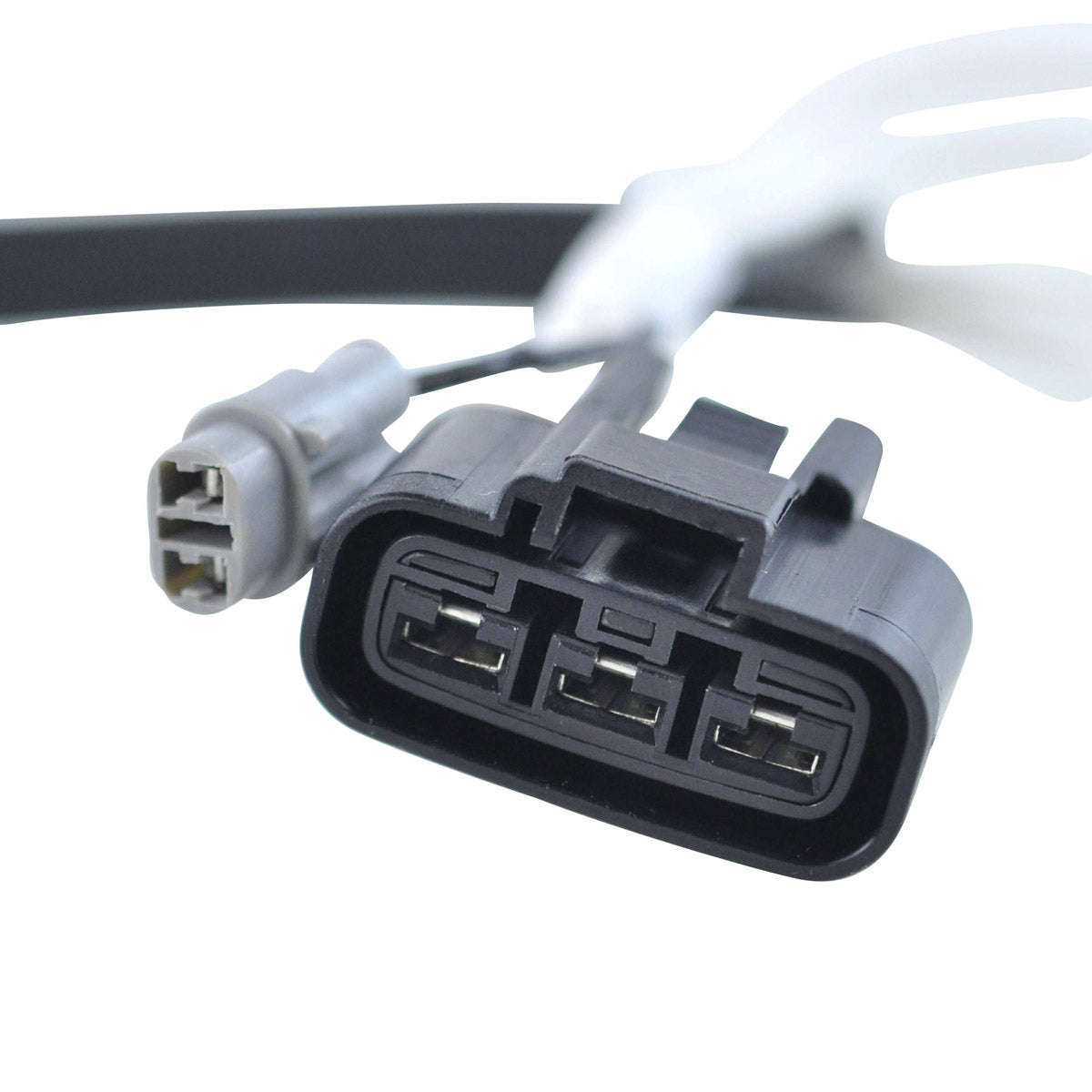

Five wires run out through two plugs, carrying the charging winding and the pick-up pulsar coil, with separate 640 mm and 765 mm leads from the grommet so the loom sits exactly as the original did. The windings are the highest grade copper on the highest grade lamination materials, resistant to 200 degrees Celsius - important on a sled, where the stator lives in a hot, sealed crankcase cover. The pick-up pulsar coil, the connectors and the rubber grommet are all supplied.
Key Features
- Brand new stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connectors included
- Rubber grommet included
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 103 mm |
| Thickness | 23 mm |
| Length of wires, stator to grommet | 220 mm |
| Length of wires, grommet to plug 1 | 640 mm |
| Length of wires, grommet to plug 2 | 765 mm |
| Length of pick-up coil wire to grommet | 77 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, white to white | 0.6 ohms plus or minus 20% |
| Alternator, white to ground | O.L. on display (open circuit) |
| Pick-up resistance, black to white | 185 ohms plus or minus 20% |
| Part number | RM01339 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Nytro 1000 | 2005-2018 |
| Yamaha Phazer 500 | 2005-2018 |
| Yamaha RS Rage 1000 | 2005-2018 |
| Yamaha RS Vector 1000 | 2005-2018 |
| Yamaha RS Venture 1000 | 2005-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8ES-81410-00-00 | Yamaha |
| 8ES-81410-01-00 | Yamaha |
| 8GC-81410-00-00 | Yamaha |
| 8GC-81410-10-00 | Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit and uses the factory mounting points and the supplied connectors, so no cutting, splicing or drilling is needed.
What is included?
The stator, the pick-up pulsar coil, the connectors and the rubber grommet.
How can I tell my old stator has failed?
Measure it cold with a multimeter. The charging winding should read 0.6 ohms plus or minus 20% white to white and the pick-up 185 ohms plus or minus 20% black to white. White to ground should show O.L. on the display; any continuity there means a winding has shorted to the core and the stator has failed.
Does one stator cover all of these sleds?
Yes. RM01339 is listed for the Nytro 1000, Phazer 500, RS Rage 1000, RS Vector 1000 and RS Venture 1000, and cross references to Yamaha 8ES-81410-01-00, 8ES-81410-00-00, 8GC-81410-00-00 and 8GC-81410-10-00. Confirm the number on your original unit before ordering.
