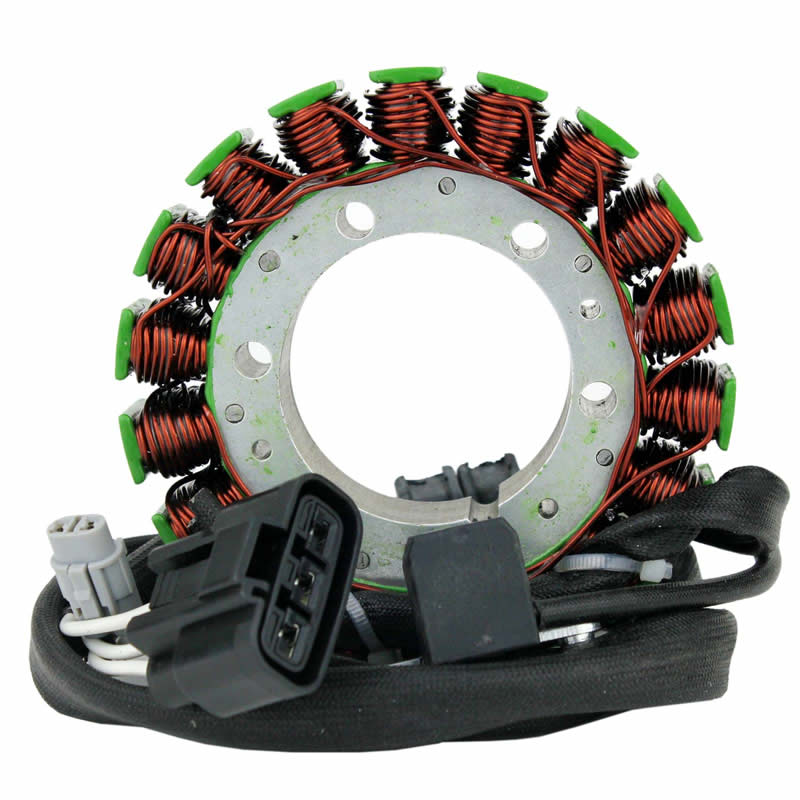

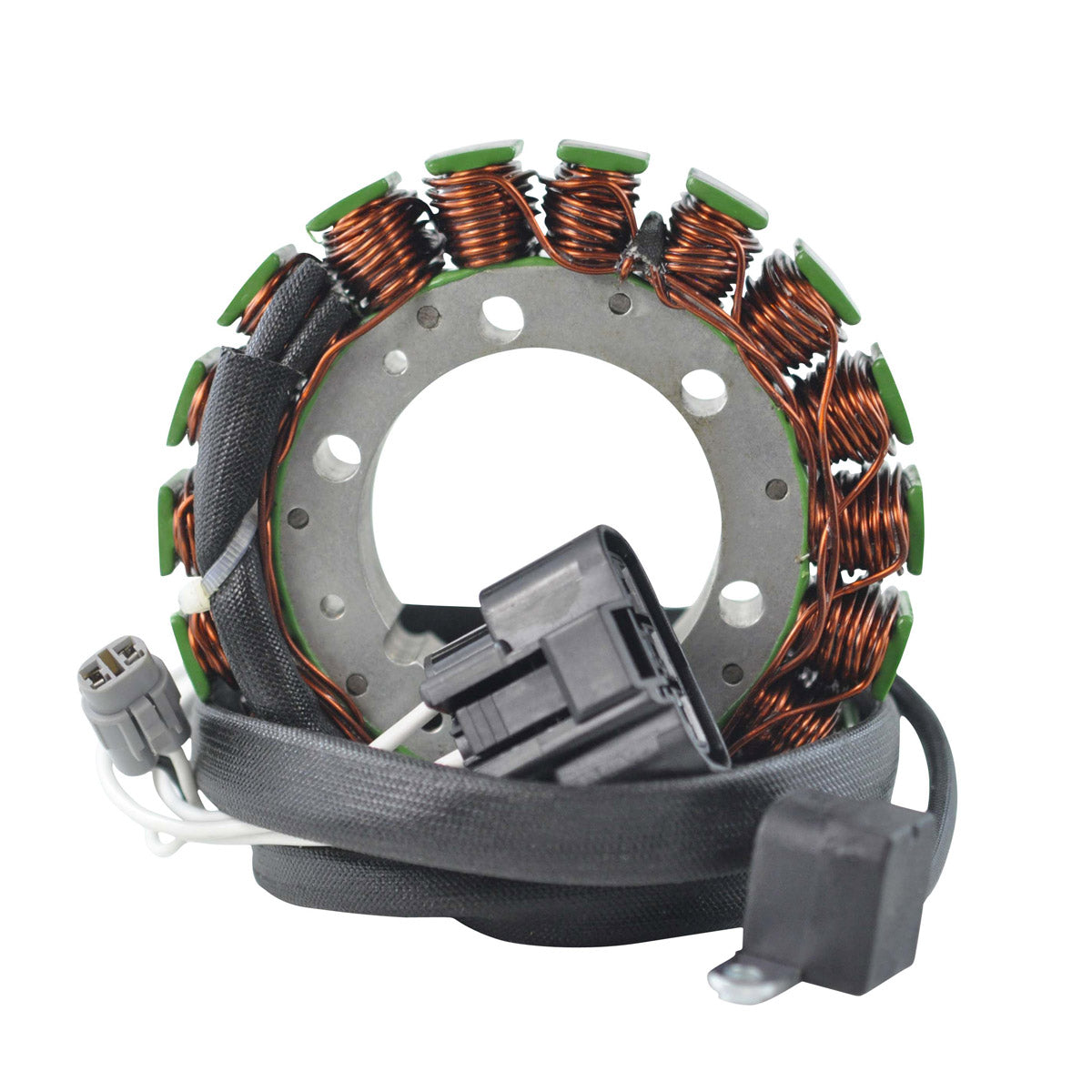

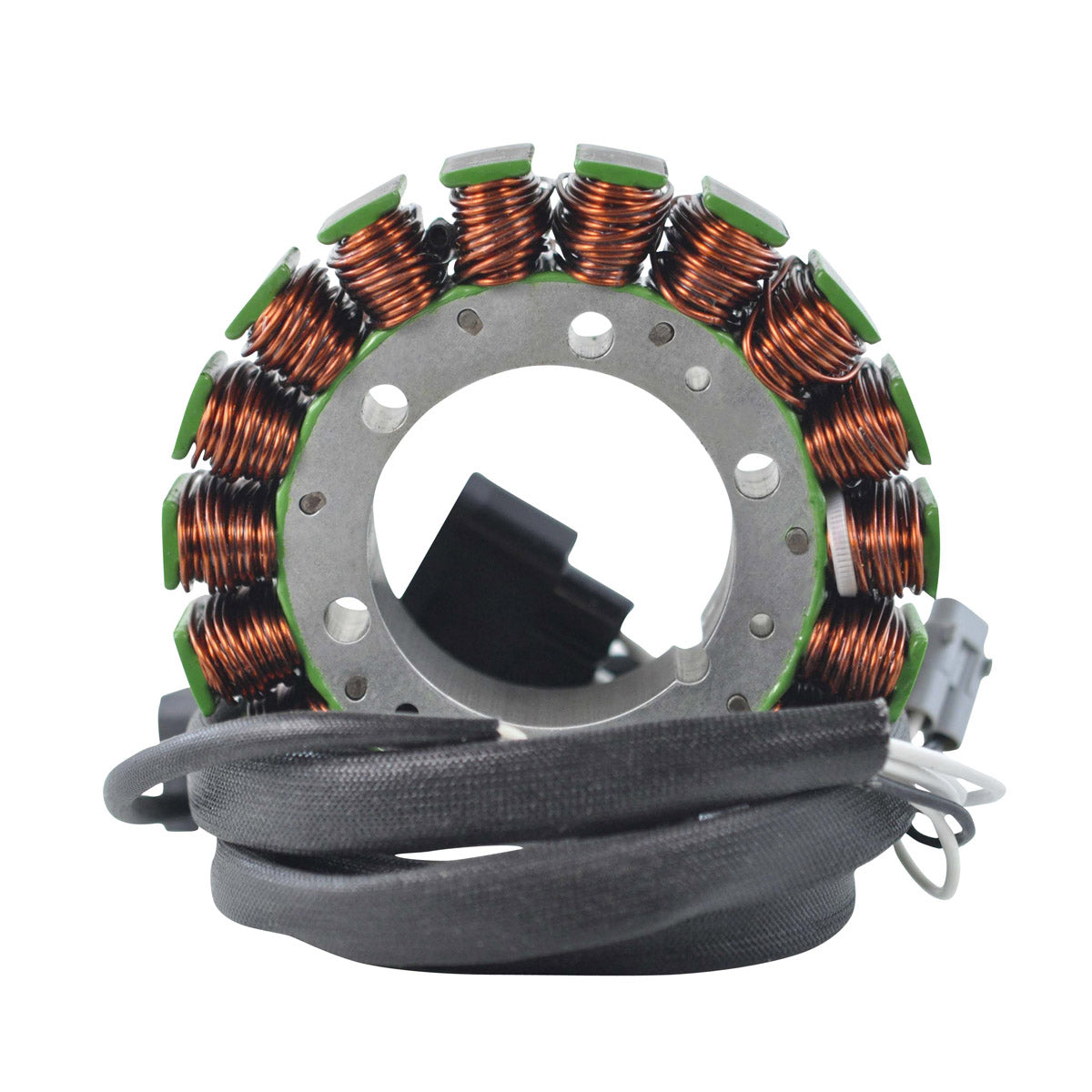

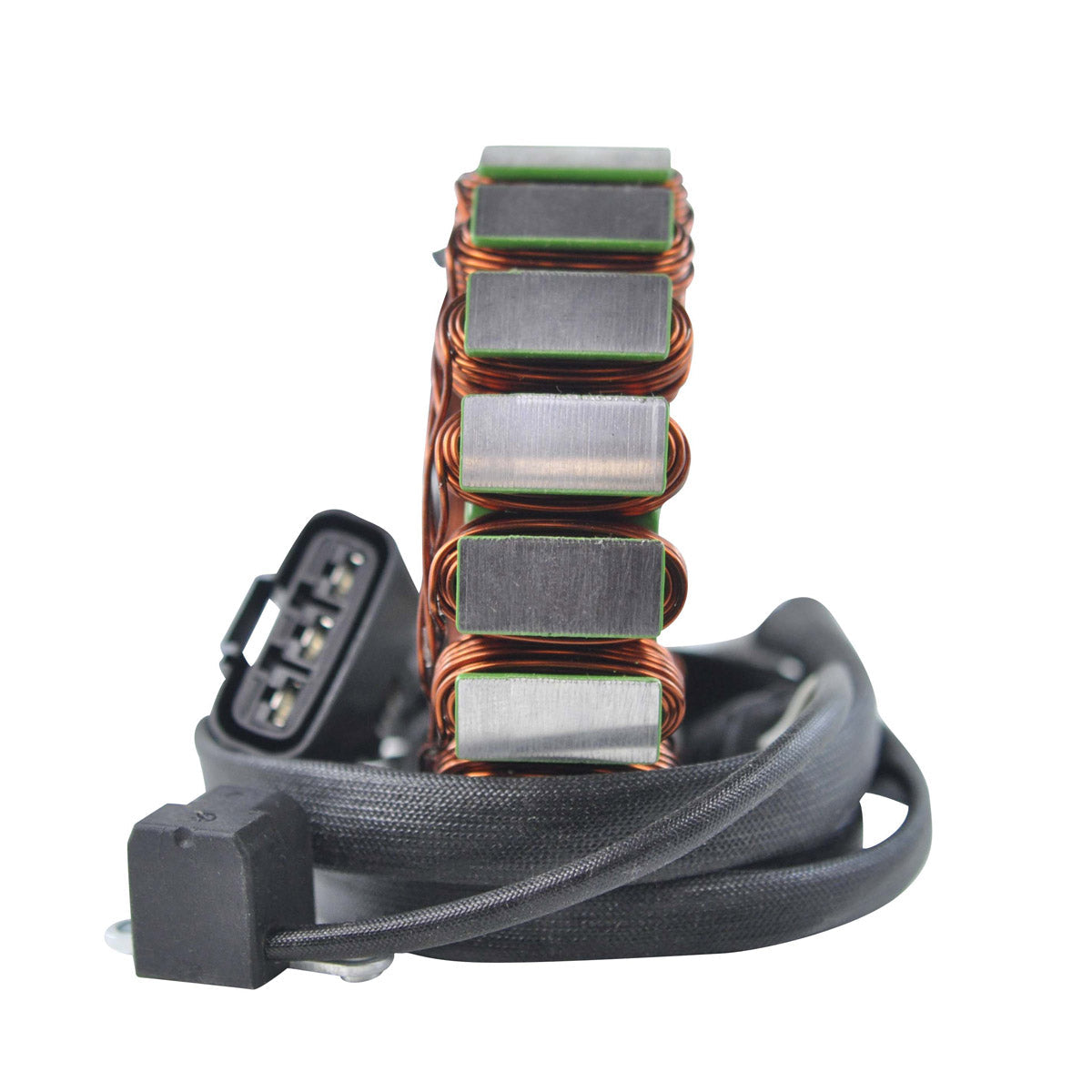

Stator for Yamaha Apex, RX Warrior and RX-1 Snowmobiles
Apex 1000 2006-2010, RX Warrior 1000 2004-2005 and RX-1 2003-2005 - RMSTATOR RM01329
A brand new stator built as a direct replacement for the original charging and ignition unit fitted to the Yamaha Apex 1000, RX Warrior 1000 and RX-1 four-cylinder snowmobiles. It is a plug-and-play, direct fit assembly that mounts in the factory position using the original fixings, so no modification to the engine, the flywheel or the wiring loom is needed.
The unit is supplied complete with the pick-up pulsar coil, the connector and the rubber grommet already fitted, so nothing has to be transferred from the old stator. It is built on the highest grade lamination materials and wound with the highest grade copper, rated to withstand 200 degrees Celsius. The long harness leads - 875 mm from the grommet to the first plug and 940 mm to the second - match the original routing on these machines. Every unit is bench tested before it is shipped.
Key Features
- Direct replacement for the original Yamaha stator
- Plug-and-play, direct fit, easy installation
- No modification to engine, flywheel or loom required
- Pick-up pulsar coil included

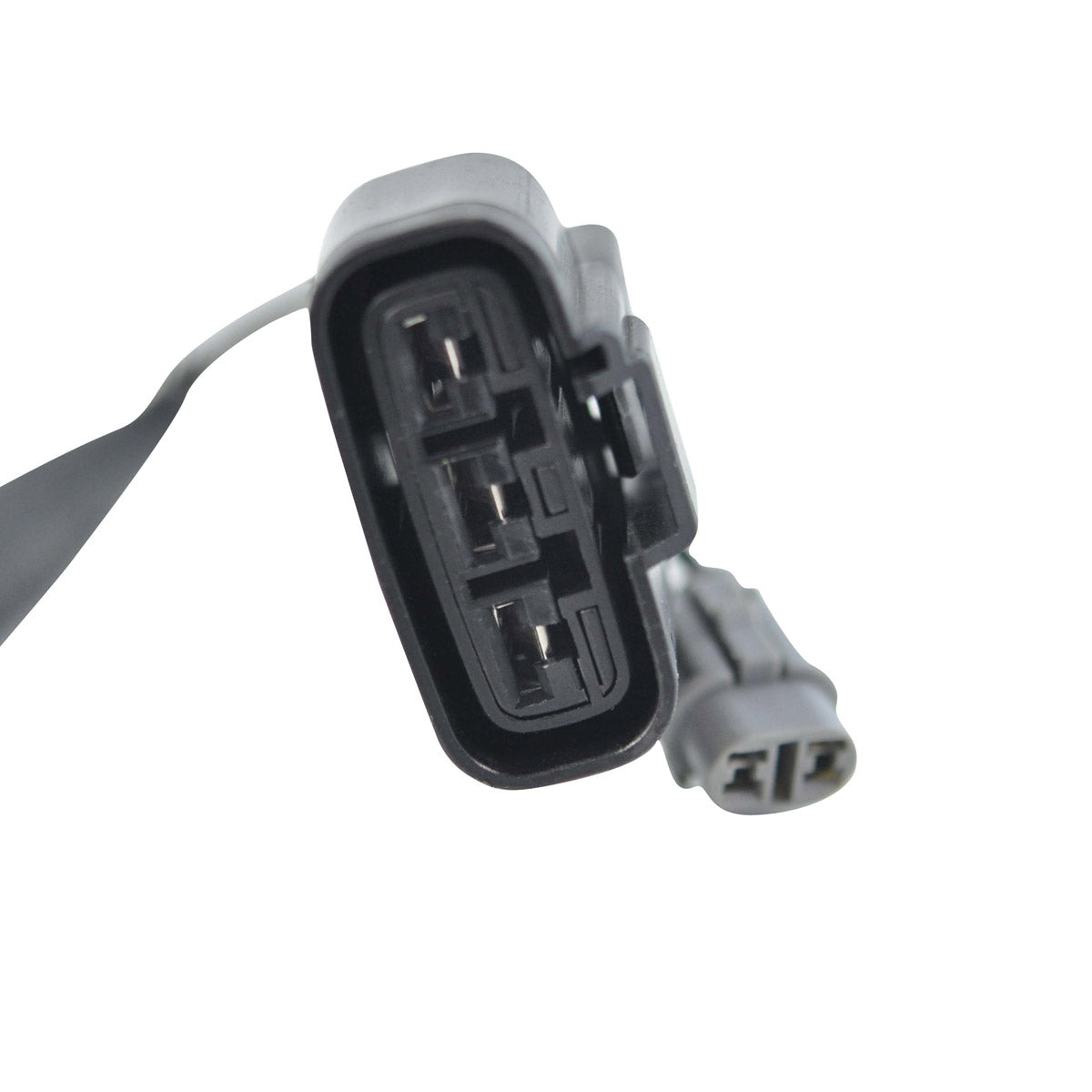

- Connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Every unit is tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 27.5 mm |
| Length of wires, stator to grommet | 135 mm |
| Length of wires, grommet to plug 1 | 875 mm |
| Length of wires, grommet to plug 2 | 940 mm |
| Length of pick-up coil wire to grommet | 160 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance | White between each White = 0.6 ohms +/-20% |
| Pick-up coil resistance | Black to White = 500 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Manufacturer part number | RM01329 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha Apex 1000 | 2006-2010 |
| Yamaha RX Warrior 1000 | 2004-2005 |
| Yamaha RX-1 | 2003-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8FA-81410-00-00 | Yamaha |
| 8FP-81410-00-00 | Yamaha |
| 8FP-81410-01-00 | Yamaha |
| 8FP-81410-02-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original unit on the Apex 1000, RX Warrior 1000 and RX-1. It mounts in the factory position on the original fixings and plugs into the existing harness, with no cutting or splicing.
What is included in the box?
The stator assembly, the pick-up pulsar coil, the connector and the rubber grommet. Every unit is tested before it is shipped.
How do I tell whether the old stator has failed?
Typical symptoms are a battery that will not hold charge, dim or flickering lights, a weak or intermittent spark, and stalling once the engine is hot. Measure the resistance between each pair of white alternator wires, and between the black and white pick-up wires, then compare the readings with the specification table above.
Is the pick-up pulsar coil supplied with the stator?
Yes. The pick-up pulsar coil is included and comes already fitted to the assembly, with its own 160 mm lead running to the rubber grommet, so the whole unit installs as one piece.
