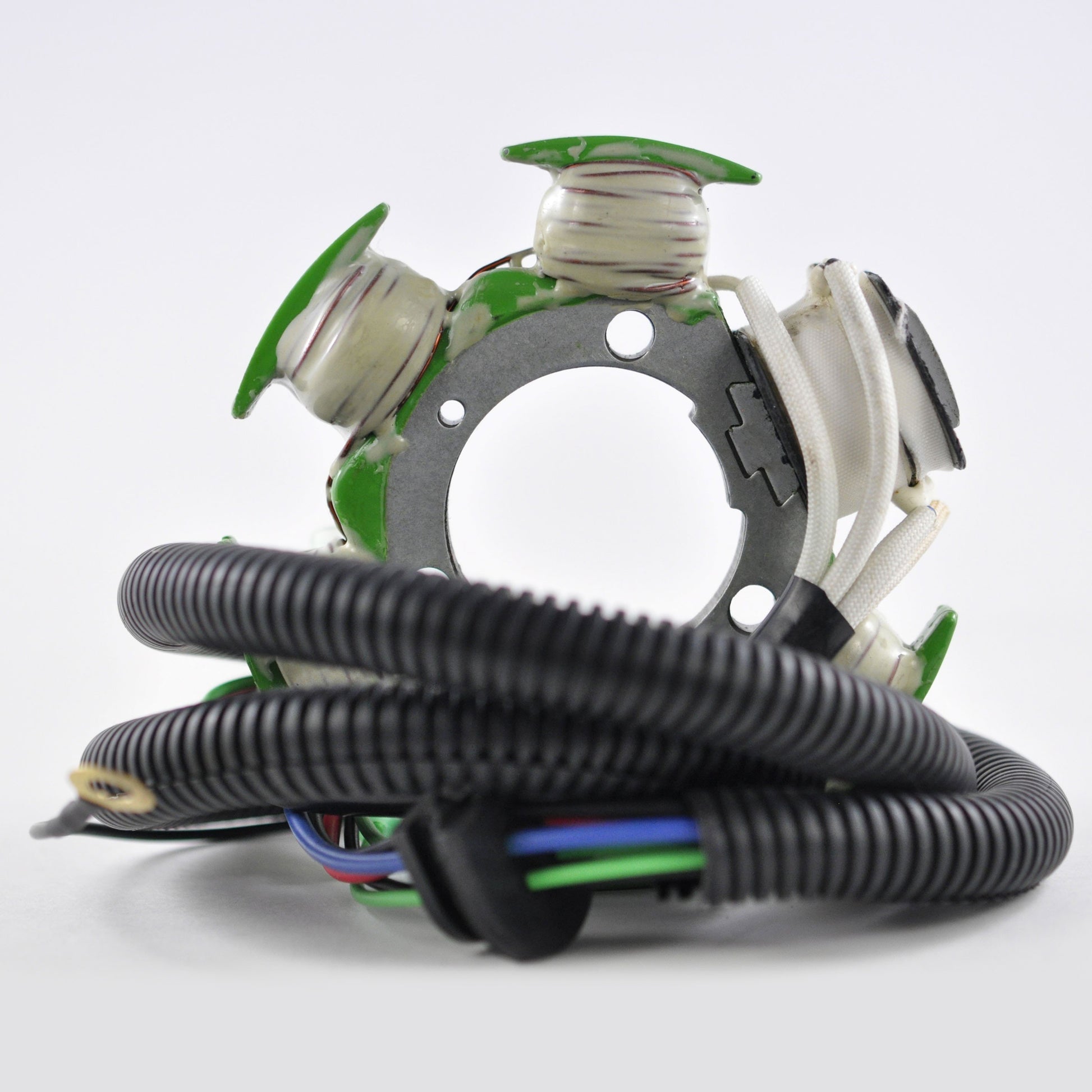

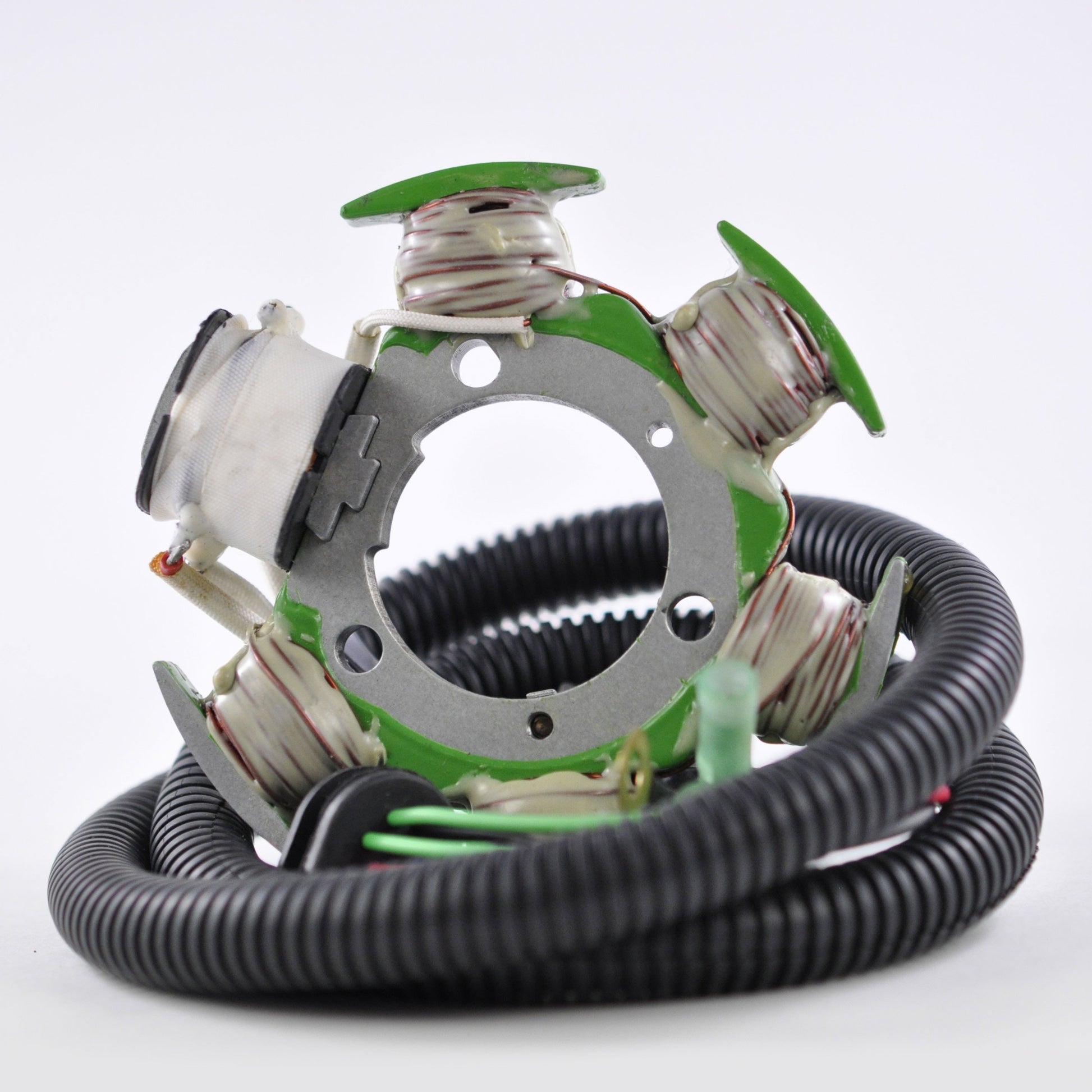

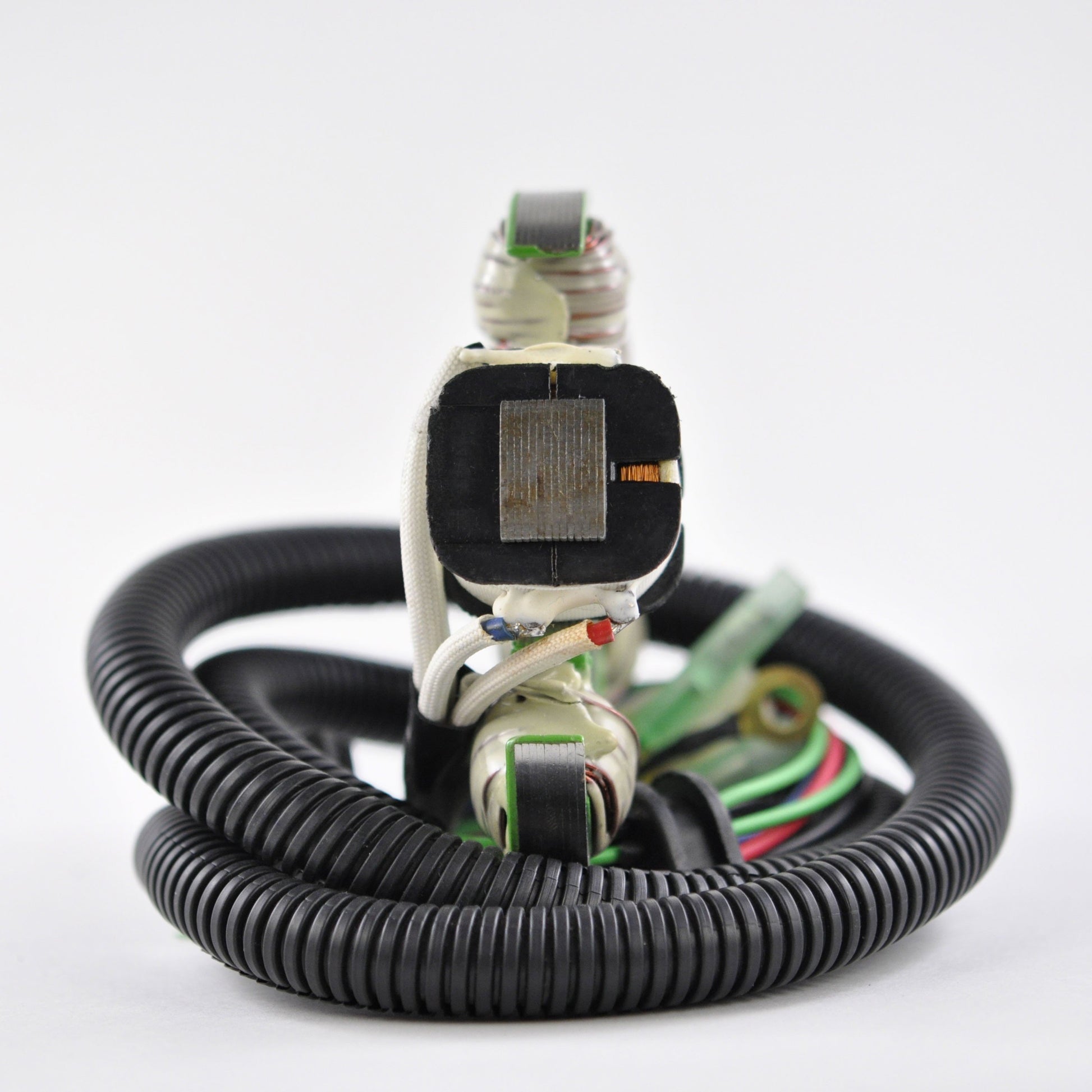

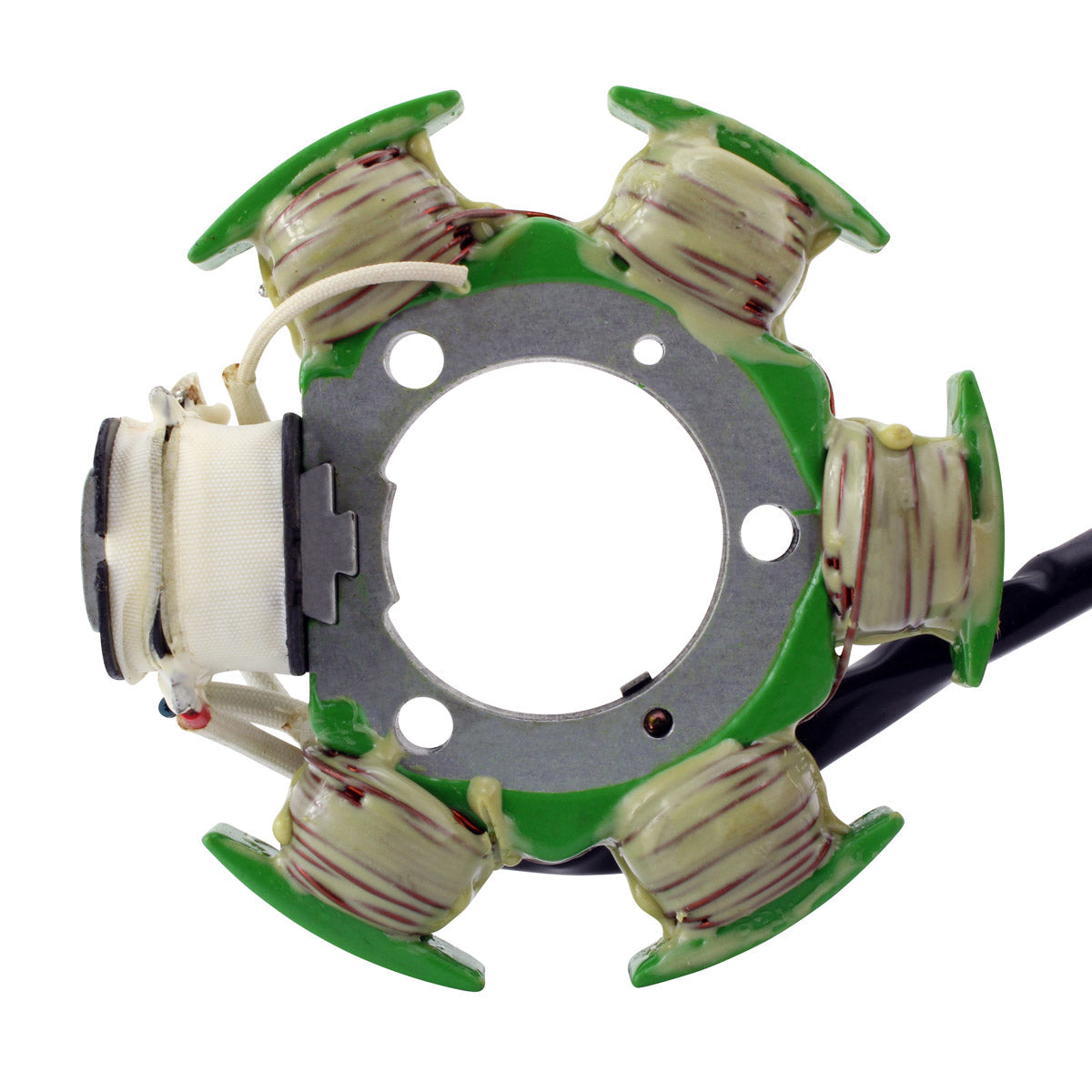

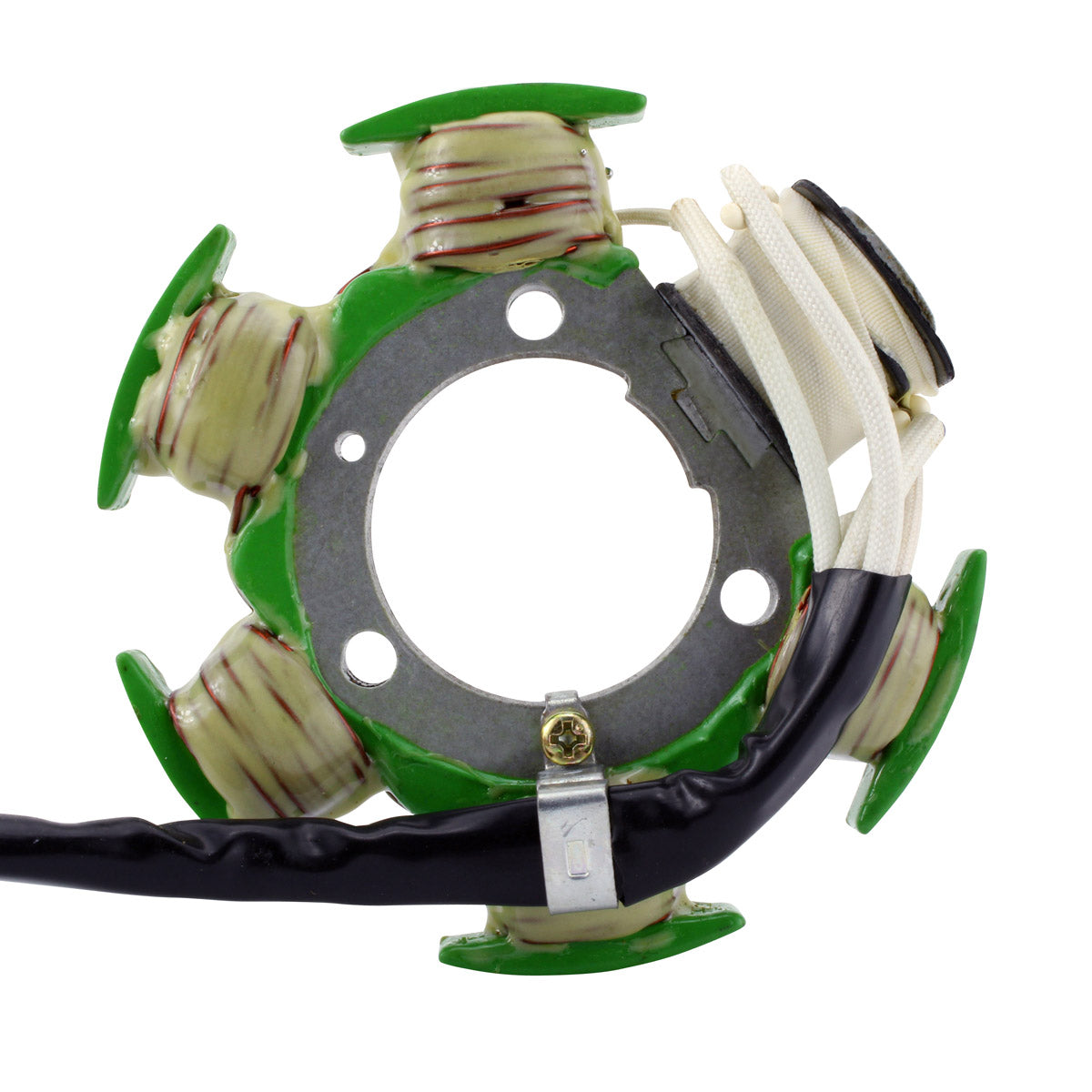

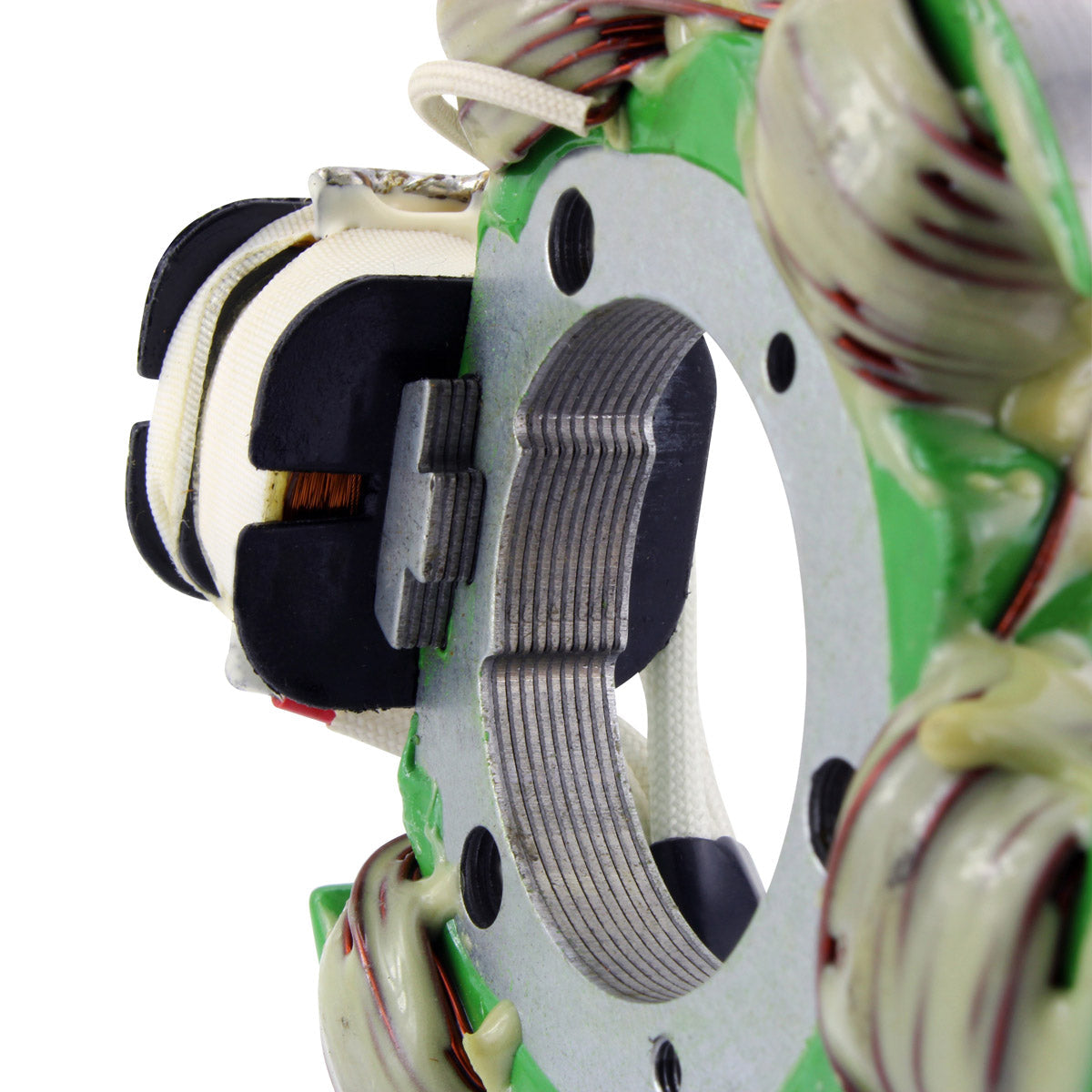

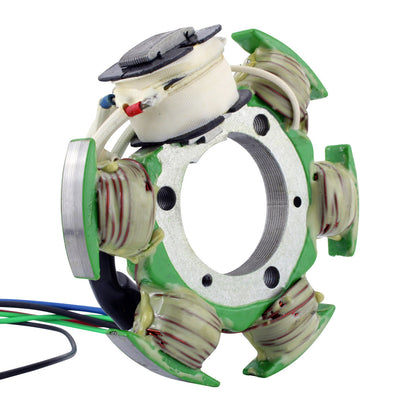

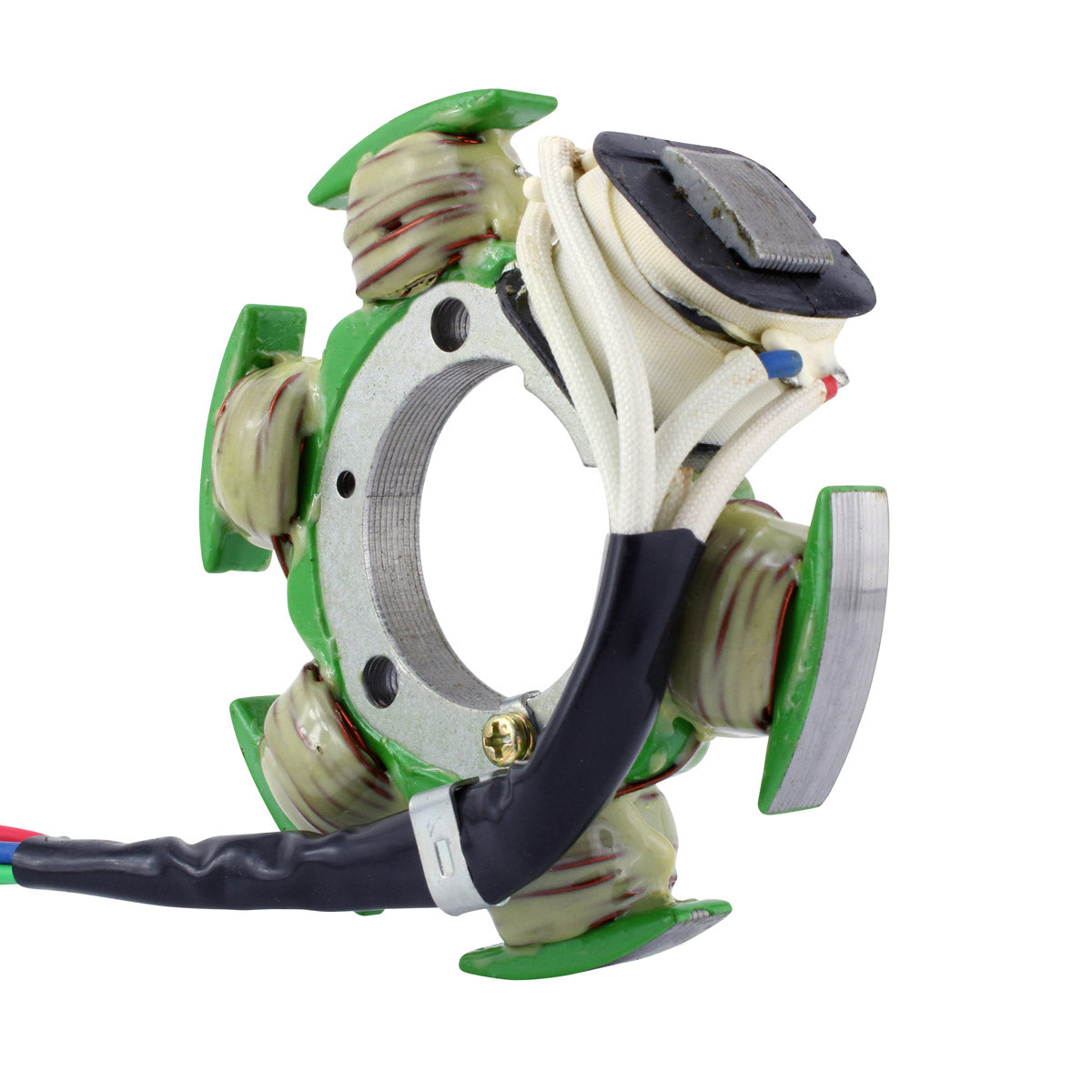

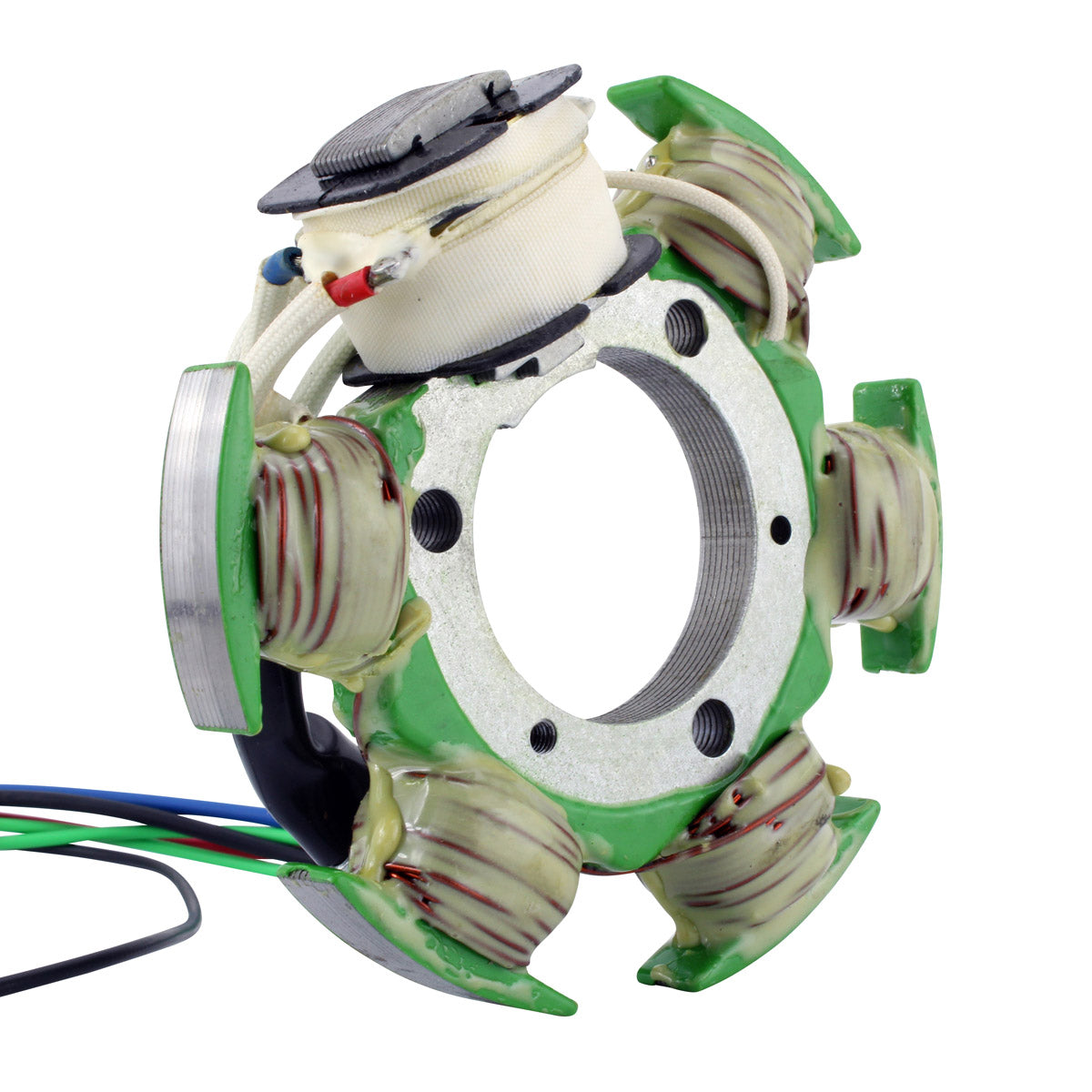

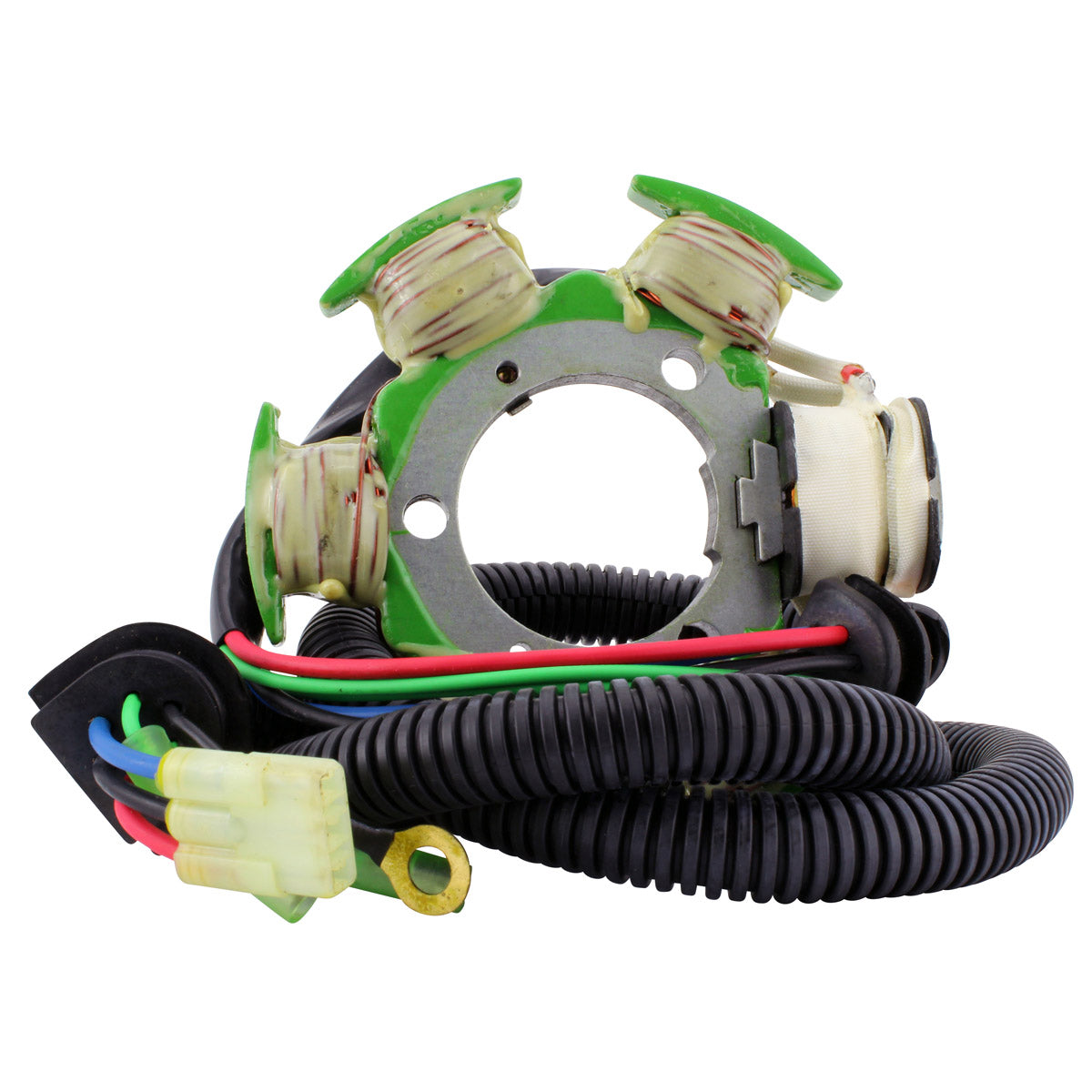

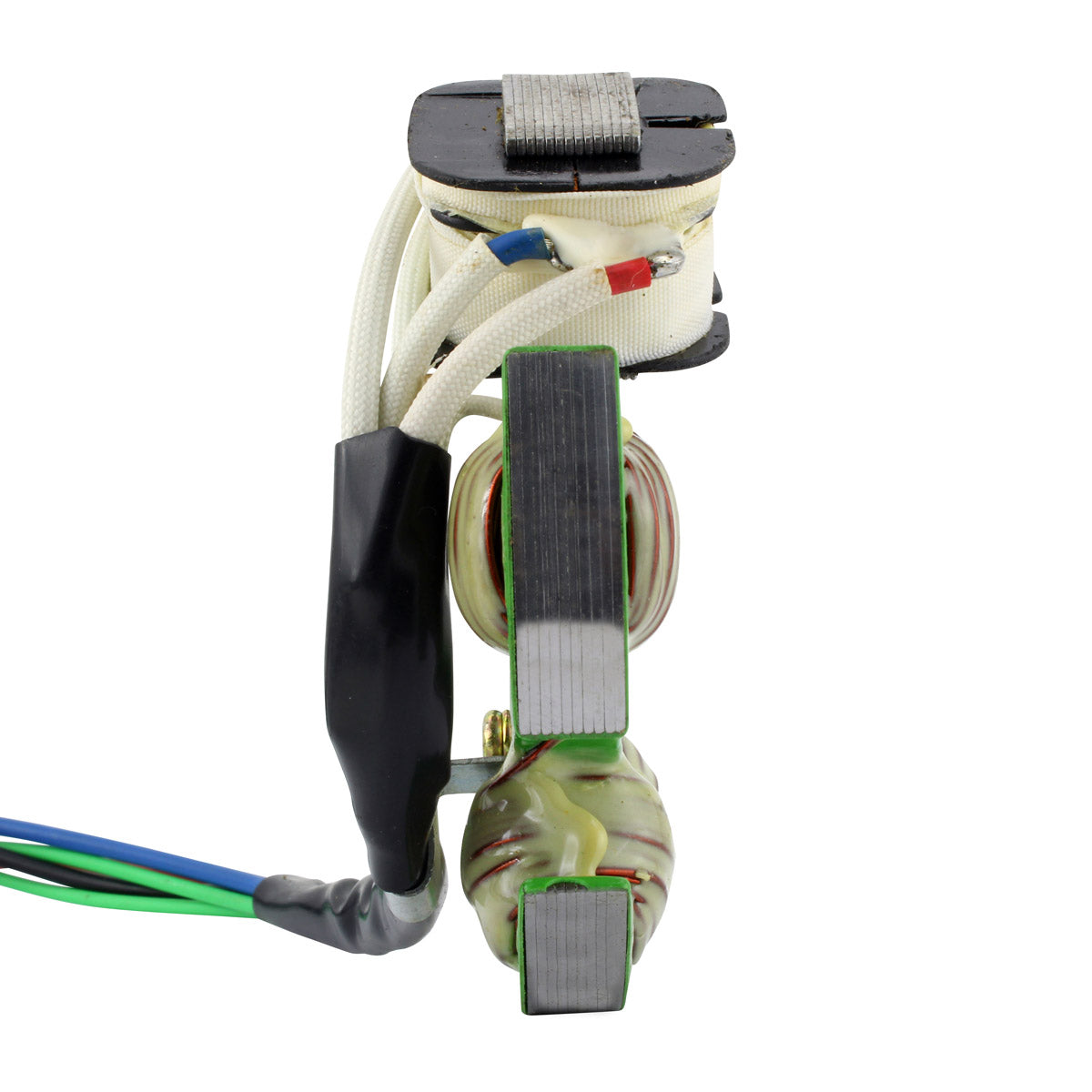

This is a brand new aftermarket stator for the Yamaha AR and LX 210, the Exciter 135 and 270, the LS 2000 and the XL, GP and SUV 1200 range built between 1997 and 2005. It is a direct replacement for the original unit and carries both the alternator winding that keeps the battery charged and the two ignition source coils, so one part restores the charging and the ignition supply together.
Installation is plug-and-play and a direct fit, with the connector and rubber grommet supplied. The unit is built on the highest grade lamination materials and wound with the highest grade copper, insulated to withstand 200 degrees Celsius. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core

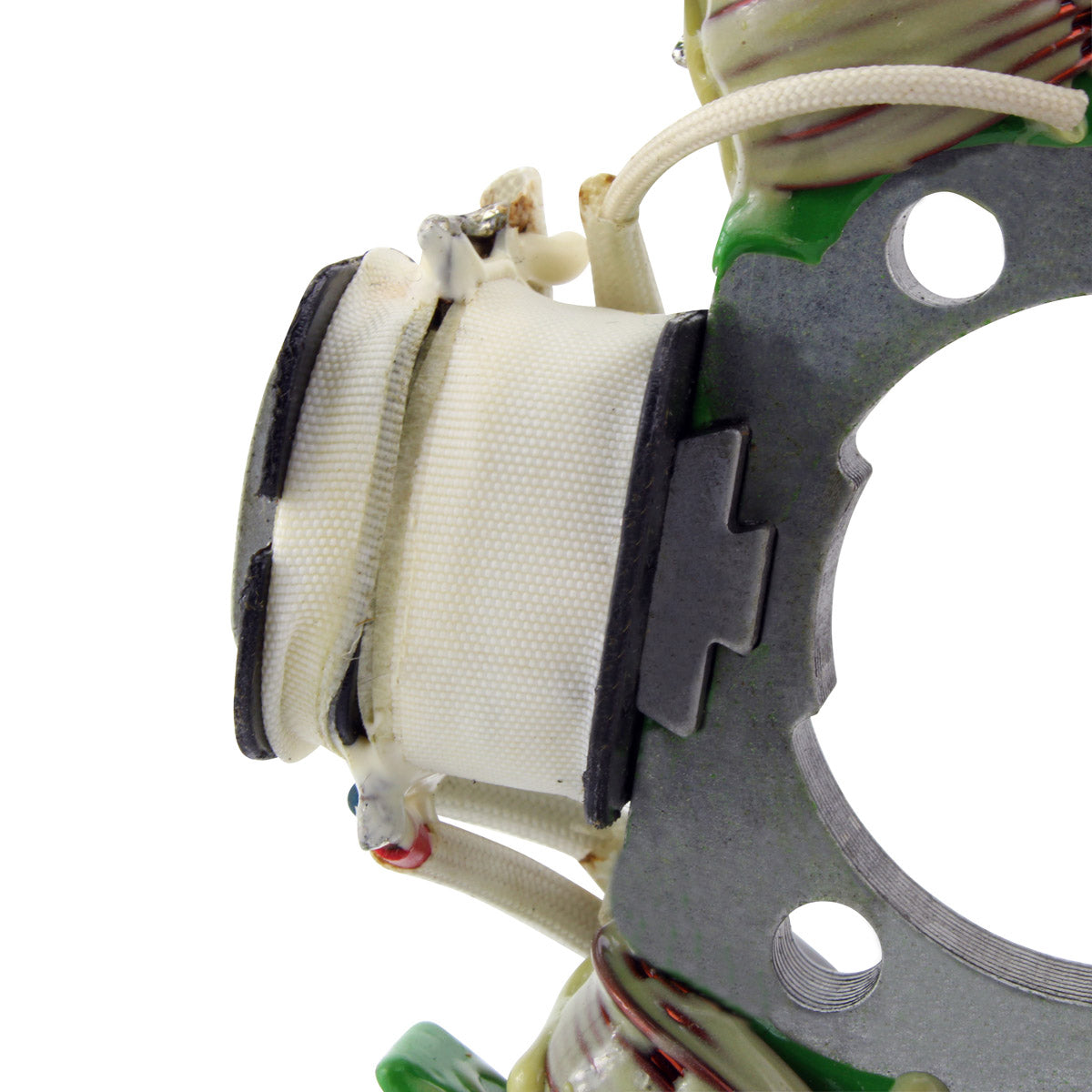

- Alternator winding plus two ignition source coils in one unit
- Plug-and-play, direct fit, easy installation

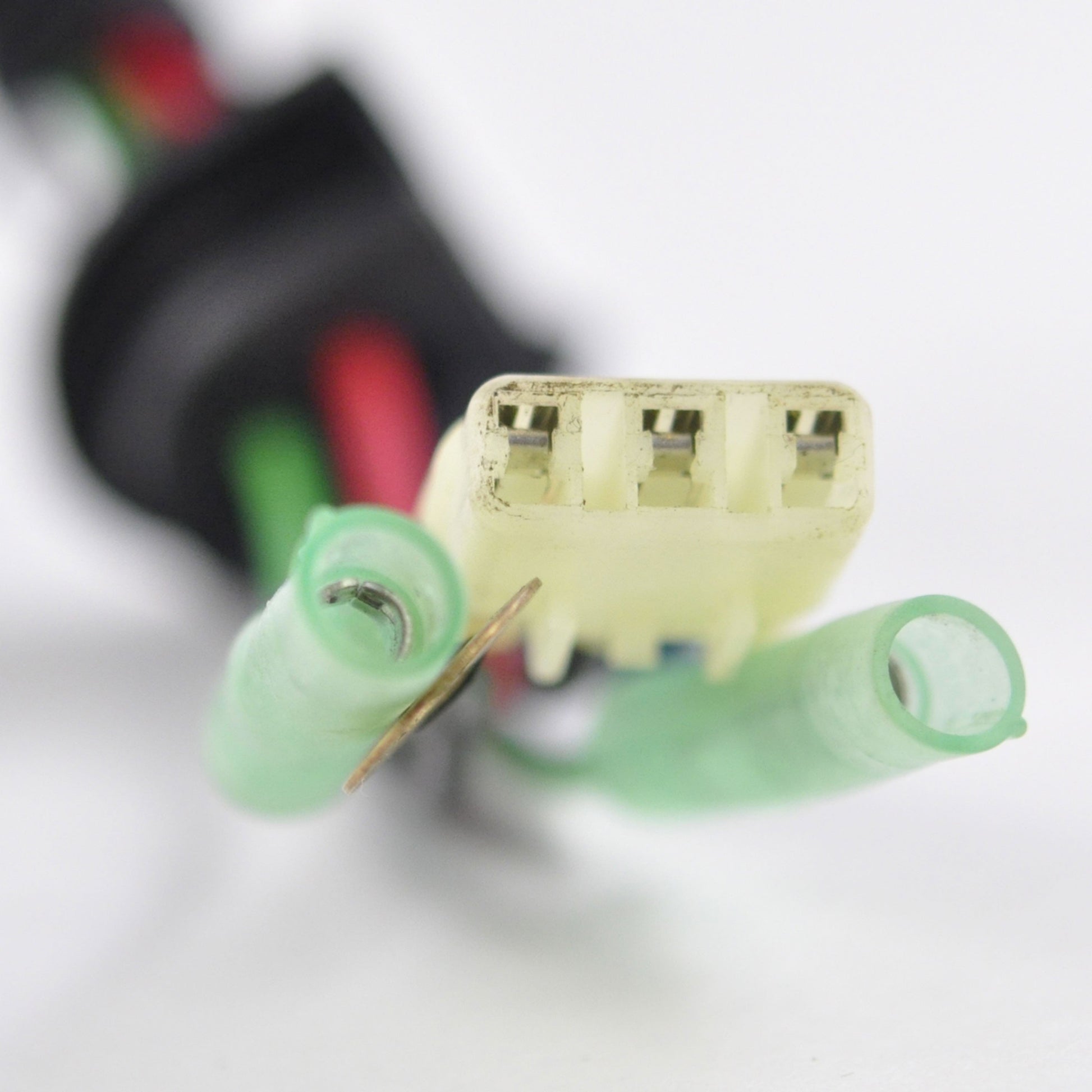

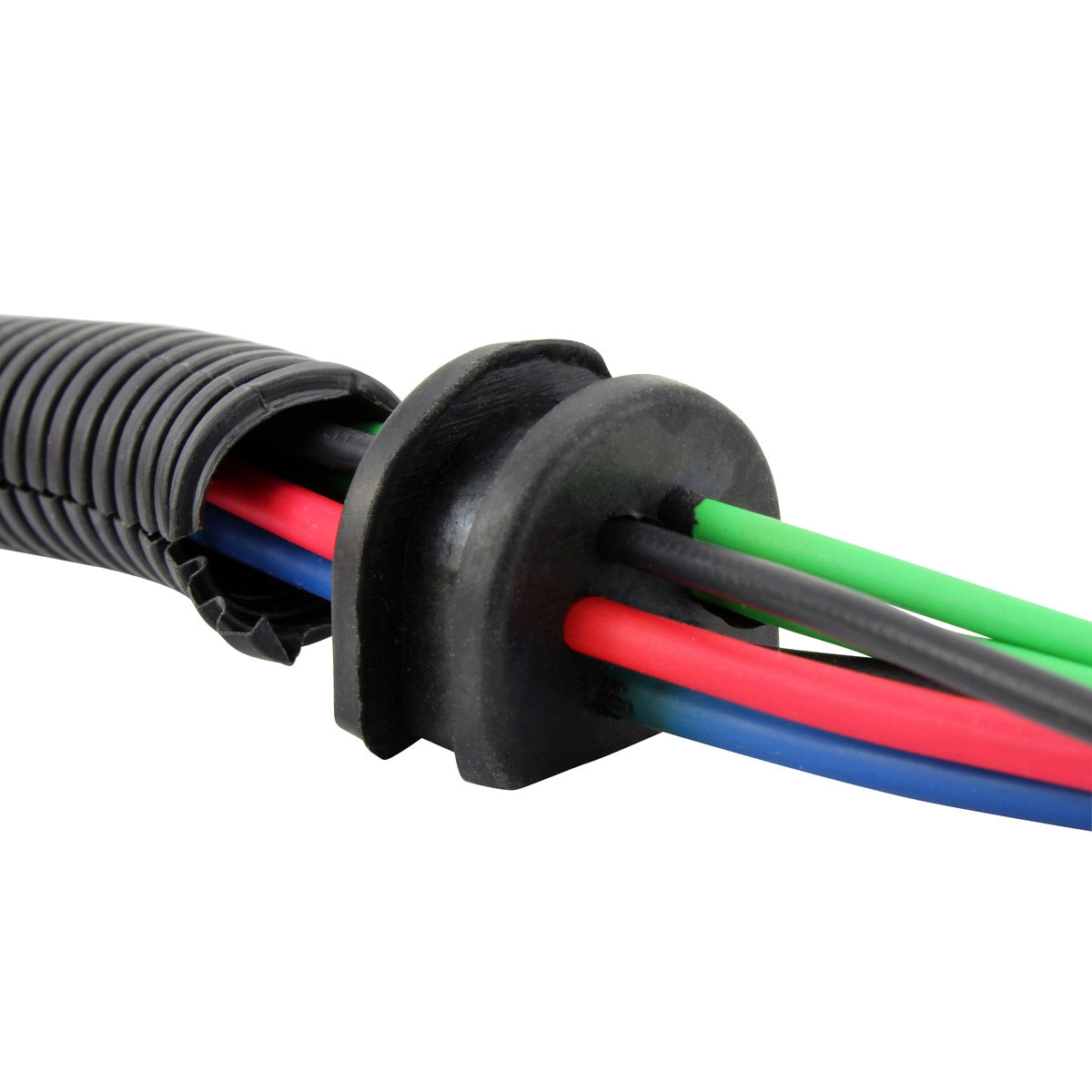

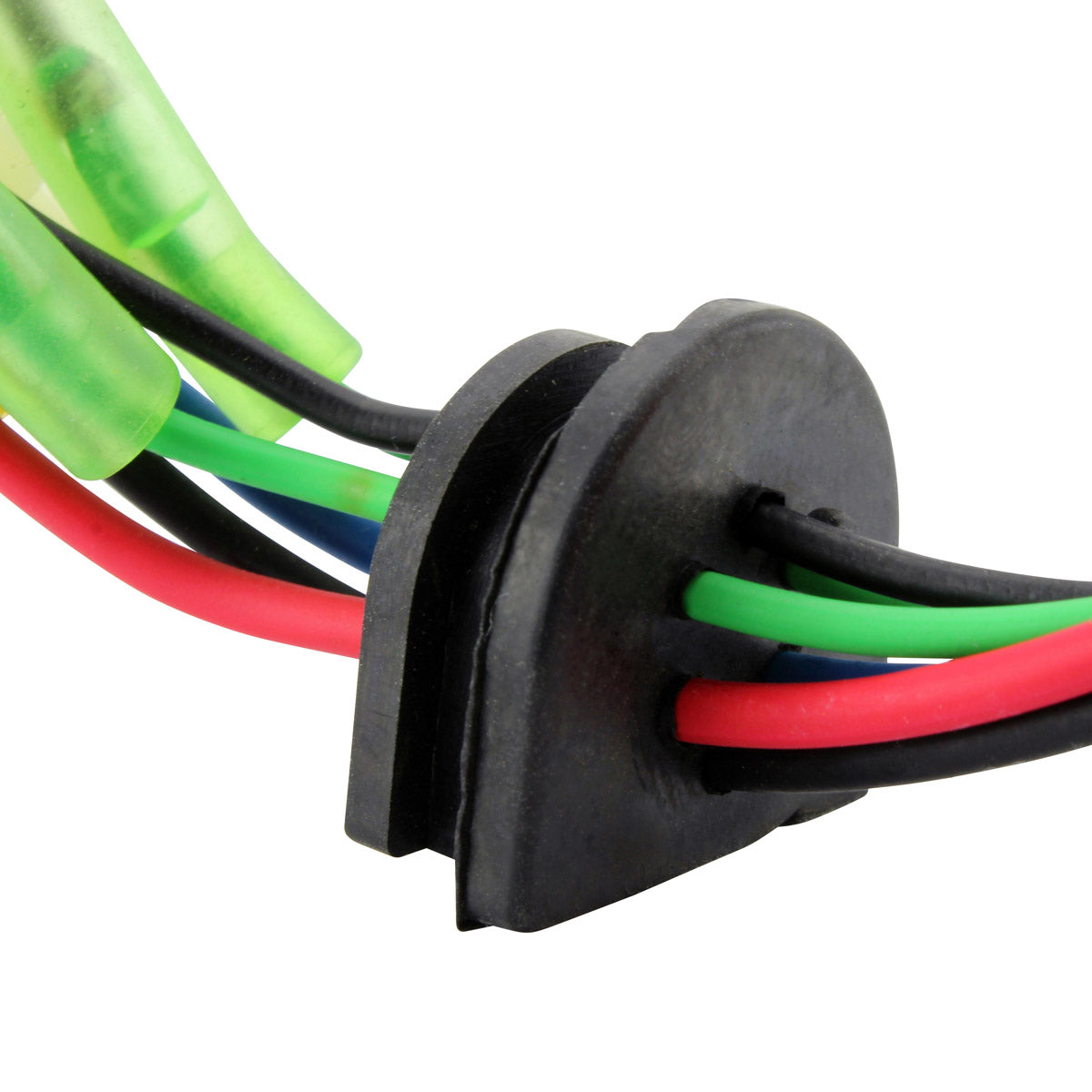

- Connector and rubber grommet included
- Highest grade copper windings, resistant to 200 degrees Celsius
- Highest grade lamination materials

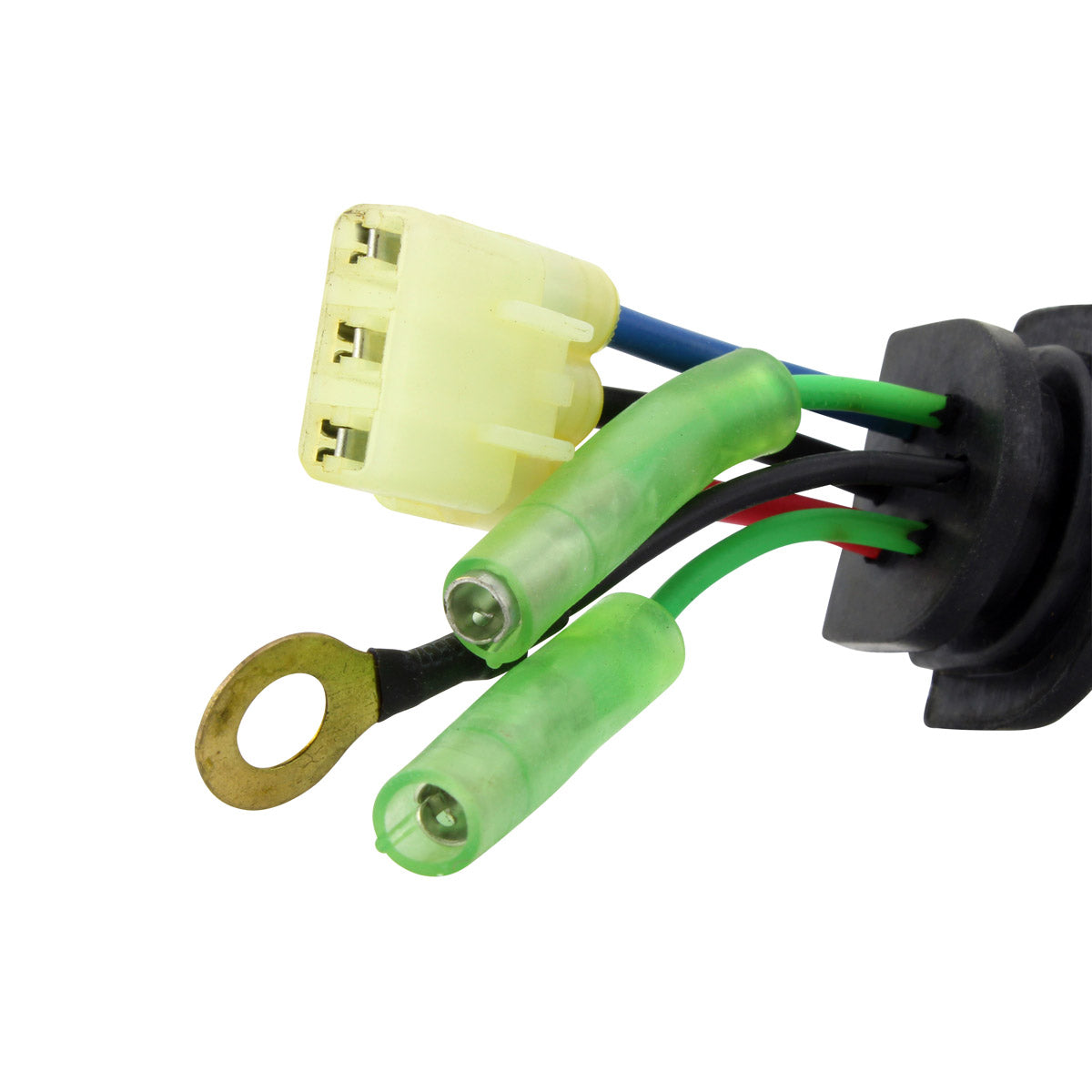

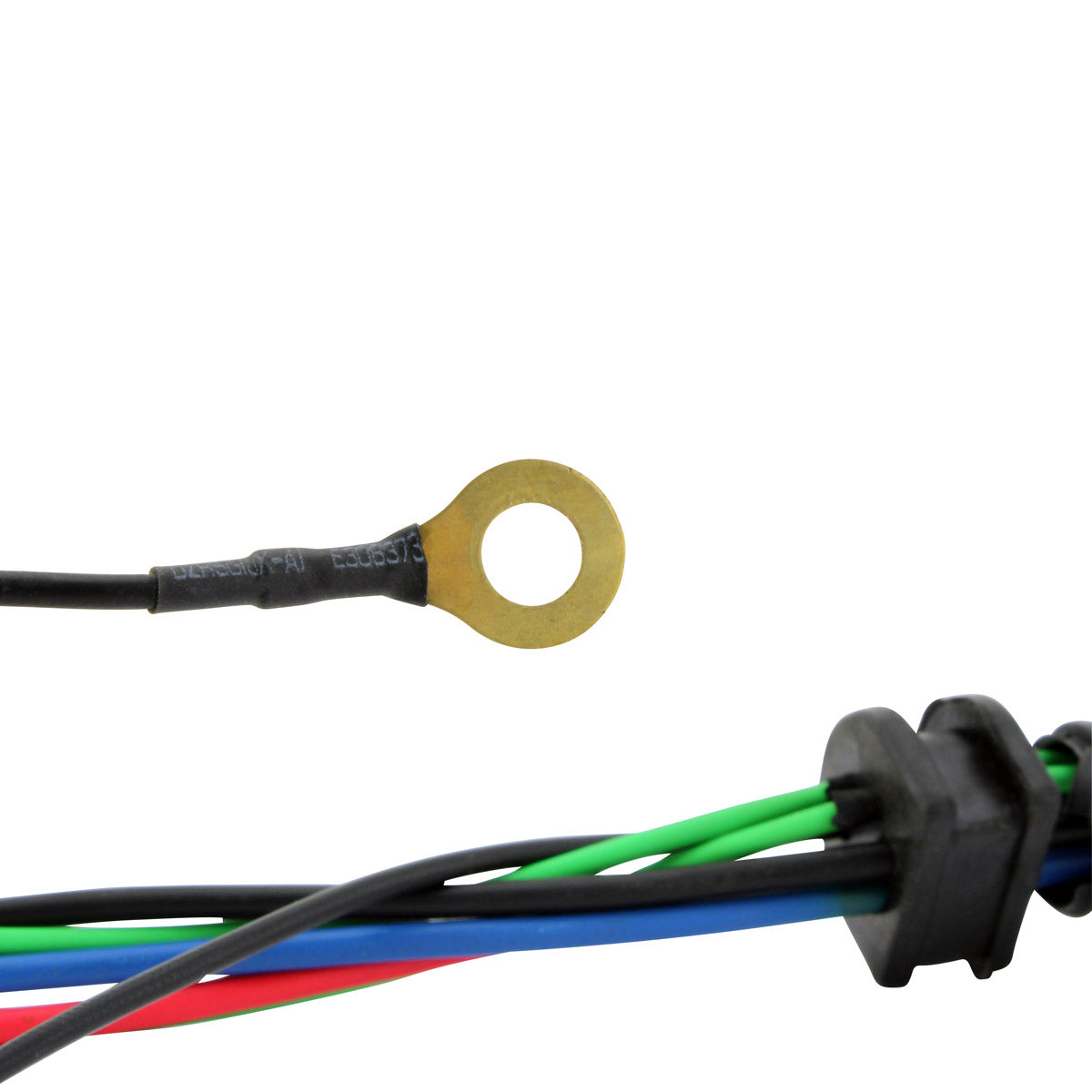

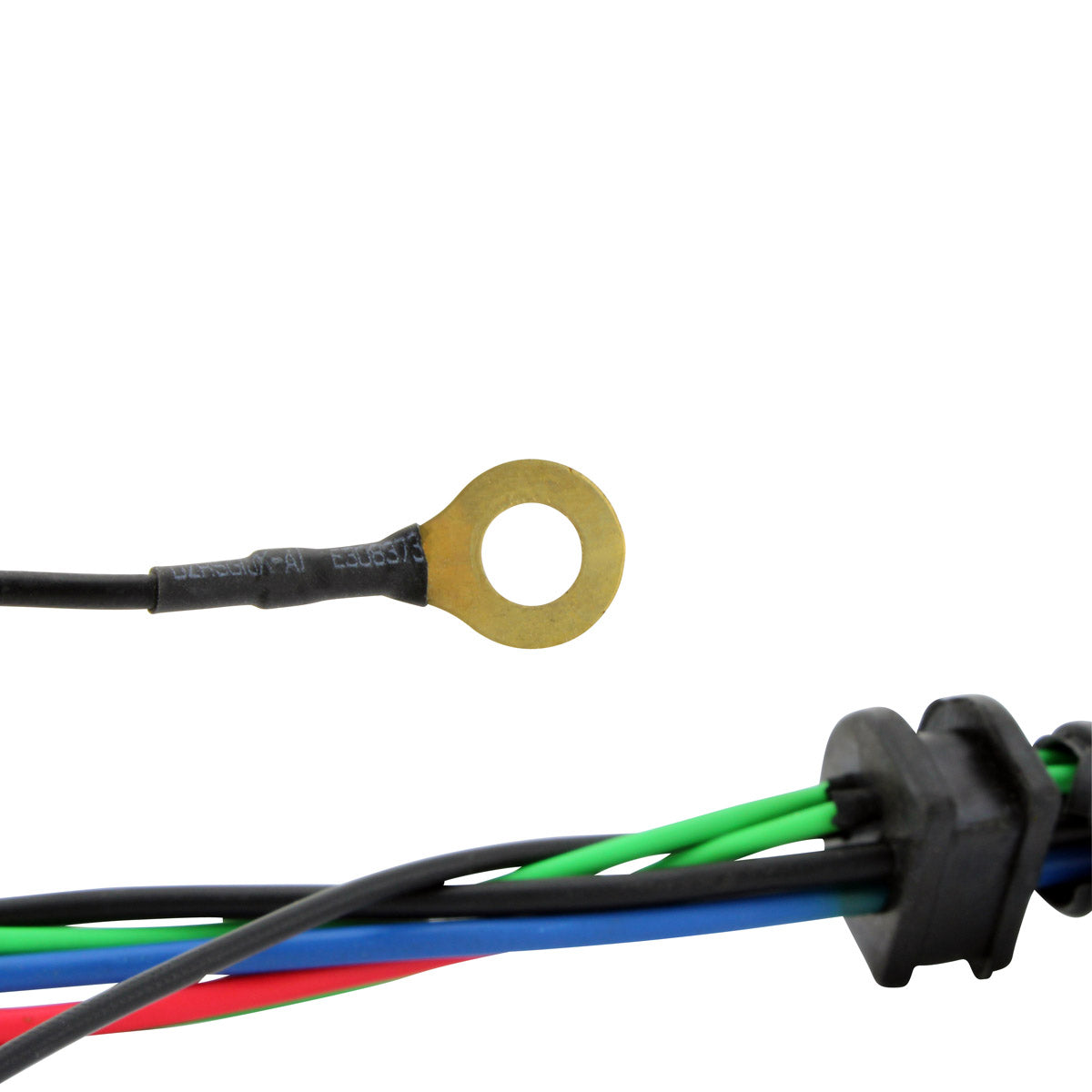

- Six wires and four plugs, matching the original layout
- Every unit tested before it leaves the factory
Technical Specs
| Specification |
Detail |
| Part number |
RM01520 |
| Interior diameter |
42 mm |
| Exterior diameter |
107 mm |
| Thickness |
10 mm |
| Wire length, stator to first grommet |
180 mm |
| Wire length between grommets |
765 mm |
| Wire length, second grommet to plug |
55 mm |
| Number of wires |
6 |
| Number of plugs |
4 |
| Number of pins |
6 |
| Alternator resistance, green to green |
1.0 ohms +/- 20% |
| Source 1 resistance, black to blue |
757 ohms +/- 20% |
| Source 2 resistance, black to red |
183 ohms +/- 20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha AR 210 and LX 210 |
1997-2005 |
| Yamaha Exciter 135 and Exciter 270 |
1997-2005 |
| Yamaha LS 2000 |
1997-2005 |
| Yamaha XL 1200, GP 1200 and SUV 1200 |
1997-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 65U-85510-00-00 |
Yamaha |
| 65U-85510-01-00 |
Yamaha |
Frequently Asked Questions
Does this stator fit without modification?
Yes. On the models and years listed above it is a direct replacement and installs plug-and-play. The connector and rubber grommet are supplied, so the standard loom does not need cutting or splicing.
What is included?
The stator, the connector and the rubber grommet.
How can I tell my old stator has failed?
A failed charging winding shows up as a battery that will not hold charge and gauges that fade under load. A failed source coil shows up as no spark or a spark that dies once the engine warms. Check green to green for about 1.0 ohms, black to blue for about 757 ohms and black to red for about 183 ohms, all within 20 per cent. Any open circuit, or continuity from a winding to the stator body, means the unit has failed.
Why does this stator have two source coils?
On this Yamaha design the ignition is fed by two separate source windings with different resistances - 757 ohms on the black to blue pair and 183 ohms on the black to red pair - alongside the green alternator winding that charges the battery. All three are carried on the same plate, which is why one part number covers both the charging and the ignition supply.
