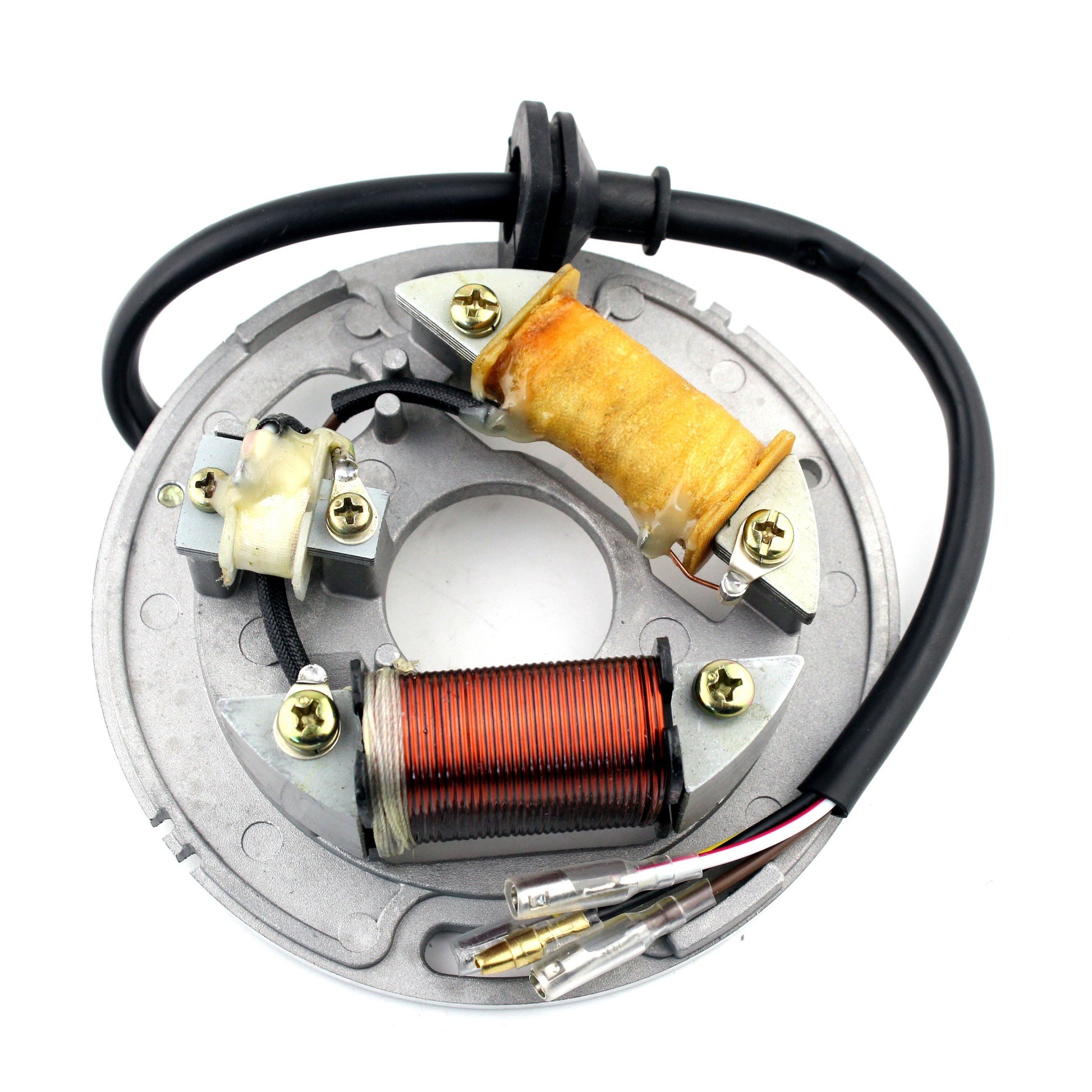

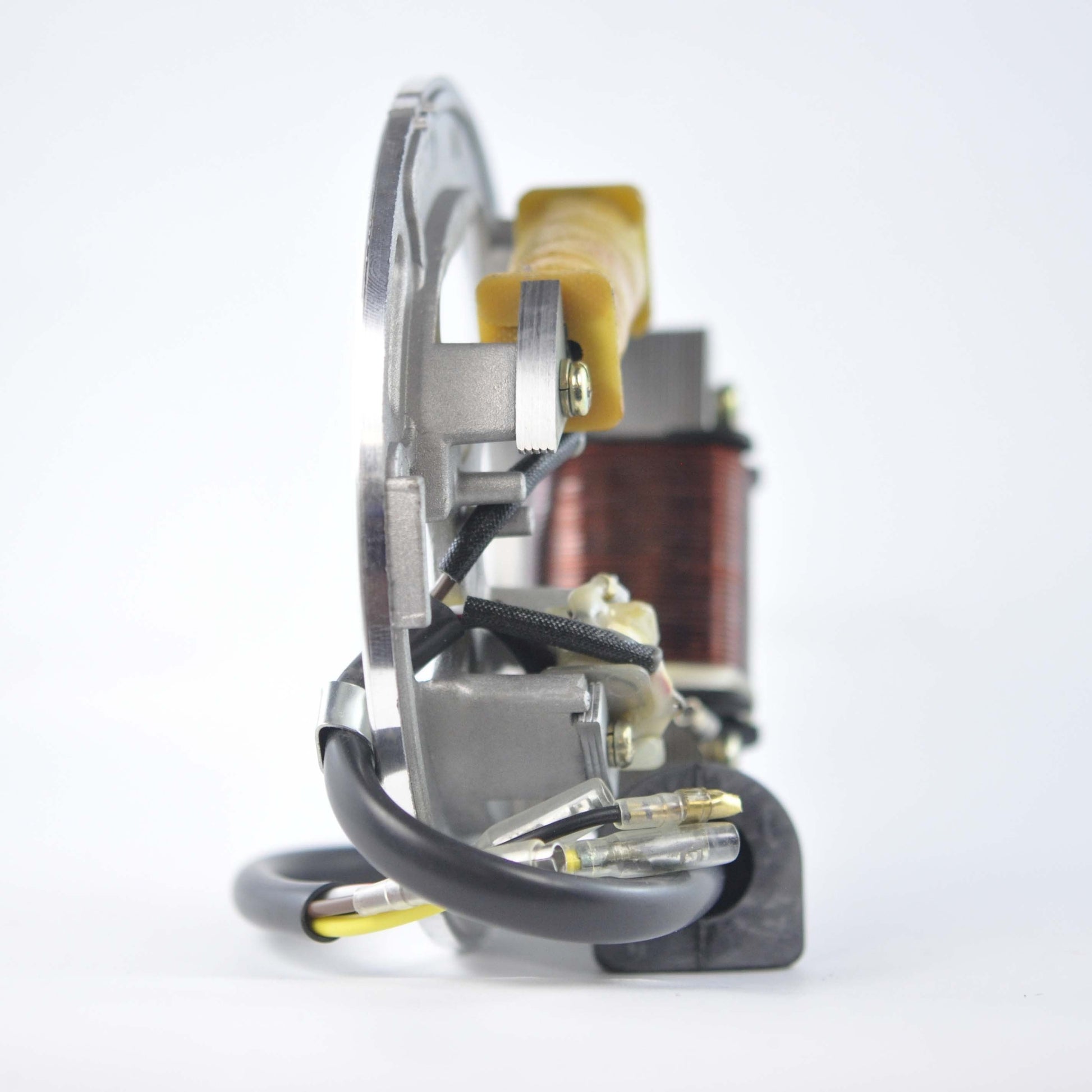

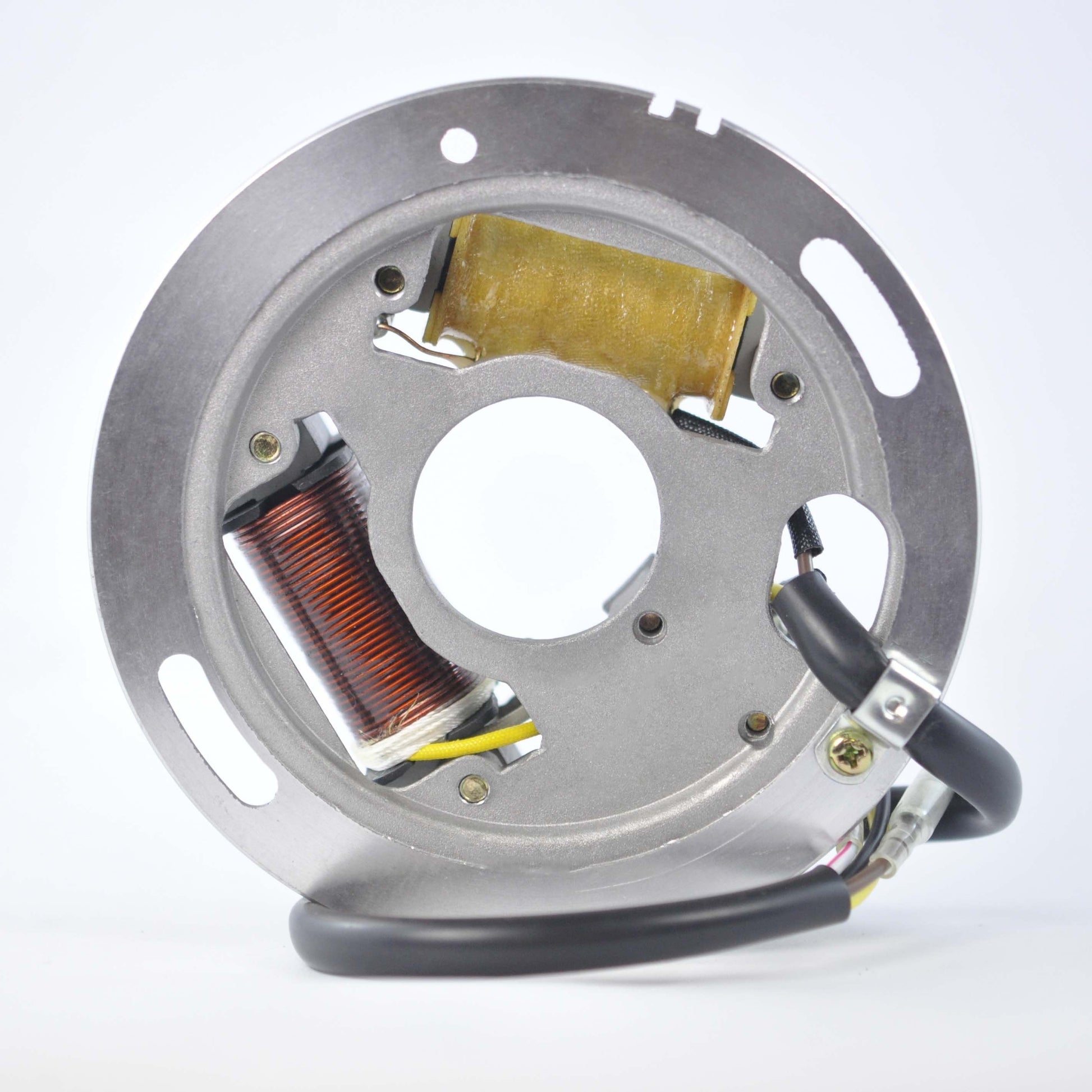

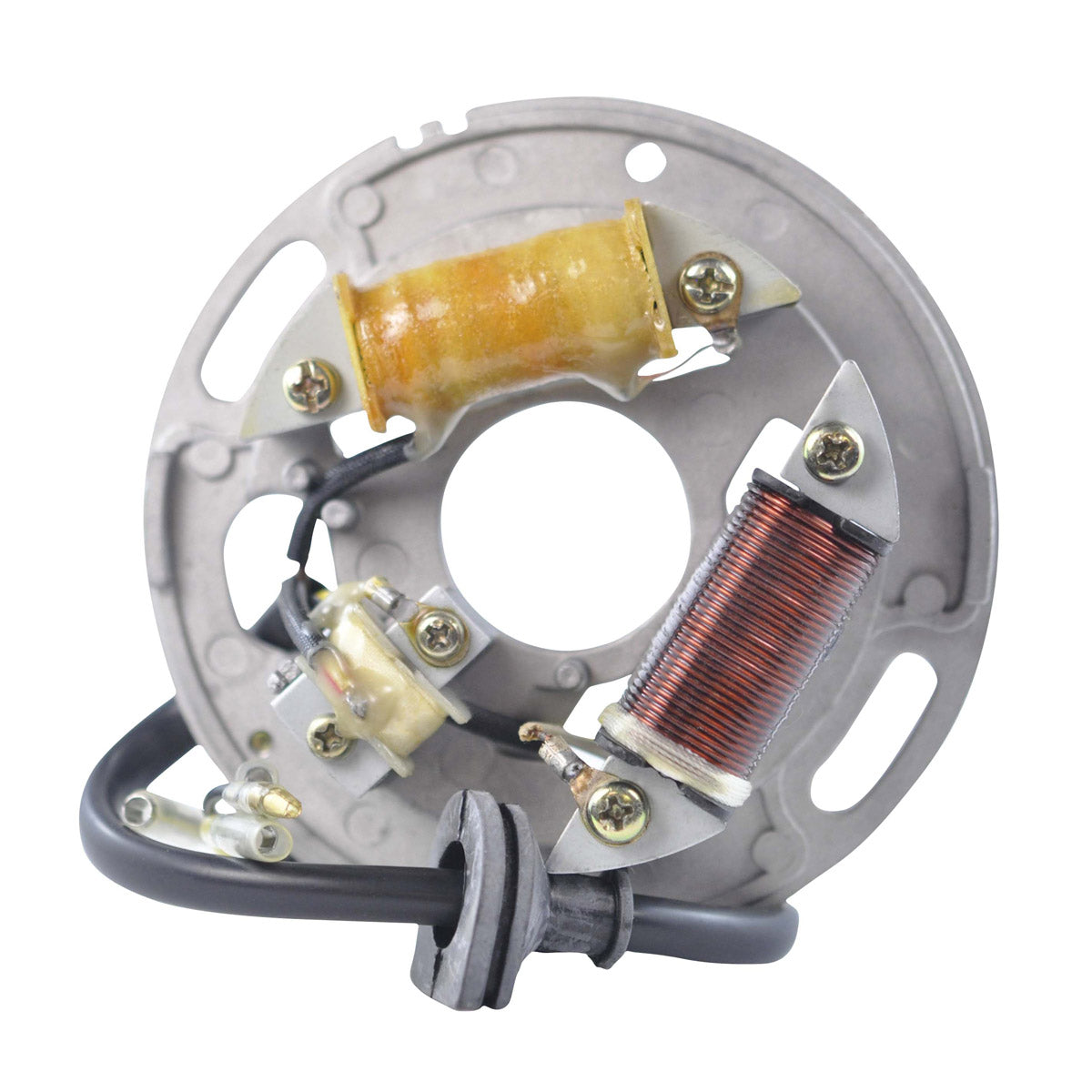

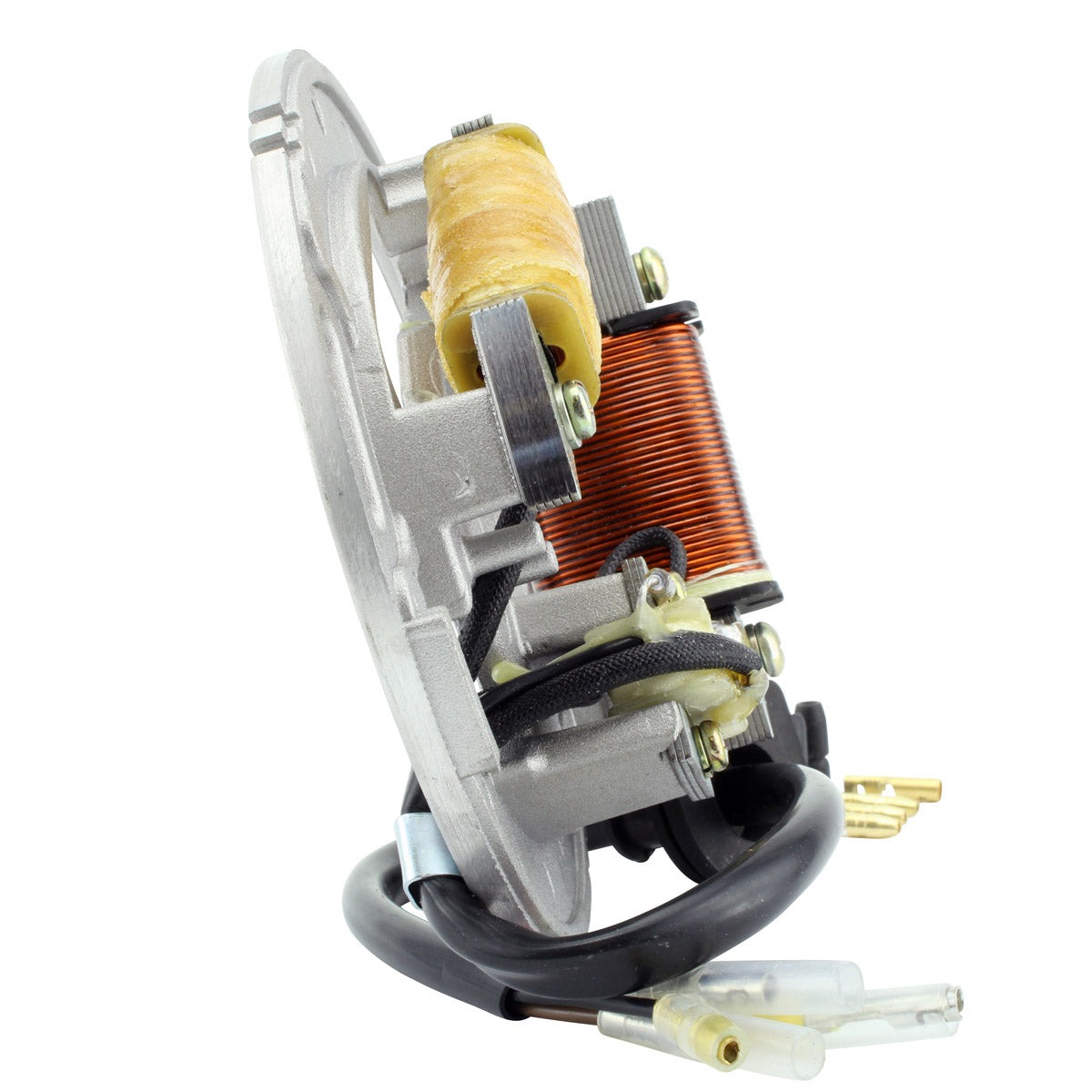

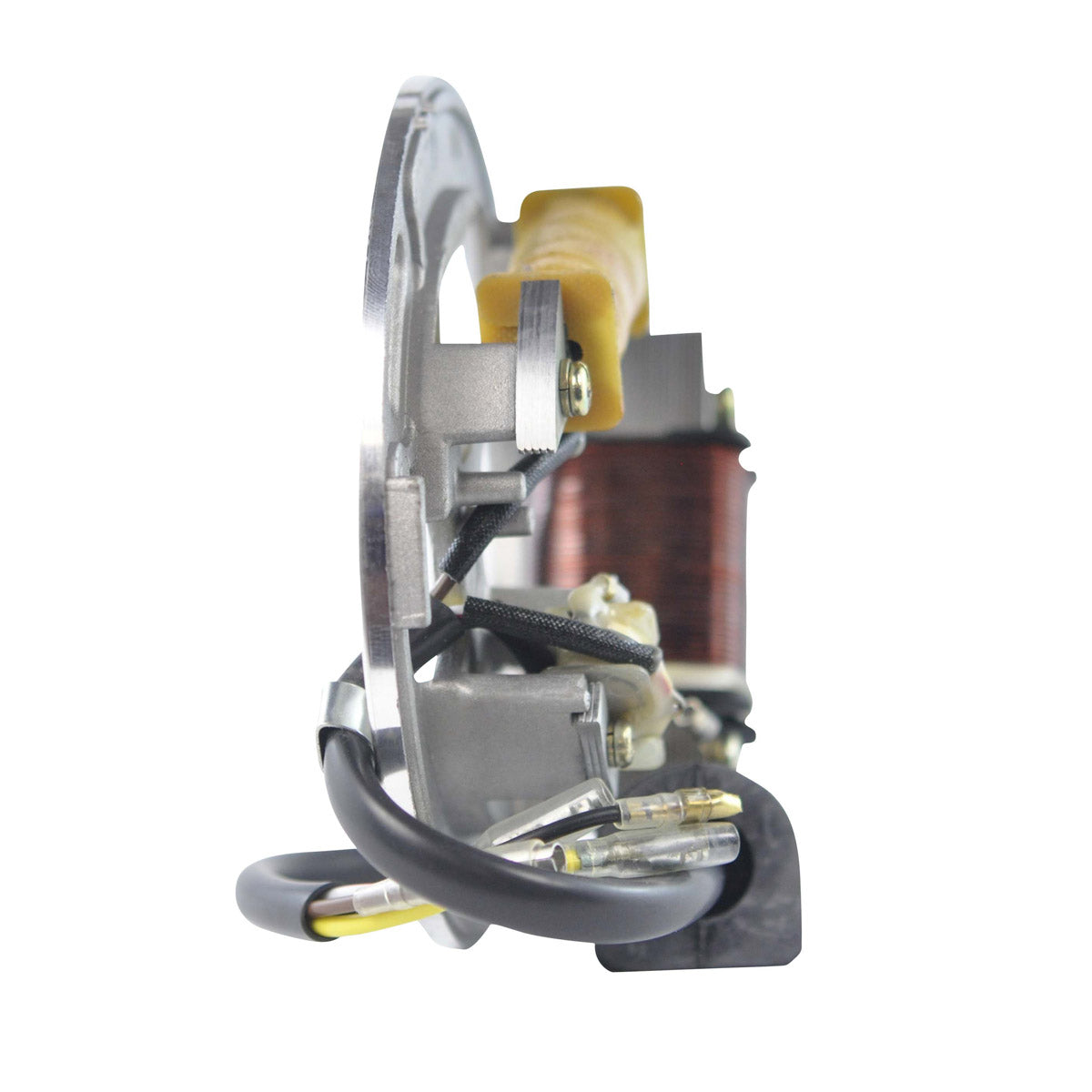

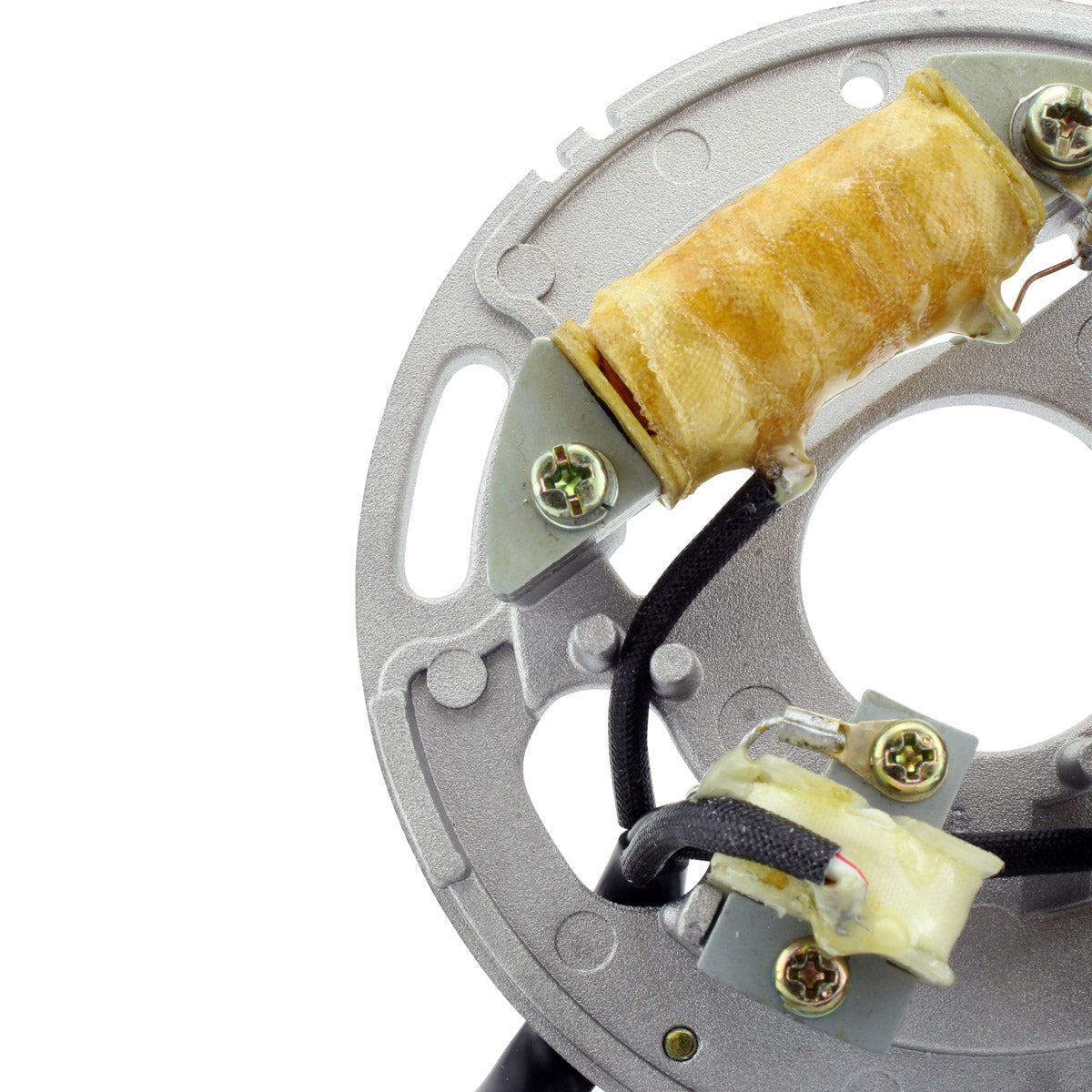

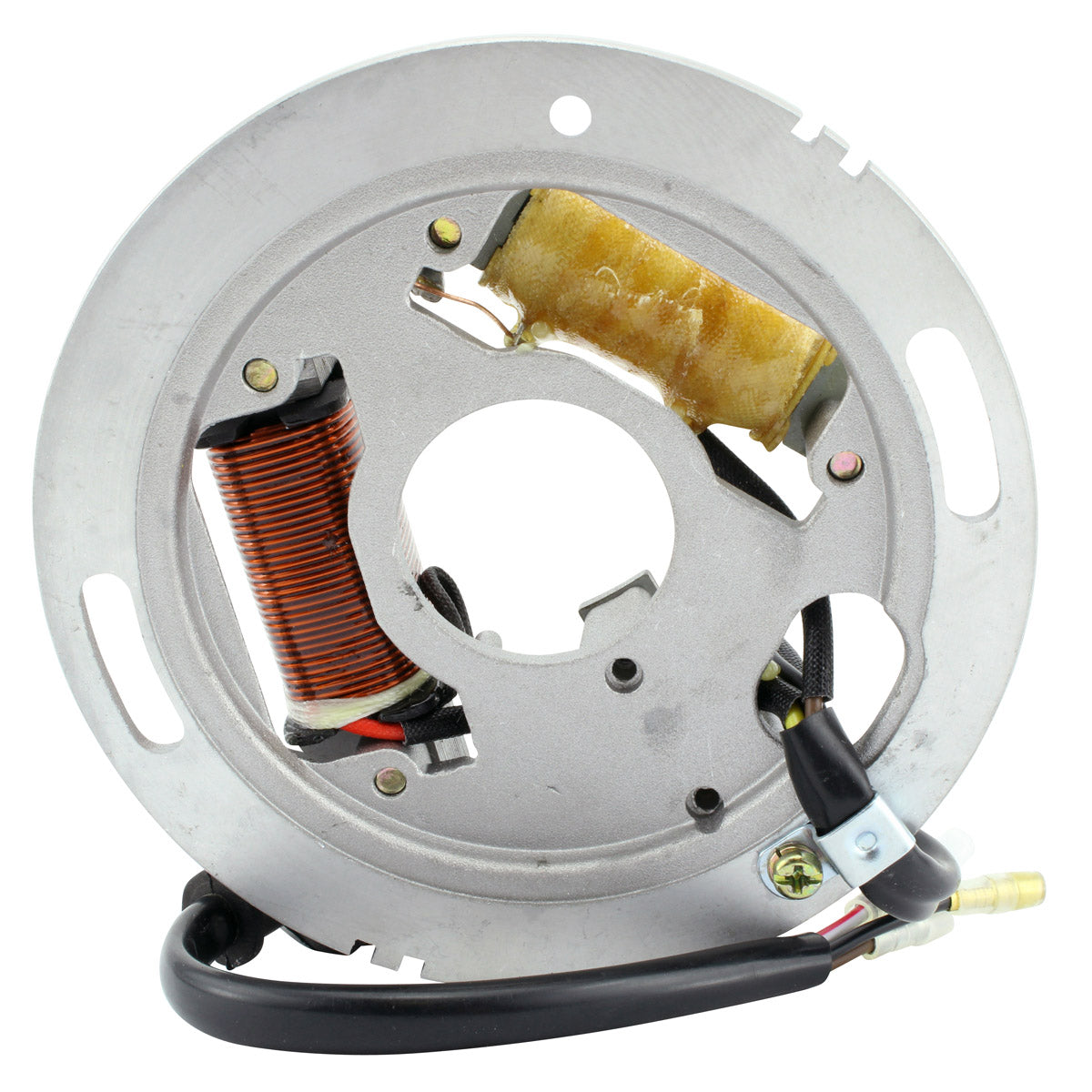

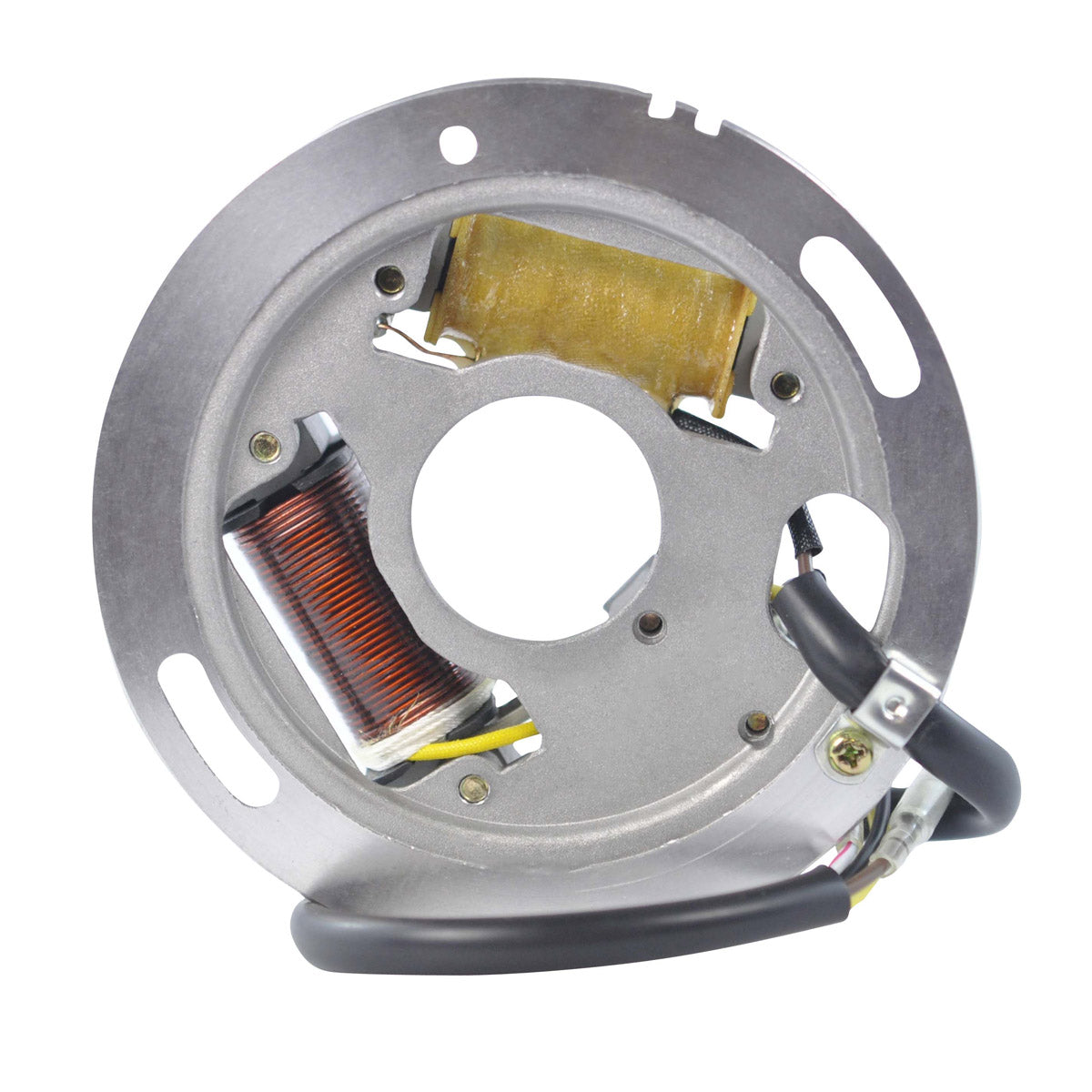

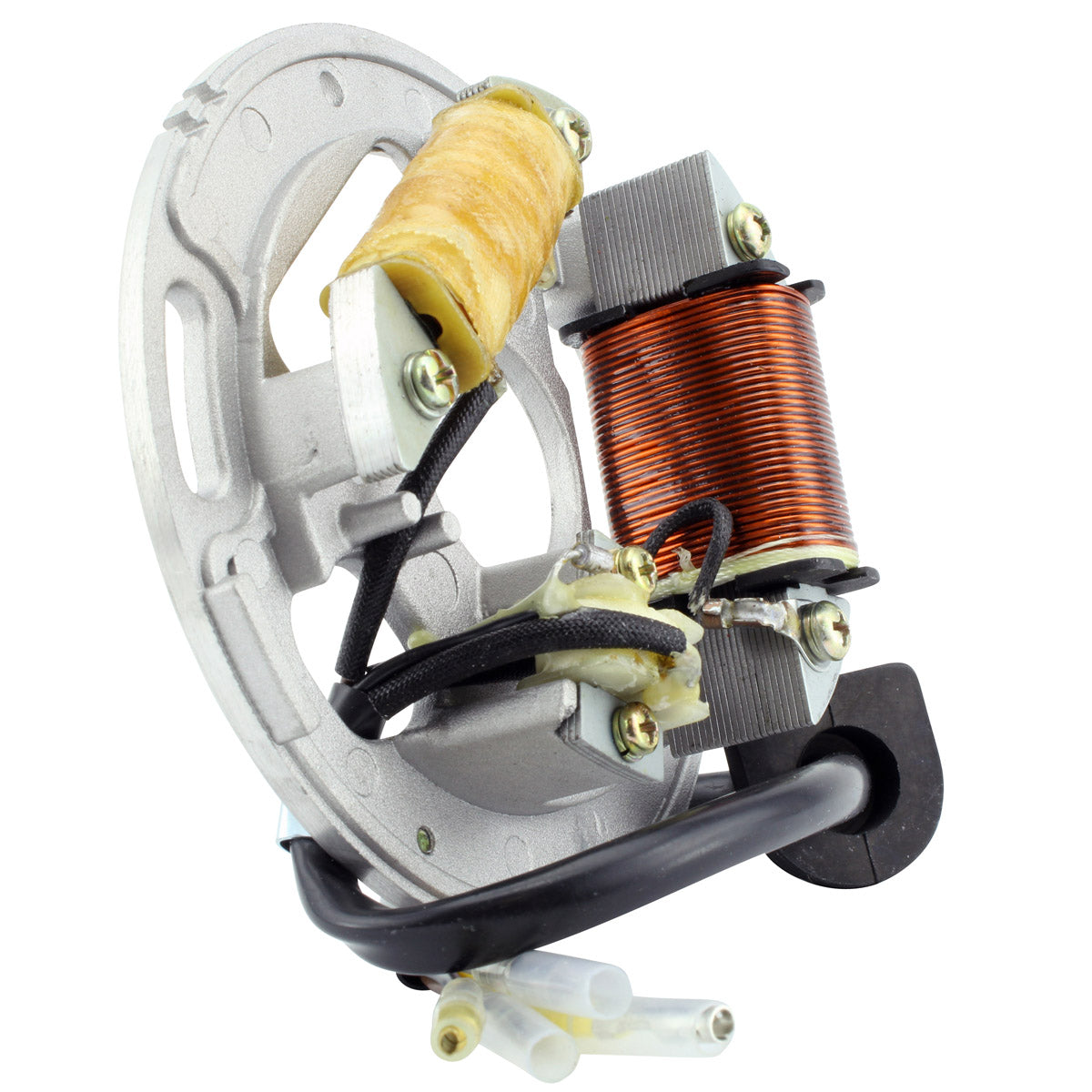

This is a brand new stator for the Yamaha BR250 Bravo 250 snowmobile, including the Bravo L and Bravo LT variants, built between 1982 and 1987. It is a complete plate assembly: the charge coil, the lighting coil and the pickup pulsar coil are all mounted and wired on one stator, so a single part restores both the ignition supply and the lighting output.

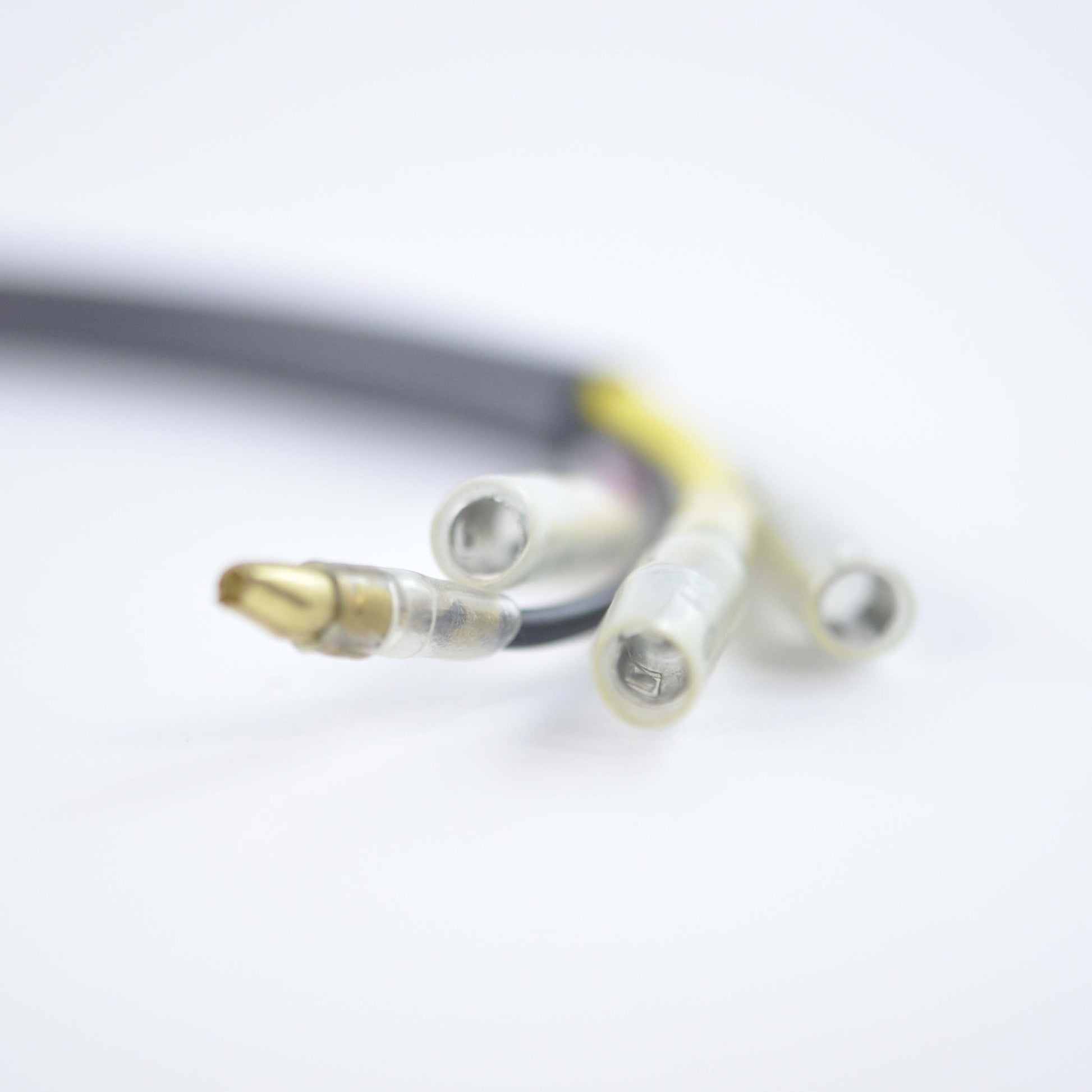

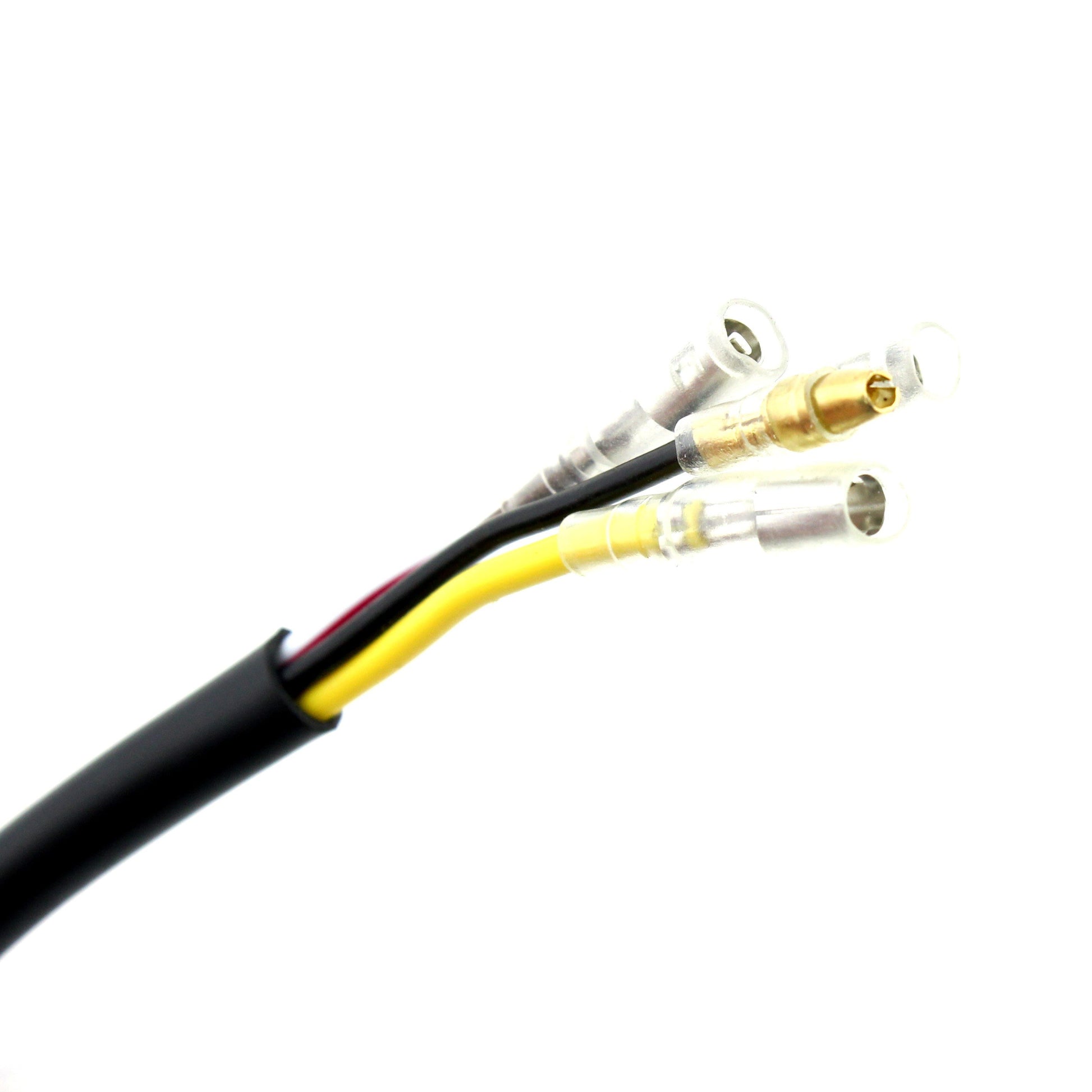

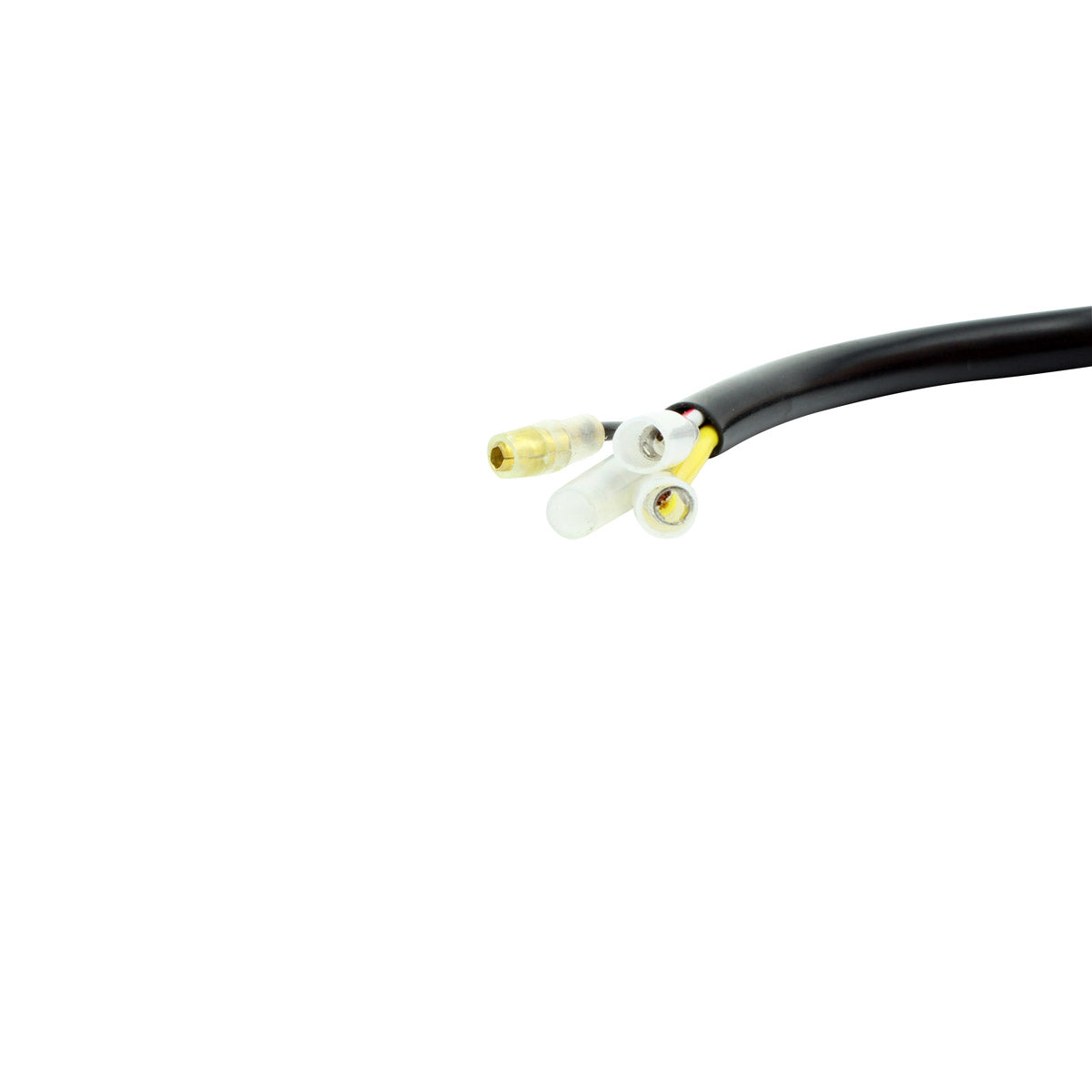

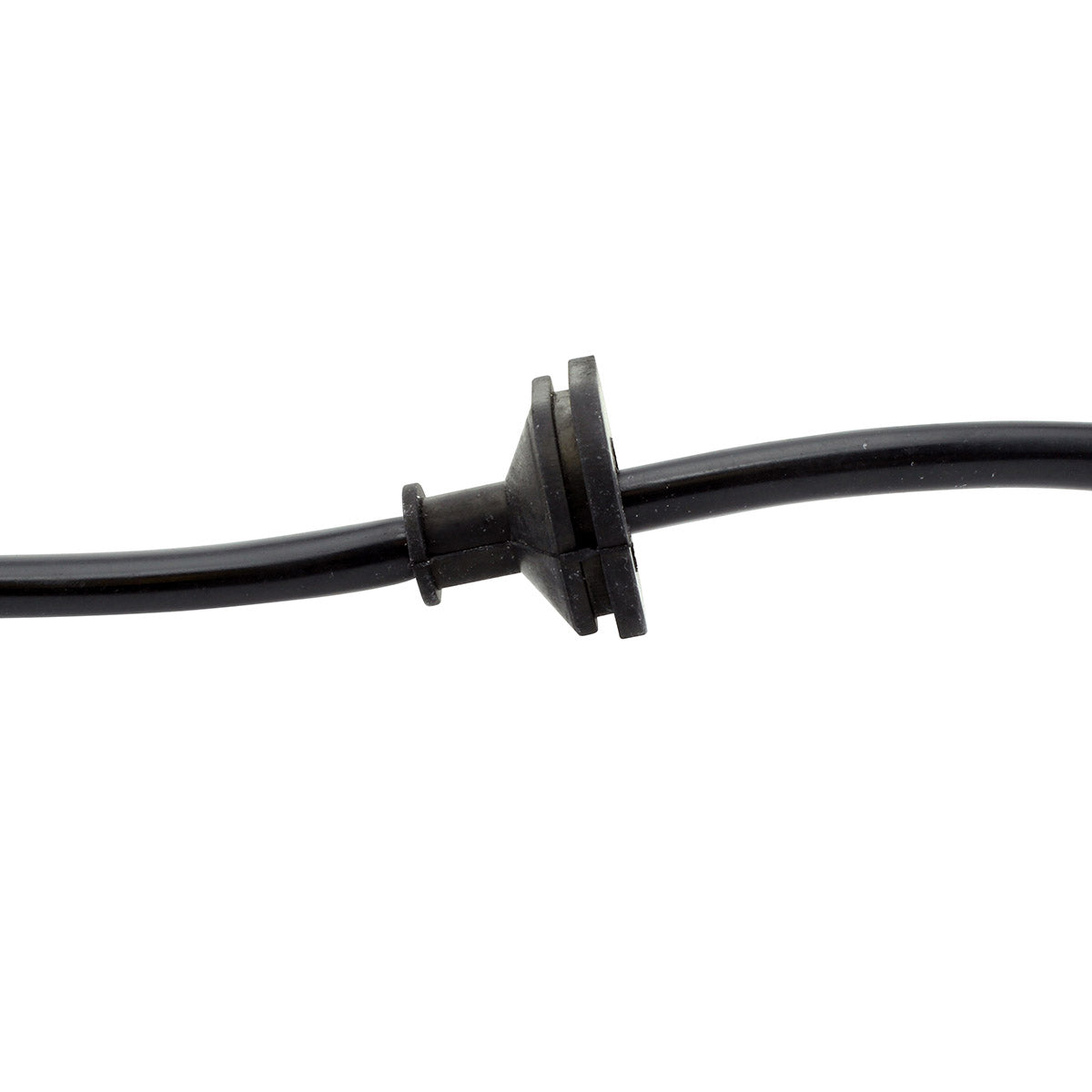

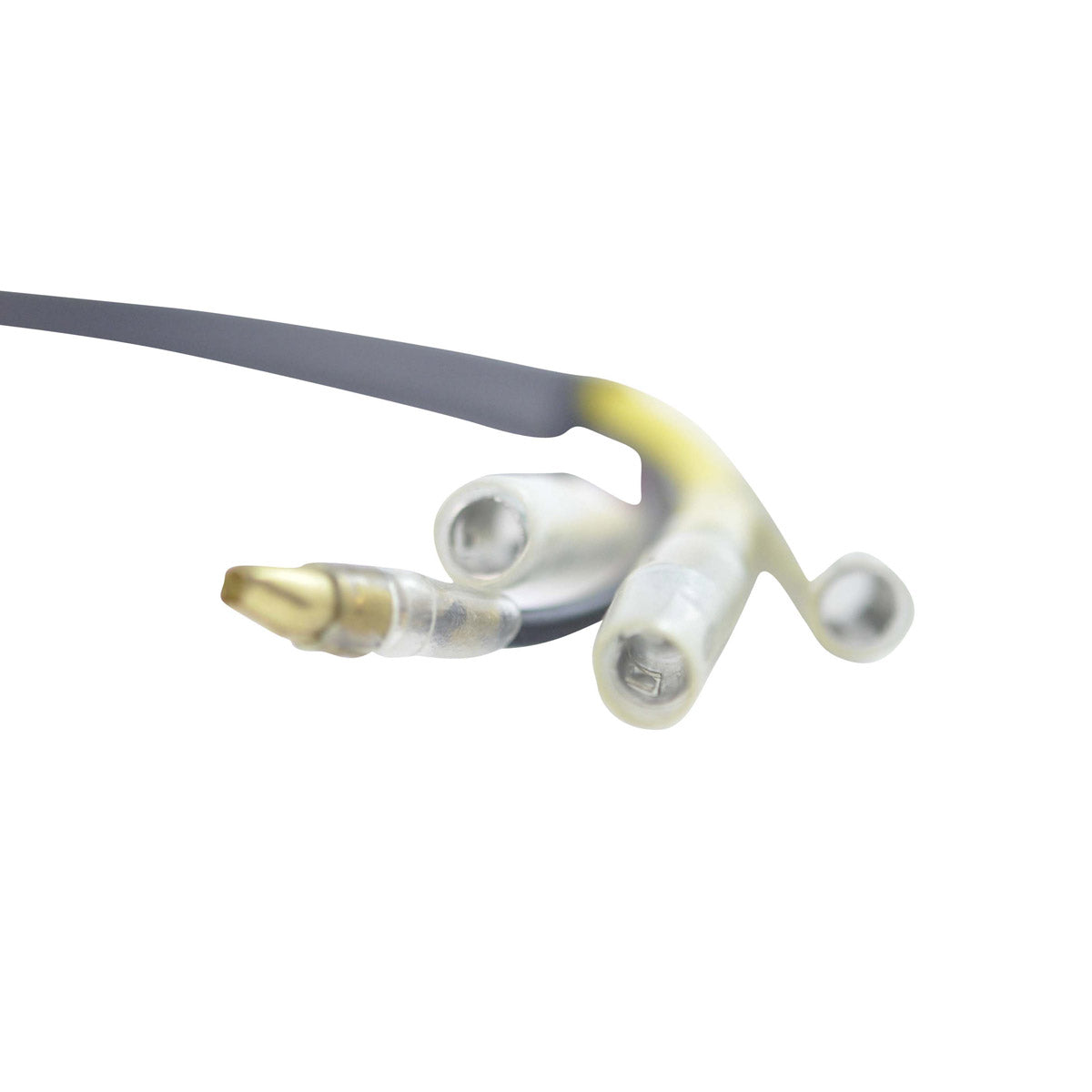

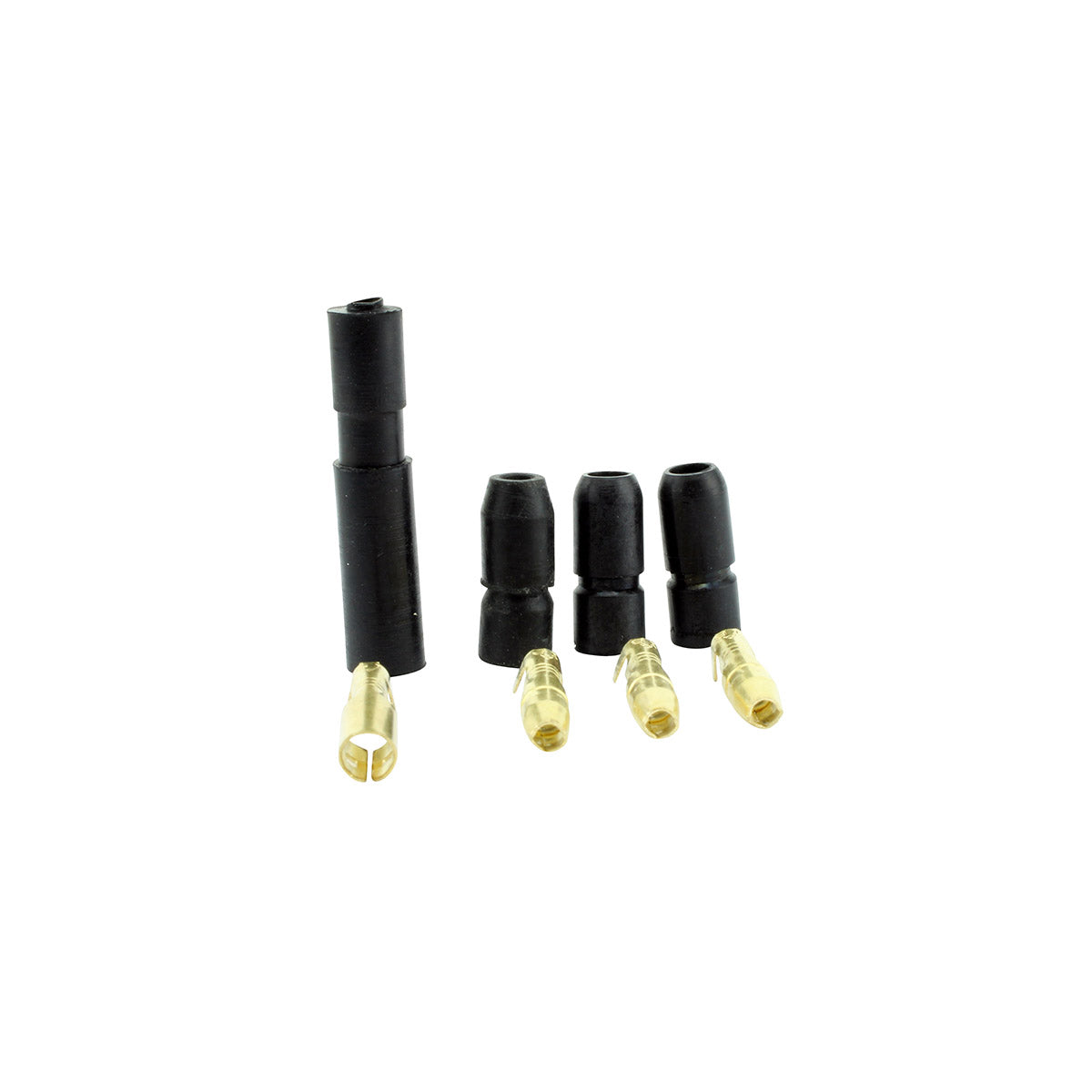

The core is built from the highest grade of lamination material and the windings use the highest grade of copper, resistant to 200 degrees Celsius. Quality exceeds the original equipment specification. A rubber grommet and a back plate are supplied with the unit, the connector is pre-installed, and additional connector pins are included so a corroded original plug can be renewed at the same time. All units shipped are tested.
Key Features
- Brand new stator, not a rewound core
- Quality exceeds the original equipment specification
- Charge coil, lighting coil and pickup pulsar coil all fitted
- Highest grade copper winding, resistant to 200 degrees Celsius
- Highest grade lamination material
- Connector pre-installed, extra connector pins supplied
- Rubber grommet and back plate included
- Every unit tested before shipment
Technical Specs
| Specification |
Detail |
| Interior diameter |
35 mm |
| Exterior diameter |
95 mm |
| Thickness |
22 mm |
| Number of wires |
4 |
| Number of terminals |
4 |
| Alternator resistance (Black to Yellow) |
0.4 ohms +/- 20% |
| Pickup coil resistance (Black to Red/White) |
200 ohms +/- 20% |
| Source resistance (Black to Brown) |
397 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
| Charge coil included |
8R4-85520-M0-00 |
| Lighting coil included |
8R4-81313-M0-00 |
| Pickup pulsar coil included |
8R4-85580-M0-00 |
| RMSTATOR part number |
RM01130 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha BR250 Bravo 250 |
1982-1987 |
| Yamaha Bravo L |
1982-1987 |
| Yamaha Bravo LT |
1982-1987 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 8R4-85560-M0-00 |
Yamaha |
| 8R4-85520-M0-00 (charge coil) |
Yamaha |
| 8R4-81313-M0-00 (lighting coil) |
Yamaha |
| 8R4-85580-M0-00 (pickup pulsar coil) |
Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. It is built as a replacement for the original stator plate on the Bravo 250, Bravo L and Bravo LT and mounts in the original position with the connector already installed.
What is included in the box?
The complete stator assembly with the charge coil, lighting coil and pickup pulsar coil fitted, plus the rubber grommet, the back plate, the pre-installed connector and a set of additional connector pins.
How do I tell whether my old stator has failed?
Measure each winding with a multimeter against the table above: about 0.4 ohms from black to yellow for the alternator winding, about 200 ohms from black to red/white for the pickup coil and about 397 ohms from black to brown for the source winding, all within 20 per cent. An open circuit on any of the three, or continuity from a winding to the plate, means the stator has failed. Weak or flickering lights usually point at the lighting winding, while a no-spark condition points at the source or pickup winding.
Do I need to buy the coils separately?
No. The charge coil 8R4-85520-M0-00, the lighting coil 8R4-81313-M0-00 and the pickup pulsar coil 8R4-85580-M0-00 are all fitted to this plate, so the single part covers all three.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
